Search Results (7)

This study focuses on the development and characterization of a bulk Ti-Al-N multiphase composite enriched with BN addition and sintered through hot pressing. The research aimed to create a material with optimized mechanical and corrosion-resistant properties suitable for demanding industrial applications. The composite was synthesized using a powder metallurgy approach with a mixture of AlN, TiN, and BN powders, processed under a high temperature and pressure. Comprehensive analyses, including microstructural evaluation, hardness testing, X-ray tomography, and electrochemical corrosion assessments, were conducted. The results confirmed the formation of a multiphase microstructure consisting of TiN, Ti₂AlN and Ti₃AlN phases. The microstructure was uniform with minimal porosity, achieving a hardness within the range of 500–540 HV2. Electrochemical tests revealed the formation of a passive oxide layer that provided moderate corrosion resistance in chloride-rich environment. However, localized pitting corrosion was observed under extreme conditions. The study highlights the potential of a BN admixture to enhance mechanical and corrosion-resistant properties and suggests directions for further optimization in sintering processes and material formulations. Full article

This paper presents a comprehensive study of two tool materials designed for the machining of Inconel 718 superalloy, produced through two distinct sintering techniques: High Pressure–High Temperature (HPHT) sintering and Spark Plasma Sintering (SPS). The first composite (marked as BNT), composed of 65 vol% cubic boron nitride (cBN), was sintered from the cBN–TiN–Ti₃SiC₂ system using the HPHT technique at a pressure of 7.7 GPa. The second composite (marked as AZW) was fabricated from the Al₂O₃–ZrO₂–WC system using SPS at a pressure of 63 MPa. The final phase composition of BNT material differed significantly from the initial composition due to reactions occurred during sintering. In contrast, the phase composition of the AZW ceramic composite before and after sintering was similar. The materials exhibited high quality, as evidenced by a Young’s modulus of 580 GPa for BNT and 470 GPa for AZW, along with hardness of 26 GPa for BNT and 21 GPa for AZW. Both composites were used to prepare cutting inserts that were evaluated for their performance in machining Inconel 718 alloy. While both inserts showed durability comparable to their respective reference commercial inserts, they differed in performance and price relative to one another. Full article

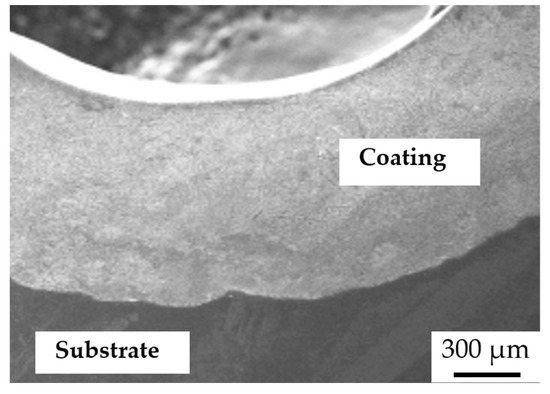

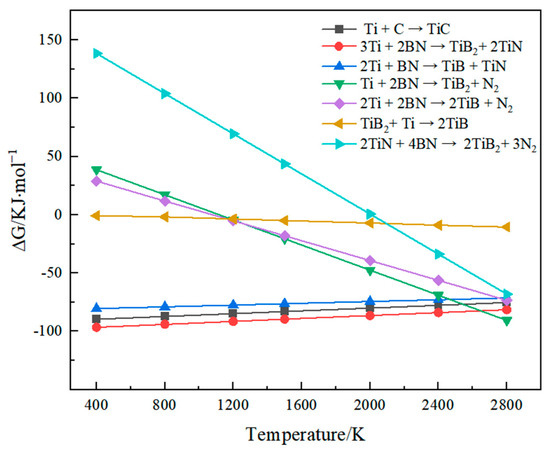

The TC4 (Ti-6Al-4V) alloy has problems such as low material hardness, poor wear resistance, and abnormal sensitivity to adhesive wear and fretting wear. In this study, we used graphene-reinforced Ti/BN composite coatings prepared on the surface of the TC4 alloy by argon arc cladding technology. We explored the optimal content of graphene to improve its hardness and wear resistance. The physical phases and microstructures of the coatings were analyzed using an X-ray diffractometer, metallurgical microscope, and scanning electron microscope. Microhardness and wear properties of the cladding coating were measured by a Vickers hardness tester and a universal friction and wear tester. The incorporation of graphene resulted in a transformation of the reinforcing phase in the coating from TiN to Ti(N, C). The C element in the molten pool was substituted with the N element in an unending solid solution, resulting in the formation of Ti(N, C) through intermittent nucleation. As the amount of graphene in the molten pool increases, the concentration of carbon (C) also increases. This leads to the continuous growth of Ti(N, C) particles, resulting in a coarser coating structure and a decrease in coating performance. When the graphene content is 5 wt.%, the microstructure refinement of the coating is the most obvious, the microhardness is 900 HV_0.2, which is 3 times higher than that of the matrix, and the wear rate is 4.9 × 10⁻⁵ mm³/(N·m), which is 4.9 times higher than that of the matrix. The wear mechanism of the coating is primarily abrasive wear with some slight adhesive wear. Full article

The effects of the combined addition of B and Ti, as well as the influence of different strain rates on the hot ductility behavior of low carbon, continuously cast, microalloyed steels were investigated in this work. Tensile tests, microstructure analyses, and thermokinetic simulations were performed with in situ melted samples. Furthermore, prior austenite grain evaluations were carried out for the two different microalloyed steels. Increasing the strain rate brought improvements to the ductility, which was more significant in the steel with the leanest composition. The steel containing more B and Ti presented a better hot ductility behavior under all conditions tested. The main causes for the improvements rely on the precipitation behavior and the austenite–ferrite phase transformation. The preferential formation of TiN instead of fine BN and AlN was seen to be beneficial to the ductility, as well as the absence of MnS. Grain boundary segregation of free B that did not form BN retarded the ferrite formation, avoiding the brittleness brought by the thin ferrite films at the austenite grain boundaries. Furthermore, it was revealed that for the steels in question, the prior austenite grains have less influence on the hot ductility behavior than the precipitates and ferrite formation. Full article

Aluminum (Al) and its alloys are the second most used materials spanning industrial applications in automotive, aircraft and aerospace industries. To comply with the industrial demand for high-performance aluminum alloys with superb mechanical properties, one promising approach is reinforcement with ceramic particulates. Laser powder-bed fusion (LPBF) of Al alloy powders provides vast freedom in design and allows fabrication of aluminum matrix composites with significant grain refinement and textureless microstructure. This review paper evaluates the trends in in situ and ex situ reinforcement of aluminum alloys by ceramic particulates, while analyzing their effect on the material properties and process parameters. The current research efforts are mainly directed toward additives for grain refinement to improve the mechanical performance of the printed parts. Reinforcing additives has been demonstrated as a promising perspective for the industrialization of Al-based composites produced via laser powder-bed fusion technique. In this review, attention is mainly paid to borides (TiB₂, LaB₆, CaB₆), carbides (TiC, SiC), nitrides (TiN, Si₃N₄, BN, AlN), hybrid additives and their effect on the densification, grain refinement and mechanical behavior of the LPBF-produced composites. Full article

Owing to their extreme hardness, cubic boron nitride (cBN) composites are widely used in cutting applications. The performance of cBN composites is closely related to the characteristics of the binder. Therefore, novel binders must be developed to improve the performance of cBN composites. In the present work, TiAl intermetallics were used as binders to fabricate cBN composites by employing a high-temperature and high-pressure sintering method. The phase transformation, sintering reaction mechanism, thermal stability, and mechanical properties of the resultant cBN composites were investigated. It was found that during the sintering process, Ti atoms preferentially reacted with boron nitride particles, whereas Al atoms enriched and transformed into TiAl₃ phases and formed cBN/AlN, AlB₂/TiN, and TiB₂/TiAl₃-layered structures eventually. The composites maintained good oxidation resistance at 1200 °C. A decrease in the particle size of the TiAl binder improved the uniformity of particle size distribution and increased the flexural strength of the composites. Full article

Titanium alloy is a major structural material with excellent high specific strength in aerospace applications. Cubic boron nitride (cBN) is a synthetic wear-resistant material with high hardness, similar to that of diamond, that is used in mechanical cutting and grinding. In addition, the thermal stability of cubic boron nitride particles is much better than that of diamond. In order to further enhance the wear resistance of the Ti6Al4V alloy, the laser cladding (LC) technology characteristics of metallurgical bonding were used to prepare cubic boron nitride/Ti6Al4V and Ni-plated cubic boron nitride/Ti6Al4V composite coatings on Ti6Al4V substrates in this paper. However, in the laser molten pool, it is difficult to retain the raw properties of cubic boron nitride particles under laser radiation. Both composite coatings were analyzed using scanning electron microscopy (SEM), energy dispersive spectroscopy (EDS), X-ray diffraction (XRD), and X-ray photoelectron spectroscopy (XPS). The microstructures and interface bonding between cubic boron nitride particles and the Ti6Al4V matrix were examined using SEM, and the wear resistance and the worn track morphology of the composite coatings were evaluated using the ball-on-disc wear test and step profiler (WTM-2E). The results indicated that the Ni-plated cubic boron nitride/Ti6Al4V composite coating showed fewer thermal defects in comparison with the cubic boron nitride/Ti6Al4V coating. The Ni plating on the surface of cubic boron nitride particles was able to avoid the generation of thermal cracking of the cubic boron nitride particles in the composite coating. The TiN reaction layer was formed between the cubic boron nitride particles and Ti6Al4V matrix, which effectively prevented the further decomposition of the cubic boron nitride particles. The XRD and XPS results confirmed that the TiN reaction layer formed between the cubic boron nitride particles and Ti6Al4V. The Ni plating on the surface of the cubic boron nitride particles was also beneficial for increasing the wear resistance of the composite coating. Full article
