Search Results (14)

Traditional binary coatings like TiN and CrN display limited thermal stability and wear resistance under extreme conditions. High-entropy alloy nitride (HEAN) coatings offer a promising solution due to their customizable composition and unique properties, including high hardness, corrosion resistance, and thermal stability. This study focused on (AlCrNbTaTi)N HEAN coatings to address a critical need for materials capable of enduring extreme mechanical and tribological demands by examining the impact of aluminum content on their structural and mechanical properties, providing insights for optimizing coatings in harsh conditions through a self-assembled nanolayer structure with enhanced resilience and performance. The coatings were deposited via a cathodic arc by employing an AlCrNbTaTi alloy target composed of aluminum (20, 50, 60, 70%) and equal molar ratios of Cr, Nb, Ta, and Ti. The coatings were characterized through grazing incidence X-ray diffraction, SEM, HR-TEM, a nano-indentation test, and a friction and wear test. The results indicated that with increasing Al content, the structure of (AlCrNbTaTi)N coatings shifted from FCC to an amorphous state, leading to a reduction in the hardness and elastic modulus, accompanied by an increase in the wear rate and friction coefficient. The (AlCrNbTaTi)N coating, with an equal atomic ratio of metallic elements, showed potential as a hard tool coating. It demonstrated outstanding mechanical and tribological properties, with a 34.5 GPa hardness, 369 GPa modulus, 0.35 friction coefficient, and 8.2 × 10⁻¹⁹ m²·N⁻¹ wear rate. The findings highlight the potential of (AlCrNbTaTi)N coatings to extend tool life and improve operational efficiency, helping advance materials engineering for industrial applications. Full article

In this study, we used the depth-sensing indentation technique to determine the cracking resistance of different PVD hard coatings deposited on tool steel substrates. By comparison, with the load–displacement curves, measured at the sites of carbide inclusion and a tempered martensite matrix in the D2 tool steel substrate surface, we observed different fracture mechanisms on TiAlN hard coating prepared by sputtering. Additional information about the deformation and fracture phenomena was obtained from the SEM images of FIB cross-sections of both types of indents. We found that the main deformation mechanism in the coating is the shear sliding along the columnar boundaries, which causes the formation of steps on the substrate surface under individual columns. Using nanoindentation test, we also analyzed the cracking resistance of a set of nl-(Cr,Al)N nanolayer coatings with different Cr/Al atomic ratios, which were sputter deposited in a single batch. From the indentation curves, we determined the loads (F_c) at which the first pop-in appears and compared them with the plasticity index H³/E². A good correlation of both parameters was found. We also compared the indentation curves of the TiAlN coating, which were prepared by cathodic arc evaporation using 1-fold, 2-fold and 3-fold rotation of the substrates. Additionally, on the same set of samples, the fracture toughness measurements were performed by micro-cantilever deflection test. The impact of growth defects on the cracking resistance of the hard coatings was also confirmed. Full article

Reports of the influence of surface roughness on the adhesion and tribological performance of contemporary nitride coatings with different layer designs are still scarce in the literature. Therefore, in this study, we evaluated the behavior of a single-layer TiAlN, a bilayer TiAlN/CN_x, and a nanolayer AlTiN/TiN coating. Coatings were deposited in an industrial magnetron sputtering unit on the substrates of EN 100Cr6 steel, prepared to four degrees of surface roughness (Sa = 10–550 nm). The coatings’ adhesion was determined by scratch tests performed perpendicular and parallel to the machining marks. Dry reciprocating sliding tests in air were employed to evaluate the coatings’ tribological behavior against an Al₂O₃ ball. Before and after the tests, coating properties were characterized by 3D profilometry, confocal microscopy, and energy dispersive spectroscopy. Deposition of all coatings significantly altered the surface topography and increased the roughness of the samples. No general rule could be established for the effect of surface roughness on tribological behavior and adhesion of different hard coatings. For very fine surface finishes the adhesion and tribological performance of TiAlN and TiAlN/CN_x coatings was independent of the surface roughness. For the roughest surfaces, a decrease in adhesion and an increase in the wear rate were observed. The AlTiN/TiN coating exhibited the largest sensitivity of adhesion to roughness and scratching direction. The coefficient of friction and wear rate increased when AlTiN/TiN roughness exceeded Sa ≈ 100 nm. Full article

In the present study, (Cr,Al)N nanolayer coatings with different Al/Cr atomic ratios were deposited by magnetron sputtering on different substrate materials (H11 and D2 tool steel, alumina). To prepare the (Cr,Al)N coatings with different Al/Cr atomic ratios in the same batch, we used two targets composed of two triangle-like segments together with two standard Al and Cr targets. This approach enabled us to study the evolution of structural and mechanical properties in dependence on composition. The elemental composition of the coatings was determined by energy-dispersive X-ray analysis (EDS). The phase composition of the (Cr,Al)N coatings was determined utilizing X-ray diffraction (XRD), while scanning electron microscopy (SEM) was employed to assess their morphology and microstructure. The coating surface topography was analyzed by atomic force microscopy (AFM). In order to evaluate the effect of the Al/Cr atomic ratio on the oxidation behavior, the (Cr,Al)N coatings were oxidized in ambient atmospheres at temperatures between 700 and 850 °C and subsequently analyzed by means of cross-sectional SEM and transmission electron microscopy (TEM). The oxidation rate, determined by weight gain over time, was utilized to quantify the oxidation process. The oxidation tests showed that the Al-rich (Cr,Al)N nanolayer coatings exhibit a considerably better oxidation resistance than the Cr-rich ones. We found that the oxide scale formed on the Al-rich coating is composed of double layers: a Cr-oxide top layer and an inner (Cr,Al) mixed oxide layer. In contrast, the oxide scale of the Cr-rich coating mainly consists of the Cr₂O₃ layer. In particular, we focused on the oxidation process occurring at the locations of growth defects. We noticed that the first oxidation products on the coated substrate occurred at a temperature that was much lower than the temperature for the (Cr,Al)N coating oxidation initiation. These products (iron oxides) formed only at the sites of those growth defects that extended through the entire coating thickness. Full article

The studies are focused on the properties of the multilayer composite coating based on the (Ti,Y,Al)N system with high content of yttrium (about 40 at.%) of yttrium (Y). The hardness and elastic modulus were defined, and the resistance to fracture was studied during the scratch testing. Two cubic solid solutions (fcc phases), including c-(Ti,Y,Al)N and c-(Y,Ti,Al)N, are formed in the coating. The investigation of the wear resistance of the (Ti,Y,Al)N-coated tools during the turning of steel in comparison with the wear resistance of the tools with the based on the (Ti,Cr,Al)N system coating and the uncoated tools found a noticeable increase (by 250%–270%) in rake wear resistance. Active oxidation processes are observed in the (Ti,Y,Al)N coating during wear. It can be assumed that yttrium oxide is predominantly formed with a possible insignificant formation of titanium and aluminum oxides. At the same time, complete oxidation of c-(Y,Ti,Al)N nanolayers is not observed. Some hypotheses explaining the rather high performance of a coating with a high yttrium content are considered. Full article

The properties and oxidation wear patterns in the composite nanostructured coating of Zr-ZrN-(Zr,Mo,Al)N were studied during the turning of Inconel 718 alloy at the cutting speeds of v_c = 125 and 200 m/min. The hardness of the coating, its elastic modulus, and critical fracture load during the scratch testing were determined. The study focused on the tribological properties of the Zr-ZrN-(Zr,Mo,Al)N coating at temperatures of 400–900 °C paired with an insert made of Inconel 718, which exhibited a certain advantage over the reference coatings of Zr-ZrN and Ti-TiN-(Ti,Cr,Al)N of similar thickness. The coating of Zr-ZrN-(Zr,Mo,Al)N provided for the longest tool life at the cutting speed of v_c = 125 m/min (the tool life was four times longer in comparison with that of the uncoated tool and 15% longer in comparison with that of the Ti-TiN-(Ti,Cr,Al)N-coated tool) and at the cutting speed of v_c = 200 m/min (the tool life was 2.5 times longer in comparison with that of the uncoated tool and 75% longer in comparison with that of the Ti-TiN-(Ti,Cr,Al)N-coated tool). While at the cutting speed of v_c = 125 m/min, the surface coating layers exhibit only partial oxidation of the external layers (to a depth not exceeding 250 nm), with mostly preserved cubic nitride phases, and then the cutting speed of v_c = 200 m/min leads to almost complete oxidation (to the depth of at least 500 nm), however, with a partially preserved nanolayered structure of the coating. Full article

The microstructure and surface topography of PVD hard coatings are among the most important properties, as they significantly determine their mechanical, tribological and other properties. In this study, we systematically analyzed the microstructure and topography of a TiAlN/CrN nanolayer coating (NL-TiAlN/CrN), not only because such coatings possess better mechanical and tribological properties than TiAlN and CrN monolayer coatings, mainly because the contours of the individual layers, in the cross-sectional STEM or SEM images of such coatings, make it easier to follow topographic and microstructural changes that occurred during its growth. We investigated the effects of the substrate rotation modes on the microstructure and surface topography of the NL-TiAlN/CrN coating, as well as on the periodicity of the nanolayer structure. The influence of the substrate material and the ion etching methods were also studied, while special attention was given to the interlayer roughness and influence of non-metallic inclusions in the steel substrates on the growth of the coating. The topographical features of the NL-TiAlN/CrN coating surface are correlated with the observations from the cross-sectional TEM and FIB analysis. Selected non-metallic inclusions, covered by the NL-TiAlN/CrN coating, were prepared for SEM and STEM analyses by the focused ion beam. The same inclusions were analyzed prior to and after deposition. We found that substrate rotation modes substantially influence the microstructure, surface topography and periodicity of the NL-TiAlN/CrN layer. Non-metallic inclusions in the substrates cause the formation of shallow craters or protrusions, depending on their net removal rates during the substrate pretreatment (polishing and ion etching), as compared to the matrix. Full article

This paper discusses the results of studies focused on the wear resistance, patterns of wear and plastic properties of Cr,Mo-(Cr,Mo,)N-(Cr,Mo,Al)N coating, containing 20 at.% Mo. The coating had a nanolayer structure with a modulation period λ = 50 nm. The studies revealed the hardness, fracture resistance in scratch testing, as well as elemental and phase composition of the coating. The studies of the tool life of carbide cutting tools with the Cr,Mo-(Cr,Mo,)N-(Cr,Mo,Al)N coating proved their longer tool life compared to that of uncoated tools and tools with the reference Cr-(Cr,Al)N coating of equal thickness and equal content of aluminum (Al). The studies included the comparison of the tools coated with Cr,Mo-(Cr,Mo,)N-(Cr,Mo,Al)N and Cr-(Cr,Al)N. The experiments focused on the specific features of the coating nanostructure and were conducted using a transmission electron microscope (TEM), revealing the different mechanisms of fracture. The penetration of particles of the material being machined between nanolayers of the coating results in interlayer delamination. When exposed to a moving flow of the material being machined, plastic deformation (bending) of the coating nanolayers occurs. The diffusion of iron into the coating (up to 200 nm) and diffusion of Cr and Mo into the cut material to a depth of up to 250 nm are observed. The presented information can help in the design of metal cutting tools and the choice of coatings for them. Full article

The article describes the results of the investigation focused on the properties of the Zr,Hf-(Zr,Hf)N-(Zr,Hf,Me,Al)N coatings, where Me means chromium (Cr), titanium (Ti), or molybdenum (Mo). These coatings have three-layer architecture, including adhesion, transition, and wear-resistant layers, while the latter, in turn, has a nanolayer structure. Despite the fact that the coatings under study have close values of hardness and critical fracture load L_C2, there are noticeable differences in wear resistance during the turning of steel. The tools with the coatings under study demonstrated better wear resistance compared to an uncoated tool and the tool with the commercial ZrN coating. The best wear resistance was detected for a tool with the Zr,Hf-(Zr,Hf)N-(Zr,Hf,Ti,Al)N coating. The study of the pattern of cracking in the structure of the coatings has found that, during the cutting process, active cracking occurs in the coating with Cr, which leads to the fracture of the coating, while the process of cracking is noticeably less active in the coatings with Ti or Mo. Full article

The article compares the properties of multilayer composite wear-resistant coatings of Zr–ZrN–(Zr, Mo, Al)N, Ti–TiN–(Ti, Mo, Al)N, and Cr–CrN–(Cr, Mo, Al)N. The investigation was focused on hardness, resistance to fracture during scratch tests, elemental composition, and structure of the coatings. Experiments were carried out to study the wear resistance of coated carbide tools during the turning of 1045 steel and of NiCr20TiAl heat-resistant nickel alloy. With the elemental compositions identical in the content of molybdenum (Mo) and aluminium (Al), identical thicknesses and nanolayer periods of λ, the coatings being studied demonstrated a noticeable difference in wear resistance. Both during the turning of steel and nickel-based alloy, the highest wear resistance was detected for tools with the Zr–ZrN–(Zr, Mo, Al)N coating (the tool life was 3–5 times higher than for uncoated tools). The good wear resistance of the Zr–ZrN–(Zr, Mo, Al)N coating may be related to the optimal combination of hardness and plasticity and the active formation of molybdenum oxide (MoO₃) on the coating surface during the cutting, with good tribological and protective properties. Full article

AlCr-based hard nitride coatings with different chemical compositions and architectures have been successfully developed and applied over the last few decades. Coating properties are mainly influenced by deposition conditions and the Al/Cr content. The fcc structure is dominant for an Al-content up to Al_0.7Cr_0.3N and is preferred for most cutting applications. Different (AlCrX)N alloying concepts, including X = Si, W, B, V, have been investigated in order to enhance oxidation resistance and wear behaviour and to provide tribological properties. AlCr-based oxynitrides and even pure oxides (Al_1−xCr_x)₂O₃ with different crystalline structures have been explored. Multi- and nanolayered coatings within the AlCr materials system, as well as in combination with (TiSi)N, for example, have also been implemented industrially. The dominant deposition technology is the vacuum arc process. Recently, advanced high-power impulse magnetron sputtering (HiPIMS) processes have also been successfully applied on an industrial scale. This paper describes basic coating properties and briefly addresses the main aspects of the coating processes as well as selected industrial applications. Full article

This paper discusses the surface-engineered nanomaterials (adaptive nano-structured physical vapor deposition (PVD) thin-film coatings) that can effectively perform under severely non-equilibrium tribological conditions. The typical features of these nanomaterials are: (a) Dynamically interacting elements present in sufficient amounts to account for its compositional/structural complexity; (b) an initial non-equilibrium state; (c) optimized micro-mechanical characteristics, and (d) intensive adaptation to the external stimuli. These could be considered as functionally graded nanomaterials that consist of two major layers: an underlying (2–3 microns) thin-film PVD coating, the surface on which an outer nanoscale layer of dynamically re-generating tribo-films is produced as a result of self-organization during friction. This tribo-film nanolayer (dissipative structures) was discovered to represent complex matter, which exhibits characteristic properties and functions common to naturally occurring systems. These include adaptive interaction with a severely non-equilibrium environment; formation of compounds such as sapphire, mullite, and garnet, similar to those that arise during metamorphism; ability to evolve with time; as well as complexity and multifunctional, synergistic behavior. Due to several nanoscale effects, this nanolayer is capable of protecting the surface with unprecedented efficiency, enabling extensive control over the performance of the entire surface-engineered system. These surface-engineered nanomaterials can achieve a range (speed and level) of adaptability to the changing environment that is not found in naturally occurring materials. Therefore, these materials could be classified as metamaterials. The second major characteristic of these materials is the structure and properties of the coating layer, which mostly functions as a catalytic medium for tribo-film generation and replenishment. A functioning example of this type of material is represented by an adaptive hard thin-film TiAlCrSiYN/TiAlCrN nano-multilayer PVD coating, which can efficiently work in an extreme environment, typical for the dry machining of hard-to-cut materials. Full article

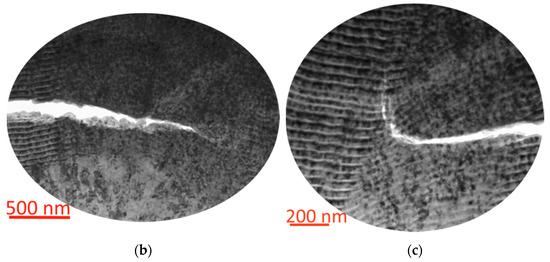

Molds made of tool steels used in aluminum high-pressure die casting should routinely withstand tens of thousands of injection cycles, but repeated loading and temperature spikes result in their frequent premature wear. Extending their lifetime could be sought by nitriding or application of coatings of even higher hardness or both. Therefore, in the present experiment the arc-deposited Cr/(CrN)/n^x(CrN/CrAlN)/m^x(CrAlN/VN) or Cr/(CrN)/n^x(CrN/TiAlN)/m^x(TiAlN/VN) nano-multilayer stacks were deposited on glow discharge nitrided X40CrMoV5.1 steel. The scanning and transmission electron microscopy backed by Energy Dispersive X-ray Spectroscopy measurements of local chemical composition helped to confirm that the coatings are built of nanolayers of respective nitrides of period less than 10 nm. They also showed that droplets being characteristic for arc deposition method were enriched either in chromium, aluminum or vanadium but not in titanium. Both coatings presented comparable hardness of ~25 GPa, but the one covered with TiAlN/VN was roughly twice as wear resistant as the CrAlN/VN. Simultaneously, they were ~200 and ~100 more wear resistant than X40CrMoV5.1reference steel. Full article

Thin hard coatings are widely known as key elements in many industrial fields, from equipment for metal machining to dental implants and orthopedic prosthesis. When it comes to machining and cutting tools, thin hard coatings are crucial for decreasing the coefficient of friction (COF) and for protecting tools against oxidation. The aim of this work was to evaluate the tribological performance of two commercially available thin hard coatings deposited by physical vapor deposition (PVD) on a high speed tool steel (S600) under extreme working conditions. For this purpose, pin-on-disc wear tests were carried out either at room temperature (293 K) or at high temperature (873 K) against alumina (Al₂O₃) balls. Two thin hard nitrogen-rich coatings were considered: a multilayer AlTiCrN and a superlattice (nanolayered) CrN/NbN. The surface and microstructure characterization were performed by optical profilometry, field-emission gun scanning electron microscopy (FEGSEM), and energy dispersive spectroscopy (EDS). Full article
