Effect of Four Manufacturing Techniques (Casting, Laser Directed Energy Deposition, Milling and Selective Laser Melting) on Microstructural, Mechanical and Electrochemical Properties of Co-Cr Dental Alloys, Before and After PFM Firing Process

Abstract

The objective of this study was to compare four manufacturing processes of Co-Cr dental alloys: casting (CAST), computer aided design/computer aided manufacturing (CAD/CAM) milling (MILL), selective laser melting (SLM), and laser directed energy deposition (LDED). Comparison included microstructural, mechanical, and electrochemical analyses. Half of the samples obtained were heat treated to simulate the porcelain fused to metal (PFM) firing process, and the metal real state in an oral environment. Co-Cr dental alloys manufactured via casting, LDED, milling, and SLM techniques presented evident differences in their mechanical properties. However, their electrochemical performances were similar, with high resistance to corrosion in artificial saliva, in both aerated and deaerated media (corrosion rate under 4 microns per year). LDED and milling materials showed the highest modulus of toughness, and gave improved results in comparison with CAST and SLM techniques (p < 0.05). The LDED process could be implemented in the manufacturing of the restorative dental industry, with a high overall performance, competing directly with the best quality techniques, and reducing their disadvantages.

1. Introduction

Dental restorations have been widely employed throughout the last 100 years. Historically, the most employed materials were gold and its alloys [1]. However, the high value of this metal led to the use of other non-precious metallic alloys like Co-Cr or Ni-Cr. However, Ni-based ones are progressively disappearing due to their toxicity [2]. That is why Co-Cr alloys are nowadays the predominant preference in the dental restoration industry, thanks to their improved biocompatibility [3] and their better behavior against corrosion [4].

Cobalt is characterized as having two crystallographic phases: the ε hexagonal closed packed (HCP), stable at ambient temperature (up to 417 °C), and the γ face centered cubic (FCC) phase, metastable from 417 °C until melting temperature (around 1493 °C) [5]. These two phases usually appear together at ambient temperature due to their similar stacking fault energies [6,7]. In addition, the presence of the γ-FCC phase at ambient temperature is associated with yield strength increment, fatigue resistance, and the ability to absorb stresses through transformation of the structure to ε-HCP [5]. Therefore, efforts to achieve a higher quantity of γ-FCC in Co parts have been taken over time, including varying the addition of alloying elements as well as grain size, influential factors in phase stability [8].

Co based alloys have been widely used in different fields such as the aeronautical, the petrochemical, or the medical [5]. In dentistry, as well as in the implant field, the alloying elements employed have as a principal target the strengthening of the alloys. Cr improves the mechanical properties of Co alloys as solute and improves the resistance to corrosion [9,10]. It also improves cobalt alloys biocompatibility, thanks to the passivation of its oxide layer [5], this being the reason why it is usually the main alloying element. W or Mo also improve the strength of the matrix [7], increasing mechanical performance as well as corrosion resistance [5]. The phase stability is also influenced by the alloying elements, classified into γ-stabilizers, like W [11] or Fe [5], or ε-stabilizers, like Mo [5] or Cr [7].

The mechanical properties of Co-Cr alloys greatly depend on their precipitation behavior [12]. In low carbon content Co-Cr alloys, such as dental alloys, precipitates are usually σ and laves intermetallic phases [13], instead of the typical M₁₂C and M₂₃C₆ carbides that appear in high carbon content alloys, where the reaction σ + C = M₂₃C₆ + M₁₂C takes place [14].

In the past few years Co-Cr dental alloys have been under continuous development aiming at improving and studying mechanical (such as elastic modulus, yield strength, or ultimate tensile strength) [15,16] and electrochemical properties (corrosion resistance) [17,18]. Moreover, other investigations such as the machinability of these dental alloys [19], their interaction with ceramics used for dental restorations [20] and the effects of cyclic heat treatments [21] have also been performed.

The manufacturing techniques related to dental restorations for porcelain fused to metal (PFM) Co-Cr alloys have also evolved during the last few decades. The traditional casting processes were widely employed until the appearance of other techniques, affecting even the casting process itself, changing from the manual wax design to CAD/CAM machined disks.

The CAD/CAM of milling disks technology allows an improvement in the precision of the final parts as well as the homogeneity of the material, and is the technique of choice today. However, milling disks have some limitations such as disk size or material efficiency.

That is why in the past few years, the selective laser melting technique (SLM) has been implemented in the dental industry. SLM allows an increment of material efficiency as well as the free form manufacturing of parts [22]. SLM (Figure 1A) is an additive manufacturing technique of the family of the powder bed fusion (PBF) processes that employs a laser as the energy source. The laser melts the material powder and generates a part, one layer at a time. The powder material is preplaced layer by layer on the whole bed surface, where only the zones irradiated by the laser beam are melted, generating a solid object. SLM has been widely reviewed in the literature [22,23] and compared with other additive manufacturing techniques [24]. Today, SLM is a manufacturing technology widely employed in the dental industry, just as much as casting or milling. Additionally, a two-step manufacturing methodology is also employed with this technique. After additive manufacturing, the machining of the abutment faces (the zones which interact with the dental implant) is carried out. This two-step methodology puts together the freeform capabilities of the SLM and the high precision of the milling processes [25].

Laser directed energy deposition (LDED, Figure 1B) is an additive manufacturing technique of the family of directed energy deposition (DED) processes that employ a laser as an energy source. The interaction of the laser beam with the sacrificial substrate, generates a molten pool that grows by means of the injection of material (usually in powder form fluidized by a carrier gas [26]). The relative movement between the laser processing head and the workpiece allows, by overlapping the clad tracks, the deposition of the material, and, by the addition of subsequent layers, the final part is obtained.

The LDED process generates a good metallurgical bonding between layers, with reduced porosity, as well as high material deposition efficiency rates [27,28]. LDED was firstly employed in the generation of different coatings: Ni alloys [28], titanium [29], or Co-based alloys [30], even at microscopic scale [31]. In the recent years, this technique has started to be employed in the additive manufacturing of functional parts using metals [32]. Additionally, a method for producing parts made of ceramic biomaterials has been developed [33]. The high versatility of this technique is directly related to its processing parameters [34]. The final microstructure of the generated material can be controlled by an adequate tuning of the processing parameters [35]. This is of major importance in Co-Cr dental alloys, where the final microstructure has a great influence on the overall behavior of the material.

LDED is a near net shape process. The two-step manufacturing methodology employed with the SLM technique can also be applied to LDED to achieve the small details and tolerance requirements of dental prostheses [36].

Moreover, LDED can have the capability of generating dental restorations that merge the benefits of freeform generation and material efficiency of additive manufacturing processes (like SLM), and the high performance of the materials employed in CAD/CAM milling techniques.

LDED has been used previously for producing 6 mm [30] or 10 mm [37] thick CoCrMo deposits on metal orthopedic applications, producing sound metallurgical material. LDED manufacturing of load bearing implants, such as hip implants, has also been studied. It has been found that by tuning the process parameters, pore characteristics and mechanical properties can be adjusted to the requirements of specific implants, which could even mimic the hybrid structure of a real bone [38].

Previous works have given the right clues to applying the LDED technique to produce prosthetic structures tailored to the anatomy of each patient. However, it is necessary to first assure that the technique complies with the existing ISO standards for dental materials.

Therefore, the main objective of this paper is to provide a quantitative experimental study on the manufacturing techniques currently used for the production of prosthetic dental restorations made out of Co-Cr alloys, and the LDED technique, a novel additive manufacturing alternative in the dental field. This comparison comprised the typical manufacturing techniques, such as casting or CAD/CAM milling processes, and modern techniques, such as SLM (already implemented in the dental industry) and LDED. All of this was done through a multidisciplinary approach, including microstructural, mechanical, and electrochemical analyses, following the ISO standards that allow the qualification of materials for prosthetic dental applications.

2. Materials and Methods

2.1. Specimen Generation

Four different manufacturing techniques (CAST, LDED, MILL, SLM) were employed to manufacture the specimens using Co-Cr dental alloys. Half of these specimens (except for the electrochemical ones) were heat treated following the veneering processes, detailed in Section 2.2, in order to simulate the porcelain fused to metal (PFM) behavior in an oral environment. Composition of the Co-Cr alloys used in the present study are collated in

Table 1. Summary of the tested alloys composition, provided by the manufacturers.

Brand Name	Manufacturer	Co	Cr	W	Mo	Si	Mn	Fe	ISO 22674 Type	Used in Technique
Heraenium Pw	Kulzer GmbH, Germany	55.2	24	15	4	1	0.8	4	4	CAST
Starbond Easy Powder 30+	S and S Scheftner GmbH, Germany	61	27.5	8.5	-	1.6	<1	<1	4	LDED
Kera®-Disc	Eisenbacher Dentalwaren ED GmbH, Germany	61.65	27.75	8.45	-	-	0.25	0.2	4	MILL
EOS CobaltChrome SP2	EOS GmbH, Germany	63.8	24.7	5.4	5.1	1	0.1	0.5	4	SLM

. These alloys present slightly different compositions, which can lead to some influence on the results.

The casting (CAST) specimens were fabricated by first machining the geometries into a wax disc, before embedding them with phosphate-bonded investment. The mold was cast with Heraenium Pw alloy using a motor-driven centrifugal casting machine (Minicast, Ugin’dentaire Siège Social, Seyssinet-Pariset, France) and melted with a casting torch following the manufacturer’s recommendations.

The laser directed energy deposition (LDED) specimens were generated using a proprietary LDED manufacturing device (LaserOn Research group, Vigo, Spain). This system is composed of a 1600 W high power diode laser as power source to generate the molten pool in a Co-Cr building plate, a commercial pneumatic powder feeder, a coaxial injection powder system (a coaxial laser head similar to commercial ones such as Precitec YC52), and a CNC (Computer Numerical Control) controlled 3-axis positioning system enclosed in a controlled-ambient inert chamber, using argon as a protective atmosphere. Commercial Co-Cr powder (Starbond Easy Powder 30+), with a particle size between 10 and 70 µm, was used as precursor material. After that, the near net shape specimens were separated from the building plates and machined until final dimensions in a milling CAD/CAM system (DT2, Dyamach Italia, Mussolente, Italy). The angle between building and tensile directions of the tensile specimens was 90°.

The milling (MILL) specimens were machined from commercial Co-Cr Kera^®-Disc dental discs using a CAD/CAM milling machine (DT2, Dyamach Italia, Mussolente, Italy) that employed solid carbide cutting tools. This milling process was only required for tensile test samples in order to comply with the tolerance dimensions of the ISO 22674:2016 standard. The angle between axial disc direction and tensile directions of tensile specimens was 90°.

Selective laser melting (SLM) specimens were generated using an EOS M 270 (EOS GmbH, Krailling, Germany) machine, with a 400 W fiber laser as power source and under an inert atmosphere of nitrogen. The material employed was Co-Cr EOS SP2 powder. The angle between building and tensile directions of tensile specimens was also 90°, as in the LDED alloy.

2.2. PFM Simulation

For the porcelain fused to metal firing simulation (PFM firing simulation), half of the specimens were thermally treated to simulate the thermal effects of the veneering processes (except for the electrochemical ones that were all treated). This process is composed of two opaquer cycles, one dentin cycle, and finally one glazing process; all according to the manufacturer’s instructions detailed in

Table 2. Summary of the porcelain fused to metal (PFM) veneering procedure used in this study.

Firing Process	Preheating Temperature (°C)	Drying Time (min)	Raise of Temperature (°C/min)	Vacuum	Final Temperature (°C)	Holding Time (min)	Total Approx. Time (min)
Bonding	650	6	55	Yes	980	1	15
Opaquer 1	550	6	80	Yes	940	1	15
Opaquer 2	550	6	80	Yes	940	1	15
Dentin 1	580	6	55	Yes	900	1	18
Dentin 2	580	6	55	Yes	900	1	18
Glaze	600	2	55	Yes	860	1	17

.

2.3. Microstructural Characterization

2.3.1. SEM-EDS-EBSD Analysis

For microstructural analysis, one specimen of each process, (that gives eight samples corresponding to the 4 different techniques, before and after PFM firing simulation) were examined using a scanning electron microscope (SEM, Philips XL30, FEI Technologies Inc., Hillsboro, OR, USA) coupled with an energy-dispersive X-ray spectroscopy (EDS) unit (EDAX PV9760, EDAX Inc, Mahwah, NJ, USA). All samples (6 mm × 6 mm × 6 mm) were cut in half, embedded in resin and polished using colloidal silica (0.04 μm) suspension as the final step. The polished surfaces were imaged by means of backscattered electron detection (BSE) employing 20 kV of accelerating voltage and 10 mm of working distance as main parameters. The elemental composition was determined via EDS under the same working conditions as BSE and 60 s of acquisition time. Semi-quantitative analysis of the mapping results was generated using ZAF correction. The crystallographic texture was analyzed by electron backscatter diffraction (EBSD) (Oxford HKL Channel 5, Oxford Instruments, Abingdon, UK) detector mounted on a dual-beam FEI HELIOS 600 NanoLab (FEI Technologies Inc., Hillsboro, OR, USA) also providing inverse pole figure (IPF) maps.

2.3.2. XRD Analysis

One specimen of each technique, eight in total (CAST, LDED, MILL, and SLM; all before and after PFM firing simulation) were scanned using X-ray diffraction (XRD, Siemens D5000, KS Analytical Systems, Aubrey, TX, USA) over the 30–120° 2θ range (40 kV, 30 mA, 0.05° step size, 3 s step time) with monochromated Cu-Kα radiation (λ = 1.54 Å). The samples (6 mm × 6 mm × 6 mm) were cut in half and ground using 320 grit SiC paper in order to compare the crystal structure of the materials in samples with similar size of the commercial restorations.

2.4. Mechanical Characterization

Tensile mechanical tests were performed in accordance to ISO 22674:2016 standard, being the length of the samples of 42 mm with 3 mm of diameter in the evaluation zone. For the tensile test, 24 samples of each technique (CAST, LDED, MILL and SLM; half without and half with PFM firing simulation treatment) were generated. The tensile tests were performed using a tensile test machine (LFV 25, Walter + Bai AG, Löhningen, Switzerland) equipped with an extensometer (3542-010M-020-ST, Epsilon Technology Corporation, Jackson, WY, USA) setting the stroke motion at 1.5 mm/min until fracture. After fracture, all samples were joined together, and the distance between marks was measured using an optical microscope equipped with a micrometric positioning table. Additionally, the toughness was independently calculated by integrating the stress–strain results of all the tensile tests and, subsequently, statistically treated as the other results obtained.

The Vickers microhardness (according to standard ISO 6507-1:2018) was measured in one specimen of each process (6 mm × 6 mm × 6 mm), eight in total (CAST, LDED, MILL, and SLM; before and after PFM firing simulation) using microindentation (microindenter Shimadzu HMV-G, Shimadzu Corporation, Kyoto, Japan), which applied a load of 1 kp for 10 s of dwell time. The test was repeated in 5 different zones, and averaged in order to achieve a representative measurement of the entire samples.

The fractographic analysis was performed by analyzing the fracture surfaces of the tensile tests using optical microscopy (SMZ1000, Nikon Metrology, Brighton, MI, USA), and secondary electron imaging in SEM. All samples were carefully placed, the building orientation of the samples being aligned with the vertical axis of the images, in order to assess the possible influence of building direction in the process.

2.5. Electrochemical Characterization

The electrochemical tests were performed in accordance with ISO 10271:2011, with samples of cylindrical shape with 25 mm of diameter and 5 mm of thickness. Potentiodynamic polarization scans (Autolab PGSTAT302N, Metrohm Autolab B.V., Utrecht, The Netherlands) were conducted using a vertical cell of three electrodes in the presence of artificial saliva (AS).

The AS was prepared by adding 9.0 g of NaCl into 950 mL of water, then the pH was adjusted to 7.2 ± 0.1 with NaOH, adding water until 1000 mL. The reference electrode employed was a saturated calomel electrode (SCE), the samples of each test (surface of 1 cm²) were employed as working electrodes, and a platinum mesh was selected as counter electrode.

Two types of electrochemical tests were performed, one in aired medium and the other in deaerated medium (argon), in order to simulate the small gaps in the oral medium. Therefore, two samples (one for each test) were generated, thermally treated through the PFM firing simulation and ground with 320 grit SiC to homogenize the surfaces. After that, at least two repetitions of each sample in different zones were made to achieve a more representative measurement.

2.6. Statistical Analysis

All raw data were processed using R-project (v.3.6.3, The R Foundation for Statistical Computing, Vienna, Austria) for data analysis and statistical computing of the tests results. Mechanical and electrochemical data were compared using two-way ANOVA followed by the Tukey HSD test (level of significance, alpha = 0.05).

3. Results

3.1. Microstructural Analysis

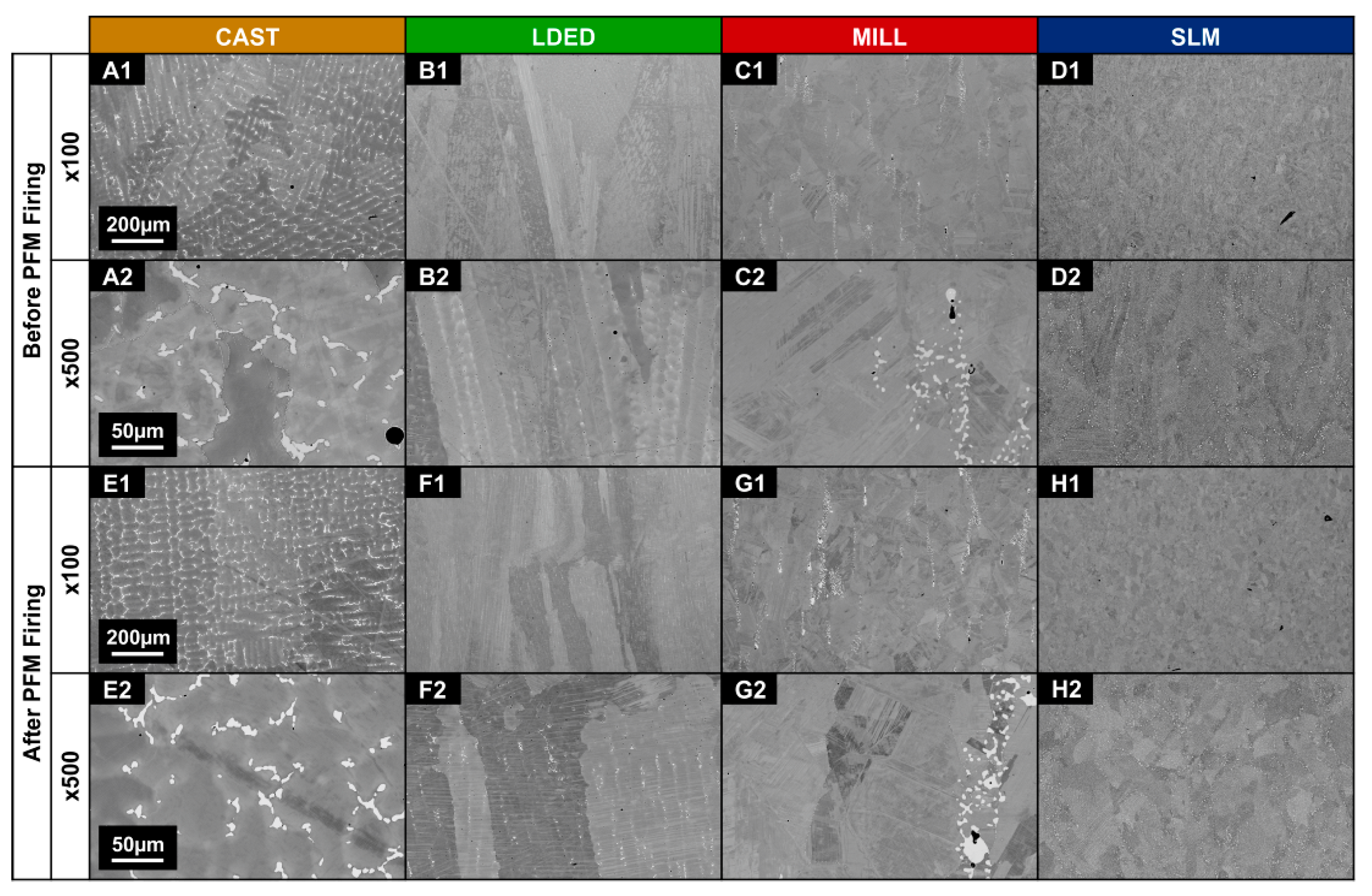

SEM images obtained from the CAST, LDED, MILL, and SLM samples revealed different microstructures as well as their evolution through the PFM firing simulation (Figure 2). The CAST (Figure 2A) alloy showed a typical dendritic matrix, and an interdendritic segregation with higher atomic weight. The LDED alloy (Figure 2B) showed a columnar grain structure with a very small amount of intergranular segregation, with vertical orientation. The MILL alloy (Figure 2C) was composed of equiaxial grains with vertical intergranular segregation zones, similar to the CAST specimens, probably due to the discs’ fabrication method. The SLM alloy (Figure 2D) showed small-sized grains, with a cellular structure and homogenous segregation throughout the whole material, being barely discernible in electronic microscopy. Furthermore, this intergranular segregation had a different growth, depending on the process (Figure 3A). Before PFM firing, a third level of segregation, with more atomic weight, appeared in the CAST and MILL alloys; while in the LDED and SLM this third level did not appear.

The microstructure was also characterized after the PFM firing simulations (Figure 2), in order to assess the influence of the firing cycles on the alloys performance. The CAST alloy (Figure 2E) did not show discernible evolution. The LDED alloy (Figure 2F) showed a low intergranular segregation increment, appearing as a reduced zone of third segregation (Figure 3A,B). The MILL alloy (Figure 2G) also showed an increment of segregation, being more noticeable as the increment of the third zone (Figure 3A,C). Finally, the SLM (Figure 2H) images suggested a grain size refinement.

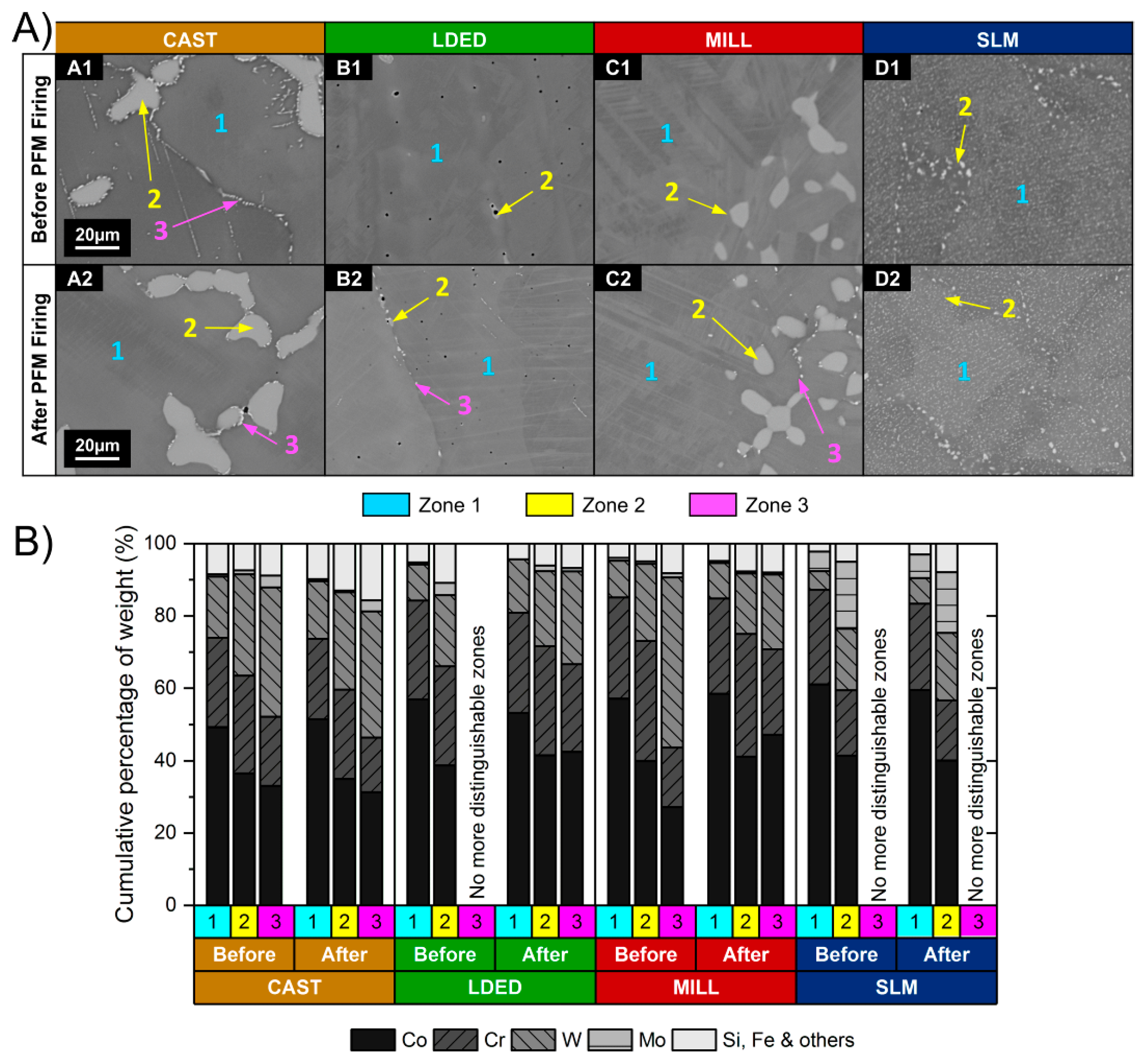

In order to identify these segregations, EDS analysis was employed (Figure 3) showing that the segregations were richer in W (CAST, LDED, MILL and SLM) and Mo (CAST and SLM) than the matrix (Figure 3A, number 1), demonstrating a noticeable similarity between techniques (

Table 3. Semi-quantitative chemical composition (wt.%) of the matrix 1 and segregation zones 2,3 determined by EDS. Before and after PFM firing simulation.

Technique	PFM Firing	Zone	Co	Cr	W	Mo	Si, Fe and Others
CAST	Before	1	49.27	24.67	16.94	0.62	8.50
CAST	Before	2	36.54	26.98	28.05	1.04	7.39
CAST	Before	3	33.06	19.12	35.74	3.24	8.84
CAST	After	1	51.44	22.22	15.93	0.56	9.84
CAST	After	2	34.95	24.69	26.87	0.54	12.95
CAST	After	3	31.27	15.11	34.92	3.01	15.69
LDED	Before	1	57.01	27.27	9.95	0.59	5.18
LDED	Before	2	38.7	27.36	19.77	3.36	10.81
LDED	Before	3	-	-	-	-	-
LDED	After	1	53.21	27.66	14.8	0	4.33
LDED	After	2	41.52	30.16	20.71	1.55	6.06
LDED	After	3	42.45	24.21	25.62	1.04	6.68
MILL	Before	1	57.14	27.98	10.21	0.73	3.94
MILL	Before	2	39.99	33.12	21.33	0.63	4.93
MILL	Before	3	27.18	16.47	47.01	1.22	8.12
MILL	After	1	58.54	26.26	9.79	0.58	4.83
MILL	After	2	41.09	33.97	16.65	0.57	7.72
MILL	After	3	47.19	23.6	20.69	0.57	7.95
SLM	Before	1	61.09	26.17	5.15	5.40	2.19
SLM	Before	2	41.4	18.04	17.02	18.5	5.04
SLM	Before	3	-	-	-	-	-
SLM	After	1	59.57	23.8	7.13	6.50	3.01
SLM	After	2	40.09	16.59	18.65	16.84	7.83
SLM	After	3	-	-	-	-	-

Note: Zones 1, 2, and 3 correspond to those indicated in Figure 3.

).

In terms of crystallography, the XRD analyses show (Figure 4) that the phase composition of the materials was characterized by a combination of the cubic high temperature metastable γ-FCC and the hexagonal low temperature stable ε-HCP structures in all alloys.

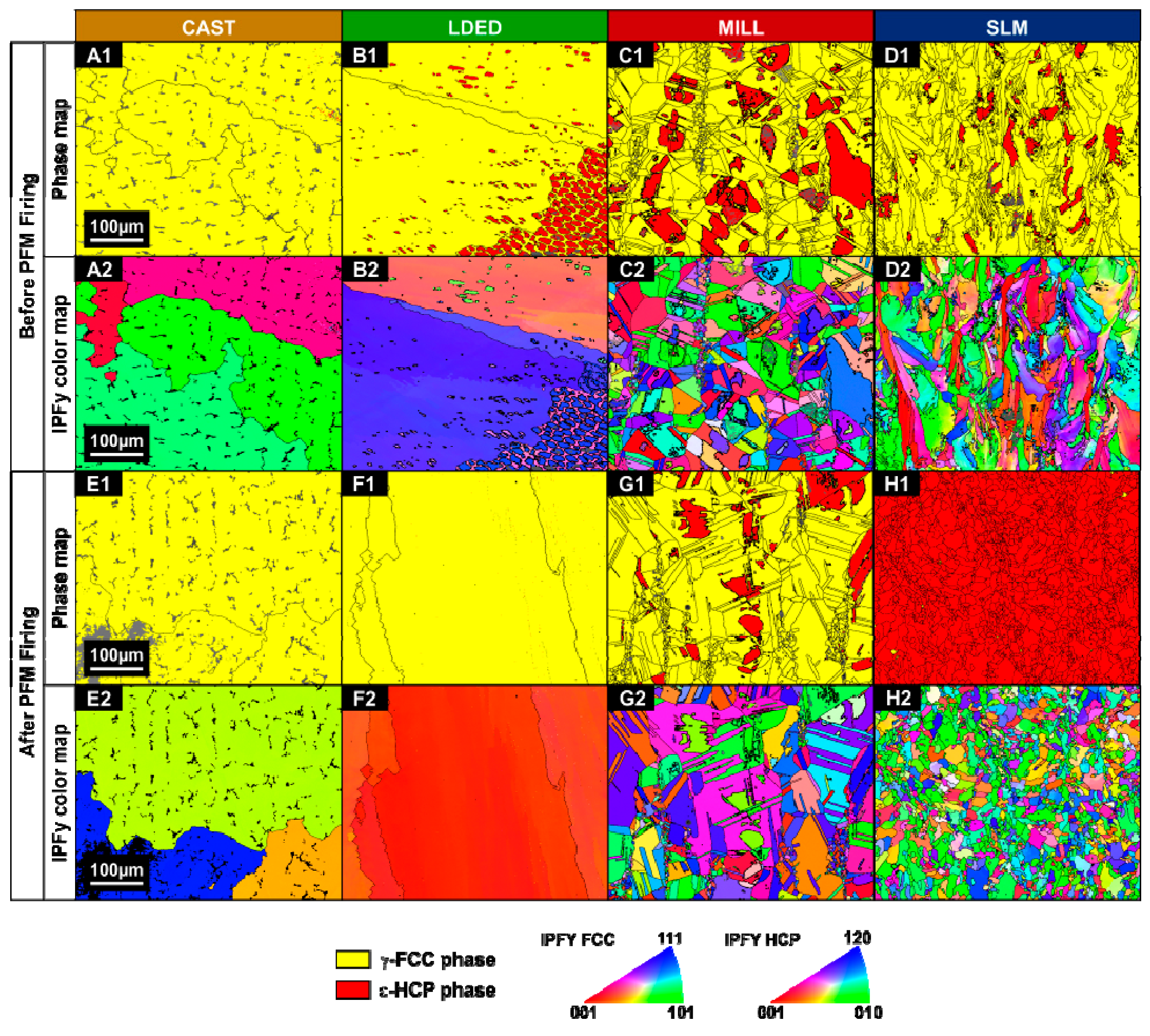

EBSD analyses were performed (Figure 5) to quantitatively evaluate the crystallography comparison between fabrication techniques and the evolution of phases. The cast alloy showed a full γ-FCC structure (Figure 5A1) with no preferred texture (Figure 5A2). LDED samples showed a matrix of big γ-FCC grains, with small ε-HCP grains before PFM firing (Figure 5B). MILL (Figure 5C) alloy was composed of a homogeneous group of γ-FCC and ε-HCP grains with no preferential orientation.

However, after the firing, the γ-FCC phase area fraction increased in LDED (from 89.10% to 99.70% of the total area), where only γ-FCC was found (Figure 5F), and in the MILL material (from 76.94% to 82.96% of the total area) (

Table 4. Measured area-weighted average grain size and area fraction of the corresponding phases before and after PFM firing simulations of the indexed area in EBSD images. Standard deviation (SD) in parentheses.

Technique	PFM Firing	Phase	Area-Weighted Average Grain Size (µm)	Phase Area Fraction (%)
CAST	Before	γ-FCC	371.76 (107.84)	99.95%
CAST	Before	ε-HCP	1.10 (0.21)	0.05%
CAST	After	γ-FCC	337.47 (104.98)	100.00%
CAST	After	ε-HCP	-	0.00%
LDED	Before	γ-FCC	289.13 (79.84)	89.10%
LDED	Before	ε-HCP	16.35 (14.25)	10.90%
LDED	After	γ-FCC	317.54 (108.15)	100.00%
LDED	After	ε-HCP	-	0.00%
MILL	Before	γ-FCC	17.40 (9.93)	77.73%
MILL	Before	ε-HCP	27.12 (23.97)	22.27%
MILL	After	γ-FCC	29.13 (19.00)	87.91%
MILL	After	ε-HCP	20.78 (12.89)	12.09%
SLM	Before	γ-FCC	23.84 (16.77)	93.05%
SLM	Before	ε-HCP	11.15 (6.06)	6.95%
SLM	After	γ-FCC	3.62 (1.71)	0.20%
SLM	After	ε-HCP	9.90 (5.74)	99.80%

). In the CAST material, the phase change was negligible due to the small amount of ε-HCP present before the firing process. Finally, the γ-FCC phase proportion of the SLM material (Figure 5H) changed dramatically from 92.71% to a negligible 0.20%.

3.2. Mechanical Properties

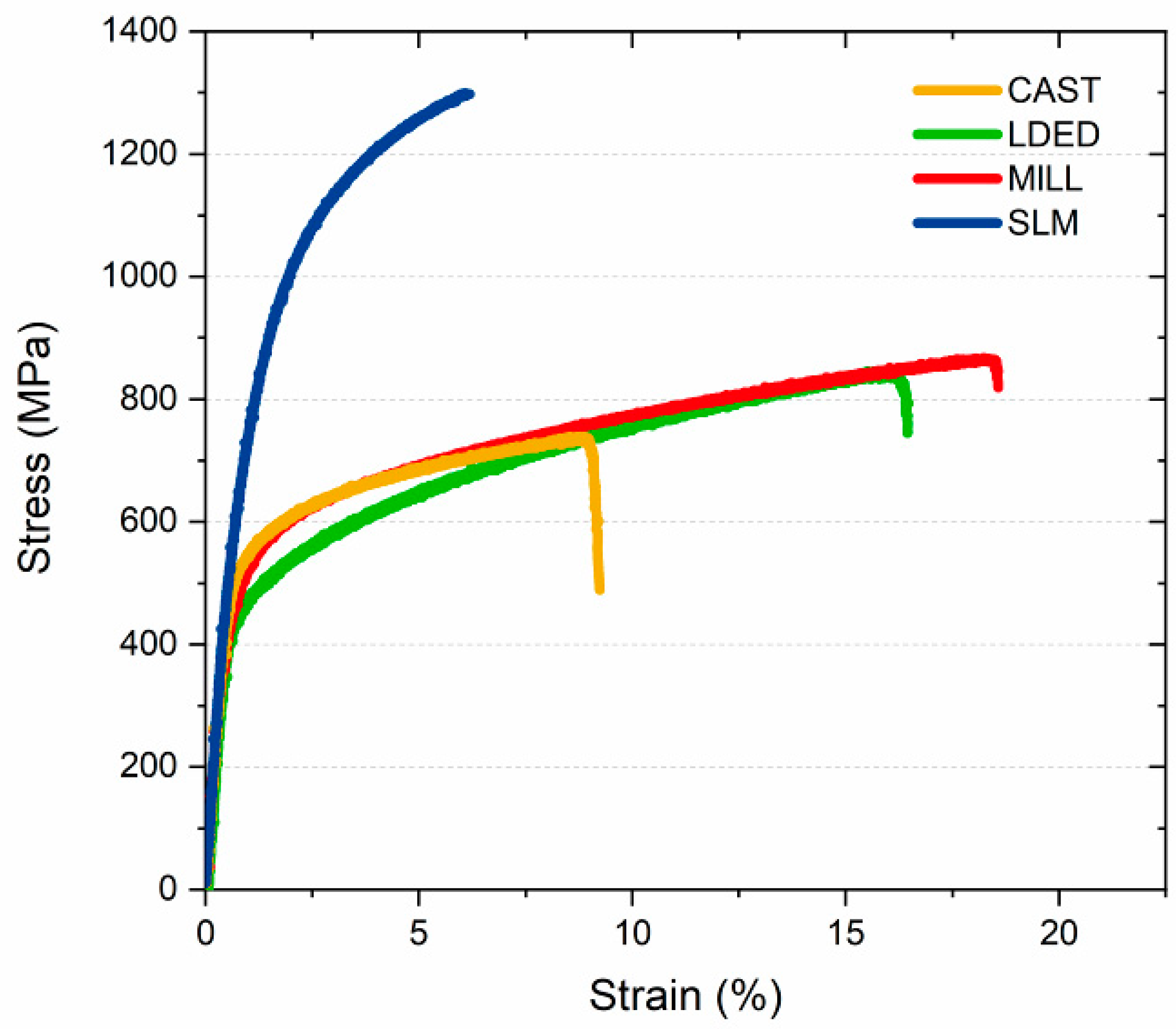

The mechanical properties among the different manufacturing processes differed notably. The stress-strain graph (Figure 6) shows a representative test from each manufacturing technique. This graph clearly presents a difference in behavior between SLM and the other techniques (CAST, LDED, and MILL). The curve corresponding to the SLM material indicates an increase in resistance as well as a reduction in ductility. On the other hand, the tests corresponding to the materials obtained by the other techniques, present a similar response but with a different breaking point, having a noticeable variation among the strain at fracture.

A total of six mechanical properties were analyzed in order to quantitatively assess the mechanical properties of the alloys (

Table 5. Numerical results of mechanical properties of the different techniques evaluated before and after PFM firing simulation. Standard deviation (SD) in parentheses.

Technique	PFM Firing	Yield Strength 0.2% (MPa)	Ultimate Tensile Strength (MPa)	Young Modulus (GPa)	Modulus of Toughness (MJ/m3)	Enlongati-on After Fracture (%)	Microhardness (HV)
CAST	Before	506 (57)	697 (52)	229 (17)	57 (10.9)	7.0 (1.31)	304 (5)
CAST	After	505 (15)	690 (30)	220 (7)	49 (11.8)	8.6 (1.47)	296 (16)
LDED	Before	425 (43)	842 (41)	223 (13)	113 (16.6)	15.3 (1.7)	308 (5)
LDED	After	406 (22)	810 (34)	239 (3)	107 (17.5)	14.3 (1.81)	322 (10)
MILL	Before	454 (23)	868 (28)	244 (7)	132 (19.9)	15.6 (1.81)	272 (21)
MILL	After	428 (34)	829 (24)	242 (4)	112 (12.3)	13.2 (0.59)	269 (23)
SLM	Before	679 (88)	1296 (17)	236 (16)	62 (4.0)	3.6 (0.28)	440 (17)
SLM	After	965 (37)	1548 (24)	247 (5)	59 (6.3)	2.1 (0.52)	529 (10)

). Additionally, a summary of the significance results for mechanical properties are shown in Appendix A (

Table A1. Summary of the significant differences (p < 0.05) of the mechanical properties results.

Materials Compared		Mechanical Properties Evaluated
Material 1	Material 2	Yield Strength 0.2% (MPa)	Ultimate Tensile Strength (MPa)	Young Modulus (GPa)	Modulus of Toughness (MJ/m3)	Enlongation After Fracture (%)	Microhardness (HV)
CAST before	CAST after	-	-	-	-	-	-
CAST before	LDED before	-	Yes	-	Yes	Yes	Yes
CAST before	LDED after	-	Yes	-	Yes	Yes	Yes
CAST before	MILL before	-	Yes	-	Yes	Yes	-
CAST before	MILL after	-	Yes	-	Yes	Yes	-
CAST before	SLM before	Yes	Yes	-	-	Yes	Yes
CAST before	SLM after	Yes	Yes	-	-	Yes	Yes
CAST after	LDED before	-	Yes	-	Yes	Yes	-
CAST after	LDED after	-	Yes	-	Yes	Yes	-
CAST after	MILL before	-	Yes	-	Yes	Yes	-
CAST after	MILL after	-	Yes	-	Yes	Yes	-
CAST after	SLM before	Yes	Yes	-	-	Yes	Yes
CAST after	SLM after	Yes	Yes	-	-	Yes	Yes
LDED before	LDED after	-	-	-	-	-	-
LDED before	MILL before	-	-	-	-	-	Yes
LDED before	MILL after	-	-	-	-	-	Yes
LDED before	SLM before	Yes	Yes	-	Yes	Yes	Yes
LDED before	SLM after	Yes	Yes	-	Yes	Yes	Yes
LDED after	MILL before	-	-	-	Yes	-	Yes
LDED after	MILL after	-	-	-	-	-	Yes
LDED after	SLM before	Yes	Yes	-	Yes	Yes	Yes
LDED after	SLM after	Yes	Yes	-	Yes	Yes	Yes
MILL before	MILL after	-	-	-	-	-	-
MILL before	SLM before	Yes	Yes	-	Yes	Yes	Yes
MILL before	SLM after	Yes	Yes	-	Yes	Yes	Yes
MILL after	SLM before	Yes	Yes	-	Yes	Yes	Yes
MILL after	SLM after	Yes	Yes	-	Yes	Yes	Yes
SLM before	SLM after	Yes	Yes	-	-	-	Yes

Note: YES means that there are statistically significant differences among the two materials compared in the same row.

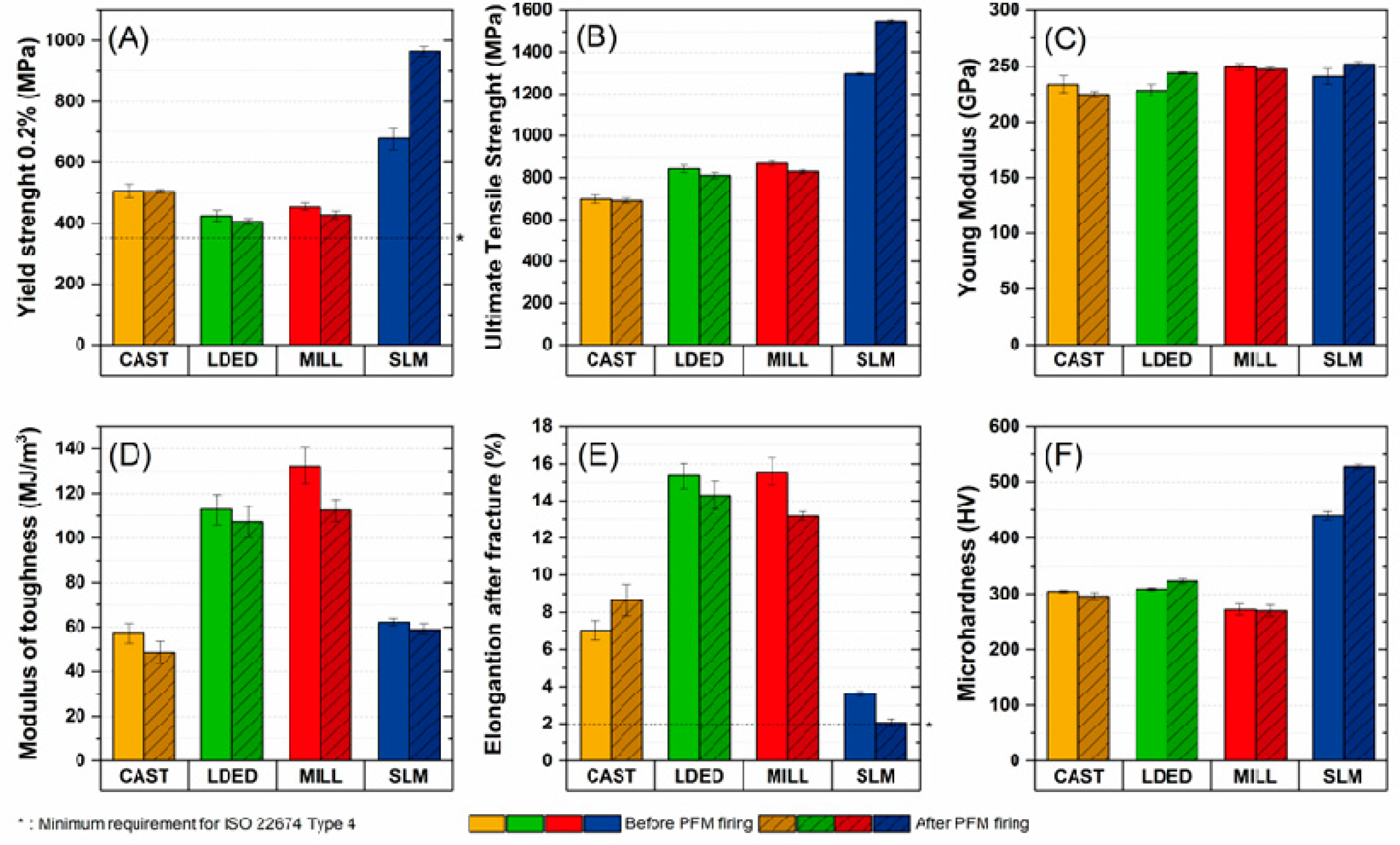

). The yield strength (Figure 7A) is noticeably higher (p < 0.05) in the SLM material as well as its ultimate tensile strength (UTS, Figure 7B), while the LDED and MILL have a similar behavior (p > 0.05) followed by the CAST material with a slight reduction of UTS (p < 0.05). The Young modulus (Figure 7C) is quite similar among the techniques (p > 0.05). The elongation after fracture (Figure 7E) also has significant differences (p < 0.05): the LDED and the MILL specimens showed higher elongation (LDED: 15.57%, MILL: 15.34%) in comparison with the SLM material (3.63%), while the CAST alloy remained in a medium range of elongation (7.03%). So as to integrate these properties in one quantitative and comparable characteristic, the modulus of toughness of the materials was collated. As shown in Figure 7D, the LDED and MILL specimens absorbed nearly twice as much energy as the CAST and SLM materials, until they became fractured. The microhardness is also shown in Figure 7F, where the SLM also presents a higher Vickers hardness (p < 0.05).

The results obtained show that all the materials comply with the standard ISO 22674 requirements for Type 4 material (yield strength: 360 MPa, elongation after fracture: 2%).

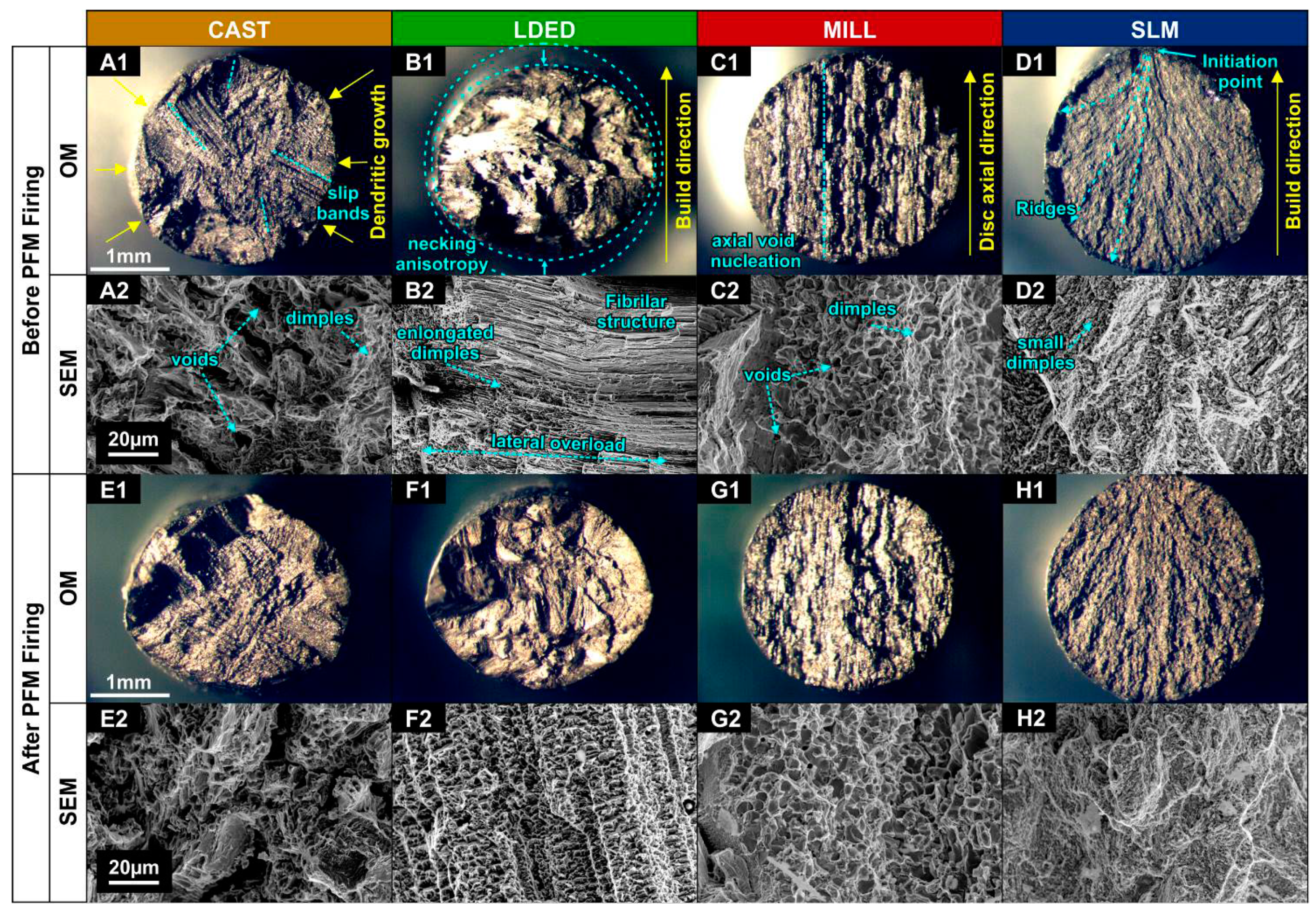

The fractographs (Figure 8) verify the results of the mechanical analysis. The SLM specimens present a cleavage fracture (where the crack propagation from the upper point can be observed), being the fractured surface perpendicular to the tensile stress axis of the tensile tests. Even though this fracture has a macroscopic brittle behavior, it also presents small dimples at microscopic level (Figure 8D2). The presence of these dimples suggests a cleavage crack initiation in grain boundary segregations, caused by plastic deformation of the grains [39].

The CAST, LDED, and MILL specimens each have a fibrous topography, caused by a higher plastic deformation until fracture, as well as some degree of section necking. Additionally, the fractographs suggest some influence of the building direction.

3.3. Electrochemical Properties

The electrochemical properties were analyzed by means of cyclic potentiodynamic polarization (CPDP). These tests were performed in an anodic direction until two decades of current density from the breakdown potential (E_b). Then, the potential direction was reversed until the corrosion potential was reached. The tests were performed in aerated AS, in order to assess the corrosion behavior in the buccal medium, as well as in deaerated AS to assess the crevice corrosion in zones where the fluid has limited access, such as the gap between implant and abutment.

As can be seen in the CPDP curves (Figure 9), all alloys presented low current density at corrosion potential (

Table 6. Summary of the results of the cyclic potentiodynamic polarization (CPCD) tests.

Electrolytic Medium	Manufacturing Technique	Ecorr (mV vs SCE)	icorr (nA/cm2)	Corrosion Rate (μm/year)	Eb (mV vs SCE)
Aerated	CAST	−88	122	1.3	667
	LDED	30	76	0.8	644
	MILL	82	365	4.0	652
	SLM	36	107	1.2	666
Deaerated	CAST	−208	58	0.6	593
	LDED	−328	11	0.1	650
	MILL	−341	8	0.1	578
	SLM	−298	9	0.1	628

), as well as negative hysteresis in both aerated (Figure 9A) and deaerated tests (Figure 9B). Considering also that the alloys’ composition is mostly cobalt, the material corrosion speed was calculated for cobalt ions, in order to have more direct information about the durability of the metals (this corrosion speed can be observed in Figure 10A). The corrosion speed is reduced in all the cases, being under 4 µm/year in all the cases. The breakdown potential (Eb) is similar (Figure 10B) in all the alloys, being 660 mV for the aerated ones and 600 mV for the deaerated ones.

4. Discussion

This study focused on the comparison of four different manufacturing techniques of PFM dental materials. Casting (CAST), milling (MILL), and selective laser melting (SLM) are currently employed in the prosthetic industry, while LDED is a novel technique which could be implemented in the production of these restorations. This comparison was performed through a multidisciplinary approach to combine the different ISO standards for dental materials as well as applying some additional tests. Therefore, the overall performance of the alloys was compiled by obtaining information from microstructural, mechanical, and electrochemical analyses; and then comparing them among themselves and with results obtained by previous researchers.

4.1. Microstructure

The microstructural analysis provides support for the characterization of the material, showing the different microstructures obtained between techniques, and suggesting the reasons behind different behaviors.

The CAST alloy possesses a typical coarse dendritic microstructure (Figure 2A), which exhibits a big segregation caused by its slow solidification rate, typical of dental casting manufacturing methods [12]. Dendritic grains are mainly γ-FCC phase (Figure 5A) with negligible presence of ε-HCP. This predominance of γ-FCC, in comparison with the other techniques, can be attributed to the presence of Fe (4%) and the high content of W (15%), which are known for being γ-stabilizers. In addition, the interdendritic segregations can be identified as σ (zone 2, Figure 3) and laves phases (zone 3, Figure 3) [13].

The LDED alloy (Figure 2B) possessed a marked columnar structure, aligned with the building direction, composed by smaller columnar dendrites with submicrometric interdendritic segregations (Figure 3A,B). This columnar effect is caused by both directional thermal gradient and a consistent metallurgical bonding between layers generated during manufacturing [40]. Additionally, this texture alignment is in good agreement with previous works where it was suggested that preferred crystallographic orientation [41], or even epitaxial growth [42], can be achieved using the LDED technique. The phase composition has a predominance of γ-FCC columnar grains with a large mean size. However, as shown in Figure 2, these large grains are composed of aligned smaller dendrites inside the columnar matrix, indicating a much more refined microstructure. These aligned dendrites colonies have submicrometric interdendritic segregations due to the higher solidification rate. LDED has the smallest segregations of the four alloys, but its identification is probably the same as CAST alloys with σ (zone 2, Figure 3) and laves phases (zone 3, Figure 3), this latter one not being discernible with SEM.

The MILL alloy (Figure 2C) presented a homogenous equiaxed grain structure with annealing twin boundaries and intergranular segregation. This microstructure is in accordance with continuous casting or hot rolling techniques [13], which are usually employed as disc manufacturing methods [43]. Phase composition of this alloy is a mixture of retained γ-FCC (77.73%) and stable ε-HCP (22.27%). MILL also showed a discernible orientation influence on the segregation patterns, distributed along the direction of manufacturing (Figure 2C). This alignment is caused by the directionality of the thermal gradients, and the segregation size is influenced by slower cooling rates that promote the segregation of both σ (zone 2, Figure 3) and laves phases (zone 3, Figure 3).

The SLM alloy (Figure 2D) presented small grains with intergranular segregation as well as nearly negligible columnar dendritic structures inside the grains themselves. These smaller structures were uniformly distributed, with segregations in their interdendritic space, and were caused by the high thermal gradients and high cooling rates during manufacturing. This high cooling rate, combined with the small remelting depth of SLM between layers, induces the discontinuity of these grains [44], in contrast to LDED samples. The phase proportion of these grains is similar to MILL and LDED alloy, with retained γ-FCC and stable ε-HCP. The increased presence of Mo (ε-stabilizer), and the reduced presence of W (γ-stabilizer), should induce an increased proportion of ε-HCP [5]. However, this effect is probably compensated for with the fast cooling during manufacturing, since after the PFM process, the transformation to ε-HCP is almost complete. It should be noted that LDED and SLM materials have similar grain and segregation growth behaviors. However, the final result is completely different due to the much higher thermal gradient and the reduction of the remelting area in the SLM technique. This difference is directly caused by the linear energy per pass given to the material of each technique [45].

XRD analyses verified that all the studied materials, even though they have slightly different compositions, have similar metallographic structures (Figure 4), in accordance with the previous literature [8,9,46] of Co-Cr dental alloys. Additionally, there are also no significant differences among materials in the Young modulus, which is another indicator that the materials behave in a similar way. The differences among the studied materials can be attributed to the manufacturing technique. This is also exemplified by the preferential orientation (also denoted by the absence of the γ-FCC peak at 50.81°) observed in the samples produced by LDED and MILL processes, opposite to the non-oriented microstructure of the samples obtained by CAST and SLM.

4.2. Mechanical Properties

Regarding the mechanical properties, CAST seemed to have a similar behavior as LDED and MILL alloys, with no significant differences in yield strength, microhardness or Young modulus. However, a significant reduction in UTS (Figure 7B) and elongation after fracture (nearly halved, Figure 7E) was clear. These differences can be attributed to the evenly distributed big segregations, to the big grain size, as well as to internal casting porosities that influence the final performance [47]. Additionally, the fractographs verified the results. The CAST alloy showed a hybrid fracture surface (Figure 8A), with dimples and noticeable voids. The voids, caused by the big segregations, may induce the propagation of cracks by shear fracture along slip bands [48]. These slip bands can be clearly observed in CAST alloy (Figure 8A1,E1), verifying its reduced overall mechanical performance due to the increase in brittleness. Finally, PFM firing has no significant influence on CAST alloy. Before firings, the microstructure is already coarse, due to the slow cooling and solidification rates characteristic of the CAST method, hence, no evolution was observed.

LDED had an overall good mechanical behavior, being nearly the same as MILL alloy with no significant differences between yield strength, UTS, Young modulus, or elongation after fracture. It should be noted that the compliance with the ISO 22764 standard is complete, with even an elongation of more than seven times the required value after fracture. The fractographs also corroborate these results (Figure 8B), with a ductile rupture [49] and noticeable necking along an elongated dimple fracture surface, caused by substantial plastic deformation (15.57%) [50]. Additionally, the LDED samples (Figure 8B) showed a higher reduction in section in the building direction, which implies some anisotropy in the mechanical properties in accordance to the microstructural results, where preferred orientation was identified. Cracks tend to initiate and propagate at grain boundaries, so plastic deformation will also occur along them [51]. Finally, through the PFM cycles, an increase in γ-FCC phase was denoted. This increment can be caused by the constant cooling rate during the furnace cycles in contraposition of a relatively constant temperature of the bulk material during the LDED process. However, this increase in γ-FCC phase is not detrimental and has no significant effect on the mechanical properties.

From a pure mechanical point of view, MILL material exhibits no significant differences in comparison with LDED. Both materials have similar mechanical behavior, with a ductile dimple fracture surface (LDED: 15.57%, MILL: 15.34%). However, the MILL material has bigger dimples and some voids probably caused by its bigger vertical segregations (Figure 2C1). These segregations could also lead to an anisotropy of crack propagation during fracture, and this could be responsible for the characteristic vertical jagged surface observed in macroscopic fractographs (Figure 8C1,C2). Before firings, the microstructure was cooled slowly, and the segregations had time to grow. It seems that with the firing cycles, the segregations grew and laves phase appeared in even more quantity. This increase could suggest the slight decrease in ductility seen in Figure 7E. However, mechanically, PFM firing had no significant influence on MILL alloy.

The yield strength along with the UTS of the SLM samples were higher than those corresponding to the other materials (p < 0.05), as can be seen in Figure 7A,B. However, this rise can be attributed to a material embrittlement, with only 3.6% of elongation and higher hardness. This brittleness is caused by two factors. The first is the angle of the tensile load with regard to the building direction. This angle has a great influence on mechanical properties. Previous studies have demonstrated that the elongation after fracture of the specimens tested, with building direction parallel to tensile direction, change dramatically in comparison to the ones tested perpendicularly (from 4.7% with 90° to 10.7% at 0° [52]). This anisotropy is caused mainly by the alignment of the segregations, because when the material is subjected to tensile stress perpendicular to the columnar grain direction, dislocations and cracks slip are promoted along the columnar grain direction [44]. The second effect is the characteristic residual stresses present in parts that are manufactured by SLM [53]. This fact means that SLM manufacturers recommend an annealing process in the furnace for releasing these internal stresses [54]. In the fractographs the brittle behavior is verified. The SLM samples showed a flat perpendicular cleavage rupture [55,56] (Figure 8D), typical of brittle materials [49]. Finally, in the SLM materials, the PFM firings had noticeable effect on the microstructure, where an almost complete transformation of γ-FCC into ε-HCP was observed. This result also matches with those of the LDED and MILL samples, where the slower cooling rates of the manufacturing technique had a γ-FCC stabilization effect of the veneering samples. However, in the SLM technique, the solidification rates during the manufacturing method were much faster than the veneering cooling rates and, with the presence of Mo (ε-stabilizer), the conversion to ε-HCP was practically complete after the PFM firings. This phase change also explains the reduction of ductility after the firings, due to the suppression of the beneficial effects of the γ-FCC phase in the mechanical properties of Cobalt based alloys [5].

Hardness has a strong influence on tool life during machining [57]. The LDED, MILL, and CAST specimens presented similar hardness, therefore similar machining behavior is expected. However, the SLM hardness (Figure 7G) was significantly higher (p < 0.05) and implies decreased tool life.

All these mechanical parameters compared independently, as is indicated in the ISO 22764, do not give an adequate overview of the real behavior of the alloys in real situations. That is why, to compare these materials quantitatively, the analysis of the modulus of toughness was performed. The toughness can be defined as the energy per volume absorbed by the material before breaking, and it can be calculated through the integration of the area under the stress–strain curve [58]. Through this method, the analysis of the toughness (Figure 7D) shows that the materials generated by LDED and MILL techniques clearly behaved better, absorbing nearly twice the energy until fracture. This better behavior was achieved thanks to the UTS combined with a wide strain (Figure 7E). The CAST material, as can be seen in Figure 7E, performed worse. It kept the same tendency as LDED and MILL at the start, but broke at low strain. On the other hand, the SLM specimens broke at high UTS but with very limited strain, the energy absorbed being notably smaller in comparison to the ones absorbed by LDED and MILL alloys (p < 0.05).

Toughness is important due to the fact that when veneering processes are applied, ceramic materials generate contraction stresses during PFM firing processes. These stresses can produce an undesirable fracture. Therefore, the absorption of this energy is of great importance in order to reach a good balance between the deformation of the material and its resistance for its working life.

The segregations’ influence should be highlighted in these dental Co-Cr alloys. The size of these segregations is directly affected by the cooling rates [46], and the direction of, or alignment of, them is the cause of the anisotropy in alloys [44]. That is why dislocations and cracks slip along these segregations are promoted when the material is subjected to tensile stresses perpendicular to the columnar grain direction [51]. These segregations also provoke a reduction of the chemical homogeneity of the material that could lead to intergranular corrosion [59], which is one common factor of triggering fatigue fracture in hip [60] and femoral stems [61] made of Co-Cr alloys.

4.3. Electrochemical Properties

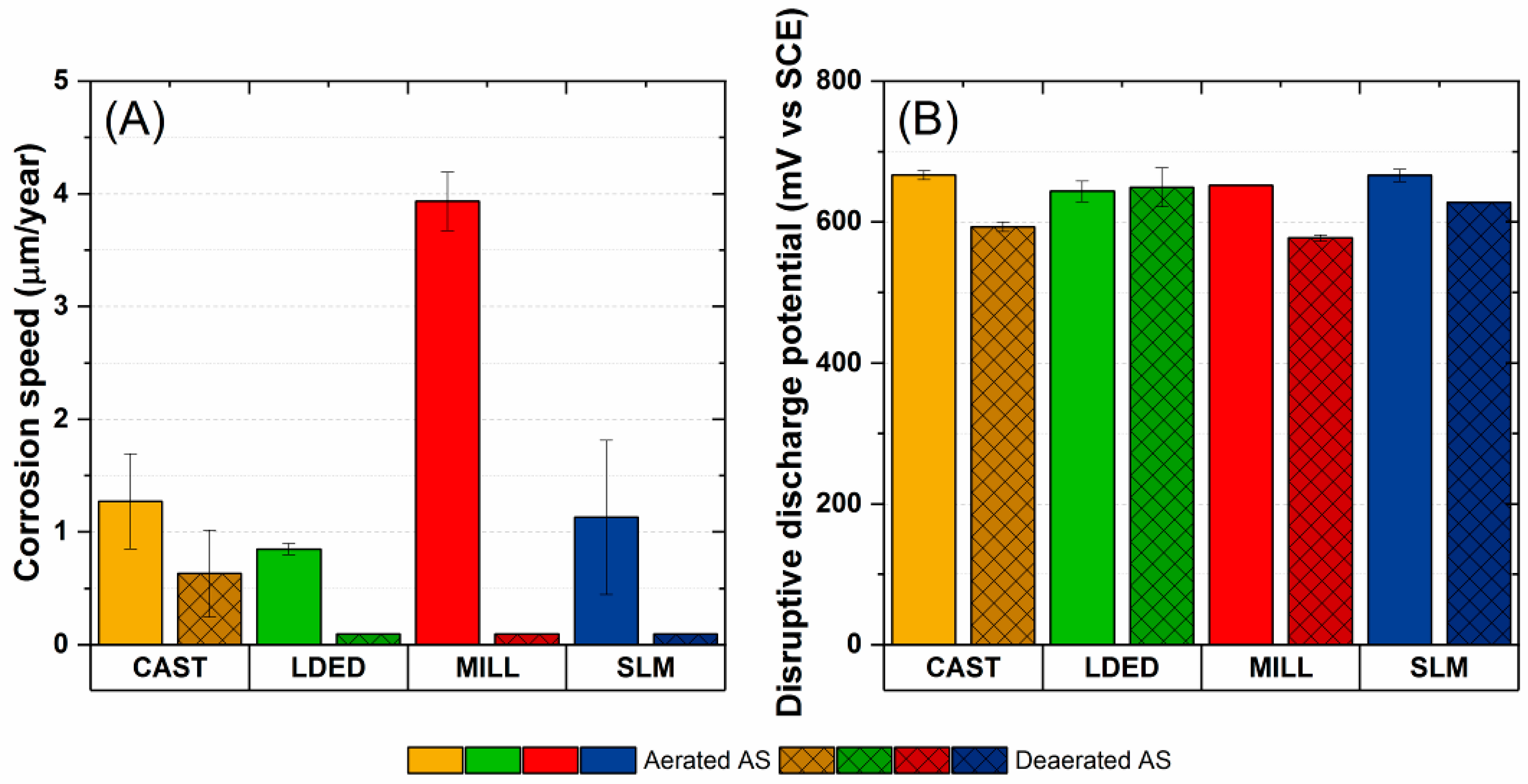

The electrochemical properties of the materials obtained by the four techniques were quite similar, with a corrosion rate of under 4 microns per year. The difference between the results obtained under aerated and deaerated medium of 60 mV (Figure 9B) can be attributed to the difference in the electrolytic medium, which changes the pH from 7.2 to 8.2 in the deaerated ones, caused by the deaeration process and decarbonation of the electrolyte.

The breakdown potential also showed an oxidation of the passive layer of the material. The negative hysteresis (Figure 9) demonstrates that no pitting corrosion was formed [62]. Furthermore, the anodic to cathodic potential in the reverse direction was at higher potential than the corrosion potential, which means that the generated new oxide layer was stable [63]. Finally, Figure 10A shows that even when the corrosion speed of all materials was relatively lower in the aerated medium, in deaerated medium, it was lower, so the performance against crevice corrosion was better [64].

5. Conclusions

Four different dental restorative Co-Cr manufacturing techniques were investigated in order to compare their metallographic, mechanical, and electrochemical behavior:

• Co-Cr dental alloys manufactured via casting, LDED, milling, and SLM techniques present evident differences in their mechanical properties.
• The electrochemical performance of all Co-Cr alloys was similar, with high resistance to corrosion in artificial saliva in both aerated and deaerated media.
• Microstructure has an important impact in mechanical behavior of dental Co-Cr alloys. The size and spatial disposition of segregations have a remarkable influence on mechanical properties affecting fracture mechanisms.
• Standards have an important role in assessing the quality of the materials employed in the industry, but care has to be taken because of their limitations, and some important properties may not be evaluated.
• The modulus of toughness is an important property in order to evaluate the overall performance of the materials. LDED and milling were the best techniques in this study, with better results in this characteristic.
• LDED is an additive manufacturing technique that can be implemented in the restorative dental industry with high overall performance. This manufacturing process can compete directly with the best quality techniques, and taking the best part of each of them, mechanical properties from milling disk, and freeform generation from SLM processes.
