Article

Monitoring Retinal Degeneration in a Porcine Model of Retinitis Pigmentosa with Spectral Domain Optical Coherence Tomography and Electroretinography

by
Wankun Xie
1,2,†,
Min Zhao
1,2,†,
Shu-Huai Tsai
1,
Maxwell G. Su
2,
Luke B. Potts
2,
Natalia J. Rosa
3,
Travis W. Hein
1,2,
Lih Kuo
1,2,* and
Robert H. Rosa, Jr.
1,2,4,*
1
Department of Medical Physiology, Texas A&M University Health Science Center, Bryan, TX 77807, USA
2
Department of Ophthalmology, Baylor Scott & White Eye Institute, Temple, TX 76504, USA
3
Department of Biology, Texas A&M University, College Station, TX 77843, USA
4
Departments of Ophthalmology, Oklahoma City VA Medical Center, University of Oklahoma, Oklahoma City, OK 73104, USA
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Physiologia 2026, 6(1), 13; https://doi.org/10.3390/physiologia6010013
Submission received: 24 December 2025 / Revised: 29 January 2026 / Accepted: 2 February 2026 / Published: 7 February 2026
Browse Figures
Versions Notes

Abstract

Background/Objectives: The correlation between in vivo morphological and functional changes in the degenerating retina in a large animal model of retinitis pigmentosa (RP) has not been characterized longitudinally. Herein, spectral domain optical coherence tomography (SD-OCT) was used to monitor the dynamic morphological changes in the Pro23His rhodopsin transgenic (TgP23H) pig model of RP and was correlated with electroretinography (ERG) in the rapid, early phase of photoreceptor degeneration. Methods: TgP23H and wild-type (WT) hybrid pig littermates at the ages of postnatal days 30 (P30), P60, and P90 were studied. The thickness of different retinal layers was quantified using SD-OCT and compared with histology. Retinal function was evaluated with ERG at corresponding time points. Results: In the WT pigs, retinal morphology on SD-OCT was consistent throughout the observation period. In the TgP23H pigs, the retinal thickness decreased significantly from P30 to P90. Moreover, the relative intensity of the ellipsoid zone (EZ) progressively decreased, while the intensity of the interdigitation zone–retinal pigment epithelium (IZ-RPE) progressively increased during this period. Morphological changes in SD-OCT corresponded with histology, as well as the progressively decreased amplitude of the ERG photopic a- and b-waves in the TgP23H pigs. Conclusions: Retinal degeneration can be quantified using SD-OCT by measuring retinal thickness and the intensity of the EZ and IZ-RPE bands in the TgP23H pig. The SD-OCT results correspond with the histologic and ERG assessments of retinal degeneration. These data provide a foundation for future preclinical studies investigating potential new therapeutic strategies in a large animal model of retinitis pigmentosa.

1. Introduction

Retinitis pigmentosa (RP) refers to a heterogeneous group of inherited retinal degenerative diseases that result in progressive photoreceptor cell death, characterized by night blindness and visual field constriction. Mutations in the rhodopsin gene (RHO) account for about 30–40% of autosomal dominant forms of RP in the United States [1]. A proline–histidine substitution at the 23rd amino acid residue of rhodopsin (Pro23His) is the most common rhodopsin mutation and accounts for about 40% of the rhodopsin-induced cases and 10% of all autosomal dominant RP [2,3,4,5].
To investigate retinal degenerative diseases, multiple animal models have been developed. Retinal degeneration 1 (rd1) mice are one of the most widely used animal models for studying early-onset, rapid progression of RP, characterized by a mutation in the phosphodiesterase 6B Pde6b gene [6,7]. In addition, other rodent models with retinopathy derived from the proline-to-histidine substitution in codon 23 (P23H) have been created and studied [8,9,10,11,12,13]. Because the eyeball size and anatomy of the porcine eye are similar to the human eye, different porcine models of RP have been established to investigate the mechanisms of retinal degeneration and dysfunction and to test potential therapeutic interventions [14,15,16,17,18]. To better understand the pathophysiology of retinal degeneration caused by the P23H mutation in pigs, a miniature swine model with the P23H RHO mutation was developed recently and found to exhibit functional and morphologic characteristics similar to the human form of the disease [19,20]. The porcine model presents multiple advantages over the rodent model because it closely resembles human anatomy, immunology, and physiology. Compared to the rodent retina, the pig retina includes a cone-dense region [21], which may yield more acute vision, comparable to the human macula [22]. In the present study, we specifically dealt with a large animal model, i.e., P23H transgenic pigs, which might allow for observational and preclinical studies of novel therapies for human RP.
Previous studies have documented progressive photoreceptor degeneration in the P23H swine model using histologic analysis [20,23]. Interestingly, rod function does not develop in this transgenic pig model. Although postmortem histologic analyses may document morphological characteristics of retinal degeneration in an animal model at a particular point in time, a longitudinal study of the course of retinal degeneration over time in an animal subject is precluded. Spectral domain optical coherence tomography (SD-OCT) has proved to be a valuable approach to accurately measure retinal thickness and assess morphological changes in vivo in multiple animal models by our research group and others [24,25,26,27]. SD-OCT facilitates the longitudinal study of disease-related retinal alterations and allows for improved clinical evaluations in RP [28,29,30,31].
We previously described the correlation between SD-OCT and histology of the porcine retina in the domestic pig, and we found that SD-OCT images correlate well with histomorphometric data in the porcine retina [6,7]. However, limited SD-OCT information is currently available concerning the retinal morphologic changes at different time points of retinal degeneration in the pig. Herein, we characterized the progressive photoreceptor degeneration in the P23H swine model by using SD-OCT to trace the changes in the same region of the retina during the first 3 months after birth, during which the most rapid progression of retinal degeneration has been reported [20]. The results might improve our understanding of the progression of the disease for future clinical management.

2. Results

2.1. SD-OCT Imaging

As shown in Figure 1, different retinal layers were clearly identified in the SD-OCT images of the wild-type (WT) and TgP23H pig retinas at P30. The nerve fiber layer (NFL), inner plexiform layer (IPL), outer plexiform layer (OPL), ELM, EZ, IZ, and RPE were displayed as hyperreflective bands, whereas the ganglion cell layer (GCL), inner nuclear layer (INL), and ONL were displayed as hyporeflective bands. The SD-OCT image of the WT pigs showed that the structure of the retina was consistent throughout the observation period in both the superior and inferior retina. The EZ and IZ-RPE were consistently visualized as two distinct hyperreflective bands in the WT pig SD-OCT images.
In the superior retina of the TgP23H pigs, the inner retinal layers were mostly preserved, and the IPL and INL were easily identified throughout the course of degeneration. The ONL became progressively thinned from postnatal day 30 (P30) to P60 and was still detectable at P90. The EZ was clearly observed at P30. At P60, the EZ became attenuated and discontinuous. By P90, the EZ hyperreflective band was unidentifiable. In contrast, the IZ-RPE was detectable at P30 and became diffusely hyperreflective at P90. In the inferior retina of the TgP23H pigs, the inner retinal layers were preserved between P30 and P90. The ONL corresponded to a very thin hyporeflective band at P30 and remained identifiable at P90. The EZ could not be identified at P30; however, the hyperreflective IZ-RPE layer persisted from P30 to P90 in the inferior retina.

2.2. Quantitative Analysis of SD-OCT Imaging

To characterize the progression of retinal degeneration, SD-OCT imaging was performed at the same retinal locations with the aid of an eye-tracking system (Figure 2A). The thickness of retinal layers was measured in both the WT and TgP23H pigs by manual segmentation at different time points. In the WT pigs, the thickness of different retinal layers in both the superior and inferior retinas did not change between P30 and P90. No difference was observed in the total retinal thickness (TRT) in the superior retina between the WT and TgP23H pigs at P30; however, the TRT gradually decreased from P30 to P90 in the TgP23H pigs (Figure 2B). The retinal thickness measured from NFL to IPL was constant between P30 and P90 in the TgP23H pigs (Figure 2C). Compared to the WT pigs, the INL thickness in the TgP23H pigs was increased by 64% at P30, whereas the INL thickness was comparatively decreased in the TgP23H pigs by 38% at P90 (Figure 2D). Compared to the WT pigs, the thickness measured from ONL to IZ-RPE was decreased by 41% in the TgP23H pigs at P30, and the ONL to IZ-RPE thickness continued to decrease from P30 to P90 (by 69% at P90) in the TgP23H pigs (Figure 2E).
Spidergrams of the superior and inferior retina show that the TRT and ONL to IZ-RPE thickness decreased over time in the TgP23H pigs in the superior retina, while these measurements did not change significantly over time in the inferior retina (Figure 2F,G). Compared to the superior retina, the TRT and ONL to IZ-RPE thickness in the inferior retina were significantly decreased at different time points (Figure 2F,G).
The densities of the EZ and IZ-RPE bands were measured to further characterize the degeneration of the photoreceptors and RPE. As shown in Figure 3A, the representative intensity was measured at different time points. The relative reflective densities of the EZ and IZ-RPE of the WT pigs were consistent from P30 to P90. The relative density of the EZ was decreased by 51% in the TgP23H pigs at P30, with gradual attenuation to the point of being unidentifiable at P90 (Figure 3A,B). In the TgP23H pigs, the relative density of the IZ-RPE was decreased by 52% at P30. In contrast, during the progression of retinal degeneration, the reflective density of the IZ-RPE increased by about 110% from P30 to P90 (Figure 3C).

2.3. Histology and SD-OCT Correlation

Retinal histologic sections from the TgP23H pigs were compared to locally matched SD-OCT images (Figure 4). Compared to the WT pigs, the number of photoreceptor nuclei was significantly decreased at P30 in the TgP23H pig retina. The outer segments of the photoreceptors were disorganized. At P60, the ONL thickness and nuclear density were significantly decreased, with good correspondence between retinal histology and SD-OCT. By P90, the ONL contained only a single cell layer of cone nuclei on histologic sections, corresponding to the detectable hyporeflective ONL band on SD-OCT imaging. At this time point, the cone photoreceptors lacked distinct inner and outer segments, corresponding to the loss of the EZ in the SD-OCT images. The melanin/melanolipofuscin granules of the RPE appeared more numerous and aggregated in the apical cytoplasm of the RPE with progression of retinal degeneration from P30 to P90 in the TgP23H pigs.
Compared to the superior retina, the total retinal thickness of the inferior retina was thinner, with only 1–2 rows of photoreceptor nuclei in the ONL at P30. With the progression of retinal degeneration, the EZ band became thinner, and the intensity of the IZ-RPE band increased. At all time points (P30–P90) in the WT and TgP23H pigs, a hyperreflective band was observed with SD-OCT in the middle of the hyporeflective INL band (Figure 1 and Figure 2). This hyperreflective band in the INL correlated histologically with the apical cytoplasm of large horizontal cells (Figure 4).

2.4. ERG Recordings

Full-field ERG was recorded to characterize cone function in the WT and TgP23H pigs, since rod function does not develop in TgP23H pigs. The cone response was measured by photopic ERG (3.0 cd·s·m−2) and 30 Hz flicker ERG (3.0 cd·s·m−2). In the WT pigs, the amplitude of the a-wave was stable between P30 and P90 (Figure 5A), while the b-wave increased from P30 to P90 (Figure 5B). In contrast, in the TgP23H pigs, the amplitude of the photopic a- and b-waves decreased gradually from P30 to P90. Compared to the WT pigs, the a-wave in the TgP23H pigs was decreased by 32% at P30. The a- and b-waves further decreased by 62% and 56%, respectively, at P90 (Figure 5A,B). The 30 Hz b-wave decreased by 31% in the TgP23H pigs compared to the WT pigs at P30 (Figure 5C) and further decreased by 71% from P30 to P90 in the TgP23H pigs (Figure 5C). These ERG changes corresponded with the decreased outer retinal thickness, decrease in the density/number of cone cell nuclei, and decreased intensity of the EZ band observed with SD-OCT during the same time period. These ERG results also correlated with the histological findings, which showed progressive attenuation and loss of the photoreceptor outer segments and the number of cone cell nuclei.

3. Discussion

In the present study, we documented the SD-OCT findings of a recently developed porcine model of inherited retinal degeneration with the P23H mutation. SD-OCT imaging was correlated with longitudinal assessments of histology and retinal function, as measured by ERG during the early and rapidly progressive stages of photoreceptor degeneration. We demonstrated that the progression of cone photoreceptor degeneration can be characterized by SD-OCT, by measuring the thickness of the outer retinal layers and relative intensities of the EZ and IZ-RPE bands to the ELM band in TgP23H pigs. The correlation between SD-OCT data and ERG amplitudes suggests that SD-OCT is able to yield accurate and reliable longitudinal assessments of the morphological changes in this large animal model.
Histologic analysis has been used as a gold standard for characterizing retinal structure in different animal models of retinal degeneration. However, SD-OCT imaging offers a noninvasive, alternative method to assess morphologic changes in disease progression without potential artifacts caused by histological processing. Although OCT imaging varies in different animal models using OCT instruments from different manufacturers, the interpretation of longitudinal OCT changes provides a new method to monitor and assess the pathophysiologic progression of retinal degeneration [24,32,33,34,35].
As a recently developed large animal model of RP, TgP23H pigs exhibit very early rod photoreceptor degeneration, which allows for the investigation of mechanisms of secondary cone photoreceptor degeneration and potential new therapeutic strategies to enhance cone photoreceptor survival. Therefore, it is important to document the SD-OCT findings in this large animal model and establish a baseline that is applicable to retinal degeneration in humans. Because the progression of retinal degeneration is slow with relative stability after P90 [23], in the current study, we investigated the SD-OCT changes in TgP23H pigs from P30 to P90, a period of rapid ONL degeneration. A recently published study demonstrated the OCT features of a 6-week-old TgP23H pig with one eye imaged in vivo (i.e., one-time point assessment without repeat experiments or longitudinal imaging of photoreceptor degeneration) [36]. Two recent studies have further emphasized the utility of longitudinal assessments of the outer retina in the pig model, including the TgP23H pig, with OCT imaging [37,38]. However, SD-OCT morphological data were not compared with retinal functional data in these previous studies. It is critical to establish a correlation between SD-OCT imaging, histology, and ERG functional data in this large animal model of retinal degeneration. In the present longitudinal study, we report the first monitoring of retinal degeneration in the TgP23H pig with those parameters. We also first report that the changes in EZ and IZ-RPE band densities with SD-OCT imaging may serve as a new index to evaluate the retinal degeneration in this animal model.
Based on the OCT findings, the thickness of the NFL to IPL remained consistent between P30 and P90, whereas the thickness of the nuclear layers (INL, ONL) decreased significantly during retinal degeneration (Figure 1 and Figure 2). The loss of nuclei in the retina (i.e., the INL and ONL) is the major contributing factor to the decrease in total retinal thickness, an interpretation supported by the histologic data. The thickness of the axonal or plexiform layers of the retina appeared to remain stable during this period of retinal degeneration. In the TgP23H pigs, we also observed an additional hyperreflective band in the INL (Figure 1 and Figure 2), corresponding to the presence of abundant mitochondria in horizontal cell processes and adjacent bipolar cells on transmission electron microscopy, as reported in our previous study in normal domestic pigs [39,40]. We observed an increase in INL thickness in the TgP23H pigs compared to the WT pigs at P30, which is consistent with the previously reported human patients and Rho transgenic mouse model of retinitis pigmentosa [41]. In addition to photoreceptor dysfunction, retinal remodeling also occurs and involves second-order retinal neuronal cells, such as bipolar cells, horizontal cells, and Müller cells, in the setting of retinal degeneration [42,43]. Common histologic findings in the remodeling process include cell body migration and sprouting of ectopic processes on horizontal and bipolar cells, as well as thickening of cytoplasmic processes and translocation of Müller cells [44,45]. The migration of the second-order retinal neurons in this remodeling might contribute to the increased INL thickness in the TgP23H pigs compared to the WT pigs as early as P30. With the progression of retinal degeneration, the degenerated cell bodies and resorption of second-order neurons may cause a decrease in INL thickness as measured by OCT. However, further studies are needed to understand the contribution of cellular remodeling to the changes in INL thickness in this large animal model.
We found that the thickness of the ONL, EZ, and outer segments of the photoreceptors progressively decreased with time in the TgP23H pigs (Figure 2 and Figure 3). By P90, only one layer of photoreceptor nuclei remained in the superior retina (Figure 4), which was identified as a thin hyporeflective ONL in SD-OCT imaging. Although we used high-resolution SD-OCT imaging in the current study, it remains challenging to measure the thickness of the ONL manually during the course of rapid retinal degeneration in this model. To enable consistent measurements at different time points (P30, P60, and P90), we measured the thickness from the inner margin of the ONL to the inner margin of the IZ-RPE. The decrease in ONL-to-IZ-RPE thickness as measured on SD-OCT (Figure 2 and Figure 3) corresponded to a decreased number of cone photoreceptor nuclei and shorter inner and outer segments, as observed histologically (Figure 4). It is unclear why the inferior retina displayed more severe retinal degeneration in the TgP23H pigs; however, as suggested by other investigators, phototoxicity from overhead light may contribute to this differential finding in the inferior retina [46,47].
The reflectivity of OCT bands can be affected by many factors, such as tear film quality, lens opacities and vitreous floaters. To minimize this variation and normalize the optical intensity, several references were selected when quantifying the intensity of the EZ band in OCT analysis, such as vitreous [48], RNFL [48], ELM [49,50], RPE [51], or the mean value of the whole retina [51]. Because vitreous detachment or floaters may present during OCT imaging, we avoided the use of vitreous as a reference. Furthermore, changes in the RNFL and RPE during the progression of RP may potentially change the reflectivity of these bands. The reflectivity of the whole retina may also change with retinal gliosis or remodeling of synapses in the plexiform layers during the course of retinal degeneration. However, as a nonneural membrane, the ELM exhibits relatively constant intensity regardless of age or retinal degeneration [52,53] and may serve as a good reference to quantify the intensity of the EZ band.
The densely packed mitochondria in the EZ of the photoreceptor inner segment may serve as a biomarker of disease severity in retinal degeneration [54,55]. Mitochondria in the inner segment of the photoreceptor have been proposed to be the main light-scattering organelles, which contribute to the hyperreflective band of the EZ in OCT images of the outer retina [56,57]. A decrease in EZ intensity may indicate a reduction in healthy or functional mitochondria in the photoreceptor inner segment and thus, abnormal photoreceptor function. We found that the relative intensity of the EZ band measured with SD-OCT decreased in the TgP23H pigs from P30 to P90 (Figure 3), and this corresponded to the decreased number of cone photoreceptors observed histologically (Figure 4). Our findings are consistent with other studies in patients with photoreceptor dysfunction [28,54,58,59] and in rat models of retinal degeneration [35], which have reported decreased EZ band intensity with OCT. The EZ thickness on SD-OCT has been suggested to be a significant predictor of best-corrected visual acuity in patients with RP [59].
The precise cellular origin of the third outer hyperreflective band is still controversial. Initially, this band was described as a contact cylinder of the RPE that encases part of the photoreceptor outer segment [52]. Subsequently, this band was interpreted as the RPE interdigitation zone [60] or as cone outer segment tips [60,61]. A recent study proposed that this third band is generated by the phagosome zone of the RPE [62]. Due to the intimate relationship with the RPE, this third band is not easily distinguishable from the RPE layer (fourth outer hyperreflective band) on OCT in some animal models. In domestic pigs, we previously showed that the third and most reflective band in the porcine outer retina correlated with the IZ and RPE cells [39]. In the current study, the relative intensity of the IZ-RPE band in the TgP23H pigs was decreased when compared to the WT pigs at P30 (Figure 3), which correlated with photoreceptor dysfunction/degeneration in this animal model. However, from P30 to P90, we observed an increase in the relative intensity of this band on SD-OCT in the TgP23H pigs. Histologically, we found that the IZ-RPE band correlated with an increased number and aggregation of melanin/melanolipofuscin granules in the apical RPE cytoplasm in this animal model of retinitis pigmentosa (Figure 4). Migration and aggregation of melanin is frequently observed in retinitis pigmentosa [62]. Although melanin is not the only contributor to the RPE hyperreflective band on SD-OCT and the cellular/subcellular origin of the outer retinal hyperreflective bands on OCT remains controversial [57,62], the apical translocation of melanin in RPE cells is believed to contribute to the increased band density of the RPE in OCT imaging [63,64,65,66]. An alternative explanation for the apparent thickening of the outermost retinal hyperreflective band (i.e., IZ-RPE band) on OCT might be the inadequate resolution of the EZ band due to photoreceptor inner and outer segment loss and “fusion” of the EZ and RPE bands. A “true” IZ at or after P90 in the TgP23H porcine retina is not visualized on OCT imaging because there are no or only rare and degenerated photoreceptor outer segments, as observed histologically.
In the present study, in addition to the strong correlation between morphological changes observed with SD-OCT and histology in the TgP23H pigs, we found that changes in SD-OCT imaging (Figure 1, Figure 2 and Figure 3) correlated well with concurrent decreases in the ERG amplitudes (Figure 5) in this large animal model. Our findings are consistent with other studies in the rodent model and suggest a close correspondence between retinal structure and function with longitudinal alteration of morphology as assessed by SD-OCT [35,67]. Interestingly, Scott and coworkers [23] observed an increase in the photopic b-wave amplitude between P30 and P90 in WT control pigs, similar to our findings (Figure 5). The same investigators reported an increase in the flicker ERG amplitude in WT control pigs between P30 and P90; however, the flicker ERG amplitude in the current study was not significantly different between P30 and P90 in the WT pigs (Figure 5). Of note, Scott et al. [23] reported that the cone and flicker ERG responses were similar in WT and TgP23H pigs up to 2 months, with a decline in these parameters thereafter in TgP23H pigs. In our study, however, we observed a statistically significantly decreased flicker ERG response and progressively decreasing cone and flicker ERG responses from P30 to P90 in the TgP23H pigs compared to the WT pigs (Figure 5). The reason for this inconsistent observation is unknown; however, it might be attributable to genetic variability in the TgP23H minipig–WT minipig cross reported by Scott et al. vs. the TgP23H minipig–WT domestic pig cross used in our studies.
Although several rodent models of retinal degeneration have been developed, it is challenging to obtain detailed anatomical information on the retina with SD-OCT due to the small size of the rodent eye [68]. However, commercially available OCT instruments can obtain high-resolution retinal imaging in the porcine model since the pig eye is similar in size to the human eye. It should be noted that photoreceptor degeneration rates may be different between the posterior and peripheral retinas in the TgP23H pig [23]. In addition, we observed differential rates of photoreceptor degeneration in the superior retina versus the inferior retina in this RP model (Figure 1 and Figure 2, and Figure 4). Our study focused on the posterior retina centered on the optic nerve head, as it is less reliable to use the 30-degree OCT lens to study the peripheral retina. With the advent of wide-field SD-OCT imaging, additional studies on the peripheral retina and topographical variability in photoreceptor degeneration may provide further baseline data in this retinal degeneration model.
The potential limitations to our study might include the small sample size, lack of statistical (i.e., qualitative versus quantitative) comparisons between OCT imaging and histology, the rapid course of retinal degeneration in the TgP23H pigs with no functional rods after farrowing, anatomical differences in the porcine versus human retina (e.g., lack of a fovea, prominent horizontal cells with a corresponding hyperreflective band in the INL on OCT imaging, outer retinal band morphology on OCT imaging), and the differential rate of retinal degeneration in the inferior retina versus the superior retina possibly due to ambient light phototoxicity. Despite these potential limitations, the present study was the first to longitudinally characterize the development of inherited retinal degeneration in a large animal model utilizing the combination of electroretinography and SD-OCT with histology correlation, which might shed light on the time-dependent functional, structural, and morphological changes in human RP.
In summary, we characterized the SD-OCT changes in the TgP23H pig throughout the course of rapid photoreceptor degeneration (i.e., P30 to P90). Our results demonstrate that progression of photoreceptor cell loss as measured by SD-OCT corresponds to light microscopic analysis and ERG changes in the TgP23H pig over time. Herein, we have demonstrated that SD-OCT can be employed for longitudinal assessment of retinal degeneration in natural history or observational studies of disease progression, as well as preclinical studies of emerging novel treatments for inherited retinal degeneration using the porcine model.

4. Materials and Methods

4.1. Animals

Female and male wild-type (WT) and TgP23H (TG) hybrid littermates were obtained through insemination of domestic swine with the semen of TgP23H mini-swine (Founder line 53-1), as previously described [20]. The hybrid littermates were acquired from the National Swine Resource and Research Center at the University of Missouri in Columbia, MO. The pigs were housed with a 12 h on/12 h off light/dark schedule and had free access to food and water. The Animal Use Protocol was approved by the Institutional Animal Care and Use Committee of Baylor Scott & White Health (AUP# 2014-008) and followed the ARVO Statement for the Use of Animals in Ophthalmic and Vision Research.

4.2. Spectral Domain Optical Coherence Tomography (SD-OCT)

The Heidelberg Spectralis HRA + OCT was employed to analyze the morphology of the pig retina as we previously described [39,40]. Male and female TgP23H and WT pigs were imaged at postnatal days 30, 60, and 90 (P30, P60, P90). The images were acquired from at least 6 eyes from 6 pigs in each group at each time point. The animal subjects were sedated before imaging with 2% to 4% isoflurane anesthesia, and 1% tropicamide eye drops (Bausch & Lomb Inc., Tampa, FL, USA) were used to dilate the pupils before imaging. Corneal clarity was maintained by instilling artificial tears (Refresh Optive®, Allergan Inc., Irvine, CA, USA) throughout the procedure. The equipment was set at a 30° field of view, and the images were analyzed with the software Heidelberg Eye Explorer (HEYEX version 6.6, Heidelberg, Germany).
Eye position was maintained to standardize the fundus image by orienting the optic disc. SD-OCT scans were acquired using the same position. Seven vertical scans with an inter-scan distance of 240 µm were obtained along the vertical meridian through the optic disc. An average of 100 frames per B-scan was used, and signal quality was greater than 25 db with a scan speed of 40,000 A-scans per second to increase the signal-to-noise ratio. High-resolution mode was employed with an axial resolution of 3.9 µm digital and a lateral resolution of 6 µm digital.
To obtain measurements from the SD-OCT B-scan, manual adjustment of the layer lines defined by Heidelberg software was performed. For segmentation analysis, total retinal thickness (TRT) was measured from the internal limiting membrane (ILM) to the interdigitation zone (IZ)–retinal pigment epithelium (RPE). The thickness of the outer nuclear layer (ONL) to the IZ-RPE was measured to provide consistent measurements across all time points because the ONL thickness decreased rapidly by P90. The thickness was measured on B-scans at 500 µm intervals along the vertical meridian from the optic disc and across the full length of the SD-OCT scan in the superior (7000 µm) and inferior (6000 µm) retinas.
Reflective densities of the IZ-RPE and ellipsoid zone (EZ) bands were quantified as described previously [49,54]. SD-OCT B-scans were exported and converted into 8-bit grayscale images. Processing of images with the ImageJ software package (Version 1.51j8; National Institutes of Health, Bethesda, MA, USA) was performed, and relative EZ or IZ-RPE intensities were calculated as the band intensity value divided by the external limiting membrane (ELM) intensity value along the vertical meridian from the optic disc and across the full length (7000 µm) of the SD-OCT scan in the superior retina.
The mean thickness and reflective density were measured by averaging 6 measurements obtained at 500 µm intervals located 2500 µm to 5000 µm from the superior edge of the optic disc in the superior retina of each eye. The overall average retinal layer thickness and reflective density were calculated from 6 different eyes at each time point and presented as mean ± SEM.

4.3. Tissue Preparation for Morphological Analyses

Animal subjects were euthanized under isoflurane anesthesia by exsanguination after SD-OCT imaging. After enucleation, the eyes were immediately placed in 4% paraformaldehyde (PFA). A posterior eyecup containing the sclera, choroid, RPE, and neural retina was then separated from the anterior segment, lens, and vitreous. Careful attention was taken to avoid separation of the neuronal retina from the RPE during dissection and processing. Post-fixation of the posterior eyecup by immersion in 2% PFA/2% glutaraldehyde in phosphate-buffered saline (PBS) at 4 °C for 48 h was performed. A 3 mm wide strip of retinal tissue was then dissected along the vertical meridian to include the optic disc and ora serrata. The tissue was embedded in Eponate 12 resin (Ted Pella, Redding, CA, USA) after rinsing, secondary fixation in buffered 1% osmium tetroxide, final rinsing, and dehydration. Retinal tissue blocks were cut into 500 nm thick sections using an RMC PowerTome X Ultramicrotome (Boeckeler Instruments, Tucson, AZ, USA), stained with 1% toluidine blue (Sigma-Aldrich, St. Louis, MO, USA), covered with a coverslip, and examined with light microscopy. Four eyes were processed for epoxy resin-embedded light microscopy at each time point.

4.4. Electroretinography (ERG)

The ESPION V5 System (Software V5.0.39; Diagnosys LLC, Lowell, MA, USA) was utilized to record full-field electroretinograms (ERGs) of the pigs at P30, P60, and P90. Contact ear electrodes were placed with conducting gel on the right and left ears after sedation and induction with isoflurane anesthesia. Contact lens electrodes with lubricant gel were then placed on the cornea of each eye. After a period of light adaptation (10 min), the photopic ERG was recorded with a strobe flash intensity of 3.0 cd·s·m−2 and a 1 s interstimulus interval. The 30 Hz flicker ERG (3.0 cd·s·m−2) was then recorded. A total of 5–10 presentations were used to construct an averaged response.

4.5. Data Analysis

All data are presented as mean ± SEM and were analyzed using GraphPad Prism 6.0 (GraphPad Software, Inc., LaJolla, CA, USA). Two-way ANOVA followed by Tukey’s test was used in multiple group comparisons. Differences were considered significant at p < 0.05.

Author Contributions

Conceptualization, R.H.R.J.; experiments, W.X., M.Z., S.-H.T., R.H.R.J., M.G.S. and L.B.P.; methodology, R.H.R.J., T.W.H., L.K., W.X., M.Z. and L.B.P.; data analysis, W.X., M.Z. and R.H.R.J.; writing—original draft preparation, W.X. and M.Z.; writing—review and editing, R.H.R.J., T.W.H., L.K. and N.J.R.; funding acquisition, R.H.R.J., L.K. and T.W.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Liles Macular Degeneration Research Fund (R.H.R.J.), Kruse Chair Endowment (L.K.), the Baylor Scott & White-Central Texas Foundation (R.H.R.J., L.K.), the Ophthalmic Vascular Research Program of Baylor Scott & White Health (L.K.), and the Retina Research Foundation (L.K.), NIH NEI R01EY024624 (T.W.H.) and R21EY024406 (T.W.H.).

Institutional Review Board Statement

The experimental procedures and protocols were carried out under the guidance of the Animal Care and Use Committee at Baylor Scott & White Health (AUP# 2014-008 approved 22 June 2018).

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets generated and/or analyzed for the current study are available from the corresponding authors upon reasonable request.

Acknowledgments

The P23H transgenic pigs used in this study were obtained from the National Swine Resource and Research Center (NSRRC) at the University of Missouri in Columbia, MO. The NSRRC is supported by grant U42OD011140 from the NIH, Office of Research Infrastructure Programs (ORIP) in collaboration with the National Institute of Allergy and Infectious Diseases (NIAID), and the National Heart, Lung, and Blood Institute (NHLBI).

Conflicts of Interest

All authors declare that they have no conflicts of interest. The funders had no role in the design of this study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Daiger, S.P. RetNet—Retinal Information Network. Available online: https://web.sph.uth.edu/RetNet/ (accessed on 16 November 2025).
  2. Dryja, T.P.; McGee, T.L.; Reichel, E.; Hahn, L.B.; Cowley, G.S.; Yandell, D.W.; Sandberg, M.A.; Berson, E.L. A point mutation of the rhodopsin gene in one form of retinitis pigmentosa. Nature 1990, 343, 364–366. [Google Scholar] [CrossRef]
  3. Vaithinathan, R.; Berson, E.L.; Dryja, T.P. Further screening of the rhodopsin gene in patients with autosomal dominant retinitis pigmentosa. Genomics 1994, 21, 461–463. [Google Scholar] [CrossRef] [PubMed]
  4. Dryja, T.P.; McEvoy, J.A.; McGee, T.L.; Berson, E.L. Novel rhodopsin mutations Gly114Val and Gln184Pro in dominant retinitis pigmentosa. Investig. Ophthalmol. Vis. Sci. 2000, 41, 3124–3127. [Google Scholar]
  5. Sohocki, M.M.; Daiger, S.P.; Bowne, S.J.; Rodriquez, J.A.; Northrup, H.; Heckenlively, J.R.; Birch, D.G.; Mintz-Hittner, H.; Ruiz, R.S.; Lewis, R.A.; et al. Prevalence of mutations causing retinitis pigmentosa and other inherited retinopathies. Hum. Mutat. 2001, 17, 42–51. [Google Scholar] [CrossRef] [PubMed]
  6. Han, J.; Dinculescu, A.; Dai, X.; Du, W.; Smith, W.C.; Pang, J. Review: The history and role of naturally occurring mouse models with Pde6b mutations. Mol. Vis. 2013, 19, 2579–2589. [Google Scholar]
  7. Chandler, L.C.; Gardner, A.; Cepko, C.L. A congenic C57BL/6J rd1 mouse model for retinal degeneration research. Exp. Eye Res. 2026, 263, 110804. [Google Scholar] [CrossRef] [PubMed]
  8. Olsson, J.E.; Gordon, J.W.; Pawlyk, B.S.; Roof, D.; Hayes, A.; Molday, R.S.; Mukai, S.; Cowley, G.S.; Berson, E.L.; Dryja, T.P. Transgenic mice with a rhodopsin mutation (Pro23His): A mouse model of autosomal dominant retinitis pigmentosa. Neuron 1992, 9, 815–830. [Google Scholar] [CrossRef]
  9. Naash, M.I.; Hollyfield, J.G.; al-Ubaidi, M.R.; Baehr, W. Simulation of human autosomal dominant retinitis pigmentosa in transgenic mice expressing a mutated murine opsin gene. Proc. Natl. Acad. Sci. USA 1993, 90, 5499–5503. [Google Scholar] [CrossRef]
  10. Goto, Y.; Peachey, N.S.; Ripps, H.; Naash, M.I. Functional abnormalities in transgenic mice expressing a mutant rhodopsin gene. Investig. Ophthalmol. Vis. Sci. 1995, 36, 62–71. [Google Scholar]
  11. Lewin, A.S.; Drenser, K.A.; Hauswirth, W.W.; Nishikawa, S.; Yasumura, D.; Flannery, J.G.; LaVail, M.M. Ribozyme rescue of photoreceptor cells in a transgenic rat model of autosomal dominant retinitis pigmentosa. Nat. Med. 1998, 4, 967–971. [Google Scholar] [CrossRef]
  12. Machida, S.; Kondo, M.; Jamison, J.A.; Khan, N.W.; Kononen, L.T.; Sugawara, T.; Bush, R.A.; Sieving, P.A. P23H rhodopsin transgenic rat: Correlation of retinal function with histopathology. Investig. Ophthalmol. Vis. Sci. 2000, 41, 3200–3209. [Google Scholar]
  13. Sakami, S.; Kolesnikov, A.V.; Kefalov, V.J.; Palczewski, K. P23H opsin knock-in mice reveal a novel step in retinal rod disc morphogenesis. Hum. Mol. Genet. 2014, 23, 1723–1741. [Google Scholar] [CrossRef] [PubMed]
  14. Petters, R.M.; Alexander, C.A.; Wells, K.D.; Collins, E.B.; Sommer, J.R.; Blanton, M.R.; Rojas, G.; Hao, Y.; Flowers, W.L.; Banin, E.; et al. Genetically engineered large animal model for studying cone photoreceptor survival and degeneration in retinitis pigmentosa. Nat. Biotechnol. 1997, 15, 965–970. [Google Scholar] [CrossRef]
  15. Li, Z.Y.; Wong, F.; Chang, J.H.; Possin, D.E.; Hao, Y.; Petters, R.M.; Milam, A.H. Rhodopsin transgenic pigs as a model for human retinitis pigmentosa. Investig. Ophthalmol. Vis. Sci. 1998, 39, 808–819. [Google Scholar]
  16. Sommer, J.R.; Estrada, J.L.; Collins, E.B.; Bedell, M.; Alexander, C.A.; Yang, Z.; Hughes, G.; Mir, B.; Gilger, B.C.; Grob, S.; et al. Production of ELOVL4 transgenic pigs: A large animal model for Stargardt-like macular degeneration. Br. J. Ophthalmol. 2011, 95, 1749–1754. [Google Scholar] [CrossRef]
  17. Noel, J.M.; Fernandez de Castro, J.P.; Demarco, P.J., Jr.; Franco, L.M.; Wang, W.; Vukmanic, E.V.; Peng, X.; Sandell, J.H.; Scott, P.A.; Kaplan, H.J.; et al. Iodoacetic acid, but not sodium iodate, creates an inducible swine model of photoreceptor damage. Exp. Eye Res. 2012, 97, 137–147. [Google Scholar] [CrossRef][Green Version]
  18. Scott, P.A.; Kaplan, H.J.; McCall, M.A. Prenatal Exposure to Curcumin Protects Rod Photoreceptors in a Transgenic Pro23His Swine Model of Retinitis Pigmentosa. Transl. Vis. Sci. Technol. 2015, 4, 5. [Google Scholar] [CrossRef][Green Version]
  19. Ross, J.W.; Fernandez de Castro, J.P.; Zhao, J.; Samuel, M.; Walters, E.; Rios, C.; Bray-Ward, P.; Jones, B.W.; Marc, R.E.; Wang, W.; et al. Generation of an inbred miniature pig model of retinitis pigmentosa. Investig. Ophthalmol. Vis. Sci. 2012, 53, 501–507. [Google Scholar] [CrossRef]
  20. Fernandez de Castro, J.P.; Scott, P.A.; Fransen, J.W.; Demas, J.; DeMarco, P.J.; Kaplan, H.J.; McCall, M.A. Cone photoreceptors develop normally in the absence of functional rod photoreceptors in a transgenic swine model of retinitis pigmentosa. Investig. Ophthalmol. Vis. Sci. 2014, 55, 2460–2468. [Google Scholar] [CrossRef][Green Version]
  21. Beauchemin, M.L. The fine structure of the pig’s retina. Albrecht Von. Graefes Arch. Klin. Exp. Ophthalmol. 1974, 190, 27–45. [Google Scholar] [CrossRef] [PubMed]
  22. Chandler, M.J.; Smith, P.J.; Samuelson, D.A.; MacKay, E.O. Photoreceptor density of the domestic pig retina. Vet. Ophthalmol. 1999, 2, 179–184. [Google Scholar] [CrossRef]
  23. Scott, P.A.; de Castro, J.P.; DeMarco, P.J.; Ross, J.W.; Njoka, J.; Walters, E.; Prather, R.S.; McCall, M.A.; Kaplan, H.J. Progression of Pro23His Retinopathy in a Miniature Swine Model of Retinitis Pigmentosa. Transl. Vis. Sci. Technol. 2017, 6, 4. [Google Scholar] [CrossRef] [PubMed]
  24. Ryals, R.C.; Andrews, M.D.; Datta, S.; Coyner, A.S.; Fischer, C.M.; Wen, Y.; Pennesi, M.E.; McGill, T.J. Long-term Characterization of Retinal Degeneration in Royal College of Surgeons Rats Using Spectral-Domain Optical Coherence Tomography. Investig. Ophthalmol. Vis. Sci. 2017, 58, 1378–1386. [Google Scholar] [CrossRef] [PubMed]
  25. Tsai, S.H.; Xie, W.; Zhao, M.; Rosa, R.H., Jr.; Hein, T.W.; Kuo, L. Alterations of Ocular Hemodynamics Impair Ophthalmic Vascular and Neuroretinal Function. Am. J. Pathol. 2018, 188, 818–827. [Google Scholar] [CrossRef] [PubMed]
  26. Zhao, M.; Xie, W.; Tsai, S.H.; Hein, T.W.; Rocke, B.A.; Kuo, L.; Rosa, R.H., Jr. Intravitreal Stanniocalcin-1 Enhances New Blood Vessel Growth in a Rat Model of Laser-Induced Choroidal Neovascularization. Investig. Ophthalmol. Vis. Sci. 2018, 59, 1125–1133. [Google Scholar] [CrossRef]
  27. Rosa, R.H., Jr.; Xie, W.; Zhao, M.; Tsai, S.H.; Roddy, G.W.; Su, M.G.; Potts, L.B.; Hein, T.W.; Kuo, L. Intravitreal Administration of Stanniocalcin-1 Rescues Photoreceptor Degeneration with Reduced Oxidative Stress and Inflammation in a Porcine Model of Retinitis Pigmentosa. Am. J. Ophthalmol. 2022, 239, 230–243. [Google Scholar] [CrossRef]
  28. Lima, L.H.; Sallum, J.M.; Spaide, R.F. Outer retina analysis by optical coherence tomography in cone-rod dystrophy patients. Retina 2013, 33, 1877–1880. [Google Scholar] [CrossRef]
  29. Ziccardi, L.; Giannini, D.; Lombardo, G.; Serrao, S.; Dell’Omo, R.; Nicoletti, A.; Bertelli, M.; Lombardo, M. Multimodal Approach to Monitoring and Investigating Cone Structure and Function in an Inherited Macular Dystrophy. Am. J. Ophthalmol. 2015, 160, 301–312.e306. [Google Scholar] [CrossRef]
  30. Kominami, T.; Ueno, S.; Kominami, A.; Nakanishi, A.; Yasuda, S.; Piao, C.H.; Okado, S.; Terasaki, H. Associations Between Outer Retinal Structures and Focal Macular Electroretinograms in Patients With Retinitis Pigmentosa. Investig. Ophthalmol. Vis. Sci. 2017, 58, 5122–5128. [Google Scholar] [CrossRef]
  31. Yoon, C.K.; Yu, H.G. Ganglion cell-inner plexiform layer and retinal nerve fibre layer changes within the macula in retinitis pigmentosa: A spectral domain optical coherence tomography study. Acta Ophthalmol. 2018, 96, e180–e188. [Google Scholar] [CrossRef]
  32. Pennesi, M.E.; Michaels, K.V.; Magee, S.S.; Maricle, A.; Davin, S.P.; Garg, A.K.; Gale, M.J.; Tu, D.C.; Wen, Y.; Erker, L.R.; et al. Long-term characterization of retinal degeneration in rd1 and rd10 mice using spectral domain optical coherence tomography. Investig. Ophthalmol. Vis. Sci. 2012, 53, 4644–4656. [Google Scholar] [CrossRef]
  33. Cuenca, N.; Fernández-Sánchez, L.; Sauvé, Y.; Segura, F.J.; Martínez-Navarrete, G.; Tamarit, J.M.; Fuentes-Broto, L.; Sanchez-Cano, A.; Pinilla, I. Correlation between SD-OCT, immunocytochemistry and functional findings in an animal model of retinal degeneration. Front. Neuroanat. 2014, 8, 151. [Google Scholar] [CrossRef] [PubMed]
  34. Orhan, E.; Dalkara, D.; Neuillé, M.; Lechauve, C.; Michiels, C.; Picaud, S.; Léveillard, T.; Sahel, J.A.; Naash, M.I.; Lavail, M.M.; et al. Genotypic and phenotypic characterization of P23H line 1 rat model. PLoS ONE 2015, 10, e0127319. [Google Scholar] [CrossRef]
  35. Adachi, K.; Takahashi, S.; Yamauchi, K.; Mounai, N.; Tanabu, R.; Nakazawa, M. Optical Coherence Tomography of Retinal Degeneration in Royal College of Surgeons Rats and Its Correlation with Morphology and Electroretinography. PLoS ONE 2016, 11, e0162835. [Google Scholar] [CrossRef]
  36. Cheng, J.; Sohn, E.H.; Jiao, C.; Adler, K.L.; Kaalberg, E.E.; Russell, S.R.; Mullins, R.F.; Stone, E.M.; Tucker, B.A.; Han, I.C. Correlation of Optical Coherence Tomography and Retinal Histology in Normal and Pro23His Retinal Degeneration Pig. Transl. Vis. Sci. Technol. 2018, 7, 18. [Google Scholar] [CrossRef]
  37. Huckenpahler, A.L.; Carroll, J.; Salmon, A.E.; Sajdak, B.S.; Mastey, R.R.; Allen, K.P.; Kaplan, H.J.; McCall, M.A. Noninvasive Imaging and Correlative Histology of Cone Photoreceptor Structure in the Pig Retina. Transl. Vis. Sci. Technol. 2019, 8, 38. [Google Scholar] [CrossRef]
  38. Soukup, P.; Maloca, P.; Altmann, B.; Festag, M.; Atzpodien, E.A.; Pot, S. Interspecies Variation of Outer Retina and Choriocapillaris Imaged With Optical Coherence Tomography. Investig. Ophthalmol. Vis. Sci. 2019, 60, 3332–3342. [Google Scholar] [CrossRef] [PubMed]
  39. Xie, W.; Zhao, M.; Tsai, S.H.; Burkes, W.L.; Potts, L.B.; Xu, W.; Payne, H.R.; Hein, T.W.; Kuo, L.; Rosa, R.H., Jr. Correlation of spectral domain optical coherence tomography with histology and electron microscopy in the porcine retina. Exp. Eye Res. 2018, 177, 181–190. [Google Scholar] [CrossRef]
  40. Xie, W.; Zhao, M.; Tsai, S.H.; Burkes, W.L.; Potts, L.B.; Xu, W.; Payne, H.R.; Hein, T.W.; Kuo, L.; Rosa, R.H., Jr. Data on SD-OCT image acquisition, ultrastructural features, and horizontal tissue shrinkage in the porcine retina. Data Brief. 2018, 21, 1019–1025. [Google Scholar] [CrossRef] [PubMed]
  41. Aleman, T.S.; Cideciyan, A.V.; Sumaroka, A.; Windsor, E.A.; Herrera, W.; White, D.A.; Kaushal, S.; Naidu, A.; Roman, A.J.; Schwartz, S.B.; et al. Retinal laminar architecture in human retinitis pigmentosa caused by Rhodopsin gene mutations. Investig. Ophthalmol. Vis. Sci. 2008, 49, 1580–1590. [Google Scholar] [CrossRef]
  42. Strettoi, E.; Pignatelli, V. Modifications of retinal neurons in a mouse model of retinitis pigmentosa. Proc. Natl. Acad. Sci. USA 2000, 97, 11020–11025. [Google Scholar] [CrossRef] [PubMed]
  43. Marc, R.E.; Jones, B.W.; Watt, C.B.; Strettoi, E. Neural remodeling in retinal degeneration. Prog. Retin. Eye Res. 2003, 22, 607–655. [Google Scholar] [CrossRef]
  44. Phillips, M.J.; Otteson, D.C.; Sherry, D.M. Progression of neuronal and synaptic remodeling in the rd10 mouse model of retinitis pigmentosa. J. Comp. Neurol. 2010, 518, 2071–2089. [Google Scholar] [CrossRef]
  45. Jones, B.W.; Pfeiffer, R.L.; Ferrell, W.D.; Watt, C.B.; Marmor, M.; Marc, R.E. Retinal remodeling in human retinitis pigmentosa. Exp. Eye Res. 2016, 150, 149–165. [Google Scholar] [CrossRef]
  46. Naash, M.L.; Peachey, N.S.; Li, Z.Y.; Gryczan, C.C.; Goto, Y.; Blanks, J.; Milam, A.H.; Ripps, H. Light-induced acceleration of photoreceptor degeneration in transgenic mice expressing mutant rhodopsin. Investig. Ophthalmol. Vis. Sci. 1996, 37, 775–782. [Google Scholar]
  47. Zhao, J.; Ueda, K.; Riera, M.; Kim, H.J.; Sparrow, J.R. Bisretinoids mediate light sensitivity resulting in photoreceptor cell degeneration in mice lacking the receptor tyrosine kinase Mer. J. Biol. Chem. 2018, 293, 19400–19410. [Google Scholar] [CrossRef]
  48. Borrelli, E.; Abdelfattah, N.S.; Uji, A.; Nittala, M.G.; Boyer, D.S.; Sadda, S.R. Postreceptor Neuronal Loss in Intermediate Age-related Macular Degeneration. Am. J. Ophthalmol. 2017, 181, 1–11. [Google Scholar] [CrossRef]
  49. Ha, A.; Kim, Y.K.; Jeoung, J.W.; Park, K.H. Ellipsoid Zone Change According to Glaucoma Stage Advancement. Am. J. Ophthalmol. 2018, 192, 1–9. [Google Scholar] [CrossRef] [PubMed]
  50. Gong, Y.; Chen, L.J.; Pang, C.P.; Chen, H. Ellipsoid zone optical intensity reduction as an early biomarker for retinitis pigmentosa. Acta Ophthalmol. 2021, 99, e215–e221. [Google Scholar] [CrossRef] [PubMed]
  51. Toprak, I.; Yildirim, C.; Yaylali, V. Impaired photoreceptor inner segment ellipsoid layer reflectivity in mild diabetic retinopathy. Can. J. Ophthalmol. 2015, 50, 438–441. [Google Scholar] [CrossRef]
  52. Spaide, R.F.; Curcio, C.A. Anatomical correlates to the bands seen in the outer retina by optical coherence tomography: Literature review and model. Retina 2011, 31, 1609–1619. [Google Scholar] [CrossRef]
  53. Sundaram, V.; Wilde, C.; Aboshiha, J.; Cowing, J.; Han, C.; Langlo, C.S.; Chana, R.; Davidson, A.E.; Sergouniotis, P.I.; Bainbridge, J.W.; et al. Retinal structure and function in achromatopsia: Implications for gene therapy. Ophthalmology 2014, 121, 234–245. [Google Scholar] [CrossRef] [PubMed]
  54. Hood, D.C.; Zhang, X.; Ramachandran, R.; Talamini, C.L.; Raza, A.; Greenberg, J.P.; Sherman, J.; Tsang, S.H.; Birch, D.G. The inner segment/outer segment border seen on optical coherence tomography is less intense in patients with diminished cone function. Investig. Ophthalmol. Vis. Sci. 2011, 52, 9703–9709. [Google Scholar] [CrossRef]
  55. Gin, T.J.; Wu, Z.; Chew, S.K.; Guymer, R.H.; Luu, C.D. Quantitative Analysis of the Ellipsoid Zone Intensity in Phenotypic Variations of Intermediate Age-Related Macular Degeneration. Investig. Ophthalmol. Vis. Sci. 2017, 58, 2079–2086. [Google Scholar] [CrossRef] [PubMed]
  56. Stone, J.; van Driel, D.; Valter, K.; Rees, S.; Provis, J. The locations of mitochondria in mammalian photoreceptors: Relation to retinal vasculature. Brain Res. 2008, 1189, 58–69. [Google Scholar] [CrossRef]
  57. Litts, K.M.; Zhang, Y.; Freund, K.B.; Curcio, C.A. Optical Coherence Tomography and Histology of Age-Related Macular Degeneration Support Mitochondria as Reflectivity Sources. Retina 2018, 38, 445–461. [Google Scholar] [CrossRef]
  58. Nakanishi, A.; Ueno, S.; Kawano, K.; Ito, Y.; Kominami, T.; Yasuda, S.; Kondo, M.; Tsunoda, K.; Iwata, T.; Terasaki, H. Pathologic Changes of Cone Photoreceptors in Eyes With Occult Macular Dystrophy. Investig. Ophthalmol. Vis. Sci. 2015, 56, 7243–7249. [Google Scholar] [CrossRef]
  59. Sousa, K.; Fernandes, T.; Gentil, R.; Mendonça, L.; Falcão, M. Outer retinal layers as predictors of visual acuity in retinitis pigmentosa: A cross-sectional study. Graefes Arch. Clin. Exp. Ophthalmol. 2019, 257, 265–271. [Google Scholar] [CrossRef] [PubMed]
  60. Staurenghi, G.; Sadda, S.; Chakravarthy, U.; Spaide, R.F. Proposed lexicon for anatomic landmarks in normal posterior segment spectral-domain optical coherence tomography: The IN•OCT consensus. Ophthalmology 2014, 121, 1572–1578. [Google Scholar] [CrossRef]
  61. Jonnal, R.S.; Gorczynska, I.; Migacz, J.V.; Azimipour, M.; Zawadzki, R.J.; Werner, J.S. The Properties of Outer Retinal Band Three Investigated With Adaptive-Optics Optical Coherence Tomography. Investig. Ophthalmol. Vis. Sci. 2017, 58, 4559–4568. [Google Scholar] [CrossRef]
  62. Cuenca, N.; Ortuño-Lizarán, I.; Pinilla, I. Cellular Characterization of OCT and Outer Retinal Bands Using Specific Immunohistochemistry Markers and Clinical Implications. Ophthalmology 2018, 125, 407–422, Comment in Ophthalmology 2018, 125, e47–e48.. [Google Scholar] [CrossRef]
  63. Wilk, M.A.; Huckenpahler, A.L.; Collery, R.F.; Link, B.A.; Carroll, J. The Effect of Retinal Melanin on Optical Coherence Tomography Images. Transl. Vis. Sci. Technol. 2017, 6, 8. [Google Scholar] [CrossRef] [PubMed]
  64. Lapierre-Landry, M.; Huckenpahler, A.L.; Link, B.A.; Collery, R.F.; Carroll, J.; Skala, M.C. Imaging Melanin Distribution in the Zebrafish Retina Using Photothermal Optical Coherence Tomography. Transl. Vis. Sci. Technol. 2018, 7, 4. [Google Scholar] [CrossRef] [PubMed]
  65. Harper, D.J.; Konegger, T.; Augustin, M.; Schützenberger, K.; Eugui, P.; Lichtenegger, A.; Merkle, C.W.; Hitzenberger, C.K.; Glösmann, M.; Baumann, B. Hyperspectral optical coherence tomography for in vivo visualization of melanin in the retinal pigment epithelium. J. Biophotonics 2019, 12, e201900153. [Google Scholar] [CrossRef]
  66. Meleppat, R.K.; Zhang, P.; Ju, M.J.; Manna, S.K.; Jian, Y.; Pugh, E.N.; Zawadzki, R.J. Directional optical coherence tomography reveals melanin concentration-dependent scattering properties of retinal pigment epithelium. J. Biomed. Opt. 2019, 24, 1–10. [Google Scholar] [CrossRef]
  67. Wang, R.; Jiang, C.; Ma, J.; Young, M.J. Monitoring morphological changes in the retina of rhodopsin-/- mice with spectral domain optical coherence tomography. Investig. Ophthalmol. Vis. Sci. 2012, 53, 3967–3972. [Google Scholar] [CrossRef] [PubMed][Green Version]
  68. Pinilla, I.; Fernández-Sánchez, L.; Segura, F.J.; Sánchez-Cano, A.I.; Tamarit, J.M.; Fuentes-Broto, L.; Eells, J.T.; Lax, P.; Cuenca, N. Long time remodeling during retinal degeneration evaluated by optical coherence tomography, immunocytochemistry and fundus autofluorescence. Exp. Eye Res. 2016, 150, 122–134. [Google Scholar] [CrossRef]
Physiologia 06 00013 g001

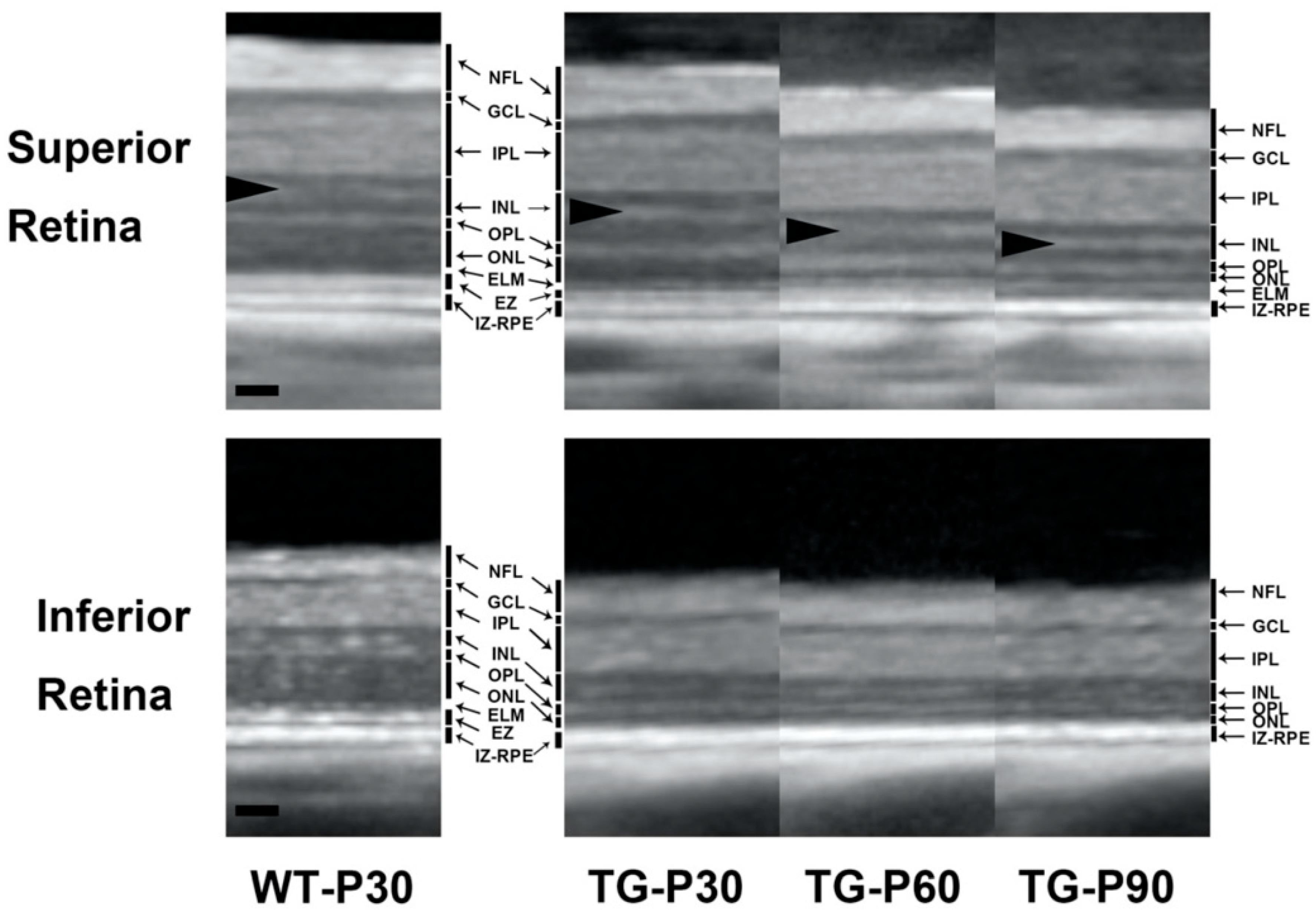

Figure 1. Representative SD-OCT images acquired approximately 4000 µm from the optic nerve head in the superior and inferior retinas in wild-type (WT) and TgP23H (TG) pigs at postnatal day 30 (P30), P60, and P90. Abbreviations: NFL, nerve fiber layer; GCL, ganglion cell layer; IPL, inner plexiform layer; INL, inner nuclear layer; OPL, outer plexiform layer; ONL, outer nuclear layer; ELM, external limiting membrane; EZ, ellipsoid zone; IZ-RPE, interdigitation zone–retinal pigment epithelium. Note the hyperreflective band in the INL (arrowheads), which correlates with abundant mitochondria in horizontal cell processes and adjacent bipolar cells [6,7]. Scale bar: 50 microns.
Figure 1. Representative SD-OCT images acquired approximately 4000 µm from the optic nerve head in the superior and inferior retinas in wild-type (WT) and TgP23H (TG) pigs at postnatal day 30 (P30), P60, and P90. Abbreviations: NFL, nerve fiber layer; GCL, ganglion cell layer; IPL, inner plexiform layer; INL, inner nuclear layer; OPL, outer plexiform layer; ONL, outer nuclear layer; ELM, external limiting membrane; EZ, ellipsoid zone; IZ-RPE, interdigitation zone–retinal pigment epithelium. Note the hyperreflective band in the INL (arrowheads), which correlates with abundant mitochondria in horizontal cell processes and adjacent bipolar cells [6,7]. Scale bar: 50 microns.
Physiologia 06 00013 g001
Physiologia 06 00013 g002

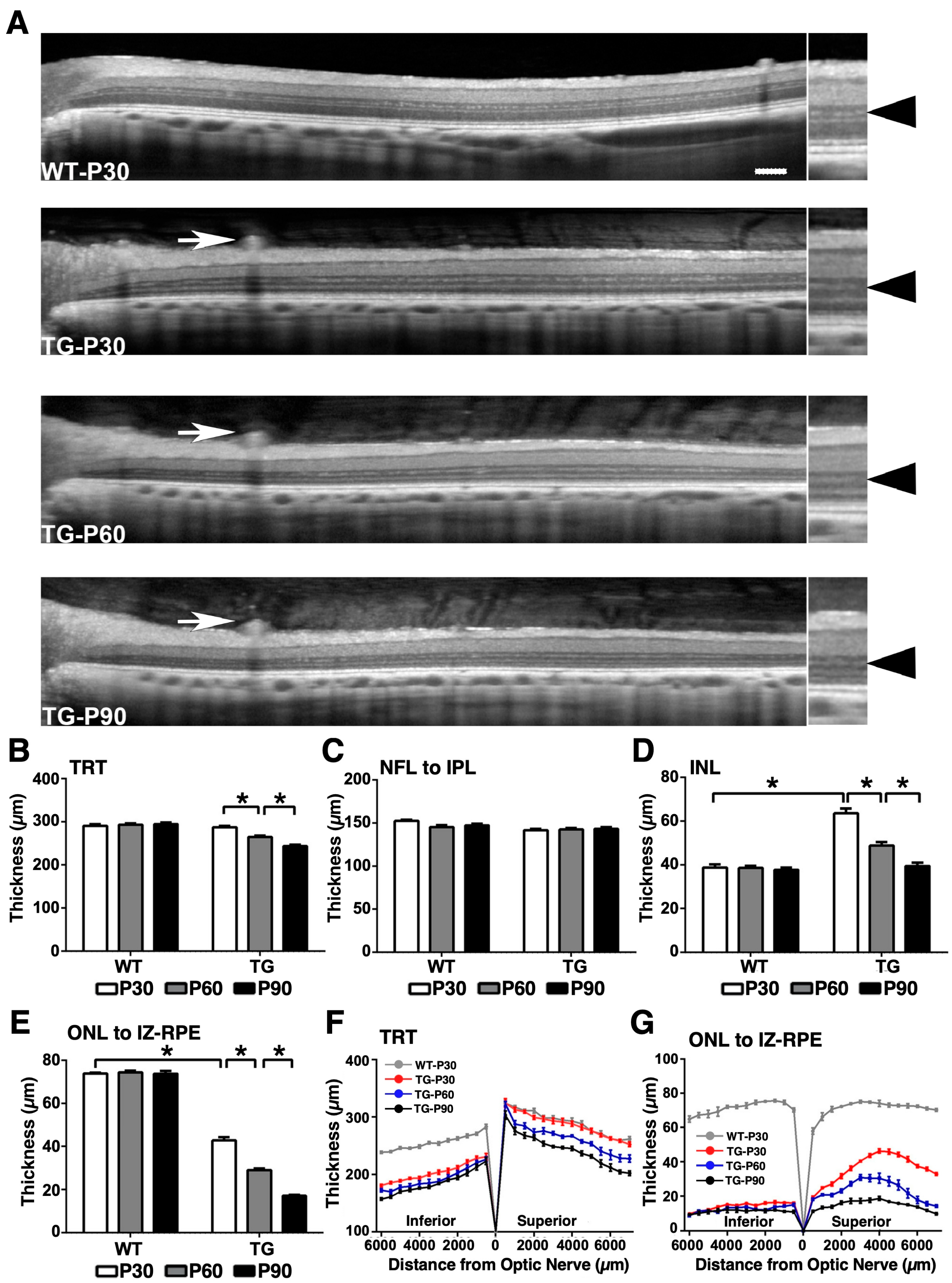

Figure 2. Representative SD-OCT scan of the superior retina from the wild-type (WT) and TgP23H (TG) pigs (A). The right panels show a higher magnification of the SD-OCT image about 4000 µm from the optic nerve head. The thickness of the total retina (B), NFL to IPL (C), INL (D), and ONL to IZ-RPE (E) was measured by averaging 6 measurements obtained at 500 µm intervals from 2500 µm to 5000 µm from the superior edge of the optic disc in the superior retina in each eye of the WT and TG pigs. Note the hyperreflective retinal vessel (white arrow) in the TG pig OCT images, indicating the repeatability of imaging analysis. Note also the hyperreflective band in the INL (arrowheads). Two-way ANOVA multiple comparison was used to compare the retinal layer thickness between the animals at each time point. Spidergrams were constructed to plot the total retinal thickness (F) and ONL to IZ-RPE thickness (G), which were obtained by averaging the inferior and superior SD-OCT scans, respectively, against the distance from the optic nerve head. * p < 0.05. N = 6 eyes. Scale bar: 200 microns.
Figure 2. Representative SD-OCT scan of the superior retina from the wild-type (WT) and TgP23H (TG) pigs (A). The right panels show a higher magnification of the SD-OCT image about 4000 µm from the optic nerve head. The thickness of the total retina (B), NFL to IPL (C), INL (D), and ONL to IZ-RPE (E) was measured by averaging 6 measurements obtained at 500 µm intervals from 2500 µm to 5000 µm from the superior edge of the optic disc in the superior retina in each eye of the WT and TG pigs. Note the hyperreflective retinal vessel (white arrow) in the TG pig OCT images, indicating the repeatability of imaging analysis. Note also the hyperreflective band in the INL (arrowheads). Two-way ANOVA multiple comparison was used to compare the retinal layer thickness between the animals at each time point. Spidergrams were constructed to plot the total retinal thickness (F) and ONL to IZ-RPE thickness (G), which were obtained by averaging the inferior and superior SD-OCT scans, respectively, against the distance from the optic nerve head. * p < 0.05. N = 6 eyes. Scale bar: 200 microns.
Physiologia 06 00013 g002
Physiologia 06 00013 g003

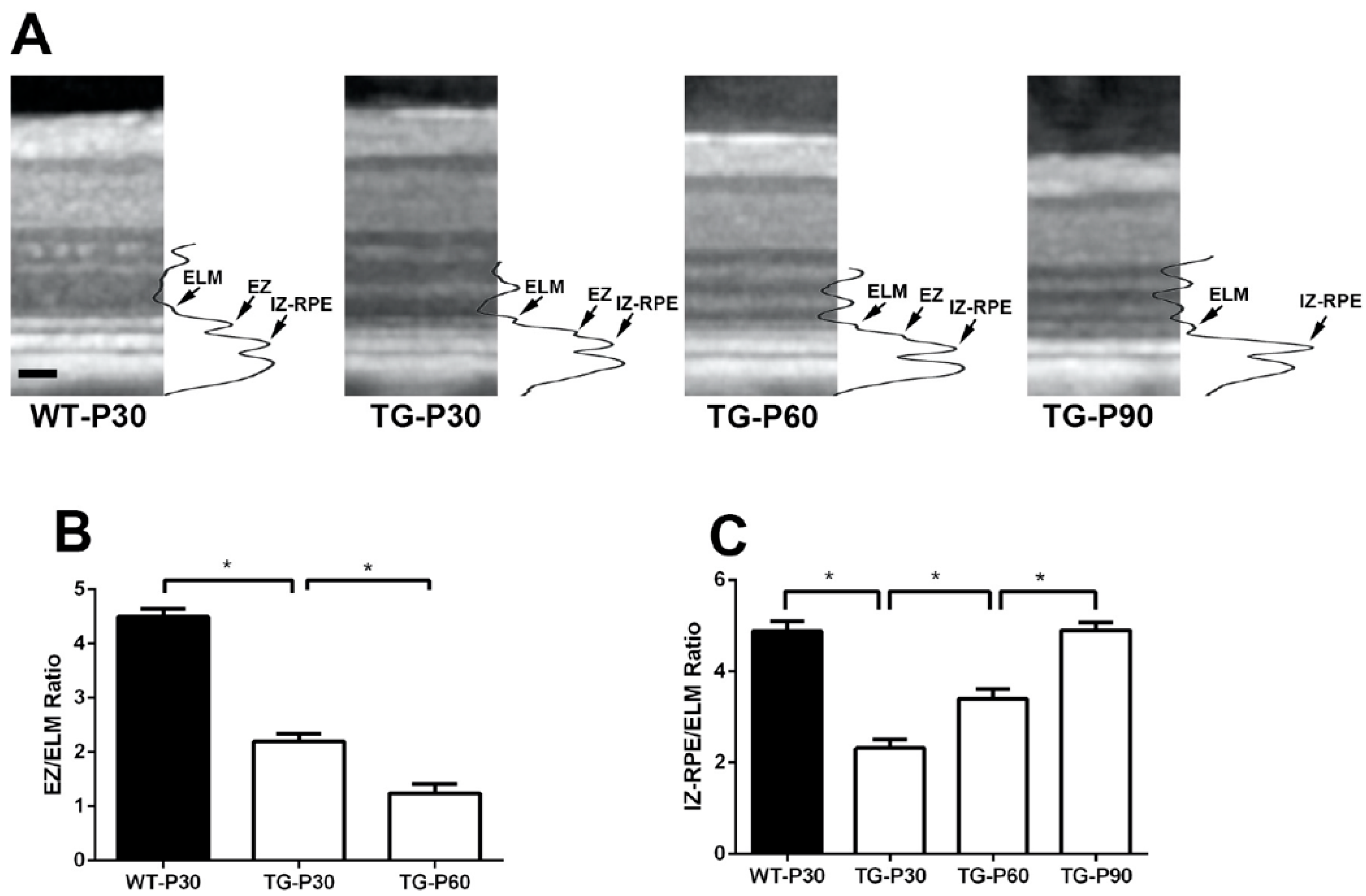

Figure 3. Representative SD-OCT scans with the intensity profile of the outer retina acquired about 4000 µm from the optic nerve head in the superior retina in wild-type (WT) and TgP23H (TG) pigs (A). The intensity of EZ and IZ-RPE was measured by averaging 6 measurements (each sample was 100 µm in width) obtained at 500 µm intervals from 2500 µm to 5000 µm from the superior edge of the optic disc in the superior retina in each eye of the WT and TG pigs. The relative EZ (B) and IZ-RPE (C) intensity was then divided by the value of the ELM intensity in corresponding regions of the retina. * p < 0.05. N = 6 eyes. Scale bar: 50 microns.
Figure 3. Representative SD-OCT scans with the intensity profile of the outer retina acquired about 4000 µm from the optic nerve head in the superior retina in wild-type (WT) and TgP23H (TG) pigs (A). The intensity of EZ and IZ-RPE was measured by averaging 6 measurements (each sample was 100 µm in width) obtained at 500 µm intervals from 2500 µm to 5000 µm from the superior edge of the optic disc in the superior retina in each eye of the WT and TG pigs. The relative EZ (B) and IZ-RPE (C) intensity was then divided by the value of the ELM intensity in corresponding regions of the retina. * p < 0.05. N = 6 eyes. Scale bar: 50 microns.
Physiologia 06 00013 g003
Physiologia 06 00013 g004
Figure 4. Representative photomicrographs of the retina acquired about 4000 µm from the optic nerve head in the superior and inferior retina in wild-type (WT) and TgP23H (TG) pigs. The TG pig retina exhibited marked loss of photoreceptor outer segments and significant attenuation of the ONL to 1 cell layer thick at P90. Note the differential rate of photoreceptor degeneration and ONL cell body loss in the superior versus inferior retina, with more marked structural changes and greater cell loss in the inferior retina at all time points between P30 and P90 in the TG pig retina. Note the apical cytoplasm of the large horizontal cells (asterisks) that correspond to the hyperreflective SD-OCT band in the INL in Figure 1 and Figure 2. The RPE exhibits an increased number and aggregation of melanin/melanolipfuscin granules in the apical cytoplasm with progression of photoreceptor degeneration from P30 to P90. Scale bar: 20 microns.
Figure 4. Representative photomicrographs of the retina acquired about 4000 µm from the optic nerve head in the superior and inferior retina in wild-type (WT) and TgP23H (TG) pigs. The TG pig retina exhibited marked loss of photoreceptor outer segments and significant attenuation of the ONL to 1 cell layer thick at P90. Note the differential rate of photoreceptor degeneration and ONL cell body loss in the superior versus inferior retina, with more marked structural changes and greater cell loss in the inferior retina at all time points between P30 and P90 in the TG pig retina. Note the apical cytoplasm of the large horizontal cells (asterisks) that correspond to the hyperreflective SD-OCT band in the INL in Figure 1 and Figure 2. The RPE exhibits an increased number and aggregation of melanin/melanolipfuscin granules in the apical cytoplasm with progression of photoreceptor degeneration from P30 to P90. Scale bar: 20 microns.
Physiologia 06 00013 g004
Physiologia 06 00013 g005

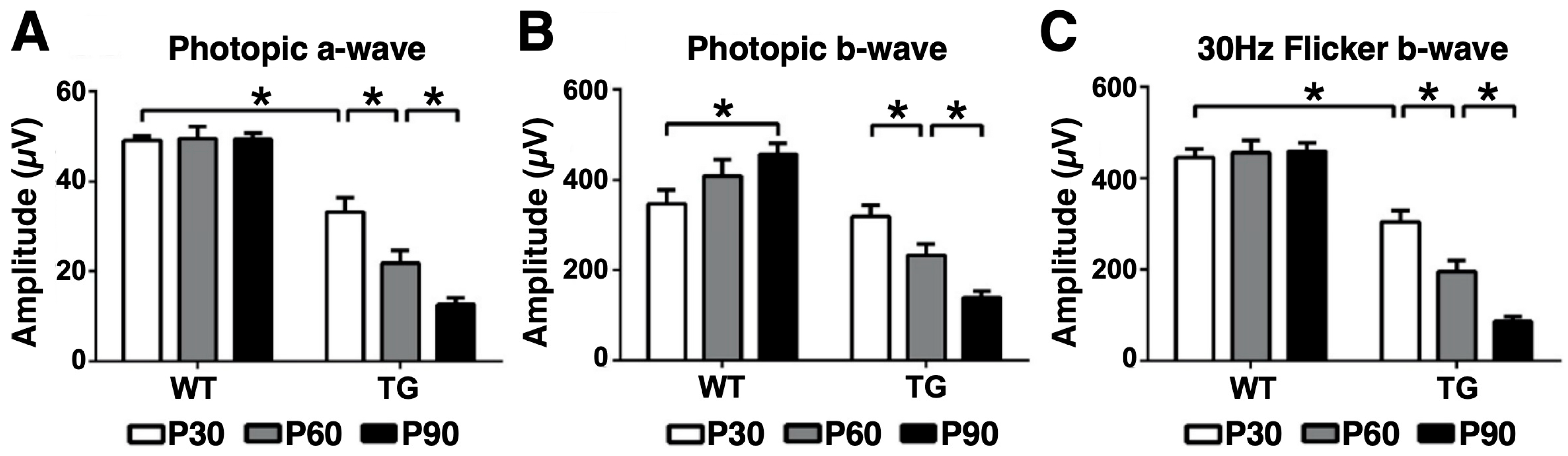

Figure 5. Photopic and flicker ERG in wild-type (WT) and TgP23H (TG) pigs. (A) The mean photopic ERG a-wave was similar at all time points (P30–P90) in the WT pigs but gradually decreased from P30 to P90 in the TG pigs. (B) The mean photopic b-wave in the WT pigs increased between P30 and P90 but gradually decreased from P30 to P90 in the TG pigs. (C) The 30 Hz flicker b-wave amplitudes (at a light stimulus of 3.0 cd·s·m−2) were similar at all time points (P30–P90) in the WT pigs but gradually decreased from P30 to P90 in the TG pigs. * p < 0.05. N = 6 eyes.
Figure 5. Photopic and flicker ERG in wild-type (WT) and TgP23H (TG) pigs. (A) The mean photopic ERG a-wave was similar at all time points (P30–P90) in the WT pigs but gradually decreased from P30 to P90 in the TG pigs. (B) The mean photopic b-wave in the WT pigs increased between P30 and P90 but gradually decreased from P30 to P90 in the TG pigs. (C) The 30 Hz flicker b-wave amplitudes (at a light stimulus of 3.0 cd·s·m−2) were similar at all time points (P30–P90) in the WT pigs but gradually decreased from P30 to P90 in the TG pigs. * p < 0.05. N = 6 eyes.
Physiologia 06 00013 g005
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Xie, W.; Zhao, M.; Tsai, S.-H.; Su, M.G.; Potts, L.B.; Rosa, N.J.; Hein, T.W.; Kuo, L.; Rosa, R.H., Jr. Monitoring Retinal Degeneration in a Porcine Model of Retinitis Pigmentosa with Spectral Domain Optical Coherence Tomography and Electroretinography. Physiologia 2026, 6, 13. https://doi.org/10.3390/physiologia6010013

AMA Style

Xie W, Zhao M, Tsai S-H, Su MG, Potts LB, Rosa NJ, Hein TW, Kuo L, Rosa RH Jr. Monitoring Retinal Degeneration in a Porcine Model of Retinitis Pigmentosa with Spectral Domain Optical Coherence Tomography and Electroretinography. Physiologia. 2026; 6(1):13. https://doi.org/10.3390/physiologia6010013

Chicago/Turabian Style

Xie, Wankun, Min Zhao, Shu-Huai Tsai, Maxwell G. Su, Luke B. Potts, Natalia J. Rosa, Travis W. Hein, Lih Kuo, and Robert H. Rosa, Jr. 2026. "Monitoring Retinal Degeneration in a Porcine Model of Retinitis Pigmentosa with Spectral Domain Optical Coherence Tomography and Electroretinography" Physiologia 6, no. 1: 13. https://doi.org/10.3390/physiologia6010013

APA Style

Xie, W., Zhao, M., Tsai, S.-H., Su, M. G., Potts, L. B., Rosa, N. J., Hein, T. W., Kuo, L., & Rosa, R. H., Jr. (2026). Monitoring Retinal Degeneration in a Porcine Model of Retinitis Pigmentosa with Spectral Domain Optical Coherence Tomography and Electroretinography. Physiologia, 6(1), 13. https://doi.org/10.3390/physiologia6010013

Article Metrics

Back to TopTop
