Morphological and Molecular Characterization of the Benthic Dinoflagellate Amphidinium from Coastal Waters of Mexico

by
Lorena María Durán-Riveroll
1,2,*,
Oscar E. Juárez
3,
Yuri B. Okolodkov
4,
Ana Luisa Mejía-Camacho
5,
Fabiola Ramírez-Corona
6,
Dania Casanova-Gracia
7,
María del Carmen Osorio-Ramírez
8,
Victor A. Cervantes-Urieta
9 and
Allan D. Cembella
2,8,*
1
CONAHCYT, Departamento de Biotecnología Marina, Centro de Investigación Científica y de Educación Superior de Ensenada, Ensenada 22860, Mexico
2
Alfred-Wegener-Institut, Helmholtz-Zentrum für Polar-und Meeresforschung, 27570 Bremerhaven, Germany
3
Programa de Acuicultura, Centro de Investigaciones Biológicas del Noroeste, S.C., La Paz 23096, Mexico
4
Instituto de Ciencias Marinas y Pesquerías, Universidad Veracruzana, Boca del Río 94294, Mexico
5
División de Ciencias Naturales e Ingeniería, Universidad Autónoma Metropolitana-Cuajimalpa, Mexico City 05348, Mexico
6
Taller de Sistemática y Biogeografía, Departamento de Biología Evolutiva, Facultad de Ciencias, Universidad Nacional Autónoma de México, Mexico City 04510, Mexico
7
Facultad de Ciencias Biológicas, Cd Universitaria, Benemérita Universidad Autónoma de Puebla, Puebla 72592, Mexico
8
Departamento de Biotecnología Marina, Centro de Investigación Científica y de Educación Superior de Ensenada, Ensenada 22860, Mexico
9
Programa de Doctorado en Recursos Naturales y Ecología, Facultad de Ecología Marina, Universidad Autónoma de Guerrero, Acapulco 39390, Mexico
*
Authors to whom correspondence should be addressed.
Phycology 2023, 3(2), 305-324; https://doi.org/10.3390/phycology3020020
Submission received: 7 March 2023 / Revised: 20 May 2023 / Accepted: 23 May 2023 / Published: 30 May 2023
(This article belongs to the Collection Harmful Microalgae)
Browse Figures
Review Reports Versions Notes

Abstract

:
The genus Amphidinium Clap. & J. Lachm. comprises a high diversity of planktonic and benthic (epiphytic and sand-dwelling) dinoflagellates from marine and freshwater ecosystems. High morphological plasticity and vaguely defined genus characteristics (e.g., a small epicone size) have complicated the clear delineation of species boundaries. Although six Amphidinium morphospecies have been reported from Mexican coastal waters, species identifications are uncertain and not generally supported by molecular phylogenetic data. In this study, seven isolates of Amphidinium from diverse benthic coastal locations on the NE Pacific, Gulf of California, and southern Gulf of Mexico were subjected to critical morphological analysis using photonic and scanning electron microscopy. The phylogenetic reconstruction was based on nuclear-encoded, partial large-subunit (LSU) rDNA and internal transcribed spacer I and II (ITS1 and ITS2) sequences. The revised phylogenetic analysis was consistent with the traditional subdivision of the genus Amphidinium into two sister groups: Herdmanii and Operculatum clades. This study provided the first confirmed records of A. theodorei and A. massartii from coastal waters of Mexico. The molecular phylogenetic evidence indicated that the morphologically described A. cf. carterae from Baja California was in fact more closely allied with A. eilatiensis sequences. A few Amphidinium species are known to form toxigenic (i.e., fish-killing) harmful algal blooms worldwide, and therefore knowledge on species diversity and biogeography is critical in developing effective strategies for evaluating the potential emerging threat in Mexican coastal waters.

1. Introduction

The genus Amphidinium Clap. & J. Lachm. emend. Flø Jørgensen, Murray & Daugbjerg, 2004 is a diverse group of athecate dinoflagellates found worldwide in aquatic environments. High morphological, trophic, and biological plasticity are noteworthy features of the genus [1]. Amphidinium includes marine and freshwater species classified as heterotrophic or autotrophic, although all species are likely capable of at least limited mixotrophy. Both benthic and planktonic Amphidinium species are often found as members of their respective microeukaryote communities in coastal zones. The species may be exclusively epibenthic, sand-dwelling, endosymbiotic, or planktonic, whereas others are tychoplanktonic as occasional residents of the water column [2,3,4].
Historically, athecate forms with a small to minute epicone as compared with the size of the hypocone [5] or with an epicone of one-third or less of the total cell length [6] have been ascribed to Amphidinium. The genus Amphidinium was redefined based on multiple morphological features as follows: “Athecate benthic or endosymbiotic dinoflagellates with a minute irregular triangular-or crescent-shaped epicones. Epicone overlaying anterior ventral part of the hypocone. Epicone deflection to the left. Cells dorso-ventrally flattened, with or without chloroplasts” [2].
The type species A. operculatum was also redescribed based on photonic (light microscopy (LM)) and scanning electron microscopy (SEM) and combined with partial large-subunit (LSU) rDNA sequence data [4], which allowed the establishment of defined species boundaries. The cell shape is among the most important morphological features defined by the amphiesma of A. operculatum. The right margin of the hypocone is convex, whereas the left one is almost straight; the epicone overlays the anterior central part of the hypocone. The shape of the epicone is irregular triangular in the ventral view with the left anterior left tip deflected to the left, a slightly descending cingulum, and a narrow ventral ridge running between the two points of flagellar insertion.
Up to 2014, 29 benthic Amphidinium species had been described [3], including 6 sensu lato or whose generic affinity had not yet been investigated or confirmed. Within AlgaeBase [7], there are now more than 90 taxonomically accepted Amphidinium species. As the taxonomic affinities are resolved (particularly with revisions based on molecular sequencing approaches), the list of benthic Amphidinium species will doubtless increase. The benthic Amphidinium species comprise slightly less than one-third of the total number known for this genus. In any case, scientific and public health interest in the global phylogeography and cell abundance has focused primarily on benthic Amphidinium species within the last decade. Putatively toxigenic Amphidinium and species that produce allelopathic and/or other biologically active polyketides are more heavily represented among the benthic than pelagic members of the genus [8]. Bottom-dwelling Amphidinium species may be associated with benthic harmful algal blooms (bHABs) [9]; the human health risk linked to bHABs is especially acute in tropical and subtropical regions dependent upon seafood resources.
Despite occasional Amphidinium blooms reported from Mexico [10,11,12], there are few records for the coastal subregions. In the absence of a systematic national HAB monitoring program, there is scarce information on Amphidinium blooms and risk assessment along the coasts of Mexico. Members of the genus are commonly found (often at high cell densities) in both pelagic and benthic habitats. In the southwestern Gulf of Mexico, A. cf. carterae reached an abundance of 41 × 103 cells g−1 substrate wet weight upon the chlorophyte Ulva fasciata Delile [10]. In Bahía de La Paz, Gulf of California, a pelagic bloom of A. cf. carterae reached a density of 1 × 106 cells L−1 [12], but no impacts on aquaculture, ecosystem function, or human health were reported.
Amphidinium blooms remain, however, a potential emerging problem posing an undefined risk to human health and seafood security on the Pacific coast of Mexico, the Gulf of California, and the southern Gulf of Mexico. A fish kill during an Amphidinium bloom was reported from a coastal lagoon near Sydney, Australia [13], but similar fish mortalities have not been circumstantially linked to Amphidinium in Mexico. Moreover, to date there are no confirmed cases of human poisoning in Mexico from consuming seafood contaminated by any known toxigenic Amphidinium species.
Several Amphidinium species, particularly certain strains of A. carterae, A. gibbosum (Maranda & Shimizu) Flø Jørgensen & Murray, A. massartii Biecheler, and A. operculatum, are considered “toxigenic” because they synthesize an array of bioactive polyketides, particularly macrolides and diverse short- and long-chain linear polyketides known informally as amphidinolides and amphidinols, respectively. Members of these polyketide families often share a core unit but differ in length and structure of the lateral chains, including amphidinols (AM), luteophanols, lingshuiols, symbiopolyols, karatungiols, carteraols, and related long-chain polyketides [14]. At this stage, it is premature to consider these polyketides as toxins because the specific toxicity of most of them against defined molecular targets remains undefined. Nevertheless, many of these Amphidinium polyketides have exhibited fungal and hemolytic bioactivity [15,16,17] and in some cases cytotoxic effects against certain cancer cell lines [18,19].
Despite the frequent occurrence of polyketides in cultured isolates of Amphidinium and their fish-killing potential in the laboratory, there is no direct confirmation that blooms of this genus have caused ecological damage or human health consequences attributable to their toxigenicity. Circumstantial indications that bHABs of Amphidinium may be linked to the multiple effects and etiology of the complex syndrome ciguatera fish poisoning (CFP) have not been confirmed. Amphidinium occurs frequently in high cell abundance in dinoflagellate assemblages with Gambierdiscus Adachi & Fukuyo and Fukuyoa Gómez, Qiu, Lopez & Lin, both known to produce potent ciguatoxins (CTX) and/or maitotoxins (MTX) [20], the primary causes of CFP. Amphidinium species are not known to produce polyether derivatives of either CTX or MTX, but the potent bioactive amphidinols could contribute synergistically to the CFP syndrome via food chain accumulation within fish.
The morphological plasticity within and among species and the absence of stable surface features due to the lack of thecal plates has led to frequent revisions and reassignments at the species level. Furthermore, taxonomic evaluation of Amphidinium specimens based exclusively on morphology may lead to misidentifications because of the similarities among species and the cellular plasticity at different stages of the Amphidinium life cycle [2,4,21]. The original species descriptions are frequently unreliable since many have not been micrographed and lack iconotypes and/or are based on fixed specimens and not on living cells. Fixation modifies the cell shape, leading to misidentification [22] because Amphidinium cells are extremely delicate and easily destroyed or deformed.
Many taxonomic and phylogenetic relationships within the genus are being resolved via the application of molecular phylogenetic approaches [1,2,21] by sequencing of the respective rRNA genes, including the LSU and internal transcribed spacer I and II (ITS1 and ITS2) regions. According to the molecular phylogenetic data on Amphidinium, the species have been subdivided into two sister clades (the Herdmanii clade and the Operculatum clade) as first proposed by Flø Jørgensen, Murray and Daugbjerg [2] and maintained in the subsequent literature [1].
To date, six species of Amphidinium have been reported from Mexico with SEM images provided for A. theodorei from Bahía de la Paz, Baja California Sur (BCS) (reviewed in [23]); only A. carterae and A. operculatum were previously illustrated [24]. Most of the current taxonomic record of Amphidinium species from the coastal waters of Mexico is based solely on morphological characterization. Molecular sequence data have been published only for two species (A. operculatum and A. carterae) [23]. The research herein presents the morphological identification of Amphidinium species from four regions of the coast of Mexico via LM and SEM. These identifications were compared and confirmed by using a molecular phylogenetic analysis of the variable D1-D6 region of the LSU and ITS1-ITS2 regions of the rRNA gene of cultured isolates of Amphidinium species. This study comprised the first records of A. theodorei and A. massartii from Mexico. The molecular phylogenetic evidence from these gene sequences indicated that the provisionally described A. cf. carterae from Baja California was in fact more closely allied with A. eilatiensis J.J. Lee, R. Olea, M. Cevasco, X. Pochon, M. Correia, M. Shpigel & J. Pawlowski. The knowledge contributed herein on the diversity and distribution of Amphidinium species is essential for designing an effective monitoring program for risk assessment and early warning systems for bHABs in Mexican coastal waters.

2. Materials and Methods

2.1. Sampling, Cell Isolation, and Culture of Amphidinium

Cells of Amphidinium species were isolated from Bahía de La Paz (BCS) (24°09′30.01” N 110°19′12.10” W), the Veracruz Reef System (VRS) (Veracruz, 19°11′54.10” N, 96°4′0.70” W), Laguna de Términos (Campeche, 18°38′18.72” N, 91°46′14.73” W), and San Quintín (Baja California, 30°27′14” N, 116°00′15” W) (Figure 1).
Samples were collected at intervals from January to June in 2018 and January and December in 2019. These Amphidinium specimens were collected from floating macroalgae Sargassum sp., Padina sp. (Phaeophyceae), and other macroalgae attached to buoys as well as seagrasses Thalassia testudinum Banks ex König and Zostera marina L. Single cells of epibenthic Amphidinium were isolated with a micropipette into sterile 96-well microplates containing 300 µL of 50%-strength GSe growth medium [25] modified without soil extract and prepared from autoclaved (121 °C, 15 min) seawater filtered through sand, activated carbon, and 1 µm cartridge filters. The growth medium (supplemented with GeO2 (final concentration: 2.5 mg L−1) [26] to inhibit diatom growth) was prepared from heat-sterilized seawater stock at a salinity of 36. Clonal isolates were cultured at 25 ± 1 °C on a 12:12 h light:dark photoperiod and under illumination of 50 µmol photons m−2 s−1.
After a growth period of between 21 and 28 days, the contents of the microplate wells with the highest cell densities were transferred to 60 × 15 mm Petri dishes with full-strength (100%) GSe medium and assigned an isolate number (Table 1). Cultures for molecular characterization and morphological analysis were initiated from 15 mL inoculum in 250 mL Erlenmeyer borosilicate flasks with 125 mL of modified GSe medium. Cultures were maintained under illumination at 50 µmol photons m−2 s−1 on a 12:12 h light:dark photoperiod and at 23 ± 1 °C. Cell growth was monitored until maximal optical density via visual inspection. After two weeks of growth, 15 mL from each culture was harvested under sterile conditions for detailed LM and SEM analyses.

2.2. Cell Morphology and Statistical Analysis

For the LM, 50 µL of live cell culture was diluted 1:1 with filtered seawater. Cells were observed on an inverted (Axio Observer.A1, Carl Zeiss, Oberkochen, Germany) or vertical LM (Motic BA310E, Hong Kong SAR, China) equipped with phase-contrast optics at 200–1000× magnification. After visual inspection of cells, images were recorded with the following digital cameras: Axiocam 506 color camera (6 MP) (Carl Zeiss Microscopy GmbH, Göttingen, Germany) and Moticam S6 (6 MP) (Motic, Hong Kong SAR, China).
The SEM was performed following a specimen preparation method for delicate dinoflagellates [27]. Briefly, 15 mL of cultured Amphidinium cells were centrifuged at 3000× g (4 °C) for 5 min. Pelleted cells were fixed for 90 min with 750 μL osmium tetroxide (OsO4) solution (2% final concentration) or 2% glutaraldehyde. Fixed samples were washed three times in 1.5 mL of 5 °C ultrapure water and centrifuged at 3000× g (4 °C) for 5 min. The cells then underwent a graded ethanol (EtOH) dehydration series (10, 20, 30, 40, 50, 60, 70, 80, 90, and 99%; 1.5 mL each). At every step, the cells were gently resuspended for 1 min and centrifuged under the previous conditions, and the supernatant was discarded. After 99% EtOH removal, 200 μL of hexamethyldisilazane:ethanol (HMDS:EtOH) (1:1 v/v) was added; cells were resuspended and centrifuged again. To complete the dehydration, 200 μL of pure HMDS was added, and the cells were gently resuspended for 1 min. Samples were placed on SEM stubs and left for air drying and then gold sputter-coated for 5 min. Cells were observed with a JSM 6360-LV scanning electron microscope (JEOL, Tokyo, Japan) equipped with a backscattered electron detector under 8 kV voltage acceleration and at a 15 mm working distance.
Statistical analyses and associated figures were developed with the R software and programming language (version 4.1.1) and in the RStudio integrated development environment (version 2022.02.0 + 443) [28]. Kruskal–Wallis non-parametric tests were applied to analyze the morphometric variability of all isolates with the kruskal.test function. When there were differences among variances, a Mann–Whitney–Wilcox post hoc test was applied to determine the effect size for each comparison adjusted by the Bonferroni correction in the function pairwise.wilcox.test from the stats v.4.1.1 package. A value of p < 0.05 was chosen to indicate statistical significance.

2.3. Total Genomic DNA Extraction and Amplification

Cell cultures (30–50 mL each) were harvested via centrifugation (10 min at 3000× g) (Solbat J12, Puebla, Mexico) at room temperature (21 °C) to obtain the cell biomass. The total genomic DNA of Amphidinium was extracted using the modified CTAB method [2,4,13] or with a Qiagen Dneasy PowerSoil kit (QIAGEN, Redwood City, CA, USA) following the manufacturer’s recommendations. Briefly, for the CTAB method, the pellets and 1 mL of supernatant were transferred to a 1.5 mL microtube. To facilitate cell lysis, cells were frozen at −20 °C for 48 h and then thawed during extraction [29]. DNA was extracted following a protocol previously described [30] and stored in TBE buffer at −20 °C. The DNA concentration was measured in a NanoDrop spectrophotometer (Thermo Scientific, MA, USA) and purified with the DNA Clean & Concentrator kit (Zymo Research, CA, USA). Analysis of the DNA quantity was performed with a spectrophotometer (Epoch, Biotek, VT, USA) at absorbance wavelengths of A260 and A280 nm. For DNA extraction method using the Qiagen Dneasy PowerSoil kit, the cell biomass was placed in PowerBeat tubes (Qiagen, Redwood City, CA, USA), and 60 µL of C1 solution was added. The mix was incubated for 10 min at 70 °C. Then, samples were agitated in a FastPrep-24 tissue homogenizer (MP Biomedicals, Irvine, CA, USA) for 30 s at a velocity of 6 m s−1 (three times) with a 3 min ice-bath pause between each step. The biomass was centrifuged for 10 min at 10,000× g at 21 °C. The DNA extraction was verified using agarose electrophoresis and quantified via microvolume spectrophotometry in a Nanodrop 2000 (Thermo Scientific, San Diego, CA, USA).
Amplification of the D1 and D6 variable domains of the LSU rRNA gene of the Amphidinium isolates (comprising approximately 1450 base pairs (bp)) was carried out using the primers D1R (5′-ACCCGCTGAATTTAATTTAAGCATA-3′) [31] and 28–1483R (5′-GCTACTACCACACCAAGATCTGC-3′) [32]. The polymerase chain reaction (PCR) was performed in a thermal cycler (Flexigene, Techne, Staffordshire, England, UK) with a Phire Plant Direct PCR Master Mix kit (ThermoScientific, MA, USA). The PCR conditions were as follows: an initial denaturation cycle at 98 °C for 5 min followed by a 20 s denaturation cycle at 98 °C and 40 cycles of alignment at 48 °C for 30 s, polymerization at 72 °C for 20 s, and a final extension of one minute at 72 °C. The PCR products were visually verified under UV light on 1% agarose gel stained with ethidium bromide (EtBr) after electrophoresis (90 V per 5 min).
The ITS1-ITS2 region amplification was performed with the primers ITSF2 (TACGTCCCTGCCCTTTGTAC) and ITSR2 (TCCCTGTTCATTCGCCATTAC) [33] with a GoTaq colorless Master Mix kit (Promega, Fitchburg, Wisconsin, USA) according to the manufacturer’s instructions. The amplification conditions for the PCR thermocycler (BIO-RAD Universal Hood III, BIO-RAD, Irvine, CA, USA) were: 95 °C for 2 min, 95 °C for 30 s, 35 cycles at 60 °C for 45 s, and finally 72 °C for 2.5 and 7 min.

2.4. Sequencing and Phylogenetic Analysis

PCR products were sequenced with a Genetic Analyzer ABI Prism 3100 (Applied Biosystems, CA, USA) by seqXcel, Inc (San Diego, CA, USA). The quality of the sequences was evaluated in 4Peaks v1.8 (Nucleics, Sydney, New South Wales, Australia), and only sequences of good quality (average quality ≥ 20 on the PHRED scale) were considered for analysis. All sequences were checked in the NCBI database using BLASTn analysis to determine the species assignments. Phylogenetic analyses were focused on two different genomic regions. The first included the internal transcribed spacer 1, the 5.8 S ribosomal RNA, and the internal transcribed spacer 2 (ITS1–5.8S rRNA-ITS2); the second region consisted of the 28S large-subunit (LSU) ribosomal RNA gene operon. Available sequences corresponding to these regions from the Amphidinium species were retrieved from the GenBank nucleotide database (Table 2). The corresponding sequences from the distantly related dinoflagellate Heterocapsa sp. were used as an outgroup in the phylogenetic analyses [1,34]. Phylogenetic trees were constructed for each region separately, and then alternative trees were built for both concatenated regions.
Independent alignments for each gene were performed with MUSCLE [35] and ClustalW [36] algorithms, verified by eye and trimmed in MEGA7, then used to perform all the phylogenetic analyses [37]. For both genes, two phylogenetic approaches—maximum likelihood (ML) and maximum parsimony (MP)—were compared (Supplementary Materials). Since the ML method is based on a nucleotide substitution model, MEGA7 was employed to find the substitution model that best fit each gene. In the ML method, initial trees for the heuristic search were obtained automatically by applying Neighbor-Joining and BioNJ algorithms to the matrix of pairwise distances estimated using the Maximum Composite Likelihood (MCL) and selecting the tree topology with a superior log likelihood value. A discrete Gamma distribution was used to model evolutionary rate differences among sites [37]. In comparison, the MP trees were obtained from the Subtree-Pruning-Regrafting (SPR) algorithm, in which the initial trees were generated by the random addition of sequences (10 replicates). Tree branch lengths were calculated using the average pathway method [38]. Both the ML and MP consensus trees were obtained after 2000 bootstrap replicates [39]. The optimal trees were selected after comparison for the best bootstrap branch support and congruence according to previous phylogenetic analyses of Amphidinium species [1,40] (Supplementary Materials). Since the MP method did not assume any nucleotide substitution model, distances were not represented in the MP tree, and only the topology is shown.

3. Results

3.1. Morphological Characterization

The morphological analyses of Amphidinium isolates based on LM and SEM micrographs are presented for each of the cultivated strains with provisional species assignments: AcSAV105 (A. carterae), AcSQ172, AcSQ177 and AcSQ181 (A. cf. carterae), AmLT112 (A. massartii), AA60 (A. operculatum), and AtLPZ38 (A. theodorei).

3.1.1. Amphidinium carterae (AcSAV105)

The cells were ovoid to subglobular and varied in length from 9.5 to 12.4 μm (11.1 ± 0.9 μm SD, n = 30). This length dimension was significantly shorter in AcSAV105 than for cells of all other isolates (Kruskal–Wallis; n = 209; df = 11; H = 177.5; df = 6; p-value < 0.0001). The cell widths ranged from 5.9 to 8.7 μm (7.7 ± 0.8 μm SD, n = 30), significantly narrower than those of isolates AA60, AeSQ177, AeSQ181, and AtLPZ38 (p-value < 0.05) (Figure S1). The epicone was small relative to the cell size and formed a crescent upward and to the left (Figure 2a–e).
A yellow-brown lobed chloroplast was distributed from the central part to the cell periphery with a central pyrenoid located at the median line or slightly above or behind it (Figure 2a–c). Reddish bodies that could be food particles were present. The nucleus was located at the cell antapex. Flagellar motion, metabolic movement of the pellicle, and amoeboid movement resulting in different cell shapes were frequently observed in active cells.

3.1.2. Amphidinium cf. carterae (AeSQ172, AeSQ177, and AeSQ181)

The cells varied from ovoid to elongated (Figure 3a–h) and varied significantly in cell dimensions among the isolates (Kruskal–Wallis; n = 209; df = 6; H = 149.58; df = 6; p-value < 0.0001; n = 30 cells for each isolate) (Figure S1). For AeSQ172, the cell lengths ranged from 10.9 to 15.1 μm (13.0 ± 1.1 μm SD); the widths ranged from 6.4 to 9.7 μm (8.0 ± 0.8 μm SD). For AeSQ177, the cell lengths varied from 13.7 to 16.0 µm (14.7 ± 4.5 µm); the widths varied from 9.1 to 9.9 µm (9.4 ± 2.9 SD). For AeSQ181, the cell lengths ranged from 11.8 to 16.0 µm (13.6 ± 1.1 µm SD); the widths ranged from 6.6 to 10.5 (8.8 ± 0.9 µm SD). In AeSQ172, the epicone was button-shaped, whereas in AeSQ177 and AeSQ181, it was in crescent form.
A yellow-brown multi-lobed chloroplast was distributed from the central part to the cell periphery. A central or subcentral pyrenoid was located at the median line or slightly above it (Figure 3a–d,f) but was smaller in AeSQ181 (Figure 3f). The nucleus was barely distinguishable but located at the antapex.
The isolates provisionally identified as Amphidinium cf. carterae but subsequently assigned to A. eilatiensis according to the molecular phylogenetic analysis shared many features with A. carterae: the cell size and outline; the presence of a single golden-brown multi-lobed chloroplast; the position of the nucleus near the antapex; and the sulcus closer to the right margin of the cell (Figure 3e). The species A. eilatiensis is morphologically closest to A. carterae and A. rhynchocephalum, but it does not have obvious thecal plates (or polygonal units) described for the former species [41]. In the original description of A. eilatiensis [41], the sulcus extends about a third of the body length toward the antapex, whereas A. carterae is illustrated with the sulcus extending to the antapex [42]. A ventral ridge has been described for both species, but Hulburt [42] did not mention its presence in the original description of A. carterae. A more detailed comparison of these features between the two species from Mexico was not feasible. Neither the ventral ridge on the cell surface along the sulcus nor the dorsal position of the chloroplast described for A. eilatiensis—two features not included in the original description of A. carterae [42]—were observed in the specimens from Mexico.

3.1.3. Amphidinium massartii (AmLT112)

The cells were apple-shaped, round, oval, or elongated (Figure 4a–e). The cell lengths ranged from 10.6 to 14.6 µm (12.5 ± 1.1 µm SD) and were significantly different from those of all other isolates except for Amphidinium cf. carterae AeSQ172 (p-value > 0.05). The widths varied from 6.5 to 10.4 µm (8.2 ± 1.1 µm SD) (n = 30) and showed significant differences from the cells of A. carterae AA60 and A. theodorei AtLPZ38 (p-value < 0.001) (Figure S1). The epicone was small relative to the cell size and formed a crescent upward and to the left. The right margin of the hypocone was more convex than its left margin (Figure 4a,b,e).
Several yellow-brown elongated chloroplasts were located around the hypocone, and a discoidal pyrenoid was subcentrally located within the cell (Figure 4a,b). The nucleus was likely located at the cell antapex but hardly distinguished.

3.1.4. Amphidinium operculatum (AA60)

The cells were ellipsoid and almost symmetrical with respect to the longitudinal axis (unlike those of other Amphidinium species in this study). For AA60, the cells were widest at the median line or slightly behind it (Figure 5a–d). The cell lengths ranged from 24.0 to 33.0 µm (29.1 ± 2.8 µm SD); the widths ranged from 16.0 to 22.0 µm (19.4 ± 1.7 µm SD) (n = 30). The cells of AA60 were significantly larger and greater in both length and width in relation to those of other Amphidinium species isolates in this study (p-value < 0.001) (Figure S1). The epicone was centered at the anterior end and extended to the left but was poorly distinguished in living cells (Figure 5a,b).
Multiple orange-yellowish chloroplasts were located in the central zone, and a pyrenoid was barely distinguishable near the median line of the cell. The nucleus was located at the posterior end of the cell (Figure 5a,b).

3.1.5. Amphidinium theodorei (AtLPZ38)

The cells were of varied shapes from ovoid to subglobular when freshly isolated (Figure 6a–g). The cell lengths varied from 17.8 to 28.1 µm (24.5 ± 2.3 µm SD); the widths ranged from 13.0 to 22.1 µm (18.0 ± 2.0 µm SD) (n = 30). These cell dimensions were most similar to those of A. carterae AA60 but with significantly smaller cells. Except for AA60, the cells of A. theodorei AtLPZ38 were significantly greater in both length and width than those of all other isolates in this study (p-value < 0.001) (Figure S1). The epicone was centered and elongated toward the dorsal part of the apex with the button shape well distinguished in living cells (Figure 6a–d), whereas the hypocone usually narrowed slightly toward the cingulum with the widest part closer to the antapex (Figure 6a,b,e,f).
A lobular orange-yellowish chloroplast extended toward the cell periphery in a radial fashion. A relatively large discoidal pyrenoid was centrally located within the cell (Figure 6a–d). Reddish bodies that may have been food particles were observed inside some cells. The nucleus was located at the posterior end of the cell (Figure 6a–d).

3.2. Molecular Characterization

Each gene region analyzed showed a particular pattern of nucleotide substitution. The Tamura–Nei model [43] was more suitable for the LSU region, whereas the Kimura two-parameter model [44] was better for the ITS1-5.8S rRNA-ITS2 region. The phylogenetic trees showed different topologies for the two regions analyzed. In fact, analysis of the ITS1-5.8S rRNA-ITS2 region by itself failed to resolve the relationships between isolates AA60, AmLT112, AeSQ181, AeSQ177, and AeSQ172, placing all of them on the same branch. On the other hand, analysis of the LSU region clustered the sequences from isolates AeSQ181, AeSQ177, and AeSQ172 on the same branch as A. eilatiensis and A. carterae sequences, but none of these were assigned as sister taxa of the isolates from Mexico (Supplementary Materials Figures S2–S5).

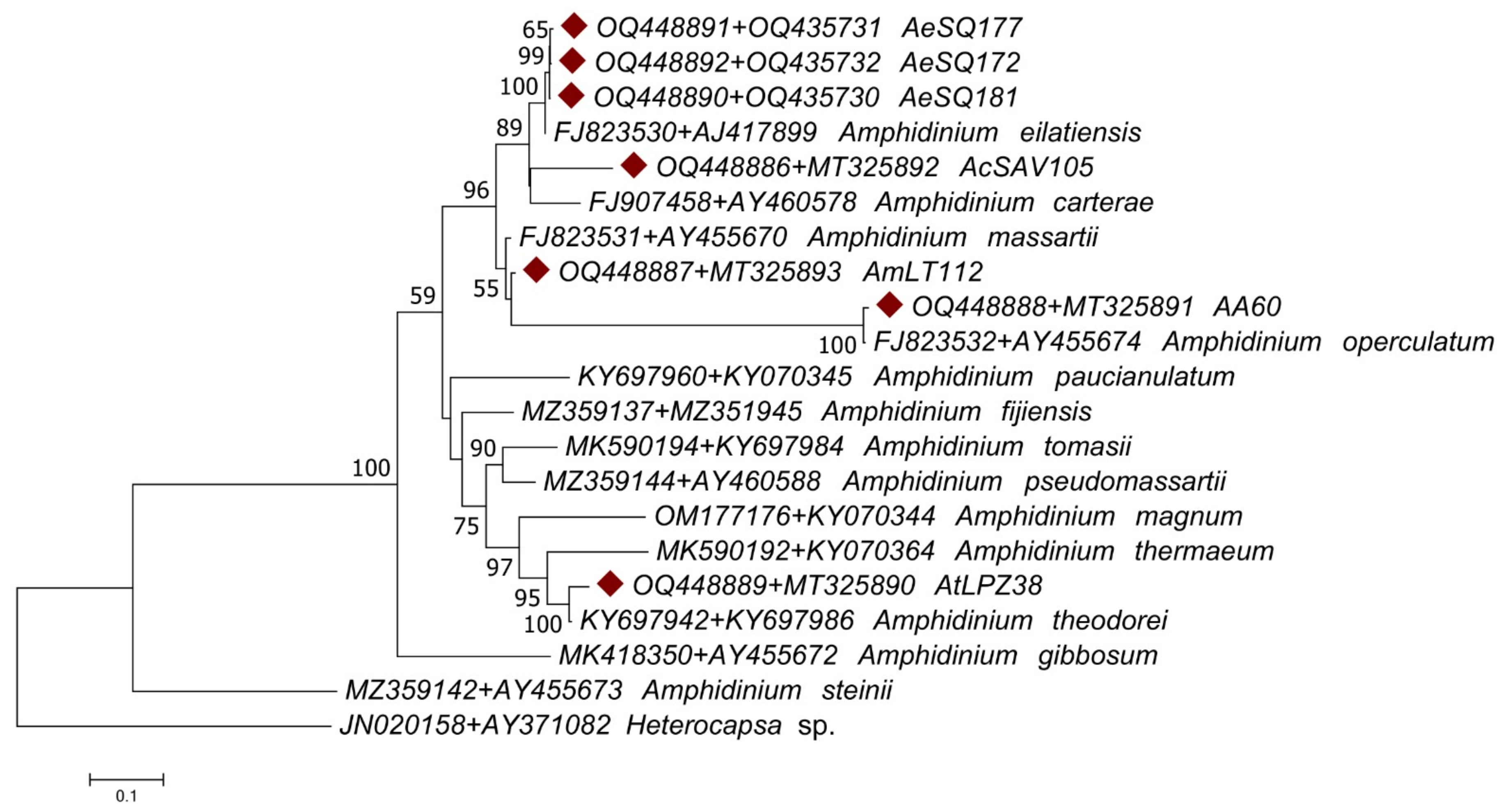

These issues were resolved by conducting an analysis of the concatenated gene regions. The phylogenetic analyses of the concatenated gene regions (ITS1-5.8S rRNA-ITS2 + LSU) involved 20 Amphidinium species (plus the outgroup sequence of the distantly related dinoflagellate Heterocapsa sp.) (Table 2) for a total of 2160 nucleotide positions analyzed. The concatenated sequences displayed a different pattern of nucleotide substitution represented by the General Time-Reversible model. The tree topologies from both ML and MP approaches were congruent with some exceptions: the ML tree failed to assign a sister taxon to isolate AmLT112 (Figure 7), while the MP tree clustered it with A. massartii (Figure 8). Although the ML tree was suitable for representing genetic distances as branch lengths, the tree topology from the MP method was more congruent with the morphological observations described before in the present study: the sister taxa assigned for our isolates in the consensus MP tree coincided in all cases with species assignations via morphological observations.

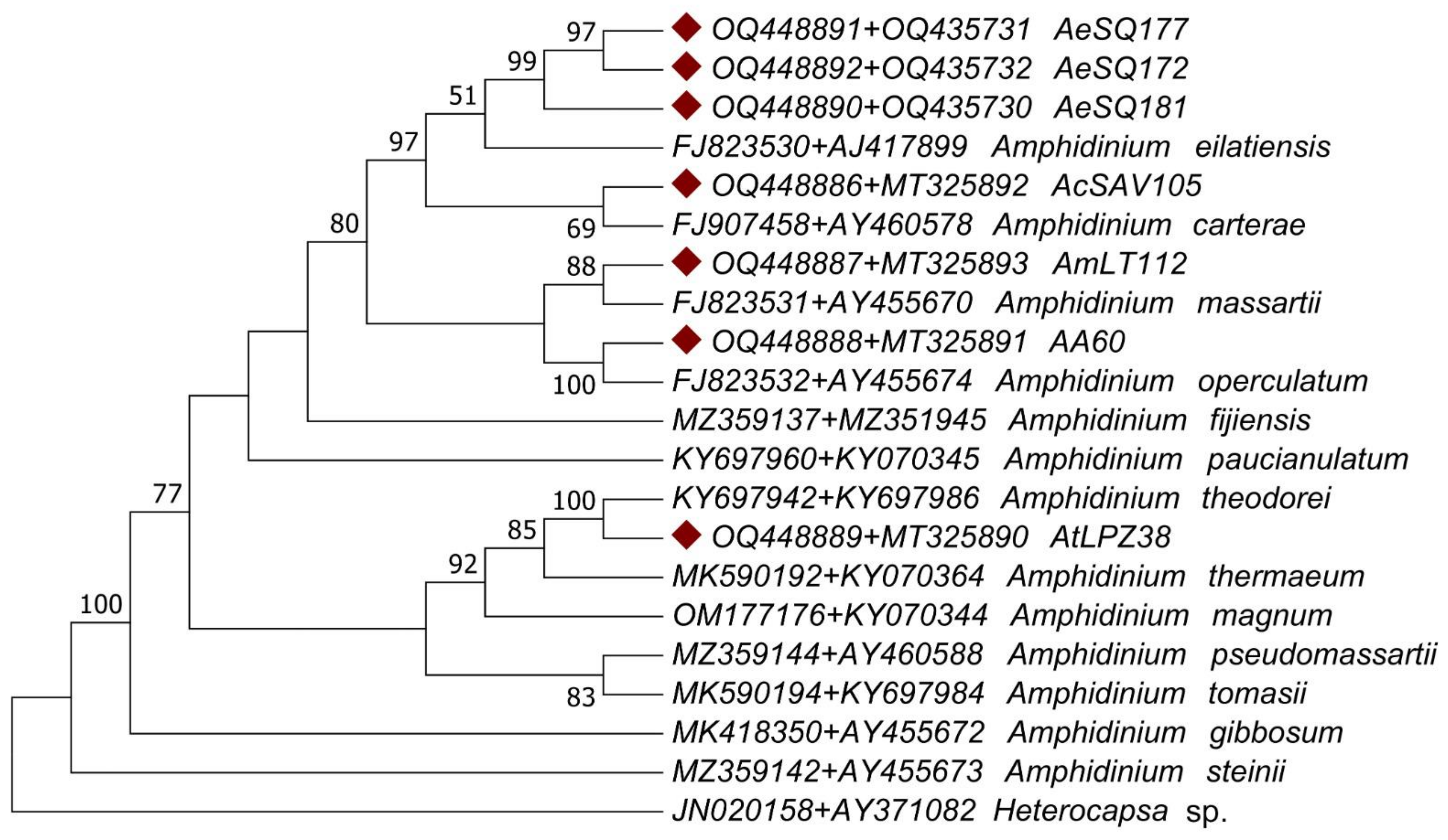

The consensus MP phylogenic tree grouped all isolates from Mexico within the Operculatum clade sensu lato [1]. As expected from the preliminary morphological analysis, the ITS1-5.8S rRNA-ITS2 + LSU concatenated sequence of AcSAV105 from Veracruz grouped with A. carterae; the sequence of AmLT112 from Campeche grouped with A. massartii; and that of AA60 from Veracruz grouped with A. operculatum. The AtLPZ38 sequence from Baja California Sur was clustered with A. theodorei. The isolates AA60 and AtLPZ38 were clustered with their sister taxa with 100% bootstrap support on both the MP and ML trees. Sequences from AeSQ-172, AeSQ-177, and AeSQ-181 from Baja California provisionally identified via morphological criteria as A. cf. carterae (Table 1) clustered with A. eilatiensis in the MP phylogenetic reconstruction (Figure 8). This constituted the first confirmed report of this latter species from Mexico or indeed from anywhere else in the Americas.

4. Discussion

The genus Amphidinium exhibits a widespread geographical distribution from the tropics to high-latitude waters and is therefore considered cosmopolitan [1]. Until now, there have been few records of the phylogenetic relationships of Amphidinium species from Mexico, and identifications have not usually been supported by molecular sequencing data. Defining the taxonomy of Amphidinium species solely based on morphological characters is complicated, in part because their morphology varies according to the strain and the life stage in which they are observed [1,4,21,34]. This high degree of morphological plasticity and the cryptic biogeographical distribution in diverse marine habitats has almost certainly led to underestimation and misidentifications in routine field surveys of benthic and pelagic microeukaryote communities. Delicate athecate dinoflagellates such as Amphidinium also fail to preserve well in conventional fixatives for later morphological identification.
Many toxigenic bHAB species (including those of Amphidinium) have undergone an apparent expansion of geographical distribution in Latin America in recent years [8]. The lack of confirmed bHAB events associated with Amphidinium blooms in Mexico has tended to cause neglect of this genus as a high priority for regional toxin-monitoring programs. Members of the genus Amphidinium may be occupying new ecological niches due to coastal eutrophication, unintentional introduction of invasive species, and climate change, but this cannot be substantiated without more intensive efforts to determine biogeographical distribution from field surveys and critical taxonomy.

4.1. Morphological Characterization

The high similarity between closely related species and morphological plasticity are factors that complicate morphological identification. The apparent overlap and variation in some features such as the cell size and shape mean that Amphidinium species are often poorly characterized, especially when observed only under LM. With SEM, micro-structural details of the cell surface can be resolved for more reliable species identification. In the cases of A. carterae and A. massartii [34] as defined herein, these species differed primarily in the size and shape of the lobulated chloroplast, which was distributed toward the cell periphery in A. carterae but more dispersed in A. massartii [45]. The species also differed in the patterning of the external membrane and the presence of scales in A. massartii [1]. Unfortunately, without observation under transmission electron microscopy (TEM), scales located outside the plasma membrane could not be distinguished. In scale-bearing Amphidinium species, scales were not visible via SEM because they were tiny; e.g., only 136.4 × 91.0 × 81.8 nm in A. cupulatisquama Tamura & Horiguchi [46], 64.8–68.4 × 48.5–49.3 × 12.6–18.4 nm in two unidentified Amphidinium strains closely related to A. carterae [47], and 276 ± 17 nm in A. stirisquamtum Z. Luo, Na Wang & H. Gu [48].
The flagellar insertion point was slightly lower in A. massartii than in A. carterae [40], and the epicone was narrower in A. massartii than in A. carterae [22]. Considering the clonal variation in the aforementioned characteristics, the morphological features of the cultured isolates of A. carterae and A. massartii coincided well with those reported in the literature.
In specimens provisionally assigned to A. cf. carterae based on preliminary LM observations (A. cf. carterae AeSQ172, AeSQ177, and AeSQ181), we could not distinguish the lobes of the chloroplast. In the original description of A. eilatiensis [41], six lobes were indicated, but the observations were obtained by confocal microscopy, which provides superior resolution and depth of field. The authors [41] emphasized that unlike A. carterae, A. eilatiensis “does not have the obvious thecal plates or polygonal units”. In our specimens, we also did not observe the ventral ridge—a distinctive feature of this species—located between the two flagellar pores.
The morphology of A. operculatum AA60 coincided with descriptions in the literature [4]. This species was especially distinguished by the position of the flagellar insertion located at the antapex of the cell and away from the epicone (Figure 5). This feature was in contrast to A. carterae and A. massartii, for which the flagellar insertion point was located closer to the epicone (Figure 2 and Figure 4). Cultured A. operculatum cells were the largest among all isolates of Amphidinium species (see Section 3.1.4 and Supplementary Materials Figure S1) evaluated in this study.
The high degree of morphological plasticity in Amphidinium—depending upon environmental factors and life stages—was corroborated with A. theodorei (AtLPZ38). When this strain was freshly isolated, its cell shape could be either round or oval (Figure 6). After a few weeks in culture, the formation of cysts surrounded by mucilage was also noticed. The morphology of AtLPZ38 was somewhat different from the Fiji strain Amth0702-1, although both shared the epicone shape and cyst formation feature [1]. Unlike the illustrated cells of Amth0702-1 [1], AtLPZ38 cells differed as follows: (1) the sides of the cell could be symmetrical in the ventral or dorsal view in relation to the longitudinal axis (Figure 6a–c,f,g); (2) the pyrenoid was always central (Figure 6a–d); (3) the maximal cell width could be behind the median line of the cell (Figure 6a,b); and (4) the insertion point of the longitudinal flagellum was also located behind the median line (Figure 6e). The molecular sequence data herein (Figure 7 and Figure 8) indicated that they belonged to the same species. Nevertheless, it would be informative to compare the differences in the time frame of the photographic records over the respective culture cycles to confirm the degree of cellular plasticity and morphological variation between the strains from Mexico and Fiji.
Reddish bodies such as those observed in the cells of A. carterae (AcSAV105) (Figure 2) and A. theodorei (AtLPZ38) (Figure 6) have been frequently reported in cells of other dinoflagellate genera such as Coolia Meunier and Ostreopsis Schmidt. These reddish bodies have been attributed to mixotrophic activity of these dinoflagellates, although this has not been proven [49]. These reddish bodies usually disappear within several cell division cycles after the dinoflagellates are maintained unialgally in defined inorganic seawater-based culture medium as evidence of lack of phagotrophy.

4.2. Molecular Phylogenetic Analysis

Compared to other groups of dinoflagellates, the genus Amphidinium comprises high interspecific genetic diversity and intraspecific variability [1,45]. Molecular analyses of the D1-D6 domains of the LSU rRNA gene have indicated high variability in these regions, suggesting either that infrageneric taxa have a high rate of evolution in their respective rRNA genes or that they exhibit greater species diversity because they are older than other groups [4,45,50]. These alternative scenarios are not mutually exclusive, but the issue has not been resolved.
The analyzed gene regions showed different patterns of nucleotide substitution, suggesting that each region was subject to different mutation rates and evolutionary dynamics. The sequenced gene regions yielded different tree topologies with the patterns of ancestral branches differing between the ML and MP methods. Although the ML tree was suitable for representing genetic distances as branch lengths, the tree topology from the MP method was more congruent with the morphological observations of species described before and in the present study. The unified phylogenetic tree presented herein—the first based on concatenated sequences from different genes for the genus Amphidinium—clearly improved the topologies obtained for each gene separately. Specifically, the trees obtained from the concatenated dataset (Figure 7 and Figure 8) solved the problems in the phylogenetic reconstruction based solely on individual gene regions (Figures S2–S5). For example, the phylogeny of the LSU region by itself also failed to resolve the morphologically complex relationships between AeSQ181, AeSQ177, AeSQ172, A. eilatiensis, and A. carterae (Supplementary Materials Figures S2 and S3). The phylogeny of the ITS1-5.8S rRNA-ITS2 region failed to assign sister taxa to the isolates AA60, AtLPZ38, AeSQ181, AeSQ177, and AeSQ172, clustering them all on the same branch (Supplementary Materials Figures S4 and S5). By contrast, the consensus MP phylogeny for the concatenated gene regions clustered all new isolates from Mexico with their expected sister taxa according to the previous species assignments. Preliminary observations of morphological characteristics from new isolates AeSQ181, AeSQ177, and AeSQ172 led to a vague assignment to A. cf. carterae, but the molecular phylogeny persuasively argued for a closer affinity with A. eilatiensis.
The fact that the consensus MP method yielded phylogenetic reconstruction more congruent with the morphological observations than the ML method may be related to differences in mutation rates between the gene regions. The reliability of the ML method depends on an accurate mutation model; combining genes with different mutation rates could therefore affect the reliability of this method [51]. By contrast, the MP method reconciles the differences in the mutation dynamics between both gene regions since it assumes a unique phylogenetic criterion in which the shortest possible tree that explains the data is considered the best without assuming a particular mutation model [51]. In this regard, the MP approach has been shown to be a robust model for reconstructing dinoflagellate evolutionary pathways at various levels [2,52]. We point out that the primary purpose of our phylogenetic analysis was to provide support for accurate species identification and assignment in combination with the morphological analyses. We detected major differences in the ancestral nodes between ML and MP trees; our intention, however, was not to attempt a phylogenetic revision of the Amphidiniales or even the diversity within genus Amphidinium with such a restricted new sequence data set from a few isolates and limited archived sequences.
In this regard, previous molecular phylogenetic studies on the Amphidinium genus have proposed the existence of two major clades: the Operculatum and the Herdmanii clades [1,34,40]. These clades show strong differences in their evolutionary rates since the Operculatum clade includes the vast majority of the Amphidinium species, thereby indicating a higher diversification rate than for the Herdmanii clade. These major clades were also distinguished in our phylogenetic analysis, in which the most ancestral branch in the phylogenetic tree separated the only taxon of the Herdmanii clade (A. steinii (Lemmerm.) Kof. & Swezy) from the rest of the species [1,34,40]. Our results suggested that A. gibbosum represents the basal branch of the Operculatum clade instead of A. operculatum, which was placed in a more terminal position than previously reported [1,34,40]. For a better interpretation of deeper evolutionary pathways within the Amphidinium genus, we recommend developing new DNA barcodes (including genomic regions with lower mutation rates), especially to solve the ancestral nodes, which was outside of the scope of the present study. We consider that the new trees presented herein are most useful for species identification.
Molecular phylogenies of Amphidinium also concur in the relatedness between the species A. carterae and A. eilatiensis [40], which was also reflected in our MP phylogenetic tree (Figure 8). The degree of genetic relatedness found between the A. carterae strain (AcSAV105) isolated from the Gulf of Mexico and the putative A. eilatiensis strains (AeSQ-172, AeSQ-177, and AeSQ-181) from the geographically disjunct Gulf of California suggests vicariance between these species as opposed to dispersal mixing of Amphidinium genotypes. Such vicariance could have occurred after the emergence of the Panama isthmus, impeding gene flow between the Atlantic and Pacific ocean basins [53]. If this hypothesis is confirmed with further research, such vicariant processes could be the basis for estimating mutation rates and the calibration of molecular clocks [54] for Amphidinium species.
In conclusion, this study of morphological and molecular characteristics of the benthic dinoflagellate Amphidinium from selected coastal waters of Mexico provides new insights into the regional biography of members of this genus. The revised molecular phylogenetic analysis was consistent with and did not challenge the traditional subdivision of the genus Amphidinium into two sister clades but confirmed the first records of A. theodorei and A. massartii from coastal waters of Mexico. More significantly, the molecular phylogenetic evidence indicated that Amphidinium populations heretofore described as A. cf. carterae from Baja California may in fact belong to A. eilatiensis [41]. High morphological plasticity within the genus revealed cells with similar dimensions and marginal outlines in all species but one (A. operculatum) as well as similar positions of the nucleus and pyrenoid. In several cases, the infraspecific morphological variation among isolates within the defined Amphidinium species was greater than the interspecific variation.
Molecular data based on ITS1-5.8S rRNA-ITS2 + LSU concatenated sequences were proven to be essential to identify and distinguish Amphidinium species. The case for transferring A. cf. carterae from Baja California to A. eilatiensis may be supported by retrospective analysis of published studies from the region [11,12]. Further support for these provisional species assignments is contingent upon a more detailed analysis of ITS2 secondary structure not currently available from a larger pool of closely related isolates. Future biogeographical investigations of Amphidinium in the Gulf of California by combining morphological and molecular techniques will help to unravel biogeographical distribution patterns and species affiliations. This distinction is of more than just taxonomic and nomenclatural significance. Amphidinium eilatiensis was first described from a bloom in a mariculture sedimentation pond near the Gulf of Eilat, Israel [41], but has never been implicated in any global HAB or toxigenic events. A. carterae has long been recognized to produce a suite of bioactive (some cytotoxic) amphidinols (AM) and was circumstantially linked to fish-killing incidents in a few cases. Just recently, putative A. eilatiensis isolates AeSQ172, 177, and 181 from the northern Mexican Pacific coast were confirmed to produce AMs in higher quantities and varieties than any global Amphidinium isolates known to date [55]. Resolution of the complex nature of species distinctions and production of potentially toxic secondary metabolites—including AM analogs—is therefore key to defining the emerging but undefined risk of Amphidinium blooms to human health and seafood security on the Pacific coast, the Gulf of California, and the southern Gulf of Mexico.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/phycology3020020/s1. Figure S1: Comparison of morphometric characteristics of cultured Amphidinium species from Mexican coastal waters (n = 30 for each isolate). A. carterae = AcSAV105; A. cf. carterae = AeSQ172, AeSQ177, and AeSQ181; A. massartii = AmLT112; A. operculatum = AA60; A. theodorei = AtLPZ38. The line inside the boxes indicates the median, the whiskers represent the highest and lowest values excluding outliers, and the transparent points represent the underlying distribution of the data. Different letters (a,b,c,d) above the boxes indicate significant differences at 0.05% error. Figure S2: Maximum likelihood tree for large ribosomal subunit (LSU) gene sequences of Amphidinium species. Sequences obtained in the present study are marked with diamond shapes. The percentage of trees in which the associated taxa clustered together (after 2000 bootstrap replicates) is shown next to the branches. A discrete Gamma distribution was used to model evolutionary rate differences among sites (+G; parameter = 0.8832). Sequence labels include the strain name, GenBank accession number, and species name. Figure S3: Maximum parsimony consensus tree for large ribosomal subunit (LSU) gene sequences of Amphidinium species. Sequences obtained in the present study are marked with diamond shapes. The percentage of trees in which the associated taxa clustered together (after 2000 bootstrap replicates) is shown next to the branches. Sequence labels include the strain name, GenBank accession number, and species name. Figure S4: Maximum likelihood tree for the ITS1-5.8 S rRNA-ITS2 region of Amphidinium species. Sequences obtained in the present study are marked with diamond shapes. The percentage of trees in which the associated taxa clustered together (after 2000 bootstrap replicates) is shown next to the branches. A discrete Gamma distribution was used to model evolutionary rate differences among sites (+G; parameter = 2.1612). Sequence labels include the GenBank accession number, species name, and strain name. Figure S5: Maximum parsimony consensus tree for the ITS1-5.8 S rRNA-ITS2 region of Amphidinium species. Sequences obtained in the present study are marked with diamond shapes. The percentage of trees in which the associated taxa clustered together (after 2000 bootstrap replicates) is shown next to the branches. Sequence labels include the GenBank accession number, species name, and strain name.

Author Contributions

L.M.D.-R.: Conceptualization; field sampling; Amphidinium cell isolation, culture, and harvest; provision of light micrographs; leading and coordinating the drafting of the manuscript; supervision of research team and data analysis. O.E.J.: Formal bioinformatic data analysis; molecular data curation and visualization; manuscript writing, reviewing, and editing. Y.B.O.: Morphological and taxonomic analysis and manuscript writing. A.L.M.-C.: Cell isolation, culture, and harvest; molecular sequencing; and analysis under F.R.-C.’s and L.M.D.-R.’s supervision. F.R.-C.: DNA extraction, molecular analysis and supervision, and manuscript writing. D.C.-G. and M.d.C.O.-R.: Amphidinium cell culture and harvest, DNA extraction and amplification, molecular data analysis under L.M.D.-R.’s and O.E.J.’s supervision. V.A.C.-U.: Statistical data analyses and figure plotting. A.D.C.: Conceptualization and critical data analysis, field sampling for isolation; coleading and coordinating drafting of the manuscript with a focus on interpretation of the results and discussion. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded primarily by the Consejo Nacional de Ciencia y Tecnología (CONACyT, Mexico) through the Basic Science Project (number A1-S-8616) and the Cátedra CONACyT (Investigadoras e Investigadores por México, CONAHCYT) Project 1009 (both awarded to L.M.D.-R.). The Helmholtz research program “Changing Earth, Sustaining our Future” (Subtopic 6.2—Adaptation of marine life) of the Alfred-Wegener-Institut, Helmholtz Zentrum für Polar- und Meeresforschung, Germany, supported the participation of A.D.C. and L.M.D.-R. and contributed to the publication of this work.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The alignments presented in this study can be made available upon request. Data are available at https://www.ncbi.nlm.nih.gov/genbank accessed on 3 March 2023 (ITS1-5.8S rRNA-ITS2 GenBank accession numbers: OQ448886—OQ448892; LSU rRNA GenBank accession numbers: MT325890—MT325893 and OQ435730—OQ435732).

Acknowledgments

We thank Manuel Victoria-Muguira of the Dorado Buceo for boat access and logistical support of field sampling from Veracruz and Manuel Rodríguez-Gómez of the Acuario de Veracruz for donating filtered seawater. Mario Fernando Sánchez-Bernal was responsible for imaging and curation. We gratefully acknowledge Edna Sánchez-Castrejón from the Genomics Laboratory at CICESE for her competent support in the sequencing laboratory.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Karafas, S.; Teng, S.T.; Leaw, C.P.; Alves-de-Souza, C. An evaluation of the genus Amphidinium (Dinophyceae) combining evidence from morphology, phylogenetics, and toxin production, with the introduction of six novel species. Harmful Algae 2017, 68, 128–151. [Google Scholar] [CrossRef] [PubMed]
  2. Flø Jørgensen, M.; Murray, S.; Daugbjerg, N. Amphidinium revisited. I. Redefinition of Amphidinium (Dinophyceae) based on cladistic and molecular phylogenetic analyses. J. Phycol. 2004, 40, 351–365. [Google Scholar] [CrossRef]
  3. Hoppenrath, M.; Murray, S.A.; Chomérat, N.; Horiguchi, T. Marine Benthic Dinoflagellates-Unveiling Their Worldwide Biodiversity; Schweizerbart’sche Verlagsbuchhandlung: Stuttgart, Germany, 2014; Volume 54, p. 276. [Google Scholar]
  4. Murray, S.; Flø Jørgensen, M.; Daugbjerg, N.; Rhodes, L. Amphidinium revisited. II. Resolving species boundaries in the Amphidinium operculatum species complex (Dinophyceae), including the descriptions of Amphidinium trulla sp. nov. and Amphidinium gibbosum. comb. nov. J. Phycol. 2004, 40, 366–382. [Google Scholar] [CrossRef]
  5. Kofoid, C.A.; Swezy, O. The Free-Living Unarmored Dinoflagellata; University of California Press: Berkeley, CA, USA, 1921; Volume 5, p. 563. [Google Scholar]
  6. Steidinger, K.A.; Tangen, K. Dinoflagellates. In Identifying Marine Phytoplankton; Tomas, C., Ed.; Academic Press: San Diego, CA, USA, 1997; pp. 387–584. [Google Scholar]
  7. Guiry, M.D.; Guiry, G.M. AlgaeBase. World-Wide Electronic Publication, National University of Ireland, Galway. 2023. Available online: https://www.algaebase.org, (accessed on 5 January 2022).
  8. Durán-Riveroll, L.D.; Cembella, A.D.; Okolodkov, Y.B. A review on the biodiversity and biogeography of toxigenic benthic marine dinoflagellates of the coasts of Latin America. Front. Mar. Sci. 2019, 6, 148. [Google Scholar] [CrossRef]
  9. Tester, P.A.; Litaker, R.W.; Berdalet, E. Climate change and harmful benthic microalgae. Harmful Algae 2020, 91, e101655. [Google Scholar] [CrossRef]
  10. Okolodkov, Y.B.; Campos-Bautista, G.; Gárate-Lizárraga, I.; González-González, J.A.G.; Hoppenrath, M.; Arenas, V. Seasonal changes of benthic and epiphytic dinoflagellates in the Veracruz reef zone, Gulf of Mexico. Aquat. Microb. Ecol. 2007, 47, 223–237. [Google Scholar] [CrossRef]
  11. Gárate-Lizárraga, I. Proliferation of Amphidinium carterae (Gymnodiniales: Gymnodiniaceae) in Bahía de La Paz, Gulf of California. CICIMAR Oceánides 2012, 27, 37–49. [Google Scholar] [CrossRef]
  12. Gárate-Lizárraga, I.; González-Armas, R.; Verdugo-Díaz, G.; Okolodkov, Y.B.; Pérez-Cruz, B.; Díaz-Ortíz, J.A. Seasonality of the dinoflagellate Amphidinium cf. carterae (Dinophyceae: Amphidiniales) in Bahía de la Paz, Gulf of California. Mar. Poll. Bull. 2019, 146, 532–541. [Google Scholar] [CrossRef]
  13. Murray, S.A.; Kohli, G.S.; Farrell, H.; Spiers, Z.B.; Place, A.R.; Dorantes-Aranda, J.J.; Ruszczyk, J. A fish kill associated with a bloom of Amphidinium carterae in a coastal lagoon in Sydney, Australia. Harmful Algae 2015, 49, 19–28. [Google Scholar] [CrossRef]
  14. Wellkamp, M.; García-Camacho, F.; Durán-Riveroll, L.M.; Tebben, J.; Tillmann, U.; Krock, B. LC-MS/MS method development for the discovery and identification of amphidinols produced by Amphidinium. Mar. Drugs 2020, 18, 1–22. [Google Scholar] [CrossRef]
  15. Echigoya, R.; Rhodes, L.; Oshima, Y.; Satake, M. The structures of five new antifungal and hemolytic amphidinol analogs from Amphidinium carterae collected in New Zealand. Harmful Algae 2005, 4, 383–389. [Google Scholar] [CrossRef]
  16. Morsy, N.; Houdai, T.; Matsuoka, S.; Matsumori, N.; Adachi, S.; Oishi, T.; Murata, M.; Iwashita, T.; Fujita, T. Structures of new amphidinols with truncated polyhydroxyl chain and their membrane-permeabilizing activities. Bioorg. Med. Chem. 2006, 14, 6548–6554. [Google Scholar] [CrossRef]
  17. Satake, M.; Cornelio, K.; Hanashima, S.; Malabed, R.; Murata, M.; Matsumori, N.; Zhang, H.; Hayashi, F.; Mori, S.; Kim, J.S. Structures of the largest amphidinol homologues from the dinoflagellate Amphidinium carterae and structure–activity relationships. J. Nat. Prod. 2017, 80, 2883–2888. [Google Scholar] [CrossRef]
  18. Mejía-Camacho, A.L.; Durán-Riveroll, L.M.; Cembella, A.D. Toxicity bioassay and cytotoxic effects of the benthic marine dinoflagellate Amphidinium operculatum. J. Xenobiot. 2021, 11, 33–45. [Google Scholar] [CrossRef]
  19. Martínez, K.A.; Lauritano, C.; Druka, D.; Romano, G.; Grohmann, T.; Jaspars, M.; Martín, J.; Díaz, C.; Cautain, B.; de la Cruz, M.; et al. Amphidinol 22, a new cytotoxic and antifungal amphidinol from the dinoflagellate Amphidinium carterae. Mar. Drugs 2019, 17, 385. [Google Scholar] [CrossRef]
  20. Rhodes, L.L.; Smith, K.F.; Munday, R.; Selwood, A.I.; McNabb, P.S.; Holland, P.T.; Bottein, M.-Y. Toxic dinoflagellates (Dinophyceae) from Rarotonga, Cook Islands. Toxicon 2010, 56, 751–758. [Google Scholar] [CrossRef]
  21. Dolapsakis, N.P.; Economou-Amilli, A. A new marine species of Amphidinium (Dinophyceae) from Thermaikos Gulf, Greece. Acta Protozool. 2009, 48, 153–170. [Google Scholar]
  22. Murray, S.; Patterson, D. The benthic dinoflagellate genus Amphidinium in south-eastern Australian waters, including three new species. Eur. J. Phycol. 2002, 37, 279–298. [Google Scholar] [CrossRef]
  23. Okolodkov, Y.; Durán-Riveroll, L.D.; Band-Schmidt, C.J.; Leyva-Valencia, I.; Gárate-Lizárraga, I.; Cembella, A.D. A review on marine benthic dinoflagellates in Mexico. Hidrobiológica 2022, 32, 183–210. [Google Scholar] [CrossRef]
  24. Okolodkov, Y.B.; Gárate-Lizárraga, I. An annotated checklist of dinoflagellates (Dinophyceae) from the Mexican Pacific. Acta Bot. Mex. 2006, 74, 1–154. [Google Scholar] [CrossRef]
  25. Blackburn, S.I.; Bolch, C.J.S.; Haskard, K.A.; Hallegraeff, G.M. Reproductive compatibility among four global populations of the toxic dinoflagellate Gymnodinium catenatum (Dinophyceae). Phycologia 2001, 40, 78–87. [Google Scholar] [CrossRef]
  26. Markham, J.; Hagmeier, E. Observations on the effects of germanium dioxide on the growth of macro-algae and diatoms. Phycologia 1982, 21, 125–130. [Google Scholar] [CrossRef]
  27. Pérez-López, H.; Durán-Riveroll, L.; Gómez-Lizárraga, L.E.; Mendoza-Garfias, M.B. Simple method for preparing delicate dinoflagellate of the genus Amphidinium for scanning electron microscopy. Microsc. Microanal. 2020, 26, 1366–1369. [Google Scholar] [CrossRef]
  28. RStudio-Team. RStudio: Integrated Development for R; RStudio: Boston, MA, USA, 2020. [Google Scholar]
  29. Gómez, F. A quantitative review of the lifestyle, habitat and trophic diversity of dinoflagellates (Dinoflagellata, Alveolata). Syst. Biodiver. 2012, 10, 267–275. [Google Scholar] [CrossRef]
  30. Taylor, F.; Hoppenrath, M.; Saldarriaga, J.F. Dinoflagellate diversity and distribution. Biodivers. Conserv. 2008, 17, 407–418. [Google Scholar] [CrossRef]
  31. Scholin, C.; Herzog, M.; Sogin, M.; Anderson, D. Identification of group- and strain-specific genetic markers for globally distributed Alexandrium (Dinophyceae). II. sequence analysis of a fragment of the LSU rRNA gene1. J. Phycol. 1994, 30, 999–1011. [Google Scholar] [CrossRef]
  32. Daugbjerg, N.; Hansen, G.; Larsen, J.; Moestrup, Ø. Phylogeny of some of the major genera of dinoflagellates based on ultrastructure and partial LSU rDNA sequence data, including the erection of three new genera of unarmoured dinoflagellates. Phycologia 2000, 39, 302–317. [Google Scholar] [CrossRef]
  33. Litaker, R.W.; Vandersea, M.W.; Kibler, S.R.; Reece, K.S.; Stokes, N.A.; Steidinger, K.A.; Millie, D.F.; Bendis, B.J.; Pigg, R.J.; Tester, P.A. Identification of Pfiesteria piscicida (Dinophyceae) and Pfiesteria-like organisms using internal transcribed spacer-specific PCR assays 1. J. Phycol. 2003, 39, 754–761. [Google Scholar] [CrossRef]
  34. Moreira-González, A.R.; Fernandes, L.F.; Uchida, H.; Uesugi, A.; Suzuki, T.; Chomérat, N.; Bilien, G.; Pereira, T.A.; Mafra Jr, L.L. Morphology, growth, toxin production, and toxicity of cultured marine benthic dinoflagellates from Brazil and Cuba. J. Appl. Phycol. 2019, 31, 3699–3719. [Google Scholar] [CrossRef]
  35. Edgar, R.C. MUSCLE: A multiple sequence alignment method with reduced time and space complexity. BMC Bioinform. 2004, 5, 1–19. [Google Scholar] [CrossRef]
  36. Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R. Clustal W and Clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef]
  37. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular evolutionary genetics analysis version 7.0 for bigger datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef]
  38. Nei, M.; Kumar, S. Molecular Evolution and Phylogenetics; Oxford University Press: New York, NY, USA, 2000. [Google Scholar]
  39. Felsenstein, J. Confidence limits on phylogenies: An approach using the bootstrap. Evolution 1985, 39, 783–791. [Google Scholar] [CrossRef]
  40. Lee, K.H.; Jeong, H.J.; Park, K.; Kang, N.S.; Yoo, Y.D.; Lee, M.J.; Lee, J.; Lee, S.; Kim, T.; Kim, H.S.; et al. Morphology and molecular characterization of the epiphytic dinoflagellate Amphidinium massartii, isolated from the temperate waters off Jeju Island, Korea. Algae 2013, 28, 213–231. [Google Scholar] [CrossRef]
  41. Lee, J.J.; Olea, R.; Cevasco, M.; Pochon, X.; Correia, M.; Shpigel, M.; Pawlowski, J. A marine dinoflagellate, Amphidinium eilatiensis n. sp., from the benthos of a mariculture sedimentation pond in Eilat, Israel. J. Eukar. Microbiol. 2003, 50, 439–448. [Google Scholar] [CrossRef]
  42. Hulburt, E.M. The taxonomy of unarmored Dinophyceae of shallow embayments on Cape Cod, Massachusetts. Biol. Bull. 1957, 112, 196–219. [Google Scholar] [CrossRef]
  43. Tamura, K.; Nei, M. Estimation of the number of nucleotide substitutions in the control region of mitochondrial DNA in humans and chimpanzees. Mol. Biol. Evol. 1993, 10, 512–526. [Google Scholar]
  44. Kimura, M. A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences. J. Mol. Evol. 1980, 16, 111–120. [Google Scholar] [CrossRef]
  45. Murray, S.; Garby, T.; Hoppenrath, M.; Neilan, B. Genetic diversity, morphological uniformity and polyketide production in dinoflagellates (Amphidinium, Dinoflagellata). PLoS ONE 2012, 7, e38253. [Google Scholar] [CrossRef]
  46. Tamura, M.; Takano, Y.; Horiguchi, T. Discovery of a novel type of body scale in the marine dinoflagellate, Amphidinium cupulatisquama sp. nov. (Dinophyceae). Phycol. Res. 2009, 57, 304–312. [Google Scholar] [CrossRef]
  47. Sekida, S.; Okuda, K.; Katsumata, K.; Horiguchi, T. A novel type of body scale found in two strains of Amphidinium species (Dinophyceae). Phycologia 2003, 42, 661–666. [Google Scholar] [CrossRef]
  48. Luo, Z.; Wang, N.; Mohamed, H.F.; Liang, Y.; Pei, L.; Huang, S.; Gu, H. Amphidinium stirisquamtum sp. nov. (Dinophyceae), a new marine sand-dwelling dinoflagellate with a novel type of body scale. Algae 2021, 36, 241–261. [Google Scholar] [CrossRef]
  49. Fraga, S.; Rodríguez, F.; Bravo, I.; Zapata, M.; Marañón, E. Review of the main ecological features affecting benthic dinoflagellate blooms. Cryptogam. Algol. 2012, 33, 171–179. [Google Scholar] [CrossRef]
  50. Ricklefs, R.E. Estimating diversification rates from phylogenetic information. Trends Ecol. Evol. 2007, 22, 601–610. [Google Scholar] [CrossRef]
  51. Kolaczkowski, B.; Thornton, J.W. Performance of maximum parsimony and likelihood phylogenetics when evolution is heterogeneous. Nature 2004, 431, 980–984. [Google Scholar] [CrossRef]
  52. Gribble, K.E.; Anderson, D.M. Molecular phylogeny of the heterotrophic dinoflagellates Protoperidinium, Diplopsalis and Preperidinium (Dinophyceae), inferred from Large Subunit rDNA. J. Phycol. 2006, 42, 1081–1095. [Google Scholar] [CrossRef]
  53. Stanley, S.M. Earth System History, 4th ed.; Macmillan: New York, NY, USA, 2005. [Google Scholar]
  54. Avise, J.C. Molecular Markers, Natural History and Evolution; Springer Science & Business Media: New York, NY, USA, 2012; pp. 120–128. [Google Scholar]
  55. Durán-Riveroll, L.M.; Weber, J.; Krock, B. First identification of amphidinols from Mexican strains and new analogs. Toxins 2023, 15, 163. [Google Scholar] [CrossRef]
Phycology 03 00020 g001 550

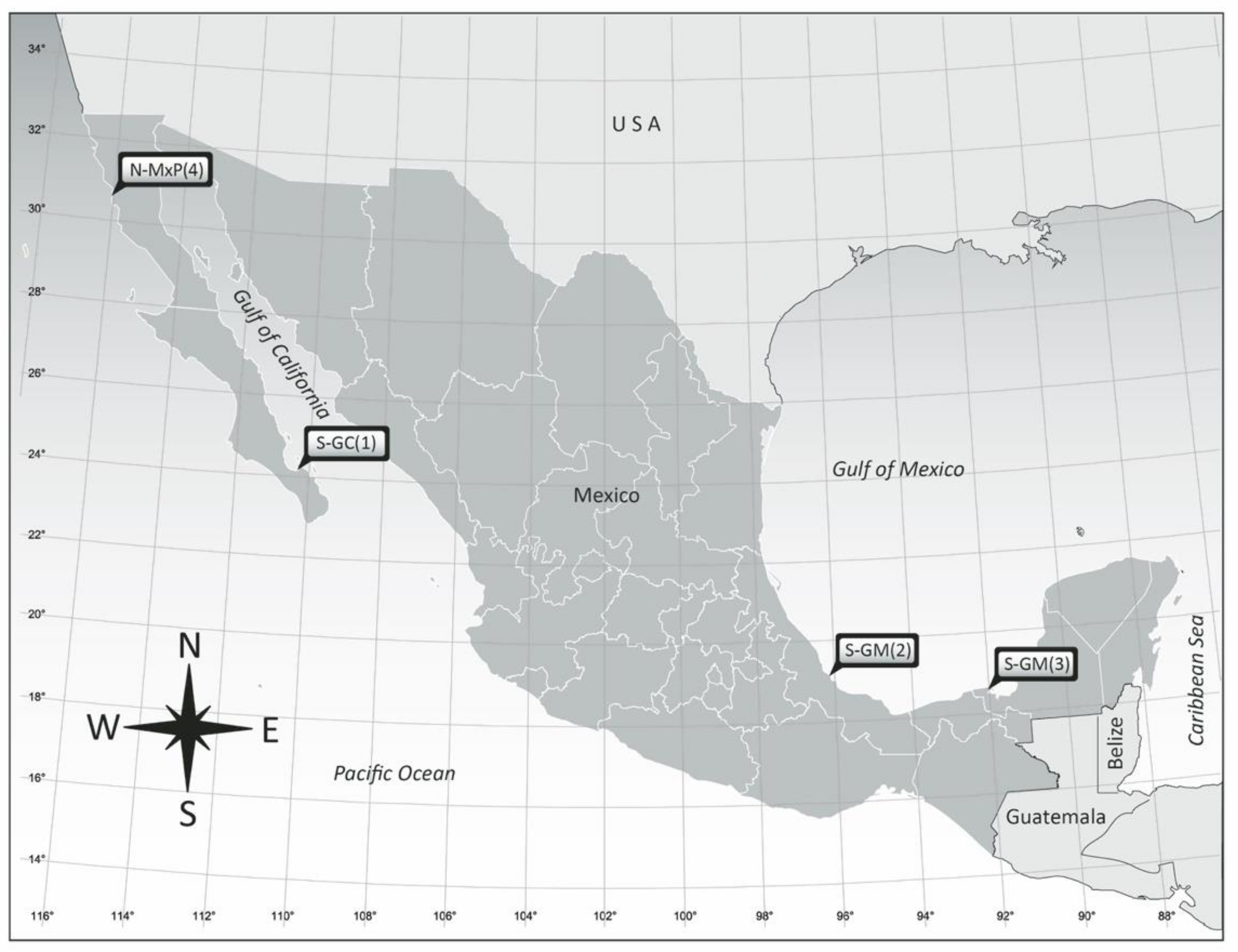

Figure 1. Localities of origin of the Amphidinium isolates studied from the coasts of Mexico. Geographical site location numbers are referenced in Table 1.
Figure 1. Localities of origin of the Amphidinium isolates studied from the coasts of Mexico. Geographical site location numbers are referenced in Table 1.
Phycology 03 00020 g001
Phycology 03 00020 g002 550
Figure 2. Amphidinium carterae AcSAV105: (a–c) cells in LM; (d,e) cells in SEM; (a–d) dorsal view, (e) ventral view. Pyrenoids are shown with black arrows.
Figure 2. Amphidinium carterae AcSAV105: (a–c) cells in LM; (d,e) cells in SEM; (a–d) dorsal view, (e) ventral view. Pyrenoids are shown with black arrows.
Phycology 03 00020 g002
Phycology 03 00020 g003 550
Figure 3. Amphidinium cf. carterae AeSQ172 (a,b), AeSQ177 (c–e), and AeSQ181 (f–h). (a–f) Cells in LM; (g,h) cells in SEM; (a,b,f,h) ventral view; (c,d,e,g) dorsal view. Pyrenoids are shown with black arrows.
Figure 3. Amphidinium cf. carterae AeSQ172 (a,b), AeSQ177 (c–e), and AeSQ181 (f–h). (a–f) Cells in LM; (g,h) cells in SEM; (a,b,f,h) ventral view; (c,d,e,g) dorsal view. Pyrenoids are shown with black arrows.
Phycology 03 00020 g003
Phycology 03 00020 g004 550
Figure 4. Amphidinium massartii AmLT112: (a–c) cells in LM; (d,e) cells in SEM; (a,b,e) ventral view; (c) dorsal view; (d) aggregated cells in different views. Pyrenoids are shown with black arrows.
Figure 4. Amphidinium massartii AmLT112: (a–c) cells in LM; (d,e) cells in SEM; (a,b,e) ventral view; (c) dorsal view; (d) aggregated cells in different views. Pyrenoids are shown with black arrows.
Phycology 03 00020 g004
Phycology 03 00020 g005 550
Figure 5. Amphidinium operculatum AA60: (a,b) cells in LM in dorsal view; (c,d) cells in SEM in ventral view. Nuclei are shown with blue arrows.
Figure 5. Amphidinium operculatum AA60: (a,b) cells in LM in dorsal view; (c,d) cells in SEM in ventral view. Nuclei are shown with blue arrows.
Phycology 03 00020 g005
Phycology 03 00020 g006 550
Figure 6. Amphidinium theodorei AtLPZ38: (a–d) cells in LM (bright field); (e–g) cells in SEM; (a,b,f) dorsal view; (c–e,g)—ventral view. Pyrenoids are shown with black arrows and nuclei with blue arrows.
Figure 6. Amphidinium theodorei AtLPZ38: (a–d) cells in LM (bright field); (e–g) cells in SEM; (a,b,f) dorsal view; (c–e,g)—ventral view. Pyrenoids are shown with black arrows and nuclei with blue arrows.
Phycology 03 00020 g006
Phycology 03 00020 g007 550
Figure 7. Maximum likelihood (ML) phylogenetic tree of Amphidinium taxa based on ITS1-5.8S rRNA-ITS2 + LSU concatenated sequences, including the isolates sequenced in the present study (diamond shapes). Branch lengths represent the genetic distances among the analyzed sequences, and numbers next to the nodes represent the clustering support after 2000 bootstrap replicates; only values above 50% are displayed. Sequence labels include the accession numbers of the concatenated gene sequences and the species name when assigned.
Figure 7. Maximum likelihood (ML) phylogenetic tree of Amphidinium taxa based on ITS1-5.8S rRNA-ITS2 + LSU concatenated sequences, including the isolates sequenced in the present study (diamond shapes). Branch lengths represent the genetic distances among the analyzed sequences, and numbers next to the nodes represent the clustering support after 2000 bootstrap replicates; only values above 50% are displayed. Sequence labels include the accession numbers of the concatenated gene sequences and the species name when assigned.
Phycology 03 00020 g007
Phycology 03 00020 g008 550
Figure 8. Maximum parsimony (MP) phylogenetic tree of Amphidinium taxa based on ITS1-5.8S rRNA-ITS2 + LSU concatenated sequences, including the strains sequenced in the present study (diamond shapes). The consensus tree topology is presented; the numbers next to the nodes represent the clustering support after 2000 bootstrap replicates. Only values above 50% are displayed. Sequence labels include the accession numbers of the concatenated gene sequences and the species name when assigned.
Figure 8. Maximum parsimony (MP) phylogenetic tree of Amphidinium taxa based on ITS1-5.8S rRNA-ITS2 + LSU concatenated sequences, including the strains sequenced in the present study (diamond shapes). The consensus tree topology is presented; the numbers next to the nodes represent the clustering support after 2000 bootstrap replicates. Only values above 50% are displayed. Sequence labels include the accession numbers of the concatenated gene sequences and the species name when assigned.
Phycology 03 00020 g008
Table
Table 1. Provisional species assignment according to morphological characteristics of cultured clonal isolates of Amphidinium from coastal locations in Mexico indicating locality of origin and substrate type. BC = Baja California; BCS = Baja California Sur; S-GC = southern Gulf of California; S-GM = southern Gulf of Mexico; N-MxP = northern Mexican Pacific. Numbers in parentheses refer to location numbers in Figure 1.
Table 1. Provisional species assignment according to morphological characteristics of cultured clonal isolates of Amphidinium from coastal locations in Mexico indicating locality of origin and substrate type. BC = Baja California; BCS = Baja California Sur; S-GC = southern Gulf of California; S-GM = southern Gulf of Mexico; N-MxP = northern Mexican Pacific. Numbers in parentheses refer to location numbers in Figure 1.
IsolateLocality of OriginGeographical RegionSubstrate TypeProvisional
Morphospecies
AcSAV105Veracruz Reef System,
Veracruz		S-GM (2)Anchored buoyA. carterae Hulburt
AeSQ172San Quintín, BCN-MxP (4)Zostera marinaA. cf. carterae
AeSQ177San Quintín, BCN-MxP (4)Z. marinaA. cf. carterae
AeSQ181San Quintín, BCN-MxP (4)Z. marinaA. cf. carterae
AmLT112Laguna de Términos, CampecheS-GM (3)Thalassia testudinumA. massartii Biecheler
AA60Veracruz Reef System,
Veracruz		S-GM (2)Padina sp.A. operculatum Clap. & J. Lachm.
AtLPZ38Balandra, La Paz, BCSS-GC (1)Floating brown algaA. theodorei C.R. Tomas & Karafas
Table
Table 2. Taxa, strain ID numbers, GenBank accession numbers, number of base pairs (bp) in each sequence, and author references for all Amphidinium species sequences used in this study.
Table 2. Taxa, strain ID numbers, GenBank accession numbers, number of base pairs (bp) in each sequence, and author references for all Amphidinium species sequences used in this study.
ITS2LSU
TaxaStrainGenBank Acc.bpAuthors *StrainGenBank Acc.bpAuthors *
A. carteraeDL1100FJ907458636Zhao et al.CS-740AY4605781359Murray et al.
A. eilatiensisCCMP2100AJ417900576Lee et al.CCMP2100AJ417900886Lee et al.
A. fijiensisAmfi0508-1KY6979371053Karafas et al.WZD19MZ3519451304Luo et al.
A. gibbosumD2A1MK418355533Zhang et al.CCMP 120AY4556721325Jörgensen et al.
A. magnumZS606OM177176506Xie, H.Amma0206-1KY0703411163Karafas et al.
A. massartiiNEPCC 802FJ823531522Stern et al.CCMP 1821AY4556701338Jörgensen et al.
A. operculatumSKLMP_S091MK6051201499Yiu et al.SM06AY4556741376Jörgensen et al.
A. paucianulatumAmpa0606-2KY6979601056Karafas et al.Ampa0606-1KY0703451163Karafas et al.
A. pseudomassartiiAKLV01KY6979451010Karafas et al.AKLSPO1AY4605881357Murray et al.
A. steiniiTIO181MZ359142602Luo et al.SM12AY4605931426Murray et al.
A. theodoreiAmth0702-1KY697942695Karafas et al.Amth1303-1KY6979861317Karafas et al.
A. thermaeumAmth00600FA1KY697956803Karafas et al.Amth0304-1KY0703651159Karafas et al.
A. tomasiiAmto1412-1KY9743341127Karafas et al.Amto1412-2KY6979841270Karafas et al.
Heterocapsa sp.NAJN020158640Zadabbas et al.CCMP424AY371082860De Salas, M.
A. carteraeAcSAV105OQ448886559Present studyAcSAV105MT325892949Present study
A. eilatiensisAeSQ172OQ448892596Present studyAeSQ172OQ435732860Present study
A. eilatiensisAeSQ177OQ448891593Present studyAeSQ177OQ435731857Present study
A. eilatiensisAeSQ181OQ448890590Present studyAeSQ181OQ435730857Present study
A. massartiiAmLT112OQ448887715Present studyAmLT112MT325893926Present study
A. operculatumAA60OQ448888719Present studyAA60MT325891874Present study
A. theodoreiAtLPZ38OQ448889732Present studyAtLPZ38MT325890813Present study
* Sequence author according to GenBank database. NA: information not available.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Durán-Riveroll, L.M.; Juárez, O.E.; Okolodkov, Y.B.; Mejía-Camacho, A.L.; Ramírez-Corona, F.; Casanova-Gracia, D.; Osorio-Ramírez, M.d.C.; Cervantes-Urieta, V.A.; Cembella, A.D. Morphological and Molecular Characterization of the Benthic Dinoflagellate Amphidinium from Coastal Waters of Mexico. Phycology 2023, 3, 305-324. https://doi.org/10.3390/phycology3020020

AMA Style

Durán-Riveroll LM, Juárez OE, Okolodkov YB, Mejía-Camacho AL, Ramírez-Corona F, Casanova-Gracia D, Osorio-Ramírez MdC, Cervantes-Urieta VA, Cembella AD. Morphological and Molecular Characterization of the Benthic Dinoflagellate Amphidinium from Coastal Waters of Mexico. Phycology. 2023; 3(2):305-324. https://doi.org/10.3390/phycology3020020

Chicago/Turabian Style

Durán-Riveroll, Lorena María, Oscar E. Juárez, Yuri B. Okolodkov, Ana Luisa Mejía-Camacho, Fabiola Ramírez-Corona, Dania Casanova-Gracia, María del Carmen Osorio-Ramírez, Victor A. Cervantes-Urieta, and Allan D. Cembella. 2023. "Morphological and Molecular Characterization of the Benthic Dinoflagellate Amphidinium from Coastal Waters of Mexico" Phycology 3, no. 2: 305-324. https://doi.org/10.3390/phycology3020020

APA Style

Durán-Riveroll, L. M., Juárez, O. E., Okolodkov, Y. B., Mejía-Camacho, A. L., Ramírez-Corona, F., Casanova-Gracia, D., Osorio-Ramírez, M. d. C., Cervantes-Urieta, V. A., & Cembella, A. D. (2023). Morphological and Molecular Characterization of the Benthic Dinoflagellate Amphidinium from Coastal Waters of Mexico. Phycology, 3(2), 305-324. https://doi.org/10.3390/phycology3020020

Article Metrics

Back to TopTop
