Microplastics in Field-Installed Bioretention Systems: Vertical Distribution and Implications for Retention from Stormwater

Abstract

Microplastics (MPs) are emerging pollutants of global concern, posing significant ecological and human health risks. They are frequently detected in stormwater systems, with urban runoff serving as a major transport pathway into the environment. Green stormwater infrastructure, particularly bioretention systems (BRSs), offers a promising approach to mitigate these risks by filtering and retaining various contaminants. However, the occurrence of MPs in BRSs and their capacity to retain these pollutants remain largely unexplored in the literature, despite being critical for stormwater management and water quality protection. Therefore, this study attempted to examine the occurrence, vertical distribution, and trapping of MPs within a field-installed BRS, potentially emphasizing their role in reducing microplastic (MP) transport. Therefore, field samples were collected at depths of 2, 12, and 24 inches below the surface and processed in the laboratory for MP detection and quantification. The results revealed an average concentration of 1095 particles per kg of dried sediment, with fragments (microplastics shape) accounting for 78.54% of the total MPs. Although no clear vertical distribution pattern was observed, the initial findings showed that MPs were mostly retained at 24 inches, potentially indicating their transport through the media and the retention capacity of a BRS (surface and middle layer) in capturing microplastics from stormwater environments. However, there is no direct evidence to explain the mechanisms driving the observed concentrations at greater depths. The preliminary findings of this study highlight that the concentrations of different sizes of MPs can vary with soil depth in bioretention media. Integrating a BRS into urban stormwater infrastructure likely provides the dual benefits of improved stormwater management and reduced plastic pollution. This study underscores the importance of optimizing bioretention design and media composition to enhance MP trapping from stormwater.

1. Introduction

Microplastics (MPs), commonly defined to have a size smaller than 5000 μm (micrometer), have become an emerging environmental concern because of their prevalence and persistence in several environmental matrices worldwide, including freshwater [1,2,3,4,5], marine [6], terrestrial ecosystems [7,8], and the negative impacts on biota and ecosystem functionality [9,10]. Their ubiquitous presence and long-term persistence make them a pressing issue for environmental water quality management, including stormwater. Detection of MPs in stormwater runoff has received significant attention in recent environmental research [11,12,13,14]. The reported concentration of MPs in stormwater runoff ranges from 66 to 191 particles per liter (L) [15]. Moreover, urban stormwater runoff is widely recognized as a significant pathway and major source of MP pollution in aquatic environments [15,16,17].

Plastic sources in urban stormwater runoff include tire and road abrasion, road paints, industrial waste, construction materials, trash collection spills, and synthetic textiles [11,14,18]. A study by Järlskog et al. [11] in Gothenburg, Sweden, found a substantial number of tire and road wear particles (also categorized as MPs) in highway stormwater runoff, with up to 3 particles/L for sizes ≥ 100 μm and up to 5900 particles/L for sizes ≥ 20 μm, highlighting their importance as a source of MPs. Moreover, these smaller particles can infiltrate bioretention media, commonly used in stormwater management. Recent studies have suggested that bioretention cells offer a sustainable solution for retaining various pollutants, including MPs, from urban stormwater [19].

Bioretention Systems (BRSs) are designed to temporarily detain and filter stormwater while promoting groundwater recharge through infiltration. The size and design of each bioretention cell is highly variable and customized based on the land-use characteristics, such as drainage area and the soil type in which it is constructed [20]. BRSs offer numerous ecological benefits, including flood reduction, pollutant remediation, wildlife habitat provision, water conservation, micro-climate regulation, and atmospheric carbon dioxide capture and storage [9]. Widely adopted across the United States (US) and globally, BRSs play a vital role in effectively preserving and restoring predevelopment hydrologic conditions in urban watersheds [21]. In addition to enhancing water quality, BRSs contribute to flood mitigation by capturing surface runoff and promoting its infiltration through underlying soil layers [20].

Earlier investigations have shown that BRSs are able to effectively retain particulate matter, dissolved pollutants, phosphorus, and heavy metals from stormwater runoff and to reduce the rate and volume of stormwater discharge [9,20,22,23]. For instance, multiyear field studies of bioretention cells in Vaughan, Ontario, Canada, reported significant improvements in water quality parameters, including reductions in total suspended solids, metals, and phosphorus levels between the inflow and outflow of the BRS [24]. MPs have also been detected in an Australian BRS, with concentrations ranging from 10 to 500 particles/kg of soil (average 55 ± 42.85 particles/kg), alongside contributions from polymer liners and larger plastic particles [9]. Several studies have provided substantial evidence of the effectiveness of BRSs in removing both MPs (<5 mm) and mesoplastics (5–25 mm) through filtration [9,12,23,25]. A two-year-long field study in Vaughan, Ontario, Canada, by Smyth et al. [25] found that the BRS reduced more than 80% of the mean microplastic concentrations for particles sized 106–5000 μm. Microplastic levels ranged from below detection limits to 704 items/L. Similarly, a study in Sweden reported substantial removal of small-sized MPs (20–100 μm) at a highway site, with concentrations decreasing from 326 particles/L to 26.5 particles/L, demonstrating effective reduction despite minimal sedimentation within a large pollutant trap [26]. Stormwater treatment in a BRS is facilitated through various physical, chemical, and biological processes, such as sedimentation, filtration, sorption, reduction, vegetative uptake, and microbial biomass assimilation [9,20,22,23,27]. The removal efficiency of a BRS may vary depending on the design of the filtration media and the characteristics of the MPs.

The accumulation and retention of MPs within a BRS may pose environmental risks. Despite the increasing use of BRSs as a sustainable stormwater management solution, research on their capacity to capture and retain MPs remains limited [28]. While several studies have focused on quantifying MPs in stormwater runoff, very few have investigated their presence within the bioretention media itself, resulting in a significant knowledge gap to guide effective stormwater infrastructure management [9]. Therefore, the current study addresses this gap by investigating the presence of MPs in urban bioretention basins, with a unique emphasis on size- and shape-based analysis. Specifically, the present study analyzed five distinct microplastic size ranges (25–2000 μm) to provide a granular understanding of how MPs of different sizes behave and are retained within bioretention media. This focus on a size-based investigation offers insights that are not broadly discussed in current literature and is critical for assessing the efficiency of bioretention systems in mitigating microplastic pollution. Additionally, understanding the vertical distribution pattern within the media profile is critical because it provides insights into the transport and retention mechanisms of MPs, including filtration, sedimentation, adsorption, and biofilm interaction, which are depth dependent. Moreover, it informs the design and maintenance strategies for bioretention systems, especially concerning media replacement or revival cycles. Without knowledge of where MPs accumulate vertically, practitioners lack a scientific basis to optimize media configurations or to predict system lifespan in relation to microplastic pollution. Thus, exploring the depth-wise behavior of MPs is essential to improving our understanding of their fate in green stormwater infrastructure, supporting more effective long-term pollution control solutions, and informing policy decisions for urban runoff management. Therefore, the specific objectives of this study are as follows: (1) to quantify and characterize MPs within bioretention media, (2) to examine the vertical distribution of MPs in BRS soil samples, and (3) to evaluate bioretention media as a sustainable solution for mitigating microplastic pollution in urban environments. This research strengthens our understanding of MP dynamics in stormwater infrastructure by addressing these objectives and providing practical data to support sustainable urban water management.

2. Materials and Methods

2.1. Study Sites

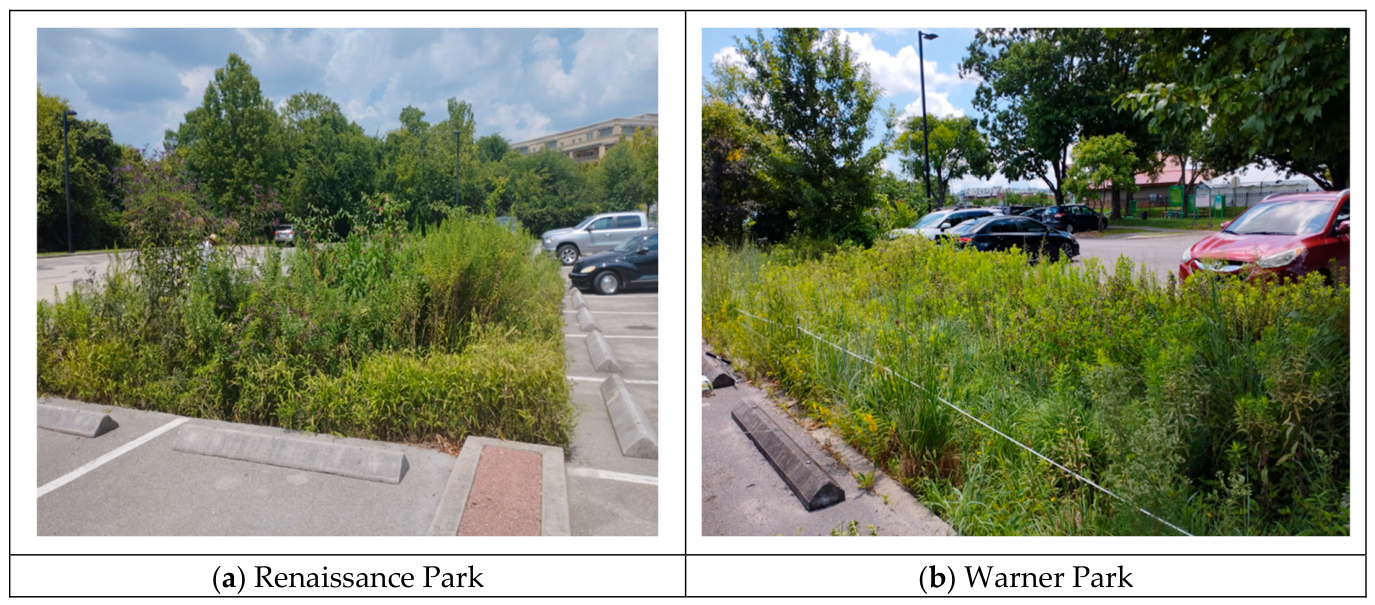

This research investigated two BRSs within the metro Chattanooga area, Tennessee, USA. The first site is located in Renaissance Park, Chattanooga, TN, USA. The park is located off the bank of a portion of the Tennessee River that flows through Chattanooga, surrounded by many urban land-use types. The Renaissance Park BRS is located at 35°03′40.48″ N and 85°18′33.24″ W. The BRS that was chosen is located in the middle of a medium-sized parking lot, specifically designed to effectively handle stormwater runoff from this parking area (Figure 1a). Two different sampling locations were selected at the Renaissance Park BRS. Location #1 (S1) was in the corner of the cell, approximately 80 inches from both edges of the parking lot, and Location #2 (S2) was about 10 inches from the overflow drainage structure in the center of the BRS. Renaissance Park is an open recreational park that includes wetlands, native grasses, hiking/biking trails, and a covered pavilion. It also attracts many tourists and local people to the refreshment areas.

The second study site is in Warner Park, Chattanooga, TN, USA. The park is situated in the urban center of Chattanooga and is considered one of the most historic places in the city, with a total land area of 13 acres. It is an open-access recreational park for all classes of people in the city. On one side, it provides a variety of recreational facilities, including tennis courts, pools, ball fields, and therapeutic recreation services for the public, while on the other hand, it has ample areas for public parking facilities with bioretention systems within the park. The geographical coordinates of the selected study cell are 35°2′37.642″ N and 85°16′56.377″ W. The bioretention cells collect stormwater runoff originating from both sides of the non-permeable parking lot areas (Figure 1b). The BRSs are rectangular, and the vegetation within the system includes native plants, such as grass, wildflowers, and ground covers. Plants are fully developed but do not affect surface water infiltration during rainfall. Two different points in the Warner Park BRS were selected for sampling. Both Location #1 (S3) and Location #2 (S4) are approximately 45” from the edge of the parking lot. These points are located several feet apart from one another. S2 and S4 are near to the outfall of the BRS media.

2.2. Field Samplings

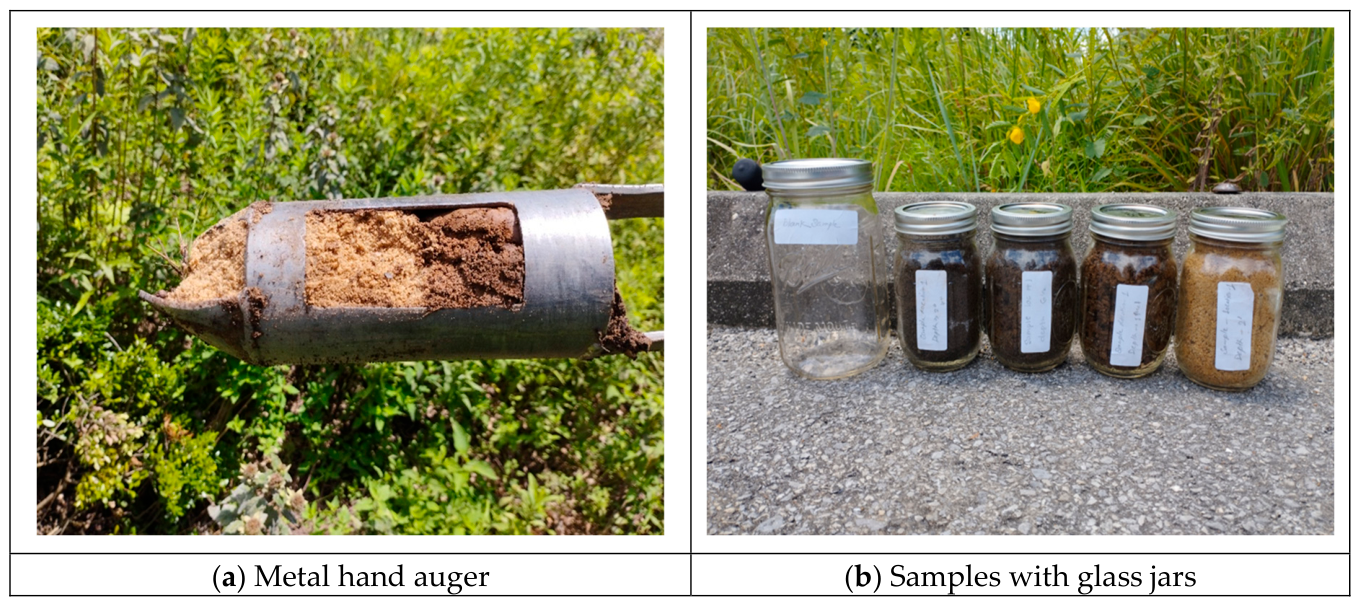

Bioretention cell sediment samples were collected once during dry weather conditions, defined as having no rain for three days before sampling. Three distinct depth samples from two sampling points in the BRS, each several feet apart, were collected from the two BRS study sites. Samples were taken from 0–2″ depth, 12–14″, and 24–26″ below the top surface layer of the biofiltration media. According to the USEPA, bioretention media depth in public, commercial, and residential properties is usually 2 feet or more, depending on pollutants of concern and vegetation rooting needs [29]. Therefore, the sampling depths of 2 inches, 12 inches, and 24 inches were selected to represent key functional zones within the bioretention media profile. The 2-inch depth captures the surface layer where initial microplastic deposition and large debris accumulation or trapping are expected due to direct exposure to incoming stormwater. Therefore, this layer provides stable and long-term filtration because of fast water flow during high rain events. The 12-inch depth represents the middle layer, where filtration, sedimentation, and potential biological interactions with microplastics may occur. The functional activity of the BRS may vary with soil depth and can be influenced by changes in soil physicochemical properties, such as nutrient content, carbon availability, and oxygen diffusion [30,31,32]. The media mainly consists of sand (>70% coarse materials), is moderately compacted, and is a region where flow becomes slow and more vertical. The 24-inch depth corresponds to the lower portion of the media and may contain coarser sands to promote drainage (higher hydraulic conductivity), allowing for an assessment of deeper transport and accumulation. A metallic hand auger was used at the site for sediment sample collection (Figure 2a). At each sampling point and depth, approximately 200 g of sediment were collected, resulting in three distinct samples per location for subsequent analysis. To avoid any background contamination, all pre-cleaned and washed glass was closed tightly with metal lids during sampling, and no plastic materials were used for sample collection (Figure 2b). All bottle jars were labeled correctly for each sampling to avoid any error in sample misplacement. In addition, a separate open glass jar (field blank) was placed near the sampling location during sampling time to monitor possible atmospheric contamination. Nitrile hand gloves were used during samplings. All the samples were collected in a clean place and then immediately transferred to the University of Tennessee at Chattanooga (UTC) Chemical and Environmental Engineering laboratory and stored at 4 °C in the fridge until further analysis.

2.3. Extraction of MPs

Laboratory safety procedures adhered to ASTM E1391-03 guidelines [33] to ensure compliance and to minimize potential contamination. To prevent sample interference, all glassware was rigorously cleaned with ultrapure Milli-Q water, MilliporeSigma™ Milli-Q^® Reference Ultrapure Water Purification System (MilliporeSigma, Burlington, MA, USA), systematically labeled for analysis, and carefully handled to avoid contact with plastic materials. Microplastic extraction and detection protocols for BRS soil samples were adapted from the methods outlined by the National Oceanic and Atmospheric Administration (NOAA) [34], with necessary modifications to align with the specific objectives of this study.

First, samples were initially dried at 90 °C for 24 h to 48 h to achieve complete dryness. Following this, 50 g of the dried sediment were mechanically sieved using a series of stainless-steel sieves, categorizing particles into five size fractions of 25–75 μm, 75–300 μm, 300–600 μm, 600–1000 μm, and >1000 μm (1000–2000 μm). Separated fractions were transferred and dried overnight at 90 °C and subjected to two-step density separation using a saturated sodium chloride (NaCl) solution.

The first density separation step involved allowing the samples to settle undisturbed for 72 h to enhance the sedimentation of non-plastic and heavier organic materials. Post-separation, samples were dried at 90 °C and prepared for wet peroxide oxidation (WPO) to eliminate natural organic matter. This procedure included adding an aqueous Fe (II) solution and 30% hydrogen peroxide (H₂O₂) to the dried samples, followed by heating the mixture at 75 °C in a hotplate and incrementally introducing H₂O₂ at a rate of 20 mL at 30 min intervals until the organic reaction was observed. After WPO, 6 g salt per 20 mL was added to increase the solution density, followed by heating to 75 °C. Once the salt was fully dissolved, the solution was placed in a conical glass funnel for 24 h to 48 h to allow the non-plastic materials to settle. The settled particles were then carefully drained, and the supernatant was passed through a very fine mesh screen (10 microns mesh opening), thoroughly rinsed with ultrapure Milli-Q water, and dried in an incubator at 55 °C. The dried weight was then recorded as the total MP content of the sample, after which the samples were subjected to microscopic analysis. A fluorescence microscopy (Leica DM6 B Microscope, Camera Leica DMC 4500, Leica Microsystems, Wetzlar, Germany) to characterize MPs (i.e., number, size, shape) was performed at UTC’s Geobiology and Microplastics Laboratory. Fourier transform infrared (FTIR) spectroscopy (Bruker Alpha II, Bruker Optik GmbH & Co. KG, Ettlingen, Germany) was also performed on randomly selected MPs to identify a few polymer types.

2.4. Nile Red Dye Procedure

The use of fluorescence-based techniques employing Nile Red (NR) dyes has recently gained prominence as an effective microplastic detection and identification method [35]. Nile Red dye is highly valued in microplastic research due to its hydrophobicity, metachromatic properties, and photochemical stability [36]. This analytical approach enables the clear differentiation of MPs from organic matter and mineral particles in samples, while also reducing the time (some cases few hours only) required for their identification and detection [37]. Moreover, NR dye reduces the cost of advanced identification tools for the detection of MPs. Furthermore, it exhibits slower staining of natural organic matter compared to synthetic polymers, which helps minimize false-positive identification in environmental samples [38]. These characteristics make it a suitable dye for affordable, field-deployable microplastic detection, offering straightforward visual interpretation while also providing useful indications of polymeric composition [38].

In this study, sediment samples were processed using the NR dye technique. Initial preparation involved following the NOAA protocol to reduce foreign materials and organic matter. Afterward, each size fraction of the sediment samples was vacuum-filtered using a 0.2-µm black polycarbonate filter. The polycarbonate filters containing the filtered materials were transferred to clean 50 mm glass Petri dishes and incubated at 55 °C overnight prior to staining with NR dye.

Selecting a suitable solvent for the NR dye was critical to ensure effective staining without degrading the integrity of the black polycarbonate filter, which serves as the substrate for microplastic identification under fluorescence microscopy. N-hexane was chosen as the solvent due to its compatibility with the filter material and minimal degradation effects [39]. Nile Red dye solutions were prepared using a combination of NR dye, acetone, and n-hexane. Specifically, 50 mg of NR dye was dissolved in acetone in a 10 mL volumetric flask to create a stock solution with a concentration of 5 mg/mL. From this stock, 50 µL was diluted with n-hexane to produce a working solution at a final concentration of 5 mg/L [39]. The solution was stored in an amber glass container, tightly sealed, and kept at 4 °C, protected from light.

For staining, NR dye was applied directly to the polycarbonate filter in a petri dish (47 µm) using micropipettes (adjustable volume single channel pipettors) under a fume hood, ensuring full saturation. The petri dish was then covered with lids and incubated at 55 °C. Fluorescence microscopy analysis was conducted within 24–72 h of NR dye application and then analyzed under a fluorescence microscope (Leica DM6 B Microscope, Camera Leica DMC 4500, Leica Microsystems, Wetzlar, Germany) with 1.0× magnification. The excitation and emission wavelengths of the fluorescence microscope were set to 440 nanometers (nm) and 450 nm, respectively.

2.5. Fourier Transform Infrared Spectroscopy Procedure

Fourier transform infrared spectroscopy was performed to random MPs (from few sediment samples) to identify a few plastic polymers. Microplastic particles isolated from the samples were dried and transferred into clean glass slides using stainless-steel micro precision tweezers. Before handling each particle, the micro precision tweezers were cleaned with 70% ethanol and wiped with a lint-free tissue to minimize contamination. The FTIR sample holder and crystal were also cleaned with 70% ethanol before each measurement [40,41].

Chemical identification of the particles was performed using an FTIR spectrometer (Bruker ALPHA II) operated in transmission mode. Individual particles were carefully placed onto the sample holder using the cleaned needle. Spectra were recorded in the range of 4000–400 cm⁻¹ at a resolution of 4 cm⁻¹ using the instrument’s standard settings [40,42]. A background spectrum was collected prior to each batch of samples to account for environmental and instrument-related variations.

Spectral processing and polymer identification were conducted using OPUS software (version 8.0) with baseline correction applied. Sample spectra were compared with the Bruker polymer reference library, and identifications were accepted based on the recommended match quality threshold (spectral quality match ≥70%) [40,42]. All tools and instrument surfaces were cleaned with ethanol between samples to prevent cross-contamination.

The FTIR analysis provided chemical confirmation of polymer types by comparing the characteristic absorption bands of randomly selected MPs (one-tenth of each examined sample) with reference spectra. It is also noted that chemical composition of all found plastics was not investigated. The chemical composition of the examined polymers is discussed later in Section 4.

2.6. Detection and Identification of MPs

Microplastic shapes were classified based on visual morphology under stereomicroscopic and spectroscopic observation following commonly used criteria. Fibers were identified as elongated particles with a length-to-width (aspect) ratio ≥ 5:1; fragments were irregular, angular particles without a defined shape; films were thin, flat, and flexible with smooth or wrinkled surfaces; and foams were characterized by a porous, sponge-like structure with visible cellular voids [43,44,45,46].

2.7. Quality Control and Quality Assurance

Strict precautions were implemented throughout the sampling, handling, and processing stages to minimize the risk of environmental contamination. To ensure the accuracy and reliability of the results, both field and laboratory blanks were incorporated into the collection and analysis process [47]. The methodology for field blanks, outlined in the laboratory processing section, replicated the handling, storage, and analytical procedures applied to primary bioretention media samples. Similarly, laboratory blanks were subjected to the same protocols as the sediment samples.

In the laboratory, contamination prevention measures included the consistent use of cotton lab coats and nitrile gloves. Before and after conducting laboratory procedures, including sample preparation, treatment, and MP extraction, all equipment (e.g., breakers, containers, filtration units) and work surfaces were thoroughly cleaned with soap, triple-rinsed with ultrapure Milli-Q water, and subsequently wiped with 70% ethanol. Laboratory equipment composed of metal and glass was utilized throughout the experiment. A fume hood was employed during the sample digestion process, and aluminum foil was used to cover samples during experimental procedures. Ultrapure Milli-Q water, used for rinsing and cleaning in the laboratory, was tested following the similar digestion, filtration, and microscopic procedures applied to the sediment matrices, and no MPs were detected. However, the limit of detection (LOD) for MPs was determined using field and laboratory blanks. MPs detected in the blanks (field blank: 4 MPs; laboratory blank: 3 MPs) represent background contamination, and the LOD was considered to be the highest blank count (4 MPs). All sediment sample counts were adjusted for background contamination by accounting for MPs observed in the blanks. The use of protective equipment, even a single item, such as disposable gloves, may introduce a small amount of microplastics into the sample, and one study has shown that this can interfere with accurate quantification. Therefore, it is assumed that single-use items in the laboratory might be the potential sources of airborne contaminants in lab blanks [48]. Lastly, doors and windows remained closed whenever feasible to limit external contamination.

2.8. Statistical Analysis

For each sampling point, concentrations were measured at multiple depths from the same media sample core. While these depth samples are not fully independent, they were treated as subsamples to examine vertical distribution patterns. Statistical analyses considered each core as an independent replicate, and depth-specific results are interpreted accordingly. Statistical data analysis was performed using Microsoft Excel 2016 (Version 2408) and Python (Version 3.12.0). The significance level was set at 0.05 for all statistical analyses. Spearman’s rank correlation was selected to evaluate the relationship between MP concentration and depth due to the small sample size and the absence of evidence for a linear relationship.

3. Results

3.1. MP Concentration in the BRS Media

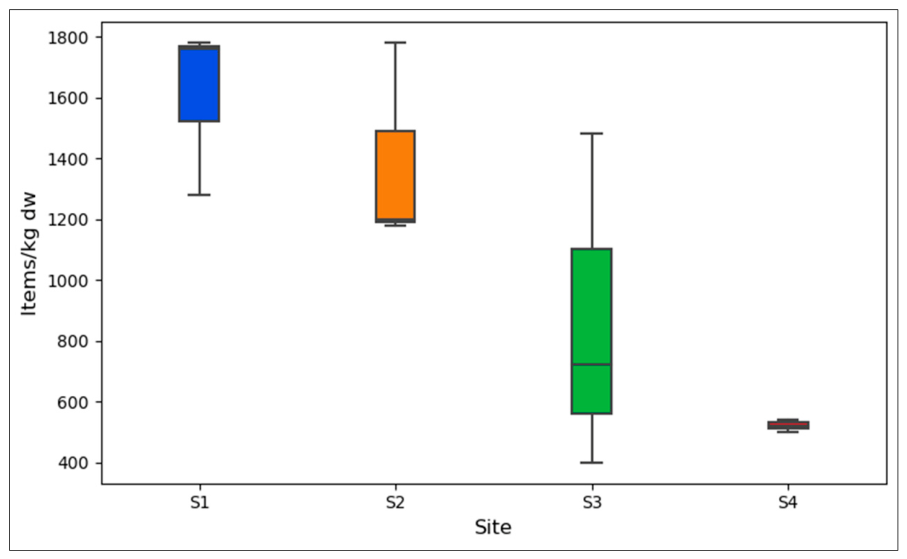

MPs were detected in all examined bioretention samples from both Renaissance and Warner Park (Figure 3), exhibiting substantial concentrations. The average concentration of MPs in the BRS was 1095 ± 539.2 (mean ± standard deviation (SD)) per kg of dried weight (dw) sediments. MP abundance in the BRS ranged from 400 to 1780 particles/kg dw. The highest number of MPs were found in Renaissance Park (maximum = 1780 items/kg dw, minimum = 1180 items/kg dw), while the lowest was in Warner Park (maximum = 1480 items/kg dw, minimum = 400 items/kg dw). The average number of MPs was more than double in Renaissance Park (1496.6 ± 305 particles/kg dw) than in Warner Park (693.4 ± 399.2 particles/kg dw). Moreover, the greatest variation in MP concentrations was observed in the Warner Park bioretention samples, as shown in Figure 3.

3.2. Size and Shape of MPs in the BRS Media

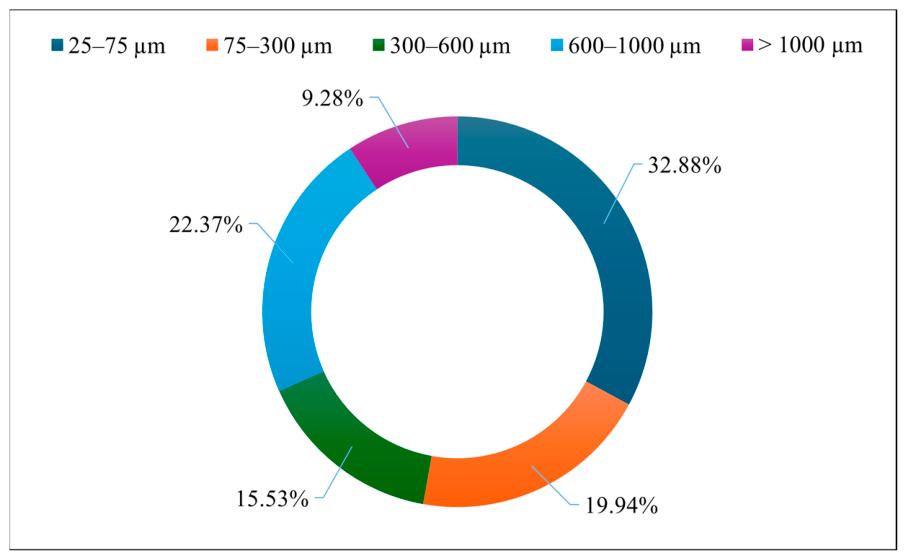

The smallest size fraction (25–75 μm) contributed the highest proportion of MPs, accounting for one-third of the total MPs, while the largest particles (1000–2000 μm) were the least abundant, representing around 10% of the total MPs (Figure 4). Over 90% of the total MPs were smaller than 1000 μm. An average of 486.67 ± 315.89 items/kg dw (≥600 μm) were identified in the Renaissance Park bioretention samples, whereas 250 ± 149.53 items/kg dw items of similar size were recovered from the Warner Park media. For the smaller MP size fractions (25–75 μm), Renaissance Park also exhibited a higher count, with 576.67 ± 254.06 items/kg dw compared to 143.33 ± 183.33 items/kg dw detected in the Warner Park samples.

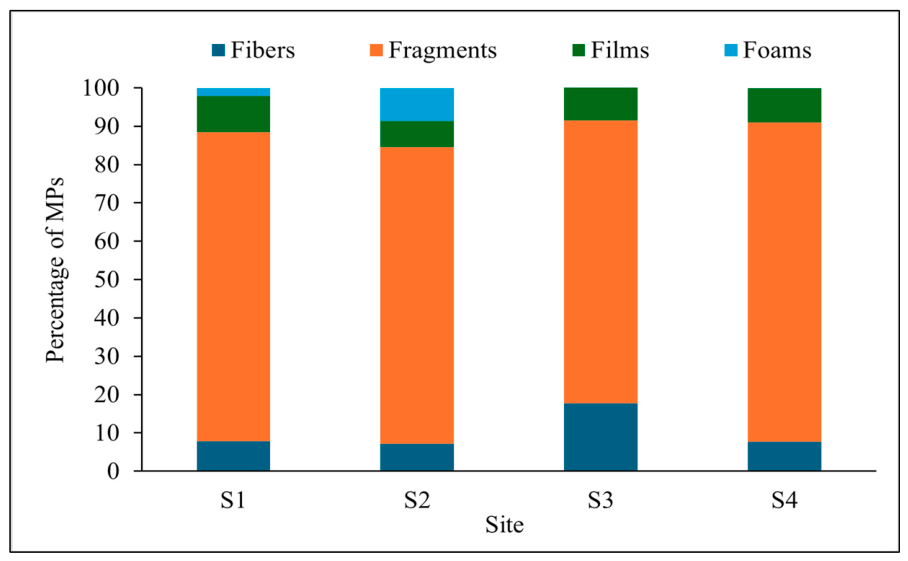

MPs in the bioretention system samples have a broad range of irregular shapes, including fragments, fibers, foams, and films. Figure 5 shows the percentage of different shapes of MPs from the bioretention media samples. Fragments accounted for 78.54% of total MPs and were the dominant types, followed by fibers (9.59%), films (8.37%), and foams (3.50%). Fragments constituted more than 70% of the MPs at each site. However, no foams were detected in the Warner Park systems, and only minimal amounts were detected in the Renaissance Park samples. The concentration of fibers was comparable between the two sites, with average counts of 133.33 ± 45.0 items/kg dw in Renaissance Park and 96.67 ± 169.43 items/kg dw in Warner Park. By contrast, fragment concentrations were higher in Renaissance Park, averaging 1183.33 ± 312.78 items, nearly twice the 536.67 ± 222.86 items/kg dw observed in the Warner Park samples. Within the Renaissance Park locations, S1 contained 153.33 ± 50.33 items/kg dw plastic film items, while S2 had an average of 50.33 ± 30.51 items/kg dw. More fragments were found at a greater depth (24″), compared to the surface level (2″), and at 12″ below the surface level in the BRSs. At a depth of 12″ below the surface, the Renaissance Park BRS recorded a higher number of microplastic fibers, whereas the Warner Park BRS captured a greater number of microplastic fibers at a depth of 24″. Seven colors were observed: black, blue, green, light yellow, red, transparent, and white, with black fragments being the most common across all the BRS samples. These results indicate that fragments are the dominant shape of MPs in the parks, typically produced by physical abrasions or chemical weathering.

3.3. Vertical Distribution of MPs in the BRS Media

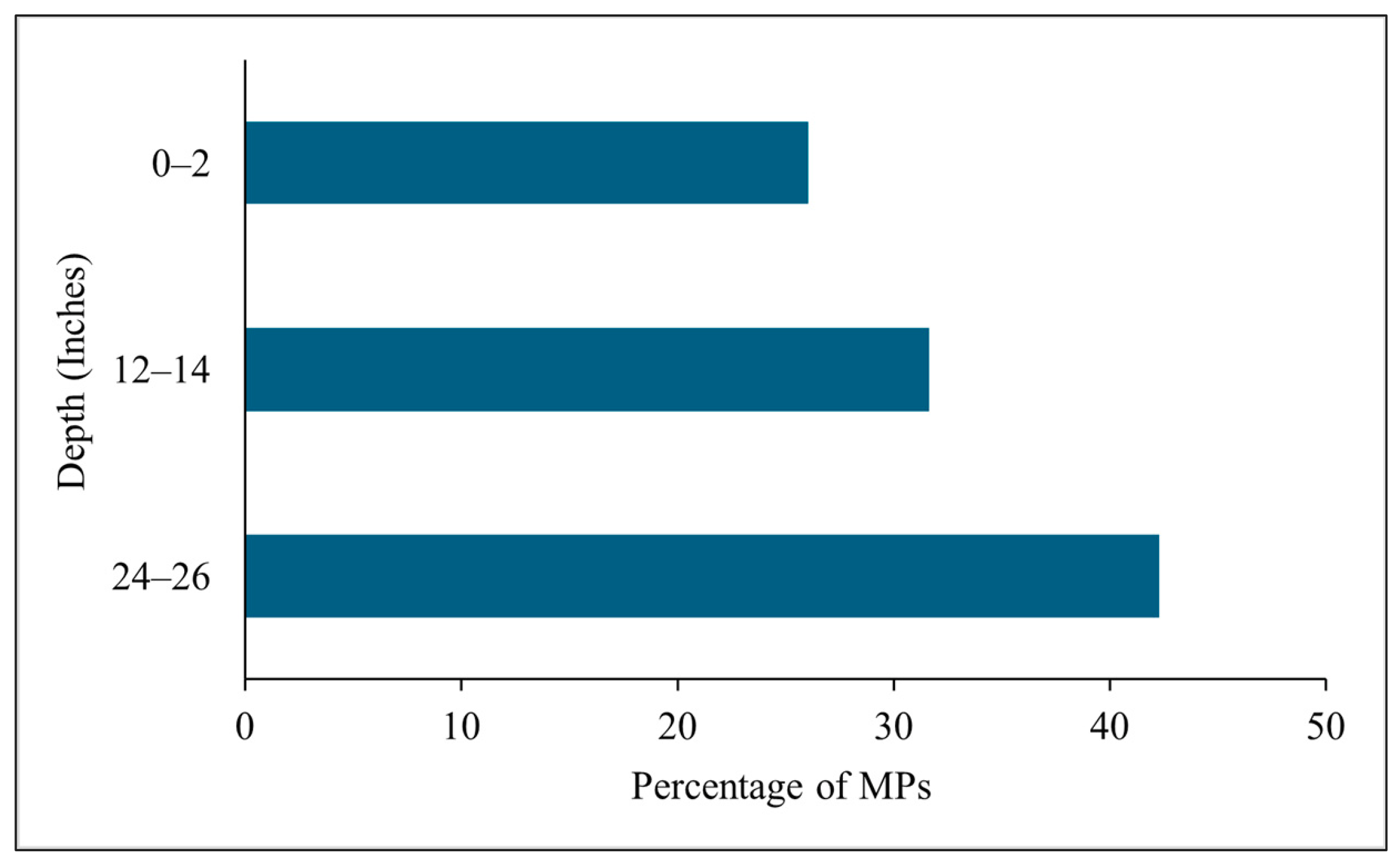

Samples were collected from various depths within the bioretention systems, and MPs were detected at all depths. The highest concentration of MPs (total counts) was recorded at a depth of 24″ below the surface level, while the lowest concentration was detected at the surface level of the BRSs. The total percentages of MPs were 42.31%, 31.66%, and 26.03% at a depth of 24″, 12″, and 2″ below the bioretention surface level, respectively (Figure 6). The initial examination suggested a possible trend towards increasing MP abundance with depth. However, the correlation between depth and MP quantity was not statistically significant (Spearman’s, ρ = 0.53, p = 0.074 > 0.05).

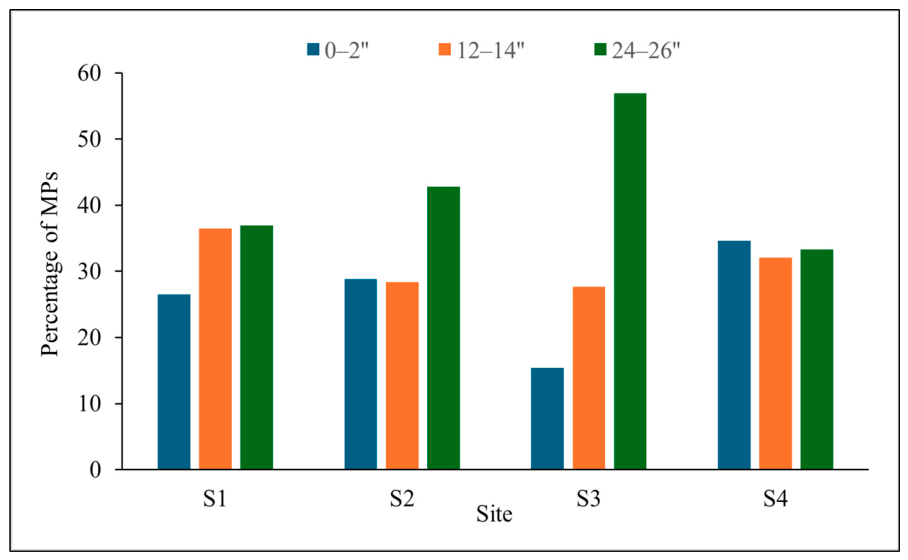

There were some deviations across the sites in the general pattern of the highest MPs at the deepest depth. At site S3, approximately 60% of the relative MP abundance was observed at a depth of 24 inches, while other sites (S1, S2, and S4) exhibited comparatively lower maximum relative proportions at this depth (maximum 40%) (as shown in Figure 7). Interestingly, the average concentration of MPs from each site was also predominant at a depth of 24″ rather than at a depth of 2″. The highest number of MPs were recorded in the S1 and S2 sites at a depth of 24″ below the surface layer of the filter media, and the concentration was 1780 particles/kg dw, while the S3 site retained the lowest number of MPs at a depth of 2″, with a concentration of 400 particles/kg dw. The average concentration of MPs across all sites was relatively consistent at a depth of 12 inches below the filter media, ranging between approximately 30% and 37%. On the other hand, site S4 exhibited consistent microplastic concentrations (approximately 33%) across examined depths, with values ranging from 500 particles/kg dw to 540 particles/kg dw. Overall, MP abundance ranged from 400 to 1280 particles per kg dw at the surface layer (2″ depth), while it varied between 540 and 1780 particles per kg dw at a depth of 24″. The distribution of MPs at varied depths at each sampling point is shown in Figure 7.

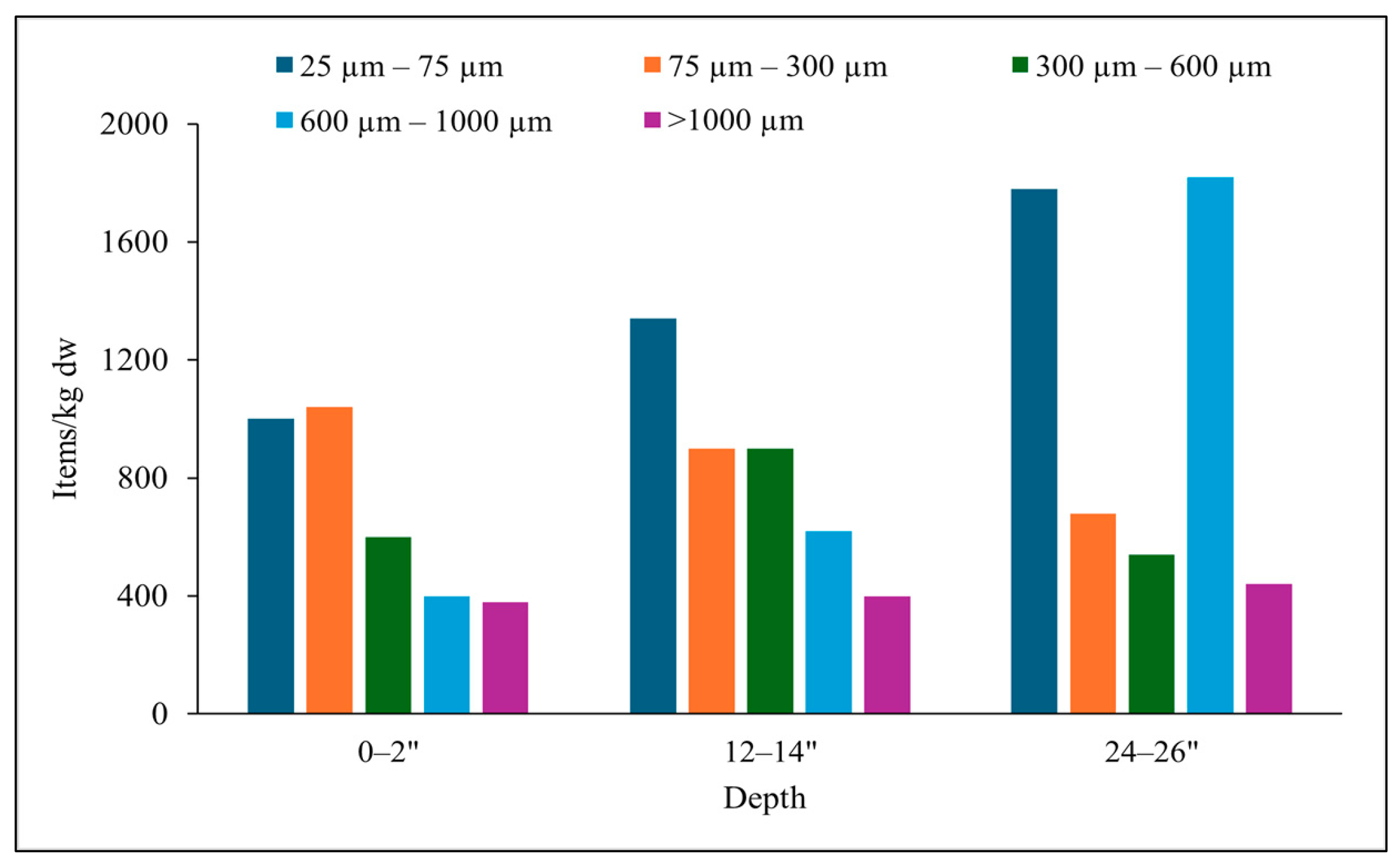

The distribution of MPs by depth and size class is presented in Figure 8. A possible increasing trend with depth was observed for smaller particles (25–75 µm), with concentrations ranging from 1000 to 1780 items/kg dw. Similarly, larger MPs (600–1000 µm) showed an increasing trend with depth, with concentrations ranging from 400 to 1920 items/kg dw. By contrast, medium-sized MPs (75–300 µm) showed a slight decrease with increasing depth from the surface layer. The largest particles (>1000 µm) remained relatively constant across depths, averaging approximately 400 items/kg dw. Notably, concentrations at 24 inches displayed substantial variability, ranging from 440 to 1920 items/kg dw. These findings highlight depth-dependent variability in MP size distribution within the bioretention media.

As discussed earlier, MPs were analyzed particularly under optical microscopes, as shown in Figure 9a,b. Additionally, fluorescence-based MPs are shown in Figure 9c, and the previous studies showed that the recovery rate of fluorescence-based tested MPs was excellent following Nile Red staining and dye spiking [49]. In the FTIR analysis, plastic polymers are identified by comparing their spectral peaks. However, minor spectral alterations (polyethylene) indicative of environmental weathering was observed, suggesting the partial breakdown of MPs through physical abrasion, photo-oxidation, or chemical aging. These processes can modify surface chemistry and fragment larger plastics into smaller particles without completely eliminating the characteristic polymer backbone.

4. Discussion

4.1. Occurrence and Vertical Distribution of MPs in the BRS Media

A substantial number of MPs were found in the BRSs, with an average concentration of 1095 items per kg dw, ranging from 400 to 1780 items per kg dw. In the current study, the average concentration of MPs found in the bioretention media was within the range reported in the literature. The mean concentration of MPs in stormwater control measures (SCMs) observed in the current study was lower than those reported in other studies. For instance, Koutnik et al. [50] conducted a study in Los Angeles, California, where 14 samples were collected both inside and outside SCMs during the dry season. Their findings showed substantial MP retention, with concentrations ranging from 0 to 2784 particles/g. Outside the SCMs, the mean MP concentrations were 283 items/g at the surface and 82 particles/g below the surface. Inside the SCMs, the mean concentrations were 472 particles/g at the surface and 149 particles/g in the subsurface samples.

In the current study, the average concentration of MPs in the Renaissance Park samples (S1, S2) was nearly twice as high as in the Warner Park samples (S3, S4). Although both sites are publicly accessible, Renaissance Park attracts more visitors and experiences higher foot traffic due to its proximity to the Tennessee River. Previous studies have shown that increased tourist activity contributes significantly to plastic waste generation, leading to MP pollution in environmental matrices [51]. Another potential factor is the greater volume of runoff and a larger effective parking lot area. Sites S1 and S2, which have more extensive parking areas, receive higher volumes of urban runoff, likely carrying MPs from the surrounding environments into the site.

While Koutnik et al. [50] recorded the highest number of MPs at the top 2 inches of the surface layer, the current study found the highest number of MPs at a depth of 24 inches below the surface at all sites except site S4. Over 30% of total MPs identified in the current study were in the 25–75 μm size range, likely because smaller MPs can more easily infiltrate the BRSs. The differences in concentration at different sites at a depth of 24 inches in the current study may be attributed to the proximity of sampling points to the outfall of the BRSs, which was believed to result in lower and more consistent MP concentrations across depths. Although apparently, MP abundance increased from the surface downward with few exceptions, with most MPs concentrated within the 24-inch layer, no statistical correlation was observed between depth and MP concentration. The potential reason might be the bioretention media itself. This probably indicates that MPs migrated downward within the media and were retained at depth through filtration and percolation mechanisms as the bioretention media is composed mostly of sand than other materials, including silt and compost. However, the authors acknowledge that there is no direct evidence for mechanisms driving such patterns at deeper depths.

According to the Tennessee Department of Conservation and Environment (TDEC) and the Minnesota Pollution Control Agency (MPCA), the recommended bioretention soil mixture is generally classified as loamy sand on the United States Department of Agriculture (USDA) soil texture triangle, comprising 85–88% sand, 8–12% soil fines, and 3–5% organic matter based on site-specific requirements [52,53,54]. Similarly, the North Carolina Department of Environmental Quality (NCDEQ) recommends that the filter media should be a homogeneous, engineered soil mixture consisting of approximately 75–85% medium to coarse washed sand, 8–15% fines (silt and clay), and 5–10% organic matter, such as pine bark fines. In Canada, the guidelines suggest that bioretention cell media should consist of 75–90% sand, 7–22% silt, and 3–12% clay to meet site-specific infiltration goals [25]. The media depth generally ranges from 24 inches to 36 inches for infiltration [29,53,55]. Given the minimal variation in BRS design guidelines, the findings from this study may be applicable to other conventionally designed cells. According to the results from this study, MPs can infiltrate the predominant topsoil and may penetrate deeper into the subsurface media. According to verbal communication with the City of Chattanooga’s green infrastructure maintenance team, BRSs are typically designed with sandy soils to enhance infiltration, offering higher permeability compared to other fine-grained soils. Moreover, Kuoppamäki et al. [56] observed that microplastic beads infiltrated to depths of 8–12 cm in vegetated systems compared to 4–6 cm in non-vegetated systems, indicating higher MPs infiltration in vegetated systems. The current study sites contain dense native vegetation, which may contribute to higher microplastic infiltration into the media, aligning with the findings from previous studies.

Over time, pore size distribution and media conditions may change as fine and coarse particles accumulate in the media. As time progresses, older systems experience different weather cycles, which may influence the accumulation of MPs in deeper layers. According to verbal communication with the City of Chattanooga’s green infrastructure maintenance team, the bioretention media has been operational for more than 10 years, likely leading to more significant microplastic accumulations at higher depths compared to the surface and middle layers, as the bioretention media primarily receive a greater volume of water during wet seasons. Moreover, surface layers in bioretention systems are often subject to periodic disturbance, maintenance activities, or media replacement, which can either remove or redistribute the accumulated MPs. By contrast, deeper layers tend to experience less disturbance, allowing MPs to be transported downward through percolation processes to accumulate more persistently. As previously noted, bioretention media typically consist of more than 70% sand, resulting in relatively high porosity. The coarse media, porous structure facilitates the infiltration of MPs into the media layer along with stormwater runoff. The subsurface soil in these systems may undergo repeated dry–wet and freeze–thaw cycles, with recent studies indicating that such dry–wet and freeze–thaw cycles, along with macropores and preferential flow paths created by plants, further enhance the downward migration of MPs in porous media [50,56,57,58,59,60]. There is also the potential for MPs to migrate over time to greater depths, especially during intermittent high-flood events that might push MPs downward. MPs’ microscopic size, toxicity, and bio-accumulative nature can disrupt soil properties, negatively impacting plants, microbes, and soil-dwelling organisms in BRSs. These lead to reduced metabolic activity and potential long-term toxicity. One study reported that long-term accumulation of MPs disrupts microbial diversity, depletes soil nutrients, inhibits plant growth, and reduces metabolic activity, leading to potential toxicity [61]. Therefore, further investigation should focus on the long-term effects of MP distribution on the BRS performance to guide future stormwater infrastructure management.

Stormwater runoff is a primary pathway for MPs to enter urban stormwater environments [50]. BRSs predominantly receive stormwater runoff, making them a significant accumulation point of MPs in these systems [25,62,63]. Although direct sampling of stormwater inflow and outflow at the study sites was not possible due to site constraints, runoff from surrounding parking areas was assumed to be the primary source of MPs. For instance, Smyth et al. [63] found an average concentration of 324 ± 284 particles/L in runoff from a 265 m² parking lot in Ontario, Canada, which eventually entered bioretention systems. In this study, bioretention cells located in larger parking lot areas at Renaissance Park and Warner Park demonstrated an average retention of 1095 ± 539.2 particles/kg dw in sediments. The observed variations in microplastic concentrations across sites may be influenced by differences in area, public accessibility, and associated recreational activities. For example, Renaissance Park, which also provides access to natural attractions like the Tennessee River trail and wetlands, exhibited a mean concentration of 1496 ± 305 particles/kg dw. Similar studies, such as one conducted in Buenos Aires, Argentina, identified tourism and recreational activities as key contributors to microplastic pollution [64]. Additionally, atmospheric deposition is recognized as a potential microplastic source in urban environments [50,65]. Future research should investigate the long-term atmospheric deposition of MPs around BRSs to enhance measurement precision and understanding.

This study identified various MP types—fragments, films, fibers, and foams—consistent with findings from the prior research [25]. Fragments were the most abundant, constituting 78.54% of all MPs, with an average percentage composition exceeding 70% across the sampling sites. Similarly, Mbachu et al. [9] reported fragments comprising 84% of the MPs in bioretention media soils. Black fragments dominated the samples (71.45%), ranging from 43% to 78% across the sites, with the highest concentration observed at S1 and the lowest at S4. Lange et al. [62] found black particles in 28 out of 33 bioretention media samples, accounting for 6% to 59%, suggesting that these systems enhance the retention of black particles. Characterizing MPs (morphology) and their relative percentages is essential for understanding their sources, transport, and trapping behavior in bioretention systems, thereby informing media design optimization.

A key drawback of a fluorescence-based analysis is its tendency to produce erroneous signals (false-positive), primarily due to naturally occurring polymers that fluoresce strongly upon Nile Red staining [66]. This false-positive spike limitation has been recognized in the previous studies and has been addressed through the use of hydrogen peroxide digestion [37,67].

In addition to fluorescence analysis, this study also investigated the FTIR analysis of randomly selected MPs and identified various polymers, including polyester (PES), polyethylene (PE), polypropylene (PP), nylon, and rubber. One of the examined and verified polymers, PE MPs were identified based on prominent spectral peaks at approximately ~3000 cm⁻¹ (C–H stretching), ~1475 cm⁻¹ (–CH₂ bending), and ~720 cm⁻¹ ((CH₂)_n rocking), which are diagnostic of long-chain polyethylene (shown in Figure 9d). These findings align with the previous studies. For instance, Smyth et al. [63] detected PE, PES, and PP in bioretention inlet and outlet samples. Similarly, Lange et al. [62] identified these polymers in bioretention samples, while Mbachu et al. [9] reported low-density polyethylene and polypropylene as the most prevalent types. Lange et al. [26,62] also observed the presence of rubber particles in bioretention media receiving highway runoff. Common sources of MPs in bioretention cells may include synthetic textiles, vehicle tires, rubber, food packaging, and accessories [25]. Despite these observations, this study could not identify all polymers present. Future studies should aim to investigate various polymer types in greater detail, including a certain proportion of subsamples, to examine the relationships between polymers and morphological shapes, and to pinpoint their sources. Further studies should incorporate other spectroscopes, including Raman spectroscopy, to validate the spectral values with FTIR and fluorescence microscopes.

Over 40% of the total MPs in the 25–75-micron size range were retained at a depth of 24 inches in the bioretention cells (Figure 8), highlighting the potential for MPs to transport through soil media. Smaller MPs (25–75 µm) and larger MPs (600–1000 µm) increase with depth, while the other size ranges do not follow any clear trend. One possible explanation for the increase in larger particles (600–1000 µm) with depth is the presence of preferential flow paths or macropores in the media, which may allow larger particles to bypass surface filtration and to migrate to deeper layers, particularly during prolonged runoff events or changes in water flow dynamics. Apparently, both small- (25–75 µm) and large-sized (600–1000 µm) particles (total counts) increased with the depth, suggesting that multiple processes may be operating; however, further research is required to identify and quantify the dominant mechanisms involved. Moreover, the findings of the current study align with the established research on particle mobility in subsurface soils. Supporting evidence comes from Fan et al. [68], who analyzed sediment cores from the Pearl River streambed in China. They observed higher microplastic concentrations at the surface, but finer particles (size < 0.45 mm) were more abundant at greater depths, suggesting downward movement through static percolation in the sediment matrix. It is likely that the larger MPs are breaking down into smaller particles and subsequently settling into the lower layers of the bioretention media. Furthermore, surface-accumulated MPs can fragment over time due to ultraviolet radiation, breaking down into nanoplastics that are subsequently released into the environment [69,70]. Larger MPs, particularly fibers (300 microns and above), were predominantly retained in the surface layers of the BRSs. Microfibers were the second most dominant shape, with 22 fibers recorded at a depth of 24 inches at site S4. A few polymer liners also were observed during sampling at the same depth. Synthetic fabrics, both permeable and impermeable, are commonly used in bioretention design to stabilize the media, separate soil and aggregate materials, and prevent stormwater migration to groundwater or adjacent infrastructures [29]. The presence of synthetic fibers installed at the bottom layer of the bioretention media may be linked to initial contamination from plastic sources. During sampling, the current study also observed the presence of comparable synthetic fibers within the bioretention media. Moreover, this aligns with findings by Mbachu et al. [9] in Queensland, Australia, where dominant plastic sheets originated from bioretention liners, with an FTIR analysis confirming the presence of polypropylene polymer. Additionally, higher concentrations and smaller-sized MPs at deeper depths in the bioretention media may be linked to the nature and source of the incoming particles. In this case, stormwater runoff from nearby parking lots and road surfaces is a likely source, where tire wear and vehicle-related debris primarily generate smaller-sized MPs. These fine particles exhibit greater mobility and are more likely to infiltrate deeper depths within the bioretention media over time. The physical properties of MPs, combined with various environmental chemical conditions, significantly influence their fate and transport. Therefore, future studies should focus on investigating how these physical and chemical factors affect microplastic mobility within the stormwater infrastructure.

4.2. Field-Installed BRS Media for Trapping MPs from Urban Stormwater

Bioretention systems are widely used in urban areas as a runoff management practice, effectively removing various organic and inorganic pollutants from stormwater [71]. Recent studies have also highlighted the high efficiency of BRSs in retaining MPs. For instance, Smyth et al. [25] reported an 84% reduction in median MP concentrations and a total load reduction exceeding 92% over two years. Similarly, a study in the San Francisco Bay area, California, USA, demonstrated that a bioretention rain garden reduced MP concentrations by an average of 91%, decreasing from 16 particles/L at the inlet to 0.16 particles/L at the outlet [72]. In another study, Smyth et al. [63] examined 11 pairs of stormwater runoff samples collected from the inlet and outlet of bioretention systems in Toronto and Region Conservation Authority’s Kortright Center in Vaughan, Ontario, Canada. The results indicated a reduction in the median MP concentrations from 227 particles/L to 66.5 particles/L, further confirming the retention capacity of BRSs in mitigating MPs. Although the current study could not analyze stormwater inflow and outflow samples due to access limitations, verbal confirmation from the City of Chattanooga’s green infrastructure maintenance team indicated that stormwater runoff from parking lot areas is primarily absorbed by the bioretention cells. The findings of the present study further suggest that BRSs effectively retain and reduce a significant portion of urban stormwater MPs.

The BRSs demonstrated significant efficacy in trapping MPs from stormwater runoff, with concentrations in the media ranging from 400 to 1780 particles per kg dw, indicating higher retention of MPs compared to other studies. For example, Mbachu et al. [9] analyzed BRSs in South East Queensland, Australia, and reported MP concentrations ranging from 0 to 180 particles/kg dw soil, with sizes between 0.072 mm and 4.938 mm. Average MP concentrations in Ipswich, Logan, and the Gold Coast were 78 ± 28.6, 32 ± 21.6, and 27 ± 19.4 particles/kg dw, respectively. By comparison, this study recorded MP concentrations of 1496 ± 305 items/kg dw in Renaissance Park and 693.4 ± 399.2 particles/kg dw in Warner Park, respectively, with MP sizes ranging from 25 to 2000 µm. The observed variation in the occurrence and distribution of MPs may be attributed to the differences in particle size. While this study recorded MPs as small as 25 µm, Mbachu et al. [9] documented a minimum MP size of 75 µm. The current study found that 32.88% of the MPs retained were within the 25–75 µm range, aligning with findings of Smyth et al. [63], who reported 33% of inlet runoff MPs in the 25–100 µm size range. The findings of the previous studies emphasize the importance of BRSs in capturing small-sized MPs and controlling their spread, which is crucial for mitigating downstream contamination in urban environments [25]. Bioretention media have shown significant potential for trapping MPs from urban stormwater, acting as an effective filtration system to capture a wide range of plastics.

5. Limitations

This study was constrained by having only two sampling sites, which limit the ability to capture the full variability of microplastic occurrence and transport within bioretention systems. With only two sites, the findings may not fully represent the broader range of bioretention configurations or environmental conditions, reducing the generalizability of the results. Additional sites would strengthen statistical robustness and provide a more comprehensive understanding of spatial variability in MP retention and transport. Microplastic analysis was based solely on sediment samples, without accompanying stormwater inflow or outflow data, limiting our ability to assess the mass balance or flux estimation of MP retention. Additionally, sampling was conducted at a single time point without temporal replication, which may not capture variability across storm events or seasons. Therefore, future studies should examine the inflow and outflow of bioretention systems and consider temporal or seasonal variations to better capture long-term performance and removal mechanisms.

6. Conclusions

This study provides initial insights into the overall abundance, vertical distribution, size distribution, polymer types, and retention of MPs within urban bioretention systems, thereby addressing a critical knowledge gap in stormwater infrastructure research. The preliminary results indicate that MPs are prevalent within bioretention media, likely reflecting the potential role of stormwater runoff as a primary pathway for their introduction into urban green infrastructure. The average concentration of MPs in the bioretention media was approximately 1095 ± 593.2 particles/kg dw. Notably, smaller-sized MPs (25–75 µm) were the most abundant and were predominantly retained at deeper layers (24 inches), suggesting the infiltration and retention potential of bioretention media for fine microplastic particles. Although the initial findings suggest that most MPs (total number) were found at deeper depths within the bioretention media, different size classes of MPs and different sites exhibited uniform or irregular distribution with depth. As a result, no systematic or statistically supported trend of increasing MP concentration with depth was identified across the studied basins. Similarly, although MPs were detected throughout the soil profiles, the results do not provide direct evidence of specific retention or transport mechanisms governing MP distribution within the bioretention media. Moreover, the lack of correlation suggests that MPs are potentially influenced by factors such as media design, particle size, vegetation effects, flow dynamics, and site-specific hydrologic condition rather than depth alone. Furthermore, such mechanisms cannot be directly inferred from the present dataset. The occurrence of MPs in the media suggests that, while BRSs are effective for trapping MPs, continued monitoring and maintenance are essential to ensure their sustained performance over time. Further research is recommended to explore the influence of media composition, hydraulic flow patterns, and operational factors on MP retention efficiency. This study highlights the urgent need for integrating bioretention systems into urban stormwater management strategies as a proactive measure to mitigate MP pollution and to enhance the resilience of urban water environments.
