Cycloadditions and Cyclization Reactions via Post-Synthetic Modification and/or One-Pot Methodologies for the Stabilization of Imine-Based Covalent Organic Frameworks

Department of Organic Chemistry, Faculty of Chemistry, Complutense University of Madrid, 28040 Madrid, Spain
Chemical and Environmental Technology Department, Rey Juan Carlos University, 28933 Móstoles, Spain
Author to whom correspondence should be addressed.
Encyclopedia 2023, 3(3), 795-807;
Submission received: 4 May 2023 / Revised: 7 June 2023 / Accepted: 21 June 2023 / Published: 25 June 2023
(This article belongs to the Section Chemistry)


Interest in covalent organic frameworks as high-value materials has grown steadily since their development in the 2000s. However, the great advantage that allows us to obtain these crystalline materials—the reversibility of the bonds that form the network—supposes a drawback in terms of thermal and chemical stability. Among the different strategies employed for the stabilization of imine-based Covalent Organic Frameworks (COFs), cycloaddition and other related cyclization reactions are especially significant to obtain highly stable networks with extended π-delocalization and new functionalities, expanding even further the potential application of these materials. Therefore, this entry gathered the most recent research strategies for obtaining stable COFs by means of cyclization reactions, including the Povarov reaction and intramolecular oxidative cyclization reactions as well as some other recent innovative approaches.

Graphical Abstract

1. Introduction

Since the first reported synthesis of covalent organic frameworks (COFs) in 2005 by Yaghi and collaborators [1], these porous and crystalline materials have gained attention, importance, and applicability in different scientific and technological areas such as catalysis [2] (including photo- [3,4] and electrocatalysis [5,6,7]), CO2 capturing [8], electronics [9], medicine [10,11], and food security [12], among others [13,14,15]. The great relevance acquired by these materials is mainly due to the possibility of tuning different chemical or physical properties such as porosity, functionalities, and stability according to the specific needs, with imine-based COFs being of special interest [16,17]. In this regard, stability is often one of the limiting factors for the applicability of COFs because the characteristic reversibility of the bonds formed in the polymerization reactions makes these materials more prone to chemical or thermal degradation. Therefore, the development of new COFs nowadays involves a thorough design toward stabilization to prevent degradation processes as much as possible.
The prevention of the degradation of imine-based COFs has been addressed by employing different strategies, such as the design and construction of materials with specific interlayer interactions that help maintain the integrity of the network. Other efforts have focused on preventing hydrolysis of the imine group, either by blocking it from nucleophiles or by creating intramolecular hydrogen bonding or hydrophobic environments around the imine group [18]. However, the blocking of the -C=N- bond that seems to be gaining attention during the last few years is its irreversible transformation into another functional group. The conversion of the reversible imine linkages into irreversible moieties has also been used to simultaneously incorporate new functionalities into the network. Thus, this strategy has allowed the conversion of the imine linkages into amines using different methods such as the Leuckart–Wallach reduction [19], the thiol-ene click reaction [20], or the Strecker reaction [21]. Other efforts have been focused on embedding the imine linkages into new heterocyclic rings, amplifying the π-electron delocalization of the lattices and, in many cases, adding new functionalities. These blocking bond steps initially were performed by the post-synthetic modification (PSM) of the COFs. However, one-pot (OP) syntheses, in which COF and its transformation are carried out in a cascade process, are gaining importance due to the savings in efforts and recurses that it entails.
The great interest generated by obtaining ultra-stable crystalline networks from different imine-based COFs by the formation of different cycles is evidenced by the growing number of publications focused on their synthesis and the evaluation of their structural, chemical, and electronic properties for later applications. This entry gathered the synthetic strategies, both by PSM and OP, for the transformation of reversible links of imine-based COFs into stabilized heterocyclic moieties by using cycloaddition or cyclization reactions. Particular attention will be paid to the most recent publications to reflect the state of the art in this field.

2. Cycloadditions and Cyclization Reactions for the Stabilization of Imine-Based Covalent Organic Frameworks

2.1. Formal [4 + 2] Cycloadditions: The Povarov Reaction

Cycloaddition reactions play a fundamental role in synthetic organic chemistry and their implementation for the development of a novel COFs field was only a matter of time. In this regard, the cycloaddition reaction used most frequently is the copper-catalyzed 1,3-dipolar azide-alkyne cycloaddition (CuAAC) reaction. The great versatility and good tolerance of this reaction to several functional groups have allowed the introduction of a variety of functionalities within the pores of COFs [22]. This click reaction takes place without changing the connectivity within the crystalline lattices and is therefore not effective in the search for improved electronic mobility or chemical stability. On the other hand, further cycloadditions have enabled the modification of the structural architecture of COFs, one example being the impressive conversion of 2D COFs into three-dimensional crystalline networks that have been achieved by reversible [2 + 2] or [4 + 4] photoinduced cycloaddition reactions [23,24]. These solid-state transformations are favored by the structural characteristics of the vinylene and anthracene-based COFs used for the study, in which interlayer distance and eclipsed stacking are suitable for the achieved structural modifications. However, cycloreversion to the original structure also occurs when the three-dimensional COFs are subjected to high temperatures. Nevertheless, the cycloaddition reaction that has aroused the most interest is the Povarov reaction, a formal [4 + 2] cycloaddition between an imine and an alkene or alkyne moiety to irreversibly obtain the corresponding quinoline derivative [25].
The first example of this type of aza-Diels–Alder reaction (aza-DA) with an imine-based COF was reported by Yaghi and co-workers in 2018 [26]. In this seminal contribution, the imine-based TPB-DMTP-COF was reacted with different para-substituted ethinylbenzene derivatives in the presence of boron trifluoride as Lewis acid and chloranil as an oxidant in toluene at 110 °C to yield a series of different quinoline-containing COFs (Figure 1a). The formation of quinoline rings inside the COF network, although occurring with moderate conversions (27–35%), resulted in an extraordinary improvement in the chemical stability of the materials. The exploitation of all the possibilities offered by this [4 + 2] cycloaddition has become a topic of great interest that has also expanded to other related fields such as MOFs research [27].
Povarov’s reaction not only made it possible to obtain materials resistant to acidic, basic, or redox agents but also allowed the introduction of new functionalities into TPB-DMTP-COF that paved the way for the subsequent post-synthetic modification of the COF. As a result, a series of different quinoline-based materials QB-COF (Figure 1a) have been designed, synthesized according to Yaghi’s conditions, and evaluated for different purposes, such as the capture and sensing of pesticides [28,29], cis-diol molecules [30], radioiodine [31], fluoride anion [32], and methylmercury [33], and their use as electrocatalysts for oxygen evolution [34,35] or for the fabrication of batteries [35,36]. This approach has been also used to convert other imine-based COFs into the corresponding quinoline-based derivatives. Thus, Chen et al. used this strategy with a triazine-based COF for its application in lithium–sulfur batteries [37]. It is especially remarkable that aza-DA reactions carried out in imine-based COFs endowed them with propargyl moieties (Figure 1b). In this type of system, the cycloaddition reaction takes place intramolecularly to yield chromenoquinoline-functionalized COFs (CQ-COF, Figure 1b) with high chemical stability and with cyclization degrees of up to 90% [38].

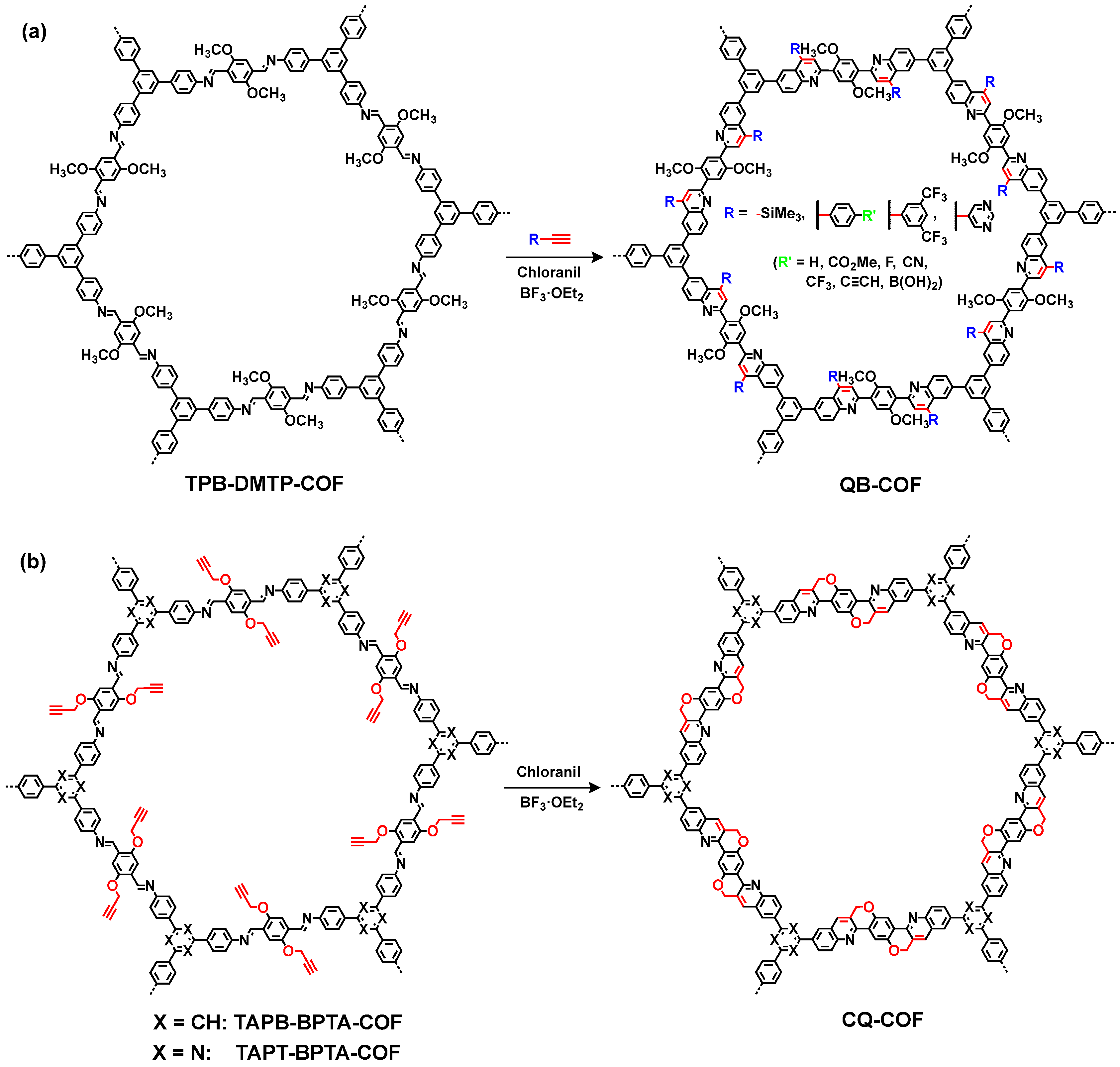

Figure 1. (a) PSM of imine-based TPB-DMTP-COF into quinoline-based COFs (QB-COF) via the Povarov reaction with alkyne derivatives [26,28,29,30,31,32,33,34,35,36]. (b) Intramolecular Povarov reactions of TAPB- and TAPT-BPTA-COF [38].
Figure 1. (a) PSM of imine-based TPB-DMTP-COF into quinoline-based COFs (QB-COF) via the Povarov reaction with alkyne derivatives [26,28,29,30,31,32,33,34,35,36]. (b) Intramolecular Povarov reactions of TAPB- and TAPT-BPTA-COF [38].
Encyclopedia 03 00057 g001
As has been mentioned, the Povarov reaction allows the introduction of new functional groups in the COF while reversible imine groups become irreversible. The interest generated in this PSM approach is such that substrates other than alkynes have been explored to obtain new advanced materials. To begin with, the use of alkenes as building blocks has made it possible to obtain quinolines in different degrees of oxidation depending on the reaction conditions. Thus, tetrahydroquinoline-containing COFs can be obtained when the Fe (III)-catalyzed aza-DA reaction is accomplished in the absence of oxidants [39], while quinoline-based QB-COFs containing phenyl rings as substituents are obtained when the reaction is performed with styrene in presence of 2,3-dichloro-5,6-dicyano-1,4-benzoquinone (DDQ) and BF3·OEt2 [21].
The Povarov reaction with alkenes as reagents has not only been successful when applied on COFs resulting from the condensation of 1,3,5-tris(4-aminophenyl)benzene (TAPB) or 4,4′,4″-(1,3,5-triazine-2,4,6-triyl)trianiline (TAPT) with a terephthalaldehyde derivative but has also been applied effectively on other networks, including the 3D-COF PYTRI-COF-1 shown in Figure 2a. Under the same oxidative conditions, the treatment of PYTRI-COF-1 with styrene resulted in PYTRI-COF-2, more stable and with a higher π-conjugated system, which showed high lithium-ion storage capacity when tested for battery application (Figure 2a) [40]. Another interesting example was published by Guan et al., creating porous hydrophilic COF-Qs materials by reacting the aryl imine-based COF-LZU1 with various enamides in the presence of iron trichloride as a catalyst for further evaluation in oil–water separation (Figure 2b) [41]. The latter example is particularly noteworthy because, despite the formation of pyridoquinoline residues, requiring a reconfiguration of the imine bonds, the resulting materials retained their crystalline structure.
As mentioned in the introduction, a growing trend in this field of research is to obtain robust and ultrastable 2D crystalline materials by multicomponent one-pot (OP) reactions, in which the COF and its subsequent modification are carried out in a single synthetic step. Despite the arduous and demanding work involved in optimizing this type of operation, the use of OP methodologies helps to reduce reaction times, simplifies the elaboration and purification processes, and leaves the way free to synthesize certain materials that are not possible to obtain by PSM [42]. Quinoline-based COFs have already been constructed employing OP strategies, the first example having been reported in 2020 by Dong and coworkers, where different crystalline materials were obtained in a one-pot procedure by the three-component Povarov reaction between TAPB, a terephthalaldehyde derivative, and styrene or dihydropyran as reagents (Figure 3a) [21]. The reaction conditions are particularly remarkable because the cyclized COFs are formed in the same reaction times as the corresponding imine-based materials using the same solvents but adding the corresponding alkene, Lewis acid, and oxidant. Thus, the formation of the crystal lattice is advanced before the [4 + 2] cycloaddition process blocks the reversibility of the Schiff base. Since this first report, other examples of OP approaches for obtaining QB-COF derivatives, using other reagents or reaction conditions, have been reported (Figure 3a) [43,44]. These three-component OP Povarov reactions have not only been used for obtaining QB-COF-type structures but have also been employed for the synthesis of porphyrin- and quinoline-containing and fully conjugated networks, which have been tested as photoactive materials for various purposes such as CO2 activation and C-C scission, with promising results [45,46]. Such is the interest generated by these one-pot COF methodologies that the synthesis of different chromenoquinoline-functionalized COFs in a single step by promoting an intramolecular cascade sequence promoted by the addition of scandium triflate to the reaction mixture containing a mixture of the corresponding O-p-tolylpropargyl salicyaldehyde and a multitopic aniline has already been described (Figure 3b). As discussed above in the OP synthesis of QB-COF, intramolecular cyclization and subsequent oxidation take place after the formation of imine-based COFs (Figure 3b) [47]. All these COFs obtained by OP showed excellent crystallinity, stability, and porosity parameters, as did the corresponding analogous compounds synthesized by PSM, so it is expected that the number of published protocols for obtaining different 2D crystalline materials will increase in a short period of time.

2.2. Other Reactions for the Synthesis of Quinoline-Based COFs

As shown in the previous section, the Povarov and related aza-DA reactions are of special interest among different researchers because they allow the attainment of ultra-stable COFs based on quinolines with different functionalities and applications. However, the limitations encountered in the introduction of different functionalities have encouraged research on obtaining such materials, with other catalyzed or metal-free procedures that allow access to other stable quinoline-based networks from Schiff-based crystalline materials having been published.
In addition to the fact that metal catalysis has yielded an immeasurable number of molecules, its application in COFs has also been successful as a PSM strategy. Apart from CuAAC, other metal-mediated reactions have been applied for PSM and, in addition, have been effective for the stabilization of COFs through the formation of heterocyclic rings on crystal lattices. Particularly noteworthy is the rhodium-catalyzed [4 + 2] annulation of imine-bridged COFs with vinylene carbonate, published by Xiang et al. [48,49]. Contrary to the Povarov reactions detailed in Section 2.1, this Rh-catalyzed oxidant-free dehydrogenative procedure allows one, thanks to the use of ethylene carbonate as a reagent, to obtain, by PSM, unsubstituted quinoline-linked COFs such as NQ-COFA1, as shown in Figure 4, which has shown promising results as a photocatalyst [48]. Similar to the Povarov and oxidative cyclizations, the synthesis of the same quinoline-based unsubstituted COF has also been achieved in a one-step cascade process by adding the necessary reagents for PSM and magnesium sulfate to the monomer mixture, proving that the presence of this salt proved crucial for the correct course of imine formation and subsequent Rh-catalyzed annulation (Figure 4) [49]. In this case, it is also particularly striking that the crystallinity of NQ-COFA1 obtained by OP is higher than that obtained by PSM.
Other cyclization reactions carried out on imine-based COFs are metal-free and have resulted in stabilized quinoline networks with architectures or substituents that could not be obtained by aza-DA reactions. One case is that reported by Cai et al., where 4-carboxyl-quinoline-linked COFs were obtained by both PSM and OP procedures via the Doebner reaction [50]. Although only two materials have been described and evaluated for use in nanofiltration, the authors claim the universal applicability of the reaction of imine-based networks with pyruvic acid.
Finally, oxidative cyclizations have proven, as will be seen in the next section, to be a powerful tool for the stabilization of imine-bound COFs. A special case was published by Zhao and co-workers, applying the Pictet–Spengler reaction on B-COF-1 and T-COF-1 (Figure 5) [51]. In both materials, the carbon atoms of the imine groups reacted with the β-carbon of the thiophene rings, giving rise to the fully π-conjugated thieno [3,2-c]pyridine-linked COFs B-COF-2 and T-COF-2 (Figure 5). As expected, the blocking of the imine bond led to an improvement in the chemical stability of the new materials and, in the specific case of T-COF-2, efficient photoenzymatic catalytic activity was observed thanks to its electronic structure.

2.3. Intramolecular Oxidative Cyclization Reactions

The formation of quinoline rings by Povarov and the other reactions shown are not the only ones that have allowed the modification of the pristine network of imine-based COFs. Prior to them, intramolecular oxidative cyclizations began to be explored as a powerful tool to stabilize this class of covalent organic structures by converting reversible imine bonds into irreversible ones. Although these reactions are not useful for the introduction of new functionalities within COF networks, the extension of π-electron delocalization allows their application as photoactive materials, with some of the following networks being studied as photocatalysts or enhancers of different processes.
The intramolecular oxidative cyclization of imine-based COFs is possible when a nucleophilic group is anchored at the ortho position of the imine, thus obtaining different COFs based on benzofused heterocyclic systems. However, in practice, obtaining this type of material has been a challenge because intramolecular cyclization is prone to take place before the crystal lattice is formed, transforming the reversible imine bonds into irreversible ones and obtaining amorphous polymers [52]. For this reason, obtaining benzoxazole and benzothiazole networks from imine-based COFs was first tackled by starting with materials lacking the nucleophile moiety, introducing the reactive functionality in a subsequent step, such as linker exchanges [53] or by the introduction of a sulfur atom in the COF structure [54,55], and finally causing oxidative cyclization. It is worth mentioning the post-synthetic oxidative cyclization reported by Baek et al., in which I-COF (Figure 6), a poor stable crystalline material containing the deprotected nucleophile in the appropriate position relative to the imine group for the intramolecular cyclization, was synthesized, isolated, characterized, and subsequently transformed post-synthetically into the respective stable benzoxazole derivative BO-COF by DDQ treatment (Figure 6) [56].
The synthesis of analogous materials containing indazole and benzimidazolylidene moieties has also been explored by employing the Cadogan reaction, an efficient method for the synthesis of various indole and aza-indole derivatives [57]. The indazole-based COF termed TPB-indazole-COF was prepared from the o-nitroaryl imine TPB-imine-COF in a cascade process involving (1) the reduction of the nitro group in the presence of tributylphosphine and (2) subsequent cyclization (Figure 7a) [58]. Contrary to other PSM COF cyclizations, full conversion of the product was achieved in a few hours and with a PXRD pattern similar to that of the starting material. The same TPB-indazole-COF was profitably obtained in a one-pot procedure from the corresponding monomers under practically the same reaction conditions under which PSM was accomplished, with only a slight decrease in crystallinity being observed relative to the stepwise material prepared. An example of the potential advantages of OP methodologies over PSM is revealed in the same article published by Yang et al. [58], where the Cadogan reaction failed when attempting to prepare benzimidazolylidene containing BIY-COF from Ketoenamine-NO2-COF, but succeeded when the reaction between 2,4,6-trimethoxybenzene-1,3,5-tricarbaldehyde and 3,3′-dinitrobenzidine was carried out in the presence of tributylphosphine (Figure 7b).
The synthesis of TPB-indazole-COF and benzimidazolylidene BIY-COF are not the first examples of the synthesis and oxidative cyclization of COFs in a single step. As previously mentioned, obtaining indazole, benzothiazole, and benzoxazole derivatives involves arduous optimization work to avoid the formation of irreversible bonds before the material is crystalline. The OP synthesis of three benzoxazole-linked COFs was successfully described by Wang through cascade reactions involving imine-formation, cyclization, and oxidative dehydrogenation [59]. This procedure has further been employed to obtain other benzoxazole-based materials both for photocatalysis [60] and other applications such as photoenhanced uranium recovery [61,62] and solar desalination [62]. Cascade one-pot processes for the acquisition of different photoactive benzothiazole-linked COFs have also been successfully optimized, being a process that implies firstly the formation of the imine-linked COF followed by the addition of thiol functionality, cyclization, and an ulterior oxidative process [63,64].

3. Conclusions and Prospects

Currently, research on covalent organic frameworks continues to be of great interest and the activity of creating new networks is of fundamental importance for obtaining new high-value materials. As reported, the stabilization of networks by converting reversible bonds into irreversible ones by cyclization is an effective strategy that allows for the modification of chemical and electronic properties, further maximizing the potential application of these materials. Early examples of the stabilization of imine-based COFs consisted of oxidative cyclizations leading to benzoxazole, benzothiazole, and indazole derivatives and whose extended π-delocalization has enabled their use as photoactive materials. However, the synthetic strategy that appears to be a prolific focus of research at present is Povarov, related aza-Diels–Alder reactions, and the remaining annulations that produce quinoline-based COFs, either via PSM or OP approaches. These methods not only give rise to ultra-stable networks with a conjugated electronic structure but also allow the introduction of different functional groups, which enhances the potential applications of this type of material. Undoubtedly, a considerable number of new articles using any of these transformations will be published in the near future.

Author Contributions

Conceptualization, E.G., M.M.R. and J.L.S.; writing—original draft preparation, E.G.; writing—review and editing, E.G., M.M.R. and J.L.S.; supervision, M.M.R. and J.L.S.; project administration, J.L.S.; funding acquisition, J.L.S. All authors have read and agreed to the published version of the manuscript.


This work was financially supported by MICINN (PID2019-106268GB-C33 and TED2021-129886B-C43), and the UCM (INV.GR.00.1819.10759).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable to this entry. No new data were created in this revision.

Conflicts of Interest

The authors declare no conflict of interest.


AcOH: acetic acid; aza-DA: aza-Diels–Alder; COF: covalent organic framework; CuAAC: copper-catalyzed 1,3-dipolar azide-alkyne cycloaddition; DDQ: 2,3-dichloro-5,6-dicyano-1,4-benzoquinone; MOF: metal–organic framework; oDCB: o-dichlorobenzene; OP: one pot; PSM: post-synthetic modification.


  1. Côté, A.P.; Benin, A.I.; Ockwig, N.W.; O’Keeffe, M.; Matzger, A.J.; Yaghi, O.M. Porous, Crystalline, Covalent Organic Frameworks. Science 2005, 310, 1166–1170. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Cheng, H.-Y.; Wang, T. Covalent Organic Frameworks in Catalytic Organic Synthesis. Adv. Synth. Catal. 2021, 363, 144–193. [Google Scholar] [CrossRef]
  3. Chen, H.; Jena, H.S.; Feng, X.; Leus, K.; Van Der Voort, P. Engineering Covalent Organic Frameworks as Heterogeneous Photocatalysts for Organic Transformations. Angew. Chem. Int. Ed. 2022, 61, e202204938. [Google Scholar] [CrossRef]
  4. Alonso-Navarro, M.J.; Barrio, J.; Royuela, S.; Karjule, N.; Ramos, M.M.; Martínez, J.I.; Shalom, M.; Segura, J.L. Photocatalytic Degradation of Organic Pollutants through Conjugated Poly(Azomethine) Networks Based on Terthiophene-Naphthalimide Assemblies. RSC Adv. 2021, 11, 2701–2705. [Google Scholar] [CrossRef]
  5. Royuela, S.; Martínez-Periñán, E.; Arrieta, M.P.; Martínez, J.I.; Ramos, M.M.; Zamora, F.; Lorenzo, E.; Segura, J.L. Oxygen Reduction Using a Metal-Free Naphthalene Diimide-Based Covalent Organic Framework Electrocatalyst. Chem. Commun. 2020, 56, 1267–1270. [Google Scholar] [CrossRef]
  6. Martínez-Fernández, M.; Martínez-Periñán, E.; Royuela, S.; Martínez, J.I.; Zamora, F.; Lorenzo, E.; Segura, J.L. Covalent Organic Frameworks Based on Electroactive Naphthalenediimide as Active Electrocatalysts toward Oxygen Reduction Reaction. Appl. Mater. Today 2022, 26, 101384. [Google Scholar] [CrossRef]
  7. Martínez-Fernández, M.; Martínez-Periñán, E.; Martínez, J.I.; Gordo-Lozano, M.; Zamora, F.; Segura, J.L.; Lorenzo, E. Evaluation of the Oxygen Reduction Reaction Electrocatalytic Activity of Postsynthetically Modified Covalent Organic Frameworks. ACS Sustain. Chem. Eng. 2023, 11, 1763–1773. [Google Scholar] [CrossRef]
  8. Luo, R.; Yang, Y.; Chen, K.; Liu, X.; Chen, M.; Xu, W.; Liu, B.; Ji, H.; Fang, Y. Tailored Covalent Organic Frameworks for Simultaneously Capturing and Converting CO2 into Cyclic Carbonates. J. Mater. Chem. A 2021, 9, 20941–20956. [Google Scholar] [CrossRef]
  9. Bian, G.; Yin, J.; Zhu, J. Recent Advances on Conductive 2D Covalent Organic Frameworks. Small 2021, 17, 2006043. [Google Scholar] [CrossRef]
  10. Bukhari, S.N.A.; Ahmed, N.; Amjad, M.W.; Hussain, M.A.; Elsherif, M.A.; Ejaz, H.; Alotaibi, N.H. Covalent Organic Frameworks (COFs) as Multi-Target Multifunctional Frameworks. Polymers 2023, 15, 267. [Google Scholar] [CrossRef]
  11. Royuela, S.; García-Garrido, E.; Martín Arroyo, M.; Mancheño, M.J.; Ramos, M.M.; González-Rodríguez, D.; Somoza, Á.; Zamora, F.; Segura, J.L. Uracil Grafted Imine-Based Covalent Organic Framework for Nucleobase Recognition. Chem. Commun. 2018, 54, 8729–8732. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Wang, J.; Feng, J.; Lian, Y.; Sun, X.; Wang, M.; Sun, M. Advances of the Functionalized Covalent Organic Frameworks for Sample Preparation in Food Field. Food Chem. 2023, 405, 134818. [Google Scholar] [CrossRef]
  13. Tran, Q.N.; Lee, H.J.; Tran, N. Covalent Organic Frameworks: From Structures to Applications. Polymers 2023, 15, 1279. [Google Scholar] [CrossRef]
  14. Royuela, S.; Almarza, J.; Mancheño, M.J.; Pérez-Flores, J.C.; Michel, E.G.; Ramos, M.M.; Zamora, F.; Ocón, P.; Segura, J.L. Synergistic Effect of Covalent Bonding and Physical Encapsulation of Sulfur in the Pores of a Microporous COF to Improve Cycling Performance in Li-S Batteries. Chem. A Eur. J. 2019, 25, 12394–12404. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Martínez-Fernández, M.; Gavara, R.; Royuela, S.; Fernández-Ecija, L.; Martínez, J.I.; Zamora, F.; Segura, J.L. Following the Light: 3D-Printed COF@poly(2-hydroxyethyl Methacrylate) Dual Emissive Composite with Response to Polarity and Acidity. J. Mater. Chem. A 2022, 10, 4634–4643. [Google Scholar] [CrossRef]
  16. Segura, J.L.; Mancheño, M.J.; Zamora, F. Covalent Organic Frameworks Based on Schiff-Base Chemistry: Synthesis, Properties and Potential Applications. Chem. Soc. Rev. 2016, 45, 5635–5671. [Google Scholar] [CrossRef]
  17. Qian, C.; Feng, L.; Teo, W.L.; Liu, J.; Zhou, W.; Wang, D.; Zhao, Y. Imine and Imine-Derived Linkages in Two-Dimensional Covalent Organic Frameworks. Nat. Rev. Chem. 2022, 6, 881–898. [Google Scholar] [CrossRef]
  18. Jiang, G.; Zou, W.; Ou, Z.; Zhang, W.; Liang, Z.; Du, L. Stabilization of 2D Imine-linked Covalent Organic Frameworks: From Linkage Chemistry to Interlayer Interaction. Chem. Eur. J. 2022, 29, e202203610. [Google Scholar] [CrossRef]
  19. Grunenberg, L.; Savasci, G.; Terban, M.W.; Duppel, V.; Moudrakovski, I.; Etter, M.; Dinnebier, R.E.; Ochsenfeld, C.; Lotsch, B.V. Amine-Linked Covalent Organic Frameworks as a Platform for Postsynthetic Structure Interconversion and Pore-Wall Modification. J. Am. Chem. Soc. 2021, 143, 3430–3438. [Google Scholar] [CrossRef]
  20. Wang, K.; Zhang, H.; Xiao, Y.; Ren, S.; Wang, Y.; Li, L. Efficient Exfoliation of Covalent Organic Frameworks by a Facile Thiol-Ene Reaction. Chem. Eng. J. 2023, 454, 140283. [Google Scholar] [CrossRef]
  21. Li, X.-T.; Zou, J.; Wang, T.-H.; Ma, H.-C.; Chen, G.-J.; Dong, Y.-B. Construction of Covalent Organic Frameworks via Three-Component One-Pot Strecker and Povarov Reactions. J. Am. Chem. Soc. 2020, 142, 6521–6526. [Google Scholar] [CrossRef] [PubMed]
  22. Segura, J.L.; Royuela, S.; Mar Ramos, M. Post-Synthetic Modification of Covalent Organic Frameworks. Chem. Soc. Rev. 2019, 48, 3903–3945. [Google Scholar] [CrossRef] [PubMed]
  23. Acharjya, A.; Pachfule, P.; Roeser, J.; Schmitt, F.J.; Thomas, A. Vinylene-Linked Covalent Organic Frameworks by Base-Catalyzed Aldol Condensation. Angew. Chem. Int. Ed. 2019, 58, 14865–14870. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Jadhav, T.; Fang, Y.; Liu, C.-H.; Dadvand, A.; Hamzehpoor, E.; Patterson, W.; Jonderian, A.; Stein, R.S.; Perepichka, D.F. Transformation between 2D and 3D Covalent Organic Frameworks via Reversible [2 + 2] Cycloaddition. J. Am. Chem. Soc. 2020, 142, 8862–8870. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Ferreira de Paiva, W.; de Freitas Rego, Y.; de Fátima, Â.; Fernandes, S.A. The Povarov Reaction: A Versatile Method to Synthesize Tetrahydroquinolines, Quinolines and Julolidines. Synthesis 2022, 54, 3162–3179. [Google Scholar] [CrossRef]
  26. Li, X.; Zhang, C.; Cai, S.; Lei, X.; Altoe, V.; Hong, F.; Urban, J.J.; Ciston, J.; Chan, E.M.; Liu, Y. Facile Transformation of Imine Covalent Organic Frameworks into Ultrastable Crystalline Porous Aromatic Frameworks. Nat. Commun. 2018, 9, 2998. [Google Scholar] [CrossRef] [Green Version]
  27. Peng, H.; Raya, J.; Richard, F.; Baaziz, W.; Ersen, O.; Ciesielski, A.; Samorì, P. Synthesis of Robust MOFs@COFs Porous Hybrid Materials via an Aza-Diels–Alder Reaction: Towards High-Performance Supercapacitor Materials. Angew. Chem. Int. Ed. 2020, 59, 19602–19609. [Google Scholar] [CrossRef]
  28. Zhao, Y.; Sui, Z.; Chang, Z.; Wang, S.; Liang, Y.; Liu, X.; Feng, L.; Chen, Q.; Wang, N. A Trifluoromethyl-Grafted Ultra-Stable Fluorescent Covalent Organic Framework for Adsorption and Detection of Pesticides. J. Mater. Chem. A 2020, 8, 25156–25164. [Google Scholar] [CrossRef]
  29. Yang, Y.; Guo, Y.; Jia, X.; Zhang, Q.; Mao, J.; Feng, Y.; Yin, D.; Zhao, W.; Zhang, Y.; Ouyang, G.; et al. An Ultrastable 2D Covalent Organic Framework Coating for Headspace Solid-Phase Microextraction of Organochlorine Pesticides in Environmental Water. J. Hazard. Mater. 2023, 452, 131228. [Google Scholar] [CrossRef]
  30. Chang, Z.; Liang, Y.; Wang, S.; Qiu, L.; Lu, Y.; Feng, L.; Sui, Z.; Chen, Q. A Novel Fluorescent Covalent Organic Framework Containing Boric Acid Groups for Selective Capture and Sensing of Cis-Diol Molecules. Nanoscale 2020, 12, 23748–23755. [Google Scholar] [CrossRef]
  31. Zhao, Y.; Liu, X.; Li, Y.; Xia, M.; Xia, T.; Sun, H.; Sui, Z.; Hu, X.-M.; Chen, Q. Ultra-Stable Fluorescent 2D Covalent Organic Framework for Rapid Adsorption and Selective Detection of Radioiodine. Microporous Mesoporous Mater. 2021, 319, 111046. [Google Scholar] [CrossRef]
  32. Zhao, Y.; Yan, Y.; Wu, Z.; Li, C.; Fan, R.; Feng, L.; Wang, W.; Chen, Q. A Novel Fluorescent Covalent Organic Framework for the Selective Detection of Fluoride Ion. J. Mater. Sci. 2022, 57, 13425–13432. [Google Scholar] [CrossRef]
  33. Xiao, Z.; Nie, X.; Li, Y.; Nie, Y.; Lu, L.; Tian, X. Boric Acid Functional Fluorescent Covalent-Organic Framework for Sensitive and Selective Visualization of CH3Hg+. ACS Appl. Mater. Interfaces 2023, 15, 9524–9532. [Google Scholar] [CrossRef] [PubMed]
  34. Zhao, Y.; Yang, Y.; Xia, T.; Tian, H.; Li, Y.; Sui, Z.; Yuan, N.; Tian, X.; Chen, Q. Pyrimidine-Functionalized Covalent Organic Framework and Its Cobalt Complex as an Efficient Electrocatalyst for Oxygen Evolution Reaction. ChemSusChem 2021, 14, 4556–4562. [Google Scholar] [CrossRef] [PubMed]
  35. Wu, Z.; Luo, J.; Liang, Y.; Yu, X.; Zhao, Y.; Li, Y.; Wang, W.; Sui, Z.; Tian, X.; Chen, Q. Tetrazole Functionalized Benzoquinoline-Linked Covalent Organic Frameworks with Efficient Performance for Electrocatalytic H2O2 Production and Li-S Batteries. Mater. Chem. Front. 2023, 7, 1650–1658. [Google Scholar] [CrossRef]
  36. Liu, X.; Xia, M.; Zhao, Y.; Xia, T.; Li, Y.; Xiao, J.; Sui, Z.; Chen, Q. Cationic Covalent Organic Framework via Cycloaddition Reactions as Sulfur-Loaded Matrix for Lithium-Sulfur Batteries. Mater. Today Chem. 2022, 23, 100664. [Google Scholar] [CrossRef]
  37. Liang, Y.; Xia, M.; Zhao, Y.; Wang, D.; Li, Y.; Sui, Z.; Xiao, J.; Chen, Q. Functionalized Triazine-Based Covalent Organic Frameworks Containing Quinoline via Aza-Diels-Alder Reaction for Enhanced Lithium-Sulfur Batteries Performance. J. Colloid Interface Sci. 2022, 608, 652–661. [Google Scholar] [CrossRef]
  38. Ren, X.R.; Bai, B.; Zhang, Q.; Hao, Q.; Guo, Y.; Wan, L.J.; Wang, D. Constructing Stable Chromenoquinoline-Based Covalent Organic Frameworks via Intramolecular Povarov Reaction. J. Am. Chem. Soc. 2022, 144, 2488–2494. [Google Scholar] [CrossRef]
  39. Lyu, H.; Li, H.; Hanikel, N.; Wang, K.; Yaghi, O.M. Covalent Organic Frameworks for Carbon Dioxide Capture from Air. J. Am. Chem. Soc. 2022, 144, 12989–12995. [Google Scholar] [CrossRef]
  40. Chen, R.; Zhao, J.; Yu, Z.; Cong, M.; Wang, Y.; Wang, M.; Li, G.; Li, Z.; Zhao, Y. Post-Synthetic Fully π-Conjugated Three-Dimensional Covalent Organic Frameworks for High-Performance Lithium Storage. ACS Appl. Mater. Interfaces 2023, 15, 830–837. [Google Scholar] [CrossRef]
  41. Wang, Y.; Xie, J.; Ren, Z.; Guan, Z.H. Postsynthetically Modified Hydrophobic Covalent Organic Frameworks for Enhanced Oil/Water and CH4/C2H2 Separation. Chem. Eng. J. 2022, 448, 137687. [Google Scholar] [CrossRef]
  42. Hayashi, Y. Pot Economy and One-Pot Synthesis. Chem. Sci. 2016, 7, 866–880. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Yao, B.J.; Wu, W.X.; Ding, L.G.; Dong, Y.B. Sulfonic Acid and Ionic Liquid Functionalized Covalent Organic Framework for Efficient Catalysis of the Biginelli Reaction. J. Org. Chem. 2021, 86, 3024–3032. [Google Scholar] [CrossRef] [PubMed]
  44. Liu, H.; Han, Y.; Zheng, X.; Zhao, J.; Man, Y.; Sun, L.; Zhao, Y. One-Pot Synthesis of Fully-Conjugated Chemically Stable Two-Dimensional Covalent Organic Framework. Chin. J. Chem. 2022, 40, 699–704. [Google Scholar] [CrossRef]
  45. Chen, H.; Liu, W.; Liu, C.; Sun, J.; Bourda, L.; Morent, R.; De Geyter, N.; Van Deun, R.; Van Hecke, K.; Leus, K.; et al. Two in One: A Brønsted Acid Grafted Photoactive Covalent Organic Framework as Metal-Free Dual Photocatalyst for Aerobic Oxidative C-C Cleavage. Appl. Catal. B Environ. 2022, 319, 121920. [Google Scholar] [CrossRef]
  46. Ding, L.G.; Yao, B.J.; Wu, W.X.; Yu, Z.G.; Wang, X.Y.; Kan, J.L.; Dong, Y.B. Metalloporphyrin and Ionic Liquid-Functionalized Covalent Organic Frameworks for Catalytic CO2Cycloaddition via Visible-Light-Induced Photothermal Conversion. Inorg. Chem. 2021, 60, 12591–12601. [Google Scholar] [CrossRef]
  47. Feng, J.; Zhang, Y.J.; Ma, S.H.; Yang, C.; Wang, Z.P.; Ding, S.Y.; Li, Y.; Wang, W. Fused-Ring-Linked Covalent Organic Frameworks. J. Am. Chem. Soc. 2022, 144, 6594–6603. [Google Scholar] [CrossRef]
  48. Zhao, X.; Pang, H.; Huang, D.; Liu, G.; Hu, J.; Xiang, Y. Construction of Ultrastable Nonsubstituted Quinoline-Bridged Covalent Organic Frameworks via Rhodium-Catalyzed Dehydrogenative Annulation. Angew. Chem. Int. Ed. 2022, 61, e202208833. [Google Scholar] [CrossRef]
  49. Pang, H.; Huang, D.; Zhu, Y.; Zhao, X.; Xiang, Y. One-Pot Cascade Construction of Nonsubstituted Quinoline-Bridged Covalent Organic Frameworks. Chem. Sci. 2023, 14, 1543–1550. [Google Scholar] [CrossRef]
  50. Yang, Y.; Yu, L.; Chu, T.; Niu, H.; Wang, J.; Cai, Y. Constructing Chemical Stable 4-Carboxyl-Quinoline Linked Covalent Organic Frameworks via Doebner Reaction for Nanofiltration. Nat. Commun. 2022, 13, 2615. [Google Scholar] [CrossRef]
  51. Wang, Y.; Liu, H.; Pan, Q.; Wu, C.; Hao, W.; Xu, J.; Chen, R.; Liu, J.; Li, Z.; Zhao, Y. Construction of Fully Conjugated Covalent Organic Frameworks via Facile Linkage Conversion for Efficient Photoenzymatic Catalysis. J. Am. Chem. Soc. 2020, 142, 5958–5963. [Google Scholar] [CrossRef] [PubMed]
  52. Ranjeesh, K.C.; Illathvalappil, R.; Veer, S.D.; Peter, J.; Wakchaure, V.C.; Goudappagouda; Raj, K.V.; Kurungot, S.; Babu, S.S. Imidazole-Linked Crystalline Two-Dimensional Polymer with Ultrahigh Proton-Conductivity. J. Am. Chem. Soc. 2019, 141, 14950–14954. [Google Scholar] [CrossRef] [PubMed]
  53. Waller, P.J.; Alfaraj, Y.S.; Diercks, C.S.; Jarenwattananon, N.N.; Yaghi, O.M. Conversion of Imine to Oxazole and Thiazole Linkages in Covalent Organic Frameworks. J. Am. Chem. Soc. 2018, 140, 9099–9103. [Google Scholar] [CrossRef]
  54. Haase, F.; Troschke, E.; Savasci, G.; Banerjee, T.; Duppel, V.; Dörfler, S.; Grundei, M.M.J.; Burow, A.M.; Ochsenfeld, C.; Kaskel, S.; et al. Topochemical Conversion of an Imine- into a Thiazole-Linked Covalent Organic Framework Enabling Real Structure Analysis. Nat. Commun. 2018, 9, 2600. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Yang, Y.; Niu, H.; Zhao, W.; Xu, L.; Zhang, H.; Cai, Y. Ultrafine Pd Nanoparticles Loaded Benzothiazole-Linked Covalent Organic Framework for Efficient Photocatalytic C-C Cross-Coupling Reactions. RSC Adv. 2020, 10, 29402–29407. [Google Scholar] [CrossRef]
  56. Seo, J.-M.; Noh, H.-J.; Jeong, H.Y.; Baek, J.-B. Converting Unstable Imine-Linked Network into Stable Aromatic Benzoxazole-Linked One via Post-Oxidative Cyclization. J. Am. Chem. Soc. 2019, 141, 11786–11790. [Google Scholar] [CrossRef]
  57. Kaur, M.; Kumar, R. A Minireview on the Scope of Cadogan Cyclization Reactions Leading to Diverse Azaheterocycles. Asian J. Org. Chem. 2022, 11, e202200092. [Google Scholar] [CrossRef]
  58. Yang, S.; Yang, C.; Dun, C.; Mao, H.; Khoo, R.S.H.; Klivansky, L.M.; Reimer, J.A.; Urban, J.J.; Zhang, J.; Liu, Y. Covalent Organic Frameworks with Irreversible Linkages via Reductive Cyclization of Imines. J. Am. Chem. Soc. 2022, 144, 9827–9835. [Google Scholar] [CrossRef]
  59. Wei, P.F.; Qi, M.Z.; Wang, Z.P.; Ding, S.Y.; Yu, W.; Liu, Q.; Wang, L.K.; Wang, H.Z.; An, W.K.; Wang, W. Benzoxazole-Linked Ultrastable Covalent Organic Frameworks for Photocatalysis. J. Am. Chem. Soc. 2018, 140, 4623–4631. [Google Scholar] [CrossRef]
  60. Wu, C.J.; Li, X.Y.; Li, T.R.; Shao, M.Z.; Niu, L.J.; Lu, X.F.; Kan, J.L.; Geng, Y.; Dong, Y. Bin Natural Sunlight Photocatalytic Synthesis of Benzoxazole-Bridged Covalent Organic Framework for Photocatalysis. J. Am. Chem. Soc. 2022, 144, 18750–18755. [Google Scholar] [CrossRef]
  61. Cui, W.R.; Zhang, C.R.; Xu, R.H.; Chen, X.R.; Yan, R.H.; Jiang, W.; Liang, R.P.; Qiu, J.D. Low Band Gap Benzoxazole-Linked Covalent Organic Frameworks for Photo-Enhanced Targeted Uranium Recovery. Small 2021, 17, 2006882. [Google Scholar] [CrossRef] [PubMed]
  62. Cui, W.R.; Zhang, C.R.; Liang, R.P.; Liu, J.; Qiu, J.D. Covalent Organic Framework Sponges for Efficient Solar Desalination and Selective Uranium Recovery. ACS Appl. Mater. Interfaces 2021, 13, 31561–31568. [Google Scholar] [CrossRef] [PubMed]
  63. Wang, K.; Jia, Z.; Bai, Y.; Wang, X.; Hodgkiss, S.E.; Chen, L.; Chong, S.Y.; Wang, X.; Yang, H.; Xu, Y.; et al. Synthesis of Stable Thiazole-Linked Covalent Organic Frameworks via a Multicomponent Reaction. J. Am. Chem. Soc. 2020, 142, 11131–11138. [Google Scholar] [CrossRef] [PubMed]
  64. Paul, R.; Chandra Shit, S.; Mandal, H.; Rabeah, J.; Kashyap, S.S.; Nailwal, Y.; Shinde, D.B.; Lai, Z.; Mondal, J. Benzothiazole-Linked Metal-Free Covalent Organic Framework Nanostructures for Visible-Light-Driven Photocatalytic Conversion of Phenylboronic Acids to Phenols. ACS Appl. Nano Mater. 2021, 4, 11732–11742. [Google Scholar] [CrossRef]

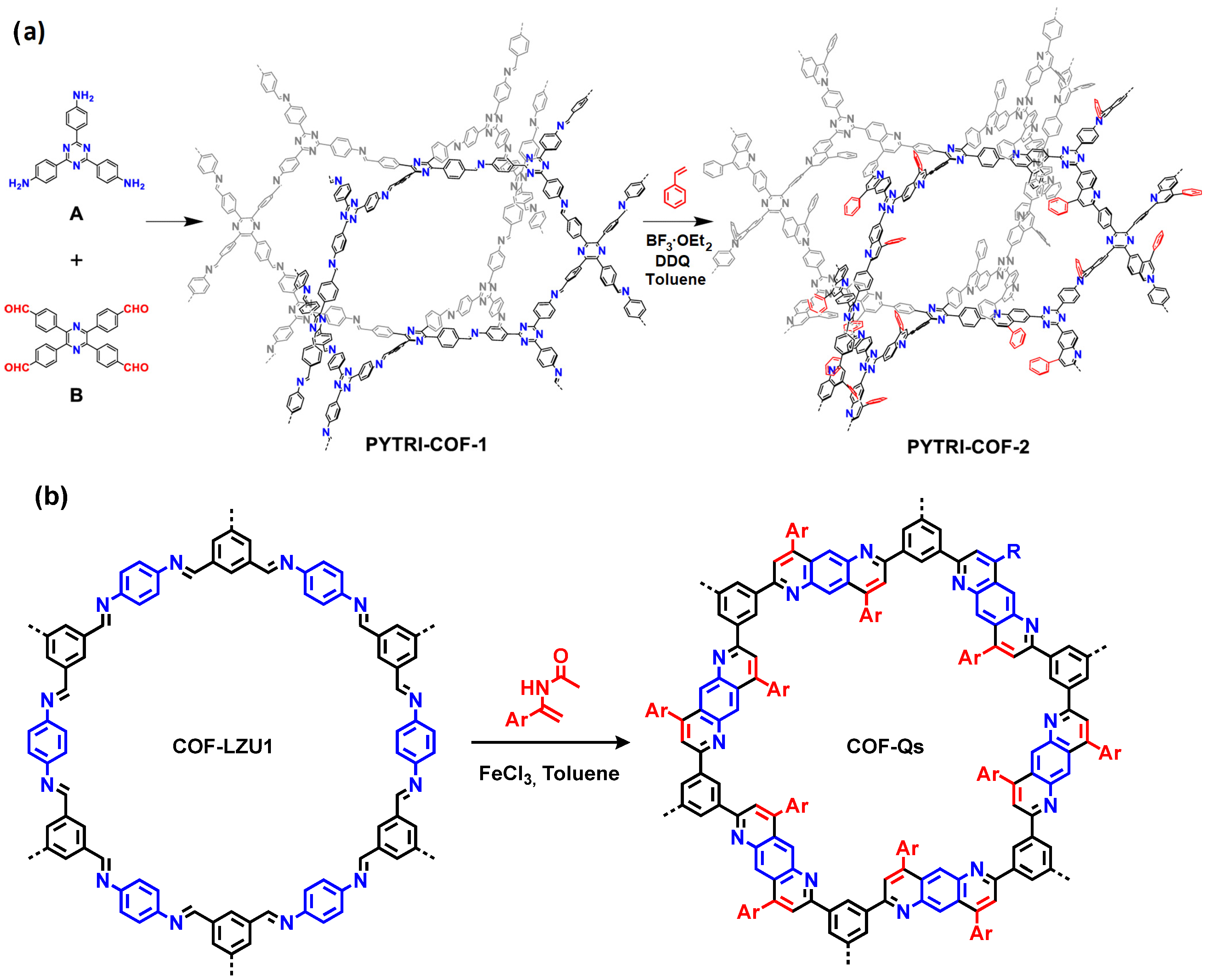

Figure 2. (a) Synthesis and PSM of PYTRI-COF-1. Adapted with permission from ACS Appl. Mater. Interfaces 2023, 15, 830–837 (Ref. [40]). Copyright 2023 American Chemical Society. (b) Fe(III)-catalyzed Povarov reaction with diverse enamines. Adapted with permission from Chemical Engineering Journal 2022, 448, 137,687 (Ref. [41]), published by Elsevier.
Figure 2. (a) Synthesis and PSM of PYTRI-COF-1. Adapted with permission from ACS Appl. Mater. Interfaces 2023, 15, 830–837 (Ref. [40]). Copyright 2023 American Chemical Society. (b) Fe(III)-catalyzed Povarov reaction with diverse enamines. Adapted with permission from Chemical Engineering Journal 2022, 448, 137,687 (Ref. [41]), published by Elsevier.
Encyclopedia 03 00057 g002
Figure 3. Examples of the OP synthesis of quinoline-based COFs. (a) OP multicomponent reactions for obtaining QB-COF. (b) OP cascade reaction for obtaining an example of chromenoquinoline-functionalized COF LZU-603 [47].
Figure 3. Examples of the OP synthesis of quinoline-based COFs. (a) OP multicomponent reactions for obtaining QB-COF. (b) OP cascade reaction for obtaining an example of chromenoquinoline-functionalized COF LZU-603 [47].
Encyclopedia 03 00057 g003
Figure 4. Rhodium-catalyzed production of quinoline-based COFs by PSM and OP methodologies.
Figure 4. Rhodium-catalyzed production of quinoline-based COFs by PSM and OP methodologies.
Encyclopedia 03 00057 g004

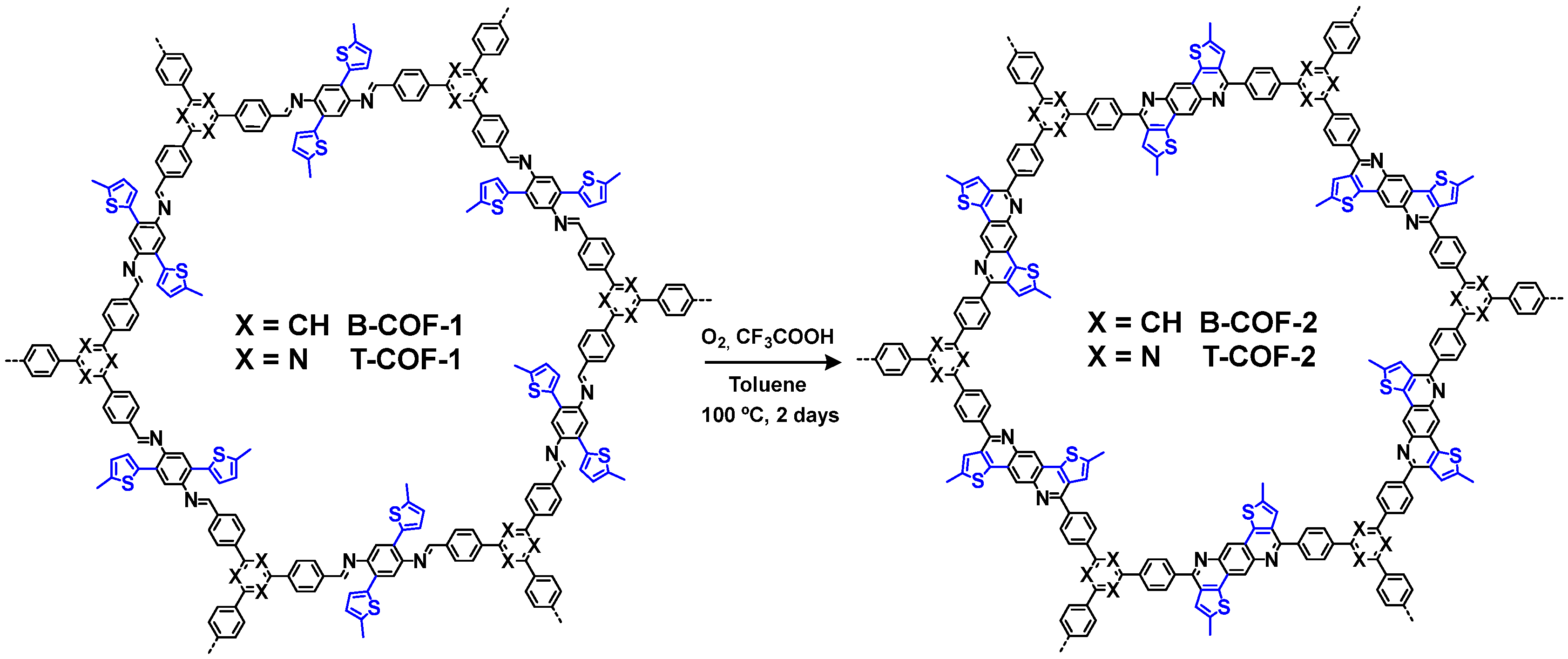

Figure 5. Pictet–Spengler oxidative cyclization of B-COF-1 and T-COF-1 [51].
