Recent Advances in Digital Fringe Projection Profilometry (2022–2025): Techniques, Applications, and Metrological Challenges—A Review

Abstract

Digital fringe projection profilometry (DFPP) is a widely used technique for full-field, non-contact 3D surface measurement, offering precision from the sub-micrometer-to-millimeter scale depending on system geometry and fringe design. This review provides a consolidated synthesis of advances reported between 2022 and 2025, covering projection and imaging architectures, phase formation and unwrapping strategies, calibration approaches, high-speed implementations, and learning-based reconstruction methods. A central contribution of this review is the integration of these developments within a metrological perspective, explicitly relating phase–height transformation, fringe parameters, system geometry, and calibration to dominant uncertainty sources and error propagation. Recent progress highlights trade-offs between sensitivity, robustness, computational complexity, and applicability to non-ideal surfaces, while learning-based and hybrid optical–computational approaches demonstrate substantial improvements in reconstruction reliability under challenging conditions. Remaining challenges include measurements on reflective or transparent surfaces, dynamic scenes, environmental instability, and real-time operation. The review outlines emerging research directions such as physics-informed learning, digital twins, programmable optics, and autonomous calibration, providing guidance for the development of next-generation DFPP systems for precision metrology.

1. Introduction

Three-dimensional surface measurement is essential across industrial, biomedical, cultural heritage, and manufacturing environments, where digital fringe projection profilometry (DFPP) provides full-field, non-contact geometry reconstruction through structured illumination and phase analysis with sub-millimeter to micrometer precision [1,2]. DFPP has surpassed coordinate measuring machines, laser triangulation, and passive stereovision in applications including in-line inspection, additive manufacturing monitoring, surgical planning, and artifact documentation [3,4]. Its evolution from early structured-light demonstrations [5] to modern digital projection with improved fringe quality [2] has enabled operation in dynamic scenes, reflective or low-texture surfaces, discontinuous geometries, and challenging ambient conditions [4,6]. Recent advances include modeling frameworks linking uncertainty to system parameters [1], hierarchical unwrapping and multi-frequency strategies [7], learning-based phase retrieval [8], quasi-calibration approaches [9], multi-projector configurations for occlusion compensation [3], and computational optimization of fringe orientation [10], all contributing to the rapid expansion of DFPP capabilities and applications.

Despite this progress, the literature from 2022 to 2025 remains fragmented. Earlier reviews have provided valuable descriptions of general principles, historical evolution, and specific system configurations [2,4], yet several key developments have not been synthesized into a unified framework. Advances such as AI-based phase processing [8], adaptive fringe parameter control [11], ultra-high-speed acquisition exceeding 100,000 fps [12], single-shot reconstruction for non-ideal surfaces [13], and explicit uncertainty modeling [1,14] are typically discussed in isolation, without integration into a metrological perspective. Similarly, strengths documented in recent literature—such as robustness to environmental perturbations [15], improved accuracy through hierarchical unwrapping [2], dual-camera fusion for occlusion mitigation [15], and successful deployment in additive manufacturing [16] and biomedical surface capture [3]—remain unconnected within a coherent analytical structure. As a result, there is currently no review that consolidates physical principles, computational advances, system-level innovations, and uncertainty considerations into an integrated view tailored to precision metrology.

The period 2022–2025 is particularly relevant because DFPP has been influenced simultaneously by breakthroughs in deep learning, computational optics, high-speed projection, flexible calibration pipelines, and improved modeling of measurement uncertainty. These concurrent advances have altered the trade-offs between sensitivity, robustness, computational complexity, and operational range, making a consolidated and critically informed review both timely and necessary. This article therefore provides an integrated synthesis that relates DFPP fundamentals to system behavior, algorithmic performance, and metrological reliability. It combines recent progress in phase extraction, phase unwrapping, calibration strategies, high-speed hardware, and multi-projector architectures with emerging trends in learning-based reconstruction and adaptive illumination, emphasizing how these developments influence uncertainty sources, error propagation, and practical measurement performance.

In addressing these aspects, the present review articulates a comprehensive perspective that spans fundamental principles, system configurations, calibration methods, phase acquisition and extraction, unwrapping techniques, computational and machine learning algorithms, hardware advances, representative applications, and metrological challenges. Articles published between 2022 and 2025 were selected based on DFPP relevance, experimental validation, and applicability to industrial, biomedical, and microscale measurement scenarios, while earlier or non-validated works were excluded. By linking theoretical foundations with applied developments and emerging needs, this review establishes a coherent framework for understanding the current capabilities, limitations, and opportunities of DFPP for precision metrology.

The manuscript is organized as follows. Section 2 revisits the fundamental principles of DFPP and the relationship between phase and surface geometry. Section 3 describes system components, optical configurations, and calibration procedures. Section 4 reviews phase acquisition, extraction, and unwrapping methods. Section 5 presents representative applications. Section 6 discusses current challenges and emerging directions, and Section 7 concludes the review.

2. Fundamental Principles of DFPP

2.1. Optical Triangulation and Geometric Foundations

Digital fringe projection profilometry relies fundamentally on optical triangulation: a projector emits structured sinusoidal patterns onto the surface, and one or more cameras capture their deformation, enabling depth estimation through the geometric relationships between devices and the object under epipolar constraints [17,18]. In this stereo-like configuration, the projector behaves as an inverse camera, forming a constrained epipolar geometry between the optical centers and reducing correspondence search to a single dimension [19], as illustrated in Figure 1. This geometric foundation determines how phase values map to three-dimensional coordinates and sets the intrinsic sensitivity limits of DFPP.

The core mathematical link between measured phase and object height follows from this triangulation structure. Prior work has shown that phase-based and geometry-based formulations are equivalent under both coplanar and non-coplanar setups, provided the correct geometric transformations are applied. The relation connects pixel coordinates, measured phase, and world coordinates through camera intrinsics, projector intrinsics, and their relative pose. A simplified form of the phase–height model is given by

$$Z={\displaystyle \frac{d·f_p}{d+\phi ·p/\left(2\pi \right)}},$$

(1)

where d is the baseline, $f_p$ the projector focal length, and p the fringe pitch. Although useful for intuition, this model assumes an ideal pinhole geometry. Real systems require full projective mappings accounting for lens distortion, misalignment, and calibration uncertainty, all of which strongly influence achievable precision.

More complete formulations apply the full projection chain. For the camera, the mapping from world to image coordinates is

$$s\left[\begin{array}{c}u\\ v\\ 1\end{array}\right]={\mathbf{K}}_c\left[{\mathbf{R}}_c\right|{\mathbf{t}}_c]\left[\begin{array}{c}X\\ Y\\ Z\\ 1\end{array}\right],$$

(2)

where ${\mathbf{K}}_c$ denotes the intrinsic matrix and $[{\mathbf{R}}_c\mid {\mathbf{t}}_c]$ describes the extrinsic transformation of the camera. An analogous pinhole model is adopted for the projector, which is treated as an inverse camera with phase encoded along the fringe projection direction. Combining both imaging models enables the phase-to-height transformation pipeline illustrated in Figure 2 [20]. In the reconstruction pipeline, the camera-acquired images used in the phase-shifting model are denoted as $I_n(x,y)$, while in Figure 2, representative captured frames are illustrated as $I_c^n$ for visual clarity. This framework constitutes the basis for all subsequent calibration and reconstruction procedures. For completeness, the main mathematical steps of the phase-to-height reconstruction are summarized below.

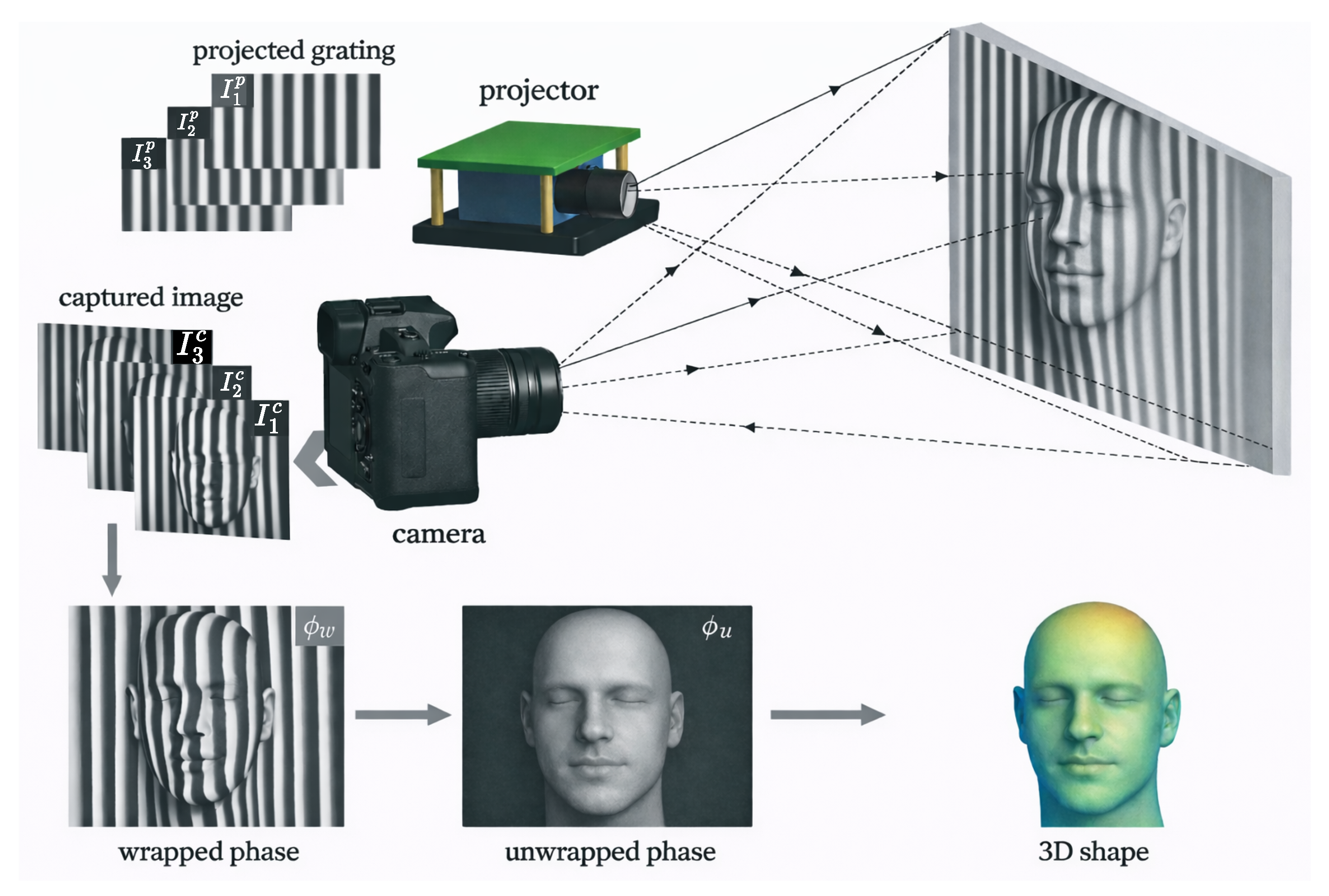

The three-dimensional reconstruction process begins with the acquisition of a sequence of N phase-shifted fringe images ${\left\{I_n(x,y)\right\}}_{n=1}^N$ captured by the camera. Under the standard phase-shifting model, the captured intensity at each pixel $(x,y)$ can be expressed as

$$I_n(x,y)=A(x,y)+B(x,y)cos\left[\varphi (x,y)+{\delta }_n\right],$$

(3)

where $A(x,y)$ represents the background illumination, $B(x,y)$ is the modulation amplitude, $\varphi (x,y)$ is the wrapped phase to be recovered, and ${\delta }_n=2\pi (n-1)/N$ denotes the known phase shift.

The wrapped phase ${\varphi }_w(x,y)$ is obtained via phase demodulation, typically using an N-step phase-shifting algorithm:

$${\varphi }_w(x,y)=arctan\left({\displaystyle \frac{{\sum }_{n=1}^N{I}_n(x,y)sin{\delta }_n}{{\sum }_{n=1}^N{I}_n(x,y)cos{\delta }_n}}\right),$$

(4)

where ${\varphi }_w(x,y)\in (-\pi ,\pi ]$ is spatially discontinuous due to the $2\pi$ ambiguity.

To recover a continuous phase distribution, a phase unwrapping procedure is applied. The unwrapped phase ${\varphi }_u(x,y)$ is related to the wrapped phase by

$${\varphi }_u(x,y)={\varphi }_w(x,y)+2\pi k(x,y),$$

(5)

where $k(x,y)\in \mathbb{Z}$ is an integer fringe order determined using spatial, temporal, or multi-frequency unwrapping strategies.

Once the unwrapped phase is obtained, it establishes a correspondence between camera pixels and projector coordinates along the fringe direction. Let $u_p$ denote the projector coordinate associated with ${\varphi }_u(x,y)$; this relationship can be written as

$$u_p(x,y)={\displaystyle \frac{P}{2\pi }}{\varphi }_u(x,y),$$

(6)

where P is the projector fringe period in pixels.

Finally, three-dimensional surface points $\mathbf{X}={(X,Y,Z)}^{\top }$ are reconstructed via triangulation by jointly solving the camera and projector projection equations:

$$\begin{array}{cc}\hfill s_c\left[\begin{array}{c}x\\ y\\ 1\end{array}\right]& ={\mathbf{K}}_c[{\mathbf{R}}_c\mid {\mathbf{t}}_c]\left[\begin{array}{c}\mathbf{X}\\ 1\end{array}\right],\hfill \\ \hfill s_p\left[\begin{array}{c}{u}_p\\ v_p\\ 1\end{array}\right]& ={\mathbf{K}}_p[{\mathbf{R}}_p\mid {\mathbf{t}}_p]\left[\begin{array}{c}\mathbf{X}\\ 1\end{array}\right],\hfill \end{array}$$

(7)

where ${\mathbf{K}}_p$,

${\mathbf{R}}_p$, and ${\mathbf{t}}_p$ denote the intrinsic and extrinsic parameters of the projector. Solving this system yields the final three-dimensional facial geometry.

Different geometric models—pinhole, ray-based formulations, or distortion-aware mappings—introduce distinct trade-offs in sensitivity, robustness, and calibration requirements. Pinhole models offer analytic simplicity but are more sensitive to extrinsic misalignment; ray-based formulations increase robustness at the cost of computational complexity; distortion-aware models improve accuracy near field-of-view boundaries but demand more elaborate calibration. These choices determine how efficiently the system converts measured phase into reliable depth and directly constrain the magnitude of propagated uncertainty.

The triangulation geometry also sets the achievable measurement precision. A larger baseline increases depth sensitivity but amplifies occlusions and makes calibration more demanding. Conversely, narrow-baseline setups improve coverage and reduce occlusions but decrease height resolution. These geometric trade-offs propagate directly into the phase-to-height mapping and influence the stability of phase unwrapping in later stages. In practice, the triangulation model defines the upper bounds of measurement fidelity and explains why calibration accuracy is a dominant factor in DFPP performance.

Because of this, the geometric foundations discussed here underpin all subsequent sections. The calibration procedures in Section 3 rely directly on the projection models of Equations (1) and (2), and the precision limits discussed in applications and challenges later in the review are fundamentally governed by the baseline, triangulation angle, and sensitivity relationships established in this subsection.

2.2. Fringe Formation, Phase Encoding, and Phase Extraction

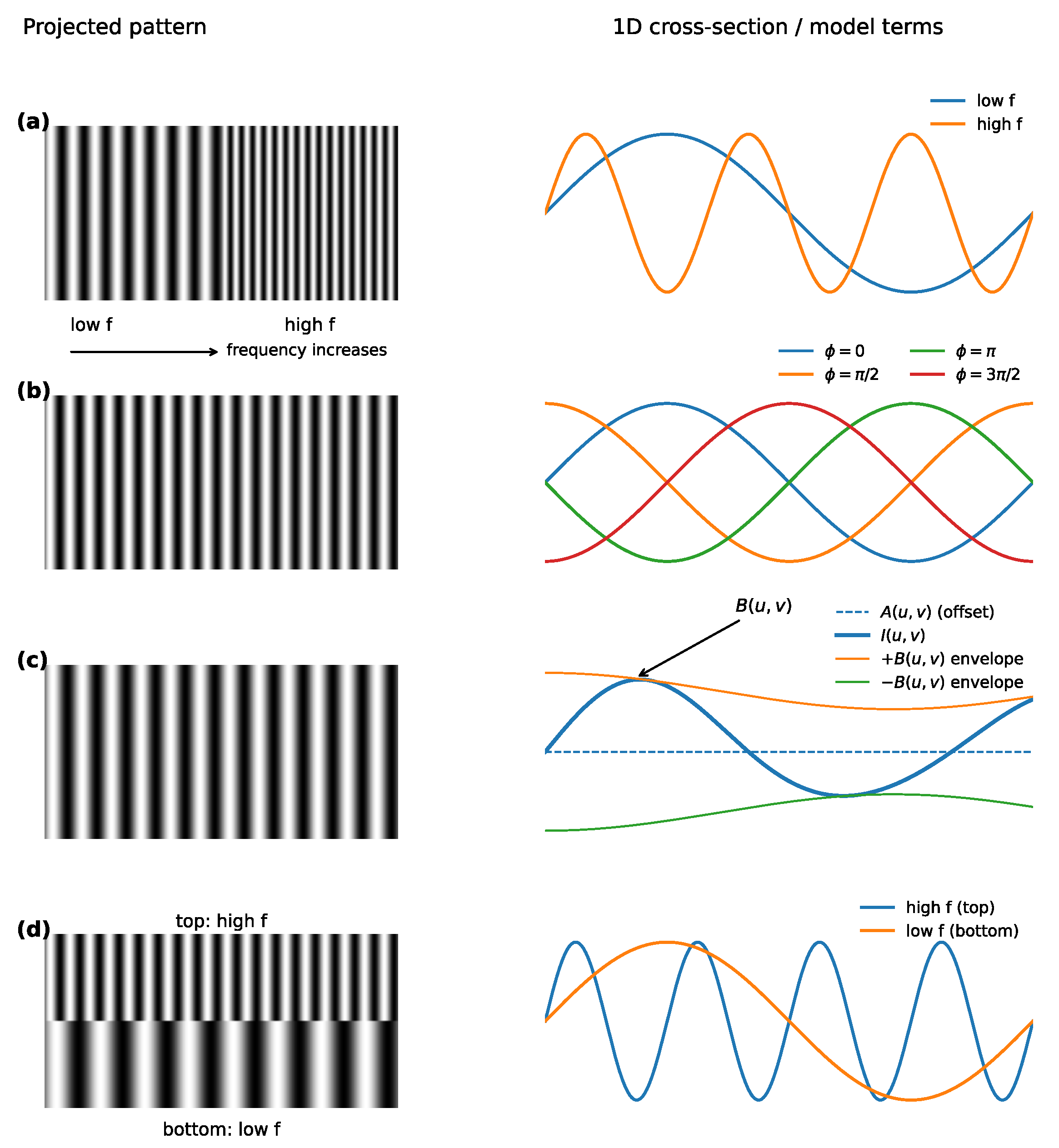

The formation of sinusoidal fringe patterns and their spatial–temporal modulation define the information content used for three-dimensional reconstruction in DFPP. The projector generates periodic structured illumination that encodes phase on the object surface, while the camera records the resulting intensity distribution. The captured signal is commonly modeled as

$$I(u,v,t)=A(u,v)+B(u,v)cos\left[\phi \right(u,v)+\delta (t\left)\right],$$

(8)

where $A(u,v)$ represents the background illumination, $B(u,v)$ denotes the modulation amplitude governing fringe contrast, $\phi (u,v)$ is the phase associated with surface height, and $\delta \left(t\right)$ corresponds to the applied phase shift. The term $B(u,v)$ depends on surface reflectivity, projector contrast, and camera dynamic range, and directly influences phase signal-to-noise ratio. Reduced modulation amplitude, caused by low reflectance or strong specularity, increases phase noise ${\sigma }_{\phi }$ and degrades measurement robustness.

Spatial modulation determines the projected fringe frequency and orientation, thereby controlling the trade-off between phase sensitivity and ambiguity. Low spatial frequencies yield robust phase estimates with a wide unambiguous range, whereas higher spatial frequencies increase depth sensitivity but are limited by projector resolution, contrast transfer, and the Nyquist sampling condition. Excessively high frequencies are more susceptible to defocus, modulation transfer degradation, and phase discontinuities. Multi-frequency spatial modulation mitigates these limitations by combining coarse frequencies for reliable ambiguity resolution with fine frequencies for enhanced precision [21]. As a result, spatial frequency selection plays a critical role in both phase stability and subsequent unwrapping performance.

Temporal modulation employs controlled phase shifts ${\delta }_n=2\pi n/N$ to extract wrapped phase values. In phase-shifting profilometry, the wrapped phase is computed as

$$\phi (u,v)=arctan\left[{\displaystyle \frac{{\sum }_n{I}_{n}sin\left({\delta }_n\right)}{{\sum }_n{I}_{n}cos\left({\delta }_n\right)}}\right],$$

(9)

where N denotes the number of projected patterns. Typical implementations use $N=3,4,$ or more steps, with larger N improving noise immunity at the expense of increased acquisition time [22]. In dynamic scenes, shorter sequences reduce motion artifacts but offer lower robustness. Temporal encoding further enables multi-frequency phase unwrapping, in which coarse patterns guide the unwrapping of fine patterns to extend the unambiguous measurement range without degrading sensitivity [23,24]. Representative spatial and temporal fringe modulation strategies are illustrated in Figure 3.

Hardware characteristics impose additional constraints on modulation choices. Projector gamma nonlinearity reduces sinusoidal fidelity, while camera MTF and noise characteristics limit the usable fringe contrast. Defocus of either device further lowers $B(u,v)$, increasing ${\sigma }_{\phi }$ and degrading phase quality. As a result, the theoretical advantages of high-frequency or multi-step modulation must be balanced against projector–camera bandwidth, exposure range, and environmental illumination. These interactions highlight why modulation design cannot be separated from hardware considerations and why certain patterns are preferred in industrial settings where robustness outweighs ideal sensitivity.

Recent advances in deep learning have expanded modulation and extraction strategies. Convolutional networks can infer depth from single patterns, bypassing classical temporal phase shifting [25,26]. Learned modulation methods improve contrast, reduce the influence of ambient illumination, and compensate for nonlinear projector response [27]. Composite encoding approaches incorporate multiple orientations, frequencies, or binary cues within a single pattern and use neural networks for phase retrieval [28,29]. Hybrid codes combining Gray patterns, sinusoidal fringes, and spatial–temporal multiplexing achieve absolute phase with fewer projections and enhanced robustness [30,31,32].

The modulation and extraction principles presented in this subsection are essential for understanding the diversity of unwrapping methods reviewed later. Choices in spatial or temporal modulation affect phase ambiguity, noise propagation, and sensitivity, thereby influencing the stability of unwrapping and the reliability of the reconstructed surface. These relationships explain why modern DFPP algorithms increasingly integrate learned priors, adaptive modulation, or multi-frequency cues to compensate for optical imperfections, surface reflectivity variations, and hardware constraints.

2.3. Phase Unwrapping, Ambiguity Resolution, and Metrological Sensitivity

Phase unwrapping is a central component of DFPP because the extracted phase from Equation (9) is wrapped within the interval $(-\pi ,\pi ]$. The $2\pi$ discontinuity arises from the periodic nature of the sinusoidal fringes, and resolving this ambiguity is essential for converting wrapped phase into absolute height. The wrapped phase ${\phi }_w(u,v)$ satisfies

$${\phi }_w=\phi -2\pi k,$$

where k is an integer that must be correctly determined to recover the continuous phase field $\phi$. Incorrect estimation of k produces height discontinuities, spikes, or globally shifted surfaces. These effects are more pronounced on surfaces with steep gradients, low reflectivity, or local discontinuities, where the wrapped phase changes rapidly and local phase variation becomes unreliable for spatial unwrapping.

Spatial unwrapping approaches rely on path-following or graph-based propagation, assuming that the phase field varies smoothly across neighboring pixels. However, regions of low modulation $B(u,v)$, shadows, reflectivity changes, or saturation violate smoothness assumptions and make spatial unwrapping unstable. In industrial applications with sharp edges, specular materials, or complex textures, purely spatial unwrapping may propagate local errors across large regions. This behavior explains why multiple-frequency and hybrid methods remain widely used in high-precision environments.

Temporal and multi-frequency strategies address these challenges by projecting a sequence of phase-shifted or frequency-varied patterns. Coarse frequencies provide a large unambiguous range but lower sensitivity, while fine frequencies offer high precision but narrow unambiguous range. Their combination allows coarse-to-fine unwrapping, where the low-frequency phase guides unwrapping of the high-frequency phase [23,24]. Gray-code sequences further assist ambiguity resolution by identifying fringe order before applying phase-shifting profilometry (PSP), improving robustness to intensity discontinuities and shadows, especially in scenes with large depth variations or occlusions.

Hybrid unwrapping—integrating Gray patterns, synthetic wavelengths, binary coding, and multi-frequency sinusoidal illumination—combines the reliability of discrete codes with the precision of sinusoidal phase [30,31,32]. These approaches achieve absolute phase with fewer projections and improved resilience to reflectivity variation, making them suitable for dynamic scenes or field measurements where stability and acquisition time are both constrained.

Recent learning-based methods have introduced data-driven unwrapping strategies. Deep networks trained on synthetic or experimental wrapped-phase maps can predict the unwrapped phase or generate guidance fields to improve conventional unwrapping [33]. Physics-informed models embed triangulation constraints, propagation rules, and smoothness priors into their architecture [34], allowing them to recover phase across discontinuities, low-modulation areas, or ambiguous regions that challenge classical methods. These approaches bridge optical modeling and machine learning and are increasingly used in scenarios with strong reflectivity variation or motion, where traditional projections cannot be stabilized.

The metrological sensitivity of unwrapping is tightly linked to phase noise, modulation quality, fringe frequency, and triangulation geometry. Phase noise ${\sigma }_{\phi }$ propagates through the unwrapping stage, amplifying discontinuities when the phase gradient approaches $\pi$. High-frequency fringes increase depth sensitivity but raise the risk of phase jumps exceeding $\pi$, especially at steep surface transitions or under defocus. Similarly, a large triangulation angle increases height sensitivity but also increases occlusions, potentially causing phase discontinuities that complicate unwrapping. These relationships illustrate why unwrapping performance ultimately depends on the balance between sensitivity and robustness set by the modulation and geometry choices described earlier.

Phase errors subsequently propagate to height errors, linking unwrapping stability to final depth precision. Calibration inaccuracies, uncorrected geometric distortion, projector gamma nonlinearity, and environmental vibrations introduce systematic biases that cannot be corrected by unwrapping alone [35]. Measurement volume and spatial resolution further constrain performance: larger volumes reduce the effective pixel resolution on the object, increasing ${\sigma }_{\phi }$ and decreasing unwrapping stability [36,37]. These effects explain why microscopic DFPP systems achieve sub-micrometer precision, whereas large-scale or outdoor configurations typically reach millimeter-level accuracy [1].

Relative to other metrology methods such as laser triangulation, passive stereovision, time-of-flight, digital holography, and digital image correlation (DIC), DFPP offers high full-field accuracy but faces trade-offs in speed, reflectivity robustness, and sensitivity to environmental factors [38,39]. The evolution from heuristic unwrapping techniques to multi-frequency, hybrid, and now learning-based methods has expanded the applicability of DFPP to industrial inspection, biomedical imaging, and field scenarios, bridging physical modeling with data-driven refinements [1,33,34].

The principles described in this subsection establish the theoretical foundations required to understand the modern unwrapping algorithms analyzed in Section 4, the application-specific constraints discussed in Section 5, and the metrological challenges and uncertainty sources reviewed in Section 6. Phase ambiguity, noise propagation, and geometric constraints collectively define the practical limits of DFPP accuracy and motivate ongoing research toward more stable, adaptive, and model-informed unwrapping strategies.

3. System Components and Architecture

Digital fringe projection profilometry (DFPP) relies on a tightly coupled interplay between projection hardware, imaging sensors, geometric configuration, optical design, synchronization electronics, and calibration procedures. Each subsystem imposes metrological constraints that govern final accuracy, robustness, speed, and operational range. Recent advances in projection devices, sensor architectures, and computational design have expanded DFPP capabilities across industrial, biomedical, and scientific applications [28,40,41,42,43,44]. This section provides a comparative and interpretive synthesis of system components, emphasizing metrological implications and design trade-offs. Given the scope of this review, methodological descriptions are intentionally concise, and readers seeking detailed derivations or implementation details are referred to the cited literature.

3.1. Projection Technologies

Modern DFPP systems employ four principal projection technologies: Digital Light Processing (DLP), Liquid Crystal Display (LCD), Liquid Crystal on Silicon (LCoS), and emerging MEMS-based binary or composite mask systems. Performance varies significantly in terms of contrast, modulation transfer function (MTF), refresh rate, wavelength stability, and susceptibility to nonlinearities.

DLP projection relies on micro-mirror arrays that provide high contrast, fast binary switching exceeding 10 kHz, and robust phase stability [40,45,46]. However, the finite tilt of mirrors introduces depth-dependent geometric distortion, mitigated by pixel remapping and diamond-grid compensation [47]. DLP is preferred for high-speed measurements, dynamic scenes, and industrial environments due to strong SNR and stability.

LCD projectors employ continuous grayscale modulation without dithering artifacts but suffer from lower contrast ratios (1000:1–2000:1) and higher sensitivity to ambient light [45]. Their reduced fringe visibility leads to larger phase noise, making LCD more suitable for educational or low-cost systems rather than precision metrology.

LCoS projectors provide the highest spatial resolution (up to 4K), near-zero pixel gaps, and excellent MTF for complex fringe synthesis [40]. Their reflective architecture supports holographic and multi-level phase modulation but at the cost of lower refresh rates (60–120 Hz), making them less suited for high-speed DFPP applications.

Recent innovations include intermediate-bit projection, binary half-truncated fringes, and binary phase masks that boost contrast while retaining high-speed operation [42,48]. MEMS-based fringe superimposition further increases spatial resolution [43]. Deep-learning-driven projector precoding corrects nonlinearities and enhances pattern fidelity in non-ideal conditions [49,50]. A comparative summary of the main DFPP projection technologies and their key performance characteristics is provided in

Table 1. Comparative performance of projection technologies in DFPP.

Technology	Contrast	Refresh Rate	Resolution	Metrological Strengths
DLP	2000:1–5000:1	Up to ∼10 kHz	HD–2K	High SNR, dynamic scenes, industrial robustness
LCD	1000:1–2000:1	60–240 Hz	HD–4K	Low cost, smooth grayscale modulation
LCoS	≥3000:1	60–120 Hz	2K–4K	Maximal fidelity, microscale measurement
Binary/MEMS	High (binary)	>10 kHz	Varies	Ultra-fast, resistant to nonlinearities

.

From a metrological perspective, DLP maximizes phase stability and noise robustness; LCoS maximizes spatial resolution; LCD minimizes cost; and MEMS/binary-mask systems maximize speed and suppress nonlinear gamma artifacts [40,42,48].

3.2. Imaging Sensors

DFPP performance is strongly influenced by imaging sensor architecture. CCD, CMOS, and hybrid 3CCD or TDI sensors define noise characteristics, spectral response, shutter behavior, dynamic range, and temporal resolution.

CCD sensors exhibit superior low-noise behavior, uniform charge transfer, and strong spectral sensitivity, enabling high-precision measurements in low-light settings [51,52,53]. However, CCDs suffer from low frame rates and higher power consumption. They remain dominant in microscale, high-precision, and holographic applications [54].

CMOS sensors now match or surpass CCDs in resolution (>20 MP), speed (hundreds to thousands of fps), and integration (on-chip ADC, exposure control, noise shaping) [55,56,57]. CMOS excels in dynamic measurements, high-speed deformation, and event-driven reconstruction [58].

Hybrid architectures (3CCD, CMOS-on-CCD, and TDI sensors) offer improved color fidelity, reduced crosstalk, and enhanced linearity [54,59]. They support simultaneous shape + deformation measurement and are preferred for high-end industrial inspection. A comparison of CCD, CMOS, and hybrid imaging sensors and their main characteristics for DFPP systems is summarized in

Table 2. Comparison of CCD, CMOS, and hybrid sensors for DFPP.

Sensor Type	Strengths	Limitations	Applications + References
CCD	Low noise, high QE, uniform pixels	Low speed, high power	Microscale, holography [52,54]
CMOS	High speed, low cost, integrated ADC	Higher pixel noise	Dynamic 3D imaging [55,57]
3CCD/HYBRID	No crosstalk, high color fidelity	Cost, complexity	Shape + deformation [54]
TDI	High sensitivity at speed	Complex optics	Industrial inspection [59]

.

Metrologically, CCDs minimize ${\sigma }_I$ but constrain frame rate; CMOS maximizes temporal resolution at the cost of increased noise; hybrids maximize radiometric linearity and color decoupling.

3.3. Geometric Configurations

DFPP systems employ monocular, binocular, and multi-projector/multi-view configurations depending on occlusion robustness, precision requirements, and scene complexity. Monocular systems are compact, easy to calibrate, and cost-effective. However, they suffer from occlusions and reflectance-induced dropout. They are ideal for simple objects and controlled lighting. Binocular systems add a second camera, improving phase consistency, reducing sensitivity to surface reflectance, and stabilizing phase unwrapping in discontinuous surfaces [60]. Their calibration is more demanding but provides improved robustness.

Multi-projector systems reduce shadows and occlusions by illuminating from multiple angles [60]. Emerging dual-projector deep-learning models achieve single-shot full-field reconstruction by learning multi-view fusion [61]. A comparison of the main geometric configurations used in DFPP systems is presented in

Table 3. Comparison of geometric configurations for DFPP.

Configuration	Advantages	Limitations	Applications	Precision
Monocular	Compact, low cost	Occlusions, reflectance sensitivity	Education, small objects	10–50 $\mathsf{\mu }$m
Binocular	Better robustness, stereo fusion	More calibration steps	Industrial inspection	5–20 $\mathsf{\mu }$m
Multi-projector	Minimal shadows, full coverage	Sync complexity	Complex shapes	1–10 $\mathsf{\mu }$m

.

3.4. Optical Design and Metrological Constraints

Optical design determines MTF, depth-dependent magnification, distortion, and calibration stability. DFPP systems employ conventional optics, telecentric lenses, Scheimpflug geometries, chromatic confocal elements, and multi-axis setups, whose main characteristics, strengths, and limitations are summarized in

Table 4. Optical configuration comparison.

Optics	Strengths	Limitations	Precision	Use Cases
Conventional	Flexible FOV	Distortion	10–100 $\mathsf{\mu }$m	General
Telecentric	Constant magnification, no perspective distortion	Narrow FOV	1–10 $\mathsf{\mu }$m	Precision metrology
Scheimpflug	Large DOF	Complex geometry	5–20 $\mathsf{\mu }$m	Large objects
Multi-axis	Occlusion-free	Calibration-heavy	1–5 $\mathsf{\mu }$m	Industrial/robotics

.

Telecentric lenses maintain constant magnification and suppress perspective distortion, improving calibration repeatability and phase–height linearity [62,63]. They are ideal for precision surface metrology.

Scheimpflug imaging enables large depth-of-field and tilted projections, reducing multi-reflection artifacts and occlusions [64,65]. It is suitable for large objects and industrial scenes.

Multi-axis configurations combine several tilted cameras and projectors, improving phase-space correlation and reconstruction from multiple viewpoints [66,67].

3.5. Synchronization and Timing

Temporal synchronization is critical in dynamic or high-speed DFPP. FPGA-based controllers, event-driven sensors, and adaptive exposure help maintain phase coherence [23,58,68].

High-speed systems achieve 500–100,000 fps using binary fringes, single-shot deep-learning demodulation, and TDI sensors [29]. Hardware desynchronization produces phase jumps and motion artifacts; temporal phase-order tracking mitigates these issues [23].

3.6. Calibration

Calibration couples geometry, photometry, and physical modeling. Accurate calibration minimizes geometric bias, improves linearity, and stabilizes phase–height mapping [41,69,70].

Geometric calibration determines intrinsic/extrinsic parameters through checkerboard or phase-based targets [71]. Advanced ray-based models handle nonlinear distortions and non-ideal lens behavior.

Photometric calibration corrects gamma nonlinearity, vignetting, and color-channel coupling. BOS-based thermal correction compensates air turbulence [44]. Deep-learning precoding corrects defocus and nonlinearity [50].

4. Phase Processing Techniques

Phase processing constitutes the core computational pipeline in structured light systems, transforming raw fringe patterns into accurate 3D geometric representations. This section comprehensively reviews contemporary methods for phase acquisition, unwrapping, and optimization, emphasizing recent advances in hardware synchronization, nonlinearity compensation, and single-shot approaches.

4.1. Phase Acquisition and Extraction

Phase acquisition methods determine the fundamental trade-off between measurement speed, accuracy, and robustness in fringe projection systems. Modern approaches can be classified into temporal methods (Phase-Shifting Profilometry, PSP) and spatial methods (Fourier Transform Profilometry, FTP), each with distinct advantages and application domains. Phase acquisition and phase unwrapping constitute the computational backbone for recovering continuous phase information from intensity-based measurements in optical metrology, interferometry, communication systems, and high-dimensional signal processing. Recent contributions span classical iterative optimization, multi-frequency strategies, deep learning, quantum optimization, and application-specific methods across optics, imaging, and communications. This section provides a concise synthesis in a single unified narrative, supported by one comparative table summarizing representative methods.

Phase acquisition (phase retrieval) has evolved through optimization-based approaches, iterative orthogonal normalization, and majorization–minimization frameworks that enable accurate reconstruction in the presence of noise and incomplete measurements [72,73,74]. Deep learning and diffusion-based models further extend retrieval performance, enabling high-fidelity estimations even in nonlinear or ill-posed scenarios [75,76]. Specialized domain-oriented algorithms, including accelerated Griffin–Lim solvers and quantum phase factor finding for quantum signal processing, address applications requiring provably convergent or extremely fast solvers [74,77]. Applications span spatial phase-shift shearography [78], fiber-optic sensing [79,80], GPS and spread-spectrum signal acquisition [81,82,83,84], and spaceborne gravitational-wave ranging where multi-frequency phase measurement is essential [85].

Phase unwrapping transforms wrapped phase in $[-\pi ,\pi ]$ into continuous phase and is challenged by noise, discontinuities, residues, and low-modulation regions. Spatial unwrapping—including path-following, minimum-norm, and residue-driven approaches—remains foundational [86,87,88,89,90,91,92]. Temporal approaches rely on multi-frequency or coded sequences and provide ambiguity resolution through frequency hierarchies [86,93,94]. Hybrid and quality-guided schemes integrate spatial–temporal cues through reliability maps, improving robustness under moderate noise [95,96]. Deep learning has transformed the field by predicting unwrapped phase directly, detecting discontinuities, or producing reliability masks, outperforming classical algorithms in speed and robustness [97,98,99,100,101]. Recent quantum optimization formulations have also been investigated for high-noise interferometry [102]. A representative comparison of phase acquisition and phase unwrapping methods, including their main characteristics and references, is summarized in

Table 5. Representative methods for phase acquisition and phase unwrapping with characteristic strengths and sample references.

Category	Key Characteristics + Representative Works
Iterative/Optimization	Robust under noise; convergence guarantees for specific domains; widely applicable in optics and signal processing [72,73,74].
Deep Learning/Diffusion	High reconstruction fidelity; strong robustness; direct wrapped-to-unwrapped prediction; discontinuity learning [75,76,97,98,100].
Temporal/Multi-Frequency	Ambiguity removal via frequency hierarchy; strong performance in dynamic measurement and long-range metrology [85,86,93,94].
Hybrid/Quality-Guided	Combined spatial–temporal reliability; improved tolerance to residues, low-SNR, and discontinuities [89,90,95,96].
Spatial Classical Methods	Path-following and minimum-norm solvers; well-established; sensitive to noise and discontinuities [87,88,91].
Quantum/Advanced Optimization	Global optimization for noisy interferometry; emerging technology [77,102].

.

4.1.1. Phase-Shifting Profilometry (PSP)

Phase-shifting profilometry remains the gold standard for high-precision 3D measurement due to its superior accuracy and noise immunity. Contemporary PSP implementations employ N-step algorithms (typically N = 3, 4, or 5) that project sequentially phase-shifted fringe patterns to extract wrapped phase information [103,104,105].

Recent advances focus on equal-step phase-shifting algorithms that effectively suppress motion-induced phase errors. Wu et al. [103] demonstrated that algorithms such as Stoilov and GEPS (Generalized Equal-step Phase-Shifting) provide superior robustness against harmonic noise and require fewer images than traditional approaches. The Stoilov algorithm exhibits particularly high noise immunity, while GEPS achieves comparable accuracy with reduced computational complexity [104].

For dynamic measurements, Liu et al. [105] proposed a phase deviation elimination method that compensates for object motion during multi-frame capture. This approach significantly extends PSP applicability to industrial scenarios involving moving parts or vibrating surfaces. Multi-frequency hierarchical methods further enhance measurement range by combining coarse and fine frequency patterns [106,107].

Nonlinearity correction represents a critical challenge in PSP systems. Gamma distortion from projectors and cameras introduces systematic phase errors that degrade measurement accuracy. Wang et al. [108] developed a shifted-phase histogram equalization method that corrects nonlinear intensity response without requiring explicit gamma calibration. More sophisticated approaches employ extended Kalman filtering [109] or stochastic gradient descent optimization [110] to estimate and compensate phase shift deviations in real-time.

Deep learning integration has revolutionized PSP error correction. Li et al. [111] demonstrated that attention-based U-Net architectures can perform pixel-wise gamma correction, reducing phase error standard deviation by up to 40% compared to classical methods. These neural approaches generalize across different hardware configurations without requiring recalibration.

4.1.2. Fourier Transform Profilometry (FTP)

Fourier Transform Profilometry enables single-shot 3D reconstruction by analyzing the frequency spectrum of a single deformed fringe pattern. The principal advantage of FTP lies in its measurement speed, making it ideal for dynamic scenes where multi-frame capture is impractical [112,113].

The FTP pipeline involves: (1) Fourier transformation of the captured fringe image, (2) spectral filtering to isolate the fundamental frequency component, (3) inverse Fourier transformation, and (4) phase extraction via arctangent computation. However, classical FTP suffers from inherent limitations including reduced spatial resolution due to spectral filtering and sensitivity to spectral overlap in complex geometries.

Recent methodological advances address these limitations through hybrid approaches. Seok et al. [112] proposed a single-shot calibration method combining FTP with geometric constraints, achieving calibration accuracy comparable to multi-shot techniques. Wang [113] introduced a fusion framework that combines FTP with line clustering algorithms, enhancing reconstruction quality for objects with sharp edges and discontinuities.

Fractional Fourier Transform (FrFT) approaches offer enhanced flexibility for phase extraction. Yang et al. [114] demonstrated that FrFT-based methods can simultaneously recover absolute phase and amplitude information from a single fringe pattern, mitigating the spectral ambiguity inherent in classical FTP. Auto-supervised deep learning frameworks further improve FTP robustness in the presence of noise and saturation [115].

4.1.3. Hybrid and Adaptive Methods

State-of-the-art systems increasingly employ hybrid strategies that combine temporal and spatial phase extraction to leverage the strengths of both approaches. Meng et al. [116] proposed a Hilbert transform-based method that enables efficient phase unwrapping with fewer fringe patterns, bridging the gap between PSP accuracy and FTP speed.

Adaptive algorithms dynamically adjust processing parameters based on local surface characteristics. Quality-guided approaches prioritize high-reliability regions during phase unwrapping, significantly reducing error propagation in challenging scenarios with discontinuities or low SNR [117,118]. These methods construct pixel-wise reliability maps based on fringe modulation, gradient magnitude, or neural predictions to guide the unwrapping path.

4.2. Phase Unwrapping Methods

Phase unwrapping resolves the fundamental $2\pi$ ambiguity inherent in arctangent-based phase extraction, converting wrapped phase (constrained to $[-\pi ,\pi ]$) into continuous absolute phase. The unwrapping problem becomes particularly challenging in the presence of noise, discontinuities, or low-modulation regions, requiring sophisticated algorithms that balance computational efficiency with robustness.

4.2.1. Temporal Phase Unwrapping (TPU)

Temporal phase unwrapping exploits information from multiple fringe patterns captured sequentially, using either multi-frequency or multi-wavelength encoding strategies. TPU methods are inherently robust against spatial discontinuities since they perform unwrapping on a pixel-by-pixel basis without requiring spatial continuity assumptions.

Multi-frequency heterodyne approaches represent the most widely adopted TPU strategy. Wu et al. [106] provided a comprehensive comparison between two-frequency phase-shifting and Gray-coded methods for dynamic measurements, demonstrating that two-frequency approaches achieve superior accuracy with fewer patterns. The hierarchical refinement proceeds from low-frequency (large synthetic wavelength) to high-frequency patterns, with each step refining the fringe order estimate [119].

Advanced TPU algorithms incorporate error compensation mechanisms. An et al. [23] introduced an unequal phase-shifting code that enables simultaneous temporal unwrapping with minimal pattern count, achieving measurement speeds exceeding 500 fps. Deep learning frameworks unify diverse TPU strategies within a single computational architecture [120], learning optimal unwrapping policies from synthetic training data that generalize across different frequency configurations.

The selection of optimal frequency ratios critically influences TPU robustness. Uhlig and Heizmann [121] developed a probabilistic framework for frequency design that minimizes unwrapping error under noise and maximizes the unambiguous measurement range. Their spatio-temporal hybrid approach combines temporal reliability with spatial consistency checks for enhanced accuracy.

4.2.2. Spatial Phase Unwrapping (SPU)

Spatial phase unwrapping recovers continuous phase from a single wrapped phase map by exploiting spatial phase continuity. Classical algorithms include path-following methods (e.g., Goldstein’s branch-cut algorithm), minimum-norm approaches, and quality-guided methods that prioritize unwrapping along high-reliability paths.

Quality-guided unwrapping has emerged as the most robust SPU strategy for structured light applications. Fang et al. [117] proposed a residue-guided method using second differences to detect and isolate discontinuities, enabling reliable unwrapping even in the presence of sharp depth changes. Gao et al. [118] developed a parallel unwrapping algorithm based on separated continuous regions, achieving real-time performance on multi-core processors.

Deep learning has revolutionized discontinuity detection in SPU. Wu et al. [122] demonstrated that convolutional neural networks can predict phase discontinuities in SAR interferograms with accuracy exceeding 90%, outperforming traditional cost flow methods. Zhong et al. [123] extended this approach to fringe projection systems, introducing a discontinuity-guided two-dimensional unwrapping method that segments the phase map based on neural discontinuity predictions before applying region-based unwrapping.

Modified minimum cost flow algorithms incorporate reliability metrics for enhanced performance. Zeng et al. [124] proposed a method that detects reliable pixels through local optimization after initial unwrapping, then applies minimum cost flow exclusively within high-confidence regions. This hybrid strategy reduces computational complexity while maintaining unwrapping accuracy in challenging scenarios.

4.2.3. Hybrid Temporal–Spatial Approaches

Contemporary systems increasingly adopt hybrid unwrapping strategies that combine temporal and spatial information for optimal performance. Ruan et al. [125] demonstrated that spatial ternary coding combined with circular fringe projection enables absolute phase retrieval with improved efficiency compared to pure temporal or spatial methods.

Hierarchical multi-frequency unwrapping exemplifies successful temporal–spatial fusion. Li et al. [126], Xing et al. [127] developed coarse-to-fine unwrapping schemes where low-frequency temporal unwrapping provides global guidance, while high-frequency spatial refinement preserves local details. Zhang et al. [128] introduced SFNet, a deep neural architecture that performs efficient and robust hierarchical unwrapping by learning optimal frequency combinations and spatial propagation patterns.

4.3. Single-Shot and Multi-Shot Approaches

The fundamental trade-off between acquisition speed and measurement precision defines the choice between single-shot and multi-shot structured light systems. Recent advances in spatial encoding, spectral multiplexing, and deep learning have significantly enhanced single-shot capabilities, while multi-shot methods continue to evolve toward higher precision and efficiency.

4.3.1. Single-Shot Methods

Single-shot approaches project and capture a single pattern, enabling measurement of dynamic scenes or moving objects. Spatial encoding strategies include color multiplexing (RGB, HSV), geometric coding (binary patterns, Gray codes), and pseudo-random patterns that embed depth information in spatial intensity variations.

Color-based single-shot methods offer high spatial resolution but suffer from chromatic crosstalk and sensitivity to surface color variations. Ochoa and García-Isáis [129] analyzed phase errors introduced by color phase-shifting profilometry on colored objects, identifying systematic biases that require wavelength-dependent calibration. Advanced color decoding algorithms employ spectral unmixing and machine learning to mitigate crosstalk effects.

Deep learning has emerged as a transformative technology for single-shot 3D reconstruction. Neural networks can learn direct mappings from deformed fringe patterns to 3D geometry, bypassing traditional phase extraction and unwrapping stages [60]. Deng et al. [115] proposed SEC-UNet3+, a specialized architecture for wrapped phase extraction from single-shot fringes, achieving accuracy comparable to four-step phase-shifting with 75% reduction in acquisition time.

Dual-projector single-shot systems leverage spatial baseline between two projection sources to resolve phase ambiguity. Li et al. [60] demonstrated that deep learning-driven dual-view reconstruction enables one-shot 3D measurement with submillimeter precision, combining the speed of single-shot approaches with the accuracy of stereovision.

4.3.2. Multi-Shot Optimization

Multi-shot methods project sequential patterns to enhance measurement accuracy through temporal redundancy. Recent research focuses on minimizing pattern count while maintaining precision. Cheng et al. [130] introduced compressive phase-shifting profilometry, which reduces the required number of patterns by 50% through optimized frequency selection and computational reconstruction.

Temporal encoding strategies have evolved toward higher efficiency. Han et al. [131] proposed complementary Gray code combined with phase-shifting, achieving absolute phase measurement with only six patterns. Wei et al. [132] developed a dynamic phase-differencing method with number-theoretical phase unwrapping and interleaved projection, enabling high-speed measurement of moving objects with minimal motion artifacts.

Synchronization and temporal optimization are critical for multi-shot accuracy. An et al. [23] introduced a phase-shifting temporal phase unwrapping algorithm that recognizes fringe order in real-time, supporting measurement speeds up to 1000 fps. Hardware-level synchronization using FPGAs ensures precise temporal alignment between projection and capture [68].

The choice between single-shot and multi-shot methods depends on application needs: multi-shot PSP (4–8 patterns) offers the highest accuracy for static metrology; single-shot FTP or learning-based approaches enable real-time 3D capture for dynamic scenes; hybrid 2–3-pattern strategies balance speed and precision in limited-motion scenarios; and industrial inspection often favors synchronized multi-shot schemes for high throughput with submillimeter precision. Advances in computational intelligence and optical engineering continue to narrow the gap between both strategies, providing increasing flexibility in structured-light system design.

5. Applications and Case Studies

As a preliminary overview,

Table 6. Representative application domains of DFPP with key characteristics and sample references.

Application Domain	Key Use Cases + Representative Works
Industrial & Aerospace	In-line inspection, AM process monitoring, reflective surface metrology, turbine blade measurement, multi-view inspection, robotic vision integration. [133,134,135,136,137] [65,138,139,140] [29,141]
Biomedical & Healthcare	Intraoral scanning, surgical planning (VSP), orthodontic design, implant guidance, tissue and biomechanics analysis, gait and posture assessment, personalized implants. [142,143,144] [145,146,147,148] [149,150]
Cultural Heritage	High-resolution digitization of artifacts, paintings, and manuscripts; microcrack detection; multi-view scanning, underwater and field documentation, preservation of fragile objects. [151,152,153] [154,155,156]
Microscale & Materials	MEMS inspection, semiconductor metrology, PCB analysis, reflective metal measurement, HDR and crosstalk mitigation, deep-learning single-shot microscale reconstruction. [37,157,158,159] [28,160,161,162,163]

presents the main use-case categories where DFPP is currently deployed, together with representative works that exemplify typical system requirements and operational constraints. These cases of use are introduced in the table to provide a structured summary before being discussed in greater depth in the following text. Building on this tabulated perspective, the broader comparison reveals how the applicability of DFPP across industrial, biomedical, cultural heritage, and microscale domains reflects both the maturity of the technique and the markedly different conditions that shape its practical performance in each context. Industrial and aerospace applications exploit the high speed and robustness of DFPP to deliver in-line inspection and sub-millimeter precision under harsh environments, although reflectivity, vibration, and thermal drift demand HDR projection, adaptive exposure, and multi-view redundancy.

Biomedical and healthcare workflows prioritize safety, non-contact acquisition, and anatomical fidelity; in these settings, the strengths of DFPP, such as accurate surface reproduction and seamless integration with AI-driven planning, outweigh limitations posed by occlusions or intraoral reflectivity. Cultural heritage preservation benefits from the ability of DFPP to capture delicate surfaces without physical contact, yet field operation introduces challenges such as uncontrolled lighting and environmental instability. At the microscale, DFPP enables extremely high-precision metrology for MEMS and semiconductor inspection, but doing so requires stricter calibration, vibration isolation, and careful management of depth-of-field constraints. Taken together, this case-study synthesis indicates that while all domains leverage the core advantages of DFPP, including high spatial resolution, real-time capability, and phase-based sensitivity, each application space imposes its own balance between accuracy, robustness, portability, and cost, underscoring DFPP as a flexible metrological framework rather than a single-purpose technology.

5.1. Industrial and Aerospace Applications

Digital fringe projection profilometry (DFPP) is widely adopted in industrial and aerospace metrology due to its fast, non-contact, and high-precision 3D measurement capabilities. In quality control and in-line inspection, DFPP enables real-time monitoring of additive manufacturing processes, detecting defects in powder bed layers during electron beam and laser powder bed fusion [133,134]. It also provides micrometer-scale inspection for PCB manufacturing and is effective for dimensional verification of metallic and electronic components where contact methods are impractical [135]. Advances addressing reflective surfaces—such as adaptive exposure [136], deep learning reconstruction [11,137], and multi-view systems [65]—support reliable inspection of polished aerospace components [138]. In aerospace component inspection, turbine blade metrology achieves chord length errors as low as 0.001% and thickness errors under 1% [29,139,140]. Hybrid systems integrating DFPP with conoscopic holography improve inspection in reflective or occluded regions [141].

Speed–accuracy trade-offs are addressed through single-shot and composite-pattern methods reaching up to 100,000 fps with sub-millimeter precision [28,29,164,165]. Robust calibration improves consistency across environments [65,166], supporting deployment in demanding industrial conditions. Robotic vision applications leverage high-resolution real-time 3D sensing [167,168] and deep learning-based single-shot reconstruction [13,28,161,169,170]. Synthetic datasets generated through virtual fringe projection and digital twins improve deep learning model generalization [160,171]. DFPP-based inspection systems deliver fast throughput and micrometer repeatability and remain robust under environmental variability [134,135]. Cost–benefit analyses highlight reduced scrap, faster production, and strong performance for high-value aerospace and automotive components [135,139]. Traceability and certification rely on calibration with referenced artifacts to meet industrial and aerospace standards [141,166].

5.2. Biomedical and Healthcare Applications

DFPP is increasingly applied in biomedical and healthcare contexts due to its non-contact operation and high accuracy. In dentistry and maxillofacial applications, intraoral fringe projection scanning provides precise digital impressions for prosthetics and orthodontics [142,143,144,145,146]. These data integrate with virtual surgical planning (VSP) tools for implant design and surgical guide fabrication [142,144,146]. AI and AR/MR systems further enhance planning accuracy and intraoperative guidance [142,144,146], while computer-assisted implant surgery improves precision and reduces complications [142,143,144,172,173,174]. In craniofacial and orthognathic surgery, custom guides and implants derived from DFPP and CT/CBCT data improve outcomes [147,148,149,150], further supported by neural shape completion for reconstructing missing anatomy [150]. Personalized implant design extends to orthopedics [175], craniofacial reconstruction [147,148,149], breast reconstruction [176], and cochlear implant placement [177].

DFPP also supports biomechanics and tissue analysis, enabling non-invasive assessment of skin deformation, facial movement, and musculoskeletal geometry for diagnostics and rehabilitation [148]. Whole-body or regional scanning systems provide metrics for posture, scoliosis progression, limb length discrepancy, and gait analysis without ionizing radiation [148]. Validation and standardization remain essential, requiring clinical studies, workflow optimization, and regulatory compliance regarding safety, biocompatibility, and data privacy [142,143,144,146,147,148,149]. Emerging directions include AI-driven planning, multi-modal imaging integration, and next-generation personalized implants [144,145,148,150]. Together, these advances position DFPP as a central technology in the evolution of personalized medicine.

5.3. Cultural Heritage and Specialized Applications

Digital fringe projection profilometry (DFPP) has become essential in cultural heritage preservation due to its non-contact, high-precision surface capture capabilities. It enables detailed 3D reconstruction of delicate artifacts, paintings, manuscripts, and archaeological sites without risking damage, supporting conservation, digital archives, and replica fabrication [151,152,153]. Museum collections benefit from high-resolution scans that reveal microcracks, layered structures, and subtle deformations invisible to conventional imaging [153,154]. Recent advances such as high-dynamic range acquisition, deep learning reconstruction, and single-frame FPP improve speed and adaptability under variable lighting [26,152,160,178,179]. Multi-view and handheld systems enable complete object modeling, while underwater adaptations allow documentation of submerged sites despite turbidity and refraction [28,155]. Archaeology benefits from in situ stratigraphy capture and digital twins that preserve excavation context [180]. Compared to photogrammetry and laser scanning, FPP offers superior detail for small or intricate objects, making hybrid workflows common [154,155,156]. These capabilities position FPP as a key tool for both on-site preservation and large-scale digital heritage initiatives.

5.4. Microscale, Materials, and Scientific Applications

At the microscale, DFPP serves as a precision tool for inspecting MEMS, semiconductor structures, and micro-fabricated components [37]. MEMS-based projectors enable compact, high-speed 3D measurement using micro-mirrors and vibration systems, achieving RMS errors as low as 0.037 mm [43,157,158,159,181]. Advanced ray models, pixel refinement, and anti-crosstalk methods improve accuracy in miniaturized systems [71,158,159]. Deep learning and digital twins now enable single-shot microscale reconstruction with sub-micrometer precision [27,28,160,161]. DFPP supports PCB inspection, semiconductor metrology, and additive manufacturing, while new modeling techniques refine measurement limits and guide system design [133]. In materials science, DFPP enables non-contact roughness analysis, surface treatment evaluation, and reflectivity-adaptive measurement using HDR and pixel-adaptive projection [182,183,184,185,186]. Polarization-based and hybrid methods improve performance on reflective metals [152,162,163,187], while deep learning restores saturated fringe data for fast reconstruction [163,188,189]. Specialized applications include thermal FPP for transparent materials [190], biological surface analysis and tissue morphology [37], and geological field documentation using portable and multi-modal systems [180]. These technological advances extend DFPP to increasingly complex scientific and industrial scenarios.

6. Current Challenges and Future Perspectives

6.1. Technical Limitations and Solutions

Despite significant advances, fundamental technical limitations continue to restrict widespread deployment of DFPP in certain applications. Addressing these challenges requires innovations in hardware design, algorithmic processing, and system integration strategies.

6.1.1. Environmental Sensitivity and Robustness

Environmental factors significantly impact measurement accuracy and reliability. Vibrations—from machinery, building motion, or air currents—introduce phase errors that degrade reconstruction quality. Temperature variations affect both optical component alignment and projected pattern geometry, causing systematic errors that accumulate over extended measurement sessions. Ambient lighting, particularly in industrial settings, can reduce fringe contrast and introduce noise [37,191].

Mitigation strategies span hardware and algorithmic approaches. Robust mechanical design incorporating vibration isolation and temperature-stabilized enclosures reduces environmental coupling. Adaptive algorithms adjust processing parameters based on detected environmental conditions, maintaining performance across varying operational contexts [152,186]. High-speed acquisition minimizes exposure to transient disturbances, with single-shot methods showing particular promise for vibration-prone environments [28,29].

6.1.2. Challenging Surface Properties

Problematic surface properties remain a primary limitation. Highly reflective surfaces cause pixel saturation, destroying phase information in affected regions. Transparent or translucent materials generate multiple internal reflections, violating single-surface assumptions and producing erroneous reconstructions. Dark surfaces with low reflectivity yield poor signal-to-noise ratios, limiting measurement precision [152,182,183].

High dynamic range techniques address reflectivity variations through multiple exposures or adaptive projection, maintaining optimal exposure across the surface [182,183,184,185,186]. Exposure fusion algorithms combine optimally exposed pixels from multiple captures, constructing composite phase maps with extended dynamic range [152,192]. Polarization-based methods suppress specular reflections through careful control of illumination and imaging polarization states [152,162,163,187].

Deep learning approaches show particular promise for challenging surfaces. Networks trained on diverse surface types, including saturated and low-contrast fringes, learn to recover phase information that traditional algorithms cannot process [163,188,189]. For transparent materials, thermal fringe projection using infrared imaging circumvents visible-light limitations [190].

Surface pre-treatment remains necessary for certain materials. Coating applications—powder sprays, liquid developers—provide diffuse reflection from otherwise problematic surfaces. However, coating introduces dimensional offsets and is unsuitable for many applications, particularly cultural heritage and biomedical contexts where surface modification is unacceptable.

6.1.3. Computational Complexity and Real-Time Processing

Computational demands constrain real-time operation, particularly for high-resolution measurements requiring complex phase unwrapping algorithms. Traditional path-following unwrapping methods exhibit poor parallelizability and struggle with discontinuities, while quality-guided approaches require computationally expensive quality map calculation [88,193,194].

Deep learning-based phase unwrapping offers dramatic computational advantages. Convolutional neural networks formulate unwrapping as pixel-wise classification or direct regression, enabling highly parallel GPU implementation [88,193,194,195,196,197,198]. PhaseNet 2.0 reformulates phase unwrapping as wrap-count prediction, achieving robust noise handling and computational efficiency [88]. One-step methods like DLPU and VUR-Net directly map wrapped to unwrapped phase without intermediate processing steps [193,194].

Specialized architectures incorporating multi-scale fusion, attention mechanisms, and residual connections demonstrate strong generalization to unseen data types [195,196,197,198]. Unsupervised and weakly supervised approaches reduce reliance on labeled training data, enabling adaptation to new measurement scenarios [199]. Hybrid methods combining simulation-driven datasets with real-world fine-tuning achieve robust performance across diverse applications [100,198].

Hardware acceleration through field-programmable gate arrays (FPGAs) and graphics processing units (GPUs) enables real-time processing of high-resolution data. Optimized implementations of core algorithms—phase extraction, unwrapping, and calibration—achieve frame rates suitable for dynamic scene capture and robotic vision [29,170].

6.1.4. Accuracy, Precision, and Error Propagation

Measurement uncertainty propagates through the entire processing chain, from calibration through final 3D reconstruction. Calibration errors in camera-projector geometric relationships introduce systematic biases that corrupt all subsequent measurements. Noise in captured images—from sensor dark current, photon shot noise, and quantization—degrades phase estimation precision. Temporal drift of system parameters due to thermal expansion, mechanical settling, or optical misalignment causes gradual accuracy degradation [1,166].

Advanced calibration methods incorporating ray-model parameterization, bundle adjustment, and cross-validation against certified references improve geometric accuracy [71,158,159]. Adaptive calibration strategies periodically update system parameters based on measurement of known references, compensating for temporal drift [166]. Self-calibration techniques exploit scene geometry or temporal consistency to refine parameters without external references.

Phase error modeling characterizes fundamental precision limits imposed by fringe quality, camera noise, and quantization effects [1]. These models guide system design by identifying dominant error sources and predicting achievable precision for given hardware specifications. Compensation algorithms address specific error mechanisms—such as gamma nonlinearity, projector defocus, and inter-reflections—through pre-calibration and runtime correction [159,200].

Validation against traceable measurement standards provides confidence in absolute accuracy. Comparison with coordinate measuring machines (CMMs), laser trackers, or certified reference artifacts quantifies systematic errors and validates uncertainty budgets for critical applications [139,140].

6.2. Emerging Trends and Technologies

The field of digital fringe projection profilometry is undergoing rapid transformation driven by advances in artificial intelligence, miniaturization, multi-modal integration, and distributed computing architectures. These trends are reshaping both research directions and practical deployments.

6.2.1. Artificial Intelligence and Deep Learning Integration

Artificial intelligence has emerged as a transformative force across all aspects of DFPP. Deep learning networks now address phase unwrapping, fringe analysis, surface classification, and automatic defect detection with superhuman performance in specific domains [11,88,193,194,195,196,197,198].

Beyond phase processing, neural networks enable end-to-end learning from raw fringe images to 3D reconstructions, bypassing traditional algorithmic pipelines. These approaches demonstrate remarkable robustness to non-ideal conditions—noise, saturation, discontinuities—that challenge conventional methods [13,28,161,167,169,170]. Single-shot absolute 3D measurement, previously requiring multiple pattern sequences, now achieves comparable accuracy from single composite patterns through learned fringe-to-phase mappings [28,29,161].

Generative models synthesize training data through digital twins and physics-based simulation, addressing data scarcity for supervised learning [160,171]. Unsupervised and self-supervised approaches learn from unlabeled fringe images, enabling adaptation without extensive ground-truth datasets [13,27,201]. Transfer learning allows models trained on one application domain to rapidly adapt to new contexts with minimal additional training.

Self-calibration networks automatically estimate and correct system parameters from measurement data, reducing dependence on manual calibration procedures [142,144]. Quality assessment networks predict measurement confidence for each surface point, enabling intelligent data fusion and anomaly detection. Super-resolution networks enhance spatial and temporal resolution beyond native sensor capabilities [29,170].

6.2.2. Miniaturization and Portable Systems

Miniaturization trends enable handheld and mobile DFPP systems for field deployment and point-of-use measurement. MEMS-based micro-projectors reduce system size and weight while maintaining adequate resolution and brightness for close-range scanning [157,158,181]. Compact LED illumination sources and small-format cameras facilitate integration into portable form factors.

Smartphone-based FPP systems leverage built-in cameras and displays for accessible 3D scanning, though with reduced accuracy compared to dedicated hardware. These platforms democratize access to 3D measurement technology for education, hobbyist applications, and rapid field documentation where moderate precision suffices. Integration with augmented reality frameworks enables real-time visualization of measurement results overlaid on physical scenes [142,144].

Battery-powered wireless systems support untethered operation for archaeological field work, construction site surveying, and mobile inspection scenarios. Cloud connectivity enables remote collaboration, with field technicians capturing data that specialists analyze remotely.

6.2.3. Multi-Modal and Hybrid Systems

Recognition that no single measurement modality optimally addresses all scenarios drives development of hybrid systems combining FPP with complementary techniques. Integration with photogrammetry leverages FPP’s high-resolution surface detail within photogrammetry’s global geometric framework, enabling accurate reconstruction across scales from millimeters to meters [154,180].

Fusion with laser scanning combines FPP’s dense surface sampling with laser scanning’s long-range and occlusion-handling capabilities [141]. Conoscopic holography provides high-precision point measurements in regions where FPP struggles, such as deep holes or highly specular patches [141].

Multi-spectral approaches project and image fringes at different wavelengths simultaneously, enabling disambiguation of fringe orders without temporal phase shifting. This accelerates measurement while maintaining absolute phase determination [161]. Polarimetric FPP captures polarization state alongside geometry, providing surface material characterization in addition to shape [152,187].

Tactile probing integration validates FPP measurements at critical features, providing ground truth for calibration and quality assurance. This is particularly valuable for metrological applications requiring traceable uncertainty quantification.

6.2.4. Edge and Cloud Computing Architectures

Distributed computing architectures intelligently partition processing between edge devices and cloud infrastructure. Real-time operations requiring low latency—live fringe projection control, basic phase extraction, preview rendering—execute on edge hardware at the measurement site. Computationally intensive tasks—high-resolution unwrapping, data fusion, machine learning inference—offload to cloud resources when latency permits [29].

Internet-of-Things (IoT) frameworks enable distributed monitoring across multiple DFPP sensors in manufacturing environments. Centralized data management aggregates measurements for statistical process control, trend analysis, and predictive maintenance. Edge intelligence reduces network bandwidth by transmitting only processed measurements or anomaly alerts rather than raw image streams.

Federated learning trains machine learning models across distributed DFPP systems without centralizing raw data, preserving privacy and reducing communication overhead. Models improve continuously from collective experience while data remains local.

6.2.5. Standardization and Open Ecosystems

Maturation of DFPP technology drives standardization efforts to ensure interoperability and facilitate technology transfer. Development of communication protocols—for camera-projector synchronization, measurement data exchange, and quality metrics—enables integration of components from multiple vendors [166].

Performance benchmarking frameworks establish standardized test procedures and metrics for comparing systems objectively. Certified reference artifacts with traceable geometry allow validation across laboratories and applications. Certification programs for critical applications—medical devices, aerospace metrology—define requirements for system validation and operator training.

Open-source hardware and software initiatives democratize access to DFPP technology. Community-developed calibration tools, processing libraries, and system designs lower barriers to entry for researchers and small enterprises. Collaborative development accelerates innovation through shared problem-solving and rapid dissemination of improvements [174].

6.3. Future Research Directions

Future research directions in DFPP can be broadly grouped according to (i) their expected time horizon (short- to mid-term versus long-term developments) and (ii) the dominant nature of the advances (algorithmic, hardware-related, or application-driven). This categorization provides a structured roadmap for researchers and practitioners seeking to anticipate and contribute to the evolution of the field.

6.3.1. Short- to Mid-Term Developments

Algorithmic Advances

Future DFPP systems will automatically adapt all parameters—projection patterns, exposure settings, processing algorithms—based on real-time assessment of measurement conditions, surface properties, and precision requirements. Adaptive algorithms will select optimal fringe frequencies, pattern orientations, and phase-shifting strategies for each scene region, maximizing information content while minimizing acquisition time [182,183,184,186].

Temporal super-resolution through deep learning will interpolate intermediate frames from sparse high-speed captures, effectively multiplying frame rates. Physics-informed neural networks will incorporate mechanical models, ensuring reconstructed dynamics obey physical constraints and improving accuracy for sparse measurements.

Hardware and System Integration

Self-diagnosing systems will continuously monitor their own performance, detecting calibration drift, optical misalignment, or component degradation before accuracy is compromised. Predictive maintenance alerts will prompt corrective actions, ensuring sustained metrological performance. Digital twins of measurement systems will simulate expected performance and identify anomalies by comparing predictions with actual measurements [160].

Novel illumination strategies will expand DFPP capabilities. Coherent vs. incoherent structured light trade-offs will be optimized for specific applications, with coherent illumination enabling interferometric precision and incoherent light reducing speckle and coherence artifacts. Artificial intelligence will generate adaptive patterns—tailored to specific surfaces or measurement objectives—that maximize phase quality and minimize ambiguities [13].

Spectral multiplexing will simultaneously project fringes at multiple wavelengths, encoding absolute depth through chromatic dispersion or enabling material discrimination through spectral reflectance analysis [161]. Ultraviolet and near-infrared projection will extend DFPP to fluorescence imaging and subsurface penetration for semi-transparent materials.

Application-Driven Developments

Extension to four-dimensional measurement (3D geometry plus time) will enable analysis of dynamic deformations, transient phenomena, and in situ mechanical property characterization. Ultra-fast FPP achieving 100,000 fps has been demonstrated, capturing high-speed events in manufacturing, biomechanics, and fluid dynamics [29,170].

Applications span impact testing, vibration analysis, cardiac motion tracking, and observation of rapid manufacturing processes like laser welding or powder bed fusion. Continuous 4D monitoring will reveal failure mechanisms, optimize process parameters, and validate computational simulations of dynamic systems.

Interdisciplinary research will adapt DFPP to previously inaccessible contexts. In vivo biomedical measurement—inside operating theaters or living organisms—requires biocompatible, sterile, and minimally invasive implementations. Endoscopic FPP for intraoperative guidance, robotic surgery, and internal organ characterization represents a frontier combining optical, robotic, and medical expertise [169,202].

6.3.2. Long-Term and Transformative Directions

Autonomous and Self-Optimizing Systems

Autonomous operation extends to novel scene types. When encountering unfamiliar surfaces or measurement challenges, systems will explore parameter spaces systematically, learning optimal configurations through trial and evaluation. This adaptive intelligence eliminates manual tuning and enables deployment by non-expert operators.

Advanced Physical Principles

Structured illumination microscopy principles will merge with FPP for super-resolution 3D imaging, potentially surpassing diffraction limits through computational reconstruction from multiple illumination patterns.

Quantum sensing principles may ultimately enhance DFPP precision beyond classical limits. Squeezed light reduces photon shot noise below the standard quantum limit, potentially improving phase measurement precision. Quantum entanglement between illumination and detection paths could enable sub-Rayleigh imaging or quantum ghost imaging with structured light.

While practical quantum-enhanced DFPP remains largely theoretical, proof-of-concept demonstrations are emerging in related optical metrology domains. As quantum technologies mature and miniaturize, integration with fringe projection may unlock fundamental precision improvements, particularly for photon-starved scenarios or radiation-sensitive samples.

Extreme Environment and Multi-Scale Applications

Nanotechnology applications demand integration with electron microscopy or atomic force microscopy to bridge length scales between optical and nanometer resolution. Correlative multi-scale measurement will connect FPP’s areal efficiency with scanning probe precision.

Extreme environments—deep space, underwater, high temperature, high pressure—challenge conventional DFPP implementations. Ruggedized systems for planetary exploration, subsea infrastructure inspection, or furnace monitoring require specialized materials, thermal management, and radiation hardening [155]. Autonomous operation with minimal human intervention becomes essential where access is restricted.

These frontiers demand collaboration across optics, materials science, mechanical engineering, computer science, and domain-specific expertise, highlighting DFPP’s role as an enabling technology for diverse scientific and industrial challenges.

7. Conclusions

This review set out to provide a unified and technically grounded synthesis of the principles, components, and computational methods that define modern DFPP, and the analysis presented throughout the manuscript supports this goal across both theoretical and applied dimensions. Beginning with the system architecture, the review examined how projection technologies, imaging sensors, geometric configurations, optical designs, and calibration strategies jointly determine the achievable measurement accuracy and robustness. The comparative evaluation of these subsystems shows that DFPP performance is not governed by isolated components, but by the interplay among optical design, synchronization, and calibration pipelines—an observation that aligns directly with the integrative perspective introduced in the abstract.

This review has shown that DFPP is no longer a niche optical technique but a mature and strategically important metrology framework whose performance is fundamentally shaped by the coordinated design of its optical, electronic, and computational subsystems. A key conclusion emerging from the analysis is that DFPP should not be understood as a fixed architecture, but as a design space where trade-offs between precision, speed, robustness, and cost must be explicitly negotiated. The comparative evidence presented throughout this work strongly supports this perspective.

On the hardware side, it is clear that the traditional assumption that “better components produce better measurements” is an oversimplification. Instead, DFPP precision stems from system coherence: projection technology must be matched to sensor noise characteristics; geometric configuration must reflect the expected surface topology; and calibration must be tailored to the specific optical distortions introduced by the chosen layout. Systems that fail to achieve this coherence—even when equipped with high-end components—perform noticeably worse than balanced, well-integrated designs. This reinforces the argument that DFPP excellence is primarily a systems-engineering challenge rather than a pure hardware race.

In the computational domain, the contrast between classical, hybrid, and learning-based methods identifies another major shift in DFPP: accuracy is increasingly determined by how intelligently phase is acquired, denoised, and unwrapped, rather than by how many patterns are projected. Multi-shot techniques still dominate in absolute precision, but the rapid convergence of learning-enabled single-shot approaches suggests that the traditional divide between “fast but coarse” and “slow but accurate” systems is narrowing. My interpretation is that DFPP is entering a new era in which algorithmic intelligence—not projection count—will be the principal driver of innovation.

The case studies discussed across industrial, biomedical, cultural heritage, and microscale applications further demonstrate that DFPP’s versatility is both its greatest strength and its greatest challenge. While industries value throughput, biomedical applications demand anatomical fidelity, heritage conservation requires non-invasiveness, and microscale inspection insists on extreme stability. What stands out across these comparisons is that no single DFPP configuration is inherently superior: each domain rewards a different balance of robustness, portability, optical complexity, and computational sophistication. This reinforces the central argument advanced in the abstract: DFPP succeeds precisely because it can be reconfigured, hybridized, and computationally augmented to meet highly divergent operational demands.

Taken together, the evidence presented in this review leads to a clear interpretive conclusion: the future of DFPP will be defined by tightly coupled hardware–software co-design, by deep learning models that internalize optical and geometric priors, and by digital twin ecosystems capable of simulating measurement pipelines end-to-end. The field is transitioning from incremental improvements toward fully adaptive, data-driven DFPP systems that automatically optimize their projection patterns, acquisition strategies, and reconstruction algorithms. In this sense, DFPP is evolving from a measurement technique into an intelligent metrology platform.

By integrating architectural analysis, algorithmic comparison, and domain-specific evaluation, this review not only consolidates the current state of the art but also argues for a forward-looking vision: DFPP will continue to expand its relevance as long as researchers embrace its inherently interdisciplinary nature, prioritizing system coherence, computational intelligence, and adaptability as the cornerstones of next-generation 3D metrology.
