Spectroscopic Real-Time Monitoring of Plasmonic Gold Nanoparticle Formation in ZnO Thin Films via Pulsed Laser Annealing

Physics Center of Minho and Porto Universities (CF-UM-UP), and the Department of Physics, University of Minho, 4710-057 Braga, Portugal
*
Author to whom correspondence should be addressed.
Submission received: 6 November 2025 / Revised: 5 December 2025 / Accepted: 22 December 2025 / Published: 24 December 2025
(This article belongs to the Section Microscale Physics)

Abstract

We demonstrate that pulsed laser annealing induces plasmonic gold nanoparticles in ZnO thin films, monitored in real-time via pulse-by-pulse spectroscopy. Initially embedded gold nanoparticles (smaller than 5 nm) in sputtered ZnO films were annealed using 532 nm pulses from a Q-switched Nd:YAG laser while monitoring transmission spectra in situ. A plasmonic resonance dip emerged after ~100 pulses in the 530–550 nm region, progressively deepening with continued exposure. Remarkably, different incident energies converged to a thermodynamically stable optical state centered near 555 nm, indicating robust nanoparticle configurations. After several hundred laser shots, the process stabilized, producing larger nanoparticles (40–200 nm diameter) with significant surface protrusion. SEM analysis confirmed substantial gold nanoparticle growth. Theoretical modeling supports these observations, correlating spectral evolution with particle size and embedding depth. The protruding gold nanoparticles can be functionalized to detect specific biomolecules, offering significant advantages for biosensing applications. This approach offers superior spatial selectivity and real-time process monitoring compared to conventional thermal annealing, with potential for optimizing uniform nanoparticle distributions with pronounced plasmonic resonances for biosensing applications.

1. Introduction

Plasmonic nanomaterials are widely employed as platforms for developing molecular sensors, while also enabling investigation of strong near-field and quantum effects. Plasmonic sensors have shown promise for diverse molecular sensing applications, including detection of volatile organic compounds [1,2], nanoplastics [3], and environmental contaminants such as pesticides and heavy metals [4,5], suggesting wide-ranging potential applications for plasmonic-based sensing. Nevertheless, few nanodevices have reached the market, highlighting a gap between laboratory demonstrations and practical implementation despite numerous publications demonstrating their potential [6]. Nanomaterials incorporating noble metal nanoparticles, particularly gold and silver, are among the most popular plasmonic systems because they exhibit remarkable optical responses in the visible range due to localized surface plasmon resonances (LSPRs). Plasmonic nanoparticles are employed for sensing because their LSPRs are sensitive to subtle changes in the refractive index (RI) of the surrounding environment. Such changes cause a spectral shift in the LSPR band peak or alterations to its line shape, which can be detected via transmittance LSPR spectroscopy [7].
Among the techniques available for developing plasmonic sensors, physical vapor deposition methods such as sputtering offer a cost-effective and environmentally benign approach. However, as-deposited films typically require post-deposition treatment to achieve the coalescence of metal atoms into nanoparticles of appreciable size. Thermal annealing is a popular approach to induce nanoparticle self-assembly [8], though it typically lacks spatial control and real-time monitoring capabilities—limitations that motivate the development of alternative annealing strategies.
Previous studies have shown that one-step reactive DC magnetron sputtering deposition produces noble metal clusters with sizes typically limited to less than 10 nm distributed throughout a host oxide matrix [8,9]. While the host matrix provides structural robustness to the nanocomposite, it may constrain the mobility and diffusion of gold atoms during self-assembly, with the degree of constraint depending on the selected oxide. Consequently, this approach does not reliably produce noble metal nanoparticles with controlled sizes, shapes, and distributions. Although properly functionalized plasmonic thin films have demonstrated good sensitivity for detecting specific gases [10] or molecules [11], the figure of merit of such sensors (S/Δλ, where S is sensitivity and Δλ is LSPR bandwidth [12]) would improve significantly if the nanoparticle size distribution were narrower, reducing the bandwidth.
Recent studies have demonstrated that short-pulse laser beams tuned to the plasmonic resonance can enable nanoparticle self-assembly with controlled, narrow size distributions [13]. Recognizing the complementary advantages and limitations of thermal versus laser annealing, we developed a controlled laser annealing system with real-time spectroscopic feedback as a potential alternative to conventional high-temperature thermal annealing.
We selected ZnO as the host matrix for its reported antifungal properties, which could provide additional functionality in antimicrobial sensing applications, as discussed in previous works [14]. Beyond these properties, the semiconductor nature of ZnO offers distinct advantages for plasmonic applications. In semiconductor matrices, Au nanoparticles can participate in hot-electron transfer processes, enabling charge separation at the metal-semiconductor interface for photocatalytic and photoelectrochemical applications [15,16]. In contrast, dielectric polymer or oxide matrices restrict plasmonic functionality primarily to optical absorption and scattering phenomena. The ZnO semiconductor matrix in our system provides the potential for exploiting interfacial charge-transfer mechanisms in future sensing designs.
In situ optical monitoring can foster the understanding of rapid laser-driven material transformations in thin film systems. Previous work has demonstrated that real-time spectroscopic techniques can track both structural and optoelectronic changes during laser annealing. For example, transmission spectroscopy has been used to monitor sub-bandgap laser annealing of CdTe thin films, revealing distinct kinetic processes in defect removal on minute timescales [17]. Similarly, pulsed UV laser annealing of rare-earth-doped oxide films, including ZnO, has been tracked through simultaneous monitoring of photoluminescence and transmittance evolution, correlating optical changes with crystallization and surface modifications [18]. Complementary approaches employing micro-Raman spectroscopy have tracked structural transitions in laser-annealed silicon nanoparticles [19]. However, these prior studies have focused primarily on monitoring intrinsic material changes—defect removal, crystallization, or phase transitions—rather than tracking the deliberate formation and growth of plasmonic nanostructures. Our work extends this body of research by employing pulse-by-pulse optical transmission spectroscopy to monitor the formation and evolution of plasmonic gold nanoparticles within a ZnO matrix through pulsed laser annealing. By combining real-time spectroscopic tracking of the LSPR transmission dip development with complementary structural characterization, we demonstrate that in situ optical monitoring can provide valuable information to guide the laser-induced coalescence of plasmonic nanostructures.

2. Materials and Methods

2.1. Sample Preparation

Au–ZnO thin films (gold nanoparticles < 10 nm dispersed in a ZnO matrix) were deposited in a custom-made high-vacuum chamber. A high-purity (99.99%) zinc target (200 × 100 × 6 mm3) served as the cathode. Twenty gold pellets (16 mm2 surface area, 0.5 mm thickness) were symmetrically placed in the erosion track of the zinc target. Fused silica (SiO2) substrates were used for thin film deposition. To remove surface impurities and improve thin film adhesion, substrates were treated with Ar plasma at a partial pressure of 80 Pa for 10 min using Diener Zepto equipment (Diener Electronic, Ebhausen, Germany) operating at 50 W with a 13.56 MHz capacitively coupled plasma system and a base pressure of 20 Pa.
Treated substrates were placed on the grounded substrate holder of the sputtering chamber and evacuated to 5 × 10−4 Pa using a turbomolecular pump (Adixen ATP 400, Alcatel Adixen, Annecy, France). Thin film deposition occurred at a working pressure of 4.5 × 10−1 Pa using argon (Ar, 25 cm3/min) as the working gas and oxygen (O2, 17 cm3/min) as the reactive gas. A direct current density of 50 A m−2 and an initial target potential of −400 V were applied to initiate the sputtering process. The target potential was maintained at −370 V during deposition. A 40 s deposition yielded 30 nm thick ZnO films with a deposition rate of 45 nm/min (determined from cross-sectional scanning electron microscopy). The atomic concentration of Au in films deposited under identical conditions was previously determined to be 19 at.% by Rutherford Backscattering Spectrometry [14]. We assume the as-deposited films in the current study have similar composition. Based on previous works using this deposition procedure, the initial gold nanoparticle sizes of the as-deposited thin film are expected to be less than 10 nm [9]. We summarize the plan physical parameters of the as-deposited thin films in Table 1.

2.2. Laser Annealing Setup

To induce annealing of the gold particles, we employed the second harmonic (532 nm) of a Q-switched Nd:YAG laser (Litron Lasers model LPY604T-10, Rugby, UK) operating at 10 Hz repetition rate. The laser features an intra-cavity spatial filter ensuring oscillation primarily in the TEM00 transverse spatial mode with an M2 < 1.3 and an output beam diameter (1/e2) of 2.3 mm. Each pulse has a duration of approximately 10 ns (FWHM) with energies up to 20 mJ. Incident pulse energies were verified using a Scientech power meter (model AC2501, Boulder, CO, USA). A schematic of the experimental setup is shown in Figure 1.
We constructed a 2× Galilean beam expander using a plano-concave lens (f = −50 mm) followed by a plano-convex lens (f = +100 mm), resulting in an incident beam diameter (1/e2) of 4.6 mm on the sample. A half-wave plate mounted on a computer-controlled rotation stage combined with a polarizer provided fine control of incident pulse energy. This configuration enabled fluences of up to 160 mJ/cm2, comparable to recent work [17] (125 mJ/cm2). For scanning across the sample surface, we mounted samples on an x-y translation stage driven by computer-controlled stepper motors. Each spot received between 100 and 800 laser pulses. At the end of each trial, a computer-controlled shutter blocked the beam while the translation stages repositioned to a fresh spot for subsequent annealing.
A key innovation of our approach is the integration of in situ, real-time transmission spectroscopy with pulsed laser annealing. This enables pulse-by-pulse monitoring of nanoparticle formation, providing direct optical feedback on how the plasmonic resonances evolve during the annealing process. Our monitoring system employed a broadband “sun-like” LED source in transmission geometry (spectrum shown in Figure 2). This broad spectral range allowed us to track the evolution of both the depth and width of the plasmonic resonance features as nanoparticles formed and evolved under laser annealing. A 200 mm focal length lens focused the collimated LED beam onto the sample at the location of the Nd:YAG beam, with a slightly smaller illumination area, at an incident angle of ~10° from normal. To spatially separate the transmitted LED light from the incident Nd:YAG beam, we propagated the transmitted LED beam 15 cm before coupling it into a multimode optical fiber (200 μm core diameter) connected to an Ocean Optics USB4000 spectrometer (Orlando, FL, USA). Background spectra were obtained as the average of 100 acquisitions with an integration time of 1 ms each. During laser annealing, we acquired ten spectra (1 ms integration time) after each laser pulse and averaged them to obtain normalized transmission data. This pulse-by-pulse spectroscopic approach provides insight into the real-time dynamics of laser-induced nanoparticle formation.

2.3. SEM Characterization

The morphology of the Au–ZnO thin films was analyzed by scanning electron microscopy (SEM) using a gaseous analytical detector (GAD). Prior to imaging, samples were coated with a thin conductive layer to minimize charging artifacts and improve contrast. The GAD’s ability to operate under low-vacuum conditions further stabilizes the electron signal and enhances image quality. The GAD collects mixed secondary and backscattered electron signals. The gaseous environment enables ionization cascades that amplify the signal and neutralize residual surface charges [20,21]. Consequently, this detection mode combines topographical information with Z-contrast, where heavier elements appear brighter. The gold nanoparticles (Z = 79) stand out clearly against the ZnO matrix (Zn: Z = 30, O: Z = 8), enabling clear visualization of their morphology and spatial distribution. SEM images were analyzed using ImageJ (version 1.54p) to determine nanoparticle size distributions.

3. Results

3.1. Transmission Spectra

In Figure 3 and Figure 4, we present sequences of transmission spectra acquired at incident pulse energies of 19 mJ and 22 mJ, respectively. In Figure 3, the initial transmission spectrum is relatively flat with a slight upward slope. During the first two laser pulses the overall transmission decreases by roughly 10% in a nearly wavelength-independent manner. Such a broadband drop suggests an increase in surface or interface roughness that redirects light out of the detector’s acceptance angle. This may arise from rapid local heating of the gold nanoparticles and their surrounding ZnO, causing partial melting, coalescence, or restructuring of the near-surface region. Alternatively, the initial pulses may promote the formation of a partially percolated gold layer whose increased scattering and reflection reduce the measured direct transmission. After the initial pulses, the overall transmission decreases slightly. After approximately 70 pulses, a small LSPR dip emerges. With increasing pulse number, the resonance deepens progressively while the dip position remains approximately constant. After ~450 pulses, the resonance depth and width stabilize, and the transmission of the spectral wings simultaneously increases slightly. This increase in the wings reflects the coalescence of smaller gold particles into larger nanoparticles, reducing the broadband extinction contribution from the smaller particles. At the end of the annealing sequence, the LSPR dip reaches approximately 10% of the initial transmission value at its peak wavelength. The position, depth and width of the LSPR dip after 72, 158 and 489 pulses are indicated in Table 2. Similar behavior is observed in the area treated with 22 mJ pulses (Figure 4), although the entire evolution occurs more rapidly with the higher pulse energy. Notably, the initial resonance position after 9 pulses is significantly more red-shifted than the minima observed in all subsequent spectra, suggesting different coalescence dynamics in the early annealing stages. The position, depth and width of the LSPR dip after 9, 50, 88 and 299 pulses are indicated in Table 3.

3.2. SEM Images

After subjecting specific areas of the Au–ZnO thin films to approximately 500 laser pulses, SEM images were acquired from the center of the irradiated regions. For incident pulse energies of 19 mJ and 22 mJ, the resulting SEM images and corresponding size histograms (determined using ImageJ [22]) are presented in Figure 5 and Figure 6, respectively.
A bimodal size distribution is observed, with a dominant population of larger particles exhibiting a wide size range. The bimodal character likely reflects heterogeneous coalescence driven by the initial random distribution of gold within the as-deposited film. The baseline transmission of as-deposited films varies between 60% and 70% across the sample surface depending on the incident wavelength, indicating some spatial variation in the initial Au concentration. In regions with higher local Au density, Ostwald ripening during laser annealing may produce larger particles, while sparser regions with reduced Au density could limit the size of the annealed particles. The larger particles clearly extend significantly beyond the 30 nm ZnO film thickness, with substantial portions protruding from the surface. In contrast, smaller particles likely remain embedded within or only partially protruding from the ZnO matrix. This surface protrusion of the larger particles is advantageous for the intended biosensing applications, as it facilitates functionalization for biomolecule detection.
To quantitatively track the evolution of the plasmonic resonance during laser annealing, we extracted three key metrics from the pulse-by-pulse transmission spectra: the wavelength position of the resonance minimum, the depth of the dip (maximum extinction in %), and the full-width at half-maximum (FWHM). Figure 7 presents these three quantities as functions of laser pulse number for both incident pulse energies. When appropriate we have used a logarithmic scale for the pulse number axis in order to highlight the early annealing evolution.

4. Discussion

To interpret the distinct evolution paths evident in Figure 6, we performed baseline simulations of extinction curves for isolated gold spheres as a function of size and dielectric environment. Given the large particle sizes evident in SEM images relative to the 30 nm ZnO film thickness, larger gold particles are expected to protrude significantly from the film. A full simulation of partially protruding particles would require complex three-dimensional finite element modeling with particles positioned relative to the air-ZnO interface. To gain insight into the effect of varying embedding depth, we simulated gold nanospheres with conformal ZnO shells of varying thickness using Mie theory with the Stratify MATLAB toolbox [23]. This coated-sphere model provides a continuum between two limiting cases: bare gold spheres (surface-protruding configuration with 0 nm shell) and deeply embedded particles (thick shell limit). While idealized, this approach captures the essential physics of particles transitioning from embedded to protruding states during laser annealing.
While the SEM micrographs indicate mostly round gold nanoparticle projections, it is possible that laser pulses also induce the formation of asymmetrical, protruding Au nanostructures that deviate from a spherical morphology. Such morphologies can generate multiple plasmonic resonances and electromagnetic hot spots at sharp edges and vertices, potentially enhancing field strengths beyond those predicted for spherical particles [24,25]. These morphological features may also enable enhanced performance in surface-enhanced Raman scattering (SERS) and surface-enhanced infrared absorption (SEIRA) spectroscopy.
For material properties, we used the dielectric permittivity of gold from Christy and Johnson [26] as implemented in Stratify. The complex refractive index for ZnO was obtained from Aguilar et al. [27] (available as a txt file from RefractiveIndex.info). We enabled Stratify’s correction for size-dependent damping due to the finite mean free path of electrons in small gold nanoparticles, which becomes increasingly important below approximately 20 nm radius.
Results of the simulations are presented in Figure 8 and Figure 9. Figure 8 displays the extinction efficiency (Qext), defined as the extinction cross-section normalized by the geometric cross-section of the sphere, Qext = σext/πr2, for four representative particle radii (10 nm, 60 nm, 100 nm and 120 nm) as a function of ZnO shell thickness. ZnO shell thickness ranges from 0 nm (bare gold sphere in air, representing maximum surface protrusion) to 30 nm (nominal ZnO film thickness, representing maximum embedding). These radii were chosen to span the observed particle size range: small (10 nm), intermediate (60 nm), and large (100 nm and 120 nm). Figure 9 presents the quantitative metrics extracted from the full simulation dataset: (a) peak resonance wavelength, (b) peak extinction efficiency, and (c) resonance full-width at half-maximum (FWHM), all plotted versus ZnO shell thickness for all simulated radii (10 nm, 20 nm and 40 to 120 nm in 20 nm increments). In the Figure S1 of the Supplementary Information, we also present the same data plotted with gold sphere radius as the independent variable, offering a complementary view that may give a more direct visual connection to particle growth during laser annealing, while the shell-thickness representation in Figure 9 more clearly highlights the role of the dielectric environment.
As expected from Mie theory, the LSPR peak shifts to longer wavelengths as ZnO shell thickness increases, reflecting the large real part of ZnO’s refractive index (approximately 2). For spheres with radii above 40 nm, this shift is roughly linear with shell thickness; for smaller spheres, the red-shift saturates as shell thickness becomes comparable to the sphere radius. There is also a pronounced size-dependent red-shift in the LSPR with increasing sphere radius. Uncoated gold spheres (0 nm shell) exhibit distinct size-dependent behavior. Spheres ≤60 nm radius show relatively blue-shifted resonances with peak wavelengths in the 508–528 nm range. The 80 nm and 100 nm radius spheres exhibit peak extinctions at 560 nm and 590 nm, respectively. Notably, the 100 nm sphere shows a secondary blue-shifted peak emerging at ~520, creating a bimodal spectrum. For the 120 nm radius sphere, this blue-shifted peak becomes dominant (peak at 527 nm), though a significant red-shifted extinction shoulder persists, extending beyond 800 nm.
Extinction efficiency shows non-monotonic size dependence. For small to intermediate radii (10–60 nm), extinction efficiency generally increases with both sphere radius and ZnO shell thickness. However, this trend reverses at larger sizes: the extinction efficiency of the dominant LSPR feature drops substantially above 80 nm radius. At 100 nm radius, the extinction efficiency of the primary peak falls to approximately that of a 40 nm sphere—a ~50% decrease from the maximum observed at ~60 nm. The 120 nm sphere continues the trend, with extinction efficiency less than approximately 2× that of the 20 nm sphere. This non-monotonic behavior reflects competing effects: increasing particle size enhances scattering strength, while broadening and damping increase in the intermediate-to-large size regime, reducing peak efficiency. These effects compromise the optical strength precisely where improved resonance sharpness appears (at 100–120 nm with embedding).
The LSPR width broadens as the ZnO shell thickness increases, representing increasing embedding depth. Width also increases dramatically with sphere radius, ultimately splitting into two distinct spectral features for 100 nm radius spheres: a sharp blue-shifted peak between 520 nm and 560 nm and a broader red-shifted feature with maximums from 600 nm to 750 nm depending on the shell thickness. For the 120 nm radius sphere, the blue-shifted peak dominates, although the increasingly red-shifted component still contributes significantly to the extinction.
This complex behavior illustrates the intricate interplay between particle size and embedding depth in determining resonance position and width. Both factors contribute substantially, and their effects are not simply additive. At large particle sizes (100–120 nm), the interplay becomes particularly rich, generating bimodal spectra with markedly different characteristics for each component.
For sensing applications requiring narrow resonance features, Figure 9c suggests two strategies: (1) limit particle size to <40 nm, maintaining narrow resonances across all embedding depths, or (2) for larger particles (120 nm), maintain substantial ZnO embedding to activate the sharp blue-shifted resonance that emerges in this size range. However, this strategy sacrifices the extinction efficiency available from many small particles (<40 nm), which show the strongest resonances—representing a fundamental tradeoff between resonance sharpness and optical signal strength.
This size-dependent efficiency has important implications for coalescence. Although a single 80 nm sphere requires 8× more gold than a 40 nm sphere, its extinction cross-section exceeds that of eight separate 40 nm particles by approximately 40%. This geometric advantage drives continued coalescence during laser annealing: larger particles produce stronger optical signals even at the cost of reduced peak efficiency. However, the plateau above 100 nm radius, where efficiency drops substantially, sets an upper limit on the beneficial size for further coalescence. The system likely reaches equilibrium when further growth provides diminishing returns in optical strength while sacrificing resonance sharpness.

4.1. Evolution of the LSPR Position

The transmission dip depth reflects the oscillator strength of the plasmonic resonance, which increases with particle size and is enhanced by narrower size distributions. However, as our Stratify simulations demonstrate, resonance wavelength is strongly modulated by particle embedding depth. Since the ZnO film thickness (30 nm) is comparable to or smaller than the particle sizes evident in SEM images, one would expect many particles to protrude beyond the air-ZnO interface into air, experiencing blue-shifting from the reduced dielectric environment. Embedded particles, by contrast, experience red-shifting from the high-index ZnO matrix. This interplay between size growth and surface migration suggests that the convergence of both laser pulse energies to 555 nm reflects complex dynamics between coalescence and preferential protrusion from the ZnO surface.
The SEM size distribution for the 19 mJ case reveals approximately 35% of particles with radii ≥ 100 nm, which produce extremely broad LSPR responses extending to much redder wavelengths, albeit with lower extinction efficiencies. For particles above 120 nm, the secondary blue-shifted resonance emerging in the 520–600 nm region (depending on ZnO shell thickness) might also contribute to the observed 555 nm feature. Additionally, these particles contribute to extended background extinction at wavelengths above 600 nm. Without detailed modeling of the full ensemble (accounting for particle size distribution, spatial arrangements, and potential dipolar coupling) or additional measurements such as variable-angle spectroscopy, it remains unclear which contributions dominate the observed 555 nm resonance: the mixture of smaller protruding and moderately embedded intermediate particles, or the larger 100+ nm particles with their complex bimodal spectra.
The 22 mJ case reveals markedly different dynamics. The LSPR appears earlier (at ~5 pulses) but exhibits striking wavelength oscillations: it rapidly shifts to the red (582 nm at pulse 9), then abruptly shifts back to the blue (542 nm at pulse 18), before converging to 555 nm by pulse 27. These transient oscillations likely reflect rapid coalescence at higher photon density, transiently forming larger and more heavily embedded particles after the first few laser pulses. After pulse 9, these particles either migrate rapidly to the surface or fragment into smaller particles. By pulse 27, the spectrum appears similar to the 19 mJ case, suggesting that coalescence and surface migration have produced more optically efficient configurations that resonate near 555 nm.
The final SEM size distribution for the 22 mJ case contains only ~11% particles with radii ≥ 100 nm, compared to ~35% for the 19 mJ case. This dramatic difference suggests that the higher laser fluence inhibits formation of very large particles, possibly through selective thermal effects: transient melting of the largest protruding particles (which retain heat longest) could cause them to fragment or remain smaller, while smaller particles continue to coalesce. The faster convergence to 555 nm (27 vs. 40 pulses) reflects this more efficient pathway toward configurations that resonate near this wavelength.
Notably, both energies converge to the same final wavelength (555 nm) despite dramatically different early-stage dynamics and final size distributions (35% vs. 11% particles > 100 nm). This convergence indicates that 555 nm represents a robust state—a broad manifold of particle configurations that collectively produce similar observed resonance regardless of specific size distribution details. Rather than reflecting a unique thermodynamic equilibrium, the 555 nm resonance might emerge from the competing effects of particle size, embedding depth, and non-monotonic extinction efficiency that characterizes the 50–100 nm size range. The specific laser excitation pathway (19 mJ vs. 22 mJ) determines which route through the dual parameters of size and embedding extent the system takes—and crucially, whether it suppresses (22 mJ) or permits (19 mJ) formation of the optically less efficient 100+ nm particles. This strongly suggests that laser energy tuning alone cannot fully optimize particle distributions; selective control of coalescence kinetics—through spatial patterning, temporal pulse sequencing, or substrate engineering—would be required to suppress unwanted size regimes and enhance desired configurations.

4.2. Evolution of the LSPR Depth and the Role of Particle Embedding

Resonance depth reflects the oscillator strength of the ensemble and thus the degree of coalescence. At 19 mJ, depth increases smoothly to ≈5% in a kinetics-limited fashion, indicating gradual particle growth and migration toward the surface. The continued deepening after wavelength stabilization likely reflects the nonlinear increase in extinction cross-section with particle size.
The 22 mJ case exhibits a more striking behavior in the resonance depth: it rapidly increases to 4% by pulse 24, then paradoxically declines to a minimum of 0.8% at pulse 53—where the transmission spectrum becomes nearly flat with only a slight dip at 555 nm. The initial rapid depth increase reflects accelerated coalescence at high fluence, driving particles toward larger sizes within the ZnO film leading to large red-shifts. However, the subsequent decline in depth suggests that particles then migrate toward the surface more rapidly than at 19 mJ.
At pulse 53, we observe a crossover: particles have grown large enough that they preferentially protrude from the ZnO film rather than remaining embedded, causing a blue-shift that partially cancels the size-driven red-shift. The resulting spectrum exhibits suppressed plasmonic response. Remarkably, the resonance wavelength remains near 555 nm throughout this process, suggesting selective thermal dynamics. Particles protruding into air absorb laser energy with minimal heat dissipation to the environment, reaching very high temperatures—potentially exceeding melting and even evaporation points for large particles. In contrast, embedded particles rapidly lose heat through ZnO’s high thermal conductivity (~40 W m−1 K−1). This differential heating favors selective melting and reshaping of protruding portions, and could maintain the characteristic equilibrium embedding depth and thus constant resonance wavelength even as coalescence proceeds.
The recovery phase of the 22 mJ case represents the system settling into configurations where larger, protruding particles produce resonance near 555 nm with a depth of approximately 5%—comparable to the 19 mJ case despite markedly different excitation histories and final size distributions (35% vs. 11% particles > 100 nm). This convergence in both wavelength and depth, despite different coalescence pathways, provides further evidence for the robustness of the final state: multiple particle configurations naturally produce similar transmission characteristics, highlighting the fundamental stability of the transmission spectra.

4.3. Evolution of the LSPR Width and Embedding Dependent Broadening

The FWHM evolution reveals the most dramatic differences between the two laser energies and provides the clearest signature of both particle size distribution changes and embedding depth heterogeneity. The resonance width is determined by two competing factors: the inherent size distribution of particles and the distribution of embedding depths in the ZnO matrix. The Stratify simulations show that embedding strongly affects not just resonance position but also resonance width. Particles with a wide distribution of embedding depths—ranging from fully embedded to primarily surface-protruding, exhibit broadened resonance features because different subpopulations resonate at different wavelengths, creating a convolution of spectra. The final width reflects not a single sharp resonance, but a superposition of contributions from particles across a range of sizes and embedding depths.
At 19 mJ, the resonance remains unresolved until approximately 40 pulses (when particles are still small and mostly embedded). As particles gradually coalesce and grow, the resonance becomes measurable (~10 nm FWHM at pulse 40) and then progressively broadens to ~60 nm by pulse 160. This gradual broadening reflects two simultaneous processes: (1) development of a wider particle size distribution as coalescence proceeds at different rates due to the inhomogeneous distribution of gold particles, and (2) increasing heterogeneity in particle embedding depth as larger particles preferentially protrude above the air-ZnO interface. The modest width narrowing from pulse 160 to 600 pulses (from 60 to 57 nm, approximately 5% decrease) indicates that while coalescence continues (as evidenced by the continued depth increase), the distribution of particle sizes and embedding depths has largely stabilized. This suggests the system is approaching a quasi-stable state.
The 22 mJ series begins with an exceptionally broad LSPR feature at pulse 9 (>80 nm FWHM), indicating a highly heterogeneous ensemble of particles with widely varying sizes and/or embedding depths. Given the position of the LSPR minimum at 582 nm, this initial broadness likely reflects large particles preferentially located at or near the air–ZnO interface. Remarkably, the resonance then sharpens dramatically to only 20 nm by pulse 50—a narrowing of 75%—before gradually broadening again. This dramatic sharpening phase is not observed in the 19 mJ data and cannot be explained by coalescence dynamics alone. The selective thermal effects noted in the depth discussion provide insight into this behavior: differential heating of protruding portions (reaching vaporization temperatures) versus rapid heat dissipation from embedded portions through ZnO’s high thermal conductivity strongly favors thermal restructuring of surface-protruding particles. The high laser fluence may preferentially vaporize or fragment the largest protruding particles, suppressing their further growth and leaving a smaller, more uniform particle ensemble. The resulting smaller particles gradually migrate to the surface during continued irradiation, creating a more uniform embedding depth distribution centered near the air–ZnO interface configuration, which reduces inhomogeneous broadening and narrows the spectral width from >80 nm to 20 nm.
The subsequent gradual broadening of the 22 mJ series from pulse 50 onward reflects the resumption of size-selective coalescence: as particles continue to grow on the surface under continued laser irradiation, a new size distribution develops, reintroducing inhomogeneous broadening and causing progressive width increase that gradually mirrors the 19 mJ behavior. By pulse 115, the width (65 nm) approaches that of the 19 mJ case, and both subsequently converge toward ~55 nm by 600 pulses.
Remarkably, both excitation energies evolve toward remarkably similar steady-state optical characteristics—λ ≈ 555 nm, depth ≈ 5%, and FWHM ≈ 55 nm, despite markedly different size distributions (35% vs. 11% particles > 100 nm) and convergence timescales. This robust convergence across all three metrics demonstrates that the system evolves toward characteristic configurations determined by the underlying physics of particle coalescence, thermal effects, and embedding-dependent optical properties, rather than being driven by specific laser excitation parameters. The observation that width converges more slowly than wavelength and depth suggests that optimizing resonance sharpness for sensing applications will require not just tuning laser energy, but also controlling the formation of particle size and embedding depth distributions—through a combination of spatial patterning, temporal pulse sequencing, and substrate engineering.

5. Conclusions

This work demonstrates that real-time, pulse-by-pulse spectroscopic monitoring of laser annealing enables direct observation and the potential to optimize plasmonic nanostructure formation. By tracking the evolution of LSPR wavelength, depth, and width simultaneously, we have illuminated some of the dynamics underlying nanoparticle coalescence in ZnO thin films and identified two distinct annealing pathways that both converge toward the same plasmonic resonance characteristics despite dramatically different intermediate dynamics.
The final response that emerges appears to be a broad manifold of particle configurations (varying in size and embedding depth) that collectively produce similar optical response (wavelength 555 nm, depth ~5%, width ~55 nm). Both 19 mJ and 22 mJ incident energies converge to this state via fundamentally different pathways. The 19 mJ case exhibits gradual, kinetically limited coalescence with progressive surface migration, while the 22 mJ case induces aggressive early-stage dynamics where selective thermal vaporization suppresses large particle formation producing sharper intermediate resonances. We conclude that a global laser energy tuning alone cannot fully control the final nanoparticle distribution; the outcome depends on a complex interplay among particle size, embedding depth, film thickness, thermal effects, and coalescence kinetics.
The insights from this work suggest a dynamic strategy for further optimization. A key observation is that the higher laser pulse energy (22 mJ) suppresses large particle formation through selective thermal vaporization, while producing the sharpest intermediate resonances (~20 nm FWHM at pulse 50). A dynamic ramping strategy—beginning with high energy to achieve narrow particle size distributions, then ramping to lower energy to maintain these distributions while optimizing coalescence—could potentially produce narrower, more uniform nanoparticle ensembles with enhanced resonance sharpness for sensing applications.
The large particles preferentially protrude from the ZnO surface, which is advantageous for functionalization: exposed portions can be chemically modified to detect specific biomolecules or gas-phase analytes without competing interactions with the buried matrix.
A limitation of the current study is that we did not characterize the depth distribution of Au particles in either the as-deposited or laser-treated films. Future RBS depth profiling studies would provide valuable complementary information about changes in Au distribution during laser annealing, complementing the morphological insights from SEM analysis.
Real-time monitoring enables rapid exploration of incident energy, pulse frequency, and total pulse number to identify parameter combinations that produce particularly desirable LSPR characteristics (e.g., narrow linewidth with high extinction efficiency). This transforms laser annealing from an empirical, trial-and-error approach into a controlled, physics-driven synthesis method where in situ spectroscopic feedback guides optimization even in systems with competing effects.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/micro6010001/s1, Figure S1: Key metrics of the LSPR dip as a function of the gold sphere radius; Figure S2: Conceptual schematic summarizing the sequence of physical processes occurring during pulsed-laser annealing of Au nanoparticles embedded in a ZnO thin film.

Author Contributions

Conceptualization, J.B. and M.B.; methodology, E.B.S. and M.B.; formal analysis, E.B.S. and M.B.; investigation, E.B.S. and N.F.C.; resources, N.F.C., J.B. and M.B.; data curation, E.B.S.; writing—original draft preparation, J.B. and M.B.; writing—review and editing, J.B. and M.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Portuguese Foundation for Science and Technology (FCT) in the framework of the Strategic Funding UID/04650/2025. https://doi.org/10.54499/UID/04650/2025.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.

Acknowledgments

The authors would like to express their gratitude to Nuno P. Barradas (C2TN, University of Lisbon) and Eduardo Alves (IPFN, University of Lisbon) for the composition analysis by RBS measurements.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Wang, C.; Guo, H.; Chen, B.; Yan, J.; Sassa, F.; Hayashi, K. Localized Surface Plasmon Resonance-Based Gas Sensor with a Metal-Organic-Framework-Modified Gold Nano-Urchin Substrate for Volatile Organic Compounds Visualization. Sensors 2025, 25, 6522. [Google Scholar] [CrossRef] [PubMed]
  2. Brenet, S.; John-Herpin, A.; Gallat, F.-X.; Musnier, B.; Buhot, A.; Herrier, C.; Rousselle, T.; Livache, T.; Hou, Y. Highly-Selective Optoelectronic Nose Based on Surface Plasmon Resonance Imaging for Sensing Volatile Organic Compounds. Anal. Chem. 2018, 90, 9879–9887. [Google Scholar] [CrossRef] [PubMed]
  3. Oh, S.; Hur, H.; Kim, Y.; Shin, S.; Woo, H.; Choi, J.; Lee, H.H. Peptide Specific Nanoplastic Detection Based on Sandwich Typed Localized Surface Plasmon Resonance. Nanomaterials 2021, 11, 2887. [Google Scholar] [CrossRef]
  4. Güler, K.Ç.; Göktürk, I.; Yılmaz, F.; Araz, A.; Denizli, A. Plasmonic nanosensors for environmental pollutants sensing: Recent advances and perspectives. Essent. Chem 2024, 1, 1–19. [Google Scholar] [CrossRef]
  5. Dissanayake, N.M.; Arachchilage, J.S.; Samuels, T.A.; Obare, S.O. Highly sensitive plasmonic metal nanoparticle-based sensors for the detection of organophosphorus pesticides. Talanta 2018, 200, 218–227. [Google Scholar] [CrossRef] [PubMed]
  6. Vikesland, P.J. Nanosensors for water quality monitoring. Nat. Nanotechnol. 2018, 13, 651–660. [Google Scholar] [CrossRef]
  7. Willets, K.A.; Van Duyne, R.P. Localized Surface Plasmon Resonance Spectroscopy and Sensing. Annu. Rev. Phys. Chem. 2007, 58, 267–297. [Google Scholar] [CrossRef]
  8. Rodrigues, M.S.; Borges, J.; Lopes, C.; Pereira, R.M.S.; Vasilevskiy, M.I.; Vaz, F. Gas Sensors Based on Localized Surface Plasmon Resonances: Synthesis of Oxide Films with Embedded Metal Nanoparticles, Theory and Simulation, and Sensitivity Enhancement Strategies. Appl. Sci. 2021, 11, 5388. [Google Scholar] [CrossRef]
  9. Koneti, S.; Borges, J.; Roiban, L.; Rodrigues, M.S.; Martin, N.; Epicier, T.; Vaz, F.; Steyer, P. Electron Tomography of Plasmonic Au Nanoparticles Dispersed in a TiO2 Dielectric Matrix. ACS Appl. Mater. Interfaces 2018, 10, 42882–42890. [Google Scholar] [CrossRef]
  10. Proença, M.; Rodrigues, M.S.; Moura, C.; Machado, A.V.; Borges, J.; Vaz, F. Nanoplasmonic Au:CuO thin films functionalized with APTES to enhance the sensitivity of gas sensors. Sens. Actuators B Chem. 2024, 401, 134959. [Google Scholar] [CrossRef]
  11. Meira, D.I.; Barbosa, A.I.; Borges, J.; Reis, R.L.; Correlo, V.M.; Vaz, F. Label-free localized surface plasmon resonance (LSPR) biosensor, based on Au-Ag NPs embedded in TiO2 matrix, for detection of Ochratoxin-A (OTA) in wine. Talanta 2025, 284, 127238. [Google Scholar] [CrossRef] [PubMed]
  12. Mayer, K.M.; Hafner, J.H. Localized Surface Plasmon Resonance Sensors. Chem. Rev. 2011, 111, 3828–3857. [Google Scholar] [CrossRef]
  13. Kalfagiannis, N.; Siozios, A.; Bellas, D.V.; Toliopoulos, D.; Bowen, L.; Pliatsikas, N.; Cranton, W.M.; Kosmidis, C.; Koutsogeorgis, D.C.; Lidorikis, E.; et al. Selective modification of nanoparticle arrays by laser-induced self assembly (MONA-LISA): Putting control into bottom-up plasmonic nanostructuring. Nanoscale 2016, 8, 8236–8244. [Google Scholar] [CrossRef]
  14. Pereira-Silva, P.; Pacheco, M.I.; Borges, J.; Vaz, F.; Sampaio, P. Synergistic Effect of ZnO Thin Films with Gold as Antifungal Coatings. Adv. Eng. Mater. 2024, 26, 2400342. [Google Scholar] [CrossRef]
  15. Yang, T.; Huang, L.; Pan, M.; Harn, Y.; Chen, M.; Lin, C.; Wei, P.; Wu, J. Ultrahigh-Density Plasmonic-Nanoparticle-Sensitized Semiconductor Photocatalysts Profit from Cooperative Light Harvesting and Charge Separation Processes: Experiments, Simulations, and Multifunctional Plasmonics. Part. Part. Syst. Charact. 2014, 31, 895–907. [Google Scholar] [CrossRef]
  16. Ouyang, W.; Teng, F.; Jiang, M.; Fang, X. ZnO Film UV Photodetector with Enhanced Performance: Heterojunction with CdMoO4 Microplates and the Hot Electron Injection Effect of Au Nanoparticles. Small 2017, 13, 1702177. [Google Scholar] [CrossRef] [PubMed]
  17. Simonds, B.J.; Misra, S.; Paudel, N.; Vandewal, K.; Salleo, A.; Ferekides, C.; Scarpulla, M.A. Near infrared laser annealing of CdTe and in-situ measurement of the evolution of structural and optical properties. J. Appl. Physcis 2016, 119, 165305. [Google Scholar] [CrossRef]
  18. Novotný, M.; Remsa, J.; Havlová, Š.; More-Chevalier, J.; Irimiciuc, S.A.; Chertopalov, S.; Písařík, P.; Volfová, L.; Fitl, P.; Kmječ, T.; et al. In Situ Monitoring of Pulsed Laser Annealing of Eu-Doped Oxide Thin Films. Materials 2021, 14, 7576. [Google Scholar] [CrossRef]
  19. Ma, C.; Fu, K.; Trujillo, M.J.; Gu, X.; Baig, N.; Bohn, P.W.; Camden, J.P. In Situ Probing of Laser Annealing of Plasmonic Substrates with Surface-Enhanced Raman Spectroscopy. J. Phys. Chem. C Nanomater Interfaces 2018, 122, 11031–11037. [Google Scholar] [CrossRef]
  20. Danilatos, G.D. Theory of the Gaseous Detector Device in the Environmental Scanning Electron Microscope. In Advances in Electronics and Electron Physics; Hawkes, P.W., Ed.; Academic Press: Cambridge, MA, USA, 1990; Volume 78, pp. 1–102. [Google Scholar] [CrossRef]
  21. Goldstein, J.I.; Newbury, D.E.; Michael, J.R.; Ritchie, N.W.; Scott, J.H.J.; Joy, D.C. Scanning Electron Microscopy and X-Ray Microanalysis, 4th, ed.; Springer: New York, NY, USA, 2018; ISBN 978-1-4939-6674-5. [Google Scholar] [CrossRef]
  22. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef] [PubMed]
  23. Ilia, L.; Rasskazov, P.; Carney, S.; Moroz, A. STRATIFY: A comprehensive and versatile MATLAB code for a multilayered sphere. OSA Contin. 2020, 3, 2290–2306. [Google Scholar] [CrossRef]
  24. Hur, H.; Kim, C.; Jo, A.; Kim, G.; Choi, J.; Lee, H.H. Enhanced mid-IR detection characteristics of microplastics and nanoplastics using gold nanorods cluster at microneedle tips. Adv. Ind. Eng. Chem. 2025, 1, 9. [Google Scholar] [CrossRef]
  25. Wy, Y.; Jung, H.; Hong, J.W.; Han, S.W. Exploiting Plasmonic Hot Spots in Au-Based Nanostructures for Sensing and Photocatalysis. Acc. Chem. Res. 2022, 55, 832–843. [Google Scholar] [CrossRef] [PubMed]
  26. Johnson, P.B.; Christy, R.W. Optical constants of the noble metals. Phys. Rev. B 1972, 6, 4370–4379. [Google Scholar] [CrossRef]
  27. Aguilar, O.; de Castro, S.; Godoy, M.P.F.; Dias, M.R.S. Optoelectronic characterization of Zn1-xCdxO thin films as an alternative to photonic crystals in organic solar cells. Opt. Mater. Express 2019, 9, 3638–3648. [Google Scholar] [CrossRef]

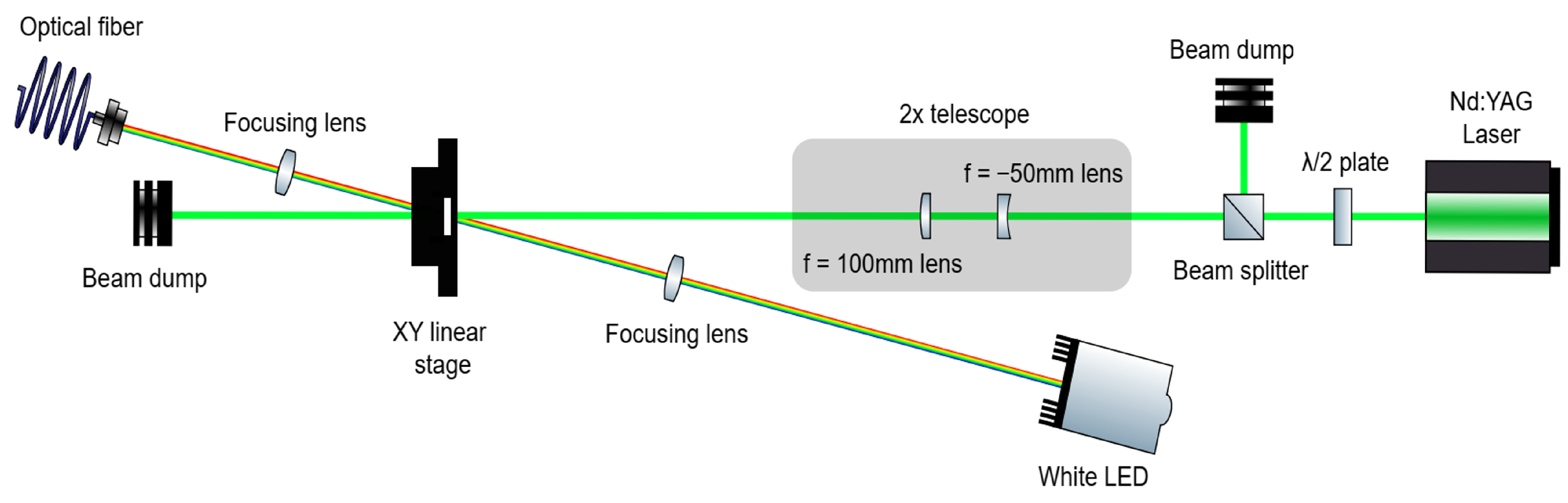

Figure 1. Schematic of the experimental setup for in situ monitoring of laser annealing. A Q-switched Nd:YAG laser (532 nm, 10 Hz) delivers pulses to the sample, with incident energy controlled by a half-waveplate and polarizing beamsplitter combination. A 2× beam expander increases the beam diameter to 4.6 mm at the sample. A white LED focused within the laser spot provides broadband illumination for transmission spectroscopy, with transmitted light collected by an optical fiber and analyzed by a CCD spectrometer. A motorized xy-stage controls sample positioning for sequential laser annealing experiments.
Figure 1. Schematic of the experimental setup for in situ monitoring of laser annealing. A Q-switched Nd:YAG laser (532 nm, 10 Hz) delivers pulses to the sample, with incident energy controlled by a half-waveplate and polarizing beamsplitter combination. A 2× beam expander increases the beam diameter to 4.6 mm at the sample. A white LED focused within the laser spot provides broadband illumination for transmission spectroscopy, with transmitted light collected by an optical fiber and analyzed by a CCD spectrometer. A motorized xy-stage controls sample positioning for sequential laser annealing experiments.
Micro 06 00001 g001

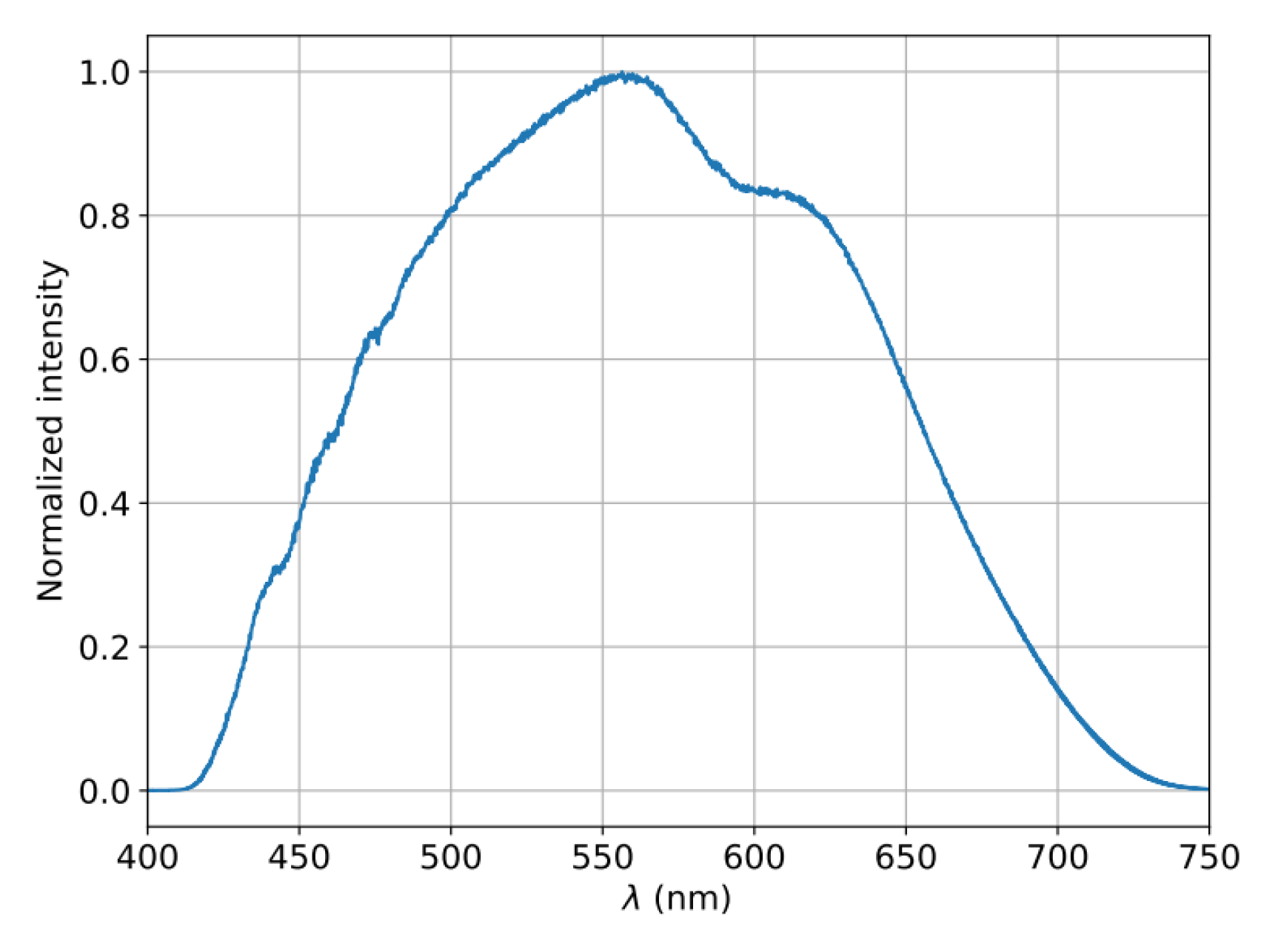

Figure 2. Normalized spectrum of the “sun-like” LED employed as the source for the transmission measurements acquired using an Ocean Optics USB4000 spectrometer.
Figure 2. Normalized spectrum of the “sun-like” LED employed as the source for the transmission measurements acquired using an Ocean Optics USB4000 spectrometer.
Micro 06 00001 g002

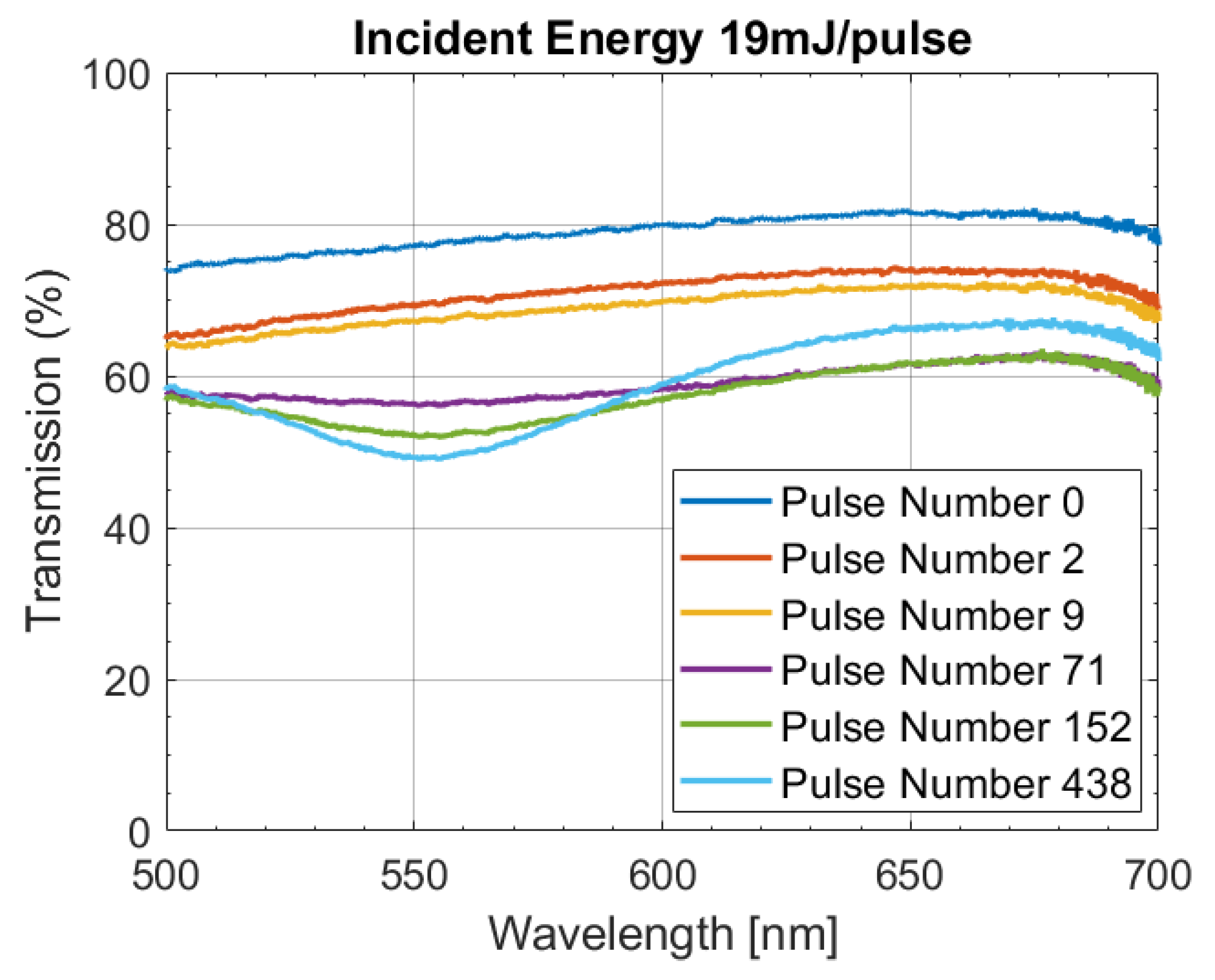

Figure 3. Transmission spectra of Au–ZnO thin films treated at 19 mJ/pulse as a function of laser pulse number. The curve at 0 pulses represents the as-deposited film. After several hundred pulses, a localized surface plasmon resonance (LSPR) dip emerges near 550 nm and progressively deepens, while the red-side transmission intensity increases slightly as the pulse number approaches 500.
Figure 3. Transmission spectra of Au–ZnO thin films treated at 19 mJ/pulse as a function of laser pulse number. The curve at 0 pulses represents the as-deposited film. After several hundred pulses, a localized surface plasmon resonance (LSPR) dip emerges near 550 nm and progressively deepens, while the red-side transmission intensity increases slightly as the pulse number approaches 500.
Micro 06 00001 g003

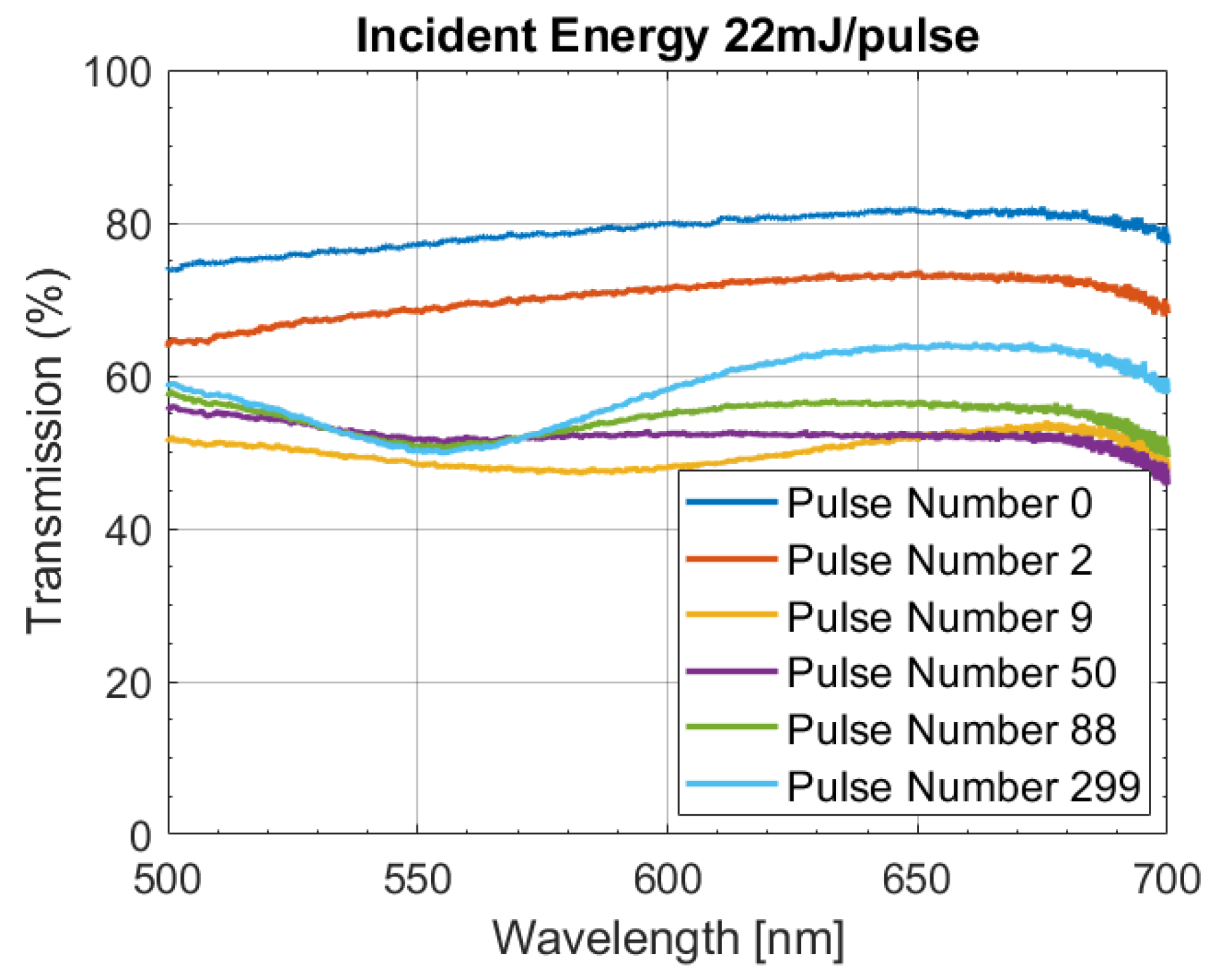

Figure 4. Transmission spectra of Au–ZnO thin films treated at 22 mJ/pulse as a function of laser pulse number. The curve at 0 pulses shows the as-deposited film. A broad localized surface plasmon resonance (LSPR) emerges after 9 pulses. The transmission curves then gradually flatten until a shifted LSPR peak appears near 555 nm after 88 pulses, which intensifies with increasing pulse number up to 300 pulses.
Figure 4. Transmission spectra of Au–ZnO thin films treated at 22 mJ/pulse as a function of laser pulse number. The curve at 0 pulses shows the as-deposited film. A broad localized surface plasmon resonance (LSPR) emerges after 9 pulses. The transmission curves then gradually flatten until a shifted LSPR peak appears near 555 nm after 88 pulses, which intensifies with increasing pulse number up to 300 pulses.
Micro 06 00001 g004

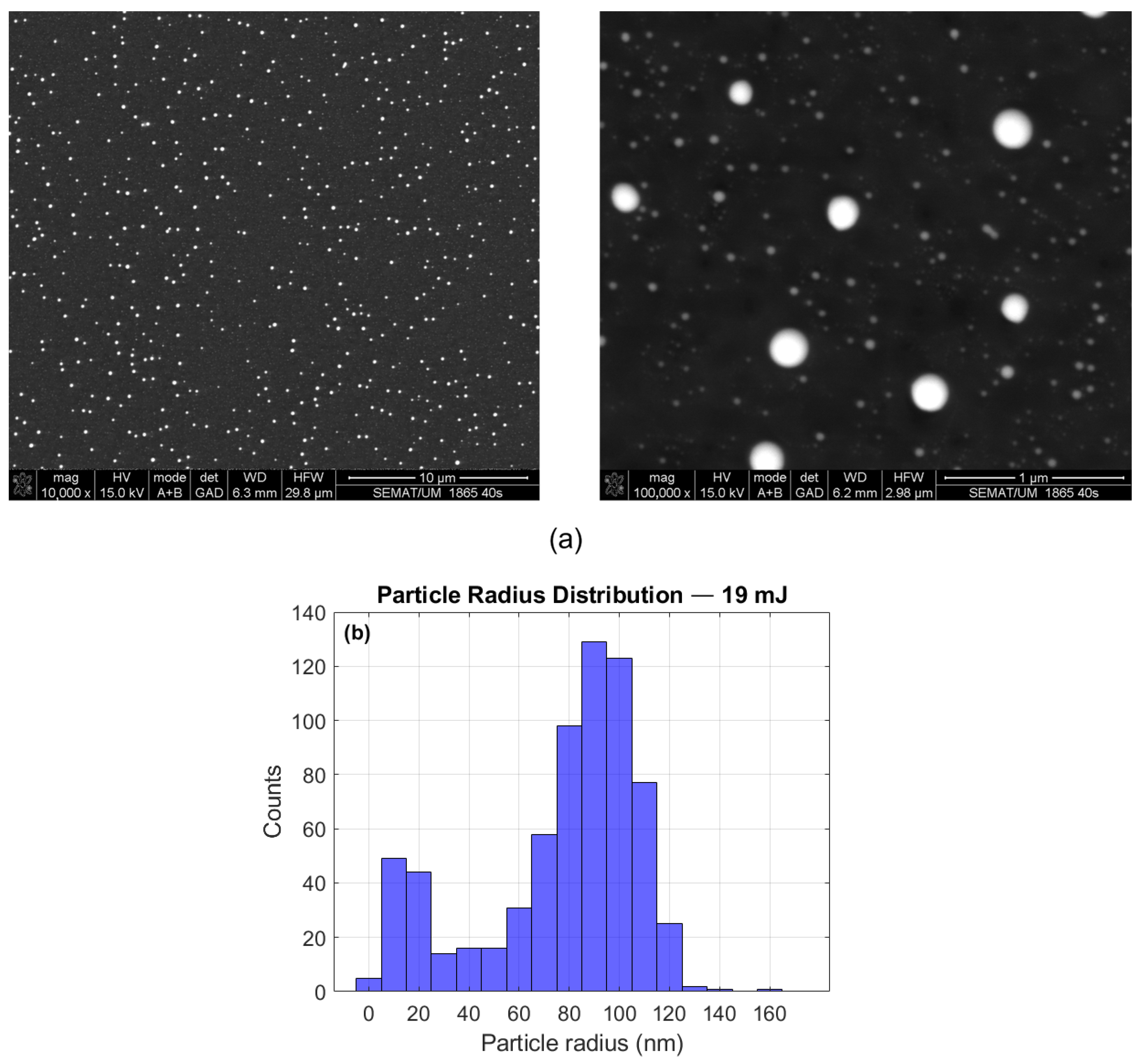

Figure 5. Morphological characterization of the Au–ZnO thin film after ~500 laser pulses (19 mJ per pulse). (a) SEM micrographs at two different magnifications; (b) corresponding nanoparticle size distribution histogram. The total number of particles is 689, the mean particle radius is 76.5 nm, the standard deviation of the particle radii is 32.2 nm and the fraction surface coverage is 0.05.
Figure 5. Morphological characterization of the Au–ZnO thin film after ~500 laser pulses (19 mJ per pulse). (a) SEM micrographs at two different magnifications; (b) corresponding nanoparticle size distribution histogram. The total number of particles is 689, the mean particle radius is 76.5 nm, the standard deviation of the particle radii is 32.2 nm and the fraction surface coverage is 0.05.
Micro 06 00001 g005

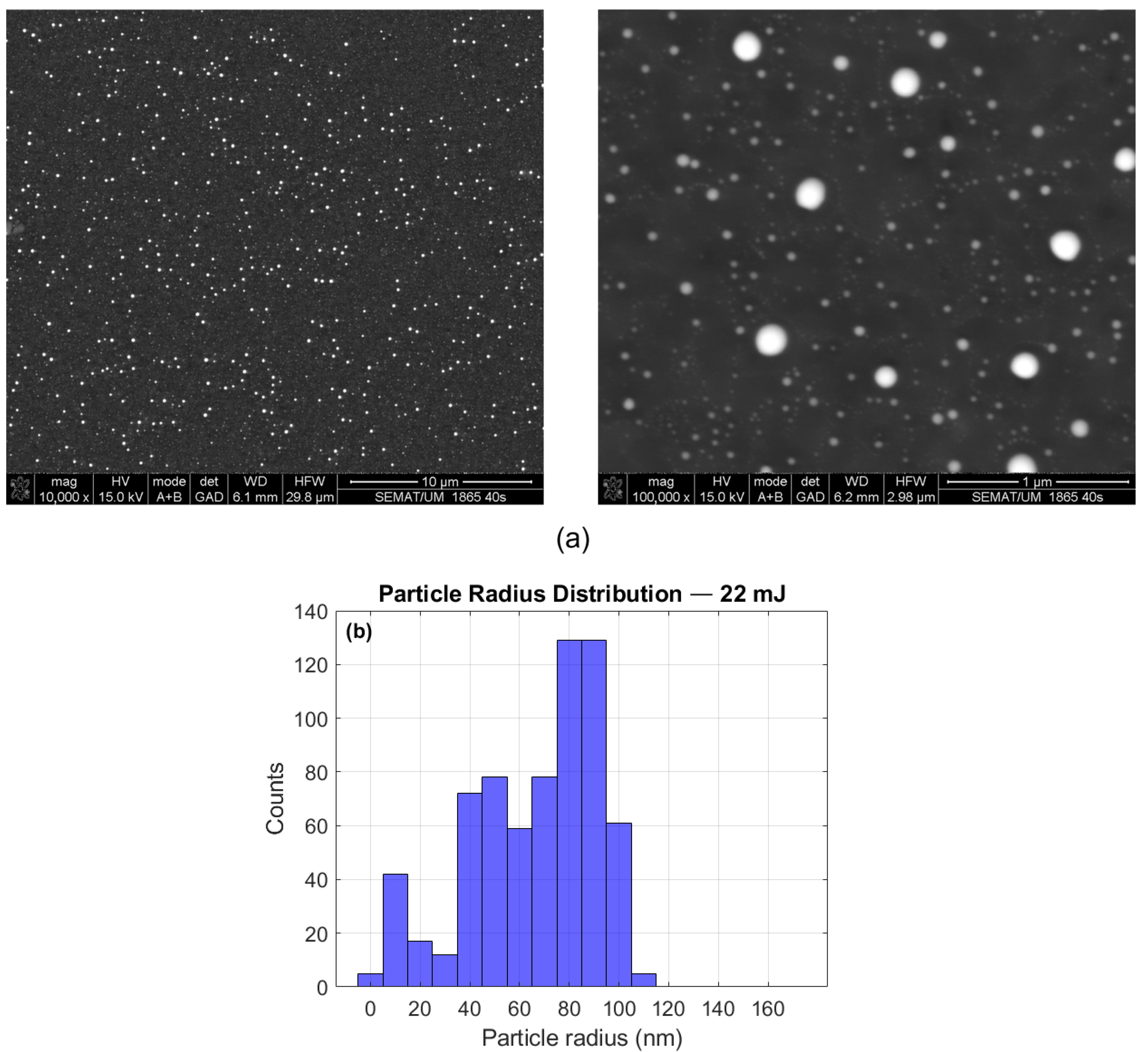

Figure 6. Morphological characterization of the Au–ZnO thin film after ~300 laser pulses (22 mJ per pulse). (a) SEM micrographs at two different magnifications; (b) corresponding nanoparticle size distribution histogram. The total number of particles is 687, the mean particle radius is 66.0 nm, the standard deviation of the particle radii is 25.7 nm and the fraction surface coverage is 0.05.
Figure 6. Morphological characterization of the Au–ZnO thin film after ~300 laser pulses (22 mJ per pulse). (a) SEM micrographs at two different magnifications; (b) corresponding nanoparticle size distribution histogram. The total number of particles is 687, the mean particle radius is 66.0 nm, the standard deviation of the particle radii is 25.7 nm and the fraction surface coverage is 0.05.
Micro 06 00001 g006

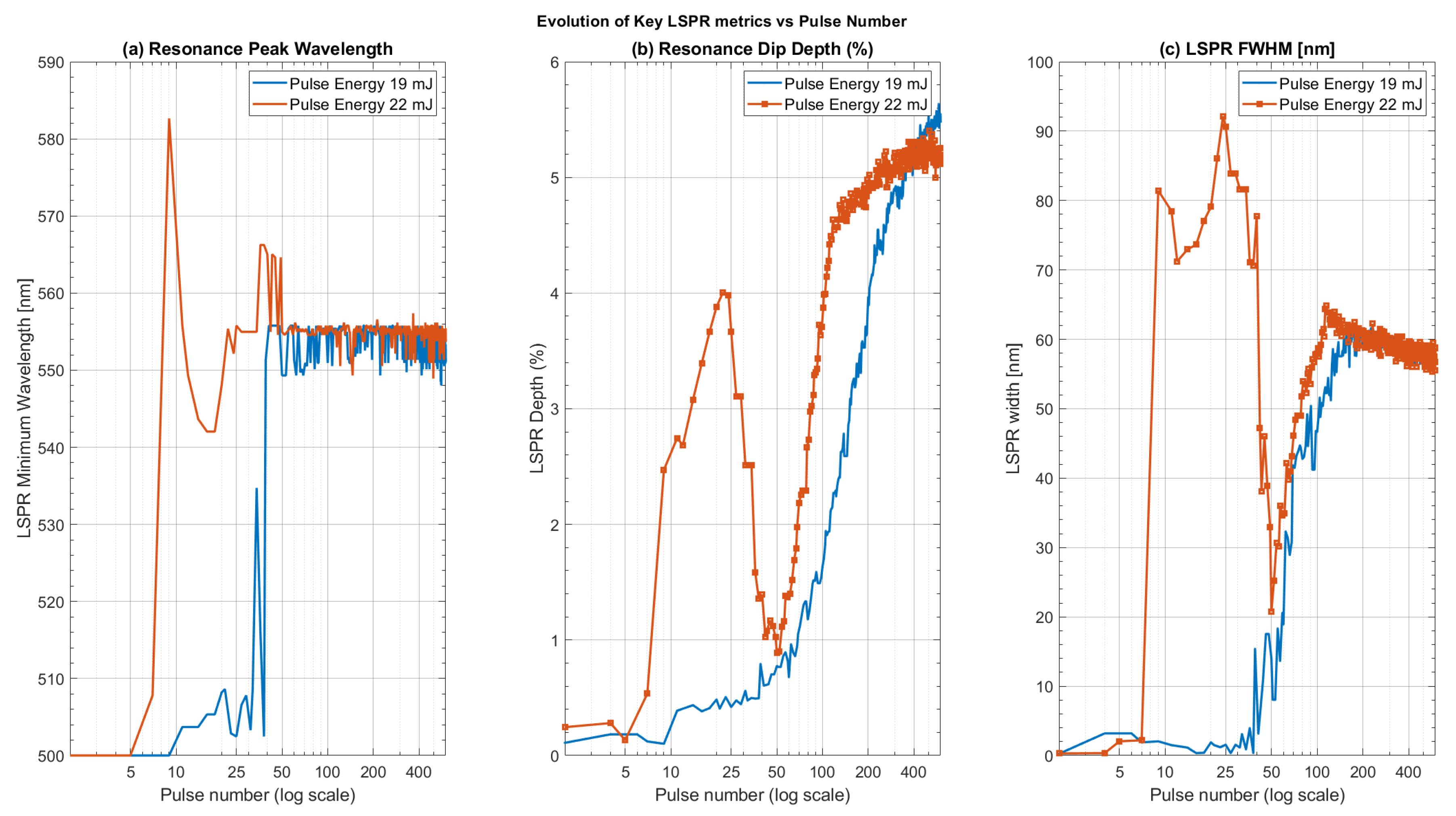

Figure 7. Evolution of three key metrics characterizing the transmission spectra as a function of laser pulse number for incident energies of 19 mJ and 22 mJ. The x-axis uses a logarithmic scale to emphasize the rapid early-stage dynamics. (a) the minimum transmission wavelength provoked by the LSPR (in nm); (b) LSPR dip depth relative to baseline transmission (in %); (c) LSPR full-width at half-maximum (FWHM in nm).
Figure 7. Evolution of three key metrics characterizing the transmission spectra as a function of laser pulse number for incident energies of 19 mJ and 22 mJ. The x-axis uses a logarithmic scale to emphasize the rapid early-stage dynamics. (a) the minimum transmission wavelength provoked by the LSPR (in nm); (b) LSPR dip depth relative to baseline transmission (in %); (c) LSPR full-width at half-maximum (FWHM in nm).
Micro 06 00001 g007

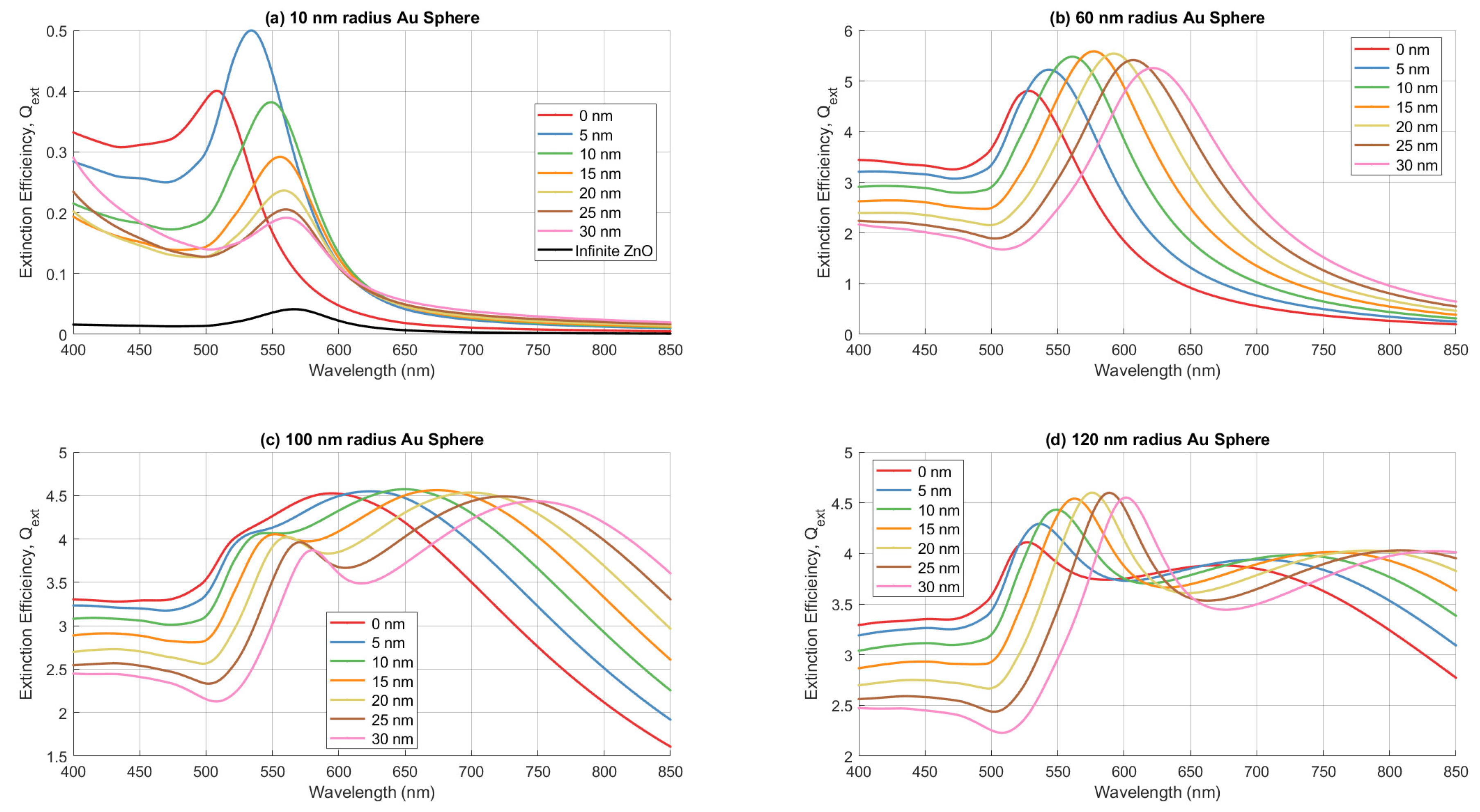

Figure 8. The variation in the extinction efficiency (the extinction cross-section normalized by the geometric cross-section) of four different gold sphere radii as a function of incident wavelength. Different curves correspond to different ZnO shell thicknesses as indicated in the legend. (a) a 10 nm radius gold sphere corresponding to the low limit of the size distribution observed in the SEM images. For reference we also plot the extinction efficiency for a 10 nm radius gold sphere embedded in an infinite ZnO matrix; (b) a 60 nm radius gold sphere lying near the middle of the size distribution (c) a 100 nm radius gold sphere and (d) a 120 nm radius corresponding to the upper limit of the observed SEM size distributions.
Figure 8. The variation in the extinction efficiency (the extinction cross-section normalized by the geometric cross-section) of four different gold sphere radii as a function of incident wavelength. Different curves correspond to different ZnO shell thicknesses as indicated in the legend. (a) a 10 nm radius gold sphere corresponding to the low limit of the size distribution observed in the SEM images. For reference we also plot the extinction efficiency for a 10 nm radius gold sphere embedded in an infinite ZnO matrix; (b) a 60 nm radius gold sphere lying near the middle of the size distribution (c) a 100 nm radius gold sphere and (d) a 120 nm radius corresponding to the upper limit of the observed SEM size distributions.
Micro 06 00001 g008

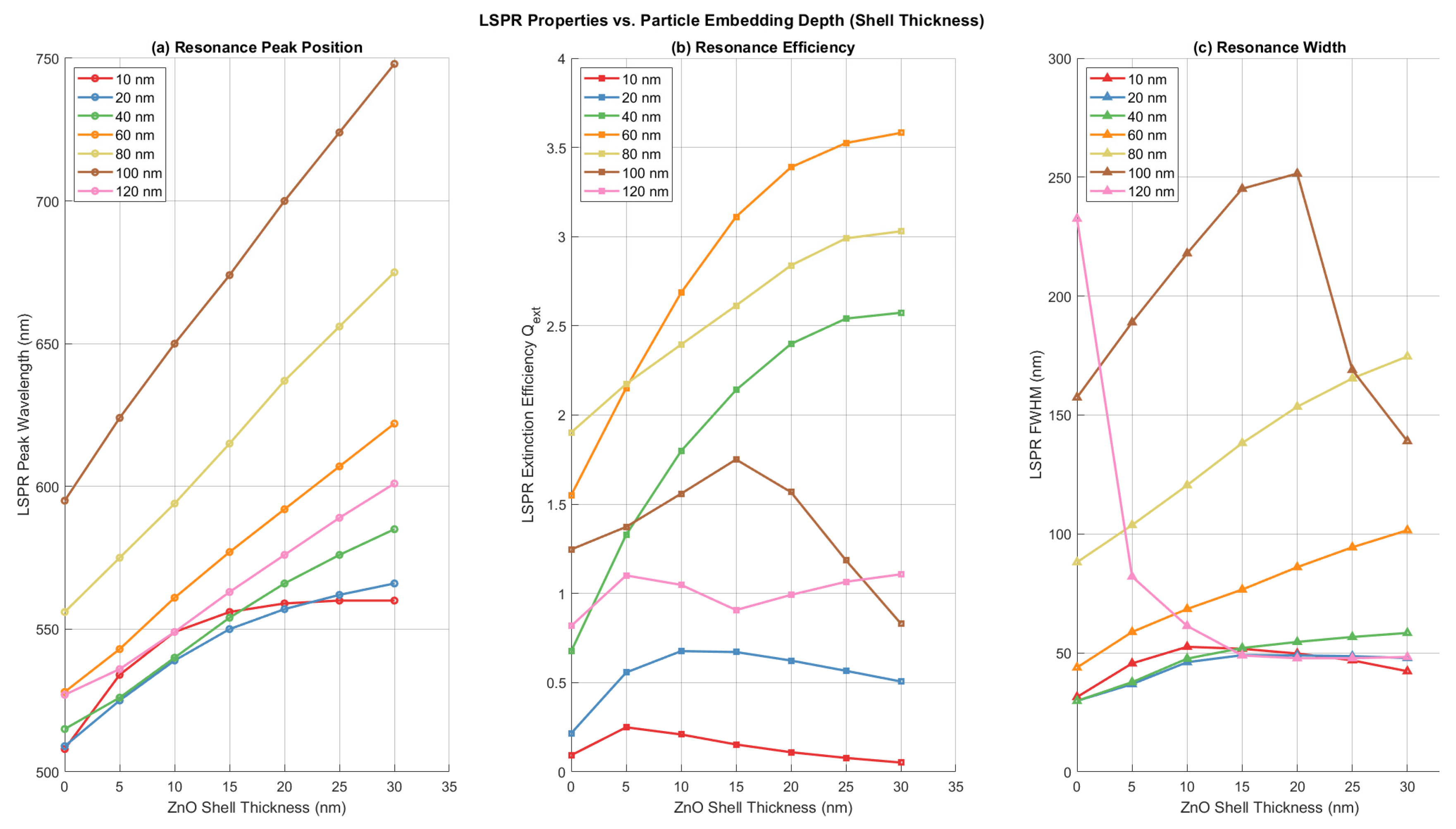

Figure 9. The changes in the key metrics of the LSPR dip as a function of the ZnO shell thickness for gold spheres with radii of 10 nm, 20 nm, 40 nm, 60 nm, 80 nm, 100 nm and 120 nm as indicated in the legends. (a) the wavelength of the LSPR peak in nm; (b) the prominence of the LSPR extinction peak cross-section efficiency above of the background normalized to the geometric cross-section of the spheres; (c) the FWHM in nm of the LSPR extinction peaks.
Figure 9. The changes in the key metrics of the LSPR dip as a function of the ZnO shell thickness for gold spheres with radii of 10 nm, 20 nm, 40 nm, 60 nm, 80 nm, 100 nm and 120 nm as indicated in the legends. (a) the wavelength of the LSPR peak in nm; (b) the prominence of the LSPR extinction peak cross-section efficiency above of the background normalized to the geometric cross-section of the spheres; (c) the FWHM in nm of the LSPR extinction peaks.
Micro 06 00001 g009
Table 1. Physical parameters of the as-deposited thin ZnO-gold films.
Table 1. Physical parameters of the as-deposited thin ZnO-gold films.
Physical ParameterValue
ZnO thickness30 nm
Gold concentration19 at %
Estimated gold particle size<10 nm
Deposition time40 s
Table 2. LSPR position, depth and width (FWHM) as a function of the number of incident pulses for the sample treated with an incident laser energy of 19 mJ/pulse.
Table 2. LSPR position, depth and width (FWHM) as a function of the number of incident pulses for the sample treated with an incident laser energy of 19 mJ/pulse.
Number of PulsesLSPR Dip Position [nm]Depth (%)Width [nm]
71550.91.141.5
152551.73.158.1
438550.95.356.5
Table 3. LSPR position, depth and width (FWHM) as a function of the number of incident pulses for the sample treated with an incident laser energy of 22 mJ/pulse.
Table 3. LSPR position, depth and width (FWHM) as a function of the number of incident pulses for the sample treated with an incident laser energy of 22 mJ/pulse.
Number of PulsesLSPR Dip Position [nm]Depth (%)Width [nm]
9582.72.581.4
50555.00.920.8
88555.03.355.7
299555.85.259.6
