Single-Cell Screening through Cell Encapsulation in Photopolymerized Gelatin Methacryloyl

Abstract

This study evaluated the potential of gelatin methacryloyl (GelMA) for single-cell screening compared to polyethylene glycol diacrylate (PEGDA). GelMA photopolymerized at 1000–2000 mJ/cm² produced consistent patterns and supported HeLa cell viability. GelMA (5%w/v) facilitated better cell collection within 2 days due to its shape retention. GelMA demonstrated biocompatibility with HeLa cells exhibiting exponential proliferation and biodegradation over 5 days. The average cell displacement over 2 days was 16 µm. Two targeted cell recovery strategies using trypsin were developed: one for adherent cells encapsulated at 800 mJ/cm², and another for floating cells encapsulated at 800 mJ/cm², enabling the selective removal of unwanted cells. These findings suggest GelMA as a promising biomaterial for single-cell screening applications, offering advantages over PEGDA in cell encapsulation and targeted recovery.

1. Introduction

Single-cell screening is a crucial technique for collecting specific cells based on the desired characteristics [1,2,3]. A major method for obtaining target cell populations is flow cytometric cell sorting [4,5], which is based on the optical and fluorescent characteristics of individual cells [6,7]. During flow cytometry, suspended cells pass through a detector in a short period of time. It is important to note that flow cytometry has inherently limited measurement quality.

Image-based single-cell screening systems overcome these limitations by utilizing high-resolution imaging and temporal analysis, allowing for the detection of weak signals and transient events [8]. This approach offers flexible cell collection methods, including single-pipette [9,10] and laser-based techniques [11]. Collected cells, both of interest [12,13,14] or not [15], can be encapsulated in photopolymerizable hydrogels like polyethylene glycol diacrylate (PEGDA) using light irradiation. Although the number of target cells is often greater than unwanted cells, and encapsulating cells of interest in PEGDA hydrogels is relatively straightforward, encapsulating negative cells is less efficient. While PEGDA hydrogels are suitable for DNA extraction, they have limitations such as slow degradation [16] and cytotoxicity at lower molecular weights [17,18]. For viable cell recovery and subsequent analysis, the surrounding hydrogel needs to degrade.

Gelatin methacrylate (GelMA) offers distinct advantages. This biocompatible material degrades by both cells and enzymes [19,20,21], making it more suitable for cell screening via encapsulation than PEGDA. The long-term viability of cells encapsulated in GelMA micromodules [22] and microspheres [23,24] has been established. Cells were acoustically patterned into diverse arrangements and encapsulated in GelMA for applications such as studying stem cell differentiation [25], constructing heterogeneous tissue models [26], and high-throughput drug testing [27]. GelMA hydrogels can be degraded using readily available enzymes like trypsin [28] and collagenase [29,30], facilitating efficient cell collection. While we have developed an automated single-cell encapsulation system [31], the specific properties of GelMA in the context of single-cell screening and the efficient collection of target cells after encapsulation remain unexplored.

To address this gap, we investigated the effects of GelMA hydrogels on cell proliferation, biodegradation, and cell motility within the gels for target single-cell collection. We tested both suspended and adherent cells for collecting cells encapsulated in GelMA. Our study successfully demonstrates the recovery of single floating and adherent cells through gel lysis using a time-controlled trypsin treatment.

2. Materials and Methods

2.1. Bioink and Cells

GelMA bioink was prepared by filling a centrifuge tube with 2 mL of phosphate-buffered saline (PBS(-), Gibco Ltd., pH 7.4, 1×, Newington, NH, USA). Cytotoxicity depends on the concentration of photopolymerized hydrogel during encapsulation [32,33]. We reduced the concentration of GelMA to 5%w/v. Of the GelMA (Sigma Aldrich, Saint Louis, MO, USA, gelatin methacryloyl, 900628, with a gel strength of 90–110 g Bloom and a degree of substitution of 60%), 0.1 g was added to the same tube, creating a 5%w/v GelMA solution in PBS(-). The GelMA solution was mixed with 10 mg of LAP (Lithium Phenyl(2,4,6-trimetheybenzoyl)phosphinate, LAP, L0290, Tokyo Kasei Kogyo Co., Ltd., Tokyo, Japan). The final concentration of LAP was 0.5%w/v in PBS(-).

HeLa cells (RCB0007, RIKEN BRC, Wako, Japan) were cultured in minimum essential media (MEM) supplemented with 10% fetal bovine serum (FBS) and 1% penicillin–streptomycin (Pen/Strep). The culture medium was removed, and cells were washed with 3 mL of PBS. Subsequently, 3 mL of 0.25% trypsin–EDTA 1X (Gibco^TM., 25200072, USA) was added to the dish and incubated for 4 min in a CO₂ incubator. Following incubation, 3 mL of the medium was added to the trypsinized cells, and the suspension was centrifuged for 3 min to remove the supernatant. Finally, the cells were resuspended for subsequent use in either a culture medium or bioink.

2.2. Irradiation Setup

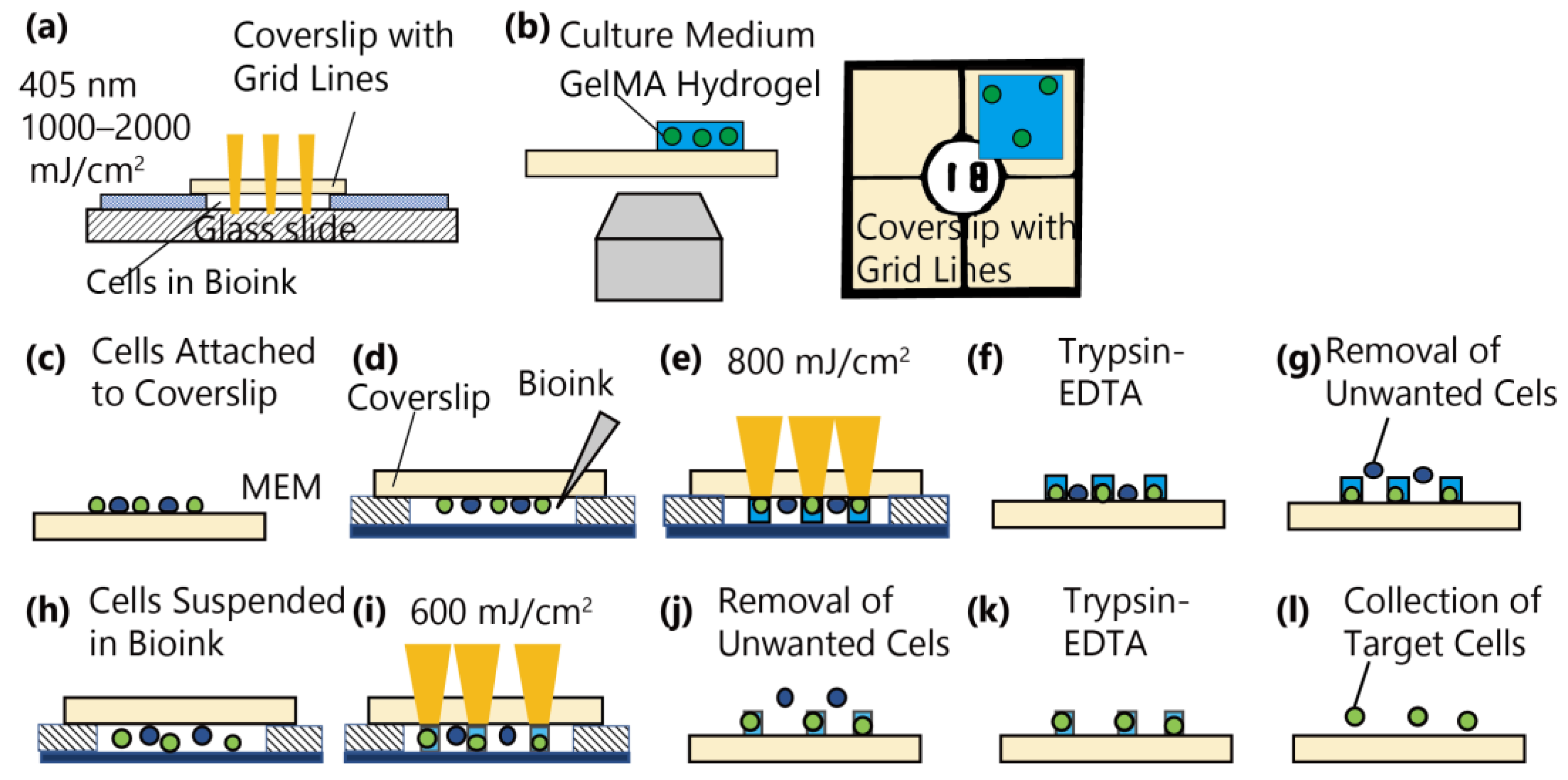

Cuvettes were constructed using four glass substrates (Figure 1a,d,h). The bottom substrate consistently used a glass slide measuring 26 × 76 mm (either S2226 with 1.2–1.5 mm thickness or S1111 with 0.8–1.0 mm thickness, both from Matsunami Glass Co., Ltd. (Osaka, Japan). The top substrate varied between a simple coverslip (2-176-01, 18 × 18 mm, 0.13–0.17 mm thickness) and a coverslip with grid lines (GC1300, 13 mm diameter, 0.16–0.19 mm thickness, both from Matsunami Glass Co., Ltd.). Two additional coverslips were used as spacers in all cases. The bioink was then injected into the assembled cuvette.

The GelMA bioink was photopolymerized using our DMD-based photoirradiation system, as described previously [31,34]. For cell encapsulation, the GelMA hydrogel and cells were exposed to 405 nm light at 100–300 mW/cm² for an integrated light dose of 600–2000 mJ/cm². The irradiation time ranged from 2 s to 8 s. The light pattern consisted of an arrangement of four squares, each measuring 98 µm. The ambient temperature was maintained at 23 °C throughout the process.

2.3. Live/Dead Assay

Calcein-AM (C396, Dojindo, Tokyo, Japan) (2.0 µM) and 4.0 µM propidium iodide (PI, 341-07881, Dojindo) were prepared in PBS(-). Cell viability was assessed immediately after gel polymerization through light irradiation. Cells were washed with PBS(-) and transferred to a 50 mm Falcon petri dish. Subsequently, 100 µL of the cell staining solution was added to the cells in the dish. To allow for stain diffusion through the gel, the dish was incubated for 35 min at 37 °C and 5% CO₂ in an incubator. For comparison, a cell suspension without photopolymerized gel was also incubated for 15 min as the negative control.

After incubation, the cells were examined under a microscope (Eclipse Ti-U, Nikon, Tokyo, Japan) equipped with a cooled camera (Nikon, DIGITAL SIGHT, DS-Qi1Mc, Tokyo, Japan) using fluorescent filters (B2A: 150 ms, C-FL-C TRITC: 150 ms). Live cells displayed green fluorescence, while dead cells emitted red fluorescence. Cell viability was calculated using the following equation: Cell viability (%) = N_Live/(N_Live + N_Dead), where N_Live is number of live cells and N_Dead is number of dead cells.

2.4. Observation of Cells Encapsualted in GelMA

HeLa cells were encapsulated in GelMA at 1000 mJ/cm² and were washed with PBS and cultured in a 50 mm petri dish containing the conditioned medium (MEM supplemented with 10% FBS and 1% Pen/Strep). The dish was kept in an incubator at 37 °C and 5% CO₂, and observed every day. The encapsulated cells were characterized to observe the cell proliferation, biodegradation of the gel, and cell motility over time. The biodegradability of GelMA was investigated by comparing the gel area after encapsulation by light irradiation. Gels with and without cells were measured for 5 days.

2.5. Encapsulation of Attached and Suspended Cells in GelMA

HeLa cells were encapsulated in GelMA using two strategies: attachment to a coverslip or suspension in a cuvette. Both methods utilized a 40 µm × 40 µm square pattern for encapsulation. Cells were (1) attached to a coverslip (Figure 1c) or (2) suspended in a cuvette (Figure 1h). These cells were encapsulated in GelMA with a 40 µm × 40 µm square pattern. We needed more time to detach adherent cells as the GelMA hydrogels were more crosslinked, making degradation take longer. To collect floating cells encapsulated in GelMA hydrogels, we can ignore cell dissociation and focus on the rapid degradation of GelMA hydrogels with a lower light integral dose of 600 mJ/cm².

(1) A suspension of HeLa cells was incubated for 2 h in a CO₂ incubator at 37 °C to promote attachment (Figure 1c). A cuvette was made and 20 µL of bioink was injected (Figure 1d). The cuvette with the bioink was placed on the stage of an inverted microscope (Nikon ECLIPSE Ti-U, Tokyo, Japan). HeLa cells were encapsulated on the coverslip within the bioink using 405 nm light with an integral dose of 800 mJ/cm² (Figure 1e). (2) HeLa cells were suspended in 2 mL of bioink (Figure 1h). The final concentration of cells was 4 × 10⁶ cells/mL. Single HeLa cells were encapsulated on the coverslip by irradiating the bioink with 405 nm at a light integral of 600 mJ/cm² (Figure 1i).

2.6. Collection of Cells with Trypsin

The time-controlled application of trypsin facilitated the selective recovery of encapsulated cells (Figure 1f,g, or Figure 1k,l). The coverslip with encapsulated cells was transferred to a 50 mm Petri dish and rinsed with PBS(-) to remove non-encapsulated cells. Next, trypsin (Gibco Ltd., 0.25% Trypsin-EDTA (1X)) was added to detach adherent cells and degrade the GelMA hydrogel. The exposed cells were detached first, followed by the collection of encapsulated cells after the dissolution of the gel. The dissolution and cell release were monitored using an inverted microscope and a cooled camera.

3. Results and Discussion

3.1. Basic Characterization with GelMA

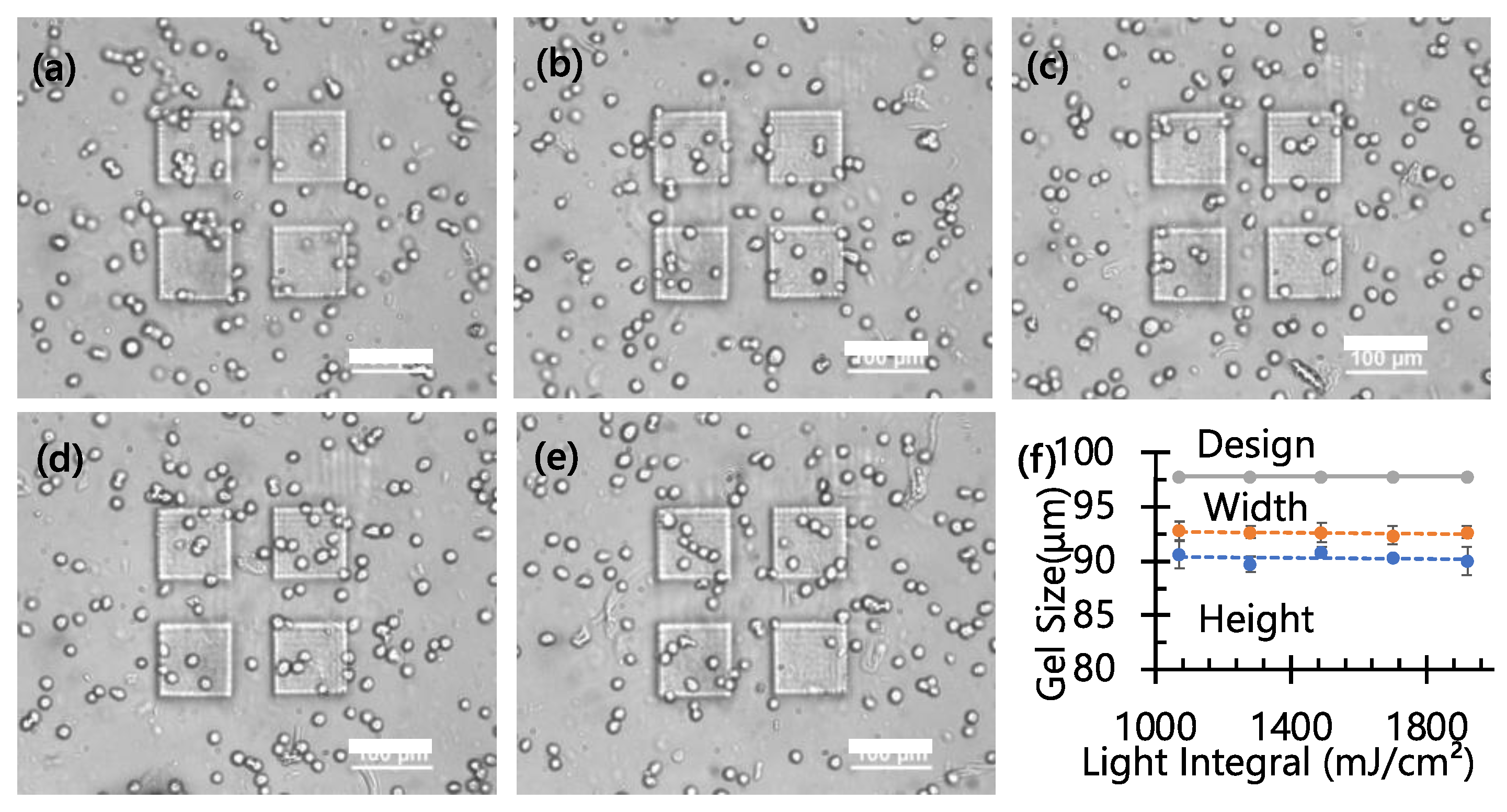

Figure 2a–e presents the top view of a GelMA hydrogel containing HeLa cells which were irradiated at 1070 mJ/cm² to 1920 mJ/cm². The gel was transparent after polymerization of GelMA at a concentration of 5%w/v, and the cells encapsulated in the gel were visible. Encapsulating the cells in a thin layer of gel helped maintain their immobilization and viability. Figure 2f depicts the individual gel units, each measuring approximately 92–94 µm after photopolymerization with 98 µm square light patterns. In single cell screening, the size of photocured hydrogel is important to determine the limits of the inter space between two patterns. If the size of the pattern is too large or too small compared to the designed values, some margins need to be considered. The data show that within the range of this light integral, the size of the formed hydrogel does not change significantly.

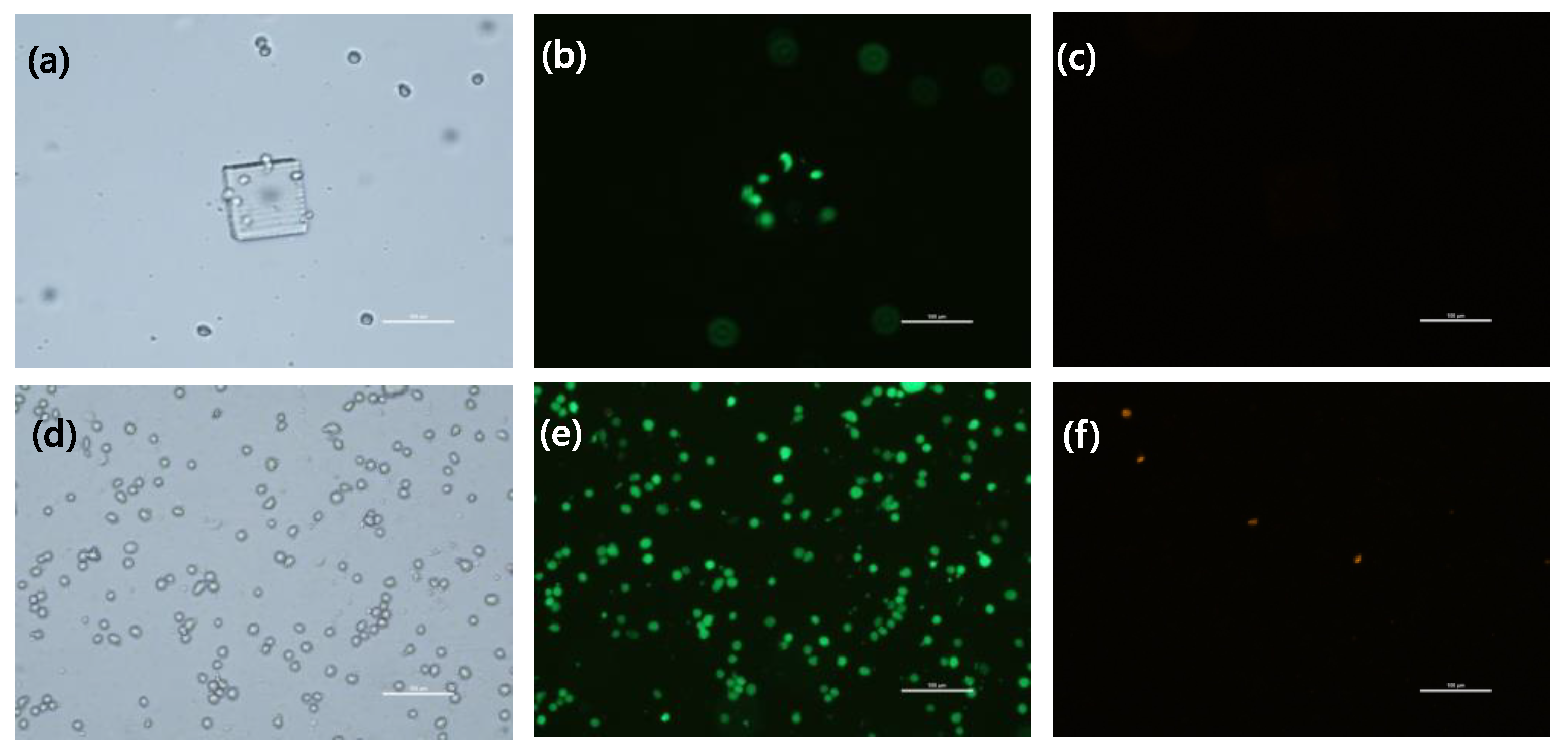

Photopolymerized 5%w/v GelMA with encapsulated cells showed high viability of 96% (43/45 cells). Ten sites were encapsulated with 1200 mJ/cm² light irradiation, and viability was assessed immediately after fluorescence microscopy using Calcein-AM and PI staining. The negative control reached 98% (173/177 cells). Figure 3 shows the microscopic views of cells under different conditions. Figure 3a–c depict cells encapsulated in a 5%w/v GelMA hydrogel that were photopolymerized at 1200 mJ/cm². Figure 3a is a bright field image showing the overall cell population. Figure 3b shows the green fluorescence of live-cell stained with Calcein-AM, indicating viable cells. Figure 3c looks black, suggesting that no dead cells were detected with red fluorescence, stained with PI. Figure 3d–f represents the negative control conditions without any treatment.

3.2. Biodegradability of GelMA

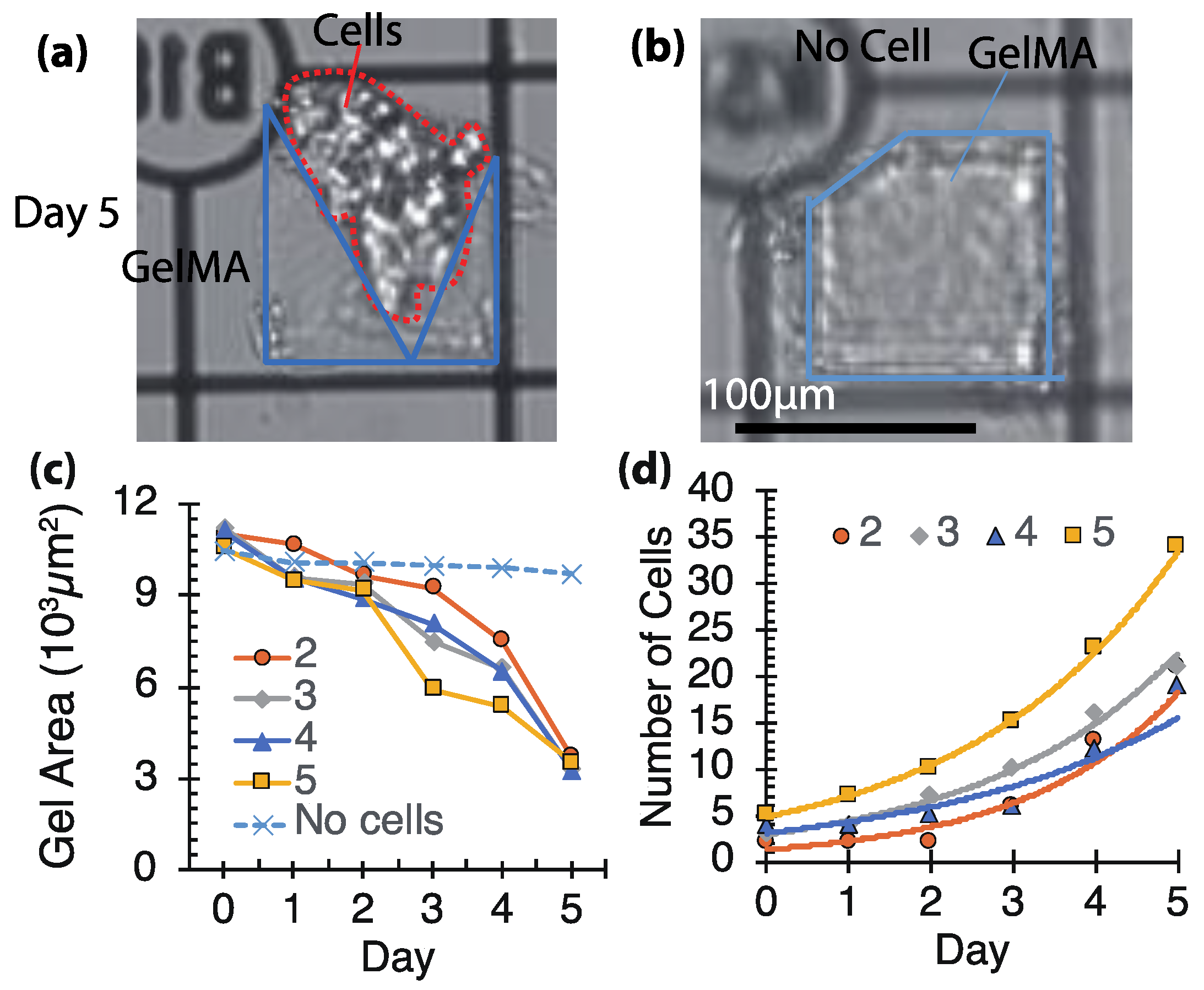

Figure 4a,b demonstrates the biodegradation of GelMA hydrogels with and without encapsulated cells after 5 days. The gel containing cells exhibited significant degradation, while the cell-free gel remained largely intact. While the cell-free gel showed a slight decrease in the area, it was not statistically significant.

The change in the gel area over time was quantified to assess cell biodegradability (Figure 4c). A 100 µm × 100 µm square pattern was used for light irradiation. The initial cell count, and the initial area of the cell-free gel are shown in the graph. The graph highlights a significant difference in the area between the initial cell-embedded gels and the cell-free gel. The rate of decrease in the area is related to time and is not strongly related to the initial cell count. This reason is explained by the fact that the number of cells in the hydrogels is comparable on Day 5. A significant decrease in the gel area occurred after Day 3, suggesting cell-mediated degradation. The area of the cell-free gel stabilized at approximately 10 × 10³ µm² by Day 5, while the area of the initial cell-embedded gels, averaged across four hydrogels, decreased to approximately 3.4 ± 0.2 × 10³ µm².

Figure 4d examines cell proliferation within 100 µm × 100 µm GelMA hydrogels after immobilization. Series 2–5 in the graph represent the initial number of encapsulated cells on Day 0. The cells within the gel continued to proliferate throughout the 5 days, reaching several dozen cells under all conditions by Day 5. The exponential growth curve observed resembles normal cell proliferation patterns [35].

3.3. Behavior of Cells Encapsulated in the GelMA Hydrogel

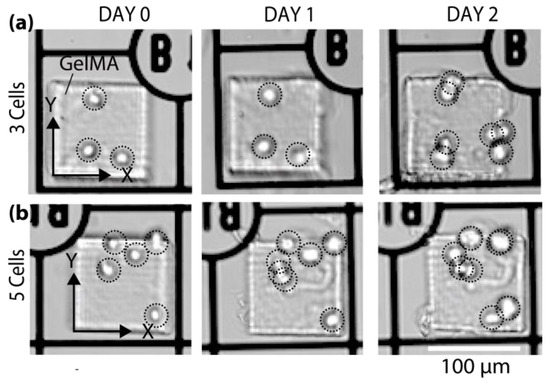

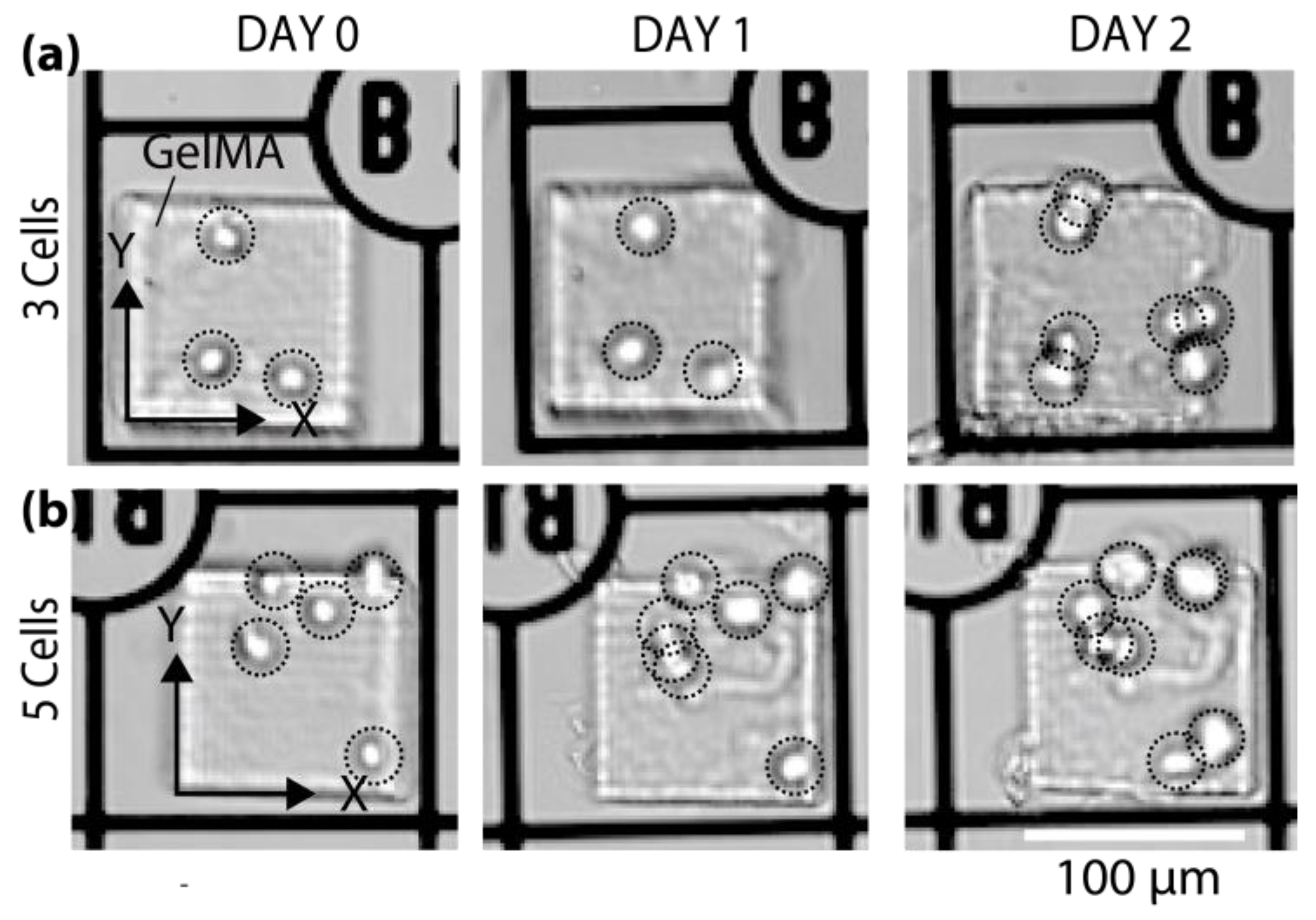

Figure 5a,b, respectively, presents observations of HeLa cells encapsulated in the GelMA hydrogel over 2 days with initial cell number of 3 and 5. In Figure 5a, a cell in the upper left corner exemplifies cell division occurring between Day 0 and Day 1, while the lower right corner shows cell division from Day 1 to Day 2. The hydrogel appears slightly deformed 2 days after cell division, suggesting some biodegradation by the cells.

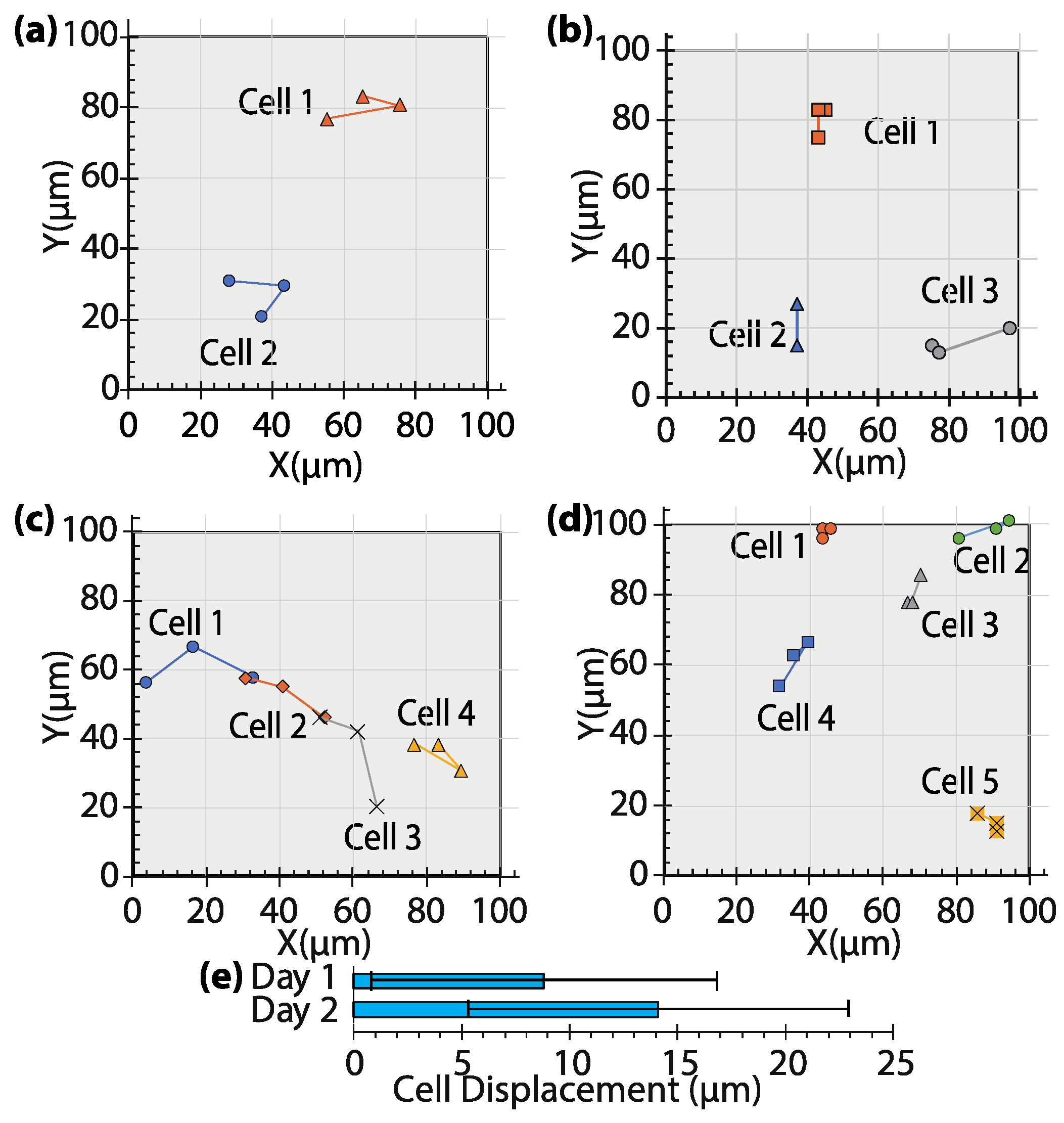

Figure 6a–d depicts a graph tracing the coordinates of the hydrogel corners and encapsulated cells, with the origin at a grid intersection. Cells remained confined within the gel, even when encountering the edge, and tended to move inward. Figure 6e shows the measured displacement of cells from their initial positions. The average cell migration was 12.2 µm ± 7.6 µm (N = 14) on Day 1 and 16.1 ± 9.6 µm (N = 14) on Day 2. A stiffer GelMA hydrogel might potentially reduce cell displacement, as reported in [36].

3.4. Recovery of Cells Encapsulated in GelMA

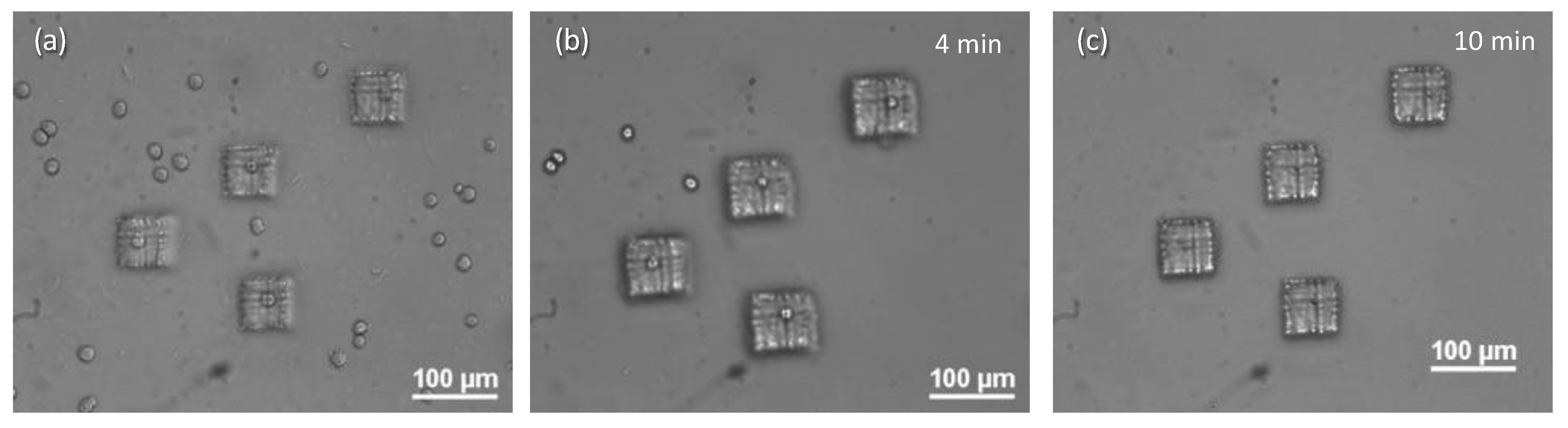

This study presents a novel technique for recovering adherent cells using a blue laser and DMD to photopolymerize a gel around individual cells. Patterned irradiation at 800 mJ/cm² selectively encapsulated HeLa cells in the GelMA hydrogel on a coverslip (Figure 7a). A subsequent 4 min trypsin treatment effectively removed unwanted cells, leaving only the encapsulated HeLa cells (Figure 7b). While longer trypsin exposure (10 min) did not fully degrade the gel, the desired cells remained encapsulated (Figure 7c). This method allows for the detachment of unwanted cells while specifically collecting the targeted cells.

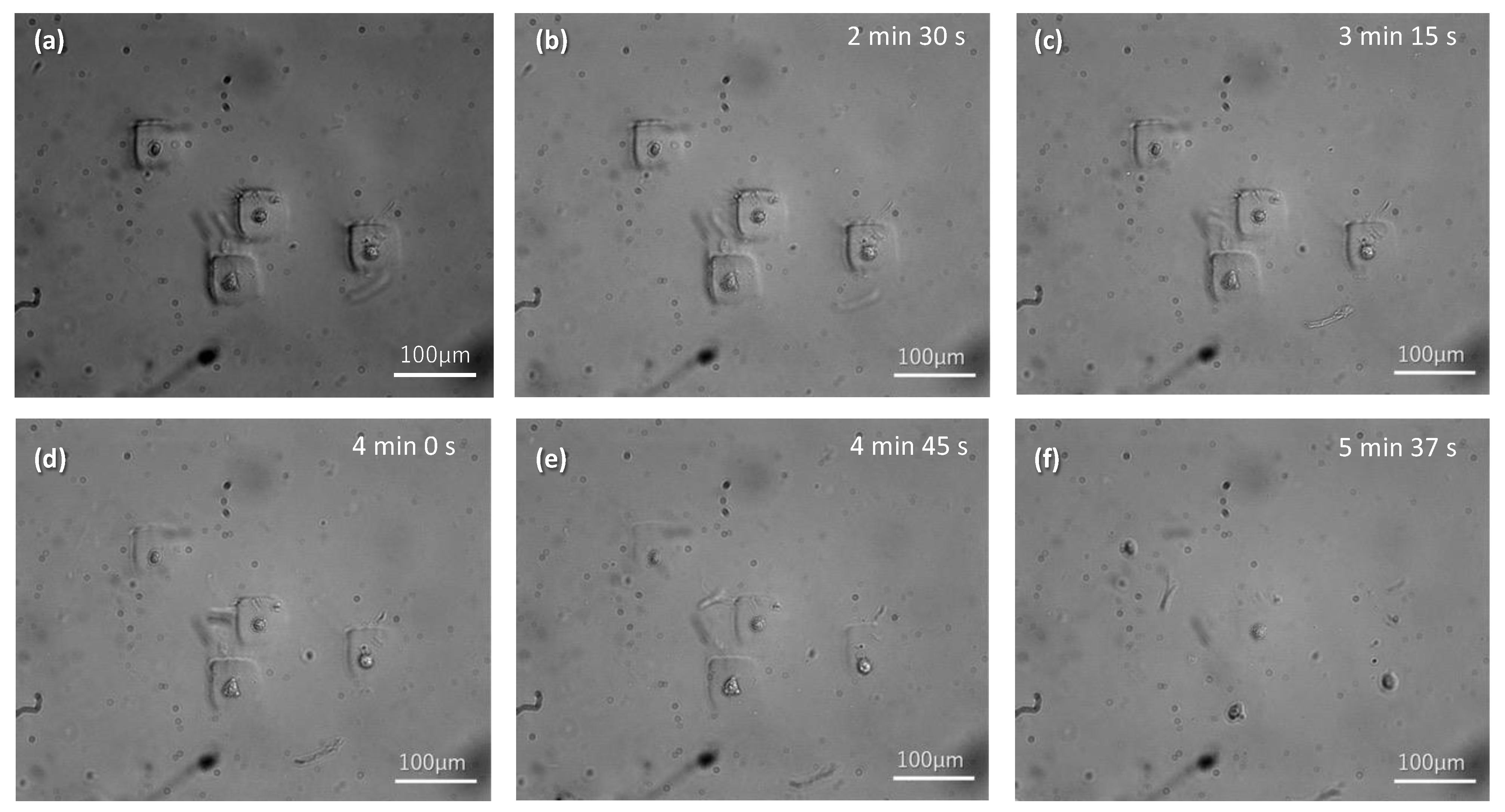

For suspended cells, irradiation at 600 mJ/cm² resulted in HeLa cell encapsulation, but these cells were not readily detached by rinsing (Figure 8). Rinsing removed unwanted cells, and the encapsulated cells were subsequently collected by degrading the GelMA with trypsin. Video S1 further illustrates the gel dissolution process with trypsin and the release of cells from the GelMA hydrogels after 5 min of treatment.

This study chose GelMA over PEGDA due to its superior degradability with trypsin, as the degradation of PEGDA is more difficult [12,13,14]. PEGDA hydrogels primarily degrade via hydrolysis of the ester bonds, with degradation occurring more rapidly at an acidic or alkaline pH [37]. This property of PEGDA has made it challenging to collect live cells. In contrast, GelMA hydrogels degraded more readily than PEGDA hydrogels under mild enzymatic conditions. The hydrolytic degradation of PEGDA is a slow process compared to the enzymatic degradation of GelMA. Our approach takes advantage of the different properties inside and outside the GelMA hydrogels for targeted cell collection. Our results confirm that prolonged exposure to light increases the dissolution time of GelMA hydrogels, which is consistent with previous reports on the proteolytic degradation of GelMA hydrogels [28,29].

4. Conclusions

This study highlights the suitability of GelMA over PEGDA for cell encapsulation. The dimension and viability evaluations of GelMA photopolymerized with an integrated light intensity of 1000–2000 mJ/cm² showed similar pattern formation. Interestingly, HeLa cells encapsulated in 5%w/v GelMA were better collected within a 2-day culture period due to GelMA’s shape stability. Further demonstrating the biocompatibility of GelMA, HeLa cells within the gel exhibited exponential proliferation over 5 days. The gel area where cells were encapsulated significantly decreased after 5 days, suggesting biodegradation by the cells. The averaged cell displacement remained less than 20 µm from the initial position.

We demonstrated two targeted cell recovery strategies. (1) Adherent cells: Targeted adherent cells were fixed on the coverslip using 800 mJ/cm² light irradiation. Most unwanted cells detached within 4 min of trypsin treatment. After 10 min, only encapsulated cells remained, achieving the selective removal of unnecessary cells. (2) Floating cells: Only targeted floating cells were exposed to light and immobilized on a coverslip. After photoencapsulation, PBS(-) washes removed unwanted cells. Trypsin treatment (6 min) dissolved the polymerized gel at 600 mJ/cm², allowing for the collection of only the targeted cells. This efficient cell recovery method can be integrated with the existing automated irradiation setup [31] and cell detection method [38] to further enhance targeted cell collection.
