New Machine Learning Approach for the Optimization of Nano-Hybrid Formulations

Abstract

Nano-hybrid systems are products of interactions between organic and inorganic materials designed and planned to develop drug delivery platforms that can be self-assembled. Poloxamine, commercially available as Tetronic^®, is formed by blocks of copolymers consisting of poly (ethylene oxide) (PEO) and poly (propylene oxide) (PPO) units arranged in a four-armed star shape. Structurally, Tetronics are similar to Pluronics^®, with an additional feature as they are also pH-dependent due to their central ethylenediamine unit. Laponite is a synthetic clay arranged in the form of discs with a diameter of approximately 25 nm and a thickness of 1 nm. Both compounds are biocompatible and considered as candidates for the formation of carrier systems. The objective is to explore associations between a Tetronic (T1304) and LAP (Laponite) at concentrations of 1–20% (w/w) and 0–3% (w/w), respectively. Response surface methodology (RMS) and two types of machine learning (multilayer perceptron (MLP) and support vector machine (SVM)) were used to evaluate the physical behavior of the systems and the β-Lapachone (β-Lap) solubility in the systems. β-Lap (model drug with low solubility in water) has antiviral, antiparasitic, antitumor, and anti-inflammatory properties. The results show an adequate machine learning approach to predict the physical behavior of nanocarrier systems with and without the presence of LAP. Additionally, the analysis performed with SVM showed better results (R² > 0.97) in terms of data adjustment in the evaluation of β-Lap solubility. Furthermore, this work presents a new methodology for classifying phase behavior using ML. The new methodology allows the creation of a phase behavior surface for different concentrations of T1304 and LAP at different pHs and temperatures. The machine learning strategies used were excellent in assisting in the optimized development of new nano-hybrid platforms.

1. Introduction

Polymer micelles have been studied as a viable alternative for gene delivery systems, drugs, or contrast agents [1,2,3,4,5,6,7]. Polymeric therapy is arguably one of the most successful alternatives when dealing with first-generation nanotechnology carriers. Among them, polymeric micellar systems stand out, which have great potential for success [8]. Micellar systems are formed by blocks of amphiphilic copolymers and have been used in treating, diagnosing, and monitoring an illness. These theragnostic systems have attracted much attention in the medical, biological, and pharmaceutical fields [9]. Polyamines, commercially available as Tetronic^®, are formed by blocks of copolymers consisting of poly (ethylene oxide) (PEO) and poly (propylene oxide) (PPO) units arranged in a four-armed star shape with different hydrophilic-lipophilic balance (HBL), and molecular weight [10,11], being very attractive as drug delivery systems due to the capacity to form nanometric structures as micelles or worm-like micelles, for example, [12,13,14]. Structurally, Tetronics are similar to Pluronics^® [15,16,17]. PEO-PPO-PEO copolymer block micelles (Pluronic) incorporating doxorubicin (SP1049C) are used in clinical studies as anticancer agents [18].

Recent studies have shown that micelles formed by Tetronics have the same favorable attributes as Pluronic, however, with an additional benefit, as they are pH-dependent due to their central ethylenediamine unit [15,19]. The influence of pH on its structural organization provides a relevant and favorable feature to the delivery system of substances to a specific site, such as the delivery of antineoplastic in tumor tissue; this is due to the increase in glucose that raises (abnormally) the concentration of lactic acid by malignant cells (Warburg effect) [20]. Furthermore, according to [21], there is evidence that Tetronics can also inhibit efflux pumps in a similar way to Pluronics, which would be another great advantage for neoplasm therapy.

It is known that the combination of Laponite (LAP, Na⁺_0.7[(Si₈Mg5.5Li_0.3) O₂₀(OH)₄]⁻_0.7), discs of synthetic smectite clays with a diameter of approximately 25 nm and a thickness of 1 nm, with Pluronic block copolymers leads to the formation of hydrogels [17,18]. LAP has negative-charge surfaces with pH-dependent edges [22,23,24].

Nano-hybrid systems were presented as an attractive platform for drug delivery. These systems combine organic and inorganic materials in self-assembled structures [25]. Recent research has also shown that compounds formed by polyethylene oxide (PEO) and PEO/chitosan associated with LAP promote cell adhesion, proliferation, and differentiation [26]. Furthermore, according to [27], complexes formed by Laponite and alginate were able to promote the sustained release of doxorubicin, which was more significant with the reduction in pH.

Several studies have been published focusing on composite formulations with Tetronic co-polymers associated or not with laponite nanoparticles. This association can modify the transition of sol–gel phases of nanocomposites formed and provide a sustained release of dependence temperature and/or pH [28,29,30]. For these reasons, they can be a desirable platform for multifunctional, innovative therapy with excellent prospects for cancer treatment.

Beta-lapachone (β-Lap) is a naphthoquinone synthesized from Lapachol. Lapachol is a phenolic compound extracted from trees of the Bignoniaceae family, Tabebuia, widely found in northern and northeastern Brazil. A high quantity of research indicates β-Lap as a drug with antiviral, antiparasitic, antitumor, and anti-inflammatory activities [31,32]. However, its low water solubility (0.038 mg. mL⁻¹) provides serious bioavailability problems [33,34], making its use unfeasible.

The different stages of developing new pharmaceutical products, in general, demand a lot of time and money; in carrier systems, it is no different since there is a great possibility of organic and inorganic compounds that can be used to prepare nanocomposites. Studies reporting the optimized design of experiments are classic approaches and are widely used nowadays. Optimizing the parameters used during development allows for evaluating the impact of each variable (input data) on the target (output data). The response surface methodology (RSM) technique created in 1951 by Box and Wilson [35] is widely used in the chemical and pharmaceutical industry to optimize experimental procedures when seeking to reduce the number of experiments. The RSM searches through mathematical models for possible impacts of factors related to a process and points out an ideal working region with answers individually and cumulatively in response to a system [36].

Artificial intelligence (AI) based on machine learning (ML) has been increasingly used in different areas of knowledge. For example, ML techniques and algorithms allow a new analysis alternative and have accelerated discoveries of materials and formulations in the pharmaceutical field [37,38,39,40,41,42,43,44,45,46,47].

ML techniques, such as the support vector machine (SVM), and those based on artificial neural networks (ANNs), such as multilayer perceptron (MLP), can find input and output relationships for complex nonlinear systems associated with multiple variables. From a set of experimental data, ML techniques (MLP and SVM) can learn regression and classification models for any system [42]. The MLP technique has been successfully used in the literature to obtain regression models. However, this technique requires a lot of experimental data for training and validation [42], which in some cases can be prohibitive. On the other hand, SVM works well with a small dataset, generating very reliable response surfaces and classification models [47,48,49,50,51].

All aspects of this study are considered relevant to the potential development of Tetronic-based systems. The objective is, therefore, to use RSM and ML (SVM and MLP) techniques [47,48,49] to optimize different T1304 and LAP concentrations to find the most efficient formulations to solubilize β-Lap. In addition, this work presents a novel methodology based on phase behavior classification using ML. This novel methodology enables the creation of a phase behavior surface for different concentrations of T1304 and LAP at different pHs (natural pH, pH 2.0, pH 5.5, and pH 7.4) and with a temperature ramp between 25–70 °C.

Finally, our results can promote important information to rapidly advance the designing of an attractive platform for multifunctional treatment, based on its low cost, combined with good biological activity, the favorable characteristics of micellar systems as carriers of drugs and contrast agents, and the wealth of data generated with the Pluronic^® micelles.

2. Materials and Methods

2.1. Materials

Poloxamine with 21 and 27 PEO and PPO units, respectively (Tetronic 1304 with MM 10,500 Dalton and HBL: 12–18), was donated by the manufacturer BASF Corporation (Ludwigshafen, Germany). BYK Additives & Instruments (Wesel, Germany) kindly provided Laponite RD, a synthetic clay. The β-Lap compound was obtained from the laboratory of Professor Celson Camara of the Federal Rural University of Pernambuco (UFRPE, Recife, Brazil). This was achieved by a simple process of acid cyclization of Lapachol under acidic conditions and low temperatures. The other reagents used in this work, but not described in this section, are available and considered as analytical grade.

2.2. Methods

2.2.1. Preparation of the Nanocarriers

All nanocarrier systems (unique compound and hybrid) were similarly prepared. The mixtures of poloxamine (T1304) with or without LAP were kept in a bath sonicator for approximately 20 min at room temperature, then held under magnetic stirring for 24 h. The used concentrations of T1304 ranged over 1–20%, w/w with and without the presence of 1.5 or 3% w/w of LAP. Additionally, pH influence was studied at pH 2.0, pH 5.5, pH 7.0, and natural pH (~8.2 for nanocarriers in the absence of LAP and ~10 in the presence of LAP). All pHs were adjusted, with HCL at 1 mol.L⁻¹) [30].

2.2.2. Characterization of the Nanocarriers

Physical Behavior of Systems

The systems were evaluated for physical behavior by visual observation. In addition, the samples were all subjected to a stepwise temperature increase of 20 to 80 °C (increments of 5 °C, 10 min intervals between each sample stabilization). The experiments were conducted with samples in triplicate and the parameters used for data analysis and classification are described in

Table 1. Parameters used for data analysis and classification of systems.

Physical Behavior	Parameters Used
Liquid	Clear liquid and unable to maintain its weight if the bottle is inverted.
Viscous liquid	Thicker liquid with slower sample flow. Additionally, unable to maintain its weight if the bottle is inverted.
Gel	Classified as transparent dispersions in the form of a gel and capable of maintaining their weight if the vial is inverted; however, if subjected to vigorous agitation for 10 s, they come off.
Strong gel	Classified as clear dispersions in the form of a firm gel, capable of maintaining their weight against gravity in an inverted flask, and if subjected to vigorous shaking for 10 s, they do not come off.

.

Phase Behavior Experimental Design using Machine Learning

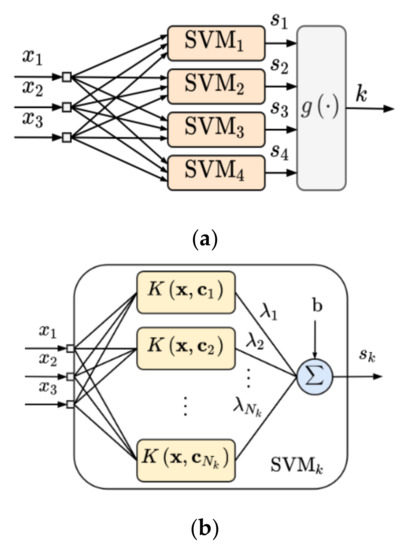

The ML used to classify the phase behavior was characterized by a committee composed of four SVMs, as presented in Figure 1. The ML was trained to classify four-phase behavior represented by liquid, viscous liquid, gel, and strong gel. Each $k$th SVM (${\mathrm{SVM}}_k$) inside the committee was a binary classifier, and it was responsible for one of each class, i.e., liquid (${\mathrm{SVM}}_1$), viscous liquid (${\mathrm{SVM}}_2$), gel (${\mathrm{SVM}}_3$), and strong gel (${\mathrm{SVM}}_4$). The inputs associated with each $k$th SVM were associated with the proportion of T1304 ($x_1$), the proportion of LAP ($x_2$), and the temperature ($x_3$) in Celsius degrees.

The Gaussian kernel with the sequential minimal optimization (SMO) algorithm were used for each $k$th SVM. The Gaussian kernel can be represented as

$$K\left(\mathrm{x},{\mathrm{c}}_i\right)=e^{-\frac{1}{2\sigma }\mathrm{x}-{\mathrm{c}}_i{}^2}$$

(1)

where $\mathrm{x}=\left[x_1, x_2,x_3\right]$ is the vector input and ${\mathrm{c}}_i$ is the center of the $i$th kernel, also called support vectors [42,47,48]. The output of each $k$th SVM was combined to generate the unique output that represents one of the $k$th classes. The proposed ML output is characterized by

$$k=g\left(\underset{1\le k\le 4}{\mathrm{index}}\left(\max \left\{s_1,s_2,s_3,s_4\right\}\right)\right)$$

(2)

where the variables $\left\{s_1,s_2,s_3,s_4\right\}$ represent the output of each $k$th SVM. The training and validation used n-fold cross-validation with $n=5$.

β-Lap Solubility in Nanosystems: Factorial and Machine Learning Analyses

A total of 5 mg of β-Lap was added to each 1 g sample (single or hybrid systems). Thus, in excess of the drug, all vials were kept under continuous agitation for ten days, without interruption, using the Blood Homogenizer and Solutions Model AP 22 (Phoenix-Luferco, Araraquara, Brazil). Subsequently, the systems were centrifuged (14,000 rpm for 15 min at 20 °C), and the supernatant was evaluated by UV-Vis spectrophotometry at 257 nm. The calibration curve comprised values between 2–10 μg mL⁻¹ of β-Lap solubilized in an ethanolic solution (1:1). The drug was quantified using the linear least squares rule by the equation y = 0.1123x + 0.0041, R² = 0.9998 [33].

Design of Experiments by Central Composite Design

The central composite design (CCD) factorial design was used to generate the results associated with β-Lap solubility. The factorial design was formulated with 32 assays (two factors and three levels) (see

Table 2. Factorial design formulated with 32 assays. Two factors and three levels, i.e., 3².

Assays	$\mathbf{T}1304 \left({\mathit{x}}_1\right)$		$\mathbf{LAP} \left({\mathit{x}}_2\right)$		$\mathit{\beta }{-\mathbf{Lap} }^1$
	Coded Level	% (w/w)	Coded Level	% (w/w)	$\mathsf{\mu }\mathbf{g}/\mathbf{mL}$
1	−1	1	−1	0.0	0.1206
2	−1	1	0	1.5	0.2600
3	−1	1	+1	3.0	0.4264
4	0	10	−1	0.0	0.4281
5	0	10	+1	3.0	0.5103
6	+1	20	−1	0.0	1.0211
7	+1	20	0	1.5	1.6062
8	+1	20	+1	3.0	0.9988
9	0	10	0	1.5	0.7875
10	0	10	0	1.5	0.8010
11	0	10	0	1.5	0.7780
12	0	10	0	1.5	0.7650

¹ β-Lap in the nanocarriers: from solubility studies.

). The surface’s coefficient of determination (R²) was obtained using the computational tool MATLAB 2020 (License 650662, Mathworks, Natick, MA, USA). The final expression found for the solubility surface is characterized as:

$$\beta {-\mathrm{Lap}}_{\left(\mu \mathrm{g}{.\mathrm{mL}}^{-1}\right)}={\beta }_0+{\beta }_1{x}_1+{\beta }_2{x}_2+{\beta }_{11}{x}_1^2+{\beta }_{22}{x}_2^2+{\beta }_{12}{x}_1{x}_2$$

(3)

where the variables $x_1$ (T1304 concentration) and $x_2$ (LAP concentration) are the independent variables. The ${\beta }_0$, ${\beta }_1$, ${\beta }_2$, ${\beta }_{11}$, ${\beta }_{22}$, and ${\beta }_{12}$ are linear and quadratic coefficients.

Design of Experiments by Machine Learning (MLP and SVM)

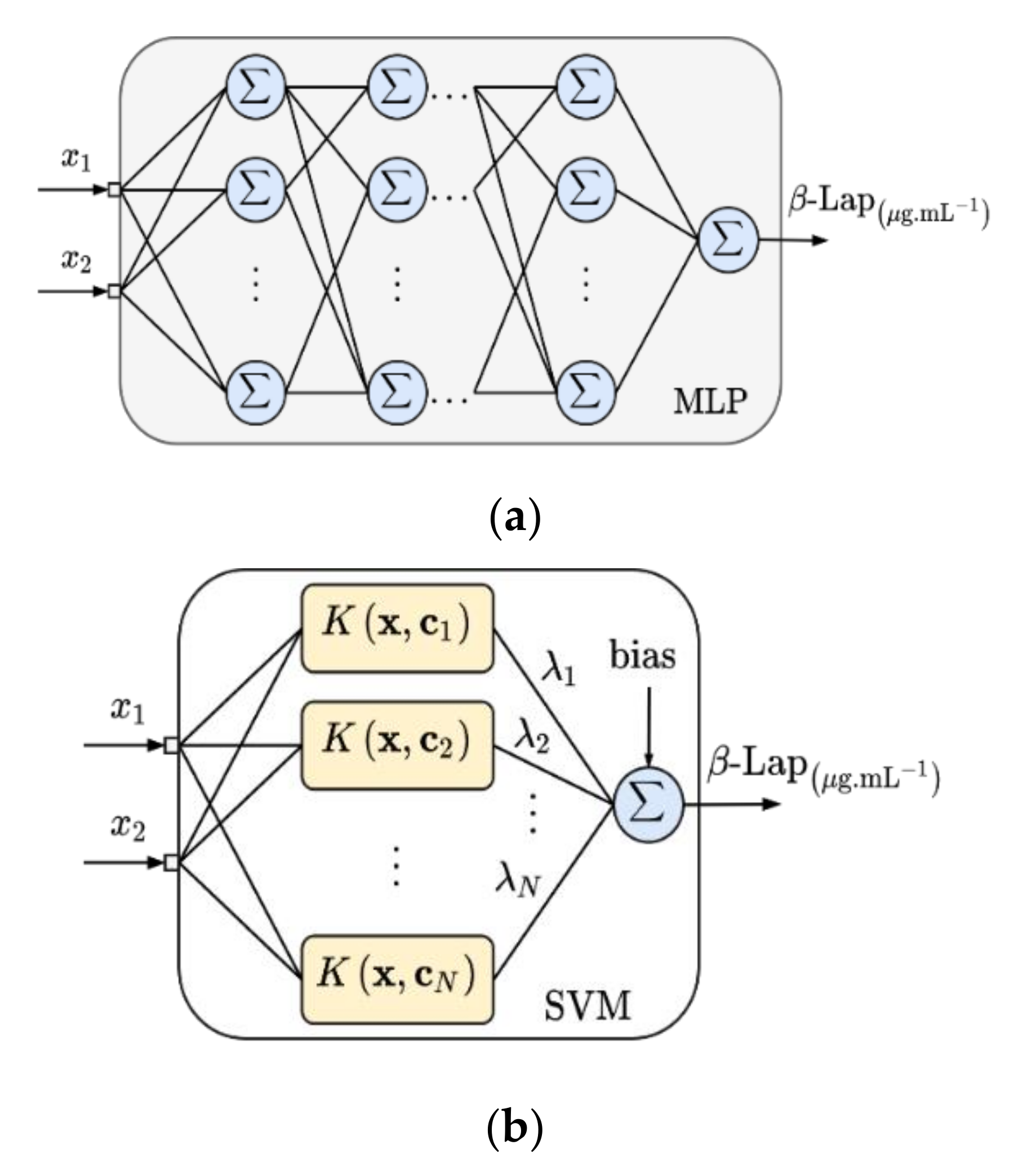

This experiment used two ML techniques to determine a surface response. The methods were the MLP (see Figure 2a) and SVM (see Figure 2b). Analogous to the RSM approach based on CCD factorial design (see Equation (3)), the ML techniques used as inputs the T1304 ($x_1$) and LAP ($x_2$) concentrations.

The ML based on MLP works with two hidden layers (with 16 neurons each), sigmoid activation function in all hidden neurons, and linear function in the output neuron. The training strategy was based on the Levenberg–Marquardt backpropagation algorithm [42,47,48]. The surface response based on MLP is characterized as:

$$\beta -Lap={\sum }_{q=1}^{16}{w}_{1q}^3\varnothing \left({\sum }_{m=1}^{16}{w}_{qm}^{2}f\left(w_{m1}^1{x}_1+w_{m2}^1{x}_2+w_{m0}^1\right)+w_{q0}^2\right)+w_{10}^3$$

(4)

where $f\left(·\right)$ and $\varnothing \left(·\right)$ are the sigmoid and linear activation function, respectively. The variable the $w_{ij}^k$ is jth weight associated with the ith neuron in the kth layer. The surface response based on SVM is expressed by

$$\beta -Lap={\sum }_{i=1}^N{\lambda }_{i}K\left(x,c_i\right)+\mathrm{bias}$$

(5)

where ${\lambda }_i$ is the $i$th gain. The MLP and SVM techniques were trained with 90% and validated with 10% of the samples.

The MLP and SVM models were created with the same data used in the RSM approach (see Table 2) plus additional values presented in

Table 3. Experimental design of the values that were included and used to improve training and validation of ML (SVM and MLP). Assays (1–12) shown in Table 2 were also used in these experiments.

Assays	$\mathbf{T}1304 \left({\mathit{x}}_1\right)$	$\mathbf{LAP} \left({\mathit{x}}_2\right)$	$\mathit{\beta }{-\mathbf{Lap} }^1$
	Coded Level	% (w/w)	Coded Level
13	5	0.0	0.2092
14	5	1.5	0.4792
15	5	3.0	0.3617
16	15	0.0	0.3639
17	15	1.5	1.1375
18	15	3.0	0.8039
19	8	0.0	0.4618
20	20	1.0	0.1397
21	20	2.0	1.2785

¹ β-Lap in the nanocarriers: from solubility studies.

. The assays 1–12 (see Table 2) and 12–18 (see Table 3) were used in the training step and assays 19–21 in Table 3 were used in the validation step.

3. Results and discussion

3.1. Physical Behavior Analysis

The ML technique based on SVM was applied to classify the physicists of the formulations under different temperature and pH conditions since they are thermo- and pH-responsive substances. The analysis enabled the classification and prediction of different physical states (four classes, see Table 3).

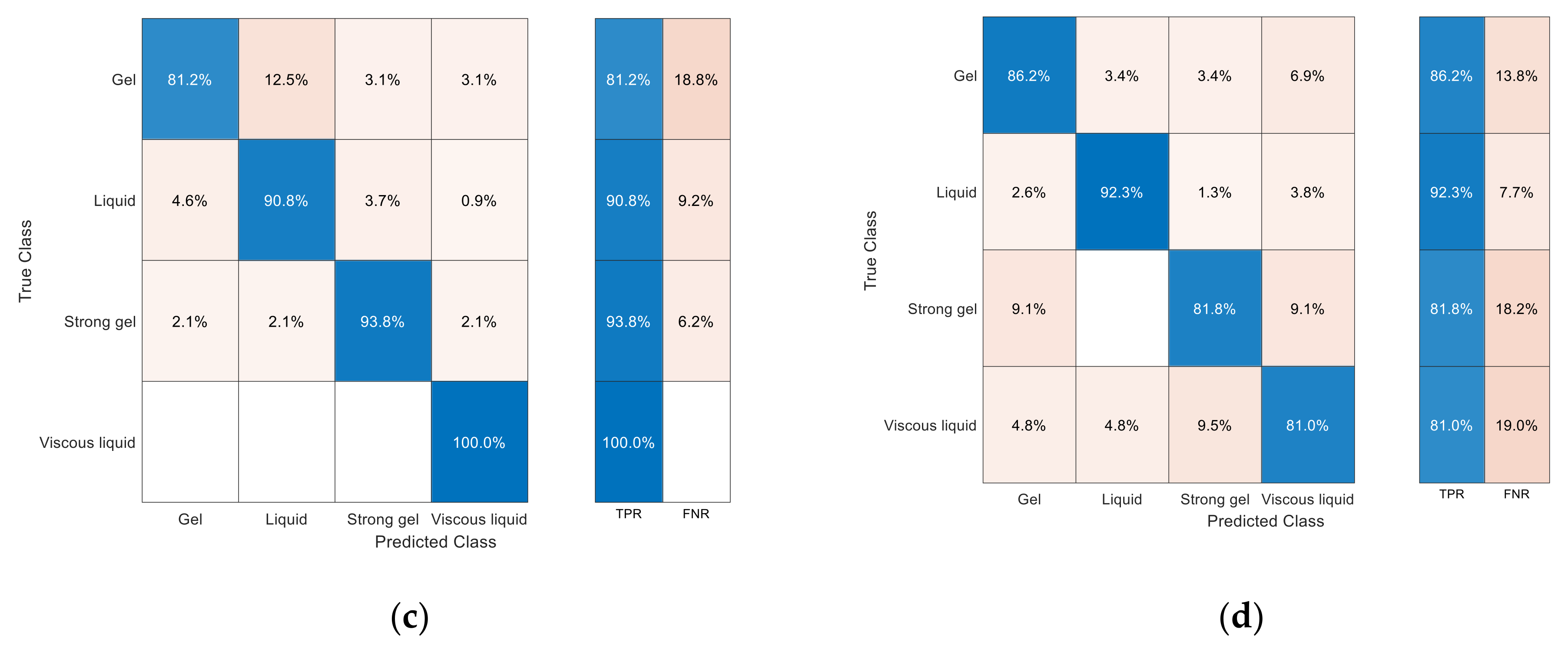

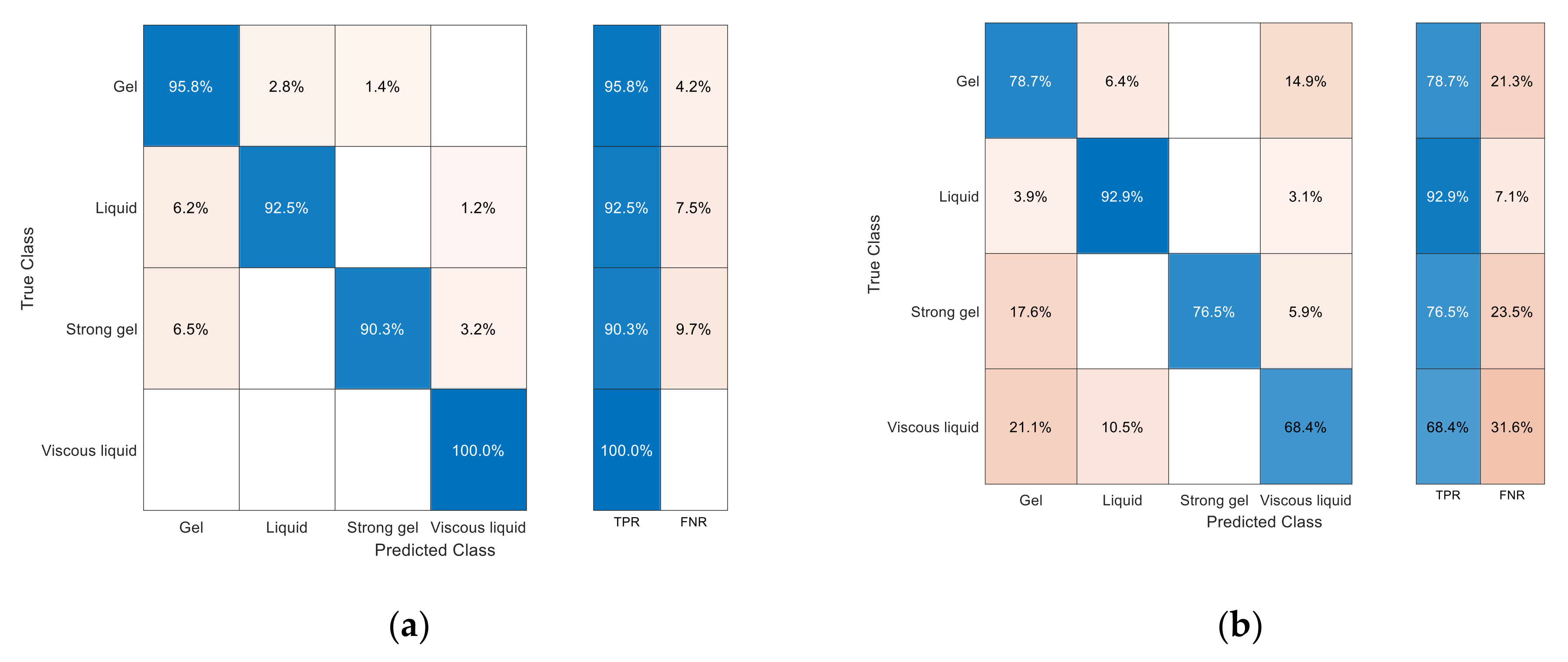

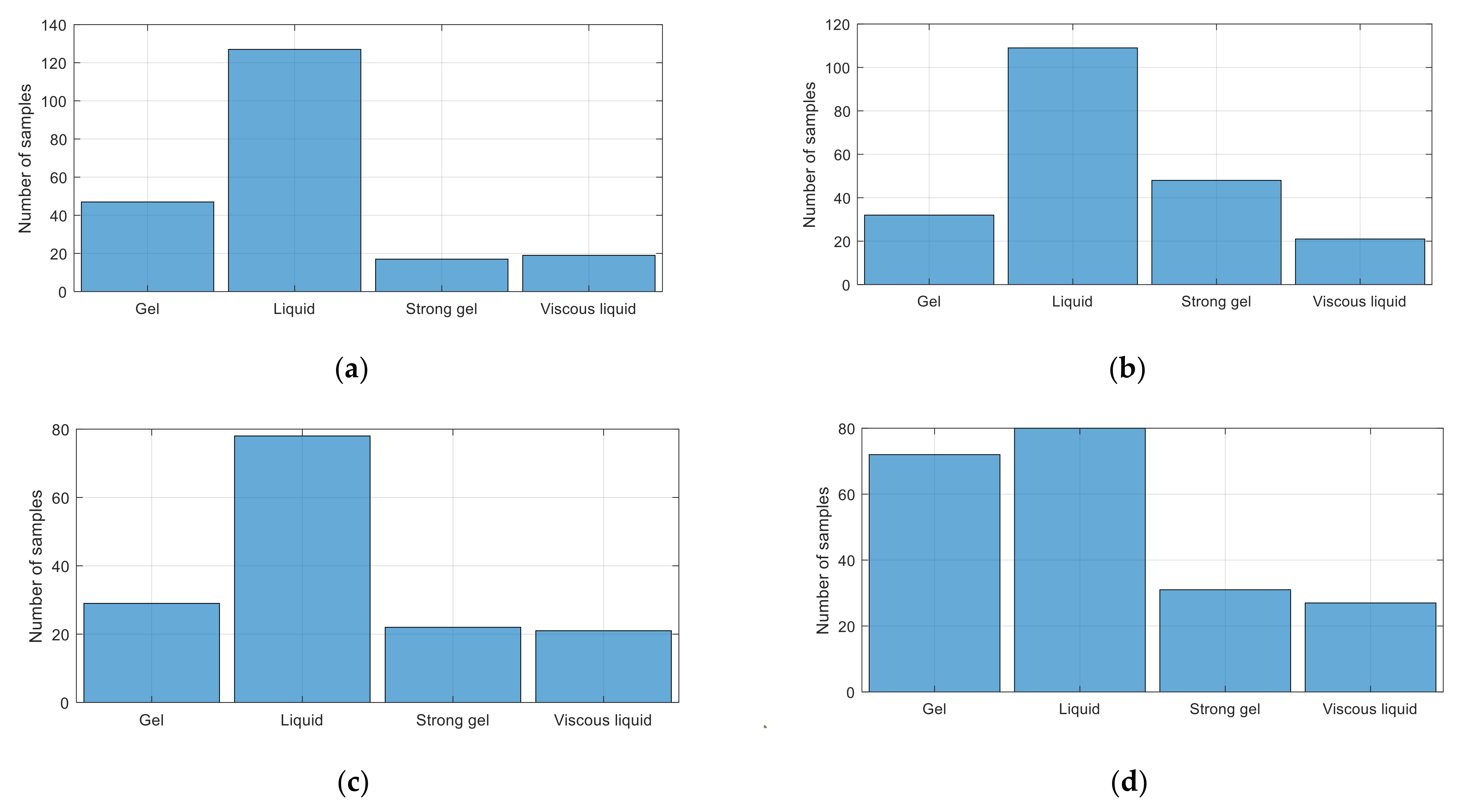

Figure 3a–d show the confusion matrix data and physical behavior for different concentrations of T1304 with or without LAP. The results were obtained for pH 2.0, 5.5, 7.4, and natural pH over a wide temperature range using SVM models. The SVM models for the physical behavior classification used ${\mathrm{N}}_1=58$, ${\mathrm{N}}_2=50$, ${\mathrm{N}}_3=7$, and ${\mathrm{N}}_4=25$ kernels on ${\mathrm{SVM}}_1$, ${\mathrm{SVM}}_2$, ${\mathrm{SVM}}_3$, and ${\mathrm{SVM}}_4$, respectively. The confusion matrix data of SVM depicted an accuracy between 90 and 100% (values displayed diagonally in blue boxes).

The sensitivity of the applied model (true positive rate or TPR) revealed values between 68.4 and 100% and specificity (false negative rate or FNR) between 0 and 31.6%, varying according to the sample dataset. Samples submitted to pH 5.5 conditions showed the lowest percentages of TPR and FNR. It is important to mention that a cross-validation strategy with five folds was used, where 90% of the data were destined for training and 10% for validation. Despite the non-balancing of the data in all conditions used (Figure 4), only for the pH 5.5 condition the classification and prediction results were not as satisfactory as the other conditions evaluated. Another important aspect to highlight is that, despite the number of samples in the liquid condition, no trend was observed for this class. The accuracies led us to choose the SVM model for the classification and prediction of data.

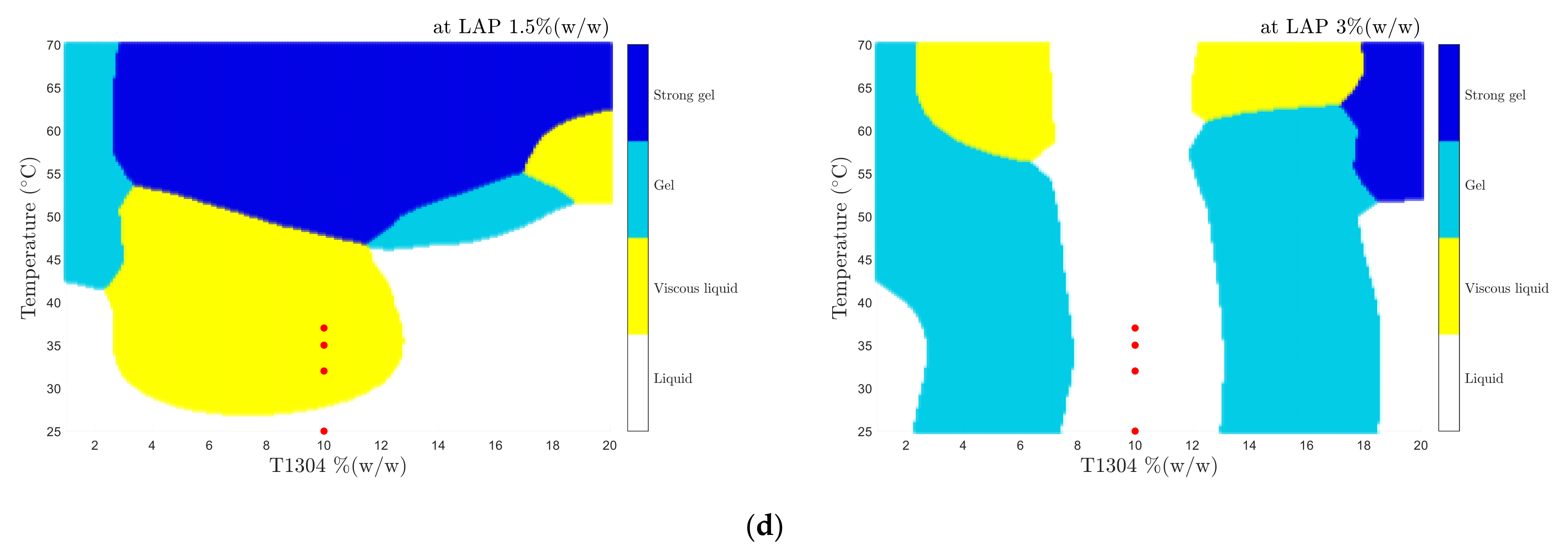

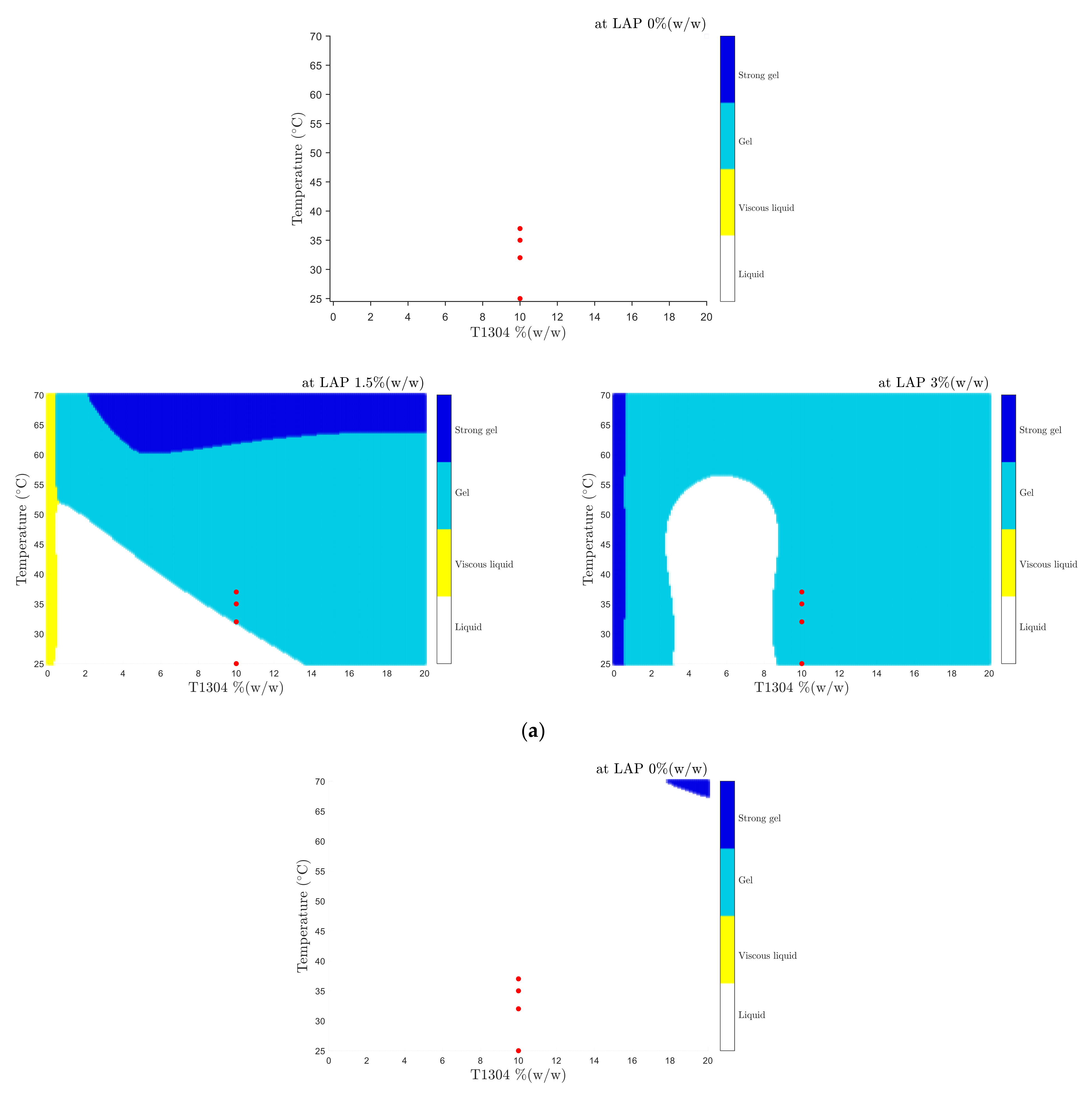

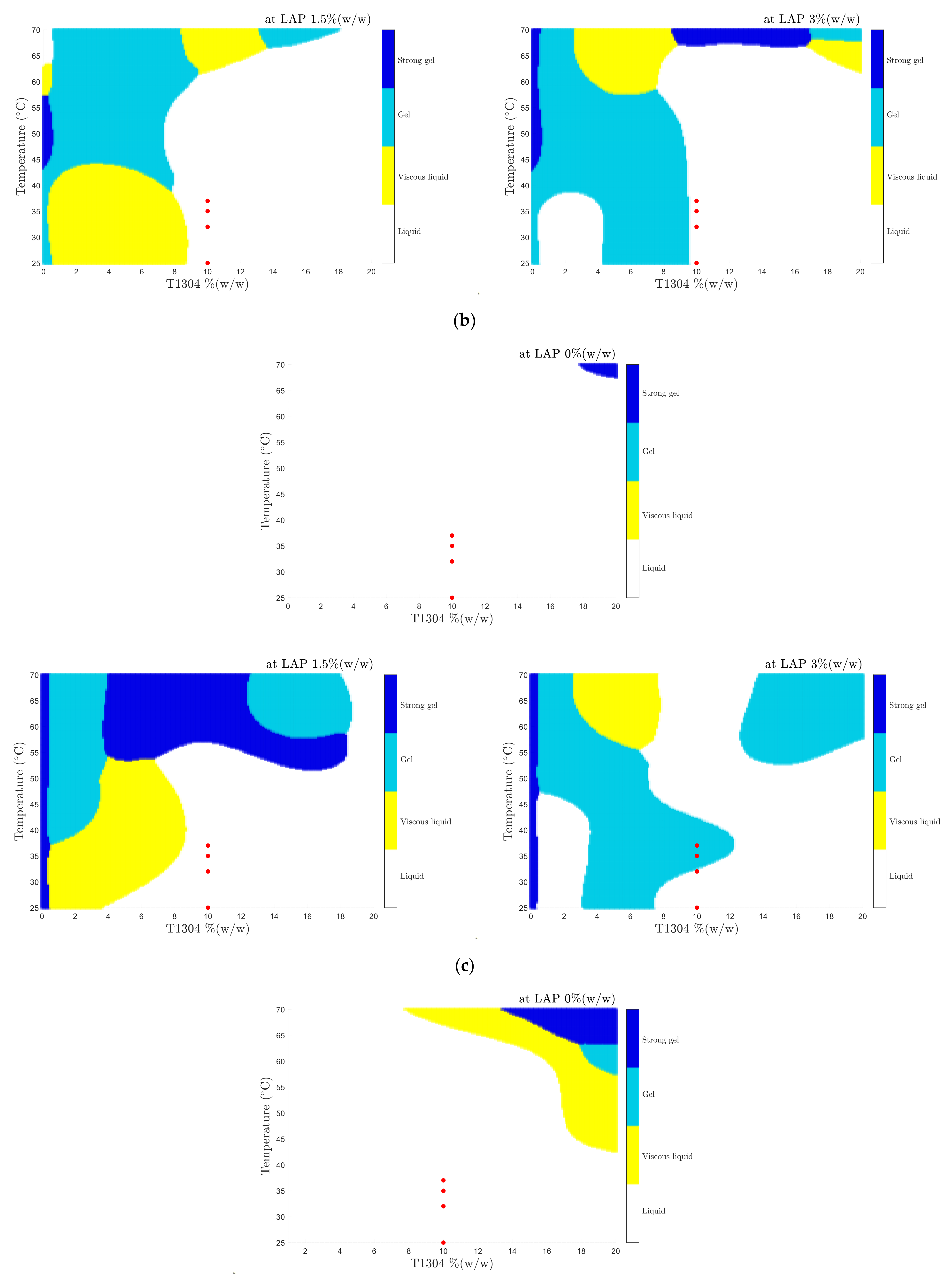

Based on Figure 5, samples with T1304 (1–20%, w/w) (without LAP) were classified as liquid samples in all concentrations, and temperature ranges were studied. These samples had a phase transition behavior (sol–gel) only above 75 °C. The positive influence of LAP as an ingredient in the formulation can be seen in Figure 4b,c. In this case, it was verified that the LAP can modify the physical behavior of the samples for different temperatures. Based on the results presented in Figure 4b,c, the LAP at one concentration generates samples with the four different physical states for different temperatures. This result shows that they are good candidates for future studies on developing drug delivery nanocarriers.

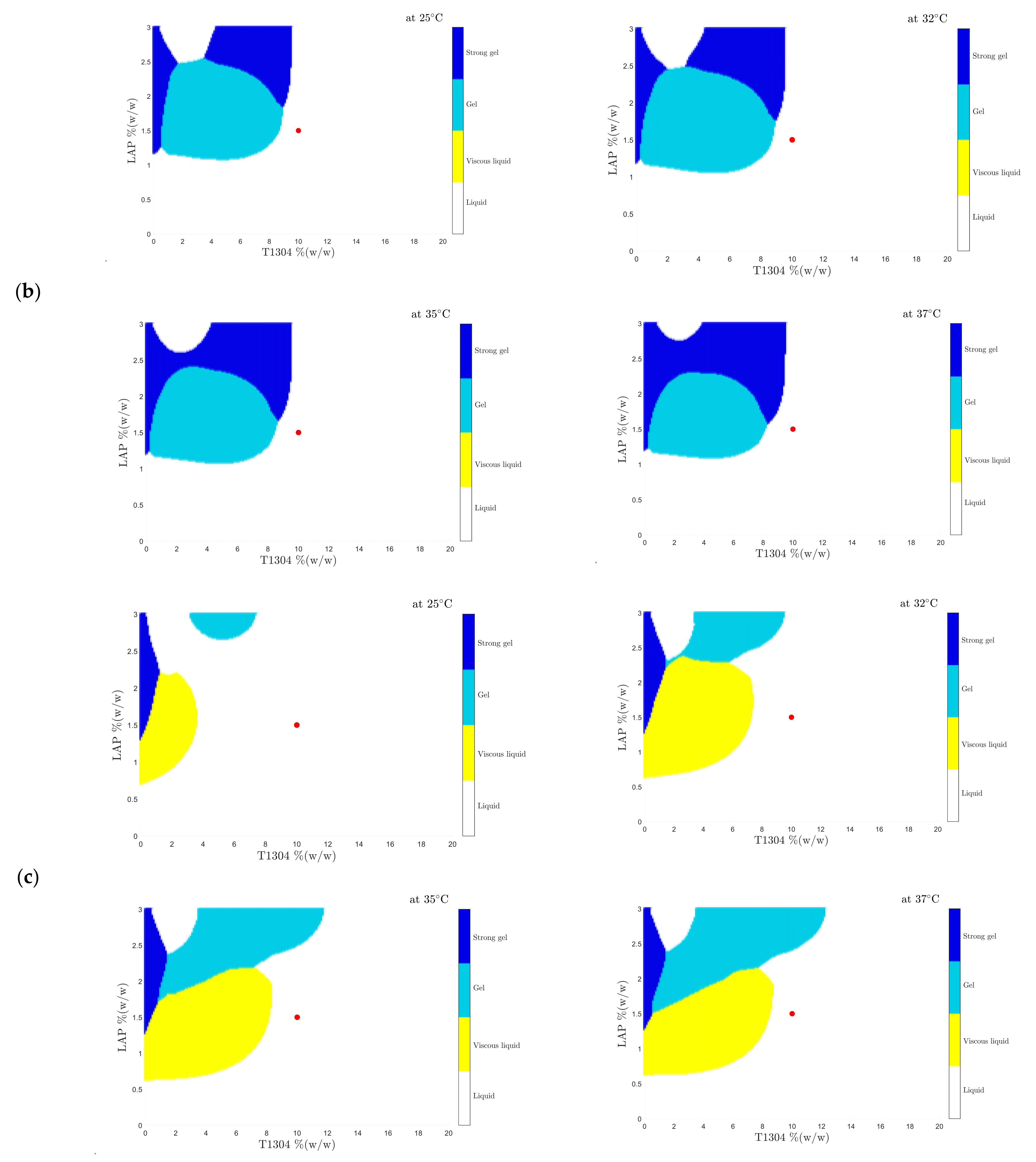

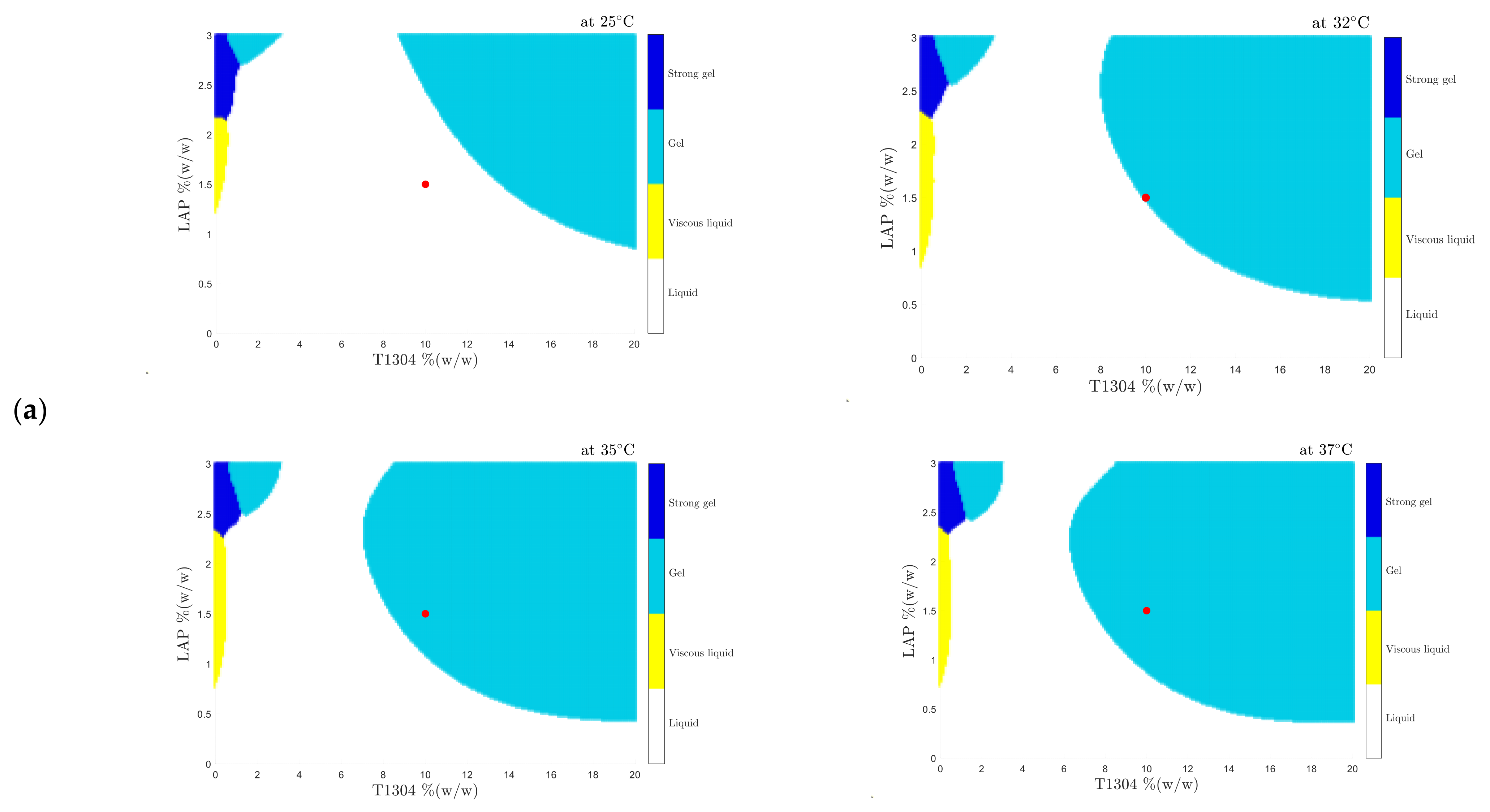

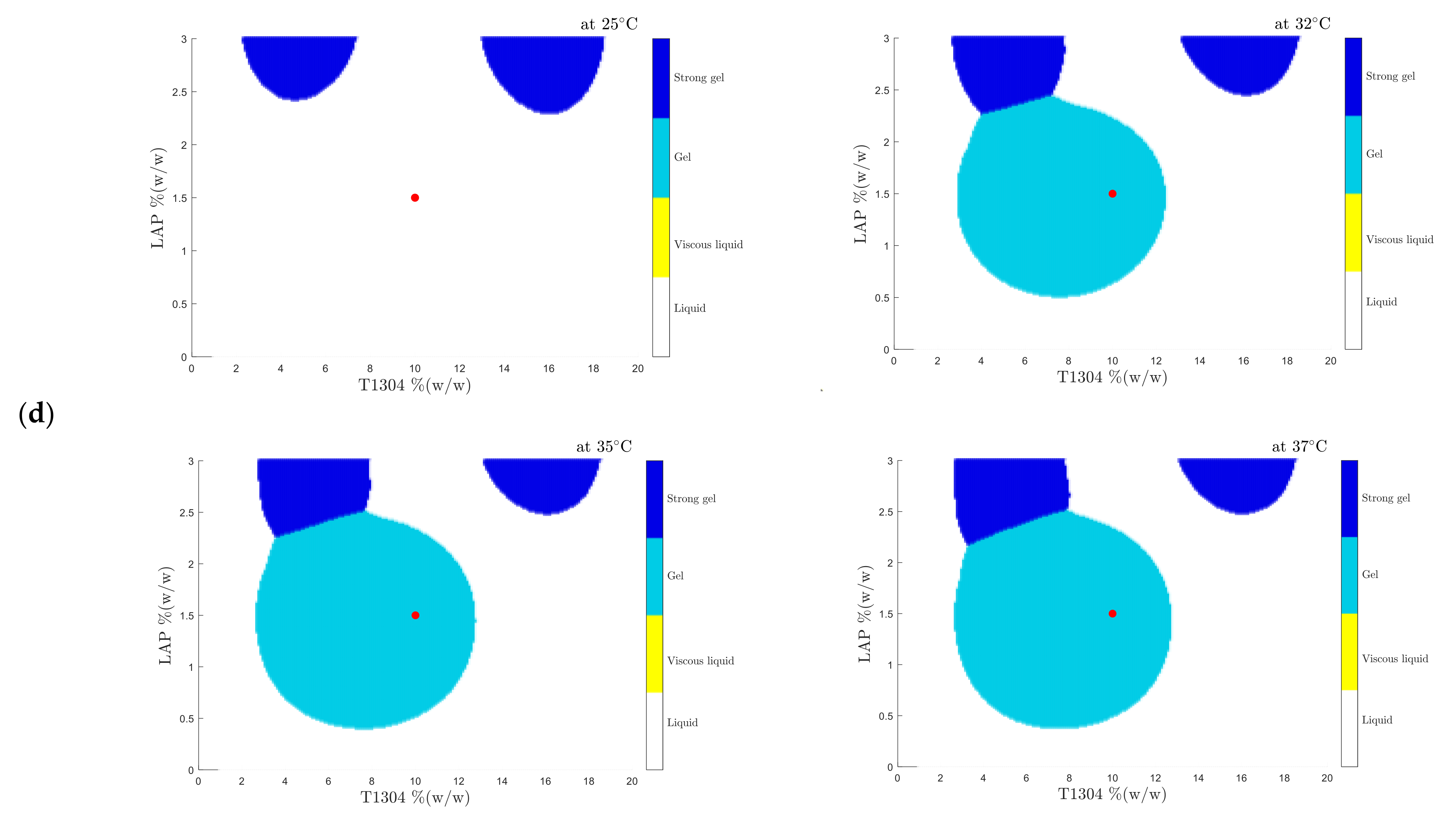

Unlike Figure 5, Figure 6 presents the phase behavior for the entire concentration domain of T1304 and LAP studied at 25 °C, 32 °C, 35 °C, and 37 °C. In this case, the results show that nano-hybrid systems have a transition phase from sol–gel to body temperatures (32 °C, 35 °C, and 37 °C). The determination of these properties is very interesting because, depending on the route of administration, the prior knowledge of these characteristics makes possible the optimized planning for developing promising formulations, the best bioavailability, and drug release.

3.2. β-Lap Solubility Analysis

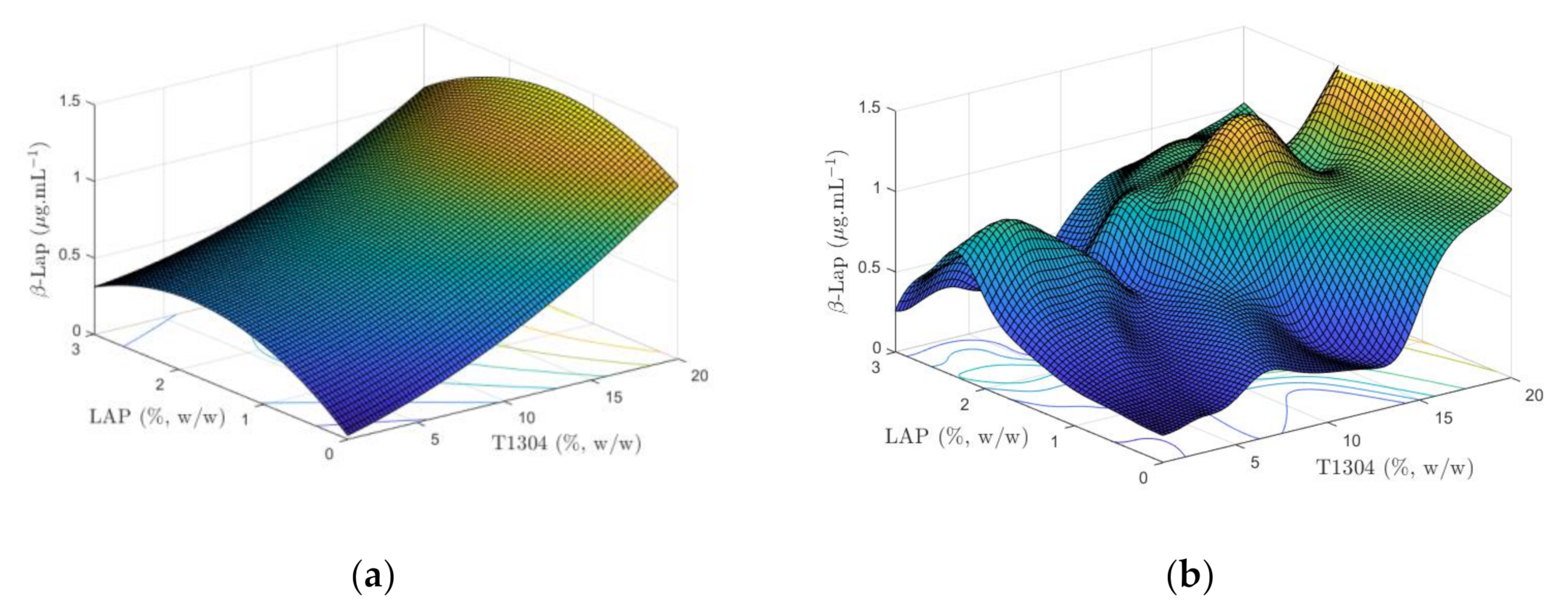

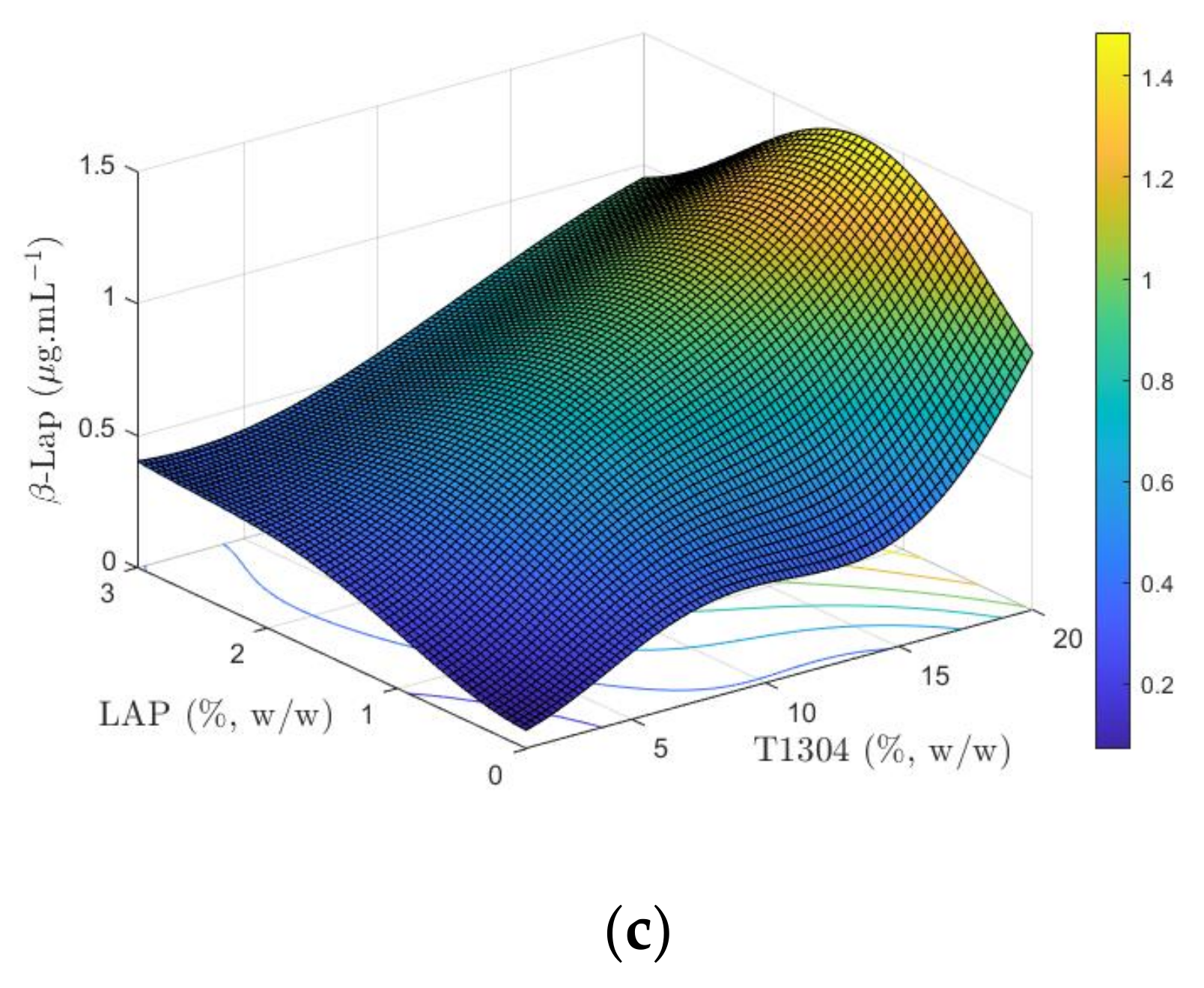

Figure 7a–c present the surface response concerning the influence of the concentrations of T1304 and LAP on the solubility of β-Lap for the RSM, MLP, and SVM methods, respectively.

Table 4. The coefficients (β_1–5) obtained from the RSM model.

Parameters	Values	Parameters	Values
${\beta }_0$	−0.0005	${\beta }_{11}$	0.0015
${\beta }_1$	0.0262	${\beta }_{22}$	−0.1345
${\beta }_2$	0.5031	${\beta }_{12}$	−0.0057

presents the coefficients (β_1–5) obtained from the RSM model and

Table 5. The parameters obtained from the SVM-trained model (bias = 0.8017).

Kernel Centers (or Support Vectors)	SVM Gains (See Figure 1b)
${\mathit{c}}_1=\left[\begin{array}{cc}1& 0.0\end{array}\right]$	${\lambda }_1=3.0335$
${\mathit{c}}_2=\left[\begin{array}{cc}5& 0\end{array}.0\right]$	${\lambda }_2=-14.7519$
${\mathit{c}}_3=\left[\begin{array}{cc}5& 3.0\end{array}\right]$	${\lambda }_3=-0.3119$
${\mathit{c}}_4=\left[\begin{array}{cc}10& 0.0\end{array}\right]$	${\lambda }_4=1.9719$
${\mathit{c}}_5=\left[\begin{array}{cc}10& 3.0\end{array}\right]$	${\lambda }_5=-0.2327$
${\mathit{c}}_6=\left[\begin{array}{cc}15& 0.0\end{array}\right]$	${\lambda }_6=-11.1711$
${\mathit{c}}_7=\left[\begin{array}{cc}15& 1.5\end{array}\right]$	${\lambda }_7=0.6484$
${\mathit{c}}_8=\left[\begin{array}{cc}20& 0.0\end{array}\right]$	${\lambda }_8=5.8914$
${\mathit{c}}_9=\left[\begin{array}{cc}20& 1.5\end{array}\right]$	${\lambda }_9=15$
${\mathit{c}}_{10}=\left[\begin{array}{cc}20& 3.0\end{array}\right]$	${\lambda }_{10}=1.8603$
${\mathit{c}}_{11}=\left[\begin{array}{cc}20& 2.0\end{array}\right]$	${\lambda }_{11}=-10.1704$
${\mathit{c}}_{12}=\left[\begin{array}{cc}8& 0.0\end{array}\right]$	${\lambda }_{12}=15$
${\mathit{c}}_{13}=\left[\begin{array}{cc}20& 1.0\end{array}\right]$	${\lambda }_{14}=-6.7674$

presents the SVM-trained parameters.

Table 6. Comparison between the techniques used.

Surface Method	MSE		R2
RSM	Fitting	Val.	Fitting	Val.
	0.0105	0.0109	0.9279	0.9368
	Training	Val.	Training	Val.
MLP	0.0106	0.0098	0.9332	0.9433
SVM	0.0030	0.0045	0.9814	0.9737

shows the mean square error (MSE) and R-squared coefficient ($R^2$) calculated from the resulting models of the RSM, MLP, and SVM. For the RSM, the MSE and $R^2$ were calculated to the fitting values (assays 1–12 in Table 1) and validation values (assays 19–21 in Table 2). For MLP and SVM, the MSE and $R^2$ were calculated to the training values (assays 1–9 in Table 1) and validation values (assays 19–21 in Table 2).

The results presented in Table 6 show that the ML based on the SVM had better results for the response surface than the other two techniques: MLP and RSM. The surface obtained based on the RSM strategy was limited by a mathematical expression of regression characterized by Equation (1), and this characteristic can limit the creation of the response surface, masking some characteristic behavior of the solution.

On the other hand, the MLP technique obtained measurements closer to the training points; although, in some regions, abrupt changes were found on the surface. It is essential to highlight that the success of the MLP is closely associated with the number of samples used in training. From an MSE perspective, the MLP and RSM presented similar results. However, the MLP technique showed better R² results.

The surface found by the SVM technique had an expected behavior for the range of values used in the concentrations of T1304 ($x_1$) and LAP ($x_1$). Unlike the MLP technique, there were no abrupt variations in the surface found by the SVM technique. In addition, SVM obtained a lower MSE value and a higher R² value (see Table 6). Because of this, the SVM technique is presented as the best alternative for mounting the response surface.

4. Conclusions

The hybrid and simple systems formed by different concentrations of T1304 with and without LAP presented different physical states when submitted to the temperature and pH ramp. It was observed that LAP significantly impacts the liquid–gel transition of the systems with the variations in temperature and pH. In addition, the solubility of β-Lap significantly increased, between 42–100-fold, depending on the compounds and concentrations of poloxamine and clay. The in silico study using ML and RSM computational tools showed fast and adequate strategies for predicting the phase behavior of nanocarrier systems; however, SVM promoted the finer adjustments of the data. The use of ML techniques can reduce the time of labor experimentation for the pre-formulation development of new nano-hybrid platforms. As proposals and future improvements, this work proposes using other machine learning techniques, such as Randon Forest and k-nearest neighbors algorithm (kNN), to conduct a comparative analysis and attain better results than those presented in this manuscript.
