The First National-Scale High-Resolution Land Use Land Cover Map of Bangladesh Using Multi-Temporal Optical and SAR Imagery

Abstract

Bangladesh is highly susceptible to land use land cover (LULC) changes due to its geographical location and dense population. These changes have significant effects on food security, urban development, and natural resource management. Policy planning and resource management largely depend on accurate and detailed LULC maps. However, Bangladesh does not have its own national scale detailed high-resolution LULC maps. This study aims to develop high-resolution land use land cover (HRLULC) maps for Bangladesh for the years 2020 and 2023 using a deep learning method based on convolutional neural network (CNN), and to analyze LULC changes between these years. We used an advanced LULC classification algorithm, namely SACLASS2, that was developed by JAXA to work on multi-temporal satellite data from different sensors. Our HRLULC maps with 14 categories achieved an overall accuracy of 94.55 ± 0.41% with Kappa coefficient 0.93 for 2020 and 94.32 ± 0.42% with Kappa coefficient 0.93 for 2023, which is higher than the commonly accepted standard of around 87 overall accuracy for 14 category LULC map. Between 2020 and 2023, the most notable LULC increase were observed in single cropland (17 ± 4%), aquaculture (20 ± 5%), and brickfield (56 ± 25%). Conversely, decrease occurred for salt pans (47 ± 16%), bare land (24 ± 3%), and built-up (13 ± 3%). These findings offer valuable insights into the spatio-temporal patterns of LULC in Bangladesh, which can support policymakers in making informed decisions and developing effective conservation strategies aimed at promoting sustainable land management and urban planning.

1. Introduction

High-resolution land use land cover (HRLULC) maps provide clear advantages over coarse or moderate-resolution maps, especially in highly fragmented landscapes like Bangladesh. Bangladesh is predominantly characterized by flat terrain formed from the alluvial floodplains of numerous rivers, making it one of the most disaster-prone countries in the world [1,2,3]. The country experiences a wide range of natural hazards, including tropical cyclones, floods, tornadoes, sea-level rise, soil salinization, storm surges, droughts, and heatwaves [4,5]. In addition to these environmental challenges, Bangladesh faces a significant demographic pressure due to its persistent population growth [6,7,8]. Together, frequent natural disasters and rapid population expansion are the primary drivers of LULC changes in the country. An accurate HRLULC map is essential for assessing ecosystem and biodiversity risks, ensuring food security, mitigating natural hazards, and supporting effective urban planning and sustainable development [9,10,11]. It also provides critical insights into a range of human-induced processes, including climate change [12], urban expansion [13], changes in terrestrial carbon storage [14], occurrence and impacts of natural disasters [15], and the development of effective mitigation and adaptation strategies [16]. As such, LULC maps serve as indispensable tools in environmental modeling, facilitating the understanding of both natural and socio-economic processes. However, the accuracy and reliability of these maps are heavily influenced by the quality and nature of the data used in their development.

Satellite imagery is a widely used and reliable data source for mapping LULC [17]. Single-temporal datasets often lack sufficient information to capture the dynamic processes of LULC. In contrast, multi-temporal LULC mapping can address these limitations by incorporating temporal variability to provide better classification accuracy [18,19,20]. In recent years, deep learning particularly Convolutional Neural Networks (CNNs) has demonstrated strong performance across various applications, including image classification [21,22,23], object detection [24], semantic segmentation [25,26], and even pixel-level LULC classification [27,28]. CNNs are well-suited for satellite imagery due to their ability to process multi-dimensional spatial data efficiently [29]. However, conventional CNNs typically perform convolutions along the spatial dimensions of single-time-point imagery, which limits their ability to capture detailed LULC patterns and temporal dynamics. To address this, Hirayama et al. (2022) developed SACLASS2 [30], a CNN-based classification framework that integrates multi-temporal satellite imagery with down-sampling and fully connected layers for pixel-based classification to preserve spatial detail and improve accuracy. This method has previously been applied to generate 12-category HRLULC maps for Japan [30] and Vietnam [31], achieving high overall accuracies of 88.85 % and 90.5 %, respectively.

Several global LULC datasets such as Esri Land Cover [32], ESA WorldCover [33], and Dynamic World (DW) [34] are publicly available. However, their accuracy and consistency often vary across geographic scales, from continental to national and regional levels [35]. A common limitation of these global products is their LULC classification system offering a limited number of categories, which restricts their applicability for local-scale planning and environmental assessment. Consequently, their performance is often inadequate in ecologically diverse and heterogeneous regions. To overcome these limitations, the development of country-specific, high-resolution LULC maps is essential for accurate land resource monitoring and evidence-based policymaking.

Bangladesh lacks an up-to-date, national-scale, high-resolution time series-based LULC dataset. The only major national initiative to date is the Land Cover Atlas of Bangladesh 2015 [36], developed using commercial SPOT satellite imagery under the project Strengthening National Forest Inventory and Satellite Land Monitoring System in support of REDD+. However, the atlas has not been updated since its release, significantly limiting its potential for up-to-date land use planning, environmental monitoring, and policy development. In the last decade, several studies have produced small-scale or region-specific LULC maps for various parts of Bangladesh, primarily using single-temporal, moderate or coarse-resolution satellite imagery. These include efforts focused on Greater Dhaka [37], Chattogram [38], Gazipur [39], Bhanga [40], the RAMSAR site Hakaluki Haor [41], and Barishal [42], among others. While these studies provide valuable localized insights, they are limited in the number of categories, geographic scope, unable to provide national-scale land use dynamics for broad-scale environmental assessments and policy planning. To address these limitations, this study aims to develop comprehensive, high-resolution (10 m) LULC maps for Bangladesh at the national scale. The maps have 14 popular LULC categories, including some unique categories, such as jhum, brickfields, and salt pans. In addition, LULC change detection was performed to assess spatial transformations in land cover between 2020 and 2023.

2. Materials and Methods

2.1. Study Area

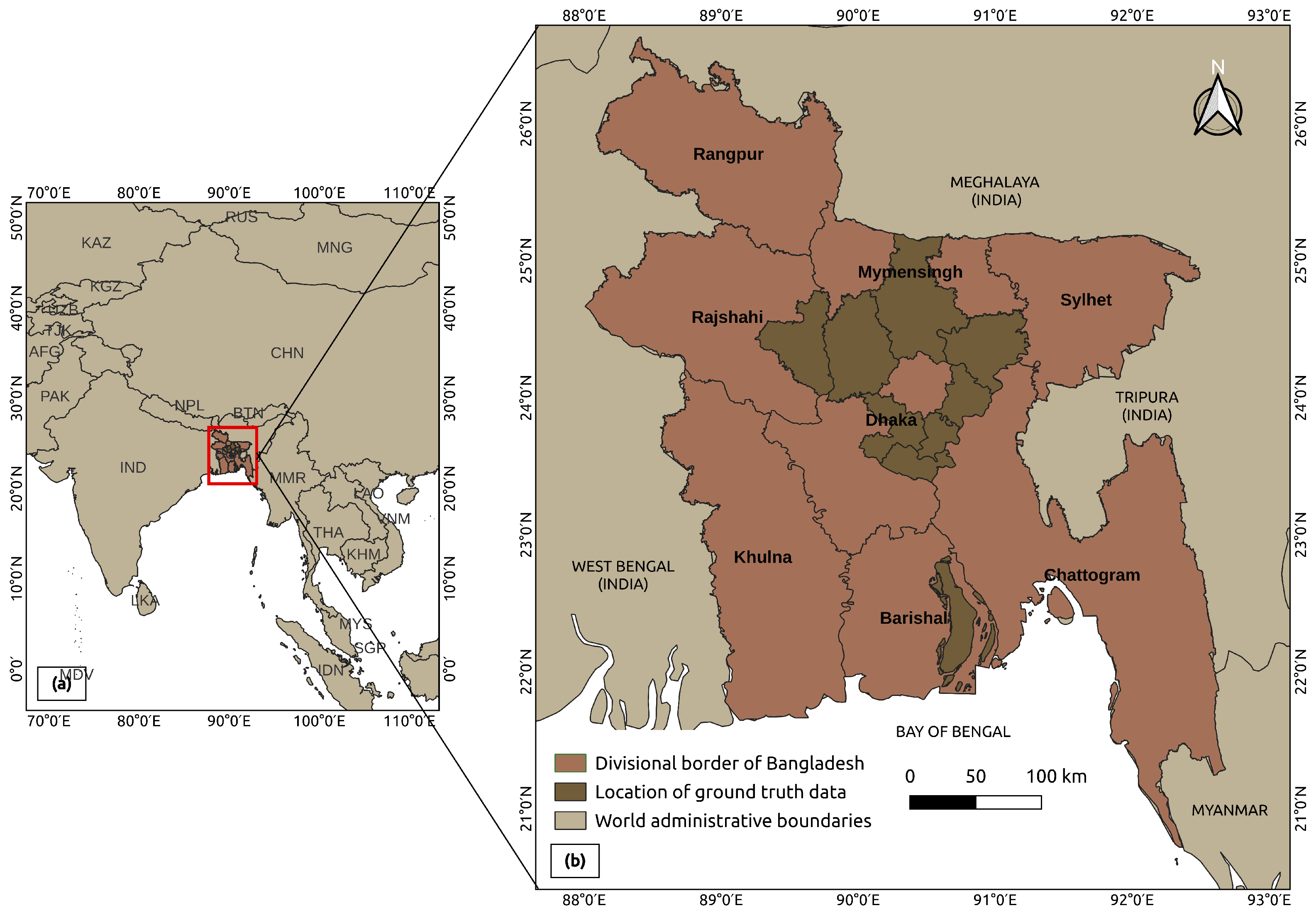

The study was conducted across the entire territory of Bangladesh, encompassing all 64 administrative Districts. Geographically, the study area spans from 20°34′ to 26°38′ north latitude and from 88°01′ to 92°41′ east longitude (see Figure 1). For analytical purposes, Bangladesh is divided into 27 tiles, each tile covering 1° latitude by 1° longitude. The region features a diverse topography, including mountainous areas in the east, an extensive coastal belt, and a vast deltaic plain in the south. Bangladesh is bordered by India on three sides (i.e., the north, west, and a portion of the east) and also shares a southeastern border with Myanmar [43]. The climate is tropical and is traditionally characterized by six distinct seasons: Summer, Rainy, Autumn, Late Autumn, Winter, and Spring.

2.2. LULC Classification System Design

A classification system for LULC was developed to identify the dominant LULC types relevant to the study area and its specific objectives [44,45]. Given Bangladesh’s geographical, topographical, and climatic heterogeneity, the country presents a complex and diverse landscape. Therefore, the definition of LULC categories must account for local geographic conditions, specific developmental needs, and both spatial and temporal variations. This study employs 14 distinct LULC categories, formulated using local knowledge in conjunction with the Land Cover Classification System (LCCS) developed by the Food and Agriculture Organization (FAO) of the United Nations [46] (see

Table 1. Definitions of the LULC categories used in this study. The color column specifies the legend color for each category in the corresponding LULC maps.

ID	Color	Category	Definition
1	#000064	Water	Areas covered by open water bodies like rivers, seas, and oceans.
2	#FF0000	Built-up	Lands covered by buildings, paved roads, and other man-made infrastructure.
3	#FF7F7F	Single cropland	Fields where agricultural crops are typically grown once a year.
4	#FFC1BF	Multiple cropland	Lands used multiple times annually for crop production.
5	#4D68FF	Aquaculture	Inland ponds used for cultivating aquatic organisms like fish, shrimps, or crabs.
6	#80FF00	Orchards	Lands with fruit trees and homestead gardens in rural areas.
7	#A0A0A0	Brickfield	Areas where clay is extracted and processed to make bricks.
8	#006400	Forest	Lands dominated by woody vegetation, including evergreen and deciduous trees.
9	#013A24	Mangrove	Trees and shrubs growing in saline or brackish tidal coastal zones.
10	#F0F0F0	Salt pans	Lands which are used for salt production from seawater by solar evaporation.
11	#A1556B	Rubber tree	Monoculture areas where rubber trees are cultivated for latex production.
12	#4B7B4E	Jhum	Traditional shifting cultivation involving forest clearing for temporary farming.
13	#806400	Bare land	Exposed soil, unpaved road, riverine island, fallow areas and, playgrounds.
14	#5ECC7E	Tea garden	Areas where tea plant is cultivated, often shaded by large trees.

). Some of these categories are unique to Bangladesh and reflect its national significance and socio-environmental context. For instance, jhum (shifting cultivation) is a traditional agricultural practice predominantly observed in the Chattogram Hill Tracts (CHT), where indigenous communities rely on it for subsistence and cultural continuity. Another noteworthy category is brickfields, which are widespread in Bangladesh due to the escalating demand for construction materials. In the southeastern coastal region, salt pans are used for the solar evaporation of seawater, primarily during the dry season. These small-scale operations are critical to national salt production and play a significant role in meeting domestic consumption needs.

2.3. Input Datasets

2.3.1. Optical Sensor Data (Sentinel-2 MultiSpectral Instrument (MSI))

Sentinel-2/MSI 10 m and 20 m resolution data were used as optical sensor data for this study (see

Table 2. Spatial resolution and wavelength information for each spectral band of the Sentinel-2 MSI.

Band	Electromagnetic Region	Center Wavelength [nm]	Spatial Resolution [m]
B2	Blue	490	10
B3	Green	560	10
B4	Red	665	10
B5	Red Edge 1	705	20
B6	Red Edge 2	740	20
B7	Red Edge 3	783	20
B8	NIR (Near-Infrared)	833	10
B8A	Red Edge 4	865	20
B11	SWIR 1	1610	20
B12	SWIR 2	2190	20

). Specifically, the Sentinel-2 Level-2A [47] product was employed, which provides surface reflectance images that have been radiometrically calibrated for accurate analysis. Sentinel-2 Level-2A products are the result of advanced processing from Level-1C (Top-of-Atmosphere Reflectance) using Sen2Cor software (v2.3.0) [48]. Optical satellite imagery is frequently affected by cloud cover; therefore, cloud masking is applied to exclude cloud-contaminated pixels. In this study, images with more than 30% cloud cover were first filtered out to minimize the impact of excessive cloud contamination. Then, we used a combination of Sentinel-2 Cloud Probability (s2cloudless), Cloud Displacement Index (CDI), and Directional Distance Transform (DDT) to mask clouds and their shadows. This technique was applied to effectively remove cloud and shadow effects from Level-2A images [49].

2.3.2. Synthetic Aperture Radar (SAR) Data (Sentinel-1 and PALSAR-2/ScanSAR)

This study utilized Sentinel-1 Ground Range Detected (GRD) C-band SAR imagery at 10 m resolution [50], preprocessed with thermal noise removal, radiometric calibration, and terrain correction using the angular-based method [51] with the Shuttle Radar Topography Mission (SRTM) Digital Elevation Model (DEM) [52]. Speckle noise was reduced via the Refined Lee Filter (3 × 3 window), as recommended by Hird et al. (2017) [53]. Dual-polarization (VV and VH) bands were used to compute both the difference and ratio (Equations (1) and (2)), and calibrated to gamma-naught (${\gamma }_0$) for cross-date comparability. Two texture metrics namely Sum Average and Dissimilarity were calculated for each polarization using the ee.Image.glcmTexture() function in Google Earth Engine, resulting in 8 final bands: VV, VH, difference, ratio, and 4 texture features.

Additionally, 25-m PALSAR-2 ScanSAR Level 2.2 SAR data from JAXA [54], which are widely used L-band SAR datasets for forest mapping and coastal change analysis [55], were included. Speckle filtering was performed with the Refined Lee Filter (5 × 5 window), and pixel values were converted to ${\gamma }_0$ in decibels using Equation (3) with a calibration factor (CF) of $-83$ dB [56]. The final set of features included three bands: HH (horizontal transmit, horizontal receive), HV (horizontal transmit, vertical receive), and the local incidence angle (LIN).

$$\mathrm{Difference}={\gamma }_{VH}^0-{\gamma }_{VV}^0$$

(1)

$$\mathrm{Ratio}={\displaystyle \frac{{\gamma }_{VH}^0}{{\gamma }_{VV}^0}}$$

(2)

$${\gamma }_0=10\times {log}_{10}\left(\langle D{N}^2\rangle \right)+CF$$

(3)

2.3.3. Ancillary Data (AW3D30 and OpenStreetMap)

Digital Surface Models (DSMs) and OpenStreetMap (OSM) data are widely used to enhance the accuracy of LULC classification [57,58,59]. In this study, we incorporated slope and aspect derived from the 30 m resolution ALOS World 3D (AW3D30) DSM [60], generated using the Panchromatic Remote-sensing Instrument for Stereo Mapping (PRISM) onboard ALOS. This topographic information helps distinguish natural landforms from human-made features. Additionally, vector data for road and river networks were obtained from GeoFabrik’s OpenStreetMap repository [61]. These were converted to raster format in QGIS (v3.36) to produce distance-to-road and distance-to-river maps, which were subsequently integrated into the SACLASS2 pixel-based classification algorithm.

2.4. Satellite Images Pre-Processing

To capture seasonal changes of LULC and minimize image noise, seasonal median composites were generated from satellite imagery, aligned with Bangladesh’s six-season, each spanning two months (see

Table 3. Bengali seasons alongside their corresponding English names and temporal spans.

Season No.	Bengali Season	English Season	Season Span
Season-1	Grisma	Summer	Mid-April to Mid-June
Season-2	Barsa	Rainy	Mid-June to Mid-August
Season-3	Sharat	Autumn	Mid-August to Mid-October
Season-4	Hemanta	Late Autumn	Mid-October to Mid-December
Season-5	Shit	Winter	Mid-December to Mid-February
Season-6	Basanta	Spring	Mid-February to Mid-April

). This seasonal framework reflects not only climatic variations but also agricultural cycles and socio-cultural practices. To address cloud contamination and data gaps, we adopted a multi-year time series compositing method, adapted from Truong et al. (2024) [31]. For the 2023 HRLULC map, monthly median composites were generated using data from 2022, 2023, and 2024. Similarly, for 2020, data from 2019, 2020, and 2021 were used. Seasonal composites were then created by merging monthly images, with higher weighting assigned to the target year (2023 or 2020) to retain its temporal integrity. All Sentinel-2 pre-processing was conducted on Google Earth Engine, with final datasets exported via the Earth Engine Python API for local analysis.

2.5. Remote Sensing Indices

To improve feature extraction and classification accuracy, a range of spectral and radar-derived indices were calculated, as summarized in

Table 4. Indices calculated from different bands of optical and SAR imagery.

Index	Formula	Reference
NDVI (Normalized Difference Vegetation Index)	${\displaystyle \frac{\mathrm{NIR}-\mathrm{Red}}{\mathrm{NIR}+\mathrm{Red}}}$	[62]
EVI (Enhanced Vegetation Index)	${\displaystyle \frac{2.5·(\mathrm{NIR}-\mathrm{Red})}{\mathrm{NIR}+6·\mathrm{Red}-7.5·\mathrm{Blue}+1}}$	[63]
GRVI (Green-Red Vegetation Index)	${\displaystyle \frac{\mathrm{Green}-\mathrm{Red}}{\mathrm{Green}+\mathrm{Red}}}$	[64]
GSI (Green Soil Index)	${\displaystyle \frac{\mathrm{Red}-\mathrm{Blue}}{\mathrm{Red}+\mathrm{Green}+\mathrm{Blue}}}$	[65]
MNDWI (Modified Normalized Difference Water Index)	${\displaystyle \frac{\mathrm{Green}-\mathrm{SWIR}1}{\mathrm{Green}+\mathrm{SWIR}1}}$	[66]
BSI (Bare Soil Index)	${\displaystyle \frac{(\mathrm{SWIR}+\mathrm{Red})-(\mathrm{NIR}+\mathrm{Blue})}{(\mathrm{SWIR}+\mathrm{Red})+(\mathrm{NIR}+\mathrm{Blue})}}$	[67]
NDPI (Normalized Difference Pond Index)	${\displaystyle \frac{\mathrm{SWIR}1-\mathrm{Green}}{\mathrm{SWIR}1+\mathrm{Green}}}$	[68]
NDTI (Normalized Difference Tillage Index)	${\displaystyle \frac{\mathrm{SWIR}1-\mathrm{SWIR}2}{\mathrm{SWIR}1+\mathrm{SWIR}2}}$	[69]
NDVIre (Red Edge Normalized Difference Vegetation Index)	${\displaystyle \frac{\mathrm{NIR}-\mathrm{RedEdge}}{\mathrm{NIR}+\mathrm{RedEdge}}}$	[70]
RVI (Radar Vegetation Index)	${\displaystyle \frac{4\times {\sigma }_{\mathrm{HV}}}{{\sigma }_{\mathrm{HH}}+{\sigma }_{\mathrm{VV}}+2\times {\sigma }_{\mathrm{HV}}}}$	[71]

. Vegetation indices including NDVI, EVI, GNDVI, and GRVI were used to assess vegetation health and density, facilitating the distinction of vegetation-related land cover types such as cropland and forest. For water body detection, modified variant of NDWI, and NDPI were employed, offering strong sensitivity to surface water and aiding in the identification of flooded areas and aquaculture ponds. To differentiate built-up areas and bare soil, we used GSI, BSI, and NDTI. Additionally, to compensate for limitations of optical imagery particularly under dense vegetation or persistent cloud cover SAR-based indices such as the Radar Vegetation Index (RVI) were incorporated to enhance classification robustness.

In this research, we used a variety of input data to feed into our CNN-based deep learning classification algorithm SACLASS2. A summary of the input features is presented in

Table 5. Data sources and feature variables employed in the development of HRLULC products for Bangladesh.

Input Data	Processing Level	Spatial Resolution	Features	Features No.
Sentinel-1	Level 1C	10 m (SAR)	VH, VV, VH-VV, VH/VV, VH_avg, VV_avg, VH_diss, VV_diss, RVI	9
Sentinel-2	Level 2A	10 & 20 m (Optical)	B2, B3, B4, B5, B6, B7, B8, B8A, B11, B12, NDVI, EVI, GRVI, BSI, NDPI, NDTI, MNDWI, NDVIre, GSI	19
AW3D30	Version 2.1	30 m	DSM, slope and aspect	3
PALSAR-2	Level 2.2	25 m (SAR)	HH, HV, LIN	3
OpenStreetMap	–	–	Distance from road and river	2
Reference data	–	10 m	Latitude and longitude	2

.

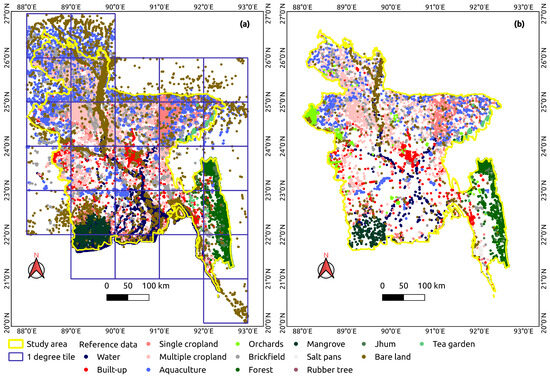

2.6. Reference Data Collection

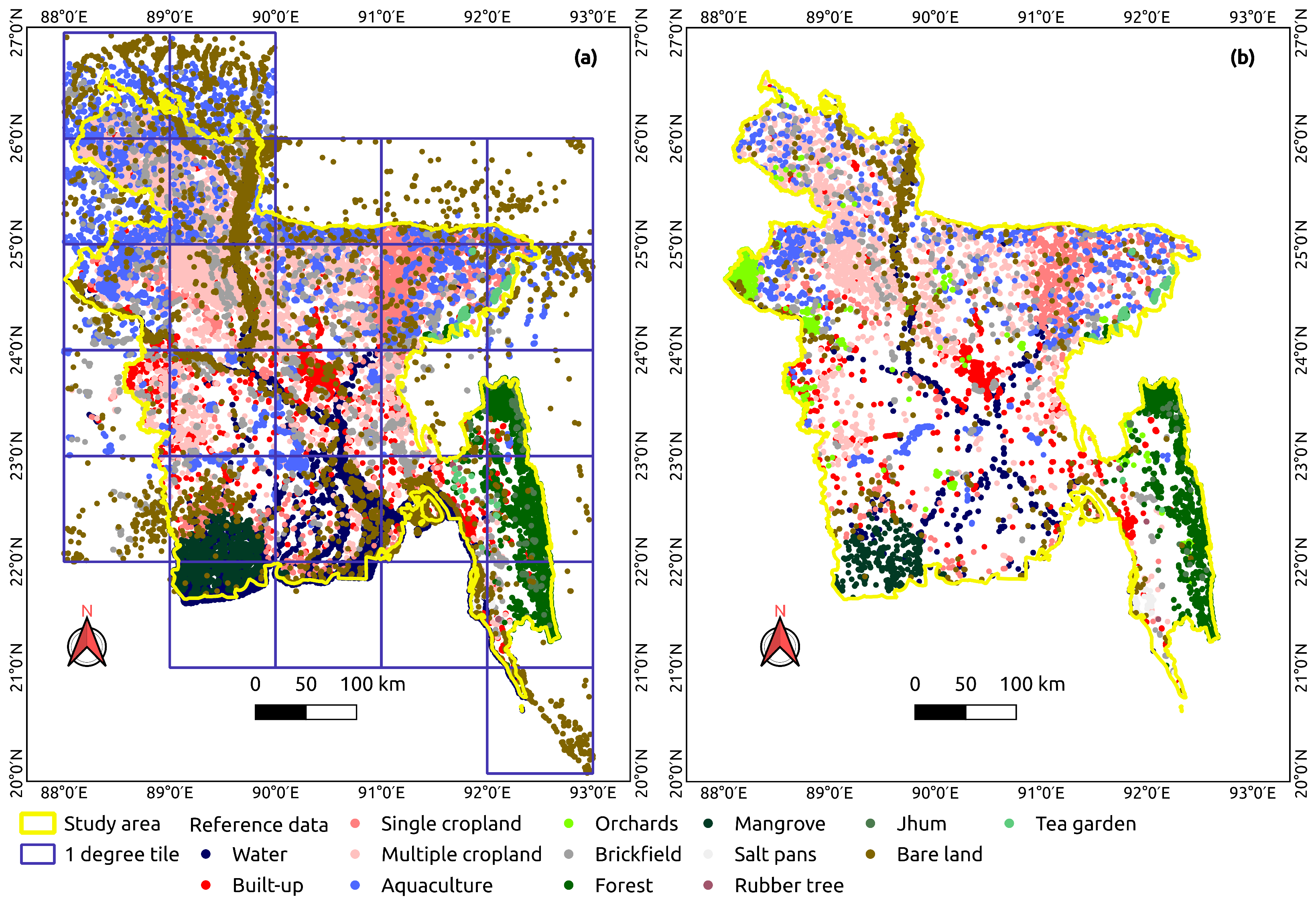

Reference data is critical for supervised LULC classification, as it provides both training inputs for the classifier and validation data for accuracy assessment. The quality of this data directly affects the reliability of the resulting LULC maps. In this study, reference data were compiled through a combination of field observations, random sampling and label checking from existing high-quality LULC maps, and manual interpretation of satellite imagery. A total of 67,034 reference data were used for the year 2023 and 45,515 for the year 2020. Figure 2 illustrates the spatial distribution of the training and validation data used in generating the HRLULC maps for Bangladesh in 2023.

2.6.1. Random Reference Data Collection from Existing LULC Maps

Reference data were derived from authoritative LULC products: ESA Global Land Cover map [72], ESRI 10 m Annual Land Cover dataset [73] and Dynamic World V1 [74]. LULC categories were first harmonized to match the study’s classification scheme, after which stratified random sampling was performed within each selected category to generate candidate reference data. Each data was then independently checked through multi-source cross-checks, including time series vegetation indices, multi-temporal Google Earth Pro imagery, Mapillary street-view imagery, and true- and false-color Sentinel-2 composite images. We excluded data points that were difficult to interpret; around 50% of the total points were removed for this reason. Labels were corrected as necessary to ensure consistency and minimize classification bias.

2.6.2. Visual Interpretation

Visual interpretation of high-resolution satellite imagery remains a widely used and effective approach for generating large volumes of reference data in remote sensing studies. The incorporation of local knowledge further enhances the reliability and accuracy of such data, particularly in complex or heterogeneous landscapes. In the present study, reference data collection for LULC categories not represented in the existing LULC maps was supported through a combination of tools, including Google Earth Engine, Google Earth Pro, and QGIS (v3.36).

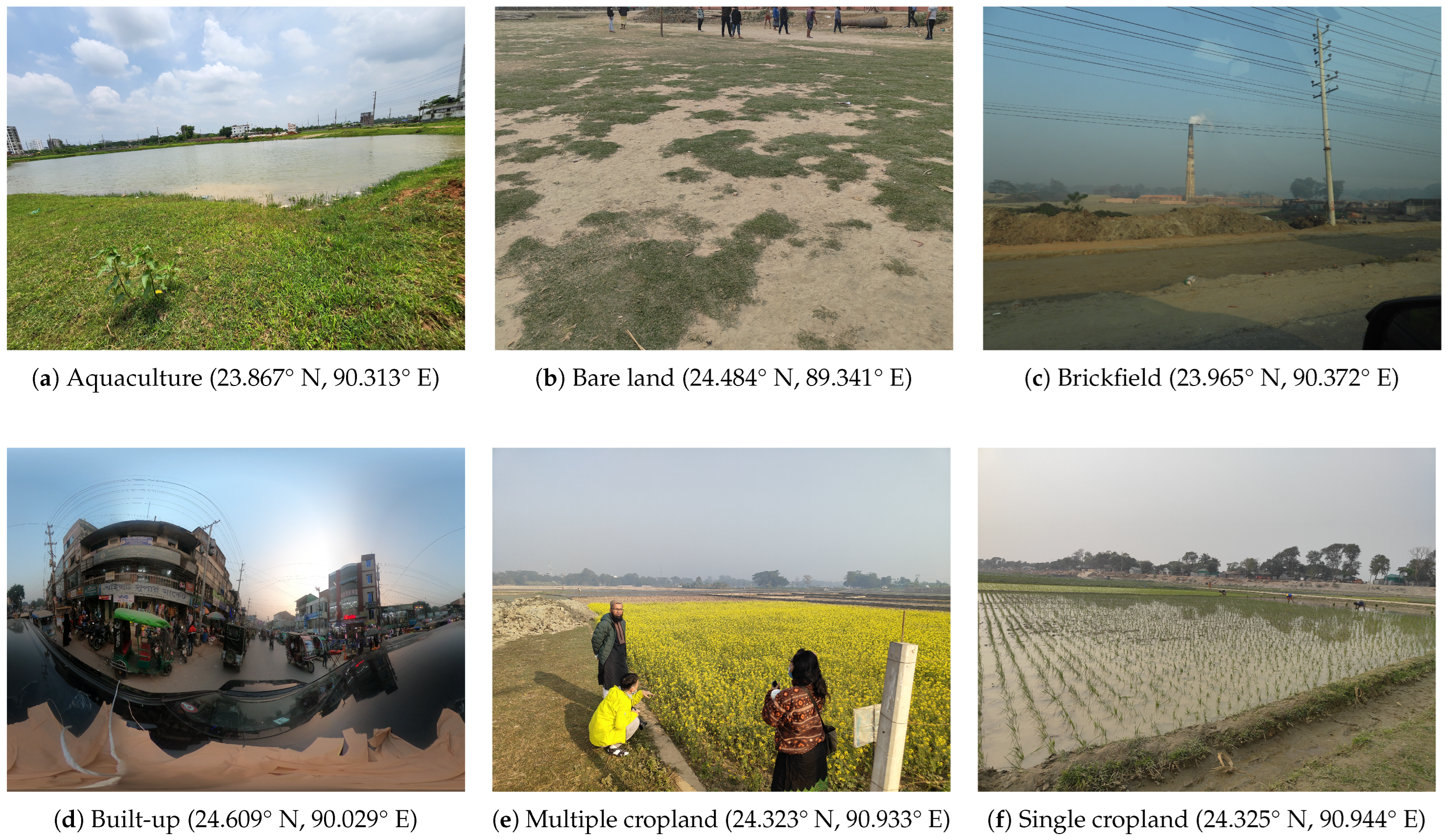

2.6.3. Field Work

Field work in this study served two key purposes: (1) to collect high-quality reference data, and (2) to obtain contextual insights into local LULC conditions and changes. Field-based knowledge enhances classification accuracy. Fieldwork was carried out in January 2025, focusing on 10 Districts that encompasses roughly 20% of the study area in Bangladesh. Ground truth data were collected using cameras including GoPro MAX, smartphone, and digital camera as well as a custom web-based application (available at: https://maniksarker.com/sample/, accessed on 2 November 2025). A total of 1128 valid ground truth data were collected and used as reference data. Figure 3 presents example images and corresponding LULC categories. Despite its benefits, field data collection is constrained by time, cost, and logistics, which limit the total number of reference data that can be acquired.

2.7. Classification Algorithm

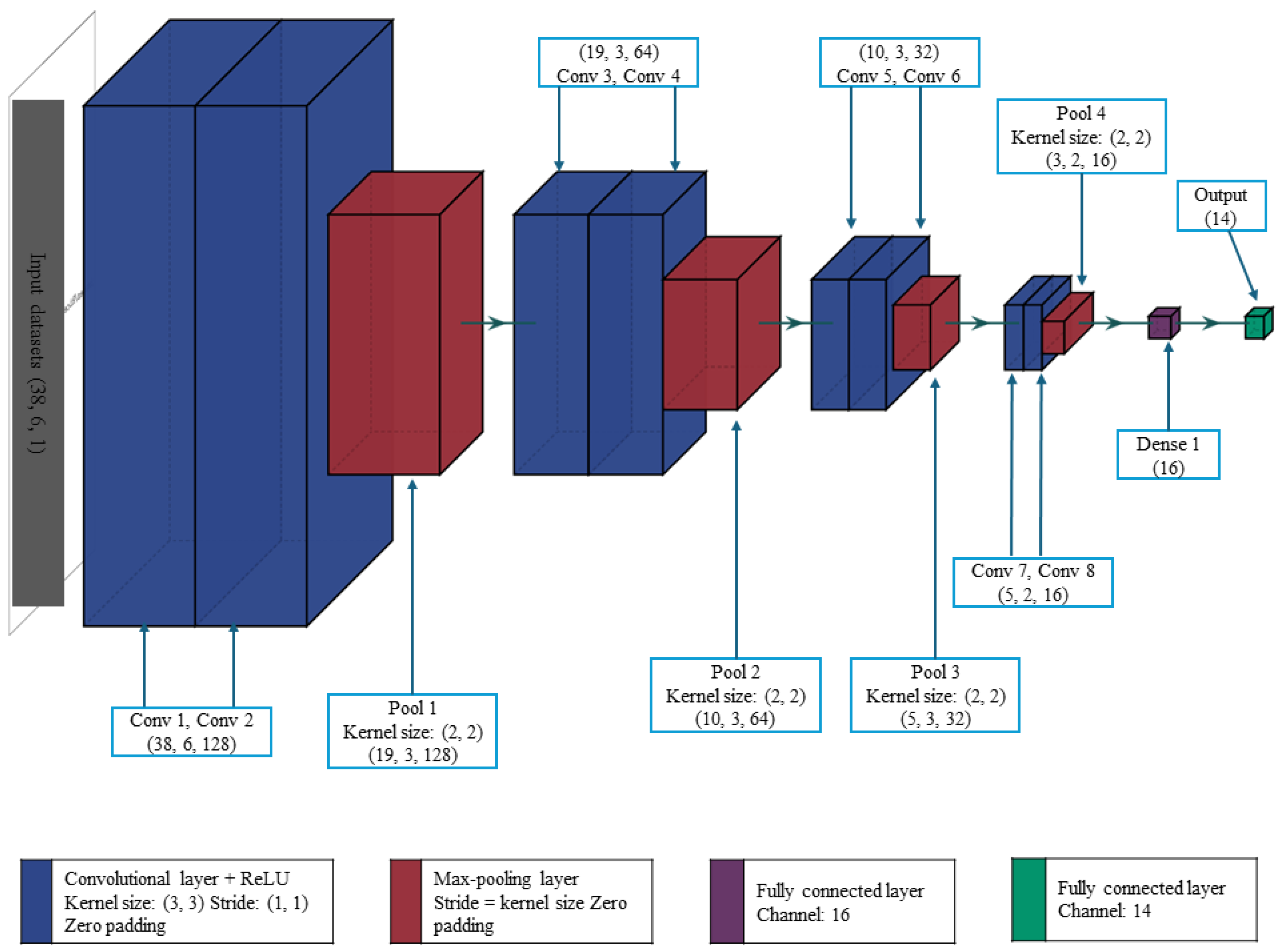

In this study, we employed the multi-temporal LULC classification model SACLASS2 developed by JAXA (Figure 4). SACLASS2 is a pixel-based, supervised classification algorithm built on a CNN architecture. Unlike conventional CNNs that operate primarily in the spatial domain, SACLASS2 performs convolutions across both temporal and spectral dimensions. Each geographic pixel (defined by a specific latitude and longitude) was thus represented by a 38 × 6 matrix, corresponding to 38 features over six two-month intervals. SACLASS2 processes this matrix to generate an output vector of 14 elements, each indicating the classification probability for one of the 14 land cover categories. When these probabilities are arranged spatially, the result is a probability map, which serves as an intermediate product. The final LULC map is then derived by assigning each pixel to the category with the highest probability. Both the probability map and the final classified LULC map are output and stored. For the sake of suitable feature selection we tested 3 different feature combinations with same validation data and picked up the best one. The classification process was conducted in a high-performance computing environment running Ubuntu 22.04.5 LTS, equipped with an Intel Core i9-12900K processor, 128 GB of RAM, and an NVIDIA RTX A6000 GPU (48 GB VRAM). The software environment included Python 3.9.15 and CUDA 12.2. At present, the algorithm is not publicly available due to proprietary restrictions. However, researchers interested in replicating or collaborating on similar work are encouraged to contact either the corresponding author or JAXA directly to explore potential access under collaborative agreements.

2.8. Reference Data Migration for HRLULC of Year 2020

We created the reference data for the year 2020 by using the automatic reference data migration technique proposed by Huang et al. (2020) [75]. This method migrates reference data from the reference year (the year 2023) to the target year (the year 2020) by comparing temporal spectral signatures between these two years. The reference year denotes the period with available labeled reference data, while the target year refers to the period requiring reference data. For each reference data point, we calculated spectral angle distance (SAD) and euclidean distance (ED) between two vectors $\overrightarrow{X}$ and $\overrightarrow{T}$ for both the reference and the target year. Let $\overrightarrow{X}=(X_1,X_2,\dots ,X_n)$ represent the spectral vector at a reference data in the reference image, and $\overrightarrow{T}=(T_1,T_2,\dots ,T_n)$ represent the corresponding vector in the target image at the same geographical location, where n denotes the number of spectral bands in the Sentinel-2 images (n = 10). Instead of using seasonal data, we used only the 1-year median composite image of Sentinel-2 (10 bands) to simplify the calculation of SAD and ED. These metrics are formalized in Equations (4) and (5), respectively.

$$\mathrm{SAD}=cos\left(\theta \right)={\displaystyle \frac{\overrightarrow{X}·\overrightarrow{T}}{|\overrightarrow{X}||\overrightarrow{T}|}}={\displaystyle \frac{{\sum }_{i=1}^N{X}_i{T}_i}{\sqrt{{\sum }_{i=1}^N{X}_i^2}\sqrt{{\sum }_{i=1}^N{T}_i^2}}}$$

(4)

$$\mathrm{ED}=|\overrightarrow{X}-\overrightarrow{T}|=\sqrt{\sum _{i=1}^N{\left(X_i-T_i\right)}^2}$$

(5)

When the spectral band values in the target image closely match those in the reference image, the ED approaches 0, and the SAD approaches 1. Leveraging this principle, multiple threshold combinations were tested during the 2020 HRLULC classification. The highest classification accuracy was achieved with thresholds of ED = 0.02 and SAD = 0.998, which were thus adopted as optimal for reference data migration. The resulting volume of migrated reference samples was sufficient for both training and validation of the classification model. LULC change analysis between 2020 and 2023 was then conducted.

2.9. Estimating Accuracy and Area of Change

Classification accuracy generally refers to how closely the remotely sensed data matches with reference information [76]. Classification accuracy can be influenced by the methods used, the process followed, and the timing and location of the analysis [38]. Overall Accuracy (OA), defined as the proportion of correctly classified samples, remains the most widely adopted metric for evaluating classification performance. The reference dataset was randomly divided into 80% for training and 20% for validation purposes. To ensure a statistically robust evaluation of the LULC map accuracy, we adopted the methodology proposed by Olofsson et al. (2014) [77]. First, a sample count error matrix was constructed using the validation data.

Table 6. Error matrix of sample counts, $n_{ij}$. Map categories are the rows while the reference categories are the columns.

Class	1	2	…	q	Total
1	$n_{11}$	$n_{12}$	…	$n_{1q}$	$n_{1·}$
2	$n_{21}$	$n_{22}$	…	$n_{2q}$	$n_{2·}$
⋮	⋮	⋮	⋱	⋮	⋮
$\mathit{q}$	$n_{q1}$	$n_{q2}$	…	$n_{qq}$	$n_{q·}$
Total	$n_{·1}$	$n_{·2}$	…	$n_{·q}$	n

shows a generalized example of such an error matrix for a LULC map with q categories. Second, an estimated error matrix (

Table 7. Error matrix of estimated area proportions, $p_{ij}$ (Equation (6)). Map categories are the rows while the reference categories are the columns.

Class	1	2	…	q	Total
1	$p_{11}$	$p_{12}$	…	$p_{1q}$	$p_{1·}$
2	$p_{21}$	$p_{22}$	…	$p_{2q}$	$p_{2·}$
⋮	⋮	⋮	⋱	⋮	⋮
$\mathit{q}$	$p_{q1}$	$p_{q2}$	…	$p_{qq}$	$p_{q·}$
Total	$p_{·1}$	$p_{·2}$	…	$p_{·q}$	1

) was generated by multiplying each row of Table 6 by the area proportion of the corresponding map category. The estimated area proportion in cell $(i,j)$ of Table 7 was calculated using Equation (6):

$${\widehat{p}}_{ij}=W_i{\displaystyle \frac{n_{ij}}{n_{i·}}}$$

(6)

where $W_i$ is the area proportion of the category i on the map ($W_i=A_{m,i}÷A_{tot}$, in which $A_{m,i}$ is mapped area of category i and $A_{tot}$ is the total area of the map), $n_{ij}$ and $n_{i·}$ are from Table 6. The user’s accuracy (${\widehat{U}}_i$), the producer’s accuracy (${\widehat{P}}_i$) of category i, and overall accuracy ($\widehat{O}$) are as follows:

$${\widehat{U}}_i={\displaystyle \frac{{\widehat{p}}_{ii}}{{\widehat{p}}_{i·}}}$$

(7)

$${\widehat{P}}_i={\displaystyle \frac{{\widehat{p}}_{ii}}{{\widehat{p}}_{·i}}}$$

(8)

$$\widehat{O}=\sum _{i=1}^k{p}_{ii}$$

(9)

The estimated variance of the overall accuracy [$\widehat{V}(\widehat{O})$], user’s accuracy [$\widehat{V}(\widehat{U_i})$] of category i are as follows:

$$\widehat{V}(\widehat{O})=\sum _{i=1}^k{W}_i^2\widehat{U_i}(1-\widehat{U_i})/(n_{i·}-1)$$

(10)

$$\widehat{V}(\widehat{U_i})=\widehat{U_i}(1-\widehat{U_i})/(n_{i·}-1)$$

(11)

For producer’s accuracy [$\widehat{V}(\widehat{P_j})$] of reference class $j=k$, the estimated variance is

$$\widehat{V}\left({\widehat{P}}_j\right)={\displaystyle \frac{1}{{\widehat{N}}_j^2}}\left[{\displaystyle \frac{N_j^2{\left(1-{\widehat{P}}_j\right)}^2{\widehat{U}}_j\left(1-{\widehat{U}}_j\right)}{n_j-1}}+{\widehat{P}}_j^2\sum _{i\ne j}^q{N}_i^2{\displaystyle \frac{n_{ij}}{n_i}}\left(1-{\displaystyle \frac{n_{ij}}{n_i}}\right)/(n_i-1)\right]$$

(12)

where ${\widehat{N}}_j={\sum }_{i=1}^q{\displaystyle \frac{N_i}{n_i}}{n}_{ij}$ is the estimated marginal total number of pixels of reference class j, $N_j$ is the mapped area (in pixels) of map class j, and $n_j$ is the total number of sample units in map class j.

The area proportions for each reference-defined category j are estimated from the column totals (${\widehat{p}}_{·j}$) in Table 7. An unbiased estimator of the total area for category j (based on the reference classification) is then given by:

$${\widehat{A}}_j=A_{tot}\times {\widehat{p}}_{.j}$$

(13)

Equation (13) can be re-expressed in an expanded alternate form that more clearly reveals the estimator as a stratified estimator:

$${\widehat{A}}_j=A_{tot}\sum _i{W}_i{\displaystyle \frac{n_{ij}}{n_i}}$$

(14)

This stratified estimator can be interpreted as an “error-adjusted” estimate of area, as it accounts for omission errors by including the area of category j that was incorrectly mapped as another class. At the same time, it excludes commission errors areas incorrectly mapped as category j. The estimated standard error of the area proportion for category j is given by Cochran, 1977 [78]:

$$S\left({\widehat{p}}_{.j}\right)=\sqrt{\sum _{i=1}^q{W}_i^2{\displaystyle \frac{\frac{n_{ij}}{n_i}\left(1-\frac{n_{ij}}{n_i}\right)}{n_i-1}}}$$

(15)

The standard error of the error-adjusted estimated area is

$$S\left({\widehat{A}}_j\right)=A_{tot}\times S\left({\widehat{p}}_{.j}\right)$$

(16)

An approximate 95% confidence interval for $A_j$ is

$${\widehat{A}}_j\pm 2\times S\left({\widehat{A}}_j\right)$$

(17)

The margin of error is defined as the product of the z-score and the standard error, where the z-score corresponds to a percentile from the standard normal distribution. This value determines the width of the confidence interval (i.e., the “±” part). For a 95% confidence level, the z-score is 1.96, which is approximated as 2 in this study for simplicity of presentation.

3. Results

3.1. Case Study Using Different Satellite Images

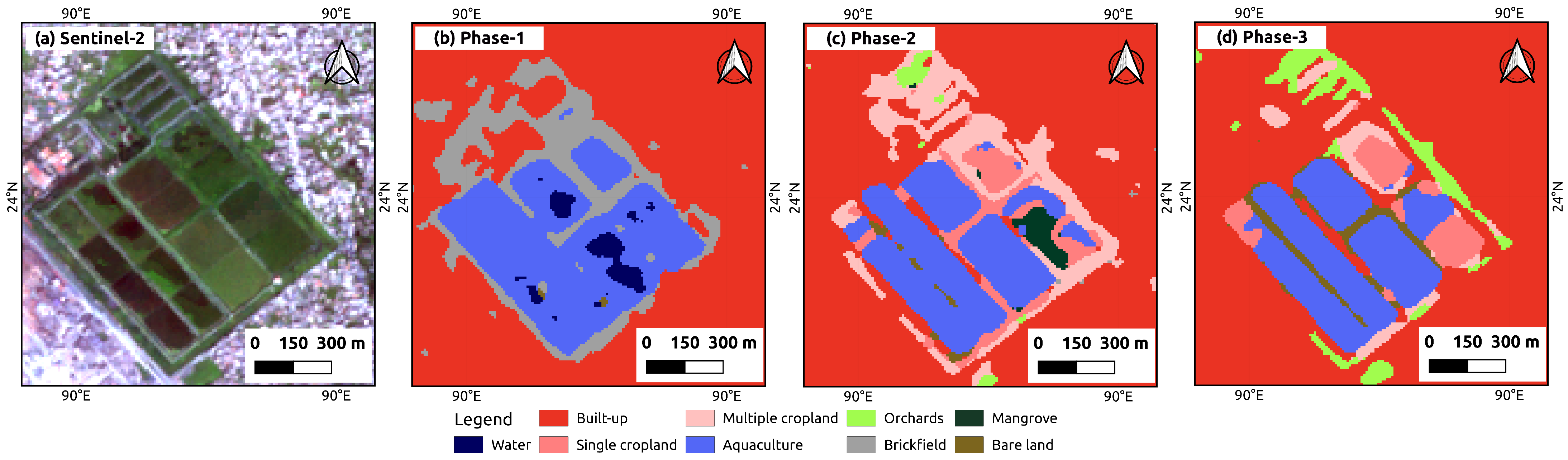

Using the SACLASS2 framework, three classification phases were tested with satellite imagery from six different seasonal periods to evaluate performance. Phase 1 utilized only Sentinel-1 C-band SAR (GRD) images. Phase 2 employed optical imagery from the Sentinel-2 MSI sensor. Phase 3 integrated both optical (Sentinel-2) and SAR data (Sentinel-1 and PALSAR-2). To ensure consistency across all phases, identical training and validation datasets, were applied throughout. Results showed that only SAR data (phase-1) produced the lowest overall accuracy (79.62 ± 1.6%), while optical imagery alone (phase-2) achieved a slightly higher accuracy (82.37 ± 1.5%). The best performance was observed in the combined dataset (phase-3), reaching an overall accuracy of 94.32 ± 0.42% for the year 2023. This fusion also led to notable improvements in user’s and producer’s accuracy across most land cover categories. Classification outputs for all phases are compared in Figure 5 alongside true-color reference imagery. Figure 6 shows the final HRLULC maps for Bangladesh, developed from phase 3.

3.2. Category-Wise Performance of HRLULC

A confusion matrix was employed to assess the classification accuracy of the generated LULC maps for both 2020 and 2023 (

Table 8. Comparison of producer accuracy (PA) and user accuracy (UA) with 95% confidence intervals across different LULC categories for the years 2020 and 2023.

LULC Category	2020 PA (%) ± Error	2020 UA (%) ± Error	2023 PA (%) ± Error	2023 UA (%) ± Error
Water	93.76 ± 1.08	94.87 ± 0.97	93.03 ± 1.08	96.04 ± 0.81
Built-up	95.21 ± 0.68	95.79 ± 0.64	92.86 ± 0.81	96.25 ± 0.59
Single cropland	94.96 ± 0.94	93.22 ± 1.09	95.37 ± 0.86	93.76 ± 1.00
Multiple cropland	98.07 ± 0.35	96.65 ± 0.46	98.90 ± 0.26	98.39 ± 0.32
Aquaculture	95.41 ± 0.61	97.53 ± 0.45	98.27 ± 0.36	98.27 ± 0.36
Orchards	96.14 ± 0.53	94.89 ± 0.61	94.15 ± 0.66	94.82 ± 0.62
Brickfield	95.07 ± 0.58	95.70 ± 0.55	93.86 ± 0.64	91.29 ± 0.76
Forest	97.15 ± 0.38	95.56 ± 0.47	97.07 ± 0.37	93.93 ± 0.54
Mangrove	97.52 ± 0.92	96.15 ± 1.15	97.57 ± 0.92	98.94 ± 0.60
Salt pans	96.74 ± 1.82	92.71 ± 2.73	96.34 ± 2.09	96.34 ± 2.09
Rubber tree	96.30 ± 1.29	96.74 ± 1.21	98.88 ± 1.12	98.88 ± 1.12
Jhum	62.44 ± 3.73	75.29 ± 3.02	50.25 ± 4.23	70.92 ± 3.23
Bare land	85.55 ± 1.09	86.38 ± 1.06	86.91 ± 0.99	86.99 ± 0.98
Tea garden	94.58 ± 1.24	93.45 ± 1.36	96.22 ± 1.02	95.11 ± 1.16
Average	92.78 ± 1.37	93.21 ± 1.37	92.12 ± 1.47	93.57 ± 1.26
Overall Accuracy	94.55 ± 0.41%		94.32 ± 0.42%
Kappa Coefficient	0.939		0.936

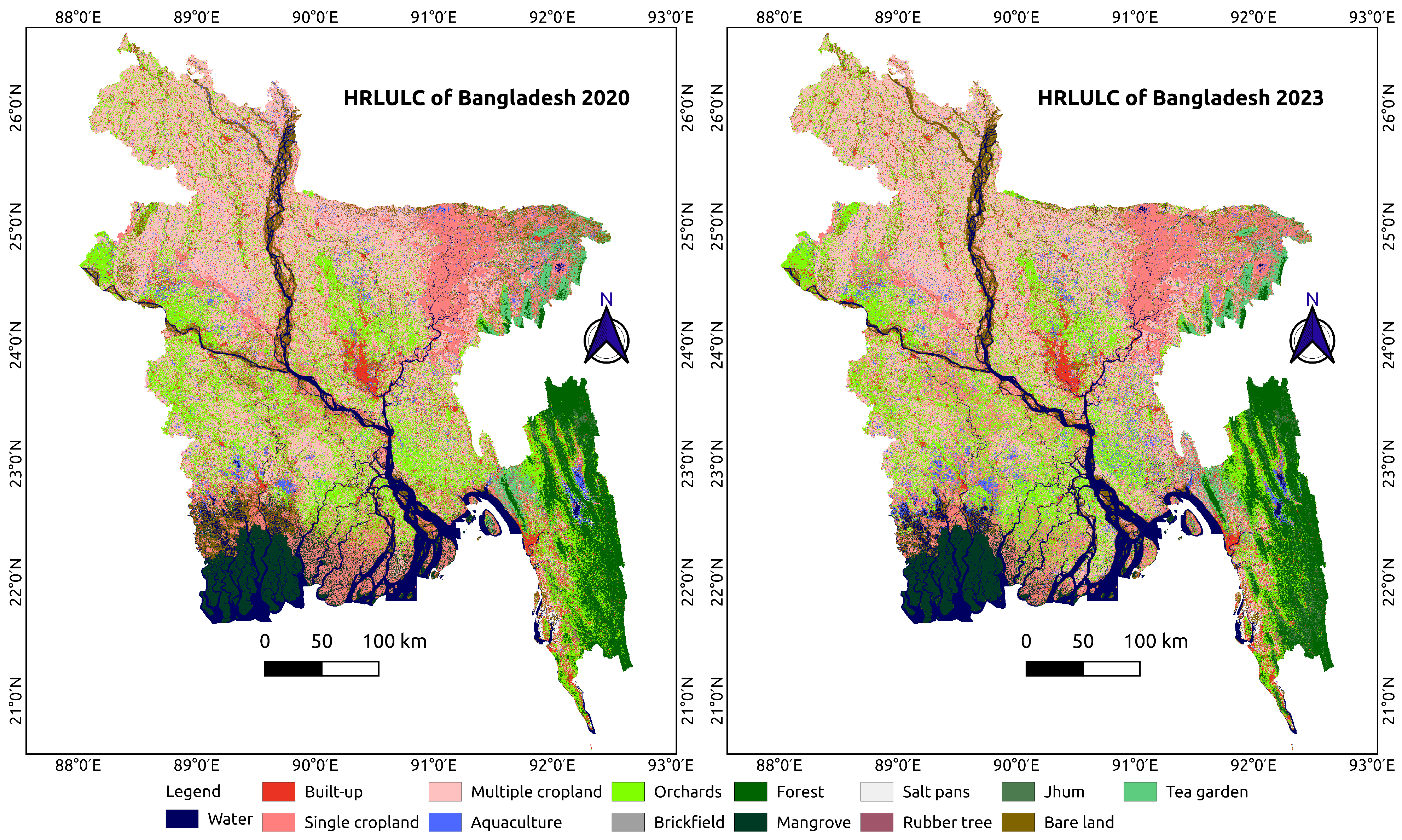

). In 2020, the classification achieved an overall accuracy of 94.55% and a Kappa coefficient of 0.93. For 2023, the overall accuracy was 94.32%, with a Kappa coefficient of 0.93. These results indicate a high level of classification accuracy and strong agreement beyond chance for both years. The lowest user accuracy was observed in the jhum category, suggesting some confusion with other categories. In contrast, the highest user accuracy was achieved for the mangrove, aquaculture, rubber tree, and multiple cropland categories.

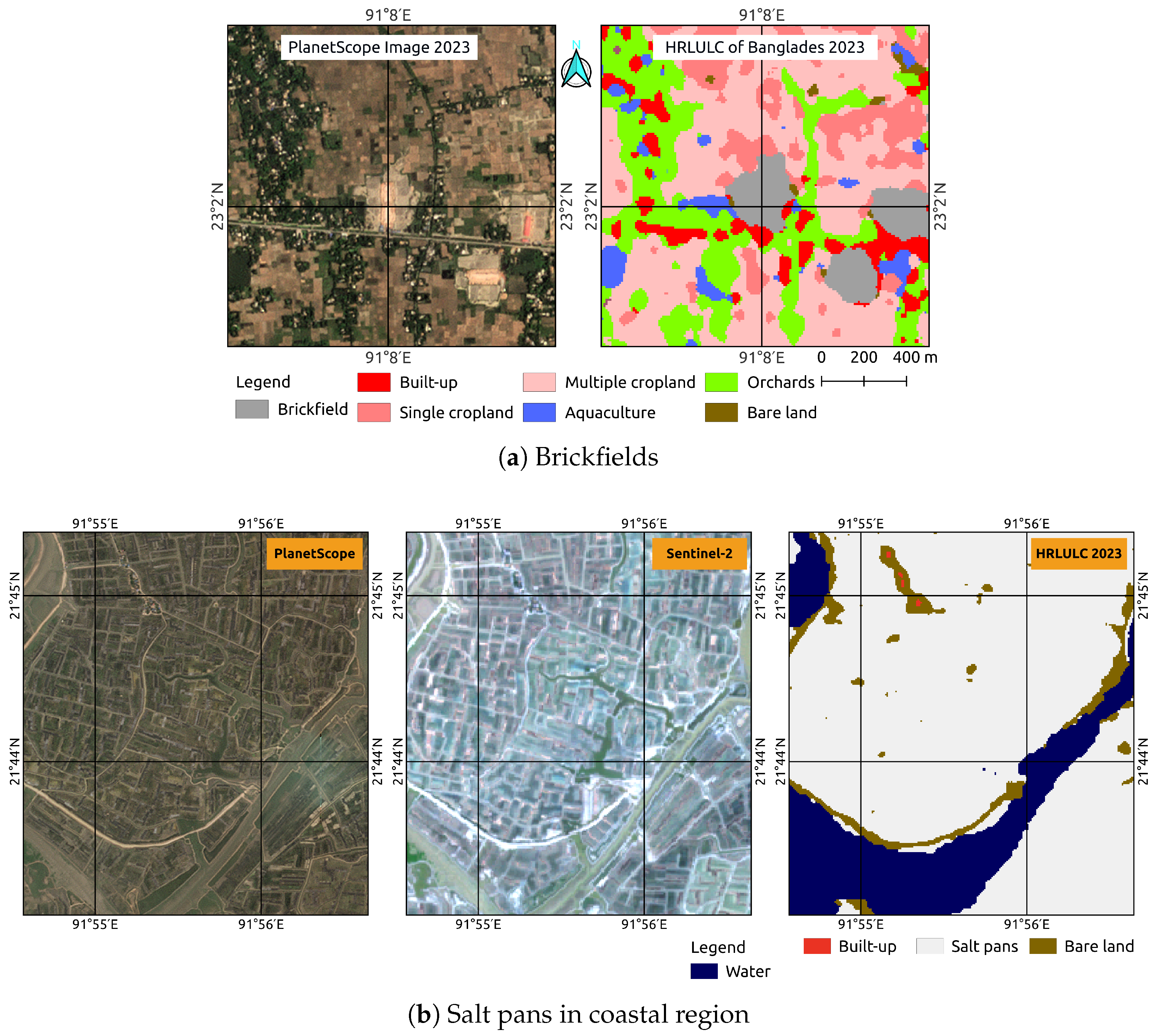

This study identified several important LULC categories often missing from existing maps, including salt pans, brickfields, and aquaculture ponds. While salt pans cover a small area in Bangladesh, they contribute significantly to the local economy and land management. Brickfields, though vital for construction, pose serious environmental risks such as air and water pollution, soil degradation, and CO₂ emissions when unregulated. Unlike most LULC maps that group all water features into a single category, this study differentiates between large natural waterbodies (e.g., rivers and seas) and aquaculture ponds, which are smaller, human-made, and usually used for fish farming. These aquaculture ponds are widespread across Bangladesh. Figure A1 demonstrates the accurate identification and effective delineation of critical land use land cover features, specifically brickfields, aquaculture ponds, and salt pans, within the High-resolution LULC map when compared against high-resolution satellite imagery.

3.3. Comparison with Global Land Use Land Cover Maps

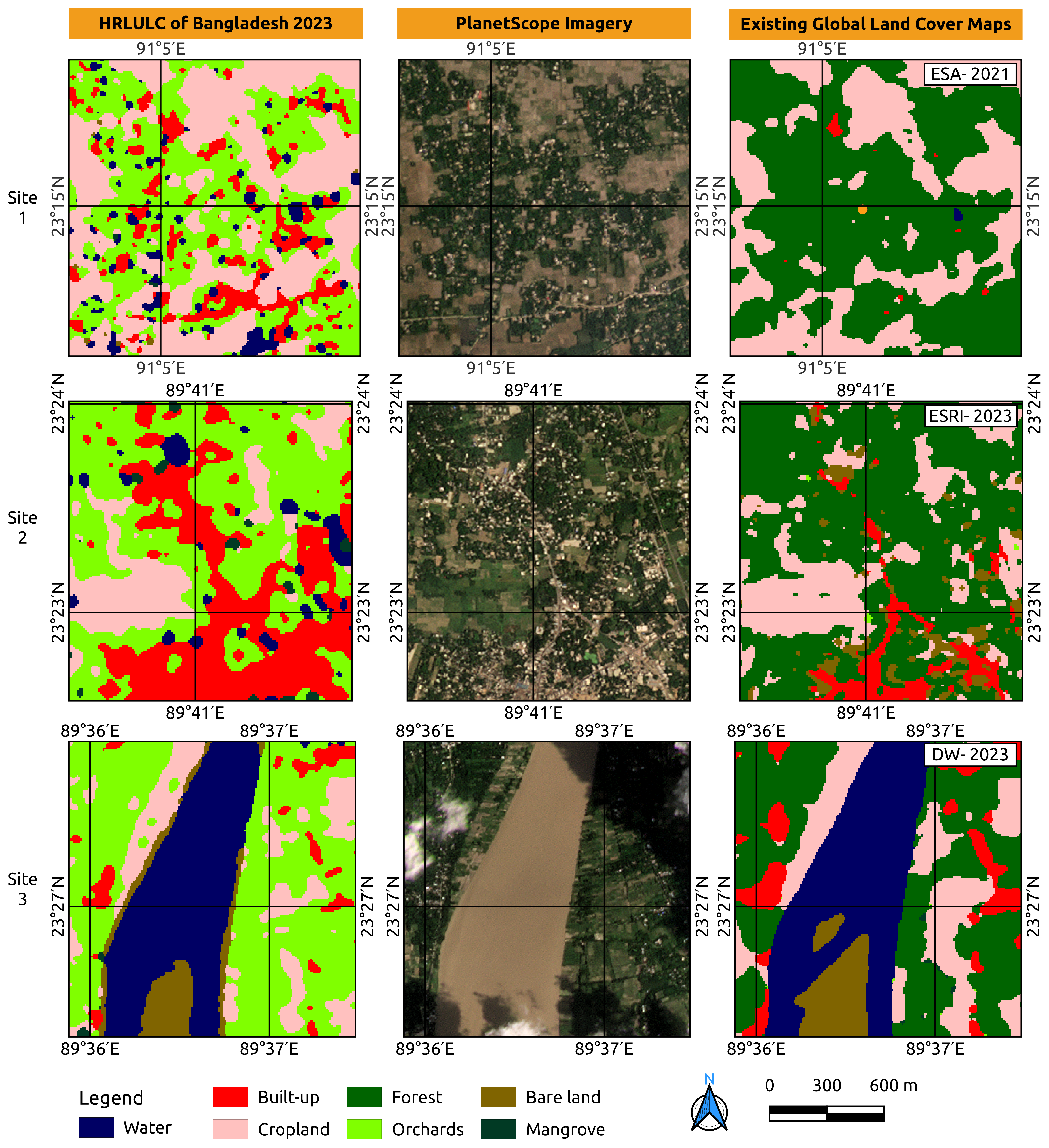

Three global LULC datasets ESA WorldCover 10 m v200, Dynamic World V1, and ESRI were employed for comparison with our HRLULC 2023 dataset. As these products differ in their native classification schemes, all maps were reclassified into a unified legend to ensure consistency. Specifically, all datasets were harmonized into seven common LULC categories: Water, Built-up, Cropland, Forest, Orchards, Bare land, and Mangrove. A visual comparison for the Bangladesh region is presented in Figure 7.

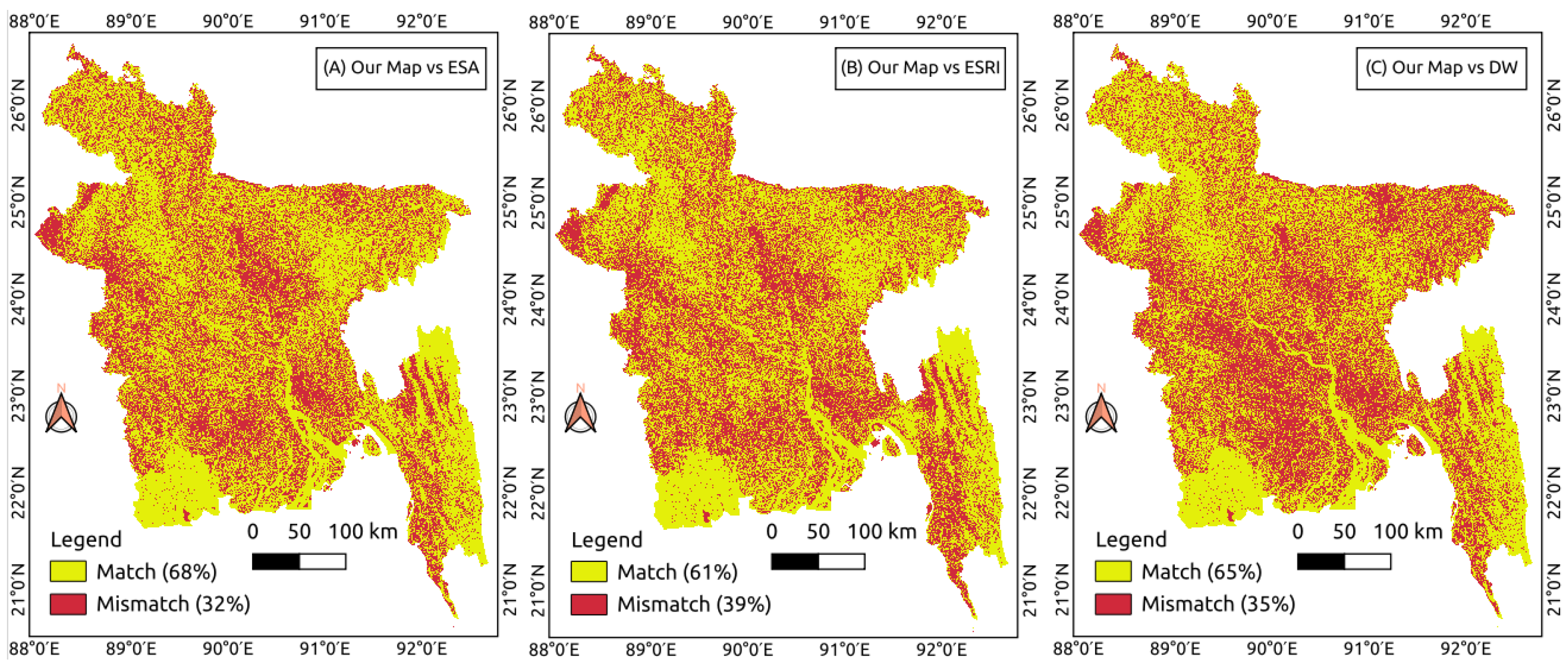

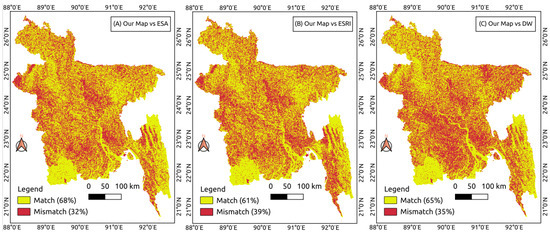

A pairwise comparison was conducted to evaluate the percentage of matched and mismatched pixels between our HRLULC map and the global products. A match was defined when pixels at the same spatial location were assigned to the same LULC category in both maps. The overall agreement was measured by the proportion of matched pixels. Among the comparisons, our map showed the highest agreement with ESA, achieving 68% matched pixels, followed by the ESRI and Dynamic World V1 land cover products (Figure 8).

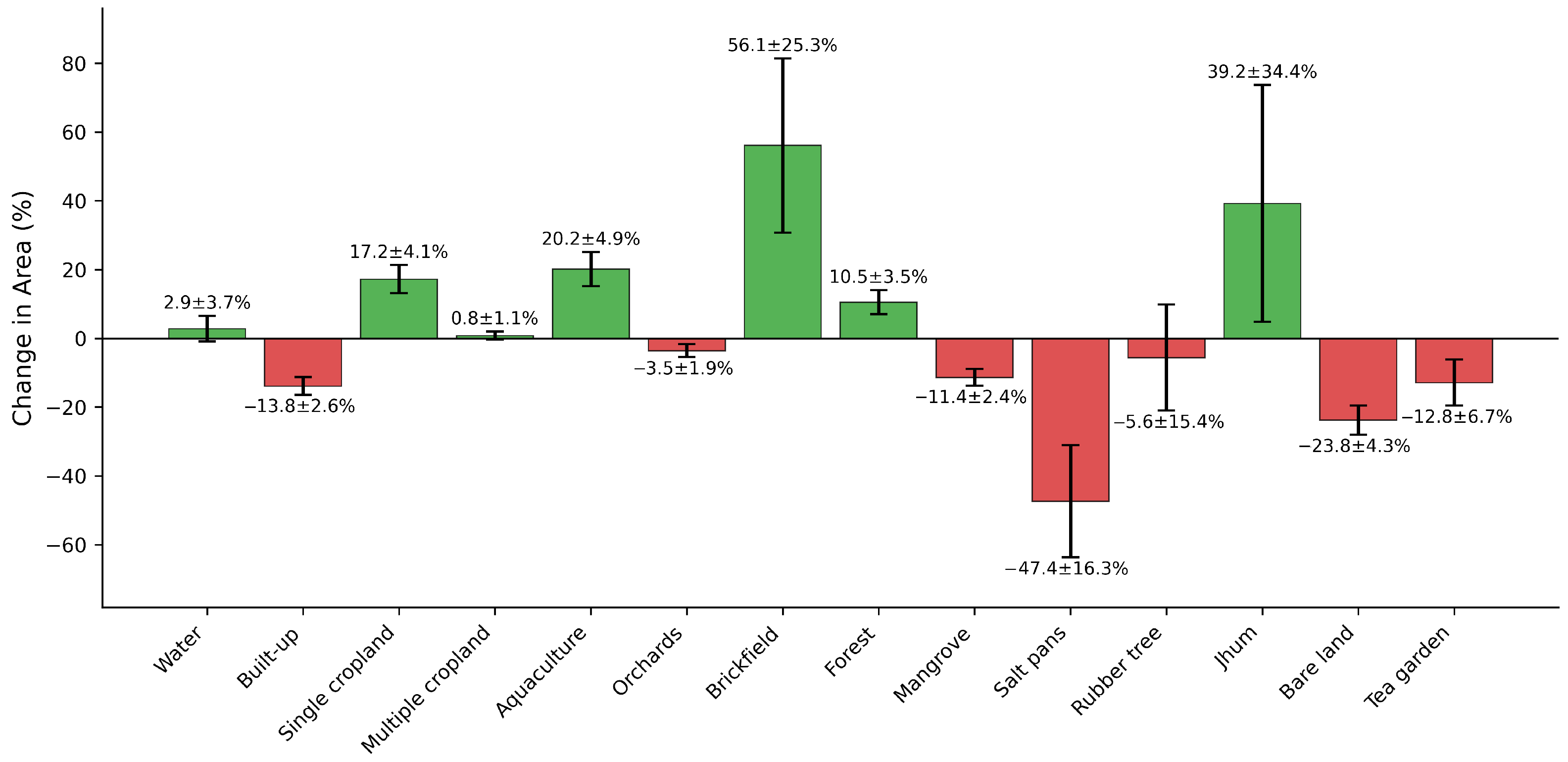

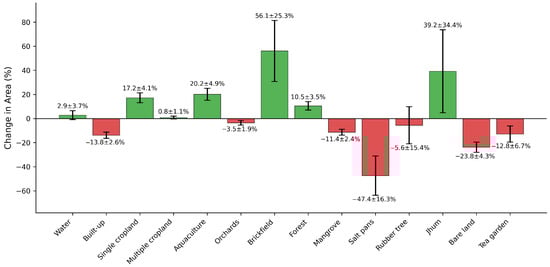

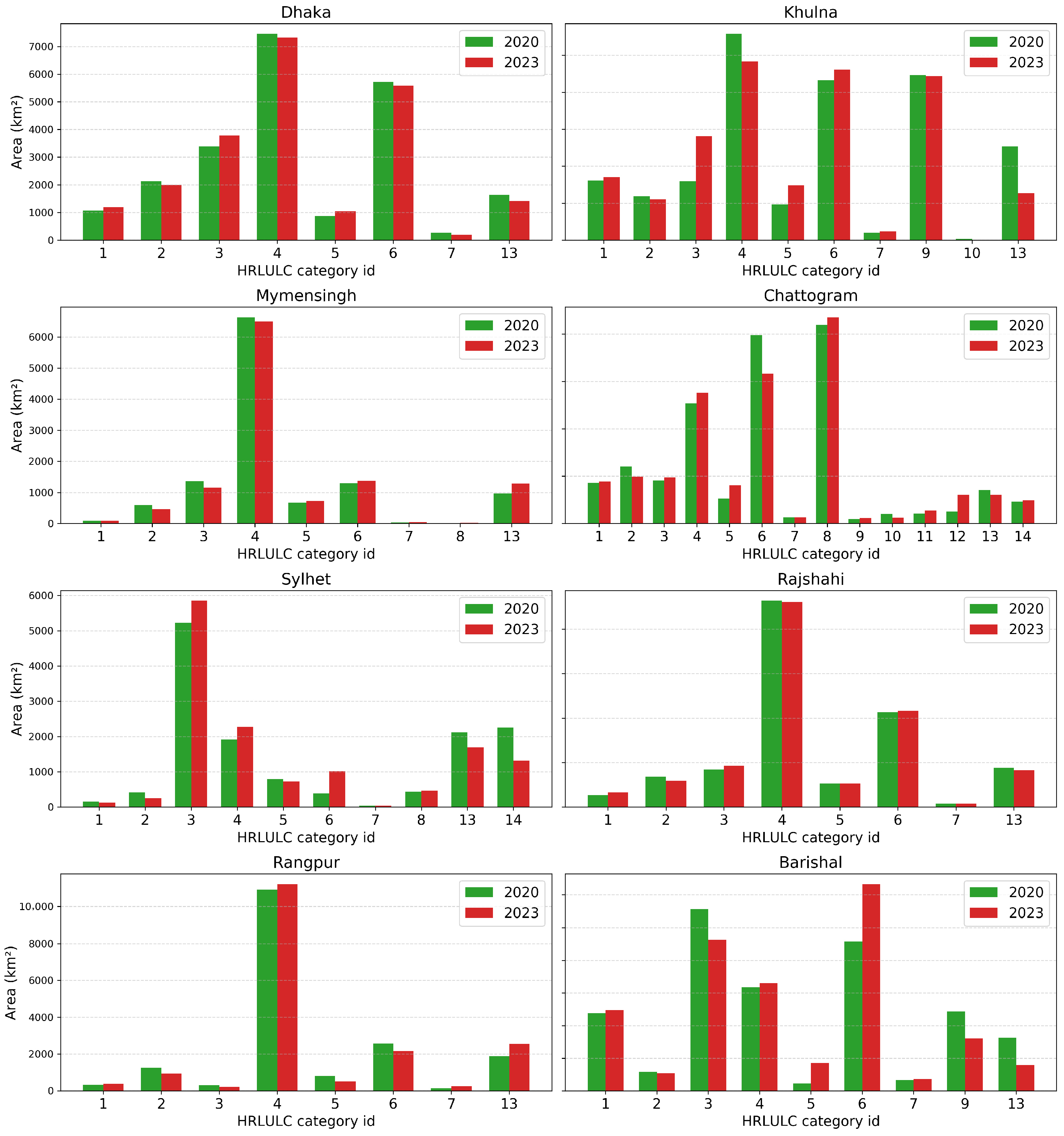

3.4. LULC Change in Bangladesh Between 2020 and 2023

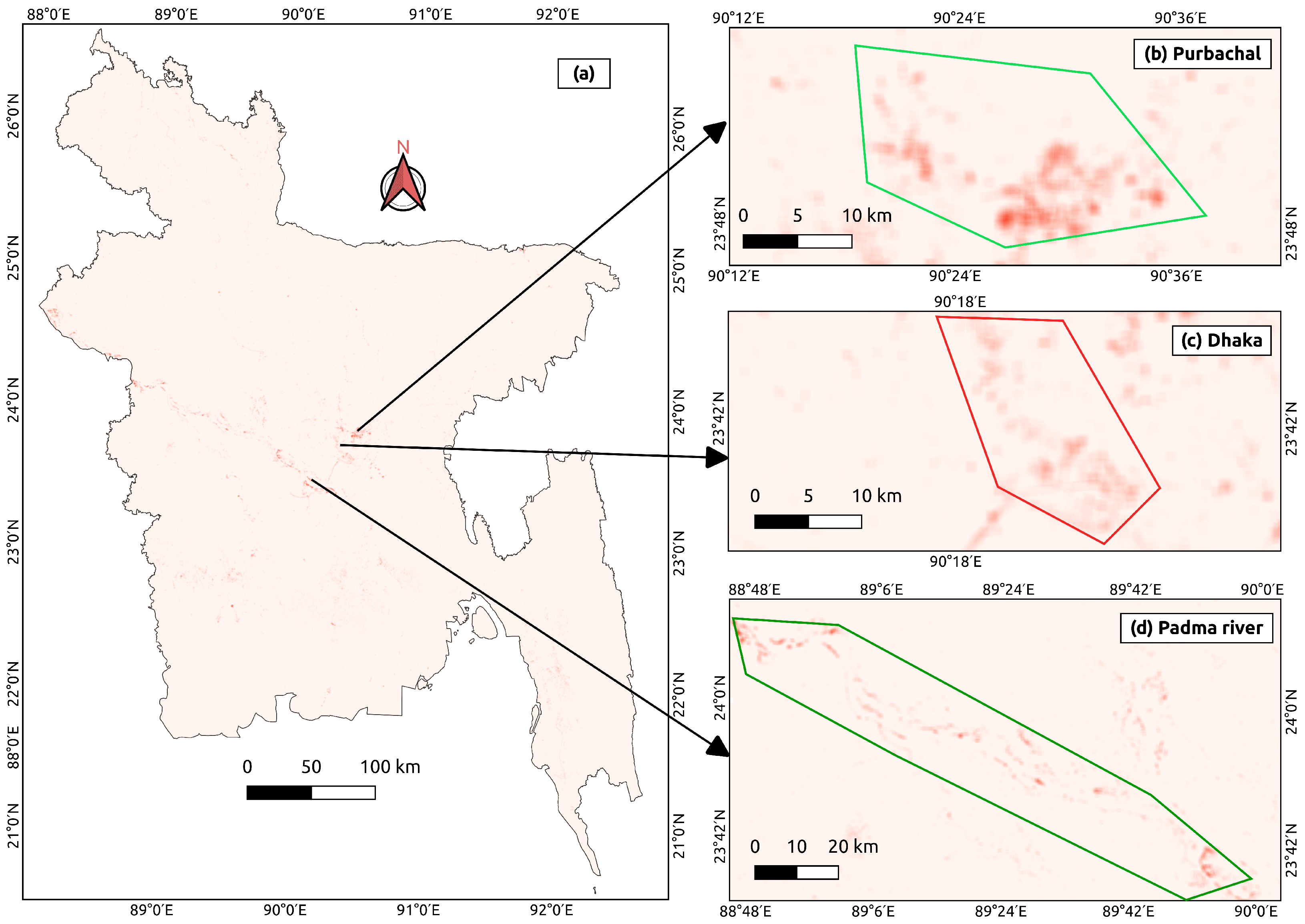

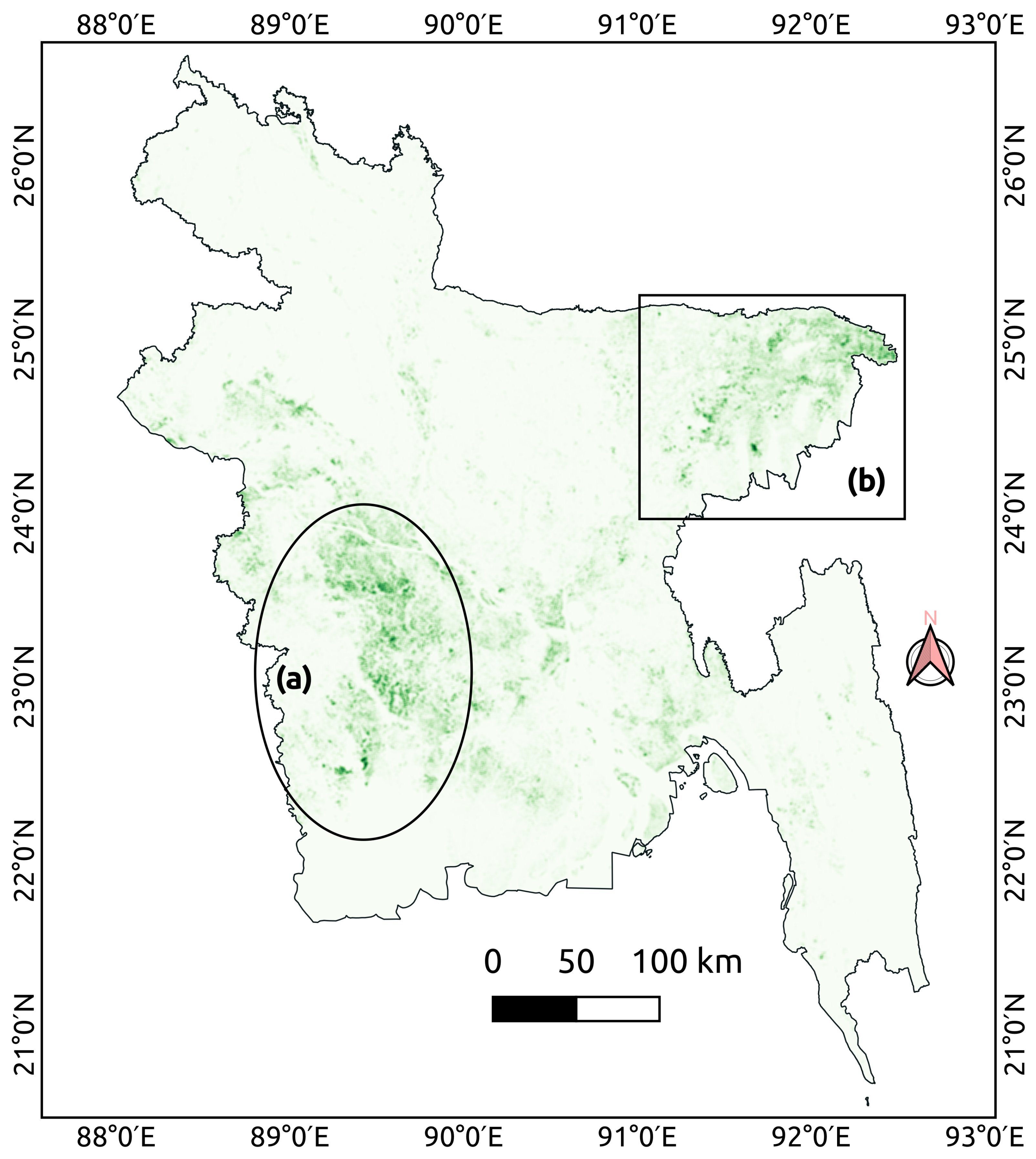

In many developing countries, including Bangladesh, population growth is a key driver of LULC change [79,80]. LULC changes in Bangladesh between 2020 and 2023 revealed significant transformations across multiple categories (Figure 9). Over this three-year period, single cropland showed the positive change, increasing by 17.23 ± 4.08% from an initial area of around 14,827.7 ± 337.9 km², indicating significant expansion. Figure 10 displays the identified hotspots of single cropland expansion.

Aquaculture areas also grew notably, with a 20.17 ± 4.94% increase, reflecting the rapid development of fish farming. Conversely, bare land experienced the greatest decline, decreasing by 23.77 ± 4.27%, suggesting widespread conversion to other land cover types. Figure 11 highlights the areas where bare land has decreased most significantly compared to other regions. In this study, we identified three major bare land decrease hotspots: areas adjacent to the Padma River, the capital city Dhaka, and the newly developed city of Purbachal, located near Dhaka.

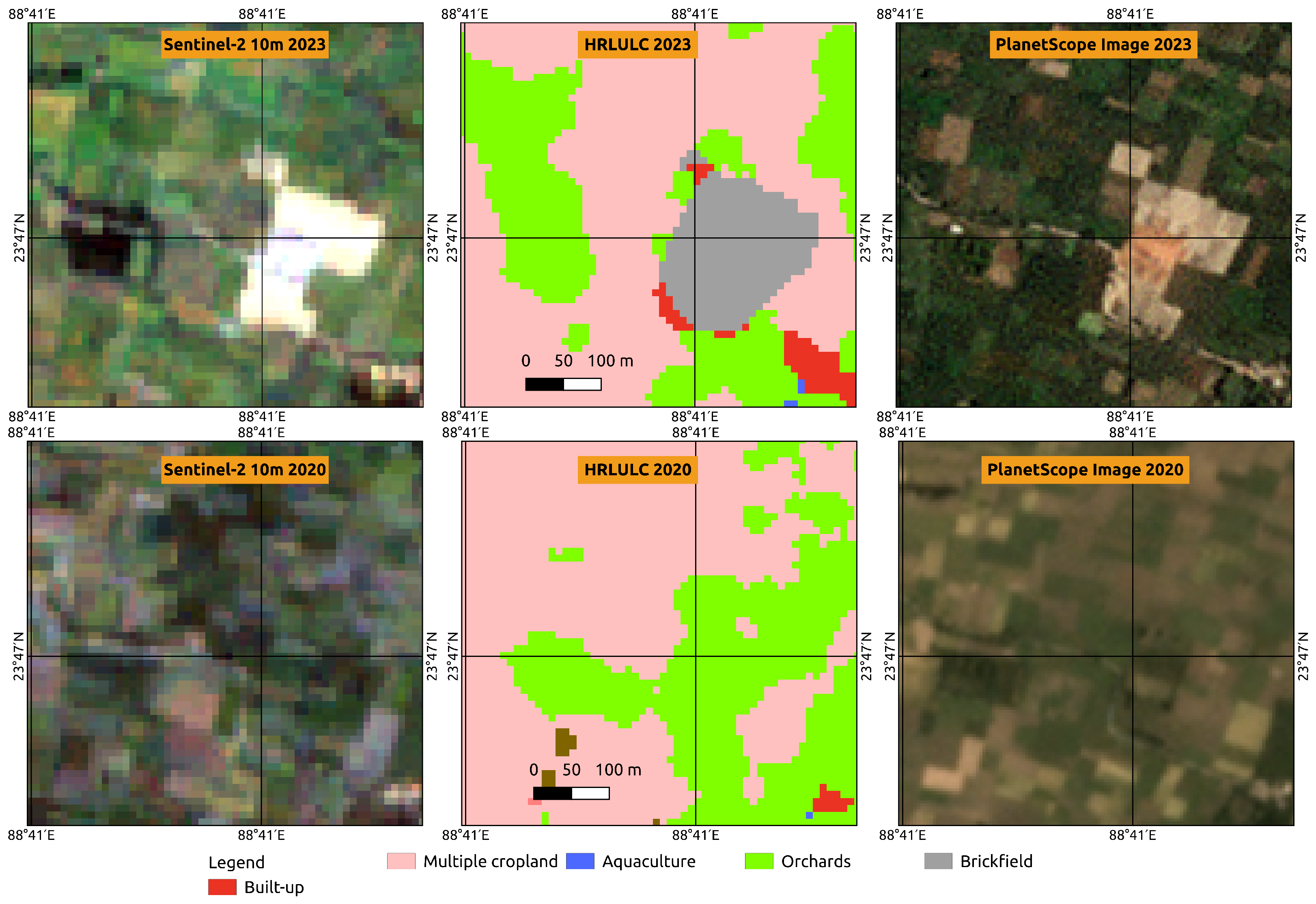

During the study period, brickfield areas expanded by 56.11 ± 25.33%. A compelling example of the rapid LULC transformations occurring in the region is presented in Figure A2. This figure specifically highlights the locations of newly developed brickfields, which represent a significant land conversion. As shown, areas predominantly characterized by orchard plantations in 2020 were subsequently converted into brickfields by 2023, underscoring the dynamic nature of land use in the study area. Detailed estimates of LULC changes, derived using the area-adjusted method proposed by Olofsson et al. (2014) [77], are presented in

Table 9. Adjusted area and percentage changes in LULC categories in Bangladesh between 2020 and 2023, including associated uncertainties (±) at the 95% confidence interval, calculated following the methodology proposed by Olofsson et al. (2014) [77].

LULC Category	2020		2023		Change over 2020–2023
	(km2)	(%)	(km2)	(%)	(km2)	(%)
Water	10,096.6 ± 253.0	6.86 ± 0.17	10,385.4 ± 277.6	7.05 ± 0.19	288.7 ± 375.6	2.86 ± 3.72
Built−up	8816.6 ± 203.7	5.99 ± 0.14	7597.2 ± 104.0	5.16 ± 0.07	−1219.4 ± 228.7	−13.83 ± 2.59
Single cropland	14,827.7 ± 337.9	10.07 ± 0.23	17,383.0 ± 502.6	11.81 ± 0.34	2555.2 ± 605.7	17.23 ± 4.08
Multiple cropland	45,319.9 ± 375.6	30.78 ± 0.26	45,701.5 ± 353.7	31.04 ± 0.24	381.6 ± 515.9	0.84 ± 1.14
Aquaculture	5732.5 ± 232.6	3.89 ± 0.16	6888.5 ± 161.5	4.68 ± 0.11	1156.1 ± 283.2	20.17 ± 4.94
Orchards	26,826.5 ± 324.4	18.22 ± 0.22	25,874.3 ± 388.4	17.57 ± 0.26	−952.2 ± 506.0	−3.55 ± 1.89
Brickfield	1817.1 ± 223.9	1.23 ± 0.15	2836.8 ± 402.1	1.93 ± 0.27	1019.6 ± 460.3	56.11 ± 25.33
Forest	9668.8 ± 199.8	6.57 ± 0.14	10,686.3 ± 273.0	7.26 ± 0.19	1017.5 ± 338.3	10.52 ± 3.50
Mangrove	6220.5 ± 121.1	4.22 ± 0.08	5513.6 ± 91.9	3.74 ± 0.06	−706.9 ± 152.0	−11.36 ± 2.44
Salt pans	480.8 ± 70.1	0.33 ± 0.05	253.0 ± 35.2	0.17 ± 0.02	−227.8 ± 78.5	−47.38 ± 16.32
Rubber tree	466.1 ± 58.3	0.32 ± 0.04	440.2 ± 42.1	0.30 ± 0.03	−25.9 ± 72.0	−5.56 ± 15.44
Jhum	665.1 ± 150.1	0.45 ± 0.10	926.1 ± 172.9	0.63 ± 0.12	261.1 ± 229.0	39.25 ± 34.43
Bare land	13,353.3 ± 450.8	9.07 ± 0.31	10,179.6 ± 349.6	6.91 ± 0.24	−3173.8 ± 570.5	−23.77 ± 4.27
Tea garden	2950.6 ± 119.0	2.00 ± 0.08	2571.7 ± 156.7	1.75 ± 0.11	−378.9 ± 196.8	−12.84 ± 6.67

. Depicting significant spatial variations in LULC change across the administrative Divisions of Bangladesh, Figure 12 utilizes bar graphs to highlight the non-uniform nature of these transformations throughout the country, revealing distinct regional patterns of land cover alteration.

4. Discussion

4.1. Accuracy of HRLULC Maps

A high-resolution (10-m), 14-category HRLULC map was developed for Bangladesh for the years 2020 and 2023. The maps were generated using a fusion of multi-sensor, multi-temporal, and multi-resolution satellite imagery, complemented by ancillary datasets. The classification achieved an overall accuracy of 94.55% for 2020 and 94.32% for 2023. Several factors contributed to the high classification accuracy and low uncertainty observed in the HRLULC maps. Firstly, a comprehensive training dataset comprising 53,627 points for the year 2023 and 36,412 points for 2020 was collected across the study area. This extensive dataset significantly improved the performance of the CNN classifier by enabling more robust and accurate differentiation among various land cover types. Second, a total of 38 features comprising spectral bands, remote sensing indices, and ancillary data were selected from both satellite imagery and supplementary datasets. Although up to 48 features were tested, no substantial improvement in accuracy was observed beyond 38. Notably, increasing the feature count from 25 to 33 resulted in a 5% gain in accuracy (from 87% to 92%), but further increases yielded diminishing returns while also raising computational costs. Additionally, redundancy among similar indices, such as multiple built-up indices (e.g., normalized difference built-up index, urban index, built-up index), tended to cause misclassification. Therefore, using one representative index per land cover category proved more effective. Third, the integration of optical and SAR data specifically Sentinel-1 and ALOS-2/PALSAR-2 significantly improved classification outcomes. Lastly, the deep learning-based CNN approach outperformed traditional machine learning algorithms such as decision trees, support vector machines (SVM), and random forests, which are commonly used in LULC mapping and change detection [81].

The mangrove forest coverage in Bangladesh is estimated to be approximately 6000 km² [82,83,84]. Our HRLULC analysis estimates the mangrove area at approximately 6220.5 ± 121.1 km² in 2020 and 5513.6 ± 91.9 km² in 2023, which closely aligns with previous studies. Similarly, the total area under rubber cultivation in Bangladesh is reported to be around 416.85 km² [85], which closely matches our remote sensing-based estimates of 466.1 ± 58.3 km² in 2020 and 440.2 ± 42.1 km² in 2023. These results provide strong validation for the accuracy and reliability of the HRLULC maps developed for Bangladesh. According to the official estimate by the Bangladesh Bureau of Statistics (BBS) [86], the area under the single cropland category is approximately 20,571.3 km². In comparison, our HRLULC-based estimation for the year 2023 indicates an area of 17,383.0 ± 502.6 km². This relatively close correspondence suggests that our classification is generally reliable. However, the observed deviation may be due to differences in the methodology used for area estimation, such as classification definitions, resolution, or sampling techniques.

4.2. Spatial Details and Comparative Evaluation

Our HRLULC products offer greater spatial detail and pixel-level accuracy compared to global land cover datasets, largely due to their national-scale focus and finer resolution. In rural areas of Bangladesh, most households are surrounded by various tree species particularly fruit trees such as mango, guava, jujube, jackfruit, litchi, and papaya, alongside woody vegetation. Global LULC products often fail to detect small built-up structures obscured by dense vegetation in these settings. In contrast, our map successfully identifies these hidden built-up areas (see Figure 7). Similarly, riverine bare lands in Bangladesh are frequently misclassified in global maps. Our HRLULC product effectively captures and classifies these areas with improved accuracy.

Our HRLULC maps offer enhanced spatial detail by integrating two types of SAR data alongside optical imagery. ALOS-2/PALSAR-2 provides L-band radar, which penetrates dense vegetation such as forest canopies, improving classification accuracy in areas like mangroves and flooded vegetation. Sentinel-1 supplies C-band radar, which is particularly effective for detecting wetland rice cultivation. Although rice crops were not explicitly classified, most single and multiple cropland areas in Bangladesh are primarily used for rice production, reflecting its status as the national staple. The synergistic use of L-band SAR (ALOS-2), C-band SAR (Sentinel-1), and optical data (Sentinel-2) improves class separability and yields high-resolution LULC maps with enhanced thematic accuracy. We employed a time-feature CNN model, which effectively handles multi-source input data with varying spatial and temporal resolutions. Incorporating time series information enables the model to capture seasonal dynamics, significantly improving classification performance over traditional single-date approaches. Finally, global LULC products are designed for worldwide application, often sacrificing local accuracy. These broad-scale maps may overlook regional variability and context. In contrast, our maps are locally focused and tailored to the specific conditions of Bangladesh, incorporating local knowledge and data. This localized approach ensures higher accuracy and greater relevance for national and regional applications.

4.3. LULC Conversion from 2020 to 2023

Overall, there has been an increase in single cropland area and a corresponding decrease in bare land across the country. However, this trend is not uniform nationwide (see Figure 12). The most notable expansion of single cropland has occurred in the Khulna and Sylhet Divisions (see Figure 10). Khulna, located adjacent to the coast, is frequently affected by tropical cyclones, storm surges and tidal floods, which contribute to saline water intrusion. This salinity plays a significant role in shifting agricultural practices from multiple cropping systems to single cropland. Additionally, the growing presence of aquaculture particularly shrimp farming in this region has further contributed to the expansion of single cropland, as the same land is often used for dual purposes. Flash floods, sudden and rapid flooding triggered by intense rainfall within a short period [87], are common natural hazards in the northeastern region of Bangladesh, particularly in the Sylhet area. These recurrent flood events frequently damage agricultural crops, households, and infrastructure [88,89,90]. As a result, farmers in the region are increasingly shifting to single cropping practices to minimize potential losses and adapt to the unpredictable flood conditions.

The Bare land category, comprising mainly char lands (riverine islands) and fallow land, experienced a significant decline of −3173.8 ± 570.5 km² over the study period. In COVID-19 context, governmental advocacy “don’t leave an inch of land uncultivable”, modern agricultural technologies, along with population pressure, has likely contributed to the expansion of agricultural land and decline of bare land. According to Figure 11, one of the bare land decrease hotspots is located in Purbachal. This area was previously bare land. To alleviate the growing population pressure on Dhaka, the Government of Bangladesh initiated a planned urban development project in the surrounding areas, aiming to provide high-quality, permanent residential accommodations for the expanding population [91].

An interesting finding from the 2023 data is the decrease in built-up area over the past three years. This reduction is unusual for a developing country like Bangladesh, where urban expansion is generally expected to follow a continuous upward trend. However, a similar trend was reported by Abdullah et al. (2019) [92], who observed a sudden decrease in built-up area in 2000, attributed to the devastating flood that severely affected large parts of the country. In a similar context, the years 2022 and 2023 experienced several severe cyclones, most notably cyclonic storm Sitrang, Hamoon, and Midhili may have contributed to the recent decline in built-up areas by damaging infrastructure and displacing settlements. Additionally, urban growth has increasingly taken a vertical form, with more multi-story buildings replacing the need for horizontal expansion. This shift may explain the decline in the built area observed in this study, despite ongoing development. Furthermore, in 2023, orchard areas, especially those related to homestead gardening in rural regions of Bangladesh, where households are commonly surrounded by a diverse mix of fruit and woody tree species, exhibited increased vegetation density. As a result, some small rural built-up areas are misclassified as orchards rather than accurately identified as built-up.

Jhum cultivation areas increased by approximately 39.25 ± 34.43%, indicating a rise in shifting cultivation practices among the indigenous communities of the Chattogram Hill Tracts (CHT). Although the uncertainty of this estimate is high, a recent study reveals that tribal farmers now cultivate around 30 different crop varieties through Jhum, compared to only 15–20 varieties in previous years [93]. This suggests a more intensive and diversified use of Jhum cultivation than in the past. An upward trend in Jhum cultivation, as reported by the Department of Agricultural Extension [94], supports the findings presented in this study.

According to our estimation, mangrove forest coverage in Bangladesh declined by approximately 11.36 ± 2.44% between 2020 and 2023. Recent studies have also documented a continued reduction in mangrove extent, primarily driven by deforestation, urban expansion, and changing agricultural practices [95,96]. These findings highlight the growing pressure on mangrove ecosystems and the need for strengthened conservation efforts.

Aquaculture is one of the most prominent and rapidly growing sectors in Bangladesh, playing a vital role in nutrition, livelihoods, and national economic development. In many regions, it has proven to be more profitable than traditional crop farming, leading to a noticeable shift among farmers toward aquaculture-based practices. The sector has demonstrated a steady upward trend from 2001 to 2022 [97]. This aligns with the findings of the present study, which observed an increase in aquaculture area from 5732.5 ± 232.6 km² in 2020 to 6888.5 ± 161.5 km² in 2023.

Salt farming and processing in Bangladesh holds significant potential for improving livelihoods in vulnerable coastal communities [98]. However, our study reveals that the area under salt pans has decreased by approximately −47.38 ± 16.32% between 2020 and 2023, indicating a notable contraction of this land use category. According to the Land Cover Atlas of Bangladesh (2015), the area was estimated to be 373 km² [36]. In comparison, our HRLULC data show that the area was 480.8 ± 70.1 km² in 2020, which closely aligns with the 2015 estimate. However, by 2023, this area had declined significantly to 253.0 ± 35.2 km².

4.4. Impact of Land Use Land Cover Changes

LULC changes have profound and far-reaching impacts on both the environment and the socio-economic well-being of communities. Bangladesh, with its high population density, relies heavily on agricultural land and aquaculture ponds to sustain its growing population. According to the findings of this study, both agricultural and aquaculture areas have expanded in recent years. This expansion has contributed to Bangladesh’s official attainment of self-sufficiency in food production, particularly in staple food grains and freshwater fish [99]. Although the expansion of multiple cropland areas observed in this study is not statistically significant (0.84 ± 1.14%), multiple cropping still occupies a substantial portion of the land cover. This dominance may not always be favorable for sustainable crop production. Continuous cultivation of the same land throughout the year exerts considerable pressure on soil fertility and productivity, potentially leading to long-term degradation of agricultural land [100]. On the other hand, the increasing single cropland area may pose risks to long-term food security.

The decline in bare land particularly char lands and fallow lands has contributed significantly to achieving national food security. This transformation is largely attributed to the adoption of advanced agricultural technologies and practices [101]. According to Figure 11, the decrease in bare land along the Padma River can be seen as a positive impact, as these char lands are increasingly being converted into cultivated areas. In contrast, the reduction of bare land in the capital city, Dhaka, is viewed as a negative trend, as it leads to the loss of open and free spaces, contributing to increased urban density and reduced livability for city dwellers. The decrease in bare land in the Purbachal area may help alleviate the housing shortage in Dhaka by reducing pressure on the capital through the development of planned residential zones.

In the past, Jhum was the primary cultivation practice for farmers in the CHT. Although agricultural technologies have modernized in recent years offering alternatives to shifting cultivation many farmers continue to practice Jhum. This persistence is largely due to their long-standing familiarity with the method, as they have been trained in Jhum culture for decades, making it difficult for them to transition to other forms of agriculture [93]. Jhum remains the primary food production system for many ethnic minority communities; however, it poses negative impacts not only on the soil of the cultivated land but also on the surrounding environment [102] and the broader ecosystem (lose of different types of bird and animal species) [103].

During the study period, brickfield areas increased by 1019.6 ± 460.3 km². Although this change may seem relatively limited in spatial extent, as it is accompanied by a high uncertainty of ±25.33%. Bricks are a primary construction material in Bangladesh, with brickfields employing approximately one million people and contributing around 1% to the country’s Gross Domestic Product (GDP) [104]. Despite its contribution to the national economy, the brick sector presents significant environmental and social challenges. Brick production leads to soil degradation and reduced agricultural productivity [105], the depletion of natural resources [106], and increased air pollution and greenhouse gas emissions [107]. Moreover, it is associated with serious health risks [108] and persistent social issues, including labor rights violations and gender-based discrimination [109].

The findings related to mangrove forests are particularly alarming. Within just three years, approximately 706.9 ± 152.0 km² of natural mangrove cover has been lost. This sharp decline raises significant concern, as mangroves offer a wide range of critical ecosystem services, including phytoremediation, carbon sequestration, and the regulation of hydrological and ecological processes [110]. Furthermore, mangroves serve as a natural barrier against tropical cyclones, playing a crucial role in protecting coastal communities and sustaining their livelihoods. Continued degradation of mangrove ecosystems threatens these essential functions and could severely disrupt coastal food webs. The resulting ecological imbalance would likely have far-reaching socio-economic consequences, particularly for vulnerable coastal populations that depend heavily on these natural resources for their survival and well-being.

Salt has traditionally been produced in the southeastern coastal region of Bangladesh through the use of open salt pans. According to data from the Bangladesh Small and Cottage Industries Corporation (BSCIC), salt production in 2022 totaled 1.832 million tonnes. Sea salt not only enhances the flavor of food but also provides essential minerals, including iron, which are vital for maintaining physiological homeostasis in the human body. Despite its widespread use, the livelihoods of many coastal communities in Bangladesh remain heavily dependent on small-scale salt production. However, a noticeable decline in the area devoted to salt pans poses a serious threat to the socio-economic stability of these communities. This trend also carries broader national implications, as salt in Bangladesh is consumed across three main sectors: human consumption, animal feed, and industrial applications. A reduction in domestic production could disrupt the national salt supply and adversely affect the economic well-being of those engaged in the industry.

Overall, the built-up area shows a net decrease; however, a visual inspection of the HRLULC map reveals localized increases in built-up areas near major cities. In contrast, more remote regions, particularly those far from the capital, have experienced a notable decline in built-up land. This pattern is likely driven by population migration toward urban centers, which in turn places increased pressure on city infrastructure and resources.

4.5. Scope of Development

Bangladesh exhibits a highly diverse and dynamic landscape; however, due to time and resource limitations, several important LULC categories were not incorporated into the HRLULC maps developed for 2020 and 2023. As a rice-dominant nation, the inclusion of a dedicated rice paddy category in future iterations is strongly recommended, given its substantial agricultural and economic significance. Further refinement within the forest category is also advisable, particularly by differentiating between evergreen, deciduous, and plantation forests. In the southern region, brackish water aquaculture commonly associated with shrimp farming constitutes a major land use and warrants recognition as a distinct subcategory under aquaculture ponds. Additionally, Bangladesh’s high population density and rapidly evolving land use practices introduce challenges related to seasonal variability. For instance, in the southeastern coastal zone, shrimp ponds are often converted into salt pans during the dry season, while char lands (riverine islands formed by sediment deposition) are cultivated only during specific months. These dynamic land use patterns highlight the need for developing dynamic LULC maps, which represent a promising direction for future research.

4.6. Limitations of the Study

This study utilized satellite imagery with a spatial resolution of 10 m. However, in rural areas of Bangladesh, many roads are narrower than this resolution, making it challenging to accurately detect and delineate these features. Additionally, built-up areas located beneath dense orchard canopies were sometimes obscured in the imagery, resulting in their omission or misclassification. This may have led to an underestimation of built-up areas in some regions. Furthermore, the training and validation datasets were derived from the same reference dataset. As a result, they are not fully independent, which may have influenced the accuracy assessment.

5. Conclusions

Satellite remote sensing remains a robust and reliable approach for generating LULC maps. This study developed national-scale, high-resolution (10 m) LULC maps for Bangladesh for the years 2020 and 2023 using a time series CNN model that integrates both optical and SAR data. To the best of our knowledge, these are the first national-scale LULC maps of Bangladesh produced at this resolution using multi-temporal inputs and encompassing a comprehensive classification of 14 LULC categories. Locally significant but often underrepresented LULC types such as brickfields, salt pans, jhum cultivation, and aquaculture ponds were successfully identified. The study also reveals notable LULC changes in single cropland, aquaculture ponds, built-up areas, brickfields, salt pans, and bare land. Brickfields, often located near croplands, present environmental challenges due to pollution and land degradation. Meanwhile, the rapid expansion of aquaculture ponds, though beneficial for food security, may reduce cropland availability, raising concerns about long-term sustainability. The outcomes of this research provide a valuable resource for users seeking comprehensive and precise land use data. The resulting HRLULC datasets support environmental monitoring, agricultural planning, and land management decisions. From a policy perspective, these findings highlight the need for integrated land use strategies that balance economic development with environmental sustainability. Government agencies such as the Ministries of Agriculture, Fisheries and Livestock, and Environment can utilize these datasets to design evidence-based projects, policies, enforce land use regulations, and plan interventions targeting the preservation of agricultural land, mitigation of environmental pollution from brickfields, and sustainable aquaculture development.
