Manufacturing Technologies Comparison for Nozzles ^†

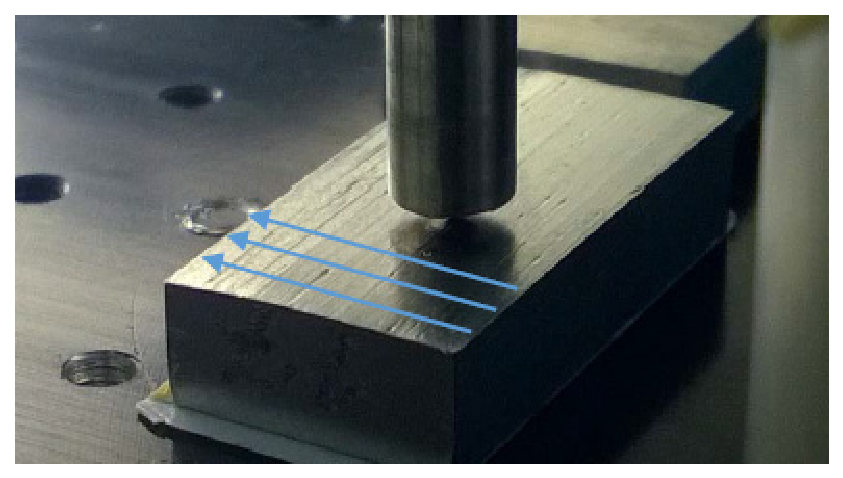

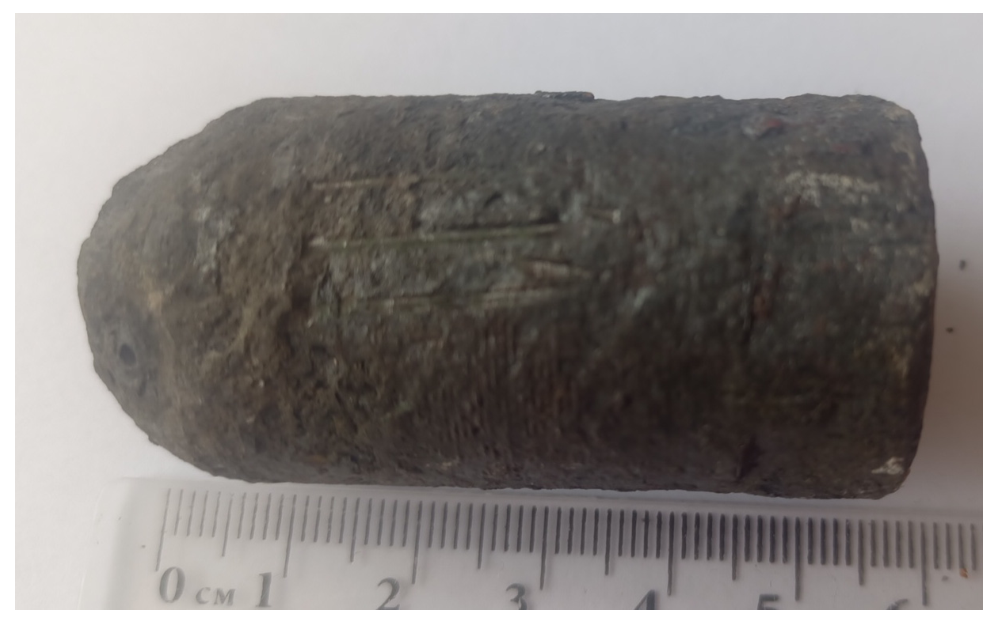

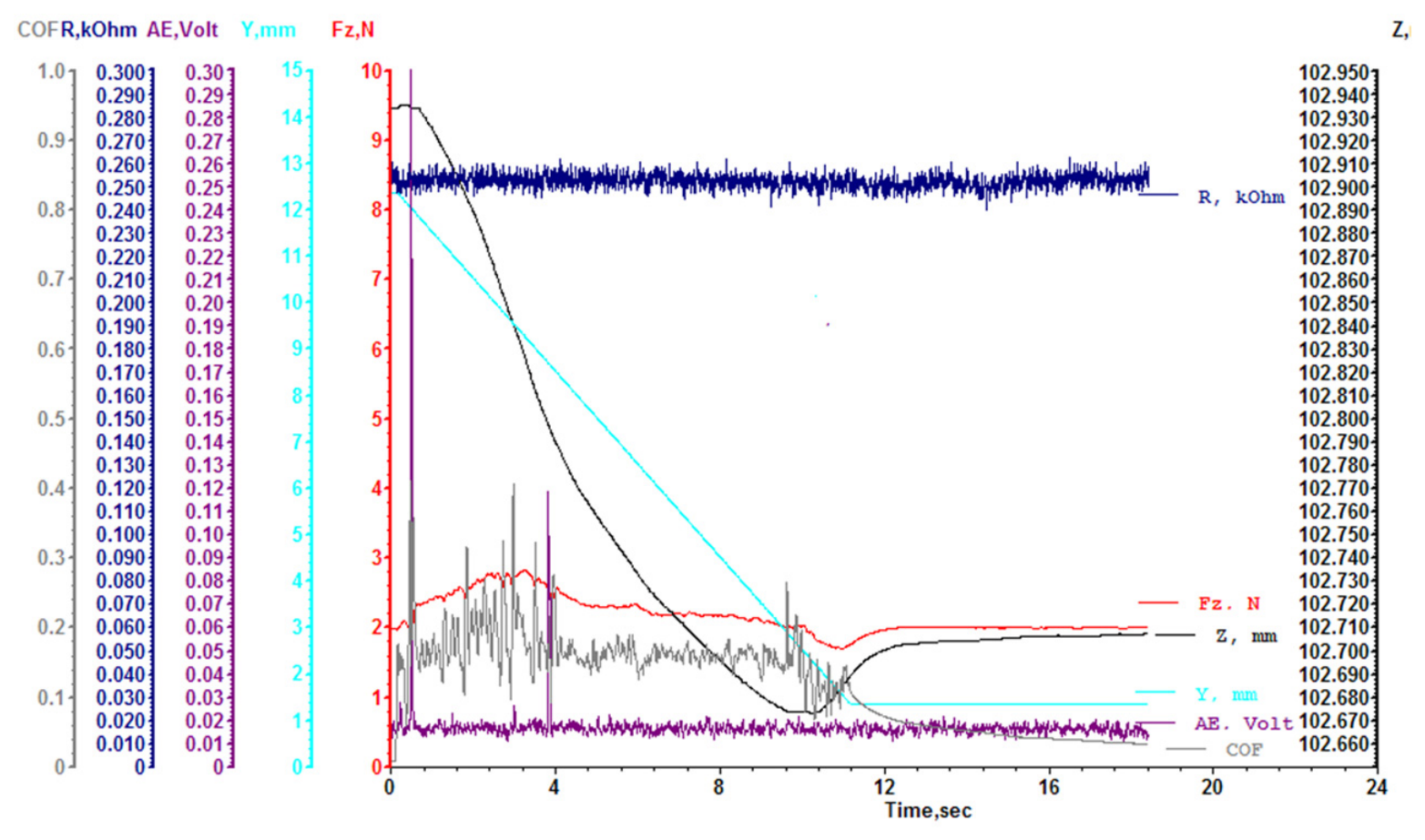

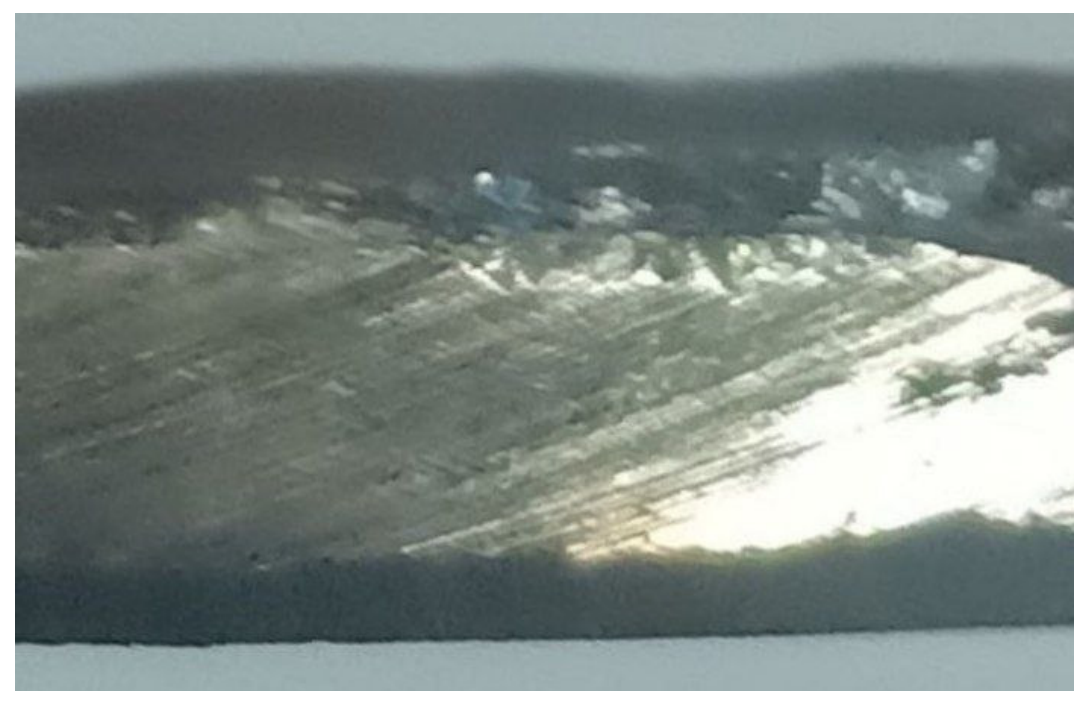

During operation, several parts of the thermal reactor burners sustain heavy damage and need to be replaced. Different solutions for parts manufacturing are investigated: thermal spraying, Selective Laser Melting (SLM), and hardfacing by Directed Energy Deposition plasma arc (DED-arc). Based on the comparison to original material and the duration of usage, application of those three methods for replacement is studied in order to determine the most suitable one, with Additive Manufacturing (AM) being proposed for targeting the problem. Thermal-sprayed items have a zirconium-oxide-based outer layer. SLM produces a monolithic item, while with the help of DED-arc, a composite structure with a sound metallurgical bond between the base and the added material is produced. The microstructures with the interface zones are observed. Samples are machined and ground, and their friction characteristics are taken with the help of acoustic emission (AE) and Electrical Contact Resistances (ECR) sensors during scratching. As a result, overlaying of the base stainless steel by DED-arc is proposed due to the better metallurgical stability of the added mixture in a hot environment above 800 °C and its hardness characteristics.
