Electrical System Architectures for Future Electric Aircraft ^†

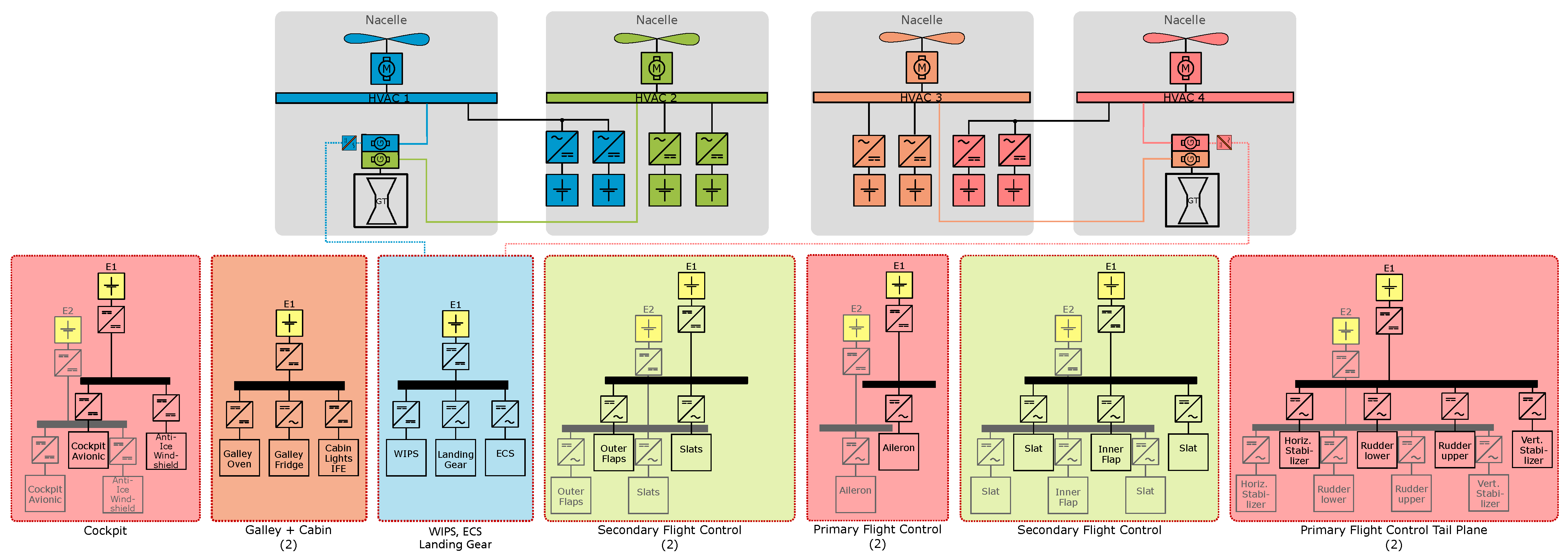

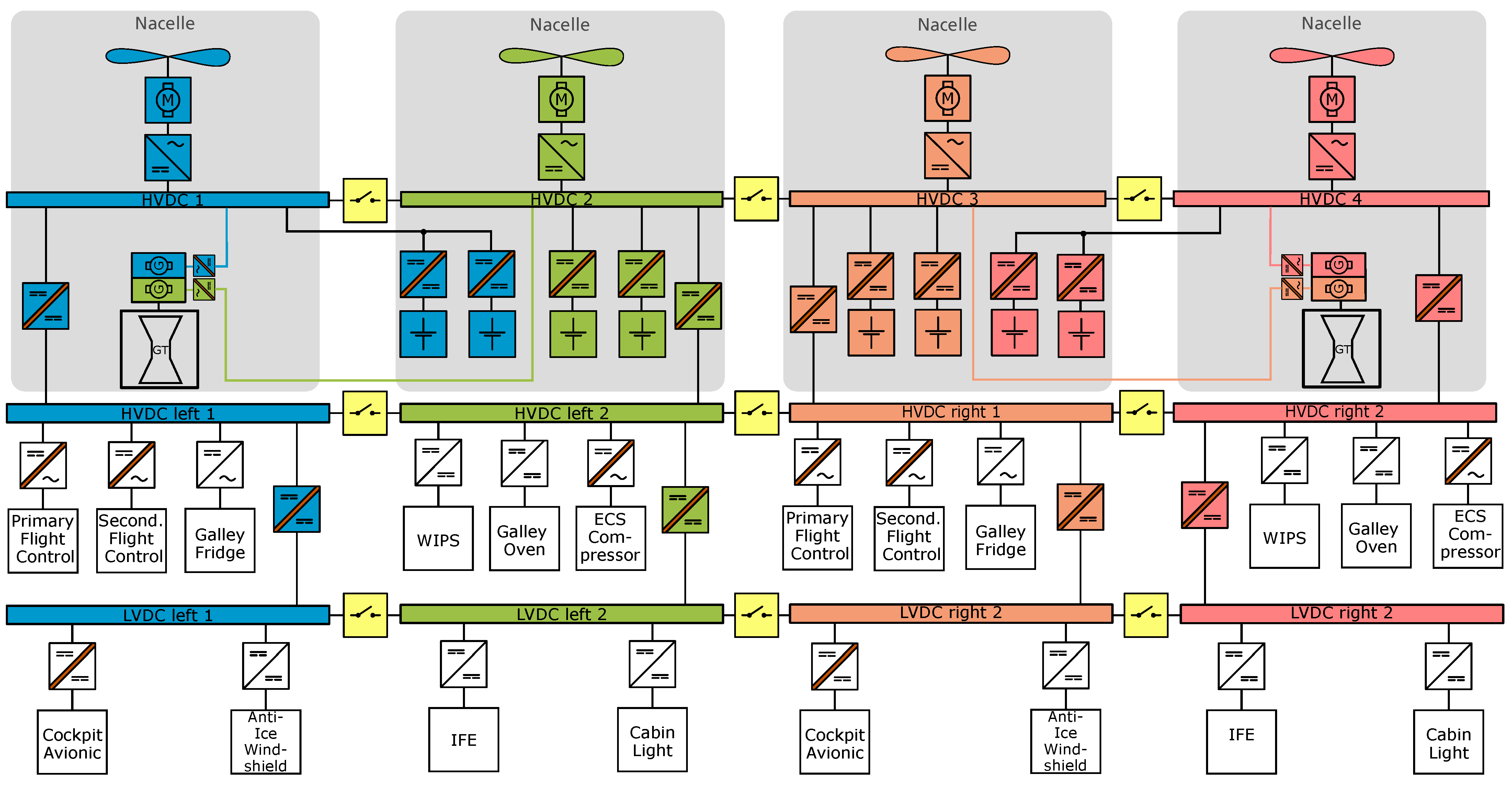

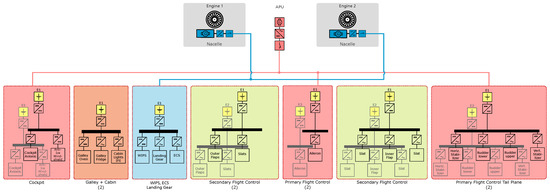

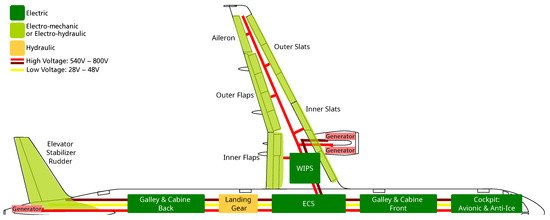

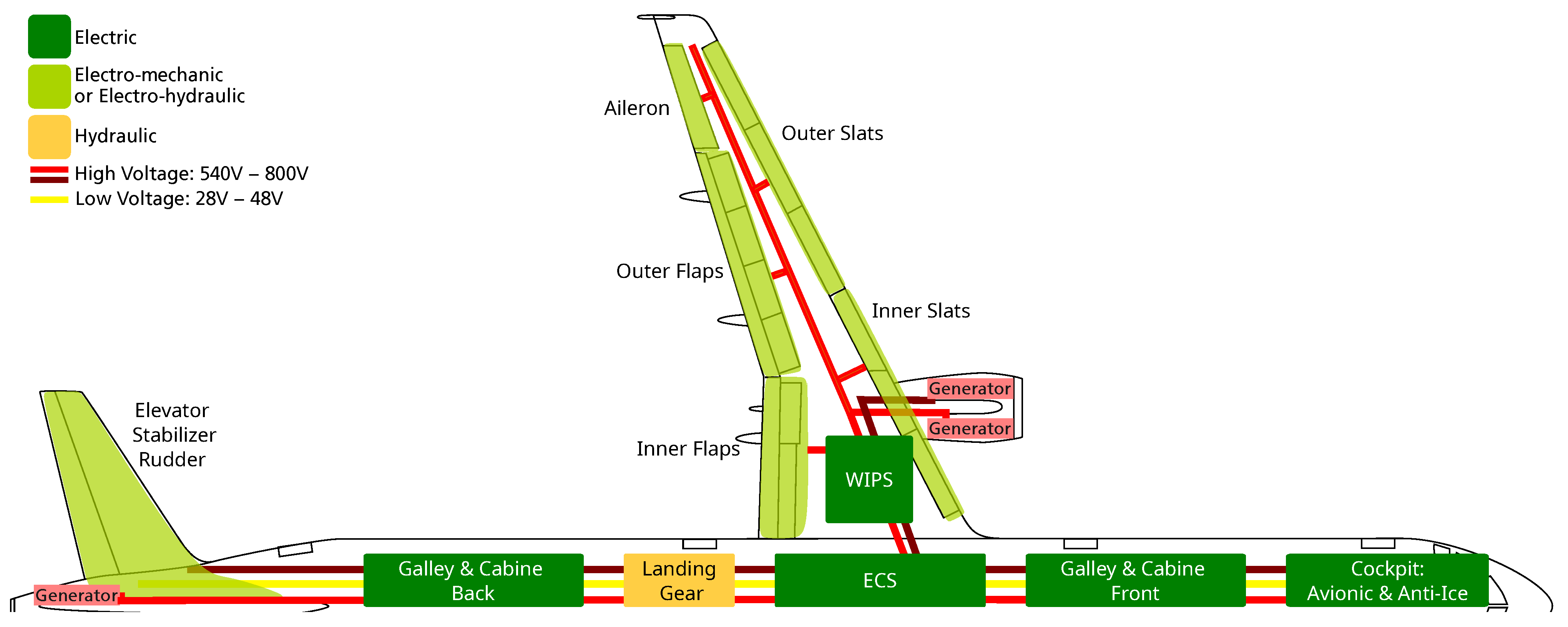

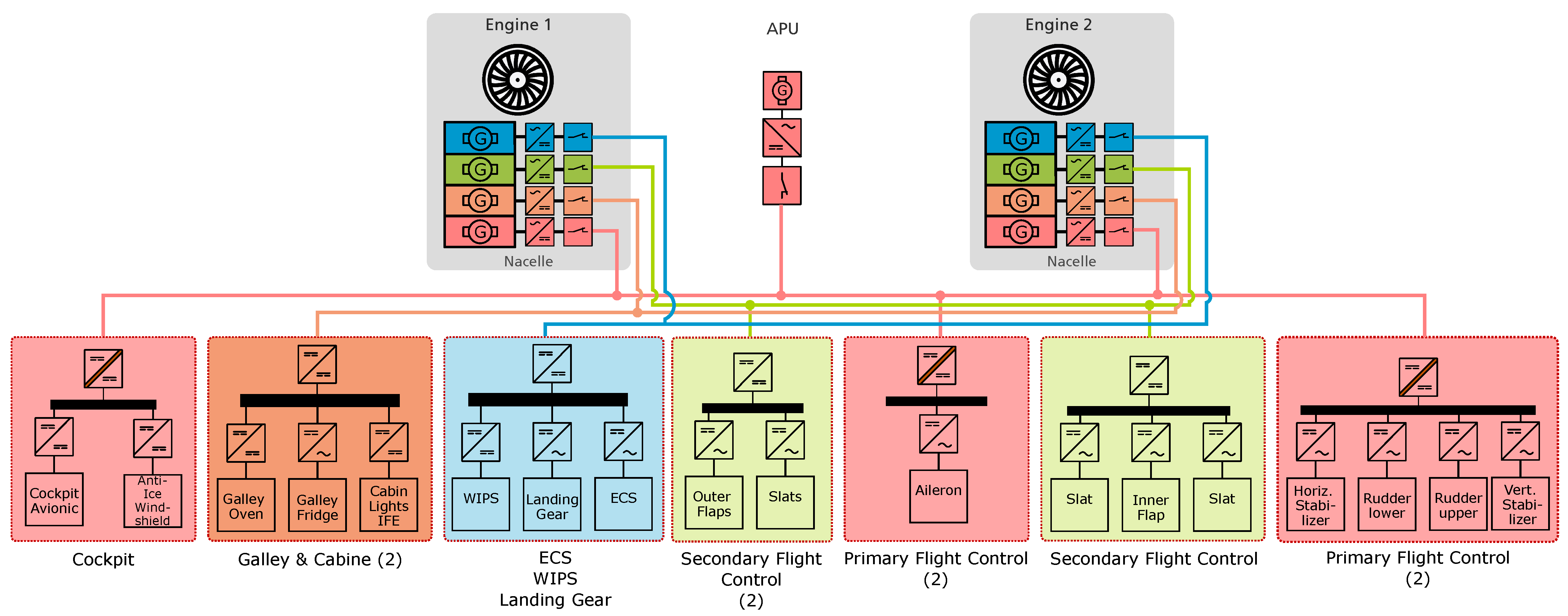

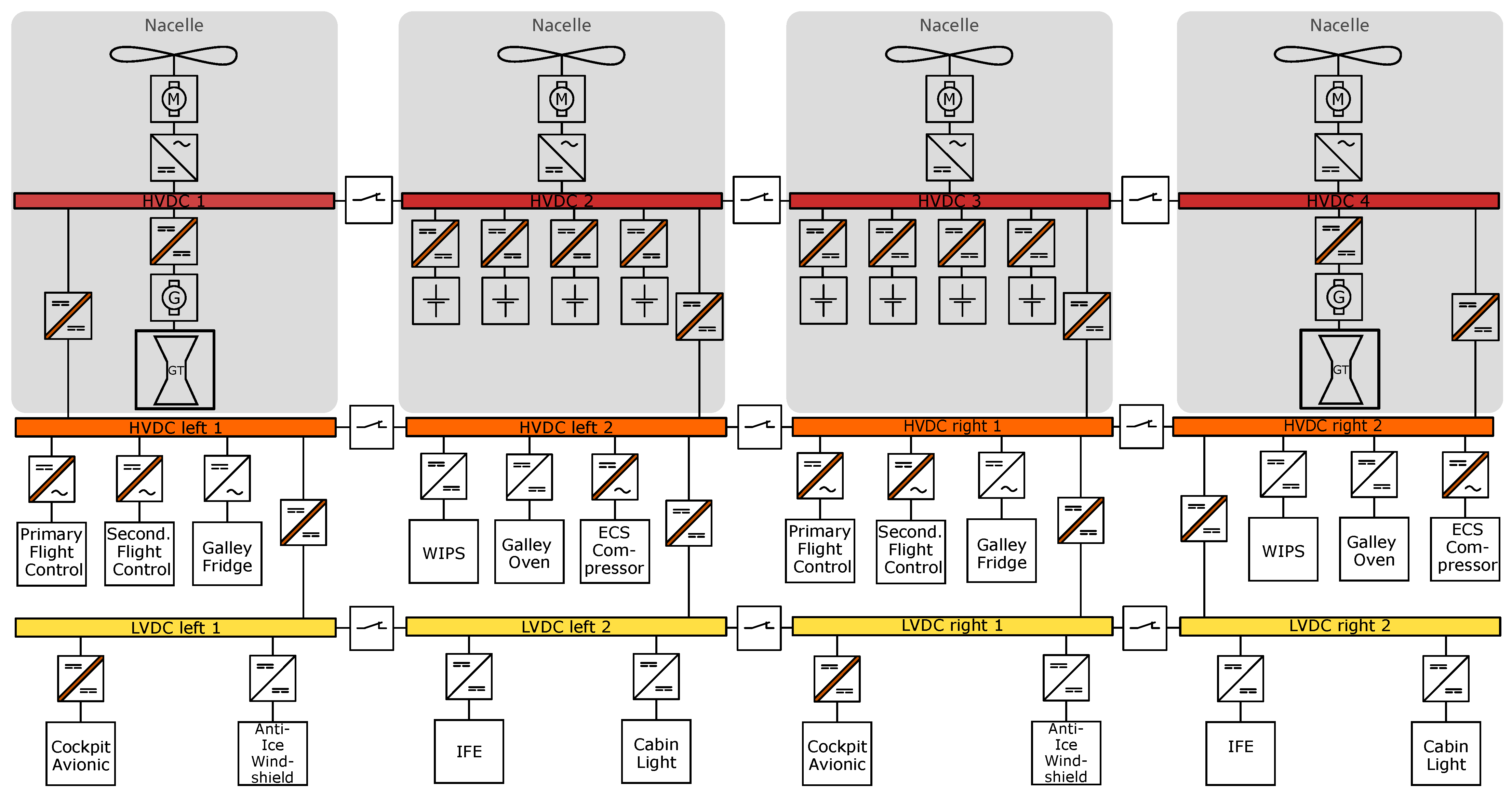

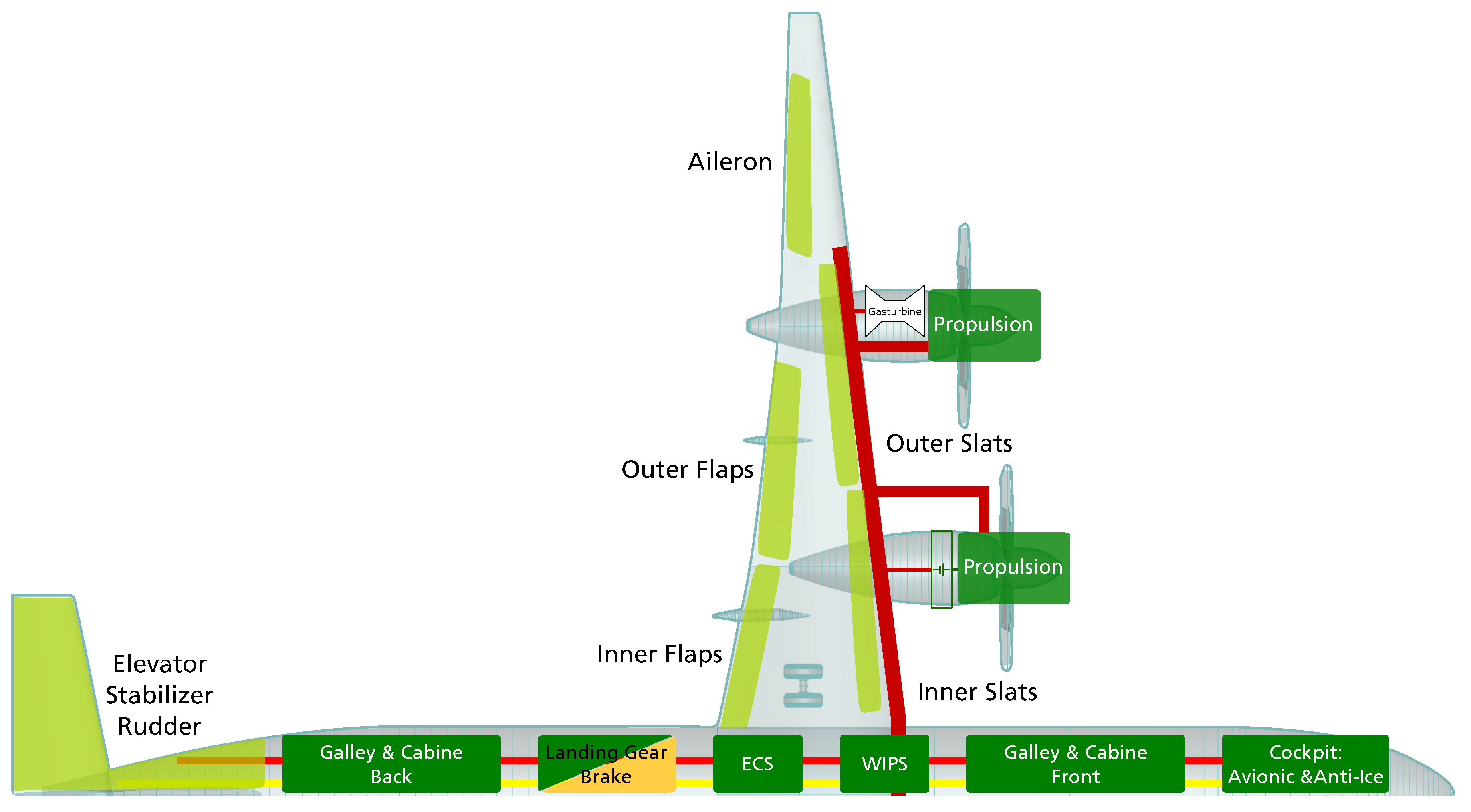

The electrification of future aircraft poses significant challenges to existing electrical power system (EPS) architectures, particularly due to increasing installed power levels, the introduction of electric flight control, and the (partial) electrification of propulsion systems. The transition to AEA requires more than simply replacing conventional systems with electrical counterparts. It demands a fundamental redesign of the electrical system architecture. This study investigates three novel EPS architectures for More Electric Aircraft (MEA) and three corresponding ones for All Electric Aircraft (AEA). All concepts are based on the segmentation of the EPS into electrically isolated microgrids and the separation between propulsion and on-board systems, aiming to improve system reliability, efficiency, fault management, and certification flexibility. The disruptive architecture proposes islanded microgrids, where electrical loads are grouped by Design Assurance Level (DAL) and spatial distribution. Each microgrid is powered locally by batteries, which significantly reduces cabling mass, electromagnetic interference (EMI), and system complexity. By decoupling safety-critical from non-critical loads and reducing reliance on centralized distribution, the proposed architectures increase reliability and reduce complexity.
