Photobiological Hydrogen Production by Photosynthetic Microorganisms: Integrating Microbial Systems and Bioprocess Engineering

Abstract

Hydrogen (H₂) is widely regarded as a critical energy vector for achieving carbon neutrality, owing to its high energy density and CO₂-free combustion. Among sustainable production methods, photobiological H₂ synthesis using photosynthetic microorganisms has emerged as a promising strategy due to its ability to directly convert light energy into chemical energy. These biological systems use enzymatic pathways such as hydrogenases and nitrogenases to produce H₂ from water or organic substrates under moderate conditions. However, practical implementation remains limited by low solar-to-H₂ conversion efficiencies, oxygen sensitivity of catalytic enzymes, and technical challenges in photobioreactor systems. This paper reviews the current state of photobiological H₂ production, focusing on mechanistic challenges, photobioreactor design, substrate utilisation, and immobilisation techniques. Integrating biological and engineering approaches is expected to play a crucial role in advancing photobiological H₂ production towards large-scale implementation.

1. Introduction

The transition to sustainable energy systems has increased interest in hydrogen (H₂) as a clean and versatile energy carrier, due to its high specific energy density (120 MJ/kg) and its ability to produce only water upon combustion, making it an attractive alternative to fossil fuels. However, more than 90% of global H₂ production currently relies on fossil fuel-based processes, including steam methane reforming, coal gasification, and partial oxidation of hydrocarbons, which significantly contribute to greenhouse gas emissions. H₂ is therefore widely regarded as a key energy carrier for achieving deep decarbonisation, particularly due to its potential for integration across power generation, industry, and transport sectors. In this context, H₂ produced from renewable resources such as water or biomass represents the most environmentally benign pathway, as it can be generated with minimal greenhouse gas emissions [1]. Multiple technological routes are under active development, including electrochemical water splitting, thermochemical and biomass-derived processes, light-driven systems such as photocatalysis and photo-electrochemistry, and biologically mediated production [2,3,4,5]. Additionally, integrated and emerging approaches that couple renewable energy inputs with novel conversion strategies are gaining attention as promising solutions to improve the efficiency, scalability, and economic feasibility of sustainable H₂ production [6].

Photobiological H₂ production is a renewable pathway that utilises solar energy and biological catalysis, as photosynthetic microorganisms (PMs) such as microalgae, cyanobacteria, and purple non-sulphur bacteria (PNSB) can convert light energy into chemical energy, enabling H₂ production under ambient conditions [7]. Microalgae and cyanobacteria perform oxygenic photosynthesis, using water as an electron donor, whereas PNSB rely on anoxygenic photoheterotrophic metabolism, utilizing organic compounds. These systems provide complementary pathways for H₂ production, including direct and indirect biophotolysis by microalgae and cyanobacteria, and photofermentation by PNSB [8].

Despite this potential, the overall solar-to-H₂ conversion efficiency remains low (typically <1–2%), primarily due to metabolic constraints, enzyme inactivation by O₂, and suboptimal reactor performance [9]. Consequently, substantial research has focused on increasing H₂ yields through metabolic engineering strategies, optimisation of photobioreactor (PBR) design and operation, and integration of photobiological systems with waste treatment processes. Metabolic engineering targets redirecting electron fluxes, improving hydrogenase activity, and reducing competing metabolic pathways, while reactor engineering advancements aim to maximise light conversion efficiency (LCE), gas exchange, and biomass productivity [10]. Simultaneously, coupling H₂ production with wastewater valorisation has emerged as a promising approach to reduce operational costs and improve sustainability by enabling nutrient recycling and resource recovery within a circular bioeconomy framework. Ramandani et al. [11] highlighted in their review recent advances in genetic modification, metabolic engineering, and artificial intelligence-driven optimisation, illustrating how these integrated approaches can enhance H₂ production by enabling predictive and dynamic optimisation of key parameters such as light intensity, temperature, and nutrient availability. Al-Owaidhani et al. [12] provided a comprehensive review of renewable H₂ production systems, with a strong focus on their economic viability. They examined key technical factors affecting costs, including efficiency, energy consumption, technology maturity, and integration with renewable energy sources. Koko et al. [13], in their recent review, analyse that the future economic prospects for photobiological H₂ production will depend on overcoming scale-up barriers in cultivation, H₂ induction, and purification, while prioritising strategies with proven cost and yield benefits. This is supported by techno-economic evidence from integrated approaches such as wastewater use, flue-gas CO₂ utilisation, hybrid reactor designs, and biorefinery co-product valorisation. Integration of omics data can optimise H₂ production by enabling a systems-level understanding of microbial metabolism and regulation. Jurel and Dhoble [14] presented recent advances in omics-driven biological H₂ research, outlining key challenges and opportunities for developing sustainable energy solutions. Sun et al. [15] indicate that improving microalgal H₂ production depends on key strategies such as photosystem II (PSII) inhibition, engineering O₂-tolerant hydrogenases, enhancing electron flow towards hydrogenase activity, and advances in bioreactor design and monitoring systems for large-scale optimisation. They also emphasise that integrating H₂ production with the generation of co-products (such as biofuels, bioplastics, or high-value metabolites) can significantly improve the overall economic feasibility and sustainability of these systems.

Recent reviews have addressed specific aspects of photobiological H₂ production, including metabolic engineering strategies, techno-economic assessments, omics-based approaches, and PBR optimisation [11,12,13,14,15]. As shown in

Table 1. Main focus of recent reviews on photobiological H₂ production.

Review	Main Focus
Ramandani et al. [11]	Genetic modification, metabolic engineering, and AI-assisted optimization
Al-Owaidhani et al. [12]	Renewable H2 production technologies and techno-economic aspects
Koko et al. [13]	Scale-up challenges and techno-economic considerations
Jurel and Dhoble [14]	Omics-based approaches for biological H2 production
Sun et al. [15]	Microalgal H2 production and improvement strategies
Present review	Integrated assessment of microalgae, cyanobacteria, and PNSB together with PBR design, wastewater valorisation, immobilisation strategies, and scale-up considerations

, previous reviews have generally focused on specific biological platforms or individual technological features. By contrast, the present review considers microalgae, cyanobacteria, and PNSB together with the principal engineering strategies employed to enhance H₂ production, including PBR design, wastewater valorisation, and immobilisation approaches.

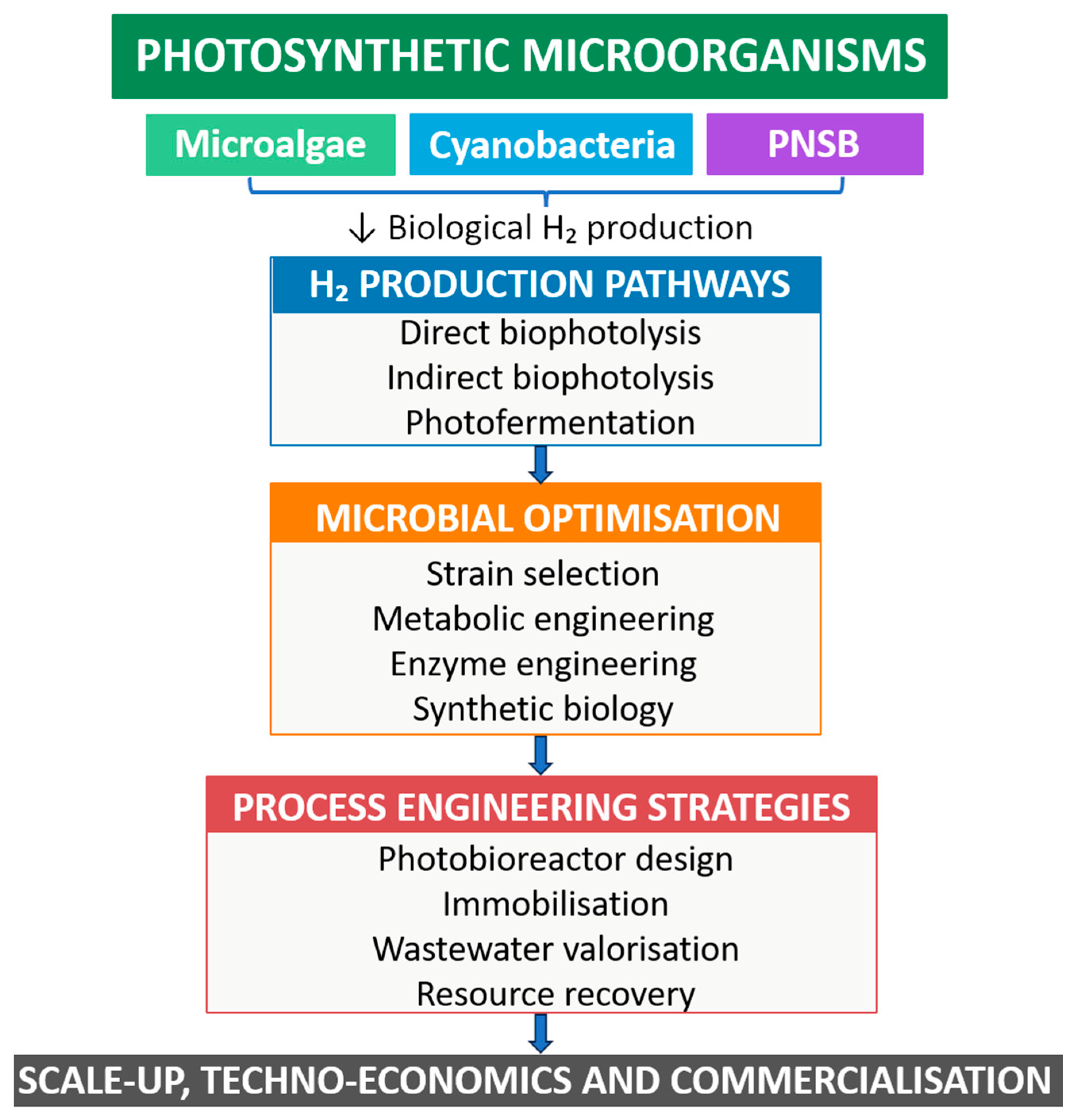

Figure 1 presents the integrated framework considered in this review, highlighting the relationships between PMs, H₂ production pathways, microbial optimisation strategies, process engineering approaches, and scale-up considerations.

2. Photobiological H₂ Production

H₂ production by PMs is primarily mediated by three classes of enzymes: [FeFe]-hydrogenases, [NiFe]-hydrogenases, and nitrogenases [16] (Figure 2). Among these, [FeFe]-hydrogenases, which are mainly found in green microalgae, exhibit the highest catalytic activity, with in vitro H₂ production rates reaching approximately 10⁴ H₂ molecules/s. As a result, they are considered highly efficient catalysts for photobiological H₂ production [17]. However, their practical application is severely limited by their extreme sensitivity to O₂, requiring strictly anaerobic conditions for sustained activity. In contrast, [NiFe]-hydrogenases, commonly present in cyanobacteria, are more tolerant of O₂ exposure and can maintain activity under moderately oxygenated conditions [18]. Nevertheless, they generally display lower catalytic rates, typically ranging from approximately 100 to 2000 H₂ molecules/s, making them less efficient than [FeFe]-hydrogenases. Nitrogenases constitute a third major enzymatic system involved in biological H₂ production. These enzymes primarily catalyse the reduction of atmospheric nitrogen (N₂) to ammonia, with H₂ generated as a by-product of the reaction. Nitrogenase-driven H₂ production requires a substantial ATP input, approximately 16 ATP molecules per H₂ molecule in the presence of N₂ and about 4 ATP molecules per H₂ molecule in the absence of N₂ [19]. Despite this high energetic demand, nitrogenases can sustain H₂ production for extended periods under anaerobic conditions, making them particularly relevant in cyanobacteria and PNSB. A major limitation of photobiological H₂ production is competition for photosynthetically derived electrons between H₂ evolution and other essential cellular processes. Consequently, only a fraction of the available reducing power can be redirected to H₂-producing enzymes. While [FeFe]-hydrogenases exhibit high catalytic activity but strong O₂ sensitivity, [NiFe]-hydrogenases are more O₂ tolerant but generally less efficient. Nitrogenases can sustain H₂ production under anaerobic conditions, although at a substantially higher energetic cost.

Nutrient deprivation, particularly sulphur, nitrogen, or potassium limitation, is a nutritional strategy that impairs the efficiency of the photosynthetic apparatus in microalgae and cyanobacteria, resulting in decreased photosynthetic activity and reduced O₂ evolution [20,21]. The consequent decline in O₂ concentration promotes anaerobic or microoxic conditions that favour hydrogenase activation and the onset of H₂ production. Furthermore, nutrient starvation often induces the accumulation of intracellular carbohydrate reserves, such as starch or glycogen, which can then be catabolised to provide reducing power and energy for H₂ production [22,23].

Beyond the intrinsic properties of H₂-producing enzymes, the efficiency of photobiological H₂ production is strongly influenced by the metabolic pathways that generate and allocate electrons. PMs use different strategies to supply reducing equivalents to H₂-producing enzymes, resulting in marked differences in productivity, O₂ sensitivity, and energy requirements. Consequently, considerable research effort has focused on strain improvement and metabolic engineering approaches to enhance electron transfer to H₂-producing enzymes, reduce competing metabolic sinks, and improve tolerance to O₂. These biological characteristics underpin the distinct H₂ production mechanisms exhibited by microalgae, cyanobacteria, and PNSB, which are discussed in the following sections.

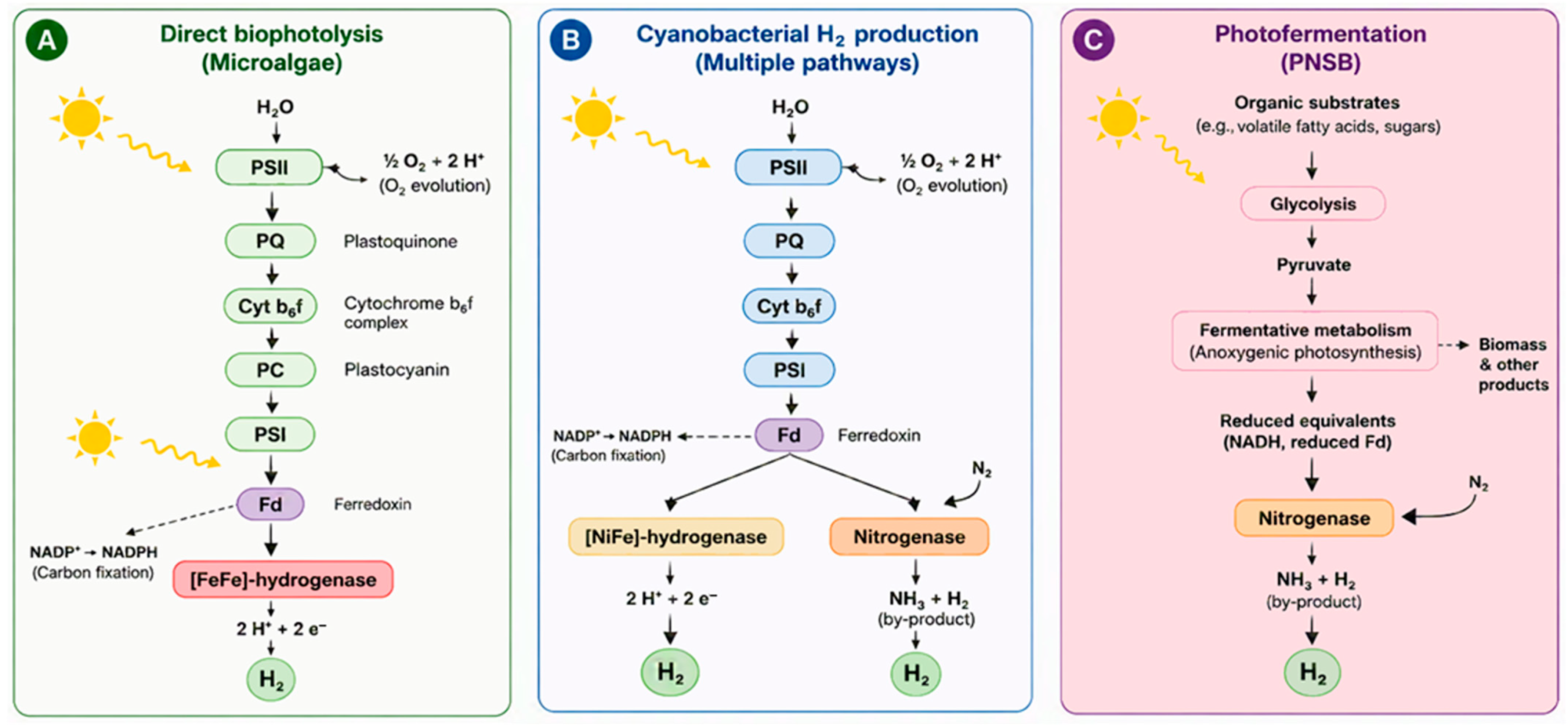

Figure 2. Main metabolic pathways involved in photobiological H₂ production by PMs: (A) micro-algae, (B) cyanobacteria, and (C) purple non-sulfur bacteria. Panel (A) was adapted from Tang et al. [24], distributed under the Creative Commons CC BY 4.0 licence. whereas panels (B,C) were developed by the authors based on information from the literature.

Figure 2. Main metabolic pathways involved in photobiological H₂ production by PMs: (A) micro-algae, (B) cyanobacteria, and (C) purple non-sulfur bacteria. Panel (A) was adapted from Tang et al. [24], distributed under the Creative Commons CC BY 4.0 licence. whereas panels (B,C) were developed by the authors based on information from the literature.

2.1. Microalgae

Green microalgae have been extensively investigated for direct biophotolysis, wherein H₂ production is mediated by [Fe–Fe] hydrogenases that catalyse proton reduction using electrons derived from the photosynthetic electron transport chain [25]. In this process, PSII catalyzes the light-driven oxidation of water, releasing electrons, protons, and O₂. The resulting electrons are transferred through plastoquinone, cytochrome b₆f, and photosystem I to ferredoxin, which donates electrons to hydrogenase for proton reduction and H₂ production [26,27,28]. However, the process is critically limited by O₂ production at PSII, which rapidly inactivates hydrogenase. The sulfur-deprivation strategy has been widely used to suppress PSII activity and reduce O₂ evolution [20]. While effective in laboratory settings, it is unsuitable for continuous systems due to reduced biomass growth and operational instability [29].

Recent research has increasingly focused on overcoming the O₂ sensitivity of hydrogenase enzymes and enhancing overall H₂ production efficiency through a range of complementary biological and engineering strategies. In particular, metabolic engineering approaches aim to modulate PSII activity to reduce O₂ evolution, thereby limiting inhibitory effects on hydrogenase function [9,30,31,32]. Concurrently, redirecting photosynthetic electron flow towards H₂ production pathways, rather than competing processes such as carbon fixation, has emerged as a key objective to improve electron allocation efficiency [24,33].

Additional strategies include enhancing anaerobic metabolism by coupling photosynthesis with respiratory pathways, which promotes intracellular O₂ consumption and facilitates the establishment of microoxic conditions favourable for hydrogenase activity [20,29]. Touloupakis et al. [34] combined the high respiration rate and high light compensation point of Chlorella vulgaris BEIJ, strain G-120. This strain was able to produce H₂ under continuous illumination without applying any nutrient starvation.

The development of O₂-tolerant hydrogenases represents another promising avenue, although achieving both high catalytic efficiency and O₂ resistance remains a significant challenge [31]. Owolabi et al. [32] recently assessed advances in optimising environmental conditions and genetic engineering strategies, including O₂-tolerant hydrogenases, temperature-sensitive mutants, and metabolic rewiring to enhance electron transfer. Additional efforts have focused on reducing competing electron sinks, enhancing ferredoxin–hydrogenase electron transfer, and optimising carbon allocation pathways to increase the fraction of photosynthetically derived electrons directed towards H₂ evolution. They also highlighted the integration of nanomaterials such as quantum dots, metal–organic frameworks, and protein-encapsulated nanoparticles to improve light harvesting, charge transfer efficiency, and enzyme stability. The selection or engineering of micro-algal strains with inherently high respiration rates also contributes to rapid O₂ scavenging, enabling transient or sustained anaerobiosis and improved H₂ yields [34,35,36]. Sereetrakul et al. [37] recently investigated 24 microalgal strains to identify those capable of producing high levels of H₂ in the presence of O₂ and to enhance H₂ yields through the application of O₂-scavenging strategies, achieving levels comparable to or exceeding those obtained under anaerobic conditions. Among the strains evaluated, Scenedesmus obliquus TISTR 8546 exhibited the highest H₂ production under both aerobic and anaerobic conditions reaching a maximum production rate of 22.92 ± 1.05 μmol H₂/mgChl/h [37].

Furthermore, process-level solutions such as the incorporation of O₂ adsorbers have been explored to physically remove dissolved O₂ from the system and sustain H₂ production under illuminated conditions [38,39]. Li et al. [40] recently developed a hybrid material system to improve the efficiency and stability of algal H₂ production under fluctuating and high-light conditions. The system combines a thermosensitive polymer with a photothermal component to create a light-responsive regulatory mechanism. This engineered material dynamically senses incident light intensity and modulates light transmission, protecting algae from photoinhibition. By reducing the harmful effects of excessive light exposure, this approach increases the feasibility of large-scale outdoor H₂ production using microalgae. Liew et al. [41] evaluated the key growth parameters affecting H₂ production in Chlorella sp., including nitrogen purging, photoperiod, glucose supplementation, and temperature. Their scale-up experiments resulted in a 405-fold increase in H₂ production, demonstrating the process’s scalability and highlighting the importance of optimising growth conditions to balance microalgal growth with H₂ generation for potential industrial applications.

Co-cultures of microalgae or cyanobacteria and bacteria can improve nutrient cycling, enhance system stability, and enable synergistic metabolic interactions [42,43]. These systems also facilitate O₂ consumption and substrate recycling, creating favourable conditions for H₂ production. Collectively, these approaches demonstrate the importance of integrating genetic, metabolic, and process engineering strategies to mitigate O₂ constraints and improve photobiological H₂ production.

Despite these advances, none of the proposed strategies have fully resolved the inherent conflict between photosynthetic O₂ evolution and the O₂ sensitivity of hydrogenases. Although genetic and metabolic engineering approaches can improve electron allocation and O₂ management, their long-term stability and industrial applicability remain uncertain. Similarly, process-based solutions, including O₂ scavengers, advanced functional materials, and co-culture systems, may enhance H₂ production but often introduce additional operational complexity and cost. Consequently, future developments are likely to depend on integrating complementary biological and engineering strategies rather than on any single technological intervention.

2.2. Cyanobacteria

Cyanobacteria possess both hydrogenases and nitrogenases, enabling multiple H₂ production pathways. Nitrogenase catalyses H₂ evolution as a by-product of nitrogen fixation, a highly energy-demanding process that requires substantial ATP and reducing equivalents [44,45]. A fundamental limitation arises from the coexistence of oxygenic photosynthesis and O₂-sensitive enzymatic systems. Cyanobacteria address this challenge through several adaptations that mitigate O₂ inhibition of H₂-producing enzymes, including heterocyst formation, temporal separation of metabolic processes, and increased respiratory O₂ uptake.

A range of engineering strategies has been developed to mitigate O₂ sensitivity and enhance H₂ production in cyanobacteria. A key approach is the temporal separation of O₂ evolving photosynthesis and H₂ production, typically achieved through controlled light–dark cycles, which allow anaerobic conditions to be established during H₂ evolution phases [46]. In parallel, enhancing respiratory activity has been proposed to actively consume intracellular O₂, thereby maintaining a microoxic environment conducive to nitrogenase and hydrogenase function [45]. Wang et al. [47] designed a redox polymer–cyanobacteria hybrid system to minimise intracellular O₂ inhibition by enabling localised electrochemical O₂ elimination, thus protecting cellular activity and facilitating photoinduced H₂ synthesis. Microelectrochemical investigations demonstrated effective O₂ depletion and simultaneous H₂ evolution. Genetic interventions, such as deletion of uptake hydrogenases, have also been widely explored to prevent H₂ reoxidation and improve net H₂ yields [48]. Furthermore, optimisation of the photosynthetic electron transport pathways aimed at redirecting reducing equivalents towards H₂-producing enzymes rather than competing metabolic routes has emerged as a central strategy within metabolic engineering frameworks [48].

Collectively, these approaches underscore the need for tightly coordinated integration of temporal regulation, cellular physiology, and genetic engineering to enhance H₂ production efficiency in cyanobacterial systems. Nevertheless, despite these advances, intrinsic limitations persist, particularly the high energetic cost associated with nitrogenase-driven H₂ evolution and the inherent competition between H₂ production and cellular growth and maintenance. Although genetic engineering strategies, such as uptake hydrogenase deletion and electron transport pathway optimisation, can improve net H₂ yields, their benefits are often constrained by complex metabolic regulation. Similarly, process-based approaches that reduce O₂ inhibition may enhance enzyme activity but add operational complexity. These constraints highlight a fundamental trade-off between bioenergetic efficiency and metabolic functionality, which continues to hinder the scalability and practical implementation of cyanobacterial H₂ production.

2.3. Purple Non-Sulfur Bacteria

PNSB produce H₂ via photo-fermentation, operating under anaerobic and illuminated conditions using organic substrates [49,50]. Nitrogenase is the key enzyme, and H₂ production serves as a mechanism to dissipate excess reducing power [51,52,53]. Compared to oxygenic phototrophs, PNSB offer several advantages, including the absence of O₂ inhibition, the ability to utilise diverse substrates, and compatibility with waste streams. However, H₂ yields depend greatly on substrate availability and composition, and the process remains energetically demanding due to the high ATP requirements of nitrogenase activity.

H₂ production by PNSB is a relatively mature area of photobiological research, as the fundamental processes underlying photofermentative H₂ evolution, particularly nitrogenase-driven conversion of organic substrates under illuminated, anaerobic conditions, have been elucidated and validated [50]. Consequently, current research has shifted from pathway discovery to the progressive optimisation of existing systems.

Recent advances in systems biology and metabolic engineering have further expanded the potential of PNSB for H₂ production. Genome-scale analyses have facilitated the identification of metabolic bottlenecks that limit electron transfer to nitrogenase, while emerging tools such as adaptive laboratory evolution and CRISPR-based genome editing are being explored to enhance substrate conversion efficiency and H₂ productivity [54].

In recent years, much of the effort has focused on reactor engineering, including the design and scale-up of PBRs, where parameters such as light distribution, mixing regimes, and volume significantly influence H₂ productivity, as shown by recent experimental studies [55,56]. Bortoli et al. [52] investigated H₂ production using the PNSB Rhodobacter capsulatus and Rhodospirillum rubrum in the presence of glucose and glycerol under different LED lighting spectra. The results highlight that the interaction between light source, substrate, and bacterial strain modulates fermentative metabolism, playing a key role in maximising H₂ production. Huang and Zhou [57] investigated the impact of mixed volatile fatty acids on purple phototrophic bacteria-mediated H₂ production, demonstrating that co-feeding propionate with acetate or butyrate modulates H₂ yields and induces distinct metabolic pathway adaptations, as shown through integrated metagenomic and metatranscriptomic analyses. Another prominent direction involves integrating PNSB processes with waste valorisation strategies, whereby organic-rich effluents serve as feedstocks for H₂ production, enhancing both the sustainability and economic feasibility of technology [58,59]. Overall, these trends reflect a broader transition from exploratory research to process refinement and applied implementation, which is characteristic of technologically mature bioenergy systems. There are also studies on integrating systems that combine dark fermentation and photofermentation to improve overall H₂ yield and carbon conversion efficiency by first converting complex substrates into volatile fatty acids, which are subsequently metabolised by PNSB [60]. At the same time, incremental advances in metabolic engineering aim to improve electron allocation to nitrogenase and minimise competing metabolic sinks, although these modifications typically yield gradual rather than dramatic improvements in performance [54]. Cao et al. [54] further review photofermentative H₂ metabolism in PNSB, highlighting recent advances in metabolic and systems engineering and the potential to approach theoretical H₂ yields using tools such as CRISPR-Cas and adaptive laboratory evolution.

Although photofermentative H₂ production is considered one of the more mature photobiological technologies, several challenges continue to hinder large-scale implementation. While PNSB are generally less affected by O₂ inhibition than oxygenic phototrophs and can efficiently utilise waste-derived substrates, their reliance on organic carbon sources reduces the overall sustainability advantage compared with direct biophotolysis. Furthermore, the high ATP demand of nitrogenase and the need to maintain anaerobic, illuminated conditions add to operational complexity and costs. Consequently, future developments are likely to focus on improving energy conversion efficiency and integrating photofermentation with complementary biological processes to maximise resource utilisation and H₂ productivity.

3. Photobioreactor Systems for H₂ Production

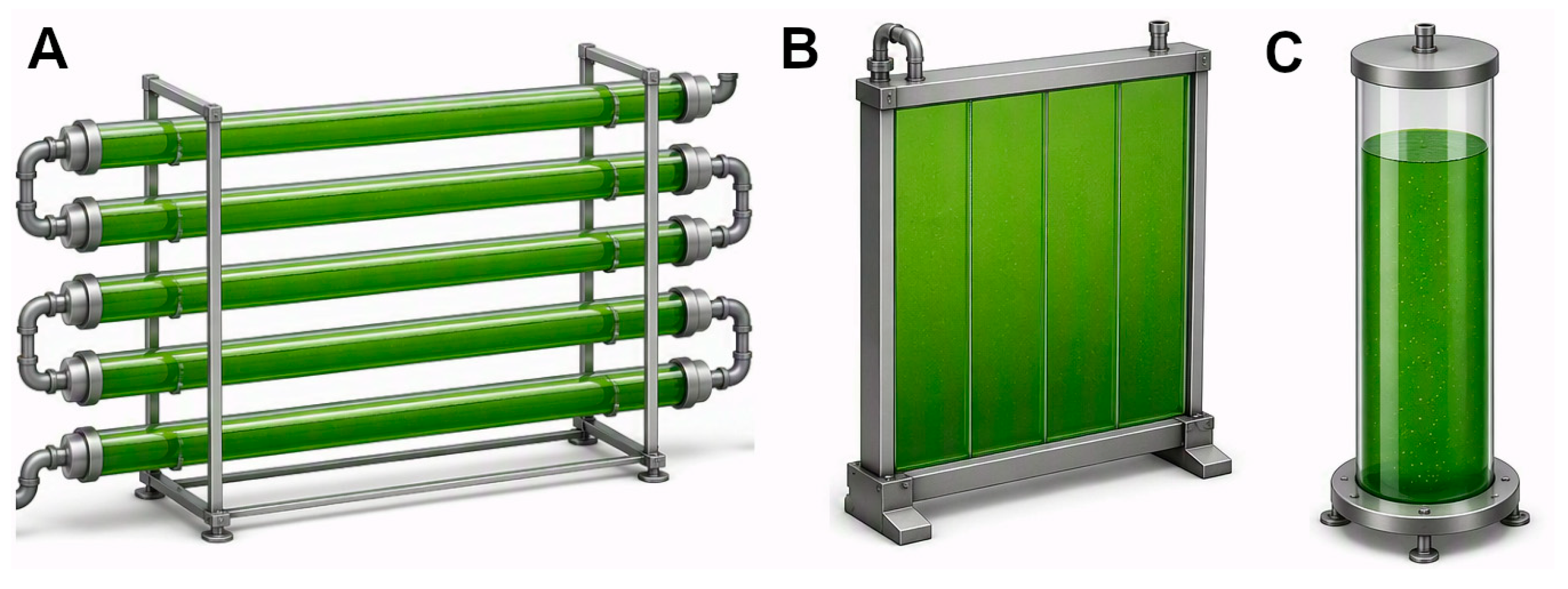

Photobioreactor (PBR) design is one of the most critical determinants of photobiological H₂ production efficiency and scalability [55,61,62]. The most widely used PBR configurations for H₂ production are tubular and flat-panel reactors, each with distinct operational advantages and limitations (Figure 3). Tubular reactors provide high surface-area-to-volume ratios, enhancing light capture, but are prone to O₂ accumulation and biofouling. Flat-panel reactors offer improved light distribution and higher productivity due to shorter light paths. More recently, biofilm-based systems have gained attention for their ability to improve light exposure and reduce the energy requirements of mechanical mixing, thereby increasing overall process efficiency.

Operating conditions vary considerably among PBR systems. Tubular and flat-panel PBRs are typically operated under high light availability with continuous mixing to maximise light utilisation, whereas column reactors often rely on gas sparging for mixing and mass transfer [63]. Light intensity, hydraulic residence time, and culture density strongly influence reactor performance because they directly affect light penetration, O₂ accumulation, and biomass productivity [61,63]. Consequently, comparisons of H₂ yields between reactor configurations should be interpreted with caution, as reported performance is strongly dependent on operating conditions and biological systems.

Unlike laboratory-scale systems, industrial deployment requires reactors capable of simultaneously optimising light distribution, mass transfer, biological activity, and energy efficiency, which remains a major engineering bottleneck [64]. Light availability is the primary limiting factor in photobiological H₂ production, while photon utilisation is further constrained by self-shading and light attenuation, especially at high culture densities. Cells at the illuminated surface are often exposed to excess irradiation leading to photoinhibition, while cells deeper in the culture experience light limitation [64].

To address limitations in light availability, recent reactor developments in H₂ production have focused on optimising light delivery through advanced design strategies [65]. These include reducing optical path lengths with flat-panel or thin-layer systems to improve light penetration and implementing internal illumination via optical fibres or LED arrays to ensure more uniform light distribution throughout the cultivation medium [66]. Additionally, light dilution approaches, such as flashing light regimes, are used to enhance photosynthetic efficiency by minimising photoinhibition and improving photon utilization [67,68]. The use of spectrally tailored LED systems further improves reactor performance by matching emission wavelengths to the absorption spectra of photosynthetic pigments, thereby enhancing LCE and reducing overall energy losses. Zarei et al. [63] synthesise in their review the current knowledge on the growth requirements of green algae and cyanobacteria, identify the key environmental and operational conditions necessary for H₂ production, and critically evaluate common bioreactor designs with respect to their impact on microbial performance and H₂ yields. Although significant progress has been made in PBR development, no single configuration currently meets all the requirements for efficient large-scale H₂ production. Tubular reactors offer a high illuminated surface area but are more susceptible to O₂ accumulation and biofouling, whereas flat-panel systems generally provide superior light distribution at the expense of a larger footprint and higher construction costs. Similarly, biofilm-based reactors can reduce energy consumption associated with mixing and harvesting but may introduce mass transfer limitations and operational complexity. Consequently, the selection of an appropriate reactor design depends on balancing light utilisation, gas exchange, operational costs, and scalability requirements. Several strategies have been proposed to mitigate scale-up limitations caused by light attenuation and self-shading. Light dilution approaches, including flashing-light regimes and thin-layer reactor designs, aim to improve photon distribution and reduce photoinhibition [65,67,68]. Internal illumination systems based on optical fibres or LED arrays can further enhance light penetration in dense cultures, although they may increase reactor complexity and energy consumption [66]. Biofilm-based PBRs can also reduce self-shading by spatially organising biomass in thin layers, improving light accessibility while decreasing mixing requirements [62,63]. Despite these advances, maintaining efficient light use and controlling O₂ accumulation remain major challenges during large-scale operation [64].

From a technology-readiness perspective, conventional tubular and flat-panel PBRs are generally regarded as among the most mature configurations for photobiological applications, as they have been evaluated in pilot-scale and outdoor systems [69]. In contrast, emerging concepts such as biofilm-based reactors and internally illuminated PBRs remain at earlier stages of development, despite their potential to improve light distribution and reduce self-shading [70]. Conventional stirred-tank reactors (CSTRs) have also been investigated for photosynthetic cultures; however, their relatively low surface-area-to-volume ratio and limited light penetration typically make them less suitable than dedicated PBR designs for large-scale H₂ production [71].

Elman et al. [72] report sustained H₂ production at pilot scale using the Chlamydomonas reinhardtii pgr5 mutant under nutrient-replete, non-stress conditions, achieving a sixfold improvement over previous laboratory benchmarks owing to improved PBR design. The use of the C. reinhardtii pgr5 mutant, a strain impaired in thylakoid proton gradient regulation (PGR5) that redirects photosynthetic energy flow, maintained low O₂ conditions conducive to H₂ evolution. In another work, Khosravitabar and Spetea [38] using the same mutant strain developed a membrane bioreactor in which a hydrophobic PTFE membrane physically separates the algal culture from an O₂ absorbent powder, enabling continuous O₂ removal.

4. Wastewater Valorisation

The economic viability of photobiological H₂ production is strongly influenced using low-cost, sustainable substrates. Large-scale cultivation of PMs requires substantial nutrient inputs, which can significantly increase operational costs. In this context, wastewater valorisation and the use of waste-derived feedstocks are key strategies to enhance process feasibility while simultaneously improving environmental sustainability [73]. Wastewater streams are a valuable alternative source of essential nutrients, including nitrogen, phosphorus, and trace elements, for photobiological H₂ production processes [74]. Integrating H₂ production with wastewater treatment offers synergistic benefits, enabling nutrient recovery and recycling, reducing reliance on synthetic growth media, and achieving pollutant removal alongside biomass generation. This integrated approach also supports the development of circular bioeconomy models by converting waste streams into value-added products, thereby enhancing environmental sustainability and overall process efficiency. Microalgae-based wastewater systems have demonstrated high nutrient removal efficiencies and the ability to produce valuable biomass for H₂ applications [74]. Despite these advantages, practical implementation is challenged by factors such as variability in wastewater composition, the presence of toxic contaminants, and microbial competition, which can compromise culture stability and performance. To address these limitations, recent advancements have focused on developing algae-based membrane bioreactors, which integrate biological treatment with advanced separation technologies to enhance process control, operational stability, and overall system efficiency [75,76,77].

Table 2. Biological and physiological characteristics of microalgae, cyanobacteria, and PNSB relevant to photobiological H₂ production and wastewater valorisation. Note: Qualitative ratings are intended to provide a comparative overview based on trends reported in the literature.

Feature	Microalgae	Cyanobacteria	PNSB
Main H2 production pathway	Indirect biophotolysis (hydrogenase) under stress/anoxic conditions	Direct and indirect biophotolysis via nitrogenase/hydrogenase	Photofermentation via nitrogenase (dominant)
O2 sensitivity	High	High	Low–moderate
Growth in wastewater	Good	Very good	Good (high-organic)
Carbon source	CO2	CO2	Organic carbon
Light requirement	Moderate–high	Moderate–high	Moderate
H2 yield	Low–moderate	Moderate	Moderate–high
Wastewater role	Nutrient removal, CO2 fixation, biomass generation	Nutrient removal, N fixation	COD reduction, organic degradation
Typical wastewater types used	Municipal, agricultural runoff, aquaculture	Municipal, industrial, nutrient-rich wastewater	Food industry, agro-industrial, high-COD wastewater

summarizes the main biological and physiological characteristics of microalgae, cyanobacteria, and PNSB relevant to photobiological H₂ production.

Microalgae cultivation in wastewater combines pollutant removal with biomass production, supporting circular bioeconomy strategies that transform waste into valuable resources [78,79]. Although highly efficient, achieving up to 90% removal of nitrogen and phosphorus with strains such as Chlorella, Arthrospira, and Scenedesmus, technical and economic challenges continue to impede large-scale commercial implementation [80,81,82].

Cyanobacteria offer a sustainable and cost-effective solution for wastewater treatment, as they efficiently remove nutrients such as nitrate and phosphate while adapting to diverse environmental conditions. Species such as Synechocystis and Oscillatoria have demonstrated high pollutant removal efficiencies (up to 95–98%) and simultaneously produce valuable biomass [83]. Additionally, cyanobacteria can remove excess nitrogen, heavy metals, and degrade complex pollutants such as hydrocarbons and pesticides, contributing to both water and soil remediation [84]. This dual function underscores their potential for integrated bioremediation and large-scale biomass production using wastewater as a nutrient-rich growth medium.

PNSB can utilise a wide range of organic substrates derived from waste streams, including volatile fatty acids, glycerol, and sugars present in industrial effluents, which are metabolised through photofermentation to produce H₂ via nitrogenase activity [85]. Due to their high metabolic versatility, PNSB can adapt to diverse feedstocks, making them particularly suitable for waste valorisation processes [51]. However, the efficiency of H₂ production is strongly influenced by factors such as substrate composition, carbon-to-nitrogen ratio, and environmental conditions, making the optimisation of these parameters essential for maximising H₂ yields. Ren et al. [86] produced H₂ using Rhodobacter sphaeroides HY01 from corn straw hydrolysate in an outdoor pilot-scale 70 L semi-continuous tubular bioreactor. Gesese et al. [87], in their recent work, highlighted the role of hybrid systems and integrated strategies in improving H₂ recovery and sustainability. They provided a concise overview of H₂ production pathways, emphasising AI-driven optimisation and energy efficiency.

Although wastewater valorisation offers clear economic and environmental advantages, significant challenges remain for large-scale implementation. The suitability of wastewater as a feedstock varies considerably among PMs. Microalgae are particularly effective for nutrient removal and biomass generation but are often sensitive to fluctuations in wastewater composition and contaminant levels. Cyanobacteria combine pollutant removal with biomass production and can tolerate a wider range of environmental conditions; however, O₂-sensitive H₂-producing pathways still constrain their overall productivity. In contrast, PNSB can efficiently utilise organic-rich waste streams and often achieve higher H₂ yields, but their dependence on organic substrates reduces process flexibility and may require additional pretreatment steps.

Consequently, selecting the most suitable biological platform depends on the characteristics of the wastewater stream, the desired balance between treatment efficiency and H₂ production, and the economic constraints of the target application.

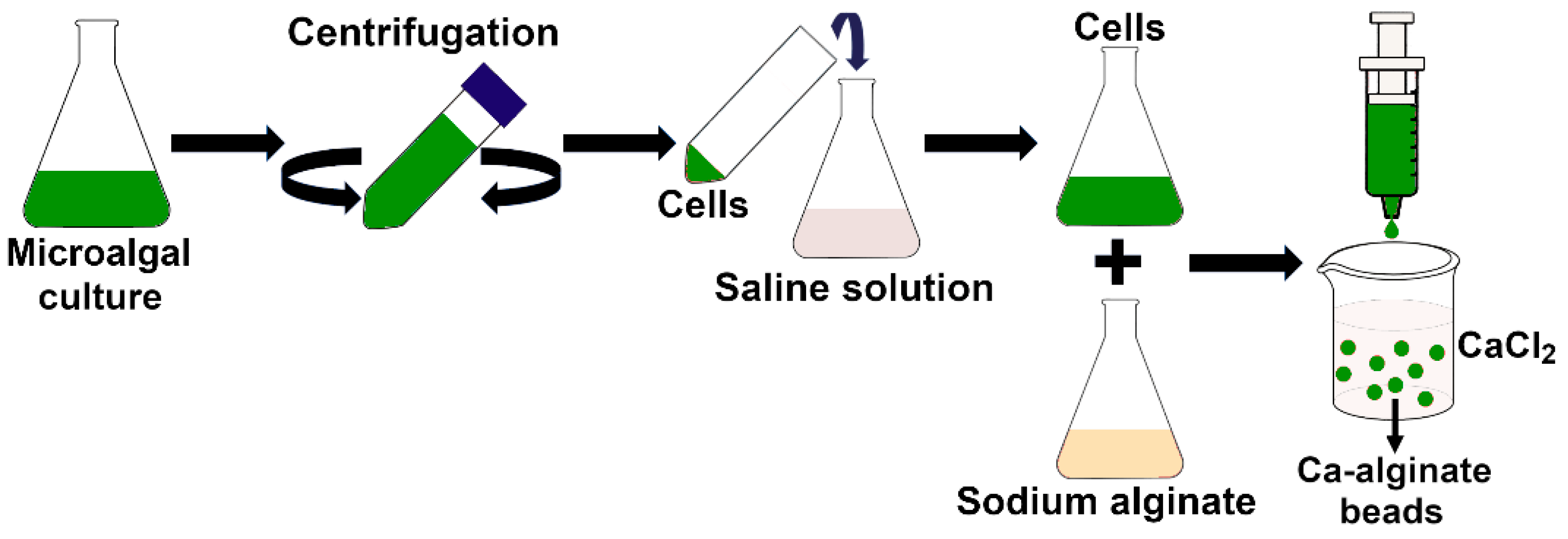

5. Immobilisation

Cell immobilisation is increasingly applied to PMs to improve photobiological H₂ production [9,36,88,89,90]. Compared to conventional suspended cultures, immobilisation offers several advantages that can reduce operational costs and enhance system performance. These include improved cell stability and resistance to mechanical stress, increased biomass retention, and the ability to supply nutrients without cell harvesting. Furthermore, immobilised systems provide a more stable microenvironment for cells than suspended cultures, which can promote consistent metabolic activity (Figure 4 and Figure 5). Consequently, immobilisation strategies are increasingly adopted to enhance H₂ production rates, yields, and overall process efficiency. This approach is particularly attractive because it confines cells within a defined matrix, limiting their mobility while facilitating reactor scalability. In addition, immobilised systems can achieve higher cell densities and require smaller reactor footprints than suspended systems. Other notable advantages include prevention of biomass washout, improved operational stability, protection against mechanical stress, and decreased susceptibility to contamination. Common immobilisation techniques include entrapment, biofilm formation, adsorption, and encapsulation, all of which have been shown to enable higher productivity and reusability compared to suspended cultures [91,92].

A variety of materials, such as glass beads, alginate, agar, chitosan-based hydrogels, and polyvinyl alcohol cryogels, have been successfully used for the immobilisation of photosynthetic cells. The choice of immobilisation matrix involves balancing mechanical stability, mass transfer resistance, and light availability. Alginate-based matrices are among the most widely used materials because of their biocompatibility, low cost, and high optical transparency; however, they may suffer from structural degradation and cell leakage during prolonged operation [88,93]. Polyvinyl alcohol-based hydrogels generally provide greater mechanical stability and reusability but can introduce higher mass transfer resistance [94]. More recently, 3D-printed hydrogels have attracted attention because their architecture, porosity, and cell distribution can be precisely controlled, potentially improving both light penetration and mass transfer [95,96]. These materials can enhance cell retention and spatial organization, while their effects on light distribution and mass transfer depend on matrix composition, porosity, thickness, and cell loading [61,93,94]. Emerging studies using engineered hydrogels demonstrate enhanced H₂ production due to improved electron transfer and microenvironment control [96,97].

The effects of immobilisation are closely linked to changes in the local microenvironment surrounding the cells. By physically confining microorganisms within a matrix, immobilisation can generate localised gradients of O₂, dissolved substrates, and metabolites. In photosynthetic H₂ production systems, these gradients may be beneficial because reduced oxygen diffusion can alleviate hydrogenase inhibition and promote microoxic conditions favourable for H₂ evolution [61,93]. However, excessive diffusion barriers may restrict nutrient transport and metabolite exchange, thereby reducing overall productivity. In addition, matrix architecture and cell distribution can influence light penetration and photosynthetic performance, particularly in hydrogel-based systems [93,95]. Consequently, the performance of immobilised systems largely depends on achieving an appropriate balance between cell retention, mass transfer, and light availability [93,95]. Cell immobilisation offers clear advantages for photobiological H₂ production, but it also presents several important limitations that can affect overall process efficiency and scalability. A primary drawback is mass transfer limitation, as the immobilisation matrix can restrict the diffusion of substrates, gases, and nutrients to and from the cells [61,93]. This diffusion resistance may lead to substrate gradients within the matrix, reducing metabolic activity and H₂ production rates [93]. The mechanical stability of immobilisation materials is another critical issue. Many commonly used matrices, such as alginate or agar, have low mechanical strength and are susceptible to structural degradation over time, particularly under continuous operation or shear stress [61]. Gel degradation can result in cell leakage, loss of immobilisation integrity, and reduced reactor performance [61,93]. Furthermore, the physical properties of the matrix, including pore size and structure, can significantly influence system performance [61,93]. Large or poorly controlled pore sizes can reduce cell retention by allowing cells to leak from the hydrogel matrix, whereas excessively small pores can exacerbate mass transfer limitations. In addition, some materials may undergo swelling or shrinkage, altering diffusion characteristics during operation. Another limitation is the potential for light attenuation within the immobilisation matrix, which is particularly relevant for photosynthetic systems. High cell densities within immobilised structures may induce self-shading, reducing light penetration and thereby limiting photosynthetic efficiency and H₂ production [88]. Operationally, immobilised systems may also face challenges related to process complexity and scalability, including higher initial material costs, difficulties in reactor design, and limited long-term stability under industrial conditions. Moreover, biofilm overgrowth or microbial contamination within the matrix can alter community composition and negatively impact the intended metabolic pathways. Khosravitabar and Mamedov [98] examined how immobilisation enhances the stability and activity of PSII over time, thereby improving H₂ production in Chlamydomonas reinhardtii. The findings demonstrate that combining immobilisation with established H₂ production methods increases both efficiency and sustainability. Luo et al. [99] in their recent study, presented an innovative system in which photosynthetic bacteria are embedded within an injectable hydrogel, enabling localised and sustained H₂ production directly in biological tissues. Although developed for biomedical applications, particularly for ROS scavenging and tissue repair, the work also demonstrates a novel platform for in situ photobiological H₂ generation under physiological conditions. Keet and Pott [94] used Rhodopseudomonas palustris immobilised in polyvinyl alcohol-based hydrogels in tubular PBRs to produce H₂. In this system, the immobilised bacteria effectively converted glycerol into H₂.

Although immobilisation offers clear advantages in biomass retention, cell reuse, and operational stability, its benefits depend strongly on matrix properties and reactor configuration. Compared with suspended cultures, immobilised systems can achieve higher cell densities and simplify biomass recovery, but these advantages may be offset by mass transfer limitations, light attenuation, and higher material costs. Moreover, performance gains observed at laboratory scale are not always maintained during scale-up, when long-term matrix stability and uniform light distribution become increasingly important. Consequently, immobilisation should not be regarded as a universally superior strategy, but rather as an approach whose effectiveness depends on balancing cell retention, mass transfer, light availability, and economic feasibility. Overall, its successful application in H₂ production requires careful optimisation of material properties, reactor design, and operating conditions to mitigate these inherent limitations.

6. Techno-Economic and Biorefinery Considerations for Photobiological H₂ Production

Beyond biological performance, economic considerations play an important role in determining the feasibility of photobiological H₂ production systems. Although direct techno-economic comparisons remain difficult because of differences in biological platforms, reactor configurations, and operating conditions, several general trends can be identified. Wastewater-based cultivation may reduce nutrient costs and provide additional value through wastewater treatment, while immobilised systems can facilitate biomass recovery and cell reuse at the expense of additional material costs. Conversely, suspended cultures typically require lower initial investment but are often associated with higher harvesting costs. Standardised techno-economic assessment methodologies are therefore needed to enable meaningful comparisons between different photobiological H₂ production strategies.

Integrated biorefinery approaches represent a promising strategy to improve the economic viability of photobiological H₂ production. Microalgae can simultaneously provide proteins, pigments, lipids and other bioactive compounds, while cyanobacteria and PNSB have been investigated as producers of PHAs, pigments and high-value microbial biomass [100,101,102]. The concurrent production of H₂ and value-added products can enhance resource utilisation efficiency and create additional revenue streams, thereby improving the overall sustainability and economic feasibility of these systems. Consequently, co-product recovery may represent an important mechanism for offsetting the relatively low H₂ conversion efficiencies currently achieved by photobiological systems and reducing the dependence of process profitability on H₂ production alone. Recent pilot-scale investigations have provided important evidence regarding the scalability and economic potential of photobiological H₂ production. Elman et al. [72] demonstrated stable pilot-scale H₂ production using Chlamydomonas reinhardtii, coupled with techno-economic modeling, and estimated current production costs of approximately $13–19 kg of H₂. They also identified pathways toward costs as low as $2–3 kg of H₂ through productivity improvements and integration into algal biorefineries. These findings highlight the importance of coupling hydrogen generation with valorization of residual biomass to improve overall process economics. Similarly, Ren et al. [86] reported a 70 L pilot-scale photofermentation system based on lignocellulosic biomass hydrolysates and a hybrid solar–artificial lighting configuration. Their study showed enhanced light-utilization efficiency, improved H₂ productivity, and sustained long-term operation, demonstrating that optimized reactor engineering and light-management strategies can significantly improve the feasibility of large-scale H₂ production.

Table 3. Representative studies on photobiological H₂ production, highlighting the microorganism, operating conditions, reactor configuration, H₂ production performance, advantages, and major limitations.

Microorganism	H2 Production Conditions	H2 Production (mL/L/h)	Advantages	Main Limitations	Reference
Chlorella vulgaris	Wastewater medium plus 10 g/L glucose, sulfur deprivation; 1.5 L glass flasks, purple light 140 µmol photons/m2/s, 30 °C	1.63	Simultaneous wastewater treatment and H2 production; low-cost nutrient source	Sulfur deprivation limits long-term growth; H2 productivity remains relatively low	[103]
Chlamydomonas reinhardtii	Immobilised cells placed in 20 mL vials with 10 mL TAP supplemented with DBMIB	0.68	Improved cell retention, PSII stability, and sustained H2 production	Potential mass-transfer limitations; scale-up of immobilized systems remains challenging	[98]
Chlamydomonas reinhardtii	TAP medium, sulfur deprivation, 110 L outdoor tubular PBR, 300 μmol photons/m2/s, 28 °C.	0.60	Demonstrated outdoor H2 production at pilot scale	Strong dependence on sulfur deprivation and environmental conditions	[104]
Synechocystis PCC 6803	Nitrogen-free medium BG110, serum vials 60 mL, 60 μmol photons/m2/s, 28 °C,	9.66	Enhanced biomass retention and easier biomass recovery	Limited by oxygen sensitivity and diffusion constraints within the matrix	[105]
Anabaena sp. PCC 7120	Diluted A&A medium without nitrogen; 1 L plastic bags, natural light (290–340 μmol photons/m2/s) and temperature (21.7–20.6 °C).	0.86	Outdoor operation and heterocyst-mediated O2 protection of nitrogenase	Relatively low H2 productivity; nitrogenase is energetically demanding	[106]
Synechocystis PCC 6803	BG11 medium, with marine salts; 120 mL sealed serum vials, 100 μmol photons/m2/s, 32 °C.	2.18	Simple cultivation and genetic tractability	Oxygen-sensitive H2-producing enzymes limit productivity	[46]
Rhodopseudomonas sp. S16-VOGS3	Immobilised cells. Van Niel medium; 0.2 L tubular PBR, 4.0 g/L acetate and 1.0 g/L glutamate, 80 W/m2, 30 °C)	14.96	Cell reuse and stable photofermentative H2 production	Performance strongly dependent on light penetration and substrate availability	[89]
Rhodopseudomonas sp. S16-VOGS3.	Van Niel medium; 4 L tubular PBR, 6.0 g/L acetate, 1.0 g/L glutamate, 75 W/m2, 30 °C	0.72	Successful scale-up and good light conversion efficiency	Requires organic substrates and careful reactor optimization	[55]
Rhodobacter sphaeroides NCIMB8253	Schott bottle (100 mL). Palm Oil Mill Effluent/pulp and paper mill effluent; 4 klux, 30 °C.	64.90	Efficient utilization of industrial waste streams	Variability in wastewater composition may affect process stability	[107]
Rhodobacter sphaeroides HY01	Glucose 5.4 g/L, tubular PBR (70 L); 3 Klux, 30 °C, flow rate 1400 L/h.	37.60	Pilot-scale outdoor operation and continuous photofermentation	Dependence on organic carbon supply and illumination conditions	[108]

and

Table 4. Comparative overview of H₂ production by PMs under suspended and immobilized conditions, including growth media, PBR configurations, and potential integration with wastewater streams, based on the recent literature.

PM Group	Cultivation Mode	Growth Medium/Substrates	PBR Configuration	Wastewater Use	Advantages	Limitations	Reference
Microalgae	Suspended	Sulfur-deprived TAP; acetate supplementation	Closed PBRs (flat-panel, tubular)	Limited	Simple system; direct photoproduction	Strong O2 inhibition; low efficiency	[36,109]
	Immobilized (hydrogels, biohybrids)	TAP-derived; polymer matrices	Immobilized matrices in flat-panel or custom biohybrid PBRs	Emerging	Improved stability; higher cell density; O2 mitigation	Diffusion (light/gas); scale-up issues	[40,110]
Cyanobacteria	Suspended	BG11; glycerol or organics	Closed PBRs (tubular/flat-panel)	Potential	Solar-driven; N2 fixation	O2 evolution inhibits H2; low electron allocation	[24,45]
	Immobilized (biofilms, encapsulated)	BG11 variants; alginate beads; biofilms	Packed-bed or immobilized PBRs	Promising	Continuous production; reduced O2 impact	Mass transfer limits; fewer standardized systems	[9,24]
PNSB	Suspended	Acetate, lactate, malate; fermentation effluents	Anaerobic stirred tank or tubular PBRs	Widely used	High rates; substrate flexibility; wastewater integration	Sensitive to conditions; light requirement	[51,111]
	Immobilized (biofilms, fixed-bed)	Wastewater-derived VFAs	Packed-bed and continuous immobilized PBRs	Highly suitable	High cell density; continuous operation; efficient conversion	Diffusion limitations; reactor design complexity	[9,51,83]

summarise representative studies and key operational parameters, offering an overview of the biological platforms, engineering strategies, and performance indicators discussed in this review.

7. Conclusions

Photobiological H₂ production using microalgae, cyanobacteria, and PNSB offers a sustainable alternative to conventional H₂ technologies. Each system has distinct advantages: microalgae enable direct water splitting, cyanobacteria provide metabolic flexibility, and PNSB allows efficient use of organic waste streams. Despite significant progress, key challenges remain, including low efficiencies, O₂ sensitivity, and limitations in scaling up. Although several pilot-scale studies have demonstrated the technical feasibility of photobiological H₂ production, large-scale implementation remains constrained by limitations in light distribution, oxygen management requirements, reactor complexity, and the costs associated with cultivation, harvesting, and system operation. The future economic viability of photobiological H₂ production will depend on integrating standardised cost models with optimised bioreactor design, while carefully accounting for installation, operation, storage, and feedstock costs, as well as the role of carbon credits and policy-driven subsidies.

Unlike previous reviews, which have generally focused on specific microorganism groups, biological mechanisms or engineering solutions, this review provides a unified assessment of photobiological H₂ production across microalgae, cyanobacteria, and PNSB. By jointly considering microbial metabolism, PBR design, wastewater valorisation, and immobilisation strategies, it identifies key opportunities and bottlenecks along the entire development pathway, from biological H₂ generation to large-scale implementation.

In the near term, progress is most likely to come from strategies that build on existing technologies, including wastewater-based cultivation systems, photofermentative H₂ production by PNSB, improved PBR operation, and immobilised microbial platforms that enhance biomass retention and process stability. These approaches have already shown promising results at laboratory and pilot scales and may facilitate the transition to larger-scale implementation. Longer-term advances will depend on breakthroughs in fundamental biological research, particularly the development of O₂-tolerant hydrogenases, improved electron allocation to H₂-producing pathways, and advanced synthetic biology and metabolic engineering approaches capable of overcoming the intrinsic limitations of photosynthetic H₂ production. Ultimately, combining biological innovation with engineering optimisation and circular bioeconomy strategies will be essential for developing scalable and economically viable photobiological H₂ production systems capable of contributing to the global energy transition.
