Integrating Gasification into Conventional Wastewater Treatment Plants: Plant Performance Simulation

by
Ruben González
1,
Silvia González-Rojo
2 and
Xiomar Gómez
2,*
1
Department of Electrical, Systems and Automatic Engineering, School of Industrial, Computer and Aeronautical Engineering, University of León, Campus de Vegazana, 24071 León, Spain
2
Department of Chemistry and Applied Physics, Chemical Engineering Area, University of León, Campus de Vegazana, 24071 León, Spain
*
Author to whom correspondence should be addressed.
Eng 2025, 6(5), 100; https://doi.org/10.3390/eng6050100
Submission received: 7 April 2025 / Revised: 12 May 2025 / Accepted: 12 May 2025 / Published: 15 May 2025
(This article belongs to the Special Issue Advances in Decarbonisation Technologies for Industrial Processes)
Browse Figures
Versions Notes

Abstract

:
The high amount of sludge produced from wastewater treatment plants (WWTPs) requires final disposal, forcing plant operators to search for alternatives without exerting an excessive energy demand on the global plant balance. Future revisions of the WWTP Directive will probably set additional constraints regarding the land application of sludge. Therefore, thermal treatment may seem a logical solution based on the additional energy that can be extracted from the process. The purpose of the present manuscript is to assess the integration of anaerobic digestion of sewage sludge and subsequent gasification using SuperPro Designer V13. Mass and energy balances were carried out, and the net energy balance was estimated under different scenarios. The integration of the process showed an electricity power output of 726 kW (best scenario, equivalent to 4.84 W/inhab.) against 411 kW (2.7 W/inhab.) for the single digestion case. The thermal demand of the integrated approach can be fully covered by deviating a fraction of gaseous fuels for heat production in a burner. Transforming syngas into methane by biological conversion allows densifying the gas stream, but it reduces the total energy content.

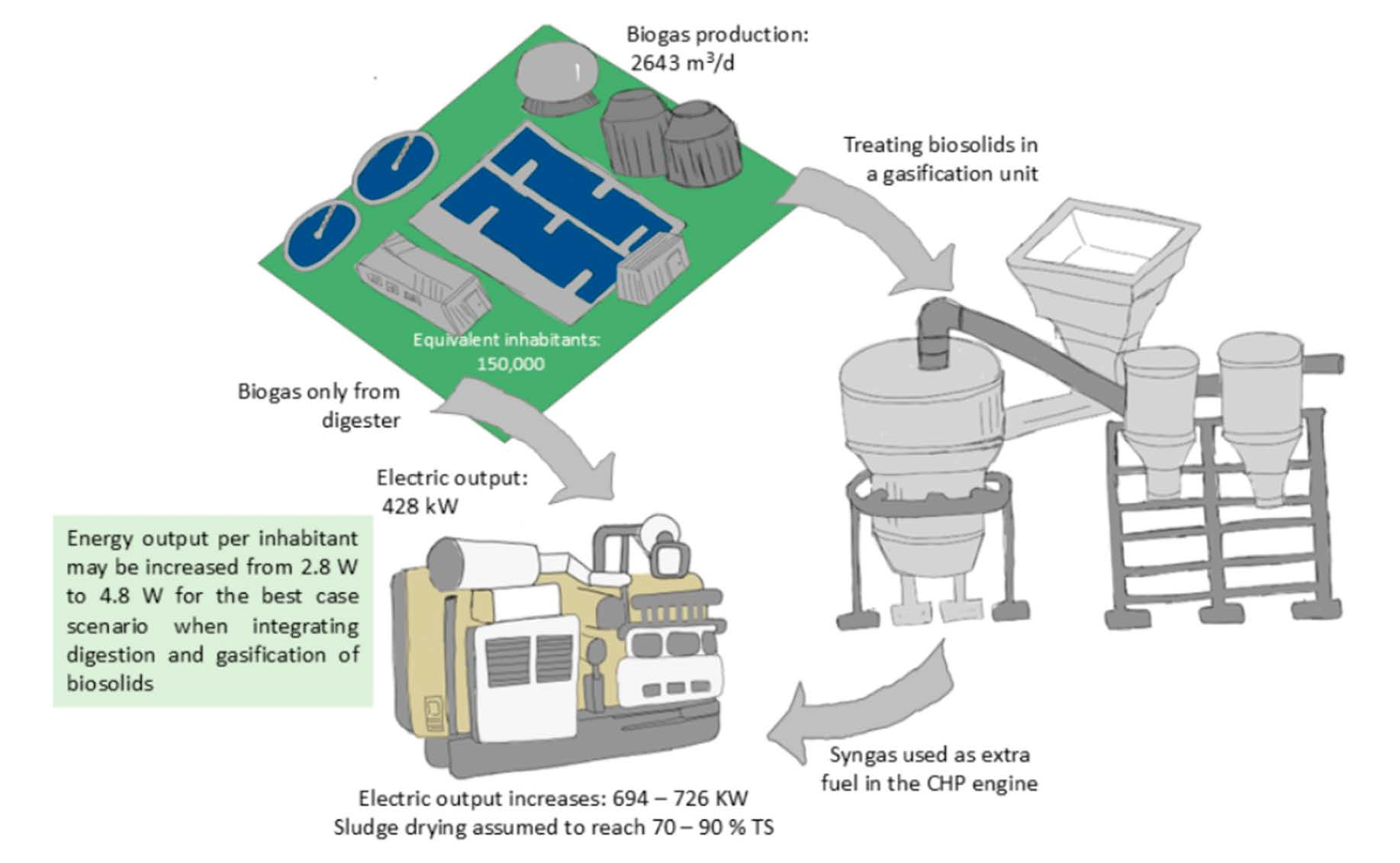

Graphical Abstract

1. Introduction

Wastewater treatment inevitably generates sewage sludge that requires stabilization. Wastewater treatment plants (WWTPs) must deal with huge amounts of biological sludge (20–25 dry solid/person year) containing pathogenic microorganisms and different pollutants, which discourage its valorization by means of traditional practices such as land application [1,2]. Recycling nutrients from the sludge is desirable as long as the heavy metal content does not pose a risk to the population. The possible presence of pharmaceutical compounds is an important concern, as these substances can interact with other organisms when sludge is applied to land [3,4,5]. Given these issues, thermal valorization of sludge appears to be the best alternative for reducing the volume of waste that requires final disposal, turning a problematic material into a valuable energy resource.
The land application of biosolids is an environmentally friendly choice because it allows for nutrient recycling (nitrogen and phosphorus) and retaining carbon in soils, with phosphorus being considered a strategic resource due to the limited reserves of mineral phosphate rock and the risk associated with the presence of Cd in low-quality phosphate rock [6,7]. Land application of digestate is a valorization option in line with circular economy principles. However, it may not be always possible. Restrictions regarding metal content can make using biosolids as an organic amendment inadequate. However, metals are not the only restriction. The new WWTP Directive (EU 2024/3019) [8] will require monitoring microplastics in sludge when valorization as organic amendment is the selected option, thus setting new bans on sludge land applications. In addition, not all urban areas have nearby locations which can be used as a safe disposal place. Therefore, finding a sustainable solution for transforming the remaining organics into valuable compounds is urgent. In many WWTPs, adding a subsequent thermal treatment stage would not represent an excessive thermal demand since many plants already have thermal drying units.
Gasification is an old technology widely studied in the scientific literature. It has been proposed as a suitable alternative to valorize lignocellulosic biomass, wastes of different origin, sewage sludge, and digestate [9,10,11,12]. However, the need for a dry substrate is one of the major drawbacks, reducing the feasibility of integrating anaerobic digestion and a subsequent thermal processing. In the case of digestate gasification, the drying stage may consume most of the extra energy obtained from the combined configuration. Guo et al. [13] assessed different process integrations, considering the maximization of energy recovery or gas recovery, corroborating that the major limitation was the high energy demand of drying.
Anaerobic digestion is a biological process usually present in WWTPs. Digestion of sewage sludge releases biogas, which can be valorized for producing energy or upgraded to obtain a natural gas substitute [14]. A slurry byproduct known as digestate is also obtained. This material has a higher mineral content than fresh sludge but still contains a large fraction of volatile solids [15], making its thermal valorization feasible.
The coupling of two different processes, such as anaerobic digestion and gasification, to reduce the final amount of material implies some modifications in the operating conditions of the individual units. Integrating biological and thermal processes seems a suitable alternative as long as the energy demand of sludge drying does not eliminate the benefits of producing energetic by-products. An important point to consider is the mineralization that occurs during the biological degradation process. Increasing the hydraulic retention time (HRT) leads to a greater removal of volatile solids (VSs), which in turn results in a higher mineral content in the digestate. This enhanced mineralization impacts the following thermal stage by increasing char production [16], although it may reduce the yield of gaseous products.
Many WWTPs have already incorporated a drying unit to facilitate digestate storage and handling and reduce transport requirements. In these cases, introducing a gasifier would not alter the energy demand for digestate preparation since drying is already a piece of basic plant equipment. Several studies have proposed the integration of anaerobic digestion with pyrolysis and hydrothermal liquefaction [17,18,19,20,21,22,23]. However, these technologies add complexity to the approach due to the need of treating a water phase derived from the process which may contain toxic compounds that inhibit biological degradation [24].
Gasification is another alternative for treating biosolids. Sewage sludge gasification has been widely studied under laboratory conditions [25,26,27] and at a pilot scale [28,29]. The process produces syngas as the main calorific stream with a lower heating value (LHV) of about 5 MJ/m3 and char as a solid product, with small amounts of tars requiring special treatment [12]. The use of low-cost catalysts such as dolomite or steel slags may significantly reduce the production of undesirable tars [30,31,32]. Gasification occurs under oxygen-deprived conditions, preventing complete oxidation of the carbonaceous material. Thus, the main light components of the synthesis gas are H2, CO, CH4, and CO2. The concentration and yield of these gases are particularly affected by the operating conditions (temperature and gasification agent, among others), reactor configuration [33,34], and input material properties [35]. The presence of air significantly reduces the gas calorific value due to the dilution effect exerted by nitrogen. This factor may be the main disadvantage compared to pyrolysis, where air as a gasification agent is avoided.
Gasification technology counts on large-scale experiences dedicated to integrating combined energy-producing cycles. Four demonstration plants were built and operated for several years, allowing the technology to reach a status close to commercial scale [36]. The main configurations include fix-bed systems, bubbling beds, circulating bubbling beds, fluidized beds, entrained flow gasifiers, rotary kilns, and plasma reactors [37,38]. The most relevant parameters include gasification temperature, air-to-fuel ratio, called equivalence ratio (ER), and the water content of the feed. The characteristic of the feed also has a significant influence on syngas yield and quality. The temperature affects reaction rates and the yield of residual ash obtained, with higher temperatures favoring pyrolysis reactions and lower values enhancing the final conversion [39]. Moisture content favors hydrogen formation but may adversely affect syngas quality (tar formation) and energy balance [40,41]. The composition of the feed determines the composition of syngas. Higher H/O ratios in the feedstock lead to higher H2 content in syngas, whereas the composition of minerals affects biomass reactivity [35].
The light C1 gases contained in syngas could be transformed into methane using anaerobic microorganisms. This type of conversion requires hydrogen, which is already present in syngas. Therefore, the coupling of anaerobic digestion and gasification as an integrated approach for waste treatment can be carried out with the dual objective of reducing the amount of digestate requiring disposal and increasing the energy extracted in the form of gaseous products by transforming syngas components into methane. Studies carried out by different authors demonstrated the ability of anaerobic microflora to adapt to gaseous substrates, transforming mixtures of H2/CO/CO2 without the need for complex acclimation stages and showing a fast conversion rate [42,43,44]. Cheng et al. [45] studied the conversion of syngas using a trickling filter, reporting a methane production rate of 1.26 L CH4/Lpacking bed d when feeding 5.33 L syngas/Lpacking bed d, also demonstrating that the process could be carried out under non-sterile conditions using the same digestate as a nutrient medium.
The idea of using microorganisms to transform syngas is not new, with several studies reporting on this subject [46,47,48,49]. Recent works proposed this conversion process to obtain a natural gas substitute from biomass gasification and steel mill off-gases at a high rate under thermophilic conditions and higher pressures [50,51,52,53]. However, syngas cleaning is a challenging issue due to the presence of inhibitory substances such as HCN, H2S, and tar compounds that may need removal to avoid inhibitory conditions during fermentation [54], with this subject still waiting for an affordable and practical solution.
Several authors have studied the gasification of sewage sludge in WWTPs, indicating that this integration could be potentially feasible and allow extracting the energy from sewage sludge in an efficient way [55,56,57]. Sanaye et al. [58] also studied the gasification of high-moisture-content sewage sludge but did not consider syngas’ subsequent transformation into methane. Other authors have focused on syngas conversion using anaerobic systems [59,60,61] but, in this case, do not include in the evaluation the previous stages. The present manuscript aims to evaluate the energetic feasibility of introducing sludge gasification into a WWTP. The modeling work estimates the energy demand of an integrated approach and assesses the improvements in biogas production resulting from the biological transformation of syngas. The plant’s performance was simulated using SuperPro Designer V13 software, which enabled a comprehensive analysis of the process. Although several gaps still require further research for satisfactory process integration, the focus was on determining the specific energy requirements of the various treatment units.

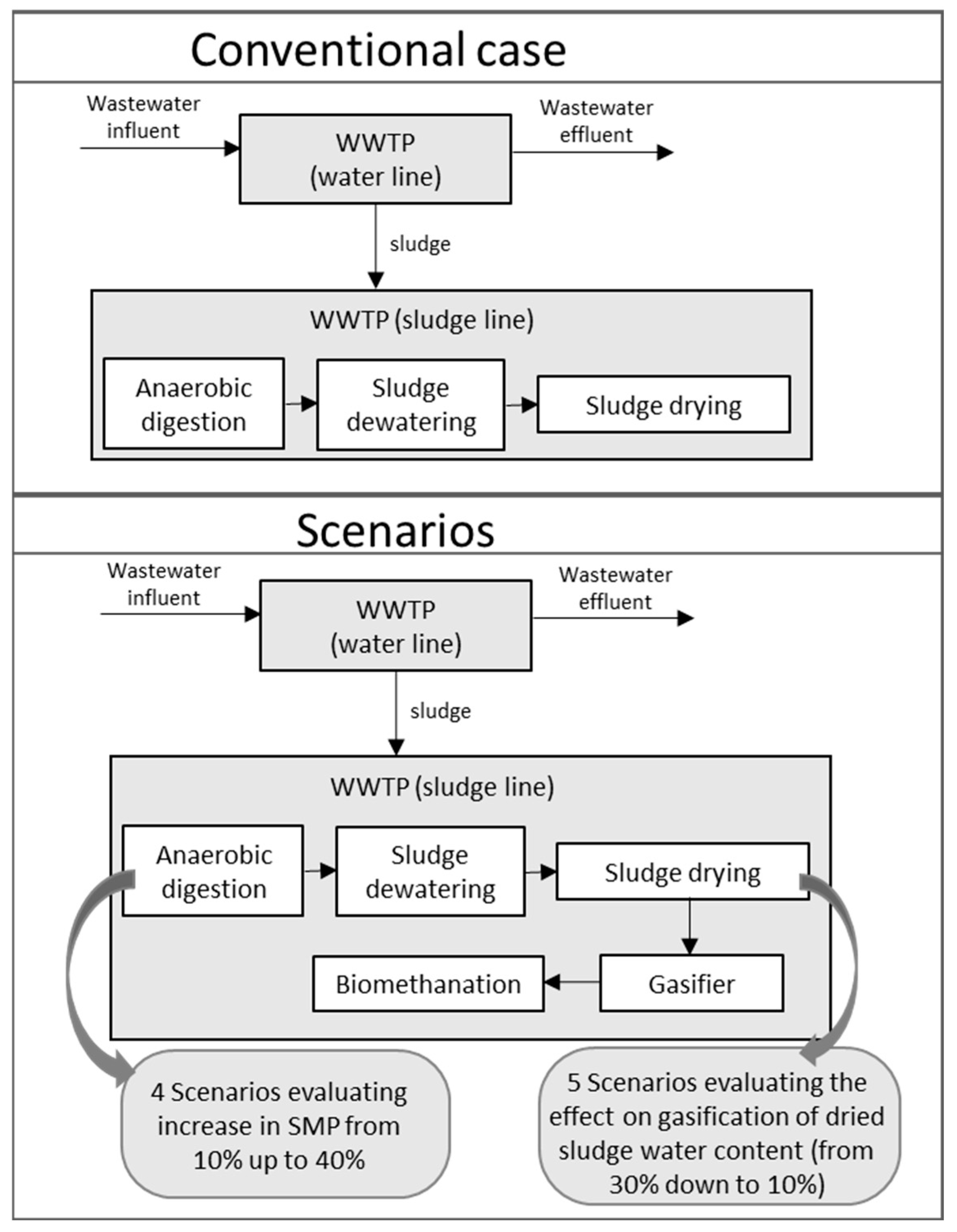

2. Materials and Methods

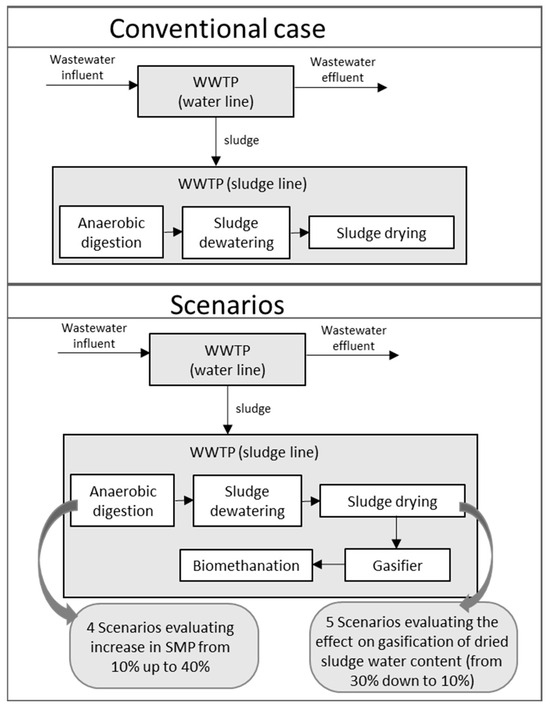

The description of the WWTP was based on the study of Martínez et al. [62], where a conventional plant treats residual wastewater by the activated sludge process. The number of equivalent inhabitants was 150,000, with an estimated wastewater production of 330 L/inhab. d [63]. The WWTP model used here was based on Ellacuriaga et al. [64]. The specific methane production (SMP) of the sludge was 243 mL CH4/g VS, as a mean value of those reported by Martínez et al. [65] and Arenas et al. [66]. The working volume of the digester was considered 85% of the total volume. The maximum digester size was assumed to be 4000 m3. The hydraulic retention time was 21 d. The methane content in biogas was 60%, with a density of 1.133 kg/m3. The LHV of methane was 35.8 MJ/m3.
SuperPro Designer V13 Software was used to estimate the process performance. The conversion of the reactions was set at 98%. The energy demand of the digester was estimated by considering the heat required to increase the sludge temperature from the inlet stream (15 °C) to the fermentation temperature (37 °C), assuming 95% heat transfer efficiency and 5% heat losses.
The digestate was dehydrated using horizontal decanter centrifuges, obtaining a slurry stream with a total solids content of 27%. The subsequent drying process was performed in a horizontal dryer. A moisture content of 30 up to 10% (maximum drying level) was assumed for the dried sludge. The digestate was transported by a truck with a loading capacity of 40 m3. The distance to the land application site was 30 km, and a tortuosity factor of 1.4 was assumed. Diesel consumption was estimated at 35 L/100 km [67]. LHV of diesel fuel is 44.8 MJ/kg with a density of 0.84 kg/L [68,69]. Electricity production from biogas considered the use of a combined heat and power (CHP) unit with an electrical efficiency of 38% and a thermal efficiency of 48.3% [70]. Thermal exhaust gas temperature was assumed to be 474 °C at 100% loading with operation under lean conditions [71].
Sludge gasification was assumed to be carried out in a fluidized bed gasifier. The higher heating value of the sludge was 14.5 MJ/kg (mean value of those reported by Magdziarz et al. [72], Mun et al. [73], and Mun et al. [74]). Based on the same literature references, a sludge elemental composition of 36.5% carbon, 5.8% hydrogen, 23% oxygen, 4.7% nitrogen, 1.0% sulfur, and 28.9% ash content (dry basis) was assumed. The gasification temperature was based on equilibrium equations after setting the temperature of the incoming material at 780 °C. Carbon conversion was set at 85% with an ER of 0.15.
Biological methanation of syngas considered the following reactions, based on equations proposed by Schwede et al. [52] and Rafrafi et al. [75]. A 50% selectivity was assumed based on results reported by Martínez et al. [62] where hydrogen addition to the reactor led to acetate formation and subsequent methane production:
CO2 + 4 H2 → CH4 + 2 H2O   (selectivity for H2 assumed as 50%)
4 CO + 2 H2O → CH4 + 3 CO2
CH3COOH → CH4 + CO2
4 CO + 2 H2O → CH3COOH + 2 CO2  (selectivity for CO assumed as 50%)
2 CO2 + 4 H2 → CH3COOH + 2 H2O
For this process, a hydrogen conversion of 95% was assumed, which was the mean value reported by Asimakopoulos et al. [76] and Rachbauer et al. [77]. Biological conversion of the syngas stream was assumed to take place in a gaslift reactor instead of considering direct gas injection into the digester. The volumetric gas injection in this latter case is usually lower due to mass transfer limitations in the standard continuously stirred reactor (CSTR) configuration. In addition, the energy demand needed to increase the gas superficial area may offset the benefits associated with the conversion. The higher mass transfer rate of the gaslift reactor may compensate for the lower driving force related with the presence of N2 in syngas, which dilutes H2/CO/CO2 concentration [78,79].
A sensitivity analysis was conducted by applying a 10% variation to the values of sludge SMP, TS, and VS content. This analysis aimed to assess the digester’s specific energy production. Additionally, sensitivity analysis was used to evaluate the drying requirements by varying (10% variations) the solid content of the sludge after dewatering operations, as well as adjusting the parameters related to dryer operating conditions, such as heat transfer efficiency, the temperature of the dried sludge, and its solid content.

Increasing Sludge Specific Methane Production (SMP)

The effect of increasing SMP thanks to the application of a pretreatment to the sludge stream was analyzed by increasing the SMP value up to 40% in 10% increments. The previous assumption translates into the analysis of four different scenarios, where the specific energy production and thermal energy recovery were estimated. Figure 1 shows a scheme of the conventional WWTP and the scenarios considered when analyzing the effect of increasing mineralization.
Increasing the digestibility of sludge is an energy-consuming process and requires the installation of additional equipment, which may also increase the plant’s energy demand. Several studies deal with the use of different pretreatments (alkaline, thermal hydrolysis, electrooxidation, mechanical disruption) to increase the accessibility of microorganisms to the sludge particles [80,81,82]. Thermal processes have the advantage of heat recovery, greatly reducing sludge volume at the expense of relatively low energy demand [83]. However, biogas yield has shown no significant improvement under the industrial application of the process [84], in contrast with laboratory-scale experimental reports [85,86], even though the capacity of decreasing sludge volume and viscosity along with recovering energy as heat makes thermal hydrolysis a widely applied option on a large scale.
The report derived from the project POWERSTEP [87] financed by European Union HORIZON 2020 contains an analysis of the energy demand of different commercial processes available for improving sludge degradability, reporting on average energy consumption values in the range of 5.4–7.2 kWhe/m3 sludge (52 kWhe/t TS sludge) and 39–116 kWhheat/m3 sludge (620 kWhheat/t TS sludge) for thermal hydrolysis. Other processes also evaluated were pressure homogenization, ultrasounds, stirred ball mills, and ozone treatment, most of which had higher energy demands, except for ultrasonic treatment, but without the feature of energy recovery as does the thermal hydrolysis process.
The averaged thermal energy demand of 6.55 kWh/m3 of sludge at a TS content of 168 g/L was assumed in the present manuscript, based on data reported by Gurieff et al. [88], Pérez-Elvira et al. [89], and Tyagi and Lo [90] which considered thermal recovery. García-Cascallana et al. [91] reported a decrease of about 7.0% in net electricity production due to the auxiliary equipment required when installing a thermal pretreatment unit. The net energy balance of the four scenarios considering an increase in SMP included the thermal and electricity demand of the thermal pretreatment. The amount of auxiliary fuel was estimated by considering the energy needed for sludge drying and the energy recovered from the CHP engine.
Additional scenarios were studied by considering the water content of the dried sludge. A range between 30% and 10% was assumed for the moisture content. Energy estimations were carried out at intervals of a 5% decrease in this parameter, leading to the analysis of five additional scenarios (see Figure 1).

3. Results and Discussion

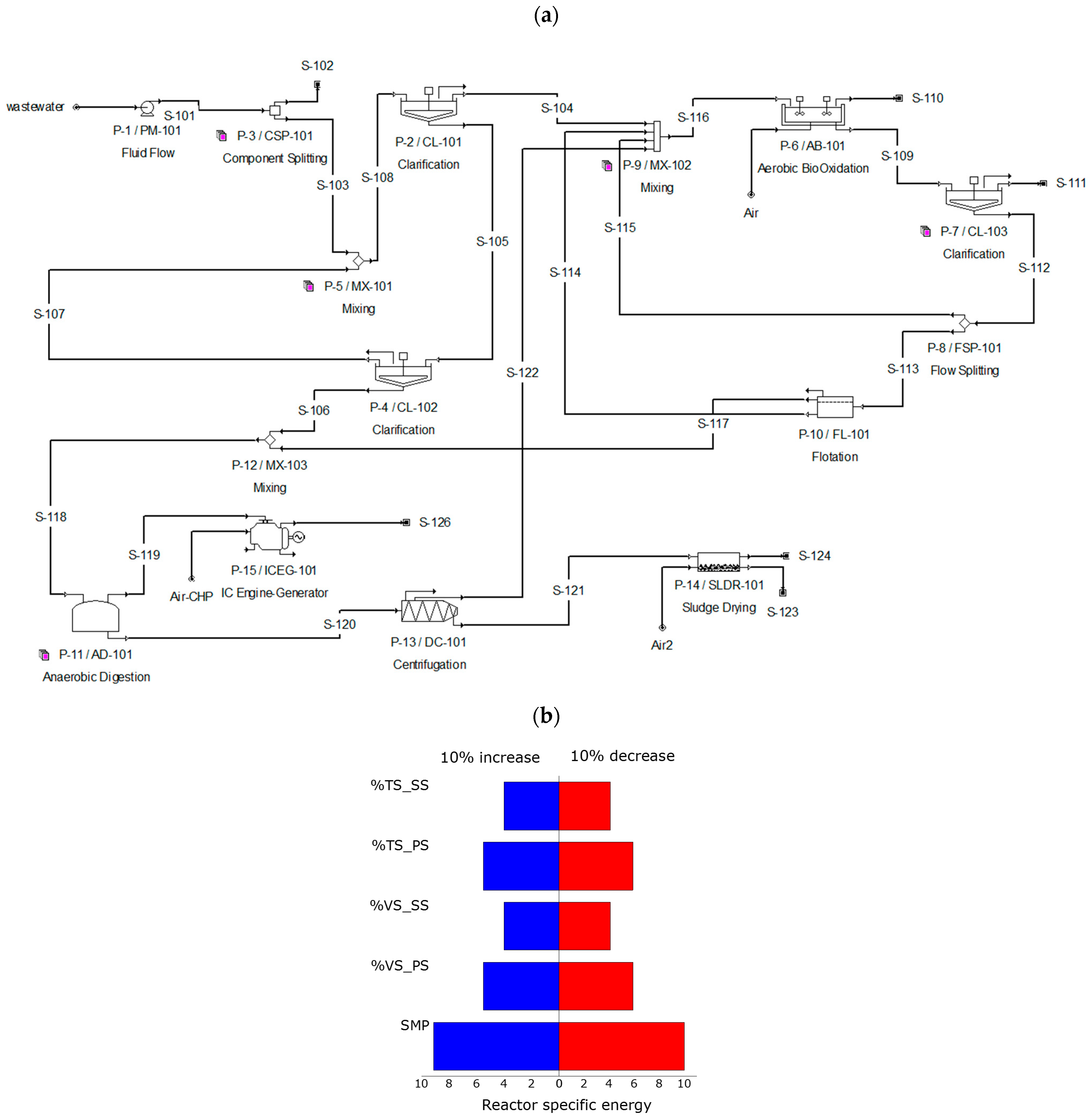

Figure 2 shows a scheme of the WWTP considering the stabilization of sludge through anaerobic digestion. Primary and secondary sludge were mixed and subsequently treated in the anaerobic digester. Based on the assumptions described in the Material and Methods section, the biogas produced was 4404 m3 biogas/d. Since the methane content in biogas was assumed to be 60%, the energy contained in this stream accounts for 94,614 MJ per day. The total sludge flow was 261 m3/d (with a volumetric proportion of 51% of primary sludge in the mixture). Two digesters with a volume of 3224 m3 were necessary to treat the whole sludge stream, given the restriction for the maximum size allowed of 4000 m3. The daily energy demanded by the digestion units was 26,700 MJ.
The main performance parameters of the WWTP are listed in Table 1. After digestion, a significant amount of sludge is obtained (256 t/d). The digestate is then subjected to dewatering, a crucial step that significantly reduces the amount of sludge, thereby improving efficiency and lowering transport costs. The dewatered sludge can be utilized for land application as a disposal option, with an energy demand of 766.5 MJ per day for transportation. While this amount may seem high at first glance, it is important to note that reducing the sludge volume requires a drying stage, which involves an even greater energy demand.
The specific energy production of the anaerobic reactor was estimated as 14.6 MJ/m3reactor d. Considering that sewage sludge is a material with great seasonal variability, if values regarding solid content and proportion of volatile solids are assumed to vary about 10% around their central value, then the expected specific energy would be around 13–16 MJ/m3reactor d.

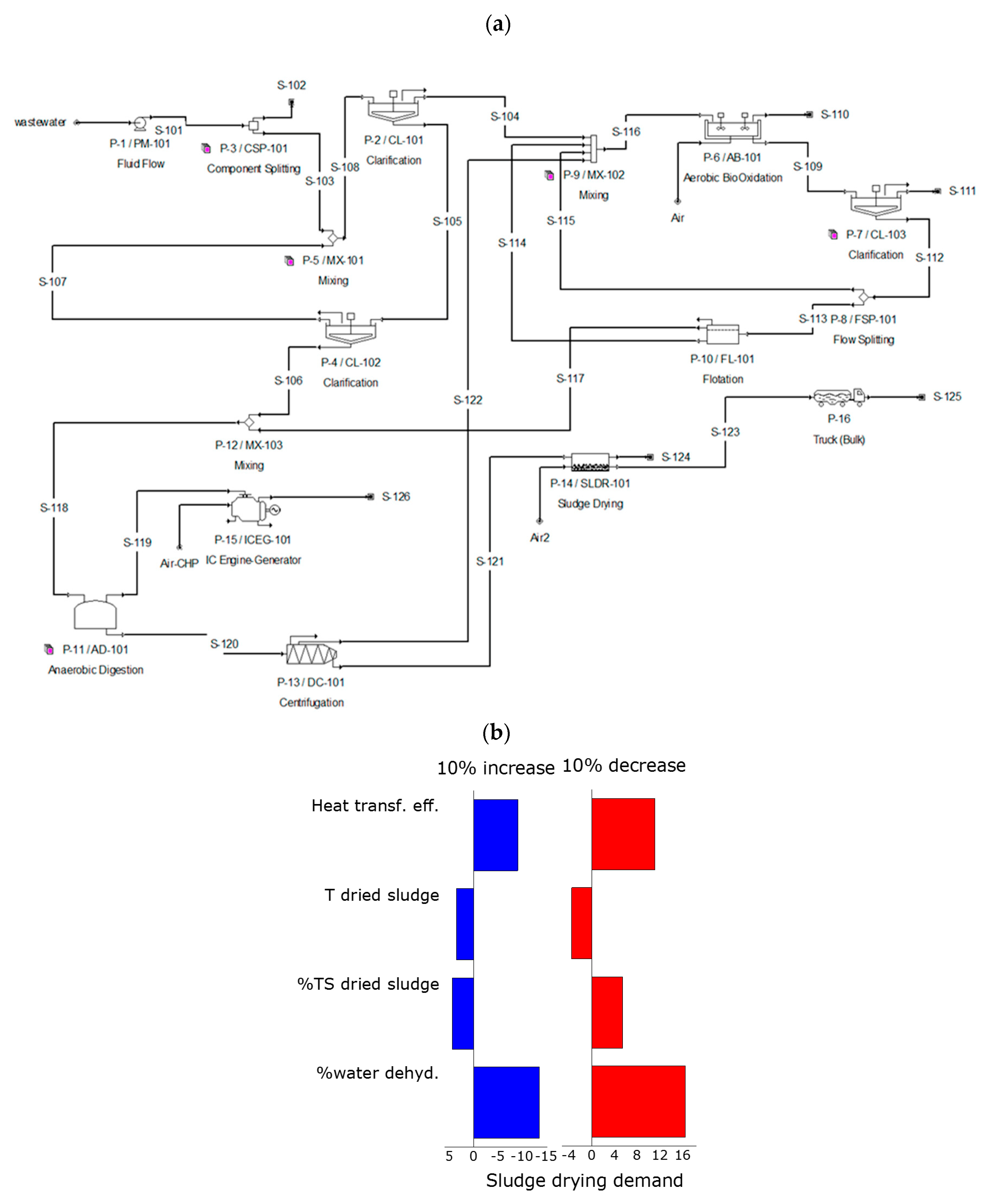

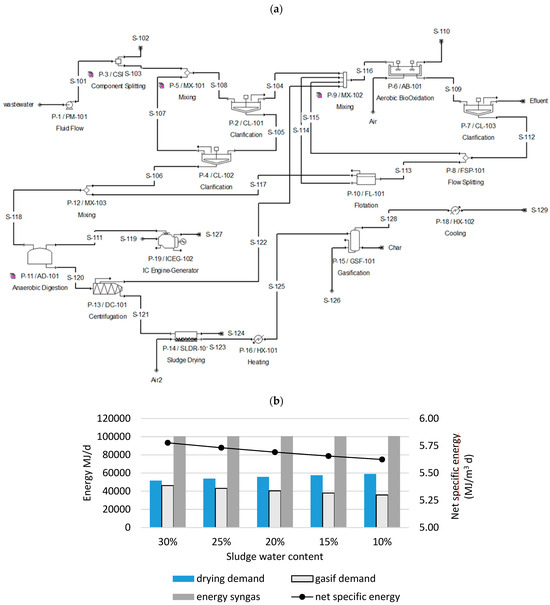

Figure 3 represents the flow diagram where the transport of dried sludge is introduced into the plant operating mass balances. It also represents the results obtained from the sensitivity analysis regarding the effect of input variables on the energy demand for sludge drying.
The water content in sludge after the dewatering operation shows the major effect on the sludge drying demand, followed by the heat transfer efficiency of the drying equipment. The water content of the dewatered sludge can reach approximately 75%. In this study, a value of 27% solid content in dewatered sludge was assumed. Digestate drying is a treatment stage frequently found in many WWTPs because removing this water can further reduce transport costs. Drying this material reduces the mass of sludge to be transported. The dried sludge produced was 9 t/d with 90% solid content, in the present case. The transport of this material translates into an energy demand of 275.7 MJ/d, in contrast with the energy demand of transporting dewatered sludge (766.5 MJ), which, compared with the amount of energy required for sludge drying, seems insignificant. However, this transport operation supposes a high cost for WWTP management. Considering a cost of EUR 1.6/km loaded and EUR 1.3/km empty, the transport expenditures reach EUR 11,000/year.
The energy needed for sludge drying accounts for 62,900 MJ/d (2.98 GJ/t water evaporated), making that for sludge transport meaningless. The value obtained is in the range of the energy demand estimated for convective drying (2.52–5.04 GJ/t water evaporated [92]). The advantages of drying sludge are not only associated with handling, easier storage, and transport of the material but also with the preference of final users for applying dried stable biosolids.
The energy contained in biogas was 94,614 MJ/d. When considering a CHP engine, this biogas stream will represent an electrical power of 428 kW (37,000 MJ/d). The heat available would account for 46,570 MJ/d, which may suffice for digester energy demand but not that associated with sludge drying. In addition, if it is considered that the sludge drying unit uses hot combustion gases to supply the thermal demand, then only the energy associated with this gaseous stream is available for the drying process. This amount of energy corresponds to about 49% of the thermal energy available [67]. Therefore, the thermal energy derived from the engine can cover about 34% of the thermal energy required for drying. This result agreed with the report of Guilayn et al. [93], indicating that the heat from co-generators in biogas plants is insufficient to dry the whole digestate flow.
Increasing methane production not only has a direct effect on the energy contained in biogas but also reduces the energy required for drying sludge. The more effective the conversion of organics into biogas, the less material remains that needs subsequent drying. Table 2 illustrates the solid concentration of the slurry stream derived from the digester and the removal of volatile solids achieved for each scenario. Increasing biogas production results in a concomitant decrease in the volatile solid content of the digested sludge.

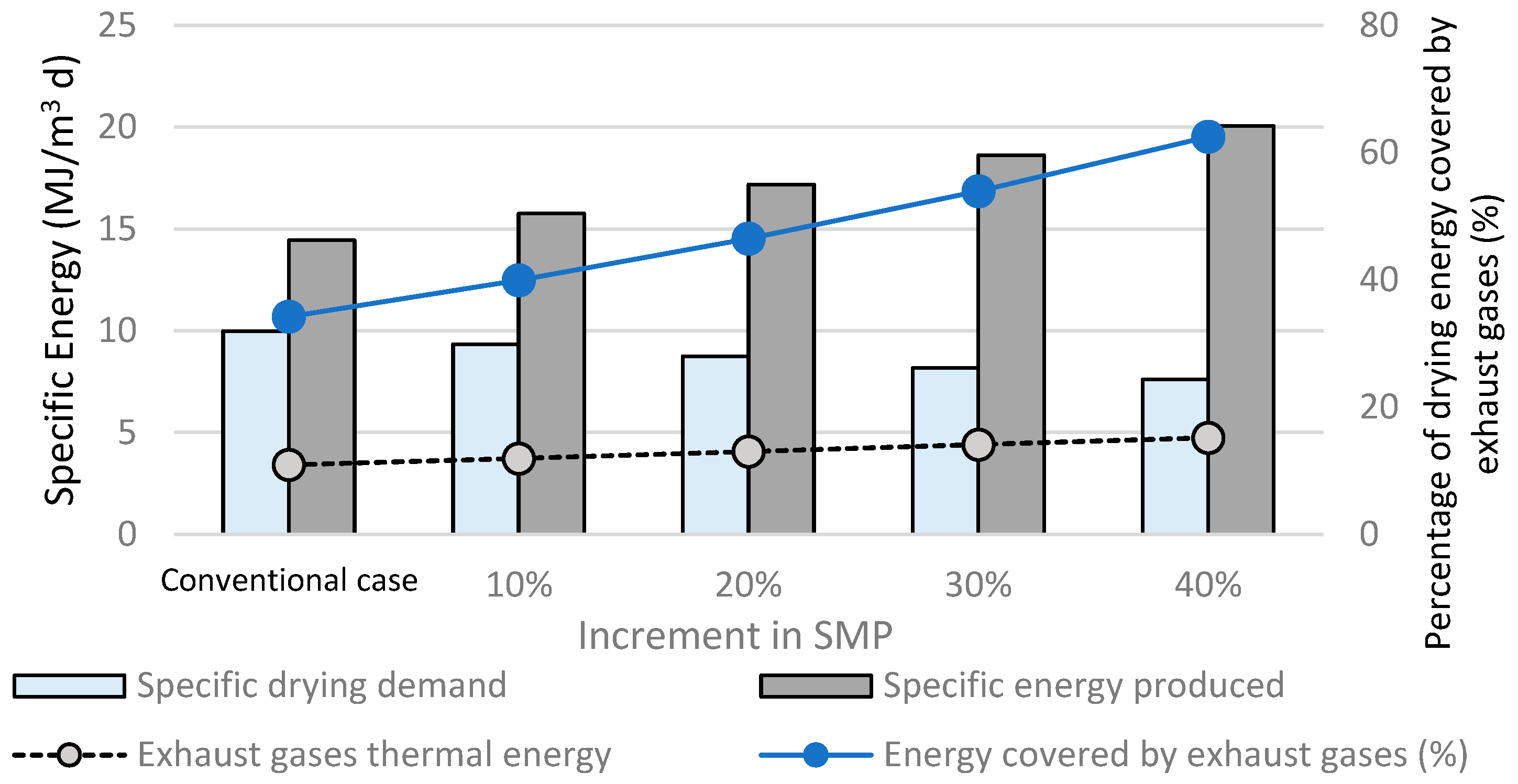

Figure 4 shows the effect of increasing sludge SMP up to 40% and how this parameter affects the plant’s thermal balance. Approximately 62% of the energy needed for the drying process can now be supplied by combustion gases from the engine’s exhaust. However, some of the thermal demand remains unmet, necessitating an auxiliary fuel.

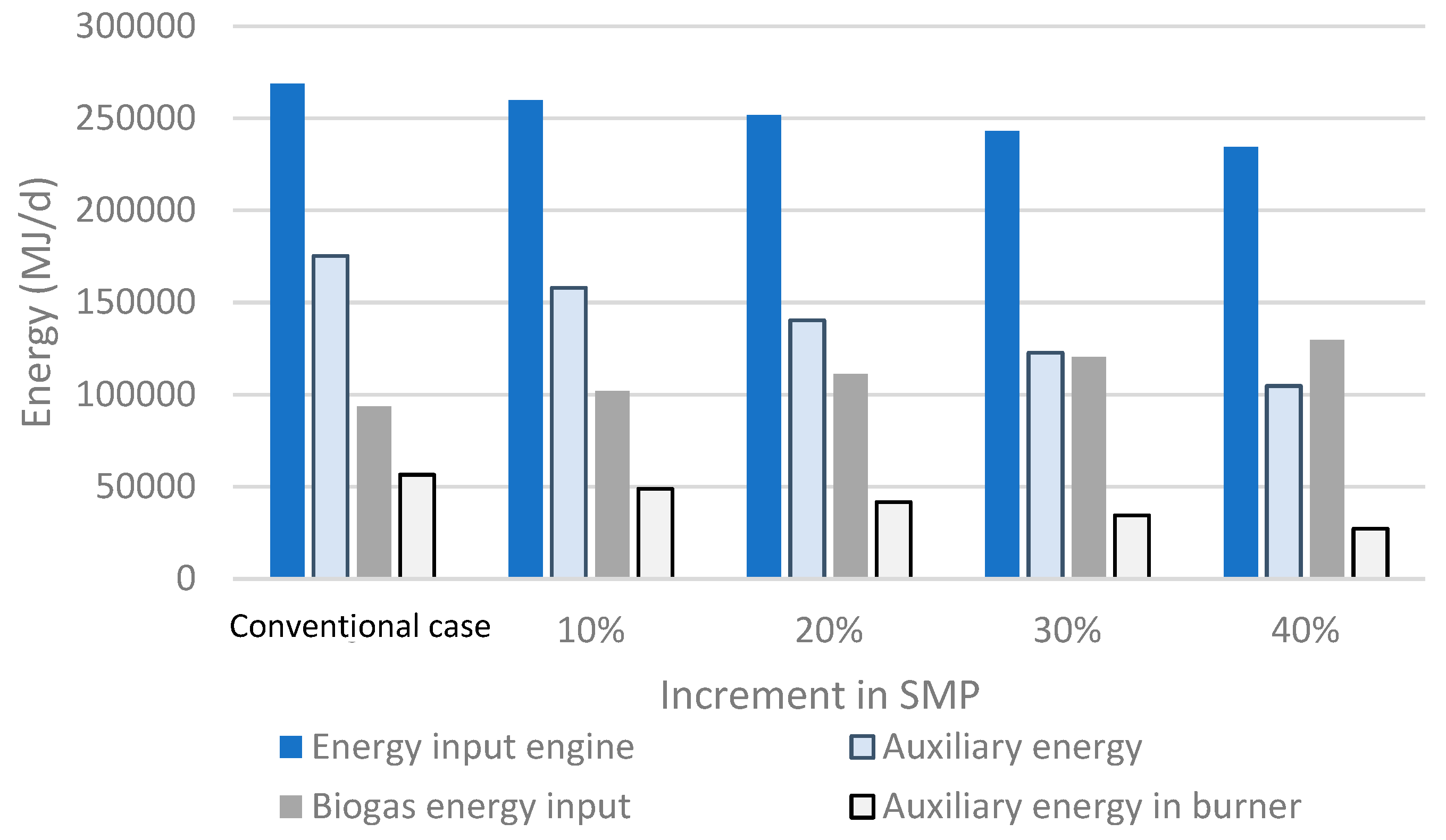

The amount of auxiliary fuel was estimated by considering the energy needed for sludge drying. The increase in sludge degradation affects the plant balance in two ways: by increasing the amount of biogas obtained and thus the energy derived and by reducing the mass of biosolids generated, decreasing the energy associated with sludge drying. Figure 5 shows the energy required for the engine to provide the drying demand. Since the energy contained in methane is used to produce electricity, the additional methane required was estimated based on the drying needs. However, if biogas is valorized exclusively by using CHP engines and the remaining thermal demand for drying sludge is supplied by a burner (95% efficiency) using natural gas as an auxiliary fuel, the extra fuel required could be highly reduced, although the benefit of extra electricity is lost. Previous model estimations assumed that sludge dehydration reached 27% TS content. Any improvement in water removal would be aligned with a lower demand for sludge drying.

3.1. Sludge Gasification

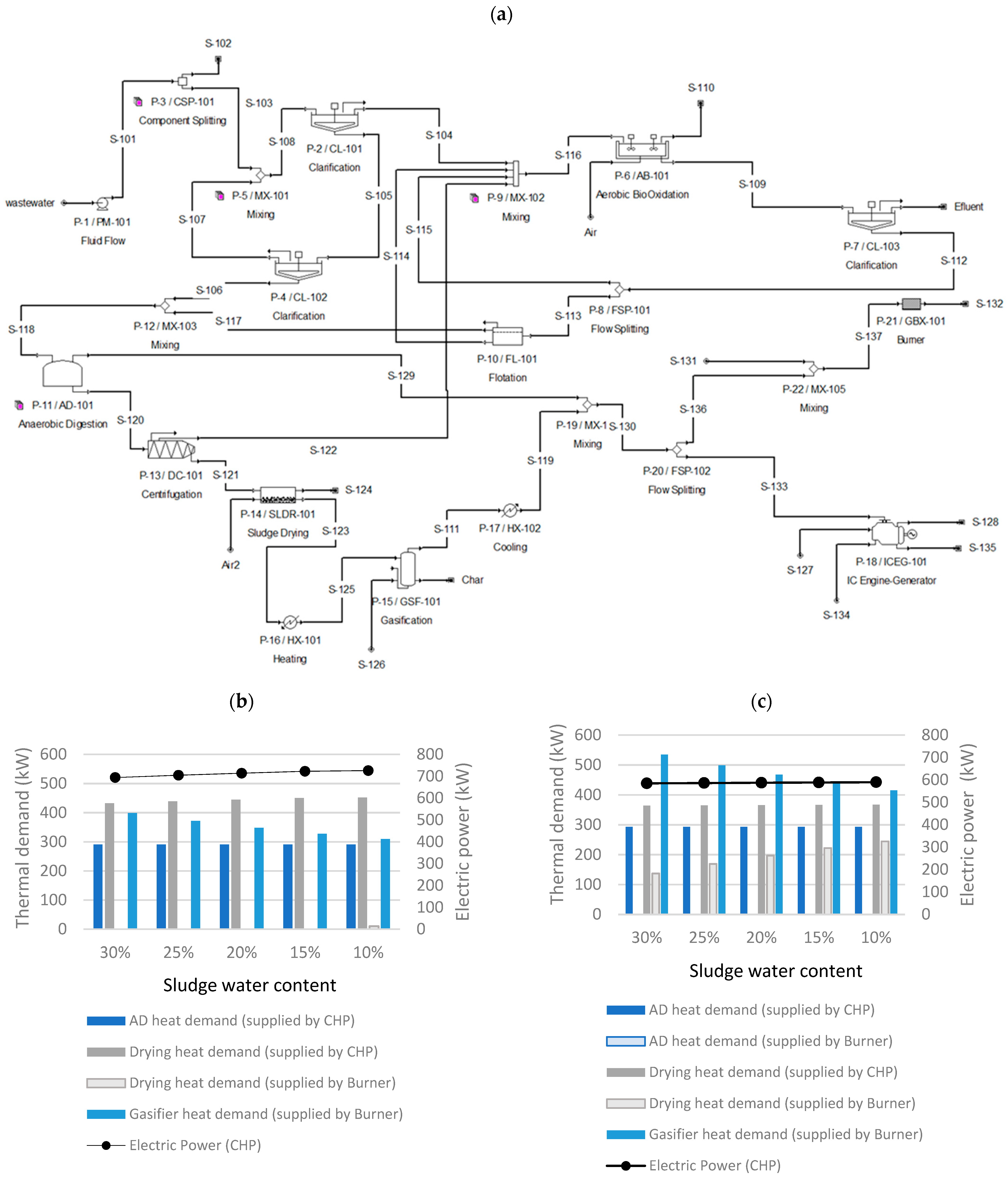

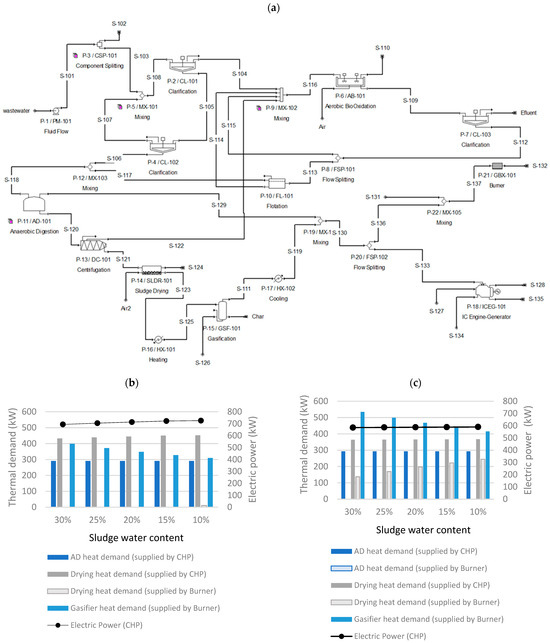

Figure 6 shows the integration with a gasification unit by considering the use of dried digested sludge. Previous estimations were made by assuming a water content in dried sludge of 20%, so the drying demand was not greatly penalized. However, increasing the sludge solid content reduces the thermal demand of the gasification stage. Based on this premise, the sludge drying stage was evaluated by considering a solid content of up to 90% in increments of five units, using 30% as the first initial moisture value. Figure 6 shows the schematization of the process where a heat exchanger is used to increase the temperature of the material to the gasification temperature, thus allowing for the thermal demand to be estimated.

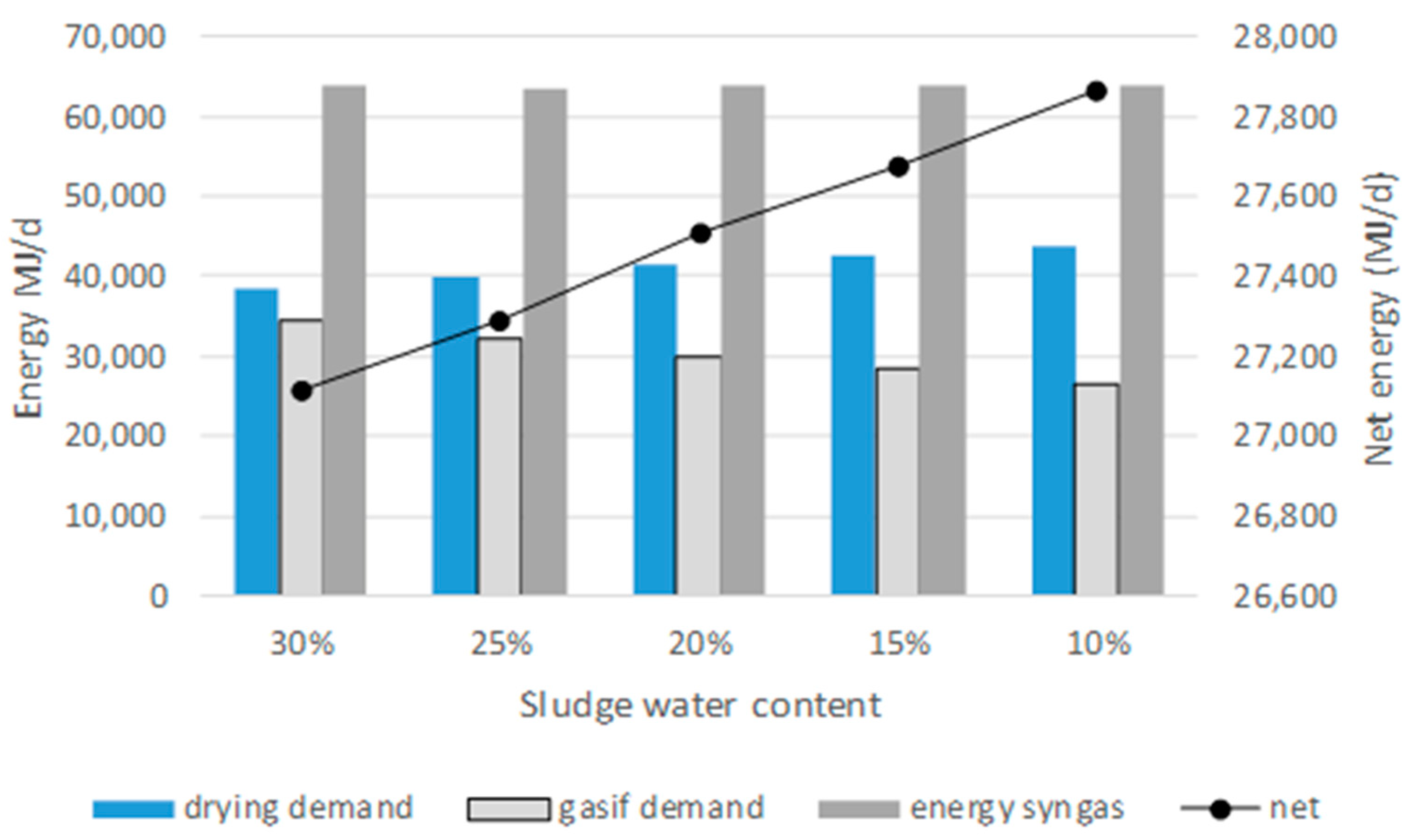

Pursuing a drier product did not yield sufficient syngas when considering the net energy balance, which is defined as the difference between the energy content of the syngas and the energy required for sludge drying and gasification. Achieving a lower water content does not result in greater benefits in the gasification process, even though the thermal demand of the gasifier was reduced. The slight decreasing trend in this basic balance was due to a reduced amount of syngas produced and its lower energy content. The presence of water affects gasification reactions; thus, a higher water content results in a higher hydrogen and methane proportion in the syngas, a feature demonstrated by several authors [94,95]. However, if bed temperature is not properly controlled, the high water content in the raw material may adversely affect performance because water evaporation is an endothermic process [96]. Although a positive net energy balance was obtained in the present case, the values derived from the balance were insignificant compared to the energy demanded by any of the previous operations. Therefore, sludge gasification can be proposed when the aim is to reduce the material requiring final disposal rather than obtain a clear energy benefit.

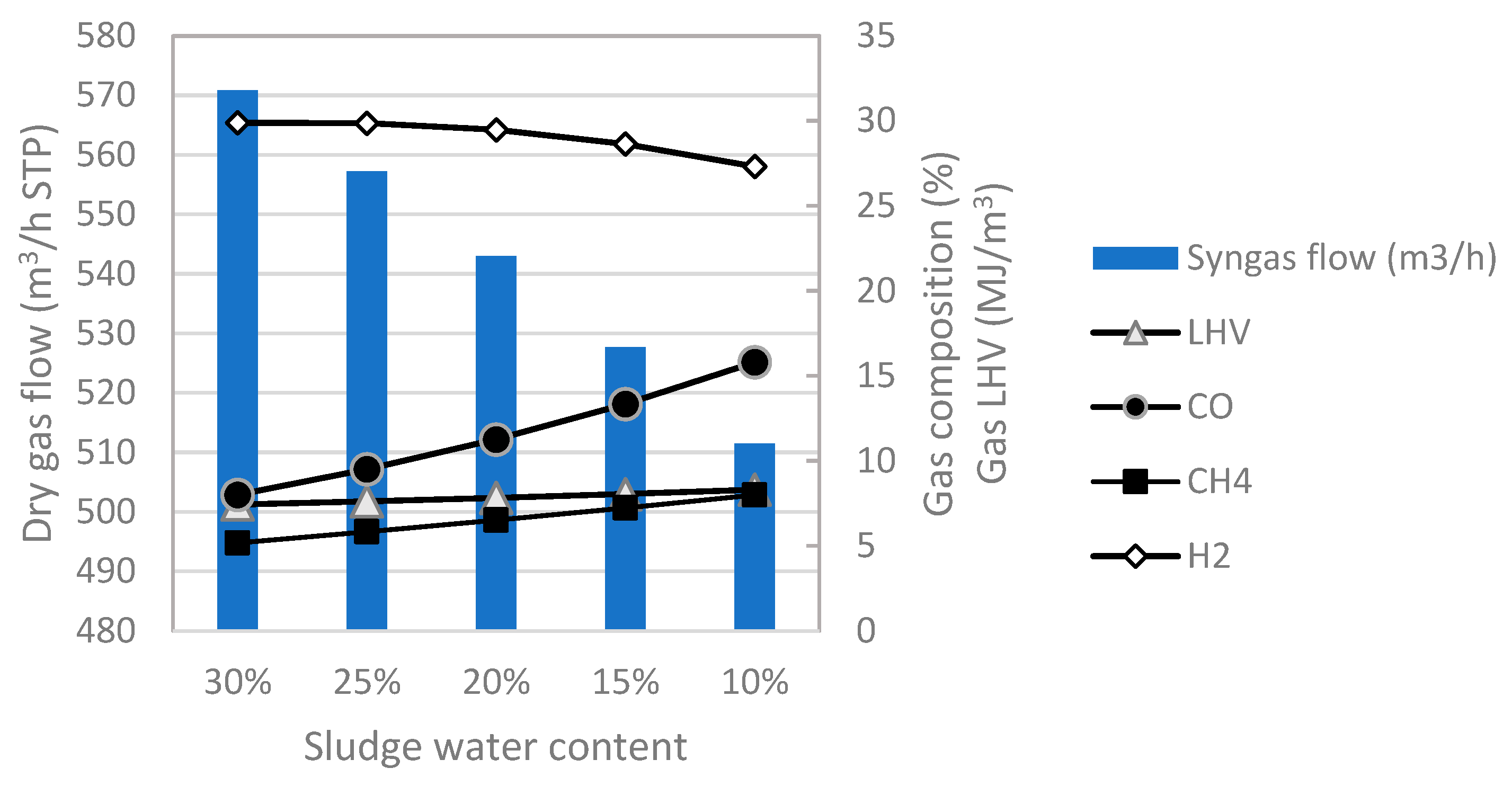

Figure 7 shows the volumetric production of syngas along with H2 and CH4 composition. Evidently, the higher the moisture content in the dried sludge, the higher the amount of water condensate in the syngas. However, a greater amount is available for the reaction to favor the conversion of organics into H2 and CH4. The condensable water in the syngas stream was reduced with increased drying efficiency. At 30% moisture content, 96.5 kg/h of water condensate was obtained, whereas this value was reduced to 21.9 kg/h at 10% moisture content. In addition, a lower CO concentration was found in syngas with greater water content in sludge, which agreed with the results reported by Xie et al. [97] and Ayol et al. [98]. Mun et al. [74] demonstrated that increasing the water content in sludge led to a higher hydrogen concentration in syngas, reaching values of approximately 25–30%. However, not all water in sludge is transformed into a valuable fuel. Some of this water remains as condensable water, as observed from simulation results, which, in the case of gasification, may contain hydrocarbon molecules, requiring special treatment before final disposal.
The LHV of the syngas was 7.5–8.0 MJ/m3 at an ER of 0.15. Depending on the type of gasifier utilized, this value may be significantly lower due to the requirement of introducing a larger quantity of air to assist in fluidizing the bed. At an ER of 0.25, the LHV was reduced to 5.6 MJ/m3 due to the dilution effect of nitrogen. This value was in accordance with results reported by other authors when dealing with pilot plant conditions [99,100]. In the present study, the addition of air was fixed to achieve a pre-established carbon conversion and a fixed value of 0.15 for the ER. Using pure oxygen as a gasification agent may produce syngas with higher energy content [101], but the costs associated with air distillation may offset any benefit in the energy balance.

3.2. Analyzing the Effect of Sludge Mineralization

Enhancing the mineralization capacity of the reactor increases gas production, which supports electricity generation and decreases the demand for sludge drying due to the reduced quantity of digestate. However, this feature also reduces the LHV of the digestate because of its higher ash content. The net energy balance shows disappointing results at any humidity level, but it improves as the water content of the dried sludge decreases. Figure 8 shows the results derived from the energy balance when assuming a 40% increase in SMP. The balance also considered the use of biogas in a CHP engine and the fact that high-grade thermal energy from the CHP unit is available to cover the drying demand. In the present case, the energy derived from syngas is much lower due to the smaller amount of digestate available. However, the integration of both processes (digestion and gasification) positively affects the energy balance despite the negative impact on drying requirements.
The energy balance may be improved if the thermal demand required for the process is supplied by a burner using indistinctly biogas or syngas (see Figure 9a). Given that the efficiency of producing heat from a burner is much higher, the energy balance was recalculated by assuming that the thermal energy was fully covered by process fuels (biogas and/or syngas). In this case, the main assumption for the process was the use of gaseous fuels to produce heat to complement the thermal demand supplied by the engine. Due to the high energy requirements for sludge drying and gasification (see Figure 9b), the integrated process produced an electricity output of approximately 600 kW. About 30% of the energy in the combined stream of biogas and syngas was diverted to the burner for all cases analyzed. However, when a hypothetical pretreatment was applied and digestion efficiency increased, the benefit was directly associated with the lower demand for drying sludge, given the lower mass produced (see Figure 9c). As is observed, the CHP engine can fully cover the digester thermal demand in this second case. The amount of electricity was higher thanks to the greater fuel availability for the CHP engine (81–85% of the gas fuel is available for the engine).
The use of pretreatment to boost biogas production has the main drawback of increasing overall energy demand. When a thermal pretreatment is assessed, the benefit of biogas enhancement should surpass the extra energy demanded by the pretreatment process itself, an evident fact clearly reviewed by Cano et al. [102], which is often forgotten. If an averaged thermal energy demand of 6.55 kWh/m3 of sludge at a TS content of 168 g/L is assumed [88,89,90], the thermal energy of the pretreatment accounts for 21.6 kW, which slightly affects the global balance. Therefore, for the case of drying sludge up to 10% water content, an increase of 23% is expected in electricity generation after considering the process integration and assuming a 40% enhancement in biogas production. This value reduces to 21.2% after subtracting the thermal demand of the pretreatment.

3.3. Syngas Conversion

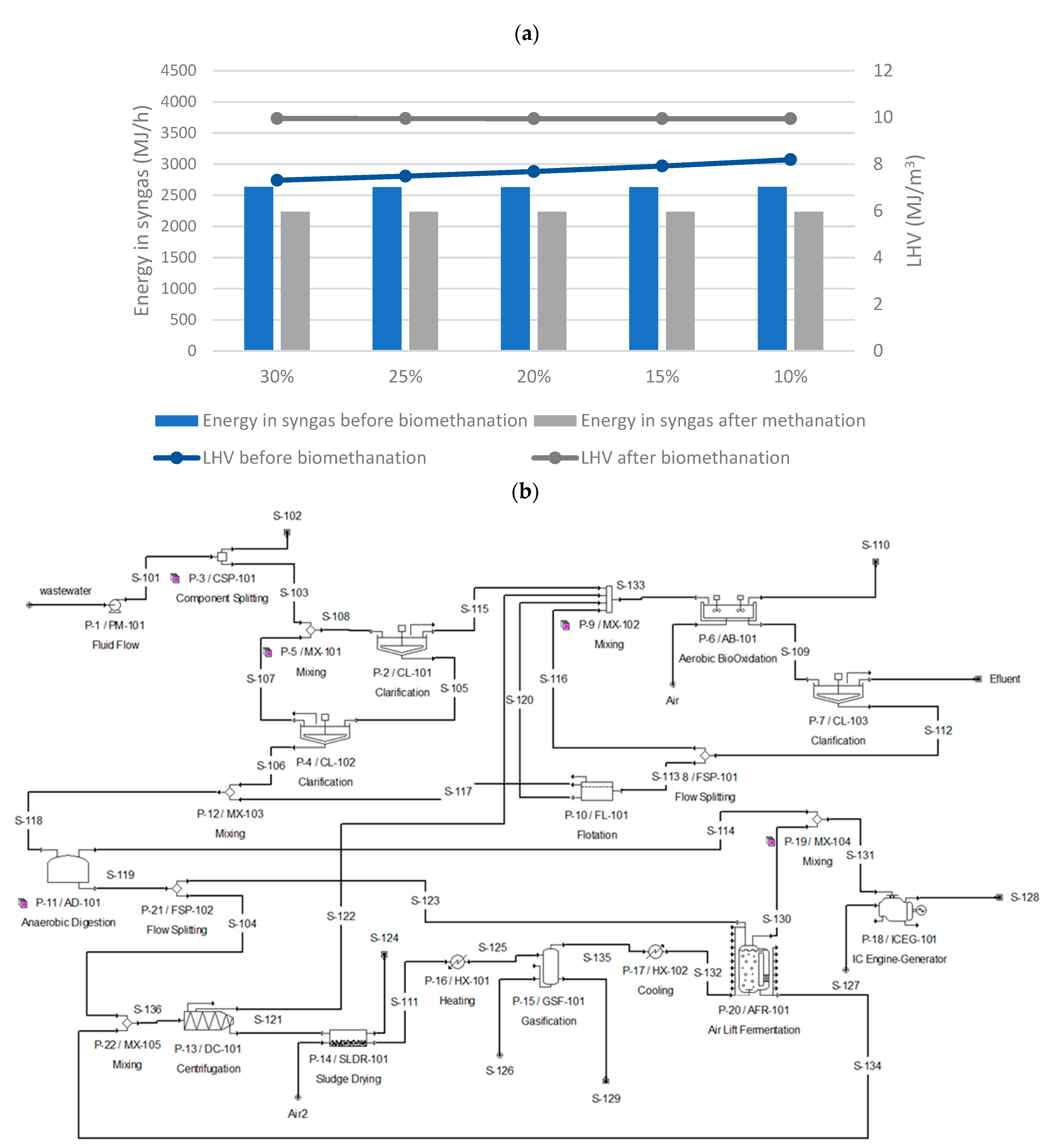

The biological transformation of syngas allows energy densification of the gaseous stream, thus reducing storage volume. The LHV of syngas can be increased from 7.7 MJ/m3 (average values of syngas obtained from all cases studied at 30–10% water content after drying) to 10 MJ/m3, attaining a volumetric reduction of 34% on average when H2 and CO are assumed to be transformed into methane (see Figure 10a). These results were obtained by assuming a 40% enhancement in biogas production (high mineralization case). Results in the case of conventional digestion followed a similar trend but with lower biogas production. This fuel has a poor calorific value due to the high CO2 and N2 content.
The results indicate that the energetic density of the stream is still low, and the total energy of the syngas stream is slightly reduced after the biological methanation process. The addition of a complex fermentation stage does not seem a feasible proposal. Implementing this biological conversion stage requires additional intermediary systems for attaining syngas cleaning, which was not considered in the present simplified approach (see Figure 10b). In fact, one major inconvenience of the gasification process is the presence of trace substances that may act as inhibitory molecules in chemical or biological transformations, such as hydrogen cyanide [54]. Another relevant parameter that is also a cause of concern is the presence of tar in syngas. No matter what the final use of syngas would be, removing these compounds is of the utmost importance to attain successful operation [54]. Even if the biological conversion stage is not included, the valorization of syngas by CHP engines still requires removing tar components to avoid problems associated with valve sticking and blocking inlet pipes.
The digestion of sewage sludge allows the recovery of energy captured in the form of biogas. However, the process also causes sludge mineralization since it is an intrinsic stabilization procedure. This increase in sludge mineral content creates an undesirable problem associated with slagging in gasifiers due to the low fusion temperature of sludge ashes [103]. Additionally, many gasification units operate below 1300 °C, generating conditions where tar formation is favored [104]. Tar is usually composed of compounds with a molecular weight greater than benzene, phenolic derivatives, olefins, and aromatic and polyaromatic hydrocarbons, among others. The formation of tar is influenced by several parameters, such as temperature, oxygen content, type of biomass material, and type of gasifier [105]. Product distribution obtained from the gasification of sludge reported by Mun et al. [74] under different operating conditions indicated that average values were about 69% for gas production, 18% for char, 10.4% for condensate liquid, and 1% for tar. Therefore, cleaning procedures must deal with poisoning substances in syngas, tar removal, and the final disposal of condensates. Ash content in sludge can be as high as 50% [12,98], but current small-scale gasifiers require low-ash material to avoid tar operating problems, as reported by Patuzzi et al. [106]. There seems to exist a contradiction between the expected application for gasification by scientific reports and the feasible current application of small gasification units.

4. Conclusions

The mass and energy balance based on the integrated approach (sludge digestion followed by gasification) showed better results than the conventional case (single digestion). The conventional WWTP case reported an electricity output of 411 kW, while the integrated approach reported approximately 600 kW. Improving digestion performance led to higher biogas production and increased sludge mineralization. This feature resulted in a better response due to the lower thermal demand for sludge drying. However, the energy derived from a subsequent gasification process was lower. Despite this fact, a positive net balance was still obtained, and electricity output reached a value between 690 kW and 726 kW when assessing the effect of sludge drying (30% water content in the first case and 10% in the latter). Reducing the mass of sludge requiring drying increased electricity production to 21.2% when considering the integrated approach (digestion–gasification) with a 40% increase in mineralization. The energy derived from syngas provides an auxiliary fuel to supply the extra heat needed for sludge drying. Nevertheless, several aspects still require a solution, such as those related to the energy demand of cleaning equipment for removing tar and inhibitory compounds from syngas. The densification stage based on a biological methanation process adds extra complexity to the approach and reduces any energy benefit due to the lower energy content of the treated stream.

Author Contributions

Conceptualization, X.G. and R.G.; methodology, X.G.; software, R.G.; validation, X.G. and S.G.-R.; formal analysis, R.G.; investigation, X.G.; data curation, R.G.; writing—original draft preparation, X.G.; writing—review and editing, S.G.-R.; visualization, S.G.-R.; supervision, X.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data will be made available upon request to the authors.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
CHPCombined heat and power
EREquivalence ratio
HRTHydraulic retention time
OLROrganic loading rate
LHVLower heating value
SMPSpecific methane production
VSVolatile solids
TSTotal solids
WWTPWastewater treatment plant
