Analytical Solutions for Current–Voltage Properties of PSCs and Equivalent Circuit Approximation

Abstract

Perovksite solar cells have emerged as a promising photovoltaic technology due to their high increasing power conversion efficiency (PCE). However, challenges related to thermal instability and material toxicity, especially in lead-based perovskites, bring the need to investigate alternative materials and structural designs. This study investigated the current–voltage and power–voltage characteristics of lead-free PSCs based on tin- and germanium using a two-diode equivalent circuit model. The novelty of this work was based on the intensive evaluation of three different electron transport layers (ETLs)—titanium dioxide (TiO₂), zinc oxide (ZnO), and tungsten trioxide (WO₃)—under different ambient temperature conditions (5 °C, 25 °C, and 55 °C) to study their impacts on device performance and the thermal stability. SCAPS-1D simulations were used to model the electrical and optical behaviors of the proposed perovskite structures, and the results were validated by using the two-diode model. The main performance parameters that were considered were open-circuit voltage, short-circuit current, maximum power point, and fill factor. The results showed that TiO₂ was better than ZnO and WO₃ as an ETL, achieving a PCE of 24.83% for Sn-based perovskites, and ZnO was the better choice for Ge-based perovskites at 25 °C, with an efficiency reaching ~15.39%. The three ETL materials showed high thermal stability when analyzing them at high ambient temperatures reaching 55 °C.

1. Introduction

Most of the electrical power used globally now is produced by nuclear- and fossil fuel-based sources. Combining photovoltaic (PV) systems with other forms of clean energy could help address the energy resource issue that we might encounter in the years to come. Sunlight is captured by a photovoltaic cell and transformed into electrical power [1,2,3]. A portion of the energy from the sun is transformed into electricity, while another portion is transformed into heat [4]. A silicon PV cell’s material qualities are impacted by this emitted heat, along with the potential rise in the surrounding temperature, which can negatively change the PV cell’s power output and, ultimately, its efficiency [5,6,7].

In contrast to fossil fuels, PV solar cells produce clean, silent energy by transforming sunlight into useable electricity without emitting any hazardous gases or materials into the atmosphere [8,9,10]. Small-scale solar energy systems are installed on vacant building roofs to provide electricity for devices. Numerous elements, from component quality to operational conditions, influence a solar PV system’s productivity.

From the three main renewable energy (RE) sources—solar, wind, and small hydropower—solar photovoltaics is the most widely used. This is due to the accessibility of PV elements, simplicity of setup, minimal upkeep expenses, and their ongoing price drop. Regional variations exist in the prospect of solar photovoltaic technology, with certain nations experiencing annual direct sun irradiation exceeding 300 W/m² (watt per square meter). A study [11] found that Kuwait is in an area with plenty of sunlight and is therefore expected to have a sharp rise in pollution and urbanization.

This increases the use of solar PV installations in Kuwait. By lowering CO₂ emissions, the installation of photovoltaic solar panels promotes environmentally friendly energy sources in addition to its importance in mitigating the sudden blackouts due to high temperatures, especially in the summer. Indeed, the efficacy of Si mono- and polycrystalline panels is only about 10% to 20%, despite the advancements in solar PV technology in terms of cost, structure, and efficiency [12]. However, according to recent PV lab tests [13], concentrated multi-junction cells have an efficiency of roughly 45% or higher. Research is still being performed to increase the conversion efficiency and lower the cost of PV panels.

Numerous factors, including site location, climate, panel direction, PV cell substance, PV cell layout, and installation technique, affect how well PV systems operate. Numerous PV materials with varying thermal and electrical features have been created and used in the manufacturing of PV cells over time. As a result of their diverse thermal conducting properties, these PV cell materials exhibit varying degrees of performance at high temperatures. One important factor in heat transport is thought to be a material’s thermal efficiency [14,15].

Photovoltaic (PV) technology has emerged as a leading renewable energy source. However, high temperatures negatively impact the performance and longevity of PV cells. This study examines the thermal effects on different PV materials, including silicon-based, thin film, and perovskite solar cells, and evaluates strategies to improve thermal efficiency [16].

Silicon is the most widely used semiconductor material for solar cells. However, its efficiency decreases with increasing temperature, due to the decrease in bandgap energy at high temperatures, increasing charge carrier recombination. In addition, higher temperatures raise resistive losses, lowering the fill factor (FF) and leading to microcracks and mechanical degradation [17]. On the other hand, thin-film solar cells offer better temperature stability than silicon-based cells, due to their high absorption coefficient and less impact from high temperatures [18]. For perovskite solar cells, high temperature > 85 °C will lead to a rapid degradation due to ion migration, but some research focuses on inorganic perovskites to improve their stability at high temperatures.

The cell increases in temperature above the safe operating restrictions due to the combination of the surrounding temperature and the unconverted radiation that the PV module absorbs. The extreme temperature shortens the PV panels’ service life by causing degradation and decreased electrical performance on the cell edges. According to research methodologies, high temperatures are negatively correlated with PV module power outages, and PV panels function better when a cooling procedure is used. The temperature of the PV cells is lowered to 22 °C using a variety of PV panel cooling techniques, such as water cooling and phase change material (PCM), to increase the cells’ output during dry and warm weather [19,20,21]. Thus, this research examines how two factors, PV cell technology and temperature, affect the efficiency of PV systems.

Perovskite solar cells (PSCs) have gained significant attention due to their rapid efficiency improvement, low-cost fabrication, and tunable bandgap. PSCs are based on hybrid organic–inorganic lead halide perovskites, which exhibit excellent optoelectronic properties, such as high absorption coefficients and long carrier diffusion lengths [22]. Recent developments have pushed power conversion efficiencies (PCEs) beyond 26% in tandem configurations, nearing the Shockley–Queisser limit for single-junction cells. However, stability remains a challenge, due to moisture, heat, and UV-induced degradation [23]. On the other hand, silicon (Si)-based photovoltaics dominate the commercial market, with monocrystalline silicon (c-Si) and polycrystalline silicon (p-Si) technologies being the most prevalent. These cells offer long-term stability, with lifetimes exceeding 25 years, and mature industrial production [24]. However, silicon solar cells have inherent limitations:

The commercial efficiency of silicon cells is between 22 and 24% [25].

High manufacturing costs: energy-intensive processes, such as high-temperature crystallization, increase production costs.

Lower absorption coefficient: it requires thick wafers (~180 μm), compared to perovskites (~500 nm).

To solve the thermal degradation challenges in PSCs, researchers are trying different approaches to enhance the stability of PSCs under real-world operating conditions [26]. Some of the solutions were found by implementing different strategies, such as incorporating mixed cation perovskite compositions [27], using protective interlayers [28], or employing cooling techniques [29]. Hence, more stable PSCs can be implemented.

Other efforts were also developed to design PSCs with different tools, such as using SCAPS-1D simulations. SCAPS-1D, a widely used one-dimensional solar cell simulation program, allows researchers to model the electrical and optical behaviors of multi-layered devices [30]. Recent studies have shown that SCAPS-1D simulations are very useful in finding the impacts of different transport layers and material compositions on PSC performance under high-temperature conditions [31]. These findings and designs can help researchers worldwide better understand the device structure and its behavior under different conditions.

In the current work, we are reporting a study to investigate the electrical and thermal performances of lead-free PSCs based on tin (Sn) and germanium (Ge) by using a two-diode equivalent circuit model and SCAPS-1D simulations. While PSCs have shown high power conversion efficiencies exceeding 20%, their usage as industrial models still suffers because of some challenges, such as thermal instability and the toxicity of lead-based materials. To solve these issues, this work focused on investigating the performance of Sn- and Ge-based perovskite structures with three different electron transport layers (ETLs), titanium dioxide (TiO₂), zinc oxide (ZnO), and tungsten trioxide (WO₃), under different ambient temperature conditions (5 °C, 25 °C, and 55 °C). This was achieved by analyzing key performance parameters, such as open-circuit voltage, short-circuit current, and fill factor. This study aimed to identify the most effective ETL for enhancing both the efficiency and thermal stability of lead-free PSCs. Furthermore, the results were validated with the use of an analytical two-diode model, providing an understanding of the correlations between material properties, device architecture, and environmental factors.

In this study, SCAPS 3.3.11 1D was employed as a specialized, one-dimensional solar cell simulation tool. SCAPS-1D enables the simulation of multi-layered solar cell structures with up to seven distinct layers. The software solves Poisson’s Equation (1) in conjunction with the continuity equations for both electrons and holes (2–3), which are presented below [30]:

$${\displaystyle \frac{d}{dx}}\left(-\in \left(x\right){\displaystyle \frac{d\psi }{dx}}\right)=q[p\left(x\right)-n\left(x\right)+N_D^{+}\left(x\right)-N_A^{-}\left(x\right)+p_t\left(x\right)-n_t\left(x\right)]$$

(1)

$${\displaystyle \frac{{dp}_n}{dt}}=G_p-{\displaystyle \frac{p_n-p_{n0}}{{\tau }_p}}+p_n{\mu }_p{\displaystyle \frac{d\xi }{dx}}+{\mu }_p\xi {\displaystyle \frac{d{p}_n}{dx}}+D_p{\displaystyle \frac{d^2{p}_n}{d{x}^2}}$$

(2)

$${\displaystyle \frac{{dn}_p}{dt}}=G_n-{\displaystyle \frac{n_p-n_{p0}}{{\tau }_n}}+n_p{\mu }_n{\displaystyle \frac{d\xi }{dx}}+{\mu }_n\xi {\displaystyle \frac{d{n}_p}{dx}}+D_n{\displaystyle \frac{d^2{n}_p}{d{x}^2}}$$

(3)

The simulations in SCAPS-1D were performed while considering a temperature of 300 K, air mass AM of 1.5 G, and irradiation intensity of 1000 W/m². The way SCAPS-1D operated was by taking the parameters of each layer, then working on the simulations by using Poisson’s and continuity equations, as presented in Equations (1)–(3) above. The light entered in a forward direction, as seen in Figure 1 below, which shows a schematic diagram of the solar cell’s simulated structure.

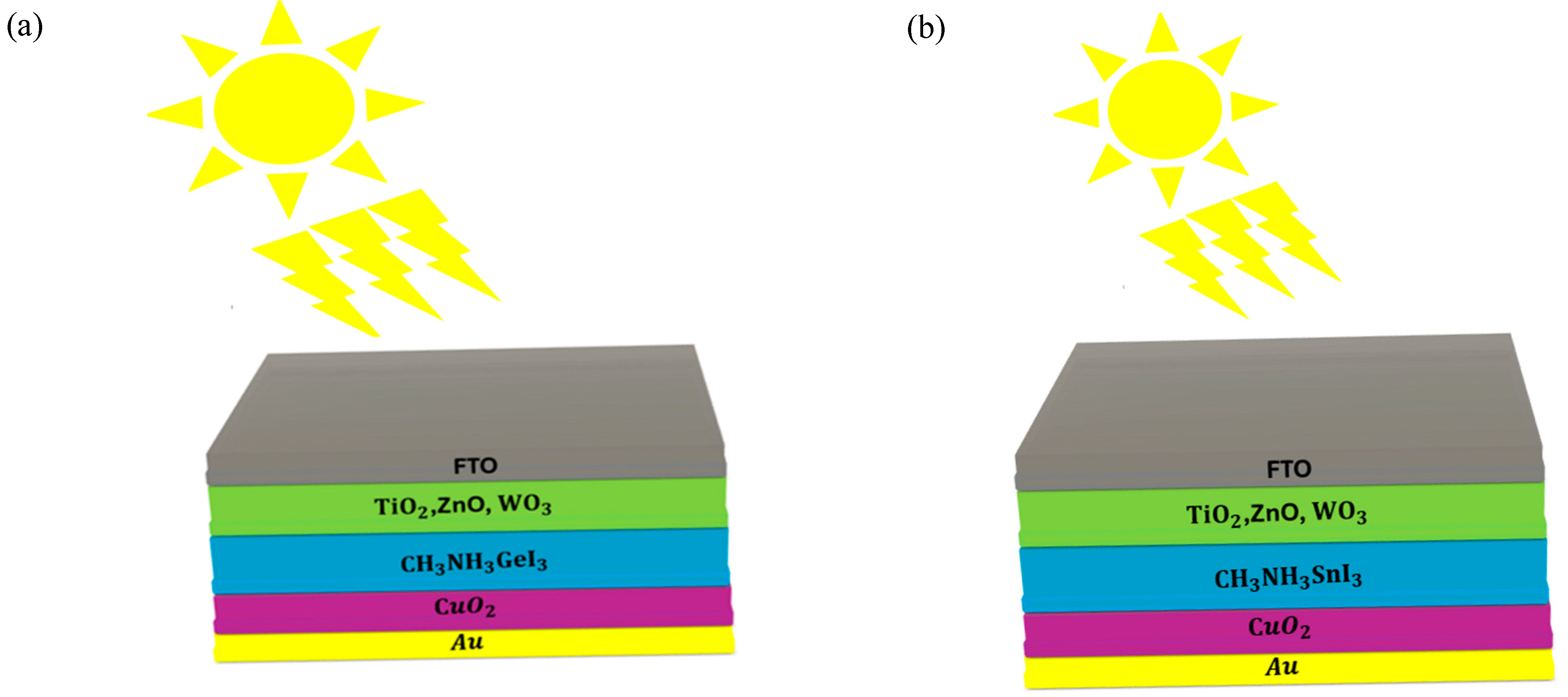

As seen from Figure 1, the structure of the PSC consisted of an electron transport layer/perovskite absorber layer/hole transmission layer [31]. This structure was a forward PSC, as the light entered the ETL, which was below the front contact, and existed from the hole transmission layer (HTL), which was above the back contact. The front contact was considered fluorine-doped tin oxide glass (FTO). On the other hand, the back contact was gold (Au). In this work, the perovskite layer was changed between Ge-based and Sn-based PSCs. These choices were taken into consideration, as they have low toxicity compared to the lead-based PSCs, and they are promising for achieving high efficiencies. In a previous work published by Al Atem et al., the ETL was varied between three different materials, which were TiO₂, ZnO, and WO₃. The variation in ETL revealed the best performance for the PSC with respect to the three different materials used.

1.1. PV Electrical Model

The model was predicated on the fundamental electrical circuit of a photovoltaic solar cell, considering the effects of temperature variations and sunlight, as shown in Figure 2. Since it generated current while lit and functioned as a diode in dark conditions, the current source (I_p) in the basic electrical circuit model of a photovoltaic cell was wired in parallel with a diode. As seen in Figure 2, the corresponding circuit model additionally incorporated parallel and series internal resistances, which were represented by resistors Rs and R_p. The influences of series resistance (R_s) and shunt (parallel) resistance (R_p) were incorporated based on the equivalent circuit representation of PSCs. The series resistance accounted for losses due to charge transport and contact resistance, while the shunt resistance reflected leakage pathways and recombination losses [18].

The optimum solar cell’s fundamental structure is a p–n junction, to which the following formulas apply when exposed to solar irradiation:

$$I=I_p-I_{d1}-I_{d2}-\left({\displaystyle \frac{V+I\times R_s}{R_p}}\right)$$

(4)

$$\left\{\begin{array}{c}{I}_{d1}=I_{m1}\times \left(e^{{\displaystyle \frac{q\times V}{c_1\times k_{b\times }{T}_s}}}-1\right)\\ I_{d2}=I_{m2}\times \left(e^{{\displaystyle \frac{q\times V}{c_2\times k_{b\times }{T}_s}}}-1\right)\end{array}\right\}$$

(5)

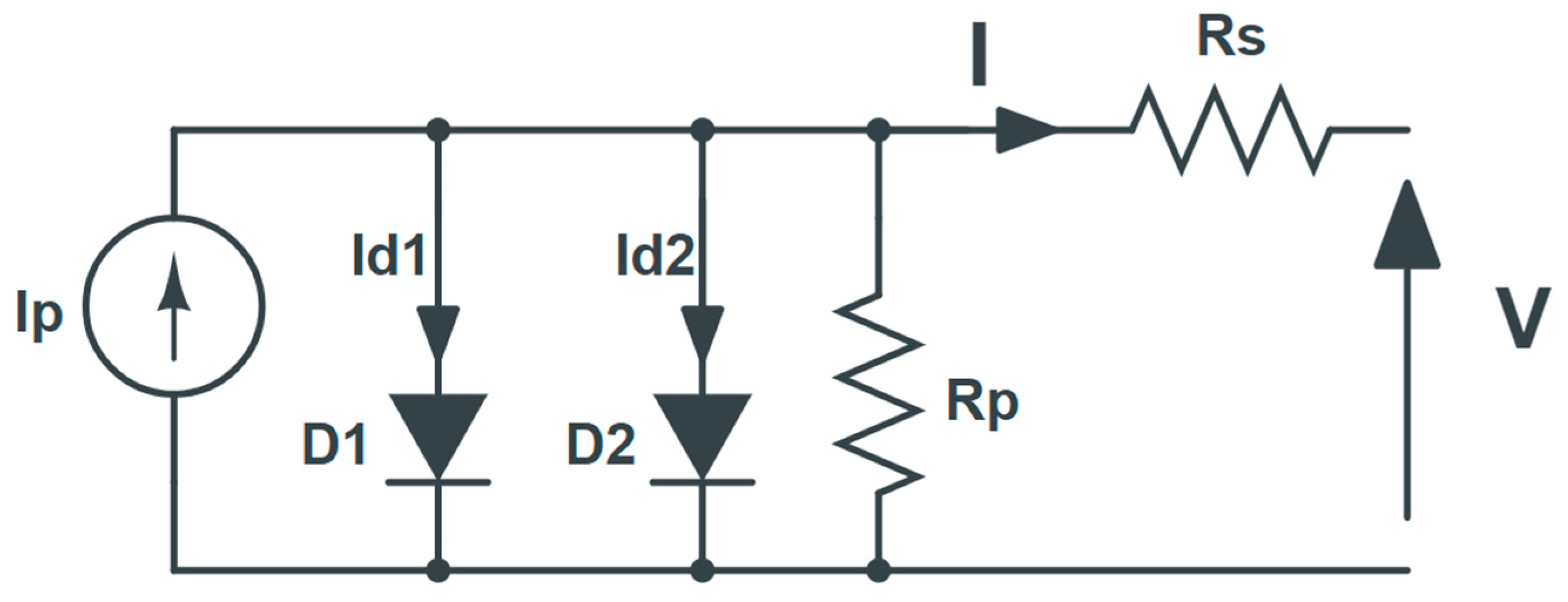

Equation (6) [32,33] can be used to characterize the current–voltage characteristic based on (4) and (5).

$$I=I_p-I_{m1}\times \left(e^{{\displaystyle \frac{q\times V}{c_1\times k_{b\times }{T}_s}}}-1\right)-I_{m2}\times \left(e^{{\displaystyle \frac{q\times V}{c_2\times k_{b\times }{T}_s}}}-1\right)-\left({\displaystyle \frac{V+I\times R_s}{R_{sh}}}\right)$$

(6)

The PV array’s voltage and current outputs are typically impacted by variations in temperature and radiation from the sun. Therefore, the final PV module’s model should additionally account for the effects of variations in temperature and solar radiation fluctuations. Burech et al.’s methodology was used to account for these impacts [31].

$$I_p=\left[I_{pr}+n_i\times \left(T_s-T_r\right)\right]\times {\displaystyle \frac{G}{G_r}}$$

(7)

$$I_{mn}=\left[I_{mr}\times {\left({\displaystyle \frac{T_s}{T_r}}\right)}^3\right]\times e{\displaystyle \frac{q\times E_{gap}\times \left(T_s-T_r\right)}{c_n\times k_b\times T_s\times T_r}};n=1 or 2$$

(8)

Using Burech’s method, a model was produced for known values of temperature and sun irradiation, which could be adjusted to account for other irradiance and temperature scenarios. As stated in [31], Equation (7) served as the reference method for the known operating temperature (T_s) and known solar irradiation level (G).

There was a linear correlation between I_p and the amount of light. Another temperature-related factor was I_m. Equations (7) and (8) provided the values of I_p and I_m [34]. The following Formula (9) provided the saturation reverse current I_mr at reference temperature T_r [35,36]:

$$I_{mr}={\displaystyle \frac{I_{scm}}{e^{\frac{V_{ocm}}{c\times V_{st}}}}}$$

(9)

Important factors related to the I-V properties that were impacted by changes in the environmental conditions were the open-circuit voltage (V_oc) and short-circuit current (I_sc). These formulas [37] can be used to compute both I_sc (10) and V_oc (11) across various outdoor circumstances:

$$I_{sc}=\left[I_{scm}+n_i\times \left(T_s-T_r\right)\right]\times {\displaystyle \frac{G}{G_r}}$$

(10)

$$V_{oc}=V_{ocm}+\left(T_s-T_r\right)$$

(11)

1.2. The Impact of R_s and R_p on the IV Characteristic

A solar cell’s maximum voltage and current were I_sc and V_oc, respectively. At these maximums, however, the PV cell’s power output was zero. We utilized the fill factor (FF) (12) to calculate the maximum power from a solar cell. This factor was the ratio of the maximum power provided by the solar cell to the product of V_oc and I_sc.

$$FF={\displaystyle \frac{V_{maxp}\times I_{maxp}}{V_{oc}\times I_{sc}}}$$

(12)

Equation (13) describes the impact of shunt and series resistances on the fill factor [38].

$$FF={FF}_0\times \left[\left(1-1.1\times R_s\right)+{\displaystyle \frac{R_s^2}{5.4}}\right]\times \left\{1-{\displaystyle \frac{V_{oc}+0.7}{V_{oc}}}\times {\displaystyle \frac{{FF}_0}{R_p}}\left[\left(1-1.1\times R_s\right)+{\displaystyle \frac{R_s^2}{5.4}}\right]\right\}$$

(13)

The definition of all used parameters in the model are mentioned in

Table 1. Symbols of all parameters and characteristics used in the PV two-diode electric model.

I	Cell Output Current, in A
Ip	The photocurrent is the current produced by the incident light, function of irradiation level, and junction temperature, in A
Id1	The current passing in D1, in A
Id2	The current passing in D2, in A
Im1	The saturated reverse current or leakage current for D1, in A
Im2	The saturated reverse current or leakage current for D2, in A
q	Electron charge = 1.602 × 10−19, in C.
kb	Boltzmann constant = 1.38 × 10−23, in J/k
V	Cell output voltage, in V
c1	The diode ideality factor of D1
c2	The diode ideality factor of D2
Rs	Series resistance of the cell, in Ω
Rp	Shunt resistance of the cell, in Ω
Vst	Thermal voltage, in V
Ipr	The photon current under standard conditions at Tref and Gref, in A
Imr	Reverse saturation current at reference temperature at Tref, in A
G	The intensity of solar irradiance, in W/m2
Gr	The reference intensity of solar irradiance = 1000, in W/m2
ni	Temperature coefficient of the short circuit current
Ts	Surface temperature of the PV cell
Tr	Reference cell operating temperature = 25 °C = 298 k
Egap	Bandgap of the semiconductor material
Iscm	Short-circuit current of the PV cell under standard conditions at Tr and Gr, in A
Vocm	Open-circuit voltage of the PV cell under standard conditions at Tr and Gr, in V
Isc	Short-circuit current of the PV cell under operating conditions at Ts and G, in A
Voc	Open-circuit voltage of the PV cell under operating conditions at Ts and G, in V
Vmaxp	The peak voltage of the PV cell, in V
Imaxp	The peak current of the PV cell, in A
FF0	The fill factor calculated when neglecting the effects of both shunt and series resistors.

.

1.3. Factors Influencing a PV System’s Performance

A PV system’s performance is influenced by several elements, which may be divided into two categories: weather and PV system setup parameters. The PV system setup characteristics include PV cell, panel orientation, storage, and self-consumption; the climatic parameters are wind speed, humidity, ambient temperature, and solar radiation intensity [38,39]. Other setup factors include interconnections, the inverter, and the controller. Individual component failure and performance have an impact on a PV system’s overall performance. In this research, we focused on the impact of the material, in addition to the temperature variation, on the efficiency of the PV solar cell.

2. Methodology

This study’s methodology was focused on using a two-diode model to validate the electrical performance of Ge and Sn perovskite structures. The steps listed below describe the methodology:

• The I-V and P-V properties of the suggested perovskite structures were modeled using the Solar Cell Capacitance Simulator (SCAPS) program. Real-world material qualities and operating conditions were taken into consideration when choosing the input parameters. Three ETLs were included in the simulations: WO₃, ZnO, and TiO₂. For every material, important factors like carrier mobility, bandgap energy, and layer thickness were changed.
• Furthermore, simulations were conducted at three different ambient temperatures: 55 °C (high temperature), 25 °C (normal circumstances), and 5 °C (low temperature) to evaluate thermal performance. These values were selected to reflect actual variations in Kuwait [39]. However, to forecast device performance, the two-diode model included variables like diode saturation current and series and shunt resistances [18].
• Each ETL’s major performance metrics, V_oc, I_sc, I_maxp, and V_maxp, were taken from the analytical model and compared to the outcomes of the SCAPS simulation after the equations regulating current–voltage behavior were solved repeatedly. The statistical comparison idea was used to develop data analysis. Specifically, mean absolute error (MAE) and percentage deviation were used to statistically compare the SCAPS outcomes to analytical forecasts. In addition to that, the agreement between the simulated and analytical data was visually evaluated by plotting the I-V and P-V curves for each structure.
• The power conversion efficiencies were then calculated from maximum power point values and examined for consistency among ETLs and temperature fluctuations before ultimately being investigated.

3. Results and Discussion

This study focused on verifying a two-diode electrical model for suggested Ge and Sn perovskite structures. Simulations were run utilizing SCAPS-1D software, and the results were compared to an analytical electrical model to confirm correctness and dependability. The work analyzed I-V and P-V curves for several ETLs, including TiO₂, ZnO, and WO₃. Critical performance parameters, such as open-circuit voltage (V_oc), short-circuit current (I_sc), maximum power point current (I_maxp), and maximum power point voltage (V_maxp), were analyzed to ensure that they were consistent with the suggested model. Furthermore, the study looked at temperature impacts (5 °C, 25 °C, and 55 °C) to assess the thermal stability and consistency of the results, as shown in Figure 3.

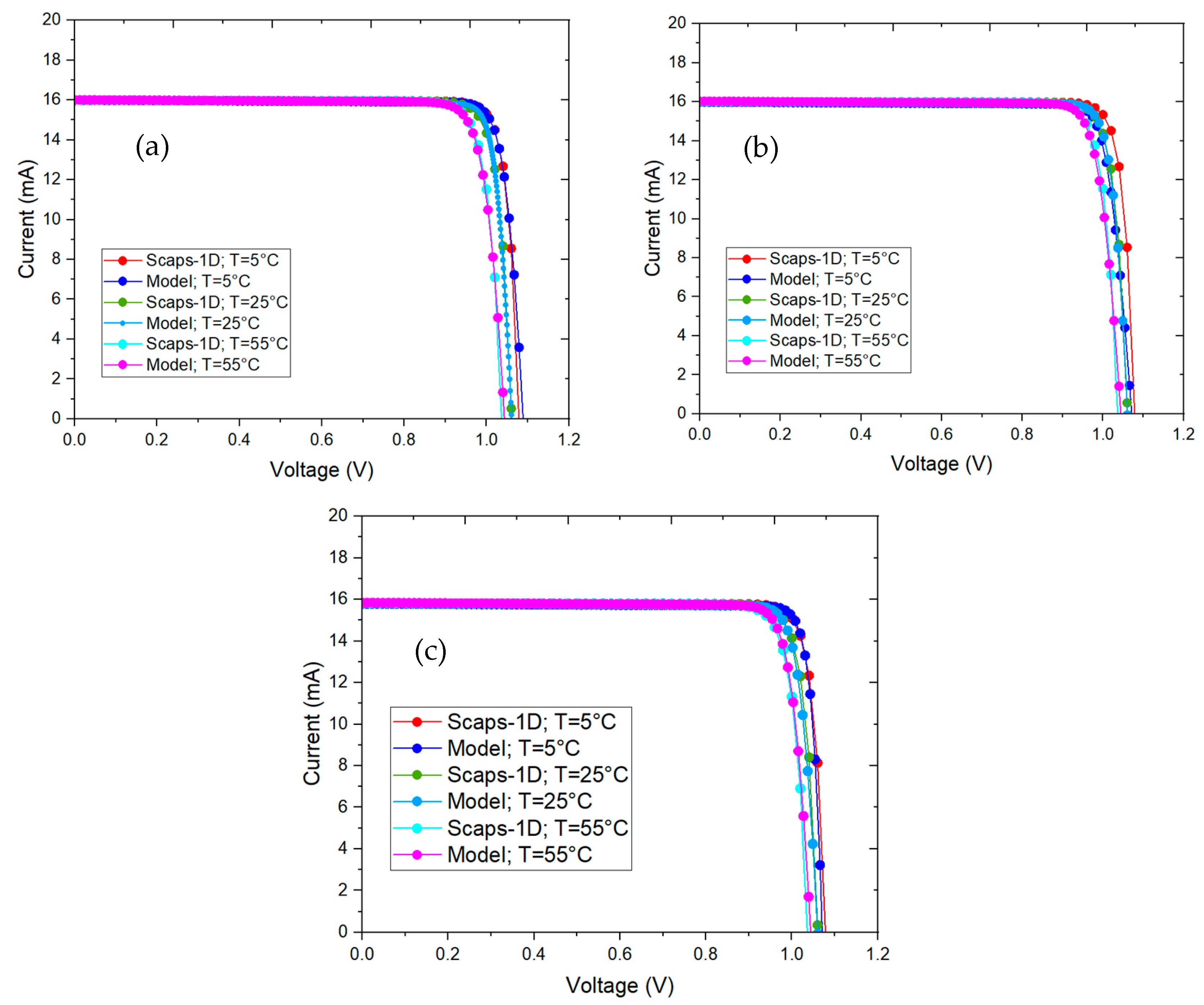

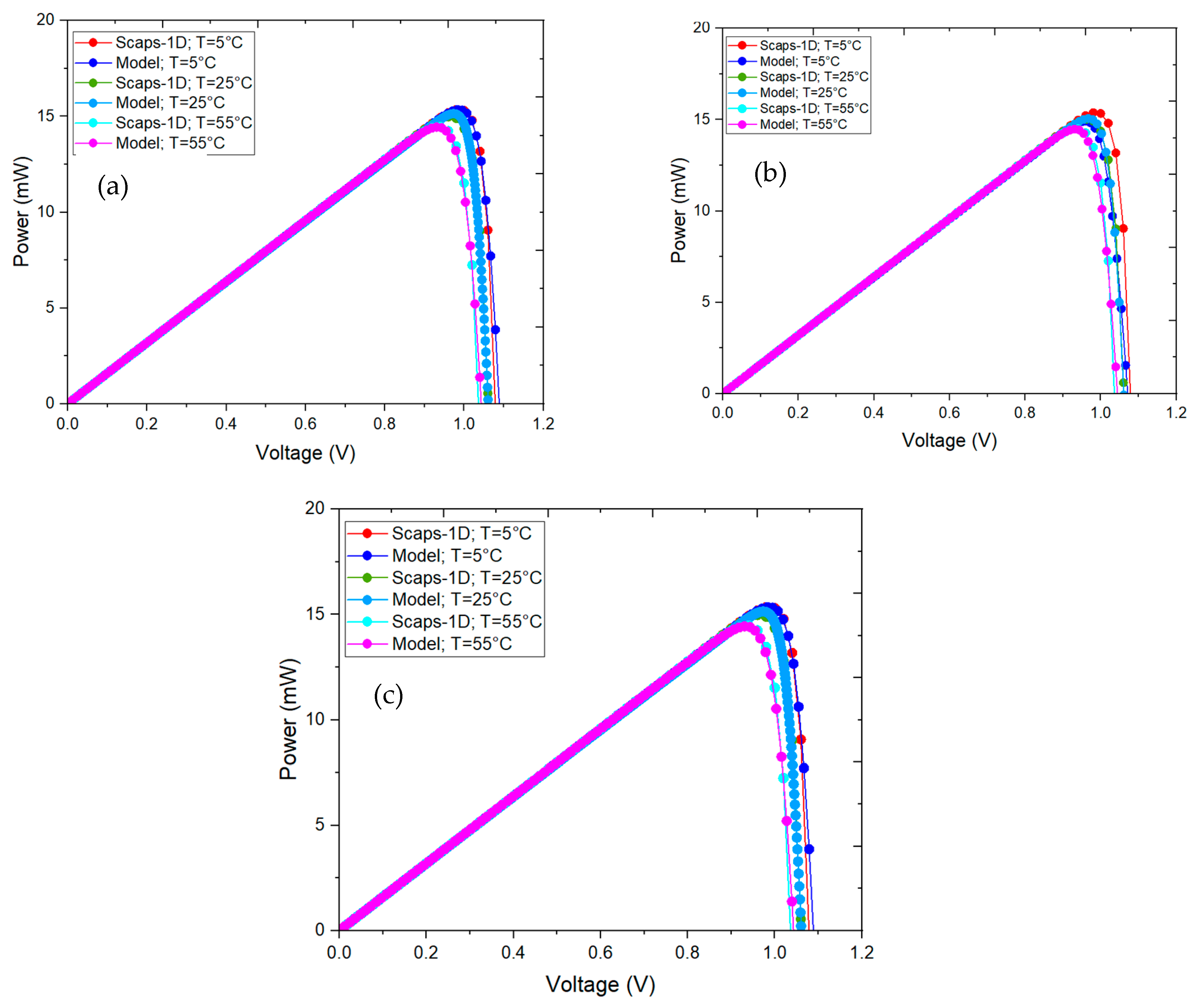

For Ge perovskite structures, the performance of ZnO as an ETL showed a strong match between the simulated and analytical models, as noted in Figure 3. The open-circuit voltage was 1.078 V, which was very close to the predicted value of ~1.06 V. Similarly, the short-circuit current from the simulation was 16 mA, almost identical to the analytical value of 15.9 mA, with a small error of 0.8%. At the maximum power point, the simulated current and voltage were 15.5 mA and 0.96 V, respectively, which are very close to the predicted values of 15.3 mA and 0.95 V. These results can show that ZnO is effective as an ETL for Ge-based structures. The performance of TiO₂ as an ETL with Ge perovskite structures showed a slight variation between simulated and analytical results, as shown in Figure 3. The open-circuit voltage from the simulation was approximately 1.078 V, compared to the predicted value of 1.058 V, indicating a minor deviation. However, at the maximum power point, the simulated current (I_maxp) and voltage (V_maxp) deviated by 1.8% from the analytical predictions. Furthermore, the performance of WO₃ as an ETL demonstrated promising results, as shown in Figure 3. The open-circuit voltage was 1.078 V, comparable to the values achieved with TiO₂ and ZnO. The short-circuit current was 15.8 mA, which is very close to the predicted value, with a minimal error of just 0.5%. It can be noted that ZnO-based cells delivered the best performance among the other simulated ETLs, achieving an efficiency of 15.39%.

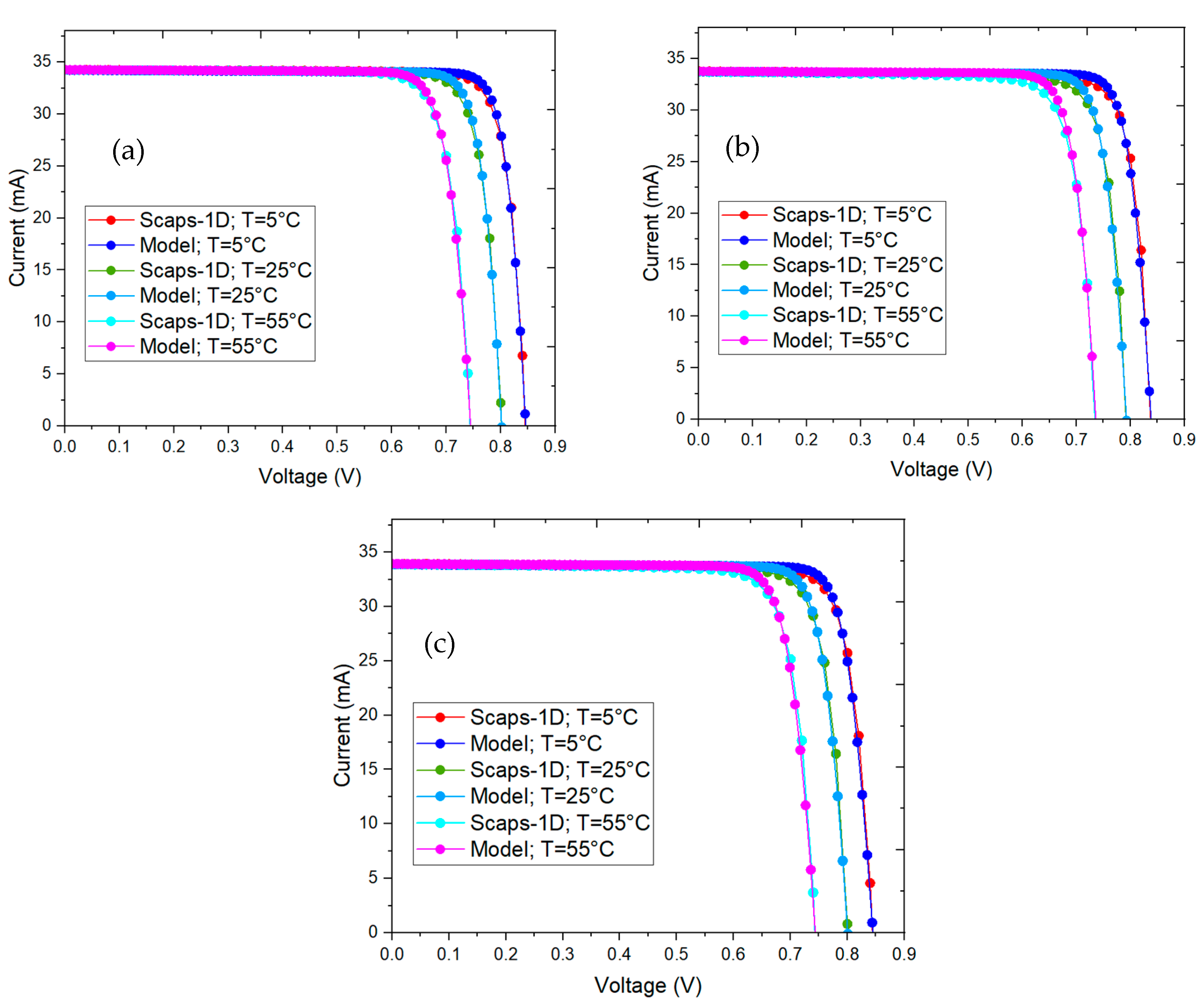

On the other hand, the performance of Sn-based perovskite structures with TiO₂ as an ETL was different and more promising than the Ge-based results, as shown in Figure 4. The simulated open-circuit voltage was 0.84 V, which is a perfect match to the analytical estimation. The short-circuit current reached 34.25 mA. This showed an efficient charge transfer within the structure. At the maximum power point, the simulated current (I_maxp) and voltage (V_maxp) resulted in an overall efficiency of 24.83%, which was notably higher than that of Ge-based structures due to the better material properties of Sn perovskites, compared to Ge perovskites. These results demonstrated that TiO₂ is strongly compatible with Sn perovskites for achieving high-efficiency solar cells, as seen in Figure 4a. Additionally, the performance of Sn-based perovskite structures with ZnO and WO₃ as ETLs showed few differences. ZnO delivered moderate results, with an open-circuit voltage of ~0.83 V and a short-circuit current of ~33 mA, resulting in an efficiency of ~24%, as noted in Figure 4b,c. In comparison, WO₃ was better than ZnO, achieving a slightly higher efficiency of 24.11%. These results showed that WO₃ had a better performance under different operating conditions, making it a more desirable ETL choice for Sn-based PSCs than using ZnO.

Temperature effects on the I-V and P-V characteristics revealed significant information about the thermal performances of Ge and Sn perovskite structures, as shown in Figure 5. For Ge perovskites, a slight increase in V_oc was observed at 5 °C due to reduced recombination rates, with TiO₂ showing the least deviation, as shown in Figure 5a. At 55 °C, however, V_oc dropped significantly, particularly for WO₃, which experienced an 8% efficiency loss, indicating poorer thermal stability, as shown in Figure 5c. Likewise, TiO₂ maintained 85% of its efficiency and demonstrated the highest power output under thermal stress.

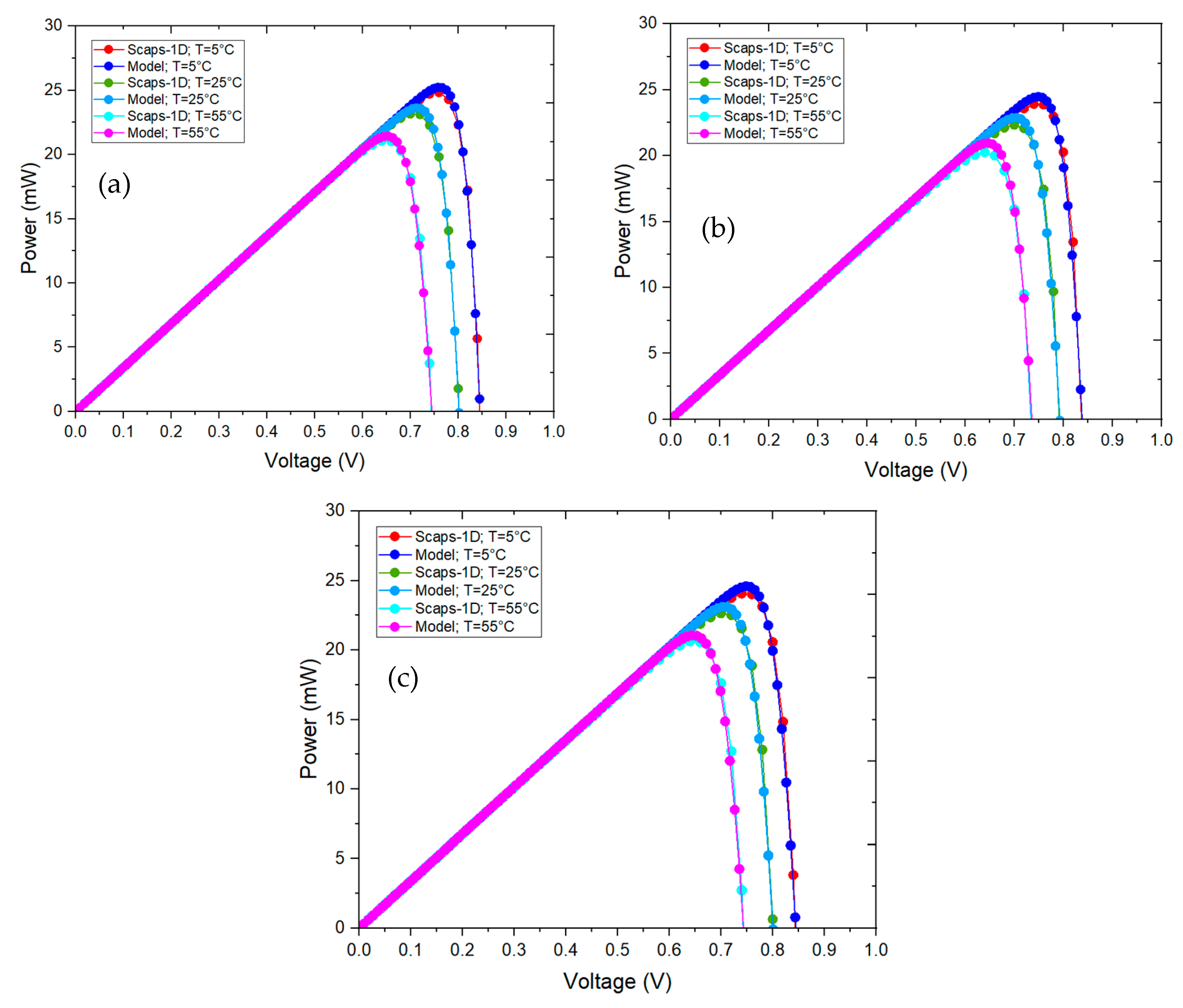

For Sn perovskites, the cells were more temperature sensitive, with efficiency reductions of up to ~15% at 55 °C for WO₃, as shown in Figure 6. Among the tested ETLs, TiO₂ proved to be better in performance, as it had the best efficiency of ~24.83%. Overall, TiO₂ appeared to act as the optimal ETL for Sn-based perovskite structures and ZnO for Ge-based perovskite structures, providing a balance of high V_oc, strong I_SC, and high thermal stability. While ZnO showed reliable performance, it was a better choice for Ge when compared to Sn-based structures. The suggested two-diode electrical model was validated by the I-V and P-V curve analysis, and the simulated results closely matched the analytical predictions. With its greater efficiency and thermal stability, TiO₂ was found to be the most efficient ETL in both Sn-based structures, and ZnO was found to be the most efficient for Ge-based perovskite structures.

4. Conclusions

This study investigated the performance and thermal stability of lead-free PSCs based on tin and germanium using a two-diode equivalent circuit model and SCAPS-1D simulations. Three electron transport layers, TiO₂, ZnO, and WO₃, were investigated under varying ambient temperature conditions (5 °C, 25 °C, and 55 °C) to identify the most effective ETL for enhancing device efficiency and thermal stability. For Ge-based perovskite structures, ZnO showed the best performance, achieving an efficiency of 15.39% at 5 °C, with an open-circuit voltage of 1.078 V and a short-circuit current of 16 mA, although the three materials showed high thermal stability. For Sn-based perovskite structures, TiO₂ again emerged as the optimal ETL, achieving a remarkable efficiency of 24.83% at 5 °C, with an open-circuit voltage of 0.84 V and a short-circuit current of 34.25 mA. However, Sn-based cells were more sensitive to temperature changes, although the three materials showed high thermal stability, as they retained ~85% of their efficiency at higher temperatures. These results clearly showed the importance of selecting thermally stable ETLs, particularly for Sn-based perovskites, which exhibited higher efficiency but greater temperature sensitivity. The findings, summarized in

Table 2. Performance and stability of CH₃NH₃SnI₃ and CH₃NH₃GeI₃ solar cells at 5 °C.

Structure	Ge-Based Perovskite (and CH3NH3GeI3)			Sn-Based Perovskite (CH3NH3SnI3)
ETL	TiO2	ZnO	WO3	TiO2	ZnO	WO3
Efficiency (%)	15.36	15.39	15.18	24.83	23.94	24.11
Isc (mA)	15.98	16.00	15.81	34.25	33.79	33.92
Voc (V)	1.078	1.078	1.078	0.84	0.83	0.84
FF (%)	89.11	89.17	89.00	85.74	84.56	84.13

and

Table 3. Performance and stability of CH₃NH₃SnI₃ and CH₃NH₃GeI₃ solar cells at 55 °C.

Structure	Ge-Based Perovskite (and CH3NH3GeI3)			Sn-Based Perovskite (CH3NH3SnI3)
ETL material	TiO2	ZnO	WO3	TiO2	ZnO	WO3
Efficiency (%)	14.47	14.50	14.32	21.09	20.25	20.67
Isc (mA)	15.98	16.00	15.81	34.23	33.70	33.87
Voc (V)	1.036	1.036	1.036	0.74	0.73	0.74
FF (%)	87.36	87.41	87.34	82.72	81.73	82.05

, showed that TiO₂ was the most promising ETL for both Ge- and Sn-based PSCs, offering a balance of high efficiency and thermal stability.
