Electrodeposition of Aluminum in the 1-Ethyl-3-Methylimidazolium Tetrachloroaluminate Ionic Liquid

Abstract

The electrodeposition of Al was investigated in an ionic liquid (IL), with 1-ethyl-3-methylimidazolium tetrachloroaluminate ([EMIm]AlCl₄) as the electrolyte with AlCl₃ precursor. The [EMIm]AlCl₄ electrolyte exhibited a wide and stable electrochemical window from 3.2 to 2.3 V on a glassy carbon electrode when temperature was increased from 30 °C to 110 °C. The addition of AlCl₃ into [EMIm]AlCl₄ generated significant well-developed nucleation growth loops, and new coupled reduction and oxidation peaks in cyclic voltammograms corresponding to the Al deposition and dissolution, respectively. A calculation model was proposed predicting compositions of anions in AlCl₃/[EMIm]AlCl₄ system, and [Al₂Cl₇]⁻ was found to be the active species for Al deposition. In AlCl₃/[EMIm]AlCl₄ (1:5), the reduction rate constants were 1.18 × 10⁻⁵ cm s⁻¹ and 3.37 × 10⁻⁴ cm s⁻¹ at 30 °C and 110 °C, respectively. Scanning electron microscope (SEM), energy dispersive spectroscope (EDS), and X-ray diffraction (XRD) microscope results showed that the metallic Al film had been successfully deposited on glassy carbon electrodes through constant-potential cathodic reductions. The [EMIm]AlCl₄ was a promising electrolyte directly used for Al deposition.

1. Introduction

Al materials and coatings have been extensively investigated in electronic and automotive industries due to their excellent conductivity, corrosion resistance, and wear tolerance [1,2]. Al can be electrochemically deposited from ionic liquids with an aluminum salt precursor, due to the wide electrochemical window of ionic liquids. The deposits were affected by factors, such as the substrate materials [3], composition of the mixture (AlCl₃-to-IL ratio) [4,5,6], operating temperature [7,8,9,10], deposition current density [9,11], substrate pretreatment [11], stirring [7,8,12], and additives [7,13].

The AlCl₃-to-IL ratio determines the distribution of various Al anion species and viscosity of the system, which controls reaction kinetics and diffusion process for Al deposition. The AlCl₃/[BMIm]Cl mixtures with 2:1 molar ratio resulted in a dull Al deposit whereas the 1.5:1 molar ratio mixture led to a bright Al surface because the AlCl₃/[BMIm]Cl at 1.5:1 is more viscous with less aluminum complex ions [4]. Al deposition is the direct result from electrochemical reduction of chloroaluminate complexes [14,15].

In general, the chloroacidity determines reactivity and electrochemistry in the ionic liquid electrolyte. The Al deposition chemistry is complicated because of the chemical nature of different chloroaluminate complexes species including chemical equilibria and interconversion [16,17]. The equilibrium composition was highly dependent on the amount of AlCl₃ added to the ionic liquid. The main anions are [AlCl₄]⁻, [Al₂Cl₇]⁻, and Cl⁻ in the alkylimidazolium chloride and AlCl₃ solutions [18,19,20]. When AlCl₃ concentration is high, more complicated anions such as [Al₃Cl₁₀]⁻, [Al₄Cl₁₃]⁻, and [Al₂OCl₅]⁻ will be formed, which are confirmed by Infrared (IR) spectroscopy and the Nuclear Magnetic Resonance (NMR) spectroscopy [21].

Various ionic liquids have been investigated for Al deposition including 1-methyl-3-ethylimidazolium chloride ([MEIm]Cl) [18,19,20,22,23,24,25], 1-ethyl-3-methylimidazolium chloride ([EMIm]Cl) [3,11,26,27,28,29], 1-butylpyrrolidine [30], 1-butyl-3-methylimidazolium chloride ([BMIm]Cl) [4,7,8,9,31], and 1-(2-methoxyethyl)-3-methylimidazolium chloride ([MoeMIm]Cl) [32]. One class of ionic liquids, imidazolium-based tetrachloroaluminates, has much lower melting points than its chloride counterpart. These ionic liquid systems also received attention in battery applications [33]. Al metal was found as a deposit in an ethylimidazolium-contained system [33,34,35,36,37]. A representative of this class is 1-ethyl-3-methylimidazolium tetrachloroaluminate ([EMIm]AlCl₄) with melting point of 9 °C while the melting point for its chloride counterpart [EMIm]Cl is at 77–79 °C. [EMIm]AlCl₄ can simplify the preparation process for electrochemical deposition with better control on mixing and heating. Furthermore, it is commercially available on industrial scale and makes Al deposition possible directly at lower temperatures. However, there is only some computational study available for exploring the unique physical properties of the tetrachloroaluminate systems recently [38,39]. However, due to the sensitivity of moisture and oxygen in the experimental performance in ionic liquids, the operations need to be conducted in protective atmosphere such as an inert gas environment. It makes the promotion and scale-up of the process difficult in larger scales [3,30]. The electrochemical characteristics of these systems have not received attention and their potential as a medium for the Al deposition has not been examined.

In this work, the electrochemical window of the [EMIm]AlCl₄ will be defined and thermodynamic models for AlCl₃/IL systems at 30 °C and 110 °C will be developed. By employing AlCl₃/[EMIm]AlCl₄ as the electrolyte, electrodepositions will be carried out on glass carbon substrates in the open air, and the products will be characterized for the morphology, composition, and phase information. These results will be of academic and industrial interest in not only the development of metal deposition processes, but also employing the electrochemistry of the [EMIm]AlCl₄ as a model system to deepen our understanding of the related process chemistry and electrode reactions.

2. Experimental

2.1. Chemicals and Materials

AlCl₃ (99%, Alfa Aesar, Tewksbury, MA, USA) and [EMIm]AlCl₄ (C₆H₁₁AlCl₄N₂ ≥ 95%, Sigma Aldrich, St. Louis, MO, USA) were used for Al electrodepositions. [EMIm]AlCl₄ is a light-yellow transparent liquid at room temperature. All chemicals were used as received. Glassy carbon disk electrodes were used as working electrode (GC, 1 mm diameter, eDAQ, Colorado Spring, CO, USA). Aluminum wires were used as counterelectrode and reference electrode (1 mm diameter, 99.9995% metal basis, Alfa Aesar). Techne Dri-Block^® Digital Block Heater was used for temperature control (±1 °C). A 3 mL glass vial (eDAQ Inc. Colorado Spring, CO, USA) was used for electrodeposition cell. VersaSTAT 4 Potentiostat (Princeton Applied Research, Oak Ridge, TN, USA) with VersaStudio was used for all electrochemical measurements and data acquisition.

2.2. Procedure and Methodology

To determine the stability of [EMIm]AlCl₄, cyclic voltammetry (CV) was measured for [EMIm]AlCl₄ in the three-electrode electrochemical cell at a series of temperatures including 30 °C, 50 °C, 70 °C, 90 °C, and 110 °C at a scan rate 100 mV s⁻¹.

AlCl₃/[EMIm]AlCl₄ mixtures were prepared by adding portion of AlCl₃ powders into the [EMIm]AlCl₄ liquid at the room temperature and heated up to 110 °C for 2 h until homogeneity was reached. As the electrical conductivity for AlCl₃/IL (exclusive of Al species) started to decrease when the ratio was higher than 1 [25], a small amount of AlCl₃ was added and the final ionic liquid mixture was AlCl₃/[EMIm]AlCl₄ at a molar ratio of 1:5. In order to determine the Al³⁺ reduction potential, CVs in AlCl₃/[EMIm]AlCl₄ (1:5) were measured at various scan rates including 10, 20, 50, 100, and 150 mV s⁻¹ at 30 °C and 110 °C, respectively. The nucleation mechanism was studied by short-time chronoamperometry (CA) measurements. The current-time transients were measured by applying a series of constant cathodic potentials in the kinetic regime. After each current-time transient measurement, a constant potential 1.0 V was applied on the glassy carbon disk working electrode for 5 min to clean the electrode surface and remove the Al layer on the working electrode. All potentials were reported versus the Al reference electrode.

The Al electrodepositions in AlCl₃/[EMIm]AlCl₄ (1:5) were carried out by long-time CA measurements. The constant potential depositions were controlled a little higher than the Al/Al³⁺ potential. A polished and clean Al wire working electrode was used for each deposition. The Al deposition samples were washed thoroughly in acetonitrile first and then acetone. The samples were left in air at room temperature for 24 h before any material characterization.

The Al deposition samples were analyzed using a JEOL JSM-6610LV scanning electron microscope (SEM, Apollo SDD X-Ray spectrometer, 20 kV) for morphology and elemental composition information. The X-ray diffraction (XRD) was performed for the Al deposits from 30° to 90° (2 theta) at 4° min⁻¹ for phase identification (Rigaku SmartLab, Cu Kα radiation, λ = 1.54056 Å, voltage = 40 kV and current = 44 mA).

2.3. Chloroaluminate Complexes Distribution Calculation

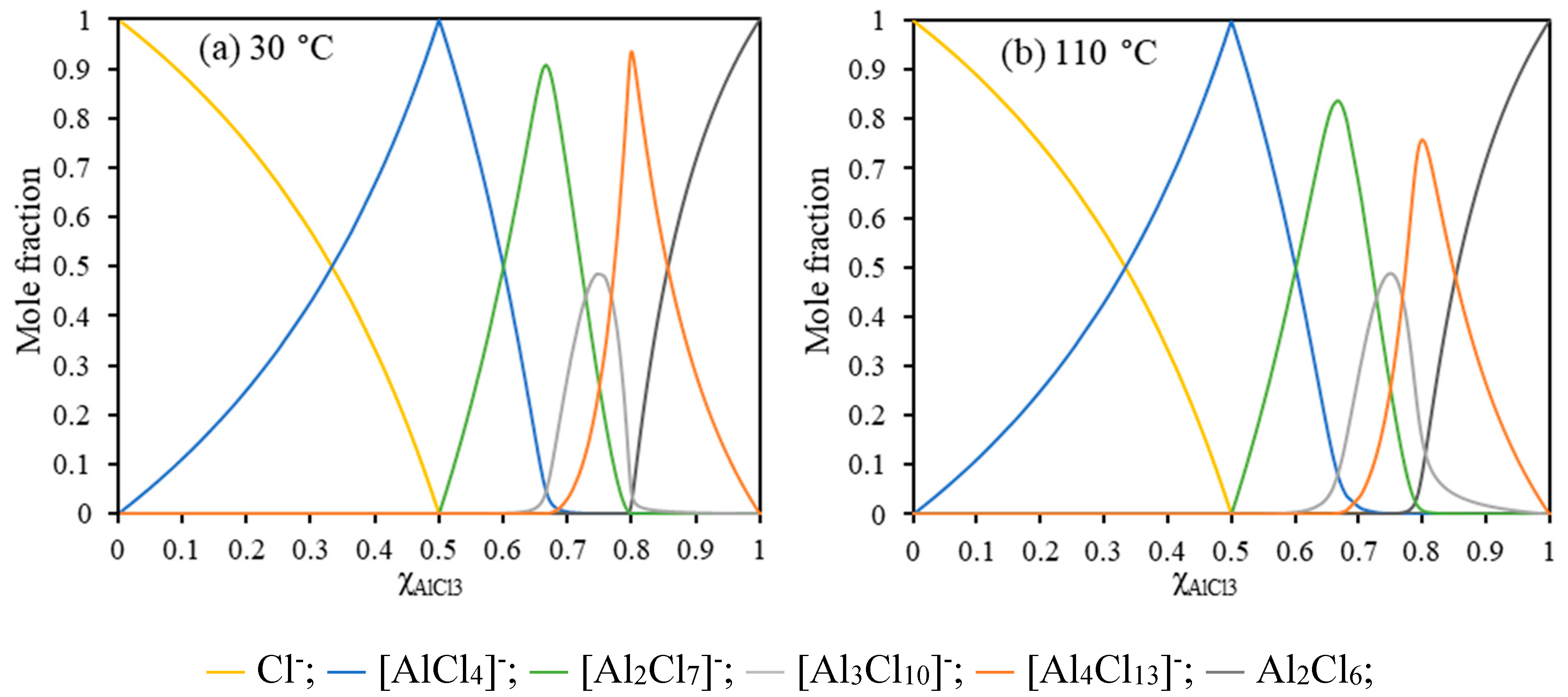

Al anions in the AlCl₃/[EMIm]AlCl₄ solution included [AlCl₄]⁻, [Al₂Cl₇]⁻, [Al₃Cl₁₀]⁻, and [Al₄Cl₁₃]⁻ [18,19,20]. The distributions of the Al anions for AlCl₃/[EMIm]AlCl₄ (1:5) at 30 °C and 110 °C were calculated based on $K_i=\exp (\frac{-\Delta H_i{}^0}{RT}+\frac{\Delta S_i{}^0}{R})$ using standard entropy and enthalpy (

Table 1. Thermodynamic equilibrium parameters for Al₂Cl₆ equilibria reactions.

Reaction	* ∆H0 /kJ mol−1	* ∆S0 /J mol−1 K−1	K (30 °C)	K (110 °C)
1	69.547	−172.17	1.04 × 10−21	3.32 × 10−19
2	40.940	37.89	8.34 × 10−6	2.49 × 10−4
3	25.574	36.78	3.25 × 10−3	2.71 × 10−2
4	25.704	47.90	1.18 × 10−2	9.92 × 10−2

* The activity coefficient γAl₂Cl₆ is 3 [20].

) [20]. The chloroaluminate species reached equilibrium in the ionic liquid as following reactions [18,19,20]:

$${\left[AlC{l}_4\right]}^{-}\leftrightarrow 0.5 A{l}_{2}C{l}_6+C{l}^{-},K_1=\frac{\left[C{l}^{-}\right]{\left[A{l}_{2}C{l}_6\right]}^{0.5} }{[\left[AlC{l}_4{]}^{-}\right]}$$

(1)

$${\left[A{l}_{2}C{l}_7\right]}^{-}\leftrightarrow 0.5 A{l}_{2}C{l}_6+{\left[AlC{l}_4\right]}^{-},K_2=\frac{[\left[AlC{l}_4{]}^{-}\right]{\left[A{l}_{2}C{l}_6\right]}^{0.5} }{\left[A{l}_{2}C{l}_7{]}^{-}\right]}$$

(2)

$${\left[A{l}_{3}C{l}_{10}\right]}^{-}\leftrightarrow 0.5 A{l}_{2}C{l}_6+{[A{l}_{2}C{l}_7]}^{-},K_3=\frac{[\left[A{l}_{2}C{l}_7{]}^{-}\right]{\left[A{l}_{2}C{l}_6\right]}^{0.5} }{[\left[A{l}_{3}C{l}_{10}{]}^{-}\right]}$$

(3)

$${\left[A{l}_{4}C{l}_{13}\right]}^{-}\leftrightarrow 0.5 A{l}_{2}C{l}_6+{\left[A{l}_{3}C{l}_{10}\right]}^{-}, K_4=\frac{[\left[A{l}_{3}C{l}_{10}{]}^{-}\right]{\left[A{l}_{2}C{l}_6\right]}^{0.5}}{[\left[A{l}_{4}C{l}_{13}{]}^{-}\right]}$$

(4)

The total mole fraction for all species was unity:

$${\chi }_{C{l}^{-}}+{\chi }_{{[AlC{l}_4]}^{-}}+{\chi }_{{[A{l}_{2}C{l}_7]}^{-}}+{\chi }_{{[A{l}_{3}C{l}_{10}]}^{-}}+{\chi }_{{[A{l}_{4}C{l}_{13}]}^{-}}+{\chi }_{A{l}_{2}C{l}_6}=1$$

(5)

where ${\chi }_i$ was the modified Temkin ion fraction [40] for the species i, ${\chi }_i=\frac{n_i}{n_T}$, and $n_T$ was the total molar amount of anions: $n_T=n_{C{l}^{-}}+n_{{\left[AlC{l}_4\right]}^{-}}+n_{{\left[A{l}_{2}C{l}_7\right]}^{-}}+n_{{\left[A{l}_{3}C{l}_{10}\right]}^{-}}+n_{{\left[A{l}_{4}C{l}_{13}\right]}^{-}}+n_{A{l}_{2}C{l}_6}$.

In addition, the charge balance also met the equation:

$$n_{{\left[EMIm\right]}^{+}}=n_{C{l}^{-}}+n_{{\left[AlC{l}_4\right]}^{-}}+n_{{\left[A{l}_{2}C{l}_7\right]}^{-}}+n_{{\left[A{l}_{3}C{l}_{10}\right]}^{-}}+n_{{\left[A{l}_{4}C{l}_{13}\right]}^{-}}$$

(6)

By assuming a complete dissociation of the IL, it gave $n_{{\left[EMIm\right]}^{+}}=n_{IL}$.

The materials balance for Al species was

$$n_{AlC{l}_3}{n}_{{\left[AlC{l}_4\right]}^{-}}+2n_{{\left[A{l}_{2}C{l}_7\right]}^{-}}+3n_{{\left[A{l}_{3}C{l}_{10}\right]}^{-}}+4n_{{\left[A{l}_{4}C{l}_{13}\right]}^{-}}+2n_{A{l}_{2}C{l}_6}$$

(7)

${\chi }_{AlC{l}_3}$ was introduced as the initial molar ratio of AlCl₃: ${\chi }_{AlC{l}_3}=\frac{n_{AlC{l}_3}}{n_{AlC{l}_3}+n_{IL}}$.

Combining the mass balance equations and charge balance equation, the following equation was established:

$${\chi }_{{[AlC{l}_4]}^{-}}+2{\chi }_{{[A{l}_{2}C{l}_7]}^{-}}+3{\chi }_{{[A{l}_{3}C{l}_{10}]}^{-}}+4{\chi }_{{[A{l}_{4}C{l}_{13}]}^{-}}+{\chi }_{A{l}_{2}C{l}_6}\frac{2-{\chi }_{AlC{l}_3}}{1-{\chi }_{AlC{l}_3}}=\frac{{\chi }_{AlC{l}_3}}{1-{\chi }_{AlC{l}_3}}$$

(8)

Equations (1)–(8) were solved simultaneously using numerical method within EXCEL for ${\chi }_{AlC{l}_3}$ in the range of 0 and 1 at interval 0.0001.

3. Results and Discussion

3.1. Stability Window of [EMIm]AlCl₄ at Various Temperatures

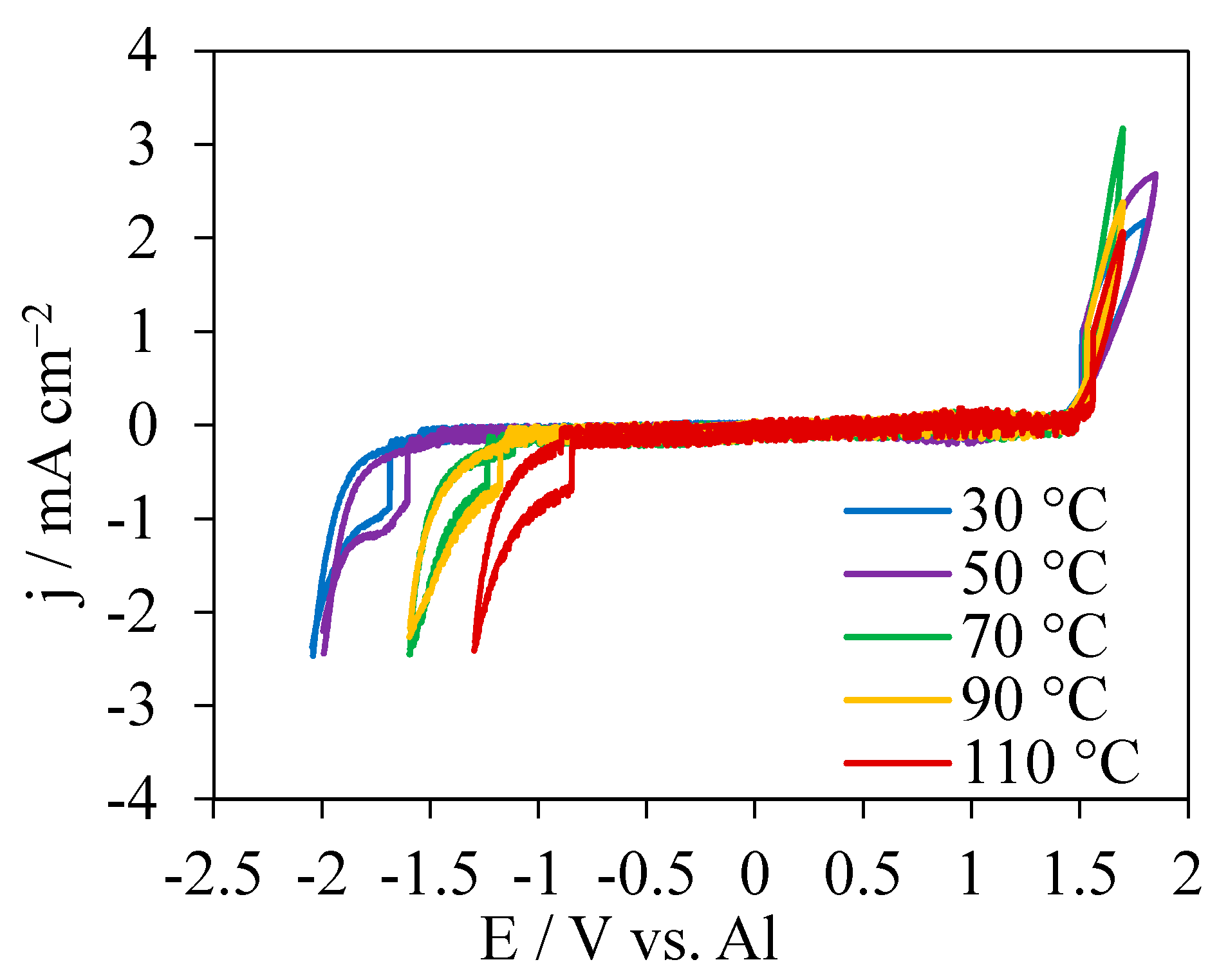

CVs in [EMIm]AlCl₄ at different temperatures were measured to determine the stability window (Figure 1). The CVs displayed wide flat zones between the fast-growing oxidation and reduction currents. The onset potentials for oxidation-current growth were very close to 1.5 V which is the oxidation of chloride anions [41,42]. In contrast, the onset potentials for the reduction-current growth were strongly dependent on temperatures, characteristic of a positive shift with increasing temperatures. At the negative potential limits, the cathodic peaks were attributed to the reduction of imidazolium ring [41]. Based on the onset potential differences for the oxidation and reduction current growth, the electrochemical windows of [EMIm]AlCl₄ on the GC electrode were determined. The potential windows decreased from 3.2 to 2.3 V as the temperature was increased from 30 °C to 110 °C. These results are consistent with literature data measured under similar conditions [41,43]. No oxidation peak was observed in the electrochemical windows in the CVs indicating that the Al anion [AlCl₄]⁻ dissociated from [EMIm]AlCl₄ was a very stable Lewis neutral anion and could not lead to Al electrodeposition [44,45,46].

3.2. Cyclic Voltammetry in AlCl₃/[EMIm]AlCl₄ (1:5)

The advantage of using the [EMIm]AlCl₄ is mostly its simple operation. Though [EMIm]AlCl₄ can be generated by mixing equimolar [EMIm]Cl and AlCl₃, the mixing process requires heating to melt the [EMIm]Cl and continuous stirring to release heat generated by the combination reaction [27]. In contrast, by using [EMIm]AlCl₄, it is a liquid at the room temperature and the operation of mixing with AlCl₃ does not need extra heating or stirring.

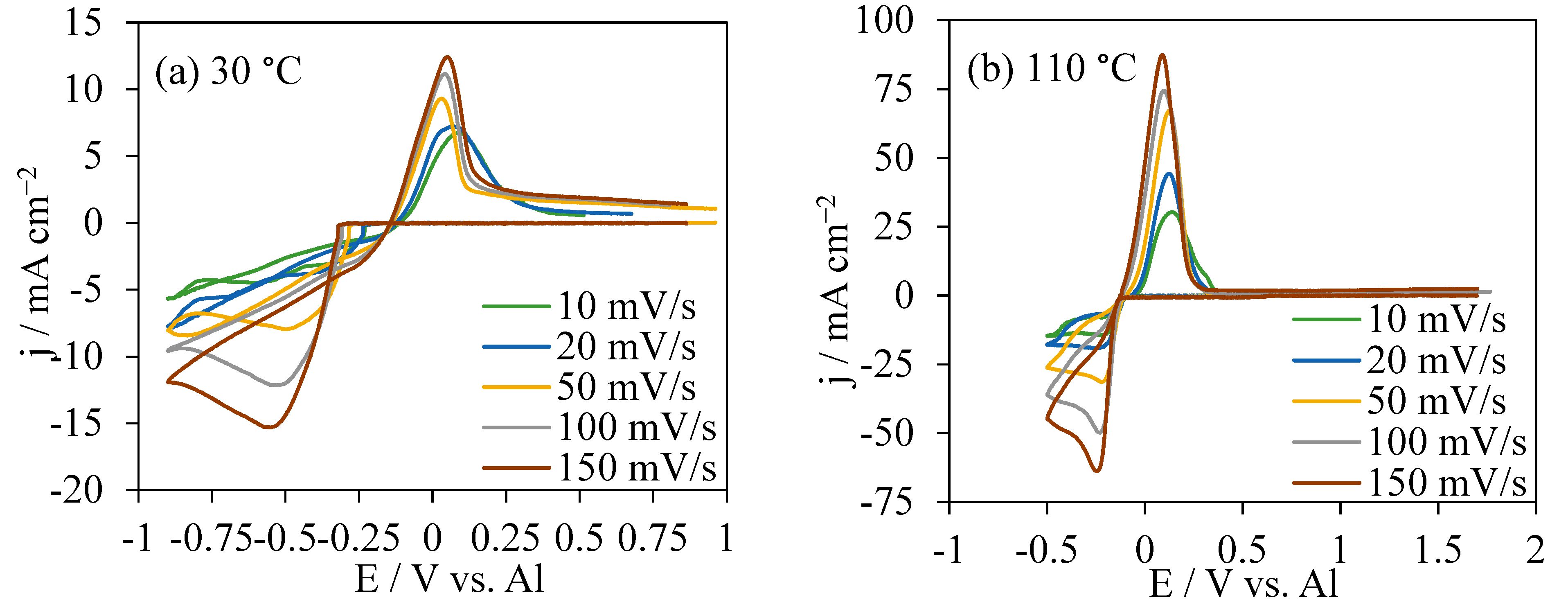

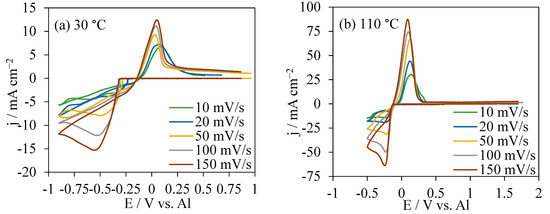

The CVs in AlCl₃/[EMIm]AlCl₄ (1:5) at 30 °C and 100 °C were shown in Figure 2a,b, respectively. At 30 °C, the onset potentials for Al deposition became higher from −0.25 V to −0.3 V as the scan rates increased from 10 mV s⁻¹ to 150 mV s⁻¹. At 110 °C, the onset potentials for Al deposition at different scan rates were concentrated at approximately −0.14 V, much lower than those in CVs at 30 °C. The potential range for CVs at 30 °C was from OCP to −0.9 V, and the current intensity at 150 mV s⁻¹ was responded at 12.5 to −15.2 mA cm⁻², the highest current range. For CVs at the same scan rate 150 mV s⁻¹ at 110 °C, the current response was much higher in a range of −63.8 to 87.2 mA cm⁻². At both temperatures, the re-oxidation charges were smaller than the reduction charges. At 30 °C, the Al dissolution was around 26.5% to 36.4% of the charge used in the reduction reaction, compared with the proportion of 61.8% to 79.2% in CVs at 110 °C.

For AlCl₃/[EMIm]AlCl₄ (1:5, ${\chi }_{AlC{l}_3}$ = 0.55), the system is composed of similar aluminum ions at 30 °C and 110 °C with 80.0 mol% [AlCl₄]⁻ and 20.0 mol% [Al₂Cl₇]⁻ at 30 °C while 80.2 mol% [AlCl₄]⁻ and 19.8 mol% [Al₂Cl₇]⁻ at 110 °C (Figure 3). In the system, [AlCl₄]⁻, as the major component, could not be reduced to Al. Moreover, the minor component [Al₂Cl₇]⁻ was the active species for Al deposition [47,48,49,50]. During the electrolysis, [Al₂Cl₇]⁻ was reduced to aluminum metal and the generated [AlCl₄]⁻ migrating to the anode (Equation (9)) [51,52].

$$4{\left[A{l}_{2}C{l}_7\right]}^{-}+3e^{-}\to Al+7{\left[AlC{l}_4\right]}^{-}$$

(9)

The CVs in AlCl₃/[EMIm]AlCl₄ (1:5) (Figure 2) at both temperatures exhibited the cathodic and anodic peaks potentials were more separated at higher scan rates. The separations of the Al reduction and re-oxidation peaks were more than 330 mV, which was larger than the critical peak splitting of 282 mV ($\frac{212}{n} \mathrm{mV}$, n is the number of electrons involved in the charge-transfer step, n = 0.75) [53,54], suggesting an irreversible system.

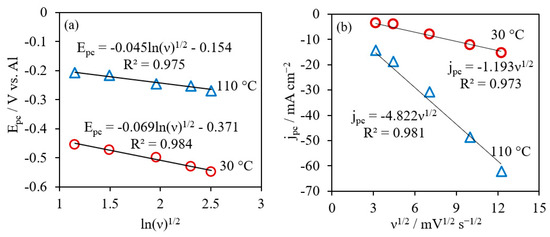

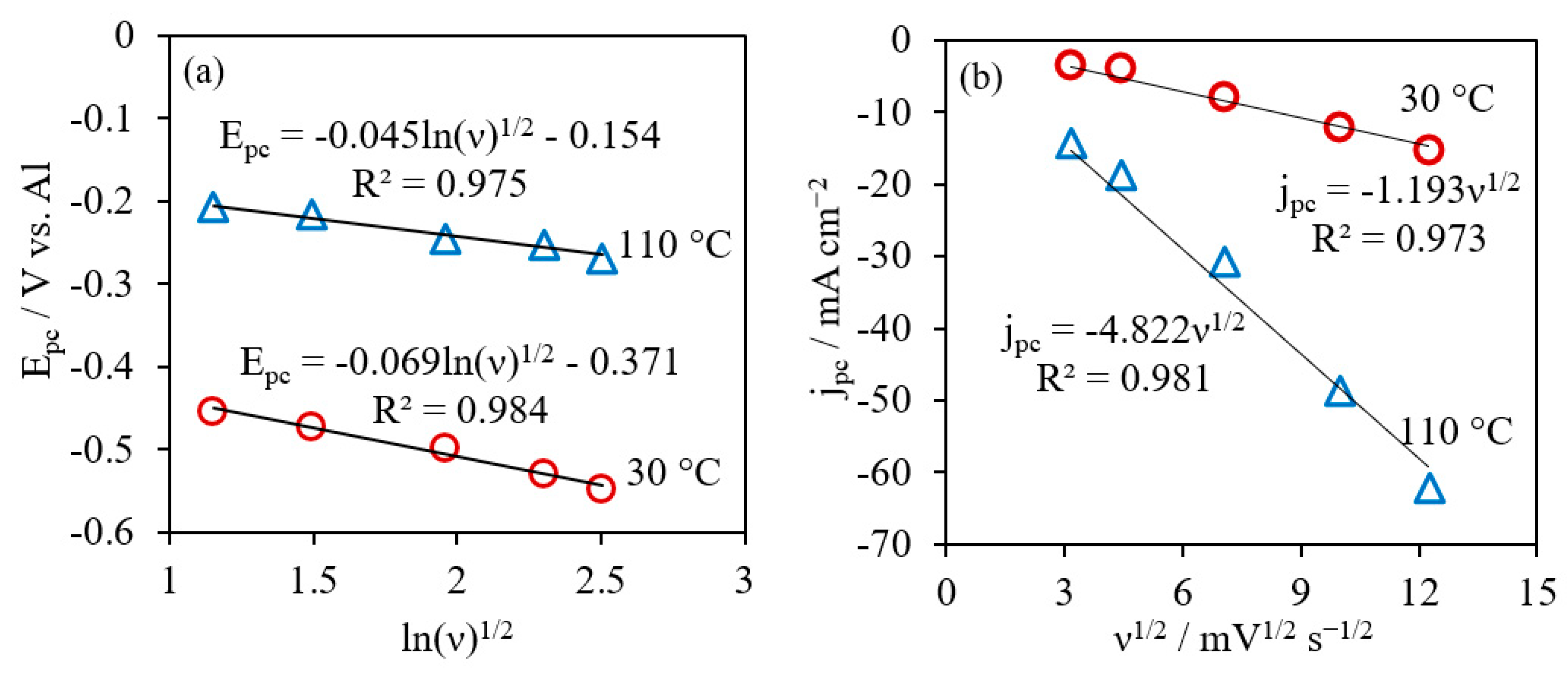

For an irreversible electrode reaction, the rate constant (k⁰) for the Al deposition was estimated from the shift of the cathodic peak potential (E_pc) with the scan rates in CVs, based on Equation (10) [55]:

$$E_{pc}=E^0-\frac{RT}{\alpha n_{a}F}\left[0.78-ln\frac{k^0}{D^{1/2}}+ln{\left(\frac{\alpha n_{a}F\nu }{RT}\right)}^{1/2}\right]$$

(10)

where E⁰ is the standard potential (E⁰ = 0 for the current system), F is the Faraday’s constant 96,485 C mol⁻¹, R is the gas constant 8.314 J mol⁻¹ K⁻¹, D is the diffusion coefficient of active species [Al₂Cl₇]⁻, and α is the transfer coefficient. Figure 4a showed linear relations of E_pc and lnv^1/2. The values of $\alpha n_a$ could be derived from the slopes of lines at different temperatures, which were 0.38 and 0.74 for reactions at 30 °C and 110 °C, respectively. The diffusion coefficients were calculated from the Randles–Sevcik equation, based on the relationship between the cathodic peak current densities (j_pc) correlating with scan rate (v) for an irreversible system in Equation (11) [56]:

$$j_{pc}=0.4958\times nFC{D}^{1/2}{\left(\frac{\alpha n_{a}F}{RT}\right)}^{1/2}{\nu }^{1/2}$$

(11)

where C is the concentration of active species [Al₂Cl₇]⁻ and n is the number of electrons involved in the charge-transfer step, n = 0.75. The cathodic peak current densities and the square root of scan rate showed good linearity at 30 °C and 110 °C (Figure 4b), indicating that the cathodic reaction was diffusion-controlled. The values of D were estimated to be 9.71 × 10⁻⁸ cm² s⁻¹ at 30 °C and 1.04 × 10⁻⁶ cm² s⁻¹ at 110 °C. In the literature, Lai et al. reported the $\alpha n_a$ at 0.44 and the diffusion coefficient of [Al₂Cl₇]⁻ was about 6.2 × 10⁻⁸ cm² s⁻¹ at 40 °C in AlCl₃/[EMIm]Cl with 0.47 mol L⁻¹ of [Al₂Cl₇]⁻ [50]. Based on the intercept in Figure 4a, the values of the cathodic reduction rate constant were determined as 1.18 × 10⁻⁵ cm s⁻¹ and 3.37 × 10⁻⁴ cm s⁻¹ at 30 °C and 110 °C, respectively.

The Al deposits and the nucleation mechanisms can be achieved from the chronoamperometry studies. Al deposition potentials at both 30 °C and 110 °C were chosen as the values achieved at 200 mV s⁻¹ in CVs. In this way, it guaranteed the constant potentials in CA measurements were higher than the Al deposition potentials. The current-time profiles showed an initial slight decrease in current density followed by a sharp increase and gradual decrease to a plateau (Figure 5a,b). The initial decrease was due to the charging of the double layer and a decayed current during the nucleation process [50,57,58]. The current increase was the result of independent nucleus size growing and consequently the increase of total electroactive Al surface area. The following current decrease was because of the overlap of the diffusion zone leading to the formation of one diffusion layer [50]. As the applied potential being more significant, the current density peak became sharper with higher intensity and reached a higher plateau.

Initial stages of metal deposition were usually associated with a three-dimensional (3D) nucleation. For the diffusion controlled 3D nucleation, the instantaneous and progressive nucleation mechanisms were normally expressed in Equations (12) and (13), respectively [59].

$${(\frac{j}{j_m})}^2=1.9542{\left[\left(t-t_0\right)/\left(t_m-t_0\right)\right]}^{-1}{\left\{1-exp\left[-1.2564\left(t-t_0\right)/\left(t_m-t_0\right)\right]\right\}}^2$$

(12)

$${(\frac{j}{j_m})}^2=1.2254{\left[\left(t-t_0\right)/\left(t_m-t_0\right)\right]}^{-1}{\{1-exp[-2.3367{\left(t-t_0\right)}^2/{\left(t_m-t_0\right)}^2]\}}^2$$

(13)

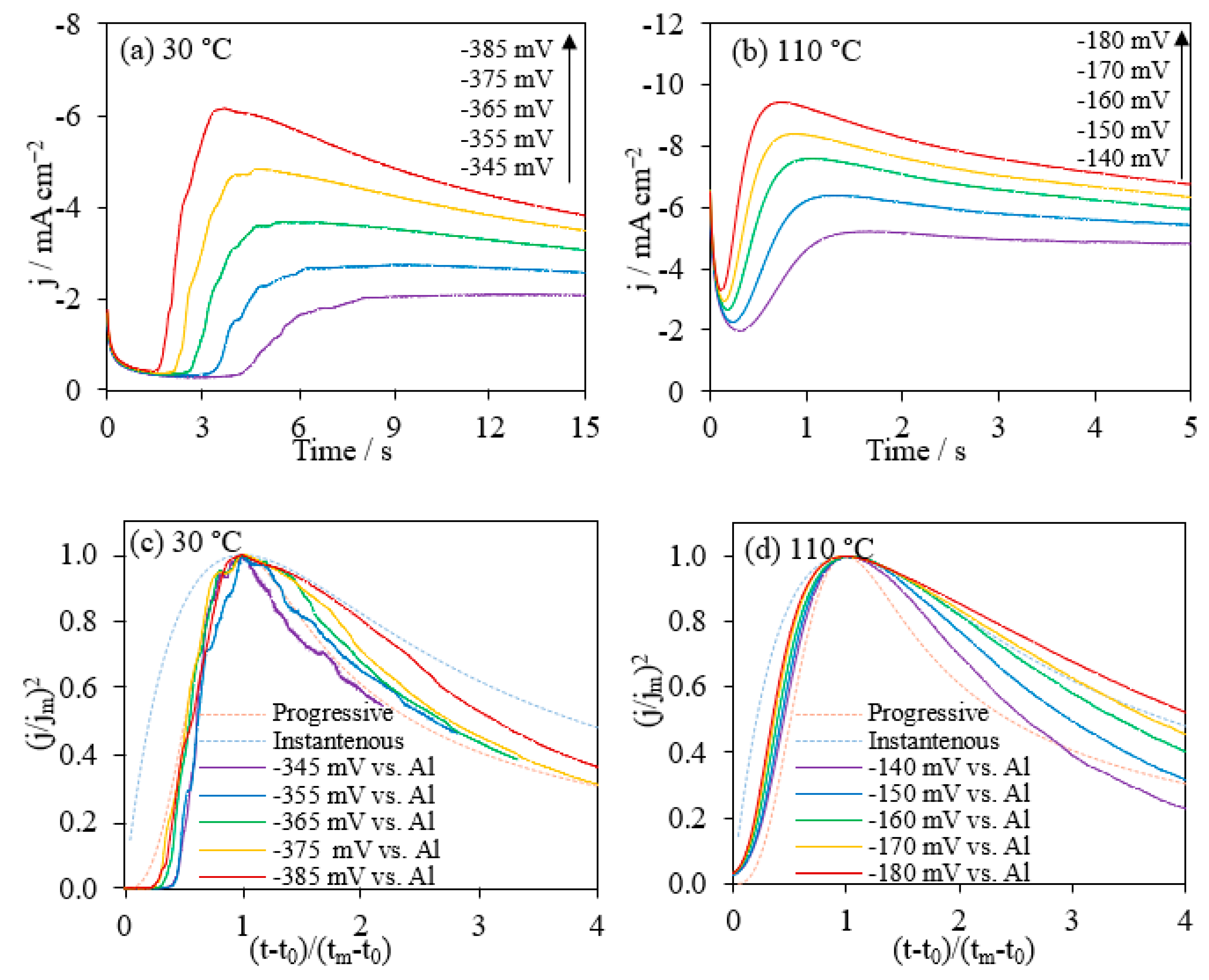

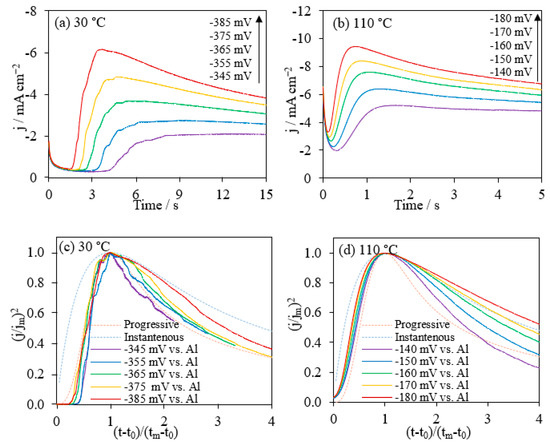

where j is the current density at time t, t₀ is the induction time, and t_m is the time at the maximum current density j_m. Figure 5c,d gives a graphic analysis of the Al nucleation mechanism with the data extracted from Figure 5a,b for the Al deposition onto the GC electrode at 30 °C and 110 °C, respectively. The theoretical model curves were generated from Equations (12) and (13). At 30 °C, the nucleation process correlated with the progressive nucleation mechanism in the initial stage. After reaching the maximum current, the deposition was close to the progressive nucleation curve, but the process may be affected by other factors. At 110 °C, the phenomenon was more complicated. It followed the progressive nucleation mechanism for a short time, but the data lines fell on progressive and instantaneous nucleation mechanisms, and in the region in between. This nucleation kinetic was different from literature results for the Al deposition from AlCl₃/[EMIm]Cl which exhibited a better fit with the 3D instantaneous nucleation [3,9]. It is possibly the results of electrode surface changes during the depositions. Initially, the electrode surface was flat and small. Next, the surface gradually grew to a hemispheric shape with a large surface area. The changes happened in such a short time that the mass transfer and nucleation kinetics were complicated and could not be simply explained with only one mechanism. In addition, the existence of side reactions during the nucleation, such as the reduction of moisture and oxygen dissolved in the ionic liquid mixture, made the electroplating processes more complicated [60]. Al-contained species would precipitate due to the hydrogen extraction in water electrolysis and oxidized by oxygen generated. Charges were consumed not only by the Al deposition from [Al₄Cl₇]⁻, but also by the side reaction discussed above. Therefore, the process resulted in a lower current efficiency and aluminum extraction ratio.

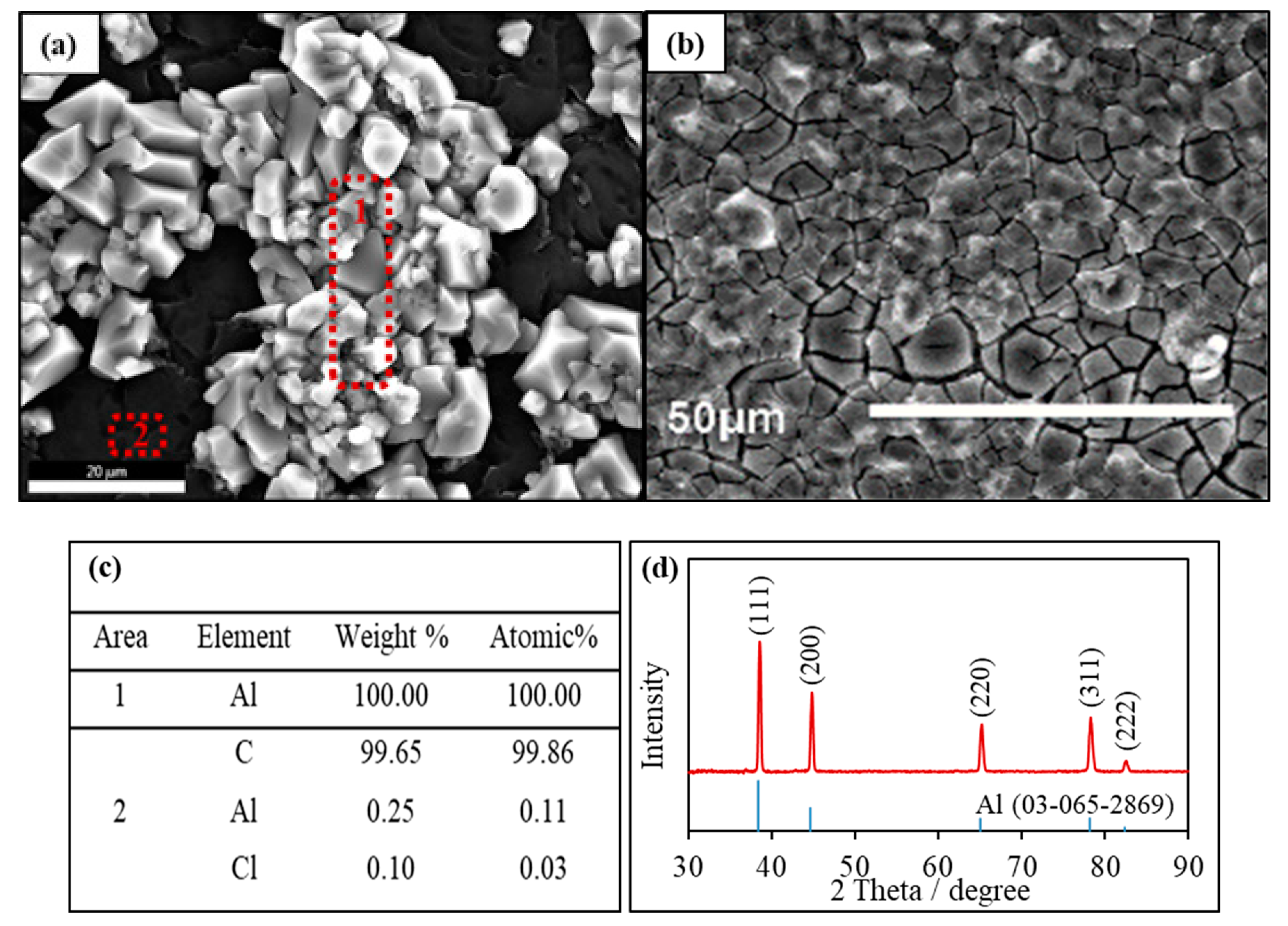

Al electrodepositions were studied at 110 °C on the glassy carbon substrates. Constant potentials were applied at the Al deposition potential defined with CV measurements. Figure 6a,b shows the SEM images for two Al deposits under constant-potential polarization after the charge reached 2.9 C cm⁻² and 14.5 C cm⁻², respectively. The deposit with less charges exhibited both bright and black regions. Further growth of the deposit layer with more charges lead to the complete coating of the substrate, accompanied by the formation of minor cracks. The elemental analysis (Figure 6c) of the bright zone and the dark zone in Figure 6a confirmed that the polyhedral particles were 100% Al, and the black zone corresponded to the GC substrate. The XRD pattern of the Al layer deposited in Figure 6b was shown in Figure 6d. The peaks were sharp and matched well with the standard Al (JCPDS 03-065-2869), indicative of a well-crystallized face-centered-cubic (fcc) structure based on the patterns in [111], [200], [220], [311] and [222]. The particle size for Al particles is estimated based on the Scherrer equation: $d=\frac{K\lambda }{\beta cos\theta }$. $K$ is the shape factor at 0.9; $\lambda$ is the X-ray wavelength at 1.5406 $\AA$; β is the line broadening at half the maximum intensity in radians, 0.008378; and θ is the Bragg angle. The size of Al particles was calculated at 8.77 nm. Therefore, the result strongly supported the deposition of nano-size metallic Al during the cathode polarization.

4. Conclusions

In this work, we explored the potential of the [EMIm]AlCl₄ as the ionic liquid electrolyte and AlCl₃ as the precursor for the electrodeposition of Al. Because of its wide electrochemical window and low melting point, the [EMIm]AlCl₄ is a prospective ionic liquid for the electrodeposition of Al. Thermodynamic models were established to show the composition of Al anions in AlCl₃/IL mixtures at 30 °C and 110 °C. It was demonstrated that nano-sized Al was successfully deposited on glassy carbon after AlCl₃ was added to the tetrachloroaluminate. The results from this work prove that the AlCl₃/[EMIm]AlCl₄ mixture is a promising electrodeposition both in developing the process chemistry and improving the control of Al coating.
