Article

Fluid–Structure Interaction of Symmetrical and Cambered Spring-Mounted Wings Using Various Spring Preloads and Pivot Point Locations

1
School of Mechanical and Design Engineering, University of Portsmouth, Portsmouth PO1 3DJ, UK
2
Faculty of Engineering, Universität Duisburg-Essen, 47057 Duisburg, Germany
3
School of Engineering and the Environment, Kingston University, London KT1 1LQ, UK
4
School of Physics, Engineering and Computer Science, University of Hertfordshire, Hatfield AL10 9AB, UK
*
Author to whom correspondence should be addressed.
Appl. Mech. 2021, 2(3), 591-612; https://doi.org/10.3390/applmech2030034
Received: 28 July 2021 / Revised: 16 August 2021 / Accepted: 24 August 2021 / Published: 27 August 2021

Abstract

:
The fluid–structure interaction of a pivoting rigid wing connected to a spring and subjected to freestream airflow in a wind tunnel is presented. Fluid–structure interactions can, on the one hand, lead to undesirable aerodynamic behaviour or, in extreme cases, to structural failure. On the other hand, improved aerodynamic performance can be achieved if a controlled application within certain limitations is provided. One application is the reduction of drag of road vehicles at higher speeds on a straight, while maintaining downforce at lower speeds during cornering. Conversely, another application concerns increased downforce at higher windspeeds, enhancing vehicle stability. In our wind tunnel experiments, the angle of incidence of the spring-mounted wing is either increased or decreased depending on the pivot point location and spring torque. Starting from a specified initial angle, the aerodynamic forces overcome a pre-set spring preload at incrementally increased freestream velocity. Reynolds numbers at a range of Re = 3 × 104 up to Re = 1.37 × 105 are considered. The application of a symmetrical NACA 0012 and a cambered NACA 6412 airfoil are tested in the wind tunnel and compared. For both airfoils mounted ahead of the aerodynamic centre, stable results were achieved for angles above 15 and below 12 degrees for the symmetrical airfoil, and above 25 and between 10 and −2 degrees for the cambered airfoil. Unsteady motions were observed around the stall region for both airfoils with all spring torque settings and also below −2 degrees for the cambered airfoil. Stable results were also found outside of the stall region when both airfoils were mounted behind the aerodynamic centre, although the velocity ranges were much smaller and highly dependent on the pivot point location. An analysis is reported concerning how changing the spring torque settings at each pivot point location effects performance. The differences in performance between the symmetrical and cambered profiles are then presented. Finally, an evaluation of the systems’ effects was conducted with conclusions, future improvements, and potential applications.

1. Introduction

Fluid–structure interaction describes the relationship between fluid flow and motion or deformation of a structure [1,2]. Fluid–structure interaction uses multi-physics coupling between laws describing fluid dynamics and structural mechanics [3,4,5]. The phenomenon is characterised by unstable, oscillatory, or stable interactions between deformable or moving structures and fluid flow [6]. Stresses exerted on structures lead to strains within that structure, which if sufficiently high can cause the structure to deform. The deformation endured depends on the material properties and the configuration of the structure as well as the pressure exerted by the fluid [3,7].
Aeroelasticity describes the interaction of flexible structures with a surrounding airflow [8,9,10]. Aircraft wings are an example of a flexible structure [11,12], which are prone to the aeroelastic effects of divergence, control reversal, and flutter [13,14]. Most flight conditions have aerodynamic and elastic loads that converge into a state of equilibrium (static aeroelasticity). When the loop becomes unstable, the deformations increase without or with oscillations (dynamic aeroelasticity), which can both lead to structural failures. Although understood, research is still highly active in this area, aiming to increase the accuracy in predictions and efficiency of such tools [15,16,17]. Linear models in the calculation of flutter have been proposed by Stancui [18]. The flow-induced vibration in the deep stall has been investigated by Sidlof [19]. The effect of flutter on the NACA0012 has been investigated experimentally by Rivera [20] and also numerically by Khatir [21]. The NACA0012 was also used to investigate flutter in the transitional range by Goyaniuk [22].
Morphing of airfoils affects the aerodynamic performance by changing its profile, resulting in revised aerodynamic forces and flow fields [23,24,25,26,27]. This type of interaction can lead to the improved performance of airfoils for their relevant application by a means of an active nature. The work conducted in this paper is based upon that of a passive nature using a rigid fixed surface of an airfoil that does not deform. The rigid airfoil is attached to a spring that leads to a fluid–structure interaction which can result in improved performance for a prescribed condition. For example, a race car requires a relatively large amount of downforce when cornering; however, this increased level of downforce will cause large amounts of drag on the straights [28,29]. Therefore, by using a method of a passive nature, the amount of drag on the straights can be decreased above a certain vehicle speed, while maintaining the level of downforce below a certain speed on the corners, thereby improving efficiency and decreasing lap times [30,31]. Conversely, the spring-wing system could be set up so that increasing the incidence leads to more downforce and drag, which would aid stability at higher speeds [32]. Other potential applications of this work could include the fluid–structure interaction of hydrofoils to improve performance [33,34], as well as managing forces on sails used in shipping or wind turbines [35,36] in order to prevent damage in harsh conditions. The work could be applied to the protection of a workforce by using fences that moderate flow while maintaining levels of ventilation in harsh conditions [37]. Certain micro air vehicle and unmanned air vehicle applications could also potentially benefit from passive aerodynamic systems [38,39,40]. Wind tunnels enable the performance of these interactions to be easily identified and analysed for a wide variety of configurations over a relatively short timescale, allowing for the optimal performance to be found for a particular application of the airfoil or aerodynamic surface [41].
The system is set up similar to the work of Poirel et al. [42], except we omit the effect of heave in our approach. The proof of concept and validation of our system has been shown by Knight et al. [43] for the symmetrical NACA 0012 mounted at 10% chord. The aim of the work reported here is to further analyse the fluid–structure interaction of the symmetrical NACA 0012 with various pivot point locations and to compare this with the cambered NACA 6412. The effects that windspeed, pivot point locations, and spring torque have upon the system’s structure and the resulting flow characteristics on both airfoils are reported. The overarching aim is to ensure reduced drag at higher windspeeds when using a pivot point location ahead of the aerodynamic centre. Conversely, if increased stability is desired, an increased downforce at higher windspeeds can be realised by using a pivot point location behind the aerodynamic centre. In this work for increased stability, we only report the post-stall region whereby stable results are found.
Testing was carried out within the wind tunnel of the University of Portsmouth by varying the airflow velocity and spring torque for each airfoil at various pivot point locations and measuring the change in angle of incidence of the airfoil. This enabled the analysis of how changing the spring torque settings at each pivot point location for both airfoils effects the performance, allowing for the comparison of how changing the pivot point location and spring torque settings have differing effects for the two different airfoils. Finally, conclusions and the evaluation of the system effects were conducted in the performance with future improvements and considerations discussed.

2. Methodology

The present study builds upon an aeroelastic system, in which a ridged wing self-adjusts its angle of incidence to the airflow velocity using an elastic element. The system was also presented and verified at low angles in a previous study by Knight et al. [43]. The general system uses a wing mounted upon a rod with only a rotational degree of freedom in pitching direction. The elastic element of the system is a spiral spring, which has an adjustable preload angle (θ). It is attached to the rod and casing. The force required to overcome the springs preload, causing the airfoil to rotate, occurs mainly due to the aerodynamic pitching moment, although weight is also taken into account.
The basic system is extended to allow for experiments in which the wing is mounted further back from the leading edge in order to investigate the effect of the position of the pivot point location on the behaviour of the system. Furthermore, the targeted reversed scenario, in which the wing is expected to increase its angle of incidence, can be tested by utilising pivot point locations after the aerodynamic centre and negative spring preload angles. In addition to the use of a symmetrical NACA 0012 profile, a second wing with the NACA 6412 profile is also used to investigate the application of a cambered airfoil profile. We acknowledge that many different profiles of varying camber and thicknesses are used in motorsport; however, we choose NACA 0012 and NACA 6412 as they are both very common in research literature, enabling comparisons with other research findings [44,45]. The aeroelastic system and its features are shown as a schematic in Figure 1.

2.1. System Characteristics

The system characteristics of the proposed aeroelastic system are of a mechanical and aerodynamic nature. When considering a static equilibrium of forces, the system is mainly determined by the spiral springs’ characteristics, aerodynamic forces, and the weight of the airfoil. For the purpose of this work, inertial, frictional, and time dependency effects are ignored. The total moment is produced from the weight of the wing ( τ g ), the springs torque ( τ s ) and the airflow ( τ a ), with the rotational direction for the leading edge moving upwards taken as positive (Equation (1)).
τ g + τ s + τ a = 0
Although the wings used throughout this work are lightweight, the gravitational force on the wing will affect the system. The wings’ weight ( m w ) will remain constant throughout this work with the moment of τ g varying with the angle of incidence (α), which is calculated using trigonometry. The acceleration due to gravity is g and the distance from the leading edge to the centre of gravity (CoG) is x C o G . The distance from the leading edge to the mounting axis will be varied and is expressed as x M P i . Thence, τ g is given in Equation (2) for the four pivot point locations used in this work.
τ g ( α ) = cos ( α ) ( x C o G x M P i )   m w   g     for   i = 1 ,   2 ,   3 ,   4
where
x M P i = 10   mm + 17.5   mm   ×   ( i 1 ) .
Accordingly, the gravitational moment will become negative for a pivot point location with a distance greater than the distance of the centre of gravity from the leading edge.
The moment for the springs torque ( τ s ) is defined assuming the spring is used only in the linear-elastic range. This allows Hooke’s Law to be applied with the tensioning of the spring at a certain angle, acting as a restoring force making the force negative. The preload angle ( θ ) is defined by the counter-clockwise rotation from the outer fixing point of the spring and a stationary airfoil at a zero angle of incidence. The angle of incidence ( α ) can be subtracted as it is defined at the same rotational direction. Thence, the moment caused from the springs torque is defined in Equation (3). For the reversed scenario, however, a negative spring preload angle is applied in order to fulfil the equilibrium in Equation (1).
τ s ( θ , α ) = κ   ( θ α )
A definition of the required aerodynamic moment for an equilibrium state at an angle of incidence of zero can be seen in Equation (4), acting as a reference for the applied spring preload carried out during this work. This method is more relevant than specifying preload angle or spring torque only, as it deducts the effect of the gravity of the wing and is therefore more relevant. It also offers a working approximation of Equation (1) for small angles of incidence. We name it the spring torque setting τ a , α = 0 .
τ a , α = 0 ( θ ) = κ   θ ( x C o G x M P i )   m w g
For symmetrical airfoils, no lift is achieved at an angle of incidence of zero, therefore the required aerodynamic moment is theoretical. Despite this, the election to use zero degrees is decided upon the most suitable reference for this work, as cambered airfoils can reach negative angles of incidence. This is due to their lift force and pitching moment being present at an angle of incidence of zero degrees. Hence, the aerodynamic moment driving the rotation of the wing is described below, with particular focus on the differences between symmetrical and cambered wings.
It is well-known that a cambered wing generates a higher lift force than an equivalent symmetrical-shaped wing and its aerodynamic moment τ a is not only defined by the lift force L but also by the pitching moment τ A C concerning the aerodynamic centre. Two-dimensional thin airfoil theory is considered when determining the aerodynamic moment τ a . The aerodynamic centre x A C is assumed to be located near the quarter-cord location from the leading edge.
τ a = L   ( x A C x M P i ) + τ A C   for   i = 1 ,   2 ,   3 ,   4
The lift force L is given by the general lift equation using the density of air ρ A i r , airflow velocity v , and area of the wing A. The lift coefficient for small angle α can be expressed theoretically by assuming a linear slope. Note, the lift coefficient C L has an offset C L 0 for cambered airfoils, while C L 0 = 0 for symmetrical airfoils.
L = 1 2 C L   ρ A i r   v 2   A   where     C L = C L 0 + d C l d α   α
The pitching moment for the cambered airfoil τ A C is defined in Equation (7), where C m , A C is the pitching moment coefficient, while τ A C = 0 for symmetrical airfoils.
τ A C = 1 2   C m , A C   ρ A i r   v 2   A   c
When combining Equation (5), the general lift equation (Equation (6)) and Equation (7) for a static airfoil gives Equation (8).
τ a = 1 2   C L   ρ A i r   v 2   A   ( x A C x M P i ) + 1 2   C m , A C   ρ A i r   v 2   A   c = 1 2   ρ A i r   v 2   A   ( C L   ( x A C x M P i ) + C m , A C   c )
Equations (2), (3), and (8) can then be substituted into Equation (1) that is rearranged to compare mechanical and aerodynamic forces, which creates the characteristic equation for the system in Equation (9), which is only valid for small angles.
τ a = τ s τ g
1 2 ρ A i r   v 2   A   ( C L   ( x A C x M P i ) + C m , A C   c ) = κ   ( θ α ) cos ( α ) ( x C o G x M P i )   m w   g
Therefore, at small angles, a trigger velocity of the freestream can be deduced as shown in Equation (10) below.
v   ( α ,   θ ) = 2   κ   ( θ α ) cos ( α )   ( x C o G x M P i )   m w   g   ρ A i r   A   ( C L   ( x A C   x M P i ) + C m , A C   c )
Rearranging Equation (9) allows for the calculation of the spring preload angle required to achieve static equilibrium at the desired freestream velocity and angle of incidence given. This is shown in Equation (11).
θ ( α , v ) = 1 2   ρ A i r   v 2   A   ( C L   ( x A C x M P ) + C m , A C   c ) + cos ( α )   ( x C o G x M P i )   m w   g κ + α
A simpler form of these equations using the symmetrical NACA 0012 at low angles of incidence have been validated with experimental results [43]. The experiment confirmed the results of the change in angle with windspeed to be within theoretical infinite and finite wing for small angles. More information of the experimental setup and validation can be found in Knight et al. [43].
For higher angles, thin airfoil theory is no longer valid and drag becomes a more dominant force that must be taken into account, alongside lift. Equation (5) becomes
τ a = ( L   cos ( α ) + D   sin   ( α ) )   ( x A C x M P i ) + τ A C   for   i = 1 ,   2 ,   3 ,   4 .
The characteristic equation then becomes
1 2   ρ A i r   v 2   A   ( ( C L   cos ( α ) + C D   sin ( α ) )   ( x A C x M P i ) + C m , A C   c ) = κ   ( θ α ) cos ( α ) ( x C o G x M P i )   m w g
This results in the equation for the trigger velocity at all angles to be
v ( α ,   θ )   =   2   κ   ( θ   α )     cos ( α )   ( x C o G x M P i )   m w   g   ρ A i r   A   ( ( C L   cos ( α )   +   C D   sin ( α ) )   ( x A C     x M P i )   +   C m , A C   c ) .
The spring preload angle can then be determined from
θ ( α , v ) = 1 2   ρ A i r   v 2   A   ( ( C L   cos ( α )   +   C D   sin ( α ) )   ( x A C x M P )   +   C m , A C   c   +   cos ( α ) ( x C o G x M P i )   m w   g κ + α .
The next section gives an overview of the experimental setup, which includes the addition of the cambered wing.

2.2. Experimental Setup

The experiments were conducted in the University of Portsmouth’s low-speed, open-circuit wind tunnel with a closed test section. A transparent box, shown in Figure 2, encompasses the entire system and is placed within the wind tunnel test section.
The transparent box is made from lasered acrylic glass with dimensions of 450 mm × 262 mm × 350 mm. There are precise holes drilled into the acrylic walls used as bearings for the airfoils’ mounting rod. Friction occurring in these bearings during testing is reduced by greasing them before each test. A mounting rod locks to the airfoils with a small removable pin through a recess in the side of the airfoil and hole in the mounting rod. Once fitted to the mounting rod, the airfoils have a locking pin inserted into the recess, allowing for a quick disassemble and reassemble without tools. For this mechanism, a small gap of approximately 10 mm on both sides is needed, which is shown in Figure 2a. This means the system cannot be treated completely as quasi-two-dimensional.
The spiral spring is connected to the mounting rod and a configurable mount upon the wall of the transparent box. The mounting plate has 36 notches in it, enabling the spiral spring to be positioned in 10° steps and allowing for the springs preload to be selected, as shown in Figure 2b. Preliminary tests are conducted to verify that the behaviour of the spring is linear within the required working range. The torsional spring constant is assessed to be κ = 0.1643 Nmm/deg and the spring system is calibrated by identifying the zero point, following the same procedure conducted in previous work [43]. The angle of incidence initially set for the preload angle of the spring is limited by a small pin compensating for the force produced from the spring, as shown in Figure 2a. This is referred to as the angle of incidence limiter, which can be adjusted vertically and thus allows for the initial angle of incidence to be selected. On the opposite side of the wall, a degree scale is attached for direct readings of the angle of incidence.
The system is placed in the wind tunnel and is essentially a static system in pre and post-stall regions. Above a certain flow velocity, where the aerodynamic moment overcomes the spring preload, further increases in the flow velocity will result in a change in the incidence. A constant flow velocity will result in a particular constant incidence angle, thus the system is defined as static. However, the system is dynamic in the near-stall region whereby the airfoil will oscillate at a constant flow velocity.
The blockage of the system varies from 6.3% at 0 degrees incidence to 16% at 90 degrees incidence. Throughout this paper, the angle of attack is the same as the angle of incidence. At high angles of incidence, the wake could potentially have an influence on the angle of attack due to blockage but we do not consider this effect in this paper. We acknowledge that at high angles the data should be corrected due to the wake blockage. However, for simplicity and to allow for direct comparisons, we have not corrected for wake blockage.

2.3. Airfoil Models

We use the symmetrical NACA 0012 and the cambered NACA 6412, based upon coordinate points obtained by the University of Illinois at Urbana-Champaign [46]. Both airfoils have a maximum thickness of t = 12 mm located at 30% of the chord length, wingspan of s = 228 mm, and a chord length of c = 100 mm, giving an aspect ratio of both airfoils of AR = 2.28. To ensure comparability, the properties of the two wings are as similar as possible, apart from their airfoil shape. The airfoils have four holes for the rod, which is 6 mm in diameter and used for mounting the wing. Hence, there are four pivot point locations (MP1, MP2, MP3, and MP4) located along the camber line of both airfoils, as can be seen in Figure 3. Similar weight properties for both wings were achieved by sealed cavities inside the wing, which were independently adjusted. Thus, the wings both have the same centre of gravity located at 42.4 mm (42.4% of the chord) from the leading edge and same volume despite their outer geometry being different. The airfoils are 3D printed and have refined surfaces. The density of the printing is at a 25% fill rate using the material acrylonitrile butadiene styrene (ABS), resulting in the airfoils both having a lightweight construction with a mass of 119.3 g. We do not consider surface roughness in our approach. The flow speeds investigated correspond to Reynolds numbers below 1.37 × 105 and we suspect laminar flow throughout this work [47]. At higher speeds, the surface roughness could potentially trip the flow in the boundary layer to being turbulent.

3. Results and Discussion

3.1. NACA 0012 at Various Pivot Point Locations and Spring Torque Settings

The results for the response of the angle of incidence of the symmetrical airfoil while increasing the velocity of the airflow when using various spring torque settings at the pivot point locations MP1, MP2, MP3, and MP4 are presented in this section. For MP1, the spring preload angles were adjusted to match the spring torque settings in the previous study [43] as closely as possible to provide a correlation of data. The spring torque settings for MP2, MP3, and MP4 are subsequently adjusted to match as closely as possible the spring torque settings of MP1, further enabling comparisons to be made. For MP3 and MP4, as discussed before, to achieve a state of static equilibrium, the spring torque settings are inverted. However, with MP3, as the centre of gravity is very close, lower torque settings are required in order to see movement of the airfoil. MP1 and MP2 have a starting angle of incidence of 40°, which decreases as velocity increases, whereas MP3 and MP4 have a starting angle of incidence of 17°, which increases as the velocity of the flow is increases.
The results for the spring torque settings of 11.53 Nmm to 49.32 Nmm at MP1 are presented in Figure 4a. The results show the same general shape for all torque settings, shifting to a higher velocity as the springs torque increases. This is due to a larger moment required to be overcome to rotate the airfoil as the spring torque increases. However, the response of the gradient in the post-stall region (above 15°) slightly decreases as the springs torque increases, while the resistance from the spring against the force created by the airflow increases as the torque increases. In addition, the final angle of incidence at which the airfoil stopped rotating increases with higher springs’ torque as the force required to rotate the airfoil is increased. As can be seen in Figure 4a, for this symmetrical profile, zero degree incidence is never achieved because at this angle the C L is also zero and some aerodynamic force is needed to balance the spring torque. Behaviour of an oscillatory nature, which is indicated by a gap in the data, is observed at all spring torque settings, apart from the lowest tested of 11.53 Nmm. The velocity range where this is observed increases with higher spring torques. The response at pre-stall angles of incidence (below 12°) is observed as being parabolic in shape for all spring torque settings tested. The results are consistent with the previous study [43]. Results for the tests at MP2 are presented in Figure 4b, showing spring torque settings of 12.29 Nmm to 50.08 Nmm.
The results also show the same general shape for all torque settings, shifting to a higher velocity as the springs torque increases due to the same reasons given for MP1. The gradient of the post-stall response also decreases as the springs torque increases, as demonstrated for MP1. With increasing spring torque, the angle of incidence where the response levels out and oscillatory behaviour is observed increases. Oscillatory behaviour is found in all torque settings, apart from 43.51 Nmm and 50.8 Nmm, which could not be studied further due to the wind speed limitations of the wind tunnel. When compared to MP1, the spring torque setting has a larger effect for MP2, as being closer to the aerodynamic centre requires more aerodynamic force to rotate the airfoil.

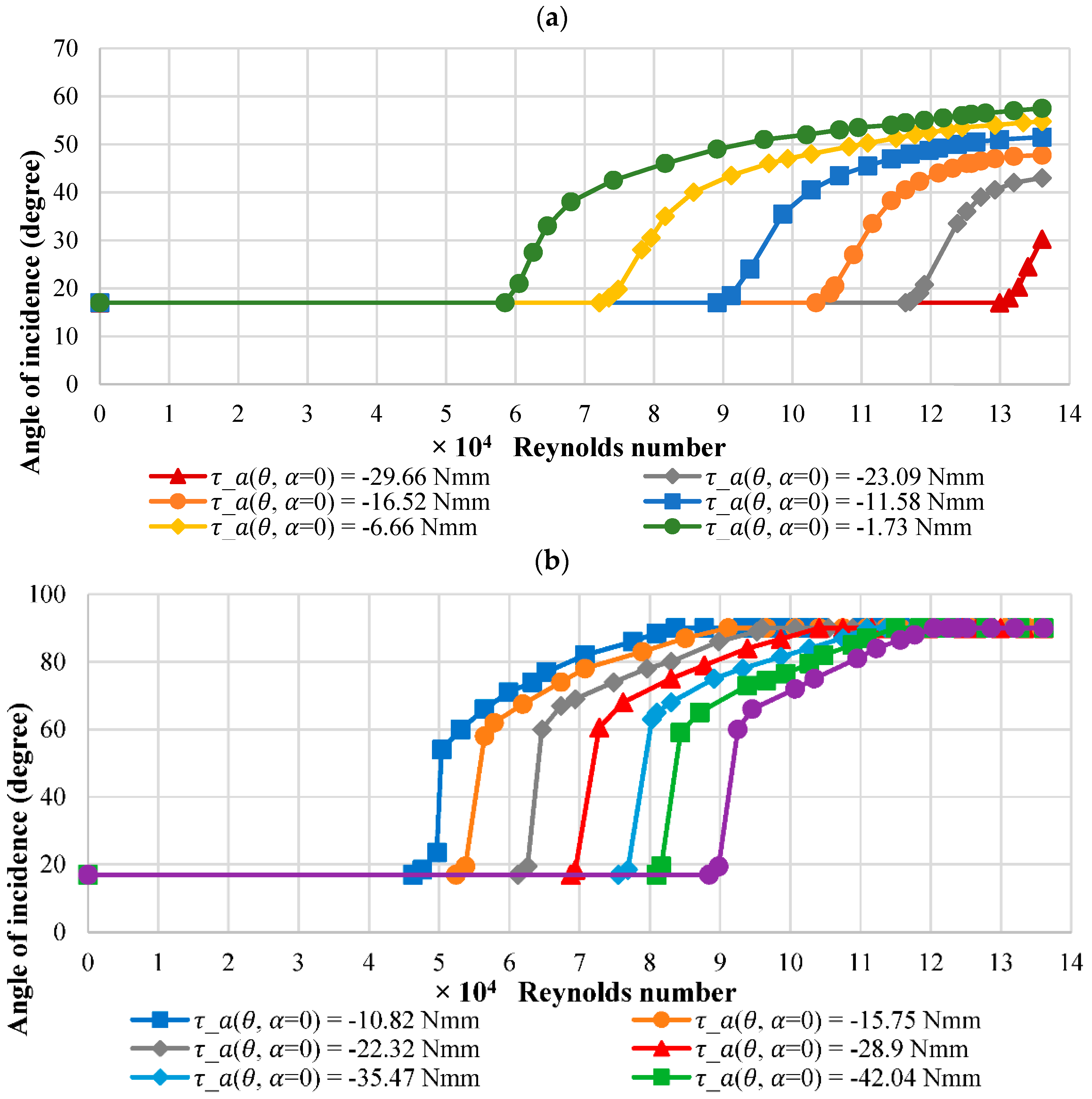

Results for the reversed scenario at MP3 are shown within Figure 5a with spring torque settings ranging from −1.73 Nmm to −49.38 Nmm. The results indicate the same general profile for all torque settings, shifting to a higher velocity as the springs torque increases. The response starts to level out with the parabolic curve becoming more pronounced as the spring torque increases, with the gradient decreasing at higher velocities. A greater amount of force is required to overcome the springs’ moment due to the centre of the sum of the aerodynamic and gravitational moments being close to MP3. The difference between the responses is larger than with MP2, suggesting that the centre of the sum of the aerodynamic and gravitational moment is between MP2 and MP3, and closer to MP3, requiring greater aerodynamic force to rotate the airfoil. Results for various spring torque settings of −10.82 Nmm to −49.61 Nmm at MP4 are presented within Figure 5b.
The results show the same general profile for all torque settings, shifting to a higher velocity as the springs torque increases, as with other pivot point locations. The initial gradient for the post-stall response is large for all spring torque settings. Within this region, all torque settings show that once the angle of incidence passes 60°, the response starts to level out with lower torque settings reaching the maximum limited angle at lower velocities. The difference between responses is slightly larger than that of MP1 but lower than other pivot point locations, further proving that the centre of the sum of the aerodynamic and gravitational moment is closer to MP3.

3.2. Comparison of Pivot Point Locations for NACA 0012

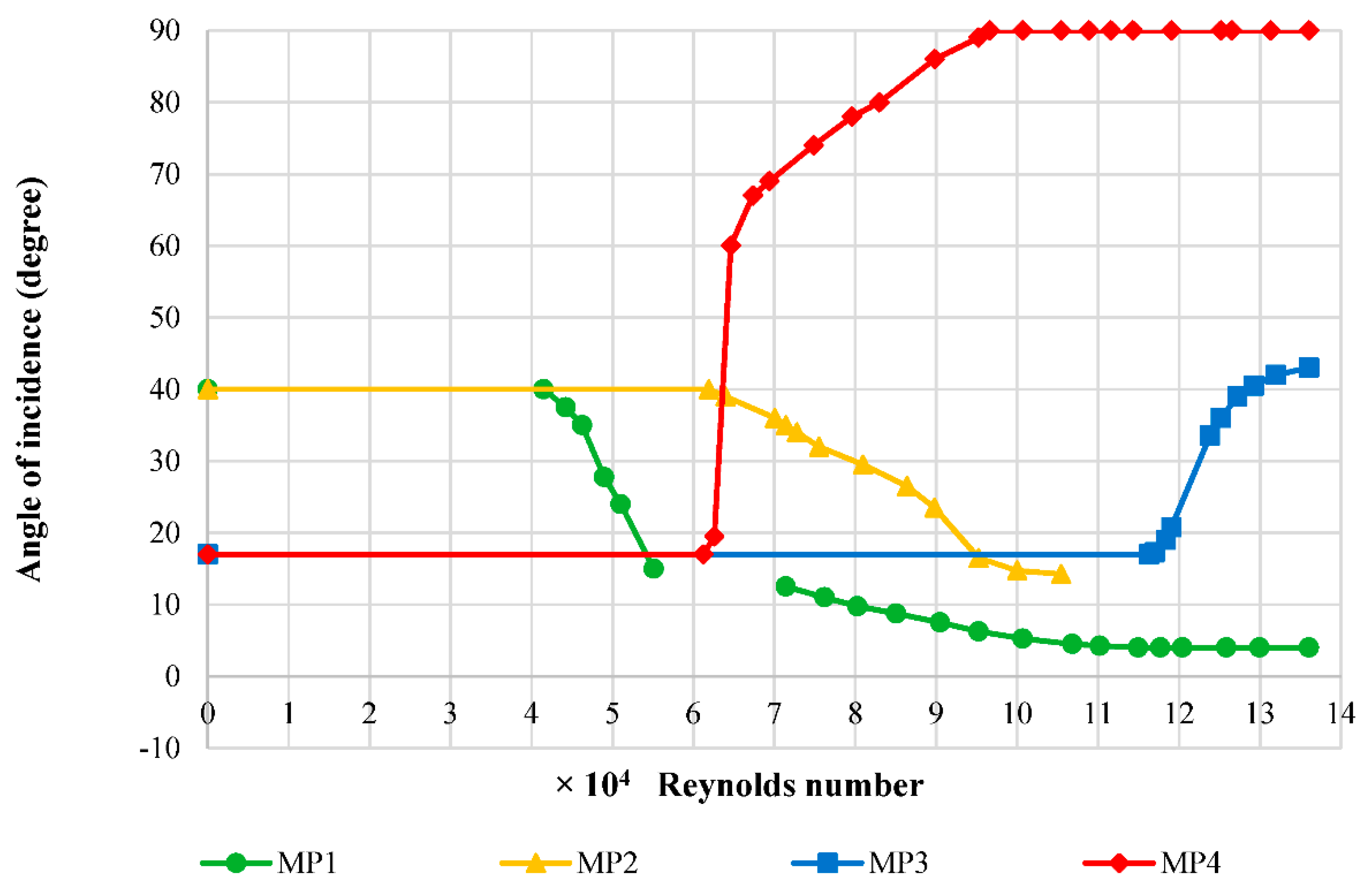

The results for the response of the angle of incidence while increasing the velocity of the airflow for various pivot point locations at a similar torque setting are presented in Figure 6. The torque settings are 23.03 Nmm for MP1, 23.79 Nmm for MP2, −23.09 Nmm for MP3, and −22.32 Nmm for MP4.
The results show the centre for the sum of the gravitational and aerodynamic moment for NACA 0012 is between MP2 and MP3, shown by the angle of incidence decreasing in the response to the airflow velocity for MP2 and increasing for MP3. The results show the centre is closer to MP3 than MP2, as a much increased velocity is required to produce a force to overcome the similar torques of the springs.
Comparing MP1 and MP2, the gradient of the response in the steady post-stall region (above 15°) is larger for MP1 due to MP2 being closer to the aerodynamic and centre of gravity. The aerodynamic and gravitational moments produced are smaller for MP2, requiring a higher airflow velocity to produce a force to overcome the springs’ moment. In our setup, we do not reach the steady pre-stall region for MP2, which we believe will occur at speeds greater than the available maximum in our wind tunnel of 20 m/s (Re = 1.37 × 105).
The gradients for MP3 and MP4 are greater than MP1 and MP2, attributed to MP3 and MP4 having a divergent reaction as changes in aerodynamic force incur an additional aerodynamic force. MP4 has the greatest gradient due to the pivot point location being a further distance away than MP3 to the aerodynamic centre and the centre of gravity. Therefore, this requires a lower velocity to overcome the springs’ moment and, once overcome, an increased divergent reaction.
For a location of the mounting axis before the centre of the sum of the aerodynamic and gravitational moments, as in MP1 and MP2, a decrease in the coefficient of lift and drag occurs, leading to a stable equilibrium if outside the stall region. For the mounting after the centre, as in MP3 and MP4, an increase in these coefficients is found, leading to a more unstable equilibrium due to divergence.

3.3. NACA 6412 at Various Pivot Point Locations and Spring Torque Settings

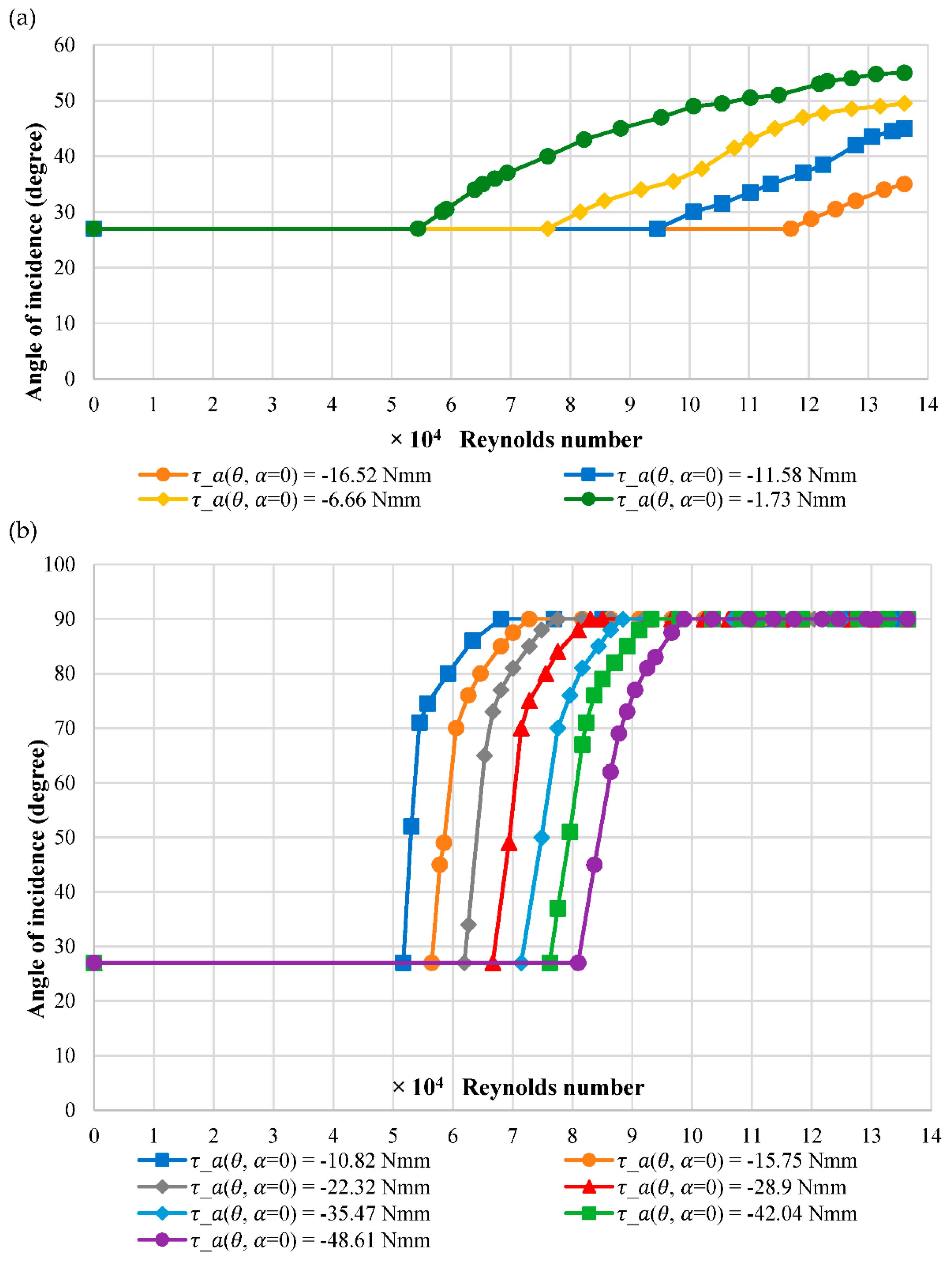

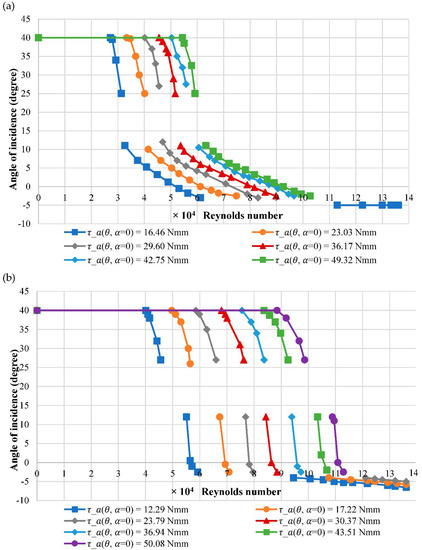

The results for the response of the angle of incidence while increasing the velocity of the airflow for various spring torque settings at MP1, MP2, MP3, and MP4 for the cambered NACA 6412 are presented in this section. The torque settings used are the same as for NACA 0012 to compare data. Similarly, the starting angle of incidence for MP1 and MP2 is 40°. However, a larger starting angle of incidence of 27° is used with NACA 6412 for MP3 and MP4 to avoid the unsteady stall region, which is larger for the cambered profile.
Results for various spring torque settings of 11.53 Nmm to 49.32 Nmm at MP1 are shown in Figure 7a. The results show the same general profile for all spring torque settings tested, shifting to a higher velocity as the springs’ torque value increases due to the same reasons as for NACA 0012. The gradient of the post-stall response (above 25°) appears to be constant as the springs’ torque increases, unlike that found with the symmetrical airfoil. In addition, the response for the lowest spring setting of 16.46 Nmm became unsteady past −2.5°. However, the behaviour once again became stable past the velocity of 16.6 m/s (Re = 1.13 × 105) at −5°. The reason is not known but thought to be due to flutter or a separation bubble forming on the top surface, which could detach and reattach in cycles [21,45,48]. Results for various spring torque settings of 12.29 Nmm to 50.08 Nmm at MP2 are presented within Figure 7b.
The results show the same general profile for all spring torque settings tested, shifting to a higher velocity as the springs’ torque value increases due to the same reasons as for MP1. Here, the gradient of the post-stall response (above 27°) decreases slightly as the springs’ torque increases for the same reasons as reported before for the symmetrical airfoil. The response for the lowest three spring settings of 16.46 Nmm, 17.22 Nmm, and 23.79 Nmm below −2.5° shows that the behaviour became stable past an angle of incidence of −4°, which is believed to be for the same reasons as MP1 where a separation bubble is suspected.

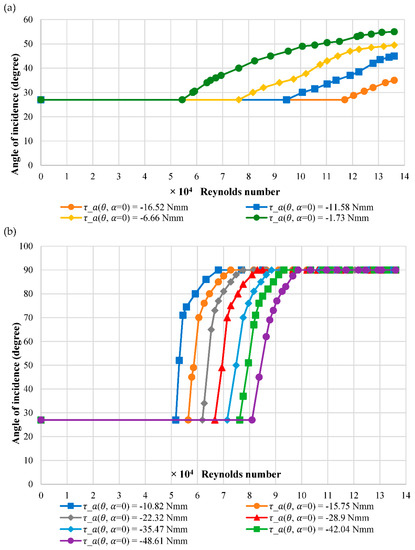

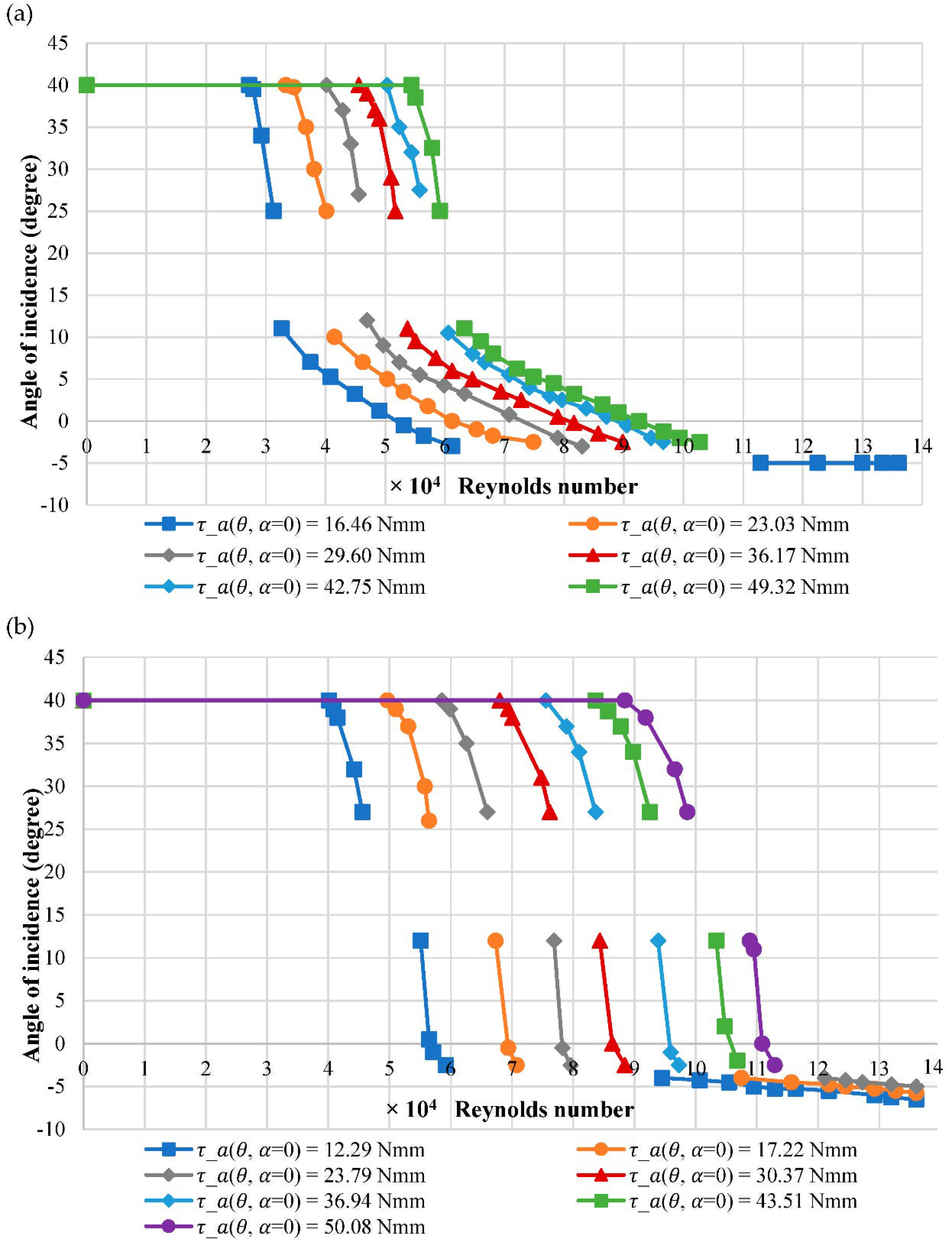

Results for various spring torque settings of −1.73 Nmm to −49.38 Nmm at MP3 are presented in Figure 8a. The results show the same general profile for all torque settings, shifting to a higher velocity as the springs’ torque increases due to the same reasons as MP1. The initial gradient for the post-stall response, similar to MP1, appears the same as the springs’ torque increases for the same reasons as MP1. However, at higher speeds, the gradient can be seen to reduce. Once torque settings past −16.52 Nmm, no movement was recorded. This is because the centre of the sum of the aerodynamic and gravitational moment is too close to MP3, thus a larger force is required to overcome the springs’ moment, which would require a larger velocity than was available in the wind tunnel used. The difference between the responses is larger than with MP2, suggesting the aerodynamic centre is between MP2 and MP3, and closer to MP3, requiring greater aerodynamic force to rotate the airfoil. Results for various spring torque settings of −10.82 Nmm to −49.61 Nmm at MP4 are presented within Figure 8b.
The results show the same general profile for all torque settings, shifting to a higher velocity as the springs’ torque increases due to the same reasons as for MP1. The initial gradient for the post-stall response, similar to MP2, decreases as the springs’ torque increases for the same reasons. Within this range, all torque settings show that once the angle of incidence passes 70°, the responses start to level out. Using lower torque settings, the maximum limited angle is reached at lower velocities.

3.4. Comparison of Pivot Point Locations for NACA 6412

The results for the response of the angle of incidence while increasing the velocity of the airflow for the relative pivot point locations at a similar torque setting for NACA 6412 are presented in Figure 9. The spring torque settings are 23.03 Nmm for MP1, 23.79 Nmm for MP2, −23.09 Nmm for MP3, and −22.32 Nmm for MP4.
The results show the centre for the sum of the gravitational and aerodynamic moment for NACA 6412 is between MP2 and MP3, indicated by the angle of incidence decreasing in the response to the airflow velocity for MP2 and increasing for MP3. The results show that the centre is closer to MP3 than MP2, shown by the velocity of the airflow being required to produce a force to overcome the springs’ torque, notably higher with MP3 using similar values of spring torque.

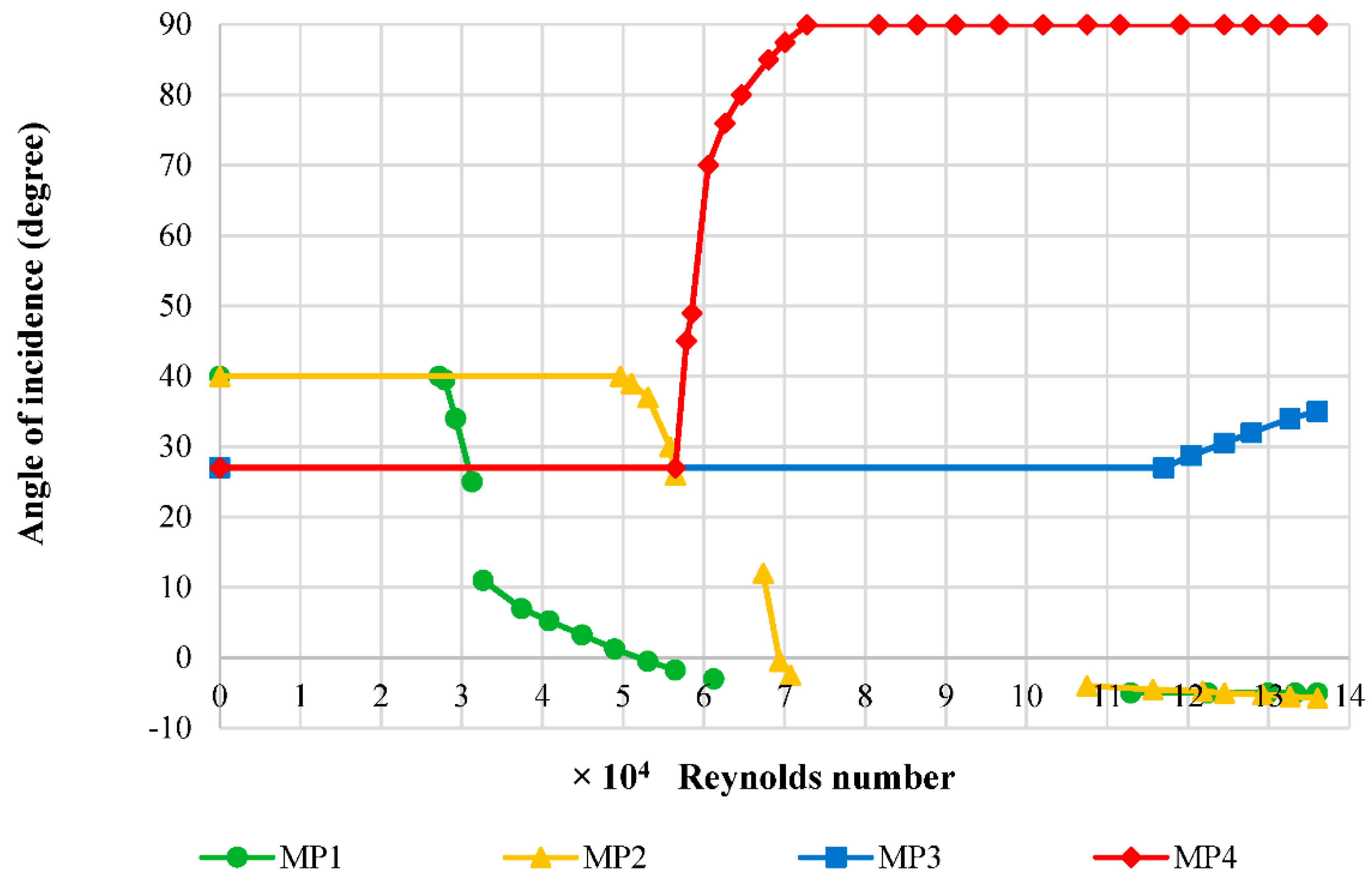

Comparing MP1 and MP2 in Figure 9, the gradient in the steady post-stall region (40 to 27°) for MP2 is less than that of MP1, which is due to MP2 being closer to the aerodynamic and gravitational centre. The aerodynamic and gravitational moments produced are smaller, requiring a higher airflow velocity to produce a force to overcome the springs’ moment. Conversely, within the steady pre-stall region (12 to −2°), the gradient for MP2 is shown in Figure 9 to be much larger than MP1. The reason for this is believed to be caused by the camber of the lower surface protruding down in front of MP2, creating a rapid change from suction to high pressure on that lower surface over a small change in the freestream velocity. This produces a moment that changes the sign, adding to that produced in the same rotational direction behind the pivot point location on the upper surface, resulting in the airfoils nose rapidly moving upwards. At MP1, this protruding area is behind the pivot point location, acting as a counteracting force, thus the change is more gradual.
MP3 has a lower gradient compared to other pivot point locations primarily due to MP3 being located close to the aerodynamic centre. The suction from the protruding area on the lower surface counteracts the high pressure from the upper surface close to the trailing edge, which rotates the airfoil upwards. At MP4, the gradient is steeper as the aerodynamic centre is further away; hence, small changes to the aerodynamic force have a larger effect on the moment produced, leading to even higher incidences and divergence.
For a location of the mounting axis before the aerodynamic centre (MP1 and MP2), a decrease in the incidence and therefore coefficient of lift and drag occurs. For the mounting after the aerodynamic centre (MP3 and MP4), an increase in the incidence and therefore an increase in these coefficients is observed. In the post-stall region, above 27°, the gradients and hence the change in incidence is larger the further the pivot point location is from the aerodynamic centre. Conversely, the change is less rapid in the pre-stall region for angles between 12° and −2° for the airfoils tested at MP1 and MP2.

3.5. The Comparison between Cambered and Symmetrical Airfoils

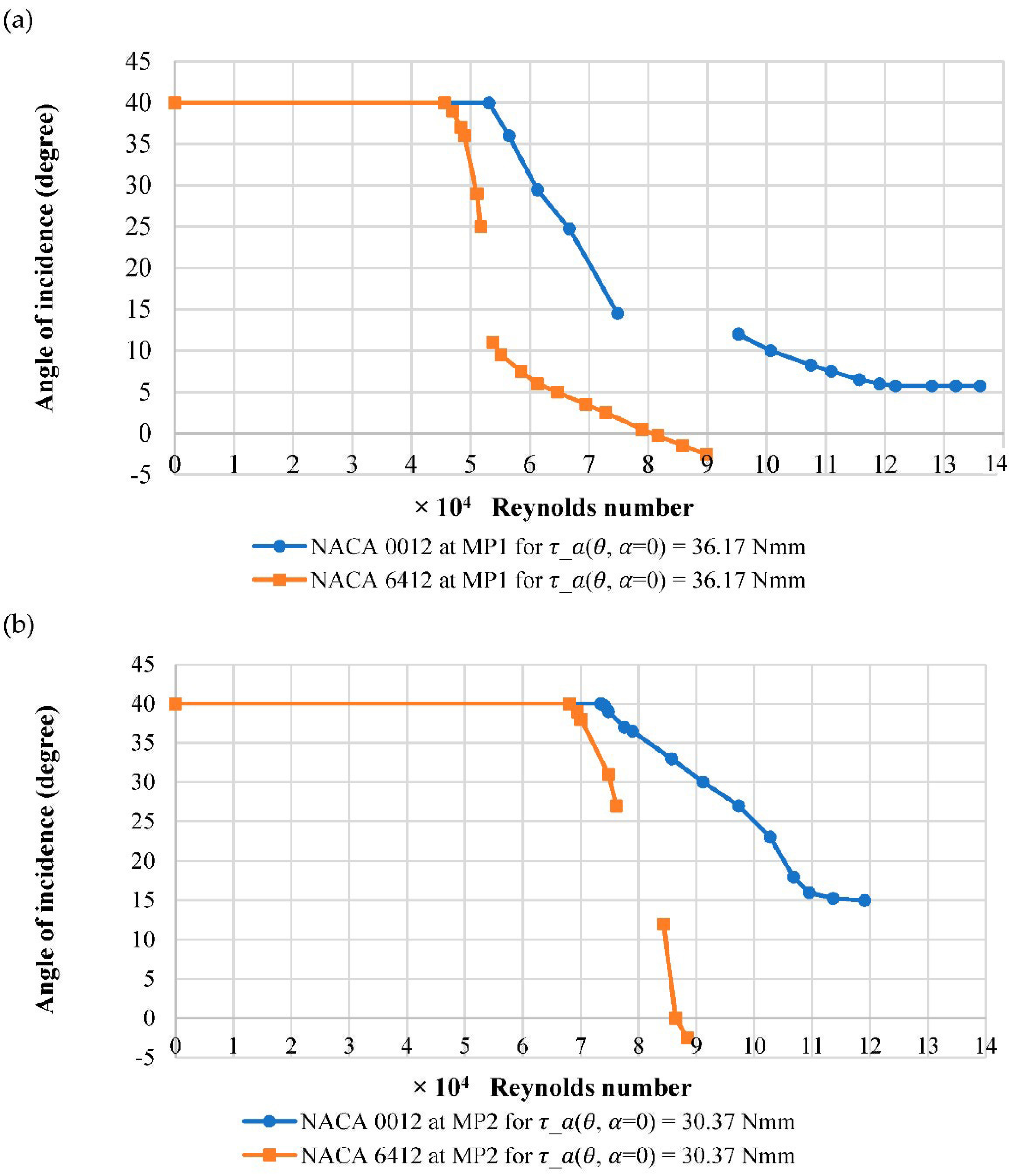

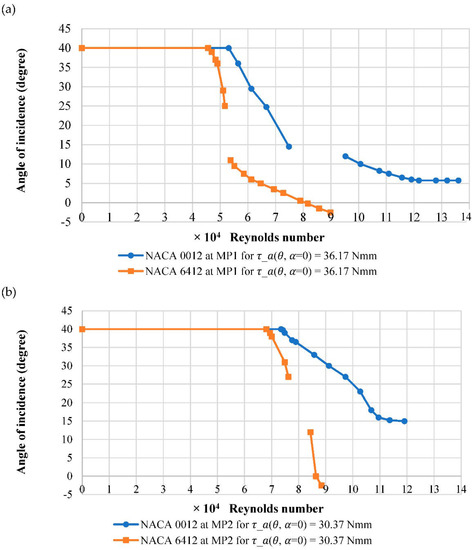

The figures in this section show the response of the angle of incidence while increasing the velocity of the airflow for each of the relative pivot point locations at the same torque settings. This enables a comparison of the differences in airfoils at each of the pivot point locations. Figure 10a shows the effect of the airfoil shape for MP1 at a spring toque setting of 36.17 Nmm. For the NACA 6412 cambered airfoil, a lower airflow velocity is required to initiate movement, with it reaching lower angles of incidence than the symmetrical airfoil. This is caused by an aerodynamically improved performance of NACA 6412, with the airfoil producing a larger amount of downforce than NACA 0012. The response gradient for NACA 6412 can be seen in Figure 10a, slightly larger in both the post-stall region and pre-stall region. The unsteady near-stall region for NACA 6412 occurs from 25° to 12°, whereas for NACA 0012, it occurs from 15° to 12°. The larger region for NACA 6412 is due to the airfoils cambered shape, resulting in a delayed and more gradual stall, which results in higher fluctuations of pressure and hence unsteadiness. Figure 10b shows the effect of airfoil shape for MP2 at a spring toque setting of 30.37 Nmm.
Once again for NACA 6412, a lower airflow velocity is required to initiate movement, with it reaching lower angles of incidence into the steady pre-stall region, similar to that found with MP1. Comparing the steady post-stall region, similarly, the gradient is larger for NACA 6412 and the unsteady near-stall region is the same as MP1. Conversely, the gradient for NACA 6412 in the pre-stall region with MP2 is larger than that for MP1, which, as previously mentioned, is suspected to be due to a rapid change in moment. The pre-stall region is not reached with NACA 0012 using MP2 and would require larger airflow velocities than were available.

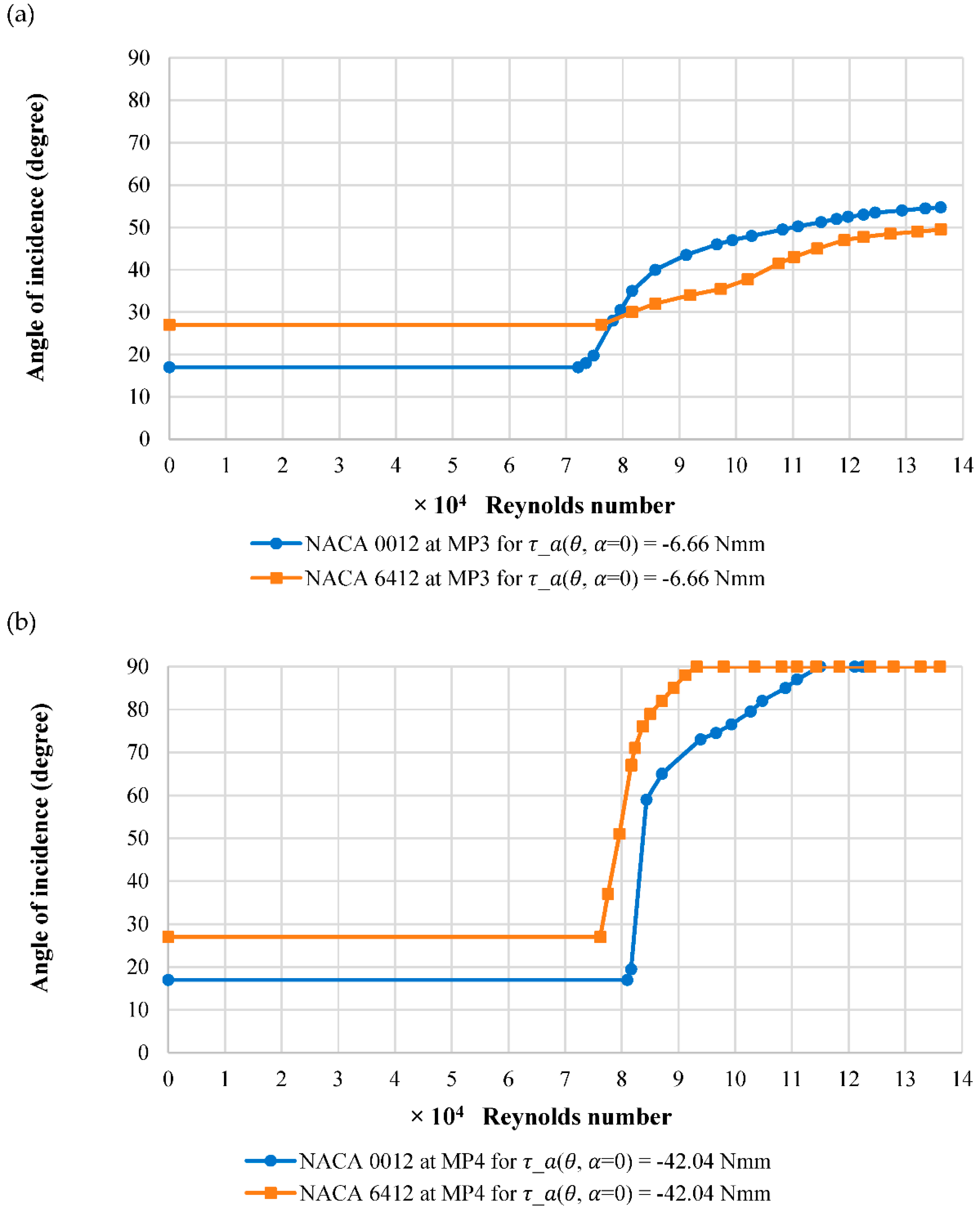

Figure 11a shows the effect of airfoil shape for MP3 at a spring toque setting of −6.66 Nmm. The starting angles are different when comparing airfoils at MP3. Nevertheless, at 27°, a slightly smaller velocity is required to initiate movement of NACA 6412; however, it has a decreased gradient, reaching a lower angle of incidence at higher wind speeds. This is partly due to NACA 6412 producing a slightly larger aerodynamic force, initiating movement at a slightly lower velocity. The gradient is slightly less when compared to the NACA 0012 but similar at higher velocities. The cambered airfoil produces a larger amount of downforce at a given incidence due to the increased turning of the airflow. Figure 11b shows the effect of airfoil shape for MP4 at −42.04 Nmm.
At 27°, a smaller velocity is required to initiate movement of NACA 6412 at MP4 when compared to MP3. Conversely, the NACA 6412 reaches the maximum limited angle of 90° at a lower velocity when compared to the symmetrical airfoil, unlike MP3. The gradients are similar up to 60° and thereafter both gradients reduce but the symmetrical airfoil can be seen to reduce more, reaching the limiting angle at a higher wind speed.

4. Conclusions

From the results obtained, the study has proven the concept of an airfoil passively adjusting to a freestream velocity. The adjustment is highly dependent on pivot point location and spring preload, resulting in either a reduction or increase in both downforce and drag. From the results, it is concluded that pivot point location plays the largest role in whether the lift and drag coefficients increase or decrease and when concerning the rate of change when subjected to a freestream velocity. When the sum of the aerodynamic and gravitational moment was negative (leading edge down, MP3 and MP4), an increase in lift and drag coefficients was observed due to the increase in incidence. Conversely, when the aerodynamic and gravitational moment sum was positive (leading edge up, MP1 and MP2), a decrease in lift and drag coefficients occurred due to the decrease in incidence. The centre of the sum of the aerodynamic and gravitational moments was determined to be between MP2 and MP3 for both airfoils, positioned slightly closer to MP3. When the aerodynamic centre and centre of gravity was closer to the mounting axis, this produced smaller moments, decreasing the rate of change. Where the pivot point location was closer to the centre of the sum of the aerodynamic and gravitational moments, the velocity range in which unsteady behaviour occurred increased.
The results also showed that spring torque played a role in the initiation, rate of change, and final angle of incidence achieved. As the springs’ torque increased, the wind speed required to change the angle of incidence increased. In addition, with higher windspeeds, the rate of change in the angle of incidence decreased. However, as the springs’ torque increased, the velocity range in which unsteady behaviour occurred also increased. The cambered NACA 6412 produced a larger aerodynamic force and therefore aerodynamic moment when compared with NACA 0012 airfoil at a given windspeed. This larger force enabled changes to the angle of incidence at lower velocities. However, the cambered NACA 6412 was also subject to increased velocity ranges and angles of incidence of unsteady behaviour.
The springed wing system described here could represent a real wing with support structure that is elastic. The pivot point and spring torque setting represent the mounting location and strength of support, respectively. The symmetrical or cambered wing could be used in the application of reducing the drag of road vehicles at higher windspeeds. To avoid unsteady fluctuations in forces, it would be advised to use an initial setting no higher than 12°. The symmetrical airfoil has a larger speed range and no upper limit to its use. The cambered profile is more efficient, although a final setting no larger than −2° should also be used to avoid unsteady fluctuations. The value of the spring preload can be selected according to the desired velocity at which the road vehicle is intended to have a reduced drag and the pivot point location can be adjusted according to the intended rate of drag reduction with velocity. For the opposite application of increased stability with velocity, the cambered profile demonstrated a larger velocity range and lower rate of change when compared to the symmetrical profile. Similarly, the initial velocity can be triggered by selecting a spring preload. The use of symmetrical or cambered profiles with pivot point locations ahead of the centre of pressure could be used with hydrofoils and rigid sails to prevent damage at higher than intended wind velocities, although the effects of heave may have to be considered in these applications alongside aerospace applications. Conversely, they could also be used in shielding fences to block flow at higher wind speeds, provided that a suitable support structure is used. In the same manor, the trigger velocities can be selected with the preload and rate of change with the position of the pivot point.
The system setup had some notable challenges and limitations. At low values of spring torque settings, it is believed the results could be affected by friction in the bearings, which could have produced slightly distorted results. Steady pre-stall measurement is also attempted at MP3 and MP4 but are not reported here due to the high sensitivity and difficulties in achieving reliable results. Recommendations for future work include an investigation of the effects at higher Reynolds numbers, which would require more advanced wind tunnel facilities capable of higher airflow velocities. Another area of interest would be the steady pre-stall region for MP3 and MP4, for which a wind tunnel with smaller incremental changes in velocity to capture the effects is needed. Finally, further investigation could be carried out into how this type of fluid–structure interaction can be achieved by the use of anisotropic materials, such as carbon fibre, and how the layup of the material can change the behaviour of the response. The work reported here is performed with torsional springs obeying Hooke’s law. Further work is proposed to study spring-mounted wings with variable spring constants dependent on deformation, as well as wings with elastic support structures of various strengths and configurations. In addition to this, the results can be used as an initial benchmark to validate numerical simulations before tackling more complex fluid–structure interactions.

Author Contributions

Conceptualisation, J.K. and S.F.; methodology, J.K. and S.F.; validation, J.K., S.F. and B.B.; formal analysis, J.K., S.F., B.B., G.H. and A.L.; investigation, S.F. and B.B.; data curation, J.K., S.F. and B.B.; writing—original draft preparation, J.K., S.F. and B.B.; writing—review and editing, J.K., S.F., G.H. and A.L.; visualisation, S.F. and B.B.; supervision, J.K.; project administration, J.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research study received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data supporting reported results can be requested from corresponding author.

Acknowledgments

The authors would like to acknowledge the technical support provided by Robert Elliot at the University of Portsmouth.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. De Borst, R.; Nithiarasu, P.; Tezduyar, T. Computational Fluid Structure Interaction, 1st ed.; John Wiley & Sons Ltd.: Chichester, UK, 2013. [Google Scholar]
  2. Dowell, E.H.; Clark, R.; Peters, D. A Modern Course in Aeroelasticity, 4th ed.; Kluwer Academic Publishers: New York, NY, USA, 2004. [Google Scholar]
  3. Rathore, J.; Dhingra, K.; Malik, R. Fluid structure interaction analysis of tapered wing of aircraft. Int. J. Eng. Res. Technol. 2019, 8, 307–319. [Google Scholar]
  4. Wang, W.; Yan, Y. Strongly coupling of partitioned fluid-solid interaction solvers using reduced-order models. Appl. Math. Model. 2010, 34, 3817–3830. [Google Scholar] [CrossRef]
  5. Rose, B.R.; Junu, G.R.; Manivel, M. Partly coupled fluid structure interaction analysis of an aircraft wing at subsonic speeds. Int. J. Mech. Mechatron. Eng. 2014, 14, 22–29. [Google Scholar]
  6. Fung, Y.C. An Introduction to the Theory of Aeroelasticity; University of California: Los Angeles, CA, USA; Dover Publications, Inc.: San Diego, CA, USA, 1993. [Google Scholar]
  7. Nguyen, N.; Tuzcu, I. Aeroelastic Flight Dynamics of Flexible Aircraft with Inertial and Propulsive Force Interactions. In AIAA Atmospheric Flight Mechanics Conference; American Institute of Aeronautics and Astronautics: Chicago, IL, USA, 2009; pp. 1–23. [Google Scholar]
  8. Collar, A. The First Fifty Years of Aeroelasticity. Aerospace 1978, 5, 12–20. [Google Scholar]
  9. Liauzun, C.; Piet-Lahanier, N. Aeroelasticity and Structural Dynamics. Aerosp. J. 2018, 14, 1–3. [Google Scholar]
  10. Chinmaya, P.; Venkatasubramani, S. Aeroelasticity—In general and flutter phenomenon. In Proceedings of the 2009 Second International Conference on Emerging Trends in Engineering & Technology, Nagpur, India, 16–18 December 2009; pp. 81–85. [Google Scholar]
  11. Sadraey, M. Aircraft Design, A Systems Engineering Approach, 1st ed.; John Wiley & Sons, Ltd.: Chichester, UK, 2013. [Google Scholar]
  12. Afonso, F.; Leal, G.; Vale, J.; Oliveira, É.; Lau, F.; Suleman, A. Linear vs non-linear aeroelastic analysis of high-aspect-ratio wings: Effect of chord and taper-ratio variation. In Congress on Numerical Methods in Engineering; APMTAC: Lisbon, Portugal, 2015; pp. 1–9. [Google Scholar]
  13. Yurkovich, R. Status of unsteady aerodynamic prediction for flutter of high-performance aircraft. J. Aircr. 2003, 40, 832–842. [Google Scholar] [CrossRef]
  14. Rose, B.R.; Jinu, G.R. A Study on Aeroelastic Flutter Suppression and Its Control Measures—Past and Future. Int. J. Eng. Technol. 2014, 6, 960–973. [Google Scholar]
  15. Wang, Z.; Zhang, W.; Wu, X.; Chen, K. A novel unsteady aerodynamic Reduced-Order Modelling method for transonic aeroelastic optimization. J. Fluids Struct. 2018, 82, 308–328. [Google Scholar] [CrossRef][Green Version]
  16. Giovanneti, L. Fluid Structure Interaction Testing, Modelling and Development of Passive Adaptive Composite Foils. Ph.D. Thesis, University of Southampton, Southampton, UK, 2017. [Google Scholar]
  17. Bose, C.; Badrinath, S.; Gupta, S. Dynamical stability analysis of a fluid structure interaction system using a high fidelity Navier-Stokes solver. Procedia Eng. 2016, 144, 883–890. [Google Scholar] [CrossRef][Green Version]
  18. Stanciu, V.; Stroe, G.; Andrei, I. Linear models and calculations of aeroelestic flutter. UPB Sci. Bull. Ser. D 2012, 74. Available online: https://www.scientificbulletin.upb.ro/rev_docs_arhiva/fullc07_145478.pdf (accessed on 26 August 2021).
  19. Sidlof, P.; Vlček, V.; Štěpán, M. Experimental investigation of flow-induced vibration of a pitch—Plunge NACA 0015 airfoil under deep dynamic stall. J. Fluids Struct. 2016, 67, 48–59. [Google Scholar] [CrossRef]
  20. Rivera, J.; Dansberry, B.; Bennett, R.; Durham, M.; Silva, W. NACA 0012 benchmark model experimental flutter results with unsteady pressure distributions. In Proceedings of the 33rd Structures, Structural Dynamics and Materials Conference, Dallas, TX, USA, 13 April 1992. [Google Scholar]
  21. Khatir, T.; Djillali, B.; Khatir, S.; Abdelkader, L.; Wahab, M.A. Experimental and numerical investigation of flutter phenomenon of an aircraft wing (NACA 0012). Mechanika 2017, 23, 562–566. [Google Scholar]
  22. Goyaniuk, L.; Poirel, D.; Benaissa, A. Pitch–Heave Symmetric Stall Flutter of a NACA0012 at Transitional Reynolds Numbers. AIAA J. 2020, 58, 3286–3298. [Google Scholar] [CrossRef]
  23. Thill, C.; Etches, J.; Bond, I.; Potter, K.; Weaver, P. Morphing skins. Aeronaut. J. 2008, 112, 117–139. [Google Scholar] [CrossRef]
  24. Gaspari, A.; Moens, F. Aerodynamic shape design and validation of an advanced high-lift device for a regional aircraft with morphing droop nose. Int. J. Aerosp. Eng. 2019, 2019, 1–21. [Google Scholar] [CrossRef][Green Version]
  25. Basaeri, H.; Yousefi-Koma, A.; Zakerzadeh, M.R.; Mohtasebi, S.S. Experimental study of a bio-inspired robotic morphing wing mechanism actuated by shape memory alloy wires. Mechatronics 2014, 24, 1231–1241. [Google Scholar] [CrossRef]
  26. Barbarino, S.; Bilgen, O.; Ajaj, R.; Friswell, M.I.; Inman, D.J. A review of morphing aircraft. J. Intell. Mater. Syst. Struct. 2011, 22, 823–877. [Google Scholar] [CrossRef]
  27. Su, W.; Swei, S.; Zhu, G. Optimum wing shape determination of highly flexible morphing aircraft for improved flight performance. J. Aircr. 2016, 53, 1305–1316. [Google Scholar] [CrossRef][Green Version]
  28. Barnard, R.H. Road Vehicle Aerodynamics, 3rd ed.; Mechaero Publishing: St. Albans, UK, 2010. [Google Scholar]
  29. McBeath, S. Competition Car Aerodynamics, 3rd ed.; Veloce Publishing Ltd.: Poundbury, UK; Boston, MA, USA; Dorset, UK, 2017. [Google Scholar]
  30. Thuwis, G.A.; De Breuker, R.; Abdalla, M.M.; Gürdal, Z. Aeroelastic tailoring using lamination parameters—Drag reduction of a Formula One rear wing. Struct. Multidiscip. Optim. 2010, 41, 637–646. [Google Scholar] [CrossRef][Green Version]
  31. Kajiwara, S. Passive variable rear-wing aerodynamics of an open-wheel racing car. Automot. Engine Technol. 2017, 2, 107–117. [Google Scholar] [CrossRef][Green Version]
  32. Wolf, T. The aerodynamic development of the new Porsche Cayenne. Proc. Inst. Mech. Eng. Part D J. Automob. Eng. 2020, 234, 390–408. [Google Scholar] [CrossRef]
  33. Knight, J.; McConnell, M.R.; Ledger, A.; Azcueta, R. Fluid structure interaction of hydrofoils. In Proceedings of the ICMET Oman 2019—International Conference on Marine Engineering and Technology, Muscat, Oman, 5–7 November 2019; Zenodo: Muscat, Oman, 2019. [Google Scholar]
  34. Zarruk, G.A.; Brandner, P.; Pearce, B.W.; Phillips, A.W. Experimental study of the steady fluid—Structure interaction of flexible hydrofoils. J. Fluids Struct. 2014, 51, 326–343. [Google Scholar] [CrossRef]
  35. Scott, S.; Capuzzi, M.; Langston, D.; Bossanyi, E.; McCann, G.; Weaver, P.; Pirrera, A. Effects of aeroelastic tailoring on performance characteristics of wind turbine systems. Renew. Energy 2017, 114, 887–903. [Google Scholar] [CrossRef]
  36. Abbaspour, M.; Radmanesh, A.R.; Soltani, M.R. Unsteady flow over offshore wind turbine airfoils and aerodynamic loads with computational fluid dynamic simulations. Int. J. Environ. Sci. Technol. 2016, 13, 1525–1540. [Google Scholar] [CrossRef][Green Version]
  37. Xu, Y.Z.; Virk, M.S.; Knight, J.; Mustafa, M.Y.; Haritos, G. Factors Influencing the Performance of Porous Wind Shields. Appl. Mech. Mater. 2013, 321–324, 799–803. [Google Scholar] [CrossRef][Green Version]
  38. Stanford, B.; Ifju, P.; Albertani, R.; Shyy, W. Fixed membrane wings for micro air vehicles: Experimental characterization, numerical modeling, and tailoring. Prog. Aerosp. Sci. 2008, 44, 258–294. [Google Scholar] [CrossRef]
  39. Aboelezz, A.; Hassanalian, M.; Desoki, A.; Elhadidi, B.; El-Bayoumi, G. Design, experimental investigation, and nonlinear flight dynamics with atmospheric disturbances of a fixed-wing micro air vehicle. Aerosp. Sci. Technol. 2019, 97, 105636. [Google Scholar] [CrossRef]
  40. Panta, A.; Fisher, A.; Mohamed, A.; Marino, M.; Xu, R.; Liu, H.; Watkins, S. Low Reynolds number aerodynamics of leading-edge and trailing-edge hinged control surfaces: Part I statics. Aerosp. Sci. Technol. 2019, 99, 105563. [Google Scholar] [CrossRef]
  41. Cattafesta, L.; Bahr, C.; Mathew, J. Fundamentals of Wind-Tunnel Design. In Encyclopaedia of Aerospace Engineering, 1st ed.; Blockley, R., Shyy, W., Eds.; John Wiley & Sons Ltd.: Chichester, UK, 2010; pp. 1–10. [Google Scholar]
  42. Poirel, D.; Harris, Y.; Benaissa, A. Self-sustained aeroelastic oscillations of a NACA0012 airfoil at low-to-moderate Reynolds numbers. J. Fluids Struct. 2008, 24, 700–719. [Google Scholar] [CrossRef]
  43. Knight, J.; Fels, S.; Haritos, G.; Carolus, T. Fluid-Structure Interaction of a Spring-Mounted Symmetrical Rigid Wing for Drag Reduction of Cars at Higher Wind Velocities. SAE Tech. Pap. 2020, 1, 5037. [Google Scholar]
  44. McAllister, K.W.; Carr, L.; McCrokskey, W.J. Dynamic Stall Experiments on the NACA 0012 Airfoil. NASA Tech. Pap. 1978, 1100. Available online: https://core.ac.uk/download/pdf/42875301.pdf (accessed on 26 August 2021).
  45. Akbari, M.; Price, S. Simulation of dynamic stall for a NACA 0012 airfoil using a vortex method. J. Fluids Struct. 2003, 17, 855–874. [Google Scholar] [CrossRef]
  46. UIUC Applied Aerodynamics Group. UIUC Airfoil Data Site. Available online: http://m-selig.ae.illinois.edu/ads/coord/n0012.dat (accessed on 26 August 2021).
  47. Yousefi, K.; Razeghi, A. Determination of the Critical Reynolds Number for Flow over Symmetric NACA Airfoils. In Proceedings of the 2018 AIAA Aerospace Sciences Meeting, Kissimmee, FL, USA, 8–12 January 2018. Session: Stability and Transition II: Shear Flows II. [Google Scholar] [CrossRef][Green Version]
  48. Rinoie, K.; Takemura, N. Oscillating behaviour of laminar separation bubble formed on an aerofoil near stall. Aeronaut. J. 2004, 108, 153–164. [Google Scholar] [CrossRef]

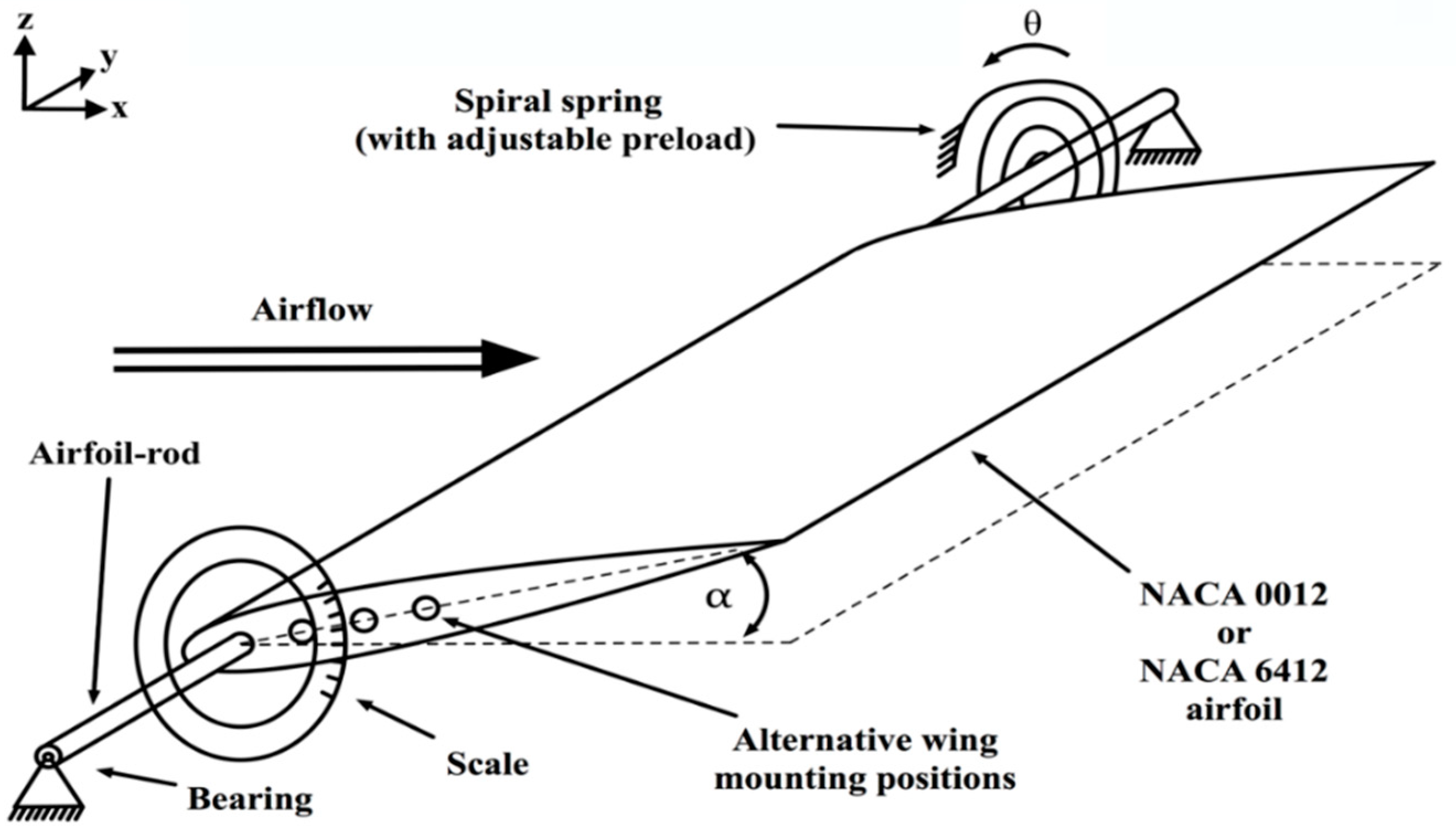

Figure 1. Schematic of the aeroelastic system.
Figure 1. Schematic of the aeroelastic system.
Applmech 02 00034 g001

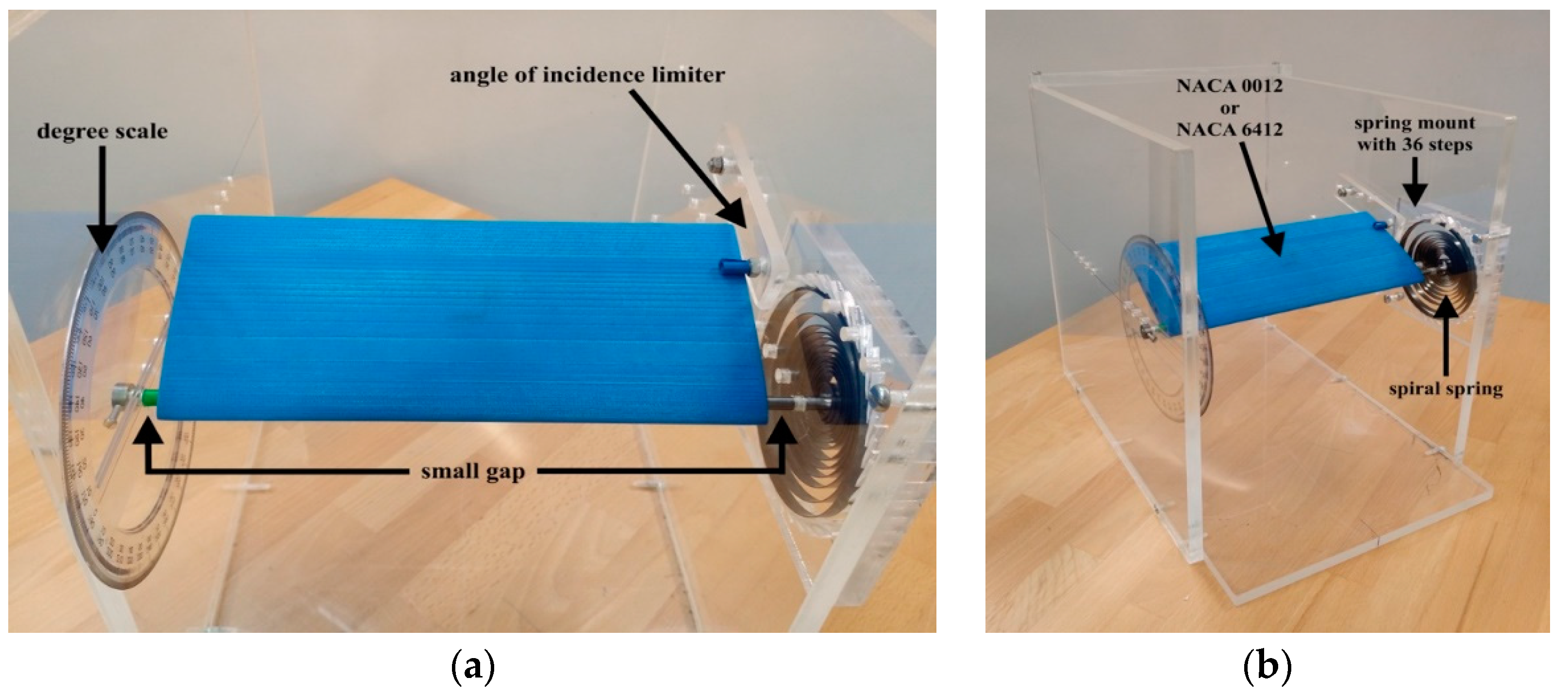

Figure 2. Experimental setup (a) zoomed in (b) complete rig.
Figure 2. Experimental setup (a) zoomed in (b) complete rig.
Applmech 02 00034 g002

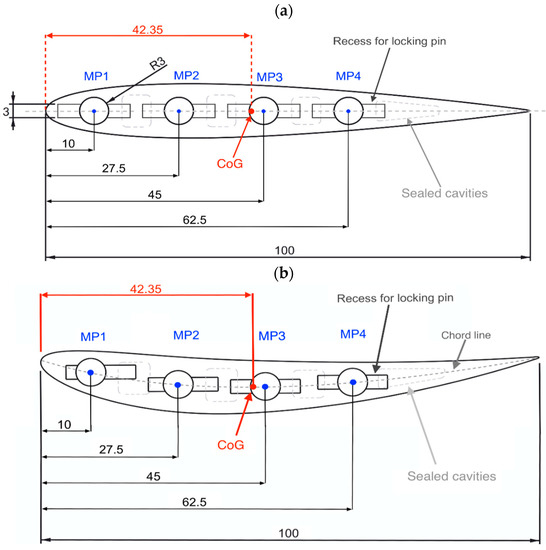

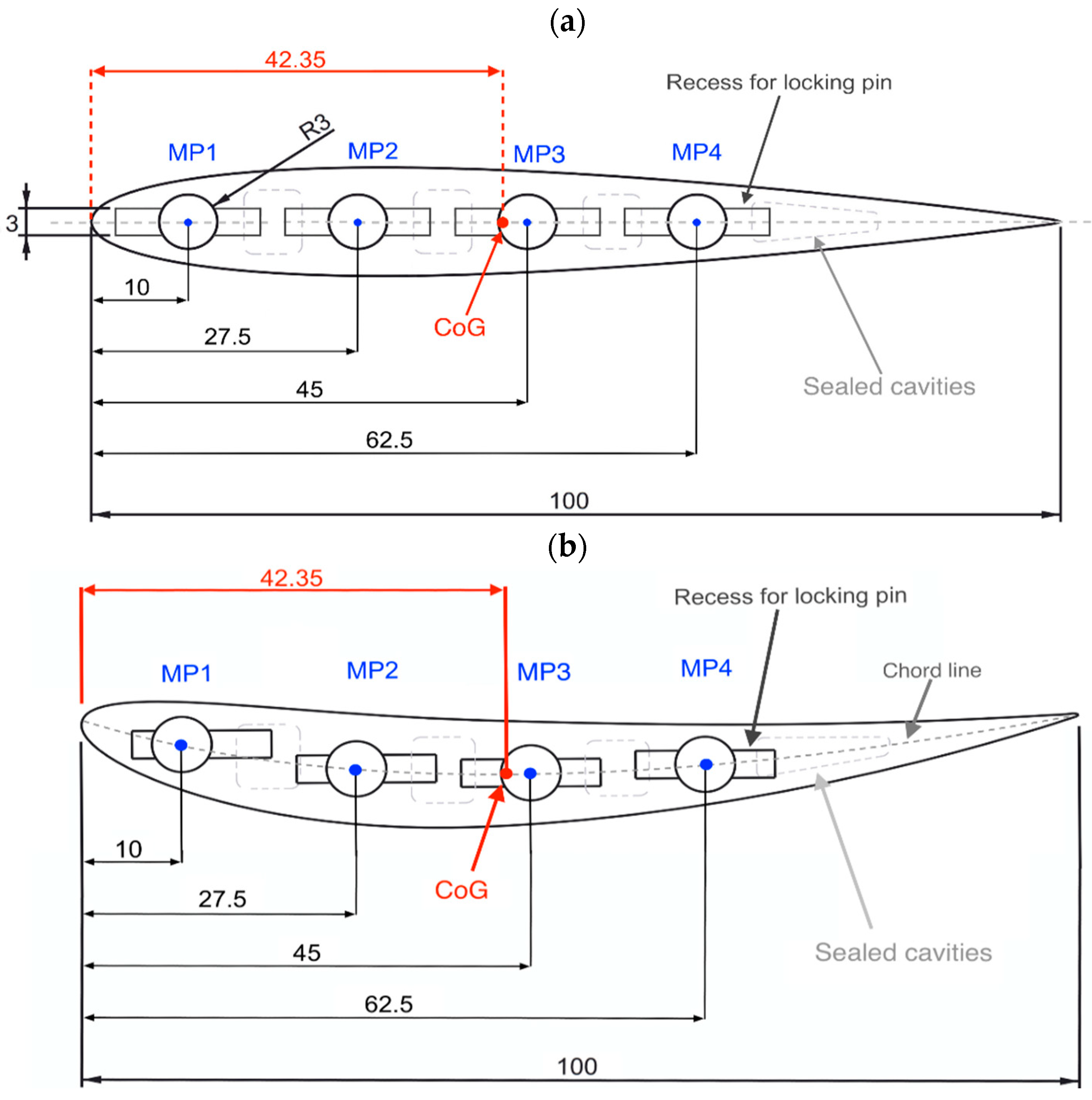

Figure 3. Pivot point location, dimensions in mm, and the centre of gravity location (CoG) for (a) NACA 0012 and (b) NACA 6412.
Figure 3. Pivot point location, dimensions in mm, and the centre of gravity location (CoG) for (a) NACA 0012 and (b) NACA 6412.
Applmech 02 00034 g003

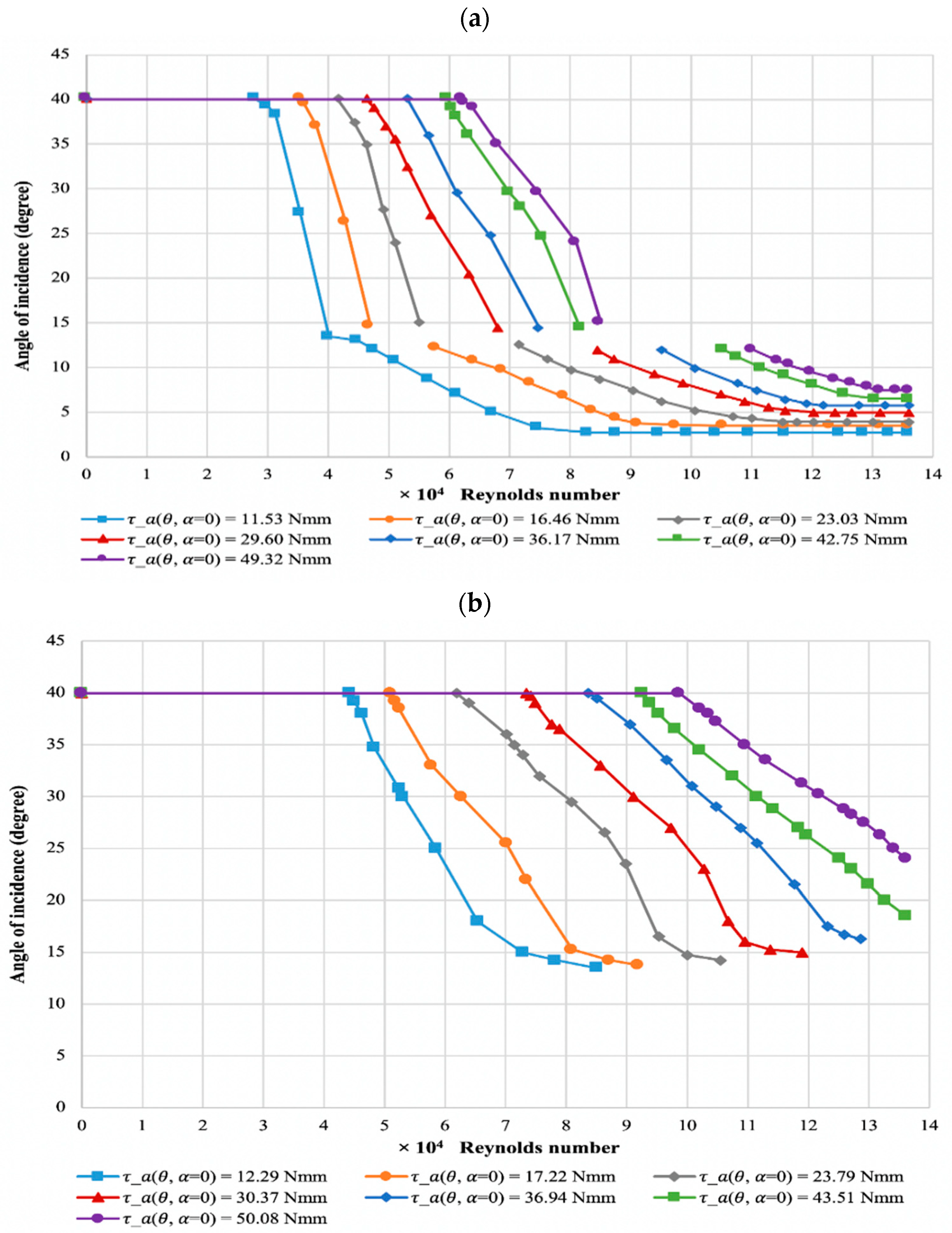

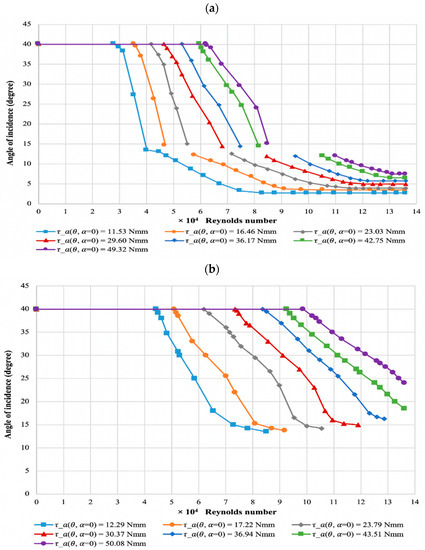

Figure 4. Response of the angle of incidence against flow velocity for (a) MP1 and (b) MP2 of NACA 0012.
Figure 4. Response of the angle of incidence against flow velocity for (a) MP1 and (b) MP2 of NACA 0012.
Applmech 02 00034 g004
Figure 5. Response of the angle of incidence against flow velocity for (a) MP3 and (b) MP4 of NACA 0012.
Figure 5. Response of the angle of incidence against flow velocity for (a) MP3 and (b) MP4 of NACA 0012.
Applmech 02 00034 g005
Figure 6. Effect of pivot point location on NACA 0012.
Figure 6. Effect of pivot point location on NACA 0012.
Applmech 02 00034 g006
Figure 7. Response of the angle of incidence against flow velocity for (a) MP1 and (b) MP2 of NACA 6412.
Figure 7. Response of the angle of incidence against flow velocity for (a) MP1 and (b) MP2 of NACA 6412.
Applmech 02 00034 g007
Figure 8. Response of the angle of incidence against flow velocity for (a) MP3 and (b) MP4 of NACA 6412.
Figure 8. Response of the angle of incidence against flow velocity for (a) MP3 and (b) MP4 of NACA 6412.
Applmech 02 00034 g008
Figure 9. Effect of Pivot point location on NACA 6412.
Figure 9. Effect of Pivot point location on NACA 6412.
Applmech 02 00034 g009
Figure 10. Effect of airfoil shape at (a) MP1 and (b) MP2.
Figure 10. Effect of airfoil shape at (a) MP1 and (b) MP2.
Applmech 02 00034 g010
Figure 11. Effect of airfoil shape at (a) MP3 and (b) MP4.
Figure 11. Effect of airfoil shape at (a) MP3 and (b) MP4.
Applmech 02 00034 g011
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Knight, J.; Fels, S.; Beazley, B.; Haritos, G.; Lewis, A. Fluid–Structure Interaction of Symmetrical and Cambered Spring-Mounted Wings Using Various Spring Preloads and Pivot Point Locations. Appl. Mech. 2021, 2, 591-612. https://doi.org/10.3390/applmech2030034

AMA Style

Knight J, Fels S, Beazley B, Haritos G, Lewis A. Fluid–Structure Interaction of Symmetrical and Cambered Spring-Mounted Wings Using Various Spring Preloads and Pivot Point Locations. Applied Mechanics. 2021; 2(3):591-612. https://doi.org/10.3390/applmech2030034

Chicago/Turabian Style

Knight, Jason, Simon Fels, Benjamin Beazley, George Haritos, and Andrew Lewis. 2021. "Fluid–Structure Interaction of Symmetrical and Cambered Spring-Mounted Wings Using Various Spring Preloads and Pivot Point Locations" Applied Mechanics 2, no. 3: 591-612. https://doi.org/10.3390/applmech2030034

Article Metrics

Back to TopTop
