Article

A DFT Study on the Interaction of Doped Carbon Nanotubes with H2S, SO2 and Thiophene

1
Department of Chemistry, Isfahan University of Technology, Isfahan 84156-83111, Iran
2
Division of Biochemistry, Department of Biology, Faculty of Sciences, Shahrekord University, Shahrekord 88186-34141, Iran
*
Author to whom correspondence should be addressed.
Quantum Rep. 2021, 3(3), 366-375; https://doi.org/10.3390/quantum3030023
Received: 16 May 2021 / Revised: 30 June 2021 / Accepted: 30 June 2021 / Published: 5 July 2021
(This article belongs to the Special Issue Fundamentals and Applications in Quantum Chemistry)

Abstract

:
The interactions of simple and Al-, B-, N-, S-, P-, and Si-doped carbon nanotubes with three sulfur-containing molecules (H2S, SO2, and thiophene) were investigated to assess their adsorption potencies and sensor abilities. The DFT method was used to calculate the adsorption energies and natural bond orbitals parameters. In addition, population analyses were performed to calculate the energy gaps and reactivity parameters. The results showed an exothermic interaction of H2S, SO2, and thiophene with simple and doped carbon nanotubes, while the maximum negative adsorption energies belong to Al- and B-containing complexes. Furthermore, evaluation of second-order perturbation energies (obtained from natural bond orbitals calculations) confirmed that the highest energies were related to B- and Al-containing intramolecular interactions. The results revealed the favorability of adsorption of SO2 by nanotubes (B- and Al-doped carbon nanotubes, in particular) compared with the other examined adsorbates.

1. Introduction

Based on its unique structural properties and wide range of applications, carbon nanotubes (CNTs) have attracted broad interest from various research groups [1,2,3,4] since their first report in 1991 [5]. The adsorption abilities of CNTs provide an excellent opportunity to solve environmental pollution problems and to prepare a new category of useful sensors. In recent years, lots of studies—tens of thousands (experimental or theoretical)—have been performed to evaluate the adsorption properties of CNTs and their doped derivatives [6,7,8,9,10,11,12]. In particular, the theoretical reports showed an increase in stability and hydrogen adsorption capacity of the CNTs in the presence of dopant atoms [13,14].
Moreover, the energy gaps analysis of carbon nanotubes, doped by various heteroatoms, proved that different heteroatoms could have different effects on the conductivities of nanotubes [15]. Consequently, electrical conductivity and chemical reactivity of nanotubes could be improved by doping with heteroatoms [16], which make them proper candidates for application in chemical sensors. Recently, the application of doped CNTs as a group of pollutant absorbents was extensively studied. In this line, recent experimental works showed that simple and doped carbonaceous materials could be used to adsorb sulfur-based environmental pollutants, including H2S, SO2, and thiophene [17].
Despite all the reported studies related to the adsorption and sensor properties of doped carbon nanotubes, there are only a few reports considering the effect of various heteroatoms on these properties [18]. Therefore, a comprehensive study on the adsorption of desired molecules on the surface of carbon nanotubes is still required. In this regard, the molecular properties, interaction energies, and sensor properties of CNTs in the presence of sulfur-containing pollutants should be investigated. For this purpose, hydrogen sulfide, sulfur dioxide, and thiophene were selected as sample molecules for common sulfur-containing small molecules. The toxicities of sulfur-containing compounds, especially hydrogen sulfide, sulfur dioxide, and thiophene have been studied extensively [19]. These compounds can be found in crude oil and their combustion products can be released into the air, leading to several environmental issues such as acidic rain. Therefore, studies in the detection and separation of these molecules are environmentally quite important.
Moreover, hydrogen sulfide inhibits the activity of some biological enzymes such as cytochrome oxidase and its high concentration quickly causes death [20]. In addition, several researchers have reported the effect of sulfur dioxide on asthma, bronchitis, and mortality. Thiophene can also be the reason for the degeneration of neurons in the inferior colliculus and the cerebral cortex [21]. Therefore, in the course of our interest in the adsorption and sensor properties of doped carbon nanostructures [22,23,24], the adsorption of hydrogen sulfide, thiophene, and sulfur dioxide on the surfaces of simple and N-, P-, S-, Si-, Al-, and B-doped CNTs were studied. Consequently, in addition to the calculation of adsorption energies, molecular orbital properties, and optimized parameters, density functional theory (DFT) was employed to obtain the energy gaps (Eg) to examine the sensor abilities of doped nanotubes versus desired molecules. Finally, the interaction parameters were investigated using NBO calculations. The adsorption of hydrogen sulfur, sulfur dioxide, and thiophene on the surface of various doped CNTs was compared with simple CNTs to examine the effects of doping on them.

2. Materials and Methods

All the calculations were performed by Gaussian 09 program package [25] and using density functional theory (DFT) at ω-B97X-D/6-31+g* level of theory. DFT calculations were used because they could reproduce exact energy values, comparative with the most expensive MP2 methods [26]. ω-B97X-D functional is a DFT method based on long-range corrected hybrid density functions with consideration of empirical dispersion; its result accuracy and reproducibility has been validated through comparison with theoretical and experimental data [27]. This method is adequately modified for calculation of non-covalent interaction compared with standard DFT methods such as B3LYP, which made it desirable for calculation of CNTs and selected sulfur-based compounds interactions [28]. The open-shell calculations were carried out on the structures with the even electron number and the closed-shell calculations were employed on the other structures.
The optimization processes were carried out without any symmetric restriction. In addition, for the complexes of doped CNTs adsorbates, several systems starting from different relative positions and various conformations of the adsorbents were considered and, finally, the structure with the minimum energy value was selected for each case. The integral equation formalism variant of Tomasi’s polarized continuum (IEFPCM) model [29] was employed using the SCRF keyword to calculate the free energy of solvation. Natural bond orbitals (NBO) calculations for all structures were performed by employing NBO 5.0 [17], as implemented in Gaussian. The adsorption energies for all interactions were obtained from Equation (1), by considering the basis set superposition error (BSSE) and thermodynamics correction.
ΔEad = Ecomplx − (Eadsorbent + Eadsorbate)
Koopman’s theorem was employed to calculate reactivity parameters for all structures. Consequently, global softness (S), chemical hardness (η), chemical potential (μ), and electrophilicity index (ω) were obtained using Equations (2)–(5).
Μ = (E (LUMO) + E (HOMO))/2
H = (E (LUMO) − E (HOMO))/2
S = 1/η
ω = μ2/2η

3. Results and Discussions

3.1. Optimized Parameters

In this work, the computations were started from a simple (5,5)-carbon nanotube (simply named N) in which its ends were saturated with 10 hydrogen atoms. This model has been used in the previous studies of this group, since it was decided to use the same model for CNTs in all works for consistency and comparability of the results. Furthermore, this model is a common model in many other reports because the computational costs of the work are reduced without employing important approximation; a higher theoretical model could be employed if affordable in the future. Then, six doped structures containing one doped atom of aluminum (AN), boron (BN), nitrogen (NN), phosphorus (PN), sulfur (SN), and silicon (SiN) were made by the replacement of one carbon atom with the heteroatom. All heteroatoms were added in the same place, located in the middle of the CNTs to create uniform models for better comparison. Optimizations of these structures (as adsorbents), were performed at ω-B97X-D/6-31+G* level of theory. The optimized structures are shown in Figure 1 and they were used to extract the molecular parameters, as listed in Table 1.
As shown in Figure 1, the doping of nanotubes deformed their structure due to the difference between the atomic radius of the carbon and dopant atoms, which led to the differences in their bonds’ lengths. Next, three sulfur-containing molecules (H2S, SO2, and thiophene, generally named M) were placed on the surface of each nanotube to obtain the complex structures. The next optimizations were performed on these complexes and their important parameters are listed in Table 1. The optimized structures of these complexes are shown in Figure 2, illustrating the relative position of the adsorbents and adsorbates.
In Table 1, C-X values are related to the average bond lengths of dopant atoms (X) and their surrounding carbons (C). Comparing C-X bond lengths (X is the dopant atom) of each of the doped-CNTs with the similar value in their complexes (with H2S, SO2, and thiophene) showed almost similar values in all cases except in AN and BN. In these two structures, C-X values were increased dramatically in the complexes (versus the alone structure). The maximum variation in the C-X distances was observed in BN complexes where the values for BN, BN-H2S, BN-SO2, and BN-thiophene were 1.526, 1.590, 1.594, and 1.538 Å, respectively.
Averaging the N-M distances (between the nanotubes (N) and the small molecule (M)) among all studied complexes showed that the mean N-M distances for N-H2S, N-SO2, and N-thiophene were 2.314, 2.491, and 2.996 Å, respectively. Moreover, the average N-M distance for doped-CNTs were in this order: BN < AN < SN < SiN < NN < N < PN. Generally, the distance between adsorbent and adsorbate is affected by the strength of their interactions and the atomic sizes of adjacent atoms. The Al, P, Si, and S atoms are in the third row of the periodic table and have larger atomic radii. Therefore, expecting larger N-M values for these doped-CNTs is quite reasonable. Moreover, Al and B have fewer electronegativity values than the other doped heteroatoms, which led to the lower electron densities and stronger interactions with the electro-rich structures. Based on these arguments, it could be concluded that B and Al heteroatoms are the best candidates as dopant atoms for the adsorption of H2S, SO2, and thiophene, while PN and simple carbon nanotube are the worse adsorbents for these purposes.

3.2. Adsorption Energies

The adsorption energies for all complexes were calculated in the gas phase and water to study the strength of interactions, as shown in Table 2. According to the data listed in this table, all of the adsorption energies in the solvent have negative values, which indicate exothermic interactions of H2S, SO2, and thiophene with the studied CNTs. Comparing the adsorption energies in the gas phase and water indicated that the interactions of H2S and SO2 with CNTs in the gas phase are more desirable than those in the solvent. In contrast, thiophene adsorption is quite better in the solvent rather than the gas phase. A comparison of all Ead values indicated that SO2-containing CNTs have the most negative Ead values while H2S-containing systems have the least negative ones. Finally, the average adsorption abilities of nanotubes based on Ead values were in this order: AN > BN > SiN > NN > PN > SN > N.
The order of adsorption energy values is similar to the previous section, and analyzing the Ead values confirmed that Al- and B-doped CNTs have the strongest interactions with sulfur-containing molecules. In contrast, CNTs and sulfur-doped CNTs are the worst adsorbent for these adsorbates.

3.3. NBO Calculations

In this study, the NBO program was used to calculate the partial atomic charges and the second-order perturbation energies, which can provide more details about CNT and sulfur-containing compounds interactions. The NBO atomic charges are listed in Table 3. In this table, X refers to the partial atomic charges of doped heteroatoms and the partial charge of nearest carbon atom refers to the adsorbate for simple carbon nanotubes. C (Av) refers to the average values for the atomic charges of carbon atoms connected to the heteroatoms. Moreover, the sulfur charges were used to report the atomic charges of the sulfur atom in H2S, SO2, and thiophene. Finally, the average charges of two adjacent hydrogen atoms in H2S, two adjacent oxygen atoms in SO2, and C1 and C5 in thiophene, were labeled as Y charges.
In all complexes, the charge transfer process could be easily traced by the measurement of charge alteration of adsorbent or adsorbate versus their initial charges. Regarding this, measurement of the charge transfers for H2S complexes revealed that BN and AN complexes have the maximum charge transfer values and the obtained values were in this order: BN > AN > NN > SiN > SN > PN. Furthermore, the maximum charge transfer for SO2 complexes was related to BN and SN and charge transfer values were in this order: BN > SN > AN > NN > PN >SiN. Moreover, in the thiophene complex, the maximum charge transfer belonged to BN and AN and they were in this order: BN > AN > SiN > PN > SN > NN. Therefore, it could be concluded that NBO charge values have strong agreement with the results of previous sections on the positive effect of B and Al as doped atoms on the improvement of the studied adsorption processes.
In addition to the atomic charges, NBO calculation was used to investigate the E2 values in all 21 complexes (Table 4). E2 is the second-order perturbation energies for donor-acceptor interactions and it shows the strength of the donor-acceptor interaction. The sum of these second-order perturbation energy values is reported in the last column. According to these values, the highest second-order perturbation energies belonged to BN and AN complexes. The results of the NBO calculations confirmed the results of previous sections and introduced BN and AN as the best adsorbents.

3.4. Reactivity Parameters

In the final part of this study, the molecular orbital population analyses were employed to obtain the HOMO-LUMO band gaps and reactivity parameters for all adsorbents and complexes. The results of these calculations are listed in Table 5.
The HOMO-LUMO energy gaps for various nanotubes were in this order: AN (0.197 eV) > PN (0.184 eV) > NN (0.178 eV) > SN (0.166 eV) > N (0.161 eV) > BN (0.155 eV) > SiN (0.150 eV). It seems that the conductivity of carbon nanotubes was enhanced by doping with B and Si heteroatoms. In addition, according to the energy gap values for studied complexes, the intramolecular interactions between adsorbents and adsorbates changed the bandgap for each complex. Therefore, the HOMO-LUMO band gaps of CNTs could be changed in the presence of H2S, SO2, and thiophene. It should be mentioned that by adsorption of SO2, the Eg values of CNTs were reduced more, compared with H2S and thiophene, which can be interpreted as the stronger interactions of SO2 with the studied carbon nanotube. The doping of Al, B, N, and P atoms could affect E (HOMO) and E (LUMO) values, while for S- and Si-doped nanotubes the E (HOMO) values were exactly equal to the simple carbon nanotube. A comparison of chemical potential (μ) values indicated that the highest chemical potential was related to BN and the order of these values is: BN > SN > AN, N > NN > PN > SiN. Moreover, a slight decrease was observed in chemical potential (μ) values of the complexes. Among all complexes, SO2-containing systems showed the most decline in chemical potential values versus their related simple and doped-CNTs. The global softness (S) values and chemical hardness (η) is related to Eg values and no further explanation is required. Finally, the electrophilicity index (ω) for various nanotubes was in this order: SiN > N > SN > NN > PN > BN > AN. It could be concluded that electrophilicity indices were not meaningfully affected by doping nanotubes. Finally, a comparison of electrophilicity index in complexes indicated that in all complexes SO2 and H2S could increase the electrophilicity indices, while thiophene decreased them. This section should provide a concise and precise description of the experimental results, their interpretation, as well as the experimental conclusions that can be drawn.

4. Conclusions

In this study, the sensor abilities and adsorption potentials of simple and Al-, B-, N-, S-, P-, and Si-doped CNTs interacting with some sulfur-containing molecules (H2S, SO2, and thiophene) were investigated theoretically. In this line, DFT calculations were used to calculate the adsorption energies and their related parameters. The results showed an exothermic interaction of H2S, SO2, and thiophene with CNT and doped CNTs. The maximum negative adsorption energies belonged to AN and BN. The NBO program was used to calculate second-order perturbation energies related to the interactions between adsorbents and adsorbates. The highest perturbation energies were related to BN and AN. Finally, population analyses were performed to calculate the HOMO-LUMO energy gaps and reactivity parameters.
Comparing the results of this work with the previous studies showed similar findings in all of these works. For example, the theoretical studies of Sonawane et al. on the adsorption of SO2 on silicon-doped CNTs showed that the presence of silicon has a meaningful effect on the adsorption energies [30]. Moreover, the work of Sun et al. showed the doping of carbon-based materials with nitrogen could enhance the effective surface area for the adsorption of SO2 [31]. In this line, there are a number of studies showing the enhancement effects of doping carbon materials on their adsorption potencies for the studied molecules [32].
Briefly, the results demonstrated the favorability of adsorption of SO2 by CNTs (BN and AN, in particular). Furthermore, the observed changes in the energy gap values of the BN and AN complexes (versus the CNTs alone) introduced Al- and B-doped CNTs as excellent candidates for employment in sensor devices.

Author Contributions

Conceptualization, H.T.; methodology, H.H.; software, H.H. and H.T.; formal analysis, H.H.; investigation H.H. and H.T.; resources, H.T.; data curation, H.H.; writing—original draft preparation, H.H.; writing—review and editing, H.T.; supervision, H.T.; project administration, H.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We are thankful to the National High-Performance Computing Center (NHPCC) at Isfahan University of Technology (http://nhpcc.iut.ac.ir, accessed on 1 July 2021) for providing computational facilities (Rakhsh supercomputer) for this study.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Popov, V.N. Carbon nanotubes: Properties and application. Mat. Sci. Eng. R. Rep. 2004, 43, 61–102. [Google Scholar] [CrossRef]
  2. Sun, Y.-P.; Fu, K.; Lin, Y.; Huang, W. Functionalized carbon nanotubes: Properties and applications. Acc. Chem. Res. 2002, 35, 1096–1104. [Google Scholar] [CrossRef]
  3. Odom, T.W.; Huang, J.-L.; Kim, P.; Lieber, C.M. Atomic structure and electronic properties of single-walled carbon nanotubes. Nature 1998, 391, 62–64. [Google Scholar] [CrossRef]
  4. Chen, J.; Hamon, M.A.; Hu, H.; Chen, Y.; Rao, A.M.; Eklund, P.C.; Haddon, R.C. Solution properties of single-walled carbon nanotubes. Science 1998, 282, 95–98. [Google Scholar] [CrossRef]
  5. Iuima, S. Helical microtubules of graphitic carbon. Nature 1991, 354, 56–58. [Google Scholar]
  6. Li, L.; Yang, H.; Miao, J.; Zhang, L.; Wang, H.Y.; Zeng, Z.; Huang, W.; Dong, X.; Liu, B. Unraveling oxygen evolution reaction on carbon-based electrocatalysts: Effect of oxygen doping on adsorption of oxygenated intermediates. ACS Energy Lett. 2017, 2, 294–300. [Google Scholar] [CrossRef][Green Version]
  7. Babu, D.J.; Bruns, M.; Schneider, R.; Gerthsen, D.; Schneider, J.J. Understanding the influence of N-doping on the CO2 adsorption characteristics in carbon nanomaterials. J. Phys. Chem. 2017, 121, 616–626. [Google Scholar] [CrossRef]
  8. Striolo, A.; Chialvo, A.A.; Gubbins, K.E. Water in carbon nanotubes: Adsorption isotherms and thermodynamic properties from molecular simulation. J. Chem. Phys. 2005, 122, 234712. [Google Scholar] [CrossRef] [PubMed][Green Version]
  9. Yang, R.T. Hydrogen storage by alkali-doped carbon nanotubes–revisited. Carbon 2000, 38, 623–626. [Google Scholar] [CrossRef]
  10. Peng, S.; Cho, K. Ab initio study of doped carbon nanotube sensors. Nano Lett. 2003, 3, 513–517. [Google Scholar] [CrossRef]
  11. Hu, X.; Wu, Y.; Li, H.; Zhang, Z. Adsorption and activation of O2 on nitrogen-doped carbon nanotubes. J. Phys. Chem. C 2010, 114, 9603–9607. [Google Scholar] [CrossRef]
  12. Yoosefian, M. Powerful greenhouse gas nitrous oxide adsorption onto intrinsic and Pd doped Single walled carbon nanotube. Appl. Surf. Sci. 2017, 392, 225–230. [Google Scholar] [CrossRef]
  13. Cruz-Silva, E.; Cullen, D.A.; Gu, L.; Romo-Herrera, J.M.; Muñoz-Sandoval, E.; López-Urías, F.; Sumpter, B.G.; Meunier, V.; Charlier, J.-C.; Smith, D.J. Heterodoped Nanotubes: Theory, Synthesis, and Characterization of Phosphorus-Nitrogen Doped Multiwalled Carbon Nanotubes. ACS Nano 2008, 2, 441–448. [Google Scholar] [CrossRef]
  14. Ganji, M.; Ahmadian, N.; Goodarzi, M.; Khorrami, H. Molecular hydrogen interacting with Si-, S-and P-doped C60 fullerenes and carbon nanotube. J. Comp. Theor. Nanosci. 2011, 8, 1392–1399. [Google Scholar] [CrossRef]
  15. Wang, Y.L.; Su, K.H.; Zhang, J.P. Studying of B, N, S, Si and P Doped (5, 5) Carbon Nanotubes by the Density Functional Theory. In Advanced Materials Research; Trans Tech Publications Ltd.: Zurich, Switzerland, 2012; pp. 1488–1492. [Google Scholar]
  16. Garcia, A.G.; Baltazar, S.E.; Castro, A.H.R.; Robles, J.F.P.; Rubio, A. Influence of S and P doping in a graphene sheet. J. Comput. Theor. Nanosci. 2008, 5, 2221–2229. [Google Scholar] [CrossRef][Green Version]
  17. Sun, F.; Gao, J.; Liu, X.; Yang, Y.; Wu, S. Controllable nitrogen introduction into porous carbon with porosity retaining for investigating nitrogen doping effect on SO2 adsorption. Chem. Eng. J. 2016, 290, 116–124. [Google Scholar] [CrossRef]
  18. Tavakol, H.; Shahabi, D.; Keshavarzipour, F. Theoretical calculation of simple and doped CNTs with the potential adsorption of various ions for water desalination technologies. Struct. Chem. 2020, 31, 399–409. [Google Scholar] [CrossRef]
  19. Tavakol, H.; Hashemi, F.; Molavian, M.R. Theoretical investigation on the performance of simple and doped graphenes for the surface adsorption of various ions and water desalination. Struct. Chem. 2017, 28, 1687–1695. [Google Scholar] [CrossRef]
  20. Khan, A.A.; Schuler, M.M.; Prior, M.G. Effects of hydrogen sulfide exposure on lung mitochondrial respiratory chain enzymes in rats. Toxicol. Appl. Pharmacol. 1990, 103, 482–490. [Google Scholar] [CrossRef]
  21. Mori, F.; Tanji, K.; Wakabayashi, K. Thiophene, a sulfur-containing heterocyclic hydrocarbon, causes widespread neuronal degeneration in rats. Neuropathology 2000, 20, 283–288. [Google Scholar]
  22. Saadat, K.; Tavakol, H. An exceptional functionalization of doped fullerene observed via theoretical studies on the interactions of sulfur-doped fullerenes with halogens and halides. RSC Adv. 2015, 5, 55227–55237. [Google Scholar] [CrossRef]
  23. Tavakol, H.; Shahabi, D. DFT, QTAIM, and NBO study of adsorption of rare gases into and on the surface of sulfur-doped, single-wall carbon nanotubes. J. Phys. Chem. C 2015, 119, 6502–6510. [Google Scholar] [CrossRef]
  24. Tavakol, H.; Mollaei-Renani, A. DFT, AIM, and NBO study of the interaction of simple and sulfur-doped graphenes with molecular halogens, CH3OH, CH3SH, H2O, and H2S. Struct. Chem. 2014, 25, 1659–1667. [Google Scholar] [CrossRef]
  25. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09; Revision D; Gaussian, Inc.: Wallingford, CT, UK, 2009; p. 1. [Google Scholar]
  26. Shahabi, D.; Tavakol, H. A DFT study on the catalytic ability of aluminum doped graphene for the initial steps of the conversion of methanol to gasoline. Comp. Theor. Chem. 2018, 1127, 8–15. [Google Scholar] [CrossRef]
  27. Chen, Z.; Li, Y.; He, Z.; Xu, Y.; Yu, W. Theoretical investigations on charge transport properties of tetrabenzo [a, d, j, m] coronene derivatives using different density functional theory functionals (B3LYP, M06-2X, and ω-B97X-D). J. Chem. Res. 2019, 43, 293–303. [Google Scholar] [CrossRef]
  28. Glendening, E.D.; Reed, A.E.; Carpenter, J.E.; Weinhold, F. NBO Version 3.1. Available online: https://www.scienceopen.com (accessed on 30 June 2021).
  29. Sonawane, M.R.; Habale, D.; Nagare, B.J.; Gharde, R. Interaction of O2, CO2, NO2 and SO2 on Si-doped Carbon Nanotube. Int. J. Appl. Phys. Math. 2011, 1, 138–143. [Google Scholar] [CrossRef][Green Version]
  30. Shimoyama, I.; Baba, Y. Thiophene adsorption on phosphorus-and nitrogen-doped graphites: Control of desulfurization properties of carbon materials by heteroatom doping. Carbon. 2016, 98, 115–125. [Google Scholar] [CrossRef]
  31. Qu, Z.; Sun, F.; Liu, X.; Gao, J.; Qie, Z.; Zhao, G. The effect of nitrogen-containing functional groups on SO2 adsorption on carbon surface: Enhanced physical adsorption interactions. Surf. Sci. 2018, 677, 78–82. [Google Scholar] [CrossRef]
  32. Zhang, H.P.; Luo, X.G.; Song, H.T.; Lin, X.Y.; Lu, X.; Tang, Y. DFT study of adsorption and dissociation behavior of H2S on Fe-doped graphene. Appl. Surf. Sci. 2014, 317, 511–516. [Google Scholar] [CrossRef]

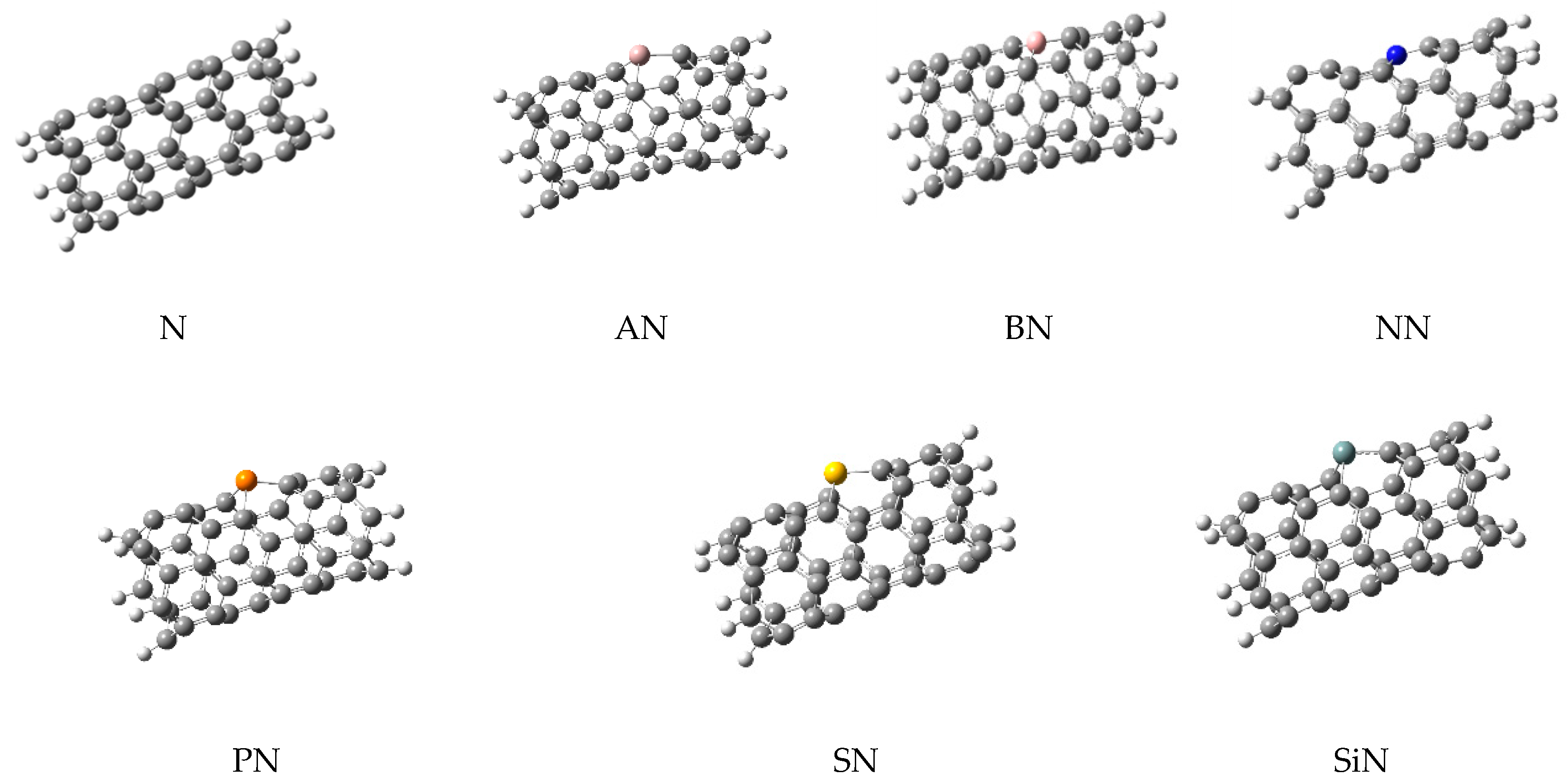

Figure 1. The optimized structures of simple and doped nanotubes employed in this work.
Figure 1. The optimized structures of simple and doped nanotubes employed in this work.
Quantumrep 03 00023 g001

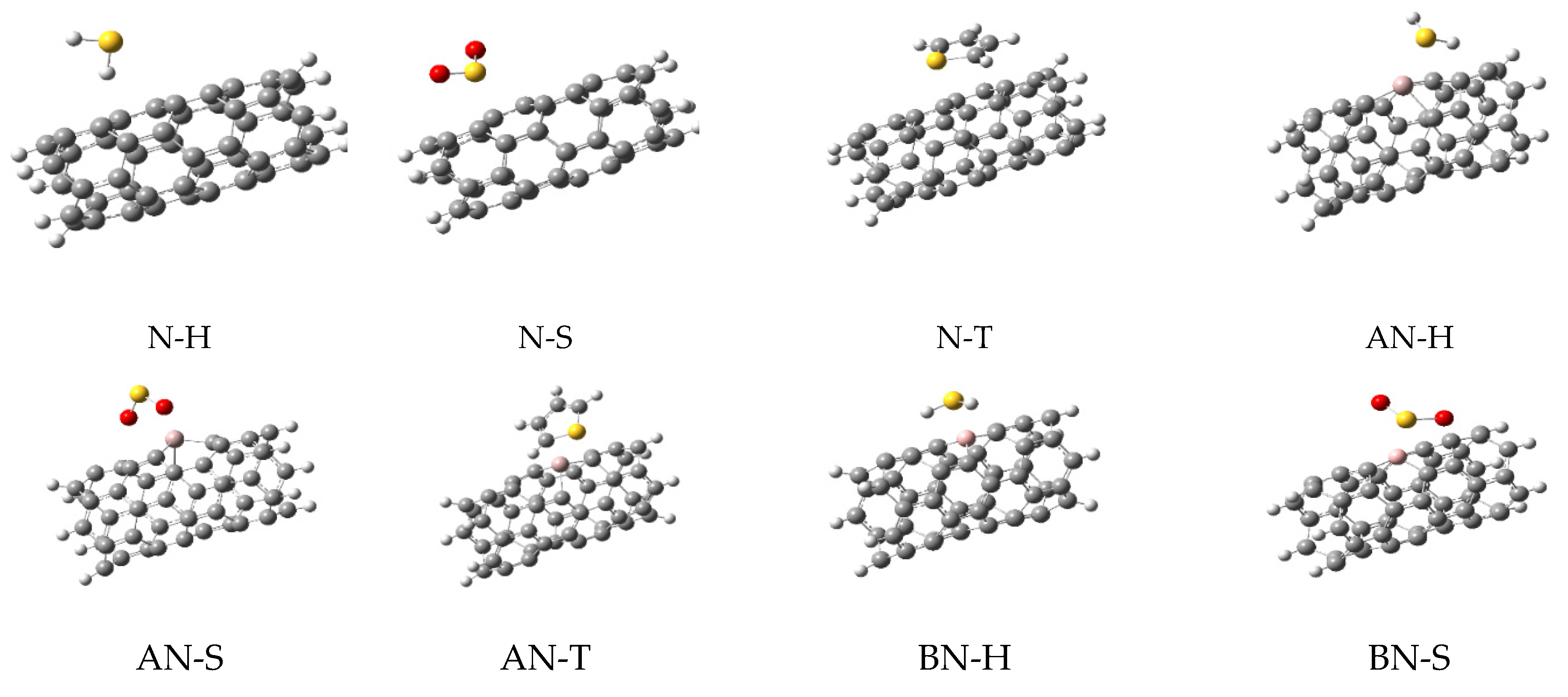

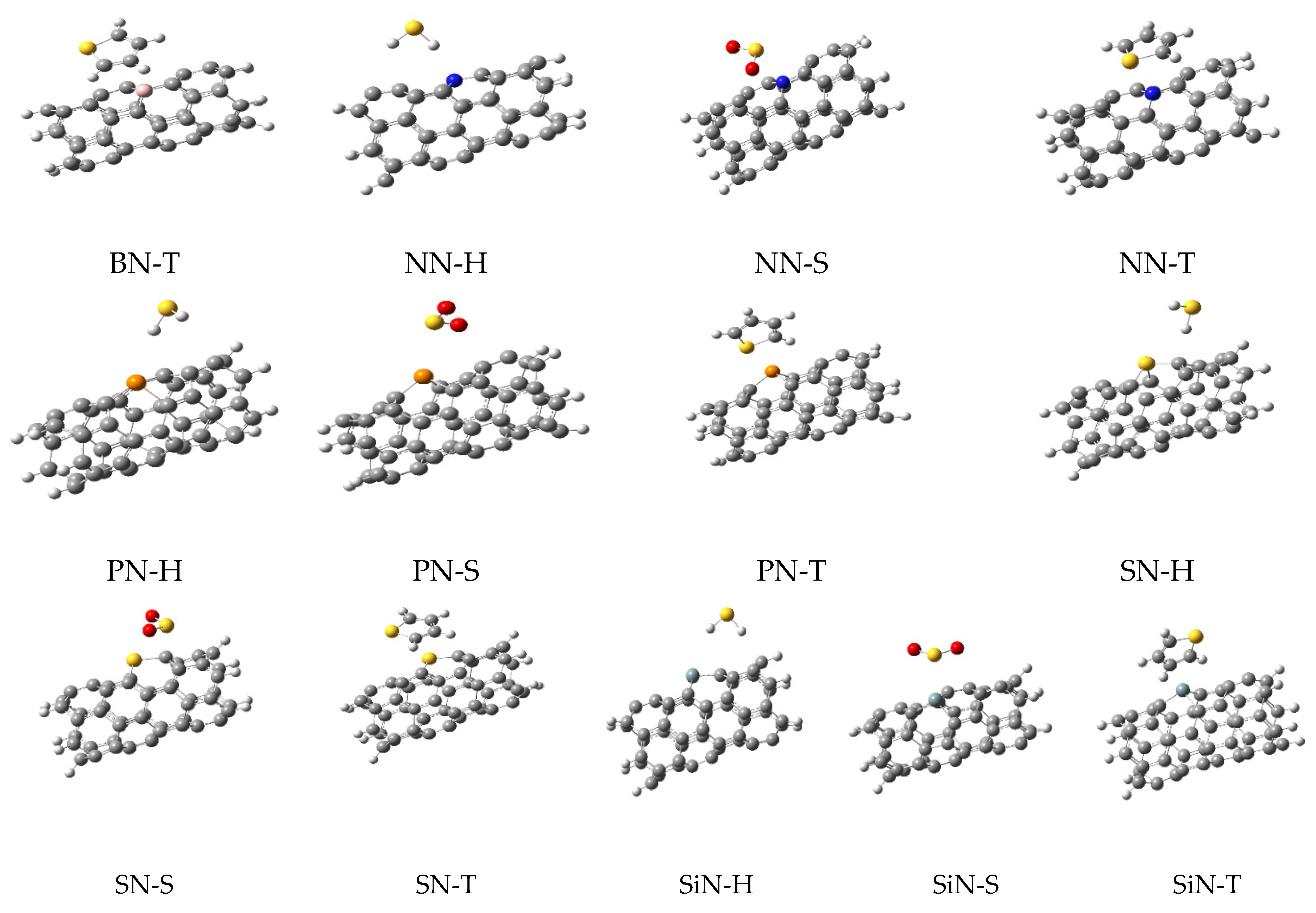

Figure 2. The optimized structures for all complexes of nanotubes with H2S, SO2, and thiophene.

Figure 2. The optimized structures for all complexes of nanotubes with H2S, SO2, and thiophene.
Quantumrep 03 00023 g002aQuantumrep 03 00023 g002b
Table 1. The most important molecular parameters of simple and doped nanotubes, alone and in complex, with H2S, SO2, and thiophene. All distances were reported in Å.
Table 1. The most important molecular parameters of simple and doped nanotubes, alone and in complex, with H2S, SO2, and thiophene. All distances were reported in Å.
N AloneN-H2S N-SO2 N-Thiophene
C-X (Av.) aC-X (Av.) aN-M bC-X (Av.) aN-M bC-X (Av.) aN-M b
N1.4391.4422.3911.4442.9741.4443.243
AN1.9131.9332.3301.9771.7891.9352.307
BN1.5261.5902.1631.5941.4481.5382.804
NN1.4411.4452.2841.4472.9791.4363.162
PN1.8701.8712.5671.8673.3001.8693.255
SN1.8631.8632.1741.8682.0181.8603.134
SiN1.8681.8712.2911.8722.9301.8653.067
a This distance shows the average values of three C-X bond lengths. b This parameter is related to the minimum distance between nanotubes (N) and small molecules (M).
Table 2. Adsorption energies (ΔEad), thermal correction of adsorption energies, basis set superposition error (BSSE) values, enthalpies of adsorptions (ΔHad) and Gibbs free energy of adsorptions (ΔGad) of all nanostructures with H2S, SO2, and thiophene in the gas (G) and water as solvent (W). All energy values are reported in kcal/mol by considering BSSE and thermodynamics correction.
Table 2. Adsorption energies (ΔEad), thermal correction of adsorption energies, basis set superposition error (BSSE) values, enthalpies of adsorptions (ΔHad) and Gibbs free energy of adsorptions (ΔGad) of all nanostructures with H2S, SO2, and thiophene in the gas (G) and water as solvent (W). All energy values are reported in kcal/mol by considering BSSE and thermodynamics correction.
N-H2S N-SO2 N-Thiophene
ΔEad (G)ΔEad (W)BSSEΔEad (G)ΔEad (W)BSSEΔEad (G)ΔEad (W)BSSE
N−1.56−1.490.91−4.41−4.112.20−2.56−2.672.20
AN−5.15−5.041.89−7.08−6.872.29−5.69−6.022.43
BN−4.12−4.052.01−5.69−5.442.08−4.93−5.182.38
NN−3.21−3.081.01−3.67−3.532.45−3.51−3.642.40
PN−2.69−2.570.98−3.93−3.781.91−3.71−3.761.75
SN−2.99−2.921.08−4.14−3.851.97−2.72−2.952.04
SiN−2.46−2.470.96−5.17−4.952.90−3.60−3.742.26
ΔHad (G)ΔHad (W)Thermal
correction
ΔHad (G)ΔHad (W)Thermal
Correction
ΔHad (G)ΔHad (W)Thermal
correction
N−1.24−1.161.28−3.92−3.640.77−2.01−2.111.55
AN−4.82−4.711.66−6.62−6.410.98−5.11−5.441.84
BN−3.75−3.681.94−5.18−4.921.11−4.37−4.621.69
NN−2.87−2.730.60−3.22−3.080.96−2.97−3.091.76
PN−2.33−2.211.13−3.41−3.270.23−3.12−3.181.58
SN−2.70−2.621.35−3.66−3.380.85−2.22−2.461.42
SiN−2.11−2.131.47−4.74−4.510.81−3.06−3.211.55
ΔGad (G)ΔGad (W)Thermal
correction
ΔGad (G)ΔGad (W)Thermal
Correction
ΔGad (G)ΔGad (W)Thermal
correction
N−0.13−0.062.39−2.40−2.132.99−0.36−0.473.20
AN−3.62−3.522.84−5.06−4.852.54−3.41−3.743.54
BN−2.43−2.353.26−3.57−3.322.72−2.70−2.943.36
NN−0.46−0.313.01−1.71−1.572.47−1.35−1.473.38
PN−1.19−1.082.27−1.86−1.711.78−1.48−1.553.22
SN−1.42−1.352.63−2.06−1.782.45−0.61−0.853.03
SiN−0.92−0.952.66−3.16−2.932.39−1.40−1.543.21
Table 3. NBO atomic charges (in atomic units) for all adsorbents, adsorbates, and complexes.
Table 3. NBO atomic charges (in atomic units) for all adsorbents, adsorbates, and complexes.
Nanotube ChargesN Alone N-H2S N-SO2 N-Thiophene
C (Av) aX bC (Av) aX bC (Av) aX bC (Av) aX b
N0.0000.000−0.022−0.068−0.017−0.091−0.003−0.011
AN−0.4981.673−0.4931.568−0.4451.750−0.5361.747
BN−0.3100.639−0.2560.450−0.1780.222−0.3150.730
NN0.219−0.3810.223−0.4140.205−0.4220.231−0.381
PN−0.2710.928−0.2660.928−0.2750.894−0.2700.942
SN−0.1950.844−0.2230.851−0.2330.953−0.1940.856
SiN−0.3911.170−0.3911.146−0.3861.157−0.3981.203
Adsorbate chargesN-H2S N-SO2 N-thiophene
SY (Av) dSY (Av) dSY (Av) d
small molecule c−0.3400.1701.286−0.6430.358−0.416
N−0.3330.1641.296−0.6730.360−0.413
AN−0.2420.2350.967−0.8270.494−0.507
BN−0.0340.2261.074−0.7240.372−0.405
NN−0.3560.1721.262−0.6570.364−0.415
PN−0.3540.1761.303−0.6600.352−0.415
SN−0.3610.1691.289−0.8880.367−0.416
SiN−0.3400.1651.216−0.7250.364−0.415
a This value is the average of atomic charges of three carbon atoms connected to the doped heteroatom. b The charge of heteroatom in nanotubes. For N, this is the charge of the carbon atom nearest to the adsorbate. c Small molecule is implicated to H2S, SO2, and thiophene. d Y is the average of atomic charges of hydrogens in H2S, oxygen atoms in SO2, and C1 and C5 in thiophene.
Table 4. The strongest second-order perturbation energies (E2) (in kcal/mol) for the donor-acceptor transaction for all complexes.
Table 4. The strongest second-order perturbation energies (E2) (in kcal/mol) for the donor-acceptor transaction for all complexes.
ComplexDonorAcceptorE2DonorAcceptorE2DonorAcceptorE2Sum a
N-HLPCσ*S-H0.55σS-HLPC0.36σC-Cσ*S-H0.171.08
N-SLPCΠ*S-O1.65Π*c-cσ*S-O0.83LPCσ*S-O0.613.09
N-TΠ*c-cΠ*c-c0.60Π*c-cΠ*c-c0.40Π*c-cΠ*c-c0.171.17
AN-HLPSLP*Al1.62LPSLP*Al1.34LPSLP*Al0.613.57
AN-SLPOLP*Al3.09LP*Alσ*S-O1.39LPOLP*Al1.095.57
AN-TΠc-cLP*Al1.40Πc-cLP*Al0.95Π*c-cLP*Al0.893.24
BN-HLPSLP*B1.32LPSLP*B0.95CRSLP*B0.612.88
BN-SLPOσ*C-C1.75LPOσ*C-C1.36LPORY*C0.563.67
BN-TΠ*C-CLP*B1.35ΠC-CLP*B1.32Π*C-CLP*B0.653.32
NN-HLPNσ*S-H0.71ΠC-Cσ*S-H0.64σS-HRY*C0.191.54
NN-SLPNLP*S1.04ΠC-CLP*S0.58σS-ORY*C0.241.86
NN-TΠ*C-CΠ*C-C0.70ΠC-CΠ*C-C0.57Π*C-CΠ*C-C0.421.69
PN-HΠC-Cσ*S-H0.68Π*C-Cσ*S-H0.31Π*C-Cσ*S-H0.291.28
PN-SLPPLP*S1.22ΠC-CLP*S0.92LP*Sσ*C-P0.372.51
PN-TΠ*C-CΠ*C-C1.13LPSσ*C-P0.67ΠC-CΠ*C-C0.452.25
SN-HΠC-Cσ*S-H0.84Π*C-Cσ*S-H0.36σS-HΠ*C-C0.241.44
SN-SLPOσ*C-S1.56LPOσ*C-S1.06LPOσ*C-C0.322.94
SN-TΠC-Cσ*C-S0.56Π*C-CΠ*C-C0.34Π*C-CΠ*C-C0.231.13
SiN-HσC-Siσ*S-H0.57ΠC-Cσ*S-H0.38Π*C-Cσ*S-H0.201.15
SiN-SLPSσ*C-Si1.82LPSσ*C-Si1.02LPSLP*Si0.813.65
SiN-TΠ*C-CΠ*C-C1.19Π*C-CΠ*C-C0.42Π*C-CLP*Si0.281.89
a This is the sum of three E2 values listed in the same row.
Table 5. Energies of HOMO and LUMO levels, energy gaps (Eg), chemical potential (μ), chemical hardness (η), global softness (S), and electrophilicity index (ω) for all structures (all energy values in eV).
Table 5. Energies of HOMO and LUMO levels, energy gaps (Eg), chemical potential (μ), chemical hardness (η), global softness (S), and electrophilicity index (ω) for all structures (all energy values in eV).
ComplexE (HOMO)E (LUMO)EgμηSω
N−0.234−0.0730.161−0.1540.08012.4540.147
N-H−0.237−0.0770.160−0.1570.08012.5080.155
N-S−0.242−0.0930.149−0.1680.07413.4260.189
N-T−0.233−0.0720.160−0.1520.08012.4670.145
AN−0.252−0.0550.197−0.1540.09910.1490.120
AN-H−0.245−0.0530.192−0.1490.09610.4400.116
AN-S−0.249−0.0790.169−0.1640.08511.8010.159
AN-T−0.240−0.0400.200−0.1400.1009.9940.097
BN−0.217−0.0610.155−0.1390.07812.8700.125
BN-H−0.240−0.0480.192−0.1440.09610.4400.108
BN-S−0.237−0.0750.162−0.1560.08112.3180.149
BN-T−0.232−0.0590.174−0.1450.08711.5270.122
NN−0.244−0.0670.178−0.1550.08911.2680.136
NN-H−0.251−0.0690.182−0.1600.09110.9840.140
NN-S−0.250−0.0790.171−0.1650.08611.6670.158
NN-T−0.242−0.0620.180−0.1520.09011.0830.128
PN−0.248−0.0630.184−0.1560.09210.8540.131
PN-H−0.248−0.0680.180−0.1580.09011.1310.139
PN-S−0.252−0.0970.155−0.1740.07812.9020.196
PN-T−0.245−0.0560.189−0.1500.09410.5900.120
SN−0.234−0.0680.166−0.1510.08312.0560.138
SN-H−0.239−0.0750.164−0.1570.08212.1920.150
SN-S−0.250−0.0990.152−0.1740.07613.1650.200
SN-T−0.232−0.0670.165−0.1490.08312.1040.135
SiN−0.234−0.0830.150−0.1580.07513.2930.167
SiN-H−0.241−0.0920.149−0.1660.07513.4050.185
SiN-S−0.245−0.1000.145−0.1720.07313.7590.204
SiN-T−0.232−0.0820.151−0.1570.07513.2800.164
