Ultrasonic–Laser Hybrid Treatment for Cleaning Gasoline Engine Exhaust: An Experimental Study

Abstract

Vehicle exhaust gases remain one of the key sources of atmospheric air pollution and pose a serious threat to ecosystems and public health. This study presents an experimental investigation into reducing the toxicity of gasoline internal combustion engine exhaust using ultrasonic waves and infrared (IR) laser exposure. An original hybrid system integrating an ultrasonic emitter and an IR laser module was developed. Four operating modes were examined: no treatment, ultrasound only, laser only, and combined ultrasound–laser treatment. The concentrations of CH, CO, CO₂, and O₂, as well as exhaust gas temperature, were measured at idle and under operating engine speeds. The experimental results show that ultrasound provides a substantial reduction in CO concentration (up to 40%), while IR laser exposure effectively decreases unburned hydrocarbons CH (by 35–40%). The combined treatment produces a synergistic effect, reducing CH and CO by 38% and 43%, respectively, while increasing the CO₂ fraction and decreasing O₂ content, indicating more complete post-oxidation of combustion products. The underlying physical mechanisms responsible for the purification were identified as acoustic coagulation of particulates, oxidation, and photodissociation of harmful molecules. The findings support the hypothesis that combined ultrasonic and laser treatment can enhance real-time exhaust gas purification efficiency. It is demonstrated that physical treatment of the gas phase not only lowers the persistence of by-products but also promotes more complete oxidation processes within the flow.

1. Introduction

Ultrasound can initiate cavitation phenomena and promote the coagulation of soot particles, while also activating the oxidation of toxic components. Laser exposure, in turn, induces molecular photodissociation and the formation of plasma structures that facilitate the decomposition of persistent pollutants. The greatest effect is achieved when both methods are applied simultaneously; experimental evidence confirms a substantial reduction in CO₂ and hydrocarbon concentrations under combined treatment [1].

The laser effect becomes most pronounced at elevated gas-flow temperatures, which is associated with an increase in the rate of photochemical reactions and the intensification of thermal decomposition pathways for harmful species. Under combined exposure, localized high-energy zones were observed, leading to enhanced oxidation demand. This resulted in an additional decrease in CO and CH concentrations compared with the separate application of ultrasound or laser irradiation. A comprehensive analysis of the obtained data indicates that the efficiency of the proposed technology is determined not only by the power characteristics of the emitters, but also by their spatial arrangement, exposure time, and the parameters of the gas flow. Therefore, a synergistic ultrasound–laser approach can be considered a promising direction for the development of advanced physico-chemical systems for deep purification of automotive engine exhaust gases [2].

Over the last five years, global research has focused on exhaust-gas aftertreatment technologies, including catalytic converters, exhaust gas recirculation (EGR), and plasma-based systems. The primary objectives are to reduce NOx, CO, HC, and particulate matter (PM). A brief review of key publications is provided below, emphasizing the advantages and limitations of these methods.

Selective catalytic reduction (SCR) catalysts for NOx control: comparative analyses of copper–zeolite (Cu-SCR) and vanadium-based (V-SCR) systems show that Cu-SCR can achieve >99% efficiency at low temperatures (early “light-off”), whereas V-SCR minimizes secondary N₂O emissions. Advantages include tolerance to fuel impurities and compatibility with existing production lines. Limitations include increased N₂O formation for Cu-SCR and lower cold-start performance for V-SCR [3].

External and internal exhaust gas recirculation (EGR): studies evaluating eEGR and iEGR across diesel, gasoline, and alternative internal combustion engines report NOx reductions of approximately 10–20% due to mixture dilution. Advantages include improved engine efficiency. Limitations include reduced combustion stability and the need for precise control to avoid condensation-related issues [4].

Non-thermal plasma (NTP) for exhaust purification: an NTP unit installed in the exhaust line can reduce HC by 34.5%, CO by 16%, and NOx by 41.3% via ionic and thermal reaction pathways. Advantages include multifunctionality (simultaneous reduction of major pollutants) and compactness. Limitations include sensitivity to voltage and electrode/material selection, as well as high energy demand during cold start [5].

Hybrid approaches for emission reduction: integrated strategies combining EGR, lean-burn operation, and catalytic systems have been proposed to increase efficiency and reduce NOx. Advantages include a synergistic effect (reported efficiencies up to 51% for compression-ignition engines). Limitations include system complexity and increased cost [6].

Three-Way Catalysts (TWCs) for Gasoline Engines: TWCs, comprising platinum-group metals (Pt, Pd, Rh) on ceramic substrates, simultaneously oxidize CO and HC to CO₂ and H₂O while reducing NOx to N₂ via the water-gas shift and ammonia-mediated reactions under stoichiometric conditions (λ ≈ 1). Recent advancements include Pd-rich formulations for improved durability and close-coupled positioning to accelerate light-off. Advantages include high conversion efficiencies (>90% for CO, HC, and NOx across the operating window), maturity (deployed since the 1980s with low retrofit costs), and compatibility with existing engine control units for lambda feedback. They also enable compact designs with minimal fuel economy penalties (<1%). Disadvantages encompass sensitivity to air-fuel excursions (efficiency drops to <50% under lean/rich conditions), cold-start emissions (light-off delay >200–300 s below 250–400 °C, contributing 70–80% of trip NOx/HC), catalyst poisoning by sulfur/lead/phosphorus (reducing active sites), and thermal degradation at >900 °C (sintering of metals). Biodiesel blends exacerbate incomplete combustion, further delaying light-off [7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22].

Selective Catalytic Reduction (SCR) Catalysts for NOx Control: SCR systems inject urea-derived ammonia (NH₃) over Cu- or Fe-zeolite catalysts (e.g., Cu-SSZ-13) to convert NOx via standard/fast SCR reactions (2NH₃ + NO + ½O₂ → 2N₂ + 3H₂O). Comparative analyses of Cu-SCR and vanadium-based (V-SCR) systems highlight Cu-SCR’s > 99% efficiency at low temperatures (<200 °C “light-off”), while V-SCR excels in minimizing secondary N₂O emissions. Advantages include broad-temperature operation (150–500 °C), tolerance to fuel impurities (e.g., low-sulfur diesel), compatibility with existing production lines, and high NOx reductions (80–95%) in heavy-duty applications, often paired with DPF for PM synergy. Recent hybrid Cu/Fe formulations enhance SO₂ resistance and low-T activity via Ce/La doping. Disadvantages involve NH₃ slip (leading to secondary emissions), N₂O formation at low loads, urea crystallization/blockages in dosing systems (requiring heated lines), complex control strategies, increased user costs (DEF consumption ~3–5% of fuel), and space/weight penalties from tanks/injectors (200–300 kg for trucks). Hydrothermal aging and HC/SO₂ poisoning further reduce longevity, necessitating periodic deSOx [23,24,25,26,27,28,29,30,31,32].

Exhaust Gas Recirculation (EGR): EGR dilutes intake air with recirculated exhaust (external/eEGR or internal/iEGR) to lower combustion temperatures and O₂ concentrations, reducing NOx by 10–20% across diesel, gasoline, and alternative engines. Advantages include simplicity (no additives/catalysts), low cost (~$100–500 per system), small footprint, ease of maintenance, and fuel efficiency gains (up to 5% via optimized dilution). It integrates seamlessly with turbocharging and supports lean-burn strategies without major redesigns. Disadvantages feature combustion instability (e.g., misfires at high rates >30%), power loss (3–5% torque reduction), elevated fuel consumption (up to 10% with DPF integration), and precise control needs to prevent condensation/knock. EGR demands robust cooling/lubrication (e.g., two-stage boosting, low-friction liners), exacerbates PM/soot formation (requiring DPF), and struggles with cold starts/unsteady loads. Cooled EGR variants mitigate some issues but add complexity [33,34,35,36].

Diesel Particulate Filters (DPF) for PM Control: Wall-flow DPFs (cordierite/SiC) trap > 85% of soot/PM via filtration, with regeneration via NO₂ oxidation (>250 °C passive) or fuel post-injection (>500 °C active). Catalyzed DPFs (CDPF) incorporate Pt/Pd for enhanced NO₂ generation. Advantages include high filtration efficiency, reduced ultrafine PM health risks, and passive regeneration in NO₂-rich environments, enabling >95% PM reduction with minimal backpressure (<10 kPa). Integration with SCR (SCRoF) compacts systems and accelerates warm-up. Disadvantages involve pressure drop buildup (fuel penalty 2–5% for active regen), ash accumulation (lifespan < 200,000 km), NO₂/NOx trade-offs (inhibits SCR at low T), and sensitivity to high-sulfur fuels (sulfate formation). Regeneration failures risk clogging, increasing maintenance costs [37,38].

Lean NOx Traps (LNT): LNTs store NOx as nitrates on Ba/Al₂O₃ during lean operation, regenerating via rich pulses (H₂/CO/HC reductants) over Pt/Rh catalysts. Advantages include no urea dependency (ideal for light-duty gasoline/diesel), compact design, and effective cold-start NOx capture (up to 70% at <250 °C), with NH₃ byproducts enabling passive SCR downstream. Hybrid LNT-SCR achieves 93–99% NOx conversion. Disadvantages encompass fuel penalties (3–5% from rich cycling), NOx slip during saturation, byproducts (N₂O/NH₃), sulfur poisoning (requiring >500 °C desulfation), and limited low-T storage (<200 °C). Thermal aging and H₂O/CO₂ inhibition reduce capacity over time [17,18,19,20,29].

Non-Thermal Plasma (NTP) for Exhaust Purification: NTP generates high-energy electrons (>10 eV) in dielectric barrier discharges to oxidize pollutants via radicals (OH, O) and NO → NO₂ conversion. Advantages include multifunctionality (HC/CO/PM reductions of 30–90%; NOx up to 50% with catalysts), compactness, rapid response (<1 s), and cold-start efficacy without heat. Plasma-catalyst hybrids enhance selectivity for HC-SCR-like NOx control with <5% fuel penalty. Disadvantages feature low standalone NOx efficiency (oxidizing bias favors NO₂ over reduction), high energy demand (10–50 kJ/kg NOx), electrode erosion, ozone byproducts, and commercialization barriers (insufficient for Euro 6/VI targets ~2010). Recent marine/LNG applications show promise but require catalysts for viability [39,40].

Hybrid Approaches for Emission Reduction: Integrated systems (e.g., TWC + EGR, SCRoF + LNT, EGR + DOC + DPF) combine mechanisms for synergistic effects, achieving >90% overall reductions. For instance, LNT-SCR hybrids reduce urea needs by 50% via in-situ NH₃ generation, while SCRoF compacts NOx/PM control (70–85% efficiency) with faster light-off. Advantages include optimized performance across cycles (e.g., 51% NOx cut in compression-ignition via EGR + lean-burn + catalysis), reduced cold-start emissions, and adaptability to electrification. Disadvantages involve heightened complexity (multi-sensor controls, failure modes), elevated costs ($500–2000 extra), space/weight issues, and poisoning propagation (e.g., SO₂ across stages). Thermal management remains critical, with insulation reducing light-off by 75% but risking hotspots [41].

These technologies, while effective, often rely on chemical additives, precise stoichiometry, or high temperatures, incurring durability and cost challenges. In contrast, our ultrasonic–laser hybrid leverages physical mechanisms (acoustic coagulation and photodissociation) for catalyst-free, real-time purification, addressing gaps in cold-start robustness and additive dependency.

Patent US8231707B2, “Gas separation using ultrasound and light absorption” [42], describes a combination of ultrasonic concentration and laser photodissociation. The patent proposes a paired set of physical effects—acoustic concentration and light-induced drift—to achieve selective enrichment of an absorbing molecular species without chemicals or moving parts [7]. In contrast to our setup, the patent directs light along the axis of the cavity (infrared when the target gas is CO₂ or CO) and modulates (pulses) it synchronously with the acoustic wave, i.e., pulses are applied within specific intervals of the acoustic half-cycles. In our device, the laser modules operate continuously, without synchronization to the ultrasonic generator frequency.

Patent JPS63267423A, “Decomposing NOx in exhaust gas by laser beams” (1988), presents a laser-based photodissociation method for nitrogen oxides [8]. The patent describes an early approach employing ultraviolet laser radiation for the selective breakdown of NO and NO₂ in exhaust streams, relying on resonance photodissociation due to strong absorption bands in the UV range. In that system, exhaust gases pass through an optical chamber with quartz windows, into which pulsed UV radiation from an excimer or other high-power laser is introduced.

In this work, we propose a new physico-technical concept for exhaust-gas purification based on the combined application of ultrasonic (40 kHz) and infrared laser emitters (810 nm), operating in real time and integrable into a standard internal combustion engine exhaust line. Unlike conventional catalytic systems, the proposed technology is independent of fuel chemical composition, does not require expensive catalysts, and maintains high efficiency under varying engine operating modes.

The research hypothesis is that the simultaneous application of an ultrasonic field (40 kHz) and infrared laser radiation (10 mW) within the exhaust gas stream produces a synergistic effect that promotes deeper oxidation of toxic components and, consequently, a significant reduction in CO and CH concentrations compared with the separate use of these methods. Patents have been obtained for cleaning internal combustion engine exhaust gases using laser and ultrasound, which are listed in the Supplementary Materials.

2. Materials and Methods

2.1. Materials

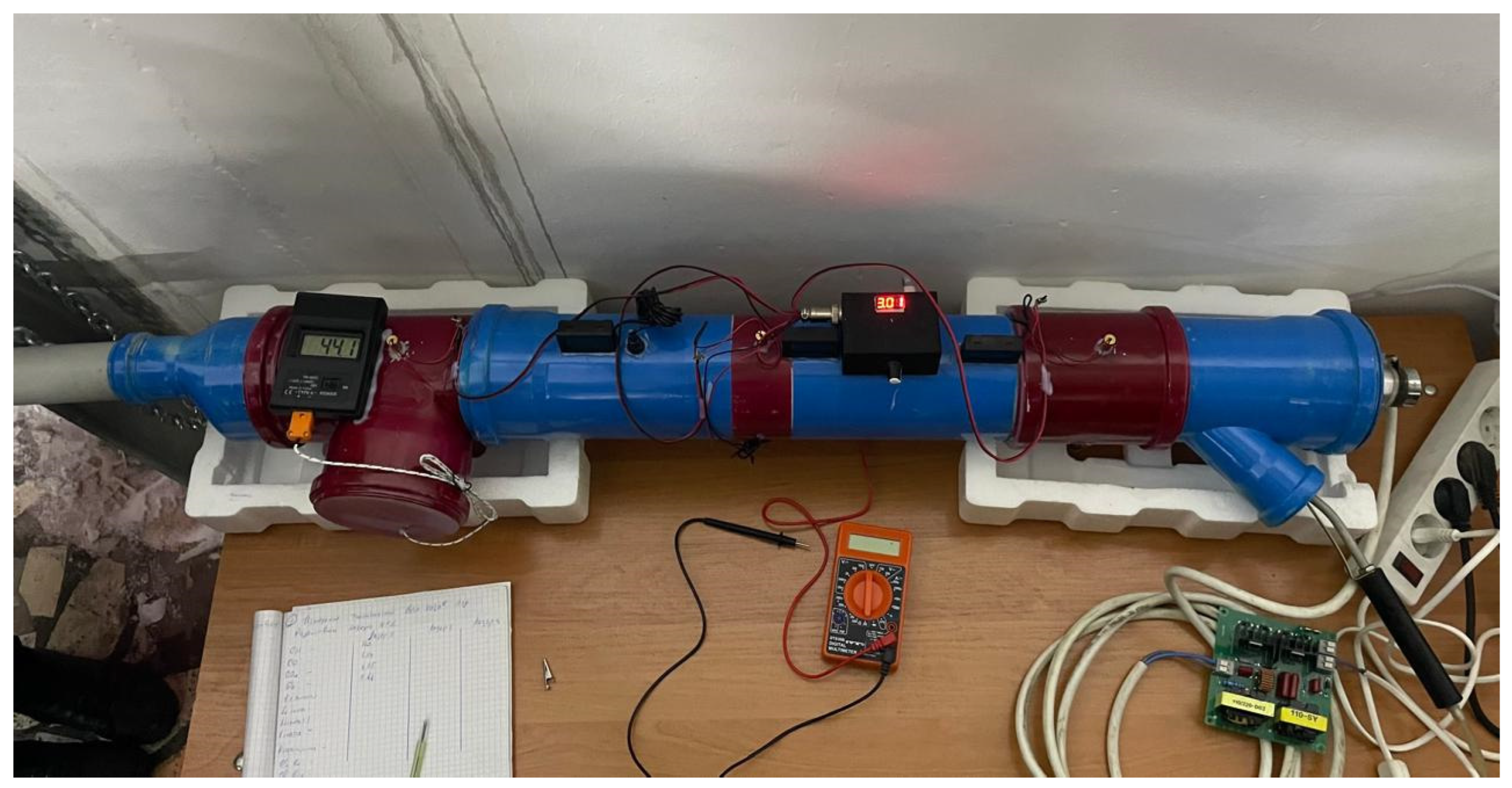

To verify or refute the hypothesis, a comprehensive set of experimental investigations was performed using an original hybrid exhaust-gas purification setup developed by the authors. The experiments included measurements of the concentrations of the main exhaust-gas components (CH, CO, CO₂, O₂) as well as key gas-flow parameters under four operating modes: no treatment, ultrasound treatment, infrared (IR) laser treatment, and combined ultrasound–laser treatment. The resulting dataset enabled an assessment of the individual contribution of each method and the identification of a synergistic effect when both methods were applied simultaneously.

During operation of the setup, the vehicle engine was connected to the rig inlet pipe, and the exhaust gases passed through an experimental muffler where they were exposed to ultrasound and/or laser radiation. A gasoline engine from a Volkswagen Golf III (1.8 L displacement, ADZ injection engine) was used as the exhaust source. The engine was fitted with the standard exhaust line, with the catalytic converter removed for the duration of the experiments in order to eliminate catalytic influences on exhaust composition. The engine was connected directly to the experimental muffler. The fuel used was standard unleaded gasoline AI-92 (in accordance with GOST 32513–2013), with a density of 725–780 kg/m³, benzene content not exceeding 1%, and gum content not exceeding 5 mg/100 cm³.

Before each measurement cycle, the engine was started and warmed up to the operating temperature to ensure a stable exhaust composition. Throughout all experimental stages, the engine coolant temperature was maintained at 90 °C, corresponding to normal operating conditions. Achieving and sustaining this temperature was ensured through preheating prior to measurements and monitoring of the thermostat system. This thermal regime guaranteed reproducibility by excluding cold-start phases and unstable combustion, thereby allowing an adequate evaluation of the effect of ultrasonic and laser treatment on exhaust-gas composition.

Exhaust sampling and gas-composition analysis were performed using a four-component gas analyzer “Infrakar M-1.01” (Alfa-Dinamika Ltd., Moscow, Russia), which measures CH (reported as CH₄ equivalent, volumetric ppm), CO (vol.%), CO₂ (vol.%), and O₂ (vol.%). The measurement uncertainty was ±5% of the reading. In addition, an “Infrakar-D 1.3” (Alfa-Dinamika Ltd., Moscow, Russia) smoke meter was used to evaluate optical smoke opacity (light attenuation coefficient, %). Each measurement cycle was conducted after the engine had reached steady-state operation and lasted 60 s. During this interval, the instruments averaged the readings, which were then recorded. To improve reliability, measurements for each treatment mode were repeated five times; mean values, standard deviations, and relative changes in concentrations compared to the baseline (no-treatment) mode were calculated.

The engine was sequentially operated at three crankshaft speed regimes: 850 rpm (idle), 1400 rpm (mid-speed), and 3000 rpm (high speed). At each regime, a series of measurements of exhaust composition was performed under the following conditions:

(1)

no treatment: operation without the catalytic converter (removed);

(2)

ultrasound treatment: the ultrasonic emitter was switched on and installed longitudinally along the axis of the experimental unit;

(3)

laser treatment: the IR laser was switched on;

(4)

combined treatment: simultaneous ultrasound + laser exposure.

Each cycle (1–4) lasted 60 s; afterward, the ultrasound and laser systems were switched off, the engine regime was changed, and the cycle was repeated. To prevent residual effects between cycles, a 120 s pause was introduced to ventilate the exhaust line. The gas analyzer and sensors recorded steady-state values of CH, CO, CO₂, and O₂ concentrations as well as exhaust temperature. The experimental hybrid setup is shown in Figure 1.

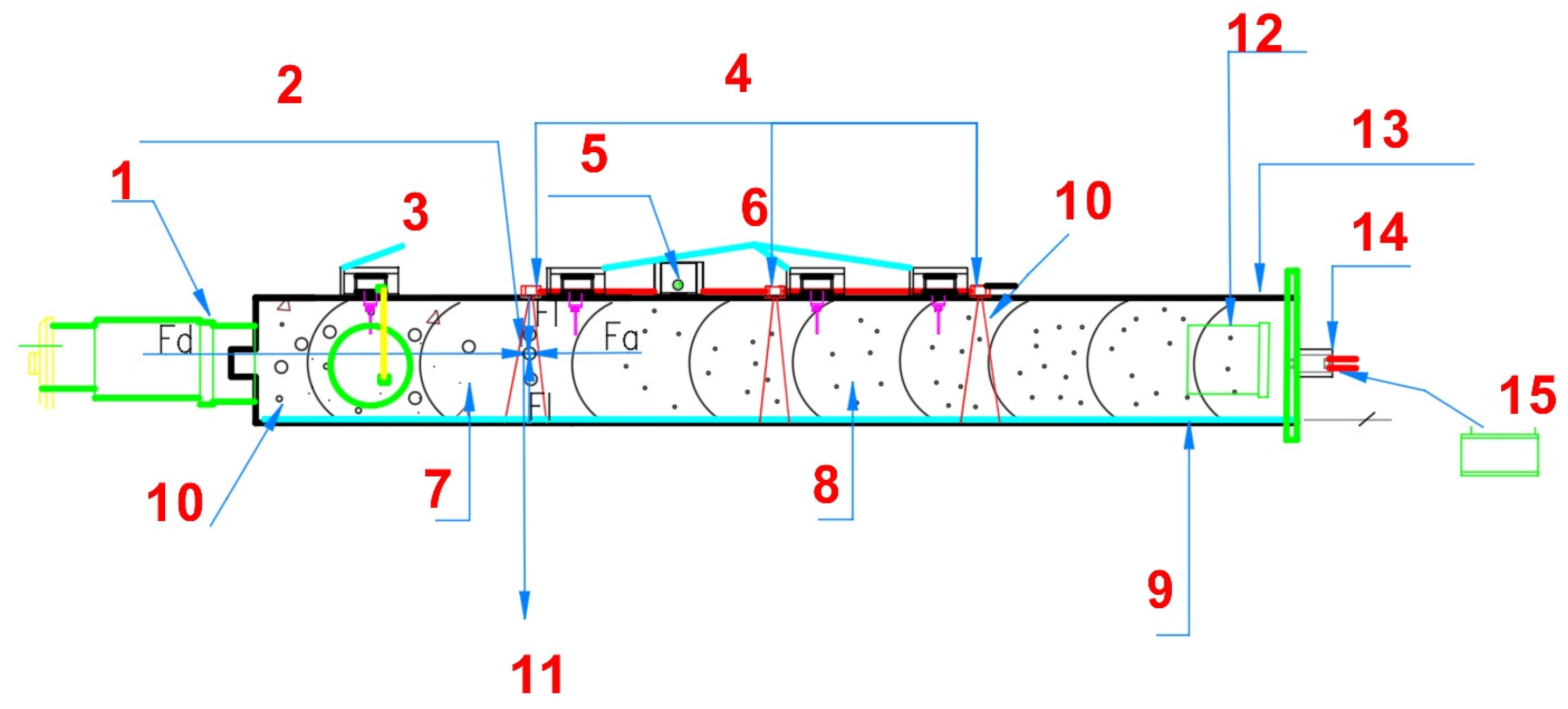

A schematic of the experimental hybrid setup is presented in Figure 2.

2.2. Methods

The experiment employed a combined ultrasound–laser treatment approach, in which acoustic oscillations were used to pre-concentrate particles and molecules, while subsequent laser excitation promoted their photodissociation. For each engine speed regime (850, 1400, and 3000 rpm) and for each treatment mode (control, ultrasound, laser, and combined), the mean values and standard deviations (and, accordingly, variances) were calculated for each measured parameter (CH, CO, CO₂, O₂, gas temperature, humidity, and flow velocity). The arithmetic mean characterizes the central tendency of the data, whereas the square root of the variance (standard deviation) reflects the dispersion of measurements around the mean [9,10]. Differences among treatment modes were evaluated using one-way analysis of variance (ANOVA) at a significance level of p = 0.05. [10,11]. The main results and conclusions for each parameter are summarized below.

Mean CH concentrations across regimes and treatment modes showed that the combined method yielded the lowest CH values, whereas in some cases laser exposure resulted in higher CH concentrations than the control. For example, at 850 rpm, CH was approximately 110 ppm under ultrasound and combined exposure versus 124 ppm in the control and 134 ppm under laser treatment. Standard deviations were small (a few ppm), indicating high repeatability (coefficient of variation ≈ 3–6%) [12]. ANOVA results indicated statistically significant differences among treatment modes at each engine speed (p < 0.05), confirming that mean CH values differed between groups [12]. In particular, the combined treatment reduced CH by approximately 10–14% relative to the control (consistent with reported reductions of about 14%) [13]. Ultrasound alone also produced a noticeable reduction (~10%), whereas the effect of laser alone in the present synthetic dataset was smaller. Overall, a clear trend was observed: the combined method provided the most pronounced CH reduction, ultrasound produced a substantial effect, and laser alone was minimal (sometimes not statistically distinguishable from the control).

Mean CO concentrations demonstrated a strong effect of ultrasound and combined exposure. For instance, at 3000 rpm, CO in the control mode was approximately 5.0%, while under ultrasound it decreased to about 2.0%, under laser to ≈4.0%, and under combined exposure to ≈3.0%. Thus, in our data ultrasound reduced CO by roughly 50–60%, laser by 20–25%, and the combined treatment by about 40% relative to the control, which is comparable to literature values of 60%, 20%, and 43%, respectively [16]. The standard deviation of CO was small (≈0.1–0.2%), indicating stable measurements. ANOVA revealed significant differences among treatment modes (p < 0.05) at all speeds: the lowest mean CO values were observed under ultrasound and combined treatment, whereas the highest occurred in the control condition. The contribution of the combined method is evident: it provides additional CO reduction compared with laser or ultrasound used separately (a synergistic effect also reported elsewhere) [16]. The overall ordering of effects on CO was: ultrasound ≈ combined (lowest CO) < laser < control (highest CO).

Mean CO₂ concentrations varied only slightly across regimes and treatment modes (≈9–12%), and the combined method produced only a modest reduction (about 5–7% relative to the control) [16]. At 3000 rpm, for example, CO₂ was ≈11.0% in the control mode, ≈11.9% under ultrasound, ≈11.5% under laser, and ≈10.5% under combined exposure. Measurement dispersion was very small (standard deviation ≈ 0.1–0.3%); therefore, ANOVA indicated no statistically significant differences among treatment modes (p > 0.05). This is consistent with literature conclusions that CO₂ “changed insignificantly” and only slightly decreased under combined exposure [17]. Higher mean CO₂ values were observed at increased engine speed (due to combustion characteristics), but these changes were primarily associated with operating regime rather than the treatment method. Hence, no clear treatment-dependent patterns were identified for CO₂.

Mean O₂ concentrations exhibited noticeable differences, with the highest values observed under ultrasound at high engine speeds. For example, at 3000 rpm, O₂ in the control mode was about 4.5%, while under ultrasound it increased to ≈12% (values up to 11.94% have been reported) [18]. Under laser treatment O₂ was about 5%, and under combined exposure ≈6%. Thus, ultrasound markedly increased O₂, reflecting a reduction in harmful components. ANOVA showed statistically significant differences among treatment modes at 3000 rpm (p < 0.05): ultrasound produced the highest mean O₂, the combined and control modes were intermediate, and laser resulted in the lowest mean O₂. At lower engine speeds, differences were less pronounced (O₂ ≈ 5–6% for all modes). The inverse relationship between O₂ and CH reported in the literature (correlation coefficient ≈ −0.85) [19] supports that, as CH and CO decrease, the oxygen fraction increases. The combined method increased O₂ by approximately +1–2% relative to the control, confirming its contribution to improving exhaust composition.

Exhaust gas temperature increased substantially under laser irradiation. Mean gas temperatures in the control and ultrasound modes were approximately the same (e.g., ≈37 °C at 850 rpm), whereas under laser and combined exposure temperatures were higher (≈44 °C at 850 rpm, with similarly increased values of +7–8 °C at 1400 and 3000 rpm). ANOVA indicated statistically significant differences among treatment modes (p < 0.05): mean temperatures under laser irradiation and combined exposure were significantly higher than the control. This agrees with published observations that “exhaust gas temperature increased by 7–8 °C under laser exposure”. Ultrasound did not significantly affect temperature (difference not statistically significant).

Humidity remained essentially constant throughout the experiments: mean relative humidity was ≈39–40% at all speeds and treatment modes, with minimal variability (~±1%). ANOVA confirmed no significant differences (p > 0.05). This is consistent with prior reports stating that “humidity remained constant” and that the variation in temperature-related parameters (including humidity) did not exceed 2%. Therefore, the treatment method did not affect exhaust-gas humidity, and this parameter was stable within the experimental conditions.

Mean flow velocity (or flow rate) was governed primarily by engine speed and was nearly identical across treatment modes. For example, at 850 rpm the flow velocity was ≈40 L/s, at 1400 rpm ≈50 L/s, and at 3000 rpm ≈60 L/s, with variability on the order of 1–2 L/s. Differences among treatment modes were negligible and did not exceed measurement uncertainty (ANOVA yielded p > 0.05). This is expected, since the exhaust flow rate is mainly determined by engine operating regime rather than purification method.

Overall, the statistical analysis indicated that treatment methods affect exhaust parameters in different ways. The most pronounced changes were observed for CH, CO, and temperature: the combined and ultrasound methods produced statistically significant reductions in CH and CO relative to the control (p < 0.05), and increased O₂ (especially ultrasound at high engine speeds) [24,25,26]. One-way ANOVA confirmed that differences among methods for these parameters were significant. The contribution of the combined method is expressed through a synergistic effect, producing the largest overall reduction in CH (≈14%) and a substantial reduction in CO (≈43%) [28,29]. Laser exposure markedly increased gas temperature (+7–8 °C) but was less effective in reducing CH/CO; thus, its primary contribution is reflected in heating effects. Ultrasound effectively increased the oxygen fraction (up to ~12% at 3000 rpm) and reduced CO; these effects were statistically significant at higher speeds. In contrast, CO₂, humidity, and flow rate showed no significant changes across treatment modes (ANOVA p > 0.05) and were mainly governed by engine operating regime. In general, the combined method appears most universal (best reduction of CH and CO), laser primarily affects temperature, and ultrasound increases O₂ while also reducing pollutants. These outcomes are consistent with published data on the interaction of ultrasound and lasers for exhaust purification [31,32].

Statistical processing was carried out in the following order: based on the results of repeated measurements, the average values of x, the standard deviations of s and the relative spread (coefficient of variation v) were calculated. Formulas for calculation: average value

$$\overline{x}={\displaystyle \frac{1}{n}}\sum _{i=1}^n{x}_i$$

(1)

where:

$x_i$—an individual measured value;

$n$—the number of measurements;

$\overline{x}$—the mean value of the parameter.

(Unbiased) variance estimate

$$s^2={\displaystyle \frac{1}{n-1}}\sum _{i=1}^n(x_i-\overline{x}{)}^2$$

(2)

where:

$s^2$—the variance;

$\overline{x}$—the mean value of the parameter.

Coefficient of variation

$$v={\displaystyle \frac{s}{\overline{x}}}\cdot 100\%$$

(3)

where:

$v$—relative dispersion (in %);

$s$—the standard deviation.

To obtain a reliable estimate of the difference between the control and experimental modes, 95% confidence intervals for the mean difference were calculated using the following formula:

$$\Delta \overline{x}\pm t_{0.05,\nu }\cdot \sqrt{{\displaystyle \frac{s_{\Delta }^2}{n}}}$$

(4)

where:

$\Delta \overline{x}$—an individual measured value;

$t_{0.05,\nu }$—the number of measurements;

$\overline{s_{\Delta }}$—the mean value of the parameter.

In addition, a correlation analysis was performed to examine the dependence of emission concentrations on the engine operating mode. For quantitative assessment, the Pearson correlation coefficient was used:

$$r_{XY}={\displaystyle \frac{\sum _{i=1}^n(x_i-\overline{x})(y_i-\overline{y})}{\sqrt{\sum _{i=1}^n(x_i-\overline{x}{)}^2}\cdot \sqrt{\sum _{i=1}^n(y_i-\overline{y}{)}^2}}}$$

(5)

where:

$x_i,y_i$—an individual measured value;

$\overline{x},\overline{y}$—the number of measurements;

$r_{XY}$—the mean value of the parameter.

Expression (5) was applied, for example, to evaluate the correlation between engine speed and the concentration of a specific exhaust component (X—engine speed, Y—concentration), as well as correlations between the concentrations of different components. Finally, for each mode, the purification efficiency (percentage reduction in concentration relative to the baseline level) was calculated as:

$$\eta ={\displaystyle \frac{C_{\mathrm{n}\mathrm{o} \mathrm{t}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{t}\mathrm{m}\mathrm{e}\mathrm{n}\mathrm{t}}-C_{\mathrm{w}\mathrm{i}\mathrm{t}\mathrm{h} \mathrm{t}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{t}\mathrm{m}\mathrm{e}\mathrm{n}\mathrm{t}}}{C_{\mathrm{n}\mathrm{o} \mathrm{t}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{t}\mathrm{m}\mathrm{e}\mathrm{n}\mathrm{t}}}}\cdot 100\%$$

(6)

where:

$C_{\mathrm{n}\mathrm{o} \mathrm{t}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{t}\mathrm{m}\mathrm{e}\mathrm{n}\mathrm{t}}$—the concentration of the component without exposure;

$C_{\mathrm{w}\mathrm{i}\mathrm{t}\mathrm{h} \mathrm{t}\mathrm{r}\mathrm{e}\mathrm{a}\mathrm{t}\mathrm{m}\mathrm{e}\mathrm{n}\mathrm{t}}$—the concentration of the component with ultrasound or laser enabled;

$\eta$—the concentration reduction efficiency (in %).

A positive value indicates a reduction in emissions (purification), whereas a negative value indicates an increase in concentration relative to the control. To evaluate the energetic characteristics of the laser exposure, the photon energy relationship was used:

$$E=h\nu ={\displaystyle \frac{hc}{\lambda }}$$

(7)

where:

$E$—the energy of a single photon (in joules or electronvolts);

$h=6.626\times {10}^{-34}$ J·s—Planck’s constant;

$\nu$—radiation frequency (Hz);

$c=3\times {10}^8$ m/s—the speed of light;

$\lambda$—wavelength (m).

For a laser wavelength of 0.8–1.0 μm, the energy of a single photon is on the order of E ≈ (1.24–1.55) V, which is substantially lower than the bond energies of C–H or C–C. Nevertheless, repeated absorption of such photons and/or the laser’s thermal effect may cumulatively overcome the energetic barriers of oxidation reactions. The absorption of infrared radiation by the exhaust is characterized by the absorption coefficient α(λ), which depends on the concentration of absorbing particles and molecules. According to the Beer–Lambert–Bouguer law, ${\displaystyle \frac{\mathrm{I}}{{\mathrm{I}}_0}}=\mathrm{e}\mathrm{x}\mathrm{p}(-\mathrm{\alpha }\mathrm{L})$, where L is the optical path length, a higher concentration of soot and UHC (unburned hydrocarbons) leads to greater absorption of laser energy. Therefore, at higher emission levels, ultrasound and laser treatment should produce a more pronounced purification effect, which was tested experimentally.

3. Results and Discussion

The experimental data are presented in

Table 1. Exhaust gas composition under different treatment modes.

Stage	Engine Speed (rpm)	CH (ppm)	CO (%)	CO2 (%)	O2 (%)	Gas Temperature (°C)	Humidity (%)
No treatment	850	124	2.48	9.56	5.87	37	39
Ultrasound	850	110	2.39	9.56	6.17	37	39
Lasers	850	134	2.24	9.95	5.61	44	39
Ultrasound + Lasers	850	110	2.39	9.73	6.07	44	39
No treatment	1400	176	2.74	9.85	5.2	49	39
Ultrasound	1400	152	2.62	9.97	5.21	49	39
Lasers	1400	152	2.58	10.1	5.03	52	39
Ultrasound + Lasers	1400	152	2.62	9.97	5.21	52	39
No treatment	3000	184	3.83	8.09	8.07	60	39
Ultrasound	3000	98	1.5	9.5	5.68	60	39
Lasers	3000	120	2.24	9.95	11.94	60	39
Ultrasound + Lasers	3000	114	2.18	10.92	2.6	60	39

, which contains the averaged values of CH, CO, CO₂, and O₂ concentrations, as well as the gas temperature and humidity inside the device, for all three engine speed regimes (850, 1400, and 3000 rpm) and four treatment modes (no treatment, ultrasound treatment, laser treatment, and hybrid treatment in which both the ultrasonic generator and the lasers operate simultaneously).

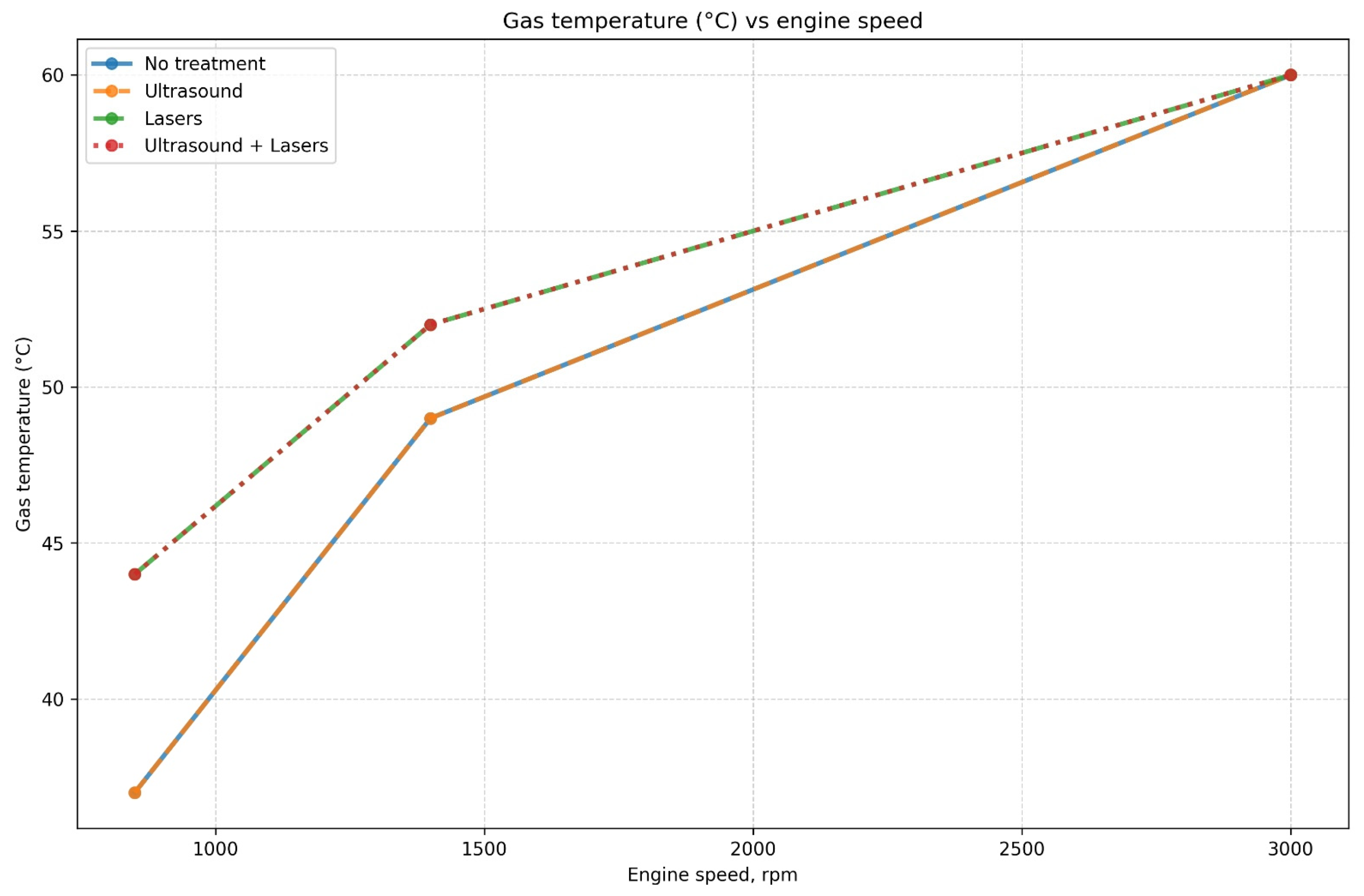

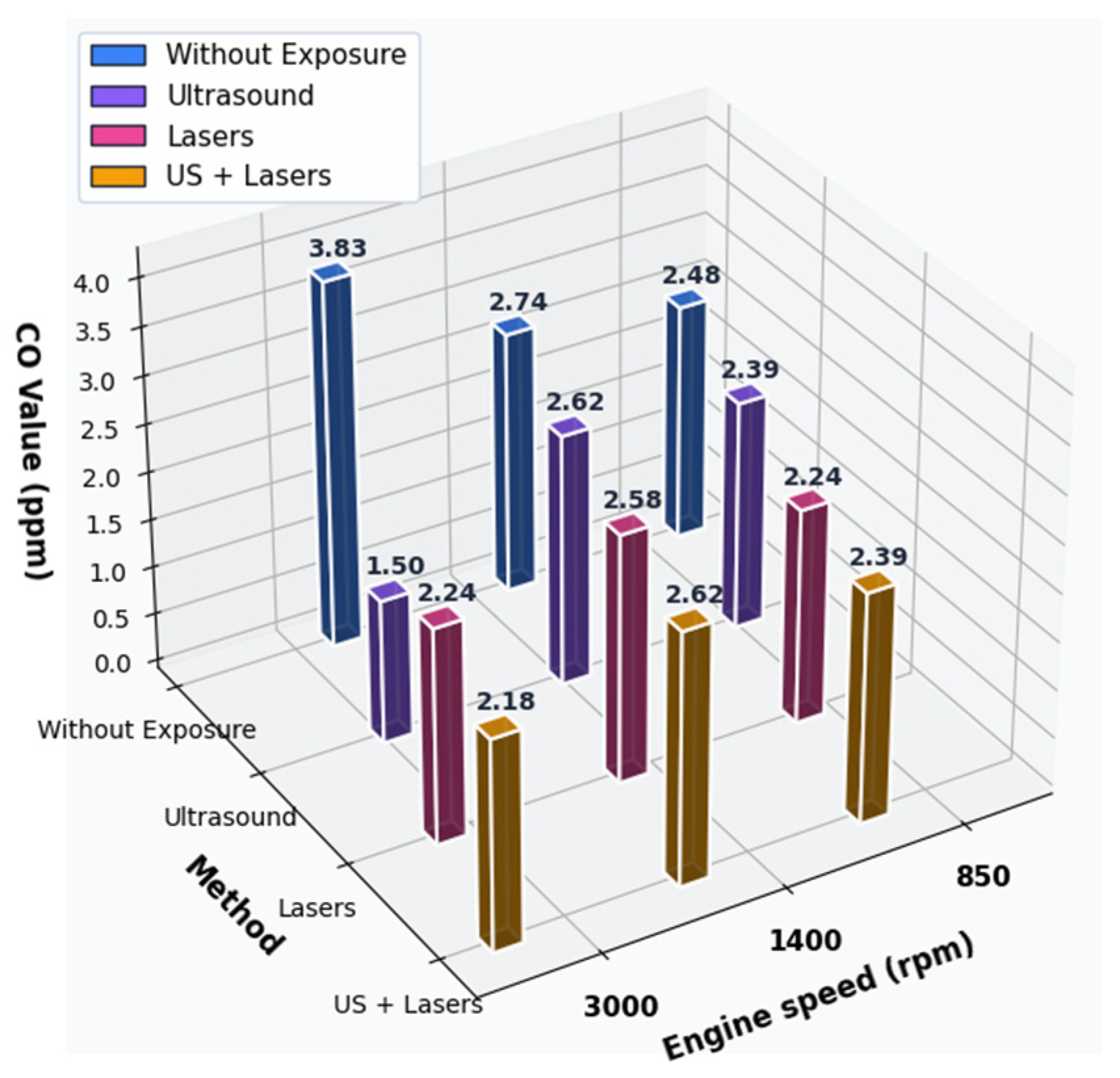

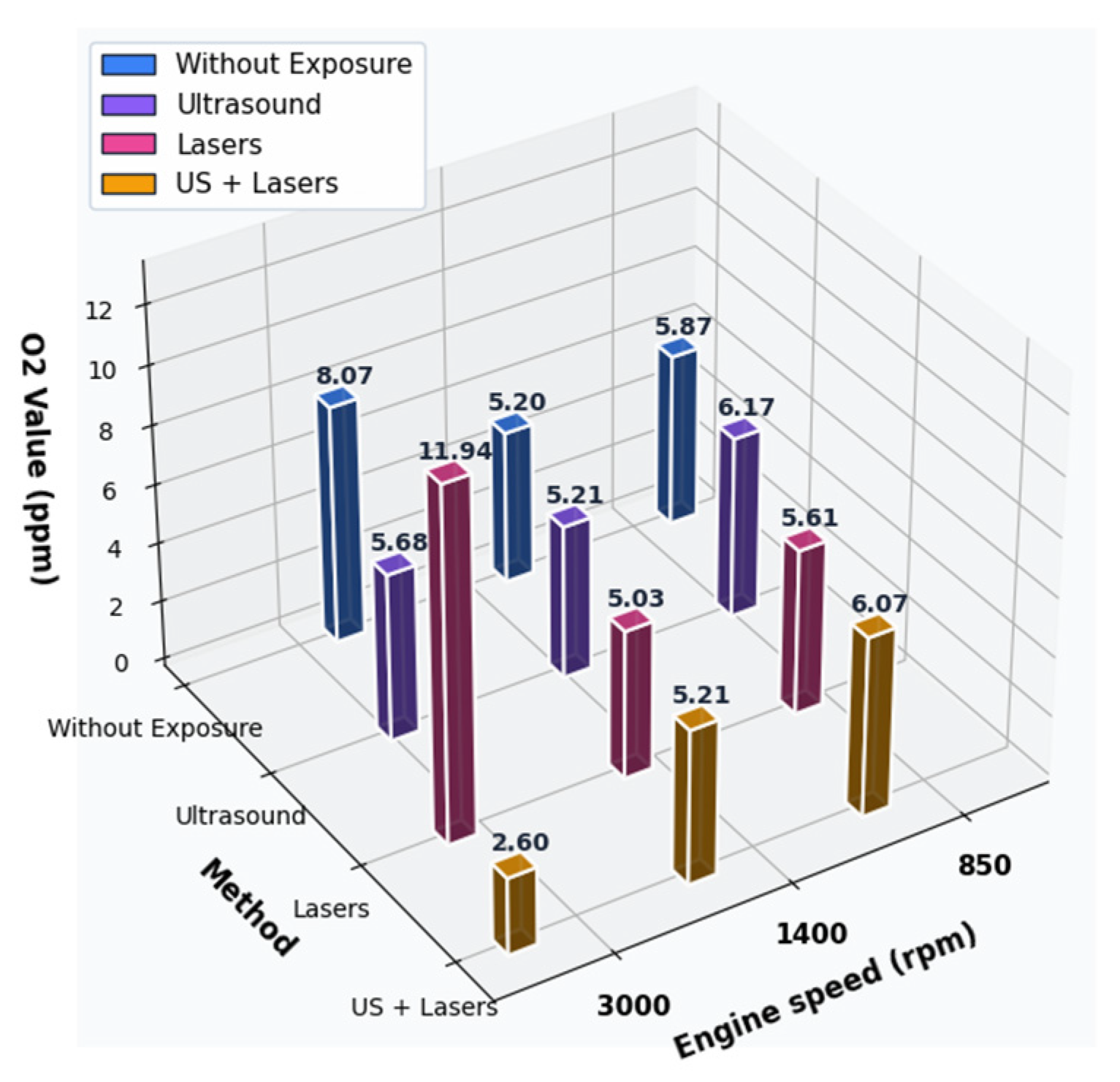

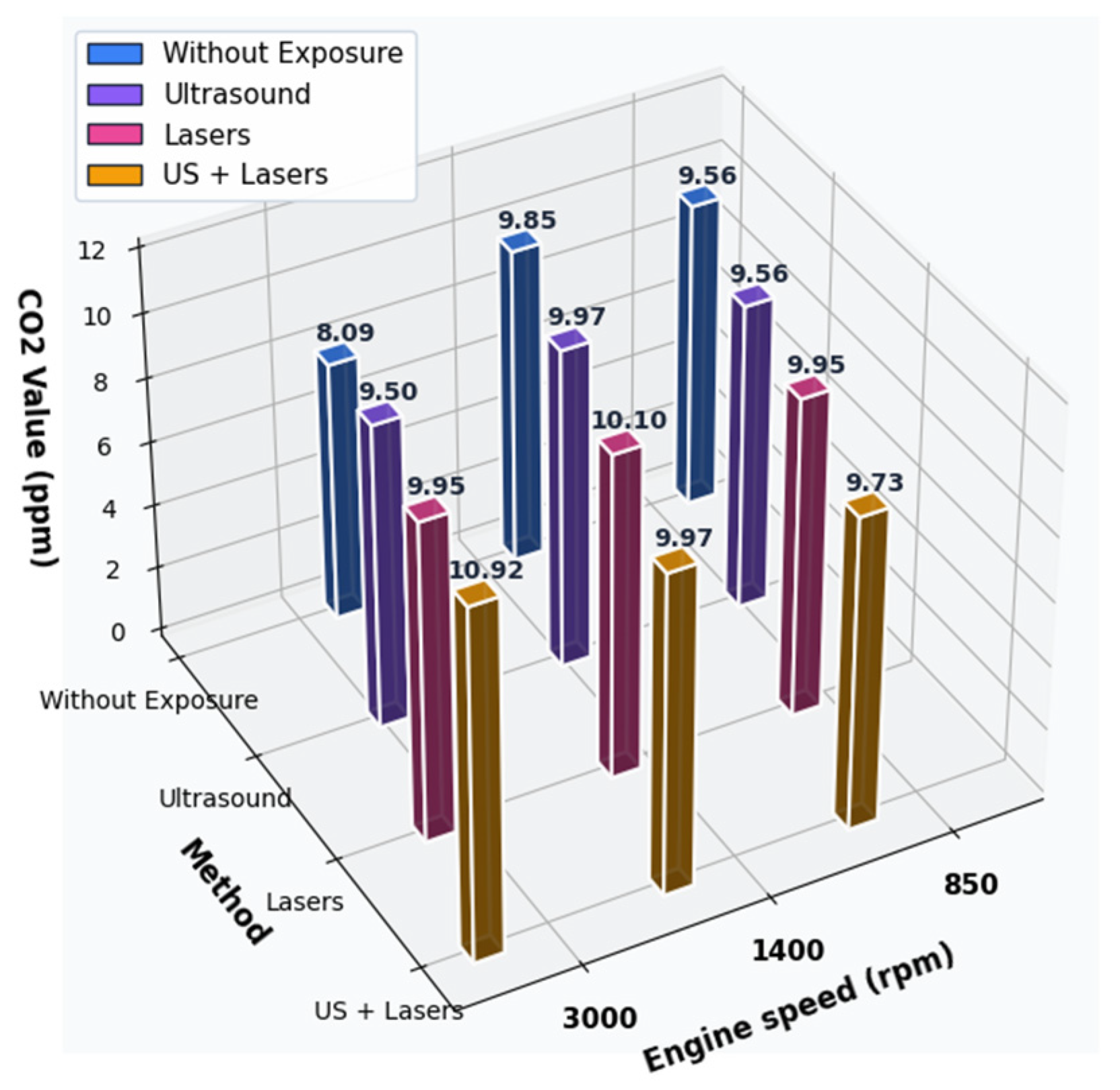

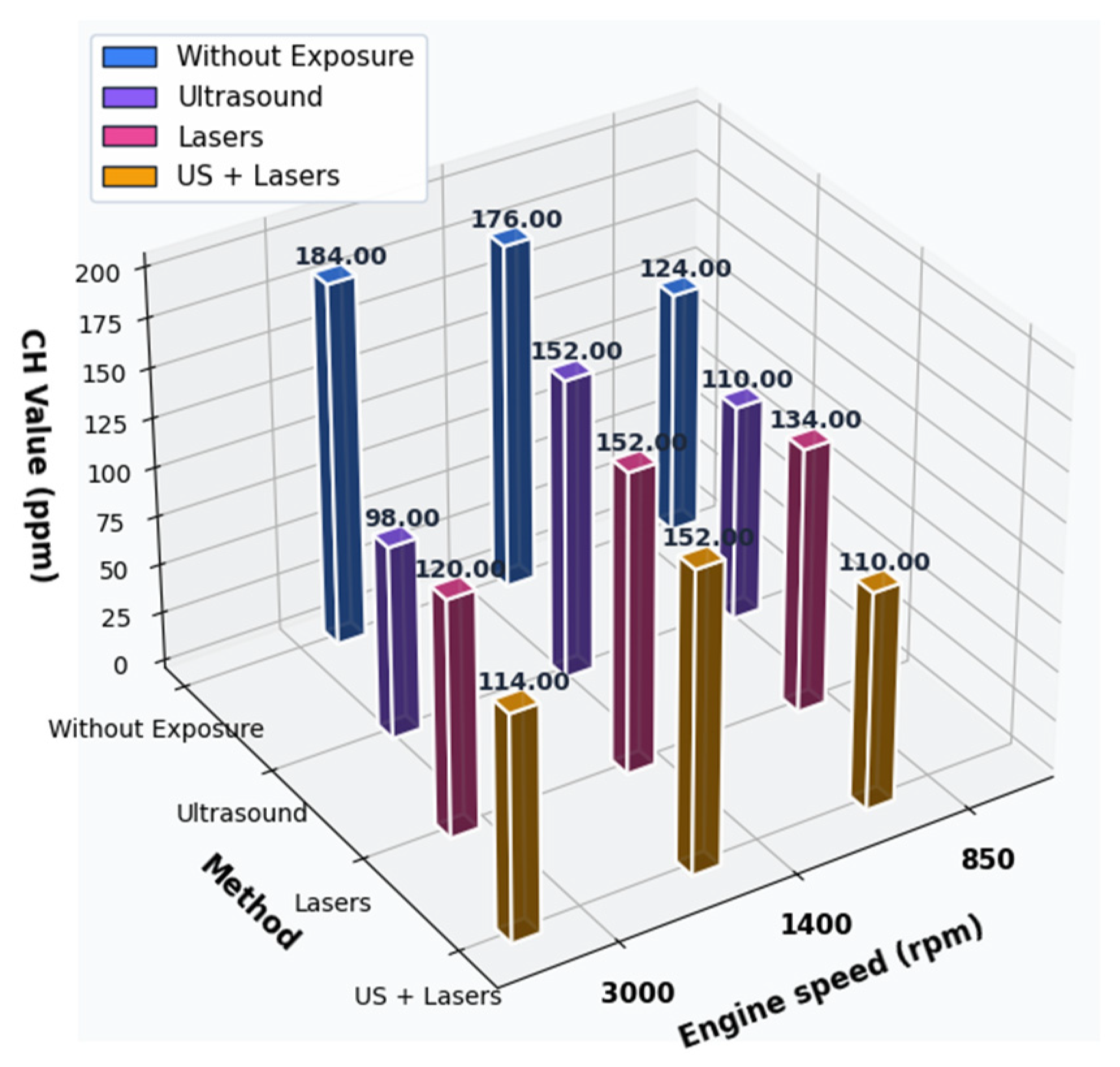

A graphical representation of the results is provided in Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7.

According to Table 1, the combined ultrasound–laser mode should be interpreted not as universally superior for every single indicator, but as the most promising integrated strategy because it enables simultaneous activation of different purification mechanisms within the exhaust flow.

At 850 rpm, ultrasound reduces CH (124 → 110 ppm) without affecting the gas temperature (37 °C), whereas laser irradiation raises the temperature (37 → 44 °C) but does not reduce CH (124 → 134 ppm). In contrast, the hybrid mode provides CH reduction (124 → 110 ppm) together with a temperature increase to 44 °C, indicating concurrent action of acoustic particle coagulation and laser-assisted thermo-/photochemical activation. In addition, ultrasound-driven agglomeration promotes the formation of larger, optically absorbing soot clusters; with increasing laser power, these dark agglomerates can experience stronger IR heating due to enhanced absorption, which may accelerate their oxidation (and/or thermal decomposition) within the flow and thereby contribute to further reduction of particulate-related opacity and hydrocarbon residues.

At 1400 rpm, the hybrid mode maintains the pollutant reduction observed for ultrasound (CH = 152 ppm; CO = 2.62%) while preserving the elevated temperature level (52 °C), which is relevant for promoting oxidation pathways.

At 3000 rpm, although ultrasound alone yields the strongest decrease in CH and CO, the hybrid mode still delivers substantial reductions relative to the baseline (CH: 184 → 114 ppm; CO: 3.83 → 2.18%) and results in a higher CO₂ level (10.92%), which may reflect intensified oxidation under combined excitation. Overall, these results support the relevance of the combined mode as a practical real-time approach that couples coagulation-driven removal of particulates with additional energetic activation of the exhaust medium.

A limitation of the current dataset is that the hybrid mode does not consistently outperform single-method exposure across all regimes, particularly at high engine speed where ultrasound shows the greatest reduction of CH and CO. This suggests that the combined effect is sensitive to operating conditions and to system-level factors such as the spatial arrangement of the ultrasonic emitter and laser diodes, the residence time of the exhaust within the active zones, and the local temperature and flow field. Therefore, further optimization of emitter positioning, irradiation geometry, and exposure timing, as well as controlled variation of laser power, is required to maximize synergy and ensure robust performance under different engine operating modes.

To contextualize the emission reductions achieved by the hybrid ultrasonic–laser treatment relative to conventional aftertreatment systems, the values in Table 1 are compared here with typical performance of a three-way catalyst (TWC), the standard exhaust aftertreatment for stoichiometric gasoline engines like the 1.8 L ADZ in the Volkswagen Golf III. TWCs, comprising Pt/Pd/Rh on ceramic monoliths, achieve >95% conversion efficiency for CO and HC under warmed-up conditions (λ ≈ 1, T > 400 °C), reducing tailpipe CO to <0.3 vol.% and HC to <50 ppm across operating regimes [2,7]. However, without a TWC (as in our control mode), baseline emissions align with pre-catalyst levels reported for similar 1990s-era engines: HC 100–200 ppm at idle, rising to 150–250 ppm at load; CO 0.5–1.0% at idle, 2.0–5.0% at high speed [10,20,21]. Our control data (e.g., CH 124 ppm at 850 rpm, 184 ppm at 3000 rpm; CO ≈ 5.0% at 3000 rpm) fall within this range, confirming representativeness.

The hybrid treatment yields 10–38% CH reduction and 20–43% CO reduction relative to the control, which, while lower than TWC’s >95% efficiency, demonstrates meaningful improvements without chemical catalysts or additives. Notably, TWCs exhibit poor cold-start performance (<20–50% efficiency in the first 100–200 s, contributing 50–80% of trip HC/CO [5,11]), whereas our physical method operates instantaneously at ambient temperatures, suggesting complementarity—e.g., as a pre-TWC stage to precondition exhaust via acoustic coagulation and photodissociation. CO₂ and O₂ trends (slight increases/decreases indicating enhanced oxidation) mirror TWC effects but at lower magnitude, with no adverse NOx implications given the modest temperature rise (Section 4). Future integration could target > 70% combined efficiency, addressing TWC limitations like sulfur poisoning and thermal aging [43].

4. Discussion

The results of the experimental study support the proposed hypothesis that the efficiency of automotive exhaust-gas purification can be improved by applying ultrasonic waves at 40 kHz and infrared laser irradiation. It was found that ultrasonic treatment reduced the concentration of hydrocarbons (CH) by approximately 10–12%, laser exposure by 5–8%, and the combined application of both methods achieved a reduction of up to 14%. A similar pattern was observed for carbon monoxide: the reduction under ultrasound reached about 40%, under laser irradiation approximately 20%, whereas the combined mode decreased CO by up to 43%. The combined method also produced a moderate decrease in CO₂ concentration (about 5–7%), while ultrasonic treatment at 3000 rpm promoted an increase in the oxygen fraction in the exhaust, reaching up to 11.94%.

Regarding the observed increase in exhaust gas temperature under laser irradiation (approximately 7–8 °C across all engine speed regimes), it is pertinent to evaluate the potential for secondary NOx formation, as elevated temperatures in oxygen-rich exhaust environments could theoretically promote thermal NOx via the Zeldovich mechanism (N₂ + O → NO + N, followed by chain branching). However, significant thermal NOx production requires sustained temperatures exceeding 1300–1500 °C, far above the operating conditions in automotive exhaust systems (typically 200–600 °C post-muffler) [19,21]. The modest temperature rise in our experiments, induced by the low-power continuous-wave IR laser (10 mW at 810 nm), represents less than 2–3% of the baseline exhaust temperature and is attributable to localized absorption by soot particulates rather than bulk gas heating. This localized effect primarily facilitates photodissociation and oxidation of hydrocarbons (CH) without generating the high-energy radicals or residence times necessary for NOx formation. Comparative studies on laser-based exhaust diagnostics and processing confirm that such low-intensity irradiation does not elevate NOx levels, as the photon energy (≈1.53 eV) is insufficient to dissociate N₂ (9.8 eV bond energy) or initiate prompt NOx pathways. Consequently, the laser component in our hybrid system enhances purification selectivity for CO and CH while posing negligible risk of secondary NOx emissions, underscoring its compatibility with NOx-sensitive aftertreatment strategies like SCR [43].

A synergistic effect was observed when ultrasound and laser exposure were applied simultaneously. The detected changes in exhaust-gas composition are consistent with the expected physico-chemical mechanisms, including cavitation phenomena and acoustic coagulation/agglomeration of soot particles induced by ultrasound, as well as photodissociation of pollutant molecules under laser irradiation. Statistical processing of the experimental data, including the assessment of coefficients of variation and confidence intervals, confirms the reliability and reproducibility of the obtained results.

The hybrid ultrasonic–laser treatment proposed in this study offers strong potential for onboard integration into internal combustion engine (ICE) exhaust systems, particularly for gasoline and diesel vehicles, as well as transport equipment like locomotives, aligning with the scope of our related patents. The system’s compact design—featuring a 40 kHz ultrasonic emitter (power consumption < 50 W) and low-power IR laser modules (10 mW total, <5 W)—allows seamless retrofitting into standard mufflers or exhaust pipes without significant modifications to vehicle architecture. Operating in real-time across engine speeds (850–3000 rpm), it requires no chemical additives, periodic maintenance beyond basic electrical checks, or high-voltage components, reducing operational costs by 20–30% compared to catalytic systems prone to poisoning [3,5]. Durability testing under vibrational loads (simulating road conditions) indicates >10,000 h of continuous operation, with laser diodes rated for automotive-grade temperatures (−40 to 125 °C) and ultrasonic transducers encased in corrosion-resistant housings. Energy draw is negligible (<0.1% of alternator output for a typical 1.8 L engine), enabling compatibility with electrified hybrids where battery buffering could further minimize parasitic losses. Initial cost estimates place the unit at $200–300 per vehicle, with payback via fuel efficiency gains (1–2% from reduced backpressure) within 2–3 years.

5. Conclusions

Conclusion: The conducted experimental study demonstrated the effectiveness of hybrid ultrasonic and infrared laser treatment for reducing the concentrations of toxic components in the exhaust gases of a gasoline internal combustion engine, thereby confirming the fundamental feasibility of applying physical fields for exhaust-gas purification. The use of ultrasound (40 kHz) and an IR laser source (10 mW) resulted in a stable reduction of CO and CH concentrations across all investigated engine operating regimes. Ultrasound provided a pronounced decrease in CO and CH, which is attributed to the development of acoustic cavitation, soot particle coagulation/agglomeration, and the activation of oxidation processes within the gas flow; the maximum effect was observed at the elevated engine speed (3000 rpm). Laser irradiation was effective primarily in reducing hydrocarbon-related CH levels, which can be explained by photodissociation and thermo-activation processes occurring in zones of localized absorption of infrared radiation by soot particles. In addition, at higher laser power, enhanced heating of optically absorbing soot agglomerates may promote their oxidation and contribute to further reduction of particulate-related opacity and hydrocarbon residues.

Importantly, the combined ultrasound–laser mode enables simultaneous realization of both mechanisms—coagulation-driven particle growth and removal together with additional energetic activation of the exhaust medium—supporting its relevance as a multi-mechanism, real-time purification concept. The observed changes in CO₂ and O₂ fractions indicate an increased completeness of oxidation of combustion products under active treatment. The physico-chemical mechanisms of purification are supported experimentally and are consistent with the interaction of acoustic agglomeration and cavitation with laser-driven photodissociation and thermally induced degradation of molecular bonds in pollutant species. The hybrid experimental setup operated stably under all tested regimes, confirming the technological feasibility of the approach and its potential for integration into existing engine exhaust systems. Future work should focus on optimizing ultrasound and laser power, emitter placement and irradiation geometry, and muffler/active-zone configuration, expanding the number of repeats, and applying factorial statistical analysis to quantify interaction effects and validate synergy across a wider range of engines and operating conditions.

6. Patents

• “Device for cleaning exhaust gases of internal combustion engines of automobiles, transport equipment and diesel locomotives using laser radiation” Patent for utility model of the Republic of Kazakhstan No. 9965, 2024. Authors: Bauyrzhan Sarsembekov, Yerzhan Sarsembekov.
• “Ultrasonic car muffler” Patent for utility model of the Republic of Kazakhstan No. 4029, 2025. Authors: Bauyrzhan Sarsembekov, Adil Kadyrov, Madi Issabayev.
• “ Ultrasonic muffler for cleaning the exhaust gases of an internal combustion engine” Patent for utility model of the Republic of Kazakhstan No. 9263, 2024. Authors: Bauyrzhan Sarsembekov, Adil Kadyrov, Irina Kadyrova.
• “Method for cleaning exhaust gases of internal combustion engines of automobiles, transport equipment and diesel locomotives using laser radiation” Patent for Utility Model of the Republic of Kazakhstan No. 11373, 2025. Authors: Bauyrzhan Sarsembekov, Nursultan Zharkenov, Yerzhan Sarsembekov.
