Geology Is the Key: Seismic Soil Liquefaction Potential in Niigata City, Japan

Abstract

The 1964 M7.5 Niigata earthquake remains one of the most significant natural laboratories for understanding seismic–induced soil liquefaction and its dependence on geological setting. Among global field case histories, Niigata stands out for the exceptional documentation of liquefaction triggering, lateral spread displacements, and soil–structure interaction. This paper reexamines the event from an engineering–geologic perspective, emphasizing how Holocene coastal and fluvial depositional processes beneath the Echigo Plain controlled the spatial and stratigraphic distribution of liquefaction during the 1964 earthquake. The most severe ground deformations occurred in fluvially reworked sands derived from three major Holocene dune and barrier island systems (CSD1,2,3) formed along the paleo–shoreline of the Sea of Japan. The largest of these, a mid–Holocene transgressive barrier complex deposited to a thickness of 50–60 m of beach and aeolian sand between 8 and 5 ka B.P., now lies buried 5–8 km inland beneath fine–grained alluvial deposits. Tectonic downwarping and deltaic progradation by the Shinano and Agano rivers redistributed these sands into loose, saturated fluvial facies beneath modern Niigata city. Quantitative geotechnical analyses demonstrate that liquefaction occurs within these reworked Holocene units rather than anthropogenic fills.

1. Introduction

The 1964 Niigata M_w = 7.5 earthquake remains a watershed event in the history of geotechnical earthquake engineering and soil mechanics. The widespread liquefaction, settlement, and lateral displacement of the city’s alluvial and reclaimed ground resulted in catastrophic failures of buildings, bridges, and port facilities, offering unprecedented insights into soil–structure interaction and the cyclic mobility of saturated sand deposits [1,2]. These effects have been comprehensively documented in subsequent decades through detailed field investigations, laboratory testing, and aerial photographic analyses. This paper examines in greater depth the regional Holocene geology beneath the Echigo Plain, which exerted a first–order control on the amplification of ground motion, pore pressure generation, and resulting liquefaction manifestations during the 1964 event. The same stratigraphic and geomorphic framework continues to pose a persistent hazard to the modern urban infrastructure of Niigata. Moreover, this case is not isolated: along the entire Tohoku coastline of the Sea of Japan, earthquake damage patterns are dominantly governed by Quaternary depositional environments and their tectonic modification (e.g., Fukui, 1948; Niigata, 1964; Nihon Kai–Chubu, 1983; Niigata Chuetsu, 2004; Niigata Chuetsu–Oki, 2007) [1,2,3,4,5,6].

2. Regional and Geologic Setting

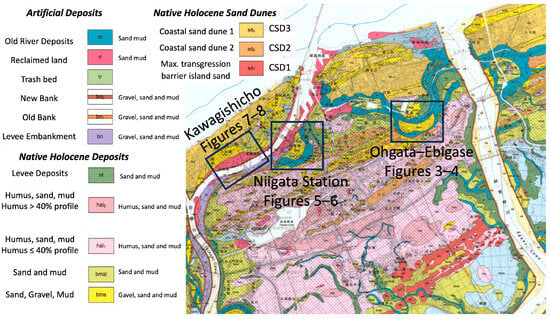

The western margin of Tōhoku is tectonically delineated by the Niigata–Kobe Tectonic Zone (NKTZ), a seismically active corridor accommodating deformation between the Eurasian and Okhotsk/North American plates [7,8]. This zone serves as the dominant source of crustal strain accumulation and intraplate seismicity. Niigata city occupies the western edge of the Echigo Plain—a large, subsiding coastal alluvial basin fronting the Sea of Japan—whose geomorphology has been shaped by repeated phases of marine transgression, deltaic progradation, and active fault–controlled subsidence [9]. The Shinano and Agano rivers, the principal fluvial systems draining the plain (Figure 1), built extensive Holocene floodplains and natural levees, which were among the most severely liquefied zones in 1964 due to their loose, saturated sandy sediments and shallow groundwater conditions [4]. Complimenting the geomorphic map of the Echigo plain is a geologic map of the region [10] simplified to present the critical geomorphic and geological units presented here (Figure 2). Within Figure 2 are inset areas for the Ohgata–Ebigase neighborhoods, Niigata Station area, and Kawagishi–cho Echigo neighborhoods.

To the surprise of researchers, the inland reaches of these river systems were largely unaffected by liquefaction during later events such as the 2004 Niigata Chuetsu earthquake [5] and the 2007 Niigata Chuetsu–Oki earthquake [11]. This spatial contrast emphasizes that the coastal geomorphic and sedimentologic features of the Echigo Plain—rather than earthquake magnitude or distance alone—control the liquefaction susceptibility and deformation patterns observed.

2.1. Coastal Sand Dune 1 (CSD1)

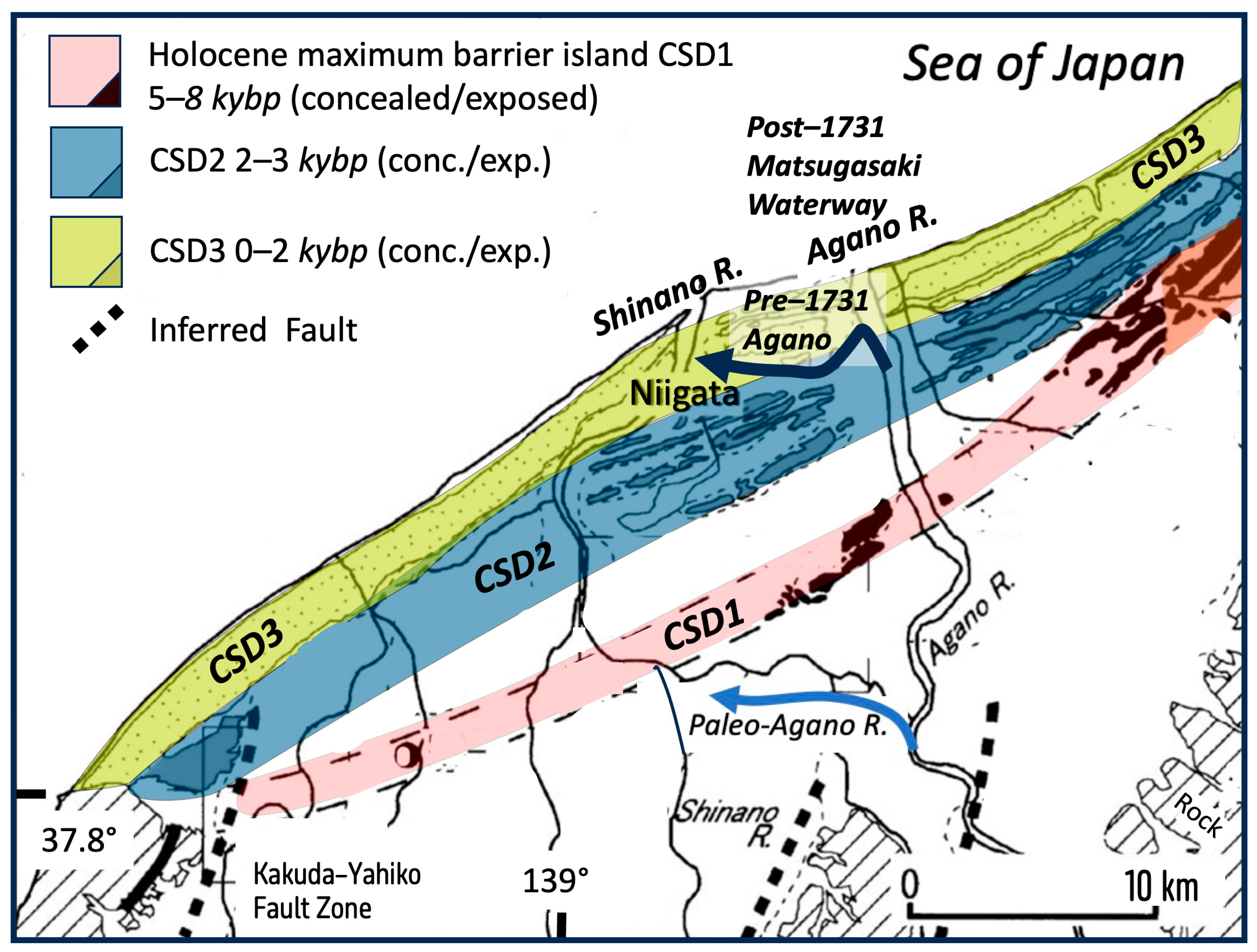

The Echigo Plain is exceptional in Japan for its thick Quaternary alluvial prism, exceeding 140 m in places due to long–term tectonic downwarping and sediment accumulation. During the early Holocene marine transgression (ca. 8000–5000 years B.P.), a prominent coastal barrier island complex composed of beach and aeolian dune sands developed along the shoreline [12,13]. This 50–60 m thick barrier deposit, designated coastal sand dune 1 (CSD1), now lies 5–8 km inland from the present coastline, having been subsequently planed off and buried beneath younger floodplain silts and fine sands. Surface exposures of CSD1 occur locally at Kameda in Kohnan Ward and at Ota and Sasaki in Kita Ward. CSD1 consists of well–sorted fine– to coarse–grained sands, with standard penetration test (SPT) N–values typically between 20 and 40, indicative of medium/dense to dense relative states [12,13]. These competent sands exhibited only limited liquefaction in 1964. Stratigraphically, CSD1 is capped by the distinctive 5000 ybp Numazawa volcanic ash layer, providing a key tephrochronological marker within the Echigo sequence [14].

In the mid–Holocene, the CSD1 barrier island extended continuously across the plain, interrupted only by the paleo–Shinano River. The paleo–channel of the Agano River has not been conclusively identified but was likely confluent with the Shinano system south of the barrier complex during the Holocene highstand [12,13].

2.2. Coastal Sand Dunes 2 and 3 (CSD2, CSD3)

Continued subsidence of the Echigo Plain, averaging one to four meters per millennium, has progressively downwarped its western margin due to movement along the Kakuda–Yahiko fault zone. This tectonic subsidence facilitated rapid westward progradation of deltaic and beach ridge complexes. The second major sand ridge system (CSD2) was active from approximately 3000 to 2000 years B.P. and is widely exposed across urban Niigata, from the right bank of the Shinano River to the coastal plain northeast of the Agano River mouth. West of the Shinano, these deposits are masked by floodplain overbank sediments. The youngest coastal complex, CSD3 (≤2000 years B.P. to present), forms the active foredune belt along the modern shoreline [15]. CSD2 and CSD3 consist of well–sorted aeolian and littoral sands reworked from older CSD1 deposits and fluvially transported by the Shinano and Agano rivers. Similar to CSD1, their SPT N–values of 20–40 correspond to medium/dense states and they showed little to no liquefaction in 1964, highlighting the importance of depositional environment and relative density in governing liquefaction resistance.

3. Hydrologic and Anthropogenic Modification

The Holocene evolution of the Echigo drainage system has been complex, with repeated avulsions and anthropogenic modifications. Before 1731, the Agano River flowed southwest and joined the Shinano near present–day Bandai Island, its outlet to the Sea of Japan obstructed by the CSD3 dune complex near the current Niigata Airport. During the Tokugawa Shogunate, in 1731, the Matsugasaki Waterway was excavated through CSD1 to create a direct outlet for the Agano River to the Sea. This hydraulic realignment, combined with later canalization, levee construction, and infilling of floodplains, significantly altered the subsurface stratigraphy. By the 20th century, the Agano’s original floodplain—up to 1.5 km wide—had been confined to a narrow 10 m wide canal (Tsusen River) lined by reclaimed and urbanized ground. These anthropogenic fills and reworked native sands proved highly liquefiable in 1964.

4. Liquefaction During the 1964 Earthquake

The hydrological and geomorphological transformations that culminated in the 18th century dramatically increased Niigata’s vulnerability to liquefaction. Subsequent analyses by the Japan Society of Civil Engineers (JSCE) and the Port and Airport Research Institute (now PARI), and numerous universities [1] provided fundamental correlations between in situ test parameters, soil density, and cyclic resistance. Hamada [4], as part of the NCEER Technical Report 92–001, conducted a landmark mapping of surface manifestations and lateral spread displacements using aerial imagery and field reconnaissance—analogous in approach to Collins and Foster’s (1949) documentation of the Fukui earthquake [3].

The Ohgata–Ebigase neighborhoods in Higashi and the Niigata Station–Hotel Niigata area exhibited lateral spreads of 3–6 m, predominantly within native Holocene sands of unit Bms, derived from fluvial reworking of CSD1 and CSD2 materials. Displacements occurred on gradients less than 1°, illustrating that even minimal slopes can drive extensive lateral spreading in liquefied strata. Similar observations of large displacements on nearly flat ground have been observed at other more recent seismic events [16,17]. The Kawagishi–cho district, globally recognized for the bearing capacity failures of multi–story structures, revealed continuous liquefaction from 2.5 to 13.5 m depth within native riverbed sands overlain by reclaimed fill [4]. These sands, classified by Hamada [4] as Alluvial soil–1 (As–1) and Alluvial soil–2 (As–2), correspond to paleo–Shinano channel deposits formed during the Tokugawa era.

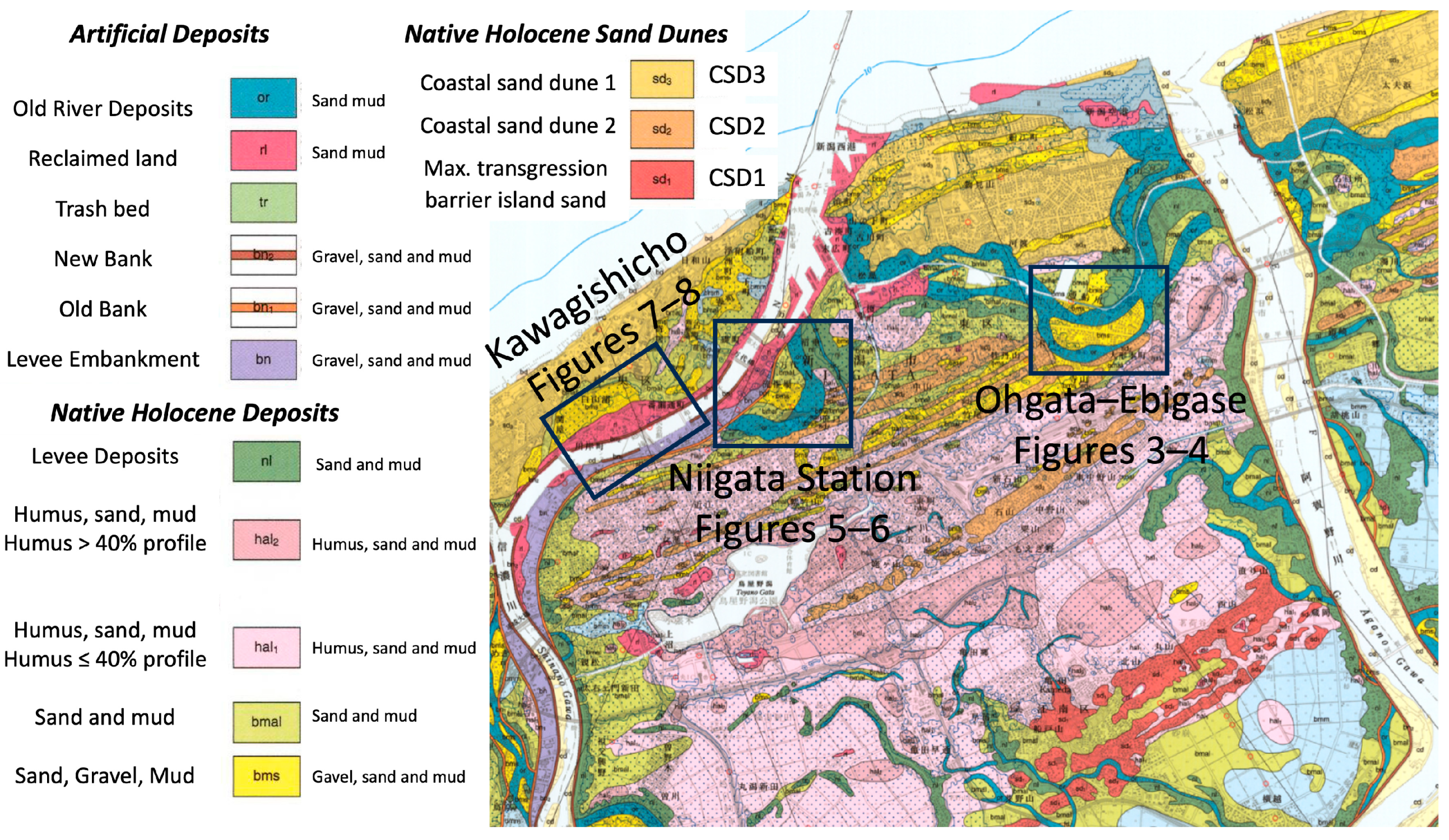

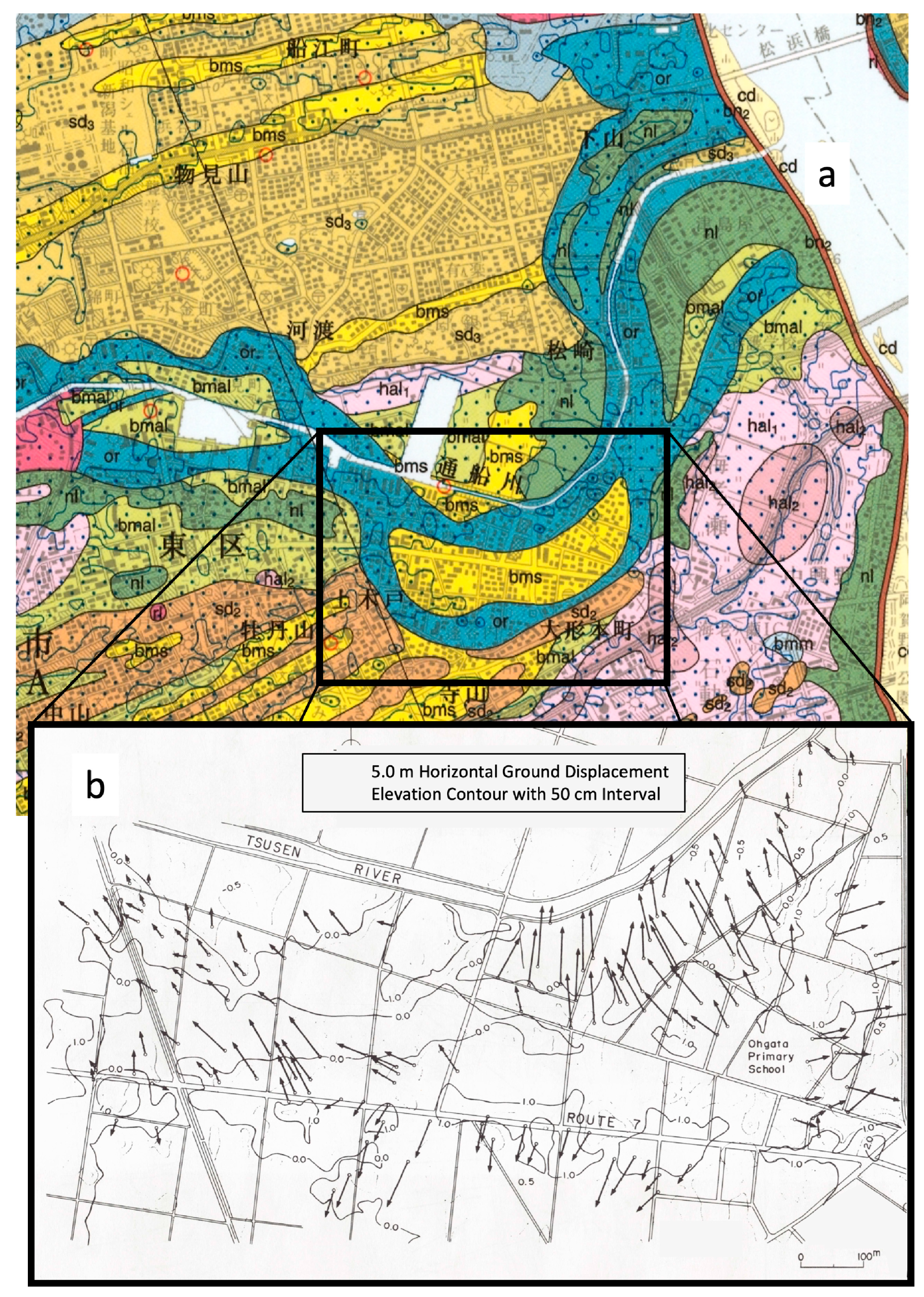

The depth and continuity of the liquefied layer demonstrate that liquefaction extended through native sediment profiles, not merely artificial fills. For example, at the Ohgata primary school area of the Ohgata–Ebigase neighborhoods in Higashi Ward, Figure 3a is the GSJ geological map [10] with an inset Figure 3b that is a modified map [4] showing displacement vectors from lateral spreading of the surface layers. Figure 4, a cross–section of the Ohgata school shows the fill deposit resides almost entirely above the water table and the zone of soil liquefaction falling entirely within As–1 and As–2 (stippled region is the estimated liquefaction zone, Figure 4). That is, the human–placed fills do not contribute to the observed liquefaction damage.

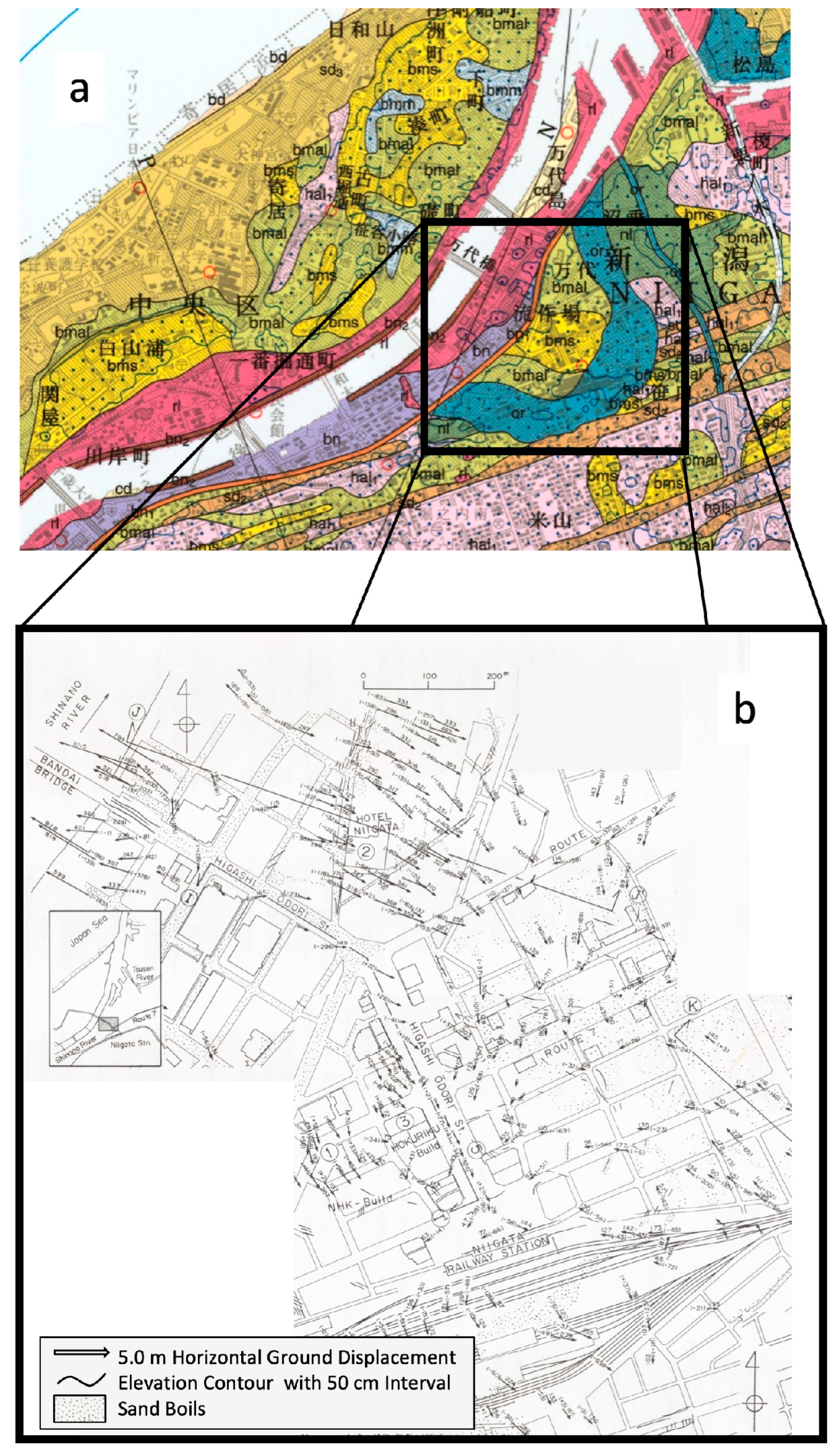

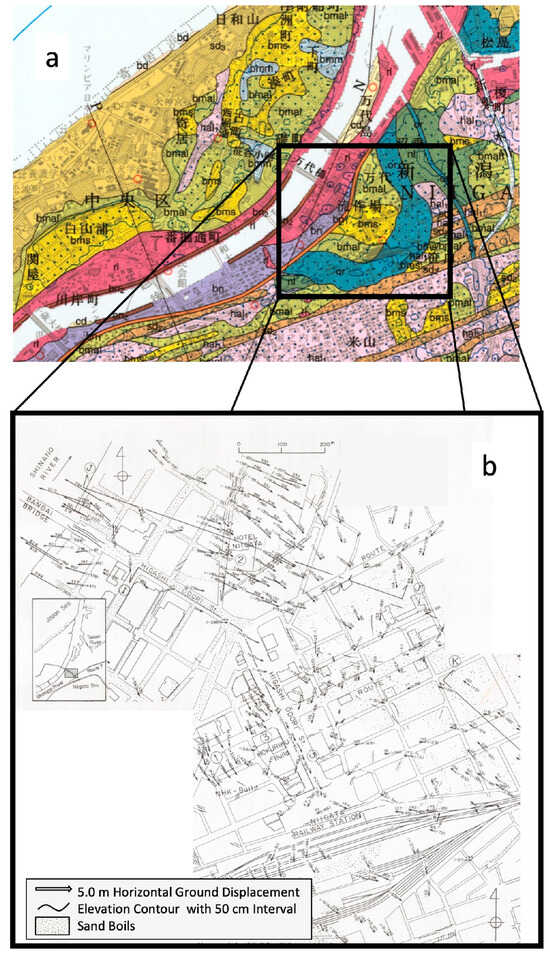

In the Ohgata–Ebigase neighborhoods, the properties of the fill are not relevant to the liquefaction occurrence. Similarly, at the central district near Niigata Station and Hotel Niigata sites, as shown in Figure 5a,b, the fills, essentially a sandy cap of one or two meters additional load, play only a small role in the liquefaction performance of the underlying soil deposits either because it is above the water table or because it represents a thin veneer above the liquefied (stippled region) in native alluvium As–1 and As–2. Figure 6 presents a cross–section of the upper 20 m of soil and shows that the human–made fill is a thin layer, largely above the water table, and that the liquefaction occurred in the native alluvium As–1 and As–2.

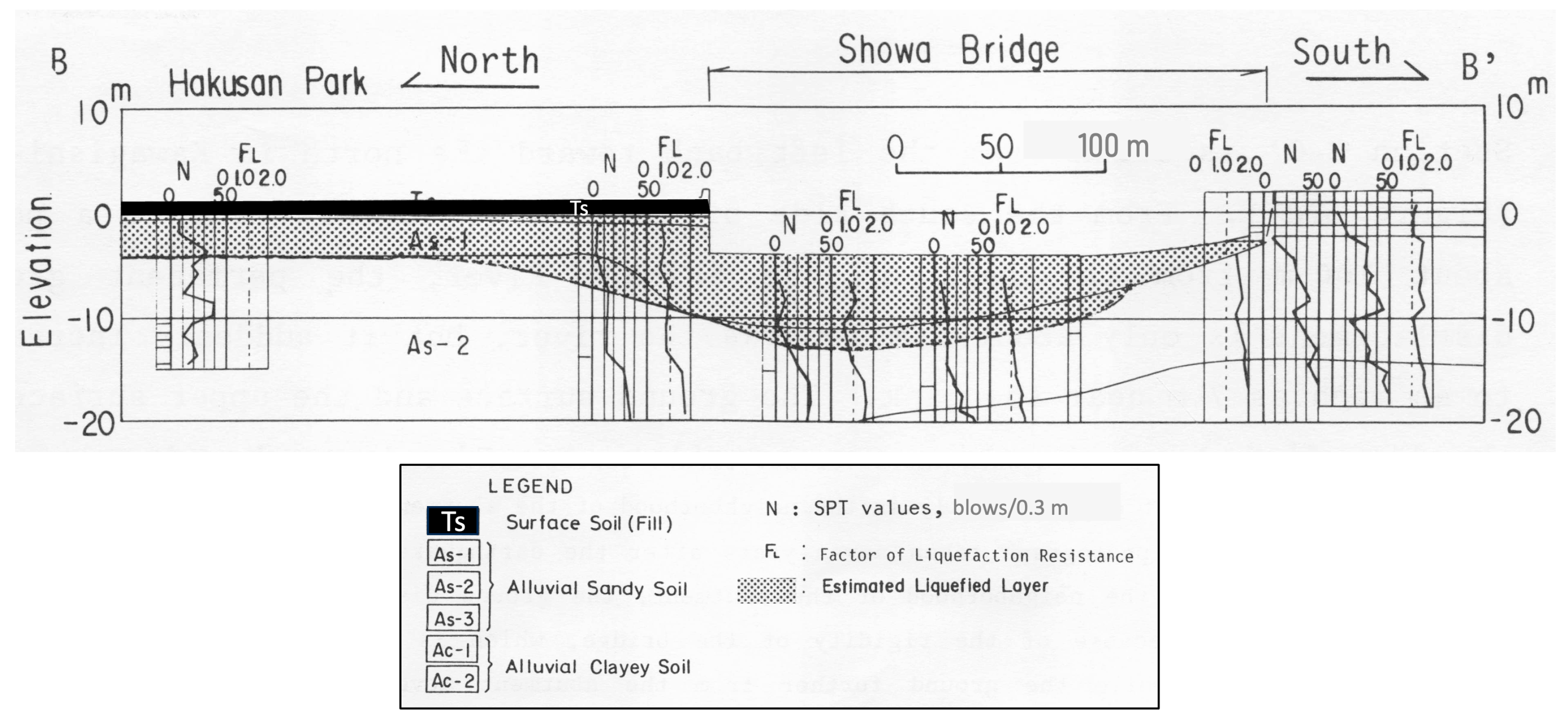

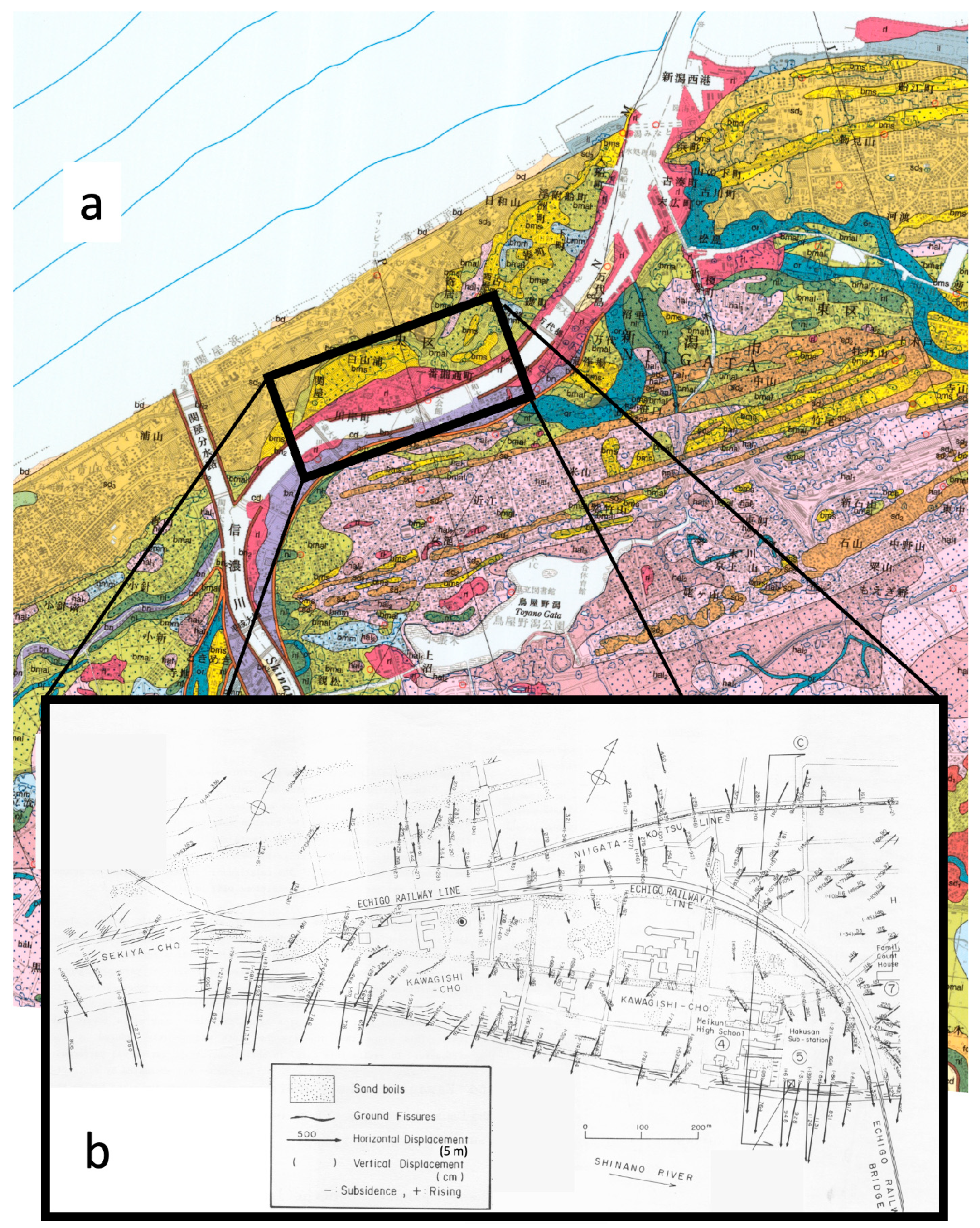

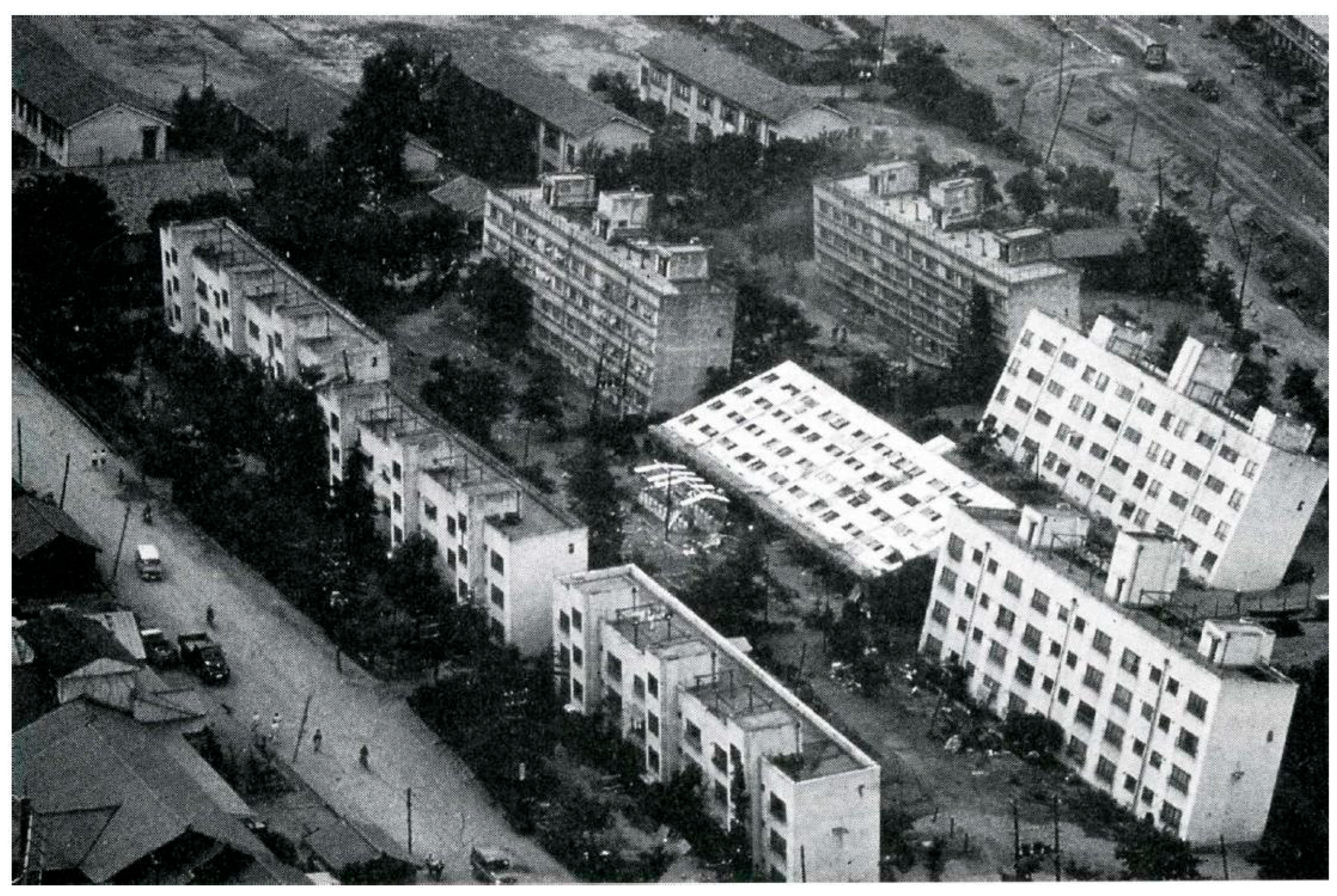

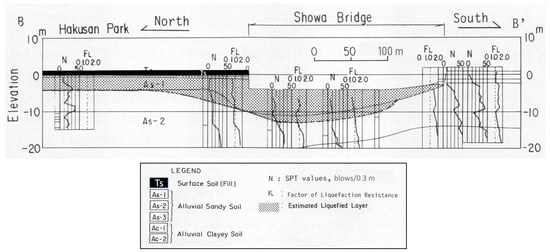

At the site of the famous bearing capacity failures of the Kawagishi–cho apartment buildings and the collapsed Showa Bridge, the fill overlies but generally is above the liquefied zone As–1, as seen in Figure 7a,b. The cross–section for the Kawagishi–cho neighborhood and Shinano River is presented in Figure 8. The Kawagishi–cho apartment buildings famously suffered bearing capacity failure, rotating the structures in liquefied soil (Figure 9). One of the apartment structures recorded the world’s first ground motions in liquefied soil. Beneath the foundation of the Showa Bridge the structural piers sat entirely on native As–1 liquefied materials. Thus, it can be observed that the liquefaction hazard of Niigata city is due almost entirely to the reworking of CSD1 and CSD2 sands by the natural migration of the Shinano River, and the opening of the Agano River channel to the sea that allowed for the development of land along the narrowed and channelized Tsusen River.

The 1964 Niigata event generated widespread liquefaction throughout the city, with lateral spreads of 3–6 m observed on slopes of less than 1° [4]. Detailed stratigraphic and geotechnical investigations [1] identified the primary liquefied units as native Holocene sands (As–1 and As–2) corresponding to fluvially reworked CSD1 and CSD2 deposits.

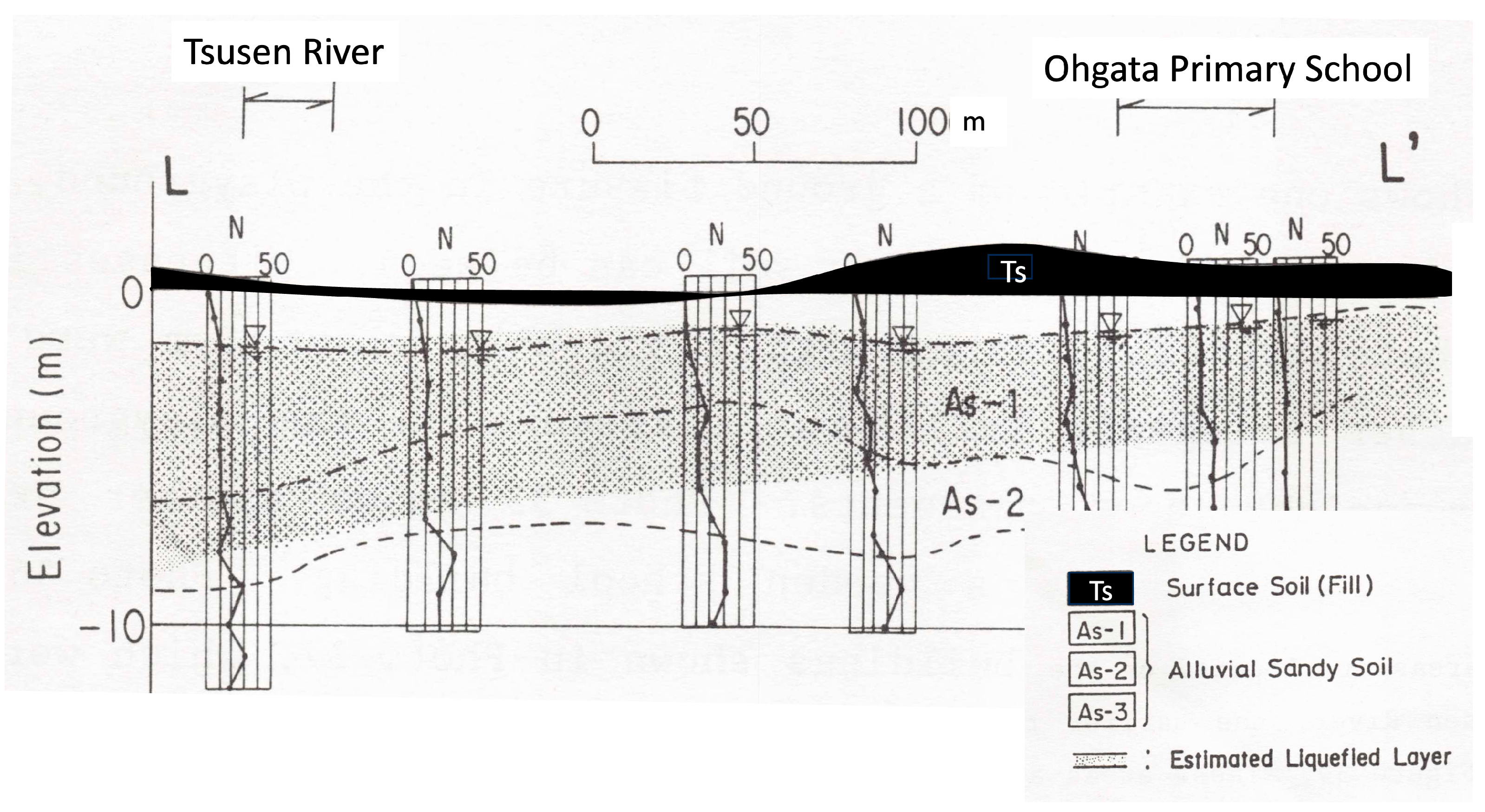

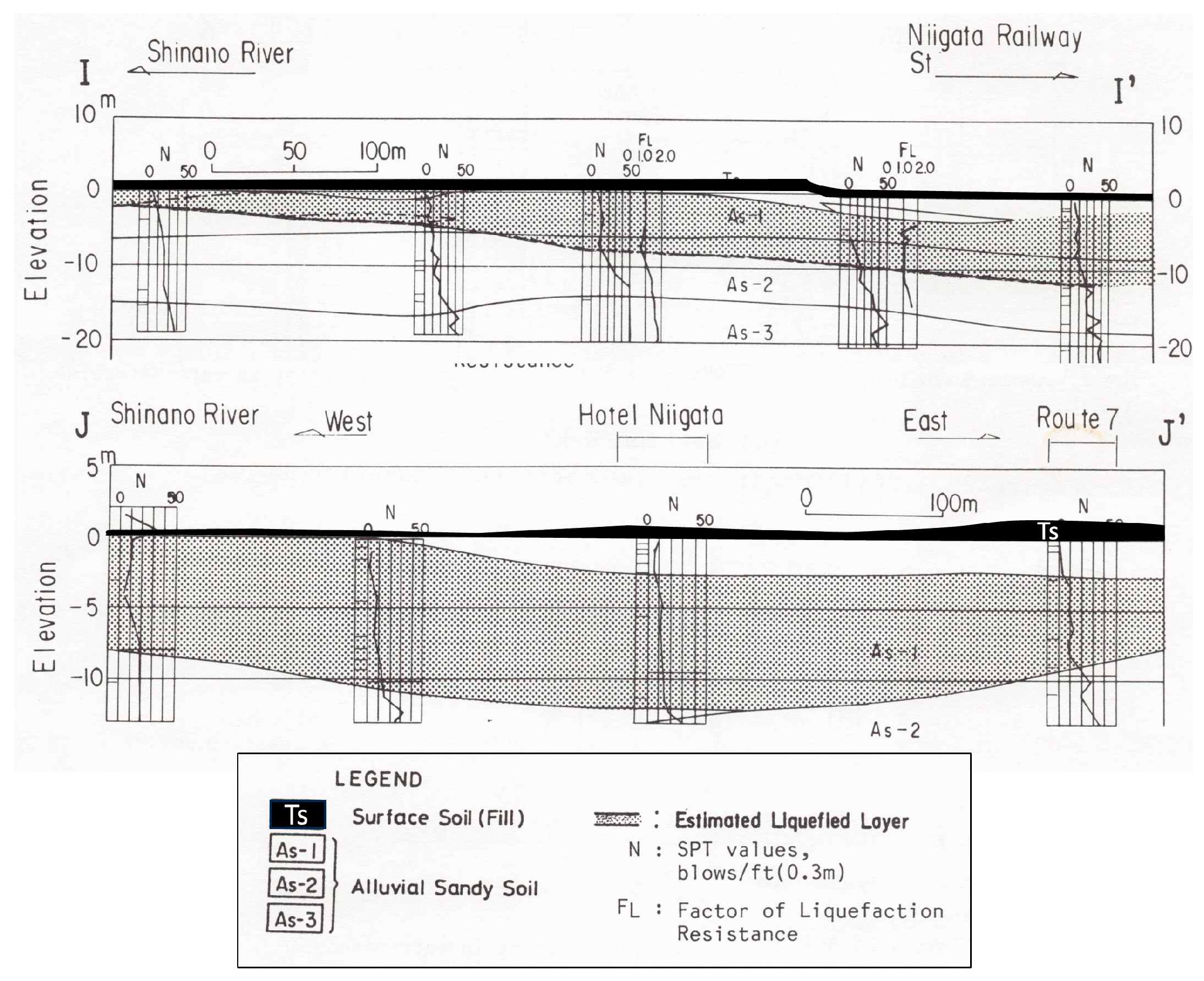

Cross–sections (Figure 4 and Figure 6) from the Ohgata–Ebigase and Niigata Station areas show that liquefaction occurred entirely within these native sands, while human–made fills above the water table remained stable. At Kawagishi–cho, well–documented bearing failures of apartment structures occurred within liquefied As–1 strata (Figure 8). The piers of the Showa Bridge similarly rested on liquefied native sands. These observations confirmed that Niigata’s liquefaction hazard arises from the buried Holocene stratigraphy rather than surface reclamation materials.

5. Analytical Frameworks: Stress– and Energy–Based Evaluation

Seismic soil liquefaction triggering is modeled traditionally in two principal analytical frameworks: the cyclic stress–based and energy–based approaches. The conventional stress–based method forms the foundation of geotechnical earthquake engineering practice, wherein the cyclic shear stresses induced by earthquake shaking are related to the soil’s cyclic resistance capacity, expressed as a ratio of cyclic stress demand to cyclic resistance or capacity of the soil. The cyclic stress framework [18,19] quantifies the relationship between the imposed cyclic stresses from seismic loading and the corresponding resistance of the soil under undrained conditions.

In practice, the cyclic stress ratio (CSR)—defined as the normalized measure of seismic demand—is expressed as:

$$CSR=0.65{\displaystyle \frac{a_{max}}{g}}·{\displaystyle \frac{{\sigma }_{VO}}{{\sigma }_{VO}^{\prime }}}·r_d$$

(1)

where $a_{\mathit{max}}$ is the peak horizontal ground acceleration; $g$ is gravitational acceleration; ${\sigma }_v$ and ${\sigma }_v^{\prime }$ are the total and effective vertical overburden stresses, respectively; and $r_d$ is the depth reduction factor accounting for soil mass participation. This formulation represents the seismic energy input in terms of equivalent cyclic shear stresses acting within the soil profile.

$${CSR}_{{\sigma }_v^{\prime }=1atm,M_w=7.5,\alpha =0}={CSR}_{{\sigma }_v^{\prime },M_w,\alpha }·{\displaystyle \frac{1}{K_{\sigma }}}·{\displaystyle \frac{1}{K_{M_w}}}·{\displaystyle \frac{1}{K_{\alpha }}}$$

(2)

Considerable effort has been devoted to developing robust and standardized procedures for normalizing the computed cyclic stress ratio (CSR) to a consistent reference framework representative of common boundary conditions. This normalization enables comparison across different seismic and geostatic environments by reducing CSR to an equivalent reference state defined by an effective overburden stress of 1 atm, an earthquake moment magnitude of $M_w=7.5$, and a static shear stress ratio (slope) of zero [20,21]. The CSR approach was modeled originally on the Niigata event, and so the magnitude normalization, K_m, is a convenient 1.0. Likewise, the floodplain of the Shinano River is at an essential level (Kα = 1) and the liquefaction features occur at shallow depths of typically the upper ten meters of the soil column (Kσ = 1.0).

Current state–of–practice frameworks rely on in situ testing procedures such as the standard penetration test (SPT), cone penetration test (CPT), and shear wave velocity (V_s) profiling to characterize the cyclic resistance of soil deposits. These methods derive strength and stiffness proxies directly from the natural soil fabric and stress history measured in the field, thereby minimizing sampling bias. The most recent probabilistic CSR frameworks are presented with Niigata field data in Figure 10A for the standard penetration test, and Figure 10B and shear wave velocity test, data sets. Contours of likelihood of initial seismic soil liquefaction are plotted and are the result of Bayesian updating analysis and system reliability probabilistic modeling [21,22]. All of the standard penetration test data fall to the left, or the 50% probability of liquefaction occurrence line in Figure 10A. For the shear wave velocity data set three non–liquefaction points (open circles) reside on the 50% probability line or lower. Five of six points where liquefaction was observed after the 1964 event (solid black circles) reside in the zone of liquefaction probability greater than 50% apart from one point that was observed to have liquefied with a probability of 32%. The fine points in Figure 10B represent the entire data set used to model the probability boundaries. These points are shown here so that the reader can understand where the Niigata data set fits within a larger global shear wave velocity data set for liquefaction potential.

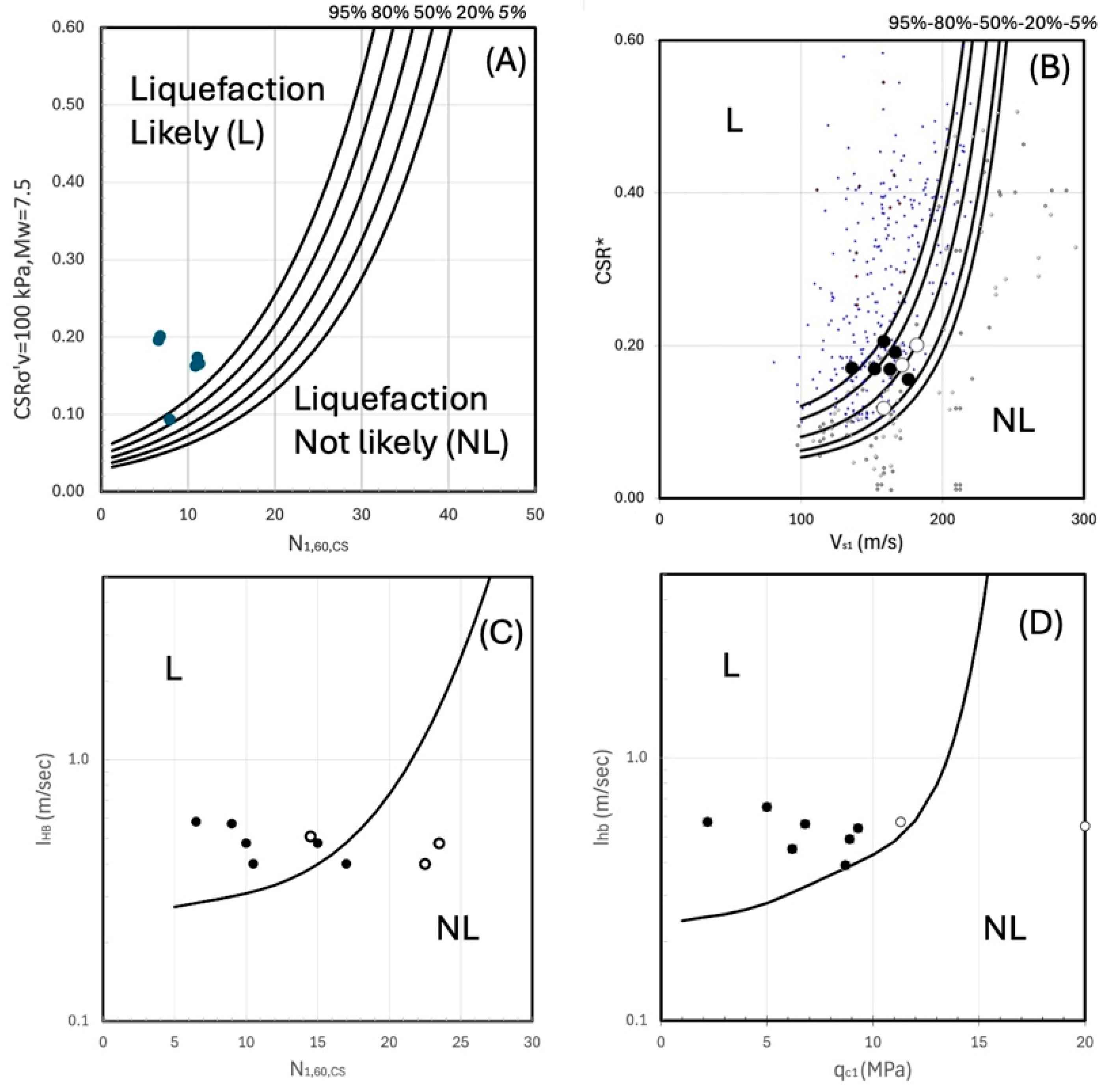

The data from Niigata, Japan, are plotted against a field energy–based method, Arias Intensity, in Figure 10C,D for the standard penetration test and cone penetration test data sets [23]. Foundational studies [24,25,26] demonstrated strong correlations between energy and the excess pore pressure ratio, $r_u$, suggesting that energy–based metrics may more accurately represent liquefaction onset.

Procedures employing Arias Intensity ($I_A$) as a quantitative indicator of the energy of earthquake shaking strength [23,26] used the mathematically defined time integral of the square of ground motion acceleration normalized by the gravitational acceleration, g.

$$I_A=\frac{\pi }{2g}{\int }_0^{t_d}{a}^2\left(t\right)\hspace{0.17em}dt$$

(3)

where $a\left(t\right)$ is the ground acceleration as a function of time, $g$ is gravitational acceleration, and $t_d$ is the total duration of strong shaking. This cumulative energy formulation inherently captures the effects of seismic demand characteristics—amplitude, duration, and frequency content— thereby offering a more mechanistic link to excess pore pressure generation. Arias Intensity provides a scalar representation of the total seismic energy imparted per unit mass at a site.

$$I_h=I_{xx}+I_{yy}={\displaystyle \frac{\pi }{2g}}{\int }_0^{t_0}{a}_x^2\left(t\right)dt+{\displaystyle \frac{\pi }{2g}}{\int }_0^{t_0}{a}_y^2\left(t\right)dt$$

(4)

The two–component cumulative Arias Intensity (I_h) provides a physically meaningful measure of the total seismic energy demand imparted to the soil deposit by earthquake shaking. In Figure 10C,D, a deterministic boundary line separating likely liquefaction from non–liquefaction performance separate solid points of observed liquefaction from open points of no observation of liquefaction during the 1964 event. For the standard penetration test, five of the six observed liquefaction points lie to the left and above the boundary curve, with one point being a false negative. Two points of no observed liquefaction fall in the non–liquefaction zone, and one false positive is found to the left of the curve. For the cone penetration test, all the observed, liquefaction points lie above and to the left of the boundary curve, indicating an accurate assessment of liquefaction. Two non–liquefaction points are present, one near the boundary curve and one significantly stiffer. In general, the energy–based method performs well in characterizing the observed damage. The analytical methods for assessing field performance work well to quantify liquefaction potential and support the geologic evidence of specific fluvially reworked coastal dune deposits as being the primary source of the liquefaction hazard in Niigata city.

6. The 2024 Noto Earthquake: Evidence of Persistent Hazard

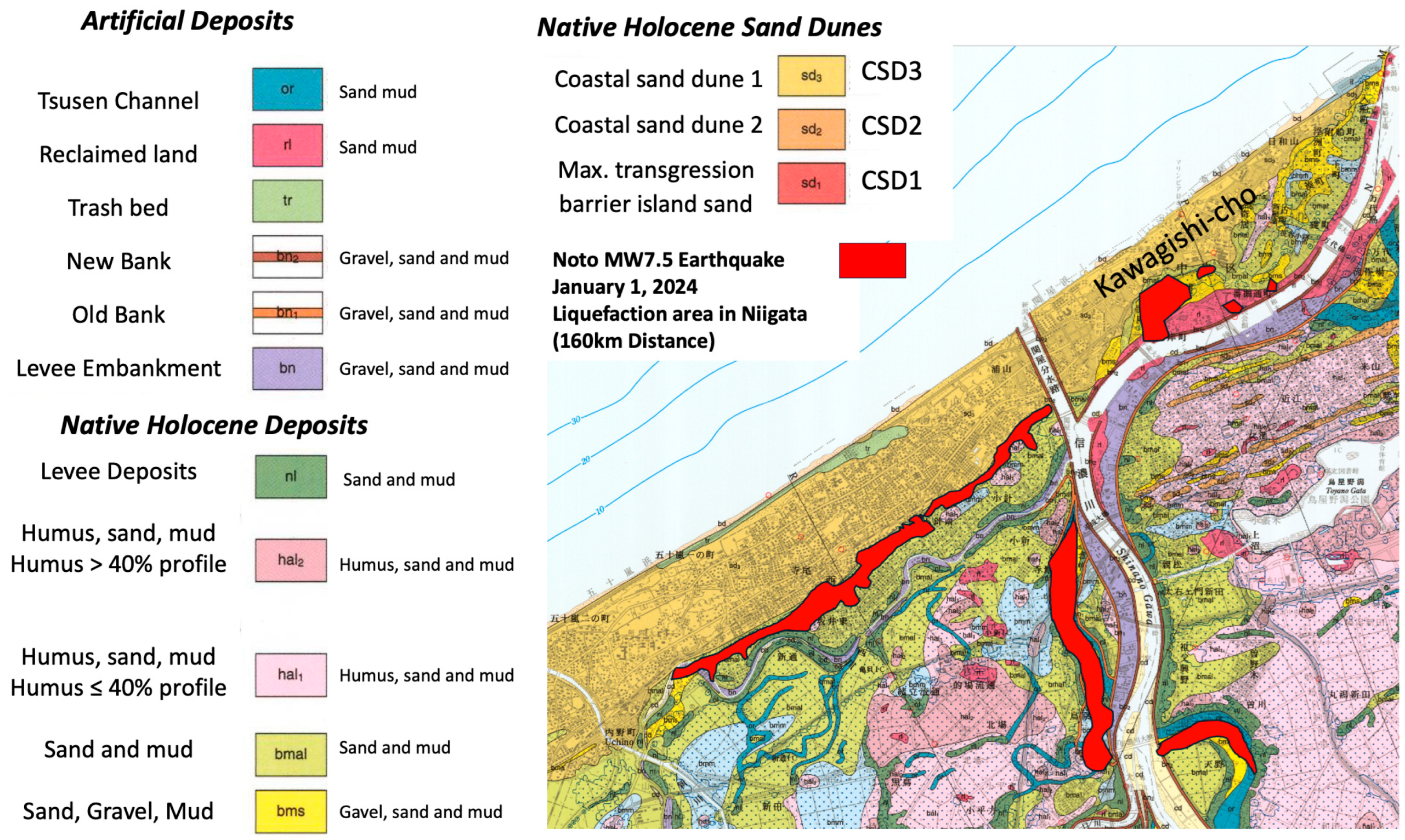

On 1 January 2024, a magnitude 7.5 earthquake occurred at the tip of the northeast corner of the Noto peninsula. On the peninsula, peak ground accelerations between 1.5 and 2.78 G were measured at K–NET sites ISK001, ISK003, and ISK006 [27]. At the significant source distance of 155 km, peak ground accelerations of low levels of 0.08 to 0.17 G were recorded in the southwest corner of Niigata city. Even with these low levels of acceleration, liquefaction was observed, in former meanders of the Shinano River [28]. Hundreds of residential water main breaks occurred at the boundary between CSD3 dune sand and fine–grained sand over bank deposits, and where CSD1 and CSD2 reworked sands are found near the Shinano River. These recent observations indicate that Niigata city is still threatened by highly liquefiable native foundation soils (Figure 11).

7. Conclusions

The 1964 Niigata earthquake demonstrated unequivocally that regional geology governs local liquefaction performance. The city’s susceptibility arises from a combination of:

• Thick mid–Holocene barrier island sands (CSD1) emplaced 5–8 ka B.P.;
• Ongoing deltaic progradation, locally driven by tectonic subsidence;
• Fluvial reworking of dense coastal sand dunes into loose, saturated facies (As–1, As–2);
• Late–Holocene dune accretion (CSD3) supplying uncemented sands;
• Anthropogenic modification of river channels and hydraulic regimes.

Both cyclic stress– and energy–based frameworks confirm that the most hazardous foundation soils are the fluvially reworked sands derived from CSD1–CSD3. The recurrence of liquefaction during the distant 2024 Noto earthquake highlights the continuing risk posed by these Holocene sediments. Integrating detailed engineering–geologic mapping with probabilistic liquefaction models is therefore essential for seismic resilience planning in Niigata and comparable coastal plains worldwide [28].
