Impact of Inverse Manganese Promotion on Silica-Supported Cobalt Catalysts for Long-Chain Hydrocarbons via Fischer–Tropsch Synthesis

Abstract

One of the challenges in Fischer–Tropsch synthesis (FTS) is the high reduction temperatures, which cause sintering and the formation of silicates. These lead to pore blockages and the coverage of active metals, particularly in conventional catalyst promotion. To address the challenge, this article investigates the effects of the preparation method, specifically the inverse promotion of SiO₂-supported Co catalysts with manganese (Mn), and their reduction in H₂ for FTS. The catalysts were prepared using stepwise incipient wetness impregnation of a cobalt nitrate precursor into a promoted silica support. The properties of the catalysts were characterized using XRD, XPS, TPR, and BET techniques. The structure–performance relationship of the inversely promoted catalysts in FTS was studied using a fixed-bed reactor to obtain the best performing catalysts for heavy hydrocarbons (C₅₊). XRD and XPS results indicated that Co₃O₄ is the dominant cobalt phase in oxidized catalysts. It was found that with increase in Mn loading, the reduction temperature increased in the following sequence 10%Co/SiO₂ < 10%Co/0.25%Mn-SiO₂ < 10%Co/0.5%Mn-SiO₂ < 10%Co/3.0%Mn-SiO₂. The catalyst with the lowest Mn loading, 10%Co/0.25%Mn-SiO₂, exhibited higher C₅₊ selectivity, which can be attributed to less MSI and higher reducibility. This catalyst showed the lowest CH₄ selectivity possibly due to lower H₂ uptake and higher CO chemisorption.

1. Introduction

Cobalt (Co)-based catalysts are an excellent choice for applying the Fischer–Tropsch synthesis (FTS) method to produce clean chemicals and fuels due to cobalt’s high activity in converting syngas. These catalysts are effective for FTS because they offer high selectivity, sustainable fuel production, better catalytic activity, and improved reducibility and dispersion. Cobalt is one of the metals that converts synthesis gas the most actively [1,2,3,4,5,6,7]. Given that cobalt is a highly expensive metal, it is necessary to synthesize a Co catalyst that is evenly distributed over the support to reduce the catalyst’s cost. Since Co alone cannot provide the appropriate final composition, oxide supports such as silica and alumina have been utilized for Co based catalysts in low-temperature Fischer–Tropsch (LTFT) [8,9,10,11]. The metal–support interaction, crystallite size, metal dispersion, mass transfer of the reactants and products, mechanical strength, and thermal stability of the catalyst are all influenced by the physicochemical and textural characteristics of the support material. Therefore, the key to creating an effective catalyst is choosing and synthesizing the right support material with a unique physicochemical composition, well-defined surface chemistry, a wide surface area, and the right pore size and volume [12,13]. To achieve the required catalyst qualities, catalyst preparation methods (i.e., preparation procedures, including impregnation, drying, and calcination), pH-controlled precipitation, evaporative deposition, and have been used [14,15,16].

Moreover, several tactics have been employed to adjust the cobalt–support interaction to improve the catalyst’s reduction capabilities. A modest quantity of promoter elements, which have a high capacity for dissociative hydrogen activation, could be added to enhance the cobalt dispersion and catalytic reducibility [17,18]. By grafting inactive or less active groups, deactivation or passivation of the chemically active oxygen groups on the support surface may also reduce the metal–support interaction, e.g., SiO₂ has a several silanol (SiOH) groups on its surface, which can interact with cobalt oxides and affect catalyst structure and performance [12,19].

Both the catalyst’s composition and structure can be optimized by utilizing a certain the preparation technique, to increase product selectivity. The application of electronic promoters to enhance catalytic performance has been thoroughly studied in relation to co-based FTS catalysts [20]. It has been suggested that manganese (Mn) [21,22] is a potential promoter to increase both the hydrocarbon selectivity and catalytic activity [23]. Bell et al. discovered that a Mn promoter increased CO surface coverage and aided in CO dissociation, which caused a distribution of heavier hydrocarbon products due to reduced H availability and faster synthesis of C₁ monomers [24].

It has been observed that adding trace quantities of Mn to cobalt-based catalysts increases their activity and C₅₊ selectivity while decreasing their selectivity for methane production [22,25,26,27,28]. The amount of Mn in the catalyst, as well as the reaction parameters (temperature, pressure, and CO conversion), determine how much activity increase occurs through Mn promotion [29,30]. Dinse et al. [24] and Johnson et al. [31] reported increased activity with Mn promotion at low concentrations of Mn (Mn/Co ratio < 0.125); however, activity decreased at Mn/Co ratios over 0.125. A higher rate with Mn promotion of Co/Carbon nanotubes (CNTs) was also found by Thiessen et al. [29], with a maximum at Mn/Co = 0.075 at 220 °C and 1 bar. Because the activation energy and the pre-exponential factor are reliant on the Mn content, the ideal Mn amount is temperature-dependent.

The enhanced dispersion of metallic Co, which is not usually observed [20,21,22,24,27], or a chemical promotion that modifies the bonding of CO on the catalytically active cobalt [25,27] has been suggested as the causes of the increase in activity with Mn promotion [24,31]. The latter was explained by the interaction between the adsorbed CO on the metallic cobalt surface and Mn²⁺ cations at the edges of MnO islands. This interaction strengthened CO adsorption and weakened the C-O bond in adsorbed CO, which has been hypothesized to be related to the observed increase in turnover frequency [32].

There is still little knowledge about the second metal’s and promoter’s activities and selectivities, despite a wealth of studies on catalyst loading and promotion. Typically, the metal salt precursor is impregnated first, followed by activation, and then the promoter is applied to the supported metal catalyst. The idea behind this method is to reduce at higher temperatures by absorbing the metal catalyst into the support material. The technique’s drawbacks include high reduction temperatures, which cause sintering and the creation of silicates and aluminates, as well as pore blockages when the promoter is introduced later (traditional catalyst promotion).

It is commonly known that conventional techniques for creating heterogeneous catalysts typically result in a mixture of various metal species and, as a result, provide limited control over the selectivity of the final product. One of the most significant areas of heterogeneous catalysis research in recent years has been the design and manufacturing of nanostructured metal catalysts with modified product selectivity or enhanced reaction activity for syngas conversion. According to Zhai et al. [33], those nanostructured materials appear to give fresh perspectives on the FTS reaction mechanism in addition to serving as a platform for product selectivity engineering. Using γ-alumina support Co catalysts, Goodwin et al. [34] investigated the support modification using titanium doping for FTS. No noble or nearly noble metal was used to boost the catalyst. To create titanium doped alumina, aluminum, and titanium alkoxide were co-hydrolyzed. This support was then impregnated with aqueous cobalt nitrate to achieve the required Co loading. According to their research, cobalt-on-alumina catalysts that have the proper amount of dopant loaded onto the support help to inhibit the synthesis of cobalt–alumina compounds, a result that is comparable to that of employing noble metal promoters. Using lanthanum (La) and barium (Ba), Alan H et al. [35] also looked into the impact of doping an alumina-supported Co catalyst. They found that, with little effect on product selectivity, the alumina support doped with either Ba or La enhanced FT activity and increased thermal stability.

Furthermore, transition metal oxides like Si, Zr, or Ti are frequently added to FT supports to improve structural stability [36]. In addition to changing the support surface’s structural makeup, the modifiers can affect the activity and selectivity of the FT. SiO₂ modification of alumina supports has been demonstrated to lessen the amount of cobalt removed from the wax product and protect the support from the hydrothermal attack that is a natural part of the FT process [37]. Through the prevention of irreducible silicate production, zirconia (ZrO₂) modification of silica catalysts was able to enhance cobalt reduction and improve catalyst performance [38].

In this work, we aimed to optimize the Co-Mn catalyst composition for inversely promoted Co-based catalysts (promoting the support before loading the metal catalyst). This article provides a methodical analysis of how Mn support modification affects Co-Mn-SiO₂ catalysts for FTS, highlighting the significance of inverse support promotion for cobalt crystallite size, reduction degree, activity, and product (C₅₊) selectivity.

2. Materials and Methods

2.1. Catalysts Preparation

Two kinds of Co-based catalysts were prepared for this study.

• Non-promoted silica-supported Co catalyst (basis).

Commercially accessible SiO₂ with a specific surface area of 317 m²/g and pore volume of 1.15 mL/g was the support utilized in these catalysts, serving as a baseline for comparison. The primary approach used to synthesize this Co/SiO₂ was incipient wetness impregnation (IWI). Regarding the total amount of cobalt oxide precursor and SiO₂ support, the cobalt weight loading was maintained at 10 wt.%. 4.98 g of Co(NO₃)₂·6H₂O in an aqueous solution (10.35 mL) was used to saturate the first 9 g of SiO₂. After being impregnated, the sample was dried inside the furnace for 12 h at 80 °C, and it was then calcined for 4 h at 400 °C, with a heating rate of 2 °C/min. This catalyst was labelled as 10% Co/SiO₂. The best possible balance between metal dispersion and active site availability is achieved with a 10 wt.% Co loading on silica. High catalytic activity is produced by this loading because it guarantees enough surface area for CO adsorption [39,40]. High reproducibility in the preparation of 10 wt.% cobalt on silica catalysts guarantees consistent outcomes between batches. This uniformity is essential for consistent catalytic performance as shown by studies from our research institute [19,41,42].

2.

Inverse promotion: promoting the support before loading the metal catalyst.

Using the same commercial support as mentioned above, a manganese loading of 0.25 wt.% was prepared. This involved impregnating the support with an aqueous solution containing 0.80g of manganese nitrate Mn(NO₃)₂ as a precursor. The resulting sample was dried at 80 °C for 12 h and then calcined at 400 °C for 4 h, yielding the support designated as 0.25%Mn-SiO₂.

Subsequently, this support was further impregnated with a 10 wt.% loading of cobalt, considering the combined weight of cobalt oxide, manganese, and silica. The resulting sample underwent drying at 80 °C for 12 h followed by calcination at 400 °C for 4 h. This catalyst sample was labeled as 10%Co/0.25%Mn-SiO₂. The same procedure was used to obtain the catalysts 10%Co/0.5%Mn-SiO₂ and 10%Co/3.0%Mn-SiO₂, and consequently having Mn/Co of 0.025, 0.05, and 0.3, respectively. Consideration of the Mn/Co ratios was dependent on literature reviews. The amount of Mn in the catalyst determines how much activity increase by manganese promotion occurs [24,29,31,32,43]. Dinse et al. [24] and Johnson et al. [31] reported increased activity with manganese promotion at low doses of Mn (Mn/Co ratio < 0.125); however, activity decreased at Mn/Co ratios over 0.125. A higher rate with Mn promotion of Co/CNT was also found by Thiessen et al. [29], with a maximum at Mn/Co = 0.075 at 220 °C and 1 bar.

2.2. Catalyst Characterization

X-ray powder diffraction (XRD)

X-ray powder diffraction spectra for the calcined catalysts were recorded on a Rigaku SmartLab X-ray Diffractometer using Cu Kα radiation (40 kV, 200 mA). The scan range was from 2θ = 5° to 90°. The average Co₃O₄ sizes were calculated using the Scherrer equation:

$$d=\frac{K\lambda }{\beta \cos \theta }$$

(1)

where d is the mean diameter of crystallites (nm); K is the Scherrer constant corresponding to the crystallite shape assumed 0.94; λ = 0.154 (nm) is X-ray wavelength; β is full width at half-max (FWHM) or integral breadth in radian [44].

The Co₃O₄ particle size was converted to the corresponding cobalt metal particle size according to the relative molar volumes of metallic cobalt and Co₃O₄. The resulting conversion factor for the diameter d(Co₃O₄) of a given Co₃O₄ particle being reduced to metallic cobalt is as follows:

d(Co⁰) = 0.75 × d(Co₃O₄)

(2)

H₂ temperature programmed reduction (H₂-TPR)

The TPR experiment was conducted to examine the catalyst’s reduction behavior using a CATLAB that was outfitted with an MS detector. A thermocouple was connected to the catalyst (0.2 g) in a quartz tubular reactor to enable continuous temperature monitoring. Before TPR measurement, water or impurities were removed from the calcined catalysts by purging them with Ar (flow rate: 50 mL/min) at 150 °C for two hours and then cooling them down to 50 °C. After that, 10%H₂/Ar was turned on, and the temperature was increased from 50 to 900 °C at a rate of 10 °C/min.

CO and H₂ chemisorption

To approximate the Co dispersion, metal surface area, and H₂ uptake, CO and H₂ adsorption isotherms were recorded at 35 °C using a CATLAB machine. After being evacuated at 150 °C for one hour, the 0.2 g samples were cooled to room temperature. Next, the catalysts were reduced in situ at 5000 C for 10 h at a ramping rate of 10 °C/min in flowing hydrogen or carbon monoxide (10%H₂/Ar or 10%CO/Ar, respectively). Following reduction, the samples were cooled to 35 °C after being evacuated for 30 min at 400 °C. Assuming homogeneous, spherical cobalt metal particles, the cobalt metal particle size was computed from the cobalt metal dispersion [45].

These assumptions give the following formula:

$$\mathrm{D}\%=\frac{{\mathrm{N}}_{\mathrm{Co},\mathrm{surface}}}{{\mathrm{N}}_{\mathrm{Co}}·\mathrm{DOR}}\times 100\%$$

(3)

d(Co⁰)(nm) = 96/D(%)

(4)

2.3. Catalyst Testing

A wide range of hydrocarbons, including olefins, oxygenates, and linear and branched paraffins, are produced using the Fischer–Tropsch process. Reaction conditions must be controlled in any study on the catalytic performance of comparable catalysts because of the complexity of the Fischer–Tropsch synthesis. The catalyst was tested in a fixed-bed microreactor for the Fischer–Tropsch process reactions. The 220 mm in length and 8 mm in diameter stainless steel FBR reactor was coated with a heating jacket to regulate and keep the temperature at the appropriate operating level. After loading a 1.0 g sample of the catalyst into the reactor, several parameters were monitored, including temperature, pressure, and space velocity. The catalyst was activated by reducing cobalt oxide to metallic cobalt, which is the active form for FTS, for 20 h using 5% H₂ in Ar at 60 mL(NTP)/min before experiments.

For the FTS experiments, the fixed bed reactor was maintained at 220 °C and 20 bars until a steady state was attained. At a flow rate of 60 mL(NTP)/min, an FTS gas stream (H₂/CO/N₂ ratio = 6:3:1) was fed into the reactor. The Agilent gas chromatograph was used to conduct the online product analysis. Three phases make up the product stream: the gaseous phase, the oil phase, and the wax phase. An Agilent 7890B GC was used to examine the gaseous phase stream for the following gaseous components: CO, H₂, N₂, CO₂, α-olefins C₂–C₅, and linear paraffins C₁–C₁₀. The Agilent GC has three detectors: the flame ionizing detector (FID), the thermal conductor detector (TCD)-A, and TCD-B. The FID was used to analyze the hydrocarbon products that were found, and the TCD-A was used to analyze the CO, CO₂, and N₂ components, while the TCD-B was used to detect H₂. Argon 99.99% (AFROX Ltd., Johannesburg, South Africa,) was the carrier gas utilized in all detectors.

GC analysis: First, the oven is kept at 35 °C for five minutes. After that, it is gradually raised to 200 °C at a rate of 3 °C per minute. The temperature is then held at 200 °C for 60 min after. Each sample requires around 45 min to analyze. The GC is connected to a monitor, where The Agilent 7890B GC with 7693A ALS ChemStation edition is used to collect and store all of the data from the detectors about the sample.

3. Results and Discussions

3.1. Catalysts Textural Properties

The samples were degassed at 300 °C for 8 h. BET surface area, pore size, and volume were measured using nitrogen at 77 K. Instrument: Tristar II. Manufactured by Micromeritics (Atlanta, GA, USA).

Table 1. Chemical composition and textural properties of the Mn inversely promoted and non-promoted catalysts.

Sample	ICP-AES Loadings (wt.%)		BET Surface Area (m2/g)	Pore Volume (m3/g)	Pore Sizes (nm)
	Co	Mn
SiO2	-	-	317.0	1.15	15.0
10%Co/SiO2	9.55	-	312.2	0.75	14.1
10%Co/0.25%Mn-SiO2	9.86	0.25	308.4	0.51	6.4
10%Co/0.5%Mn-SiO2	9.09	0.57	309.6	0.51	6.1
10%Co/3.0%Mn-SiO2	9.68	3.09	320.4	0.46	5.4

displays the physicochemical properties of Mn inversely boosted and non-promoted Co-based catalysts made by stepwise impregnation. When Mn is added, the BET surface area of the four catalysts decreases somewhat up to a Mn/Co ratio of 0.05 mol/mol, at which point it increases to a Mn/Co of 0.3. The latter can be explained by the creation of additional pores in addition to the possible removal of certain bigger organosilane groups than in Co. Furthermore, the interaction between a catalyst’s (precursor’s) BET surface area and the support material’s BET surface area is a complicated subject since the homogenous adsorption mechanism and uniform surface assumed by the BET theory might not apply to all materials. If there are interactions between the adsorbate molecules or if the surface is heterogeneous, this could result in inaccurate results. Depending on the relative particle size concerning their density, a physical combination of two materials with different densities may cause the BET surface area to rise or decrease. The complexity increases with the addition of a third component, and the loading of the third component and its average particle size are related to the observed change in the BET surface area for a physical mixture. Each of their pore volume pores diameters decreased as the Mn promoter level increased. This is explained by Mn and Co species partially filling the pores in the silica support.

3.2. Structure and Crystallite Size of Cobalt Species

X-ray Diffraction (XRD): Calcined Catalysts

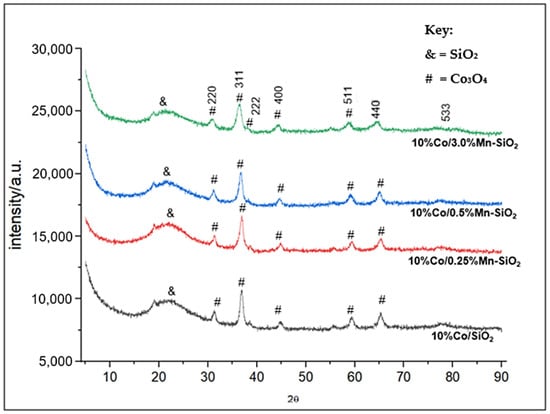

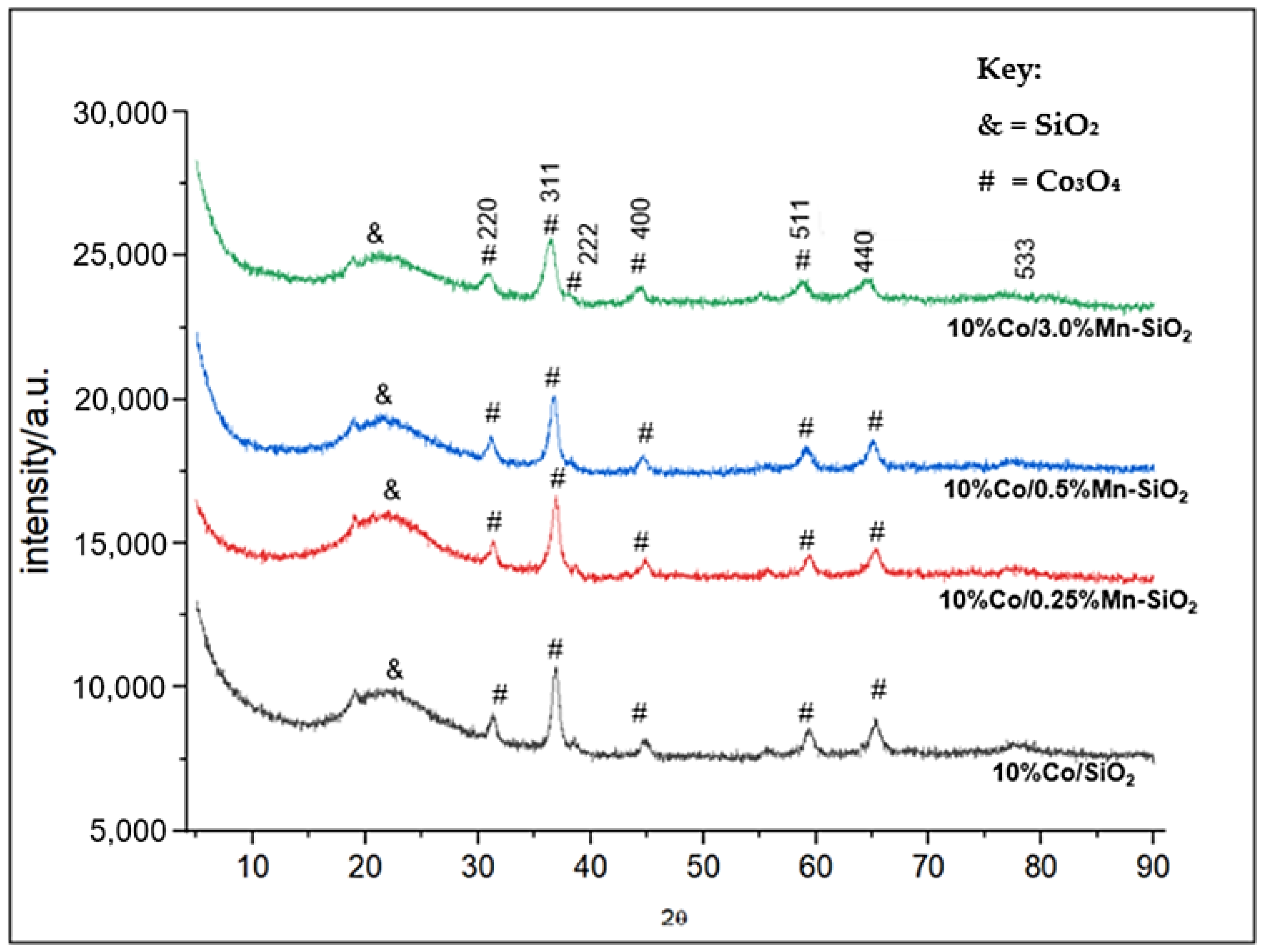

Figure 1 compiles the XRD patterns of the produced catalyst samples that were calcined in an air flow at 623 K. The JCPDS card no. 80-1538 reference indicates that the majority of the cobalt species are Co₃O₄ (2θ = 18.0°, 32.0°, 36.8°, 39.0°, 44.8°, 55.6°, 59.1°, 65.0°, and 77.0°). It should be noted that the XRD patterns contained no Mn-attributed diffraction peak which was expected at peaks 2θ = 12°, 24.7°, and 66.1° [46]. This suggests that the catalysts’ higher dispersion on their surfaces, which is impossible to assess using XRD as a result of the catalysts’ lower concentrations of Mn promoter. The breadth of the Co₃O₄ peaks was the sole variation observed in the X-ray diffraction patterns of the calcined samples. Therefore, the amount of silica support and promoter applied determined the average size of the Co₃O₄ crystallites. The particle sizes of the calcined samples were then determined using the Scherrer equation. Table 1 indicates a clear rise in Co₃O₄ particle size as support pore size increased. Comparable results have been documented for cobalt supported by silica [47,48,49,50,51]. Additionally, Co₃O₄ crystallite size increased with increasing γ-Al₂O₃ pore size, as reported by Xiong et al. [52]. It should be noted that no discernible relationship was discovered between the Co₃O₄ particle sizes and the BET surface areas of the supports.

3.3. X-ray Photoelectron Spectroscopy: Calcined Catalysts

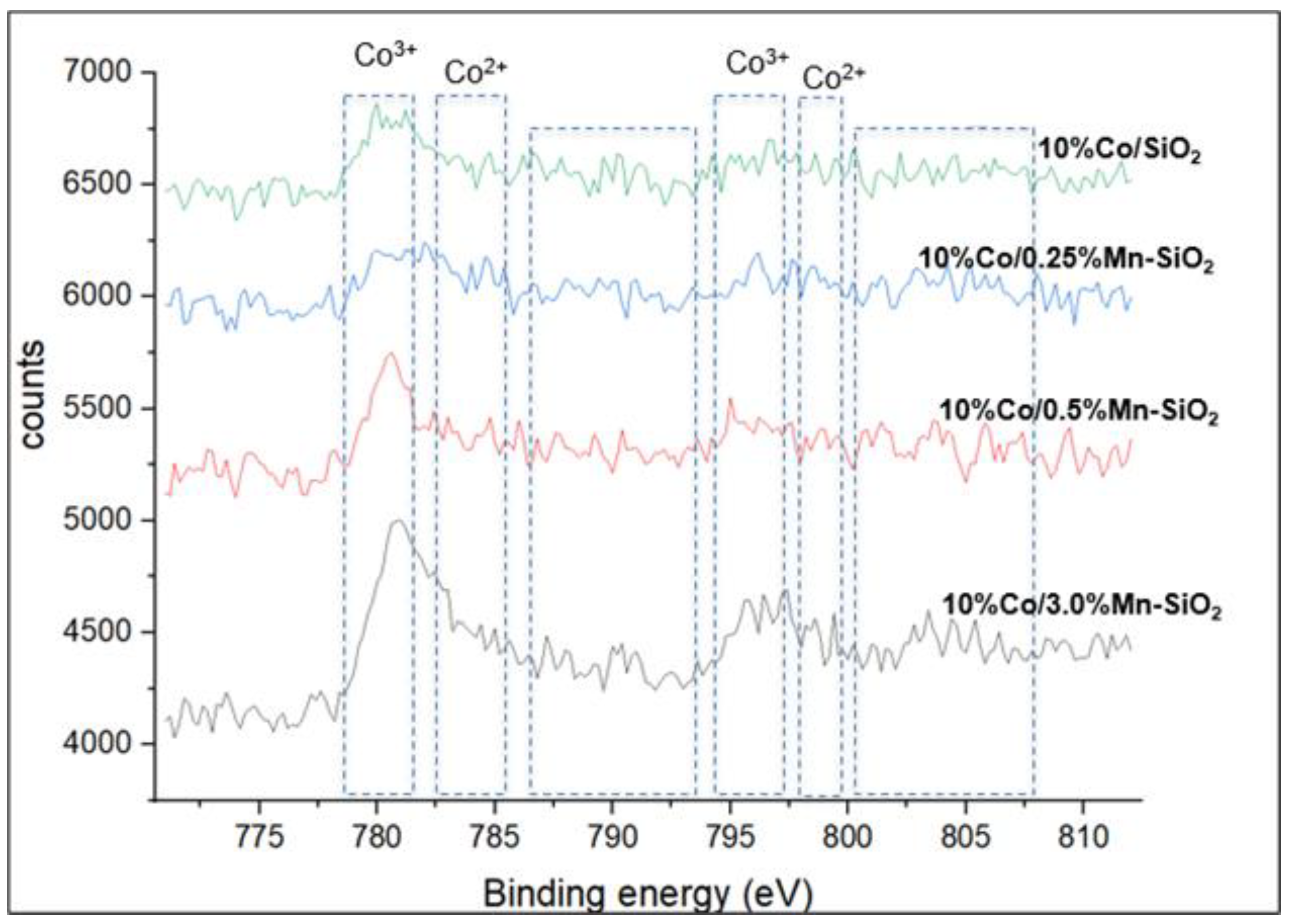

XPS was used to establish that the Co₃O₄ structure was present in all calcined samples. The deconvoluted peaks corresponding to the Co³⁺ 2p3/2 and Co²⁺ 2p3/2 were located approximately at 780.1 and 781.4 eV. At 794.8 and 796.8 eV, the corresponding 2p1/2 spin-orbit component for Co³⁺ and Co²⁺ is visible, and on the high binding energy sides, a low strong shake-up satellite structure was noted. Consequently, Co₃O₄ is the predominant cobalt phase in oxidized catalysts, as demonstrated by the XP spectra obtained for Co2p. This result is in line with the Co₃O₄ XRD patterns that have been seen in every catalyst. As seen in Figure 2, the change of Mn causes the binding energies of Co 2p3/2 to move to lower values. The XPS data show that with Mn modification, the electron density surrounding the Co and Mn atoms declined. When Mn is present, inversely promoted catalysts’ Co²⁺ peak intensity is lower than it is in the Mn-free sample. For the Mn-promoted catalysts, the Co³⁺/Co²⁺ ratio rises, indicating a preferred replacement of Mn²⁺ ions in the mixed oxide spinel structure by Co²⁺ ions. Additionally,

Table 2. XPS atomic percentages for the different catalysts.

	10%Co/SiO2	10%Co/0.25%Mn-SiO2	10%Co/0.5%Mn-SiO2	10%Co/3.0%Mn-SiO2
Co2p3/2 (BE)	781.1	781.1	780.9	781.3
Co2p (atomic %)	0.5	0.4	0.4	0.8
Mn2p (atomic %)	-	-	-	0.7
Si2p (atomic %)	27.9	26.4	19.6	26
C1s (atomic %)	13.3	15.9	31.8	14.9

illustrates the reduced atomic percentage of the Co 2p3/2 peaks for the 0.5%Mn promoted catalyst, indicating a reduced interaction between SiO₂ and the other Co²⁺ species. This is also evident on the BE of approximately 780.9 eV, which is lower than 781.1 eV in the 10%Co/SiO₂ non-promoted sample.

Following the addition of MnOx to Co₃O₄, the binding energy of Co 2p3/2 increased. This observation points to a rise in the Mn–Co–O catalysts’ Co³⁺/Co²⁺ fraction. According to published research, silicas impregnated and then calcined may result in an enrichment of Co₃O₄ particles on the outside of SiO₂ grains [48]. A greater concentration of Co₃O₄ in the vicinity of the catalyst grains’ outer surface may cause the Co2p to be more intense. Furthermore, a stronger shake-up satellite structure emerges with the addition of Mn, and the location of the XPS Co 2p peak moves to the region with greater binding energies. These findings suggest that isolated surface Co²⁺ species may also be present in some concentration in promoted catalysts close to the outer surface of catalyst particles, in addition to the predominant Co₃O₄ phase. According to earlier reports, these isolated Co²⁺ ions may be located in the amorphous phases of cobalt silicate/hydrosilicate [36,53,54,55,56]. The TPR data (Figure 3) show that these cobalt species have substantially lower reducibility in hydrogen than the Co₃O₄ crystalline phase.

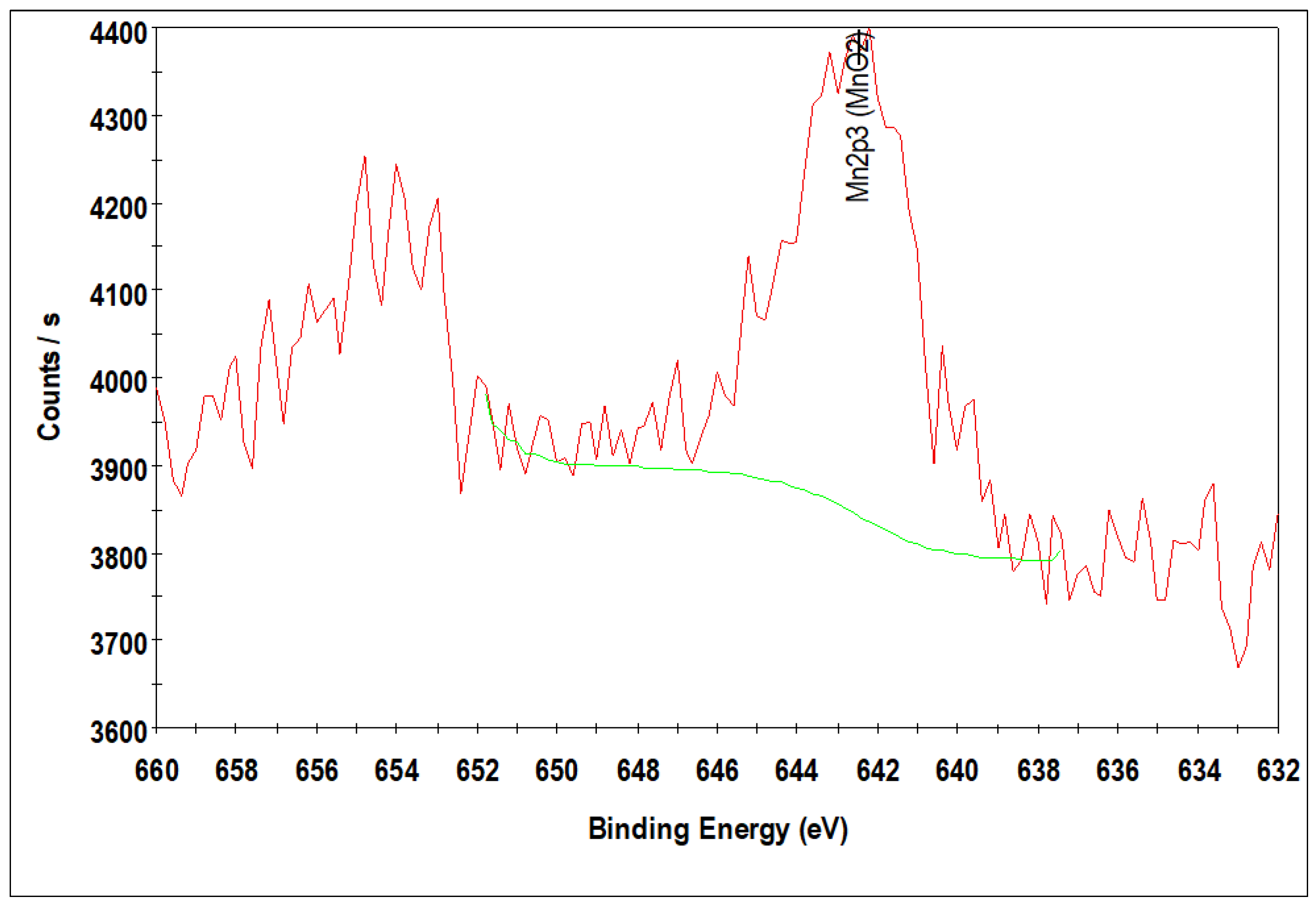

Due to the lower loading of Mn 2p peaks corresponding to MnO for 10%Co/0.25%Mn-SiO₂ and 10%Co/0.5%Mn-SiO₂ could not be observed because they were below the XPS sensitivity or resolution limit, making it difficult to validate the chemical environment of the manganese species in the Mn inversely promoted catalysts. Thus, Figure 4 solely displays the Mn 2p3/2 photoelectron spectra of 10%Co/3.0%Mn-SiO₂. With a spin orbit level energy spacing of 11.5 eV, the deconvoluted Mn 2p displayed two peaks at 642.2 eV for Mn 2p3/2 and 653.7 eV for Mn 2p1/2. This is common for Mn³⁺-based materials [57,58]. This suggests that Mn is substituted preferentially in spinel oxide’s O_h sites.

The average particle size determined by averaging the Co₃O₄ (220), (311), (400), (511), and (440) peaks were found to be greater than the average support pore diameter as determined by Scherrer’s equation, as shown in Figure 1 and Equation (1). As a result, it appeared that most of the particles were found outside the support pores. It is important to compare the Co₃O₄ particle size and pore diameter carefully when determining the position of the particles. The authors think that the particles are inside the pore system, and they attribute the contradictory findings in Figure 1 to the selection of the pore shape model. The BJH model oversimplifies the pore geometry since it presumes that there are only cylindrical pores and that pore networks do not exist [51]. When the loading of Mn increased, the average particle sizes shrank. This is consistent with the outcomes of H₂ chemisorption results. An increase in dispersion caused by a rise in Mn loading subsequently increased metal surface area. Notably, with 10%Co/SiO₂, there is a discernible variation in the particle sizes measured by XRD and H₂ chemisorption. This could be explained by the movement and agglomeration of particles in the chemisorption reaction during reduction.

3.4. Reducibility of Co Species

H₂ Programmed Reduction (TPR)

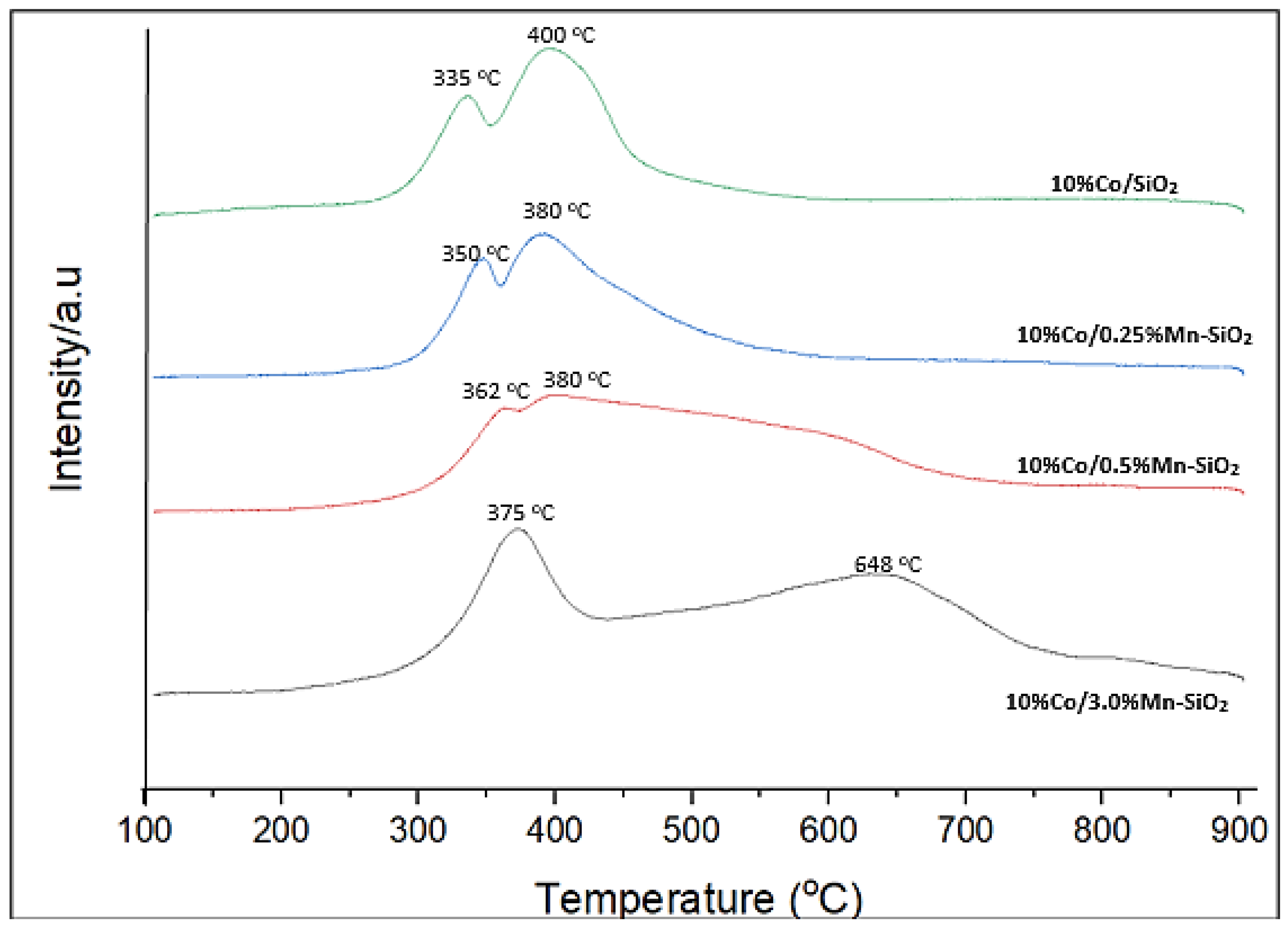

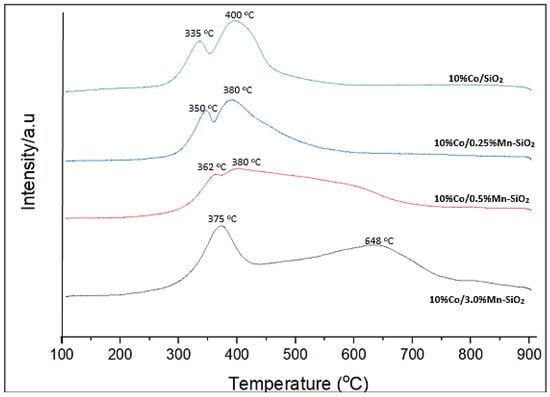

Using H₂-TPR, the reduction behavior of the unpromoted and Mn inversely promoted catalysts was investigated as shown in Figure 3. An initial peak at 335–350 °C for 10%Co/SiO₂ and 10%Co/0.25%Mn-SiO₂, and 362–375 °C for 10%Co/0.5%Mn-SiO₂ and 10%Co/3.0%Mn-SiO₂, was noted. Subsequent peaks occurred at about 400 °C, as opposed to 648 °C for 10%Co/3.0%Mn-SiO₂. The TPR profile for Co catalysts supported by silica has been thoroughly studied, and the reduction peaks located at 200–400 °C and 400–800 °C, respectively, indicate a two-step reduction process. The reduction of Co₃O₄ to CoO is frequently attributed to the first stage, and the subsequent reduction of CoO to Co⁰ is attributed to the second step [18,59]. With an increase in Mn loading, the positions of the reduction peaks of Co₃O₄ to CoO and CoO to Co changed to higher temperatures, suggesting a strong interaction between Si species and cobalt nanoparticles. Equation (3) was utilized to compute the reduction degrees of each catalyst, which are displayed in

Table 3. XRD and chemisorption data for the Mn inversely promoted and non-promoted catalysts.

Catalyst	Metal Sizes
	XRD		H2 Chemisorption					CO Chemisorption
	d(Co3O4) (nm) a	d(Co0) (nm)	Dispersion (%)	d(Co0) (nm)b	Metal Surface Area (m2/g) b	DOR (%) c	H2 Uptake (×10−4 moles/g) d	CO Uptake (×10−4 moles/g) e
10%Co/SiO2	11.03	8.27	7.87	12.19	8.025	96.0	1.77	0.64
10%Co/0.25%Mn-SiO2	11.20	8.40	10.43	9.21	10.63	94.3	1.34	0.70
10%Co/0.5%Mn-SiO2	10.79	8.09	11.80	8.03	12.02	94.0	2.01	0.68
10%Co/3.0%Mn-SiO2	8.45	6.34	15.39	6.23	13.39	92.3	2.61	0.65

^a Determined by XRD using Scherrer equation (Equation (1)). ^b Determined by H₂ pulse chemisorption. Estimated d(Co⁰) = 0.75.d(Co₃O₄). Estimated D = 96/d(Co⁰). DOR (%) ^c is degree of reduction = $100-\left(\frac{H uptake}{4·N_{C{o}_3{O}_4}}\times 100\%\right);\mathrm{where} N_{C{o}_3{O}_4}=8.329·{10}^{-4}$. ^d Based on H₂ consumption in TPR. ^e Obtained from CO chemisorption results.

. The reduction degrees of the 10%Co/SiO₂, 10%Co/0.25%Mn-SiO₂, 10%Co/0.5%Mn-SiO₂, and 10%Co/3.0%Mn-SiO₂ catalysts were 96.0, 94.3, 94.0, and 92.3%, respectively. For catalysts 10%Co/0.5%Mn-SiO₂ and 10%Co/3.0%Mn-SiO₂ the second peak appeared at 362–375 °C, i.e., the highest temperature peak area increased in this case and further addition of Mn reduced the Co reducibility. This suggests once more that these catalysts have a Co-Mn interaction, which reduces the amount of Co reducibility [27].

3.5. Fischer Tropsch Tests

The calcined catalysts were activated with an H₂ flow at a rate of 60 mL/g-cat/min for 20 h at 350 °C (as obtained from H₂ TPR) before the reaction. Following the in situ catalyst’s activation, the reaction was cooled to the target reaction temperature of 220 °C and flushed with helium for 30 min to get rid of any excess H₂. The Fischer–Tropsch reaction test was run at 20 bar pressure, 220 °C, 60 mL/g-cat/min, and H₂/CO (v/v) = 2/1. For the Mn inversely promoted and non-promoted silica-supported catalysts, the percentage of CO conversion, CH₄ selectivity, rate of CO conversion, and C₅₊ selectivity is shown for a 75 h time on stream (TOS) in Figure 5, Figure 6 and Figure 7.

FTS Mass Balance Calculations

The experimental setup utilized in this investigation allows for the input of the inlet volumetric flow rate, which is necessary to compute the output flow rate. As an internal standard, N₂ was added together with the reactor feed. N₂ is only present in the feed stream and the reactor output gas stream since it is an inert gas during the FT reaction. As a result, the N₂ balance throughout the reactor can be written as follows:

$${\mathrm{F}}_{\mathrm{in}}\times {\mathrm{X}}_{{\mathrm{N}}_2,\mathrm{in}}={\mathrm{F}}_{\mathrm{out}}\times {\mathrm{X}}_{{\mathrm{N}}_2,\mathrm{out}}$$

(5)

CO conversion, the rate of CO conversion, and product selectivity were defined as follows [4]:

$$\mathrm{CO} \mathrm{conversion}: \%\mathrm{CO}=\frac{{\mathrm{F}}_{\mathrm{in}}{\mathrm{X}}_{\mathrm{CO},\mathrm{in}}-{\mathrm{F}}_{\mathrm{out}}{\mathrm{X}}_{\mathrm{CO},\mathrm{out}}}{{\mathrm{F}}_{\mathrm{in}}{\mathrm{X}}_{\mathrm{CO},\mathrm{in}}}$$

(6)

$$\mathrm{Rate} \mathrm{of} \mathrm{CO} \mathrm{conversion}: \mathrm{rCO}=\frac{{\mathrm{F}}_{\mathrm{out}}{\mathrm{X}}_{\mathrm{CO},\mathrm{out}}-{\mathrm{F}}_{\mathrm{in}}{\mathrm{X}}_{\mathrm{CO},\mathrm{in}}}{{\mathrm{m}}_{\mathrm{cat}}}$$

(7)

$$\mathrm{Product} \mathrm{selectivity}: S_{\theta i}=\frac{i{N}_{\theta i}}{m_{cat}·t·\left(-rCO\right)}$$

(8)

where F_in = inlet total molar flow rate in mol/min.

• F_out = outlet total molar flow rate in mol/min.
• X_{N2, in} = inlet molar fraction of N₂.
• X_N2,out = outlet molar fraction of N₂.
• X_co2,in = CO molar fraction in the gas feed.
• X_co2,out = molar fraction of CO in the gas stream leaving the reactor.
• m_cat = mass of the catalyst (in grams).
• $i{N}_{\theta i}$ = moles of carbons in the product stream.

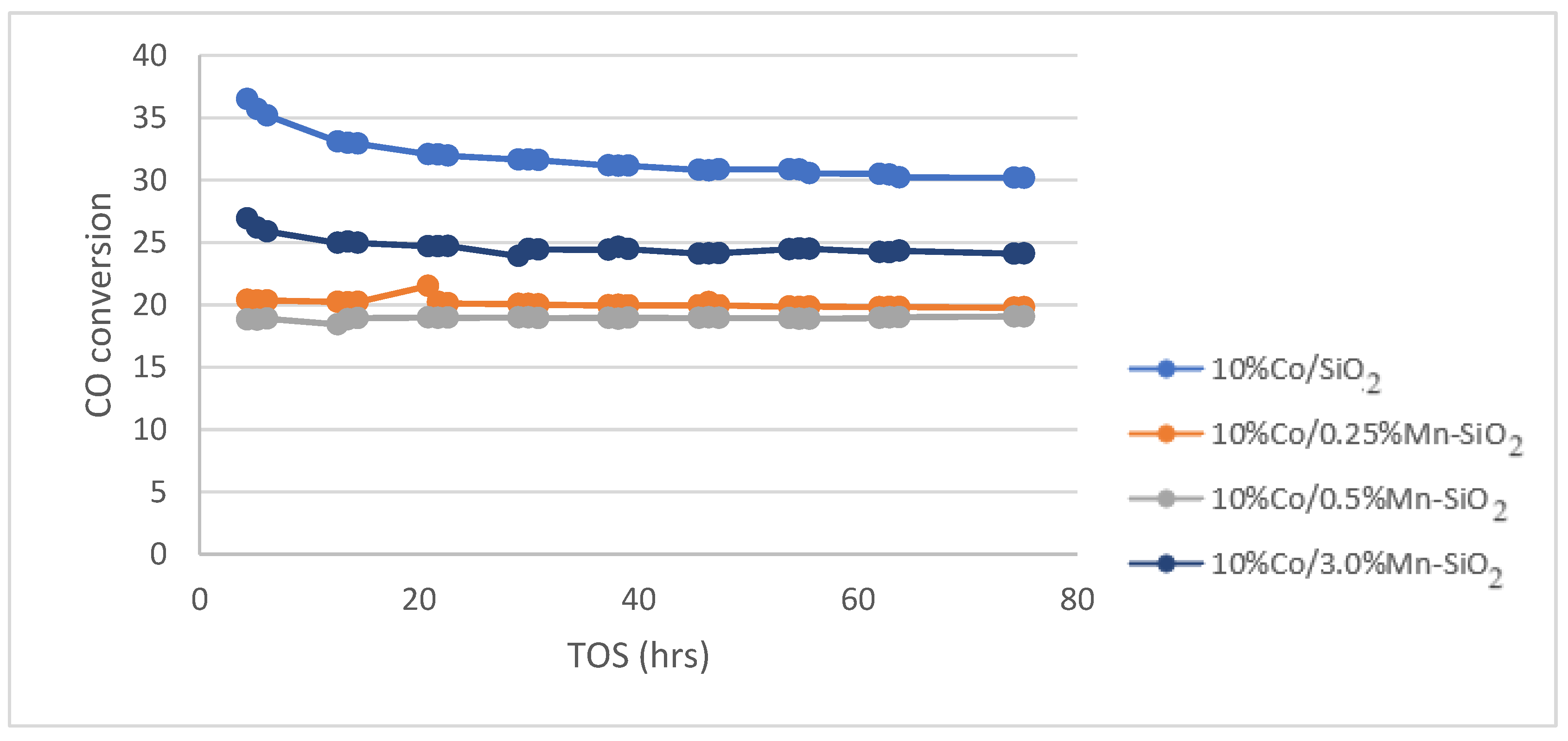

The CO conversion for each catalyst at a TOS of 75 h is shown in

Table 4. Catalyst activity and product selectivity for the non-promoted and inversely promoted catalysts. Reaction conditions: T = 220 °C; P = 20 bar; H₂/CO₂ = 3/1, for TOS = 75 h.

	10%Co/SiO2	10%Co/0.25%Mn-SiO2	10%Co/0.5%Mn-SiO2	10%Co/3.0%Mn-SiO2
CO conversion (%)	31.8	20.1	18.9	24.7
Selectivity/C1 (%)	4.77	1.66	4.72	2.97
C2–C4	6.10	3.90	5.48	4.23
CO2	-	-	-	-
C5+	89.2	94.4	89.8	92.8
rCO $(\times$ 10−5)	24.1	15.4	7.4	19.0

. The inclusion of Mn caused the conversion of 10%Co/0.25%Mn-SiO₂ and 10%Co/0.5%Mn-SiO₂ to decrease from 31.8% to 20.1 and 18.9%, respectively, before slightly increasing to 24.0% for 10%Co/3.0%Mn-SiO₂. The preparation method for Mn promotion, that is, inverse promotion as opposed to conventional promotion, may be the reason for this study’s decline in activity. The H₂ TPR and H₂ chemisorption measurement reveals a reduction in the level of active metal reduction as shown in Table 3 (DOR) in Co-prompted catalysts, which might be the justification for lower activity for promoted catalysts.

The CO conversion trend is comparable to the hydrogen intake pattern found in Table 3’s H₂ chemisorption data. H₂ absorption was decreased by the addition of Mn to the cobalt, mainly in the 10%Co/0.25%Mn-SiO₂ and 10%Co/0.5%Mn-SiO₂ catalysts. Dinse et al. [24] and Johnson et al. [31] reported increased activity with manganese promotion at low doses of Mn (Mn/Co ratio < 0.125), however activity decreased at Mn/Co ratios over 0.125. Therefore, the divergence in the results may be ascribed to the amount of manganese in the catalyst, the preparation procedure, and the reaction parameters [24,29,31]. Moreover, the observed disparities in accessible Co surface area are the main reason for the conversion differences between the unpromoted and Mn-promoted catalysts. It has previously been proposed that Mn decorates the surfaces of the Co particles and that increased activity sites close to the Co-Mn interface are the basis of this effect’s promotion [31]. When a catalyst is unpromoted and the Mn/Co ratio is low, the crystal structure changes from hexagonal close-packed (hcp) to face-centered cubic (fcc), where product selectivities are strongly dependent on promoter loading. Therefore, it is necessary to consider the likelihood that the promoting effects were brought on by a Mn-induced shift from hcp to fcc structure. According to reports, hcp Co nanoparticles have a greater FTS turnover frequency than fcc Co nanoparticles [60,61]. Regarding product selectivity, reports indicate that the product distributions for the two crystal structures differ not significantly [62,63]. These results lead to a prediction that, in contrast to the effects of Mn that have been observed, a shift from the hcp to the fcc crystal structure would result in a decrease in site activity.

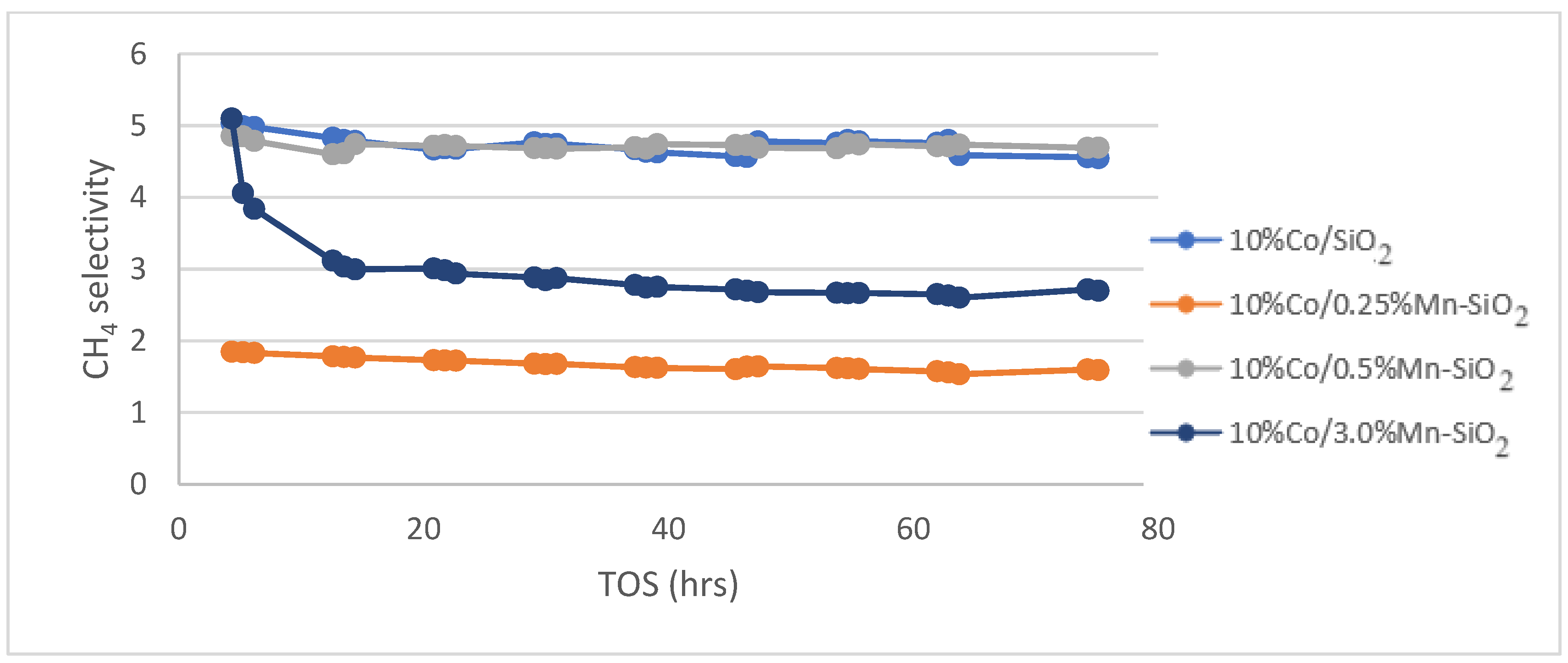

The effects of Mn promoter and non-promoted catalysts on CH₄ products on FTS selectivity are shown in Figure 6. It unequivocally demonstrates a decrease in methane selectivity for catalysts supported by Mn. Methane selectivity dropped for 10%Co/0.25%Mn-SiO₂ and 10%Co/3.0%Mn-SiO₂ catalysts, respectively, from 4.7% to 1.7 and 3.0%. The selectivity towards the desired C₅₊ products is significantly increased as a result of the notable effects of manganese stimulation on the selectivity of undesirable by-products, such as methane. The increasing trend in chain growth probability indicates a shift to higher molecular weight hydrocarbons by increasing the amount of Mn promoter. On the surface of the cobalt crystallite, Mn enrichment for Co–Mn bimetallic catalysts may be the cause of the increased C₅₊ selectivity when compared to the unpromoted catalyst. Reduced CO conversion rates are the result of increased CO uptake decreasing H₂’s mobility on the catalyst surface.

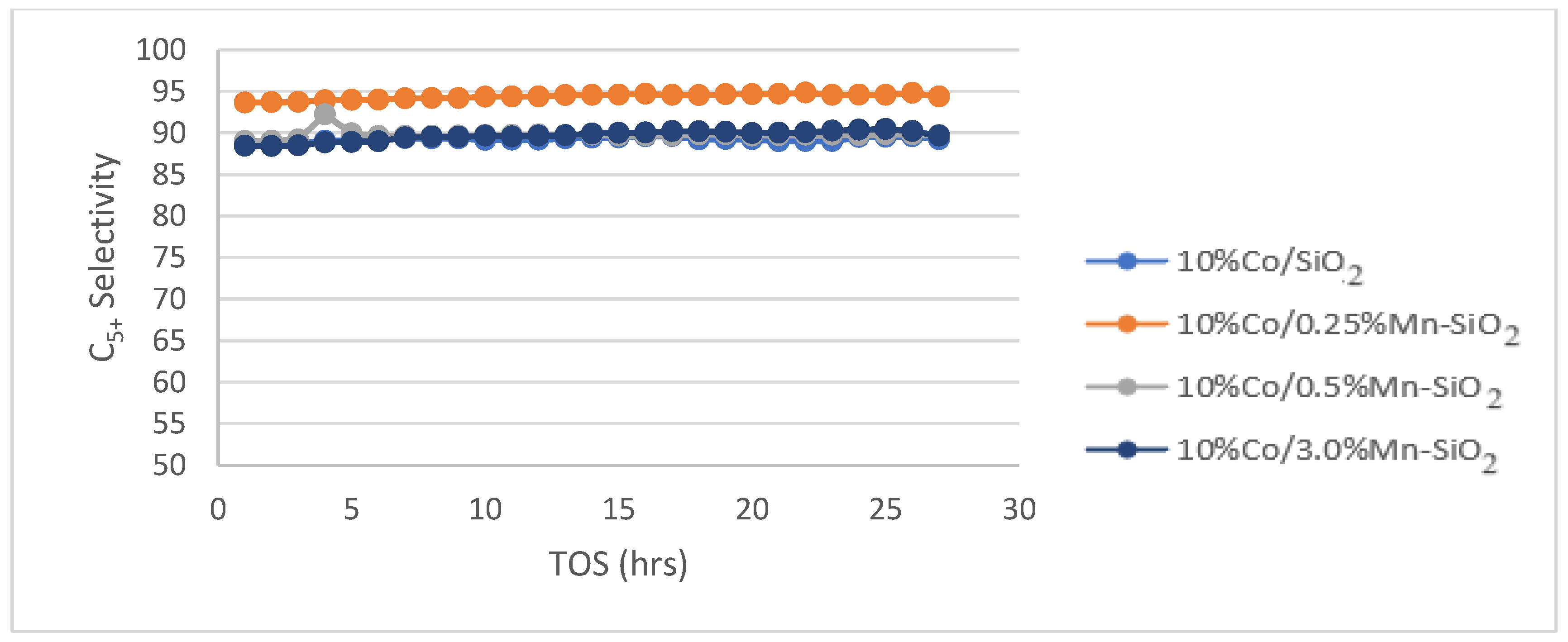

The product selectivities (C₅₊) of the non-promoted and Mn inversely promoted Co catalysts are displayed in Figure 7. 10%Co/SiO₂, 10%Co/0.25%Mn-SiO₂, 10%Co/0.5%Mn-SiO₂, and 10%Co/3.0%Mn-SiO₂ have C₅₊ selectivities of 89.2%, 94.4%, 89.8%, and 89.7%, respectively. There is a decline in the selectivity of C₅₊ hydrocarbons as the loading on Mn is increased. This is because Mn starts to cover the Co surface once the percentage of promoted interface sites exceeds Mn/Co 0.025. As a result, there would be fewer active sites and a fall in CO consumption rates per gram of Co. These results align with Østbye, et al. [64], who realized a CO conversion of ≈20% for the Mn-promoted catalyst which was less than the unpromoted Co catalyst of ≈37%.

The formation of an alloy of metallic Mn with Co on the nanoparticle surface, which might happen at low Mn loadings where selectivity is extremely sensitive to promoter loading, was one theory that was taken into consideration to explain the trends in catalyst performance as a function of promoter loading. It seems sense that Mn would preferentially reside on the surfaces of the nanoparticles because its surface free energy is significantly lower than that of Co [65]. Moreover, the Mn loading (Mn/Co = 0.1) at which C₅₊ selectivity hits a plateau is about equal to the amount required to create a monolayer on the surfaces of the nanoparticles. The reason for the lack of improvement in C₅₊ selectivity above Mn/Co atomic ratios of 0.1 could be attributed to the saturation of the nanoparticle surfaces by Mn. For the Co-Mn catalysts examined in this work, no indication of metallic Mn was found, even though these tendencies are phenomenologically coherent [66].

The results shown above agree with those of Breejen et al. [67]. They discovered that slightly greater C₅₊ selectivity values were found for bigger levels of MnO (Mn/Co > 0.13) but at a significant cost to the activity. This could be caused by a cobalt surface obstruction [22] or a reduced degree of reduction as a result of MnO’s reduction-retarding impact [27]. It was discovered that adding a small amount of MnO to the AC catalyst reduced its activity; the value declined even more at larger Mn/Co ratios. This could be because MnO is obstructing the cobalt surface [21]. However, the positive effect of MnO is demonstrated by a rise in Mn/Co atomic number and C₅₊ selectivity. However, the rise in C₅₊ selectivity indicates that MnO is favorable. Consequently, this study shows that 10%Co/0.25%Mn-SiO₂ is the most effective catalyst among all those examined in this study and that it is capable of both increasing the much-desired C₅₊ selectivity and decreasing the CH₄ selectivity.

4. Conclusions

By using Mn as a promoter element, the production of CH₄ may be reduced and selectivity may be improved. But only by employing a proper preparation technique that results in a sufficient Mn-Co interaction in the active catalyst can this promoting effect be realized. By limiting pore blockages and active Co sites, inverse promotion can lead to improved catalyst product selectivity and stability. Co-based catalysts are prone to deactivation due to carbon buildup (coking) and sintering. Inverse promotion can help mitigate these issues by altering the surface chemistry and morphology of the catalyst. In all oxidized catalysts, Co₃O₄ crystallites are the most prevalent cobalt phase, according to the XRD analysis of the calcined samples. For Mn inversely promoted catalysts, the XRD-derived crystallite sizes are marginally larger than the support pore width, indicating that the particles were primarily on the support’s outer surface. When the catalysts are reduced in situ under identical FT pretreatment conditions, XPS measurements verify that the cobalt is more difficult to reduce when supported over the Mn modified silica. The H₂ TPR profiles, which show significant hydrogen consumption as Mn loading rises from 0.25% to 3.0%, are likewise compatible with this feature. With the addition of Mn to the catalysts, CO conversion demonstrated a decline, which is consistent with the reduced surface area. When comparing the catalysts’ catalytic performance in the FT process at 600 h⁻¹ space velocity, it is found that the Mn inversely promoted catalysts had higher C₅₊ selectivities, with 10%Co/0.25%Mn-SiO₂ having the highest at 94.4%. This may be explained by the Co oxide’s strong interaction with the Mn-modified silica substrate, which prevents particle mobility and, as a result, reduces H₂ chemisorption and increases CO chemisorption.
