Organic Remains in Early Christian Egyptian Metal Vessels: Investigation with Fourier Transform Infrared Spectroscopy and Gas Chromatography–Mass Spectrometry
Abstract
:1. Introduction

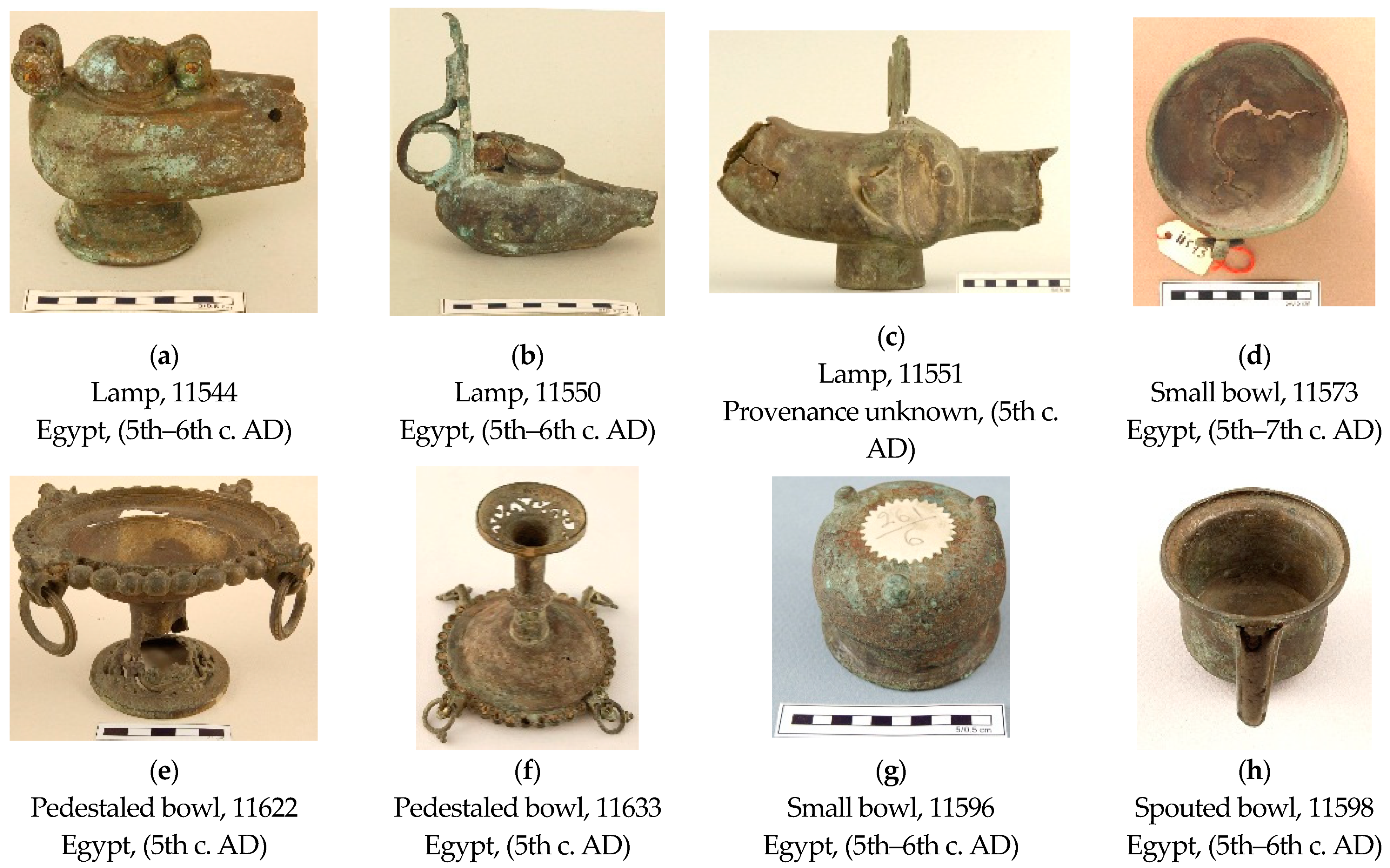

2. Experimental Procedures
2.1. Fourier Transform Infrared Spectroscopy
2.2. FTIR Analysis of Powder Samples in KBr Discs
2.3. Solvent Extraction for FTIR Analysis
2.4. Gas Chromatography–Mass Spectrometry
2.4.1. Sample Preparation for GC-MS
2.4.2. GC-MS Analysis
3. Results and Discussion

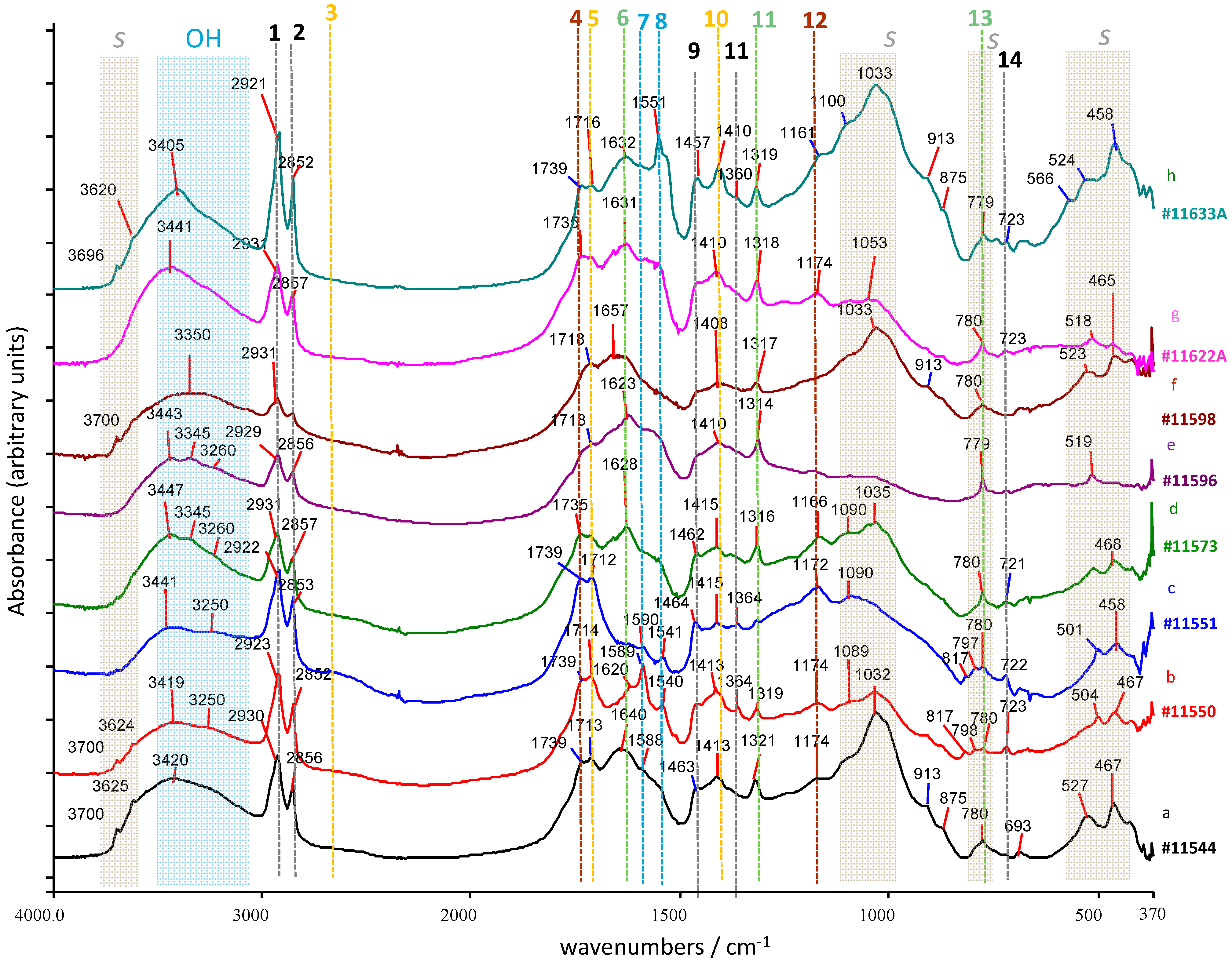

3.1. Fourier Transform Infrared Spectroscopy
3.1.1. Powder Samples
3.1.2. Solvent-Extracted FTIR Results

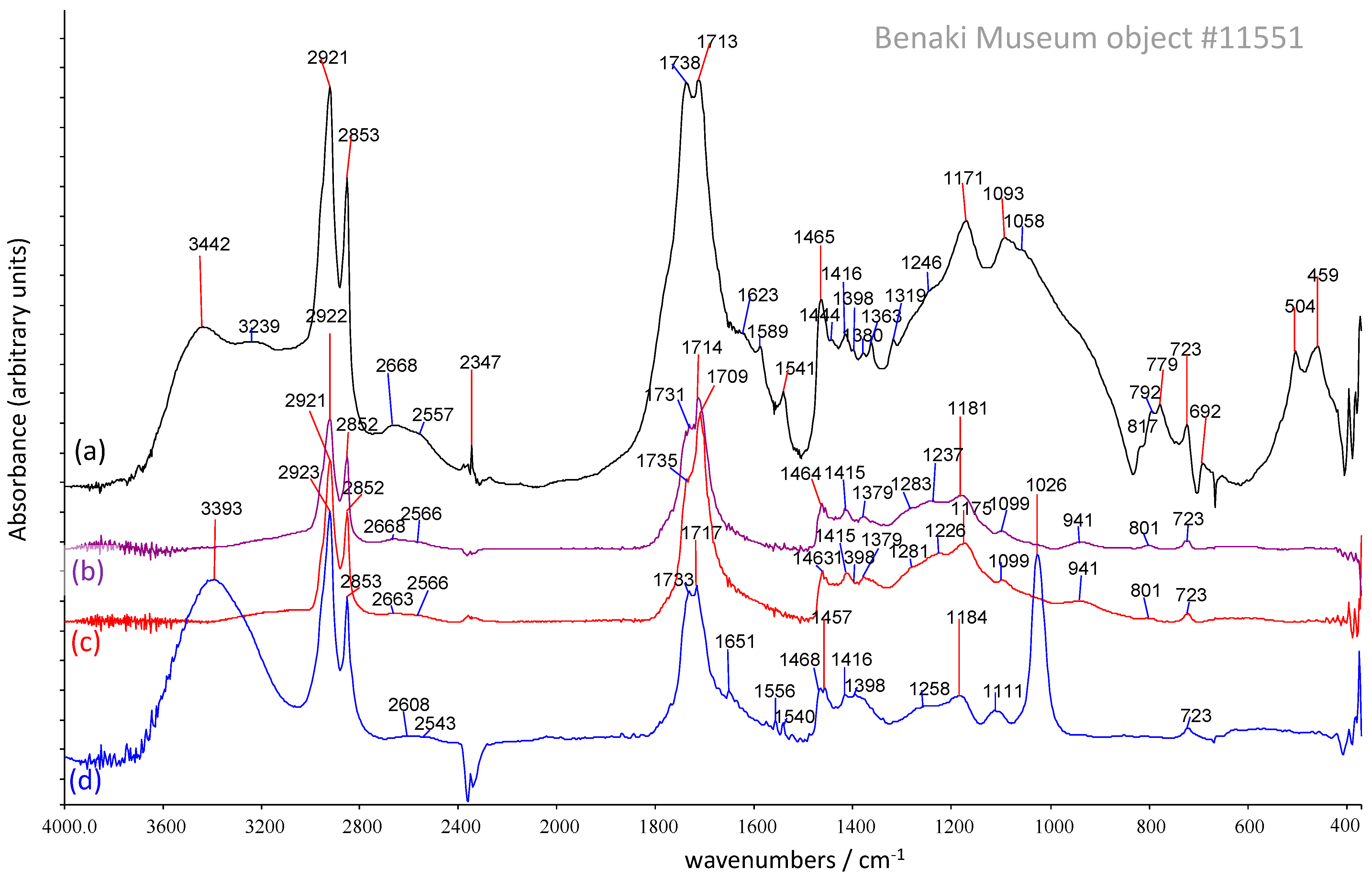

3.2. Solvent-Extraction-μFTIR

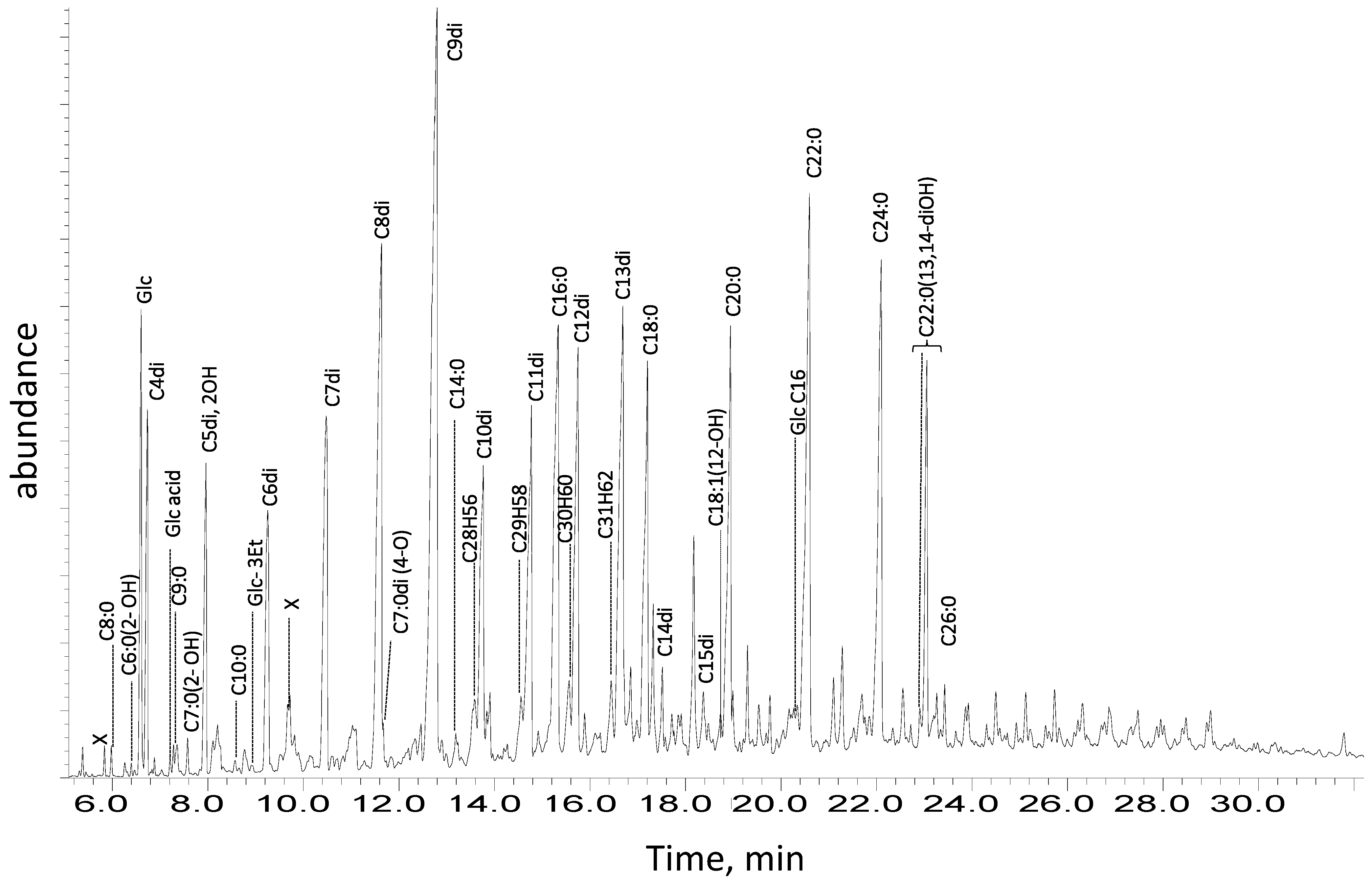

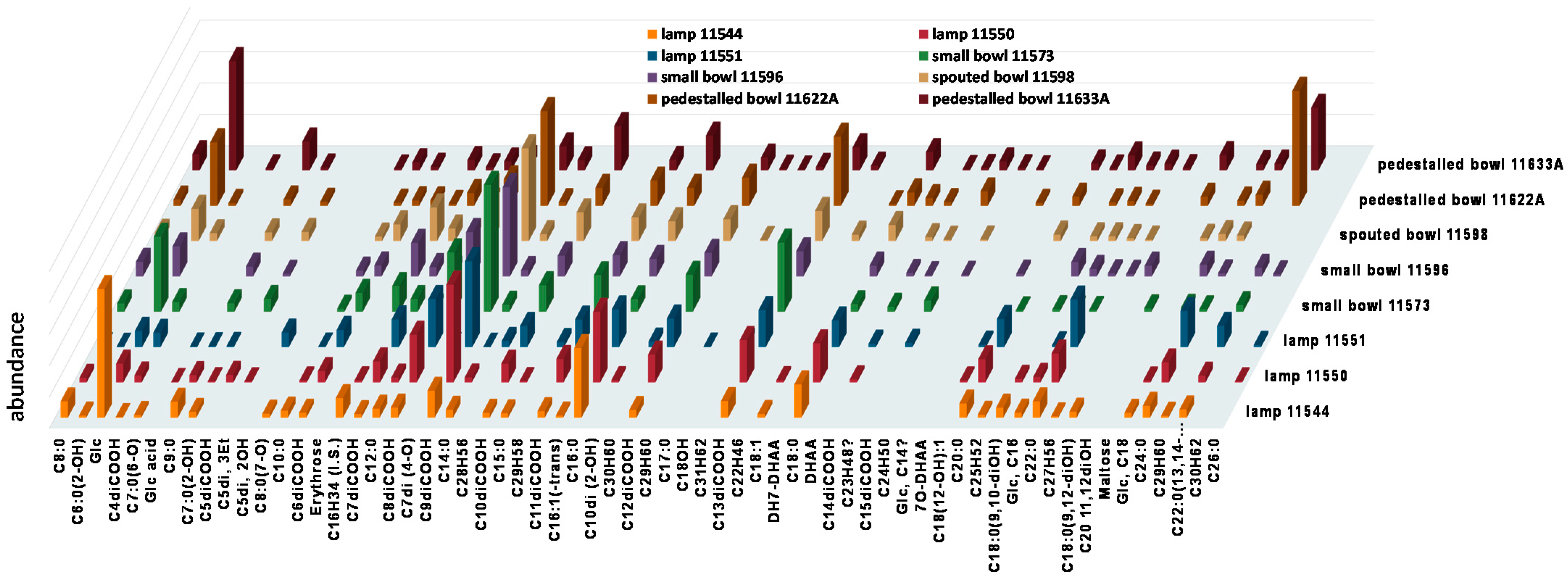

3.3. Gas Chromatography–Mass Spectrometry
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Acknowledgments
Conflicts of Interest
Abbreviations
MAG | Mono-fatty Acyl Glycerols |
DAG | Di-fatty Acyl Glycerols |
TAG | Tri-fatty Acyl Glycerols |
DiFA | diacids (dicarboxylic acids) |
FA | Fatty Acids |
FAMS | Fatty Acids Metal Salts |
FTIR | Fourier Transform Infra-Red spectroscopy |
GC-MS | gas chromatography–mass spectrometry |
SE-FTIR | Solvent-Extracted FTIR |
SE-μFTIR | Solvent-Extracted microscopy-FTIR |
