Article

Using Soil Stratigraphy and Tephrochronology to Understand the Origin, Age, and Classification of a Unique Late Quaternary Tephra-Derived Ultisol in Aotearoa New Zealand

School of Science (Earth Sciences), University of Waikato, Private Bag 3105, Hamilton 3240, New Zealand
Quaternary 2019, 2(1), 9; https://doi.org/10.3390/quat2010009
Received: 31 December 2018 / Revised: 31 January 2019 / Accepted: 31 January 2019 / Published: 20 February 2019
(This article belongs to the Special Issue Feature Papers in Quaternary)

Abstract

:
In this article, I show how an Ultisol, representative of a globally-important group of soils with clay-rich subsoils, low base saturation, and low fertility, in the central Waikato region in northern North Island, can be evaluated using soil stratigraphy and tephrochronology to answer challenging questions about its genesis, age and classification. The Kainui soil, a Typic Kandiudult (Soil Taxonomy) and Buried-granular Yellow Ultic Soil (New Zealand Soil Classification), occurs on low rolling hills of Mid-Quaternary age mainly in the Hamilton lowlands in, and north and northeast of, Hamilton city. It is a composite, multi-layered tephra-derived soil consisting of two distinct parts, upper and lower. The upper part is a coverbed typically c. 0.4–0.7 m in thickness (c. 0.6 m on average) comprising numerous late Quaternary rhyolitic and andesitic tephras that have been accumulating incrementally since c. 50 ka (the age of Rotoehu Ash at the coverbed’s base) whilst simultaneously being pedogenically altered (i.e., forming soil horizons) via developmental upbuilding pedogenesis during Marine Oxygen Isotope Stages (MOIS) 3-1. Any original depositional (fall) bedding has been almost entirely masked by pedogenic alteration. Sediments in lakes aged c. 20 ka adjacent to the low hills have preserved around 40 separate, thin, macroscopic tephra-fall beds mainly rhyolitic in composition, and equivalent subaerial deposits together form the upper c. 30 cm of the coverbed. Okareka (c. 21.8 ka), Okaia (c. 28.6 ka), Tāhuna (c. 39.3 ka) and (especially) Rotoehu tephras make up the bulk of the lower c. 30 cm of the coverbed. Tephra admixing has occurred throughout the coverbed because of soil upbuilding processes. Moderately well drained, this upper profile is dominated by halloysite (not allophane) in the clay fraction because of limited desilication. In contrast, Otorohanga soils, on rolling hills to the south of Hamilton, are formed in equivalent but thicker (>c. 0.8 m) late Quaternary tephras ≤c. 50 ka that are somewhat more andesitic although predominantly rhyolitic overall. These deeper soils are well drained with strong desilication and thus are allophanic, generating Typic Hapludands. Ubiquitous redox features, together with short-lived contemporary reduction observed in the lower coverbed of a Kainui soil profile, indicate that the Kainui soil in general is likely to be saturated by perching for several days, or near saturation for several months, each year. The perching occurs because the coverbed overlies a slowly-permeable, buried, clay-rich paleosol on upper Hamilton Ash beds, >c. 50 ka in age, which makes up the lower part of the two-storeyed Kainui soil. The coverbed-paleosol boundary is a lithologic discontinuity (unconformity). Irregular in shape, it represents a tree-overturn paleosurface that may be c. 74 ka in age (MOIS 5/4 boundary). The buried paleosol is markedly altered and halloysitic with relict clay skins (forming paleo-argillic and/or paleo-kandic horizons) and redoximorphic features. It is inferred to have formed via developmental upbuilding pedogenesis during the Last Interglacial (MOIS 5e). The entire Hamilton Ash sequence, c. 3 m in thickness and overlain unconformably by Rotoehu Ash and underlain by c. 340-ka Rangitawa Tephra at the base, represents a thick composite (accretionary) set of clayey, welded paleosols developed by upbuilding pedogenesis from MOIS 10 to 5.

Graphical Abstract

1. Introduction

1.1. Ultisols Globally and in New Zealand

Ultisols, as the name suggests, comprise an important group of relatively old and weathered soils characterized by (i) the translocation (illuviation) of clays with depth (accumulating to form clay-rich argillic and kandic horizons, two so-called diagnostic horizons used to characterize soils and enable them to be classified), and (ii) leaching of non-acid cations from the profile so that a relatively acid subsoil horizon has <35% of the exchange capacity satisfied with non-acid cations (previously known as base cations, namely Ca2+, Mg2+, K+ and Na+). Ultisols thus have a clay-rich subsoil with low non-acid saturation (low base saturation) and generally low fertility [1,2,3].
The term ‘Ultisol’ refers to one of 12 soil orders used in a hierarchical grouping of natural soil bodies in the international soil classification system known as Soil Taxonomy (ST) [1]. ST is fundamentally based on measurable and observable soil properties, key criteria being the occurrence or not of certain diagnostic horizons or features within defined parts of the soil profile (referred to as control sections), such as the presence of an argillic or kandic horizon in the case of Ultisols, rather than being based on presumed mechanisms of soil genesis. The subclasses of the Ultisol order are defined by a wide range of diagnostic horizons or features other than those used to define the order, in turn reflecting numerous processes and conditions associated with the order [4].
Ultisols occupy about 8.1% of the Earth’s land surface and are very common in tropical areas (where c. 80% of Ultisols occur), the remainder occurring in temperate environments [5]. They are often formed on old land surfaces, usually under forest vegetation (under natural conditions) and with a humid climate: c. 58% of Ultisols have an udic moisture regime (well-distributed rainfall annually) and c. 42% an ustic moisture regime (rainfall is limited for part of the year) [6]. Such old land surfaces are commonly gently undulating to flat and so Ultisols, although not as naturally fertile as soils of various other soil orders (such as Alfisols and Mollisols), have been used by farmers for millennia and can be very productive with lime and/or fertilizer input. The coarser-textured upper profile, largely adequate rainfall and warmth and long growing seasons, provide generally good conditions for cropping [3], as long as the low nutrient status and (usually) high subsoil acidity are overcome as needed [2]. It was concluded in Reference [5] (p. 33.175) that “Only with a thorough understanding of the genesis, properties and response to management of these soils can the productivity of this valuable resource be maintained and enhanced.”
In New Zealand, Ultisols make up about 4.2% of the land area [7], the vast majority occurring in the (warmer) North Island rather than South Island [8,9]. A large proportion of the order is taken up by soils derived from weathered tephras, which are the explosively-erupted, unconsolidated pyroclastic (fragmental) products of volcanic eruptions including volcanic ash [10], of Middle to Late Quaternary age. Most are referred to as Granular Soils in the New Zealand Soil Classification (NZSC) [11]. They are typically clay-rich, acidic, soils dominated by kaolin-subgroup clays together with smaller amounts of iron oxides and oxyhydroxides and other minerals that may include subordinate gibbsite, allophane, and vermiculite. Hence they are usually sticky and plastic but well-structured where iron oxides and other (non-kaolin-subgroup) clays are sufficient to meliorate the stickiness and improve the soil fabric.

1.2. Using Tephrochronology to Facilitate Study of Late Quaternary Ultisols in New Zealand

An important advantage associated with these soils in New Zealand is that their ages are able to be constrained to some degree by tephrochronology, a unique stratigraphic method for linking and dating sequences or events [10,12], which thus provides a framework for studies on rates of pedogenesis [13,14], paleopedology (the study of paleosols, which are soils of an environment or landscape of the past, usually buried) [15,16,17,18,19], and paleoclimatology [20,21,22]. The role of soil stratigraphy—the interplay between geological deposition, soil formation, buried soils (paleosols), and their chronological relationships (sometimes called pedostratigraphy, for example [23,24,25])—is therefore enhanced through tephrostratigraphy that underpins and informs the application of tephrochronology [10,26,27].
Many of the Granular Soils occur in the northern North Island area generally between Hamilton and Auckland and to the northeast of Hamilton including on foothills of the Kaimai Range (Figure 1), on old, strongly weathered tephra layers that had been erupted from various rhyolitic volcanic centres in central Taupō Volcanic Zone since more than c. 50,000 years ago (50 ka) (Figure 1) [8,28,29]; for reviews of the volcanic record see [30,31]. (All ages used in the text are in calendar or calibrated years.) That these older beds form modern (surface) soils is because the younger mantling tephra layers prevalent in the central North Island [19,32] have become sufficiently thin at distal locations, or have been eroded from unstable or steep sites, to allow the older deposits and paleosols to emerge at the land surface (exhumation). Their occurrence in the warmer parts of northern North Island [33] generally confers an advantageous growing environment. In Hamilton, the mean annual soil (not air) temperature is 14.9 °C, which is just within the range for the so-called mesic soil temperature regime (8 to 15 °C) of ST [34]. North and northeast of Hamilton in lowland areas (including Hauraki) the soil temperature regime falls into the thermic range (15 to 22 °C). The temperature regimes are an average of the soil temperature measured at 0.5 m depth mid-monthly [34].

1.3. Aim and Outline of Paper

The focus of this article is on a unique and elucidative Ultisol, the Kainui silt loam (‘Kainui soil’ hereafter), formed on weathered, multi-layered tephras in the central Waikato region (mainly the Hamilton lowlands) in northern North Island (Figure 1). Why should the Kainui soil be of interest to a global audience? To paraphrase Churchill, it is a riddle wrapped in a mystery inside an enigma. I can think of no better soil anywhere that provides such interest and understanding at the heart of both pedology and paleopedology in a tephra-dominated Quaternary setting: puzzling origins, perplexing mineralogy and problematic classification. As will be discussed below, the Kainui soil is derived from multiple Late Quaternary tephra layers and comprises a profile with distinctive upper and lower parts within c. 1 m of the land surface (Figure 2).
This ‘two-storeyed’ character, but one of many special features associated with the Kainui soil, provides a critical starting point, namely that soil stratigraphy and tephrochronology are central to understanding the soil’s genesis, nature and age. Therefore, after an introduction about the occurrence and nomenclature of the Kainui soil, I firstly review its key morphological and compositional features, and describe its origins via upbuilding pedogenesis, using a soil stratigraphic approach centred on tephrostratigraphy. Tephrostatigraphy is the study of sequences of tephra layers and associated deposits, their distribution and stratigraphic relationships and their relative and numerical ages; the discipline involves defining, describing, characterizing and dating tephra layers in the field and laboratory [10]. Emphasis in this section is on the coverbed of multiple younger tephras making up the upper profile and the associated clay mineralogy. Taxonomy is covered next. I then describe how new morphological observations of the soil’s upper profile (the pedogenically altered coverbed of younger tephras) help to explain its genesis through understanding the soil horizonation. Finally, I discuss the older, strongly weathered tephras making up the Kainui soil’s lower profile. Earlier beds and paleosols underlying the lower profile are touched upon as well. Essentially a buried paleosol comprising relict clay-illuvial argillic and kandic horizons (containing clay films or cutans/argillans), the origins of this lower part of the Kainui soil remain somewhat problematic because of masking by strong weathering and soil welding (the merging of one solum with another back through time). Together the observations and conclusions, which rely on the synthesis of a wide range of literature as well as original observations, should provide, I trust, insight of value potentially to Quaternary pedologists, paleopedologists, tephrochronologists, and mineralogists who are interested in tephra-derived soils (especially Ultisols and Andisols) and paleosols and their genesis, soil stratigraphy, upbuilding pedogenesis, clay mineralogy, and in traditional soil morphological description and classification.

1.4. Note on the Definition of ‘Soil,’ Soil Horizon Nomenclature, and Classification

I use the term ‘soil’ to mean a natural, four-dimensional body (comprising three-dimensional pedons together with the fourth dimension of time) typically c. 1 to 2 m thick mantling the land surface that can support rooted plants and which are characterized by one or more soil horizons that have evolved through additions, losses, transfers, and transformations of energy and matter by interactions of climate, biota, relief, and parent materials through time [1,44,45]. For taxonomic purposes, the lower boundary of a soil profile or pedon is set at 1 m in NZSC [11] and 2 m in ST [1]. The soil horizonation nomenclature used in the article is based on [46], although I refer also to the (similar) system used in ST [34,47]. Soil classifications are reported for both NZSC and ST [11,34].

2. Kainui Soil and its Distribution in the Central and Northern Waikato Region

At lower taxonomic levels, the Kainui soil has two closely similar identities: as a soil type defined within the Kainui series [48,49,50,51] and as a sibling defined within the Kainui family [52]. The latter identity is used as a mapping unit in S-map, a digital (online) soil map database [53] that has been developed by Manaaki Whenua Landcare Research (a New Zealand Government-funded soil-ecosystem research organisation) in recent years.

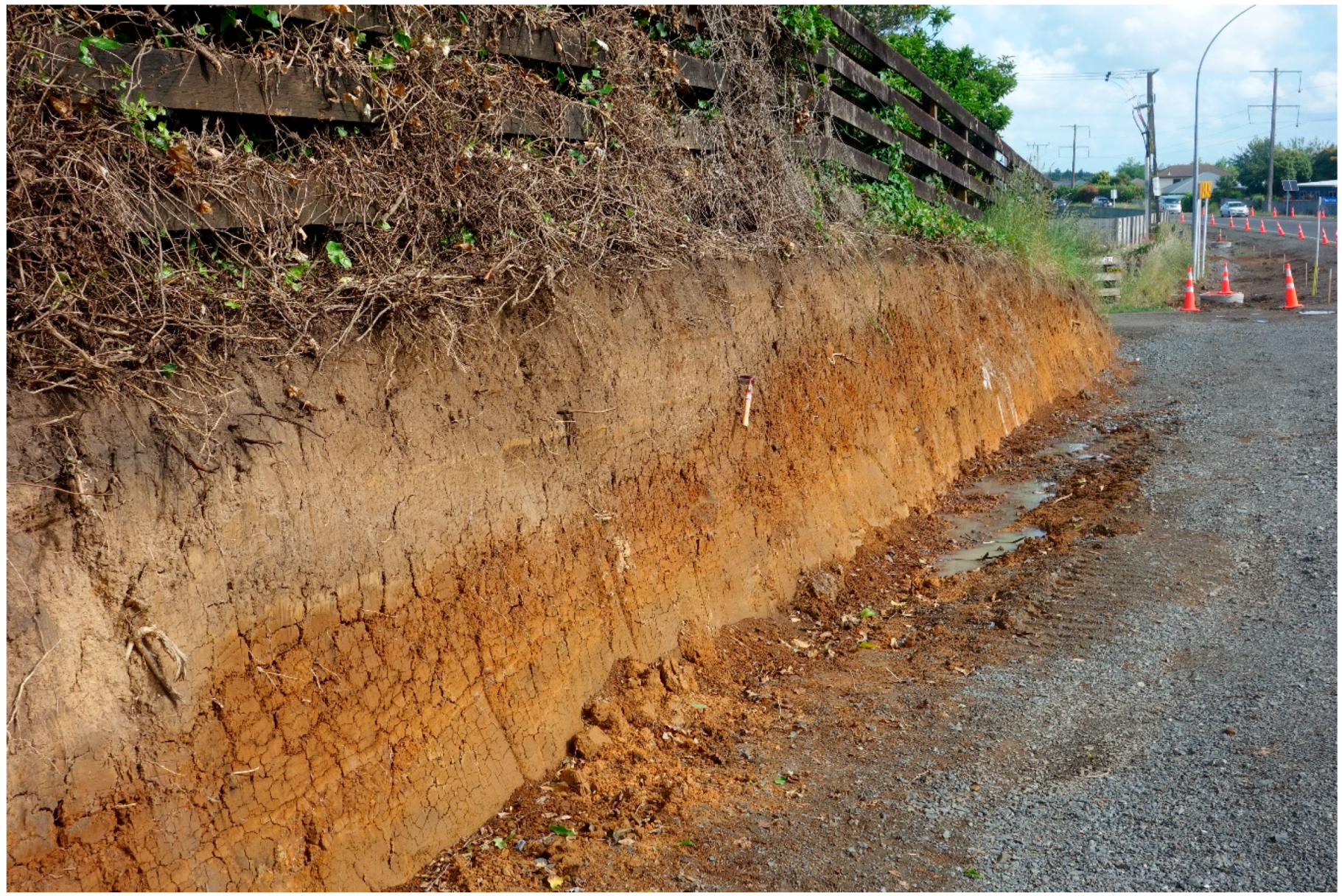

The upper horizons of the Kainui soil (in coverbed materials) are texturally silt loams, typically with c. 20% sand (0.06–2.0 mm), c. 50% silt (2–60 μm) and c. 30% clay (<2 μm) in the fine-earth fractions; (dry) bulk densities average c. 1.2 T/m3. In contrast, the lower horizons (weathered Hamilton Ash) are clay loams to clays, with c. 3% sand, c. 12% silt and c. 85% clay on average; bulk densities are c. 1.4–1.5 T/m3. The bulk densities reflect the dominance of halloysitic clays (described below) [54]. Other physical and chemical properties for the Kainui soil are reported elsewhere [18,35,49,50,51,55].

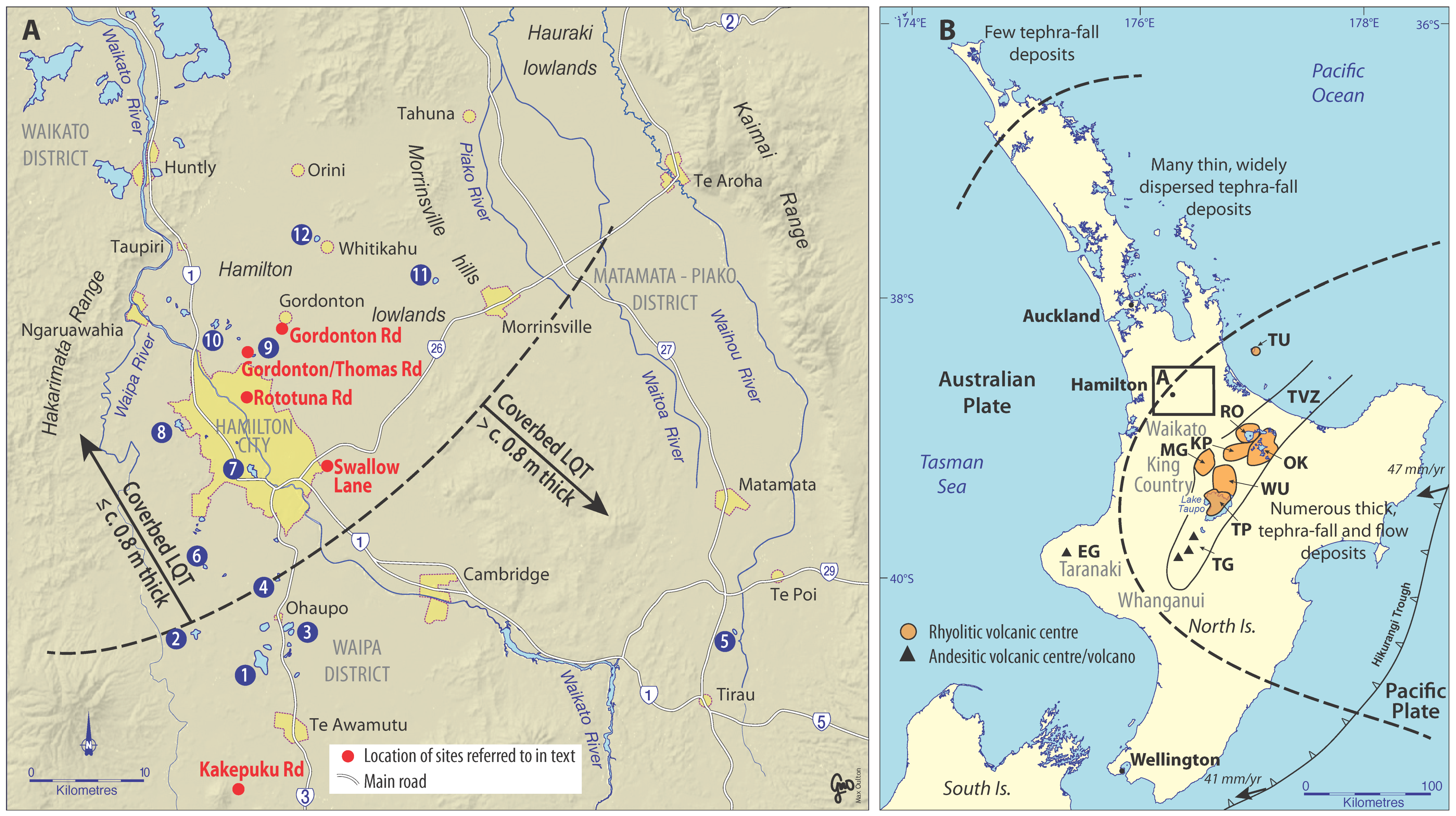

The Kainui soil is distributed widely in the northern Hamilton lowlands including the Waikato District, Matamata-Piako District, and the Hauraki lowlands (Figure 1) [53]. It occurs on the summits, shoulders and upper- and middle-backslopes of low rolling hills, and old terraces, that are underlain in many places, generally, by old pyroclastic flow deposits (ignimbrites) and reworked derivatives (c. 1.2–0.9 Ma) [56,57,58]. In turn, these deposits are capped with strongly weathered tephra-fall deposits including Kauroa Ash beds (c. 0.8 Ma), Hamilton Ash beds (c. 340 ka to >c. 50 ka) and finally a thin coverbed (≤c. 50 ka) (Figure 3) [57,59,60]. The hills are old, Mid-Quaternary landforms. They represent a paleo-topography that was formed before c. 340 ka on the tephrochronological basis that the Rangitawa Tephra (aged c. 340 ka, see below) drapes over sloping erosional geomorphic surfaces that cut across antecedent horizontal to subhorizontal deposits and paleosols >0.78 Ma in age (Figure 3).

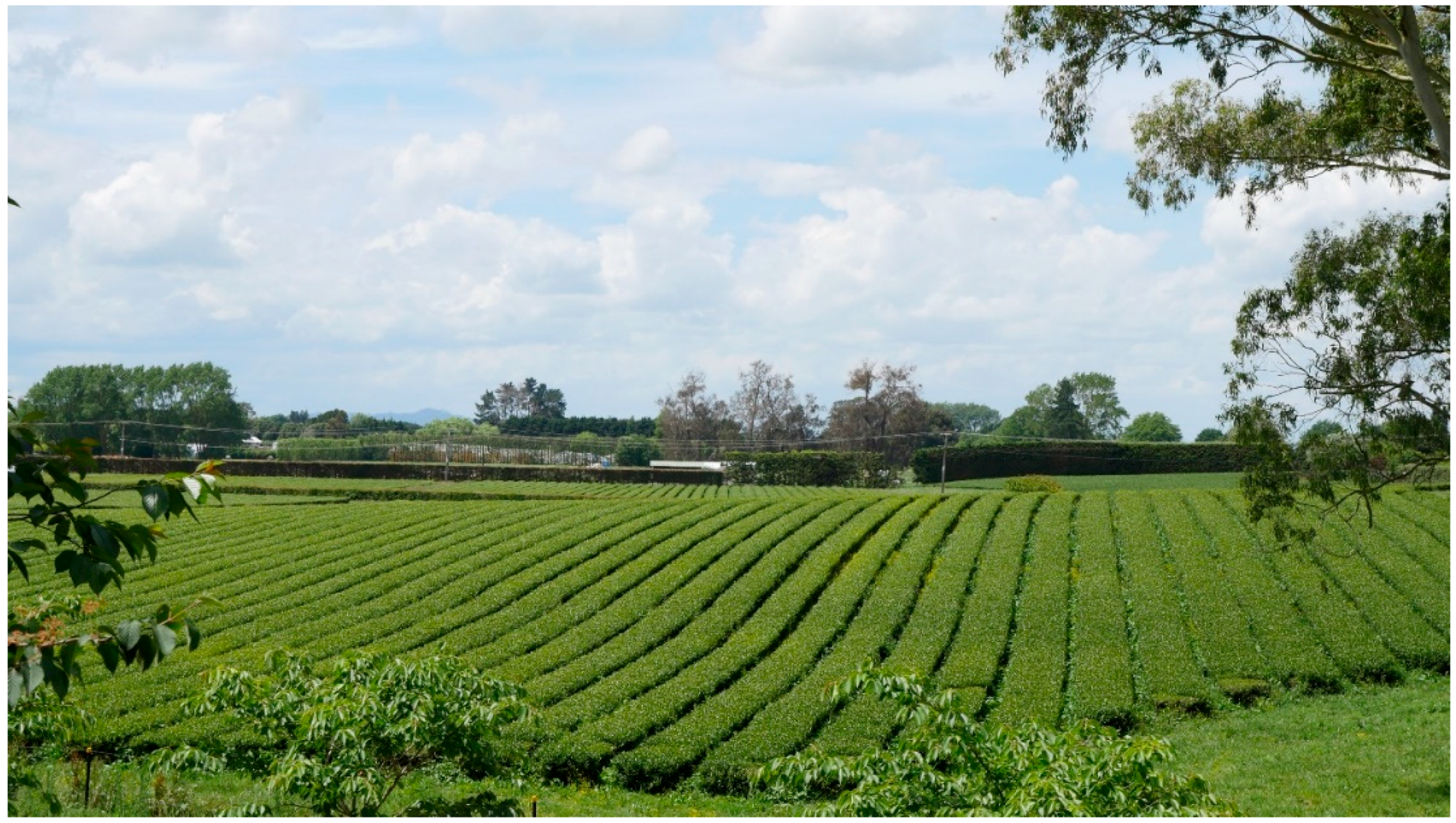

The Kainui soil is used extensively for agriculture including livestock (such as dairying) and cropping (mainly maize) as well as horticulture including market gardening and, uniquely in New Zealand, tea (Figure 4).

3. Origin of the Kainui Soil

3.1. Soil Stratigraphy (Including Tephra Identification) and Upbuilding Pedogenesis

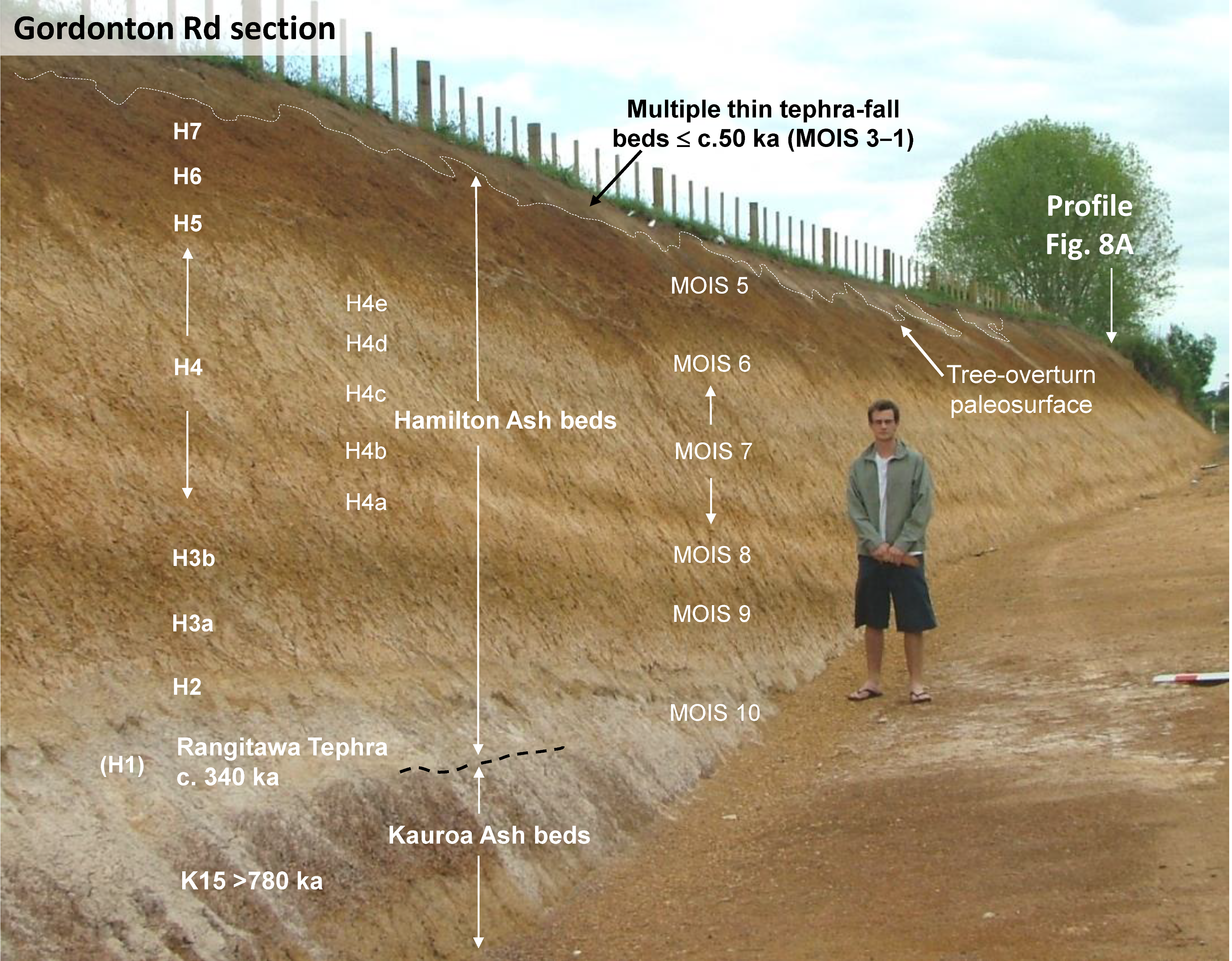

The Kainui soil, as noted already, is best described as a two-storeyed soil, the upper storey c. 0.4 to 0.7 m thick comprising a composite coverbed of multiple, intermixed thin tephra layers deposited incrementally since c. 50 ka (commonly denoted ‘late Quaternary’) overlying a buried paleosol on older, strongly weathered clayey Hamilton Ash beds. The profile, extending over one metre in depth, thus encompasses two main ‘units’ that are easily seen when the profile is dry because of the contrasting colours and textures (Figure 2). An earlier interpretation that the coverbed comprises loess has been discounted partly because the primary mineralogy is pyroclastic in origin (although the clay minerals did not seem to ‘fit’ that origin, as discussed below) and because 22- to 20-ka-aged lakes adjacent to the hills on which Kainui soils occur in the northern Hamilton lowlands (Figure 1) contain in their organic-rich sediments numerous thin but well-preserved rhyolitic (silica-rich, ≥c. 70 wt% SiO2) and andesitic (moderately high silica content, c. 60–70 wt% SiO2) tephra-fall layers derived from five volcanic centres: Okataina, Taupō, Tuhua, Tongariro, and Egmont (Figure 1B) [18,36,59,74,75]. As illustrated in Figure 5, these lacustrine deposits therefore provided an integrated dossier of multitudinous macroscopic (visible) tephras (c. 40 in total, based on [36]) that have fallen on the land surface since c. 22 ka, the oldest being Okareka Tephra aged c. 21.8 ka, which is preserved in Lake Rotomanuka [36,76]. The youngest is the faintest of dustings of fine ash deposited during the 1995–1996 eruptions of Mt Ruapehu [77,78]. The tephras are thin, mostly a few millimetres to centimetres in thickness. Work currently in progress is re-examining newly acquired lake sediment cores to detect and identify submillimetre tephra deposits [79], now referred to as cryptotephras (‘hidden’ glass shard concentrations insufficiently numerous to be visible as a layer to the naked eye) [10,26].
Three older, pre-Okareka, tephras have been preserved in an unweathered state in a series of cores that extended into pre-lake colluvial deposits beneath the lake sediments at Lake Maroroto (Figure 1) [18,75]: (i) Okaia Tephra, c. 28.6 ka [76]; (ii) Tāhuna Tephra, c. 39.3 ka [75,80,81,82]; and (iii) Rotoehu Ash, c. 50 ka [83,84,85,86] (Figure 5). The correlation (identification) of these older tephras in the lower Maratoto cores was made using their diagnostic ferromagnesian mineral assemblages together with glass-shard major element compositions and stratigraphic superpositions (Figure 5 and Figure 6, Table 1). The Okaia Tephra has not previously been reported in the Hamilton Basin. The fact that this tephra, rhyolitic in character, lies stratigraphically beneath sediments dated at c. 20 ka and above the Rotoehu Ash (dealt with below) dated at c. 50 ka, narrows the options for its correlation to a tephra of either the Taupō-derived Okaia Subgroup or the Okataina-derived Mangaone Subgroup [87], which were deposited between c. 50 ka and c. 25 ka [30,81,83,88].

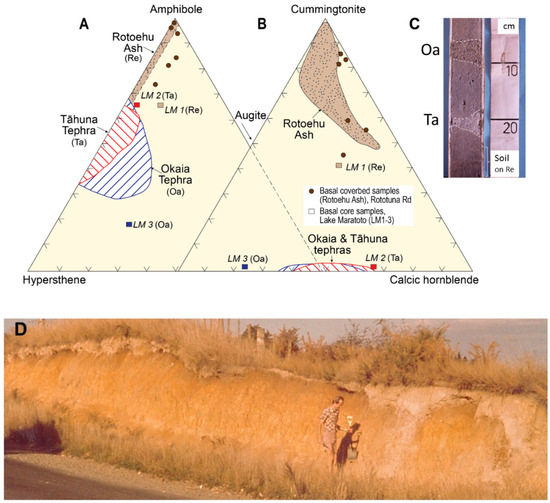

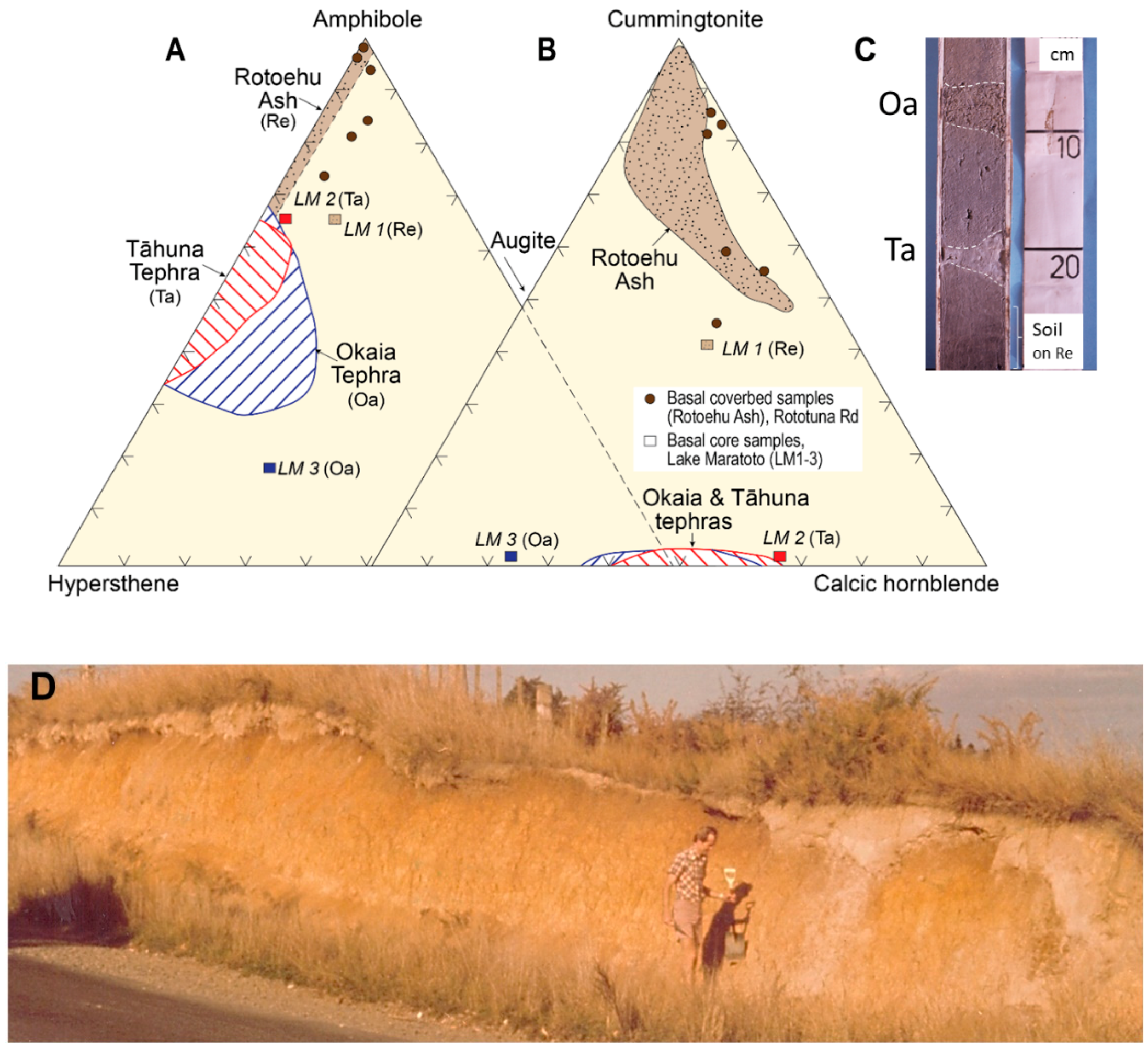

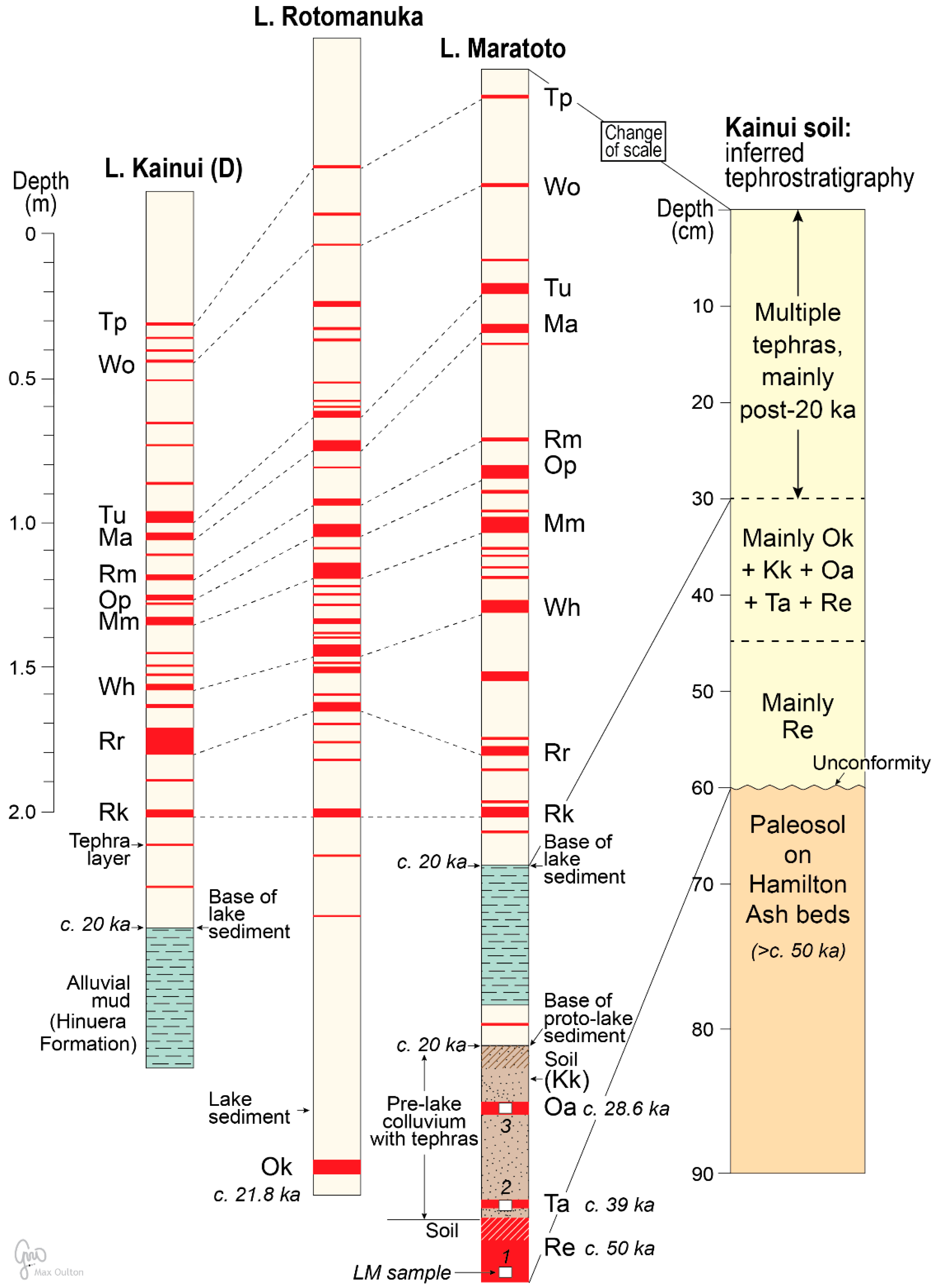

Figure 5 shows that the parent materials of the Kainui soil (to c. 1 m depth) are diachronous (time-transgressive), spanning an age range that could be as much as c. 125,000 years if the upper Hamilton Ash (which is undated) is as old as c. 125 ka in age (MOIS 5e). To convey the soil’s two-storeyed, upbuilding-derived, diachronous character, the parent materials may be described, for example, as ‘a composite of multiple tephras younger than c. 50 ka over strongly weathered tephra considerably older than c. 50 ka’ or as ‘a composite of late Quaternary tephras on a buried paleosol on older tephras (Hamilton Ash)’.
Although the proportions of ferromagnesian minerals in tephras can vary from sample to sample to quite some degree, e.g., [10,81,92], and on their own may not necessarily be definitive [10], the abundance of augite, together with hypersthene and calcic hornblende in sample LM3, and the close similarity of the major element composition of the constituent glass to that of reference glass from Okaia Tephra (Table 1), confirms its identification as the Taupō-volcano derived Okaia Tephra [93]. In turn, the Tāhuna Tephra beneath Okaia Tephra is similarly constrained chronostratigraphically, being older than c. 28.6 ka (the age for Okaia Tephra) and younger than c. 50 ka (Rotoehu Ash). The ferromagnesian mineralogy of sample LM2 comprises hornblende and hypersthene, with no augite, consistent with published analyses for Tāhuna Tephra (Figure 6A,B) [80]. As well, the abundances of most of the major elements (as oxides) of glass shards from LM2 closely match those for glass from this tephra as reported in the literature (Table 1). The identification of Tāhuna Tephra (derived from Taupō volcano) [80] in the Hamilton Basin was reported previously by [75] but misidentified by [18], herewith corrected.
The confirmed deposition in the central Hamilton lowlands of the Okaia and Tāhuna tephras, together amounting to c. 10 cm in thickness or more, along with Rotoehu Ash (see below), thus helps to complete a more comprehensive picture of the tephra-fall origins of the entire coverbed that mantles the low hills (Figure 5). Kawakawa Tephra (also known as Oruanui or Kawakawa-Oruanui tephra, KOT), aged c. 25.4 ka [90,94], is additionally known to have been deposited in the region (on the basis of field observations and geochemical fingerprinting [18,35,75,95,96]). (Potentially, further tephras, as yet unidentified, may also occur.)
Mineralogical and geochemical ‘fingerprinting’ of the coverbed deposits of the Kainui soil itself, using ferromagnesian mineral assemblages together with major-element compositional analyses of individual glass shards, primary minerals and Fe-Ti oxides, and bulk analyses of Fe-Ti oxides [18,35], although constrained because of the admixed nature of the altered coverbed materials, support the tephra correlations inferred from the detailed tephrostratigraphy of the adjacent lacustrine sequences [18,35,36]. For example, the Tuhua Tephra (aged 7.5 ka) [91], derived from Mayor Island (Tuhua volcano) [83], has a unique mineralogy (including abundant aegirine, a clinopyroxene, in the ferromagnesian mineral assemblage) and volcanic glass of peralkaline composition [37,83,92,97]. These distinctive compositional attributes, including aegirine in small quantities (c. 1–4% of the ferromagnesian mineral assemblage), have been identified in samples from the coverbed at Rototuna Road [18,35] (Figure 1 and Figure 6). In the field, topsoils (‘A’ horizons) of the Kainui soil contain ubiquitous but sparse fine pumice lapilli, which are remnants from fallout from the Taupō eruption of 232 ± 10 CE [36,98,99].
The basal age (c. 50 ka) of the coverbed part of the Kainui soil stems from the predominance of Rotoehu Ash in the lowermost deposits. This correlation is therefore a critical one in the soil stratigraphy. I have used its distinctive ferromagnesian mineralogical assemblage to secure the correlation unequivocally. Rotoehu Ash is one of only three rhyolitic tephras ≤50 ka in North Island that are dominated by the marker mineral, cummingtonite, a pale-green amphibole [81,83,92]. The others, Rotoma and Whakatane tephras, Holocene in age, are also present but the lake sediment records in the Hamilton lowlands show that Rotoma tephra is ≤c. 5 mm thick and Whakatane Tephra is ‘microscopic’ (i.e., submillimetre in thickness) (Figure 5) [36,37]. Hence their potential contribution of cummingtonite to the coverbed mineral assemblages would be very minor (effectively negligible). In contrast, the cummingtonite-rich basal materials representing Rotoehu Ash in pre-lake deposits at Lake Maratoto (underlying the c. 39-ka Tāhuna Tephra) are c. 30 cm thick on average ([75] p. 687). The sample of Rotoehu Ash from these pre-lake materials at Lake Maratoto (sample LM1) is dominated by cummingtonite (Figure 6), matching the similarly high relative abundances of this mineral in five samples from the basal few centimetres of the coverbed deposit at Rototuna Road, thereby confirming correlation with the widespread Rotoehu Ash.
From mapping in the region and measurements of the relative proportions of cummingtonite in ferromagnesian mineral fractions, I estimated the thickness of Rotoehu Ash in the northern Hamilton area to be c. 25 ± 10 cm [35], broadly consistent with isopach maps for Rotoehu Ash deposits in adjacent regions [85,95,108], and with the thicknesses of c. 30 cm evident in cores from Lake Maratoto to the south [75].
Although the base of the coverbed is dominated by quasi-pure Rotoehu Ash (the ash can sometimes be recognised in the field as a white, c. 0.2 m-thick, intermittent layer, as evident in Figure 6D), the content of cummingtonite generally decreases upwards through the coverbed, with abundances in the ferromagnesian mineral assemblage ranging from c. 15% to 80% [18,35], indicating that subsequent tephra deposition has progressively ‘diluted’ the Rotoehu Ash materials towards the soil surface. That crystals of aegirine, originating exclusively from the mid-Holocene deposition of the Mayor Island-derived Tuhua Tephra (aged c. 7.5 ka), occur intermixed with the copious cummingtonite crystals derived almost wholly from Rotoehu Ash (aged c. 50 ka) throughout the coverbed [35] is entirely consistent with the genesis of the Kainui soil by upbuilding pedogenesis, as discussed next, and emphasises the importance of pedoturbation in particular [18,35,97].
One of the biggest advances in understanding since 1991, when I wrote that the thin multiple tephra layers in the upper Kainui soil had been “weathered and blended by soil forming processes,” thereby masking their origin [109], is the recognition that these profile features reflect upbuilding pedogenesis. Upbuilding pedogenesis is the ongoing formation of soil via top-down processes whilst tephras or loess (or alluvium, colluvium) are concomitantly added to the land/soil surface as normal geological processes [19,110,111,112,113,114]. Muhs et al. [115] promoted the core concept nicely through the title of their paper (in part), “Holocene loess deposition and soil formation as competing processes.” These concepts have been documented and interpreted in other (notably prescient) research, much of it micromorphological, on loess–paleosol sequences in China, USA, and western Europe, e.g., [27,116,117,118]. At locations proximal to volcanic sources in North Island, resultant soils may show distinctive layering, along with buried horizons or paleosols, forming multi-layered profiles. Such profiles are evident in many road cuttings near the central TVZ (Figure 1), e.g., [28,119,120]. Paleosols with stratigraphic significance may be called geosols (pedostratigraphic units) in the North American Stratigraphic Code [25,121,122].

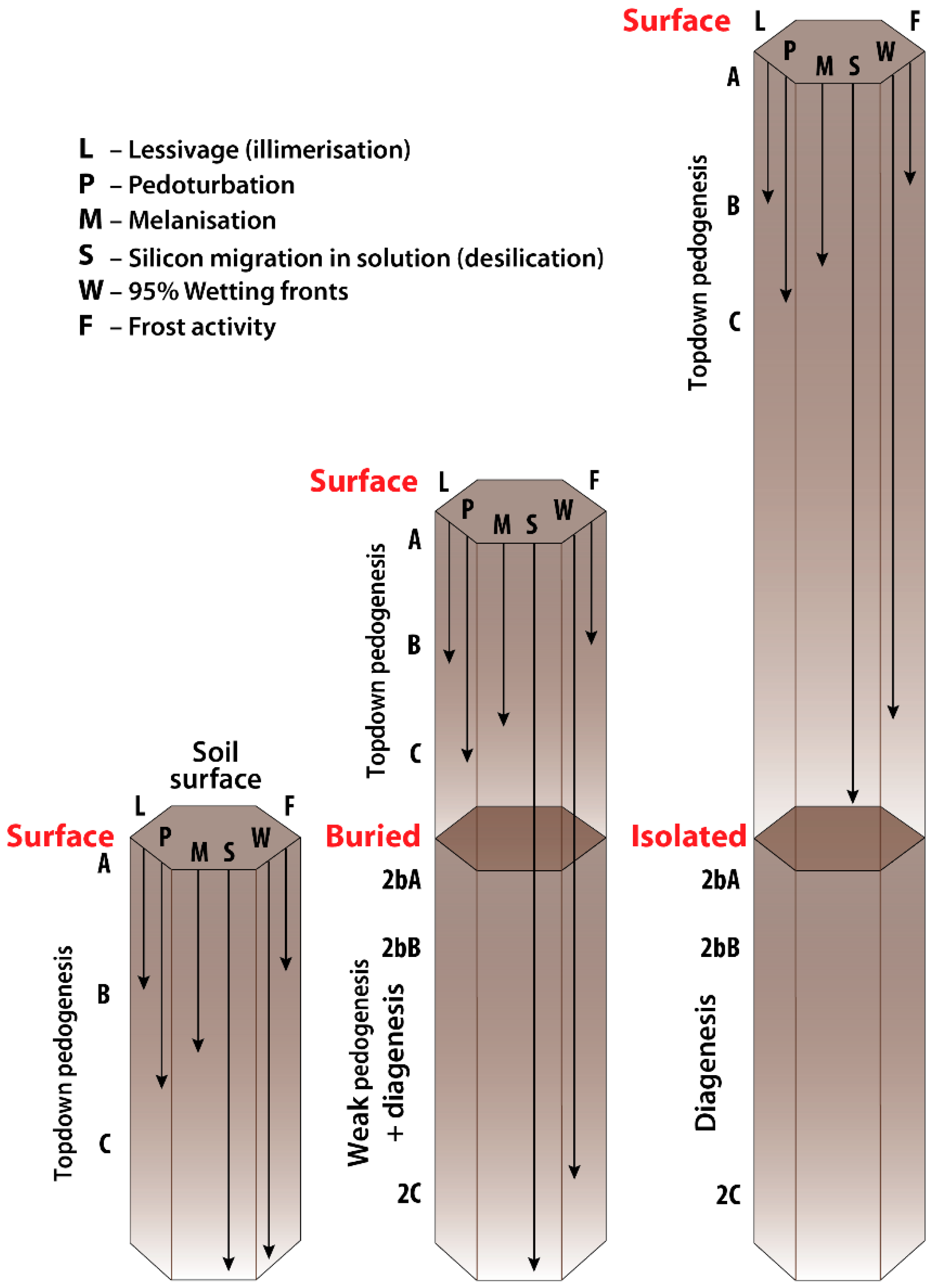

The frequency and thickness of tephra accumulation (and other factors) determine how much impact top- down soil-forming processes have on the ensuing profile character and if either developmental or retardant upbuilding, or both, prevail. ‘Top-down’ pedogenesis comprises multiple processes operating mainly from the land surface, driven by the organic and water cycles [123], that result in the gradual deepening of the profile as a downward moving front on a pre-existing parent material. That is, ‘classical’ soil formation (as described in most soil science textbooks) proceeds by effectively modifying the pre-existing static parent material(s) to a greater or lesser extent according to a range of factors that dictate an ensemble of soil processes (e.g., [2,3]). The term ‘top-down pedogenesis’ was coined by Almond and Tonkin [124] (see also [118]).
In contrast, the terms ‘developmental’ and ‘retardant’ upbuilding pedogenesis were invented by Johnson and Watson-Stegner [125] and Johnson et al. [126,127] as part of their dynamic-rate model of soil evolution whereby soils are envisaged to evolve by ‘ebb and flow’ through time [24]. Retardant upbuilding occurs when a relatively thick layer of tephra (or alluvium or colluvium) is instantaneously added to the surface or where the rate of accumulation of many thin deposits is so fast that the original soil is rapidly buried (overwhelmed) and thus becomes a buried horizon, isolated and cut-off from the new land surface in which top-down pedogenesis begins anew (Figure 7). Developmental upbuilding, illustrated superbly by the tephra-derived Kainui soil (Figure 8A), occurs when the rate of addition of tephra or loess to the land is incremental (accretionary) and at a rate sufficiently slow to enable top-down pedogenesis to keep pace as the land gradually rises [27,116,117,127]. At Gordonton Road, the rate of accumulation of tephras in the upper profile (Figure 8A) averages only c. 1 mm per century, about the same rate (for example) as very slow loess accumulation on the West Coast, South Island [113,128,129]. (Mass flux as well as accretion rates can be calculated by incorporating bulk density estimates, for example References [128,130].) The slow accumulation of the distal tephras in the central Waikato region has effectively mimicked continuous loess accretion but without ‘switching off’ during glacial or stadial periods [113,130].
A corollary associated with developmental upbuilding is that each part of the profile/pedon has, at one time, been an ‘A’ horizon [111,124], which helps to explain the pedogenic fabric evident in the horizons making up the upper ‘storey’ of the Kainui soil [55,109]. A second corollary is that the soil is polygenetic, the upper c. 0.6 m having developed during MOIS 3 to 1, even though it is a ‘modern’ soil at the land surface today. This conclusion is entirely consistent with, and indeed supports, the dynamic-rate model of soil evolution [127,133] as well as complementing studies on loess-paleosol sequences in China and elsewhere [27,116,117,118].

3.2. Importance of Lithologic Discontinuity

That the boundary between the upper and lower storeys is a lithologic discontinuity, denoted by the prefix ‘2’ in the horizon notation (Figure 8A), and an unconformity (a paraconformity), is an important denouement because it counteracts and negates several other ideas of soil genesis that had been invoked previously. A lithologic discontinuity is a contact between two genetically unlike deposits or other geological materials, characterized (for example) by a change in grain-size or primary composition (mineralogy) caused by a geological event or processes rather than pedogenic processes [24,46]. Regarding the Kainui soil, one foregoing hypothesis was that the buried soil horizon (2bBtg) on the upper Hamilton Ash (Figure 8A) was an argillic horizon (it is, but as a relict feature in a buried paleosol); another was that it was a podzolic-B (spodic) horizon. Both hypotheses assumed the 2bBtg horizon to be genetically connected by the eluviation of clays, or by the eluviation of Fe, Al and Si, from the upper to lower parts of the soil, forming a sequum, as contended by McLeod [51]. A sequum comprises a pair (couplet) of soil horizons, one characterised by eluviation (loss of material), often forming an E and an associated underlying horizon characterised by complementary illuviation (gain of material), usually a Bt or Bs or Bh (e.g., Reference [24]). A multisequal soil has more than one sequum in its profile. But the upper and lower profiles of the Kainui soil are probably not directly connected genetically (or they have been connected for only a limited period): the buried soil has properties (including, as mentioned already, features that qualify it as kandic and argillic horizons in ST) that relate to its formation at an earlier time, probably during the Last Interglacial (Figure 3) [17]. The kandic and argillic horizons are therefore best envisaged as paleo-argillic and paleo-kandic horizons (see Section 4 on classification below). New Zealand Soil Bureau [136] (pp. 90–91) had provisionally recognised this lithological discontinuity, the lower horizons of the Kainui-equivalent soil on Church Road (the 1968 reference site for the so-called ‘Hamilton clay loam’) being classed as (II)B21 and (II)B22 horizons, with the text describing the parent material including this sentence: “The ash in the upper 16 in. [inches] [c. 40 cm] was probably deposited after a considerable interval of soil formation on the older ash deposits” (p. 90). The Roman-numeral prefix ‘II’ (today the Arabic prefix ‘2’ is used both in NZSC and ST) also indicated a lithological discontinuity [137] but the parentheses showed some uncertainty at that time.

3.3. Clay Mineralogy

The partially weathered coverbed of late Quaternary tephras is dominated by halloysite, not allophane, in the clay fraction. Halloysite is a 1:1 kaolin-subgroup aluminosilicate clay mineral; allophane is a nanocrystalline aluminosilicate clay comprising tiny spherules c. 3.5 to 5.0 nm in diameter with a chemical composition in the range (1–2)SiO2·Al2O3·(2–3)H2O [44]. Nanocrystalline clays have structure in the nanoscale range, that is, 1–100 nm [44,138,139]. Earlier, this halloysitic dominance had been a major puzzle because the formation of halloysite was erroneously thought to follow, by some c. 10,000 to c. 15,000 years, the formation of allophane [18,44]. However, the development of the Si-leaching model explained that the formation of allophane or halloysite depended in part on the amount of silicon in soil solution (and availability of aluminium), which in turn was controlled by rainfall, drainage, depth to slowly permeable layer and other factors [54,140,141,142], age being indirect and subordinate [18,130]. This is another key finding. That ‘young’ tephras could weather directly to halloysite, exemplified in the Kainui soil, was therefore described as ‘the leopard that changed its spots’ [109,130]. A silica-rich environment favours the formation of halloysite instead of allophane, as expressed by the Si-leaching model (summarized by [44,143,144].
Under this model, both allophane and halloysite can form directly from the synthesis of the products of dissolution of volcanic glass and primary minerals along different pathways according to local environmental conditions, subject to kinetic and thermodynamic constraints [18,54,140,145,146]. Halloysite formation is favoured by a Si-rich environment (Si concentrations in soil solution are >c. 10–15 ppm) or a wet, even ‘stagnant,’ soil moisture regime, whereas allophane, on the other hand, forms preferentially in free-draining situations where Si concentrations in soil solution are low (<c. 10 ppm), allowing Al-rich allophane to develop [44,141,147,148,149].
The Kainui and Otorohanga soils, despite occurring in identical geomorphic positions (mainly on rolling hills), thus have markedly different clay mineralogies in their upper soil horizons. The explanation relates to multiple factors [14,18] but four key aspects are summarised as follows.
(i)
The depth to the slowly-permeable (buried) paleosol in the Kainui soil is less than a critical threshold of c. 0.8 m below the land surface (see the approximate boundary line marked in Figure 1): soils with a late Quaternary tephra mantle >c. 0.8 m in thickness are almost invariably allophanic in upper profiles, usually forming Andisols (provided thickness criteria are met), whereas soils with a thinner coverbed ≤c. 0.8 m are usually halloysitic, forming Ultisols.
(ii)
Rainfall generally decreases somewhat from south to north across the Hamilton lowlands (c. 1400 mm per year at Kakepuku Road to c. 1200 mm per year at Gordonton Road, dropping to c. 1100 mm or less farther to the north and east) [18,73,150], reducing the potential throughflow of silicon in soil solution through the soil [54]. Winter through-drainage in the Otorohanga soil is likely to be >c. 550 mm; that in the Kainui soil is c. 400 mm, probably considerably less in some years (after [143]). A frequently occurring (c. 70% of years) late summer or early autumn soil moisture deficit, usually lasting several months (typically from c. 30 to 50 median annual days), is generally most pronounced north and northeast of Hamilton [73,150]: the potential summer soil moisture deficit for the Kainui soil is likely to be c. 170 mm; that for the Otorohanga soil is probably <c. 140 mm (after [54,73,151,152]). Generally, rainfall during glacial periods is reduced by up to c. 25% of that of the present, e.g., [153,154], and therefore halloysite formation rather than allophane is promoted in such times because of limited desilication, as evident in the middle to lower profile (below c. 0.9 m depth) of the Otorohanga soil (Figure 8B). From c. 0.9 to 1.5 m depth, both allophane and halloysite have been formed in the Otorohanga soil, very likely during MOIS 3 and 2 when the parent tephras and tephric loess were being deposited and simultaneously weathered and altered by pedogenesis during a mainly (but not wholly) drier and cooler climate [54,102,155,156,157]. That allophane or halloysite, or both, were able to form depends on whether Si concentrations in soil solution were above or below, or, at times, fluctuating around the c. 10–15 ppm threshold of Singleton et al. [141], and if kinetic and thermodynamic conditions were appropriate [44].
(iii)
The primary composition of the composite tephras of the upper coverbed comprises a mix of rhyolitic and andesitic tephras [18,36,37]. Although the amounts of rhyolitic glass (with high silica, c. 78 wt%, and moderate alumina, c. 12 wt%) always exceed those of andesitic glass (with moderately high silica, c. 62 wt%, and high alumina, c. 17 wt%) [18,110], the tephras in the southwest parts of the Hamilton lowlands, such as at Kakepuku Road in Waipa District (Figure 1A), have a proportionally higher andesitic component (up to c. 30–35%) than in the northern and north-eastern parts (up to c. 10–15%) as demonstrated by analyses of the lacustrine tephras across the Hamilton lowlands (Figure 1A) [18,36,37] because the southern locations are a bit closer to the main source volcanoes of andesitic tephras, Tongariro and Egmont (Taranaki) (Figure 1B). This general ‘compositional gradient’ thus enhances the formation of Al-rich allophane in southern/southwestern areas and halloysite in northern/north-eastern areas [59].
(iv)
As the tephras accumulate on stable sites, they, being mainly siliceous to very siliceous, provide an ever-thickening ‘overburden’ (thickening coverbed and concomitantly rising land surface) and hence effectively contribute a more-or-less persistent supply of silica and alumina, e.g., [18,158]. This situation may be compared with the dissolution kinetic-fluid flow coupling model developed by Shikazono et al. [159] to explain the ongoing generation and downward migration of monosilicic acid from the weathering of multiple middle- to late-Holocene basaltic tephra layers that had accumulated layer by layer in central Japan. The coupling model was also invoked to help explain abundant halloysite formation at depth in thick accumulating Quaternary-aged siliceous tephras and derivatives in eastern North Island [131]. In the coupling model, rainwater migrates downwards through a glass-dominated tephra layer (in effect a ‘silica reservoir’) and reacts with the volcanic glass, which dissolves through hydrolysis, the dissolution products [Si] and [Al] then crystallizing together as halloysite. A new layer/reservoir of freshly-deposited glass (along with felsic and mafic minerals) at the land surface provides a new source of silica (and alumina, to a lesser degree) as the soil water moves down through it [159].
The different weathering pathway—forming halloysite rather than allophane in the upper soil horizons—is shown by the contrast between the Kainui soil (Figure 8A) and the Otorohanga soil (Figure 8B), both derived from late Quaternary tephras. In fact, the inverse atomic structures of allophane versus halloysite preclude the possibility of allophane transforming to halloysite other than by completely dissolving and reforming [110,134,160,161,162]. The presence of redox segregations, especially MnO2-concretions towards the base of the late Quaternary tephra coverbed, supports the Si-leaching model because these wet-dry features show that desilication has been limited to some considerable degree by impeded drainage, the soil’s upper horizons being moderately well drained [163]. The text in Section 5 below, ‘Caught in the act,’ highlights the importance of moderate gleyisation in the upper Kainui soil through perching.

4. Classification

The classification (taxonomy) of the Kainui soil has been troublesome in that the soil, despite its relatively ‘young’ (late Quaternary) tephra-derived origins, did not fit into the Yellow-brown loams (allophanic by definition) of the earlier New Zealand Genetic Soil Classification [164] because it was clearly non-allophanic [35,165]. Nor did it sit well in the Brown-granular loams (typically formed on weathered Hamilton Ash beds) because the ‘granular’ character (distinctive, well-expressed polyhedral pedality or soil fabric) [11] associated with this group was at a depth typically half-a-metre or more below the land surface. Instead, the two-storeyed nature of the Kainui soil was suitably reflected by its classification in some publications as a composite Yellow-brown earth on (pre-weathered) Brown-granular loam [35,42,48,49,51]. In NZSC, the Kainui soil was initially placed in the order of Granular Soils (first and second editions) but I thought the earlier composite classification was better because it was tailor-made for the whole (≥1-m deep) profile morphology. Hence in the third edition of NZSC, a special class in the Ultic Soils was developed for the Kainui soil, which, uniquely, is now a Buried-granular Yellow Ultic Soil; tephric; not applicable (mixed rhyolitic >> andesitic fines); silty/clayey; moderate/slow [11,52].
In contrast, the online S-map soil reports (‘fact-sheets’) for the Kainui family record that siblings fall in the Podzolic Yellow Ultic Soils. This designation matches that for an unpublished soil profile description associated with the Hauraki survey (reported in Reference [55], pp. 66-67) in which dark brown (7.5YR 4/2) “organic matter down cracks” was described in the lower subsoil. Such an occurrence helped allow the soil to be placed in the Podzolic subgroup of the Yellow Ultic Soils [53], a second criterion being the requirement that the E horizon had a pH ≤ 4.8 together with the need for 10% humus coatings or coatings of colour value 4 [11]. The colour value of 4 alone would be enough—even if the ‘organic matter’ were actually dark-coloured redox-derived MnO2-coatings (mangans) of pyrolusite rather than illuviated humus, as suggested by Lowe [55]—along with the strong acidity. My preferred classification is the ‘Buried-granular’ rather than the ‘Podzolic’ subgroup because, as discussed below, the upper and lower storeys of the profile do not form a sequum—that is, strictly, they are not genetically connected—and so a podzolic origin would seem less appropriate (and would be incorrect anyway if illuviated humus were absent and the low pH (≤4.8) threshold were not met [55]).
The ‘ultic’ character is well expressed in ST [1]. The soil depicted in Figure 8A is a Typic Kandiudult; fine-silty over clayey, halloysitic, thermic [34]. Although the profile contains a buried soil, the coverbed is not “new material” as defined in Soil Taxonomy because such material is described as “largely unaltered” [1] (p. 10) and hence the special rules for classifying buried soils are not triggered [1,166]. That the paleo-argillic and paleo-kandic horizons are largely relict is not taken into account but nor should they be, given that ST is to a large degree (but not entirely) morphological in focus. In other words, understanding the way the soil behaves in its management is paramount given the main purpose of ST as a “basic system of soil classification for making and interpreting soil surveys” [1,6]. An intriguing final thought is that the Kainui soil, although in toto an Ultisol, which implies ‘old’, is nevertheless continuing to receive contemporary (modern) ash-fallout on its surface from time to time.

5. Caught in the Act: Seasonal Perched Gleying (Reduction) in the Kainui Soil

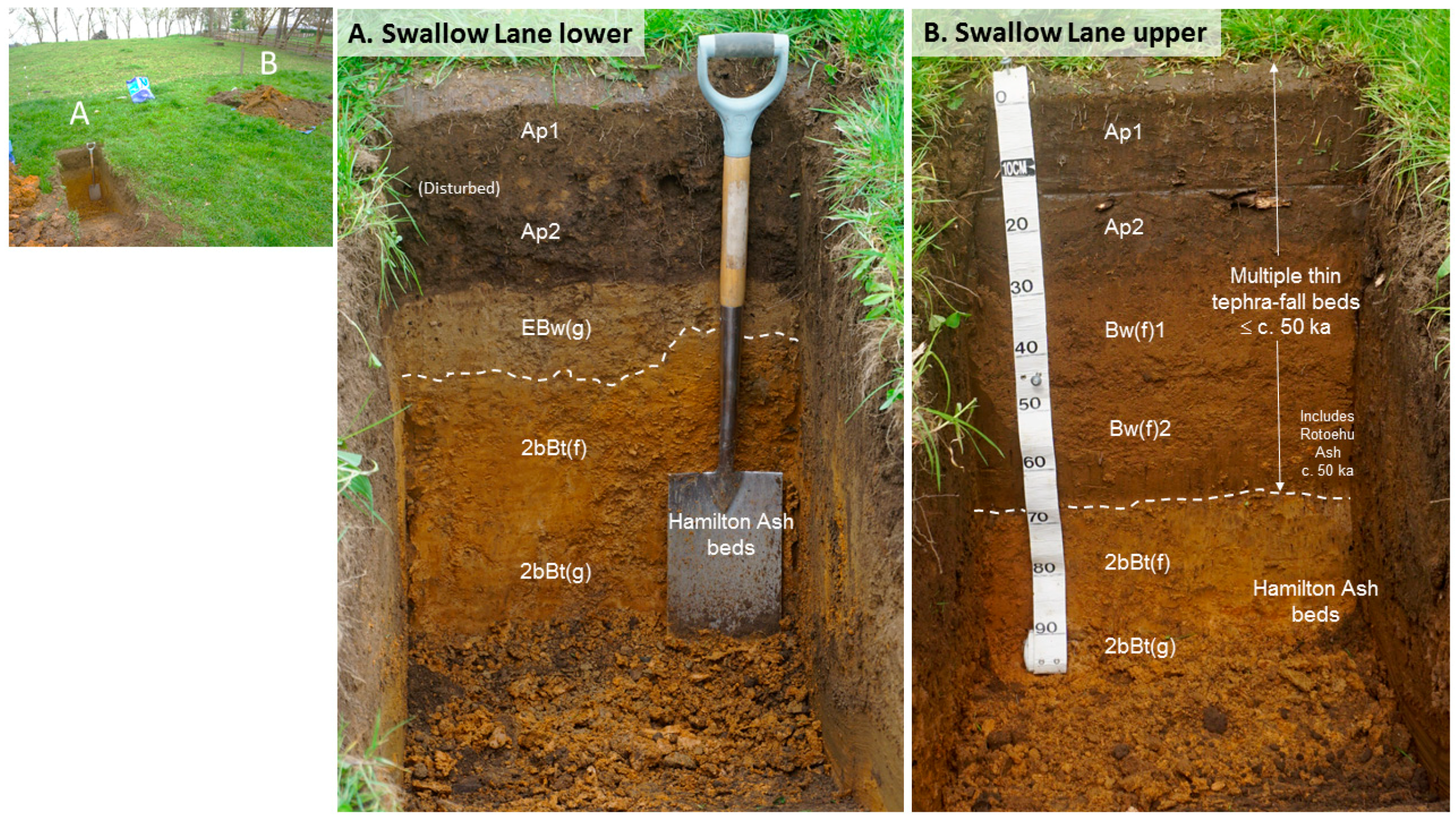

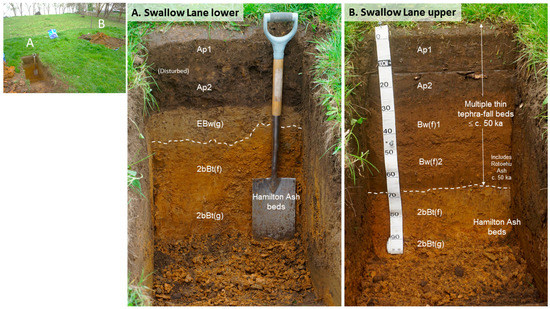

Each year I take undergraduate students to see and describe a range of soils on the classic soil-landscape sequences of the Hamilton lowlands [42,60,167]. Normally run in March or early April (i.e., late in the austral summer), the field trip in 2018 was in late September (i.e., in the austral spring). In addition, a large class size meant I opened up two soil pits rather than the usual one to represent the Kainui soil to cope with the greater numbers. The two pits were on middle-backslope positions on a low hill just off Swallow Lane near Hamilton (Figure 1), one pit being slightly higher than the other on the slope (Figure 9).
A dramatic feature of the lower-placed profile was the decidedly pale colour of the EBw(g) horizon immediately above the slowly-permeable, clayey buried soil horizon, 2bBt(f), on Hamilton Ash (Figure 9A). (I will explain the suggested transitional nature of this horizon shortly.) Clearly wet with contemporary reducing conditions and although obviously pale in the fresh pit face, the EBw(g) horizon in pit A only marginally qualifies as such in that low chroma colours, as specified for a Bg horizon (which needs a moist chroma ≤2 or a moist chroma of 3 and a value ≥6; [46]), were barely met: the horizon mainly had Munsell colours (moist) of 10YR 5/3–5/4 (brown-yellowish brown) but close inspection revealed in some parts (<50%) matrix colours (moist) of 10YR 6/3–6/4 (pale brown-light yellowish brown) and even 10YR 7/1–7/2 (light grey). Given the obvious contrast with the darker colours of the adjacent soil in pit B and the importance with respect to genesis, I consider the bracketed (g) designation to be appropriate. (To qualify as a Bg—no parentheses around the ‘g’—would require colours (moist) of 10YR 6/3 or paler to occupy 50–85% of the matrix [46], which is not quite the case here.) The morphology and geomorphic position point unequivocally to gleyisation through perching on the 2bBt(f) soil horizon on Hamilton Ash and contrast with the darker colours and oxidising conditions evident in the soil in the higher-placed pit B (Figure 9B). Normally, this gleyisation is hidden, only being inferred from the redoximorphic features (redox segregations) that characterize the lower part of the late Quaternary tephra coverbed. However, because we had dug the pits in spring after a lot of rain, the soil in Figure 9A had effectively been ‘caught in the act’ of short-term seasonal gleying.
In some locations, the lower subsoil horizon of the Kainui soil (in the coverbed deposits) has, as noted above, previously been designated also as an E horizon [50,51,55], with Ew(g) being an alternative to Bw(g) on the basis of colour and >2% MnO2 concretions [46]. However, although qualifying morphologically, the definition of an E horizon includes the imperative concept that the horizon has lost material “as a result of downward or lateral movement” [46] (p. 9). The same imperative is stated in ST [34] (p. 335). Has there been such movement and loss? It cannot be definitively ruled out. However, as discussed above, the lithological discontinuity beneath a notional E horizon means that it and the 2bBt(f) horizons do not form a true sequum and therefore only limited time has been available for any eluviation and illuviation to have taken place, with most or all of the clay in the 2bBt(f) being relict (discussed further below). In the case of the soil in pit A at Swallow Lane (Figure 9A), seasonal reduction, not eluviation, is responsible for the low chromas. A neat solution to the dilemma regarding E versus B horizonation for the lower subsoil of the coverbed is provided by Clayden and Hewitt [46]. They state that “Where the lower boundary is a lithological discontinuity and there is no clear evidence of an illuvial relationship with the underlying 2B[t] horizon, the notation EBw is used” (p. 11). Hence I have designated the pale horizon in pit A (Figure 9A) as an EBw(g). In addition, both this horizon and the Bw(f) horizon in pit B (Figure 9B) could be qualified further by the additional suffix ‘p’ for perched [46], giving (if we wanted to go the whole hog) an EBw(gp) in pit A and Bw(fp)1 and Bw(fp)2 in pit B.

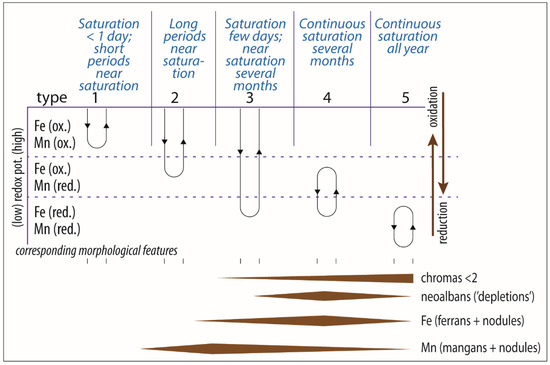

The MnO2-dominated redox segregations indicate that the soil spends long periods (several months) near saturation or is saturated for several days each year (Figure 10). These conditions, nevertheless, are not quite sufficient to push the soil into the ‘aquic’ regime of ST (cf. classification in Reference [51] p. 24).

6. The Buried Soil on the Upper Hamilton Ash Beds

Although we now understand the origins and character of the upper storey to a much better extent than before, the buried paleosol on the upper Hamilton Ash beds (the lower storey) remains enigmatic, mainly because it is so weathered and altered and hence has few remaining primary minerals. Of the entire Hamilton Ash sequence, originally defined by Ward [61] (see also [64]), only the basal unit, H1, which is known as Rangitawa Tephra, has been dated directly (Figure 3). The white, c. 0.5-m-thick Rangitawa Tephra is c. 340 ka in age. Erupted from Whakamaru Volcanic Centre (Figure 1B) as the product of a super-eruption [170], it fell late in MOI Stage 10, thereby providing a key paleoclimatic marker throughout New Zealand and beyond for this period [65,171,172,173,174,175]. Rangitawa Tephra is overlain in turn by a c. 3-m thick sequence of weathered, yellowish brown to brown to reddish brown weathered, clayey tephra beds and buried soils—the Hamilton Ash beds—that must represent MOIS 9 to 5 (Figure 3) [55]. Partly on the basis of the distinctive colour differences and other physical properties of the beds in the sequence, their clay mineral assemblages [14], and climatostratigraphic associations [20,176,177] established in King Country, Taranaki, and Whanganui regions (Figure 1B) for deposits and paleosols of similar age, the uppermost distinctive, dark reddish-brown buried soil (known also as the Tikotiko Ash or bed H6/7) [61,65], probably represents the Last Interglacial (MOIS 5e) with an age of c. 125 ka [178,179]. Following Stage 5e and subsequent interstadials (5c, 5a) and stadials (5d, 5b), marked cooling into the Last Glaciation began at c. 74 ka. Therefore, the pit-mound windthrow features (Figure 2 and Figure 3) on the paleo-surface on the upper Hamilton Ash allow an approximate minimum age of c. 74 ka to be inferred for this (paleo)surface because forest cover, almost certainly very extensive during MOIS 5e and prevalent during MOIS 5d-5a based on data in References [22,85,179,180,181], was likely reduced to remnant or refugia status in the Hamilton lowlands (central Waikato region) after c. 74 ka, with shrubland-grassland being predominant during the ensuing ‘extended’ Last Glacial Maximum in New Zealand from c. 30 to 18 ka [157,178,182,183].
Such an age for the paleo-surface could be tested in various ways: (i) using radiometric dating methods on the upper Hamilton Ash beds provided appropriate zircons could be extracted e.g., [184]; (ii) by making paleomagnetic measurements to try to identify the Pringle Falls Excursion at c. 220 ka and the Blake Excursion at c. 120 ka [185,186,187,188,189]; or (iii) by extracting quartz grains containing melt inclusions (i.e., glass) for analysis by electron microprobe as a tephrochronological compositional or ‘fingerprinting’ tool e.g., [26,69,190].
Another interesting feature of the weathered Hamilton Ash beds wherever they occur is that nowhere are any primary tephra layers (with abundant unweathered glass shards and felsic and mafic mineral grains) evident except for the basal Rangitawa Tephra (H1)—all beds are invariably clay-rich and altered [61,64,65]. Bakker et al. [17] indicated that the Naike clay (‘Naike soil’ hereafter), which is an equivalent (paleo)soil formed on Hamilton Ash that has been exhumed and which frequently occurs spatially alongside the Kainui soil [55], becomes more weathered with depth. This relationship suggests that developmental upbuilding pedogenesis has predominated in its formation (the deposition of the relatively thick Rangitawa Tephra, however, representing a retardant upbuilding event). In turn, such an origin implies that very large numbers of (thin) tephra-fall deposits make up each of the now-undifferentiated, clayey beds of the Hamilton Ash sequence (which may also contain intercalated loessic deposits at some sites: [191]). The entire sequence of Hamilton Ash beds (Figure 3) may best be envisaged therefore as a (giant) composite, welded paleosol, effectively the end stage of developmental upbuilding pedogenesis over a long period whereby the solum of each surface soil (each eventually becoming a buried paleosol) has merged with, or been superimposed on, the one beneath via soil welding [117,132,192] as the land surface has slowly risen over a period of c. 200,000 years (i.e., from c. 340 to 125 ka). The sequence represents an extreme case of polygenesis (or ‘polycyclicity’ of Reference [117]).
Another sequence, namely the Kauroa Ash beds (which are up to c. 12 m thick in western Waikato), dating from >c. 0.78 Ma to c. 2.3 Ma, continues well below the Hamilton Ash beds and basal Rangitawa Tephra [65,66,68,71]. The paleosols making up the Kauroa Ash sequence thus form an even older, extended composite or accretionary, welded paleosol that represents up to c. 1,520,000 years of developmental upbuilding pedogenesis [130] during almost the entire Early Quaternary—that is, from c. 2.3 Ma to c. 0.78 Ma.

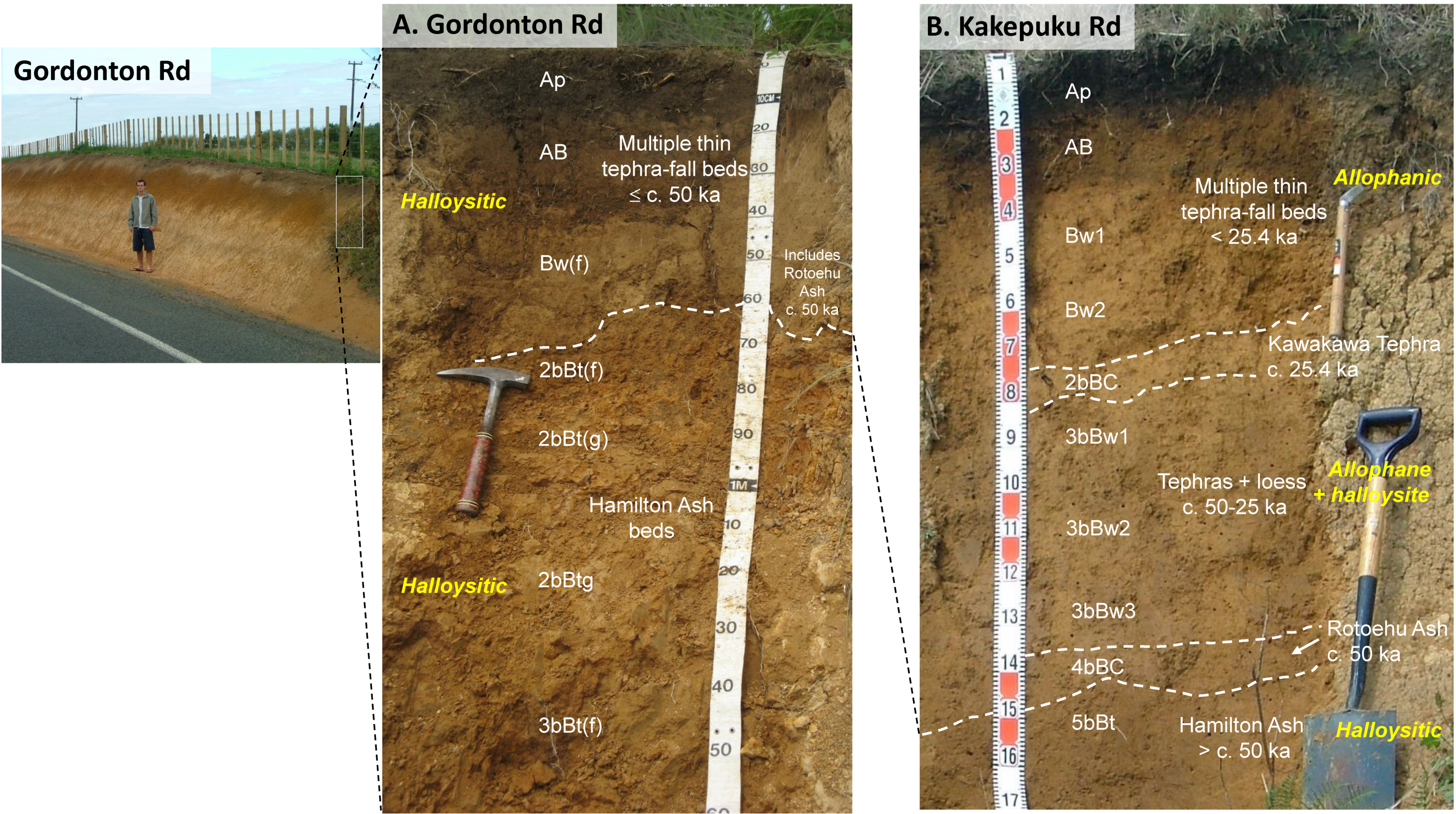

Therefore, are 1-m-deep soils, such as the Otorohanga soil (Figure 8B), formed by developmental upbuilding, destined to end up (in, say, another c. 50,000 years) as a rather homogenous-looking, welded, halloysite-rich clayey unit as seen throughout the Hamilton Ash (and Kauroa Ash) sequences? Churchman and Lowe [44] and Moon et al. [149] (indirectly) addressed this question with respect to the likely clay mineral composition by considering longer timescales of glacial and interglacial cycles in temperate volcanic landscapes not directly glacierized, as was the case for most of North Island, e.g., [154,183]. They pointed out that the marine oxygen isotope records show that cooler and drier conditions associated with glaciations persisted c. 80–90% of the time whereas warmer and wetter conditions associated with interglaciations occurred only c. 10–20% of the time. In northern New Zealand landscapes, where long sequences of tephras and associated deposits and palesosols are generally well preserved, therefore, it might be expected that soils developed from such accumulations dating back several hundreds of thousands of years to one or two millions of years, as evident in the Kauroa and Hamilton ash sequences, should be dominated by halloysite rather than allophane because a drier climate during cool or cold glacial periods favours halloysite formation [20,44], as discussed above.

Micromorphology

Clay coatings and other micromorphological features in the (now buried) paleo-argillic and paleo-kandic horizons in the weathered upper Hamilton Ash beds match those identified in the Naike soil [17]. Bakker et al. [17] wrote that the laminated character of the clay coatings in the Bt horizons of the Naike soil indicates that clay illuviation has taken place and that the fine-clay/total-clay ratios for the Naike soil are consistent with this interpretation. The clay skins, infilling pores, then led to the formation of iron (hypo) coatings [17], all of which takes time. The question then arises as to the source of the translocated clays in the 2bBt horizons in the Kainui soils because, as has been discussed, the upper late Quaternary tephra coverbed accumulated only during the past c. 50,000 years, meaning that overlying tephra/soil materials to potentially provide an eluvial source of fine clays were absent or relatively thin for much of the time, because the tephras accumulated incrementally only after c. 50 ka. Also, the upper coverbed can comprise Bw(f) and Bw(g) horizons that are pale because of seasonal gleyisation rather than because of eluviation. Could additional tephras covering the 2bBt horizons at the time of the Last Interglacial have been eroded in MOIS 4, with cooling c. 67–62 ka now known to be sufficiently severe to warrant this stadial being described by some as ‘a full glacial’ [157,178,193], and then effectively replaced during and after MOIS Stage 3 by the Rotoehu Ash and ensuing younger coverbed tephras we see today (Figure 3)?

7. Summary and Conclusions

(1)
Ultisols comprise a group of important soils with illuvial clay-enriched and moderately to strongly acid subsoils and generally low fertility on old land surfaces that have, nevertheless, been widely used globally and in northern New Zealand for productive agriculture and horticulture. The Kainui soil in the northern Hamilton lowlands and adjacent regions (in northern North Island) occurs on flattish summits, shoulders and backslopes on gently-rolling hills or terraces of an old, Mid-Quaternary paleo-landscape. It comprises a two-storeyed, tephra-derived Ultisol of Late Quaternary age with the upper part, a silt-rich coverbed c. 0.6 m in thickness on average, formed from multiple, thin, intermixed, mainly rhyolitic tephras ≤c. 50 ka, and a lower part comprising a buried clay-rich paleosol formed from much older, strongly weathered tephra (Hamilton Ash). Because the Kainui’s soil’s accumulating (composite) parent materials are diachronous, the age of the soil cannot be enunciated as a single number; rather, an age range is required.
(2)
Although much intermixing has occurred through developmental upbuilding pedogenesis (including via bioturbation), the upper part of the coverbed is inferred to comprise mainly post-20-ka tephras, numerous in number (c. 40 macroscopic beds) but relatively thin (mostly in the millimetre to centimetre range) as identified in sediments in lakes adjacent to the hills; the lower part consists chiefly of pre-20-ka tephras (in the centimetre to decimetre thickness range) including Okareka (c. 21.8 ka), Kawakawa (c. 25.4 ka), Okaia (c. 28.6 ka) (newly identified in this study), Tāhuna (c. 39.3 ka) and Rotoehu (c. 50 ka), the last easily the thickest (c. 25 cm thick) in the coverbed deposits (Figure 5). The age of the basal part of the coverbed (c. 50 ka) was derived using tephrochronology by characterising and identifying Rotoehu Ash largely via its diagnostic cummingtonite-rich ferromagnesian mineral assemblage.
(3)
The coverbed unconformably overlies the lower part, a buried clay-rich paleosol formed on strongly weathered clay-rich tephras (upper Hamilton Ash) containing relict argillans (clay skins) that probably formed in the Last Interglacial. The lower buried paleosol, >c. 50 ka in age, is otherwise not dated directly. An age of c. 125 ka (MOIS 5e) is inferred using climatostratigraphy from the physical and clay mineralogical properties of welded paleosols in the underlying c. 3-m-thick Hamilton Ash sequence together with the presence of the c. 0.5-m-thick, 340-ka Rangitawa Tephra, deposited late in MOIS 10, at the base of the sequence. The wavy to irregular surface on top of the buried paleosol represents a tree-overturn paleo-surface with an approximate minimum age estimated at c. 74 ka (the MOIS 5/4 boundary).
(4)
Both the upper and lower parts of the Kainui soil were formed by developmental upbuilding pedogenesis, providing an exemplar for this process (which is generally still not well represented in the global literature relating to soil genesis) and the key role of soil stratigraphy. The composite coverbed of tephras accumulated on the land surface at an average rate of just c. 1.2 mm/century, and each part of the ensuing soil has been an ‘A’ horizon (at the soil surface) as the land surface rose slowly. Detailed insight into the origin of the lower paleosol in Hamilton Ash is obscured by its strong alteration but this (now buried) soil is also the result of developmental upbuilding pedogenesis on the basis of micromorphological evidence for the closely related Naike soil on exhumed Hamilton Ash [17].
The entire Hamilton Ash sequence below the Kainui soil represents a composite set of clayey, welded paleosols very probably developed by upbuilding pedogenesis from MOIS 10 to 5. The basal Rangitawa Tephra is underlain unconformably by a much older tephra-derived, extremely clay-rich, welded paleosol sequence on Kauroa Ash beds >c. 0.78 Ma in age.
(5)
The clay mineral assemblages of both upper and lower parts of the Kainui soil are dominated by halloysite of the kaolin subgroup. The formation of halloysite rather than allophane in the relatively ‘young’ (≤c. 50 ka) coverbed tephras (Figure 8A) is the result of limited desilication (consistent with the Si-leaching model) as a consequence of various factors including the presence of the slowly-permeable paleosol on Hamilton Ash at shallow depths ≤c. 0.8 m (slowing the downward movement of water and hence reducing the loss of Si in soil solution), the dominance of silica-rich rhyolitic tephras in the coverbed, not-infrequent soil moisture deficits extending over several months of the year, and the formation of much of the soil during MOIS 3 and 2 when rainfall was generally lower than today’s. The resultant soils are invariably Ultisols.
(6)
At sites in the southern Hamilton lowlands and further south in Waipa District where the greater accumulative thickness of the composite coverbed tephras (≤c. 50 ka) readily exceeds the c. 0.8 m threshold (Figure 1A), such as at Kakepuku Road (Figure 8B), the greater depth to the underlying paleosol on Hamilton Ash (at c. 1.5 m) provides more ‘room’ for sufficient desilication to enable Al-rich allophane, not halloysite, to form in the upper soil above c. 0.9 m depth (Figure 8B). Below 0.9 m or so, marked by the c. 25.4-ka Kawakawa Tephra, mainly halloysite with some allophane was formed during the time of tephra (and minor tephric loess) accretion during MOIS 3–2 [18]. The modern Otorohanga soil is therefore an Andisol (one of the oldest in the world, taking the entire profile, c. 1 to 2 m deep, into account) [110]. The synthesis of allophane in the southern locations is enhanced by a higher average rainfall (increasing throughflow in the soil) and by the greater relative proportion of Al-rich andesitic tephras intermixed with the nonetheless predominantly rhyolitic tephras that make up the composite soil parent materials.
(7)
The Kainui soil has been characterized previously as having an eluvial and illuvial couplet, namely a pale E horizon over a (translocated clay-enriched) Bt (argillic/kandic) horizon, forming a sequum. However, the soil stratigraphic evidence shows that the Bt horizon is a buried soil, hence is classed as a 2bBt horizon, with the upper boundary representing a lithologic discontinuity or unconformity. Therefore the sequum is illusory because the E and (2b)Bt horizons are (largely) not connected genetically and are some tens of thousands of years apart in age. Most if not all of the clay skins in the 2bBt horizon are relict. Hence, the designation of an E horizon may be morphologically correct but genetically less so; the compromise designation as an EBw horizon, as suggested by Clayden and Hewitt [46] in situations where a lithologic discontinuity occurs, is appropriate.
(8)
The revelation of contemporary perched gleying, forming an EBw(g) horizon in the lower part of the coverbed of the Kainui soil, in early spring after a wet winter at a favourable landscape position (Figure 9A), explains the ubiquitous occurrence of >2% redox segregations (mainly MnO2 concretions and mangans) in this juxtaposition in the Kainui soils. The relative abundance of low chroma colours is not quite sufficient for the gleyed horizon to qualify as having aquic conditions in ST (although such status would be expected to occur where the right conditions prevail).
(9)
The Kainui soil at Gordonton Road and similar sites qualifies as a Typic Kandiudult in ST and, uniquely, as a Buried-granular Yellow Ultic Soil in NZSC, being the only soil in this taxonomic category in New Zealand.
(10)
These conclusions above have arisen primarily through a multipronged approach based on synthesising tephrostratigraphy (of both subaerial/dryland and lacustrine deposits), tephrochronology (as a correlational and dating tool), pedology (including soil morphology, genesis and classification), paleopedology and soil stratigraphy, together with primary and secondary (clay) mineralogy. These tools have been essential in helping to elucidate the origin, age and classification of the special Kainui soil, as I hope has been demonstrated.
