# Microstructural Analysis of the Transverse and Shear Behavior of Additively Manufactured CFRP Composite RVEs Based on the Phase-Field Fracture Theory

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

_{2}/0/90

_{2}]

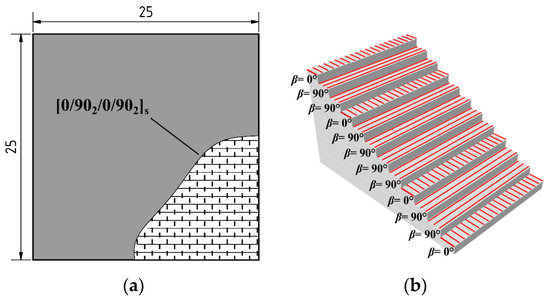

_{s}, as shown in Figure 1, and additively manufactured using a Markforged X7 3D printer. This LSS was adopted after a preliminary microstructural examination of similar AM composites. A similar LSS is used in acquiring the multiaxial response through uniaxial tensile tests on rectangular specimens [83], which was also studied in [14]. This sequence also enables the measurements of unidirectionally reinforced layer composition and gives a better insight into laminar dimensions, layer-wise defect accumulation, and repeatability issues between single, double, and multiple adjacent layers. However, these specimens did not account for the lengthwise defect accumulation due to uneven material solidification.

_{1C}was adopted for polyamide according to [88] and recalculated to acquire the G

_{C}values. In contrast to the fiber and the matrix, the values for the interface properties were assumed and calibrated according to the experimentally observed material behavior.

## 3. Results

#### 3.1. Microstructural Inspection

#### 3.2. Experimental Acquisition of Lamina Properties

#### 3.3. RVE Design

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Reprints

## Conflicts of Interest

## Appendix A

**u**, under the assumption of small strain sand isothermal conditions, as shown in Equation (A1) [46,80,89].

**T**is defined for the outward unit normal

**n**at boundary $\partial \Omega $, and it is work-conjugate to the displacements

**u**[46,80,89]. The work-conjugate to the phase field $\varphi $ is given by $\omega $, while $\mathit{\xi}$ is the micro-stress vector, a work-conjugate to the $\nabla \varphi $, as the virtual quantity is given by $\delta $ [46,80,89].

- Define the user material with five material properties including the Young’s modulus $E$, Poisson’s ratio $\nu $, phase field length scale $l$, fracture toughness ${G}_{c}$, and the tensile strength ${f}_{t}$ which is applicable for the phase field cohesive zone models, while otherwise neglected
- Set a solution-dependent state variable (SDV)
- Define the material conductivity equal to one
- State the analysis step as coupled temperature-displacement with steady-state or transient options, a constant increment size, a separated solution technique, and symmetric equation solver matrix storage
- Change the values of the solution controls parameters ${I}_{0},{I}_{\mathrm{R}},{I}_{\mathrm{P}},{I}_{\mathrm{C}},{I}_{\mathrm{L}},\mathrm{and}{I}_{\mathrm{G}}$ to 5000, to avoid convergence problems due to large number of iterations
- Define the initial temperature condition equal to zero to describe the undamaged material in the initial step
- Adopt the element type as coupled temperature–displacement

## References

- Alghamdi, S.S.; John, S.; Choudhury, N.R.; Dutta, N.K. Additive Manufacturing of Polymer Materials: Progress, Promise and Challenges. Polymers
**2021**, 13, 753. [Google Scholar] [CrossRef] - Ferreira, I.; Machado, M.; Alves, F.; Torres Marques, A. A Review on Fibre Reinforced Composite Printing via FFF. Rapid Prototyp. J.
**2019**, 25, 972–988. [Google Scholar] [CrossRef] - Ngo, T.D.; Kashani, A.; Imbalzano, G.; Nguyen, K.T.Q.; Hui, D. Additive Manufacturing (3D Printing): A Review of Materials, Methods, Applications and Challenges. Compos. Part B
**2018**, 143, 172–196. [Google Scholar] [CrossRef] - van de Werken, N.; Tekinalp, H.; Khanbolouki, P.; Ozcan, S.; Williams, A.; Tehrani, M. Additively Manufactured Carbon Fiber-Reinforced Composites: State of the Art and Perspective. Addit. Manuf.
**2020**, 31, 100962. [Google Scholar] [CrossRef] - van de Werken, N. Additively Manufactured Continuous Carbon Fiber Thermoplastic Composites for High-Performance Applications. Doctoral Dissertation, The University of New Mexico, Albuquerque, NM, USA, 2019. [Google Scholar]
- Karaş, B.; Smith, P.J.; Fairclough, J.P.A.; Mumtaz, K. Additive Manufacturing of High Density Carbon Fibre Reinforced Polymer Composites. Addit. Manuf.
**2022**, 58, 103044. [Google Scholar] [CrossRef] - Rengier, F.; Mehndiratta, A.; Von Tengg-Kobligk, H.; Zechmann, C.M.; Unterhinninghofen, R.; Kauczor, H.U.; Giesel, F.L. 3D Printing Based on Imaging Data: Review of Medical Applications. Int. J. Comput. Assist. Radiol. Surg.
**2010**, 5, 335–341. [Google Scholar] [CrossRef] - Schubert, C.; Van Langeveld, M.C.; Donoso, L.A. Innovations in 3D Printing: A 3D Overview from Optics to Organs. Br. J. Ophthalmol.
**2014**, 98, 159–161. [Google Scholar] [CrossRef] - Diegel, O.; Nordin, A.; Motte, D. Additive Manufacturing Technologies; Springer: Berlin/Heidelberg, Germany, 2019; ISBN 9781493921126. [Google Scholar]
- Abazari, S.; Shamsipur, A.; Bakhsheshi-Rad, H.R.; Ismail, A.F. Carbon Nanotubes (CNTs)-Reinforced Magnesium-Based Matrix Composites: A Comprehensive Review. J. Higher Educ.
**2020**, 13, 38. [Google Scholar] [CrossRef] - Abazari, S.; Shamsipur, A.; Bakhsheshi-Rad, H.R.; Ramakrishna, S.; Berto, F. Graphene Family Nanomaterial Reinforced Magnesium-Based Matrix Composites for Biomedical Application: A Comprehensive Review. Metals
**2020**, 10, 1002. [Google Scholar] [CrossRef] - Monfared, V.; Bakhsheshi-Rad, H.R.; Ramakrishna, S.; Razzaghi, M.; Berto, F. A Brief Review on Additive Manufacturing of Polymeric Composites and Nanocomposites. Micromachines
**2021**, 12, 24. [Google Scholar] [CrossRef] - Gljušćić, M.; Franulović, M.; Lanc, D.; Žerovnik, A. Representative Volume Element for Microscale Analysis of Additively Manufactured Composites. Addit. Manuf.
**2022**, 56, 102902. [Google Scholar] [CrossRef] - Gljušćić, M.; Franulović, M.; Žužek, B.; Žerovnik, A. Experimental Validation of Progressive Damage Modeling in Additively Manufactured Continuous Fiber Composites. Compos. Struct.
**2022**, 295, 115869. [Google Scholar] [CrossRef] - Iragi, M.; Pascual-González, C.; Esnaola, A.; Lopes, C.S.; Aretxabaleta, L. Ply and Interlaminar Behaviours of 3D Printed Continuous Carbon Fibre-Reinforced Thermoplastic Laminates; Effects of Processing Conditions and Microstructure. Addit. Manuf.
**2019**, 30, 100884. [Google Scholar] [CrossRef] [Green Version] - Carlota, V. Essentium’s Latest Survey: What Is the Future of Industrial 3D Printing? Available online: https://www.3dnatives.com/en/essentium-190320195/ (accessed on 15 October 2022).
- Gide, K.M.; Islam, S.; Bagheri, Z.S. Polymer-Based Materials Built with Additive Manufacturing Methods for Orthopedic Applications: A Review. J. Compos. Sci.
**2022**, 6, 262. [Google Scholar] [CrossRef] - Deeba, F.; Shrivastava, K.; Bafna, M.; Jain, A. Tuning of Dielectric Properties of Polymers by Composite Formation: The Effect of Inorganic Fillers Addition. J. Compos. Sci.
**2022**, 6, 355. [Google Scholar] [CrossRef] - Tran, C.C.; Nguyen, Q.K. An Efficient Method to Determine the Thermal Behavior of Composite Material with Loading High Thermal Conductivity Fillers. J. Compos. Sci.
**2022**, 6, 214. [Google Scholar] [CrossRef] - Kabir, S.M.F.; Mathur, K.; Seyam, A.F.M. Maximizing the Performance of 3d Printed Fiber-Reinforced Composites. J. Compos. Sci.
**2021**, 5, 136. [Google Scholar] [CrossRef] - Melenka, G.W.; Cheung, B.K.O.; Schofield, J.S.; Dawson, M.R.; Carey, J.P. Evaluation and Prediction of the Tensile Properties of Continuous Fiber-Reinforced 3D Printed Structures. Compos. Struct.
**2016**, 153, 866–875. [Google Scholar] [CrossRef] - He, Q.; Wang, H.; Fu, K.; Ye, L. 3D Printed Continuous CF/PA6 Composites: Effect of Microscopic Voids on Mechanical Performance. Compos. Sci. Technol.
**2020**, 191, 108077. [Google Scholar] [CrossRef] - Baechle-Clayton, M.; Loos, E.; Taheri, M.; Taheri, H. Failures and Flaws in Fused Deposition Modeling (FDM) Additively Manufactured Polymers and Composites. J. Compos. Sci.
**2022**, 6, 202. [Google Scholar] [CrossRef] - Suquet, P. Continuum Micromechanics; Kaliszky, S., Sayir, M., Schneider, W., Bianchi, G., Tasso, C., Eds.; Springer: Berlin/Heidelberg, Germany, 1997; ISBN 9783211829028. [Google Scholar]
- Michel, J.C.; Moulinec, H.; Suquet, P. Effective Properties of Composite Materials with Periodic Microstructure: A Computational Approach. Comput. Methods Appl. Mech. Eng.
**1999**, 172, 109–143. [Google Scholar] [CrossRef] - Rémond, Y.; Ahzi, S. Applied RVE Reconstruction and Homogenization of Heterogeneous Materials; John Wiley & Sons: Hoboken, NJ, USA, 2016; ISBN 9781848219014. [Google Scholar]
- Soutis, C.; Beaumont, P.W.R. Multi-Scale Modelling of Composite Material Systems: The Art of Predictive Damage Modelling; Woodhead Publishing Limited: Sawston, UK; CRC Press LLC: Boca Raton, FL, USA, 2005; Volume 3, ISBN 978-1-85573-936-9. [Google Scholar]
- Múgica, J.I.; Lopes, C.S.; Naya, F.; Herráez, M.; Martínez, V.; González, C. Multiscale Modelling of Thermoplastic Woven Fabric Composites: From Micromechanics to Mesomechanics. Compos. Struct.
**2019**, 228, 111340. [Google Scholar] [CrossRef] [Green Version] - Riaño, L.; Joliff, Y. An ABAQUS
^{TM}Plug-in for the Geometry Generation of Representative Volume Elements with Randomly Distributed Fibers and Interphases. Compos. Struct.**2019**, 209, 644–651. [Google Scholar] [CrossRef] - Raju, B.; Hiremath, S.R.; Roy Mahapatra, D. A Review of Micromechanics Based Models for Effective Elastic Properties of Reinforced Polymer Matrix Composites. Compos. Struct.
**2018**, 204, 607–619. [Google Scholar] [CrossRef] - Omairey, S.L.; Dunning, P.D.; Sriramula, S. Development of an ABAQUS Plugin Tool for Periodic RVE Homogenisation. Eng. Comput.
**2019**, 35, 567–577. [Google Scholar] [CrossRef] [Green Version] - Akpoyomare, A.I.; Okereke, M.I.; Bingley, M.S. Virtual Testing of Composites: Imposing Periodic Boundary Conditions on General Finite Element Meshes. Compos. Struct.
**2017**, 160, 983–994. [Google Scholar] [CrossRef] - Okereke, M.I.; Akpoyomare, A.I. A Virtual Framework for Prediction of Full-Field Elastic Response of Unidirectional Composites. Comput. Mater. Sci.
**2013**, 70, 82–99. [Google Scholar] [CrossRef] - Kempesis, D.; Iannucci, L.; Ramesh, K.T.; Del Rosso, S.; Curtis, P.T.; Pope, D.; Duke, P.W. Micromechanical Analysis of High Fibre Volume Fraction Polymeric Laminates Using Micrograph-Based Representative Volume Element Models. Compos. Sci. Technol.
**2022**, 229, 109680. [Google Scholar] [CrossRef] - Schindelin, J.; Arganda-Carreras, I.; Frise, E.; Kaynig, V.; Longair, M.; Pietzsch, T.; Preibisch, S.; Rueden, C.; Saalfeld, S.; Schmid, B.; et al. Fiji: An Open-Source Platform for Biological-Image Analysis. Nat. Methods
**2012**, 9, 676–682. [Google Scholar] [CrossRef] [Green Version] - Breite, C.; Melnikov, A.; Turon, A.; de Morais, A.B.; Le Bourlot, C.; Maire, E.; Schöberl, E.; Otero, F.; Mesquita, F.; Sinclair, I.; et al. Detailed Experimental Validation and Benchmarking of Six Models for Longitudinal Tensile Failure of Unidirectional Composites. Compos. Struct.
**2022**, 279, 114828. [Google Scholar] [CrossRef] - Liu, Y.; Straumit, I.; Vasiukov, D.; Lomov, S.V.; Panier, S. Multi-Scale Material Model for 3D Composite Using Micro CT Images Geometry Reconstruction. In Proceedings of the 7th European Conference on Composite Materials (ECCM), Munich, Germany, 26–30 June 2016. [Google Scholar]
- Straumit, I.; Lomov, S.V.; Wevers, M. Quantification of the Internal Structure and Automatic Generation of Voxel Models of Textile Composites from X-Ray Computed Tomography Data. Compos. Part A Appl. Sci. Manuf.
**2015**, 69, 150–158. [Google Scholar] [CrossRef] - Dean, A.; Asur Vijaya Kumar, P.K.; Reinoso, J.; Gerendt, C.; Paggi, M.; Mahdi, E.; Rolfes, R. A Multi Phase-Field Fracture Model for Long Fiber Reinforced Composites Based on the Puck Theory of Failure. Compos. Struct.
**2020**, 251, 112446. [Google Scholar] [CrossRef] - Guillén-Hernández, T.; García, I.G.; Reinoso, J.; Paggi, M. A Micromechanical Analysis of Inter-Fiber Failure in Long Reinforced Composites Based on the Phase Field Approach of Fracture Combined with the Cohesive Zone Model. Int. J. Fract.
**2019**, 220, 181–203. [Google Scholar] [CrossRef] - Tan, W.; Martínez-Pañeda, E. Phase Field Fracture Predictions of Microscopic Bridging Behaviour of Composite Materials. Compos. Struct.
**2022**, 286, 115242. [Google Scholar] [CrossRef] - Griffith, A.A., VI. The phenomena of rupture and flow in solids. Philos. Trans. R. Soc. Lond.
**1921**, 221, 163–198. [Google Scholar] [CrossRef] [Green Version] - Biner, S.B. Programming Phase-Field Modeling; Springer: Cham, Switzerland, 2017; ISBN 9783319411965. [Google Scholar]
- Francfort, G.A.; Marigo, J.J. Revisiting Brittle Fracture as an Energy Minimization Problem. J. Mech. Phys. Solids
**1998**, 46, 1319–1342. [Google Scholar] [CrossRef] - Bourdin, B.; Francfort, G.A.; Marigo, J. Numerical Experiments in Revisited Brittle Fracture. J. Mech. Phys. Solids
**2000**, 48, 797–826. [Google Scholar] [CrossRef] - Navidtehrani, Y.; Betegón, C.; Martínez-Pañeda, E. A Unified Abaqus Implementation of the Phase Field Fracture Method Using Only a User Material Subroutine. Materials
**2021**, 14, 1913. [Google Scholar] [CrossRef] - Tourret, D.; Liu, H.; LLorca, J. Phase-Field Modeling of Microstructure Evolution: Recent Applications, Perspectives and Challenges. Prog. Mater. Sci.
**2022**, 123, 100810. [Google Scholar] [CrossRef] - Egger, A.; Pillai, U.; Agathos, K.; Kakouris, E.; Chatzi, E.; Aschroft, I.A.; Triantafyllou, S.P. Discrete and Phase Field Methods for Linear Elastic Fracture Mechanics: A Comparative Study and State-of-the-Art Review. Appl. Sci
**2019**, 9, 2436. [Google Scholar] [CrossRef] - Wu, J.; Huang, Y. Comprehensive Implementations of Phase-Field Damage Models in Abaqus. Theor. Appl. Fract. Mech.
**2020**, 106, 102440. [Google Scholar] [CrossRef] - Simoes, M.; Martínez-pañeda, E. Phase Field Modelling of Fracture and Fatigue in Shape Memory Alloys. Comput. Methods Appl. Mech. Eng.
**2021**, 373, 113504. [Google Scholar] [CrossRef] - Natarajan, S.; Annabattula, R.K.; Martínez-pañeda, E. Phase Field Modelling of Crack Propagation in Functionally Graded Materials. Compos. Part B
**2019**, 169, 239–248. [Google Scholar] [CrossRef] [Green Version] - Asur Vijaya Kumar, P.K.; Dean, A.; Reinoso, J.; Lenarda, P.; Paggi, M. Phase Field Modeling of Fracture in Functionally Graded Materials: Γ-Convergence and Mechanical Insight on the Effect of Grading. Thin-Walled Struct.
**2021**, 159, 107234. [Google Scholar] [CrossRef] - Miehe, C.; Schänzel, L. Phase Field Modeling of Fracture in Rubbery Polymers. Part I: Finite Elasticity Coupled with Brittle Failure. J. Mech. Phys. Solids
**2014**, 65, 93–113. [Google Scholar] [CrossRef] - Loew, P.J.; Peters, B.; Beex, L.A.A. Rate-Dependent Phase-Field Damage Modeling of Rubber and Its Experimental Parameter Identification. J. Mech. Phys. Solids
**2019**, 127, 266–294. [Google Scholar] [CrossRef] [Green Version] - Zhou, S.; Zhuang, X.; Rabczuk, T. Phase Field Modeling of Brittle Compressive-Shear Fractures in Rock-like Materials: A New Driving Force and a Hybrid Formulation. Comput. Methods Appl. Mech. Eng.
**2019**, 355, 729–752. [Google Scholar] [CrossRef] - Schuler, L.; Ilgen, A.G.; Newell, P. Chemo-Mechanical Phase-Field Modeling of Dissolution-Assisted Fracture. Comput. Methods Appl. Mech. Eng.
**2020**, 362, 112838. [Google Scholar] [CrossRef] - Kristensen, P.K.; Martínez-pañeda, E.; Engineering, M.; Lyngby, D.-K. Phase Field Fracture Modelling Using Quasi-Newton Methods and a New Adaptive Step Scheme. Theor. Appl. Fract. Mech.
**2020**, 107, 102446. [Google Scholar] [CrossRef] [Green Version] - Abdollahi, A.; Arias, I. Phase-Field Modeling of Crack Propagation in Piezoelectric and Ferroelectric Materials with Different Electromechanical Crack Conditions. J. Mech. Phys. Solids
**2012**, 60, 2100–2126. [Google Scholar] [CrossRef] - Pillai, U. Damage Modelling in Fibre-Reinforced Composite Laminates Using Phase Field Approach. Doctoral Dissertation, University of Nottingham, Nottingham, UK, 2021. [Google Scholar]
- Quintanas-corominas, A.; Reinoso, J.; Casoni, E.; Turon, A.; Mayugo, J.A. A Phase Field Approach to Simulate Intralaminar and Translaminar Fracture in Long Fiber Composite Materials. Compos. Struct.
**2019**, 220, 899–911. [Google Scholar] [CrossRef] - Ahmadi, M. A Hybrid Phase Field Model for Fracture Induced by Lithium Diffusion in Electrode Particles of Li-Ion Batteries. Comput. Mater. Sci.
**2020**, 184, 109879. [Google Scholar] [CrossRef] - Nguyen, T.T.; Yvonnet, J.; Zhu, Q.Z.; Bornert, M.; Chateau, C. A Phase Field Method to Simulate Crack Nucleation and Propagation in Strongly Heterogeneous Materials from Direct Imaging of Their Microstructure. Eng. Fract. Mech.
**2015**, 139, 18–39. [Google Scholar] [CrossRef] - Goswami, S.; Anitescu, C.; Rabczuk, T. Adaptive Phase Field Analysis with Dual Hierarchical Meshes for Brittle Fracture. Eng. Fract. Mech.
**2019**, 218, 106608. [Google Scholar] [CrossRef] - Goswami, S.; Anitescu, C.; Rabczuk, T. Adaptive Fourth-Order Phase Field Analysis Using Deep Energy Minimization. Theor. Appl. Fract. Mech.
**2020**, 107, 102527. [Google Scholar] [CrossRef] - Huynh, G.D.; Zhuang, X.; Nguyen-Xuan, H. Implementation Aspects of a Phase-Field Approach for Brittle Fracture. Front. Struct. Civ. Eng.
**2019**, 13, 417–428. [Google Scholar] [CrossRef] - Msekh, M.A.; Sargado, J.M.; Jamshidian, M.; Areias, P.M.; Rabczuk, T. Abaqus Implementation of Phase-Field Model for Brittle Fracture. Comput. Mater. Sci.
**2015**, 96, 472–484. [Google Scholar] [CrossRef] - Liu, G.; Li, Q.; Msekh, M.A.; Zuo, Z. Abaqus Implementation of Monolithic and Staggered Schemes for Quasi-Static and Dynamic Fracture Phase-Field Model. Comput. Mater. Sci.
**2016**, 121, 35–47. [Google Scholar] [CrossRef] - Molnár, G.; Gravouil, A. 2D and 3D Abaqus Implementation of a Robust Staggered Phase-Field Solution for Modeling Brittle Fracture. Finite Elem. Anal. Des.
**2017**, 130, 27–38. [Google Scholar] [CrossRef] [Green Version] - Pillai, U.; Heider, Y.; Markert, B. A Diffusive Dynamic Brittle Fracture Model for Heterogeneous Solids and Porous Materials with Implementation Using a User-Element Subroutine. Comput. Mater. Sci.
**2018**, 153, 36–47. [Google Scholar] [CrossRef] - Bhowmick, S.; Liu, G.R. A Phase-Field Modeling for Brittle Fracture and Crack Propagation Based on the Cell-Based Smoothed Finite Element Method. Eng. Fract. Mech.
**2018**, 204, 369–387. [Google Scholar] [CrossRef] - Seleš, K.; Lesičar, T.; Tonković, Z.; Sorić, J. A Residual Control Staggered Solution Scheme for the Phase-Field Modeling of Brittle Fracture. Eng. Fract. Mech.
**2019**, 205, 370–386. [Google Scholar] [CrossRef] - Zhou, S.; Rabczuk, T.; Zhuang, X. Phase Field Modeling of Quasi-Static and Dynamic Crack Propagation: COMSOL Implementation and Case Studies. Adv. Eng. Softw.
**2018**, 122, 31–49. [Google Scholar] [CrossRef] [Green Version] - Pham, K.; Amor, H.; Marigo, J.J.; Maurini, C. Gradient Damage Models and Their Use to Approximate Brittle Fracture. Int. J. Damage Mech.
**2011**, 20, 618–652. [Google Scholar] [CrossRef] [Green Version] - Wu, J.Y. A Unified Phase-Field Theory for the Mechanics of Damage and Quasi-Brittle Failure. J. Mech. Phys. Solids
**2017**, 103, 72–99. [Google Scholar] [CrossRef] - Wu, J.Y. A Geometrically Regularized Gradient-Damage Model with Energetic Equivalence. Comput. Methods Appl. Mech. Eng.
**2018**, 328, 612–637. [Google Scholar] [CrossRef] - Wu, J.Y.; Nguyen, V.P. A Length Scale Insensitive Phase-Field Damage Model for Brittle Fracture. J. Mech. Phys. Solids
**2018**, 119, 20–42. [Google Scholar] [CrossRef] - Zhang, P.; Hu, X.; Wang, X.; Yao, W. An Iteration Scheme for Phase Field Model for Cohesive Fracture and Its Implementation in Abaqus. Eng. Fract. Mech.
**2018**, 204, 268–287. [Google Scholar] [CrossRef] - Miehe, C.; Hofacker, M.; Welschinger, F. A Phase Field Model for Rate-Independent Crack Propagation: Robust Algorithmic Implementation Based on Operator Splits. Comput. Methods Appl. Mech. Eng.
**2010**, 199, 2765–2778. [Google Scholar] [CrossRef] - Gerasimov, T.; De Lorenzis, L. A Line Search Assisted Monolithic Approach for Phase-Field Computing of Brittle Fracture. Comput. Methods Appl. Mech. Eng.
**2016**, 312, 276–303. [Google Scholar] [CrossRef] - Navidtehrani, Y.; Betegón, C.; Martínez-Pañeda, E. A Simple and Robust Abaqus Implementation of the Phase Field Fracture Method. Appl. Eng. Sci.
**2021**, 6, 100050. [Google Scholar] [CrossRef] - Gljušćić, M. Multiscale Modelling of Additively Manufactured Composite Material Behaviour. Doctoral Dissertation, University of Rijeka, Rijeka, Croatia, 2022. [Google Scholar]
- Iragi, M.; Pascual-Gonzalez, C.; Esnaola, A.; Aurrekoetxea, J.; Lopes, C.S.; Aretxabaleta, L. Characterization of Elastic and Resistance Behaviours of 3D Printed Continuous Carbon Fibre Reinforced Thermoplastics. In Proceedings of the ECCM18—18th European Conference on Composite Materials, Athens, Greece, 24–28 June 2018; pp. 24–28. [Google Scholar]
- Carraro, P.A.; Quaresimin, M. A Stiffness Degradation Model for Cracked Multidirectional Laminates with Cracks in Multiple Layers. Int. J. Solids Struct.
**2014**, 58, 34–51. [Google Scholar] [CrossRef] - Okereke, M.; Keates, S. Finite Element Applications: A Practical Guide to the FEM Process; Seung-Bok, C., Habinin, D., Fu, Y., Guardiola, C., Sun, J.-Q., Eds.; Springer International Publishing: Cham, Switzerland, 2018; ISBN 978-3-319-67124-6. [Google Scholar]
- Pascual-González, C.; Iragi, M.; Fernández, A.; Fernández-Blázquez, J.P.; Aretxabaleta, L.; Lopes, C.S. An Approach to Analyse the Factors behind the Micromechanical Response of 3D-Printed Composites. Compos. Part B Eng.
**2020**, 186, 107820. [Google Scholar] [CrossRef] - VDI/VDE 2479; Materials for Precision Engineering; Polyamide Moulding Materials Unreinforced. VDI-Verlag GmbH: Dusseldorf, Germany, 1978; Volume 1.
- MarkForged. Material Datasheet Composites; Markforged: Watertown, MA, USA, 2018. [Google Scholar]
- Nabavi, A.; Goroshin, S.; Frost, D.L.; Barthelat, F. Mechanical Properties of Chromium–Chromium Sulfide Cermets Fabricated by Self-Propagating High-Temperature Synthesis. J. Mater. Sci.
**2015**, 50, 3434–3446. [Google Scholar] [CrossRef] - Navidtehrani, Y.; Martinez-Paneda, E. A Simple yet General ABAQUS Phase Field Fracture Implementation Using a UMAT Subroutine. Eng. Sci.
**2021**, 6, 100050. [Google Scholar] - Ambati, M.; Gerasimov, T.; De Lorenzis, L. A Review on Phase-Field Models of Brittle Fracture and a New Fast Hybrid Formulation. Comput. Mech.
**2015**, 55, 383–405. [Google Scholar] [CrossRef] - Amor, H.; Marigo, J.J.; Maurini, C. Regularized Formulation of the Variational Brittle Fracture with Unilateral Contact: Numerical Experiments. J. Mech. Phys. Solids
**2009**, 57, 1209–1229. [Google Scholar] [CrossRef] - ASTM D3039/D3039M-17; Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials. ASTM International: West Conshohocken, PA, USA, 2017.
- ASTM D3518/D3518M; 18 Standard Test Method for In-Plane Shear Response of Polymer Matrix Composite Materials by Tensile Test of a +/−45° Laminate. ASTM International: West Conshohocken, PA, USA, 2001; pp. 1–7.

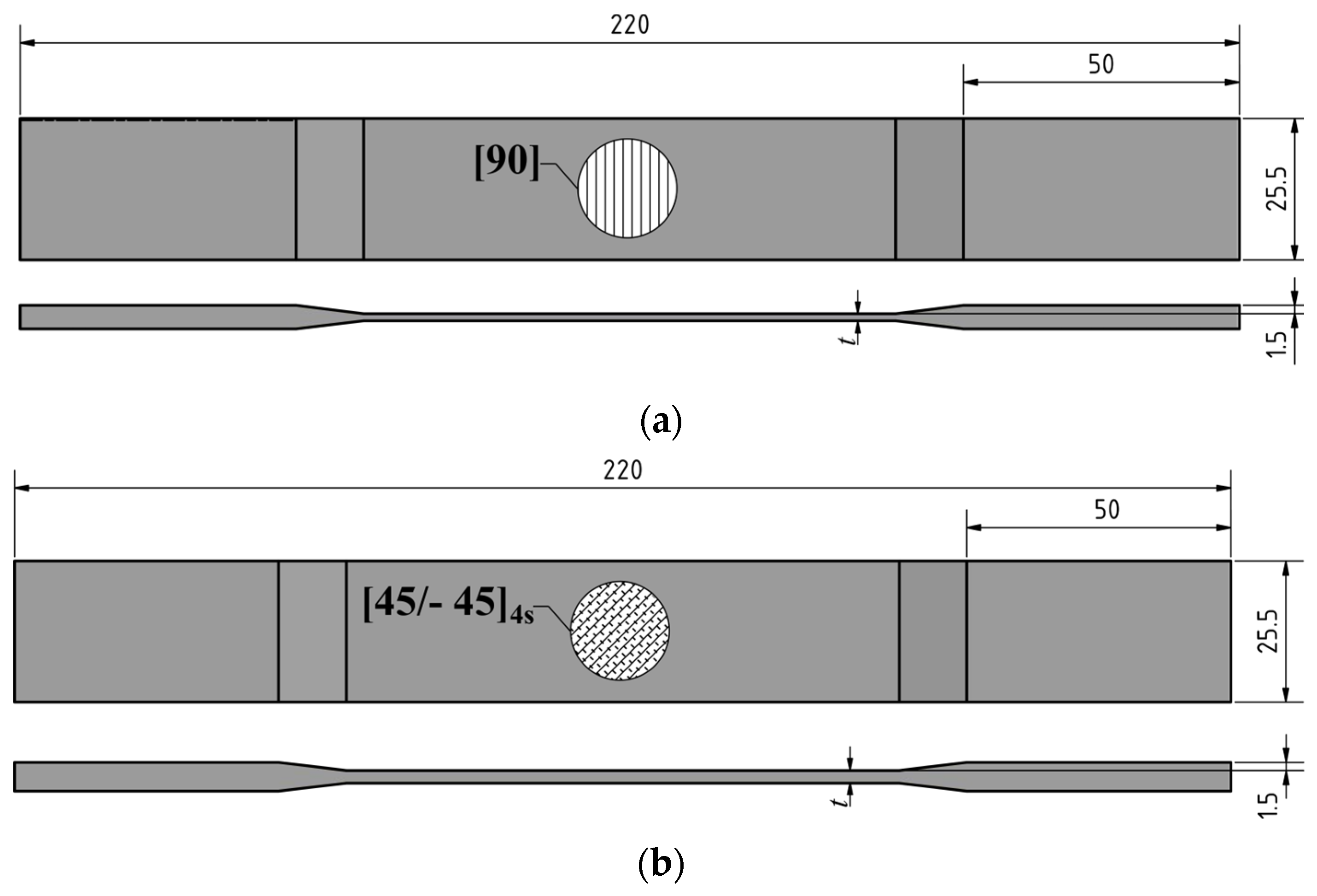

**Figure 2.**CAE dimensions: (

**a**) UD-90 specimen dimensions, and (

**b**) SH-45 specimen dimensions; recreated according to [81].

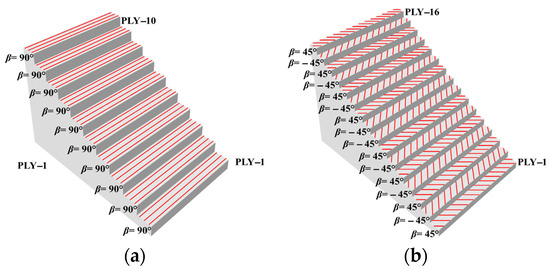

**Figure 3.**(

**a**) Layer stacking sequence for the UD-90 set, and (

**b**) layer stacking sequence for the SH-45 set; recreated according to [81].

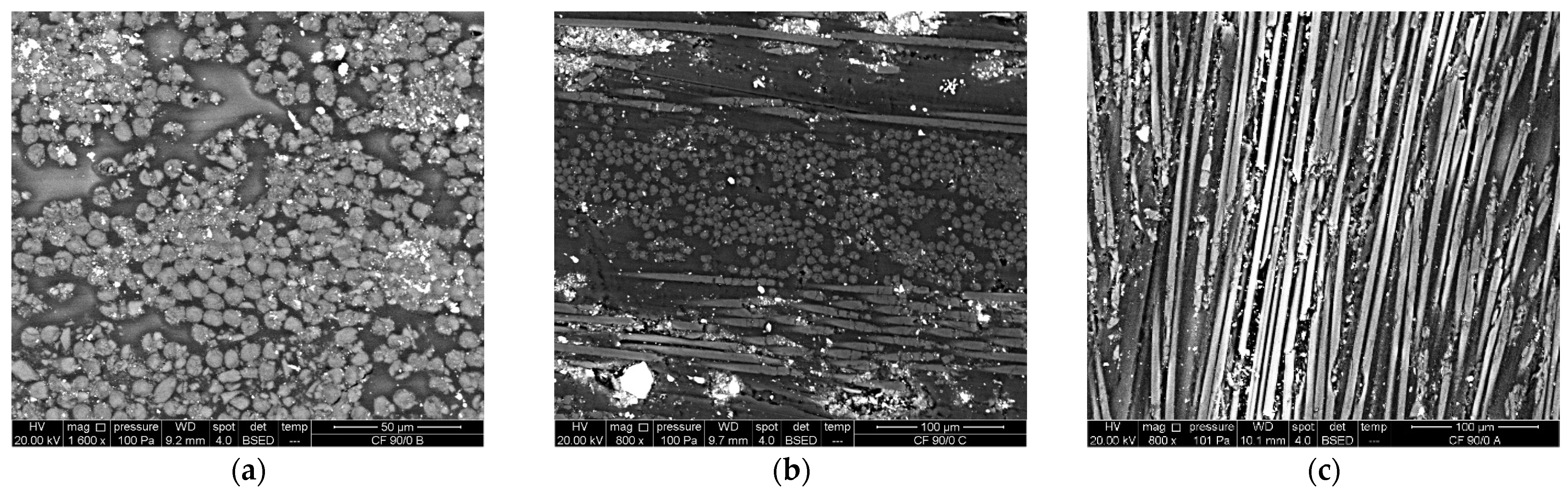

**Figure 4.**CFRP SEM images: (

**a**) y-z cross-section 1600× magnification, (

**b**) x-z cross-section 800× magnification, and (

**c**) x-y cross-section 800× magnification.

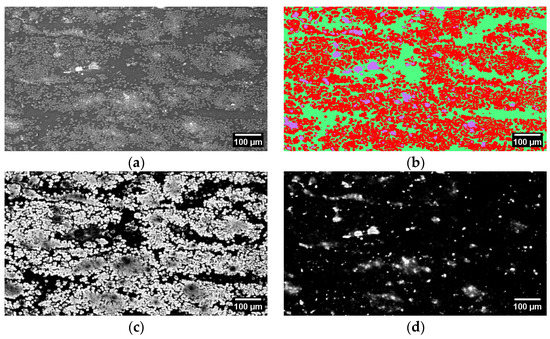

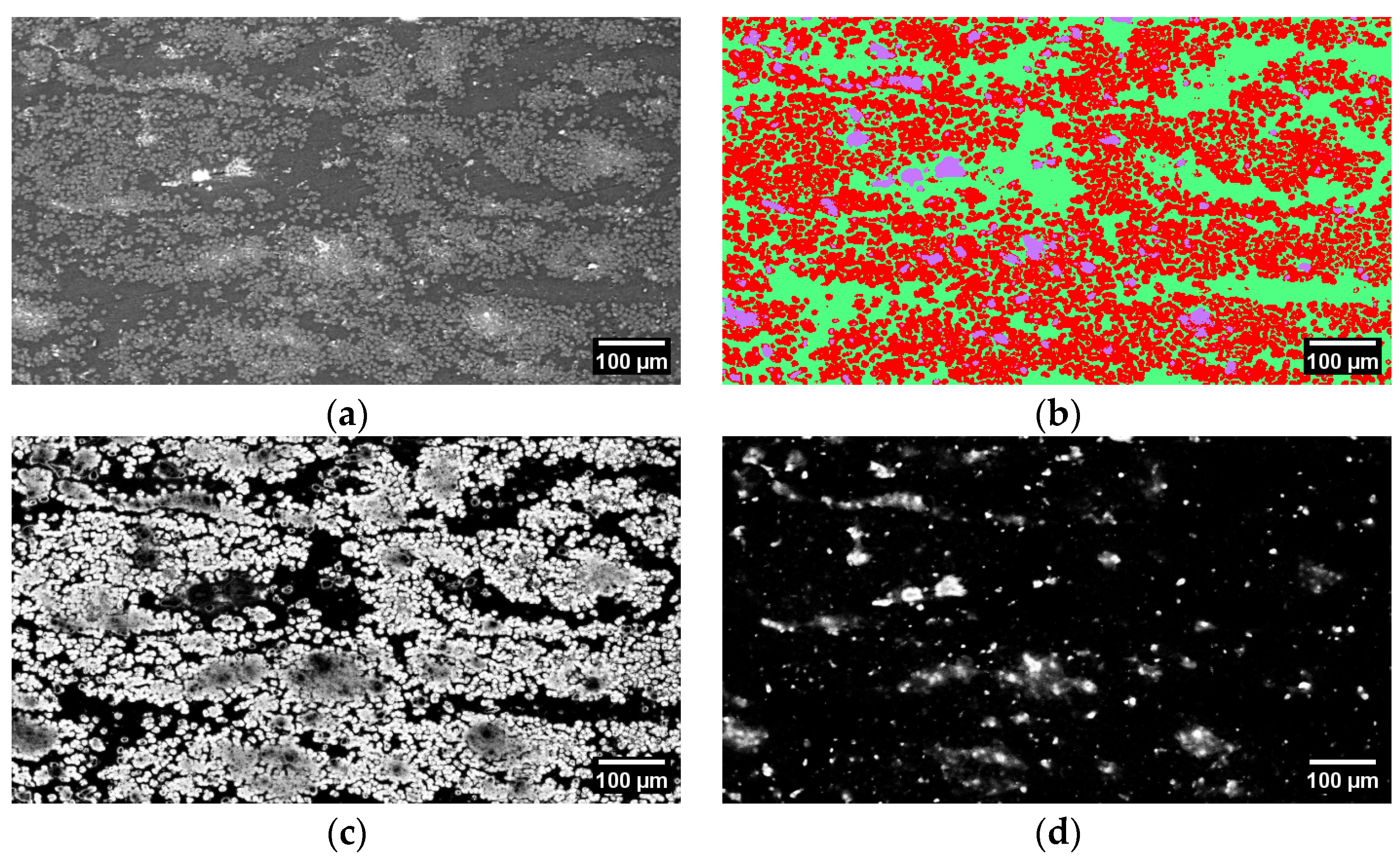

**Figure 5.**CFRP laminate’s four middle unidirectional layers: (

**a**) SEM image, (

**b**) WEKA classification, (

**c**) the fiber vs. matrix probability map, and (

**d**) voids and debris probability map.

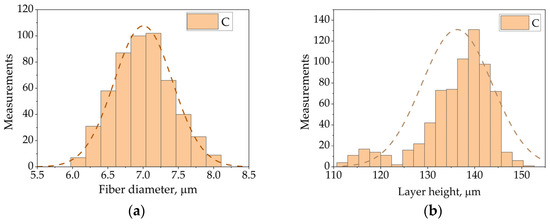

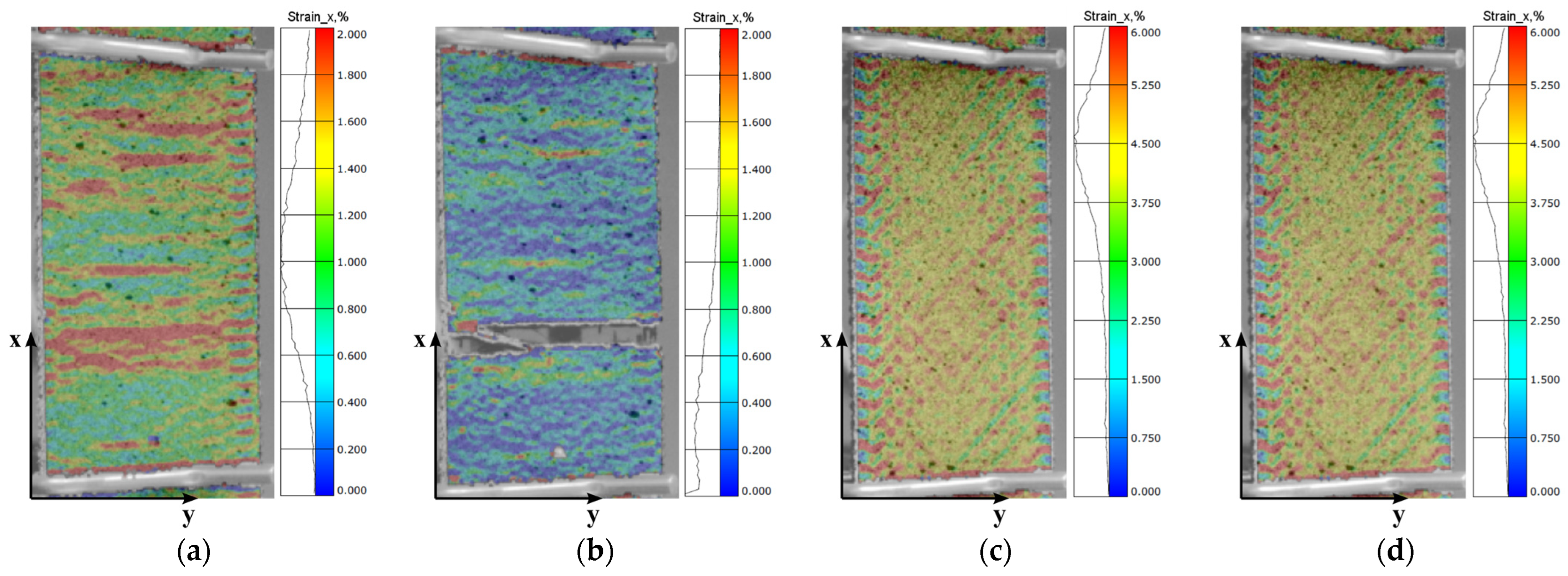

**Figure 7.**DIC images of the 50 mm gauge length during the experimental procedure: (

**a**) UD-90 pre-failure, (

**b**) UD-90 at failure, (

**c**) SH-45 at 5% of shear strain, and (

**d**) SH-45 at 5% of axial strain.

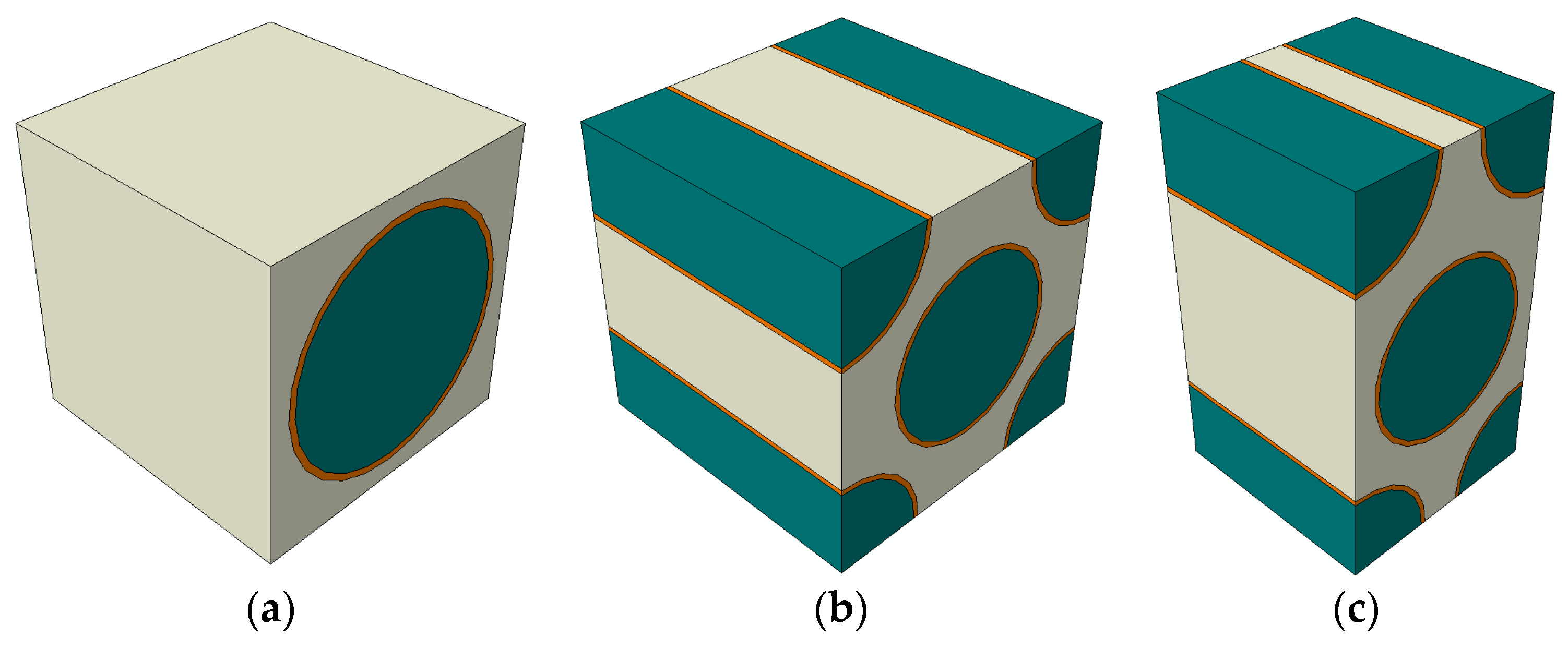

**Figure 8.**(

**a**) Single-fiber unit cell (RVE-1), (

**b**) RVE with rectangular fiber placement (RVE-2), and (

**c**) RVE with hexagonal fiber placement (RVE-3).

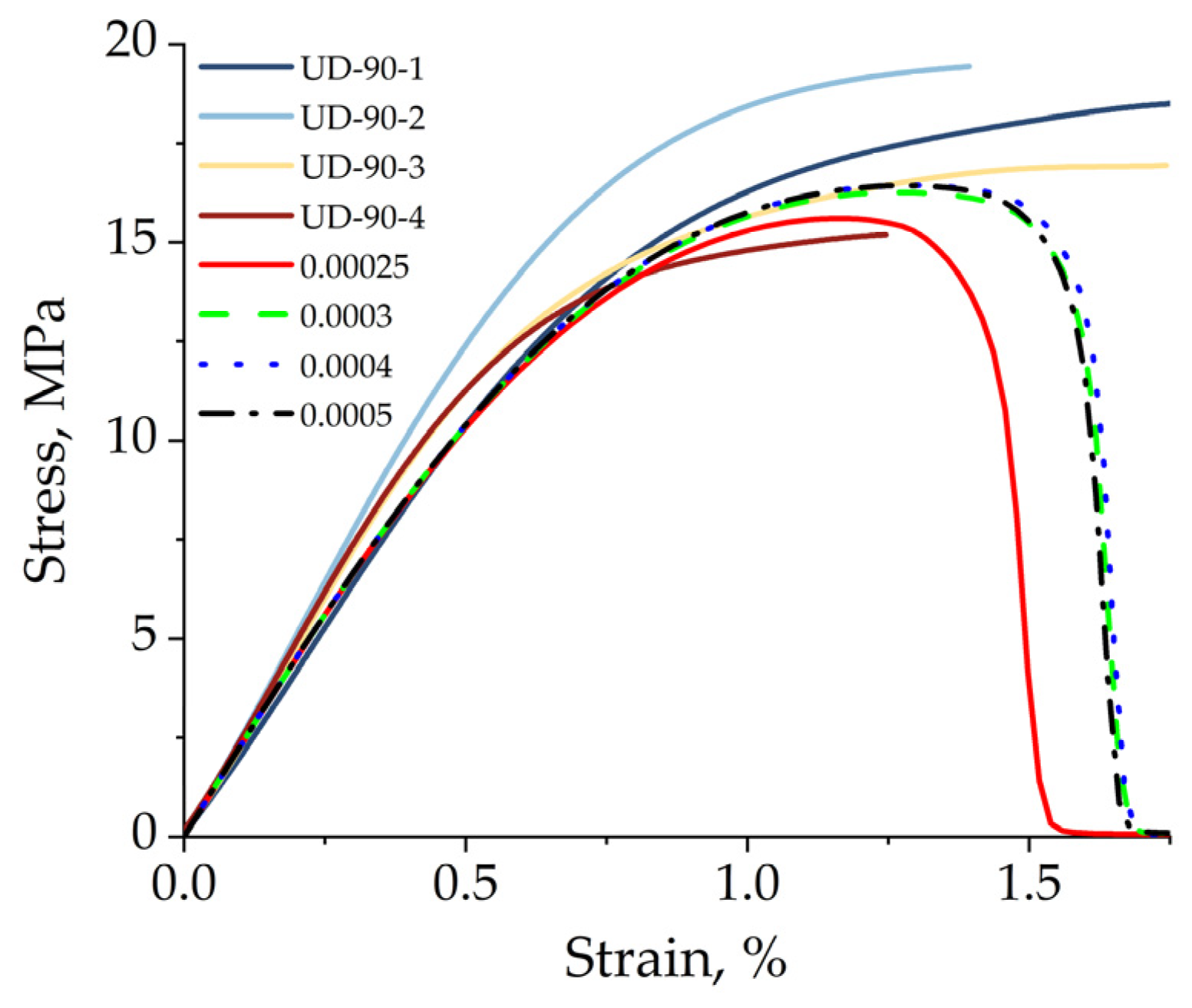

**Figure 9.**Comparison between the experimental results and the RVE-3 response for characteristic element length in the range from $2.5\times {10}^{-4}$ to $5\times {10}^{-4}$.

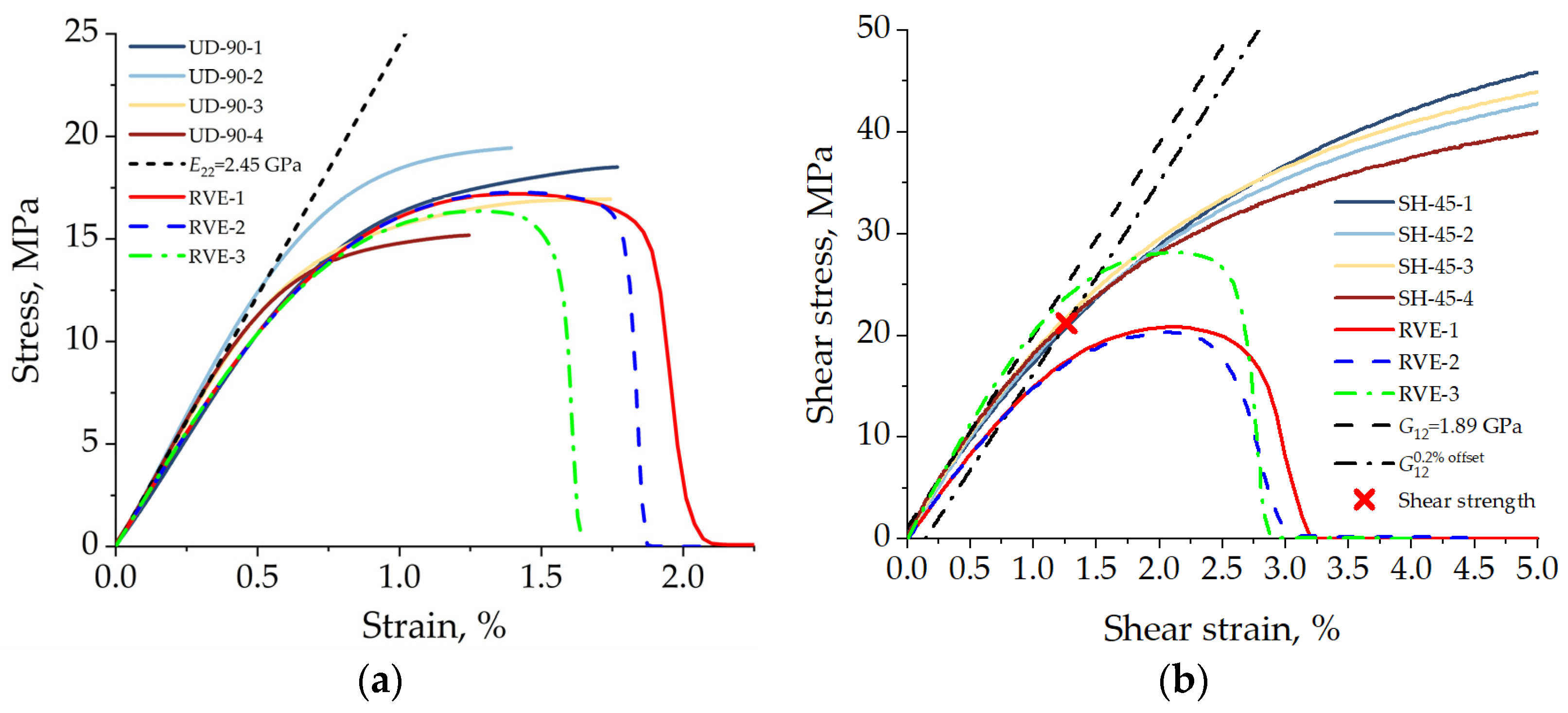

**Figure 10.**Comparison between the experimental and the numerical results: (

**a**) transversally loaded unidirectionally reinforced case, and (

**b**) the in-plane shear case.

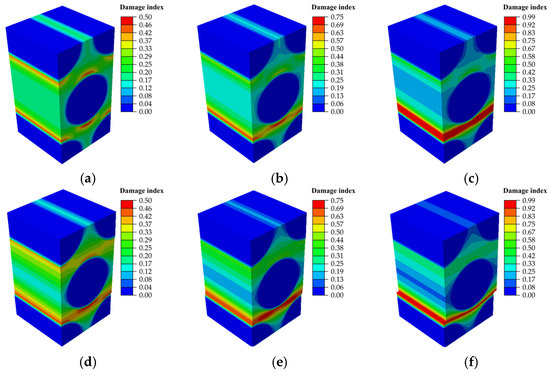

**Figure 11.**Damage evolution in the transverse tensile and shear cases: (

**a**) damage index of 0.5 in transverse tension, (

**b**) damage index of 0.75 in transverse tension, (

**c**) failure in transverse tension, (

**d**) damage index of 0.5 in shear, (

**e**) damage index of 0.75 in shear, and (

**f**) failure in shear.

Fiber | Matrix | Interface | |
---|---|---|---|

Elastic modulus, E_{11} [MPa] | 191,000 | 3000 | 100 |

Poisson ratio, v [/] | 0.2 | 0.3 | 0.3 |

Toughness G_{c}, [kJ/m^{2}] | 0.763 | 1 | 0.3 |

Phase field length, l [mm] | $1\times {10}^{-4}$ | $1\times {10}^{-3}$ | $1\times {10}^{-3}$ |

Laminate [13] | Filament [85] | |
---|---|---|

Fiber volume ratio | 0.536 ± 0.026 | 0.34 ± 0.002 |

Matrix volume ratio | 0.41 ± 0.02 | 0.66 ± 0.002 |

Fiber local ratio | 0.568 ± 0.028 ^{1} | 0.90 ^{2} |

$\mathrm{Fiber}\mathrm{diameter},\mathsf{\mu}\mathrm{m}$ | 7.00 ± 0.41 | 7.2 ± 0.30 |

$\mathrm{Layer}\mathrm{height},\mathsf{\mu}\mathrm{m}$ | 138.22 ± 5.11 | / |

^{1}Measurements acquired in multiple randomly selected 100 µm × 100 µm zones;

^{2}measurements based on selected fiber agglomerations [85].

Length (L), mm | Width (W), mm | Thickness (t), mm | |
---|---|---|---|

UD-90 | 220 | 26.903 ± 0.154 | 1.33 ± 0.017 |

SH-45 | 220 | 27.250 ± 0.017 | 2.30 ± 0.017 |
