# Evaluation of Critical Parameters in Tensile Strength Measurement of Single Fibres

^{*}

*Journal of Composites Science*in 2019)

## Abstract

**:**

## 1. Introduction

## 2. Fibre Tensile Strength

#### 2.1. Single Fibre Testing

- aligning the fibre with the loading direction as perfectly as possible; and
- controlling the gauge length as accurately as possible, since fibre strength is length dependent.

#### 2.2. Determination of Tensile Strength

#### 2.3. Measurement Uncertainty

#### 2.4. Experimentation

#### 2.5. Evaluation of Measurement Uncertainty in Input Quantities

#### 2.6. Propagation of Uncertainty to Fibre Tensile Strength

## 3. Sensitivity Analysis

#### 3.1. Sensitivity Analysis for Fibre Tensile Strength

#### 3.2. Estimation of Sensitivity for Tensile Strength at Other Gauge Lengths

## 4. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Galkin, S.; Kunze, E.; Kärger, L.; Böhm, R.; Gude, M. Experimental and Numerical Determination of the Local Fiber Volume Content of Unidirectional Non-Crimp Fabrics with Forming Effects. J. Compos. Sci.
**2019**, 3, 19. [Google Scholar] [CrossRef] - Thionnet, A.; Chou, H.Y.; Bunsell, A. Fibre Break Failure Processes in Unidirectional Composites. Part 2: Failure and Critical Damage State Induced by Sustained Tensile Loading. Appl. Compos. Mater.
**2015**, 22, 141–155. [Google Scholar] [CrossRef] - Blassiau, S.; Thionnet, A.; Bunsell, A. Micromechanisms of load transfer in a unidirectional carbon fibre–reinforced epoxy composite due to fibre failures. Part 1: Micromechanisms and 3D analysis of load transfer: The elastic case. Compos. Struct.
**2006**, 74, 303–318. [Google Scholar] [CrossRef] - Bunsell, A.; Thionnet, A. Life prediction for carbon fibre filament wound composite structures. Philos. Mag.
**2010**, 90, 4129–4146. [Google Scholar] [CrossRef][Green Version] - Sitnikova, E.; Li, D.; Wei, J.; Yi, X.; Li, S. On the Representativeness of the Cohesive Zone Model in the Simulation of the Delamination Problem. J. Compos. Sci.
**2019**, 3, 22. [Google Scholar] [CrossRef] - Watanabe, J.; Tanaka, F.; Okuda, H.; Okabe, T. Tensile strength distribution of carbon fibers at short gauge lengths. Adv. Compos. Mater.
**2014**, 23, 535–550. [Google Scholar] [CrossRef] - Ilankeeran, P.; Mohite, P.; Kamle, S. Axial Tensile Testing of Single Fibres. Mod. Mech. Eng.
**2012**, 2, 151–156. [Google Scholar] [CrossRef][Green Version] - Swolfs, Y.; Verpoest, I.; Gorbatikh, L. A review of input data and modelling assumptions in longitudinal strength models for unidirectional fibre-reinforced composites. Compos. Struct.
**2016**, 150, 153–172. [Google Scholar] [CrossRef] - Weibull, W. A Statistical Distribution Function of Wide Applicability. J. Appl. Mech.
**1951**, 18, 293–297. [Google Scholar] - Islam, F.; Joannès, S.; Bucknell, S.; Leray, Y.; Bunsell, A.; Laiarinandrasana, L. Towards accurate and efficient single fibre characterization to better assess failure strength distribution. In Proceedings of the 18th European Conference on Composite Materials (ECCM-2018), Athens, Greece, 25–28 June 2018. [Google Scholar]
- Hwang, T.K.; Hong, C.S.; Kim, C.G. Size effect on the fiber strength of composite pressure vessels. Compos. Struct.
**2003**, 59, 489–498. [Google Scholar] [CrossRef] - Chen, H.; Baird, D.G. Prediction of Young’s Modulus for Injection Molded Long Fiber Reinforced Thermoplastics. J. Compos. Sci.
**2018**, 2, 47. [Google Scholar] [CrossRef] - Kaddour, A.; Hinton, M. Maturity of 3D failure criteria for fibre-reinforced composites: Comparison between theories and experiments: Part B of WWFE-II. J. Compos. Mater.
**2013**, 47, 925–966. [Google Scholar] [CrossRef] - Bunsell, A.; Gorbatikh, L.; Morton, H.; Pimenta, S.; Sinclair, I.; Spearing, M.; Swolfs, Y.; Thionnet, A. Benchmarking of strength models for unidirectional composites under longitudinal tension. Compos. Part A Appl. Sci. Manuf.
**2018**, 111, 138–150. [Google Scholar] [CrossRef][Green Version] - Chou, H.; Thionnet, A.; Mouritz, A.; Bunsell, A.R. Stochastic factors controlling the failure of carbon/epoxy composites. J. Mater. Sci.
**2016**, 51, 311–333. [Google Scholar] [CrossRef] - Shah, S.; Karuppanan, S.; Megat-Yusoff, P.; Sajid, Z. Impact resistance and damage tolerance of fiber reinforced composites: A review. Compos. Struct.
**2019**, 217, 100–121. [Google Scholar] [CrossRef] - Swolfs, Y.; Verpoest, I.; Gorbatikh, L. Issues in strength models for unidirectional fibre-reinforced composites related to Weibull distributions, fibre packings and boundary effects. Compos. Sci. Technol.
**2015**, 114, 42–49. [Google Scholar] [CrossRef][Green Version] - Thionnet, A.; Chou, H.Y.; Bunsell, A. Fibre Break Failure Processes in Unidirectional Composites. Part 1: Failure and Critical Damage State Induced by Increasing Tensile Loading. Appl. Compos. Mater.
**2015**, 22, 119–140. [Google Scholar] [CrossRef] - JCGM 100: Evaluation of Measurement Data—Guide to the Expression of Uncertainty in Measurement. 2008. Available online: https://www.bipm.org/en/publications/guides/gum.html (accessed on 9 July 2019).
- Yu, W.; Yao, J. Tensile strength and its variation of PAN-based carbon fibers. I. Statistical distribution and volume dependence. J. Appl. Polym. Sci.
**2006**, 101, 3175–3182. [Google Scholar] [CrossRef] - Yavin, B.; Gallis, H.E.; Scherf, J.; Eitan, A.; Wagner, H.D. Continuous monitoring of the fragmentation phenomenon in single fiber composite materials. Polym. Compos.
**1991**, 12, 436–446. [Google Scholar] [CrossRef] - Chi, Z.; Chou, T.W.; Shen, G. Determination of single fibre strength distribution from fibre bundle testings. J. Mater. Sci.
**1984**, 19, 3319–3324. [Google Scholar] [CrossRef] - Bunsell, A.R.; Joannès, S.; Marcellan, A. Handbook of Properties of Textile and Technical Fibres; Woodhead Publishing: Cambridge, UK, 2018. [Google Scholar]
- Islam, F.; Joannès, S.; Bucknell, S.; Leray, Y.; Bunsell, A.; Laiarinandrasana, L. Improvements in determination of carbon fibre strength distribution using automation and statistical data analysis. In Proceedings of the Fiber Society’s Spring 2018 Conference, Tokyo, Japan, 12–14 June 2018. [Google Scholar]
- ASTM C1557-14: Standard Test Method for Tensile Strength and Young’s Modulus of Fibers; ASTM Standards: West Conshohocken, PA, USA, 2014.
- Bunsell, A.R.; Hearle, J.W.S. A mechanism of fatigue failure in nylon fibres. J. Mater. Sci.
**1971**, 6, 1303–1311. [Google Scholar] [CrossRef] - Marcellan, A.; Bunsell, A.; Laiarinandrasana, L.; Piques, R. A multi-scale analysis of the microstructure and the tensile mechanical behaviour of polyamide 66 fibre. Polymer
**2006**, 47, 367–378. [Google Scholar] [CrossRef] - Wollbrett-Blitz, J.; Joannès, S.; Bruant, R.; Le Clerc, C.; Romero De La Osa, M.; Bunsell, A.; Marcellan, A. Multiaxial mechanical behavior of aramid fibers and identification of skin/core structure from single fiber transverse compression testing. J. Polym. Sci. Part B Polym. Phys.
**2016**, 54, 374–384. [Google Scholar] [CrossRef] - Jauzein, V.; Bunsell, A. Bio-composite aspects of silk: The sericin sheath acting as a matrix. J. Mater. Sci.
**2012**, 47, 3082–3088. [Google Scholar] [CrossRef] - Ramirez, J.M.H.; Bunsell, A.R.; Colomban, P. Microstructural mechanisms governing the fatigue failure of polyamide 66 fibres. J. Mater. Sci.
**2006**, 41, 7261–7271. [Google Scholar] [CrossRef] - Le Clerc, C.; Monasse, B.; Bunsell, A.R. Influence of temperature on fracture initiation in PET and PA66 fibres under cyclic loading. J. Mater. Sci.
**2007**, 42, 9276–9283. [Google Scholar] [CrossRef] - Saltelli, A.; Ratto, M.; Andres, T.; Campolongo, F.; Cariboni, J.; Gatelli, D.; Saisana, M.; Tarantola, S. Global Sensitivity Analysis. The Primer; John Wiley and Sons, Ltd.: Hoboken, NJ, USA, 2008. [Google Scholar]

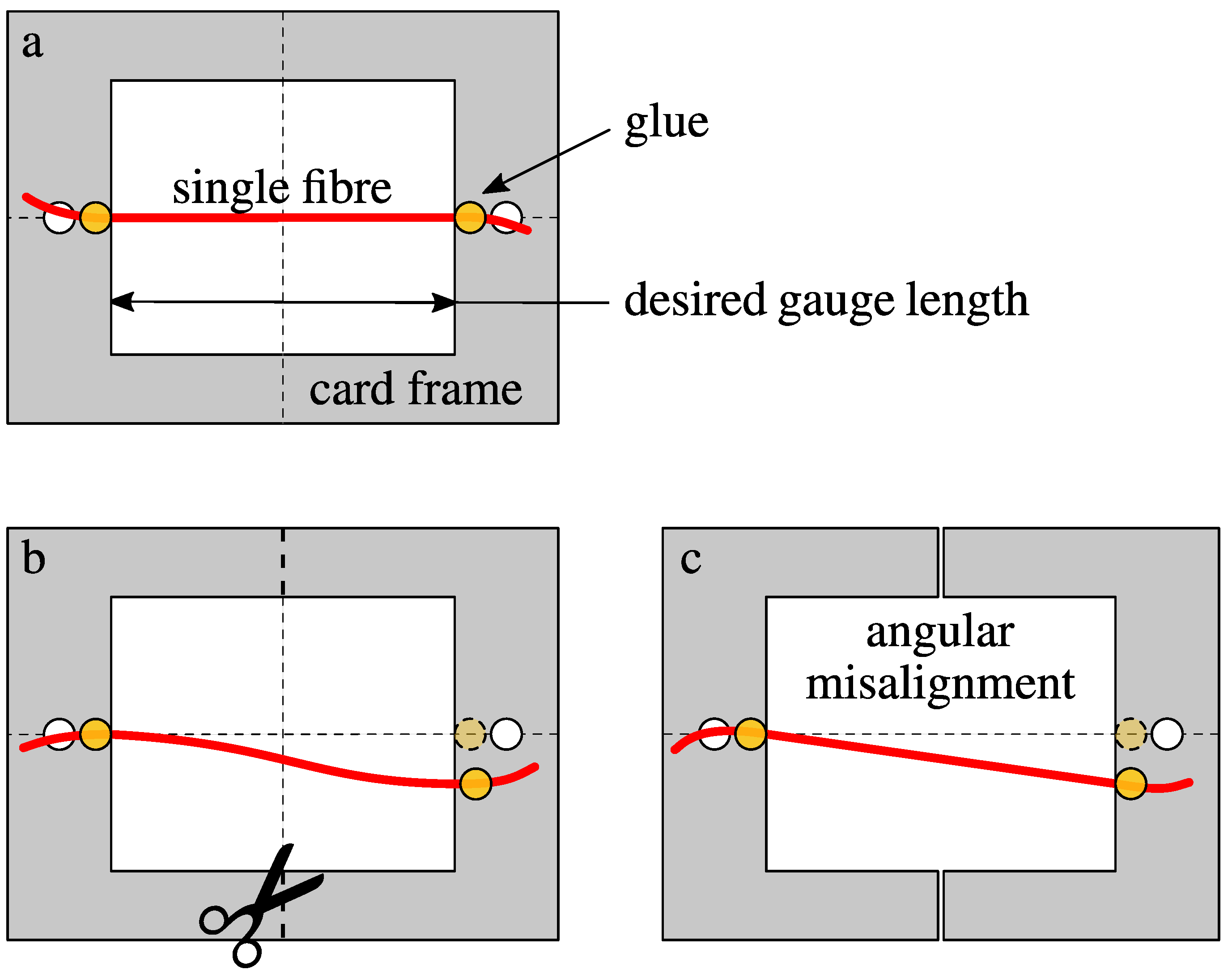

**Figure 1.**(

**a**) Schematic diagram of a single fibre mounted on a card frame; (

**b**) major issues with sample preparation leading to inaccurate measurement of gauge length; and (

**c**) angular misalignment in the fibre specimen.

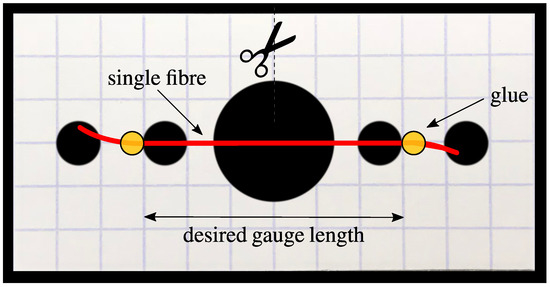

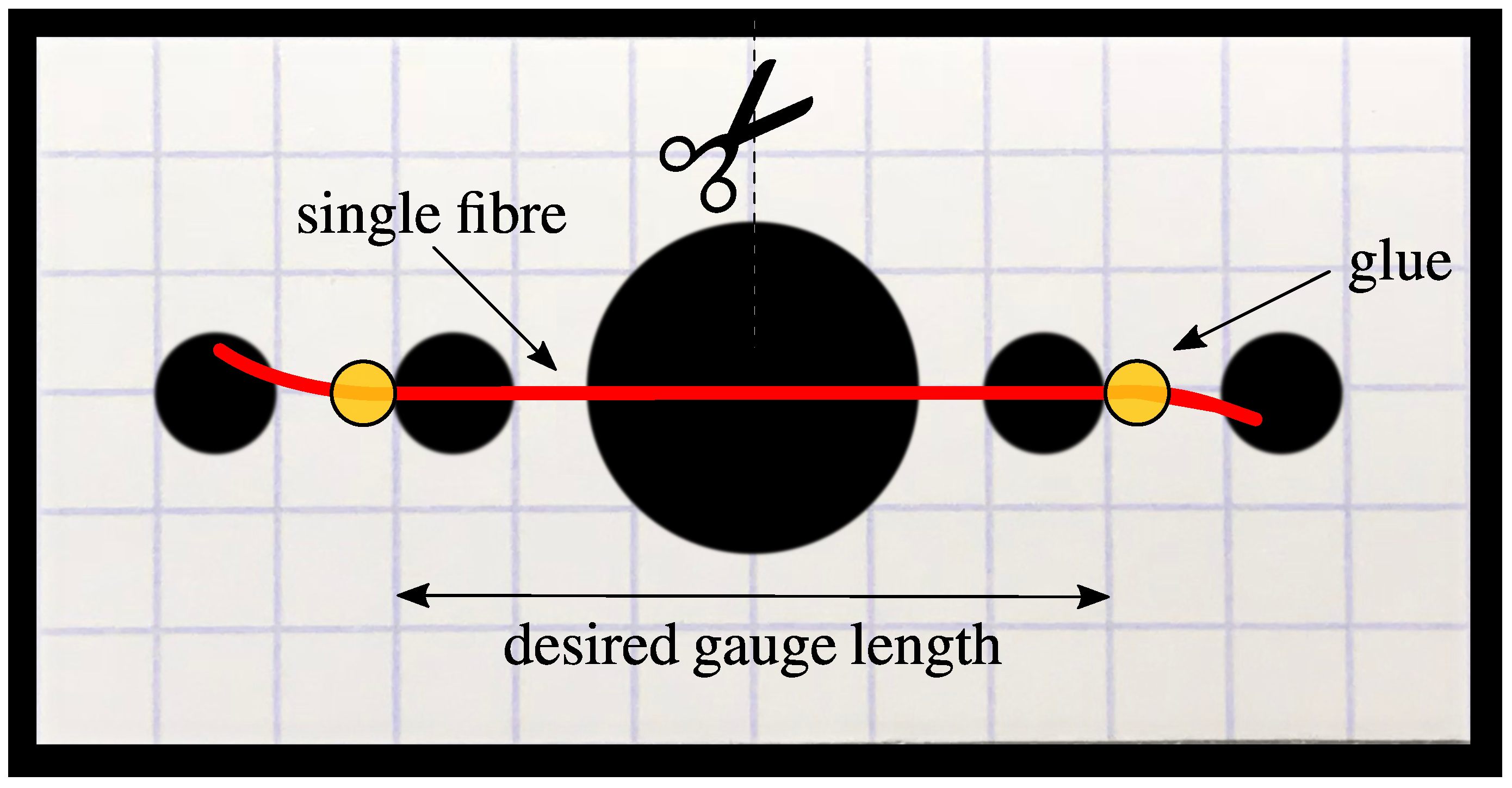

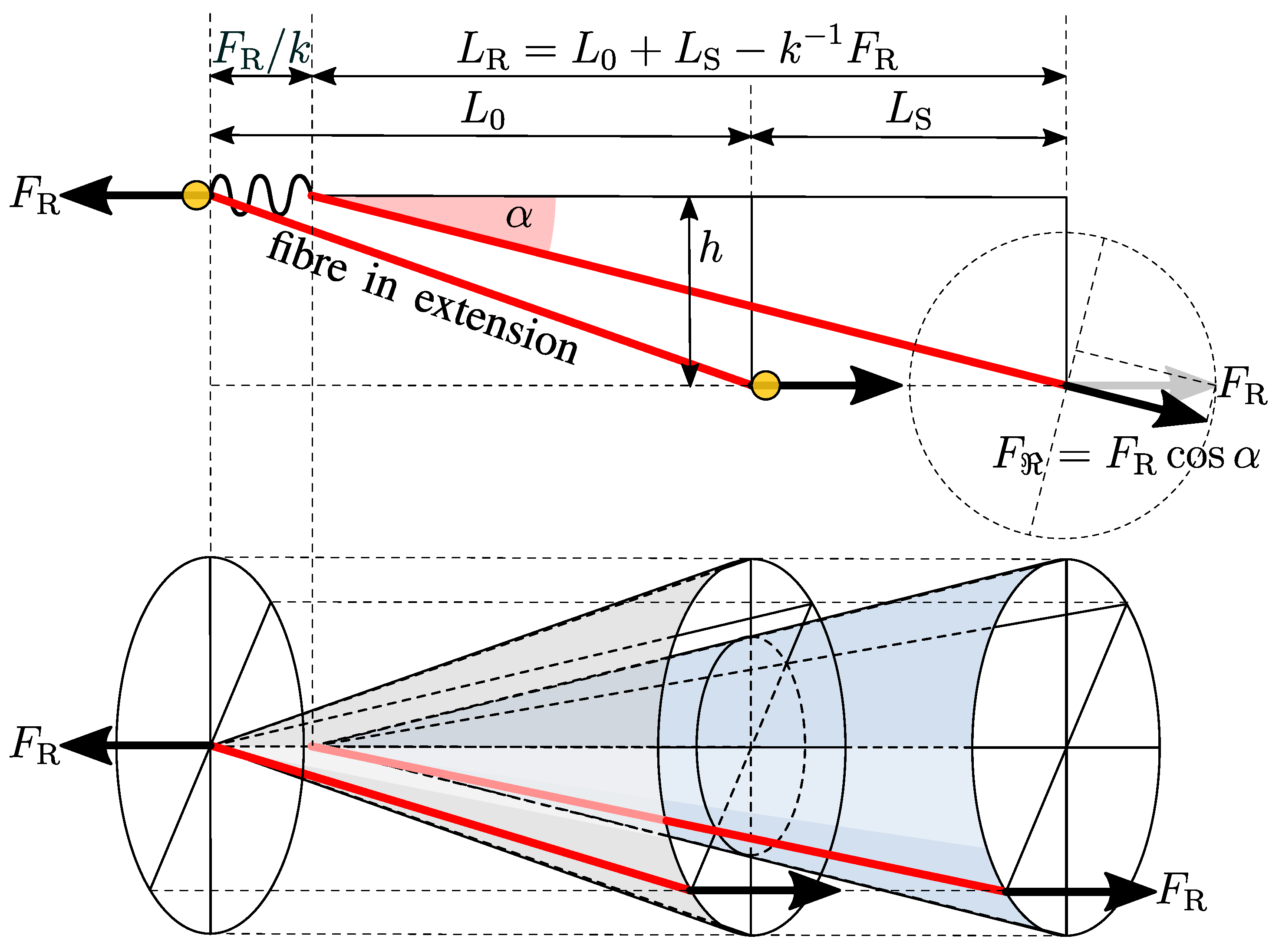

**Figure 3.**Schematic diagram showing the effect of fibre misalignment on the effective load on the fibre. (

**Top**) The effect of fibre elongation and system compliance on the instantaneous gauge length of the fibre, as measured by the displacement transducer. (

**Bottom**) Fibre misalignment can occur in any direction in three dimensions, i.e., the fibre can be positioned anywhere inside a cone of angle $\alpha $.

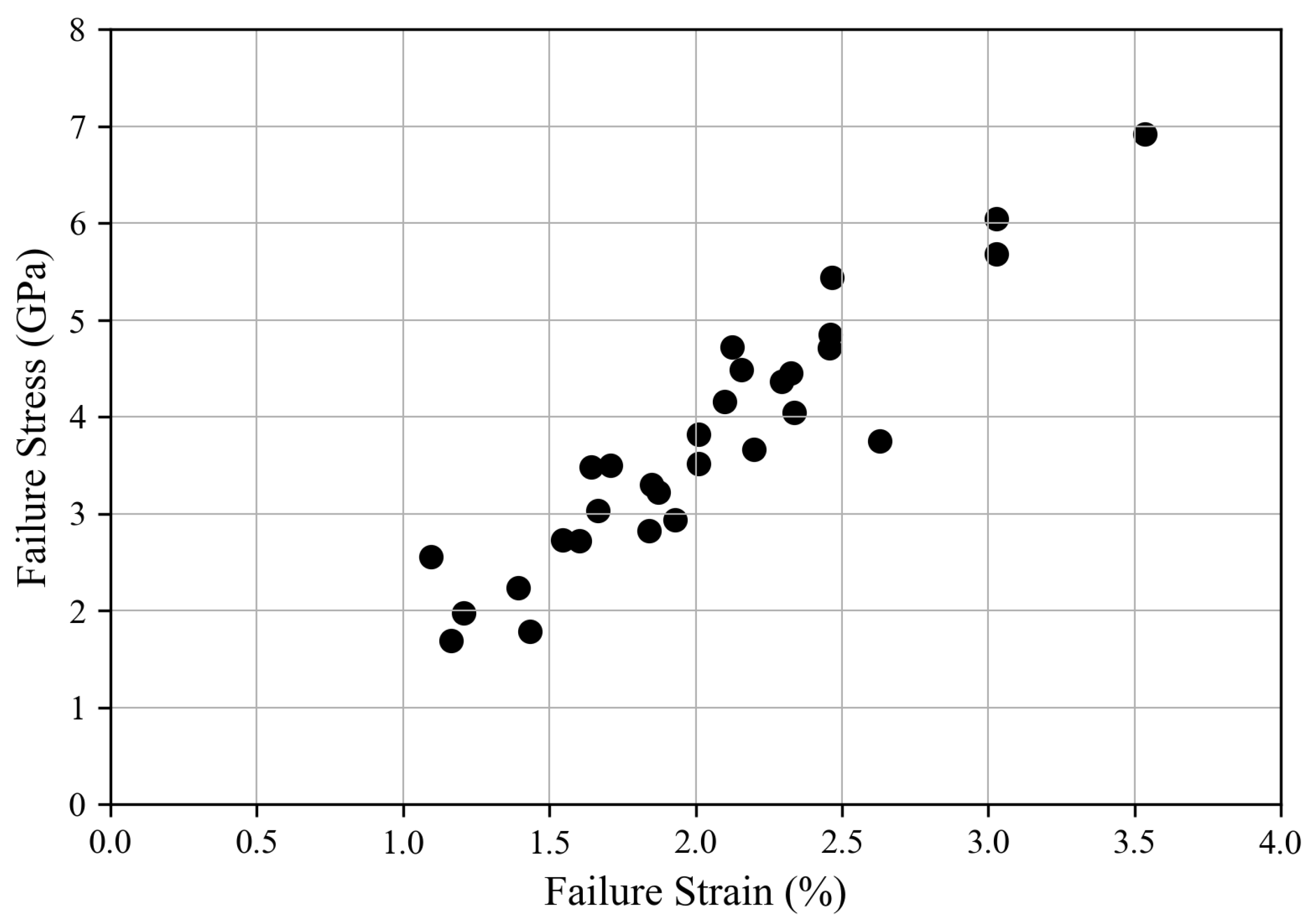

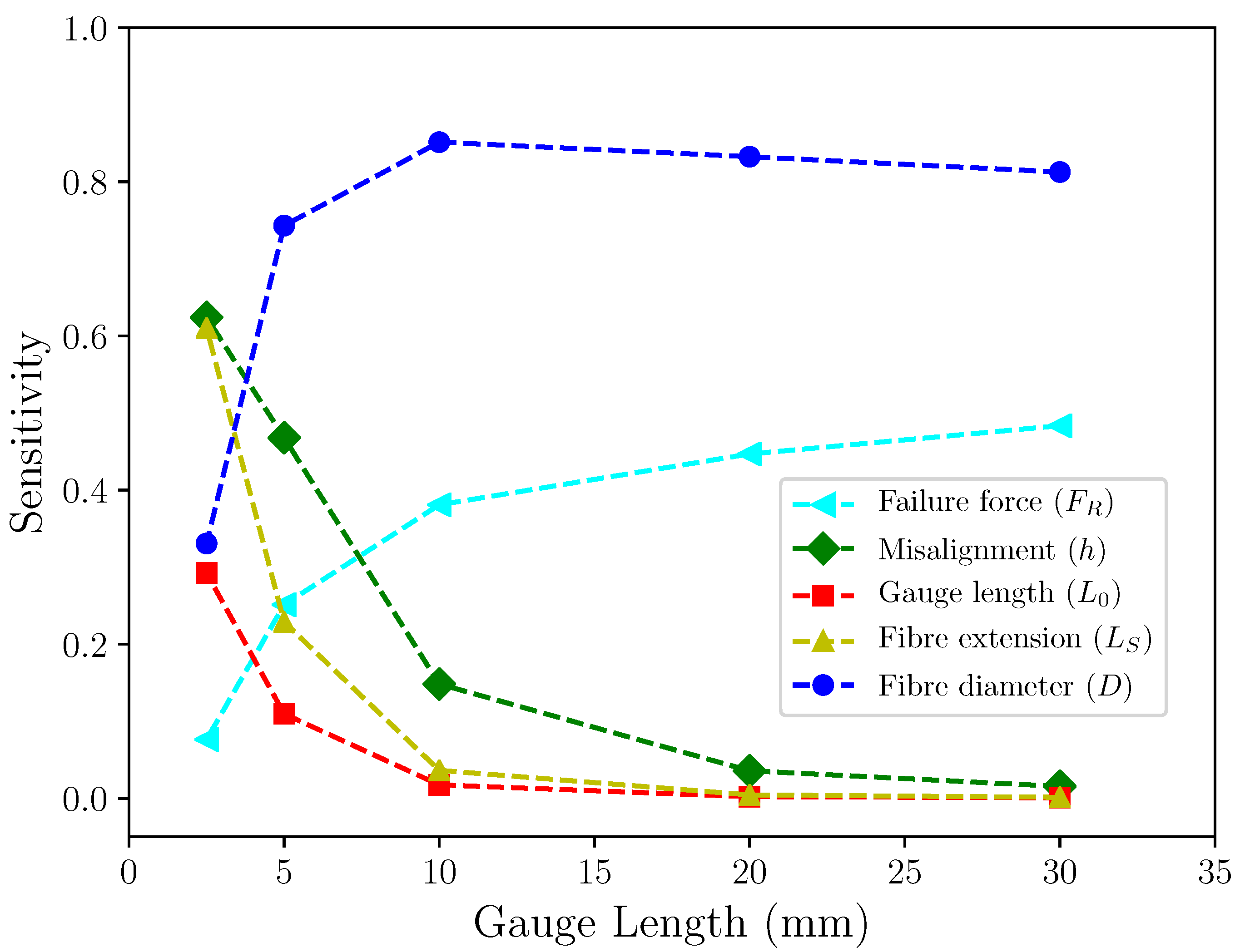

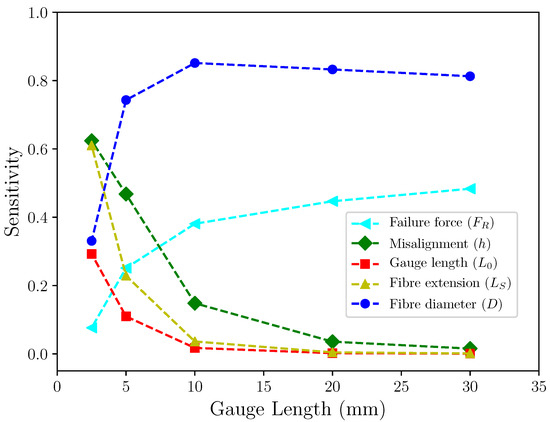

**Figure 5.**Sensitivity indices of different input quantities in tensile strength measurement of fibres at different gauge lengths.

S.N. | Quantity | Value | Unit |
---|---|---|---|

1 | ${F}_{\mathrm{R}}$ | 0.16 | N |

2 | h | 1 | mm |

3 | ${L}_{0}$ | 30 | mm |

4 | ${L}_{\mathrm{S}}$ | 0.69 | mm |

5 | D | 6.7 × ${10}^{-3}$ | mm |

**Table 2.**Measurement uncertainty values of all input quantities for the given fibre tensile test example, along with expanded uncertainty for a confidence level of 95% and 99%.

S.N. | Measurement Uncertainty | Value | Expanded Uncertainty | Value | Expanded Uncertainty | Value | Unit |
---|---|---|---|---|---|---|---|

1 | $u\left({F}_{\mathrm{R}}\right)$ | $1.27\times {10}^{-3}$ | ${U}_{95}\left({F}_{\mathrm{R}}\right)$ | $2.48\times {10}^{-3}$ | ${U}_{99}\left({F}_{\mathrm{R}}\right)$ | $3.28\times {10}^{-3}$ | N |

2 | $u\left(h\right)$ | $0.28$ | ${U}_{95}\left(h\right)$ | $0.55$ | ${U}_{99}\left(h\right)$ | $0.72$ | mm |

3 | $u\left({L}_{0}\right)$ | $0.34$ | ${U}_{95}\left({L}_{0}\right)$ | $0.66$ | ${U}_{99}\left({L}_{0}\right)$ | $0.88$ | mm |

4 | $u\left({L}_{\mathrm{S}}\right)$ | $0.71$ | ${U}_{95}\left({L}_{\mathrm{S}}\right)$ | $1.38$ | ${U}_{99}\left({L}_{\mathrm{S}}\right)$ | $1.86$ | mm |

5 | $u\left(D\right)$ | $5.5\times {10}^{-5}$ | ${U}_{95}\left(D\right)$ | $1.8\times {10}^{-4}$ | ${U}_{99}\left(D\right)$ | $3.2\times {10}^{-4}$ | mm |

S.N. | Quantity | Value | Unit |
---|---|---|---|

1 | $\frac{\partial \sigma}{\partial {F}_{\mathrm{R}}}$ | $2.81\times {10}^{10}$ | m${}^{-2}$ |

2 | $\frac{\partial \sigma}{\partial h}$ | $4.63\times {10}^{9}$ | N·m${}^{-3}$ |

3 | $\frac{\partial \sigma}{\partial {L}_{0}}$ | $1.51\times {10}^{8}$ | N·m${}^{-3}$ |

4 | $\frac{\partial \sigma}{\partial {L}_{\mathrm{S}}}$ | $1.51\times {10}^{8}$ | N·m${}^{-3}$ |

5 | $\frac{\partial \sigma}{\partial D}$ | $-1.30\times {10}^{15}$ | N·m${}^{-3}$ |

S.N. | $\mathit{\sigma}$ (GPa) | ${\mathit{u}}_{\mathit{c}}\left(\mathit{\sigma}\right)$ (GPa) | S.N. | $\mathit{\sigma}$ (GPa) | ${\mathit{u}}_{\mathit{c}}\left(\mathit{\sigma}\right)$ (GPa) | S.N. | $\mathit{\sigma}$ (GPa) | ${\mathit{u}}_{\mathit{c}}\left(\mathit{\sigma}\right)$ (GPa) |
---|---|---|---|---|---|---|---|---|

1 | 1.69 | 0.07 | 11 | 3.23 | 0.10 | 21 | 4.36 | 0.08 |

2 | 1.78 | 0.07 | 12 | 3.28 | 0.11 | 22 | 4.45 | 0.12 |

3 | 1.97 | 0.06 | 13 | 3.48 | 0.08 | 23 | 4.49 | 0.05 |

4 | 2.23 | 0.03 | 14 | 3.50 | 0.18 | 24 | 4.72 | 0.09 |

5 | 2.56 | 0.06 | 15 | 3.52 | 0.17 | 25 | 4.73 | 0.12 |

6 | 2.72 | 0.03 | 16 | 3.68 | 0.14 | 26 | 4.85 | 0.06 |

7 | 2.73 | 0.05 | 17 | 3.75 | 0.09 | 27 | 5.44 | 0.31 |

8 | 2.82 | 0.05 | 18 | 3.82 | 0.07 | 28 | 5.68 | 0.08 |

9 | 2.93 | 0.06 | 19 | 4.04 | 0.06 | 29 | 5.99 | 0.17 |

10 | 3.03 | 0.09 | 20 | 4.15 | 0.12 | 30 | 6.92 | 0.10 |

**Table 5.**Sensitivity measures of each input quantity for the given single fibre tensile test example.

Rank | Input | ∣Sensitivity∣ | Sensitivity${}^{2}$ |
---|---|---|---|

1 | D | $0.89$ | 0.79 |

2 | ${F}_{\mathrm{R}}$ | $0.45$ | 0.20 |

3 | h | 1.63 × ${10}^{-2}$ | 2.67 × ${10}^{-4}$ |

4 | ${L}_{\mathrm{S}}$ | 1.33 × ${10}^{-3}$ | 1.76 × ${10}^{-6}$ |

5 | ${L}_{0}$ | 6.35 × ${10}^{-4}$ | 4.03 × ${10}^{-7}$ |

**Table 6.**Average sensitivity measures for each input quantity for the set of 30 single fibre tensile test.

Rank | Input | ∣Sensitivity∣ | Sensitivity${}^{2}$ |
---|---|---|---|

1 | D | $0.81$ | 0.66 |

2 | ${F}_{\mathrm{R}}$ | $0.48$ | 0.23 |

3 | h | 0.02 | 2.33 × ${10}^{-4}$ |

4 | ${L}_{\mathrm{S}}$ | 1.26 × ${10}^{-3}$ | 1.58 × ${10}^{-6}$ |

5 | ${L}_{0}$ | 6.03 × ${10}^{-4}$ | 3.64 × ${10}^{-7}$ |

**Table 7.**Sensitivity indices (S) of different input quantities in tensile strength measurement of fibres at different gauge lengths.

Input ↓ | 30 mm S | 20 mm S | 10 mm S | 5 mm S | 2.5 mm S |
---|---|---|---|---|---|

D | 0.81 | 0.83 | 0.85 | 0.74 | 0.33 |

${F}_{\mathrm{R}}$ | 0.48 | 0.45 | 0.38 | 0.25 | 0.08 |

h | 0.02 | 0.04 | 0.15 | 0.47 | 0.62 |

${L}_{\mathrm{S}}$ | 1.26 × ${10}^{-3}$ | 4.36 × ${10}^{-3}$ | 0.04 | 0.23 | 0.61 |

${L}_{0}$ | 6.03 × ${10}^{-4}$ | 2.09 × ${10}^{-3}$ | 0.02 | 0.11 | 0.29 |
