High-Temperature Diffusion Bonding of Ti–6Al–4V and Super-Duplex Stainless Steel Using a Cu Interlayer Embedded with Alumina Nanoparticles

Abstract

In this study, Ti–6Al–4V alloy was diffusion bonded to super-duplex stainless steel (SDSS) using an electrodeposited Cu interlayer containing alumina nanoparticles to determine the effects of bonding parameters on the microstructural evolution within the joint region. The results of the study showed that the homogeneity of the joint is affected by the bonding time and bonding temperature. The results also showed that when a Cu/Al₂O₃ interlayer is used, Ti–6Al–4V alloy can be successfully diffusion bonded to SDSS at temperatures above 850 °C. The combination of longer bonding time and high bonding temperature leads to the formation of various intermetallic compounds within the interface. However, the presence of the Al₂O₃ nanoparticles within the interface causes a change in the volume, size, and shape of the intermetallic compounds formed by pinning grain boundaries and restricting grain growth of the interlayer. The variation of the chemical composition and hardness across the bond interface confirmed a better distribution of hard phases within the joint center when a Cu/Al₂O₃ interlayer was used.

1. Introduction

Advanced alloys of titanium and stainless steel are widely regarded as high-strength, corrosion-resistant materials that find applications in industries such as biomedical, aerospace, automotive, and oil and gas. The growth in the demand for higher-performing multicomponent structures and mechanical systems necessitates the combination of these advanced alloys into superstructures containing multiple materials of uniquely differing chemical, thermal, and thermomechanical properties [1,2]. Currently, structures made with materials of similar types are joined using traditional welding technologies such as arc welding [3], laser welding [4], spark plasma welding [5], ultrasonic welding [6], etc. The welding of multiple components of structures is still an area that requires extensive research to identify technologies that are capable of welding dissimilar materials without adverse effects given the differences in the properties of the materials [7]. Techniques such as friction stir welding (FSW) [8], friction stir spot welding (FSSW) [9], and ultrasonic welding (USW) [10] have shown potential for producing multicomponent structures; however, there still exist numerous limitations that constrain the successful application of these technologies in industry.

Diffusion bonding is another technique that has demonstrated promise for combining dissimilar metals into hybrid structures while constraining the volume of intermetallic compounds that form at the joint interface [11,12]. There are two variants of the diffusion bonding process: The first is transient liquid phase bonding, during which liquid may form due to the direct melting of the interlayer or due to eutectic reaction between the interlayer and the base metal [13]. The second variant is solid-state diffusion bonding, in which bonding occurs below the melting points of the base metals or interlayer. Unfortunately, the persistent formation of a continuous layer of intermetallic compounds at the joint interface limits the potential applications of solid-state diffusion bonding.

Recent studies on the transient liquid phase diffusion (TLP) bonding of dissimilar alloys [11,14] have shown that the addition of nanoparticles to the interlayer has the capacity to constrain the size of the intermetallic compounds that form at the interface while disrupting the shape of the intermetallic layer. In these studies, the results show that when nanoparticles were added to the interlayer, the intermetallic compounds that formed at the interface were shorter and more disperse within the joint region [11]. However, the studies were all conducted on relatively low-melting-point nonferrous alloys.

This study investigated the diffusion bonding of Ti–6Al–4V and SDSS using an electrodeposited Cu coating containing 40 nm Al₂O₃ particles as a method of disrupting the volume, shape, and size of the intermetallic layers that form at the interface during bonding. The results of this study are significant since it provides a method of controlling or modifying the type and form of intermetallic compounds that form during diffusion bonding of dissimilar alloys.

2. Experimental Procedure

2.1. Materials

Table 1. Chemical composition (wt %) of the alloys studied.

Alloys	Al	Mn	V	Cr	Ag	Cu	Si	Ni	Mg	Ti	Fe	C	Mo
SDSS	1.1	0	0	25	0	0.43	0.02	7	0	0	Bal.	0.03	4
Ti–6Al–4V	6	0.23	4	0	0.86	0	0.15	0	2.7	Bal.	0	0	0

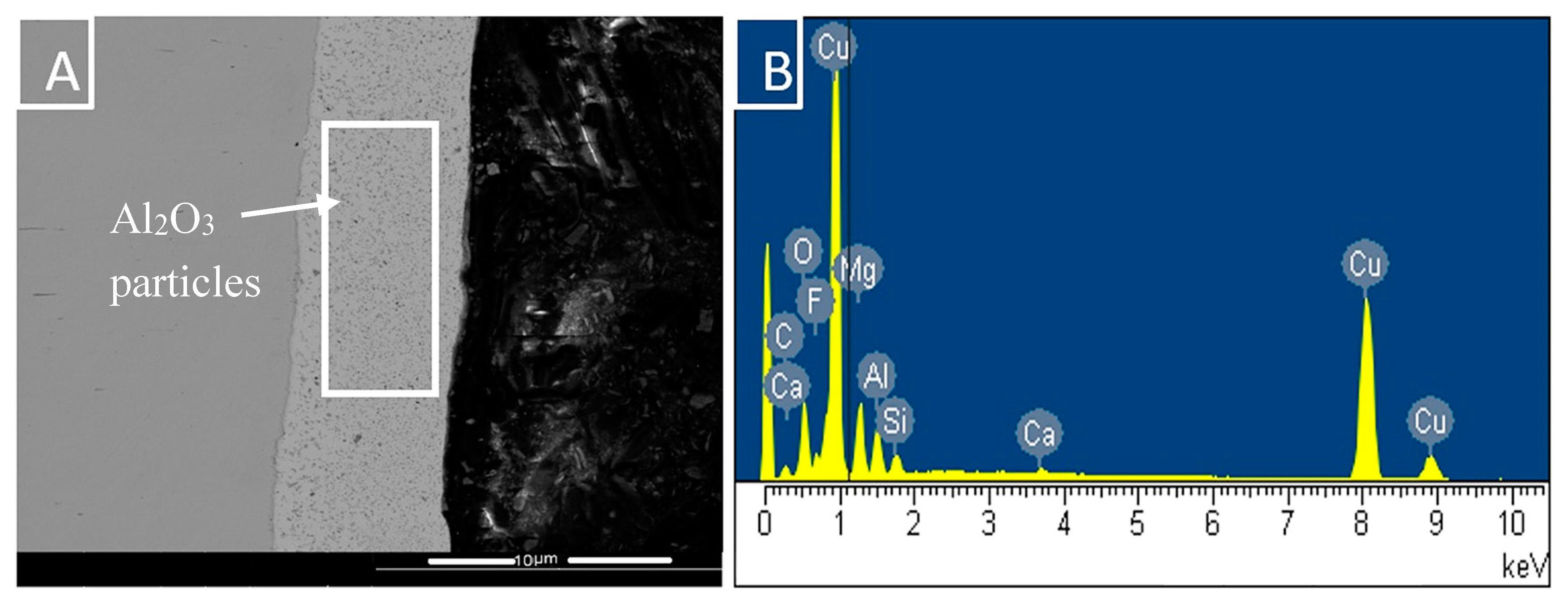

shows the composition of the materials studied. Prior to bonding, the Ti–6Al–4V sample was coated with an electrodeposited copper coating (Cu) containing α-Al₂O₃ nanoparticles having an average diameter of 40 nm. The electrodeposition process was carried out as described in a previously published article [11]. A scanning electron microscopy (SEM) micrograph and energy-dispersive spectroscope (EDS) spectrum of the interlayer confirmed the uniform distribution of nanoparticles within the coating (see Figure 1). The bonds produced using a 5 µm thick Cu/Al₂O₃ interlayer were compared to bonds formed using 25 µm thick Cu foil to assess the role of the particles in the bonding process and the properties of the joint interface.

2.2. Sample Preparation and Bonding Process

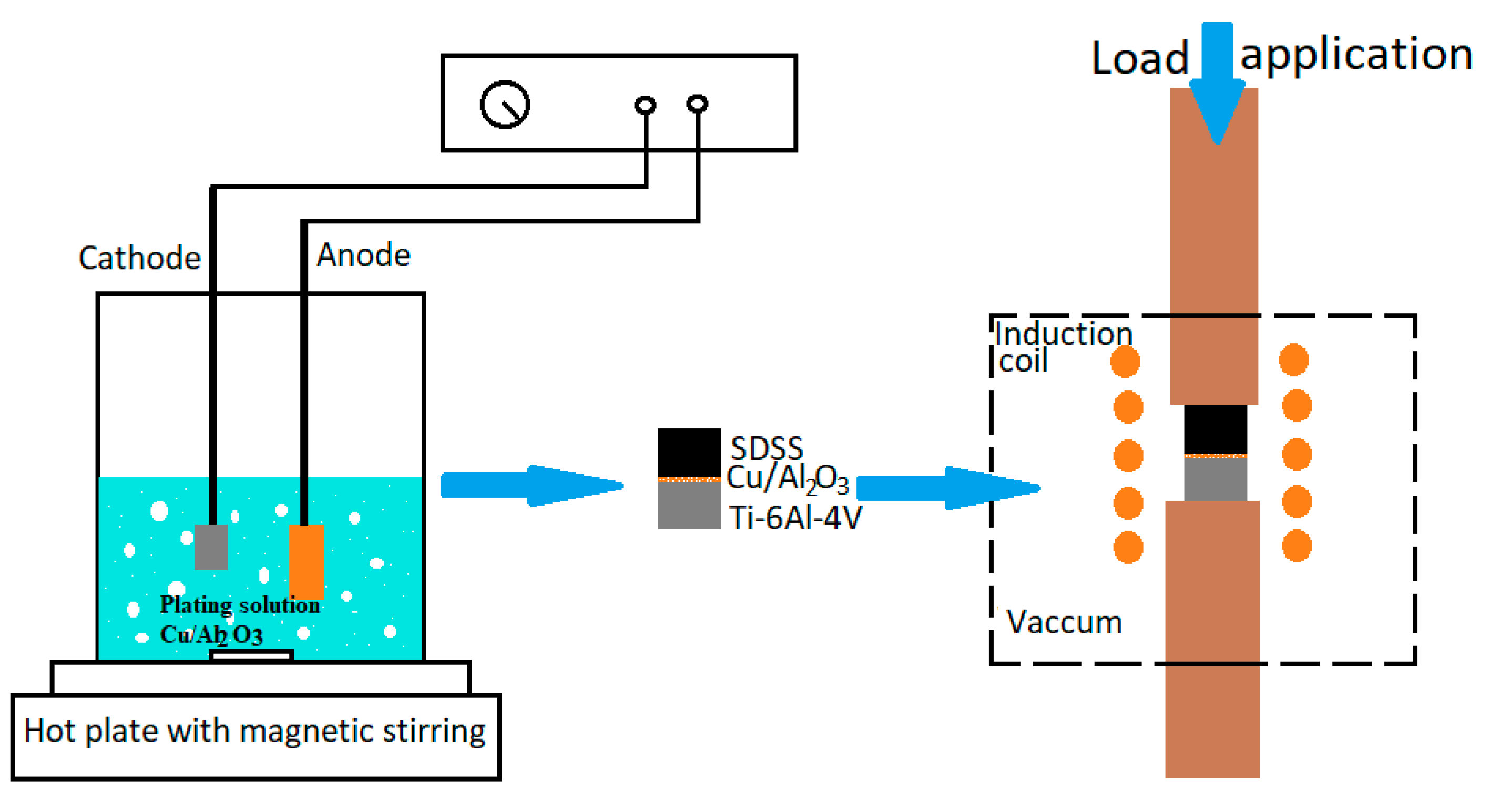

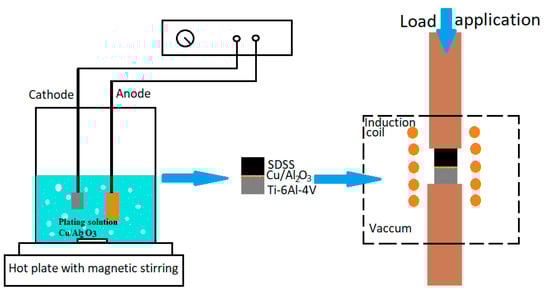

Samples of 10 mm diameter and 7 mm length were prepared from bars of Ti–6Al–4V and duplex stainless steel. The Ti sample was coated for 10 min to deposit the Cu/Al₂O₃ coating. A schematic of the process is presented in Figure 2. The coating process was published in a previous article [11]. A hole of 1.5 mm diameter by 3 mm deep was drilled into the Ti sample to accommodate a K-type thermocouple. The faying surfaces were prepared by grinding progressively from 320 to 2500 grit size SiC, polished to 1 µm grit size using particle-impregnated carrier paste, and then cleaned in an acetone bath.

Prior to bonding, the samples were assembled at room temperature and then placed on the lower platen within the induction coil, and an ungrounded K-type thermocouple was inserted into the hole located approximately 1 mm from the bonding surface. Once a vacuum of 2 × 10⁻³ Torr was achieved, the assembly was heated to the bonding temperature of 800 °C, 850 °C, or 900 °C. The samples were loaded with 5 MPa and heated to the bonding temperature at a rate of 65 °C/min, then held at that temperature for bonding time of 15, 30, 45, or 60 min. Samples that were diffusion bonded for 15 min or less failed during preparation. Following the diffusion bonding process, the samples were cooled under vacuum to room temperature. Each bonded sample was sectioned transversely to the bond-line by an abrasive saw, following which each haft was mounted in Bakelite. Three samples were prepared for each condition studied. The mounted specimens were prepared by grinding progressively on silicon carbide papers to 2500 grit, followed by a final polish to 1 μm finish.

Hardness testing of the cross section of the joints was performed using a Leitz microhardness tester. Indentations were made at 100 μm spacing using a diamond tip indenter to which a 0.1 kg load was applied for 30 s, after which the length of the diagonals was measured, and the hardness number calculated. Microscopic examination of the bonded joints was performed using a Leitz optical microscope and a scanning electron microscope (SEM) (FEI Quanta 400, Oxfordshire, UK) equipped with an INCA X-sight X-ray. Quantitative compositional analyses were carried out using energy-dispersive spectroscopy (EDS) and a Bruker X-Ray diffractometer (XRD) from 2θ ranging from 10° to 80° and measuring time 1 s per step.

3. Results and Discussion

3.1. Effect of Bonding Time on the Bond Interface

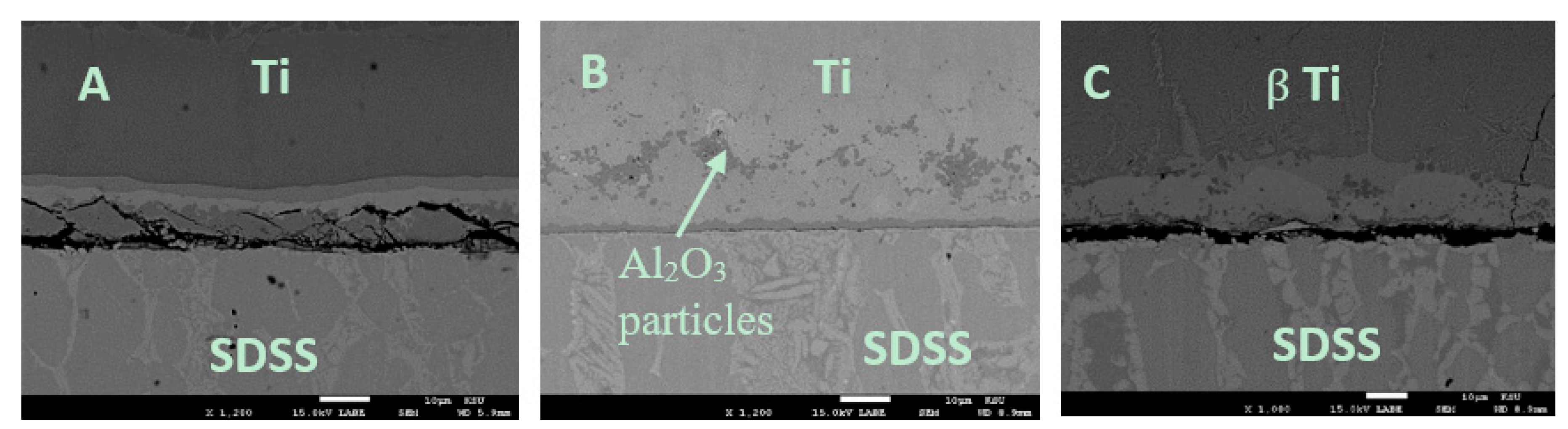

The influence of bonding time on the microstructure formed within the joint region during diffusion bonding was assessed by varying the bonding time from 15 min to 60 min. Figure 3A shows the SEM micrograph of a sample bonded at 850 °C for 30 min. The joint appears to represent a homogenous bond between the Ti–6Al–4V alloy and SDSS. However, a thick reaction layer was observed at the interface on the Ti side of the bond. Al₂O₃ particles appear to have formed clusters and segregated to the grain boundary regions within the Ti side of the bond. The highlighted region presented in Figure 3A shows an additional reaction layer at the SDSS interface. When the bonding time was increased to 45 min, the width of the interface also increased with the formation of two additional phases within the reaction layer containing dispersed Al₂O₃ particles. Microcracking was also observed in this layer of the interface. The fracture may have occurred during the cutting of the sample; these crack patterns, however, suggest that the reaction layer may be brittle. Further increase of the bonding time to 60 min resulted in the formation of four distinct reaction regions at the interface, primarily on the Ti side. While interdiffusion led to the formation of a wide region, labelled A, the nanoparticles appear to have segregated to form a thick layer at the SDSS interface. EDS analysis of the dark grey particles showed that the Al₂O₃ particles reacted with Cu and Fe [15,16].

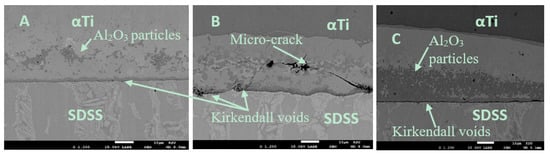

With increasing bonding time, Kirkendall effects were observed to play an important role in the homogeneity of the interfaces. As identified in Figure 3, the formation of voids occurred at the Cu/Al₂O₃/SDSS interface, and the volume of voids present in this area increased as the bonding time increased. The formation of these voids was attributed to the interdiffusion of Cu and Fe near the bottom of the TiCu₂ layer. The presence of the voids formed at the SDSS interface was attributed to the differences in the rate of diffusion between Cu in Fe and Fe in Cu. Continued interdiffusion during the diffusion bonding process is believed to result in an accumulation of voids at the SDSS interface and blocks the diffusion of Fe, causing the growth of the TiCu₂ layer.

3.2. Effect of Bonding Temperature on the Interface

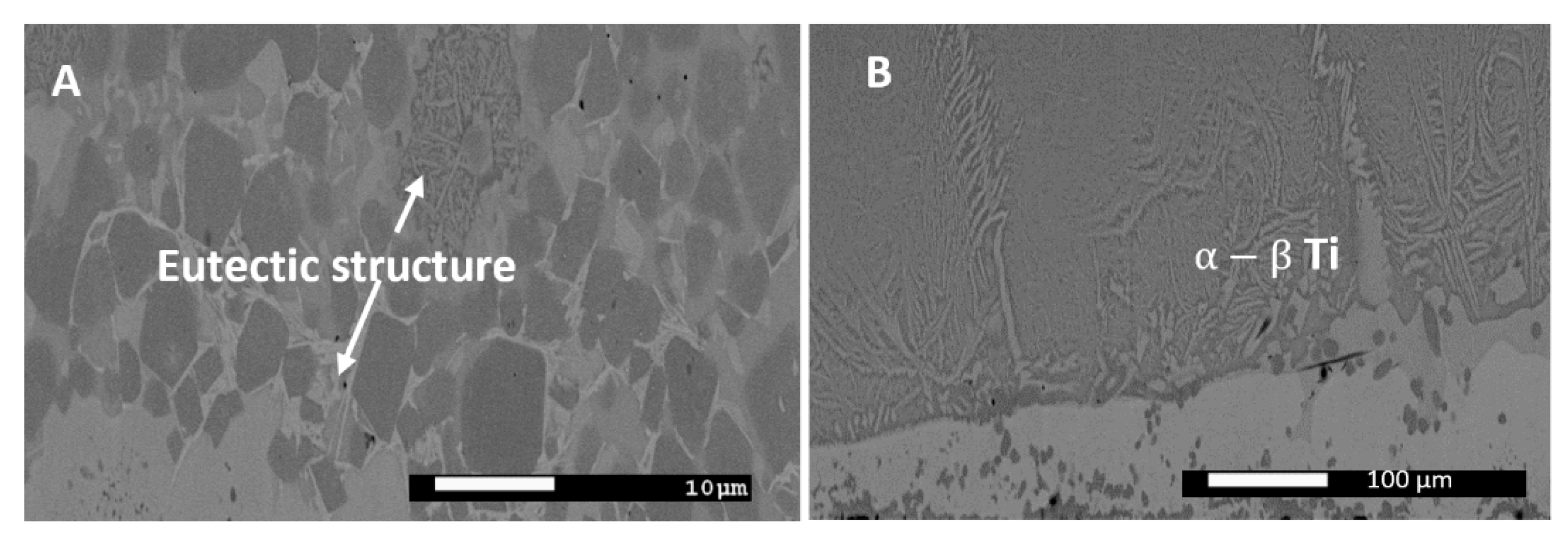

The effect of bonding temperature on the microstructural evolution within the joint region was evaluated at bonding temperatures of 800 °C, 850 °C, and 900 °C for 30 min bonding time. Samples bonded at temperatures below 800 °C failed during preparation for testing. For a bonding temperature of 800 °C, three distinct reaction layers were observed at the interface as shown in Figure 4A. These regions were identified by the differences in the shades of the layers formed. The micrograph also shows evidence of incomplete bonding at the SDSS/Cu/Al₂O₃ interface due to the presence of several cavities/voids. On the other hand, the Ti/Cu/Al₂O₃ interface showed evidence of uniform bonding between the Cu/Al₂O₃ interlayer and the Ti base metal. This dissimilarity may be attributed to the differences in the diffusion coefficient of Cu in Fe and Cu in Ti. The literature shows that within the temperature range studied, the diffusivity of Cu in Ti shows fast impurity diffusion when compared to other metals [17]. Further increase of the bonding temperature to 850 °C led to the formation of a uniform bond at both the SDSS/Cu/Al₂O₃ and Ti/Cu/Al₂O₃ interfaces, as shown in Figure 4B. The Al₂O₃ nanoparticles appear to be distributed along the grain boundaries on the Ti side of the bond. When the bonding temperature was further increased to 900 °C, the width of the reaction zones at the Ti/interlayer interface increased in thickness, and a third reaction layer was observed at the SDSS/interlayer interface (see Figure 4C). According to the Ti–Cu phase diagram, bonding within the temperature range of 870–900 °C would allow for the formation of a eutectic liquid of the form L $= TiC{u}_4+Ti C{u}_2$. Evidence of the formation of the eutectic liquid is shown in Figure 5A. Additionally, at higher bonding temperatures the $\alpha -\beta Ti$ microstructure forms at the Ti/Cu/Al₂O₃ interface (see Figure 5B)

3.3. Effect of Interlayer Composition on the Bond Interface

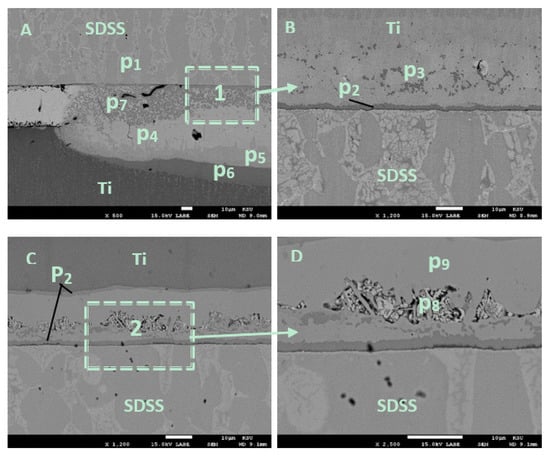

The influence of the interlayer composition on the microstructure of the joint region was investigated by comparing bonds formed using an electrodeposited Cu coating containing α-Al₂O₃ nanoparticles (Figure 6A,B) and a 25 µm Cu foil was used as the interlayer (Figure 6C,D). Figure 6A shows the presence of six separate distinct layers, where each layer is distinguishable by the shade of the specific region. These areas were labelled P₂–P₇. The elemental composition of each phase was identified using EDS and is presented in

Table 2. EDS assessment of the composition of the joint interface (wt %).

Phase	Al	Ti	V	Fe	Cu	C	Cr	Ni	Possible Phase
P1	-	0.22	-	61.57	0.68	3.51	24.45	5.73
P2	1.86	28.64	1.03	0.54	67.34	-	-	0.59	TiCu2
P3	2.43	33.78	1.24	1.26	58.45	2.34	-	-	TiCu2
P4	0.32	41.31	0.73	-	55.54	2.1	-	-	TiCu
P5	1.36	41.55	1.40	1.13	51.32	2.89			TiCu
P6	5.53	79.00	4.83	0.45	10.18	-	-	-	Ti2Cu
P7	7.49	47.08		1.95	40.47	1.47	1.08	0.46	TiCu/Al2O3
P8	1.35	41.55	1.40	1.13	51.32	2.89	0.36	-	Tix Cux-Fex
P9	2.19	54.19	1.91	0.81	37.77	2.58	0.29	0.26	Ti2Cu

. The EDS analysis shows that the composition of P₁ is that of the super-duplex stainless steel because of the high Fe and Cr content and low Cu concentration.

The dark grey region P₂ is a Cu-rich phase of TiCu₂ which contains 67 wt % Cu and 28 wt % Ti. P₃ also appears to be a Cu-rich phase with a composition of 33 wt % Ti and 58 wt % Cu and is possibly the same TiCu₂ (see Figure 6B). Similar changes were observed for region P₄, which had a composition of 41 wt % Ti and 55 wt % Cu, while P₅ similarly showed a marginal change in the Ti content. The EDS analysis suggests that both P₄ and P₅ are TiCu compounds (see Figure 6A). The Ti-rich phase P₆ was identified as Ti₂Cu into which Cu had diffused. The general trend showed that the Ti content within the reaction layers increased progressively from the steel side of the bond towards the Ti base metal. The region labelled P₇ contained spherical particles distributed within the grain boundary region. EDS analysis showed the presence of Al₂O₃ particles as well as Cu, Ti, and Fe.

The Ti/SDSS joint bonded using 25 µm Cu foil presented in Figure 6C shows the presence of five distinct reaction regions identified by the differences in shade, similar to those identified when the Cu/Al₂O₃ interface was used. EDS analysis of the region labelled P₈ suggests that this phase is a ternary compound of the form Ti_xCu_x-Fe_x. The region labelled P₉ is believed to be compound TiCu given the high Ti content recorded (see Figure 6D). A summary of the phases identified is listed in Table 2. The low 0.54–1.95 wt % of Fe recorded within the reaction layer confirms that phases P₃, P₄, P₅, and P₇ are likely binary compounds formed from reactions between Ti and Cu. EDS maps of the bond formed using Cu foil as the interlayer showed that the distribution of the elements Fe, Cu, and Ti within the reaction layer (Figure 7) led to the formation of the ternary intermetallic compound labelled at P₈: (Ti₃₃Cu₆₇ − xFex; 1 < x < 2.5), T₂ (Ti₄₀Cu₆₀ − xFex; 5 < x < 17), T3 (Ti₄₃Cu₅₇ − xFex; 21 < x < 24), τ (Ti₃₇Cu₆₃ − xFex; 6 < x < 7), and τ₁ (Ti₄₅Cu₅₅ − xFex; 4 < x < 5) [18].

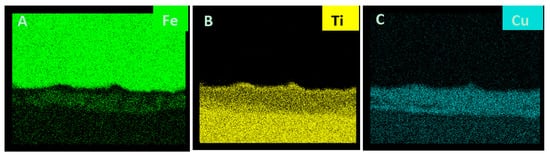

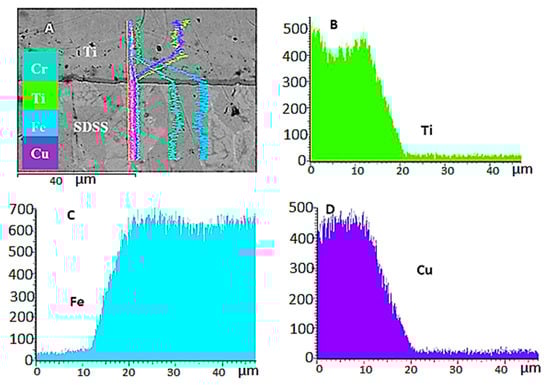

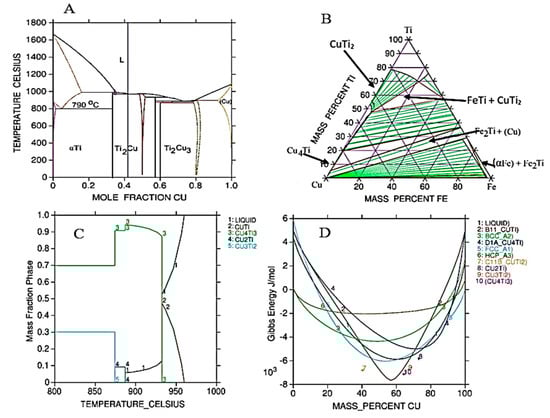

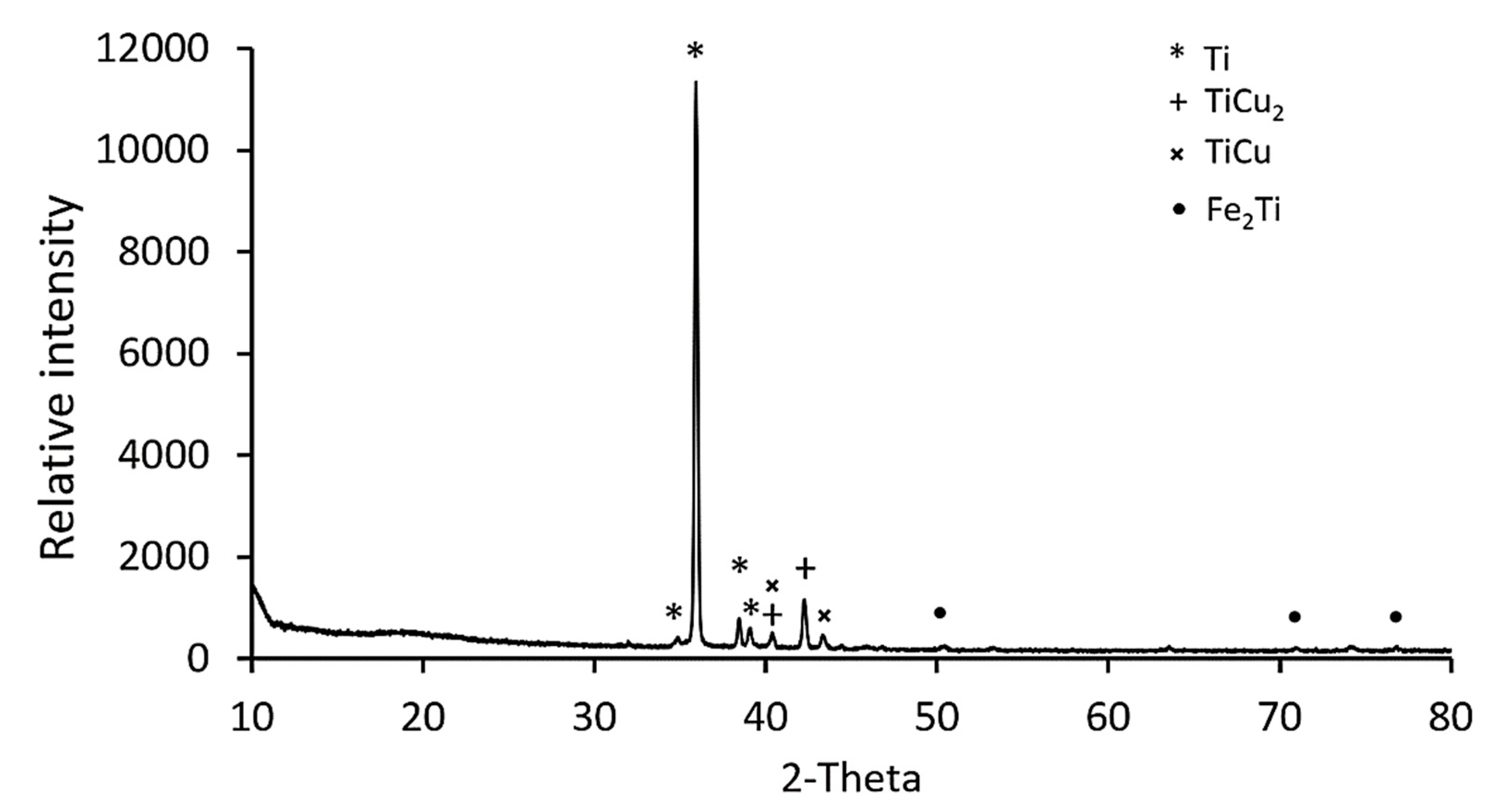

EDS line scans presented in Figure 8 and Figure 9 show a visual representation of the variation of the composition across the joint zone and confirm the high concentration of Ti and Cu within the reaction layers. The Ti–Cu phase diagram shown in Figure 10A suggests that within the range of composition listed in Table 2, the compound TiCu₂ would form with Cu content varying between 33 wt % and 48 wt %. The compound labelled P₈ was only found at the interface when Cu foil was used as the interlayer. This phase has a higher concentration of Fe and is believed to be a ternary intermetallic phase.

These phases are believed to have formed due to the dissolution of approximately 38 wt % of Cu in the cubic Ti–Fe lattice. The Ti–Cu–Fe ternary phase diagram presented in Figure 10B confirms the likelihood of the formation of intermetallic compounds within the temperature range of 800–900 °C [19].

The shape of the compound formed at the interface when the Cu foil was used as the interlayer appears to be a continuous series of brittle plates, which are stacked as shown in Figure 6D. When compared to the bond formed using the Cu/Al₂O₃ coating as the interlayer, the nanoparticles are seen to occupy positions around grain boundaries as shown in Figure 6C.

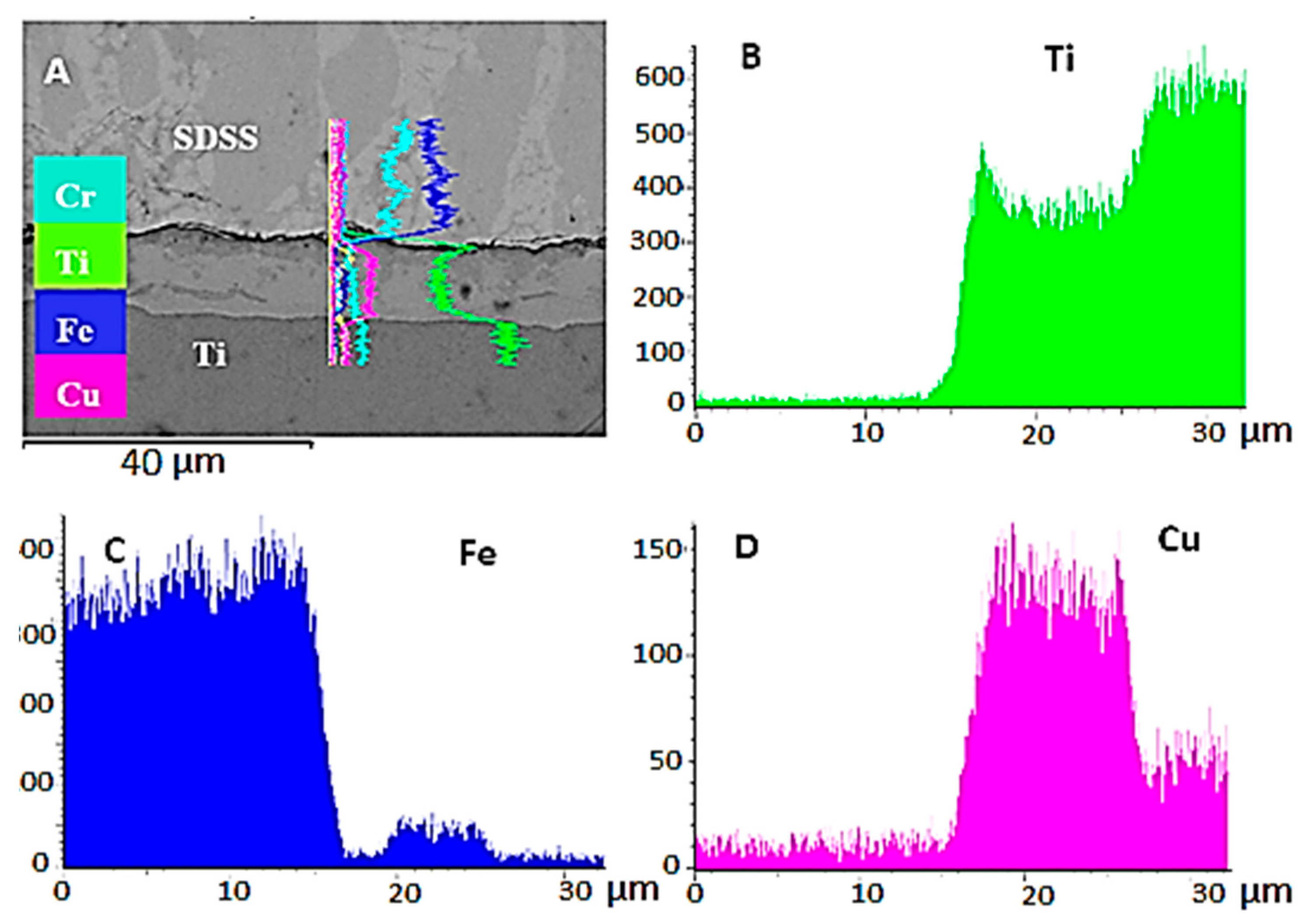

The EDS line scans presented in Figure 9 show that a large portion of the reaction layer formed on the Ti side of the bond was promoted by the diffusion of Cu into the Ti base metal, given that Cu diffuses faster into Ti than it does into SDSS. Similar findings were observed when the Cu/Al₂O₃ interlayer was used (see Figure 9). The reaction layer was found to have a higher percentage of Cr and Fe, which may suggest that Fe and Cr diffused faster into the Cu/Al₂O₃ coating than into the Cu foil.

When the process was modelled using Thermo-Cal, the results showed that within the bonding temperature range studied (850–900 °C) four binary phases are possible; Cu3Ti2, Cu₂Ti, Ti₂Cu, and Cu₄Ti₃, as shown in Figure 10A, support the EDS data. Similar observations were reported by Pardal et al. [3] who studied dissimilar metal joining of Ti and duplex stainless steel using Cu as a transition metal interlayer. A plot of the Gibbs free energy profile shown in Figure 10C,D indicates that several stable phases are likely to form in the Ti–Cu binary system for the bonding temperature range studied. The sequence of phase formation goes from CuTi₂ to Cu₄Ti₃, Cu₃Ti₂, and Cu₂Ti. The growth of these phases is believed to be promoted by interdiffusion between Cu and Ti into the reaction layer. The XRD spectrum presented in Figure 11 confirms the presence of Cu₂Ti within the bonded region.

3.4. Hardness

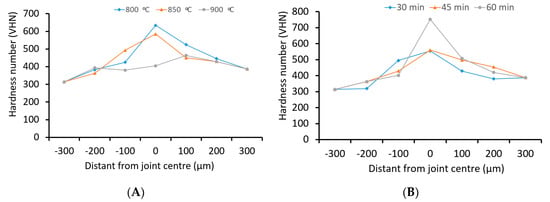

The influence of bonding temperature on variation of the hardness across the bonding interface was evaluated and is presented in Figure 12. The hardness values were measured across the joint starting at 300 µm from the joint center. The results show that the hardness of the Ti base metal fluctuated between 320 and 420 VHN up to 100 µm from the joint center as the bonding temperature was increased from 800 to 900 °C. The hardness within the joint center was also observed to decrease from 634 to 405 VHN when the bonding temperature was increased from 800 to 900 °C. The hardness of the SDSS base metal was found to be higher than that of the Ti base metal, with a hardness value of 387 VHN. The result of the hardness test shows (see Figure 12A) that the hardness within the joint center decreased with increasing bonding temperature. These findings were attributed to increased diffusion rates at higher bonding temperatures leading to homogenization of the bond region.

The effect of bonding time on variation of the hardness across the joint interface was also studied (see Figure 12B). Similarly, the hardness was measured across the joint starting at 300 µm from the joint center as a function of bonding time. The hardness within the joint center increased from 554 to 752 VHN when the bonding time was increased from 30 min of bonding time to 60 min. The maximum hardness of 750 VHN was recorded at the center of the joints bonded for 60 min. The hardness at the center of the bond is believed to have been caused by the formation of the reaction layer made up of binary and ternary intermetallic compounds as well as Al₂O₃ nanoparticles dispersed at the joint interface [20].

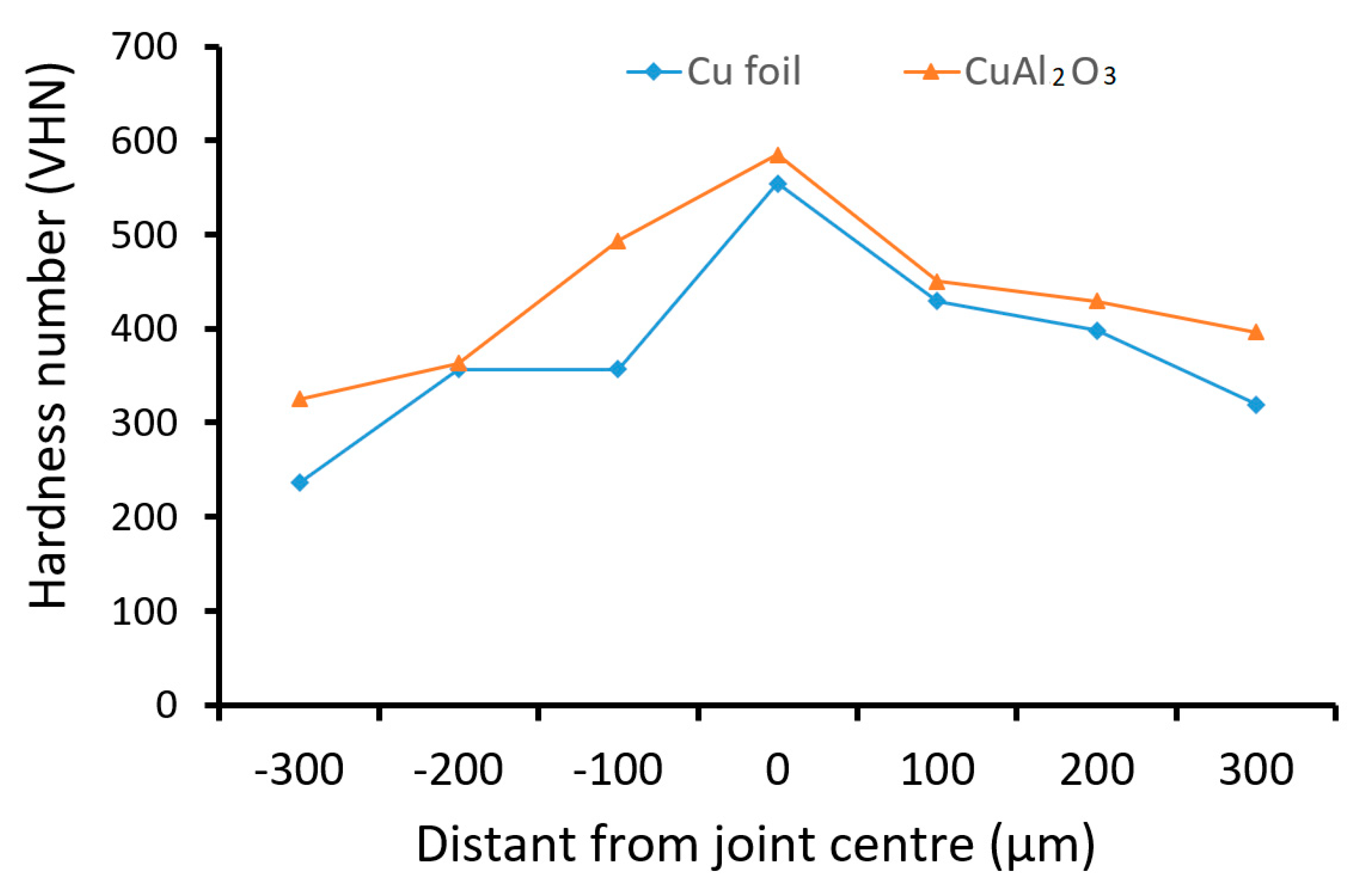

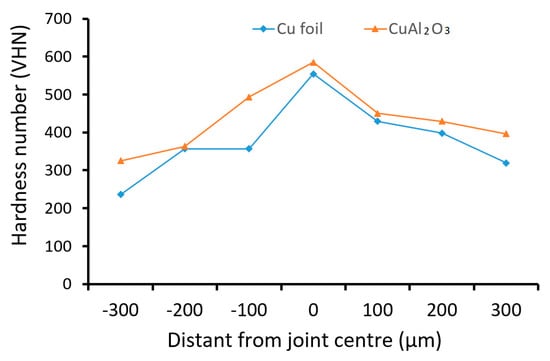

Finally, the impact of interlayer composition on variation of the hardness measurements (see Figure 13) across the joint region was evaluated by comparing the bonds made with Cu/Al₂O₃ and Cu foil interlayers. The results show that when the Cu/Al₂O₃ interlayer was used, higher hardness values were recorded in the joint region when compared to samples bonded using Cu foil. The results show that the hardness within the joint center was marginally higher when Cu/Al₂O₃ coating was used as the interlayer due to the dispersion of hard nanoparticles at the interface.

3.5. Growth Kinetics of Interfacial Phases

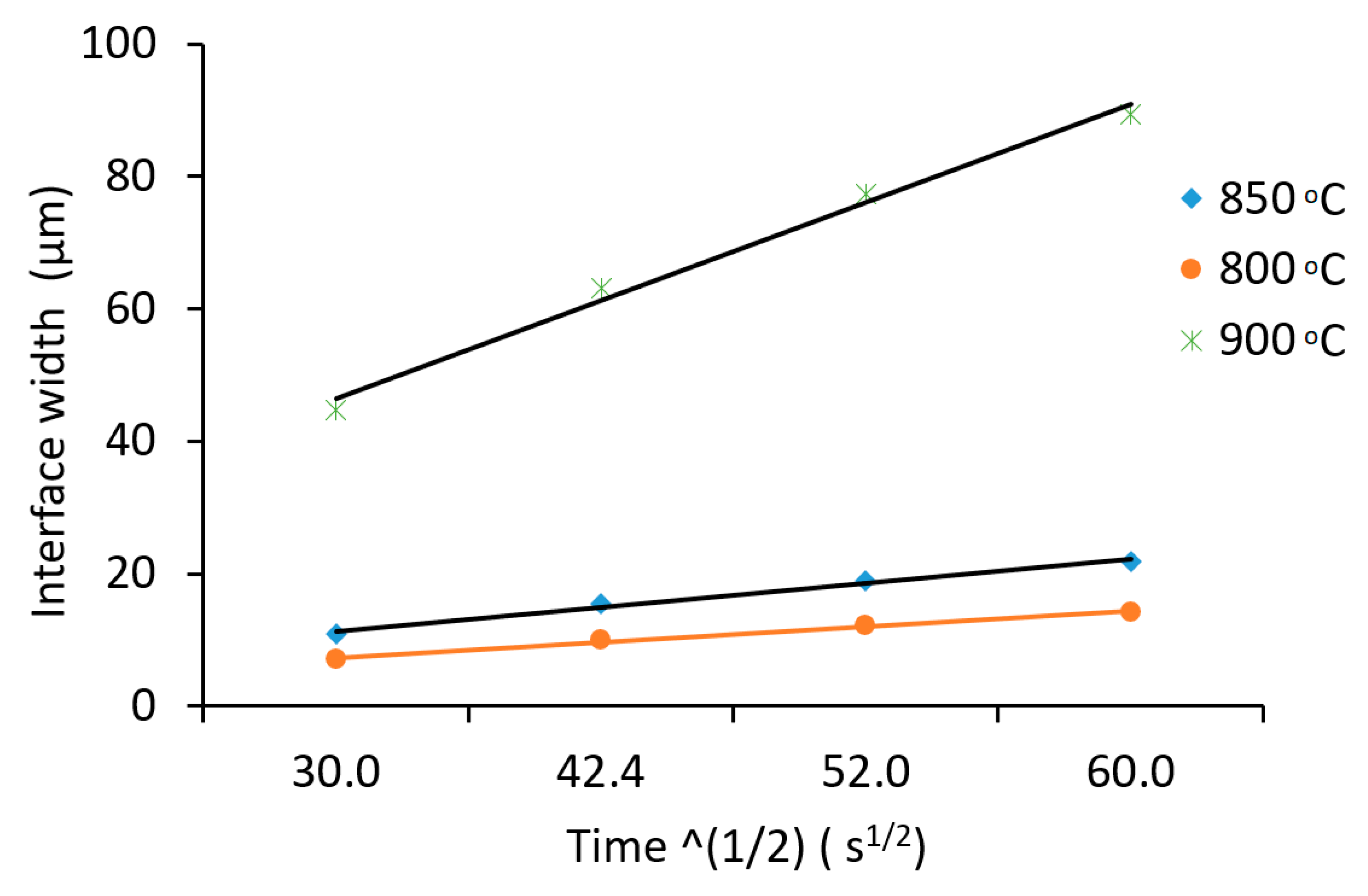

The width of the reaction layer was measured as a function of bonding time and bonding temperature and plotted as shown in Figure 14. The data indicate that as the bonding time increased, the width of the reaction layer also increased as predicted by the power law shown in Equation (1). Similar behavior was observed when the bonding temperature was increased from 800 to 900 °C. This response is believed to be consistent with the changes in the rate constant as the bonding temperature increased. The width of the reaction layer increased with increasing bonding temperature and can be estimated by the mathematical relationship shown in Equation (1):

$$d=k{t}^n$$

(1)

where d is the thickness of the reaction layer, k is the rate factor, t the diffusion time, and n the time exponent. Further, $k=k_o{e}^{-(\frac{Q}{RT})}$, where T is the bonding temperature (K), Q is activation energy (kJ/mol), R is the real gas constant (8.314 J/K mol), and k_o is the growth constant (m²/s). The growth kinetics of the intermetallic layer is controlled by interdiffusion (volume diffusion); therefore, the diffusion time is estimated to be t^1/2 (i.e., n = 0.5). On the other hand, if the growth kinetics was controlled by interfacial diffusion, the time exponent would be n = 1 [21,22].

The results of the experimental study were used to assess the kinetics leading to the formation of the Ti₂Cu reaction layer at the interface. A summary of the growth kinetics of the reaction layer is shown in

Table 3. Growth kinetics of the reaction Cu₂Ti layer during the diffusion bonding process.

Bonding Temperature (K)	Interlayer Thickness (µm)	Rate Coefficient k (µm/s1/2)	Q (kJ/mol)
1073	10	0.236	110.3
1123	15.4	0.362	111.4
1173	63.2	1.482	102.6

. The activation energy was calculated to be 111.4 kJ/mol for a bonding temperature of 850 °C. This is similar to findings published in the scientific literature which suggest that the activation energy for the formation of Ti₂Cu is approximately 122.1 kJ/mol [16]. In this study, the calculation of the activation energy was performed based on a simplified diffusion model, which assumes diffusion in a single phase which is influenced by the thickness of the reaction layer formed during the diffusion bonding process and the increases in the rate coefficient. The width of the diffusion layer is also believed to be driven by the diffusion of Cu into the Ti base metal, leading to the formation of various compounds. The Thermo-Cal model predicted the possible formation of several other compounds at the interface; however, the limitation of the simplified diffusion model is that only a single phase is assumed to have formed at the interface.

3.6. Mechanism of Bond Formation

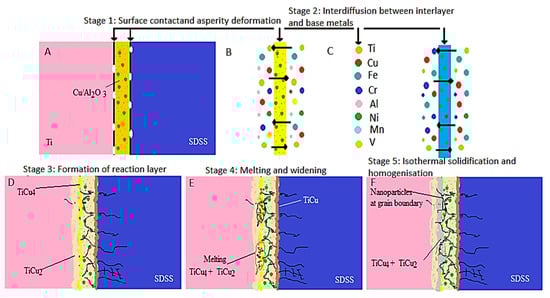

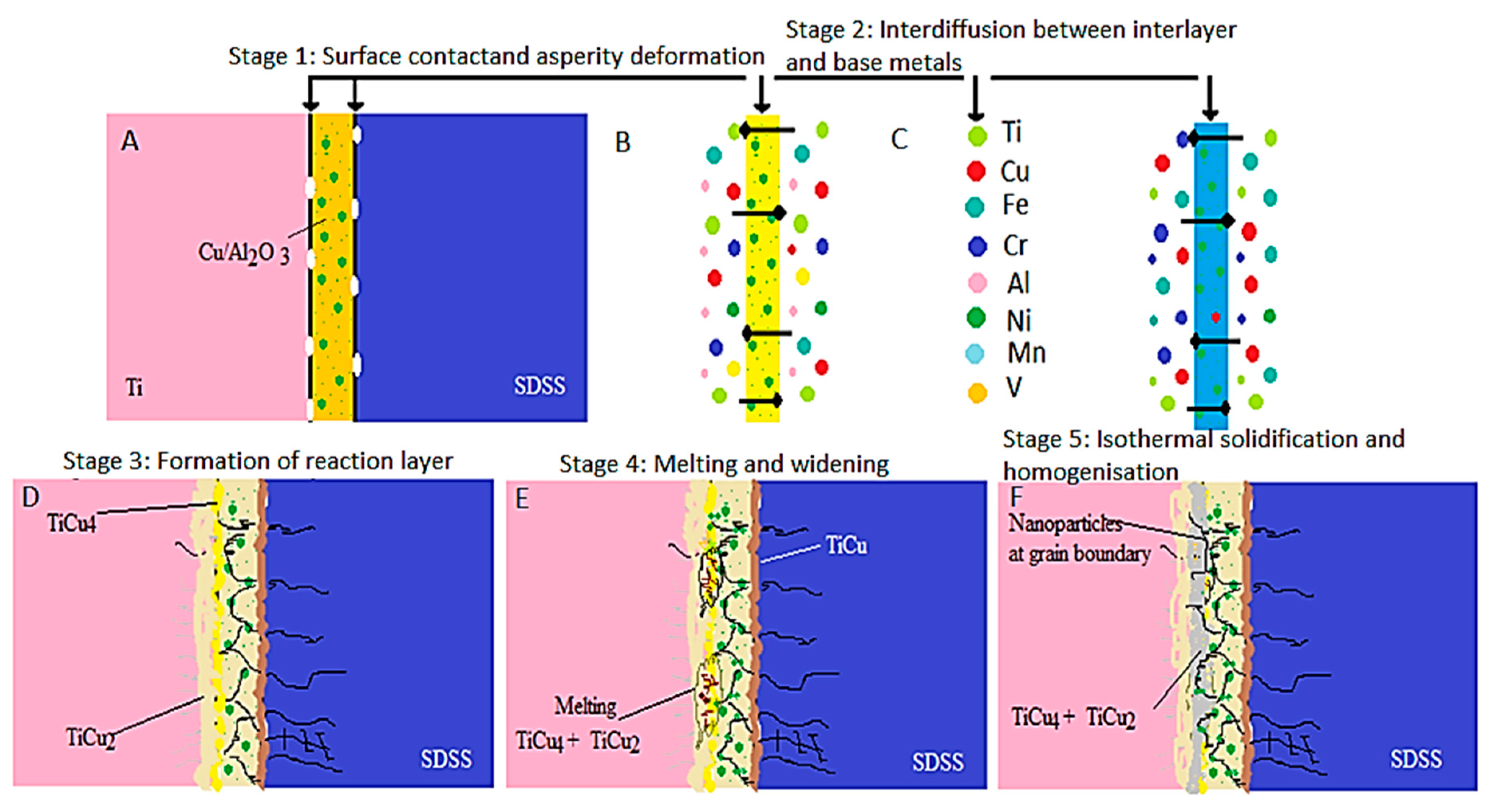

The diffusion bonding process involves several stages [13]. The first stage involves initial contact between the faying surfaces and the interlayer, followed by deformation of the surface asperities under the effects of an externally applied load. The combination of heat and load increases the area of contact between the base metals and the interlayer and closes some of the voids or cavities present at the interlayer/base metal interfaces.

The second stage of bonding occurs due to interdiffusion between the base metals and the interlayer, leading to the formation of an intermetallic compound at the interface, which promotes the closing of remaining voids and cavities. The third stage of bonding involves diffusion of Cu into the SDSS and Ti–6Al–4V base metals, leading to a eutectoid reaction as predicted by the equation $\beta -Ti=\alpha -Ti+T{i}_{2}Cu$ for bonding temperatures of 850 °C and below. The EDS analysis presented in Table 2 shows that intermetallic compounds such as CuTi₂ and Cu₂Ti are also formed at the interface during the bonding process. A schematic of the mechanism involved in the bond formation is shown in Figure 15. The results show that the width of the reaction layer increases with increasing bonding time. Similarly, the literature shows that the strength of the bond increases with increasing thickness of the reaction layer. When a bonding temperature of 900 °C is used, a eutectic liquid forms at the interface, as illustrated in Figure 15E, and solidifies isothermally in the subsequent stages of the bonding process. At temperatures below 900 °C, solid-state bonding is achieved.

4. Conclusions

In this study, Ti–6Al–4V alloy was diffusion bonded to super-duplex stainless steel (SDSS) using an electrodeposited Cu interlayer containing alumina nanoparticles to determine the effects of bonding parameters on the microstructural evolution within the joint region.

• The results of the study showed that SDSS and Ti–6Al–4V can be successfully diffusion bonded using a Cu interlayer embedded with alumina nanoparticles at temperatures above 800 °C.
• The combination of longer bonding time and high bonding temperature leads to the formation of various Ti–Cu intermetallic compounds within the interface. The use of a Cu interlayer prevented the formation of the more brittle intermetallic compounds of Fe–Ti and Ti–C.
• The addition of Al₂O₃ nanoparticles was successful in restricting the growth of a continuous intermetallic layer and caused a change in the volume, size, and shape of the intermetallic compounds formed by pinning grain boundaries and restricting grain growth.
