Fractal Characteristics and Heterogeneity Evaluation of Shale Reservoirs Based on MIP and Gas Adsorption: A Case Study of Marine Shale in the Sichuan Basin

Abstract

The deep marine shale of the Wufeng–Longmaxi (WF–LMX) Formation in the Sichuan Basin is characterized by laterally continuous thickness, high porosity, and significant gas content, making it a representative shale reservoir with considerable resource potential. This study investigates the heterogeneity of pore structures and their controlling factors using shale samples from three representative wells, based on low-temperature nitrogen adsorption and mercury intrusion data. The reservoir can be classified into three main lithofacies: mixed siliceous shale (MSS), clay-rich siliceous shale (CSS), and siliceous clay mixed shale (SMS). The results show that siliceous shales (MSS and CSS) exhibit higher total organic carbon and quartz contents, with more developed pore systems. Among them, the CSS exhibits the highest specific surface area and the largest mesopore and macropore volumes, indicating a greater development of larger pores and superior reservoir quality. All three shale facies exhibit clear single and multifractal characteristics. The average D₁ and D₂ values (fractal dimensions from nitrogen adsorption at P/P₀ < 0.45 and >0.45, respectively) are higher than D_Hg, (fractal dimension from mercury intrusion), indicating greater pore-surface roughness than internal pore structure complexity and stronger heterogeneity in larger pores. The D(q)–q spectrum shows a left-wide/right-narrow pattern, whereas the α–f(α) spectrum exhibits the opposite trend. The branch-width ratios S_kd and S_ka (indices of pore-size distribution complexity and heterogeneity) are both <0.1, suggesting that heterogeneity is more pronounced in low-probability regions. Fractal and multifractal analyses reveal significant pore structure heterogeneity across different lithofacies, with CSS showing relatively more homogeneous pore structures, whereas MSS exhibits stronger heterogeneity and poorer connectivity. The heterogeneity of shale reservoirs is primarily controlled by pore development, especially micropores and mesopores, and is strongly influenced by total organic carbon and quartz content.

1. Introduction

Over 95% of China’s shale gas production comes from the Upper Ordovician Wufeng (WF) Formation and the Lower Silurian Longmaxi (LMX) Formation located in and around the Sichuan Basin [1,2]. By the end of 2023, the Lower Silurian LMX shale had reported proven reserves of nearly 300 billion cubic meters. In 2023, the production from this formation was approximately 25 billion cubic meters, accounting for 10.9% of the country’s total natural gas output [3]. Currently, the main production zones in the Upper Ordovician WF Formation and the Lower Silurian Longmaxi Formation are the medium- to shallow-depth shale gas fields, such as Changning–Weiyuan, Fuling, and Zhaotong, which have achieved commercial development and large-scale production [2,4]. In recent years, significant new discoveries have been made in the deep and ultra-deep regions of the Sichuan Basin, particularly in Luzhou and Nanchuan. The typical example is Well Lu-203, which represents a breakthrough in deep shale gas exploration in China and has expanded the favorable production depth for shale gas in the Sichuan Basin [4,5]. In deep shale formations, temperature, pressure, and stress levels are characterized by unusually high values. Additionally, the reservoir exhibits a complex development of organic matter pores, inorganic mineral pores, and fractures [6,7,8]. The accumulation of shale gas is influenced by the quality of the source rocks and fluid overpressure. In deep reservoirs, the content of free gas is increasing, and with advancements in engineering and transformation technologies, there is significant potential for exploration [9]. There is a consensus that deep shale gas has promising exploration potential. Predictions indicate that the deep and ultra-deep shales of the WF and LMX formations in the Sichuan Basin, buried at depths of 3500 to 5000 m, cover an area of approximately 25,000 square kilometers. The remaining shale gas resources in this region are estimated to be around 1.3 trillion cubic meters, accounting for 51% of the total remaining resources in the WF–LMX formations, making it a significant area for future development [4].

Deep shale reservoirs are affected by conditions of high temperature and pressure at great depths, which complicates the development and connectivity of the nanoscale to microscale pore systems. The strong heterogeneity of the pores and the complex arrangement of pores and fractures make it challenging to preserve shale gas [10,11,12]. Many reports suggest that biogenic silica is fundamental to the distribution and pore development of organic-rich shales. Additionally, fluid overpressure is crucial for maintaining reservoir porosity. The combined effects of these two factors facilitate the development and preservation of high-quality, porous reservoirs in deep and ultra-deep shales [8,13,14,15]. A thorough investigation of the pore structure in shale reservoirs is essential for evaluating the heterogeneity of shale gas wells and guiding exploration in deep shale gas formations. Currently, common methods for quantitatively characterizing the storage space of unconventional reservoirs include image analysis techniques (such as scanning electron microscopy) [15,16], fluid injection methods (like mercury intrusion, low-temperature nitrogen, and carbon dioxide adsorption) [17,18,19], and non-fluid injection methods (including low-field nuclear magnetic resonance, computed tomography, and neutron/small-angle scattering) [20,21]. While these qualitative and quantitative methods can provide a comprehensive characterization of the full pore-size distribution (PSD) in shale, the irregular nature of shale pore systems often deviates from traditional Euclidean geometry, making it challenging to effectively quantify their internal heterogeneity.

Fractal geometry provides an effective tool for quantitatively characterizing the heterogeneity and self-similar features of porous media, and it has been widely applied in the study of pore structures in unconventional reservoirs such as shale [22,23]. The fractal dimension reveals the overall complexity of pore structures and establishes relationships between the physical properties, pore structure parameters, and gas content of different rock types, allowing for a quantitative characterization of reservoir heterogeneity [23,24]. Single fractal models, developed using techniques such as mercury intrusion, image analysis, and gas adsorption, have become important tools for assessing reservoir heterogeneity [23,24,25]. However, the single fractal dimension primarily reflects the overall scale characteristics of the pore system, making it difficult to capture the unevenness of PSD and local variations [26]. To address this limitation, multifractal theory has gradually been introduced into the study of reservoir pore structures [27,28]. Multifractal analysis breaks down the overall fractal structure into multiple subsets with different scale characteristics, allowing for a quantitative representation of local complexity and heterogeneity in PSD, thereby providing a more detailed understanding of spatial differences in pore structure [28,29]. Compared to single fractal analysis, multifractal analysis offers significant advantages in identifying subtle differences in pore structure and characterizing the nature of heterogeneity, providing new avenues for the detailed characterization of pore structures in unconventional reservoirs [29,30,31].

Exploration practices indicate that the WF–LMX shale is a highly enriched system for shale gas resources, characterized by widespread gas presence, extensive distribution of sweet spots, and stable high production from individual wells [3,4]. This study focuses on the WF–LMX deep marine shale in the Sichuan Basin, utilizing a range of analytical techniques including total organic carbon (TOC) testing, X-ray diffraction (XRD), field emission scanning electron microscopy (FE-SEM), low-temperature nitrogen adsorption (LTNA), and high-pressure mercury intrusion (MIP) to systematically characterize the differences in TOC content, mineral composition, and pore structure among various rock types. Based on LTNA and MIP data, a single fractal model is applied to perform fractal fitting of the pore structure, allowing for a quantitative assessment of the heterogeneity characteristics of different shale reservoir types. This research employs the box-counting method for multifractal analysis of the LTNA data, comparing the applicability of single fractal and multifractal methods in characterizing the heterogeneity of shale pore structures. Furthermore, by integrating correlation analysis and principal component analysis, the study explores the intrinsic relationship between pore structure parameters and fractal dimensions in organic-rich shales, identifying the primary controlling factors of heterogeneity in deep marine shale reservoirs. The findings contribute to a deeper understanding of the heterogeneity characteristics of deep shale reservoirs and provide a scientific basis for shale gas exploration and evaluation.

2. Geological Setting

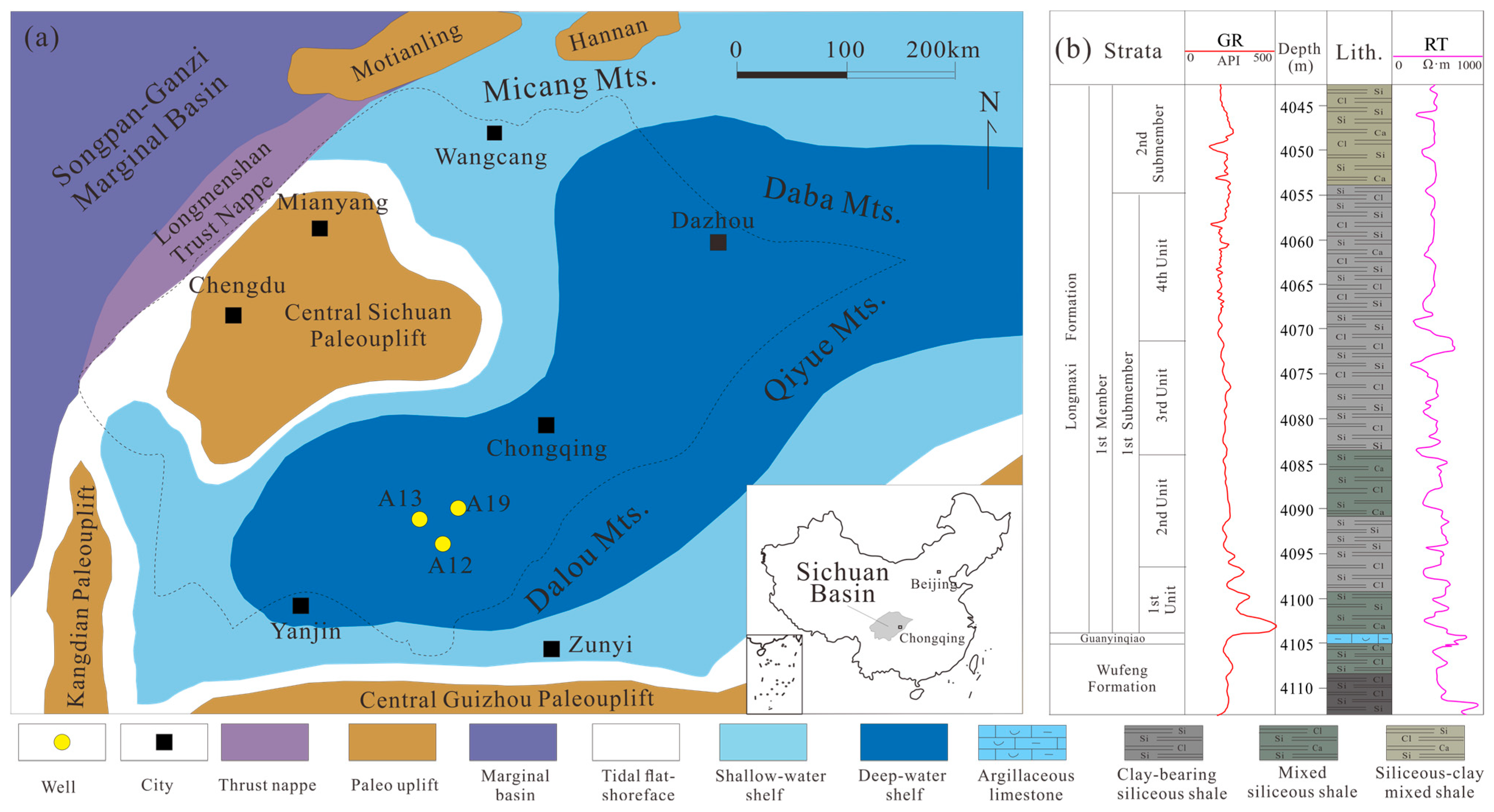

The Sichuan Basin, located in southwestern China, is structurally part of the western Yangtze Plate and is a typical superimposed oil and gas basin. During the Late Ordovician to Early Silurian period, the structural compression from the southeast caused alternating uplift of the ancient uplifts in central Sichuan and the Qianzhong-Xuefeng area, resulting in a semi-closed, stagnant marine basin characterized by a “three uplifts and one depression” configuration (Figure 1a). Two major depression centers emerged in the Weiyuan-Changning area of southern Sichuan and the Fuling-Jiaoshiba region in eastern Sichuan [32,33]. Influenced by two global transgression events, the sedimentation period of the WF–LMX formation transitioned from a deep-water shelf to a gradually evolving semi-deep and shallow-water shelf [34]. As the sedimentary water depth decreased, the abundance of organic matter and silica content steadily declined, leading to the development of clay-rich and silt-rich shales. This is reflected in a sedimentary sequence characterized by a gradual increase in grain size and a transition from darker to lighter colors (Figure 1b). Within the depression centers, high-quality black to gray-black shales are widespread, typically ranging from 20 to 40 m in thickness, predominantly consisting of siliceous and calcareous siliceous shales [34]. The shales exhibit well-developed horizontal layering, abundant with conodont fossils, and show stable planar distribution, making them a key target for shale gas exploration and research in the Sichuan Basin and its surrounding areas [1].

3. Materials, Experiments and Theories

3.1. Sample and Experiments

The 15 shale samples used in the experiment were collected from three exploratory wells in southern Sichuan (Figure 1a). From each well, one gray-black shale sample was selected from each of the four sections in the WF–LMX Formation. Due to differences in sedimentary environments, the shale samples exhibited significant variations in mineral composition and TOC content. This variability provides a solid foundation for subsequent analyses of reservoir pore structure and heterogeneity.

To systematically characterize the mineral composition, organic matter abundance, and pore structure of the shale samples, a series of experimental tests was conducted, including XRD, TOC analysis, LTNA, MIP, and FE-SEM. Mineral composition was analyzed using an X-ray diffractometer (D8 Advance, Bruker, Karlsruhe, Germany), with all samples ground to less than 200 mesh. The TOC content was measured using a carbon–sulfur analyzer (CS744-MHPC, LECO, St. Joseph, MI, USA), with an analytical accuracy of ±0.3%. These analyses were conducted at the Unconventional Experiment Center of China National Offshore Oil Corporation. Pore structure parameters were obtained through low-temperature nitrogen adsorption experiments using an automatic surface area and pore size distribution analyzer (Autosorb-iQ3, Quantachrome Instruments, Boynton Beach, FL, USA). Prior to the experiments, samples were degassed under vacuum at 110 °C for 12 h to remove surface-adsorbed water and impurities. Nitrogen adsorption–desorption isotherms were then measured.

To quantitatively compare micropore and mesopore structures, the density functional theory (DFT) model implemented in the instrument analysis software (ASiQwin, Version 5.2, Quantachrome Instruments, Boynton Beach, FL, USA) was applied to calculate specific surface area (SSA), pore volume (PV), and PSD. Macropore characteristics were analyzed using a mercury intrusion porosimeter (AutoPore IV 9520, Micromeritics, Norcross, GA, USA). These experiments were conducted at China University of Geosciences to characterize macropore structures. Microscopic pore morphology was observed using FE-SEM. Samples were cut into cubes (1 cm × 1 cm × 1 cm) and polished using an argon ion polishing system to obtain smooth surfaces. High-resolution imaging was performed using a field emission scanning electron microscope (Gemini SEM 500, ZEISS, Oberkochen, Germany), with a maximum resolution of 0.8 nm.

3.2. Fractal Dimension Calculation

3.2.1. Calculation of Fractal Dimension Based on Nitrogen Adsorption Data

The Frenkel Halsey Hill (FHH) theoretical model modified by Pfeifer et al. (1989) [35] can effectively characterize the fractal characteristics of shale pore systems at different scales. The fractal dimension calculation method based on the capillary aggregation mechanism can better reflect the heterogeneity of pore structure in porous media. Therefore, this study adopts this method to calculate the fractal dimension of shale pores, and its expression is as follows.

$$nV=C+(D-3)lnln{\displaystyle \frac{P_0}{P}}$$

(1)

In the equation above, V represents the volume of gas adsorbed at an absolute pressure of P (units: ml/g). P₀ denotes the saturation vapor pressure (units: MPa). D is the fractal dimension. C is a constant. For the calculations, a scatter plot was created with ln(lnP₀/P) on the x-axis and lnV on the y-axis, where the fitted slope corresponds to the value of D. According to the FHH model, the fractal dimension of shale reservoirs ranges from 2 to 3. A higher value indicates greater complexity and irregularity in the pore system [27,36,37].

3.2.2. Calculation of Fractal Dimension Based on High-Pressure Mercury Intrusion Data

The fractal dimension represented by the capillary bundle model typically shows a strong correlation with reservoir physical properties and pore structure characteristics, making it widely used in single fractal studies based on high-pressure mercury intrusion PSD data [29,36]. This study employs a capillary bundle fractal model based on mercury saturation to characterize the meso- and macropore structures in shale, with the fundamental expression provided below.

$$\mathrm{l}\mathrm{o}\mathrm{g}(1-S_{Hg})=\left(D-3\right)\times log{P}_c-\left(D-3\right)\times {logP}_{min}$$

(2)

In the equation, S_Hg represents the volume fraction of mercury that occupies the pores (units: %), which is equivalent to the PV fraction. P_c denotes the capillary pressure (units: MPa), which corresponds to pore size. Based on the equivalent relationship between capillary pressure and pore size, the equation can typically be further transformed [35].

$$log{S}_{Hg}=\left(3-D\right)\times logr+\left(D-3\right)\times log{r}_{max}$$

(3)

In the equation above, r represents the pore radius (units: nm). rmax denotes the maximum pore radius (units: nm). s indicates the cumulative PV percentage corresponding to the pore radius r. D is the fractal dimension of the porous material. Therefore, the fractal dimension D can be calculated from the slope of the linear relationship between lg(dV/dp) and lgp. To distinguish it from the fractal dimension calculated using low-temperature nitrogen adsorption data, this study designates the fractal dimension derived from high-pressure mercury intrusion data as D_Hg. Furthermore, acknowledging the limited measurement accuracy of the high-pressure mercury intrusion method at small pore scales [36], and considering the primary PSD characteristics of the studied object, this study focuses solely on fitting and analyzing the fractal dimensions of pores within the range of 50 to 3000 nm.

3.3. Multifractal Theory

Multifractals are characterized by two equivalent mathematical descriptions: the generalized fractal spectrum D(q)–q and the multifractal spectrum α–f(α). In the context of gas adsorption, the multifractal dimension is typically calculated using the box-counting method [30,36,38]. Relative pressure is divided into several equal-length boxes, with the box size denoted by ε. A mass probability function is defined for each box of size ε, which is used to quantitatively analyze the distribution characteristics of gas adsorption within each box.

$$p_i\left(\epsilon \right)={\displaystyle \frac{N_i\left(\epsilon \right)}{N_t}}={\displaystyle \frac{N_i\left(\epsilon \right)}{{\displaystyle {\sum }_{i=1}^N}{N}_i\left(\epsilon \right)}}$$

(4)

Ni(ε) represents the amount of gas adsorbed in the i-th box. N_t denotes the total amount of gas adsorbed. For the i-th interval of size ε, $p_i\left(\epsilon \right)$ can also be defined using an exponential function, as shown in the following equation.

$$p_i(\epsilon )\sim {\epsilon }^{-{\alpha }_i}$$

(5)

In the equation, ${\alpha }_i$ represents the singularity strength, which reflects the local singularity of the mass probability function $p_i\left(\epsilon \right)$ [39]. The value of ${\alpha }_i$ is related to the actual position of the observed box within the fractal image. If we denote the number of subintervals with the same probability marked by α as $N_a\left(\epsilon \right)$, then as the size ε of the partition’s decreases, $N_{\alpha }\left(\epsilon \right)$ increases, meaning that $N_{\mathsf{\alpha }}\left(\epsilon \right)$ grows as ε becomes smaller [40]. Therefore, $N_{\alpha }\left(\epsilon \right)$ can be expressed by the following equation.

$$N_{\alpha }\left(\epsilon \right)\sim {\epsilon }^{-f\left(\alpha \right)}$$

(6)

f(α) represents the dimension of fractal subsets marked by different singularity indices α. The curve formed by α and f(α) is known as the multifractal singularity spectrum, which is used to examine the uneven distribution characteristics of gas adsorption within fractal structures. The singularity index α(q) and f(α) can be determined using the Chhabra and Jensen method [41], with the following expressions provided.

$$a(q)\propto {\displaystyle \frac{{\displaystyle {\sum }_{i=1}^{N\left(\epsilon \right)}}\left[u_i(q,\epsilon )\lg p_i\left(\epsilon \right)\right]}{\lg \epsilon }}$$

(7)

$$f(\mathsf{\alpha })\propto {\displaystyle \frac{{\displaystyle {\sum }_{i=1}^{N\left(\epsilon \right)}}\left[u_i(q,\epsilon )\lg u_i(q,\epsilon )\right]}{\lg \epsilon }}$$

(8)

$$u_i\left(q,\epsilon \right)={\displaystyle \frac{p_i^q(\epsilon )}{{\displaystyle {\sum }_{i=1}^{N\left(\epsilon \right)}}{p}_i^q(\epsilon )}}$$

(9)

$q$ represents the order of the statistical moment, which can range from −∞ to +∞. In this study, $q$ is selected as integers within the range of −10 to 10, with an interval of 1. For multifractals, $u\left(q,\epsilon \right)$ can be defined as the partition function, with the following expression provided.

$$u\left(q,\epsilon \right)={\displaystyle {\sum }_{i=1}^{N\left(\epsilon \right)}}{p}_i^q\left(\epsilon \right)\propto {\epsilon }^{-\tau \left(q\right)}$$

(10)

$$\mathrm{Or} \tau \left(q\right)=-\underset{\epsilon \to 0}{\lim }{\displaystyle \frac{\lg u\left(q,\epsilon \right)}{\lg \epsilon }}=\underset{\epsilon \to 0}{-\mathrm{l}\mathrm{i}\mathrm{m}}{\displaystyle \frac{\mathrm{l}\mathrm{g}{\displaystyle {\sum }_{i=1}^{N\left(\epsilon \right)}}{p}_i^q\left(\epsilon \right)}{\lg \epsilon }}$$

(11)

τ(q) denotes the q-th order mass moment, where different values of q correspond to distinct generalized fractal dimensions. The function τ(q) can be utilized to compute another set of generalized fractal dimensions, D(q). There exists a relationship between q and D(q), as shown below [34,37].

$$D\left(q\right)=\left\{\begin{array}{c}{\displaystyle \frac{\tau \left(q\right)}{1-q}}={\displaystyle \frac{1}{q-1}}\underset{\epsilon \to 0}{\lim }\lg {\displaystyle {\sum }_{i=1}^{N\left(\epsilon \right)}}{p}_i^q\left(\epsilon \right), q\ne 1\\ \underset{\epsilon \to 0}{\lim }{\displaystyle \frac{{\displaystyle {\sum }_{i=1}^{N\left(\epsilon \right)}}{p}_i(\epsilon )\times \lg p_i(\epsilon )}{\lg \epsilon }},q=1\end{array}\right.$$

(12)

When q ≠ 1 and q < 0, it reflects the PSD characteristics in low porosity regions. Conversely, q > 0 highlights the PSD characteristics in high porosity regions [42]. When q = 1, L’Hôpital’s rule is applied to ensure the continuity of the singularity spectrum and the generalized dimension spectrum in order to determine the generalized fractal dimension. This results in a set of points (q, D(q)), which can then be used to construct the generalized fractal dimension spectrum D(q)–q. Specifically, when q is 0, 1, and 2, they correspond to the capacity dimension D₀, the information dimension D₁, and the correlation dimension D₂ [30].

To develop a multifractal model based on nitrogen adsorption, this study uses the relative pressure (P/P₀) as the total interval L, which is defined as J = [0.005, 0.99]. The interval is first interpolated into 64 subintervals to ensure sufficient data density, with each subinterval containing at least two measurement points. Following the box-counting method, the interval J is further divided into N(ε) = 2^k boxes of size ε, where ε = L/2^k, enabling a multi-scale analysis of the pore size distribution. In this study, k values of 0–3 are selected to balance scale resolution and statistical reliability. At larger k values (i.e., smaller ε), some subintervals may contain insufficient data points due to the discrete nature of the adsorption data, leading to unstable probability estimates and reduced reliability of multifractal parameters. Therefore, limiting k to 0–3 ensures that each box contains adequate data while still capturing the essential scale-dependent heterogeneity of the pore system.

4. Results

4.1. Mineralogy and Geochemical Characteristics of Shale

The geochemical analysis results (

Table 1. Differences in mineral composition and TOC among different shale lithofacies. (SMS = Siliceous-clay mixed shale; MSS = Mixed siliceous shale; CSS = Clay-bearing siliceous shale. WF. Fm. = Wufeng Formation).

Sample	Strata	Lithofacies	TOC (%)	Quartz (%)	Clay (%)	Carbonate (%)	Feldspar (%)	Pyrite (%)
A12-4	4th	SMS	2.9	40.3	33.7	15.1	7.6	3.3
A12-3	3rd	MSS	4.6	59.0	15.8	19.1	2.9	3.2
A12-2	2nd	MSS	3.9	61.5	17.6	21.8	2.2	1.9
A12-1	1st	CSS	4.3	52.1	30.0	11.4	9.0	2.5
A12-5	WF. Fm.	CSS	3.7	50.9	26.5	14.6	5.8	2.2
A13-4	4th	SMS	2.5	38.7	35.4	16.7	5.2	4.0
A13-3	3rd	MSS	4.9	59.7	23.5	7.9	5.0	3.9
A13-2	2nd	MSS	4.4	65.9	13.6	15.2	2.5	2.8
A13-1	1st	MSS	6.3	67.9	20.1	6.5	2.6	2.9
A13-5	WF. Fm.	MSS	5.3	58.8	14.4	22.3	1.8	2.7
A19-4	4th	SMS	2.1	41.7	33.7	15.6	4.8	4.2
A19-3	3rd	CSS	4.3	52.1	30.4	6.2	7.3	4.0
A19-2	2nd	MSS	4.4	68.5	16.8	9.6	3.2	1.9
A19-1	1st	MSS	7.1	67.9	18.4	7.2	4.2	2.3
A19-5	WF. Fm.	MSS	5.2	65.4	17.8	12.0	3.1	1.7

) indicate that the total organic carbon (TOC) content of WF–LMX shale ranges from 2.14% to 7.05%, with an average of 4.39%. Notably, Well A12 exhibits a higher TOC content, ranging from 2.52% to 6.32%, with an average of 4.68%. According to the criteria for evaluating organic matter abundance in mudstones, the WF–LMX shale is classified as a high-quality hydrocarbon source rock. The analysis of the mineral composition reveals that the WF–LMX shale is primarily composed of quartz, followed by clay minerals. The content of siliceous minerals ranges from 38.7% to 68.5%, with an average of 56.69%. The clay mineral content varies from 13.6% to 35.4%, averaging 23.18%. Correlation analysis indicates a significant positive relationship between the content of siliceous minerals and TOC, whereas clay mineral content shows a significant negative correlation with TOC. This suggests that the siliceous minerals in the study area primarily originate from biogenic silica, and that increased input of terrigenous clastic material hinders the enrichment and preservation of organic matter.

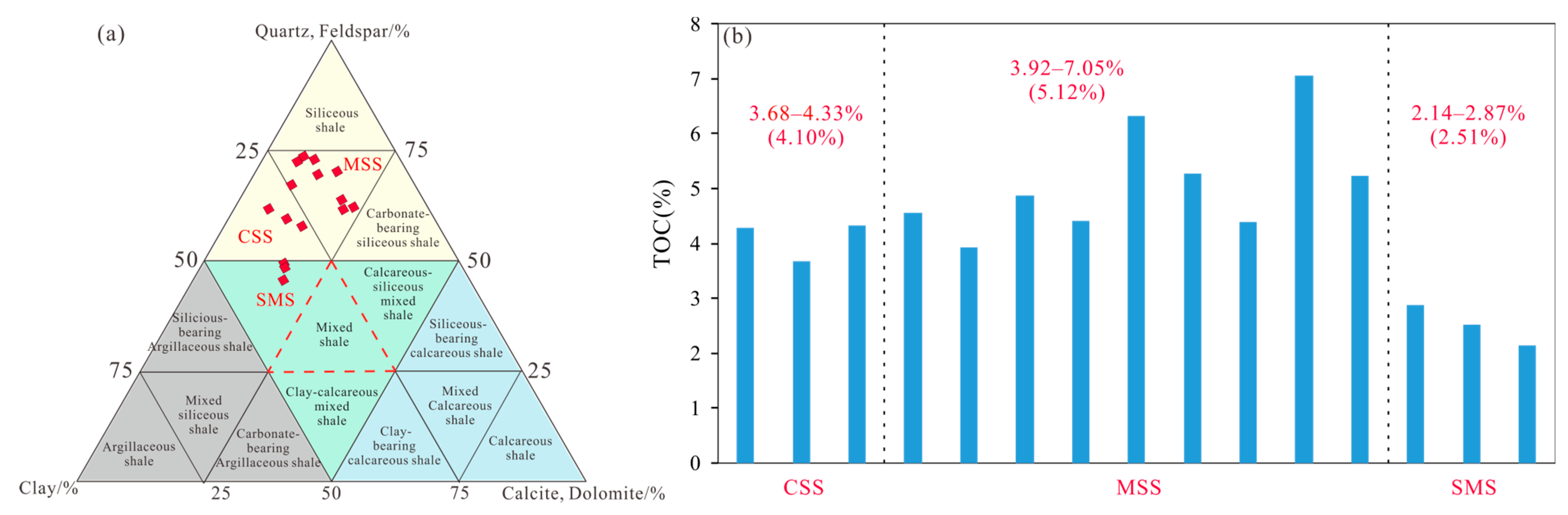

Based on the lithological classification scheme proposed by Wu et al. (2024) [43], which uses clay minerals, carbonate minerals, and (quartz + feldspar) as three end members, with boundaries set at 50% and 25%, a facies classification of the WF–LMX shale reservoir was conducted (Figure 2a). The results indicate three dominant facies: mixed siliceous shale (MSS), clay-rich siliceous shale (CSS), and siliceous clay mixed shale (SMS) (Table 1). These facies show systematic variations in both mineral composition and TOC content. The MSS is characterized by relatively higher quartz content (average 63.84%) and higher TOC (average 5.12%), whereas the SMS exhibits higher proportions of carbonate (15.1%) and clay minerals (34.2%) with the lowest TOC (average 2.51%). The CSS shows intermediate compositional characteristics between the two end members. These compositional differences support the validity of the facies classification scheme.

4.2. Physical Properties and Pore Structure

4.2.1. Organic Matter Pore (OMP)

Scanning electron microscopy results reveal that the organic matter pores (OMP) in the WF–LMX shale can be classified into two types: pores supported by biological structures and those associated with bituminous organic matter (Figure 3). During hydrocarbon generation, OMP initially develops within the original biological organisms into a honeycomb or oval shape with dense distribution (Figure 3). Most organic matter with biological structures shows well-developed OMP during hydrocarbon generation; however, due to significant component loss, their shape is controlled by the inorganic mineral framework, making it difficult to fully preserve the original structure (Figure 3a,b,f). Only a small amount of organic matter has its biological cavities filled by authigenic minerals, which help preserve the in situ organic matter and develop small-diameter OMP (Figure 3d,h). A small portion of the OMP is underdeveloped, showing weak hydrocarbon potential but strong morphological preservation (Figure 3c). Liquid hydrocarbons migrate at micro- to nanoscale within the inorganic mineral framework, occupying the spaces between mineral pores, and further evolve into bitumen, while developing a large number of OMP internally (Figure 3e). Bitumen supported by inorganic minerals is characterized by a large volume and good sealing properties, containing a high number of internal OMP (Figure 3e,g). As the inorganic mineral framework deforms, the migrating organic matter also undergoes shape changes, with the OMP being most developed at the leading edge of the migration direction (Figure 3g).

The degree of development of organic matter pores (OMP) varies significantly among different shale facies due to the combined effects of organic matter content, the proportion of siliceous minerals, and the structural differences in the inorganic mineral framework. Generally, the siliceous shale facies exhibit the most developed OMP, characterized by diverse pore shapes and a relatively uniform PSD (Figure 3a–f). The siliceous supporting framework retains a significant amount of organic matter and develops a large number of OMP with pore sizes exceeding 100 nm. In the MSS facies, the OMP is the most developed, with pore sizes primarily ranging from 100 to 400 nm, often exhibiting a typical honeycomb structure (Figure 3a–d). The OMP in the CSS facies shows a moderate level of development, while in the SMS, the OMP has smaller pore sizes and a lower quantity (Figure 3).

4.2.2. Inorganic Mineral Pore

Inorganic pores are well-developed across the three rock facies, categorically divided into inter-particle pores (Inter P), intra-particle pores (Intra P), and microfractures (MF) [44] (Figure 4). Inter P primarily consists of residual spaces between mineral particles formed during sedimentation or preserved after diagenetic processes. This includes pores between brittle minerals such as quartz, feldspar, and carbonates (Figure 4d,c,j), as well as pores formed between brittle and clay minerals due to differential compaction and shrinkage (Figure 4e,h,l). These pores typically exhibit narrow, triangular, and irregular shapes, predominantly located between clay minerals, brittle minerals, and organic matter. Intra P primarily develops within mineral particles and includes dissolution pores on the surfaces of minerals such as feldspar and calcite (Figure 4a–c,f), as well as interlayer pores formed within clay minerals (Figure 4e,f). Due to later compaction and transformations of clay minerals, interlayer microfractures (MF) frequently develop between clay minerals (Figure 4g–i). Additionally, microfractures can also develop within inorganic mineral particles or along their edges (Figure 4j–l), with a small presence at the interfaces between organic matter and inorganic minerals. The formation of microfractures is closely related to factors such as differential compaction, particle fragmentation, inorganic diagenetic evolution, and the contraction of organic matter.

4.2.3. Pore Structure

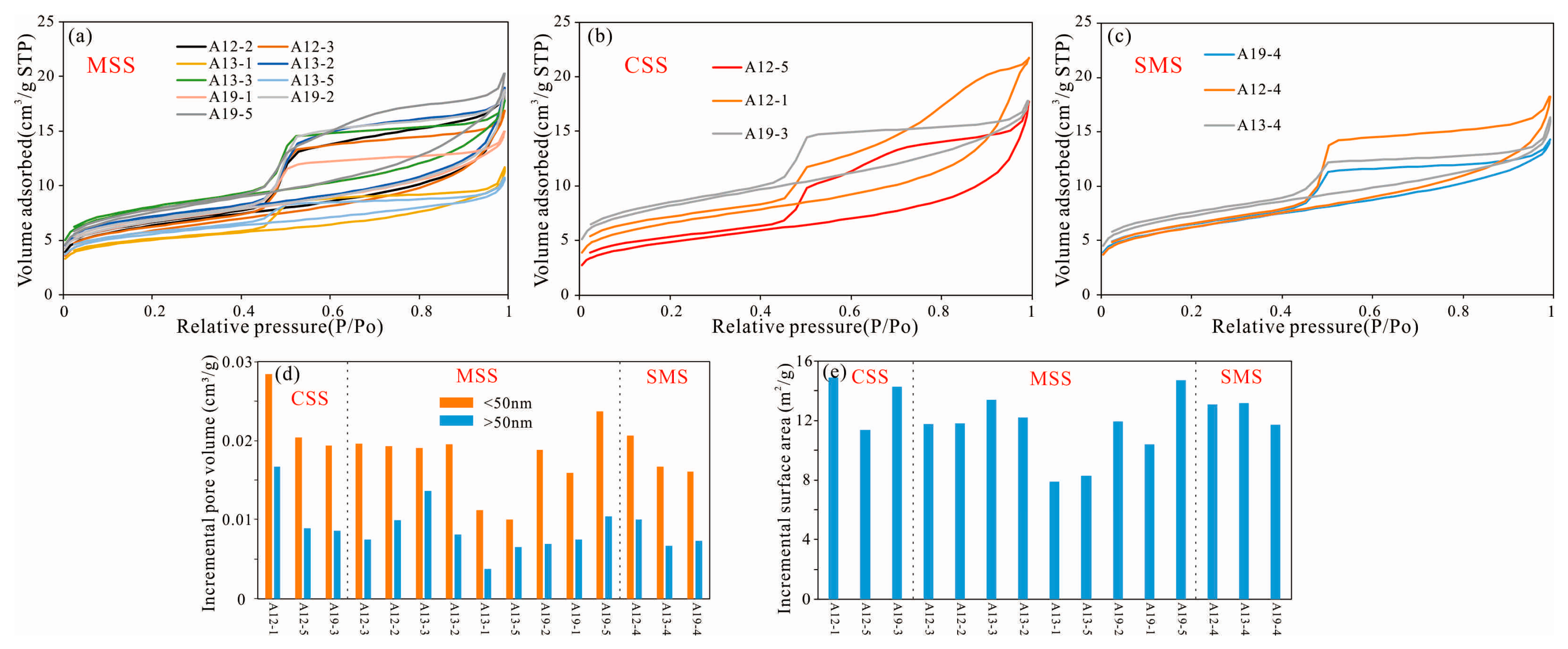

Nitrogen adsorption–desorption isotherms show pronounced hysteresis during desorption at higher relative pressures, and a forced closure below about 0.45, indicating a pore system dominated by micro- and mesopores. Under the IUPAC classification scheme [45], the hysteresis loops are mainly H₃ and H₂ types (Figure 5a–c). This pattern implies pore structures dominated by slit-like pores and ink-bottle geometries, accompanied by other minor pore types. SEM observations indicate that slit-like pores are chiefly associated with the platy fabric of clay minerals and microfractures, whereas ink-bottle pores are commonly linked to dissolution features and pores within organic matter. Across shale facies, both the shape of the hysteresis loop and the maximum adsorption capacity differ markedly (Figure 5a–c). Organic-rich facies (e.g., MSS and CSS) exhibit higher adsorption and overall capacity (maximum 21.71 cm³/g; mean 17.16 cm³/g), with hysteresis dominated by ink-bottle behavior. By contrast, organic-poor mixed-facies shales have weaker adsorption capacity (maximum 18.28 cm³/g; mean 16.31 cm³/g) and show predominantly slit-type hysteresis.

Combining high-pressure mercury intrusion (for pores >50 nm) with low-temperature nitrogen adsorption (for pores <50 nm) provides full PSD coverage for the WF–LMX shales. Following Loucks’ pore classification, shale pores are grouped by diameter into micropores (<2 nm), mesopores (2–50 nm), and macropores (>50 nm). Across the studied shales, the combined SSA of micro- and mesopores ranges from 7.87 to 14.9 m²/g, with a mean of 12.07 m²/g (Figure 5d). The total mesopore volume ranges from 0.0099 to 0.028 cm³/g, averaging 0.0186 cm³/g. Macropore volume ranges from 0.0038 to 0.0167 cm³/g, with a mean of 0.0088 cm³/g (Figure 5e). Thus, mesopore volume generally exceeds macropore volume. By lithofacies, the CSS shows the highest SSA and the largest mesopore and macropore volumes—13.52 m²/g, 0.0227 cm³/g, and 0.0114 cm³/g, respectively. In contrast, the SMS has the lowest values: 11.38 m²/g, 0.0178 cm³/g, and 0.0080 cm³/g.

4.3. Multi-Fractal Characteristics

4.3.1. Fractal Dimension Calculation Based on N₂ Adsorption Data

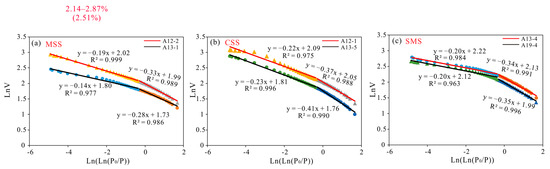

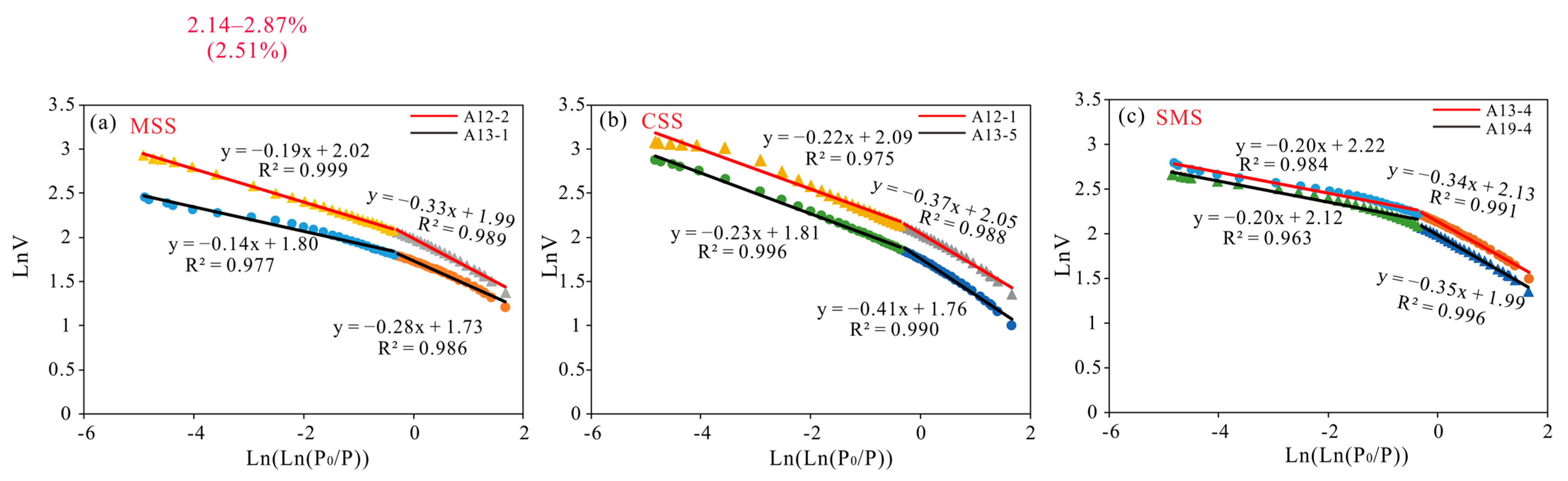

Our calculations show that the FHH double-logarithmic plot commonly displays a clear inflection, indicating shifts in pore structure behavior across adsorption stages (Figure 6). Guided by this inflection at P/P₀ = 0.45, we partition the fractal dimension into two regimes—D₁ (P/P₀ < 0.45) and D₂ (P/P₀ > 0.45)—to describe the complexity and heterogeneity of smaller versus larger pores. At low relative pressures (P/P₀ = 0–0.45), D₁ captures adsorption and pore filling within small, adsorption-dominated pores; higher D₁ values indicate rougher pore surfaces. At higher relative pressures (P/P₀ = 0.45–1.0), D₂ characterizes pore filling within larger, flow-relevant pores in the reservoir; higher D₂ values indicate a more complex and irregular internal pore geometry.

The experimental data and fractal-dimension estimates show that the fitted equations for the WF–LMX shale samples have coefficients of determination (R²) mostly above 0.90, indicating that the calculated fractal dimensions are reliable (

Table 2. Fractal parameters of shales with different lithofacies.

Sample No.	Lithofacies	0.01 < P/P0 < 0.45		0.45 < P/P0 < 0.98		HPMI (50 nm < r < 1000 nm)
		D1	R2	D2	R2	DHg1	R2	DHg2	R2	DHg
A12-1	CSS	2.631	0.988	2.775	0.975	2.963	0.965	2.986	0.835	2.975
A12-2	MSS	2.668	0.989	2.812	0.999	2.962	0.969	2.945	0.949	2.956
A12-3	MSS	2.648	0.993	2.814	0.989	2.956	0.950	2.960	0.864	2.958
A12-4	SMS	2.612	0.995	2.823	0.985	2.960	0.978	2.973	0.940	2.968
A12-5	CSS	2.603	0.990	2.771	0.996	2.969	0.948	2.987	0.798	2.980
A13-1	MSS	2.720	0.986	2.864	0.977	2.963	0.900	2.977	0.782	2.974
A13-2	MSS	2.698	0.987	2.823	0.997	2.972	0.948	2.959	0.887	2.966
A13-3	MSS	2.699	0.986	2.866	0.976	2.962	0.979	2.948	0.971	2.957
A13-4	SMS	2.660	0.991	2.804	0.984	2.956	0.957	2.977	0.958	2.961
A13-5	MSS	2.719	0.986	2.839	0.981	2.973	0.945	2.977	0.739	2.975
A19-1	MSS	2.683	0.990	2.873	0.966	2.967	0.984	2.949	0.928	2.960
A19-2	MSS	2.683	0.990	2.821	0.998	2.967	0.962	2.975	0.824	2.972
A19-3	CSS	2.668	0.993	2.821	0.963	2.958	0.959	2.981	0.807	2.973
A19-4	SMS	2.648	0.996	2.811	0.963	2.950	0.987	2.964	0.892	2.959
A19-5	MSS	2.657	0.990	2.841	0.974	2.976	0.963	2.982	0.691	2.979

). Across samples, D₁ ranges from 2.60 to 2.72, with a mean of 2.671. D₂ ranges from 2.77 to 2.87, with a mean of 2.82. According to the Frenkel–Halsey–Hill (FHH) model, the average D₁ is higher than D₂, suggesting that pore-surface roughness exceeds the complexity of the internal pore network across facies. Comparisons among facies indicate that both D₁ and D₂ are markedly higher in siliceous shale than in mixed shale. Among the facies, SMS shows the highest D₁ and D₂, with mean values of 2.69 and 2.84, respectively. CSS shows the lowest D₁ and D₂, with mean values of 2.63 and 2.79, respectively.

4.3.2. Fractal Dimension Calculation Based on High-Pressure Mercury Injection Data

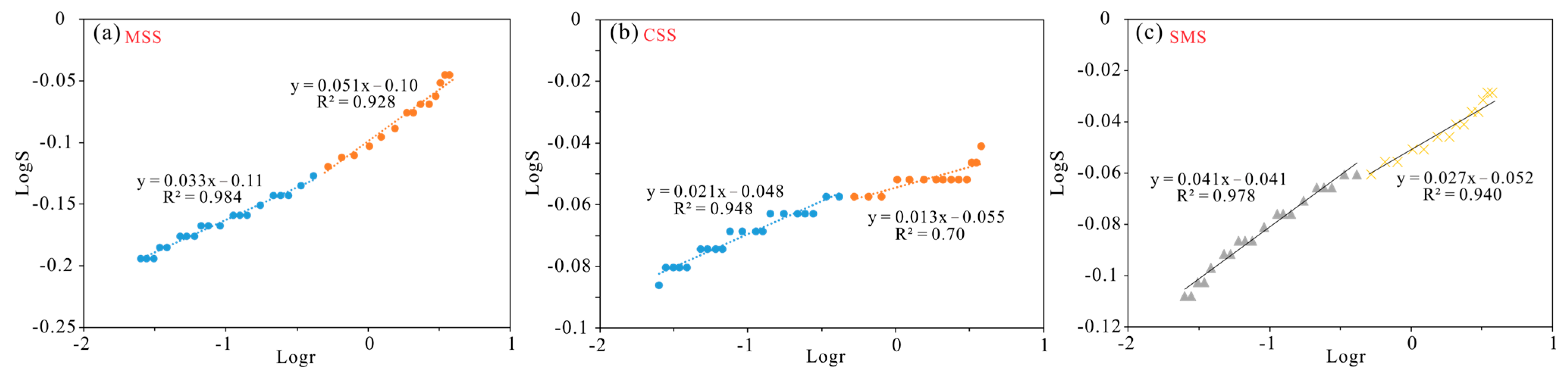

Analysis of high-pressure mercury intrusion (HPMI) data shows two distinct scaling regimes in the log–log relation between pore radius and cumulative PV—50–1000 nm and >1000 nm—confirming a dual-fractal pore system (Figure 7). D_Hg1 denotes the fractal dimension for the smaller-pore interval (50 < r < 1000 nm), and D_Hg2 for the larger-pore interval (r > 1000 nm). The mean values of D_Hg1 and D_Hg2 are similar—2.964 and 2.969, respectively. The overall pore fractal dimension (D_Hg) was calculated following Li et al. [46], weighting each pore-size interval by its share of the total PV. Macropore D_Hg ranges from 2.95 to 2.98, with a mean of 2.97, indicating limited variability in macropore structure across the shale reservoir (Table 2). Overall, D_Hg is higher than D₁ and D₂, implying that the larger pores have a more complex structure (Table 2). Across shale types, siliceous shale shows a higher macropore D_Hg than mixed shale, indicating a more complex macropore system in the siliceous type. The CSS type has the highest mean (2.976), whereas the SMS has the lowest (2.962).

4.3.3. Calculation of Multifractal Dimension Based on N₂ Adsorption Data

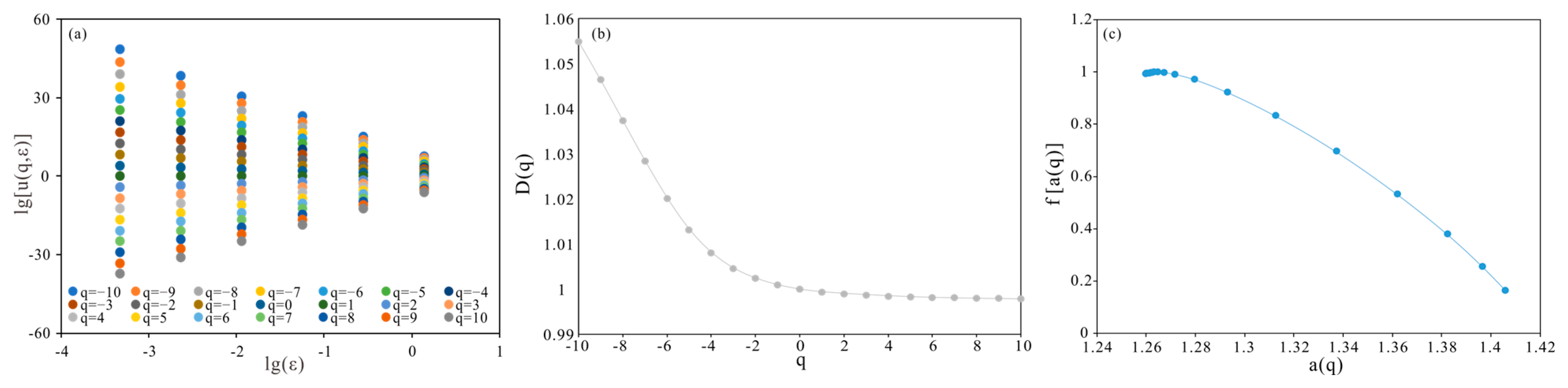

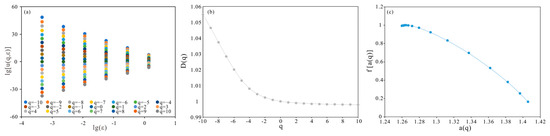

The log–log plot of the partition function $u\left(q,\epsilon \right)$ against the scale ε is linear, indicating that the PSD derived from N₂ adsorption is multifractal (Figure 8a). The generalized dimension spectrum D(q) decreases monotonically with q, with a steeper decline for q < 0 (Figure 8b). The left-branch width, D_min − D₀, and D_min (at q = −10) capture heterogeneity in low-probability (sparsely populated) regions, whereas the right-branch width, D₀ − D_max, and D_max (at q = 10) capture heterogeneity in high-probability (densely populated) regions. A wider left branch than right branch indicates that pore sizes in the low-probability range are more heterogeneous, while those in the high-probability range are relatively uniform. This study uses the ratio of branch widths, S_kd = (D₀ − D_max)/(D_min − D₀), together with the spectrum width ΔD, to quantify the overall complexity and heterogeneity of the PSD.

The α–f(α) multifractal spectrum is continuous and forms an asymmetric, convex parabolic curve, confirming the multifractal nature of the PSD (Figure 8c). On the f(α) curve, the left-branch width (α₀ − α_min) reflects heterogeneity in the high-probability portion of the distribution, while the right-branch width (α_max − α₀) reflects heterogeneity in the low-probability portion. We define the spectrum width, Δα = α_max − α_min, and the branch-width ratio, S_ka = (α₀ − α_min)/(α_max − α₀), as indices of overall pore-scale heterogeneity. These metrics quantify the nonuniformity of pore sizes and their distribution.

The asymmetric characteristics of the D(q)–q and α–f(α) spectra further provide quantitative constraints on pore structure organization and reservoir quality. A left-wide and right-narrow D(q)–q spectrum indicates stronger heterogeneity in low-probability regions, corresponding to relatively large pores that dominate storage space and fluid transport pathways. In contrast, a left-narrow and right-wide α–f(α) distribution reflects greater variability in high-probability regions, representing micropore-dominated domains that control surface complexity and adsorption behavior. From a reservoir perspective, larger spectral widths (ΔD and Δα) and stronger asymmetry indicate higher pore-system complexity, more heterogeneous PSD, and poorer pore connectivity. Conversely, narrower and more symmetric spectra suggest more uniform pore development and relatively better connectivity. Therefore, multifractal parameters can be used to quantitatively evaluate pore structure heterogeneity and infer variations in reservoir quality among different shale facies.

Table 3. Multifractal parameters of shale samples from N₂ adsorption.

Sample No.	Lithofacies	D0–D1	D0–D2	D0–Dmin	Dmax–D0	Skd	H	ΔD	Δα	Ska
A12-1	CSS	0.00060	0.00100	0.0019	0.055	0.0350	0.99950	0.0567	0.1455	0.0331
A12-2	MSS	0.00061	0.00102	0.0020	0.055	0.0369	0.99949	0.0566	0.1454	0.0355
A12-3	MSS	0.00061	0.00102	0.0020	0.055	0.0370	0.99949	0.0567	0.1456	0.0335
A12-4	SMS	0.00061	0.00102	0.0020	0.055	0.0373	0.99949	0.0566	0.1454	0.0350
A12-5	CSS	0.00061	0.00102	0.0020	0.055	0.0372	0.99949	0.0566	0.1455	0.0350
A13-1	MSS	0.00061	0.00103	0.0021	0.055	0.0376	0.99949	0.0566	0.1455	0.0343
A13-2	MSS	0.00061	0.00103	0.0020	0.055	0.0374	0.99949	0.0566	0.1455	0.0349
A13-3	MSS	0.00062	0.00105	0.0022	0.053	0.0418	0.99948	0.0554	0.1435	0.0411
A13-4	SMS	0.00062	0.00105	0.0023	0.053	0.0428	0.99948	0.0549	0.1427	0.0396
A13-5	MSS	0.00061	0.00102	0.0020	0.055	0.0372	0.99949	0.0566	0.1455	0.0348
A19-1	MSS	0.00061	0.00103	0.0021	0.054	0.0380	0.99949	0.0563	0.1450	0.0345
A19-2	MSS	0.00062	0.00103	0.0020	0.055	0.0371	0.99949	0.0569	0.1461	0.0339
A19-3	CSS	0.00061	0.00102	0.0020	0.055	0.0368	0.99949	0.0568	0.1457	0.0342
A19-4	SMS	0.00061	0.00103	0.0020	0.054	0.0376	0.99949	0.0565	0.1453	0.0340
A19-5	MSS	0.00061	0.00102	0.0020	0.054	0.0375	0.99949	0.0563	0.1450	0.0338

summarizes the multifractal parameters derived from gas-adsorption measurements. The D(q)–q spectrum is broader at low q and narrower at high q, whereas the α–f(α) spectrum shows the reverse pattern. Consistent with these patterns, the indices S_kd and S_ka are both well below 0.1, indicating that the pore network is far more heterogeneous in the low-probability (sparsely populated) parts of the PSD than in the high-probability parts.

5. Discussion

5.1. Quantitative Evaluation of Heterogeneity Characteristics

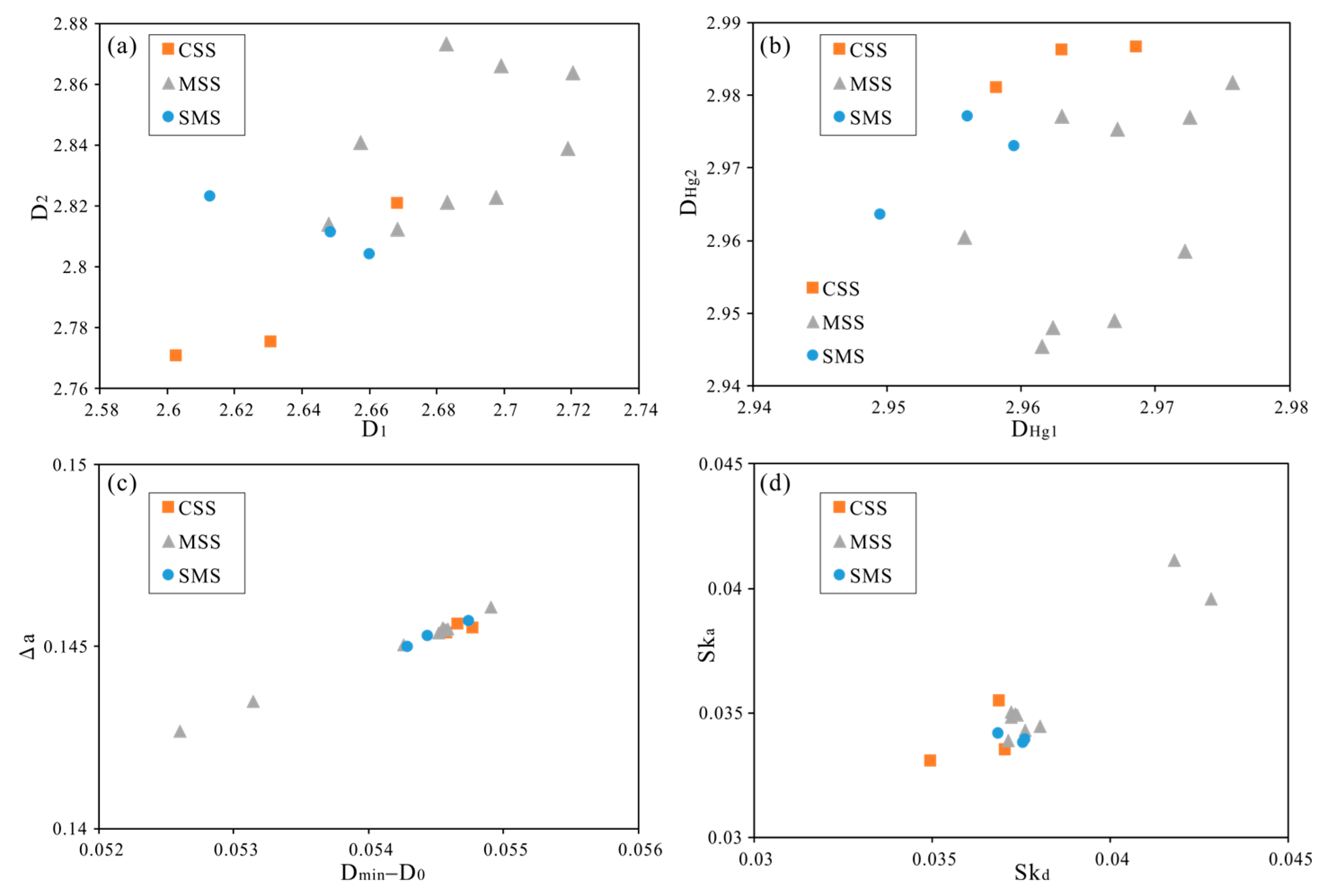

Figure 9 compares the multifractal parameters across shale facies. Calculations from N₂ adsorption show that the low-pressure fractal dimension (D₁) exceeds the high-pressure value (D₂), indicating that pore-surface heterogeneity is greater than the complexity of the internal pore space (Figure 9a). D₁ is positively correlated with D₂, suggesting that greater surface heterogeneity is accompanied by higher overall spatial heterogeneity of the pore system. Among the facies, MSS is the most heterogeneous, followed by SMS, whereas CSS is the least (Figure 9a). Fractal dimensions derived from high-pressure mercury intrusion (D_Hg) vary little among facies but are, overall, significantly higher than D₁ and D₂, implying greater heterogeneity in pores >50 nm (Figure 9b). For 50–1000 nm pores (D_Hg1), MSS and CSS have the highest mean values, whereas SMS is distinctly lower. For macropores >1000 nm (D_Hg2), CSS is the highest and MSS is the lowest. Thus, CSS is most heterogeneous at >1000 nm, while MSS shows the strongest heterogeneity in the 50–1000 nm range. Notably, only MSS has D_Hg2 < D_Hg1, indicating that its 50–1000 nm pores are markedly more heterogeneous than its >1000 nm pores.

Multifractal analysis of N₂ adsorption shows that the CSS has a higher mean D_min–D₀ than the other lithofacies. This implies a wider left branch in the generalized multifractal spectrum and, therefore, the strongest heterogeneity in the low-probability portion of the PSD (Figure 9c). CSS also exhibits the largest mean ΔD and Δα, indicating pronounced overall heterogeneity and weak self-similarity in its pore system (Table 3). D_min–D₀ correlates positively with Δα, suggesting that reservoir-scale heterogeneity is driven primarily by the low-probability part of the PSD (Figure 9c). Within MSS, D_min–D₀ and Δα vary markedly: samples A13-1 and A13-5 are distinctly lower, whereas A19-5 is higher (Table 3). In contrast, MSS has the highest S_kd and S_ka, while CSS is the lowest, implying greater left–right asymmetry in MSS and a more balanced spectrum in CSS (Figure 9d). Regarding PSD dispersion, D₀–D₁ captures the degree of spread; higher values indicate a more dispersed PSD and poorer uniformity, with MSS highest and CSS lowest. D₀–D₂ reflects self-similarity; higher values denote lower self-similarity and a more complex pore architecture, again with MSS highest and CSS lowest. The Hurst index, H = (D₂ + 1)/2, gauges pore-network connectivity across PSD ranges; larger H indicates better uniformity and connectivity. CSS yields the highest H, whereas MSS is the lowest.

Integrated analysis of multifractal measures shows that pore structure heterogeneity differs markedly among shale facies. In MSS, D₁, D₂, and the Hurst exponent are lowest, while D₀–D₁ and D₀–D₂ are highest, indicating a highly dispersed PSD and poor pore connectivity. S_kd and S_ka also reach maximum values, pointing to the strongest heterogeneity, largely driven by pores within less common pore-size ranges. By contrast, CSS has higher D₁, D₂, and Hurst values and lower D₀–D₁ and D₀–D₂, implying a more uniform PSD and better connectivity. However, some indicators (ΔD, Δα, and D_min–D₀) are large, whereas D₀–D_max, S_kd, and S_ka are small, revealing inconsistencies among metrics that describe heterogeneity. CSS also shows high a_max, D_min, α_min, and D_max, underscoring that common multifractal indices such as ΔD and Δα alone cannot fully or accurately capture the heterogeneity of this facies. Considering the overall multifractal response together with field-emission scanning electron microscopy (FE-SEM) observations of pore types, connectivity, and the extent of pore development, CSS is confirmed to have the most uniform pore structure and the weakest heterogeneity among the studied facies. In SMS, values of S_kd, S_ka, D₀–D₁, and D₀–D₂ fall between those of CSS and MSS, indicating moderate heterogeneity in the more common PSD ranges. Overall, based on single-fractal parameters, MSS exhibits the strongest heterogeneity in its PSD.

5.2. Relationship Between Heterogeneity and Pore Structure of Shale Reservoirs

Variations in pore structure govern the storage and flow capacity of shale reservoirs. Linking reservoir properties to fractal dimensions enables an integrated assessment of different shale facies [47,48,49]. Using gas adsorption and high-pressure mercury intrusion data, we examined how PV relates to fractal dimensions across facies (Figure 10). A single-parameter comparison (Figure 10a) shows that D₁ and D₂ are positively correlated (R² = 0.67), indicating that pore-surface roughness (D₁) covaries with the complexity of the pore network (D₂). PV and SSA are both negatively correlated with D₁ and D₂, implying that as pores become more developed, surface roughness and internal complexity decrease and overall heterogeneity weakens. The stronger correlations with D₁ suggest that pore development affects surface heterogeneity more than internal complexity. For pores smaller than 50 nm, the correlations between PV and both D₁ and D₂ are stronger than for pores larger than 50 nm, indicating that mesopores are more sensitive indicators of reservoir heterogeneity.

The negative correlation between SSA and the N₂-adsorption fractal dimension D₁ indicates that pore-surface heterogeneity is closely linked to the development of SSA. As fractal dimension increases, pore surfaces become more irregular and pore morphology more heterogeneous, creating additional sites for shale-gas adsorption. By contrast, neither PV nor SSA shows a clear relationship with fractal dimensions derived from high-pressure mercury intrusion (Figure 10a), suggesting that mercury intrusion does not capture reservoir heterogeneity effectively and that differences among lithofacies are minor. These findings imply that pore-scale heterogeneity in WF–LMX shales is governed mainly by micropores and mesopores, while macropores and microfractures contribute little to the overall heterogeneity. Accordingly, the single fractal dimensions D₁ and D₂ obtained from N₂ adsorption reliably characterize both surface and internal pore heterogeneity. Higher fractal dimensions are associated with greater adsorption capacity and storage potential in shale reservoirs.

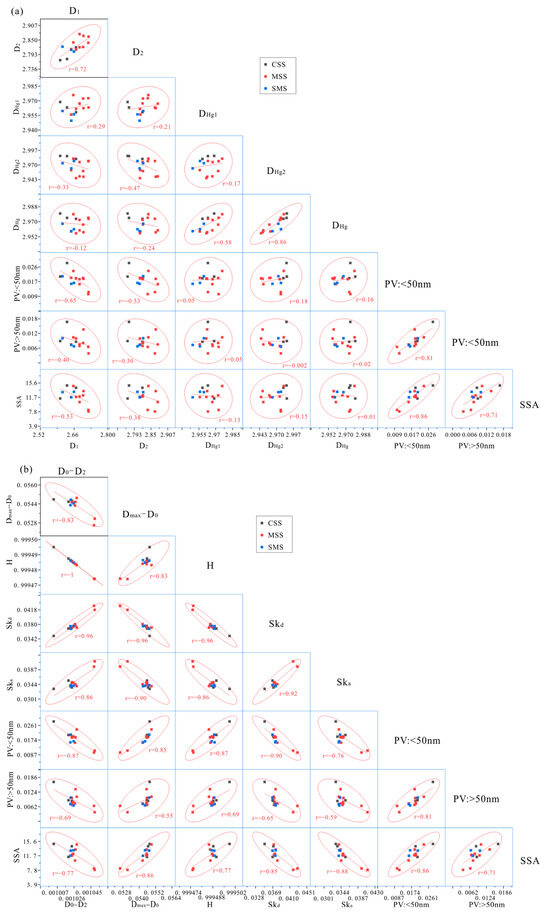

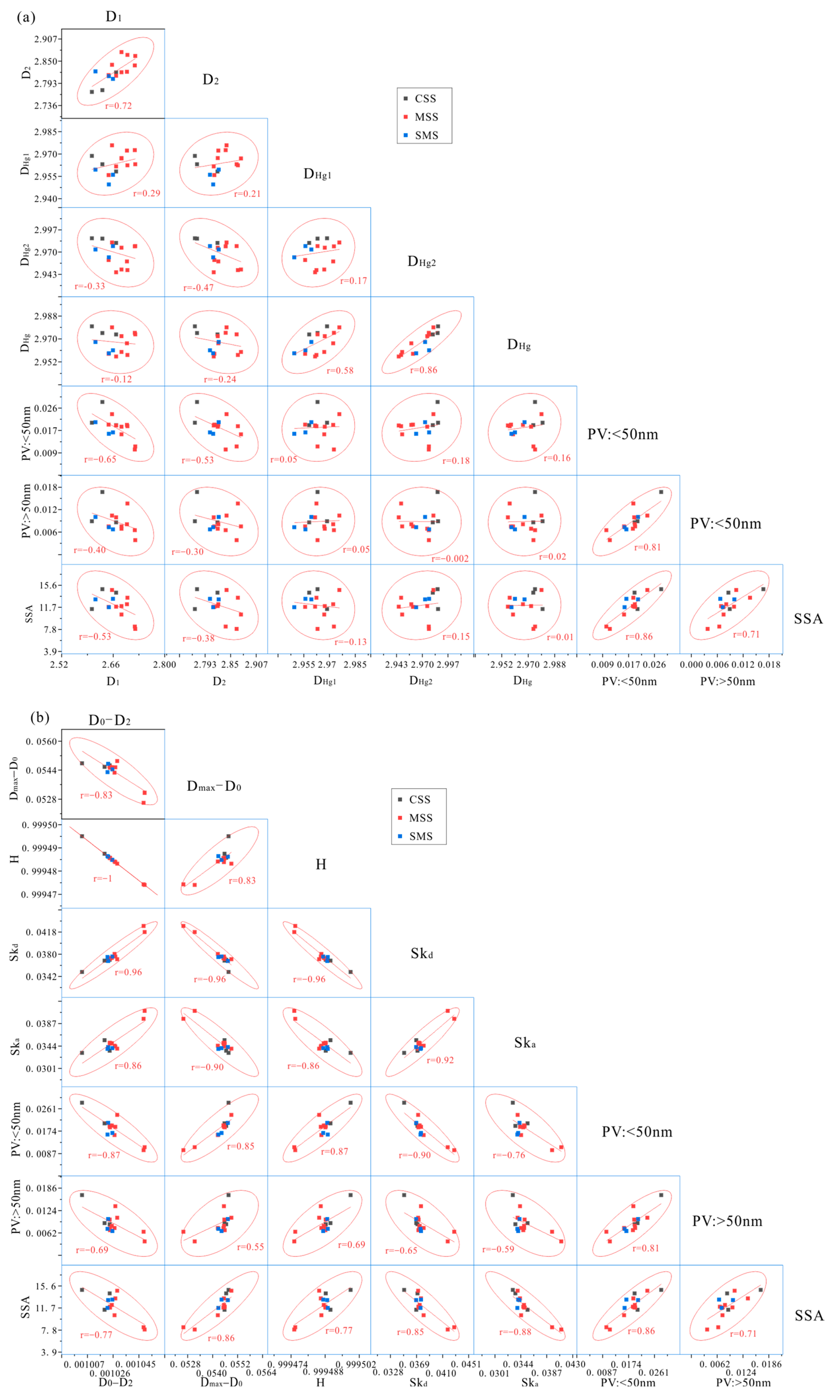

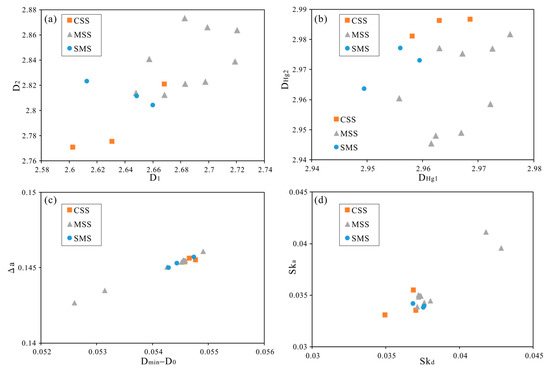

Figure 10b shows strong correlations among the multifractal parameters (D₀–D₂, D_max–D₀, H, S_kd, and S_ka), indicating that they consistently characterize reservoir heterogeneity. PV and SSA exhibit similar relationships with these parameters. As pore development increases, the PSD becomes more self-similar, the pore network becomes more regular and uniform, pore connectivity improves, and overall heterogeneity decreases. Among the metrics examined, the PV of micropores (<50 nm) has the highest correlation with the multifractal parameters, followed by SSA, suggesting that variations in shale pore heterogeneity are controlled primarily by the development of micro- and mesopores.

5.3. Factors Affecting Heterogeneity of Shale Reservoirs

Variations in shale composition are a primary cause of differences in pore structure and reservoir heterogeneity. In marine shales, the proportions of TOC and silica-rich minerals are the key controls on pore architecture [7,10]. To examine the complexity of pore structures among different shale types and to identify the dominant roles of organic matter and mineral constituents, this study uses fractal analysis to quantify their contributions to pore structure heterogeneity.

The results show that D₁ and D₂ increase linearly with TOC (Figure 11a), indicating that higher TOC is associated with greater pore structure heterogeneity in shale reservoirs. This relationship can be explained by the high thermal maturity of the WF–LMX Formation, which is in an overmature stage. During thermal evolution, organic matter undergoes intensive hydrocarbon generation and expulsion, leading to the progressive development of abundant organic matter-hosted nanopores [50,51]. As TOC increases, more organic matter is available for thermal decomposition, resulting in a higher density and complexity of organic pores, which in turn enhances pore structure heterogeneity and increases fractal dimensions. These pores are irregular in shape and have rough surfaces, which adds to pore-network heterogeneity (Figure 3). In parallel, maturation of organic matter together with inorganic diagenesis promotes the development of pores within mineral grains and between grains, broadening the range of pore types and further enhancing reservoir heterogeneity (Figure 4).

Notably, TOC shows a stronger correlation with D₂, indicating that TOC more strongly influences internal pore complexity. This is consistent with the honeycomb-like network of pores within organic matter observed in Figure 3. In contrast, D_Hg1 does not correlate significantly with TOC, implying that organic matter mainly affects the heterogeneity of 50–1000 nm pores and has a limited impact on pores larger than 1000 nm, in agreement with quantitative characterizations of pores in organic matter. Together, these findings show that the heterogeneity of micro- and mesopore structures is strongly controlled by TOC. Higher organic matter content supplies more micro- and mesopores in shale reservoirs.

D₁ and D₂ are both positively correlated with quartz content, indicating that higher quartz content increases the complexity of pore surfaces and internal pore space (Figure 11a). Quartz is abundant in these shales. By providing a rigid framework, quartz helps preserve early residual primary pores and increases rock brittleness, which in turn promotes the growth and extension of mineral-hosted pores and microfractures. Previous studies also show that the WF–LMX shale retains a substantial pore network even under deep burial and strong compaction. However, D_Hg1 shows a positive correlation with quartz, whereas D_Hg2 shows a weak negative correlation. These contrasting trends suggest that the protective influence of quartz is most pronounced for pores smaller than 1000 nm. In larger pores (>1000 nm), deformation may reduce pore complexity and heterogeneity.

Clay content is negatively correlated with two measures of surface and pore complexity, D₁ and D₂ (Figure 11a), indicating that clays diminish the complexity of reservoir surfaces and internal pore networks, with a pronounced effect on pore-surface roughness. Compared with silica-rich shale, the higher plasticity of clays makes them prone to compaction during diagenesis, which limits pore development. At high clay fractions, mineral alteration and shrinkage generate abundant interlayer pores and contraction cracks, strongly affecting adsorption pores and the heterogeneity of pore surfaces. Consistent with this, clay content is positively correlated with the mercury-intrusion index D_Hg2 and negatively with D_Hg1, implying that pores smaller than 1000 nm deform readily, thereby reducing pore-type diversity and overall reservoir heterogeneity. In addition, microfractures within and along the edges of clay minerals (Figure 4) provide effective pathways for fluid flow while further simplifying the pore structure.

Feldspar content shows negative correlations with D₁ and D₂, whereas carbonate content is negatively correlated only with D₂ (Figure 11a). These patterns indicate that higher proportions of feldspar and carbonates tend to reduce shale reservoir heterogeneity. Readily soluble minerals such as feldspar promote pore development through dissolution. The resulting dissolution pores are relatively regular in shape with smooth surfaces, which likely reduces heterogeneity linked to surface roughness and geometry. In addition, because feldspar is a minor phase and far less abundant than quartz, its contribution to porosity is limited and partly controlled by the quartz fraction. Where carbonates are abundant, extensive dissolution can affect the entire pore-size spectrum, markedly decreasing both overall reservoir heterogeneity and the dispersion of pore sizes. Pyrite primarily hosts intercrystalline pores that withstand compaction. Its abundance correlates well with D_Hg1 and D_Hg, indicating a strong influence on heterogeneity in the macropore domain.

The multifractal metrics are consistent with the nitrogen adsorption results. TOC correlates positively with S_kd and S_ka (Figure 11a), indicating that higher TOC increases pore structure heterogeneity. This likely reflects the irregular shapes, isolation, and variable sizes of OMP, which amplify heterogeneity at the reservoir scale. Quartz content also shows a strong positive correlation with S_kd and S_ka, suggesting that higher silica content is a primary control on heterogeneity. In marine shales, silica is predominantly biogenic; its substantial input promotes TOC concentration and the development and preservation of pores, thereby accentuating pore-scale heterogeneity. By contrast, clay content is strongly negatively correlated with S_kd and S_ka. Increasing clay tends to equalize the PSD and improve connectivity, reducing reservoir heterogeneity, with particularly strong effects in the low-probability tails of the PSD. The opposing trends of clay and quartz indicate that greater biogenic silica input coupled with lower clay content increases heterogeneity while decreasing the uniformity of the PSD and overall connectivity.

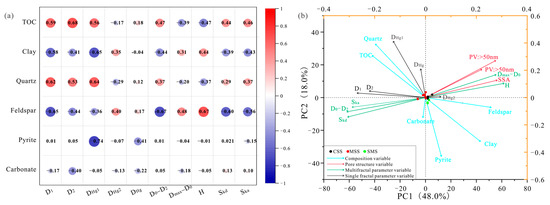

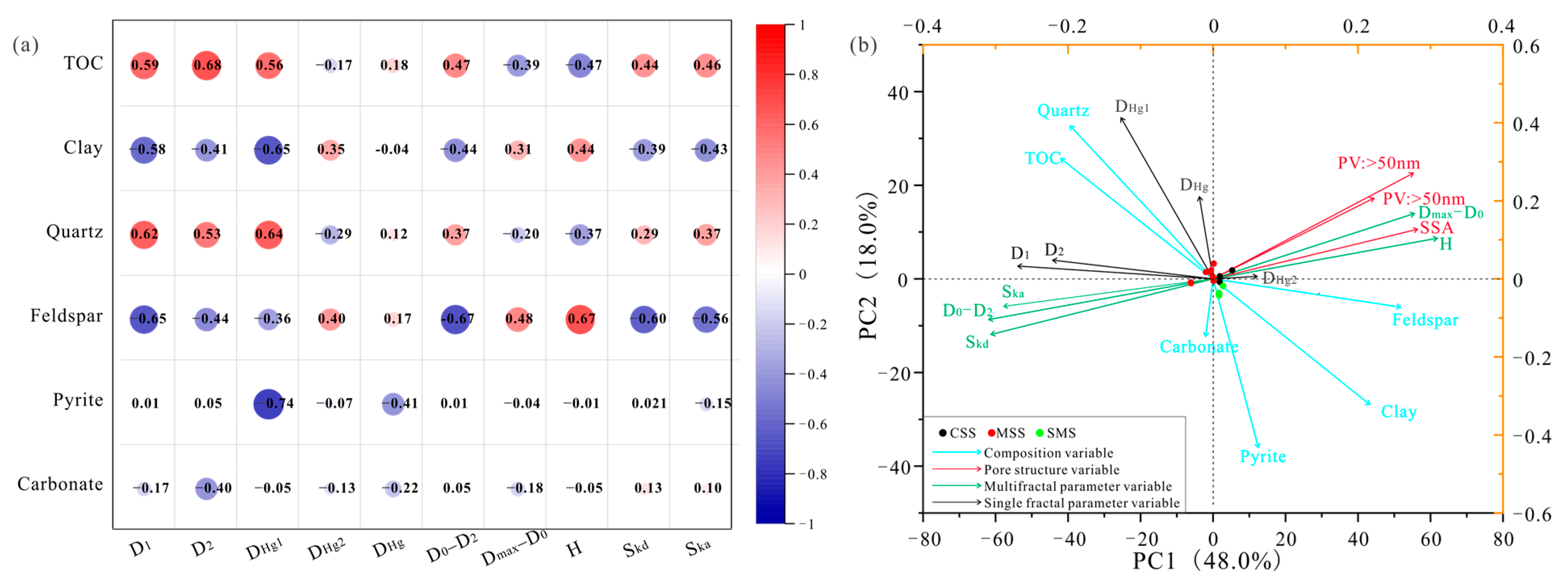

To examine the links among shale facies, multifractal parameters, mineral composition, and pore structure, this study applied principal component analysis (PCA) to assess their relationships [25,52,53]. In the PCA plot, each variable is shown as an arrow; its projection onto a principal component indicates how strongly it contributes to that component, and the angle and length of the arrows indicate how the variables relate to one another. Figure 11b presents the nitrogen adsorption dataset, which includes 15 observations and 19 variables. The PC₁ explains 48% of the total variance, indicating that it captures the dominant pattern in the data.

The multifractal parameters, the fractal metrics from N₂ adsorption, and the pore structure variables all have large loadings on the principal components and are strongly associated with them, either positively or negatively. H and D_max−D₀ are tightly linked to PV and SSA, whereas D₁ and D₂ are closely associated with D₀−D₂ as well as the Ska and Skd indices. The former group plots on the positive side of PC₁ and tracks the degree of pore development; the latter plots on the negative side of PC₁ and reflects heterogeneity within micro- and mesopores. Together, these patterns indicate an inverse relationship between pore development and reservoir heterogeneity: as pore development increases, connectivity improves while heterogeneity diminishes. Accordingly, negative PC₁ scores denote strong heterogeneity, poor connectivity, and a dispersed PSD, whereas positive PC₁ scores denote weak heterogeneity, good connectivity, and well-developed pores. In comparisons between fractal parameters and mineralogical variables, heterogeneity shows a small angle and a long projection relative to TOC and quartz in the PCA loadings plot, indicating a positive correlation and a strong influence of TOC and quartz on heterogeneity. By contrast, clays and feldspars promote pore development but reduce heterogeneity. Carbonates and pyrite have only minor effects. When using mercury-intrusion fractal parameters to project the other variables, D_Hg and D_Hg2 exhibit very short projections and are poor indicators of heterogeneity. In contrast, D_Hg1 correlates closely with TOC and quartz, suggesting that the heterogeneity of submicron (<1000 nm) pores is strongly controlled by TOC and quartz.

6. Conclusions

Using mercury intrusion and low-temperature nitrogen adsorption measurements for WF–LMX shale, this study applied both single- and multi-scale analyses to characterize variability in pore sizes across rock types and to identify the factors that control this variability. The key findings are summarized below.

(1) The WF–LMX shale is classified into three facies (MSS, CSS, and SMS) based on differences in mineral composition and TOC content. The siliceous facies (MSS and CSS) generally exhibit higher TOC and quartz contents compared to the clay-rich facies, indicating compositional control on facies differentiation. Among these types, CSS has the greatest specific surface area and the largest mesopore and macropore volumes, indicating superior reservoir quality.

(2) All three shale facies exhibit clear single- and multifractal behavior. In the single-fractal model, the mean D₁ exceeds D₂, and both are lower than the fractal dimension derived from mercury intrusion (D_Hg). These results imply that, in shale, the internal complexity of micro- and mesopores is lower than the roughness of pore surfaces, and that macropores are more strongly heterogeneous. The D(q)–q spectrum is broad on the left and narrow on the right, whereas the α–f(α) spectrum shows the opposite pattern. Moreover, S_kd and S_ka are both well below 0.1, indicating markedly greater heterogeneity in low-probability pore domains than in high-probability domains.

(3) MSS shows the lowest D₁, D₂, and Hurst index, but the highest D₀–D₁ and D₀–D₂. These patterns indicate a highly dispersed pore-size distribution and limited reservoir connectivity. Consistent with this, MSS has the highest S_kd and S_ka, pointing to pronounced heterogeneity. By comparison, CSS exhibits the most uniform pore structure and the weakest heterogeneity across the shale facies.

(4) As the degree of pore development increases, the self-similarity of shale PSD increases and reservoir heterogeneity decreases. The variation in reservoir pore heterogeneity is mainly controlled by the development degree of micropores and mesopores. The heterogeneity of shale reservoirs is significantly influenced by TOC and quartz, while clay and feldspar minerals facilitate pore development but reduce reservoir heterogeneity.
