Polarization of Hepatic Macrophages in Alveolar Echinococcosis and Its Role in Remodeling the Immune Microenvironment

Abstract

Alveolar echinococcosis (AE), caused by Echinococcus multilocularis larvae, is a severe zoonotic disease mimicking tumors, primarily affecting the liver with high mortality if untreated. Host immunity plays a pivotal role, shifting from Th1/Th17-mediated clearance to Th2/Treg-driven tolerance, enabling parasite survival. Liver macrophages, including Kupffer cells, polarize towards M2 phenotype under parasite antigens (e.g., phytic acid, exosomes), promoting immunosuppression, fibrosis, and T cell exhaustion via IL-10/TGF-β. This reshapes the tumor-like immune microenvironment with M2 macrophages recruiting Tregs, suppressing NK/DC functions, and fostering angiogenesis/fibrosis. Current treatment remains centered on surgery and benzimidazole therapy, both of which have notable limitations. Experimental immunomodulatory strategies, drug repurposing approaches, and targeted delivery systems may offer future therapeutic opportunities, but these concepts remain largely preclinical, unproven in AE, and require careful evaluation for safety and efficacy.

1. Introduction

Alveolar echinococcosis (AE) is a severe zoonotic parasitic disease caused by the larvae of Echinococcus multilocularis, primarily affecting the liver and known as a “parasitic tumor” [1,2]. The lesions exhibit infiltrative growth within the liver, resembling malignant tumors, with the potential to invade adjacent tissues and metastasize distantly; without timely treatment, the mortality rate reaches up to 90% within 10–15 years [3,4,5]. Alveolar echinococcosis requires aggressive therapy. If feasible, curative treatment is a combination of radical surgical resection and albendazole chemotherapy; otherwise, lifelong albendazole is indicated [6]. By contrast, cystic echinococcosis (caused by E. granulosus) typically presents as well-encapsulated cysts that can often be managed by surgery or percutaneous aspiration and albendazole, following WHO stage-specific guidelines [7]. These differences underscore the poorer prognosis of AE and its requirement for prolonged treatment.

Due to the insidious nature of early symptoms, many patients are diagnosed at an advanced stage, rendering surgical resection unsuitable and necessitating long-term pharmacological management. The current first-line medications are benzimidazole anthelmintics (primarily albendazole), which exert only parasitostatic effects and are difficult to completely eradicate the parasite, requiring lifelong administration and prone to adverse effects such as hepatotoxicity [8,9]. Consequently, alveolar echinococcosis has been designated by the World Health Organization as one of the neglected tropical diseases requiring urgent control, underscoring the imperative for more effective therapeutic strategies [9,10,11].

The host immune response plays a decisive role in the disease progression of alveolar echinococcosis (AE). Studies indicate that the majority of individuals exposed to parasite eggs can achieve immune-mediated self-clearance or prevent parasite dissemination, with only less than 1% of infected individuals progressing to chronic disease due to immune dysregulation [12]. The larvae of E. multilocularis can persist long-term in the host, benefiting from induced immune modulation and evasion mechanisms, including macrophage polarization, T-cell exhaustion, and infiltration of immunosuppressive cells [13,14,15]. In recent years, understanding of the AE immune microenvironment has deepened, with particular attention to the functional shaping of host hepatic macrophages (including Kupffer cells and monocyte-derived macrophages). Macrophages, due to their plastic phenotypes, play a critical role in infection immunity: they can be activated into the M1 type that kills pathogens or polarized into the M2 type that promotes tissue repair and immunosuppression [16]. E. multilocularis may create an “immune-privileged” microenvironment conducive to its survival by regulating macrophage polarization [17]. This article focuses on the latest research progress regarding hepatic macrophage polarization and immune microenvironment remodeling mechanisms under AE infection, exploring their interactions and potential therapeutic strategies. By systematically reviewing cutting-edge achievements in this field, it aims to provide references for novel approaches in AE immunotherapy.

2. Immunological Basis of Alveolar Echinococcosis Infection

2.1. Overview of Host Immune Response

Upon entry into the host, E. multilocularis initially triggers an innate immune response, involving the recruitment and activation of macrophages, dendritic cells, neutrophils, and others. These innate immune cells, upon recognizing parasite antigens, produce pro-inflammatory cytokines such as IL-1β, IL-12, and TNF-α, initiating an adaptive immune response dominated by Th1/Th17, which restricts early parasite growth [18,19]. In immunocompetent hosts, the initial Th1/Th17 response typically effectively controls or clears the parasite: for instance, IL-12 and IFN-γ activate the cytotoxic functions of macrophages and NK cells, while IL-17 mobilizes neutrophils to participate in anti-parasitic activities [12,20]. Studies estimate that in endemic areas, approximately 99% of infected individuals’ immune systems can terminate the infection at early lesions or form degenerative cysts without progression [12].

2.2. Immune Tolerance and Disease Progression

In a minority of susceptible hosts, the immune response shifts from Th1 to Th2, accompanied by the expansion of regulatory T cells (Treg), leading to parasite evasion of immune clearance and entry into a chronic infection phase [15,21]. Peripheral blood of AE patients often exhibits elevated Th2 and Treg-associated cytokines, such as IL-10 and TGF-β, while pro-inflammatory Th1 cytokines are suppressed, indicating a gradual entry into a state of immune tolerance [13,22]. Treg actively downregulates protective inflammatory responses through the secretion of IL-10 and TGF-β, considered one of the primary driving factors in establishing chronic echinococcal infection [23]. Concurrently, the host produces high-titer specific IgG and IgE antibodies, but the presence of vesicular structures renders humoral immunity ineffective in directly clearing the parasite. Overall, the immune landscape of AE manifests as an early phase dominated by Th1/Th17-mediated anti-parasitic immunity, transitioning to Th2/Treg-mediated immunosuppression in the later phase, with the tilt in this balance determining the infection outcome [12]. This unique biphasic immune response serves as the foundation for understanding the pathogenesis of AE. As summarized in Figure 1, AE is characterized by a temporal shift from an early Th1/Th17-dominant antiparasitic response toward a later Th2/Treg-skewed immunotolerant state. This schematic integrates the dynamic transition of cytokine profiles, macrophage polarization, and immune escape, thereby providing a concise framework for understanding stage-dependent immune remodeling during AE progression.

2.3. “Tumor-like” Immune Microenvironment

In advanced AE lesions, the parasite and host immune system achieve a dynamic equilibrium: the immune system is insufficient to eradicate the parasite but can restrict its growth rate, while the parasite induces the host to form a local immunosuppressive microenvironment through various mechanisms to achieve “long-term coexistence with the parasite” [23]. This microenvironment shares numerous similarities with the tumor immune microenvironment, which is why AE is often likened to a “parasitic cancer” [2,24]. For example, substantial macrophage and lymphocyte infiltration can be observed around AE lesions, but a significant portion consists of M2-type macrophages, Treg, and T cells with exhausted phenotypes, which secrete factors such as IL-10 and TGF-β, suppressing effective anti-parasitic immunity [22]. Simultaneously, the parasite continuously stimulates granulation tissue to undergo fibrosis and neovascularization, providing itself with shelter and nutritional supply [17]. It can be said that the immunological basis of AE lesions largely manifests as a “cold inflammation” environment shaped by the long-term interplay between host and parasite: encompassing both the progression of chronic inflammation and tissue damage, as well as the maintenance of immune evasion and tolerance mechanisms.

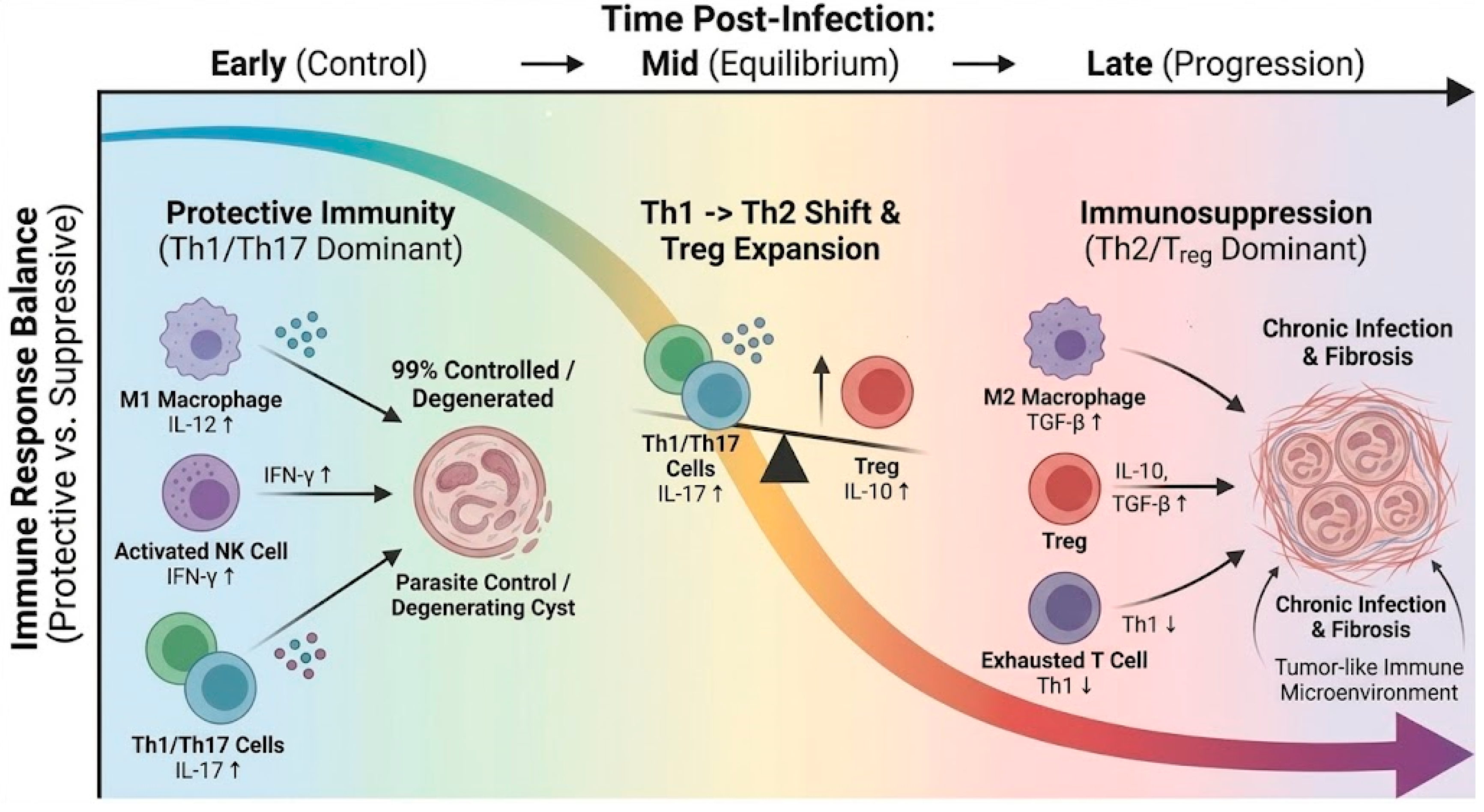

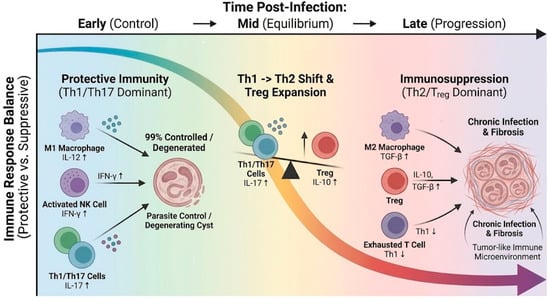

To sum up, in early AE infection, a Th1/Th17-driven response can contain the parasite, whereas progression to chronic disease involves a shift to Th2/Treg dominance that permits parasite persistence. The balance between protective inflammation and immune tolerance is thus decisive for AE outcomes.

3. Mechanisms of Hepatic Macrophage Polarization

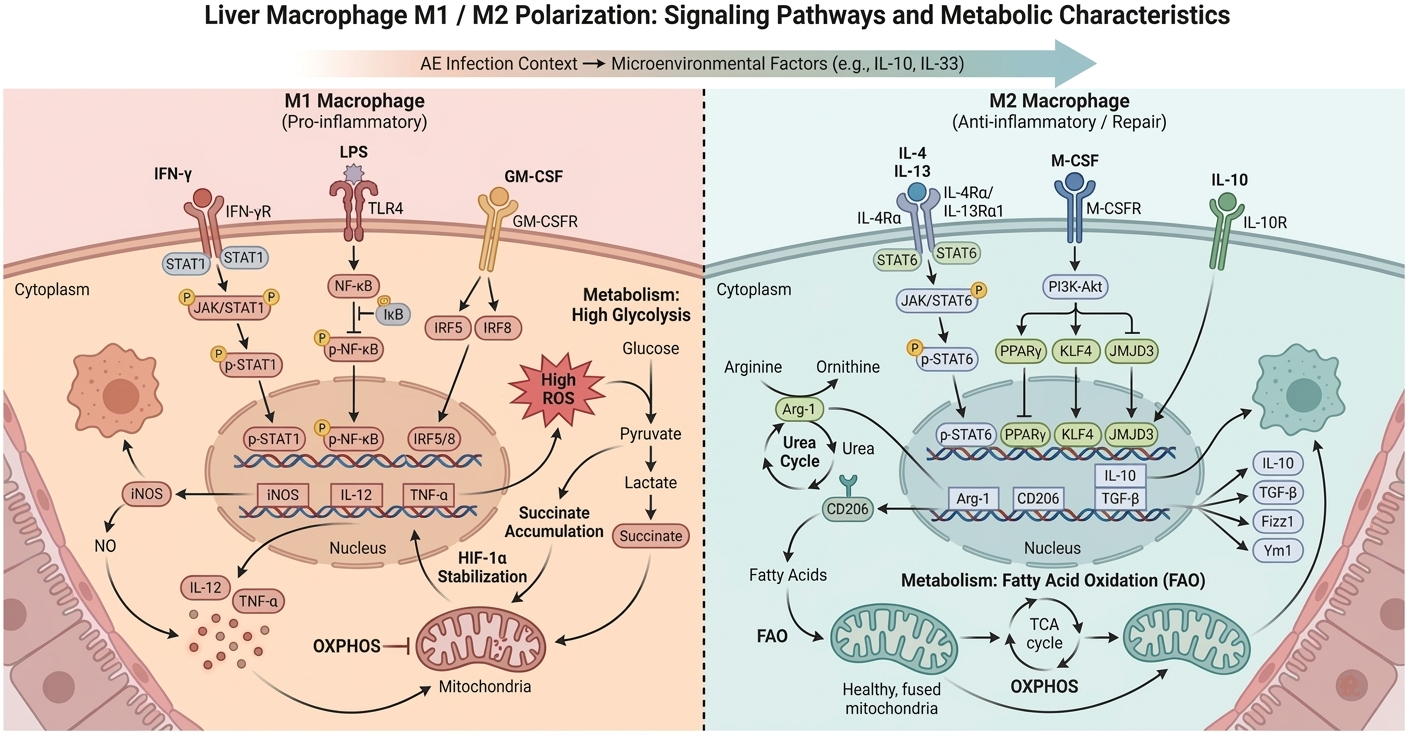

3.1. Concept of M1/M2 Polarization in Macrophages

Hepatic macrophages include resident Kupffer cells and monocyte-derived infiltrating macrophages, playing a central role in liver immune homeostasis and diseases. Depending on different stimuli from microenvironmental signals, macrophages can undergo functional phenotypic polarization. One end is the classically activated M1-type macrophages, triggered by interferon-γ (IFN-γ), lipopolysaccharide (LPS), and others, activated via signaling pathways such as STAT1 and NF-κB, producing high levels of mediators like IL-12, IL-1β, TNF-α, and inducible nitric oxide synthase (iNOS), possessing strong pathogen-killing and pro-inflammatory effects [25]. The other end is the alternatively activated M2-type macrophages, induced by Th2-type cytokines such as IL-4 and IL-13, mediated through pathways like STAT6 and PPARγ, expressing arginase-1 (Arg-1), mannose receptor CD206, anti-inflammatory factors IL-10 and TGF-β, with primary functions of suppressing inflammation, promoting tissue repair, and fibrosis [26,27]. It is important to emphasize that M1/M2 represent two extreme functional spectra, and in actual physiological and pathological conditions, macrophages often exhibit diverse phenotypes on a continuous spectrum, with certain overlaps and reversible transitions [28]. However, for research convenience, the M1/M2 framework is still widely used to describe the two typical functional states of macrophages in inflammation and immunity.

3.2. Molecular Mechanisms of Polarization Regulation

Macrophage polarization is regulated by various signaling molecules. Key factors promoting M1 polarization include IFN-γ, interleukin-12 (IL-12), and granulocyte-macrophage colony-stimulating factor (GM-CSF), which induce M1-related gene expression, such as iNOS and IL-12p40 subunit genes, by activating transcription factors like STAT1, IRF5, and IRF8 within macrophages [16,29]. In contrast, factors promoting M2 polarization include IL-4, IL-13, and M-CSF, with their primary signaling pathways being STAT6 and PI3K-Akt, upregulating transcriptional regulators such as Kruppel-like factor 4 (KLF4) and JMJD3, thereby driving the expression of M2 marker genes like Arg-1, Fizz1, and Ym1 [30,31]. Additionally, IL-10, glucocorticoids, vitamin D3, and others in the microenvironment can also promote macrophage shifts toward M2 functions. Metabolic states are also closely related to polarization: M1 prefers glycolytic pathways for energy supply accompanied by decreased mitochondrial oxidative function, while M2 relies on mitochondrial oxidative phosphorylation and fatty acid oxidation to meet functional demands [32,33]. This immunometabolic reprogramming further consolidates the polarization state of macrophages. For example, high levels of the glucose metabolism intermediate succinate accumulate in M1 macrophages, amplifying inflammatory responses by stabilizing HIF-1α; whereas in M2 macrophages, enhanced fatty acid oxidation and ornithine cycle contribute to tissue repair and collagen production. Macrophage polarization is also subject to epigenetic regulation, such as histone modifications and non-coding RNA regulations, conferring a “memory” effect to the polarization state over a certain period. These complex mechanisms ensure that hepatic macrophages can dynamically adjust their phenotypic functions according to the constantly changing environmental signals during AE infection. Figure 2 provides an integrated comparison of the signaling pathways, effector molecules, and metabolic features associated with M1- and M2-like hepatic macrophage polarization. By combining immune signaling and immunometabolic reprogramming in a single schematic, this figure highlights the mechanistic basis by which macrophage functional states may differentially influence inflammation, tissue repair, and fibrosis in AE.

3.3. Role of Polarization in Liver Pathology

In liver diseases, macrophage polarization has a significant impact on the processes of inflammation and fibrosis. On one hand, M1 macrophages can directly inhibit pathogens and kill infected cells by secreting mediators such as TNF-α and IL-1β, but if the response is overly strong, it may also lead to tissue damage; On the other hand, TGF-α and TGF-β released by M2 macrophages can stimulate the activation of hepatic stellate cells (HSC) and promote collagen deposition, thereby driving liver fibrosis [34]. In models such as non-alcoholic steatohepatitis and mouse liver resection regeneration, observations show that temporal changes in the M1/M2 macrophage ratio are closely related to disease progression and recovery. For instance, M1 dominates in the early injury phase to clear necrotic tissue, followed by an increase in M2 to promote tissue repair [35,36,37]. For alveolar echinococcosis, a chronic liver infection, macrophage polarization imbalance may result in an inability to effectively eliminate the parasite while promoting lesion fibrosis and immune evasion [38,39,40].

Hepatic macrophage polarization in AE should be viewed as a dynamic and reversible spectrum rather than a rigid M1/M2 dichotomy. Parasite-derived signals and host microenvironmental cues jointly bias macrophages toward an immunosuppressive and pro-fibrotic phenotype, which may contribute to parasite persistence and lesion progression. A clearer understanding of this plasticity is essential for interpreting pathogenic mechanisms and identifying therapeutic targets.

4. Interaction Between Alveolar Echinococcus and Macrophage Polarization

4.1. Parasite Antigen-Induced Macrophage Polarization

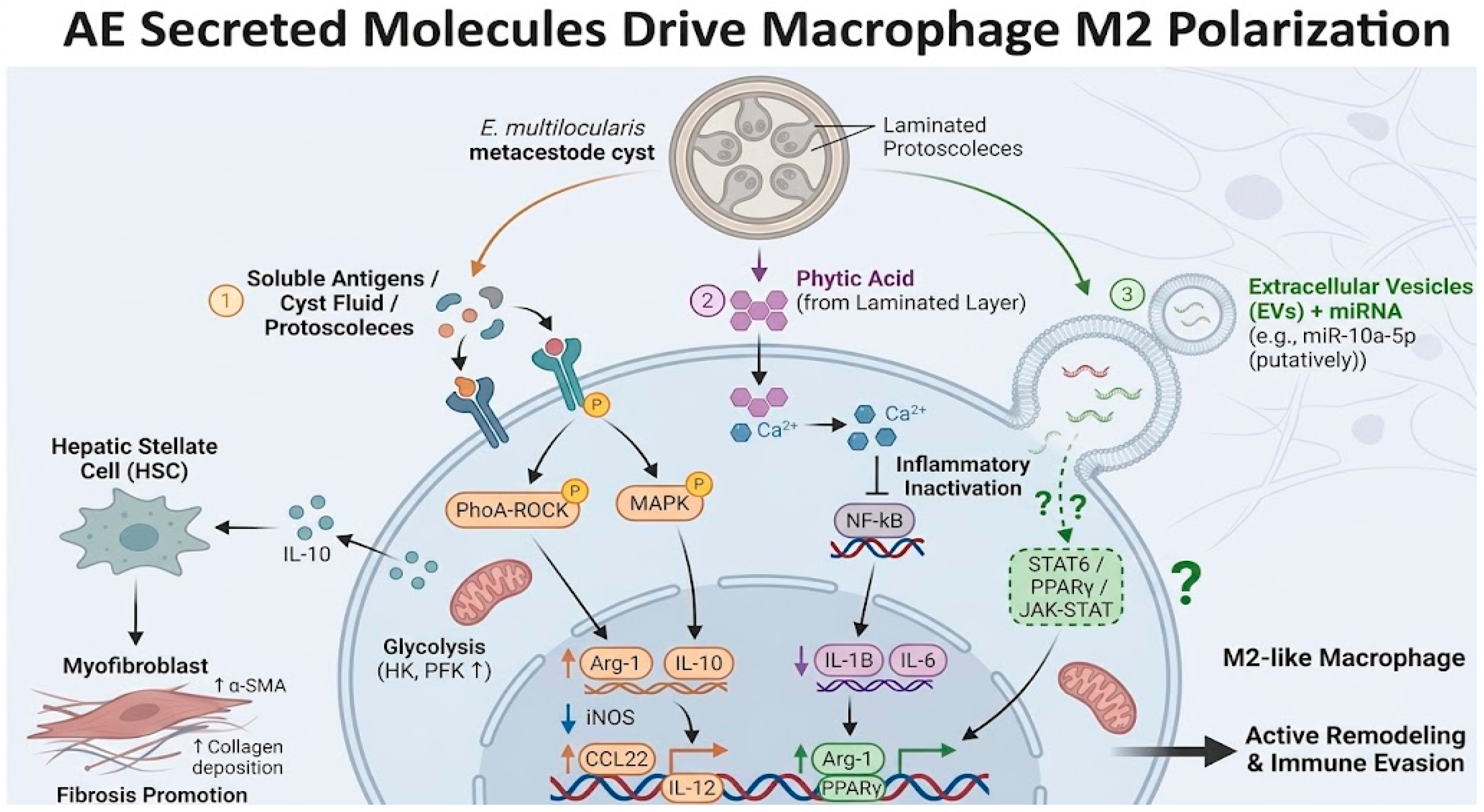

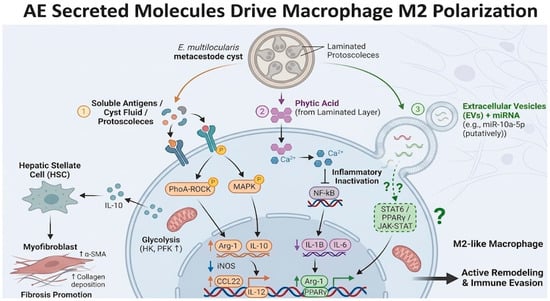

Recent research evidence indicates that alveolar echinococcosis infection can significantly drive host macrophages toward an M2 phenotype shift. For example, Chong et al. [16]; stimulated mouse macrophage cell lines RAW264.7 and Ana-1 in vitro with soluble antigens from E. multilocularis, observing significant upregulation of M2 markers Arg-1 and IL-10 within just 8 h, while M1 markers IL-12 and iNOS levels were downregulated. This suggests that parasite antigens directly promote macrophage polarization into the immunosuppressive and repair-promoting M2 subtype. Simultaneously, the study found that co-cultured macrophages upregulated proteins related to the RhoA-ROCK and MAPK signaling pathways, and the application of RhoA/MAPK pathway inhibitors could partially reverse the M2 polarization tendency of macrophages. Notably, when these parasite antigen-stimulated M2-like macrophages were co-cultured with hepatic stellate cells, the latter exhibited typical myofibroblast transdifferentiation (increased α-SMA expression), suggesting that parasite-induced macrophages can promote liver fibrosis [16]. Another study co-cultured mouse bone marrow macrophages with E. multilocularis cyst fluid or protoscoleces (protoscolex), where the proportion of M2-polarized macrophages was significantly higher than M1, manifested as upregulation of M2-related genes such as Arg-1 and CCL22, while M1 markers like iNOS showed no significant changes. Simultaneously, the expression of key enzymes in the glycolytic pathway (such as HK and PFK) in these co-cultured macrophages increased, with E. multilocularis inducing macrophage metabolism toward a high glycolytic state via the PI3K/Akt/mTOR signaling pathway, thereby leading to M2-type polarization of macrophages. Glycolytic metabolic reprogramming may be a crucial link in parasite-induced changes in macrophage function: sufficient glycolytic energy supply might aim to meet the needs of M2 macrophages for secreting matrix remodeling factors (such as collagen), or reflect the dynamic balance of macrophages between inflammatory and immunosuppressive functions. In summary, the antigen molecules released by E. multilocularis not only directly promote phenotypic shifts in macrophages but also profoundly influence their metabolic and signaling networks, thereby shaping cellular functional states conducive to parasite survival [30,33].

4.2. Parasite-Derived Molecule-Mediated Immune Regulation

E. multilocularis possesses a series of unique molecules that can actively intervene in the activation pathways of host macrophages. One typical example is phytic acid, which has been confirmed to be abundantly present in the laminated layer structure of the echinococcal cyst wall [41]. Salzmann et al. [41]; reported that phytic acid is an important “small molecule weapon” in parasite-mediated macrophage deactivation: in infected mouse livers, although macrophages accumulate extensively around echinococcal vesicles, they hardly express pro-inflammatory factors like IL-6, presenting a suppressed inflammatory phenotype. In vitro experiments further confirmed that phytic acid can chelate intracellular Ca²⁺ in macrophages, thereby reducing the cells’ ability to produce IL-1β and IL-6 under LPS+IFN-γ stimulation, with effects similar to directly adding parasite vesicle extracts. This indicates that echinococci can achieve “chemical” suppression of macrophage inflammatory responses through secreting non-protein factors like phytic acid, representing an immune evasion strategy independent of protein virulence factors [41]. Additionally, evidence from related parasites further suggests that secreted proteins and EV-associated miRNAs may modulate macrophage function. For example, antigen B in the cyst fluid of E. granulosus (cystic echinococcosis) can blunt macrophage M1 activation via Fcγ receptors [42]. Similarly, extracellular vesicles secreted by Trichinella spiralis containing microRNAs such as let-7-5p can promote macrophage conversion to the M2 phenotype [43]. While direct evidence for E. multilocularis EV-derived miRNAs in AE remains limited (research on EVs is in its infancy), analogous mechanisms from related parasites suggest that candidate miRNAs such as miR-10a-5p may target STAT6/PPARγ in host macrophages [44]. This remains a working hypothesis, supported by emerging in vitro data, but requiring functional validation in AE-specific models. In summary, E. multilocularis has evolved various secretory molecular weapons, from ion chelators to proteins/non-coding RNAs, continuously interfering with the normal immune functions of host macrophages, biasing them toward anti-inflammatory/repair states favorable for parasite persistence. Figure 3 summarizes how parasite-derived factors may collectively skew macrophages toward an M2-like phenotype through coordinated effects on signaling pathways and inflammatory responses. By integrating soluble antigens, phytic acid, and exosome-associated regulatory molecules into one model, the figure highlights the multi-layered mechanisms through which E. multilocularis may promote immune evasion and tissue remodeling.

4.3. Adaptive Changes in Host Macrophage Phenotypes

In addition to direct parasite effects, host factors during chronic infection also drive changes in macrophage phenotypes. For example, within AE lesions, due to persistent tissue damage by the parasite causing cell necrosis and stress, the host releases damage-associated alarmins, such as IL-33. It is a nuclear-cytoplasmic factor released upon damage to epithelial and endothelial cells, possessing the ability to drive Th2 immunity. Autier et al. [12]; revealed in AE mouse models that elevated IL-33 correlates with M2-like macrophage polarization and larger lesions. Notably, this evidence comes primarily from murine experiments; the role of IL-33 in human AE lesions remains to be confirmed, so extrapolations should be made with caution. Immunohistochemistry showed that IL-33 is primarily expressed by neovascular endothelial cells near parasite lesions and co-localizes with accumulated FOXP3+ Treg in these areas. IL-33 acts through its receptor ST2 on innate lymphoid cells, macrophages, and Treg in the stroma, inducing the secretion of more Th2 and suppressive cytokines, overall tilting macrophages and helper T cells toward immune tolerance [12]. Therefore, certain self-factors secreted by the host during chronic infection also play a role in reinforcing macrophage M2 polarization and microenvironmental immune suppression. In summary, in the context of E. multilocularis infection, parasite factors and host factors jointly shape the polarization state of macrophages: the former provides signals to actively deflect macrophage functions, while the latter’s inflammation–anti-inflammation feedback mechanisms further selectively amplify the number and activity of M2-phenotype macrophages. This host–pathogen synergy-induced adaptive change in macrophages forms the basis for the AE immune microenvironment. In summary, E. multilocularis can directly reprogram hepatic macrophages through parasite-derived molecules such as soluble antigens, cyst fluid/protoscolex components, exosomal miRNAs, and phytic acid, or indirectly promote the shift in macrophages toward the immunosuppressive and pro-repair M2 phenotype by inducing host factors (such as IL-33). For ease of comparative summarization of different inducing factors, key signaling pathways, and phenotypic effects, the molecular mechanisms by which E. multilocularis induces M2 polarization are compiled in

Table 1. Summary of Molecular Mechanisms by Which E. multilocularis Induces M2 Polarization.

Inducing Factor	Mechanism	Effect	Reference	Evidence Type
Phytic acid (from laminated layer)	Suppresses IL-6/IL-1β production via macrophage signaling inhibition.	Promotes M2 shift, reduces inflammation, aids parasite persistence.	[41]	in vitro macrophage experiments/mouse models
Exosomal miRNAs (e.g., predicted miR-10a-5p from E. multilocularis EVs)	Targets STAT6/PPARγ or LIF/JAK1-STAT3 pathways to inhibit M1 and promote M2.	Alleviates inflammation; potential AE immune evasion.	[43,44]	non-AE-related evidence
Parasite antigens (e.g., Antigen B from analogous E. granulosus)	Regulates TLR4 endocytosis, inhibits phagocytosis.	Drives M2 polarization, immunosuppression, fibrosis.	[42,45]	non-AE-related evidence
Soluble antigens/Cyst fluid components	Activates RhoA/MAPK pathways; induces IL-10/TGF-β secretion.	Enhances M2 phenotype, T-cell exhaustion, angiogenesis/fibrosis.	[16,40]	in vitro macrophage experiments
Protoscolex components (e.g., from vesicle fluid)	Direct interaction suppressing NK/DC functions; promotes Treg expansion.	Reshapes immune microenvironment toward tolerance.	[46,47]	in vitro macrophage experiments
Glycolytic reprogramming factors (parasite-derived metabolites)	Activates PI3K/Akt/mTOR pathways; shifts metabolism to support M2 survival.	Promotes angiogenesis and fibrosis in AE lesions.	[39,48]	in vitro macrophage experiments

.

5. Mechanisms of Immune Microenvironment Remodeling

The “immune microenvironment” formed by E. multilocularis in the host is a complex network composed of various immune cells, cytokines, and matrix components, with prominent features of immune suppression and fibrosis. Changes in macrophage polarization occupy a central position therein, and through interactions with other immune cells, collectively remodel the local immune ecology. The following elucidates the remodeling mechanisms of the AE lesion immune microenvironment from cellular and molecular levels. As illustrated in Figure 4, the AE lesion microenvironment comprises a highly organized network of parasite structures, fibrotic stroma, neovasculature, and immunosuppressive immune cells. This integrative schematic is intended to visualize how macrophages, Treg cells, exhausted T cells, NK cells, dendritic cells, and stromal elements are spatially and functionally linked within the tumor-like immune niche of AE.

5.1. Role of Macrophages in the Microenvironment

It is important to note that macrophages in AE lesions are highly heterogeneous and plastic; rather than existing as purely ‘M1’ or ‘M2’, human tissue analyses suggest they display a continuum of activation states with overlapping markers and functions. Likewise, recent single-cell analyses further support immune heterogeneity in helminth-infected liver tissue. In murine hepatic AE, scRNA-seq identified macrophages among 11 major cell populations, although macrophage intermediate states were not fully resolved. Analogous scRNA-seq studies in schistosomal liver fibrosis have profiled distinct macrophage subsets, suggesting that helminth-associated hepatic macrophages exist along a dynamic continuum rather than as strictly discrete M1 or M2 populations [49]. But among the macrophages that accumulate in large numbers around AE lesions, the M2 phenotype predominates, and the mediators secreted by these cells have extensive effects on the microenvironment [40]. First, M2 macrophages produce high levels of immunosuppressive factors such as IL-10 and TGF-β, which can directly inhibit the antigen presentation capability of macrophages themselves and adjacent dendritic cells, reducing the latter’s function in triggering T cell responses, thereby weakening the local adaptive immune response [12,17]. This has been confirmed in clinical samples and mouse models: analysis of liver tissues from patients and mice revealed that in liver tissues close to parasitic lesions (CLT), although there is abundant infiltration of antigen-presenting cells (including macrophages/DCs), their activation markers and pro-inflammatory cytokine levels are lower than in distant normal liver tissues (DLT), suggesting that innate immune cells such as macrophages are functionally suppressed at the lesion site [22,50]. Second, chemokines secreted by M2 macrophages (such as CCL17 and CCL19) recruit more Treg and Th2 cells into the lesion, amplifying the immunosuppressive effects. Studies have examined the chemokine profiles in the serum and lesions of AE patients, finding that CCL17/CCL19 are significantly elevated and correlated with the degree of macrophage infiltration [51]. This indicates that macrophages not only act as immunosuppressors themselves but also actively shape the composition of surrounding lymphocytes through the secretion of chemotactic signals. Third, macrophages are one of the primary drivers of AE-related liver fibrosis [52]. M2 macrophages continuously release pro-fibrotic mediators such as TGF-β and PDGF, stimulating hepatic stellate cells to produce large amounts of collagen and extracellular matrix, thereby forming a thick fibrous capsule around the parasitic lesion. Fibrosis serves as a host measure to restrict parasite dissemination, but excessive fibrosis can also compress liver tissue and lead to liver function impairment [16]. In liver biopsies from AE patients, numerous α-SMA-positive activated stellate cells are observed, and these areas are often rich in CD163+ and CD206+ macrophages (M2 phenotype), with the two being spatially closely associated [40,53]. In summary, through dual pathways of immunosuppression and promotion of fibrosis, macrophages become the central “engineers” in reshaping the AE microenvironment. However, it remains unclear to what extent the predominance of M2 macrophages in AE lesions is a direct driver of the pronounced fibrosis and parasite persistence, or rather a consequence of the chronic infection milieu; current evidence is largely correlative, and this causality is an area of active investigation.

5.2. T Cell Exhaustion and Regulation

The adaptive immunity within AE lesions has also undergone significant remodeling, characterized by impaired T cell function. In the immunosuppressive environment of chronic infection, persistent antigen presence leads to effector T cells exhibiting an exhausted phenotype, with high expression of multiple inhibitory receptors such as programmed death receptor-1 (PD-1), cytotoxic T lymphocyte-associated antigen 4 (CTLA-4), TIGIT, Tim-3, etc. [14,54,55]. Sun et al. [22]; detected in AE patient liver tissues that, compared to distant normal liver tissues, CD4+ lymphocytes accumulate in large numbers in lesion-adjacent areas (CLT), with a significantly increased proportion of cells co-expressing PD-1 or CTLA-4. Flow cytometry further confirmed that these PD-1 or CTLA-4 expressing CD4+ T cells are primarily CD25 + Foxp3+ Treg and some exhausted effector T cells [22]. High expression of PD-1/CTLA-4 indicates that T cells are in a functionally suppressed or tolerant state, with significantly reduced proliferation and cytotoxic capabilities. This has been functionally validated in animal models: blocking the PD-1/PD-L1 pathway can partially restore the proliferation and IFN-γ secretion capabilities of exhausted T cells, and reduce parasite burden in mice [56]; similarly, CTLA-4 antibody blockade can enhance T cell activity and combat parasite infection [57]. Additionally, Treg cells are enriched in AE, where they not only exhaust effector T cell responses but also actively secrete IL-10 and TGF-β to enhance local immune tolerance [23]. The proportion of Treg in patients’ peripheral blood and lesions is elevated and positively correlated with disease severity. Therefore, in the AE microenvironment, the T cell pool is reshaped due to persistent antigen stimulation and inhibitory signals: useful anti-parasitic effector T cells become functionally exhausted and unable to clear the parasite; conversely, inhibitory Treg accumulate, further consolidating the immunosuppressive state of the microenvironment [58,59]. It is worth noting that macrophages and T cells interact mutually in this process: ligands such as PD-L1 and Gal-9 highly expressed by M2 macrophages bind to PD-1 and Tim-3 receptors on T cells, inducing T cell exhaustion and apoptosis [22,60]; conversely, IL-10 secreted by Treg stimulates macrophages to maintain the M2 phenotype, forming a positive feedback loop [40]. This synergy of the “macrophage-T cell axis” turns the AE lesion into a highly controlled immunosuppressive zone [17].

5.3. Changes in Innate Immune Cells

In addition to macrophages, the functions of other innate immune cells in the AE microenvironment are also suppressed, further weakening anti-parasitic immunity. NK cells, as important innate immune effector cells, should exert cytotoxic effects in the early stages of parasitic infection. However, in AE patient livers, NK cells in perilesional regions also exhibit exhaustive changes [23]. Studies have found that NK cells in the CLT region exhibit high expression of the inhibitory receptor NKG2A on their surface, which is negatively correlated with significantly reduced secretion of IFN-γ and granzyme B; in contrast, NK cells in distant regions have low expression of the NKG2A inhibitory receptor and normal function. Upon binding to HLA-E, NKG2A transmits inhibitory signals, causing NK cells to “brake.” The proportion of NKG2A+ NK cells in AE patient lesions is increased, with reduced IFN-γ production, suggesting that the parasite may induce host high expression of HLA-E or similar ligands to keep NK cells silent [61]. The role of neutrophils in AE is relatively minor, but studies have reported a decline in their phagocytic and oxidative burst capabilities during the chronic infection phase [45,62]. Regarding dendritic cells, AE patients exhibit reduced numbers of monocyte-derived DCs in peripheral blood, with impaired maturation, possibly related to TLR signal tolerance induced by parasitic antigens [50]. These changes are inextricably linked to inhibitory factors released by M2 macrophages. For example, IL-10 can inhibit DC maturation and reduce NK cell activity; TGF-β can also suppress neutrophil activity [22]. It is evident that in the AE microenvironment, multiple components of innate immunity are reshaped into low-reactivity, tolerant states, collectively paving the way for the parasite’s persistent survival. Figure 5 integrates the reciprocal interactions among M2-like macrophages, exhausted T cells, Treg cells, NK cells, and dendritic cells in AE. By summarizing this macrophage–T cell–NK cell feedback network, the figure emphasizes how multiple suppressive pathways may cooperate to sustain immune tolerance, impair antiparasitic immunity, and facilitate chronic lesion persistence.

5.4. Remodeling of Stroma and Vasculature

Changes in the immune microenvironment are also reflected at the tissue structural level. AE lesions often form distinct fibrous encapsulations, accompanied internally by neovascular networks and lymphatic vessel proliferation [46]. Fibrosis results from the combined effects of immune responses and direct parasite actions: during inflammation, macrophages and Th2 cells promote stellate cells to produce collagen, while parasitic mechanical stimulation and secretions also induce fibroblast proliferation [53]. Neovascularization is driven by factors such as VEGF, providing blood supply to the parasite [48]; Alarmins such as IL-33 are overexpressed in the endothelial cells of these new vessels [12]. Furthermore, the structure of the alveolar echinococcus cyst wall itself (such as the laminated layer) participates in microenvironment remodeling: its strong negative charge and abundant glycosaminoglycans enable it to adsorb host complement regulatory proteins and immunoglobulins, thereby evading immune attacks [63]. This “molecular filtration” effect adds an immunosuppressive barrier to the microenvironment. Finally, due to the long-term presence of the lesion, a phenomenon known as “peripheral immune organs” can form locally, such as tertiary lymphoid follicle-like structures near the fibrous capsule, containing B cells and TFH cells [64]. Although anti-echinococcus antibodies can be detected in AE patients, these antibodies are mostly non-neutralizing, and the parasite has mechanisms (such as surface adsorption of host immunoglobulin fragments) to evade antibody effects [47]. These histological changes, together with alterations in immune cell functions, constitute the unique immune microenvironment of AE.

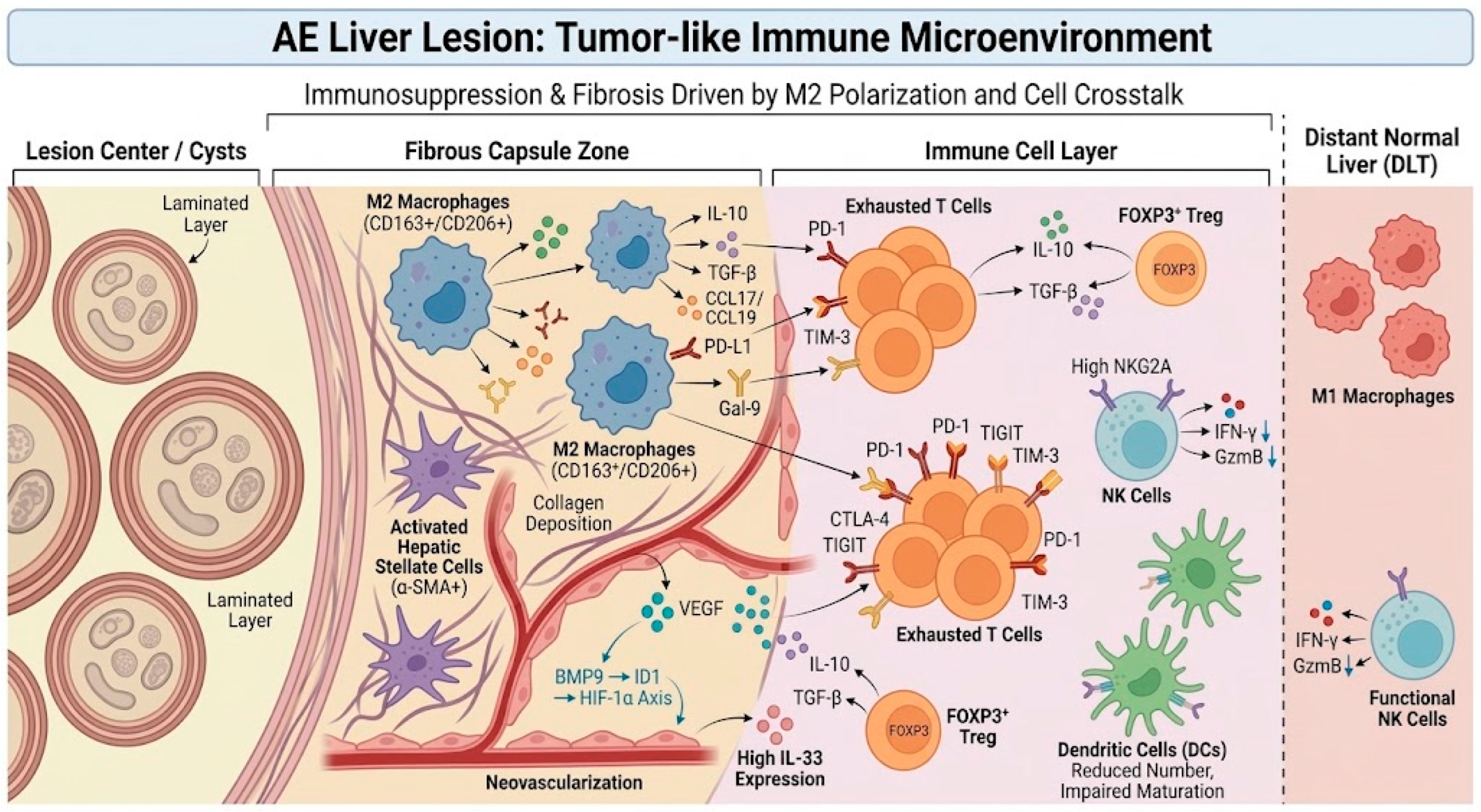

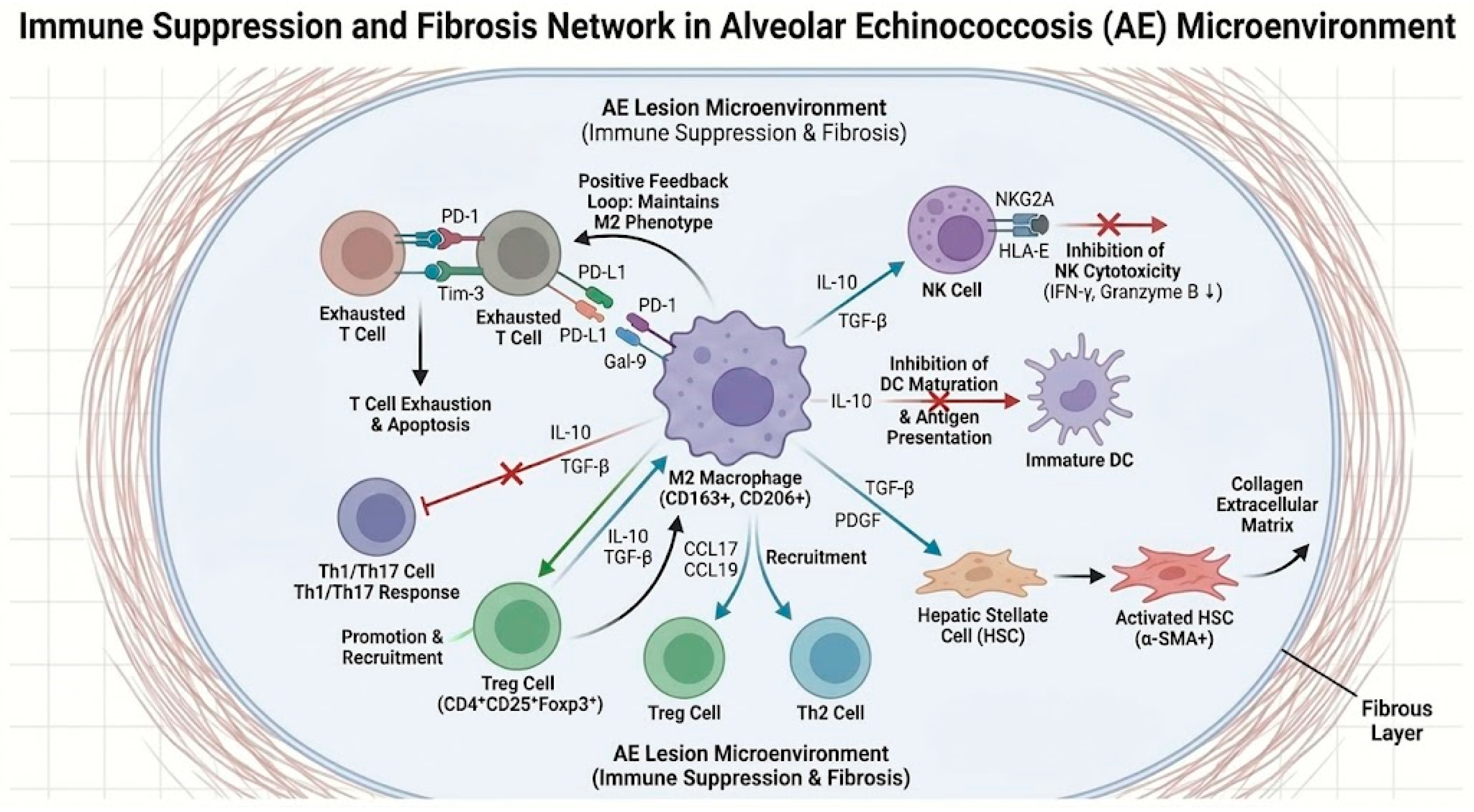

Overall, the AE lesion microenvironment is shaped by coordinated interactions among M2-skewed macrophages, exhausted T cells, Treg cells, NK cells, dendritic cells, and stromal components. These interactions collectively promote immune tolerance, fibrosis, and vascular remodeling, thereby restricting effective antiparasitic immunity while supporting long-term parasite survival. This integrated cellular network may represent a central mechanistic basis for the tumor-like behavior of AE lesions. The main components of the aforementioned AE lesion immune microenvironment and their roles are now summarized in

Table 2. Remodeling of the Immune Microenvironment in AE.

Component	Role in Remodeling	Key Interactions	Reference	Evidence Type
M2 Macrophages	Recruit Tregs, suppress NK/DC functions via IL-10/TGF-β.	Foster angiogenesis/fibrosis; promote T-cell exhaustion.	[40,53]	mouse models/human tissue observations
Regulatory T Cells (Treg)	Downregulate Th1/Th17 via IL-10/TGF-β; expand under parasite influence.	Establish immune tolerance; correlate with chronic infection.	[58,59]	mouse models/human tissue observations
Immune checkpoints (e.g., PD-1/PD-L1)	Induce T-cell exhaustion; upregulated in AE lesions.	Suppress effector immunity; potential therapeutic target.	[56,57]	mouse models/human tissue observations
Chemokines (e.g., CCL17/CCL19)	Markers of disease progression; recruit immunosuppressive cells.	Modulate macrophage infiltration and fibrosis.	[51,52]	human tissue observations/mouse models
NK cells and exhaustion markers (e.g., NKG2A, Tim-3)	Impaired function in lesions; high exhaustion expression.	Contribute to parasite persistence; reversible in models.	[60,61]	mouse models/human tissue observations
Fibrotic factors (e.g., Wnt signaling)	Activate epithelial–mesenchymal transition; promote hepatic fibrosis.	Interact with M2 macrophages; exacerbate tumor-like niche.	[39,52]	mouse models/human tissue observations

.

6. Treatment Strategies and Prospects

6.1. Limitations of Existing Treatment Methods (Current Practice)

Traditionally, the primary treatment for AE is surgical resection of the lesion, combined with long-term postoperative albendazole medication to control residual parasites [65]. The prerequisite for surgery to achieve a radical cure is that the lesion is localized and the patient’s liver function permits it, but in many cases, complete resection is not possible at the time of diagnosis [66]. For cases where surgery is not feasible or to prevent postoperative recurrence, albendazole is currently the only recommended first-line drug, which inhibits parasite growth by blocking glucose uptake and interfering with mitochondrial function [67]. However, as mentioned earlier, albendazole only has a parasitostatic effect, making it difficult to completely eradicate the parasite, and it requires long-term or even lifelong administration [68]. The effective concentration of the drug in the lesion is extremely low (only 1% of the blood concentration), far below the level required to kill the parasite [69]. Long-term medication also brings adverse reactions such as liver damage and leukopenia, as well as potential drug resistance issues [70]. Therefore, monotherapy often fails to halt disease progression, and recurrence is highly likely upon discontinuation [9]. In response to these challenges, scholars in recent years have actively explored new drugs and strategies, including drug repurposing, targeted immunotherapy, and novel drug delivery systems, with the hope of improving efficacy and reducing toxicity [71]. Below, in conjunction with the characteristics of the AE immune microenvironment, we will discuss the research progress and application prospects of various innovative therapies.

6.2. Drug Repurposing and Novel Antiparasitic Drugs (Experimental)

Due to the high cost of developing new drugs and the relatively few AE cases, drug repurposing has become a popular strategy. High-throughput screening has identified multiple marketed drugs that exhibit inhibitory effects on Echinococcus in experimental models. For example, the antimalarial drug mefloquine can significantly inhibit parasite growth in infected mice [72]; the proteasome inhibitor bortezomib directly induces protoscolex death in vitro, and in mouse experiments, it reduces the average parasite weight by about 2 g [73]. Additionally, nitroimidazole-containing antibacterials, certain TKIs (tyrosine kinase inhibitors), and others have also shown certain activity [9]. Most of these repurposed drugs already have human safety data, which can accelerate their entry into clinical trials. However, attention must be paid to the evaluation of in vivo efficacy and the dosage safety window. Currently, no new drug has replaced albendazole through clinical validation, but the aforementioned studies provide valuable clues for combination therapies or new treatments.

6.3. Emerging Strategies in Immunotherapy (Experimental)

Since AE presents an immune-tolerant microenvironment similar to tumors, some strategies from tumor immunotherapy have been attempted in AE, particularly immune checkpoint inhibitors. Blockade of the PD-1/PD-L1 pathway represents one of the most extensively studied preclinical approaches [74]. In a murine model of chronic AE, anti-PD-L1 monoclonal antibody administration markedly reduced parasite burden and restored effective immune responses, evidenced by increased effector CD4⁺ and CD8⁺ T cells, decreased Treg proportions, and partial recovery of macrophage and dendritic cell function [56]. Notably, PD-L1 monotherapy also attenuated excessive NKT- and NK-cell activation, potentially mitigating immunotherapy-related inflammation. These findings indicate that the PD-1 pathway exerts a critical immunoregulatory role in AE and that its blockade can disrupt parasite-induced immunosuppression, thereby enhancing host control. Analogous preclinical data suggest therapeutic potential for blocking CTLA-4 and TIGIT [57]. Prospective reviews even propose considering antibody therapies targeting immunosuppressive pathways such as PD-1/CTLA-4/TIGIT for inclusion in AE treatment, with the aim of achieving functional clearance of the parasite, rather than mere growth inhibition [75]; however, these immunotherapies have currently only been validated in animal models or in vitro, we emphasize that checkpoint inhibitors are still at an experimental stage in AE—their clinical efficacy and safety remain unproven. Therefore, careful future evaluation of their safety in human AE patients is still needed, particularly to avoid tissue damage caused by overly strong immune responses. In addition to checkpoint blockade, other immunomodulators also deserve attention. For example, inhibiting the IL-33/ST2 axis has shown promise in mice (reducing immunosuppression and fibrosis), but its clinical applicability in AE is untested [12]. Another example is blockers or antibodies targeting the Tim-4 receptor on macrophage surfaces, which are expected to lift its inhibition of pro-inflammatory responses, thereby restoring the body’s anti-parasitic immunity and reducing liver fibrosis. Tim-4 is highly expressed in M2-type macrophages of AE patients, and in vitro downregulation of Tim-4 can increase the release of inflammatory cytokines and reverse some fibrosis indicators, and is thus considered an emerging target for immunotherapy [17]. Furthermore, NKG2A inhibitors targeting NK cells (such as the monoclonal antibody Monalizumab) can theoretically be used to release the “brake” on NK cells, enhancing their direct cytotoxic effects on echinococcal cysts [23,61]. In summary, treating AE as an immune imbalance disease and “rebooting” host immunity through various immunotherapies is an important direction for future treatment.

Caution: Immune-based therapies for AE carry potential risks. Reinvigorating immune responses in an already diseased liver could provoke collateral damage—for example, severe hepatic inflammation or even accelerated lesion progression. Clinical observations show that disruption of immune balance (e.g., prolonged immunosuppression) can dramatically worsen AE [76], highlighting the delicate host–parasite equilibrium. Thus, any checkpoint inhibitor or similar immunotherapy must be pursued judiciously, with careful monitoring to avoid immune-related liver injury.

6.4. Novel Drug Delivery Systems (Experimental)

To improve the effective concentration and specificity of drugs at the lesion site, nanocarriers and targeted drug delivery systems also show promise in AE [69]. For instance, researchers have developed nanoparticles to deliver albendazole or other drugs, making them more likely to accumulate in liver lesions and sustain drug release, thereby overcoming the issue of insufficient concentration with traditional oral albendazole [9]. Animal experiments have shown that liposome-encapsulated albendazole significantly increases intrahepatic concentration, with superior efficacy and lower toxicity compared to conventional formulations [77]. In the future, immunotherapy drugs (such as checkpoint inhibitors) and antiparasitic drugs can be co-loaded into bifunctional nanocarriers to achieve synchronous intervention on the parasite and its immune microenvironment [78].

6.5. Traditional/Natural Approaches and Vaccines (Experimental)

The roles of traditional Chinese medicine and natural products in immune regulation and antiparasitic effects have attracted attention [79]. For example, flavonoids, terpenoids, and other compounds have shown certain anti-echinococcal activity and can influence macrophage function [80]. Finally, in terms of vaccine prevention, there is currently no AE vaccine for human use, but experimental vaccines (such as recombinant Echinococcus antigen Eg95) in intermediate hosts (rodents) have shown certain protective efficacy [81]. If an effective human AE vaccine can be developed and administered to populations in endemic areas, it will reduce new cases at the source. However, due to the complex life cycle and immune evasion strategies of Echinococcus, vaccine development still faces many challenges [82,83].

Taken together, current AE management still relies mainly on surgery and benzimidazole therapy, both of which have important limitations. Emerging approaches, including immunomodulation, drug repurposing, targeted delivery systems, and vaccines, remain largely preclinical but may offer future therapeutic opportunities. The existing and potential therapeutic strategies for the aforementioned AE are summarized in

Table 3. Existing and Potential Treatment Strategies for AE.

Strategy	Description	Potential Benefits/Risks	Reference	Evidence Type
Surgical Resection	Radical removal when feasible; combined with drugs.	High cure rate in early stages; recurrence risk if incomplete.	[66,67]	clinical validation
Benzimidazole therapy (e.g., albendazole)	Parasitostatic effects; long-term administration for inoperable cases.	Controls growth but not curative; hepatotoxicity risk.	[65,70]	clinical validation
Drug repurposing (e.g., mefloquine, bortezomib)	Anti-malarial/proteasome inhibitors against metacestodes.	Enhanced efficacy in models; limited clinical data.	[72,73]	experimental concept
Immunotherapy (e.g., PD-1/CTLA-4/TIGIT blockade)	Restore effector immunity; reverse exhaustion in models.	Promising preclinical; risks of inflammation exacerbation.	[74,84]	experimental concept (preclinical only)
Nanodelivery systems (e.g., PLGA nanoparticles)	Targeted albendazole delivery to liver.	Improved bioavailability; reduced side effects.	[69,78]	experimental concept
Vaccines (e.g., multi-epitope like EG95 or GILE)	Induce protective immunity against infection.	Preventive potential; efficacy in animal models.	[81,83]	experimental concept
Traditional Chinese Medicine and Natural Products (e.g., Flavonoids, terpenoids)	anti-echinococcal activity and can affect macrophage function.	Holds promise as adjunctive treatment methods, requiring further clarification of effective components and mechanisms of action.	[79,80]	experimental concept

.

7. Conclusions

Alveolar echinococcosis is highly aggressive; its key pathogenesis lies in constructing a unique immunosuppressive microenvironment, allowing the parasite to colonize and expand long-term in the host’s liver while the host still finds it difficult to completely eliminate it [84]. This article reviews the research progress on hepatic macrophage polarization and immune microenvironment remodeling in AE infection, showing that the functional shift in macrophages from M1 to M2 permeates the disease’s occurrence and development process [38]. At the same time, it should be acknowledged that the M1/M2 classification represents a simplified conceptual framework and does not fully capture the phenotypic diversity of macrophages in vivo. Accordingly, therapeutic strategies aimed at shifting macrophages from an M2-like to an M1-like state should be interpreted with caution. Given the presence of intermediate and context-dependent phenotypes, more effective approaches may require targeting specific macrophage functions, such as profibrotic activity or immunoregulatory cytokine production, rather than assuming a uniform binary transition. The parasite promotes macrophage polarization to an immune-tolerant phenotype by secreting antigenic molecules (such as phytate, exosomal miRNAs, etc.) and inducing the release of host factors (such as IL-33), and further recruits Treg, exhausts effector T cells, and other inhibitory components through intercellular signaling networks, gradually establishing an “immune sanctuary” similar to a tumor microenvironment [12,41,44,85,86]. This microenvironment on one hand protects the parasite from immune clearance, and on the other hand causes chronic inflammation and fibrotic damage to host tissues [87,88]. Recent extensive studies have revealed key molecules and cellular interactions in this process: from the RhoA-MAPK signaling pathway in macrophages to PD-1/CTLA-4 checkpoints in T cells, from Tim-4-mediated apoptotic cell clearance to IL-33-driven Th2 deviation, each link may become a target for intervention [12,16,17,22]. Looking to the future, AE treatment is expected to transcend the limitations of existing antiparasitic drugs, shifting towards a comprehensive strategy that addresses both “parasite + microenvironment.” In particular, the introduction of immunotherapy offers a promising new avenue for refractory AE [89]. If surgical resection, targeted antiparasitic drugs, and immune microenvironment modulators can be organically combined, it may achieve functional cure for AE, improving patient survival rates and quality of life [90]. In summary, in-depth research on the immunological mechanisms of AE not only enriches our understanding of immune evasion phenomena in parasitic infections but also lays a theoretical foundation for developing more effective intervention measures. While much of the mechanistic understanding of AE macrophage polarization is derived from animal models and in vitro experiments, with relatively few confirmations in human tissue—thus, our conclusions should be viewed in light of these limitations. So future research should further focus on the regulation of key immune nodes and their clinical translation evaluations, promoting the field from basic research to clinical applications, contributing to conquering the intractable disease of alveolar echinococcosis.
