Modification of Lattice Structures and Mechanical Properties of Metallic Materials by Energetic Ion Irradiation and Subsequent Thermal Treatments

Abstract

When materials are irradiated with high-energy ions, their energies are transferred to electrons and atoms in materials, and the lattice structures of the materials are largely changed to metastable or non-thermal equilibrium states, causing the modification of several physical properties. There are two processes for the material modification by ion irradiation; one is “the irradiation-enhanced process”, and the other is “the irradiation-induced process”. In this review, two kinds of recent results for the microstructural changes and the modifications of mechanical properties will be summarized: one is the hardness modification of dilute aluminum alloys, which is a result of the irradiation-enhanced process, and the other is the hardness modification of Ni-based intermetallic compounds as a result of the irradiation-induced process. The effect of the subsequent thermal treatment on the microstructures and the hardness for ion-irradiated dilute aluminum alloys is quite different from that for Ni-based intermetallic compounds. This result reflects the difference between the irradiation-enhanced process and the irradiation-induced process. Finally, possibilities of the ion irradiation and subsequent thermal treatment to industrial applications will also be discussed.

1. Introduction

During the penetration of high-energy charged particles in materials, they deposit energies in materials through the (screened) Coulomb interaction with the electrons and atoms of materials [1]. These interactions cause the electronic excitations and the displacements of atoms from their regular lattice sites in the materials. It is well known that energetic electron irradiation has been used for the modification of organic materials such as cross-linking and polymerization [2]. For metals and semiconductors, ion-implantation techniques have often been used for their mechanical and electrical properties [3,4]. For the ion-implantation techniques, the material properties are modified mainly by implanting ions, and in a lot of cases, energies deposited by implanting ions or the resulting lattice defects have never been considered as main factors for the materials’ modification. The effects of lattice defects induced by energetic ion irradiation on materials’ properties have often been studied in the field of materials related to nuclear power plants [5]. Energetic ion irradiation as well as electron irradiation has also been used as a tool for the simulation of space radiation effects on space equipment [6]. However, such studies for nuclear power plants and space developments have treated the negative effects of ion irradiation (so-called “radiation damage”) on materials’ properties.

In our recent studies, we have positively used the energies deposited by energetic ion/electron irradiation for the modification of materials properties such as the mechanical properties [7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23], magnetic properties [24,25,26,27,28,29,30,31,32,33,34,35,36,37], and optical properties [38] of metallic and oxide materials.

For the materials’ modification by ion irradiation, two kinds of processes can be used; an “irradiation-induced process” and “irradiation-enhanced process”. Through the radiation-induced process, the states of materials tend to be changed from the thermal equilibrium states to the thermally non-equilibrium or the metastable states. Through the radiation-enhanced process, the states of materials, which are already non-equilibrium or metastable before the irradiation, tend to become close to the thermally equilibrium states from the non-equilibrium states. The difference in irradiation effects between these two processes remarkably appears during the subsequent thermal treatment at elevated temperatures after the ion irradiation. By the subsequent thermal treatment, the material states obtained by the irradiation-induced process tend to recover to the original thermal equilibrium states (i.e., the states before the irradiation). While on the other hand, the material states obtained by the radiation-enhanced process tend to become further closer to a thermal equilibrium state by the subsequent thermal treatment. Therefore, by the combination of energetic ion irradiation and the subsequent thermal treatments, we can control the materials’ states and obtain the resulting several physical properties, which cannot be realized by conventional material processing.

In the following chapters, we will summarize our recent experimental results about the modification of the hardness by ion irradiations for two kinds of metallic materials; dilute aluminum alloys [7,8,9,17,19] and nickel-based intermetallic compounds [11,13,15,16,18,20,21]. The former is an example of the materials’ modification through the irradiation-enhanced process, and the latter is that through the irradiation-induced process. We will also discuss the effects of the thermal treatment at elevated temperatures on their structures and the hardness of the ion-irradiated materials. Finally, we will mention the possibilities of the hardness modification by the energetic ion irradiation for industrial applications.

2. Modification of the Microstructures and the Surface Hardness of Dilute Aluminum Alloys

Although a pure aluminum metal has a light mass and possesses an excellence in corrosion-resistance, as well as electrical and thermal conductivities, a disadvantage of this metal is its low mechanical strength. A well-known method for its strengthening is the age-treatment of supersaturated alloys. To obtain a sufficient strength by this method, the supersaturated alloys need to be kept at elevated temperatures for long periods of time. In our study, we have tried to increase the surface hardness of several dilute aluminum alloys by the energetic ion irradiation at room temperature for shorter periods of time. The subsequent thermal treatments after the ion irradiation have also been performed in order to obtain the higher hardness of the alloys. Here, the results of our research performed for the past decade will be summarized.

2.1. Experimental Procedure

Two binary alloys, Al-2 wt %Cu and Al-4 wt % Cu, and two typical kinds of practical aluminum alloys, Al-Cu-Mg and Al-Mg-Si, were chosen for our experiment. The chemical compositions for the two practical aluminum alloys are listed in

Table 1. Chemical compositions of Al-Cu-Mg and Al-Mg-Si alloys.

	Cu	Mg	Mn	Si	Fe	Zn	Cr	Al
Al-Cu-Mg	3.5–4.5	0.4–0.8	0.4–1.0	0.2–0.8	0.7	0.25	0.1	balance
Al-Mg-Si	0.1	0.35–0.8	0.03	0.3–0.7	0.5	0.1	0.03	balance

.

They were solution-annealed at 803–823 K in air and then quenched into iced water. For the unirradiated binary alloys and pure aluminum, to confirm the effect of solution annealing and quenching, the electrical resistivity was measured.

The specimens were irradiated with several energetic ions by using a tandem accelerator at the Takasaki Advanced Radiation Research Institute of National Institutes for Quantum and Radiological Science and Technology (QST-Takasaki). The ion species and energies used in the present experiment are listed in

Table 2. Ion species and energies.

Alloys	Ion Species and Energies
Al-2wt %Cu	4.5 MeV Al	4.5 MeV Ni		16 MeV Au
Al-4wt %Cu
Al-Cu-Mg	5 MeV Al		10 MeV I	16 MeV Au
Al-Mg-Si	5.4 MeV Al	7.3 MeV Fe	10 MeV I	16 MeV Au

.

All the irradiations were carried out at room temperature. After the irradiation, the micro Vickers hardness with the load of 10 gf was measured as a function of ion fluence. As the indent depth of micro Vickers measurement is about 2 μm even for the load of 10 gf, the micro Vickers test measures the hardness not only for the irradiated region but also for the region not affected by the irradiation. To examine more exactly the change in hardness near the specimen surface, a nanoindentation test was also performed for the two kinds of the practical aluminum alloys at the National Institute for Materials Science (NIMS). For comparison, we also measured the micro Vickers hardness for the specimens thermally aged at elevated temperatures. The microstructures were analyzed by using an atom probe tomography (APT) at the Central Research Institute of Electric Power Industry (CRIEPI) for solution-annealed and quenched specimens, ion-irradiated specimens, and thermally aged specimens. The effect of the thermal aging, which was performed after the irradiation, was also investigated. The details of the experimental procedure are described in our previous reports [7,8,9,17,19].

2.2. Results and Discussion

2.2.1. Effects of Ion Irradiation on the Microstructure and Surface Hardness of the Dilute Aluminum Alloys

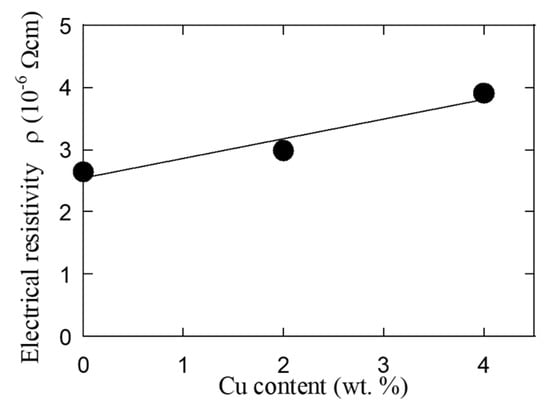

First of all, the results for the binary alloys are discussed [19]. Figure 1 shows the Cu content dependence of the electrical resistivity for the pure Al and the Al-2%Cu and Al-4%Cu binary alloy specimens before the irradiation. As can be seen in the figure, the electrical resistivity increases linearly against Cu content. This result confirms that a homogeneous distribution of isolated Cu atoms in Al matrix is surely realized by quenching the solution-annealed specimens into iced water. Such a “supersaturated” state is not a thermal equilibrium state but a metastable state far from the thermal equilibrium state.

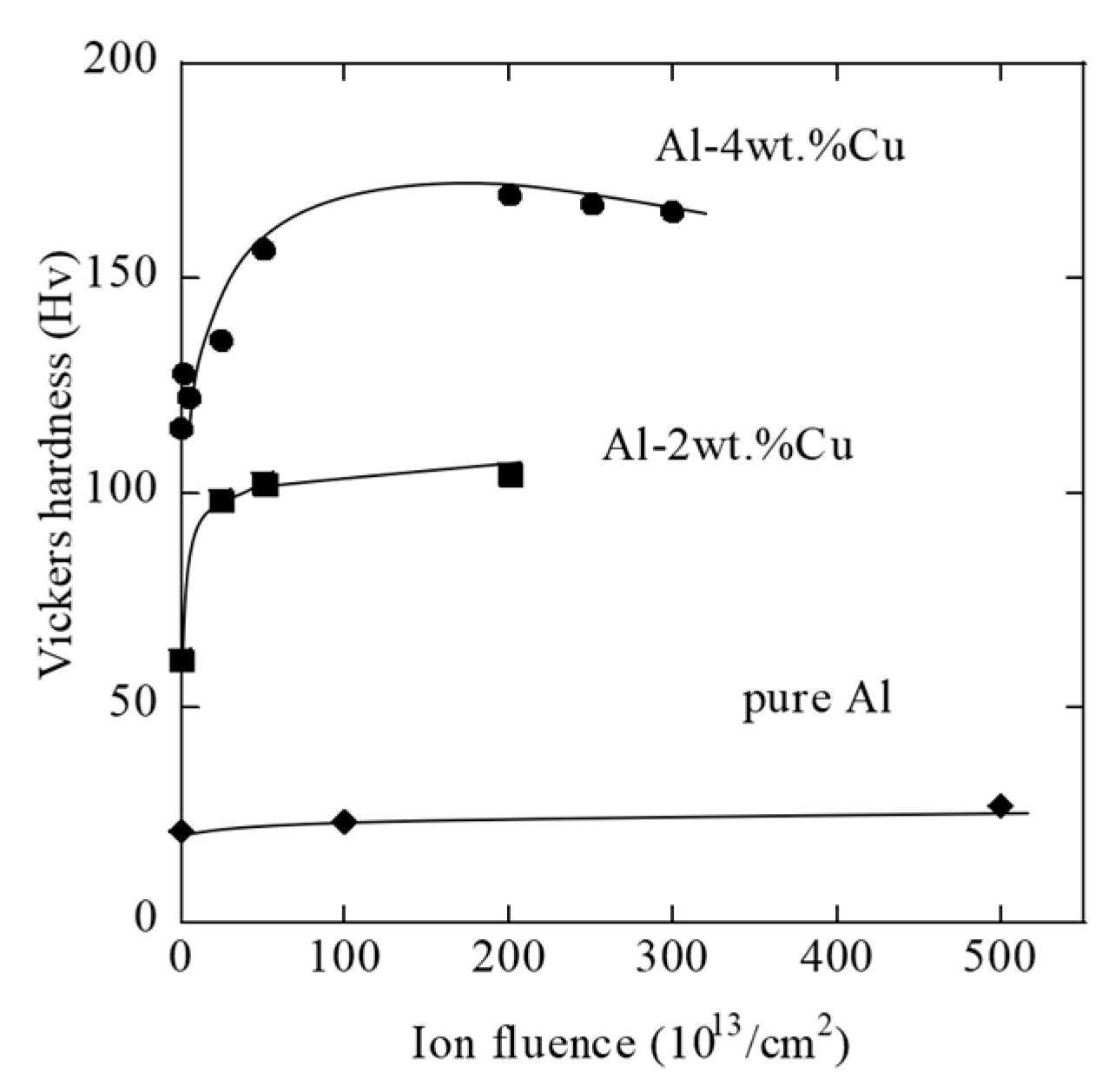

Figure 2 shows the Vickers hardness as a function of 16MeV Au ion fluence for Al-2%Cu, Al-4%Cu, and pure Al specimens. The hardness for unirradiated specimens strongly depends on the Cu content. With increasing the Cu content, the hardness increases. This phenomenon is called “solid solution hardening”; Cu atoms act as obstacles against dislocation motions, causing the increase in hardness. The figure also shows that the hardness of the two binary alloys largely increases by the irradiation, while for pure Al, the hardness scarcely increases even at higher ion fluence. In addition, the increase in hardness for Al-4wt %Cu is larger than that for Al-2wt %Cu.

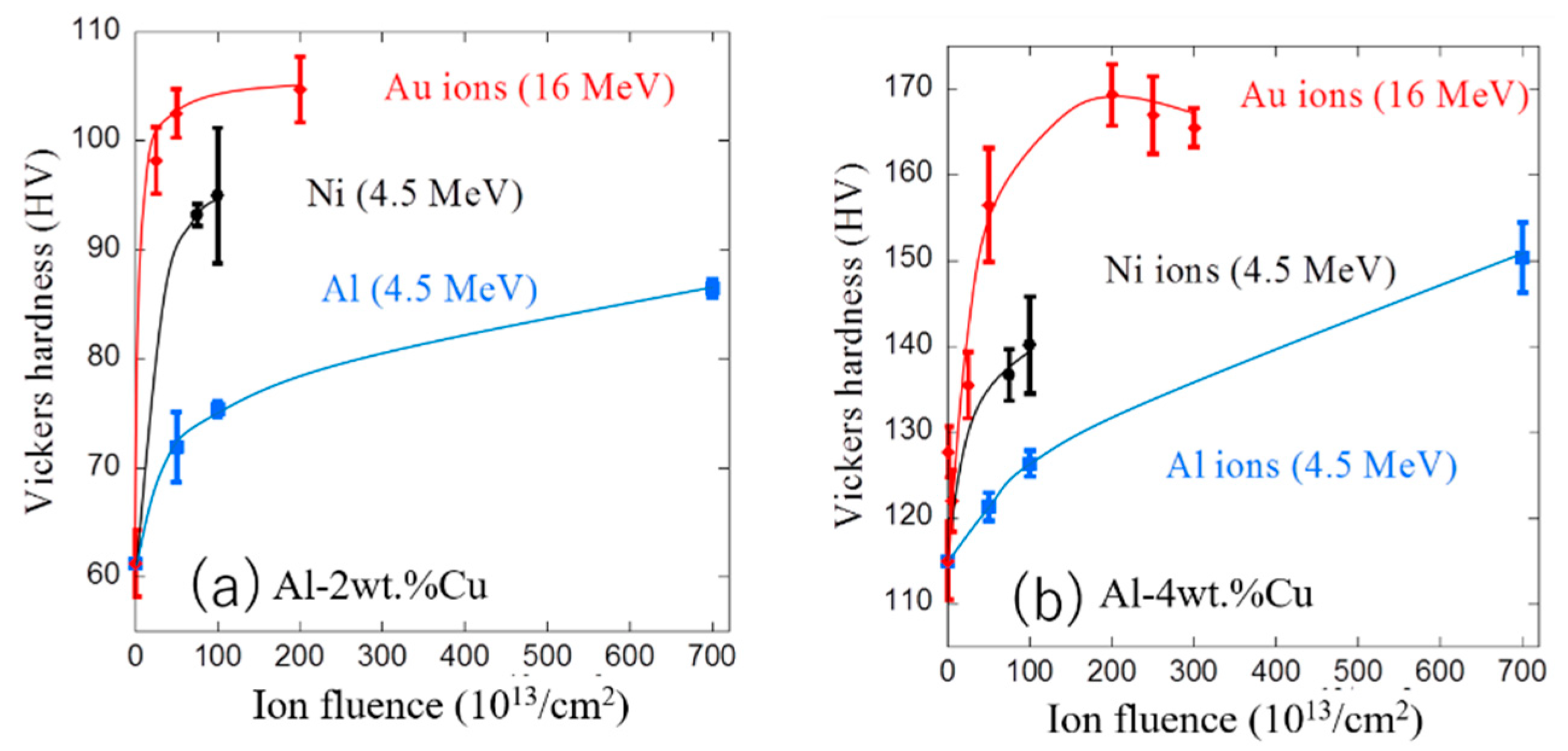

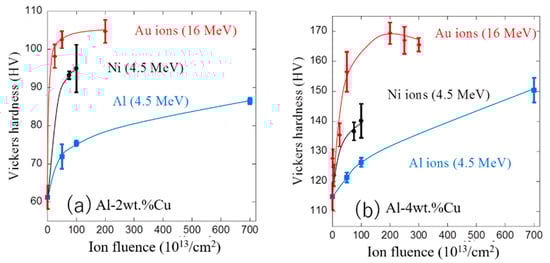

Figure 3 shows the ion-fluence dependence of Vickers hardness for three kinds of ions. With increasing the ion fluence, the hardness increases and tends to be saturated at higher ion fluence. The change in hardness depends on the irradiating ion species. With increasing the ion mass, the change in hardness becomes larger even at the same fluence.

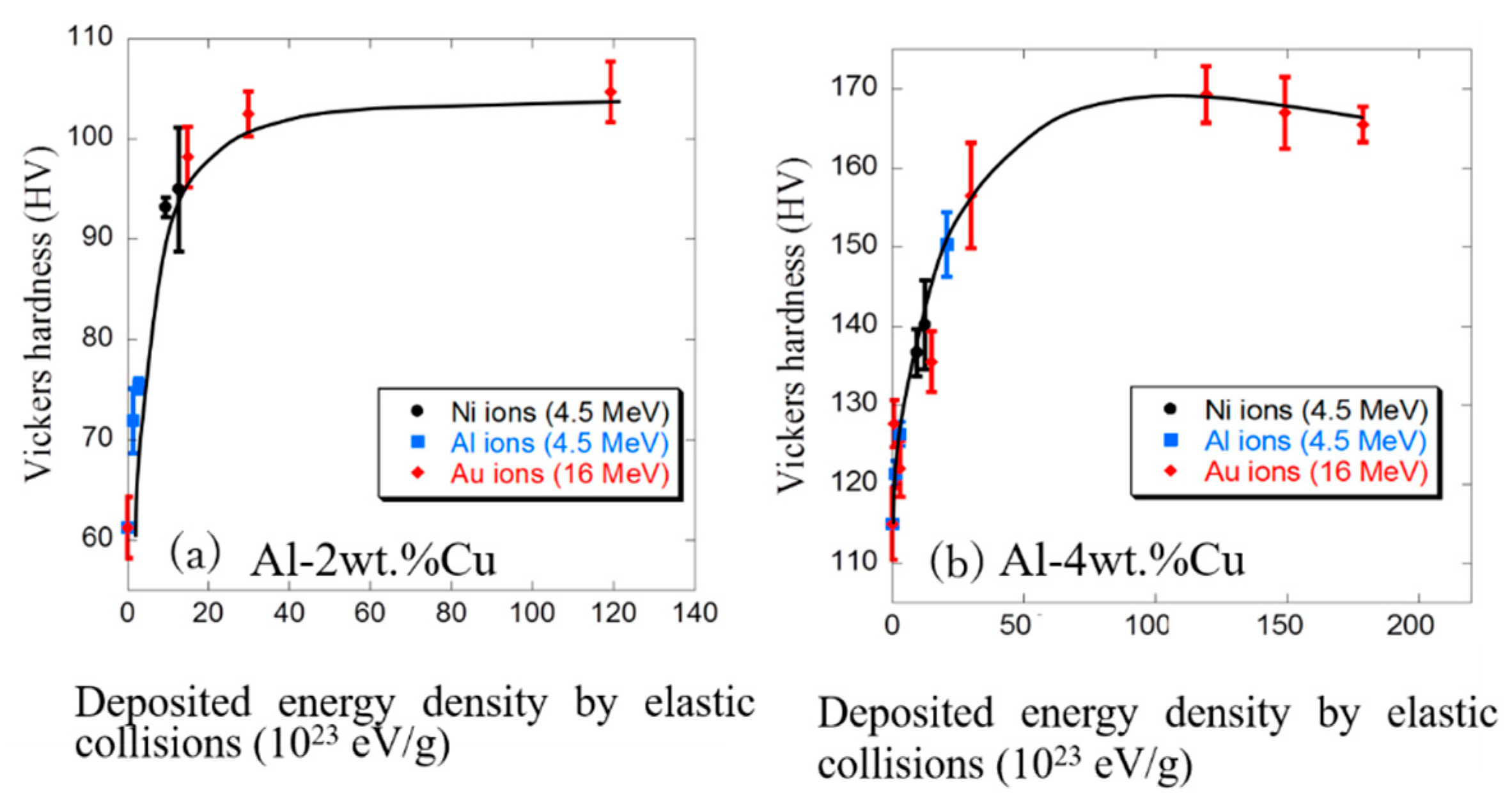

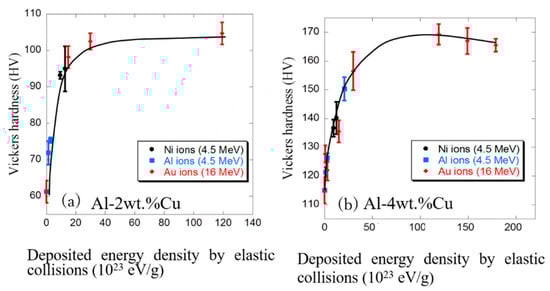

When energetic ions penetrate a solid, their energy is deposited into the solid mainly through two processes; through the excitation of electrons and through the elastic collisions with atoms. Figure 4 shows the hardness change as a function of the density of ion energy deposited through the elastic collisions, which has been calculated by the SRIM 2008 code [39]. As can be seen in the figure, the change in hardness is well correlated with the density of energy deposited through the elastic collisions, suggesting that the lattice defects produced by the elastic collisions between the irradiating ions and atoms in the target mostly contribute to the hardness increment. This is a reasonable result, because it is well known that in metallic systems, permanent displacements of lattice atoms hardly occur by the energy deposition through the electronic excitation except in the case of swift heavy ion irradiation with very high electronic stopping powers [40,41].

It is particularly worth noting here that the increase in hardness for the irradiation with Al, which is the same as the matrix element of the binary alloys, shows the same dependence on the elastically deposited energy as that for the other ion irradiations. This result eliminates the possibility that the increase in hardness is explained as due to the chemical effect of irradiating ions in target materials. Figure 2, Figure 3 and Figure 4 clearly imply that not only lattice defects produced by the elastic collisions but also the existence of Cu atoms in the Al matrix play an important role in the increase in hardness. As discussed later, the increase in hardness for the ion-irradiated dilute aluminum alloys is attributed to the clustering of additive elements such as Cu atoms.

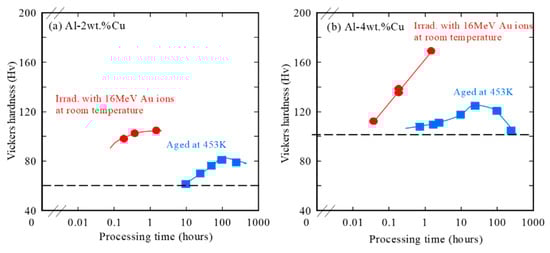

Figure 5 shows the increase in hardness for the Al-Cu binary alloys irradiated with 16 MeV Au ions at room temperature and that for the Al-Cu alloys thermally aged at 453K as a function of processing time. Here, the processing time means the irradiation time or the aging time for the ion-irradiated specimens or the thermally aged specimens, respectively.

The figure clearly shows that the hardness of the Al-Cu binary alloys increases much faster by the Au ion irradiation at room temperature than by the thermal aging at 453 K. Moreover, the maximum hardness values are much larger by the Au ion irradiation (Hv = 100 and 170 for Al-2wt %Cu and Al-4wt %Cu, respectively) than those by the thermal aging (Hv = 80 and 125 for Al-2wt %Cu and Al-4wt %Cu, respectively).

Next, to consider the industrial applications of the energetic ion irradiation to the hardness modification of dilute aluminum alloys, we discuss the experimental results for two practical aluminum alloys, Al-Cu-Mg alloy [7,8] and Al-Mg-Si alloy [9,17]. The former is a practical aluminum alloy that is best known as “Duralumin”, and the latter has been used as electrical wire material because of its good electrical conductivity. As can be seen in Table 1, the main difference between these two practical Al alloys is the Cu concentration. In Al-Cu-Mg alloy, Cu is a main additive element, while in Al-Mg-Si alloy, the concentration of Cu is much smaller than in Al-Cu-Mg alloy.

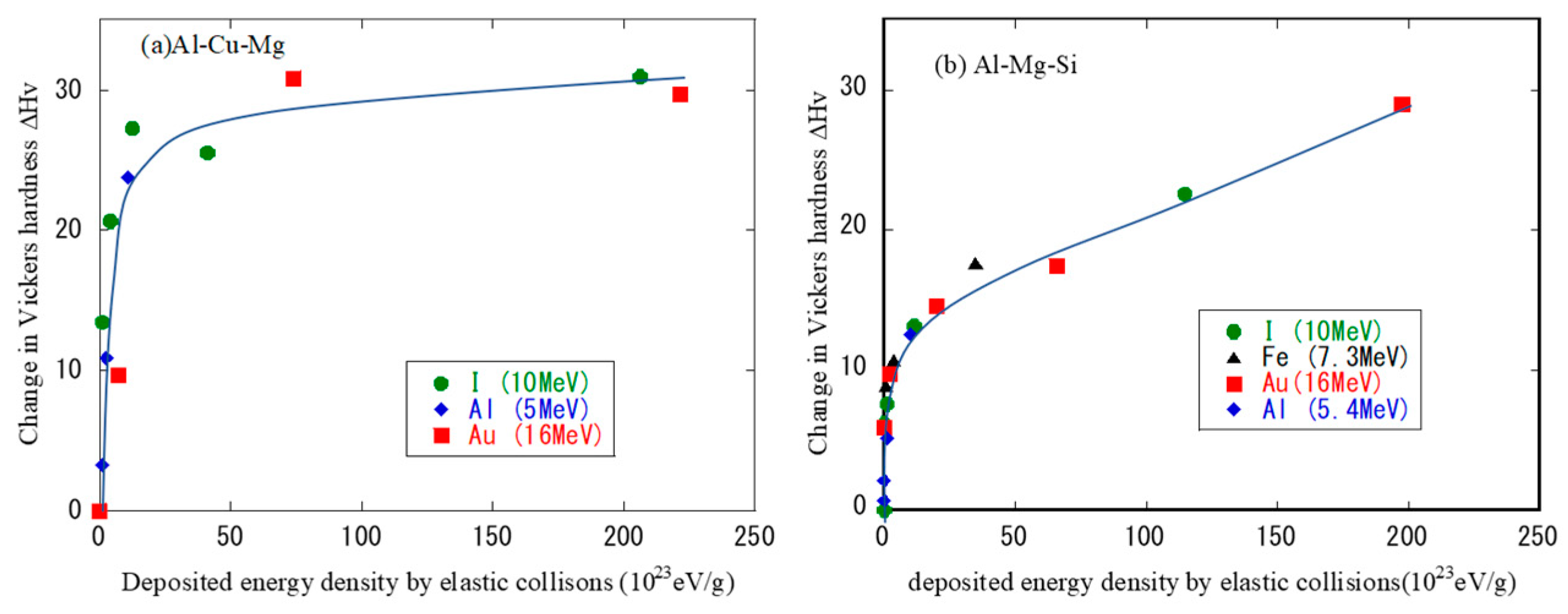

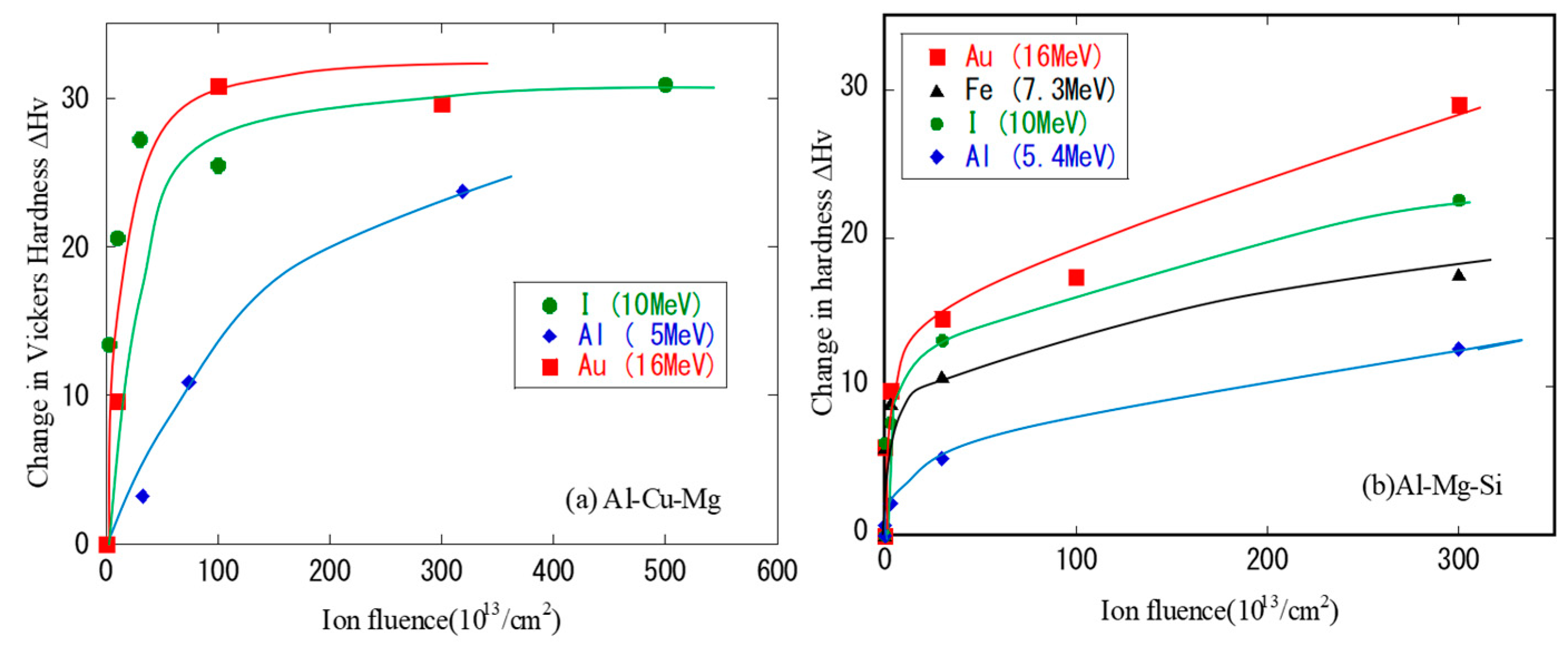

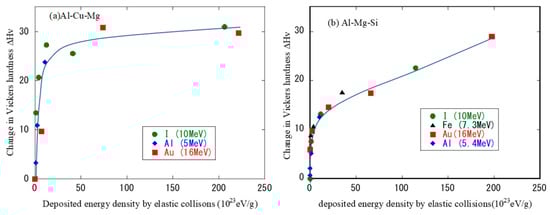

Figure 6 and Figure 7 show the change in Vickers hardness of Al-Cu-Mg and Al-Mg-Si specimens as a function of ion fluence for various ions and as a function of energy deposited through elastic collisions, respectively. The values of the hardness before the irradiation is 120 for Al-Cu-Mg alloy and 67 for Al-Mg-Si alloy. As in the case of Al-Cu binary alloys, the change in hardness is well correlated with the density of energy deposited through the elastic collisions.

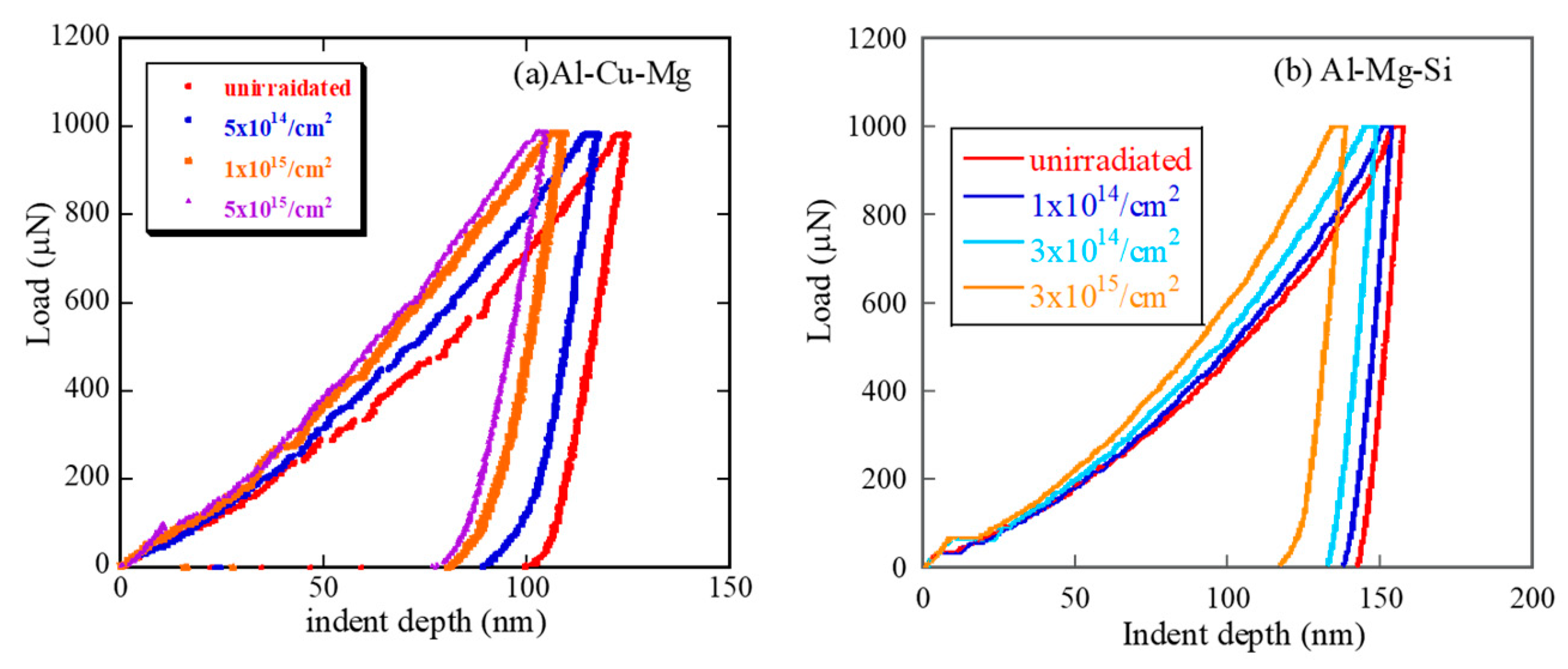

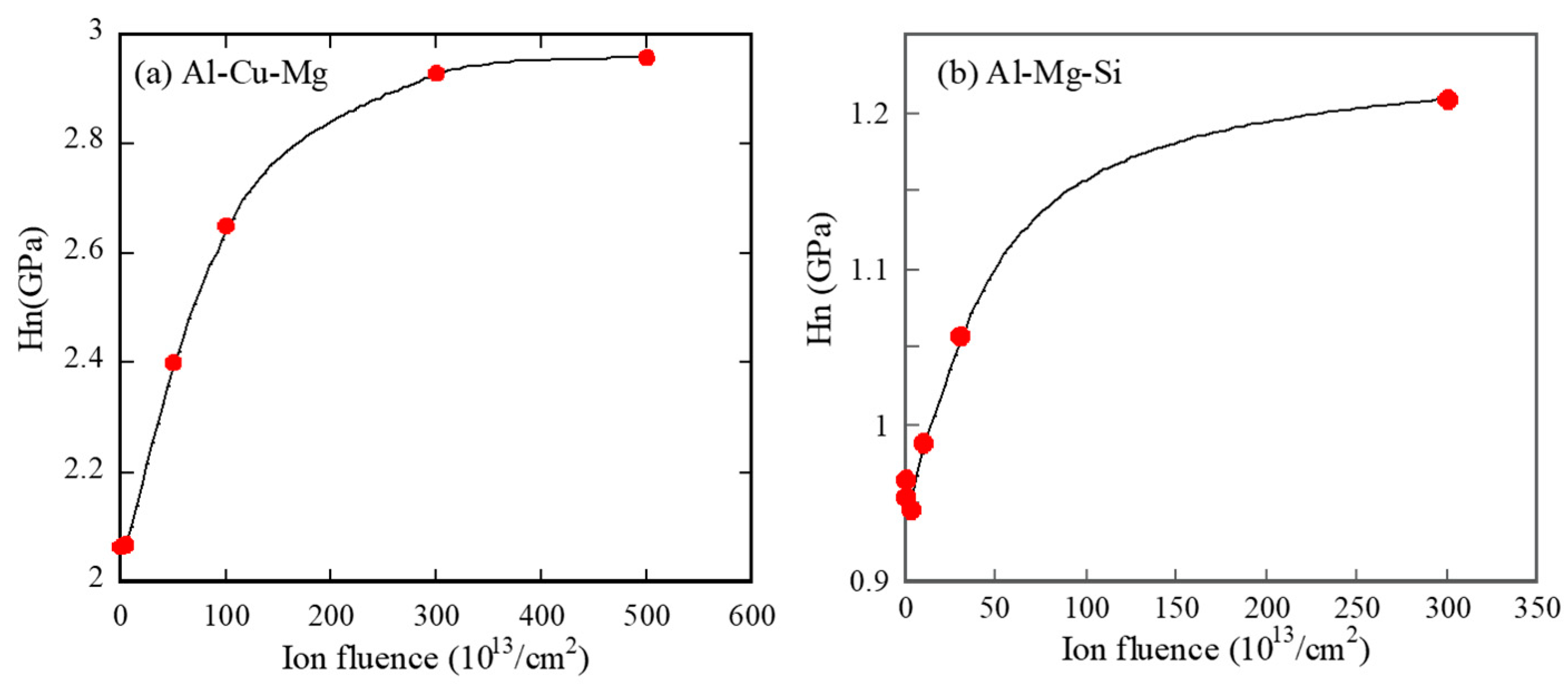

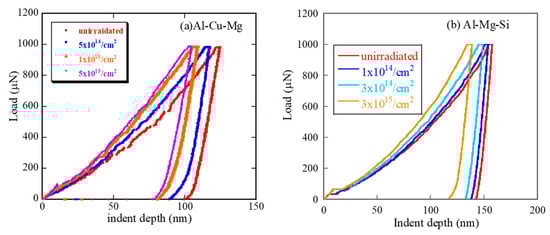

Figure 8 shows the result of nanoindentation test for the two practical alloys irradiated with 10 MeV I ions. The figure shows the behavior of hardness for the depth below 150 nm. Even for the same indentation load (1000 μN), the indent depth decreases with increasing the ion fluence. Figure 9 indicates the nanoindentation hardness as a function of 10 MeV I ion fluence. The result of the nanoindentation test confirms the increase in hardness near the surface by the ion irradiation.

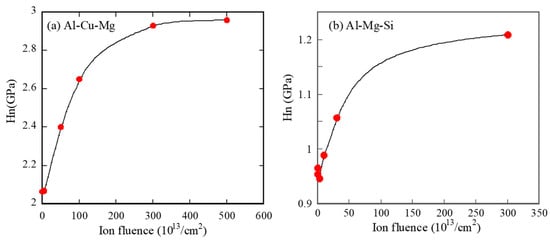

From the data of nanoindentation measurements, not only the hardness but also the elastic modulus can be deduced by using the slope of the stress–strain curve. As the elastic modulus is a more essential physical property that originates from the atomic force among lattice atoms, the change in elastic modulus by the ion irradiation is quite interesting. However, only by using the present result, it is difficult to discuss clearly the effect of the ion irradiation on the elastic modulus. Therefore, in the present report, we have solely focused on hardness change.

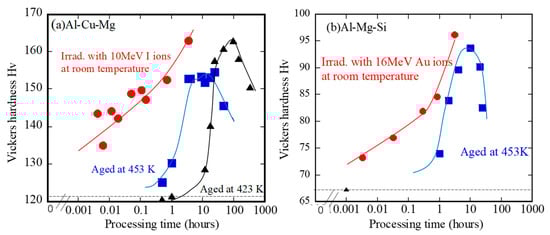

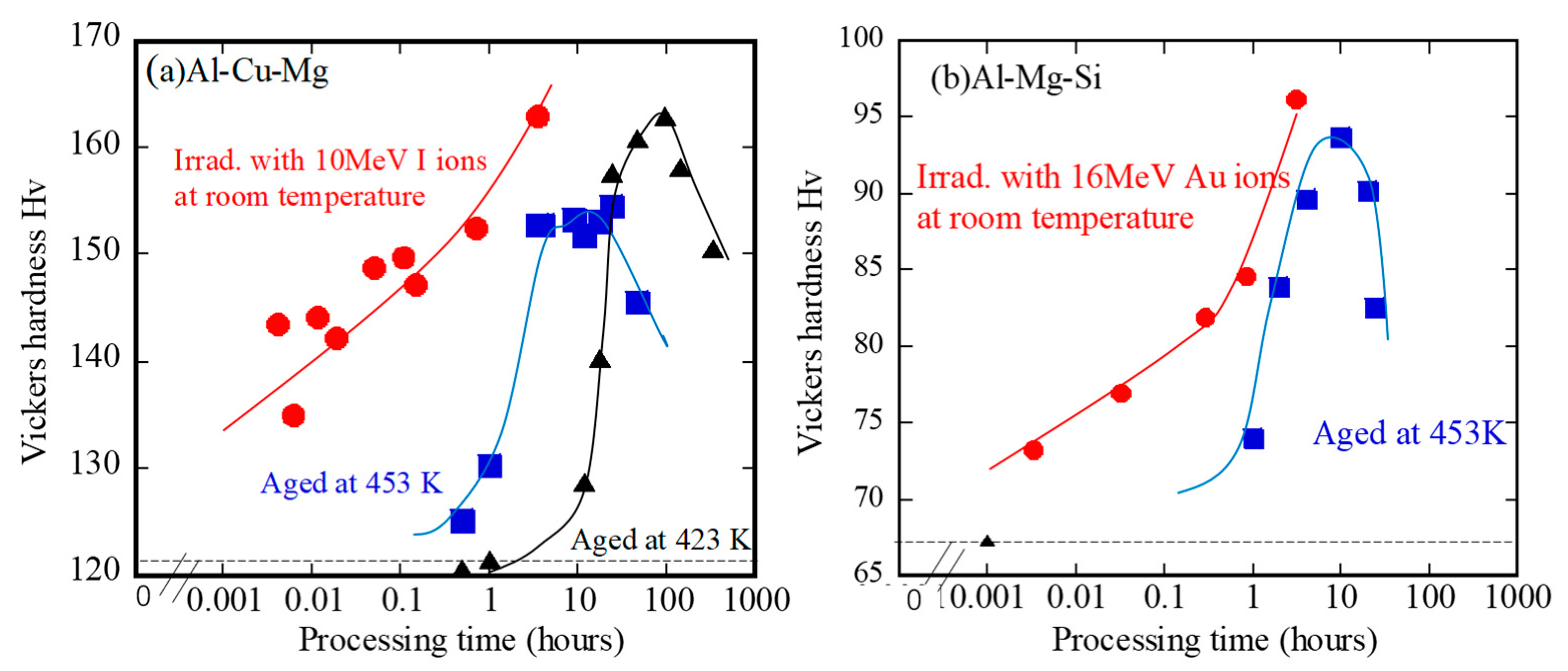

Figure 10a shows the change in Vickers hardness as a function of processing time for the Al-Cu-Mg specimens irradiated with 10 MeV iodine ions at room temperature and for those thermally aged at 423 K and 453 K. The behavior of hardness change of Al-Cu-Mg alloy is similar to the case of Al-Cu binary alloys; for the specimens irradiated at room temperature, the hardness increases far more rapidly than that for the thermally aged specimens. Only 3.5 hours are required to reach a Vickers hardness of 165, which is about the same as the maximum hardness when the specimen is thermally aged at 423 K for 100 hours. A more rapid increase in hardness by the ion irradiation than by the thermal aging has been observed also for Al-Mg-Si alloy (see Figure 10b).

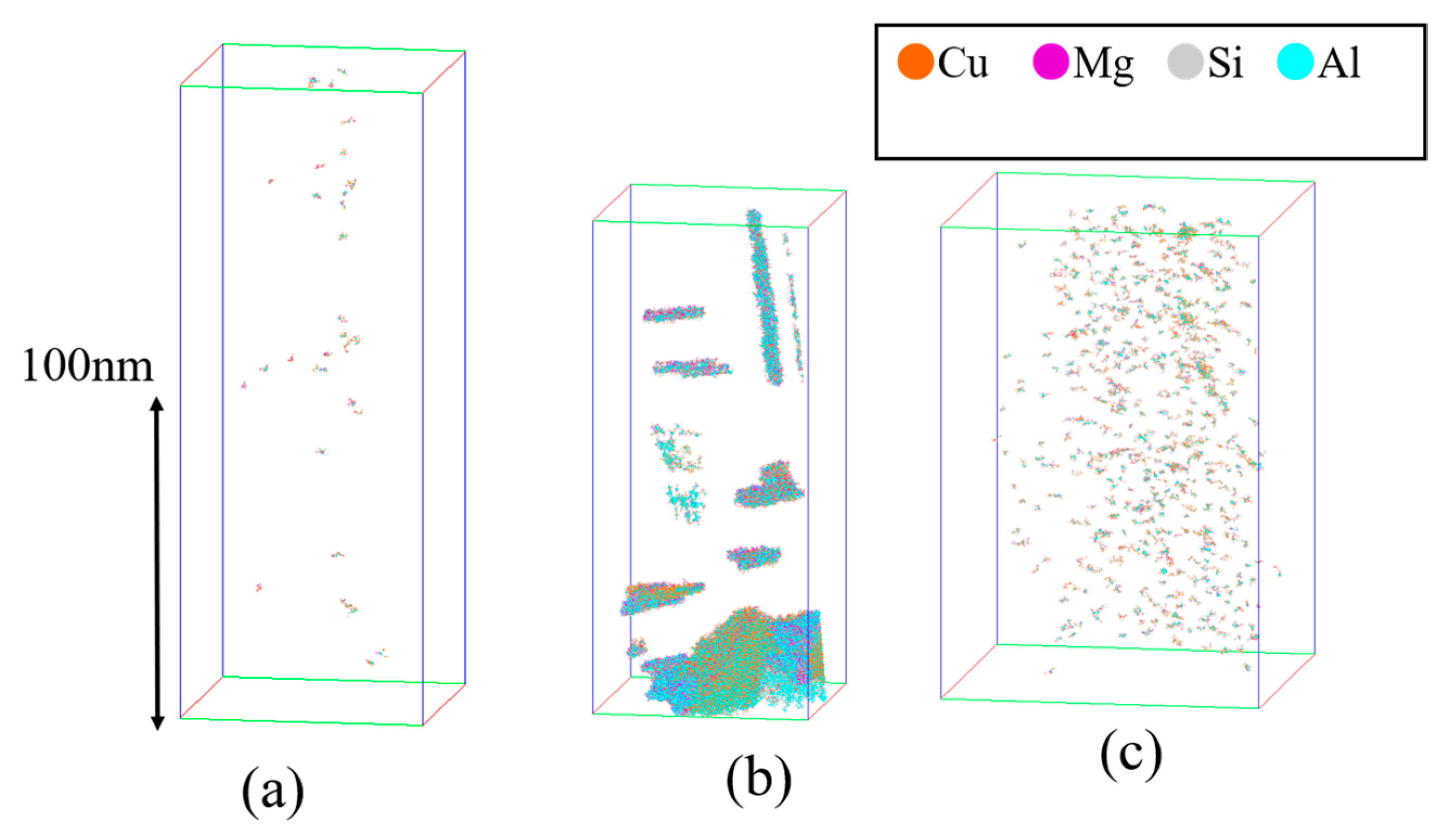

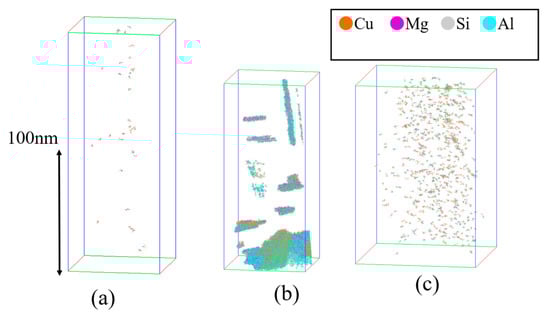

The microstructures of the Al-Cu-Mg specimen irradiated with 10 MeV I ions observed by using the atom probe tomography (APT) are shown in Figure 11.

The results for unirradiated specimen and those thermally aged at 423 K for 4 days are also shown in the figure. As precipitates in the unirradiated and the irradiated specimens were hardly observed by a normal atom probe elemental mapping, we used the cluster analysis, and therefore, all the constituent atoms including Al atoms can be seen in Figure 11. The detail of the cluster analysis has been described in ref. [7,9]. In the thermally aged specimen, we can see some needle-like and plate-like precipitates of several tens of nanometers in size. As the solubility of the additive elements such as Cu and Mg in aluminum is very low at room temperature, the additive elements, which are dispersed as isolated atoms in a supersaturated specimen, diffuse over a long distance at elevated temperatures, resulting in coarse precipitates. On the other hand, in the ion-irradiated specimen, as shown in Figure 11c, many small precipitates of about 3 nm in diameter are homogeneously distributed. This phenomenon can be explained as follows; when the supersaturated aluminum alloy is irradiated with energetic ions, point defects (interstitial atoms and vacancies) are produced by elastic collisions. Such point defects can diffuse rapidly in the alloy even at room temperature. The point defects interact selectively with additive elements such as copper and magnesium, and the diffusion of these elements is enhanced by the diffusion of point defects. As a result, a precipitation of the additive elements occurs at temperatures much lower than that for the thermal aging. This phenomenon is caused by an “irradiation-enhanced process”, because the supersaturated state, which is produced by quenching the solution-annealed samples to iced water, exists as a non-thermal equilibrium state, and this non-thermal equilibrium state tends to become close to a thermal equilibrium state by the irradiation. However, under the ion irradiation, the precipitation occurs through a short-distance diffusion, and nanometer-sized precipitates are produced. Such small precipitates can act as effective obstacles for dislocation motions, causing a remarkable increase in hardness at room temperature as compared with the case of thermal aging. A similar precipitation of additional elements (Mg and Si) by the ion irradiation can be found also in Al-Mg-Si specimens. In the unirradiated specimen, Mg and Si atoms are nearly homogeneously distributed. By the ion irradiation, small sized Mg and Si precipitates are produced. In the thermally aged specimen, the size of precipitates of Mg and Si atoms is much larger than in the ion-irradiated specimen.

The effectiveness of nanometer-sized precipitates for the hardness increase in metallic alloys has also been reported in our previous paper [42], in which nanometer-sized Cu precipitates produced by the irradiation in Fe-Cu binary alloys provide a large increase in hardness. This phenomenon can be explained by using the Russell–Brown model [43].

2.2.2. Effect of Subsequent Thermal Treatments after the Irradiation on the Microstructures and Hardness of the Dilute Aluminum Alloys

Until now, we have discussed the effect of energetic ion irradiation on the microstructures and the hardness of various dilute aluminum alloys. From now on, the effects of the subsequent thermal aging at elevated temperatures on the hardness of ion-irradiated specimens are discussed.

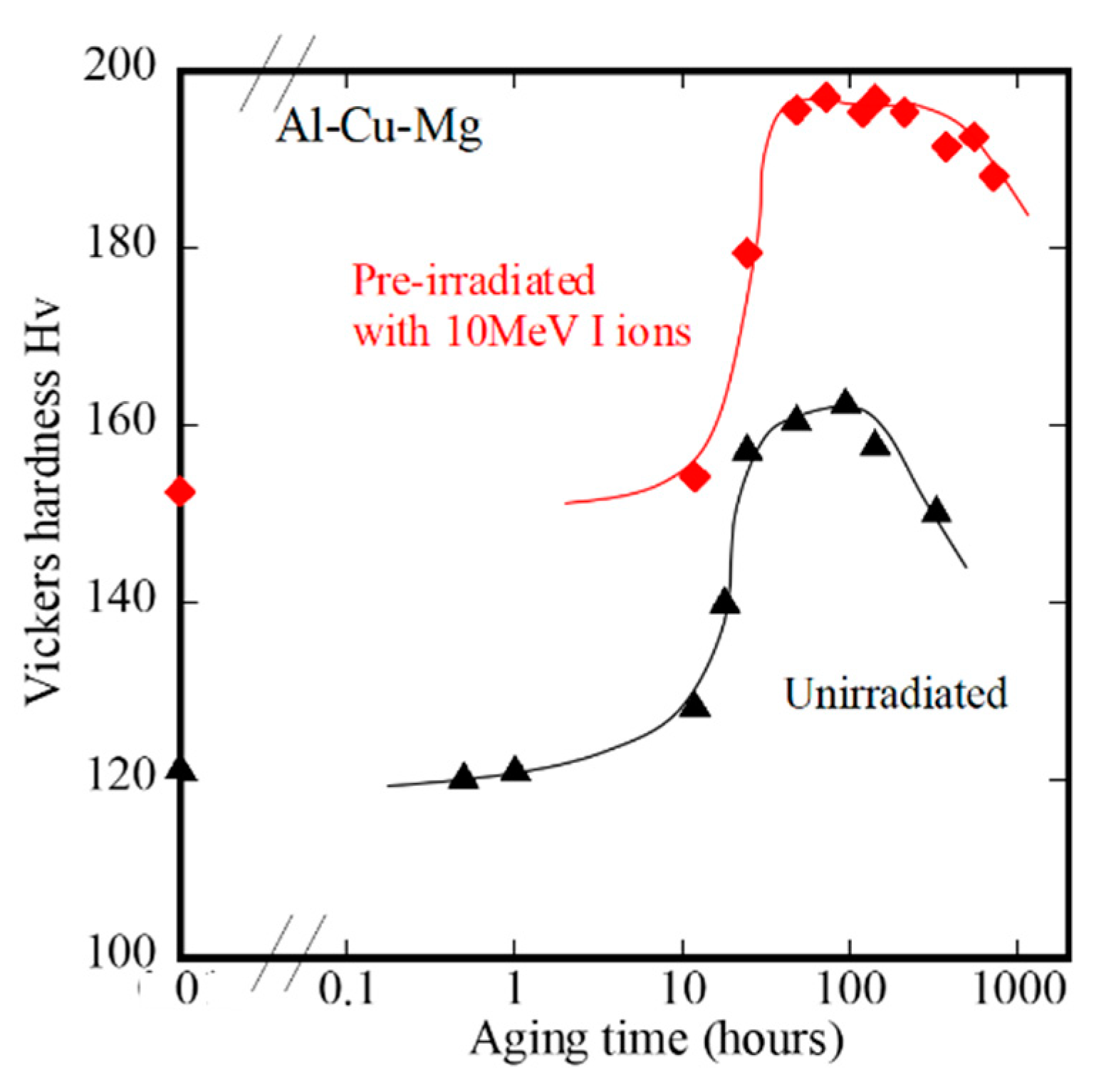

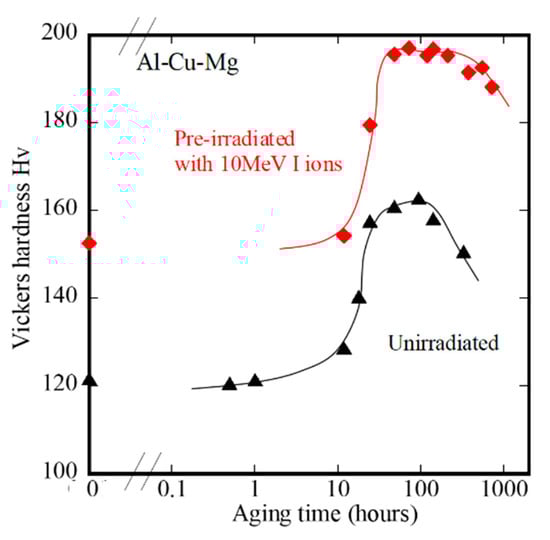

Figure 12 shows the aging time dependence of Vickers hardness during the thermal aging at 423 K for the Al-Cu-Mg specimen pre-irradiated with 10 MeV I ions at room temperature. The data for the unirradiated specimen are also plotted.

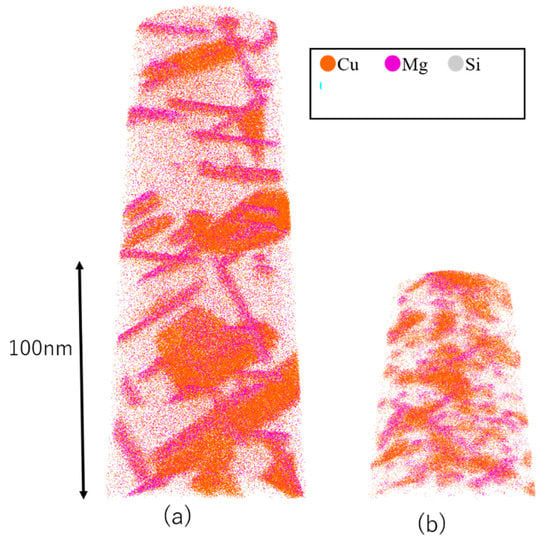

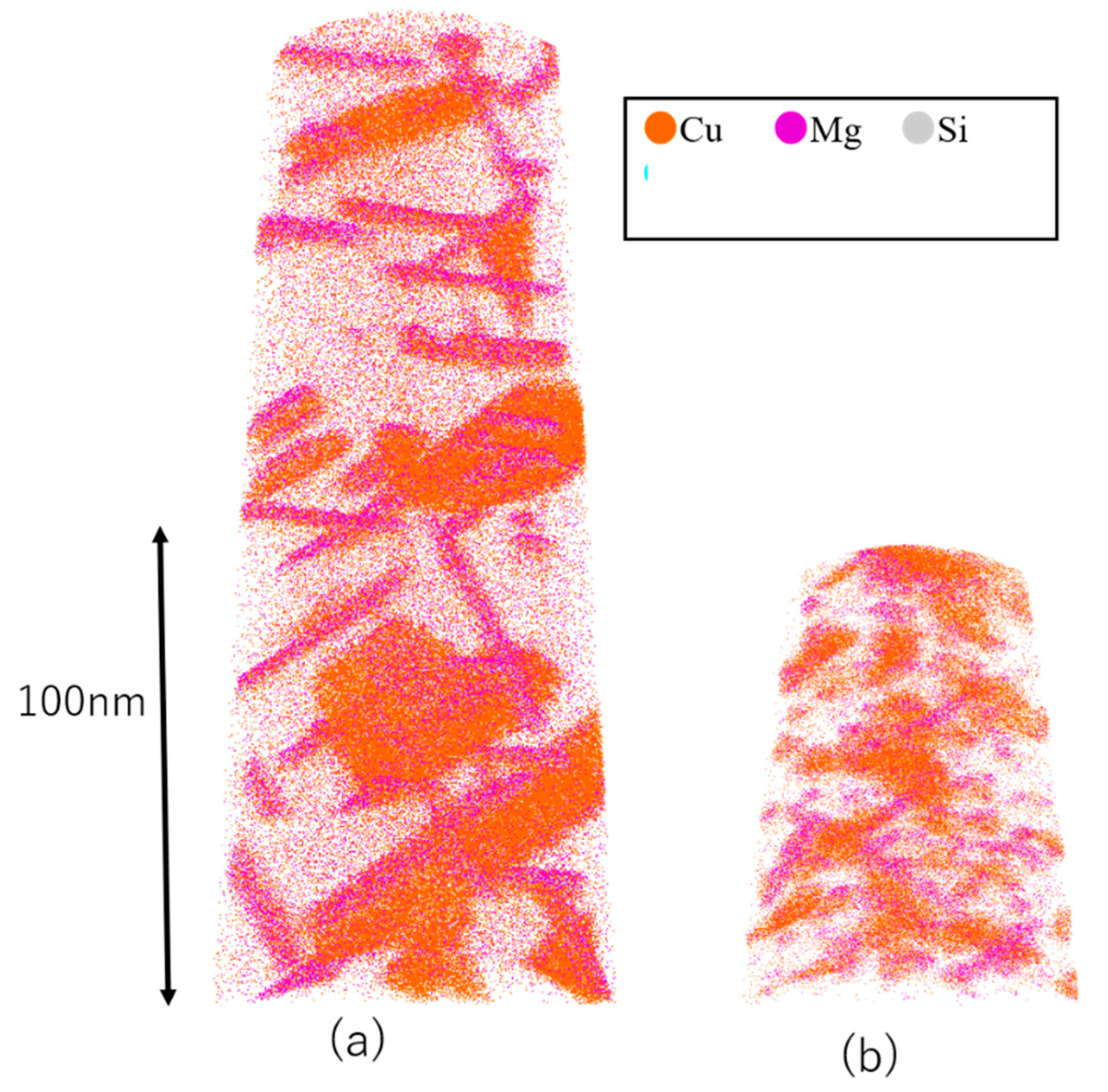

The value of the hardness for the irradiated specimen before the thermal aging is larger by 30 than that for the unirradiated specimen. It increases furthermore by the thermal aging. After 50 hours of aging, the hardness reaches the maximum value of nearly 200. The maximum hardness is kept unchanged even after 250 hours of aging, while for unirradiated specimen, the hardness reaches only 160 and then decreases after 100 hours of aging (so-called over-aging). The effect of the subsequent thermal aging on the microstructure can be seen in Figure 13 as a result of APT observation. As Figure 13a,b show the normal atom probe elemental maps, they indicate the distribution of Cu, Mg, and Si atoms, but that of Al atoms is not shown in the figures. Figure 13a shows the effect of thermal aging at 423 K for 30 days on the unirradiated specimen. Precipitates with a scale of several tens nanometer appear. A long-time aging causes the coarsening of precipitates, resulting in the decrease in hardness. The effect of pre-irradiation at room temperature and the subsequent thermal aging on the microstructure of precipitates is quite different from that of only the thermal aging. The size of precipitates in Figure 13b is smaller on average than that in Figure 13a, but the number density of precipitates in Figure 13b is larger than that of Figure 13a.

The effect of the subsequent thermal aging on the microstructure of precipitates and hardness can be explained as follows; first of all, nanometer-sized precipitates are produced by the ion irradiation. Then, during the subsequent thermal aging, isolated solute atoms diffuse preferentially to already existing small precipitates, and the growth of precipitates occurs. The experimental result implies that the size and the number of precipitates grown by the subsequent thermal aging (Figure 13b) is more effective for the hardness increase than those produced only by the irradiation (Figure 11c).

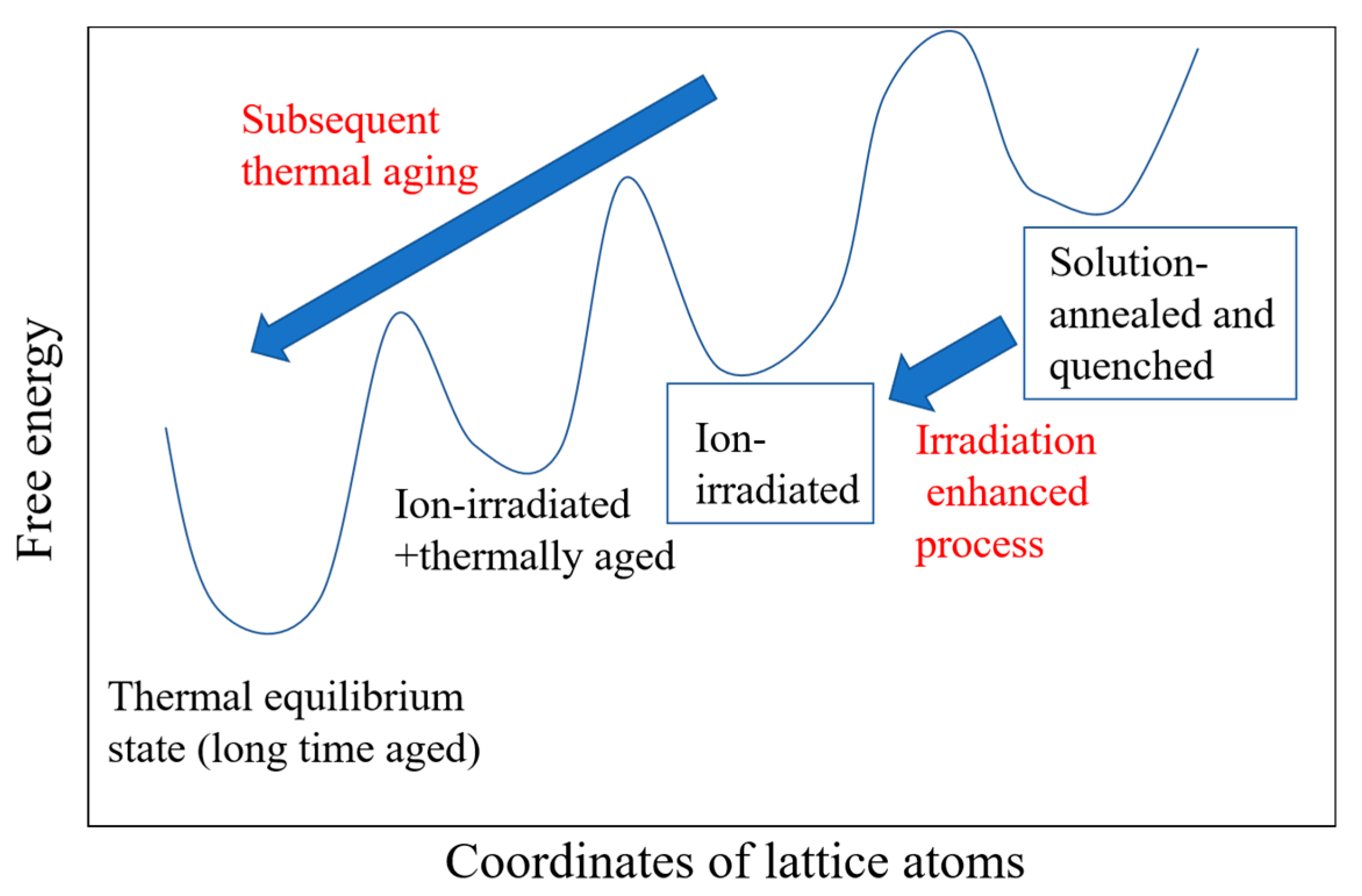

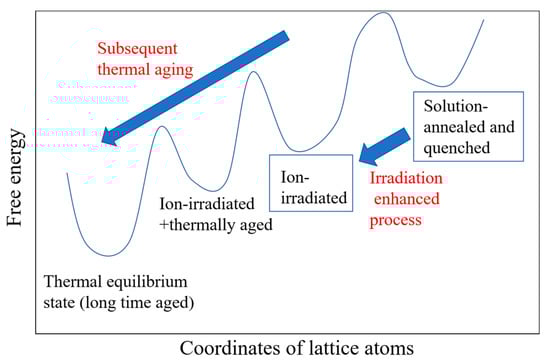

The change in the microstructure of precipitates produced by the irradiation and/or the thermal aging is summarized schematically in Figure 14 in terms of the free energy. The abscissa of the figure means the coordinates of lattice atoms in the specimens, which corresponds to the microstructure of the specimens.

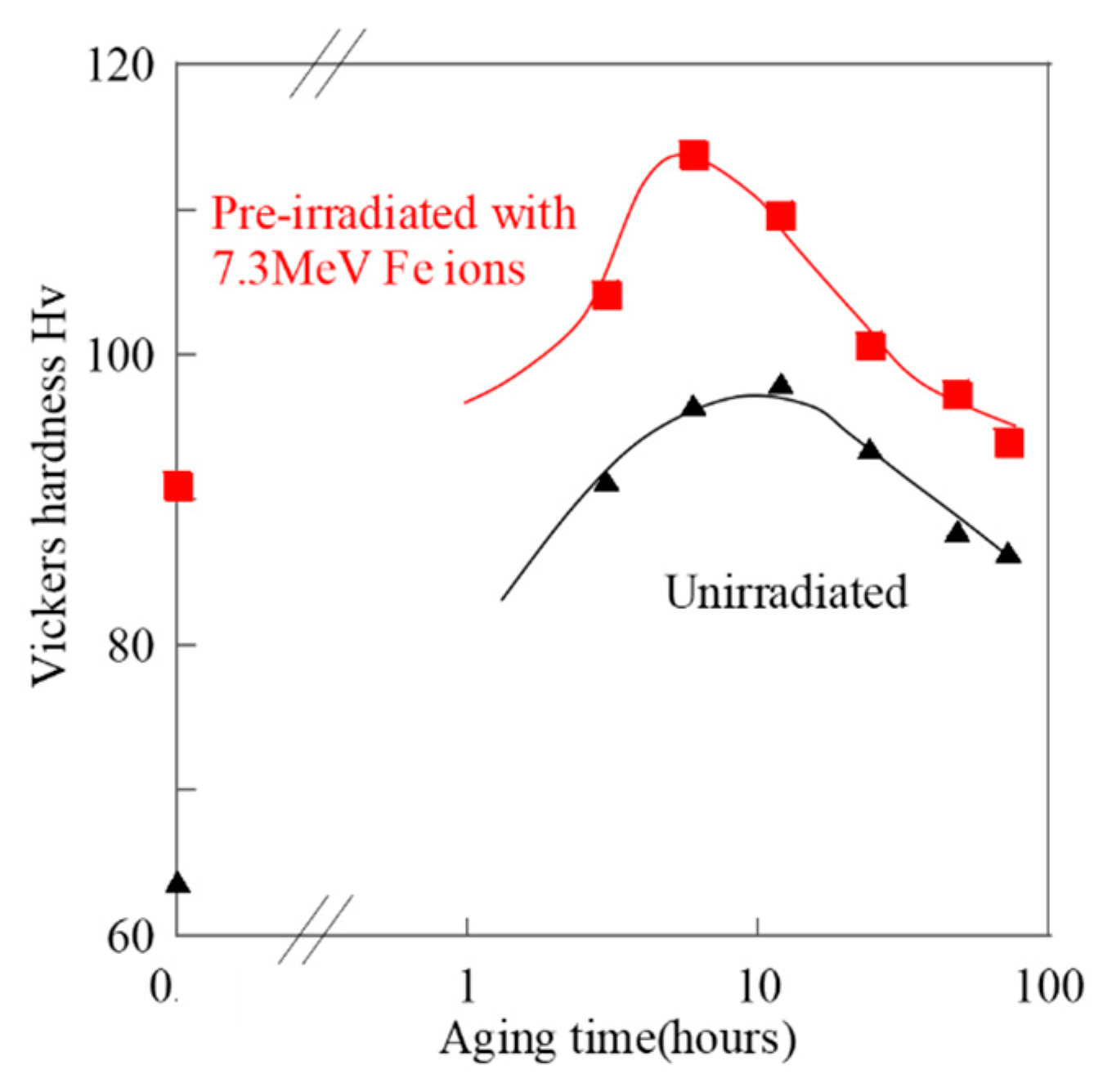

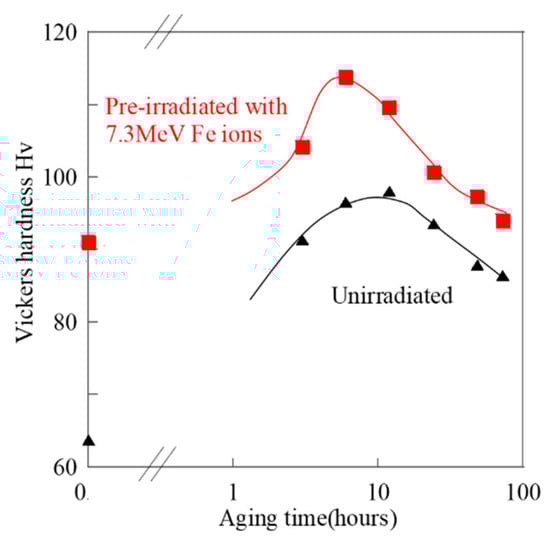

The microstructure of the precipitates that appears after 30-day thermal aging is considered to be nearly the thermal equilibrium state, whereas the free energy of the supersaturated specimen is higher than that of the thermal equilibrium structure. The ion irradiation and the subsequent thermal aging reduce the free energy of the specimen, and the microstructure of the specimen tends to recover to the thermal equilibrium state. However, it is not a complete thermal equilibrium state but a metastable state, the free energies of which are still higher than that for the thermal equilibrium state. A similar effect of the subsequent thermal aging on the hardness has been observed for Al-Mg-Si specimens (see Figure 15).

In the present paper, we have never considered the indenter size effect (ISE), which mainly appears in the hardness at the shallow depth of the specimens. To analyze the hardness data more quantitatively, we will consider the ISE in our future study.

3. Modification of Lattice Structures and Surface Hardness of Ni-Based Intermetallic Compounds

Intermetallic compounds have the ordered structures. They are more sensitive against the energetic ion irradiation than pure metals or dilute alloys, because not only atomic displacements but also position exchanges of atoms of different types affect their atomic arrangements and physical properties. For the past decade, we have studied the effects of energetic ion irradiation on the lattice structures and the hardness of several Ni-based intermetallic compounds (Ni₃V [11,13], Ni₃Al [16], Ni₃Nb [18,20,21], and Ni₃Ta [18,20,21]). As the specimens were sufficiently homogenized at elevated temperatures for a long time, the lattice structures of the specimens before the irradiation are consistent with the structures that are present in the thermal equilibrium phase diagrams at room temperature and atmosphere pressure. Therefore, the modifications of lattice structures and physical properties of the intermetallic compounds by energetic ion irradiation were obtained through “irradiation-induced process”. In our previous papers, the effects of He, Al, Ni, I, Au, and Xe ion irradiations with the energies of 1–200 MeV have been discussed in terms of ion species, energy, and fluence dependence. In the present report, for the sake of clarity, only the result for 16 MeV Au ion irradiation and the subsequent thermal treatment will be discussed.

3.1. Experimental Procedure

Ni₃V, Ni₃Al, Ni₃Nb, and Ni₃Ta intermetallic compounds were made by arc melting and thermally annealed at elevated temperatures for a long time. They were irradiated with 16 MeV Au ions at room temperature by using a tandem accelerator at QST-Takasaki. The changes in lattice structure by the ion irradiation were investigated at room temperature by a grazing incidence X-ray diffraction (GIXD) method. As the incident angle of X-ray (Cu Kα) was kept at 0.5 degrees, the GIXD only observed the lattice structure of specimens from the surface to the depth of about 200 nm. As the range of 16 MeV Au ion was about 1.5 μm, the GIXD surely observed the region where the ion energy was deposited. For Ni₃V thin specimens, to observe the lattice microstructures, the transmission electron microscope (TEM) was also used. For Ni₃Nb and Ni₃Ta specimens, to investigate the irradiation effect on atomic arrangements around Nb or Ta atoms, the EXAFS (extended X-ray Absorption Fine Structure) measurements were performed at the Photon Factory of High Energy Accelerator Research Organization (KEK-PF). To estimate the surface hardness, the Vickers microhardness test with a load of 10 gf was conducted. The effect of the thermal treatments, which were performed after the irradiation, on the lattice structure and the hardness was also investigated. The details of the experimental procedure have been described in our previous reports [13,20].

3.2. Results and Discussion

3.2.1. Effects of 16 MeV Au Ion Irradiation on the Lattice Structure and Surface Hardness of the Ni-Based Intermetallic Compounds

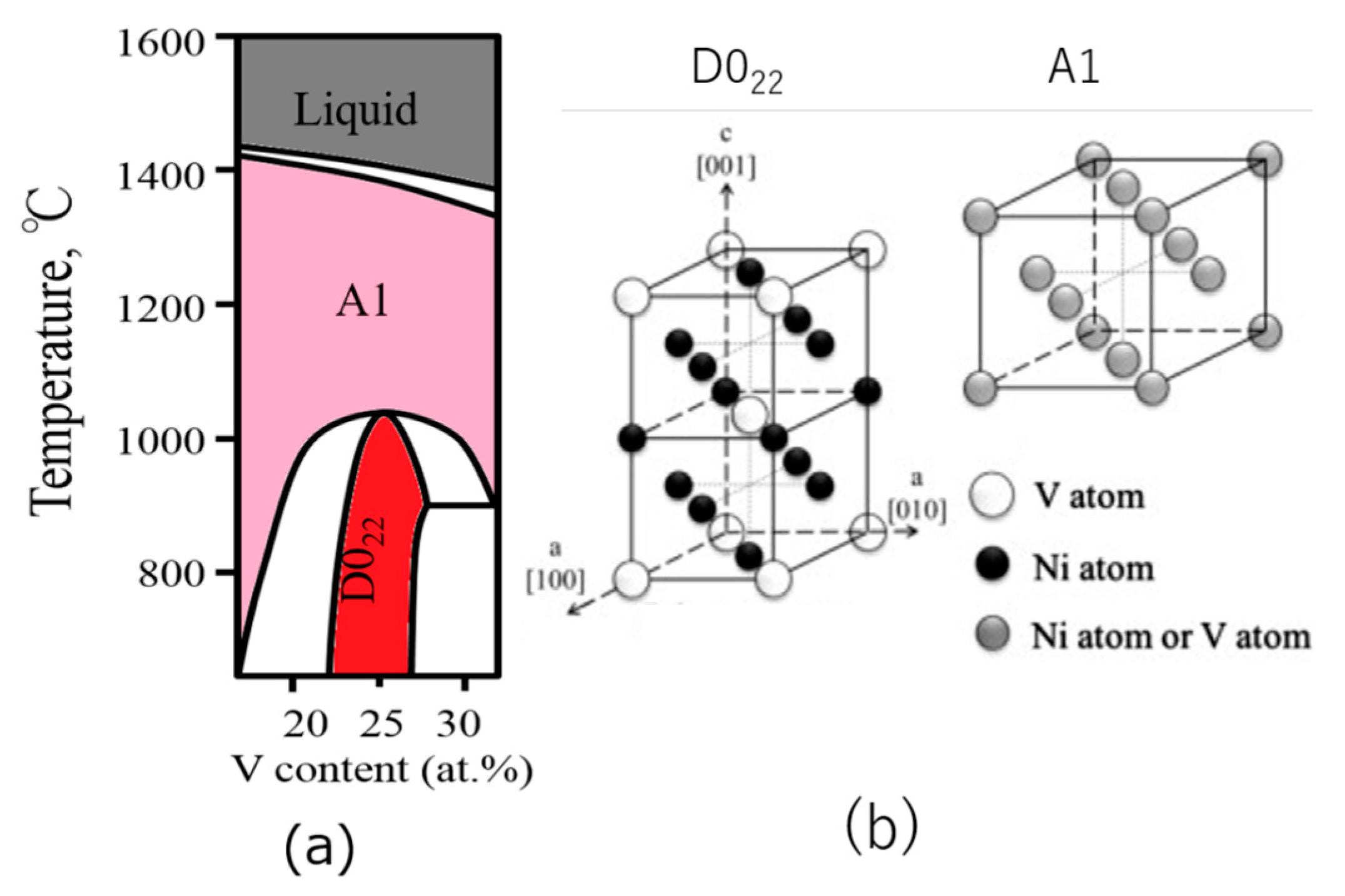

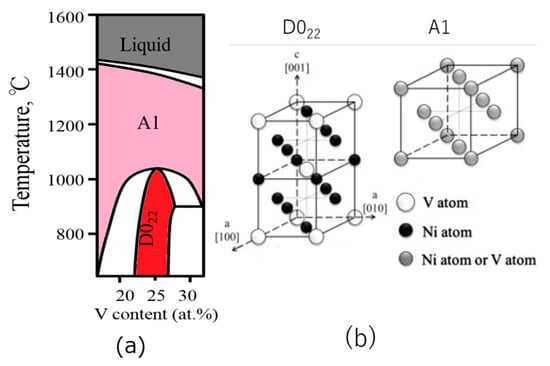

Figure 16 shows the phase diagram for Ni-V binary alloy and the schematic diagram of the D0₂₂ and A1 lattice structures. The stoichiometric Ni₃V alloy has a tetragonal structure (D0₂₂ structure) at room temperature, and above 1300 K, the D0₂₂ lattice structure transforms into the disordered fcc (face centered cubic) structure (A1 structure).

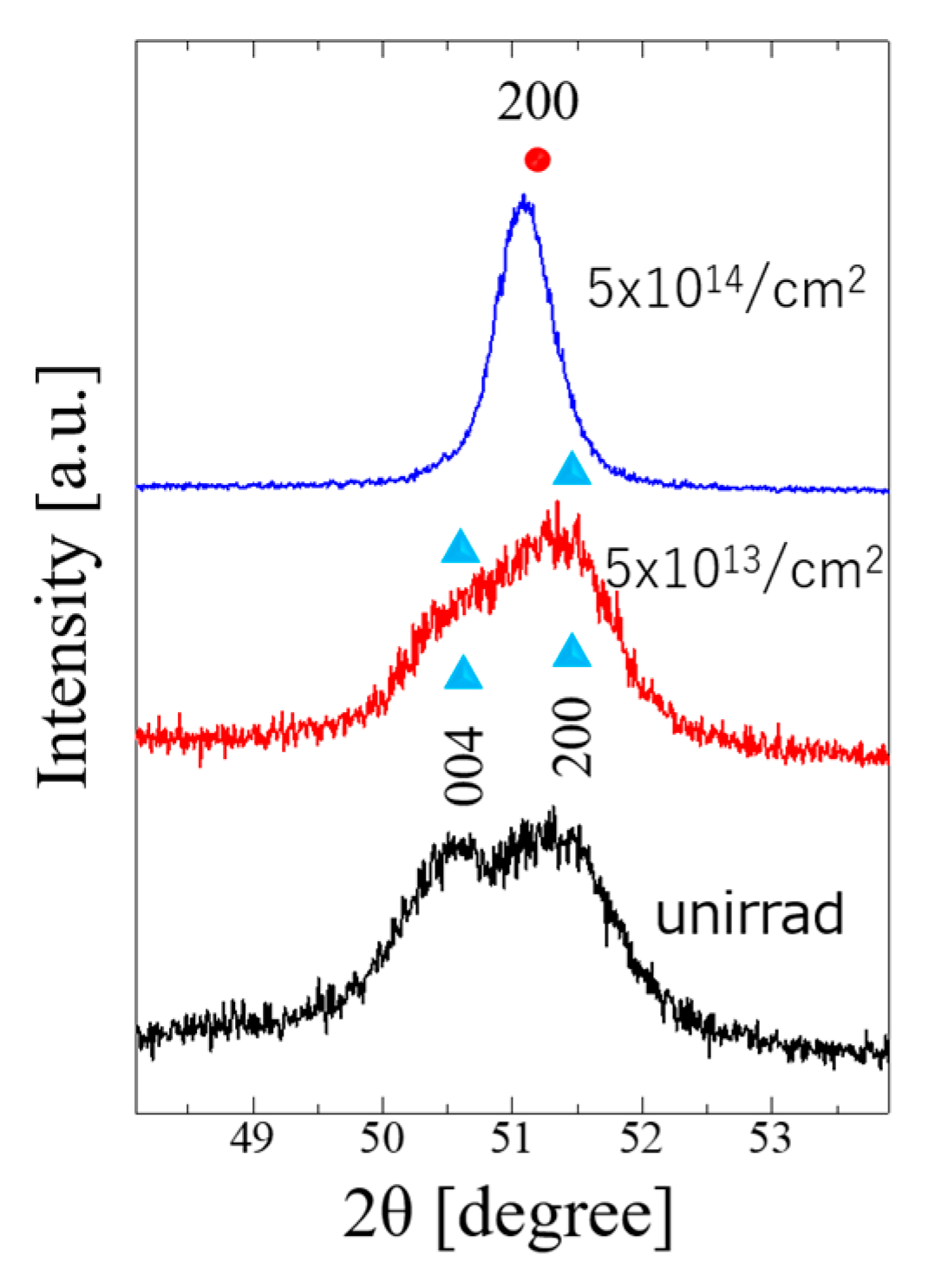

Figure 17 shows the GIXD spectra for the unirradiated and 16 MeV Au ion-irradiated Ni₃V specimens. In the spectrum for the unirradiated specimen, two peaks corresponding to the D0₂₂ structure are clearly observed. For the specimen irradiated to the fluence of 5x10¹⁴/cm², the two peaks merge, and the (200) peak for the A1 structure appears.

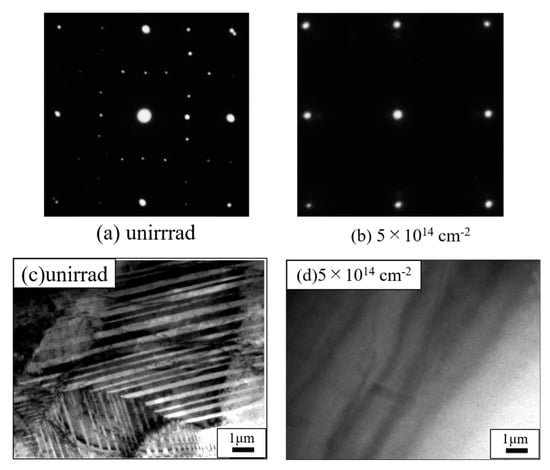

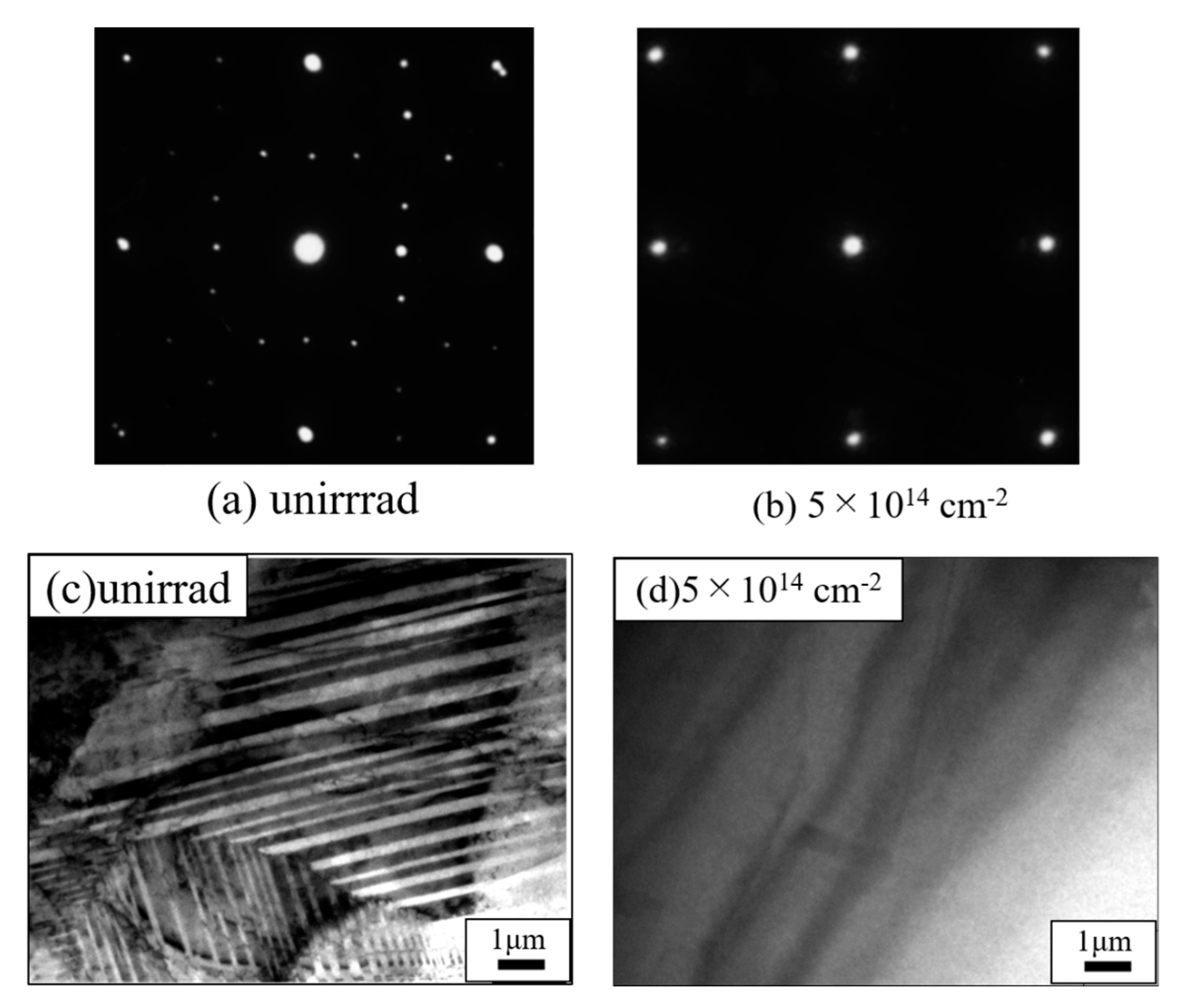

In Figure 18, the selected area diffraction spots and the TEM bright field images are shown. The superlattice spots in the diffraction pattern and the lamellar-like microstructure, which are features of the D0₂₂ (tetragonal) structure, completely disappear after Au ion irradiation, and only the fundamental spots for the fcc (A1) phase are recognized in the diffraction pattern.

The experimental results definitely indicate that by the ion irradiation, the lattice structure of Ni₃V is transformed from the thermal equilibrium structure at room temperature (D0₂₂ structure) to the fcc (A1) structure, which is the thermal equilibrium structure at quite high temperatures (above 1300 K). There are two possible explanations for the phase transformation of Ni₃V by the ion irradiation. One is based on the elastic thermal spike model; as the cascade of collisions initiated by the irradiating ions deposits high-density energy in a narrow region, and the temperature of this region instantaneously increases. Then, the high temperature A1 structure appears. By the following rapid quenching, the A1 structure remains as a metastable phase, even at room temperature. The other explanation is that the structural transformation is caused by a build-up of ballistic collisions and atomic displacements/replacements.

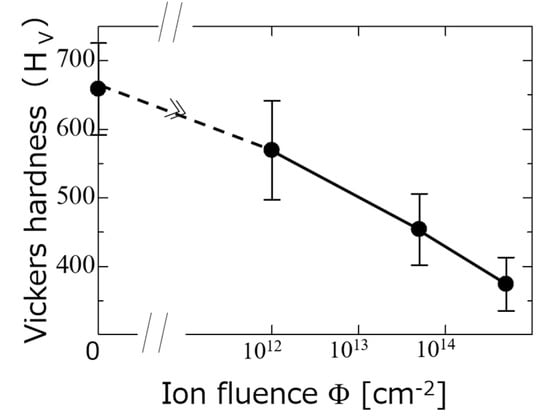

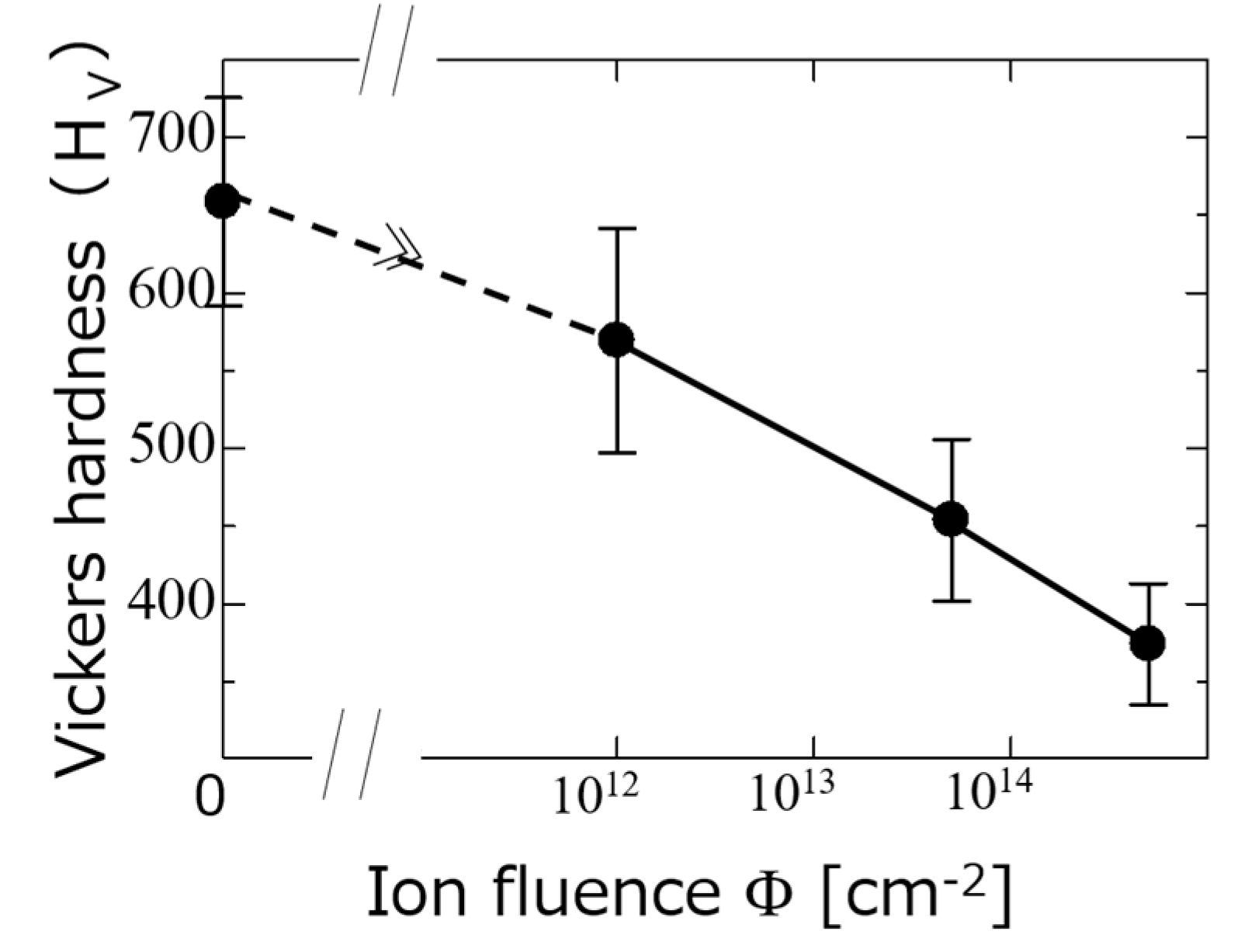

Figure 19 shows the Vickers hardness as a function of Au ion fluence. The surface hardness monotonically decreases with increasing ion fluence. This hardness decrease is absolutely due to the lattice structure transformation from D0₂₂ to the A1 structure. As seen in Figure 16 and Figure 18, the D0₂₂ microstructure is more complicated than that of the A1 structure, and the Burgers vector for the tetragonal D0₂₂ structure is larger than that for fcc A1 structure. Therefore, dislocations can move more easily in the lattice of the A1 structure, and the A1 structure is more deformable than the D0₂₂ structure, causing the decrease in hardness.

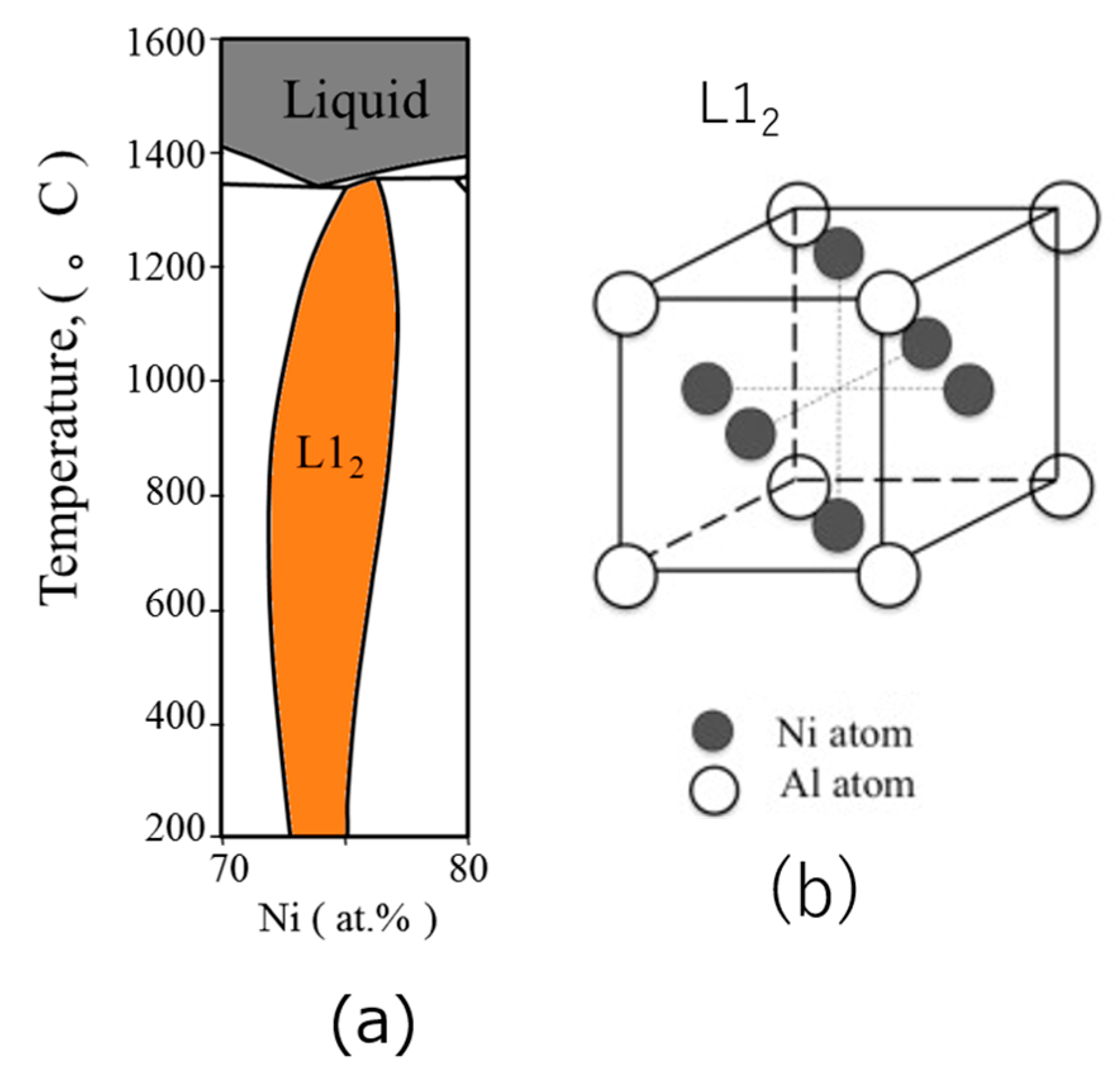

A lattice structure transformation by the Au ion irradiation has also been found for the Ni₃Al intermetallic compound. Figure 20 shows the phase diagram for Ni-Al binary alloy and the schematic diagram of the L1₂ lattice structure. The stoichiometric Ni₃Al intermetallic compound has a cubic structure (L1₂ structure) at room temperature. However, the L1₂ structure does not transform into a disordered fcc (A1) structure, but it is retained up to the melting temperature.

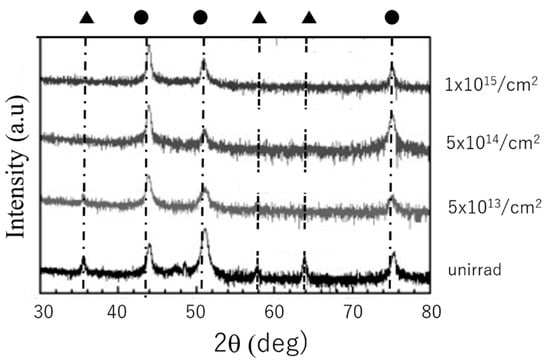

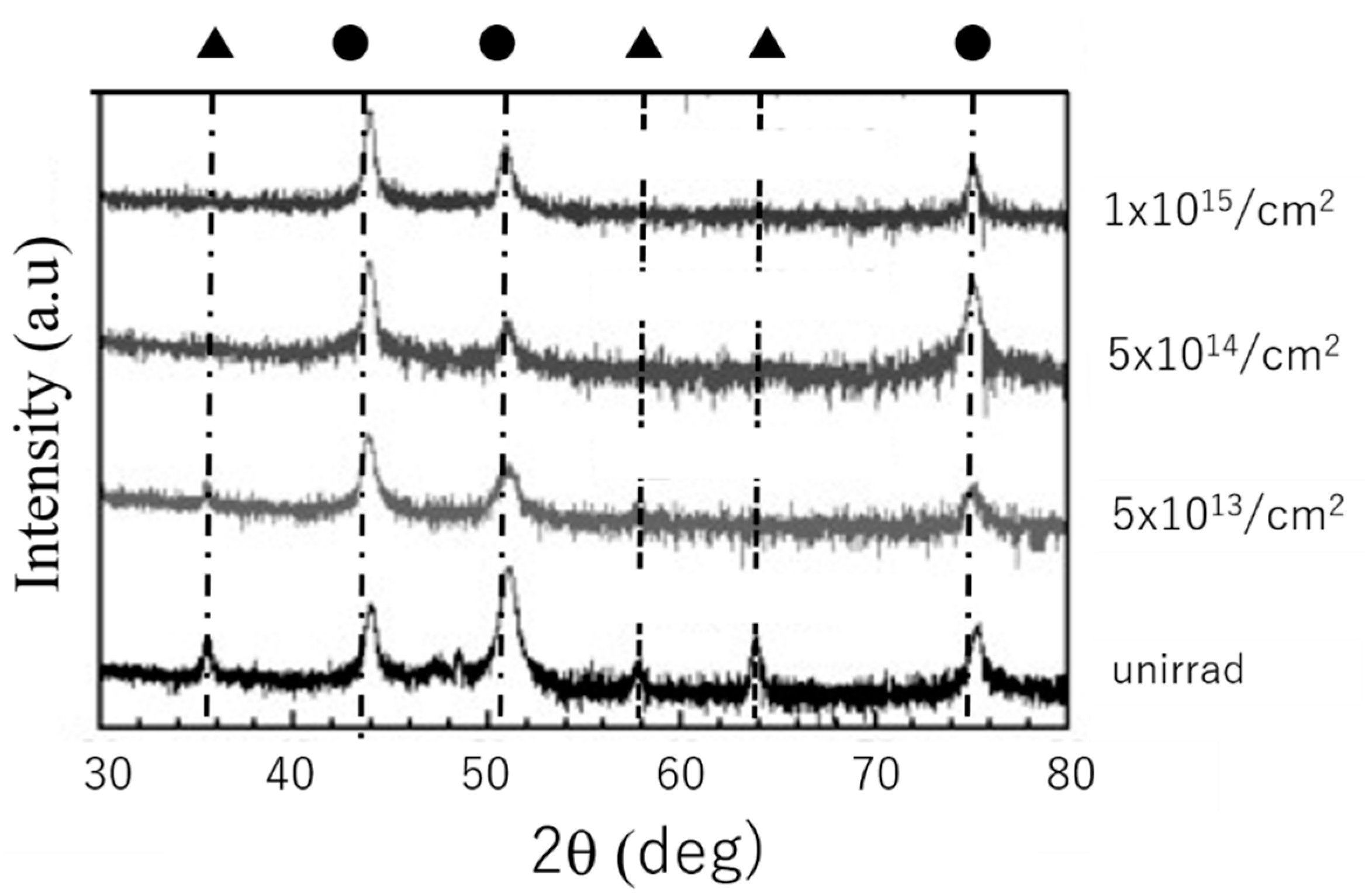

Figure 21 shows the GIXD spectra for the unirradiated Ni₃Al specimen and those irradiated with 16 MeV Au ions to various fluences. For the unirradiated specimen, both fundamental peaks and the superlattice peaks can clearly be observed. By the Au ion irradiation to the fluence of 1x10¹⁵/cm², the superlattice peaks completely disappear, but the fcc (A1) fundamental peaks are still observed. The lattice structure transformation of Ni₃Al from the L1₂ to A1 structure cannot be explained as an appearance of the high-temperature thermal equilibrium phase at room temperature, because the disordered fcc (A1) phase is not present in the thermal equilibrium phase diagram. Therefore, this structure transformation can be explained as originating from the build-up of ballistic collisions and atomic displacements/replacements. The lattice structure transformation of Ni₃Al from the L1₂ to A1 structure accompanies the decrease in hardness, which is similar to the case of Ni₃V.

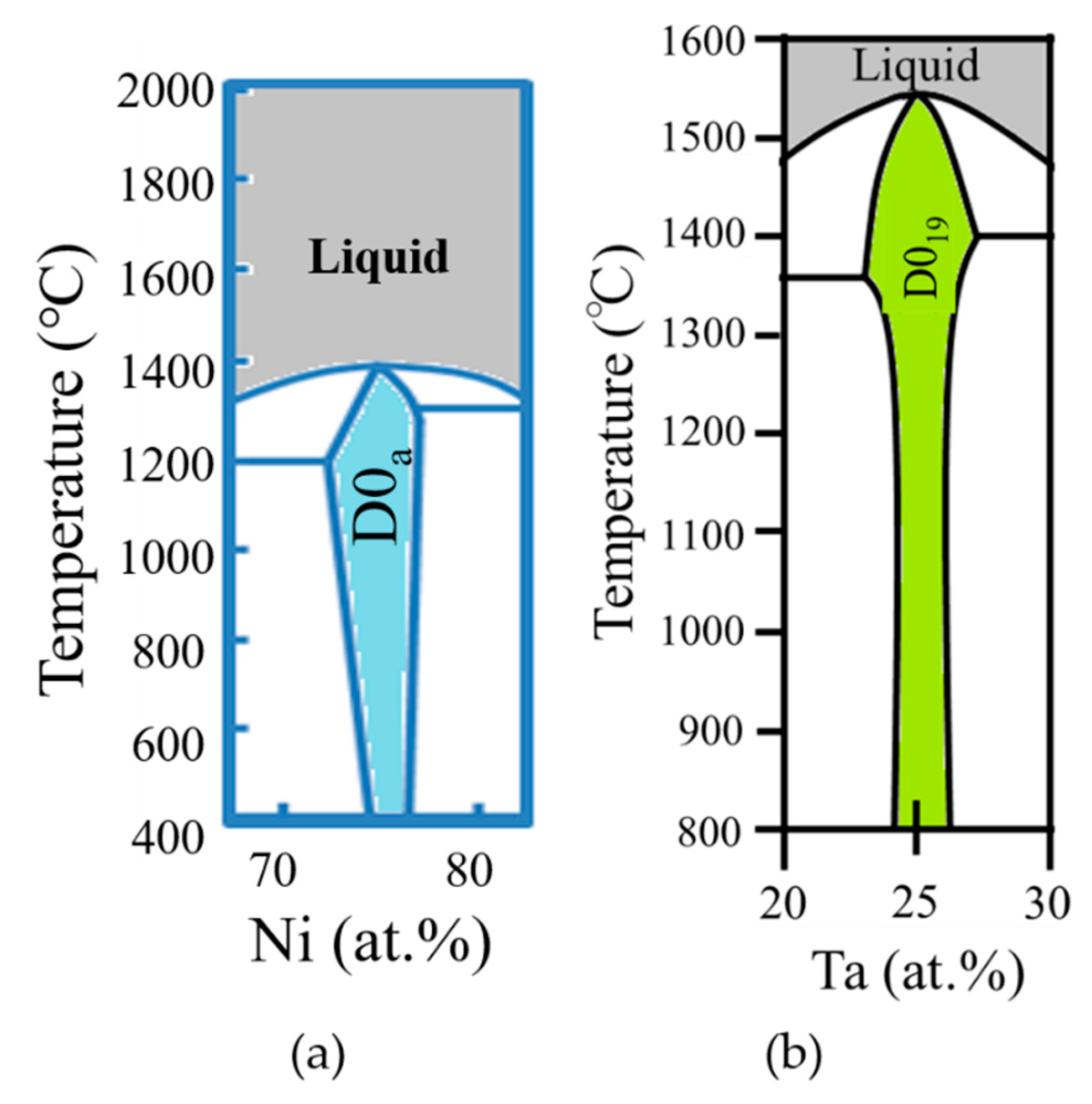

Next, we will show the results for Ni₃Nb and Ni₃Ta intermetallic compounds. As their thermal equilibrium phase diagrams (Figure 22) indicate, the thermal equilibrium structure of Ni₃Nb or Ni₃Ta at room temperature is the orthorhombic (D0_a) or the monoclinic (D0₁₉) structure, respectively.

These two structures are much more complicated than that of Ni₃V (tetragonal structure) or Ni₃Al (cubic structure). They are retained up to the melting temperature, which is similar to the case of Ni₃Al.

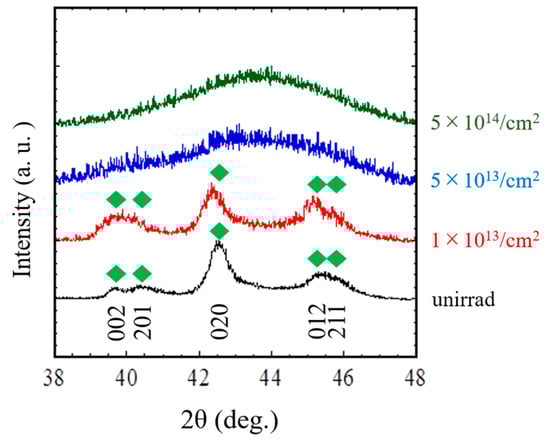

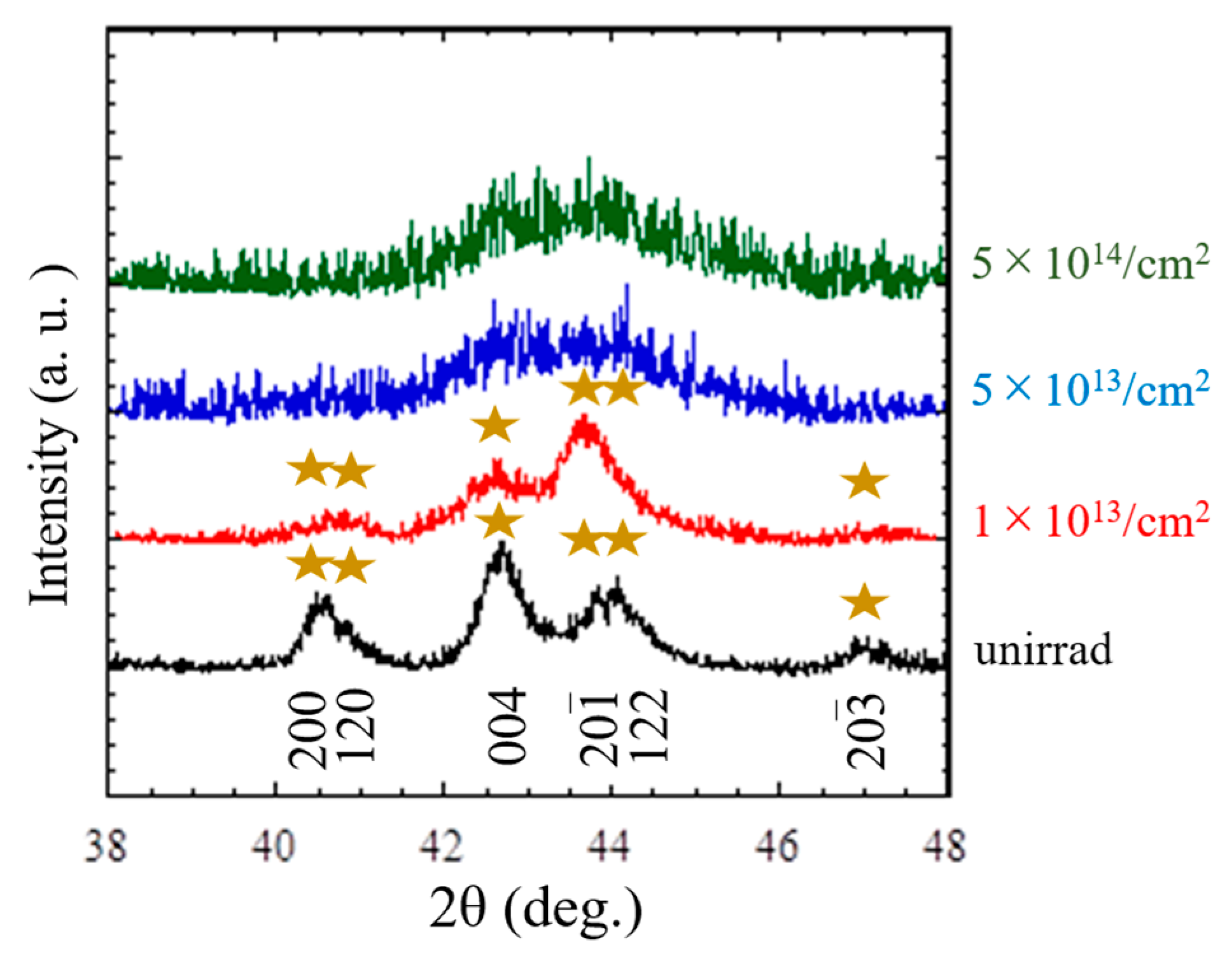

Figure 23 shows the GIXD spectra for the unirradiated and Au ion-irradiated Ni₃Nb specimens. All the peaks for the unirradiated specimen can be identified to those of the orthorhombic structure. By the Au ion irradiation, they are broadened and end up as only one broad peak around 43 degrees. Such a change in GIXD spectrum suggests that the lattice structure of Ni₃Nb transforms from the orthorhombic structure to the amorphous phase by the Au ion irradiation. A similar irradiation effect has been found also for Ni₃Ta intermetallic compound (Figure 24).

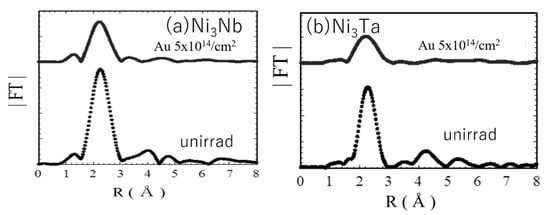

The amorphization of Ni₃Nb and Ni₃Ta was confirmed by the EXAFS measurements around Nb-K absorption edge (X-ray energy of 18.9 keV) and Ta-L3 absorption edge (X-ray energy of 9.88 keV). As can be seen in Figure 25, even after the Au ion irradiation, the first peaks of the Fourier transformed EXAFS (FT-EXAFS) spectra, which correspond to nearest neighbor atoms for Nb or Ta atoms, are still more outstanding than any other peaks, the intensity of which is strongly reduced or almost vanishes by the Au ion irradiation. The change in FT-EXAFS spectra means that a long-range atomic ordering tends to disappear and only the short-range ordering still survives the ion irradiation. As the amorphous state corresponds to the liquid phase in the thermal equilibrium phase diagram, the amorphization of Ni₃Nb and Ni₃Ta can be explained as due to a rapid quenching of the molten state produced by the high-density energy deposition from the irradiating ions. The sequence of atomic displacements and replacements by ballistic collisions may be another possible mechanism for the amorphization of Ni₃Nb and Ni₃Ta.

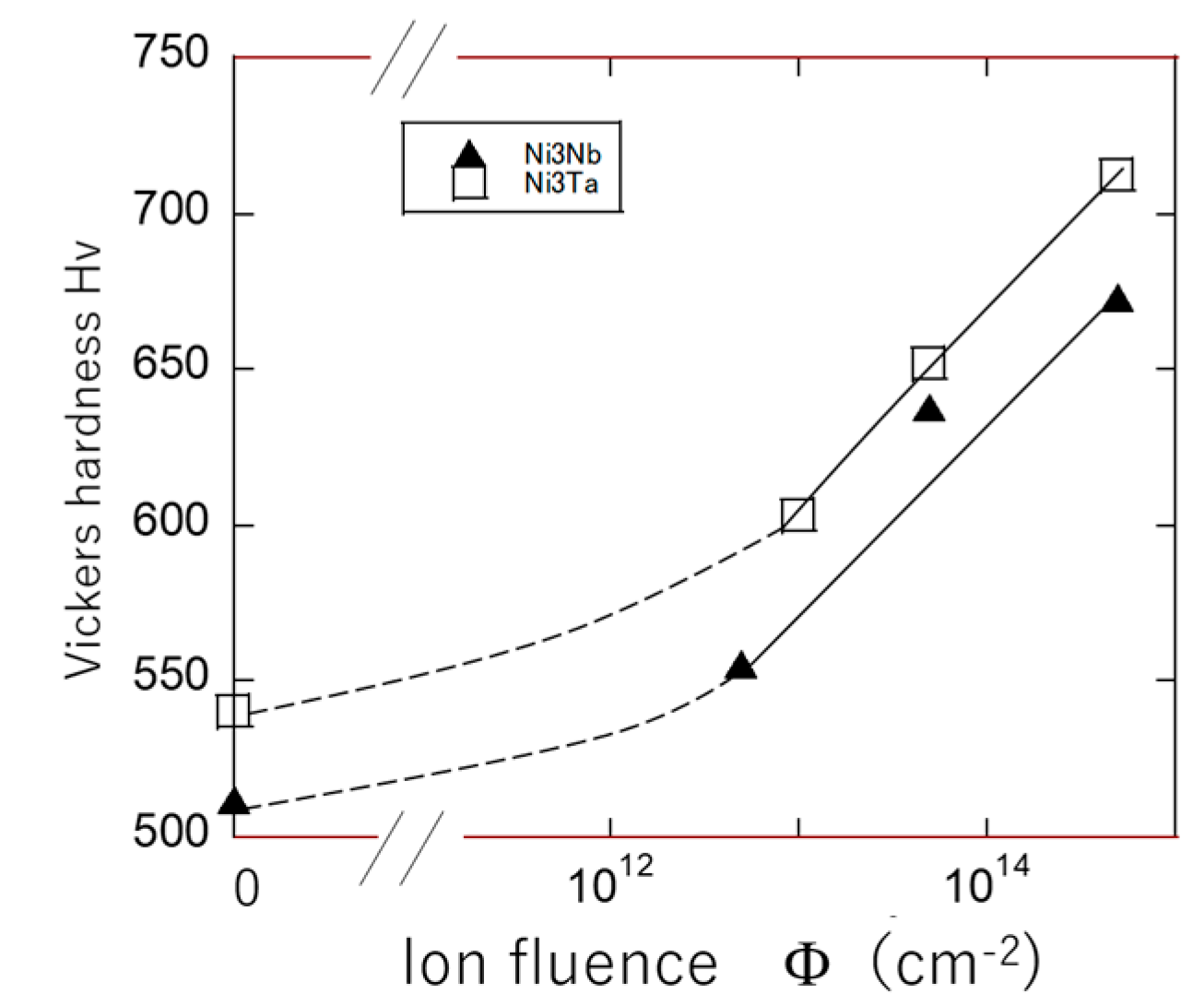

Figure 26 shows that the increase in hardness of Ni₃Nb and Ni₃Ta is accompanied by their amorphization. This result is consistent with the conventional fact that the value of hardness for the amorphous state is larger than that for the crystal state [44,45]. Although the deformation mechanisms of amorphous materials have never been fully understood, a recent review article has discussed their details [46].

3.2.2. Effect of Subsequent Thermal Treatments after the Irradiation on the Lattice Structures and Hardness of the Ni-Based Intermetallic Compounds

As mentioned before, the lattice structures and hardness of the Ni-based intermetallic compounds, which are modified by the ion irradiation, come out of the “irradiation-induced process”, and they are far from the thermal equilibrium states. From now on, we will show how these non-thermal equilibrium or metastable states tend to recover to the original thermal equilibrium states by the subsequent thermal treatments after ion irradiation.

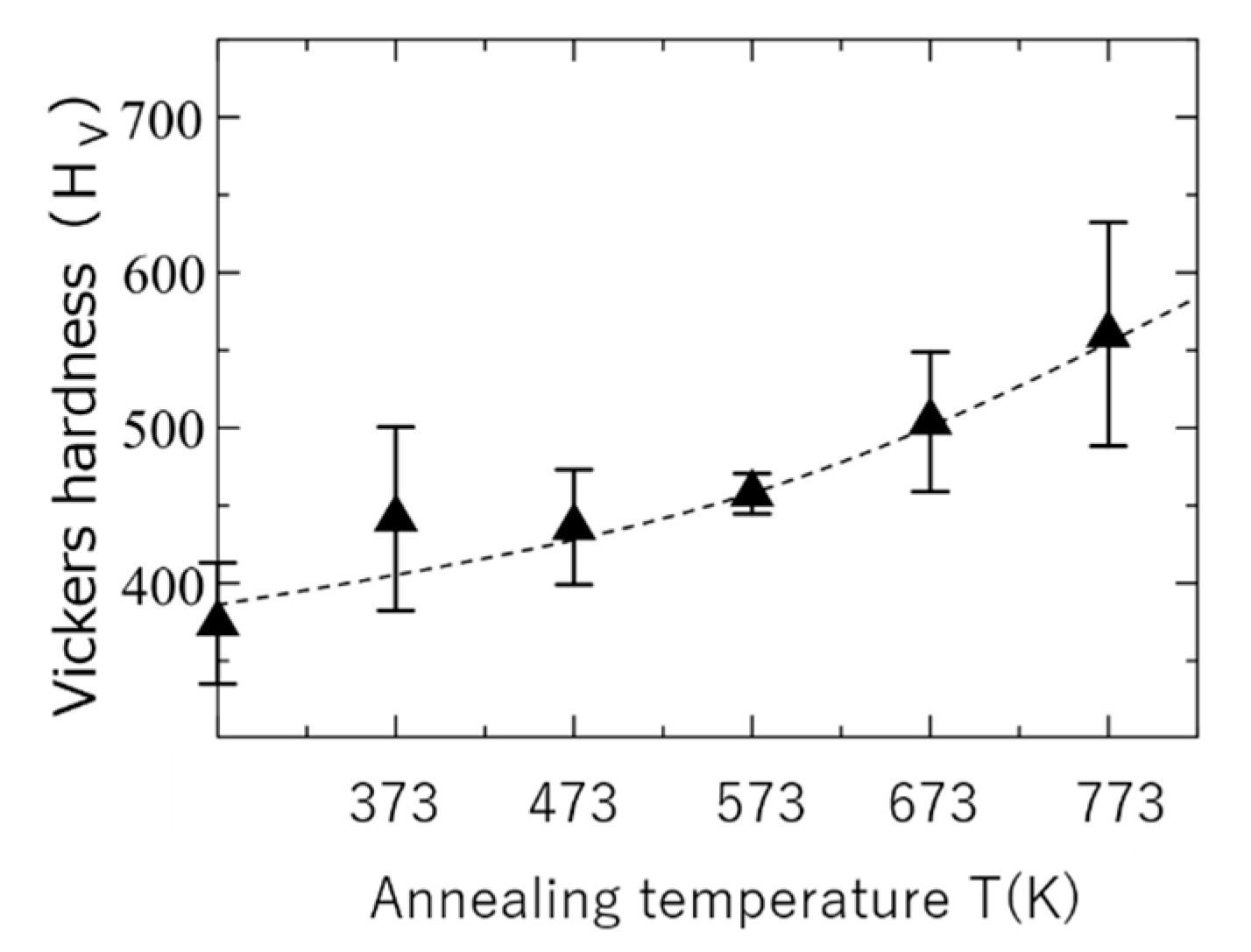

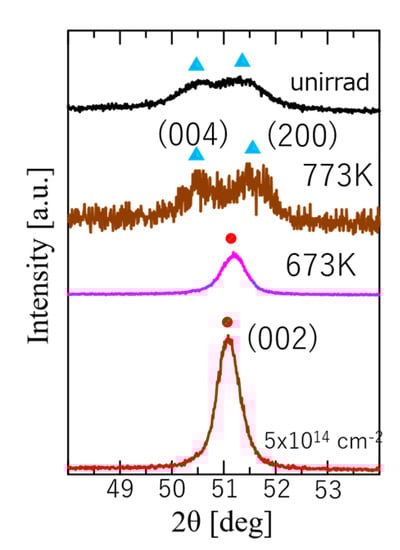

Figure 27 shows the effect of subsequent thermal treatment on the GIXD spectra of Ni₃V. The A1 structure of the ion-irradiated Ni₃V recovers to the original D0₂₂ (tetragonal) structure by the thermal treatment at 773 K for 100 min. The hardness of the ion-irradiated Ni₃V also tends to approach the original hardness value by the thermal treatment (see Figure 28). A similar trend in the recovery of the lattice structure and the hardness have also been observed in Ni₃Al irradiated with Au ions.

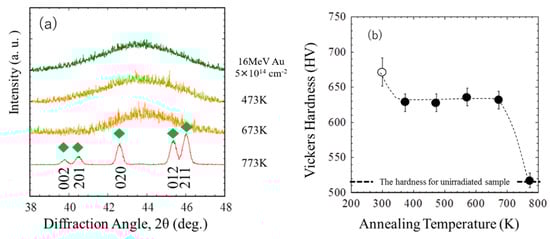

The changes in the GIXD spectra and the hardness of Ni₃Nb by the thermal treatment are shown in Figure 29. The amorphous state of Au ion-irradiated Ni₃Nb survives the thermal treatments up to 673 K. It finally recovers to the thermal equilibrium orthorhombic structure by the thermal treatment at 773 K. The hardness recovery is consistent with the recovery of the lattice structure. It fully recovers to the original hardness value at 773 K.

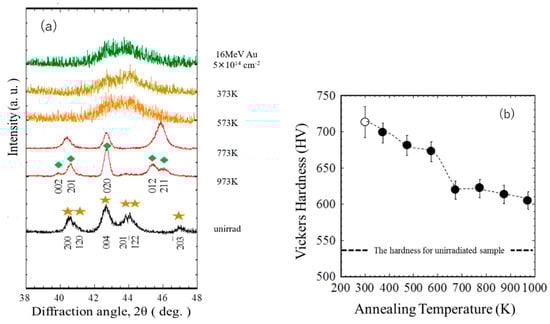

In the case of Ni₃Ta, Figure 30 shows that even by the thermal treatment at 973 K, the lattice structure changes to orthorhombic and not the thermal equilibrium monoclinic structure. Although the hardness of the ion-irradiated Ni₃Ta decreases with increasing the thermal treatment temperature, the resulting hardness after the thermal treatment at 973 K is still higher than the original hardness value. To realize the complete recovery, a thermal treatment at higher temperatures would be necessary.

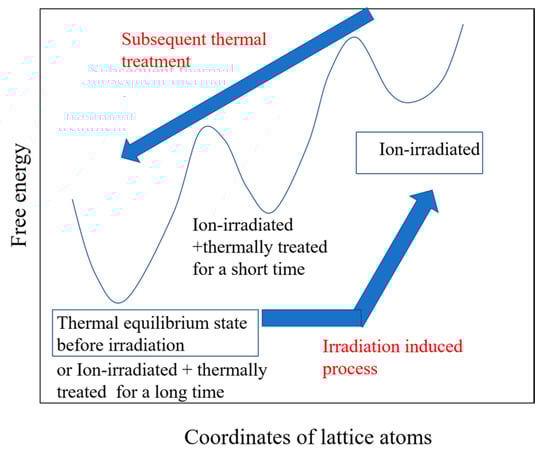

The change in the lattice structure by the irradiation and the subsequent thermal treatment for Ni-based intermetallic compounds is schematically shown in Figure 31 in terms of the free energy. The abscissa of the figure means the coordinates of lattice atoms in the specimens, corresponding to the lattice structures. The lattice structure before the irradiation is considered to be the thermal equilibrium state, whereas the free energy of the irradiated specimens is higher than that of the thermal equilibrium structure. Moreover, the free energy for the amorphous state is higher than that for the disordered crystal state such as the A1 structure. The subsequent thermal treatment reduces the free energy of the specimen, and the lattice structure of the specimen tends to recover to the thermal equilibrium state.

4. Industrial Application of Energetic Ion Irradiation to the Control of Surface Hardness of Metallic Alloys

As compared with the conventional strengthening method, energetic ion irradiations can provide the increase in hardness of aluminum alloys at much lower temperatures and much more rapidly. Moreover, the penetration depth of the energetic ion used in our study is several μm. Therefore, the irradiation with several MeV ions is an effective process method for the control of surface strengthening of aluminum alloys. In addition to energetic ion irradiations, the subsequent thermal aging is also very useful to obtain much higher surface hardness. Energetic ion irradiations could be applied as a surface strengthening method not only to Al dilute alloys but also to other supersaturated alloys such as solution-annealed and quenched CuTi binary alloys.

Although only four kinds of nickel-based intermetallic compounds have been investigated in the present study, some trend of the irradiation effect on the hardness can be revealed from our experimental results. For the intermetallic compounds with simple lattice structures, such as Ni₃Al and Ni₃V, the ion irradiation effect appears as the decrease in hardness. For those with more complicated structures, such as Ni₃Nb and Ni₃Ta, the hardness is increased by the ion irradiation. In the former case, the combination of the energetic ion irradiation and the subsequent thermal treatment could be a useful process to overcome a low workability of intermetallic compounds as follows; firstly, the hardness of the specimen is reduced by the ion irradiation, and after a plastic working process, the thermal treatment is performed to recover to the original hardness. However, this process can be used only for the surface processing. In the latter case, the ion irradiation could be used for strengthening the specimen surface.

5. Summary

In the present report, we have reviewed our recent results on the modification of lattice structures and mechanical properties for the dilute aluminum alloys and the nickel-based intermetallic compounds by energetic ion irradiations. The energetic ion irradiation increases the surface hardness of the dilute aluminum alloys very rapidly, even at room temperature. The subsequent thermal aging at elevated temperature can provide a higher hardness.

The energetic ion irradiation also modified the lattice structures and the surface hardness of the nickel-based intermetallic compounds. The effect depends on the lattice structure before the irradiation. For the simple structures, the lattice structure changes to the disordered crystal structures, and the surface hardness is decreased by the ion irradiation. For more complicated structures, the ion irradiation results in the amorphization and increase in surface hardness. The subsequent thermal treatments also affect the structures and the hardness of these materials.

The energetic ion irradiation could be used as a process method for the surface hardness modifications of supersaturated alloys and intermetallic compounds.
