Prediction of Heat Transfer during Condensation in Non-Circular Channels

Abstract

It is desirable to know whether correlations for condensation in round tubes can be used for non-circular channels. To investigate this matter, a number of well-known correlations for mini and macro channels as well as some for flattened channels were compared to a database for condensation in non-circular channels. Data included square, rectangular, triangular, semi-circular, drum, N, and W shaped channels as well as flattened tubes. The data included 15 fluids, hydraulic diameter 0.067 to 1.46 mm, aspect ratio 0.14 to 7, reduced pressure 0.045 to 0.77, and mass flux from 48 to 1000 kgm⁻²s⁻¹. None of the correlations worked well for flattened tubes. Data for all other shapes were best predicted by the Shah correlation with mean absolute deviation of 20.1% with 1120 data points from 22 sources. None of the other correlations was found satisfactory over the entire range.

1. Introduction

Mini channels are being widely used in heat exchangers including condensers because they offer several advantages including compact size, high heat transfer coefficients, and lower cost. They also reduce the amount of refrigerant in refrigeration systems and thus minimize environmental impact in case of leakage. Many channels of various shapes are in use or being tried. These include circular, square, rectangular, triangular, and oval. To ensure proper design, it is important to be able to predict heat transfer during condensation in channels of all shapes. Several correlations have been published which are stated to be applicable to circular as well as non-circular channels. These correlations use an equivalent diameter for application of non-circular channels; no other modification is made. Notable examples of such correlations are Kim and Mudawar [1], Dorao and Fernandino [2], and Shah [3]. On the other hand, several theoretical and experimental studies indicate that heat transfer in non-circular channels is higher than that in circular channels of the same equivalent diameter.

Wang and Rose [4,5,6] performed theoretical analyses considering gravity, viscous, and surface tension forces. Liquid film was assumed to be laminar. Channel shapes considered included triangle, rectangle, and square besides circular. It was found that surface tension causes liquid to collect in the corners, resulting in thinning of liquid film on the sides thus increasing heat transfer coefficients. Wen et al. [7] performed numerical investigation of condensation in three round tube and channels of aspect ratio 2 to 6 produced by flattening these tubes. Mass flux varied from 600 to 1000 kgm⁻²s⁻¹. They found that liquid film is thick at the curved sides and thin at the flat sides. Average film thickness was smaller in flattened tubes compared to the round tubes and heat transfer increased with increasing aspect ratio. Zhang et al. [8] performed a similar study on flattened tubes made from a 3.78 mm diameter tube with similar results.

Wilson et al. [9] measured heat transfer during condensation of R-134a and R-410A in a horizontal tube of 8.9 mm and channels obtained by flattening it. They concluded that flattened tubes have higher heat transfer than round tubes. Kim et al. [10] condensed R-134a in a 5.1 mm diameter round tube as well as in flattened tubes made from it. Heat transfer coefficients in flattened tubes were found to be higher than given by round tube correlations and they therefore gave a new correlation. Darzi et al. [11] measured heat transfer coefficients during condensation of R-600a in an 8.7 mm diameter tube and channels obtained by flattening it. They found heat transfer coefficient to increase with increasing aspect ratio. Kaewon et al. [12] condensed R-134a in a round tube 3.51 mm diameter and flattened tubes made from it. They concluded that heat transfer in flattened tubes increases with increasing aspect ratio and is higher than that from round tube correlations. Solanki and Kumar [13] condensed R-134a in a round tube of diameter 8.91 mm and two channels made by flattening this tube. They also concluded that heat transfer in flattened tubes is higher than that predicted by round tube correlations. They gave a new correlation for flattened tubes. Del Col et al. [14] condensed R-134a in a square channel of 1.23 mm hydraulic diameter. They compared their data with the data of Matkovic et al. [15] for a 0.96 mm diameter round tube. They concluded that heat transfer at the lowest mass flux was higher in the square channel. They attributed this to surface tension thinning the liquid film by drawing liquid into corners. At higher flow rates, they found no difference between the round and square channels. In contrast, the CFD studies mentioned above found increase in heat transfer at high flow rates.

The theoretical and experimental studies mentioned in the foregoing suggest that correlations for round tubes are not applicable to non-circular channels. On the other hand, the correlations of Shah [3], Dorao and Fernandino [2] and Kim and Mudawar [1] were shown to agree with data for both circular and non-circular channels from numerous sources. Due to this apparent contradiction, it was felt that there was a need to further investigate this matter and the research reported here was undertaken. Data for non-circular channels were collected from many sources and compared to several general correlations as well as correlations developed specifically for non-circular channels. The results of this comparison are reported and discussed in this paper and recommendations are made for design.

In this paper, channels with hydraulic diameter ≤3 mm are considered mini channels according to the classification of Kandlikar [16]. Other classifications have been reviewed by Shah [17].

2. Prediction Methods

2.1. Theoretical

Many theoretical studies have been done in which the governing equations were solved numerically to determine heat transfer coefficient. Several of these were discussed in Section 1. Da Riva et al. [18] did a numerical simulation of condensation in a 1 mm diameter tube and compared its predictions with experimental data. Their finding was that the assumption of laminar liquid film gives good agreement with measurements only at low flow rates; turbulence has to be taken into consideration at higher flow rates. Mechanistic analysis of Rohsenow et al. [19] showed that in the presence of vapor shear, liquid film can become turbulent at very low Reynolds numbers. In the analysis by Kim and Mudawar [20] for condensation in a rectangular channel, liquid film became turbulent at Reynolds number of 25. This indicates that the theory of Wang and [4,5,6] which assumed laminar liquid film has very limited applicability.

Kharangate and Mudawar [21] reviewed the work on numerical modelling by various methods. They concluded that while much progress has been achieved, accurate and efficient methodology remains to be developed. None of the published studies have been shown to agree with varied data from many sources. Hence such methods are as yet not suitable for use in practical design.

2.2. Correlations

Numerous correlations have been published for heat transfer during condensation in channels. Most of them have been verified with very limited data, usually the authors’ own. Such correlations fail when compared to a wider data range. However, a few general correlations have been published which were verified over a very wide range of data. Notable among those for conventional channels are Dobson and Chato [22], Thome et al. [23], Cavallini et al. [24], and Shah [25,26]. The first three mentioned are applicable only to horizontal tubes and use the Nusselt formula for condensation outside horizontal tubes for calculating heat transfer at low flow rates where heat transfer becomes heat flux dependent. Heat transfer on the upper part of tube is calculated with the Nusselt equation while heat transfer of liquid flowing at the bottom is calculated with a forced convection equation. These correlations require that heat flux be known for comparing them with test data. The Shah correlation uses the Nusselt formula for condensation in vertical tubes in the heat flux dependent regime and does it in a way that heat flux is not needed for comparison with test data. The Shah correlation is applicable to horizontal as well as vertical down flow while the other three are applicable only to horizontal flow.

Many correlations have been proposed specifically for minichannels. These have been reviewed by Awad et al. [27] and Del Col et al. [28]. Recent correlations for mini channels include those by Jige et al. [29], Rahman et al. [30], and Keinath and Garimella [31]. Among the numerous correlations specifically for minichannels, only that of Kim and Mudawar [1] has been validated with wide ranging data from many sources. It showed good agreement with a wide ranging database that included many fluids, horizontal and vertical up and down flow, and hydraulic diameters from 0.424 to 6.22 mm. The data included round and rectangular single channels and multiport channels.

Two correlations have been published which have been validated with wide ranging databases that included both round and non-circular channels of mini and macro sizes. These are the correlations of Dorao and Fernandino [2] and Shah [3]. The latter is given in the following.

2.2.1. The Shah Correlation

Shah [32] gave a correlation applicable to both horizontal and vertical tubes of conventional diameters. It has been widely used but it is limited to moderate pressure and higher flow rates. Shah [25,26] gave an improved version which is applicable over the entire range of pressures and flow rates from very low to very high. The data with which it was validated was mostly for macro size tubes. Further modified versions for application to both macro and mini channels were given in Shah [33,34] and finally in Shah [3]. The [3] correlation uses the [25,26] correlation in some situations. It is also used in the correlation of Kim et al. [10] for flattened tubes. The 2013 version is therefore given first.

Shah [25,26] correlation

The correlation uses the following two equations.

$$h_I=h_{LO}\left(1+\frac{3.8}{Z^{0.95}}\right){\left(\frac{{\mu }_L}{14{\mu }_G}\right)}^{\left(0.0058+0.557p_r\right)}$$

(1)

$$h_{Nu}=1.32R{e}_{LO}{}^{-1/3}{\left[\frac{{\rho }_L\left({\rho }_L-{\rho }_G\right)g{k}_L{}^3}{{\mu }_L{}^2}\right]}^{1/3}$$

(2)

Equation (2) is the Nusselt equation for condensation in vertical tubes, with the constant multiplied by 1.2 as recommended by McAdams [35].

This correlation has three regimes, I, II, and III.

In Regime I,

$$h_{TP}=h_I$$

(3)

In Regime II,

$$h_{TP}=h_I+h_{Nu}$$

(4)

In Regime III:

$$h_{TP}=h_{Nu}$$

(5)

h_LO in Equation (1) is the heat transfer coefficient of the liquid phase flowing alone in the tube. It is calculated by the following equation:

$$h_{LO}=0.023R{e}_{LO}^{0.8}P{r}_L^{0.4}{k}_L/D$$

(6)

The heat transfer regimes are determined as follows.

Horizontal Tubes:

Regime I occurs when:

$$J_g\ge 0.98{\left(Z+0.263\right)}^{-0.62}$$

(7)

Regime III occurs when:

$$J_g\le 0.95{(1.254+2.27Z^{1.249})}^{-1}$$

(8)

If neither of the above conditions is satisfied, it is Regime II.

J_g is the dimensionless vapor velocity defined as:

$$J_g=\frac{xG}{{\left(gD{\rho }_G\left({\rho }_L-{\rho }_G\right)\right)}^{0.5}}$$

(9)

Equation (8) for the boundary of Regime III was given in Shah [26]. In Shah [25], Regime II occurred when Equation (7) was not satisfied.

Vertical Downflow:

Regime I occurs when

$$J_g\ge \frac{1}{2.4Z+0.73}$$

(10)

Regime III prevails when:

$$J_g\le 0.89-0.93exp\left(-0.087Z^{-1.17}\right)$$

(11)

If the Regime is not determined to be I or III by Equations (10) and (11), it is Regime II.

Shah [3] correlation

Heat transfer regimes are the same as in Shah [25,26] correlation for both horizontal and vertical downflow if any of the following conditions are applicable:

• Fluid is a hydrocarbon, Regime is I and p_r < 0.4
• Fluid is hydrocarbon and Regime is III
• Re_LT < 100

If any of the above conditions is fulfilled, the Shah [25,26] correlation is to be used.

If none of the above conditions is applicable, heat transfer regimes are determined as follows.

Horizontal Flow

Regime I occurs if We_GT > 100 and Fr_LT > 0.012 and:

$$J_g\ge 0.98{\left(Z+0.263\right)}^{-0.62}$$

(12)

Regime III occurs if Fr_L > 0.012 and:

$$J_g\le 0.95{(1.254+2.27Z^{1.249})}^{-1}$$

(13)

If it is not Regime I or III, it is Regime II.

Vertical Downflow

Regime I occurs when We_GT > 100 and:

$$J_g\ge \frac{1}{2.4Z+0.73}$$

(14)

Regime III occurs when:

$$J_g\le 0.89-0.93exp\left(-0.087Z^{-1.17}\right)$$

(15)

If it is not Regime I or III according to Equations (14) and (15), it is Regime II.

Further Equation (1) is used when D_HYD > 3 mm. When D_HYD ≤ 3 mm, the following equation given by Cavallini et al. [24] is used.

$$h_I=h_{LT}\left[1+1.128x^{0.817}{\left(\frac{{\rho }_L}{{\rho }_G}\right)}^{0.3685}{\left(\frac{{\mu }_L}{{\mu }_G}\right)}^{0.2363}{\left(1-\frac{{\mu }_G}{{\mu }_L}\right)}^{2.144}P{r}_L{}^{-0.1}\right]$$

(16)

For non-circular channels, D_HYD is to be used as equivalent diameter in Weber and Froude numbers and D_HP in all other places. D_HP is defined as:

$$D_{HP}=\frac{4xFlowarea}{Perimeterwithheattransfer}$$

(17)

We_GT is the Weber number assuming all mass to be flowing as vapor, given by:

$$W{e}_{GT}=\frac{G^{2}D}{{\rho }_G\sigma }$$

(18)

2.2.2. Correlations for Flattened Tubes

A few correlations have been proposed based on data and analysis for flattened tubes. Wen et al. [7] compared the results of their numerical simulation with round tube correlations and the measurements of Kaewon et al. [12] in flattened tubes. On this basis they proposed the following correlation:

$$h_{TP}=h_{round}{A}_r^{0.08157}$$

(19)

where h_round is the heat transfer coefficient of a round tube with hydraulic diameter of the flattened tube. They recommended the use of Thome et al. [23] correlation for this purpose.

Based on their own measurements on flattened tubes, Kim et al. [10] proposed the following modified form of Shah [25] correlation.

If it is Regime I of Shah [25] correlation,

$$h_{TP}=h_I{A}_r^{-0.462},$$

(20)

where,

$$h_{TP}=h_I{A}_r^{-0.462}+h_{Nu}{A}_r^{0.449}$$

(21)

Solanki and Kumar [13] studied condensation of R-134a in a horizontal 8.91 mm diameter tube and two channels obtained by flattening it. They correlated their data by the following equation.

$$h_{TP}=1.635h_{round}{A}_r^{0.3163}$$

(22)

They recommend that h_round be calculated by the Dobson and Chato [22] correlation. All their data were in the annular flow regime.

3. Data Analysis

A wide-ranging database was compared to a number of correlations that include general correlations, correlations specifically for mini channels, and correlations for flattened tubes, as described in the following.

3.1. Data Collection

A wide-ranging database was available from the author’s previous work Shah [3]. It included many data sets for non-circular channels. Further literature search resulted in addition of more data sets. As before, data for oil-containing refrigerants were not considered as oil can significantly affect heat transfer. Also, data for mixtures were excluded as their heat transfer is affected by mass transfer effects. Exception was made for R-404a and R-410A as their temperature glide is so small that they behave like pure fluids.

The complete range of data analyzed for channels other than flattened tubes is given in

Table 1. Range of data for non-circular channels other than flattened tubes.

Parameter	Data Range
Fluids	R-22, R-32, R-134a, R-141b, R-236fa, R-245fa, R-410A, R-152a, R-1234ze(E), propane, carbon dioxide, FC-72, isobutane, HFE-7100, ammonia (15 fluids)
Geometry	square, rectangle, semi-circle, triangle, barrel shaped, N-insert, W-insert, single and multi channels. All sides cooled or one side insulated.
Orientation	Horizontal, vertical down
Aspect Ratio, width/height	0.14 to 4.0
DHYD, mm	0.067 to 1.46
Reduced pressure	0.0449 to 0.7738
G, kg m−2 s−1	48 to 1000
x, %	0.01 to 0.99
WeGT	5 to 4195
ReLT	52 to 16,987
Number of data sources	22
Number of data sets	42(41 horizontal, 1 vertical down)

and

Table 2. Deviations of various correlations with data for non-circular channels other than flattened tubes.

Source	Channel Type	DHYD (DHP) mm	AR	Fluid	pr	G Kg. m−2s−1	ReLT	WeGT	N	Deviation % Mean Absolute Average
										Shah [3]	Kim and Mudawar [1]	Ananiev et al. [37]	Kim et al. [10]	Solanki and Kumar [13]	Wen et al. [7]	Dorao and Fern-andino [2]
Dong and Yang [39]	Multi, rect., H	0.114 (0.133)	0.4	R-141b	0.0449	200	87	35	20	38.4	40.4	39.9	98.0	84.8	12.7	17.7
										32.5	29.7	36.2	96.0	81.3	2.1	10.1
		0.092 (0.104)	0.3			200	68	28	11	20.7	28.2	22.0	98.5	45.8	11.9	7.0
										16.6	10.6	22.0	98.5	45.8	11.9	−10.8
		0.067 (0.08)	0.5			200	52	20	12	14.9	24.1	9.6	16.2	26.2	30.9	26.9
										−14.2	−14.5	−9.6	15.9	26.2	−30.9	−26.9
Fronk and Garimella [40]	Single, sq., H	0.1	1	CO2	0.6871	600	803	114	14	25.7	30.2	29.5	24.5	93.4	24.7	24.7
					0.7738		904	150		−25.7	−30.2	−29.5	−24.5	93.4	−24.7	−24.7
Garimella et al. [41]	Rect., multi, H	0.10	1	R-134a	0.1889	600	371	118	10	71.2	74.1	73.7	67.6	40.5	71.6	71.6
					0.4128	800	646	196		−71.2	−74.1	−73.7	−67.6	−40.5	−71.6	−71.6
		0.15	3		0.1889	300	245	49	5	75.4	83.4	81.1	86.8	43.1	79.0	80.8
										−75.4	−83.4	−81.1	−86.8	−43.1	−79.0	−80.8
		0.16	4		0.2494	600	593	188	8	75.5	77.8	77.7	85.4	21.0	73.0	75.9
					0.4128	800	1033	313		−75.5	−77.8	−77.7	−85.4	−21.0	−73.0	−75.9
Nakashita [42]	Multi, Rect., H	0.76	Un-known	R-134a	0.4128	100	614	32	18	21.0	29.8	35.0	40.7	80.1	37.3	37.3
						400	2454	519		−4.0	−21.7	−29.6	−11.6	68.6	−22.8	−22.8
		1.06				100	856	23	19	11.5	23.9	28.1	29.7	83.9	29.4	29.4
						400	3421	372		3.1	−15.3	−16.0	−4.9	79.1	−18.7	−18.7
Jige et al. [29]	Multi, rect., H	0.85	0.69	R-1234ze	0.210	100	508	27	37	17.6	26.7	30.3	41.2	63.9	32.7	32.0
					0.3499	400	2598	424		−6.5	−21.5	−26.0	6.5	48.2	−30.8	−28.7
				R-32	0.4271	100	893	26	33	20.7	32.4	32.3	38.5	96.3	33.3	33.9
					0.6780	400	4752	563		4.5	−3.2	−15.3	7.8	90.4	−11.7	−18.0
				R-134a	0.2494	100	524	26	53	21.5	27.4	35.2	31.8	55.0	34.7	34.0
					0.4128	400	2745	445		−13.3	−21.2	−31.7	−0.1	39.7	−29.9	−27.8
Rahman et al. [30]	Multi, rect., H	0.81	0.5	R-134a	0.2176	50	235	7	47	25.9	37.9	52.5	29.3	28.0	54.9	52.3
						200	940	111		−22.3	−37.9	−52.9	−21.5	−18.2	−54.9	−52.3
Al-Zaidi [43]	Multi, rect. H	0.57 (0.67)	0.4	HFE-7100	0.0455	48	91	10	36	25.9	21.2	16.0	18.5	16.2	46.9	42.8
						126	240	69		25.9	−0.5	−15.2	18.0	13.9	−46.9	−42.8
Liu et al. [44]	Square, H	0.952	1	R-1234ze	0.210	200	1138	124	18	19.9	18.0	17.8	24.0	104.8	17.9	17.9
					0.2733	800	5136	1983		−2.7	−11.3	−8.5	9.3	104.8	−12.3	−2.3
				R-22	0.3062	350	2399	292	12	8.6	9.7	6.9	17.2	118.2	7.7	7.7
						500	3426	526		4.5	−3.3	−6.1	17.2	118.2	2.5	2.5
				Propane	0.321	200	2295	238	26	19.9	15.7	17.7	26.4	133.3	18.8	18.8
					0.4017	500	6416	1500		6.2	−4.7	−1.5.5	23.1	133.3	0.7	0.7
Park et al. [45]	Multi, rect., V	1.43	1.86	R-1234ze	0.2100 0.4417	100	855	51	31	29.9	20.7	21.0	18.9	187.3	24.1	21.7
						260	2137	317		22.3	19.3	8.5	−4.5	187.3	8.0	2.7
				R-236fa	0.1359	100	604	63	17	40.3	23.4	23.8	15.0	176.8	30.0	15.0
						260	1571	423		31.9	23.2	17.9	−2.7	176.8	20.4	−2.7
				R-134a	0.2494	100	884	47	16	12.8	8.2	12.6	15.9	149.3	16.0	14.4
						260	2295	316		7.4	3.5	−6.3	−15.5	149.3	2.8	−2.9
Agarwal et al. [46]	Multi, Square, H	1	0.762	R-134a	0.166	150	861	52	31	25.2	13.3	19.5	40.4	159.8	24.4	24.4
						750	4303	1307		25.1	10.0	11.7	39.9	159.8	21.4	21.4
	Multi, W-insert, H	1	0.732		0.366	150	827	50	25	12.2	20.8	21.7	14.5	90.8	14.9	14.9
						750	4134	1256		−6.3	−18.9	−17.6	3.1	90.8	−10.6	−10.6
	Multi, N- shape, H	1	0.536		0.3661	300	1211	147	16	22.3	27.8	28.1	18.9	77.2	22.7	22.7
						750	3017	919		−15.2	−25.8	−22.9	−3.9	77.2	−16.7	−16.7
	Multi, triangle, H	1	0.839		0.3661	150	948	71	15	14.0	24.7	27.1	45.6	193.1	30.4	25.8
						750	16,987	2042		−8.7	−23.2	−26.4	−32.5	193.1	−30.2	−23.8
	Multi, barrel, H	0.799	1.25		0.3661	150	1805	55	150 750	29.2	24.8	31.0	31.1	150.5	29.5	29.0
						750	4512	1370		12.7	−2.4	2.0	14.1	150.5	11.2	9.2
	Multi, rect., H	0.424	2		0.3661	600	1437	262	10	24.5	26.8	27.6	29.0	140.9	23.4	24.3
						750	2394	727		−7.8	−22.2	−15.2	−23.4	140.9	−2.9	−8.3
Belchi et al. [47]	Multi, sq., H	1.16	1	Propane	0.2529	175	2129	224	28	21.5	18.8	16.1	33.3	152.1	16.5	16.5
					0.4017	350	5472	896		16.6	10.1	7.1	33.1	152.1	7.9	7.9
Shin and Kim [48]	Single, square, H	0.494	1	R-134a	0.2494	100	305	16	11	19.0	25.6	30.4	37.1	75.2	31.4	31.4
						600	1832	581		−3.6	−20.4	−24.6	−9.1	66.2	−21.8	−21.8
		0.972	1			100	601	32	23	28.0	25.8	28.6	37.4	110.6	30.7	30.7
						600	3605	1144		7.8	−2.5	−7.2	12.0	106.8	−3.6	−3.6
Liu et al. [49]	Single, square, H	0.952	1	R-152a	0.2005	200	1386	174	21	15.9	13.9	13.1	18.6	115.4	14.9	14.9
						600	4157	1567		3.6	−0.8	−2.1	11.3	115.4	−9.5	−9.5
Del Col et al. [14]	Single, square, H	1.23	1	R-134a	0.2494	200	1521	161	44	14.8	21.3	22.9	8.8	70.8	20.4	20.4
						789	6000	2503		−14.8	−21.3	−22.9	−6.7	70.1	−20.4	−20.4
Del Col et al. [50]	Single, square, H	1.23	1	R-32	0.4271	100	1292	37	30	12.0	23.3	32.9	23.5	66.3	27.9	27.9
						390	5041	568		−11.9	−23.3	−32.9	−22.1	66.3	−27.9	−27.9
	Single, square, V	1.23	1	R-134a	0.2494	100	760	90	53	10.9	28.7	37.0	24.2	40.2	34.1	34.1
						390	2966	610		−10.7	−28.7	−37.0	−23.8	40.2	−34.1	−34.1
Kim & Mudawar. [20]	Multi, square, H	1.0 (1.33)	1	FC-72	0.0574	68	141	32	54	20.4	28.4	34.3	30.9	29.6	24.6	24.6
						367	763	932		−7.2	−17.0	−34.3	−30.7	22.2	−15.7	−15.7
Derby et al. [51]	Multi, square, H	1.0 (1.33)	1	R-134a	0.2176	75	579	18	61	10.9	14.2	23.0	20.4	66.7	19.3	19.9
					0.2846	450	3946	693		3.1	5.3	−21.9	−2.8	66.7	−15.4	−15.4
	Multi, semi-circle, H	1.0 (1.64)	2		0.2176	75	714	19	31	5.4	10.4	26.0	33.0	93.1	20.5	21.4
						450	4282	693		−2.6	5.1	−26.1	−30.0	93.1	−13.3	−18.0
	Multi, triang., H	1.0 (1.5)	1.16		0.2176	75	653	19	25	9.8	16.6	25.3	22.9	65.4	24.1	24.1
						450	3917	693		−2.5	3.6	−25.3	−14.0	65.4	−16.5	−17.5
Cavallini et al. [52]	Multi, sq., H	1.4	1	R-410A	0.4917	200	2906	168	27	11.1	18.8	14.7	12.1	119.9	10.8	10.8
						1000	14,531	4195		−5.8	−17.9	−12.0	4.2	119.9	−6.5	−6.5
Koyama et al. [53]	Multi, rect, H	0.807	0.3	R-134a	0.4177	273	1791	184	8	11.1	26.1	12.0	90.8	49.3	12.5	10.9
						652	4278	1052		2.5	10.8	−11.4	90.8	49.3	−11.7	−2.6
Al-Hajri et al. [54]	Single, rect., H	0.7	0.14	R-134a	0.1889	50	246	5	15	22.6	26.3	29.0	121.0	18.7	33.1	24.2
					0.5197	500	2464	539		−1.1	−18.7	−28.8	121.0	−10.3	−33.1	−21.5
				R-245fa	0.0484	50	121	9	14	14.5	20.8	19.7	127.0	20.4	30.1	22.9
					0.1663	500	1208	872		−4.2	−15.4	−14.2	127.0	−10.9	−27.6	−15.0
Wang et al. [55]	Multi, rect., H	1.46	1.07	R-134a	0.4586	150	1857	102	37	13.0	10.8	12.9	17.8	128.2	11.8	11.6
						750	9434	2561		6.8	−5.0	−4.4	15.2	128.2	3.6	3.0
Kim et al. [10]	Multi, rect., H	1.4	1.4	R-410A	0.5542	200	3162	177	9	12.0	8.1	8.2	6.5	196.7	14.9	11.8
						600	9482	1618		11.8	2.6	3.7	3.1	196.7	14.9	11.8
				R-22	0.3453	200	2154	139	10	21.8	9.0	12.9	18.1	187.0	23.7	20.6
						600	6461	1254		21.8	8.9	8.4	17.0	187.0	23.7	20.6
All sources		0.067	0.14		0.0449	48	52	5	1120	20.3	24.0	27.4	31.4	84.6	27.2	26.5
		1.46	4.0		0.7738	1000	16,987	4195		−1.8	−11.3	−18.4	2.6	78.0	−16.5	−16.0

. The range of data for flattened tubes is listed in

Table 3. Deviations of various correlations with data for flattened tubes and the round tubes from which they were made.

Source	Geometry	DHYD (DHP) mm	AR	Fluid	pr	G Kg. m−2s−1	ReLT	WeGT	N	Deviation, % Mean Absolute Average
										Shah [3]	Kim and Mudawar [1]	Ana-niev et al. [37]	Kim et al. [10]	Solanki and Kumar [13]	Wen et al. [7]	Dorao and Fernandino [2]
Wilson et al. [9]	Flattened tube, H	4.88	4.4	R-134a	0.2176	75	1915	85	15	13.5	27.1	27.6	46.5	152.4	20.7	27.3
						400	10,213	2409		−4.7	−24.8	−27.6	−38.0	152.4	−3.0	−27.3
				R-410A	0.4347	75	3191	71	15	12.8	24.7	27.1	45.6	193.1	17.3	25.8
						400	16,987	2042		−0.7	−23.2	−26.4	−32.5	193.1	−17.3	−23.6
	Round tube, H	8.9	1	R-134a	0.2176	75	3873	171	7	43.1	37.8	26.9	43.1	82.8	29.0	29.0
						175	9038	933		43.1	27.5	−12.6	43.1	72.0	−14.0	−14.0
				R-410A	0.4347	75	6455	143	15	54.7	19.3	25.9	54.7	128.1	28.4	28.4
						175	15,038	791		54.7	10.9	−4.5	54.7	127.4	−1.4	−1.4
Kim et al. [10]	Flattened tube, H	2.3	6	R-410a	0.5542	100	2579	72	10	58.9	30.2	24.0	39.1	434.4	47.8	28.9
						400	10,313	1172		57.3	22.0	20.1	−39.1	434.4	47.8	27.7
		3.0	4		0.5542	100	3364	94	10	50.7	21.5	28.8	36.1	392.6	50.8	34.6
						400	13,451	1529		50.7	21.5	28.8	4.7	392.6	50.8	34.6
		4.1	2		0.5542	100	4597	129	12	32.2	6.4	8.9	30.6	218.2	15.0	9.4
						400	18,383	2018		32.2	0.5	4.9	15.7	218.2	15.0	8.6
	Round, H	5.0	1		0.5542	100	5606	157	42	29.1	16.0	18.2	29.1	164.1	21.0	21.0
						400	22,419	2548		29.1	−7.3	3.2	29.1	164.1	11.0	11.0
Solanki and Kumar [13]	Flattened Tube, H	3.8	5.88	R-134a	0.2176	450	10,001	2654	9	41.0	54.1	44.7	71.4	105.7	35.7	44.4
						650	14,446	5536		−41.0	−54.1	−44.7	−71.4	105.7	−35.7	−44.4
		6.4	2.72		0.2176	450	16,790	4455	9	24.5	43.6	29.3	47.7	106.3	24.0	28.8
						650	24,253	9295		−24.5	−43.6	−29.3	−47.7	106.3	−22.7	−28.8
	Round, H	8.9	1		0.2176	550	23,236	6173	19	10.7	34.5	17.3	10.6	78.9	15.5	15.5
					0.2846	650	33,607	12,880		−0.6	−34.5	−5.6	−0.6	78.9	−15.0	−15.0
Darzi et al. [11]	Flattened tube, H	8.2	1.5	Isobutane	0.1536	155	10,010	1686	7	20.6	35.9	23.3	26.5	81.5	26.3	28.7
										−20.6	−35.9	−23.3	−26.5	81.5	−26.3	−28.7
		7.29	2.06		0.1536	155	8899	1499	28	29.5	49.2	38.2	49.5	56.9	39.6	43.1
						266	15,215	4381		−29.5	−49.2	−38.2	−49.5	56.9	−39.6	−43.1
		5.1	3.84		0.1536	155	6226	1049	7	42.0	54.1	49.6	68.8	59.6	47.8	53.2
										−42.0	−54.1	−49.6	−68.8	59.6	−47.8	−53.2
	Round, H	8.7	1		0.142	155	10,459	1746	28	7.7	30.8	14.6	7.7	73.6	−37.9	−37.9
					0.1617	265	18,798	5022		−1.9	−30.8	−14.2	−1.9	73.6	−32.6	−32.6
Kaewon et al. [12]	Single, Round, H	3.51	1	R-134a	0.1959	380	7380	1807	31	48.8	15.8	28.8	48.8	168.6	28.9	28.9
					0.2944	750	16,150	6486		48.3	9.6	25.8	48.3	168.6	27.0	27.0
	Flattened, H	3.17	0.72		0.2454	400	7779	1666	11	12.1	19.0	15.3	37.6	86.1	12.6	12.4
						825	16,045	7088		3.9	−15.1	1.5	37.6	86.1	−2.7	0.0
		1.84	3.5		0.2454	400	4515	967	17	15.3	25.7	18.9	38.7	187.2	12.7	15.0
						825	9313	4114		−3.2	−17.8	−7.3	−38.7	187.2	3.2	−6.8
		1.16	7		0.2454	400	2847	610	18	44.6	48.0	46.1	74.0	109.6	39.7	46.5
						825	5871	2594		42.8	−47.3	−45.7	−74.0	109.6	−35.9	−45.3
All	Round, flattened	1.16	0.72		0.1420	75	1915	71	271	29.6	30.8	26.7	40.5	142.8	27.3	28.2
		8.9	7.0		0.5542	825	33,607	12,880		8.2	−20.3	−12.6	−12.7	142.6	−7.7	−12.7

.

3.2. Correlations Evaluated

The correlations evaluated include those of Kim and Mudawar [1] for minichannels, Dorao and Fernandino [2], and Shah [3]. These three were included as they were reported to agree with data for many non-circular channels. The correlations of Wen et al. [7], Solanki and Kumar [13], and Kim et al. [10] which are based on data for flattened tubes were also included.

It was intended to compare the data with all general correlations which have been verified with wide-ranging data. However, some of them require heat flux or ΔT to be known. Among these are Cavallini et al. [24], Thome et al. [23], and Dobson and Chato [22]. Most published data do not include heat flux or ΔT. These therefore could not be included for evaluation. Among well-known correlation of the general type those by Akers et al. [36], Ananiev et al. [37], and Moser et al. [38] have been reported to give good agreement by many researchers and do not require heat flux to be known. These were therefore also included in the evaluation.

3.3. Calculation Methodology

For the Shah correlation, D_HP was used except that D_HYD was used in calculating Weber number and Froude number. The same was also done for other correlations except those of Kim and Mudawar and Dorao and Fernandino for which D_HYD was used in all its equations as this was specified in them. It is to be noted that for channels cooled on all sides, D_HYD = D_HP.

Wen et al. [7] correlation recommends the use of Thome et al. [23] correlation for calculating h_round. That correlation is flow pattern based. There is no well-verified method to determine flow patterns in mini channels or non-circular channels. It was therefore decided to instead use the correlation of Dorao and Fernadino [2] for this purpose which has been verified with a wide range of data for round tubes and does not require flow pattern determination.

Properties of FC-72 and HFE-7100 were obtained from their manufacturer, 3-M Corporation. For all other fluids REFPROP 9.1 was used. All properties were calculated at the saturation temperature.

3.4. Results of Data Analysis

The results of data analysis for flattened tubes are given in Table 3 and for all other non-circular channels in Table 2. The correlations of Akers et al. and Moser et al. gave large deviations; their results are not shown in Table 2 and Table 3 but are included in

Table 4. Effect of Weber number on the accuracy of various correlations for data of non-circular channels other than flattened tubes.

WeGT	N	Deviation % Mean Absolute Average
		Shah [3]	Kim and Mudawar [1]	Ananiev et al. [37]	Kim et al. [10]	Solanki and Kumar	Wen et al. [7]	Dorao and Fern-andino [2]	Moser et al. [38]	Akers et al. [38]
≤ 100	381	21.6	32.6	41.1	40.5	36.0	40.8	40.0	39.3	191.2
		−1.6	−19.5	−35.1	−11.5	−21.6	−38.7	−37.2	8.3	190.6
> 100	739	19.7	19.5	20.3	26.7	109.7	20.1	19.5	37.4	129.7
		−1.9	−7.1	−9.7	10.1	107.1	−5.1	−5.2	30.6	129.0
All	1120	20.3	24.0	27.4	31.4	84.6	27.2	26.5	38.1	150.7
		−1.8	−11.3	−18.4	2.6	78.0	−16.5	−16.0	23.0	150.0

. In these tables,

Mean absolute deviation (MAD) δ_m is defined as:

$${\delta }_m=\frac{1}{N}{\displaystyle \sum }_1^{N}ABS\left\{\left(h_{predicted}-h_{measured}\right)/h_{measured}\right\}$$

(23)

Average deviation is defined as:

$${\delta }_{avg}=\frac{1}{N}{\displaystyle \sum }_1^{\mathrm{N}}\left\{\left({\mathrm{h}}_{\mathrm{predicted}}-{\mathrm{h}}_{\mathrm{measured}}\right)/{\mathrm{h}}_{\mathrm{measured}}\right\}$$

(24)

It is seen in Table 2 that almost all data sets for channels other than flattened tubes give good agreement with the Shah [3] correlation, the MAD for the 1120 data points from 22 sources being 20.3%. The correlations of Kim and Mudawar [1] and Dorao and Fernandino [2] also give fairly good agreement with MAD of 24.0 and 26.5 percent, respectively. As seen in Table 3, the results with the flattened tube data are not good for any of the correlations.

4. Discussion

4.1. Channels Other Than Flattened Tubes

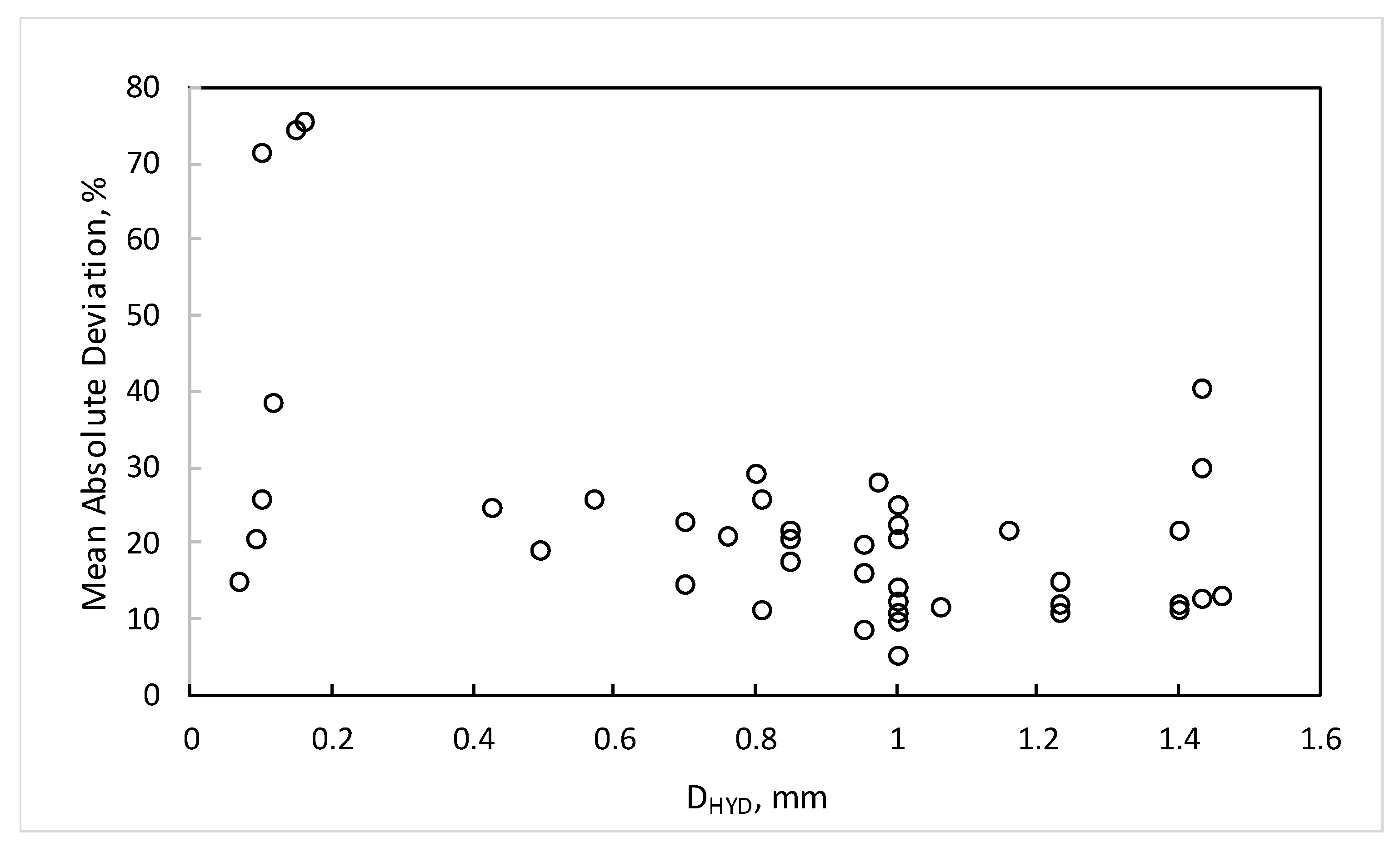

Table 2 gives the results of comparison of data for non-circular channels except flattened tubes with various correlations. It is seen that the best agreement is with the Shah [3] correlation. The only data set which gives very large MAD is that of Garimella et al. [41] in rectangular channels. These data are very high compared to all correlations. Figure 1 shows the MAD of Shah correlation for all data sets vs channel hydraulic diameter. Three data points have MAD about 70%, much larger than all other data. These are from Garimella et al. [41]. It is seen that many other data points in the same diameter range and even smaller diameters are in satisfactory agreement. Results over the extreme limits of data do not show any increase in deviation.

Figure 2 shows the MAD of the Shah correlation with all data sets as a function of aspect ratio of channel. Again, three data points have MAD about 70%, much larger than all other data and these are from Garimella et al. [41]. The figure does not indicate any relation between aspect ratio and deviations.

From these observations it may be concluded that the data of Garimella et al. are unique. Their large deviation cannot be attributed to diameter or aspect ratio. The Shah correlation appears to be applicable over the entire range of diameter and aspect ratio.

4.2. Flattened Tubes

Table 3 gives the results of comparison of various correlations with the data for flattened tubes. Also included in this table are the results for the round tubes from which the flattened tubes were made. It is seen that some data sets give good agreement with the Shah correlation while some have large deviations. Similar are the results with other correlations. While this may be due to shortcomings of the correlations, there are some inconsistencies in the data which are now pointed out. It is seen that the flattened tube data of Wilson et al. [9] show good agreement with the Shah correlation but their data for round tube has large deviation. In Shah [3] it was shown that this correlation is in good agreement with a very wide range of data for round tubes. Hence lack of agreement with the round tube data of Wilson et al. is unexpected. Kaewon et al. [12] state that their data for round tubes is in good agreement with the correlations of Shah [31] and Akers et al. [36]. During the present analysis it was found that both correlations over-predict the data by around 50%. It seems that there is some error in the figures from which the data was obtained for the present analysis.

The CFD analyses for rectangular and flattened channels show similar behavior. Considering that the Shah correlation gives good agreement with data for channels of rectangular and other shapes, it is rather surprising that its agreement with flattened channel data is not good. It could be that flattened tubes involve some phenomena quite different from those in channels of other shapes or the test data have shortcomings. This matter can be resolved only when more test data become available.

In the following sections, discussions are confined to channels other than flattened tubes except where stated otherwise.

4.3. Effect of Weber Number

Weber number is the ratio of inertia force to surface tension force. Surface tension force becomes important at low Weber numbers. According to the Shah [17] correlation, this limit is We_GT < 100. Table 4 shows the deviations of various correlations at We_GT less than and greater than 100. It is seen that the MAD of all general correlations except that of Shah are much higher for We_GT < 100 than at We_GT > 100. For example, the MAD of Kim and Mudawar correlation increases from 19.5 to 32.6% and that of Dorao and Fernandino from 19.5 to 40%. This confirms that We_GT > 100 is the limit for the applicability of macro channel correlations for condensation inside channels.

4.4. Accuracy of Various Correlations

The Shah correlation gives good agreement over the entire range of data for all shapes. The correlations of Kim and Mudawar, Ananiev et al., and Dorao and Fernandino give fairly good agreement with data for We_GT > 100. The correlations of Wen et al. [7], Solanki and Kumar [13] and Kim et al. [10] were based on data for flattened tubes. They perform poorly for all shapes including flattened tubes. The correlation of Solanki and Kumar gives large deviations even with their own data.

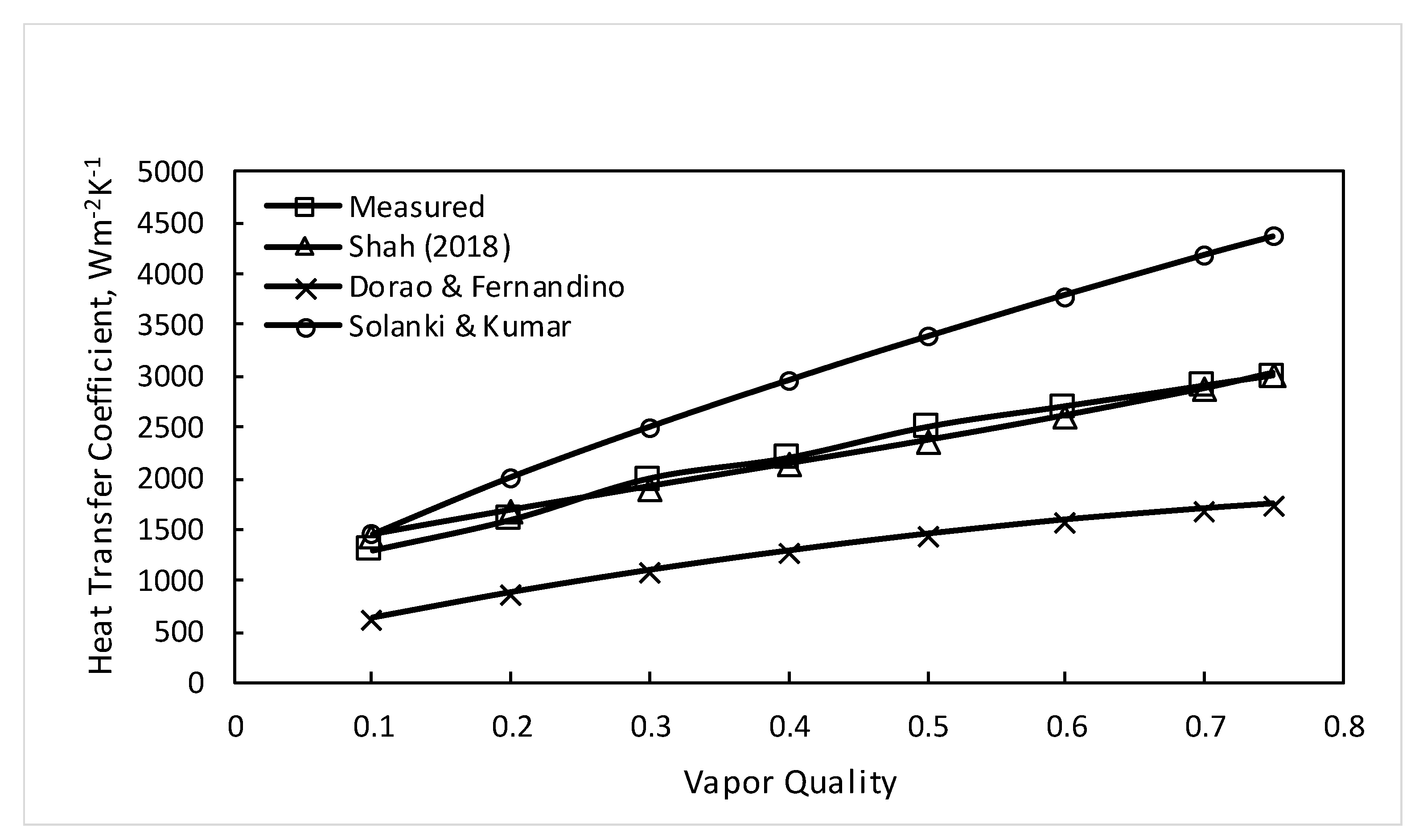

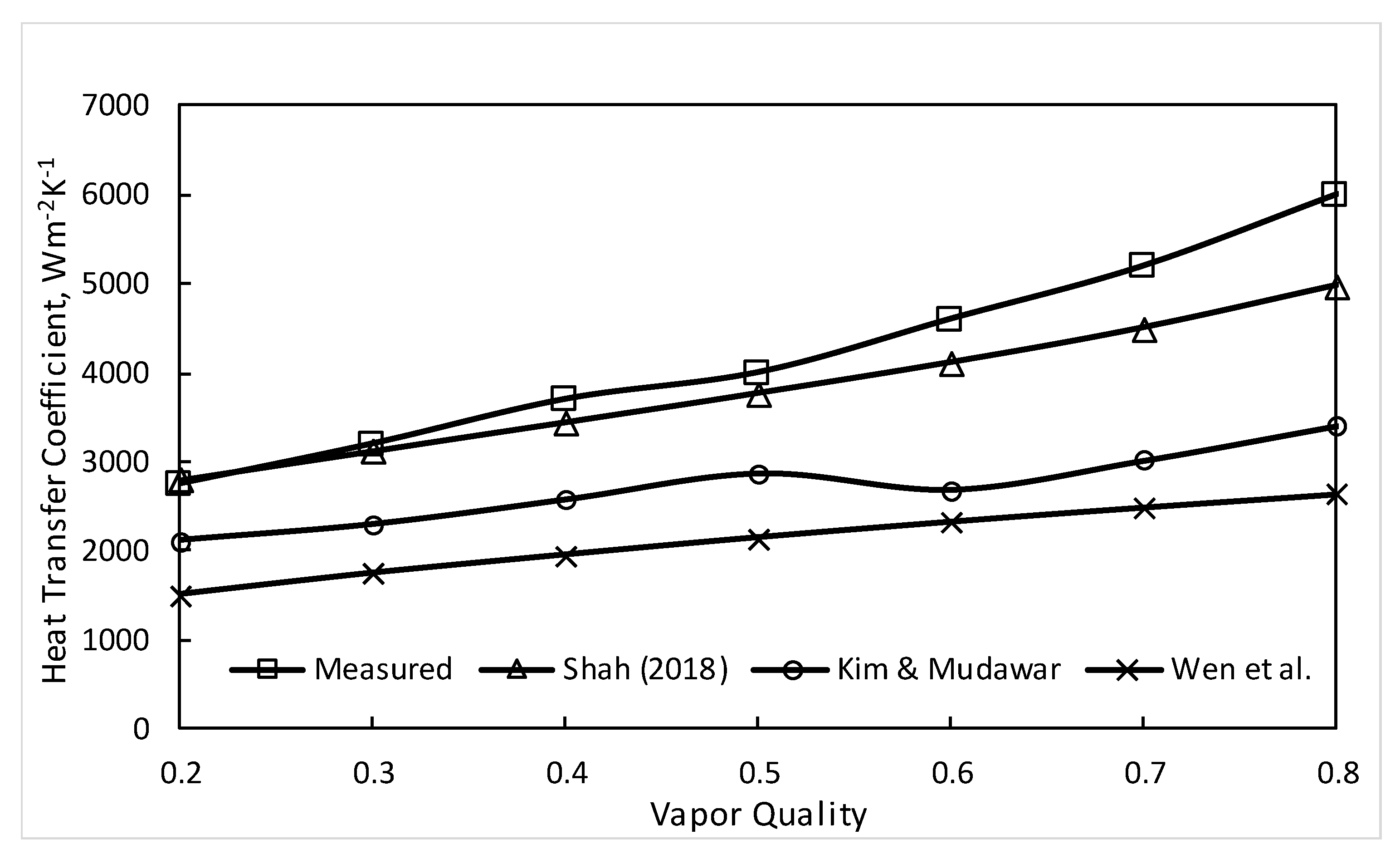

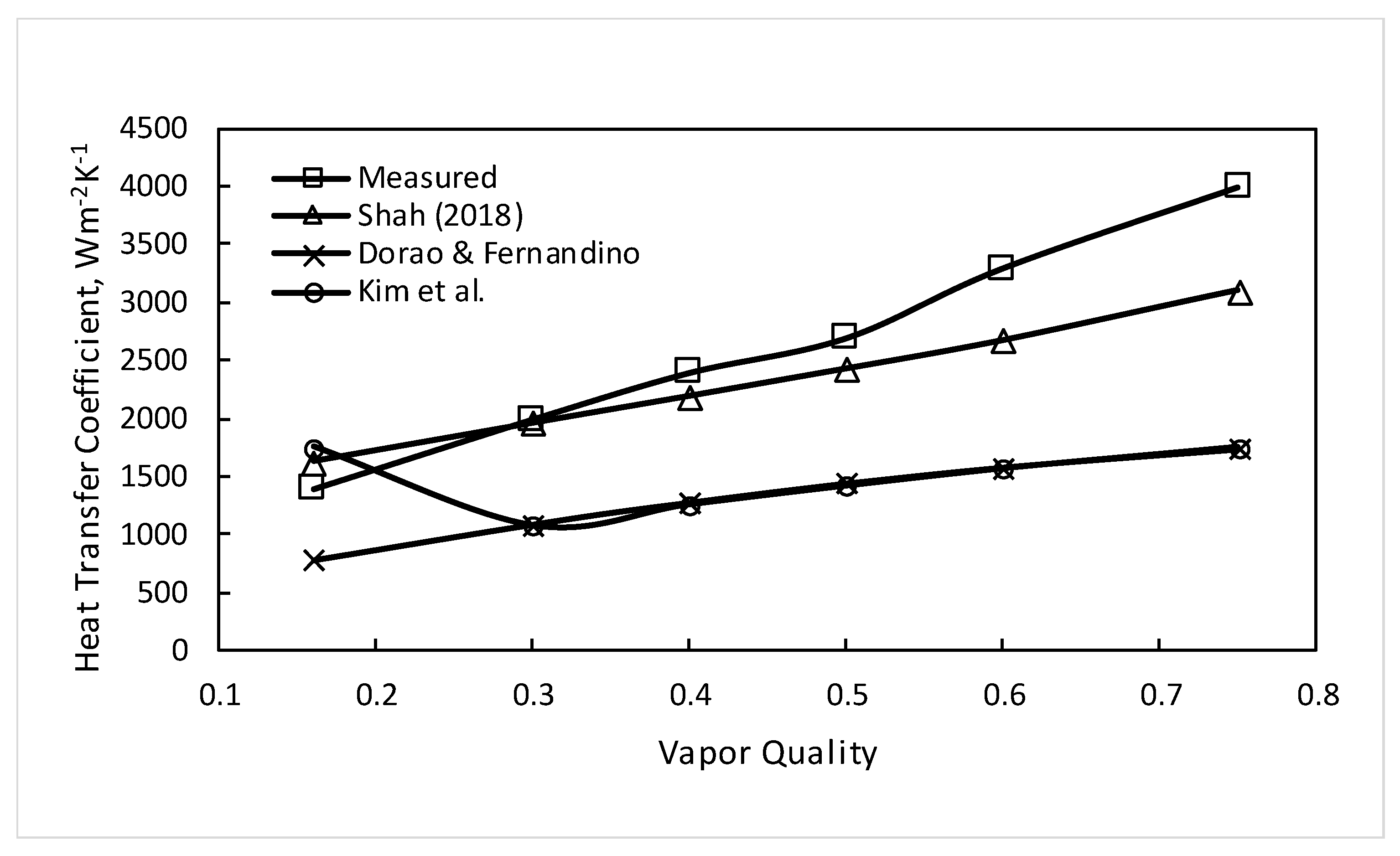

Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7 show the comparison of some test data with various correlations.

4.5. Effect of Channel Shape

The Shah correlation shows good agreement with data for square, rectangle, triangle, semi-circle, drum, N, and W shape channels. All these channels have sharp corners. It was shown in Shah [3] that it also gives good agreement with round tube data over a wide range. This correlation does not have any factor for the effect of corners. Hence its agreement with both circular and non-circular channels seems to contradict the results of CFD analyses such as those of Wang and Rose [5,6,7] which indicate that heat transfer is higher in channels with corners compared to round channels.

4.6. Effect of Various Parameters

The present study included 15 fluids. In Shah [3], this correlation was validated with data for 43 fluids in round and non-circular channels. Hence the Shah [3] correlation can be expected to all those fluids for non-circular channels also.

The range of reduced pressure, We_GT and Re_LT in the data analyzed in Shah [3] was wider than in the present study. Caution should be exercised in using the Shah [3] correlation beyond their range in the present data analysis when applying to non-circular channels.

4.7. Complexity of Correlations

Appendix A gives details of the correlations of Kim and Mudawar, Ananiev et al. and Dorao and Fernadino. The other correlations that were evaluated are already described in the text. It is seen that all these correlations are quite simple except for that of Kim and Mudawar which is quite complex. However, the complexity is not such that it may cause any difficulty in computerized calculations. The Shah correlation is also somewhat complex but simple compared to the Kim and Mudawar correlation.

4.8. Design Recommendations

The Shah correlation is recommended for all channel shapes except flattened tubes. No recommendations are made for flattened tubes.

5. Conclusions

1. A number of correlations for condensation in channels were compared to wide-ranging data for non-circular channels.

2. The Shah [3] correlation gave good agreement with data for channels of square, rectangular, triangular, semi-circular, drum, N, and W shapes, MAD being 20.3% for 1120 data points for 15 fluids from 22 sources. Other general correlations gave fairly good agreement when We_GT > 100 but had large deviations when We_GT < 100.

3. Data for flattened tubes from five sources were also compared to the same correlations. None of the correlations, including those based on flattened tube data, gave satisfactory agreement. More experimental studies on flattened tubes are needed.
