First Principles Calculations of the Optical Response of LiNiO₂

Abstract

We discuss optical properties of layered Lithium Nickel oxide (LiNiO${}_2$), which is an attractive cathode material for realizing cobalt-free lithium-ion batteries, within the first-principles density functional theory (DFT) framework. Exchange correlation effects are treated using the generalized gradient approximation (GGA) and the strongly-constrained-and-appropriately-normed (SCAN) meta-GGA schemes. A Hubbard parameter (U) is used to model Coulomb correlation effects on Ni 3d electrons. The GGA+U is shown to correctly predict an indirect (system wide) band gap of 0.46 eV in LiNiO${}_2$, while the GGA yields a bandgap of only 0.08 eV. The calculated refractive index and its energy dependence is found to be in good agreement with the corresponding experimental results. Finally, our computed optical energy loss function yields insight into the results of recent RIXS experiments on LiNiO${}_2$.

1. Introduction

With the current focus on clean energy, demand for more efficient batteries with greater capacity and lighter weight is increasing rapidly. In this connection, lithium-ion batteries (LIBs) are promising due to their higher power and energy densities, even though the LIBs are less cost-effective than the conventional Pb-based batteries [1]. In fact, the LIBs have been the key players for several decades for powering portable electronics and the transportation sector [2,3].

The positive electrodes in LIBs often consist of layered transition-metal (TM) oxides such as LiCoO${}_2$ (LCO), LiNiO${}_2$ (LNO) and LiMnO${}_2$ (LMO) [4]. Compared to other cathode materials, LCO is attractive due to its high energy density and specific capacity [5], and it is still the material of choice for commercial applications. These advantages of LCO, however, come with relatively high manufacturing cost, low thermal stability, and the limited supply of the material. Therefore, interest has been growing in LNO as environmentally more friendly cathode material, which offers higher discharge capacity and lower cost compared to LCO [6]. Ni-rich cathode materials have been shown specific capacity close to 300 mAh/g [7], although LNO suffers stability problems at high potential [8].

In view of its stability concerns, it is important to understand the interplay between the structural, electronic, and optical properties of LNO. For example, LNO in its ground state is a small band gap insulator, whose band gap is driven by the presence of Jahn Teller distortions [9]. Here, we examine the LNO ground state in-depth by using density functional theory (DFT) based first-principles simulations. We compare results obtained with the generalized gradient approximation (GGA) and strongly-constrained-and-appropriately-normed (SCAN) exchange-correlation functionals, along with computations using the DFT+U scheme [9,10], in order to gain a handle on the importance of correlation effects in LNO. Optical properties of LNO are computed, including the dielectric function, refractive index, and the absorption coefficient. Our theoretical predictions are compared with the corresponding experimental results [11]. We also compute the energy loss function, which is related to the resonant inelastic X-ray scattering (RIXS) cross Section [12,13]. RIXS can provide a useful window on redox reactions in LNO cathodes as recently shown by Li et al. [14].

2. Computational Methods

Calculations were performed using the Vienna Ab initio Simulation Package (VASP) [15,16] and the Projector-Augmented-Wave (PAW) method [17]. The GGA computations employed the Perdew, Burke, and Ernzerhof (PBE) scheme [18]. To account for effects of d electron localization on the Ni atoms, GGA+U calculations with U = 4 eV [19,20,21] were also carried out. Some calculations were repeated with the SCAN functional [22] using a reduced value of U = 2 eV. Note that SCAN is generally expected to be more accurate for handling correlation effects than the GGA [23]. To sample the Brillouin zone of the primitive unit cell, a 4 × 10 × 4 Monkhorst-Pack [24] k-point grid was employed. For geometry optimizations, total energies were converged within a tolerance of 1 × 10${}^{-6}$ eV. Gaussian smearing width was set at 0.05 eV in density of states computations.

The dielectric function was computed by using the method by Gajdoš et al. [25] which is based on the random phase approximation (RPA) without local fields. Dielectric function calculations employed the “LOPTICS =.True” input tag, which mandates a reasonable number of empty conduction band states: to fulfill this requirement, NBANDS was taken to be 150. The PAW pseudopotentials were generated with the following atomic configurations: Li(1$s^2$2$s^1$), Ni(3$p^6$3$d^9$4$s^1$), and O(2$s^2$2$p^4$). The plane-wave basis set used in the calculations was determined by 520 eV kinetic energy cuttoff. Various optical properties can be derived from real (${\epsilon }_1$) and imaginary (${\epsilon }_2$) parts of the dielectric function. In particular, the refractive index $n\left(\omega \right)$, the absorption coefficient $\alpha \left(\omega \right)$ and the loss function $L\left(\omega \right)$ of LNO were calculated using the formulae [26]:

$$\begin{array}{cc}\hfill n\left(\omega \right)& ={\left(\frac{\sqrt{{\epsilon }_1^2\left(\omega \right)+{\epsilon }_2^2\left(\omega \right)}+{\epsilon }_1\left(\omega \right)}{2}\right)}^{1/2}\hfill \end{array}$$

(1)

$$\begin{array}{cc}\hfill \alpha \left(\omega \right)& =\sqrt{2}{\left(\sqrt{{\epsilon }_1^2\left(\omega \right)+{\epsilon }_2^2\left(\omega \right)}-{\epsilon }_1\left(\omega \right)\right)}^{1/2}\hfill \end{array}$$

(2)

$$\begin{array}{cc}\hfill L\left(\omega \right)& =\frac{{\epsilon }_2\left(\omega \right)}{\sqrt{{\epsilon }_1^2\left(\omega \right)+{\epsilon }_2^2\left(\omega \right)}}\hfill \end{array}$$

(3)

We will see below that the GGA+U scheme yields optical results in good agreement with the corresponding experimental findings [11]. It also respects the F-sum rule [27].

3. Results and Discussions

We now discuss the equilibrium atomic positions, electronic structure, and optical properties of LNO. SCAN-based results are also considered because SCAN is known to yield an improved description of materials. Therefore, it is of interest to understand the extent to which SCAN reduces the need for including a Hubbard correction given by U. Devi et al. [10] have recently reported an analysis of Fe${}_{16}$N${}_2$ along similar lines.

3.1. Structural Properties

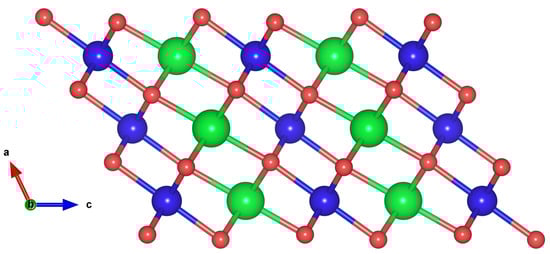

LNO assumes a variety of crystalline structures, including the rhombohedral (R$\overline{3}$m), orthorhombic (oP8) and monoclinic (mC8 and P2${}_1$/c) structures at low temperatures [19]. Previous studies have mostly focused on the rhombohedral (R$\overline{3}$m) phase where both GGA+U and SCAN give reasonable results [28,29,30,31]. Our focus, however, is on the monoclinic mC8 structure of LiNiO${}_2$ because it is energetically the most stable phase according to GGA+U calculations [19]. The mC8 crystal structure, which is a distortion of the hexagonal cell, is illustrated in Figure 1. In the interest of brevity, we refer the reader to Figure 7 in the review of Bianchini et al. [8], which gives further details of the monoclinic unit cell. The atomic coordinates are obtained from the Materials Project database [32]. Our equilibrium lattice parameters after full relaxation and the volume per atom are given in

Table 1. Lattice parameters and the volume per atom after full relaxation with GGA, GGA+U with U = 4 eV, SCAN, and SCAN+U with U = 2 eV. Experimental values are given [8].

Lattice Parameters	GGA	GGA+U	SCAN	SCAN+U	Exp.
a (Å)	4.839	4.799	4.779	4.749	4.99
b (Å)	2.799	2.789	2.778	2.765	2.83
c (Å)	5.109	5.129	5.093	5.054	5.07
$\beta$ (${}^o$)	112.701	112.429	112.064	112.195	109.7
V (Å${}^3$/atom)	7.980	7.932	7.833	7.681	8.426

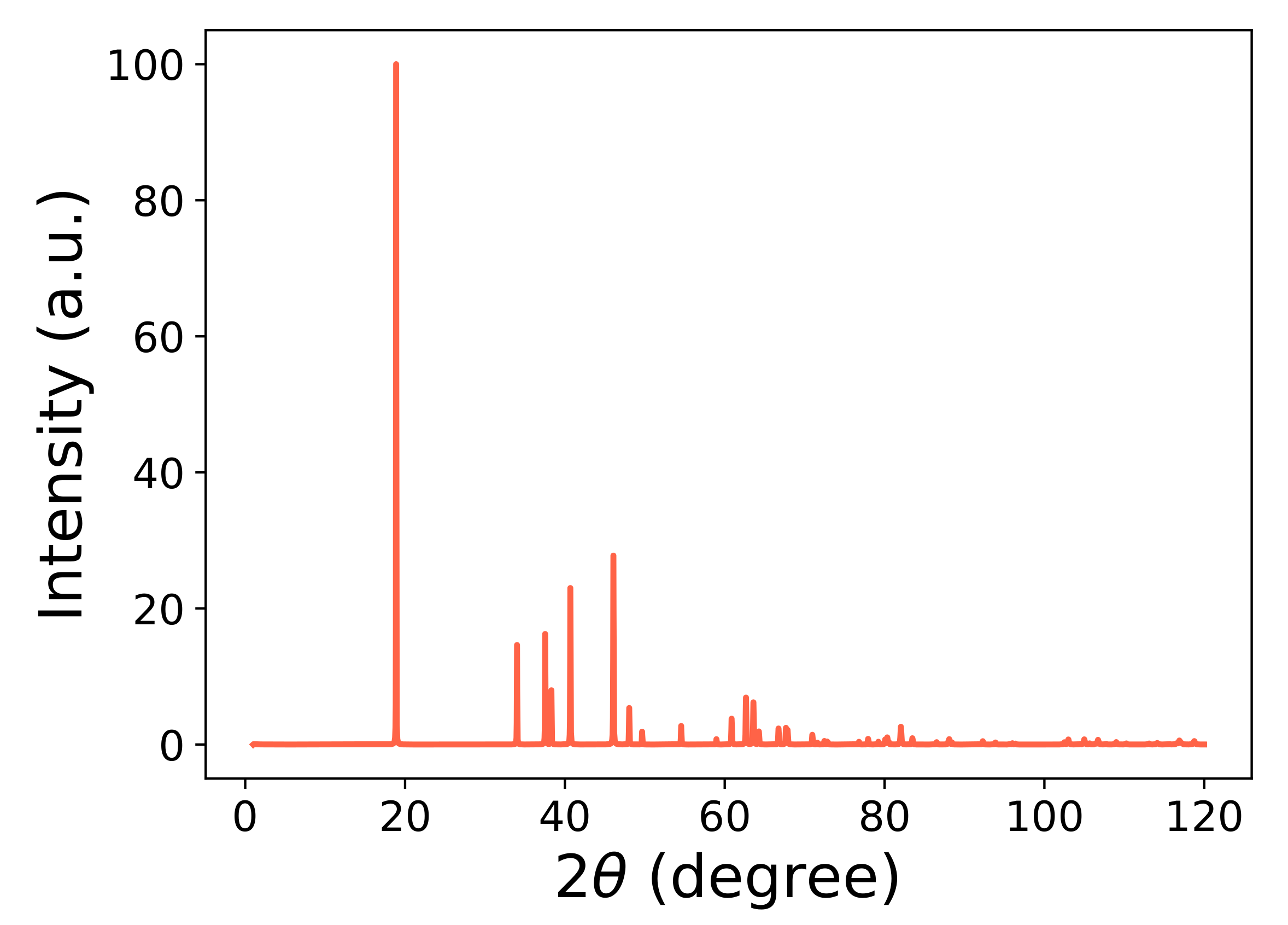

. The X-ray diffraction (XRD) pattern of the mC8 phase is presented in Figure 2. Here, two XRD peaks with the highest spectral intensity have Miller indices of (003) and (104). Their intensity ratio can be used to characterize the electroactivity of the samples investigated. In particular, the samples with the highest integrated intensity ratios of I(003)/I(104) show the highest discharge capacity as shown by Valikangas et al. [33].

It should be noted that some discrepancies between the theoretical and experimental lattice parameters as well as the angle $\beta$ can be seen in Table 1. However, geometry optimization in LNO remains a challenging task due to the presence of dynamical Jahn-Teller distortions in the system [34]. Among the various approximations considered, the GGA gives the best agreement with the experimental volume per atom.

3.2. Electronic Structures

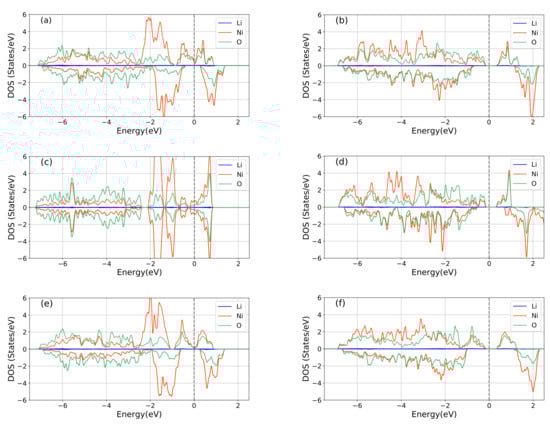

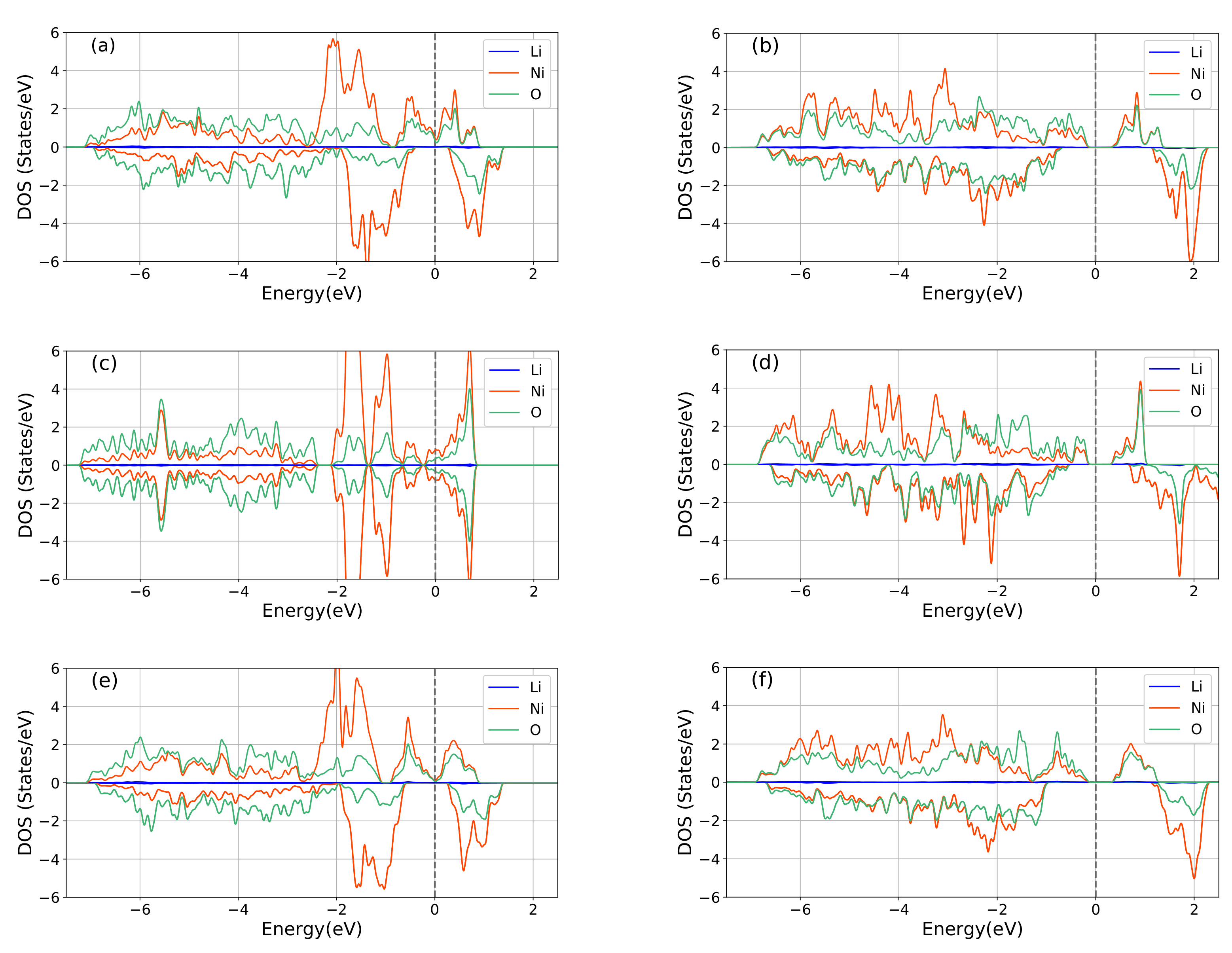

Figure 3 presents the partial density of states (pDOSs) associated with the Li-s, Ni-d, and O-p states based on GGA (left column) and GGA+U (right column). 2p-O and 3d-Ni states show strong hybridization in all cases in Figure 3. Results for the mC8, op8 and P2${}_1$/C crystal structures are compared in Figure 3. We focus on the results for the mC8 since this is the lowest energy structure of the LNO. The GGA here predicts too small a bandgap. GGA+U with U of 4 eV, however, cures this problem and yields a (system wide) bandgap of 0.46 eV for the mC8 structure, which is in agreement with the corresponding experimental value of about 0.4 eV [9]. Interestingly, the SCAN+U functional also opens a similar gap, but with a reduced Hubbard U parameter of 2 eV. Since the two approaches give similar results, we will focus on GGA+U which is computationally less demanding than SCAN+U.

We find that the LNO mC8 phase becomes ferromagnetic [8] with a total magnetic moment of 1.00 ${\mathsf{\mu }}_B$ per Ni atom. Since we have neglected spin–orbit coupling effects, the integer value of the magnetic moment is a direct consequence of the opening of the energy gap in the band structure of LNO. Note that opening of a band gap throughout the BZ at the Fermi level will yield integral numbers of majority and minority spin electrons, and hence an integral net magnetic moment.

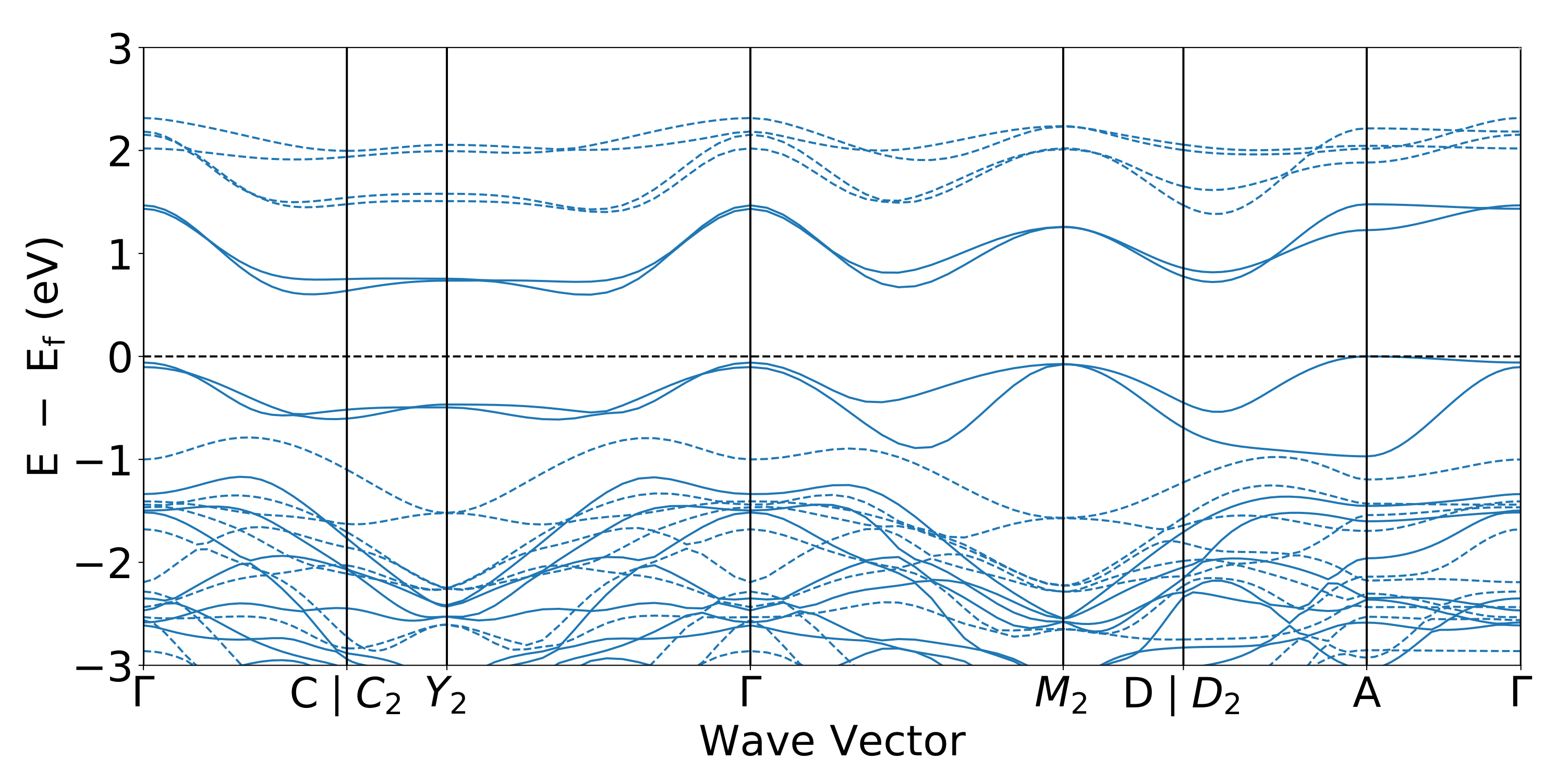

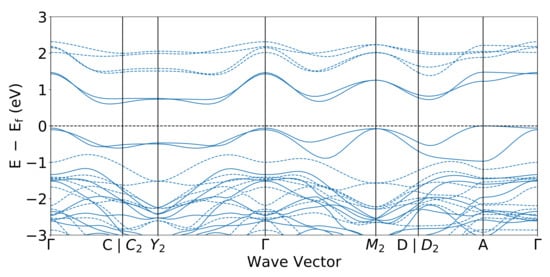

The GGA+U based band structure along the high-symmetry directions of the BZ is shown in Figure 4. For details of the BZ and the related symmetry points of the monoclinic structure, we refer the reader to Ref. [35] in the interest of brevity. The energy difference between the valence band maximum and the conduction band minimum, which lie between the Y${}_2$ and $\Gamma$ symmetry points, is 0.62 eV. However, if one considers all the k-points in the BZ, the indirect (system wide) gap value is 0.46 eV as seen in the DOS: this value is consistent with experimental results [9]. Notably, the smallest direct bandgap in Figure 4 is seen to be located around the middle of the line joining $\Gamma$ and $M_2$ points.

3.3. Optical Properties

Optical spectroscopies [36] can probe particle-hole excitations that are involved in battery charging and discharging processes [37]. To understand how the dielectric function is connected with the potential-capacity characteristics of batteries, we consider a number of representative plots to visualize the optical response.

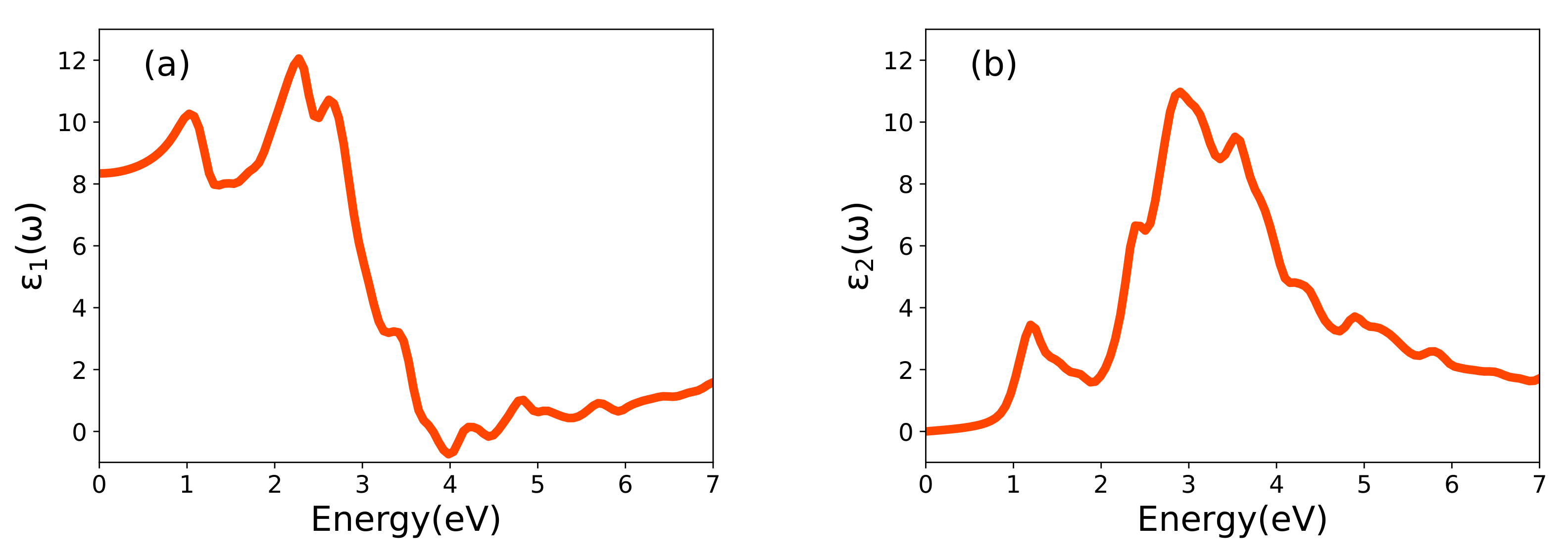

Figure 5 illustrates the real (${\epsilon }_1$) and imaginary (${\epsilon }_2$) parts of the dielectric function, which are connected by the dispersion relations [25]. These functions are given in units of the dielectric constant in vacuum (${\epsilon }_0$). The photon energy range is limited to 0–7 eV. The static value of ${\epsilon }_1\left(0\right)$ is 8.43, and it reaches a maximum value of 12.15 at 2.27 eV. With increasing photon energy, it drastically decreases to a minimum negative value of −0.70 around 4.0 eV, although at higher photon energies it again starts to go above zero. Our analysis indicates that the distinctive features (peaks) of ${\epsilon }_2$ are due to optical transitions involving hybrid O-2p and transition-metal 3d orbital as is the case in LiCoO${}_2$ [38]. Interestingly in LNO, the band transitions are observed without excitonic effects.

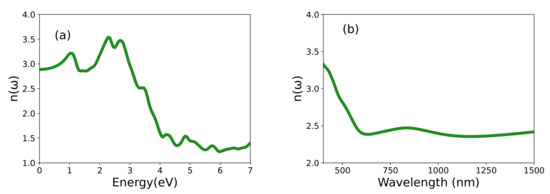

Many other optical properties can be obtained from ${\epsilon }_1$ and ${\epsilon }_2$. The refractive index computed using Equation (1) is shown in Figure 6. The maximum refractive index value of 3.56 occurs at 2.28 eV, and as expected, $n\left(\omega \right)$ decreases gradually beyond the optical energies. We also consider the refractive index as a function of the wavelength to allow for more direct comparison- with the experimental results. Interestingly, our calculations reproduce the dispersion of the refractive index between the visible and infrared range observed by El-Bana et al. [11]. Using the absorption coefficient $\alpha \left(\omega \right)$, one can characterize the optical bandgap [11]. Figure 7 shows the quantity $\alpha h\nu$ = $A{(h\nu -E_g)}^2$ plotted against photon energy, where A is a constant. The extrapolation given by these so-called Tauc plot provides an estimated value of the optical bandgap of 1.69 eV. The energy loss function shown in Figure 7 gives the energy loss resulting from dispersion or scattering [39,40].

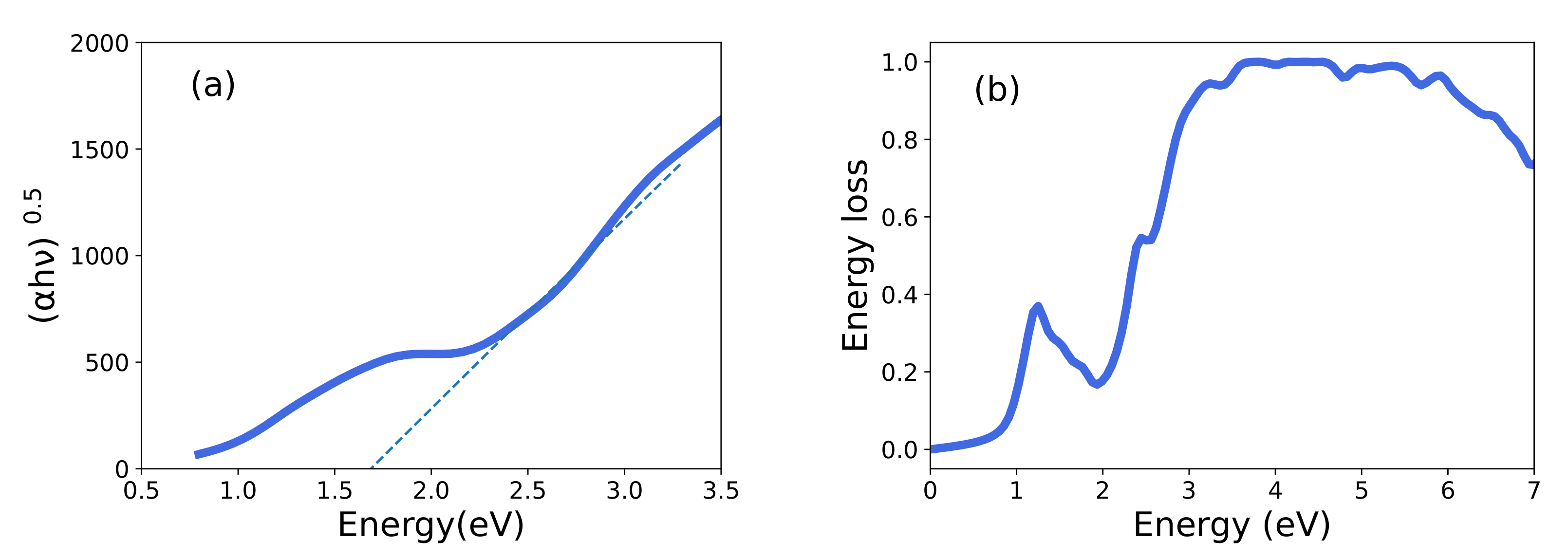

The loss function $L\left(\omega \right)$ (Figure 7b) displays peaks at different energies. The first peak corresponds to the bandgap. The plateau around 4 eV, can explain the redox potential of LNO–it is consistent with RIXS experiment [14]. Craco and Leoni [37] have predicted dramatic changes in the optical response when the LiFePO${}_4$ cathode is charged by removing lithium. In particular, they observed that the peak corresponding to the redox potential shifts to higher energies when the battery is charged. We expect a similar effect here. These results indicate that optical and RIXS experiments can provide a window on lithiation/delithiation processes [41]. The redox orbitals associated with the redox potential could be extracted by considering the electromagnetic response $\epsilon (\omega ,q)$ beyond the optical limit at zero momentum transfer ($q=0$) [12,42]. In fact, one can obtain the momentum dependent spectral function of a redox orbital in terms of the difference between two X-ray Compton profiles measured for two lithium concentrations via tomographic techniques [43]. In this connection, we are investigating nonstoichiometric Li${}_x$NiO${}_2$ samples that we have obtained by co-precipitation [33] for Compton scattering experiments at the SPring-8 synchrotron facility in Japan. Some preliminary Compton scattering results from LNO have been obtained by Chabaud et al. [44] at the ESRF synchrotron facility in France.

4. Conclusions

We discuss the structural, electronic, and optical properties (complex dielectric function $\epsilon \left(\omega \right)$, absorption coefficient $\alpha \left(\omega \right)$, and the energy loss spectrum $L\left(\omega \right)$ of LNO cathode material using first-principles calculations. The theoretical energy bandgap results are compared with the available experimental data, and the GGA+U functional is shown to yield excellent agreement with experiment. The bandgap is found to be indirect with a GGA+U based (system wide) value of 0.46 eV. The computed refractive index is 3.56. The computed energy loss function is consistent with RIXS experiments and displays a maximum related to the electronic states responsible for the redox potential of the LiNiO${}_2$ cathode. Compton [43] and magnetic Compton [45] X-ray scattering studies will be valuable in providing an atomic level reconstruction of the redox orbitals of LNO.
