Composites Derived from Aluminium-Modified Biphasic Calcium-Phosphate for Bone Regeneration

Abstract

In this research, aluminium-doped biphasic calcium phosphate (Al-BCP) was synthesized by co-precipitation and formulated with hydrolyzed collagen and acetylsalicylic acid (ASA) to yield composites designed as a new class of bone-regenerative biomaterials with enhanced biological performance. Undoped and Al-modified powders (5/10 wt% Al precursor) were prepared at 40 °C (pH ~ 11) and calcined at 700 °C, and composites were produced at a 1:1:0.1 mass ratio (ceramic–collagen–ASA). Structure and chemistry were assessed by X-ray diffraction (XRD), Fourier-transform infrared (FTIR) and Raman spectroscopies, and X-ray photoelectron spectroscopy (XPS). Morphology and elemental distribution were examined by scanning electron microscopy/energy-dispersive X-ray spectroscopy (SEM/EDX). Biological performance was preliminarily evaluated using HaCaT (immortalized human keratinocytes) viability and antibacterial assays against Staphylococcus aureus and Escherichia coli. XRD confirmed a biphasic hydroxyapatite/β-tricalcium phosphate system and showed that Al incorporation shifted the phase balance toward hydroxyapatite (HAp fraction 54.8% in BCP vs. ~68.6–68.7% in Al-doped samples). FTIR/Raman preserved BCP vibrational signatures and revealed collagen/ASA bands in the composites. XPS/EDX verified the expected composition, including surface N 1s from organics and Al at ~2–5 at% for doped samples, with surface Ca/P ≈ 1.15–1.16. SEM revealed multigranular microstructures with homogeneous Al distribution. All composites were non-cytotoxic (≥70% viability); M_Al10_Col_ASA exceeded 90% viability at 12.5% dilution. Preliminary antibacterial assays against Gram-positive and Gram-negative strains showed modest, time-dependent reductions in CFU relative to controls. These results corroborate the compositional/structural profile and preliminary biological performance of Al-BCP–collagen–ASA composites as multifunctional bone tissue engineering materials that foster a bone-friendly microenvironment, warranting further evaluation for bone regeneration.

1. Introduction

Bone defects arising from trauma, infection, tumour resection, or revision arthroplasty remain a major clinical challenge, motivating the development of bioactive materials that couple osteoconduction with infection control and immunomodulation [1,2,3,4,5,6]. Calcium–phosphate (CaP) ceramics are widely used owing to their chemical similarity to bone mineral and their favourable integration profiles. Among these, biphasic calcium phosphate (BCP)—a mixture of hydroxyapatite (HAp-Ca₁₀(PO₄)₆(OH)₂) and β-tricalcium phosphate (β-TCP-Ca₃(PO₄)₂)—offers a very good balance between stability and resorption, enabling controlled remodelling of the grafted site [7,8,9]. Both HAp and β-TCP are biocompatible, nontoxic, resorbable, and non-inflammatory, and they cause neither immune nor irritating responses and have excellent osteoconductive abilities [10,11,12,13,14]. HAp provides long-term structural persistence, whereas β-TCP resorbs more rapidly (up to 10–20 times faster than HAp), releasing Ca²⁺ and P⁺ ions that can stimulate osteogenesis and angiogenesis when appropriately dosed [15,16,17,18]. Recent studies further show that tuning BCP crystallinity and surface structure can improve osteogenic outcomes in vitro and in vivo, and collagen–CaP constructs better mimic bone’s hierarchical matrix and enhance cell response [19,20,21].

Aluminum in the form of alumina (Al₂O₃) is widely regarded as a bioinert structural ceramic for load-bearing orthopedics and dental applications, owing to its chemical stability, corrosion resistance, and excellent wear behaviour; dense alumina bearings have a long clinical track record in total hip arthroplasty and remain a reference material in modern ceramic prostheses [22]. In parallel, aluminum incorporation in hydroxyapatite (HAp), typically as Al³⁺ substitution at Ca sites or as surface-associated Al–phosphate environments, modulates HAp’s lattice and surface chemistry (unit-cell contraction, crystallite size/morphology shifts), which can translate into tuneable mechanical/biological performance of HAp powders, coatings, and composites [23]. Studies on Al-doped HAp report altered lattice parameters with controlled nano crystallinity and preserved biocompatibility, supporting the broader view that cation substitution (including Al³⁺) is a viable route to optimize HAp’s mechanical strength, dissolution, and interfacial response for bone repair [24,25,26].

Collagen is the natural organic counterpart of bone mineral, and when combined with calcium phosphates (e.g., hydroxyapatite/β-TCP), it yields biomimetic composites that embraces bone’s hierarchical structure, enhancing cell adhesion, osteoconduction, and matrix deposition. Bone itself is a mineralized collagen nanocomposite; emulating this architecture with collagen–apatite scaffolds improve biological performance and load transfer at relevant length scales [27]. Chemically co-precipitated or self-organized HAp–collagen constructs reproduce bone-like nano assembly and show favourable mechanical and biological responses in vitro and in vivo, including integration and replacement by new bone [28]. Across processing routes (foams, hydrogels, 3D-printed inks), mineralized collagen matrices support osteoblast attachment/proliferation and guide new bone formation in defect models, reflecting synergistic cues from the collagen fibrils and the calcium-phosphate phase [29]. Reviews and experimental studies consistently report that adding nanocrystalline apatite to collagen enhances osteogenic readouts and osteointegration compared with collagen or apatite alone, while retaining porosity and resorption characteristics important for remodelling [30]. In preclinical settings, collagen–CaP composites (including brushite/β-TCP or HAp variants) improve early cell adhesion and bone fill, underscoring collagen’s role as a bioactive matrix that complements the osteoconductive mineral [31].

Incorporating acetylsalicylic acid (ASA, aspirin) into calcium-phosphate or hybrid bioceramics is a rational strategy to improve early healing because ASA inhibits cyclo-oxygenase enzymes (COX) and suppresses prostaglandin E₂ (key drivers of post-surgical inflammation in bone) thereby dampening the inflammatory microenvironment without sacrificing cytocompatibility; in scaffold formats, controlled/sustained release of ASA has been shown to reduce inflammatory markers and enhance osteogenic responses in vitro and in vivo [32]. Beyond inflammation control, ASA (and its metabolite salicylic acid) can modulate bacterial growth and biofilms, offer adjunct anti-infective potential when is co-delivered with a bone graft—though effects are strain- and dose-dependent and can be pro-biofilm for S. aureus under some conditions, underscoring the need to tune dose and release [33]. In a recent study, optimized hydrogels integrating PVA/gelatin/sodium alginate with aspirin (ASA) and nano-hydroxyapatite (nHAp) improved MC3T3-E1 viability, promoted osteogenic differentiation, and modulated the inflammatory microenvironment, underscoring the value of coupling CaP with ASA [34]. Finally, ASA-releasing CaP/aerogel or hydrogel-HAp scaffolds have demonstrated enhanced bone formation alongside anti-inflammatory activity, supporting ASA as a useful bioactive in next-generation bioceramic systems [35].

Despite strong evidence for collagen–CaP osteoconduction, growing interest in ASA-releasing bone scaffolds for early immunomodulation/antimicrobial support, and demonstrated feasibility of Al-doped apatite’s [23,24,25,26], we found no prior report combining Al-doped BCP with collagen and ASA into a single composite intended to unify phase-tuned osteoconduction with controlled anti-inflammatory/antibacterial functionality. The closest analogues are collagen–HAp or BCP–collagen matrices without ASA [27,28,29,30,31], and ASA-loaded hydrogels/aerogels or nano HAp systems without Al-doped BCP [34,35]. This identifies a specific materials gap at the intersection of phase engineered BCP, biomimetic collagen, and ASA delivery.

Recognizing that biphasic calcium phosphate (BCP) is a widely adopted, clinically used bone substitute owing to its osteoconductivity and safe resorption, yet still limited by early postoperative inflammation and infection risk, this work aimed to synthesize Al-doped BCP and elucidates its structure by XRD, FTIR, Raman, XPS spectroscopy, and SEM/EDX and fabricate BCP–collagen–aspirin composites, to evaluate their structural features and in-vitro preliminary biological performance (cytocompatibility and antibacterial activity), addressing the need for next-generation calcium phosphate systems that combine osteoconduction process with immunomodulatory and anti-infective functions.

2. Materials and Methods

2.1. Materials

Analytical-grade reagents used include calcium nitrate tetrahydrate (Ca(NO₃)₂·4H₂O, ≥99.0%, CAS 13477-34-4; Merck Millipore, Darmstadt, Germany,), diammonium hydrogen phosphate ((NH₄)₂HPO₄, ≥99.0%, CAS 7783-28-0; Merck Millipore), aluminium nitrate nonahydrate (Al(NO₃)₃·9H₂O, ≥98.5%, CAS 7784-27-2; Merck Millipore), citric acid (≥99.5%, CAS 5949-29-1; Chempur, Poland), and ammonium hydroxide solution (25% p.a., CAS 1336-21-6; Chempur, Poland). Double-distilled water was used throughout.

2.2. Synthesis of BCP and Al-Doped BCP Powders

A 0.9 M Ca(NO₃)₂·4H₂O solution was prepared by dissolving 10.63 g in 50 mL water; a 0.6 M (NH₄)₂HPO₄ solution was prepared by dissolving 3.96 g in 50 mL water. Both solutions were magnetic stirred at 400 rpm and maintained at 40 °C. Citric acid (3 wt% relative to the calcium solution) was added as dispersant to the Ca(NO₃)₂·4H₂O solution. Under magnetic stirring (400 rpm) at 40 °C, the phosphate solution was added dropwise to the calcium/citric solution, and the resulting mixture was stirred continuously for a total of 2 h. The pH was adjusted to ~11 with ammonium hydroxide. The resulting suspensions were cooled to room temperature, aged 24 h, filtered, and washed three times with water. Powders were dried at 80 °C for 24 h (drying oven, BIOBASE, Jinan, China) and subsequently calcined at 700 °C for 1 h at a heating rate of 5 °C min⁻¹ (Caloris Microtherm furnace) to obtain biphasic calcium phosphate (BCP).

Al-modified powders were prepared identically, except that Al(NO₃)₃·9H₂O was added to the calcium solution at 5 or 10 wt% relative to the combined mass of Ca(NO₃)₂·4H₂O and (NH₄)₂HPO₄ precursors (0.73 g and 1.46 g, respectively). Samples are denoted M (BCP), M_Al5 (BCP + 5 wt% Al precursor), and M_Al10 (BCP + 10 wt% Al precursor).

2.3. Preparation of BCP/Collagen/ASA Composites

Composite samples were prepared by mixing predetermined amounts of ceramic powders (M, M_Al5, and M_Al10) with hydrolyzed marine collagen (Swedish Collagen) and acetylsalicylic acid (ASA; TCI Chemicals, Tokyo, Japan) at a mass ratio of 1:1:0.1 (ceramic–COL–ASA, wt/wt/wt). Mixtures were mechanically blended (mortar and pestle), ultrasonicated at 120 W for 5 min, and then mixed in a 3D tumbler mixer for 30 min to ensure homogeneity. The resulting composites are hereafter denoted as M_Col_ASA, M_Al5_Col_ASA, and M_Al10_Col_ASA.

2.4. Characterization

The X-ray diffraction (XRD) data were recorded at room temperature using a Bruker D8 Advance diffractometer with Cu-K_α radiation (λ = 1.5405 Å). Data were acquired in the 2θ range of 10–60° with a step size of 0.03°. FullProf Suite software [36] was used for multiphase Rietveld refinement of the powder diffraction data [37].

The FTIR absorption spectra of the samples were recorded with a JASCO FTIR 6200 spectrometer, in the range 400–4000 cm⁻¹, at room temperature, spectral resolution of 4 cm⁻¹, using the KBr pellet technique.

For the Raman analysis, a confocal Renishaw^®InVia microscope (Renishaw plc, Wotton-under-Edge, Gloucestershire, UK) equipped with a frequency-doubled Nd:YAG laser operating at 532 nm was employed. The Raman spectra were recorded in the range of 0–1400 cm⁻¹ with an acquisition time of 40 s (10 s integration time and four accumulations) using a laser power (measured at the sample surface) of approximatively 113 mW, while the spectral resolution of the spectrometer was ~2 cm⁻¹. Before measuring the samples, a calibration procedure using an internal silicon reference was performed. For the baseline correction, the Wire 4.2 software provided by Renishaw plc (Wotton-under-Edge, Gloucestershire, UK), with the InVia spectrometer was used.

The FTIR and Raman spectra were processed by using OriginPro 2019 software (OriginLab, Nothampton, MA, USA).

X-ray photoelectron spectroscopy (XPS) measurements were conducted on finely powdered samples using a SPECS PHOIBOS 150 MCD system equipped with monochromatic Al Kα source (250 W, hν = 1486.6 eV), hemispherical analyzer and multichannel detector, under ultra-high-vacuum conditions (the pressure in the analysis chamber was in the range of 10⁻⁸–10⁻⁹ mbar). Surface charging during the XPS analysis was avoided by using an electron gun. All spectra were calibrated against the C1s photoelectron peak at 284.8 eV. The elemental composition on samples surface was determined from survey spectra acquired in the binding energy range of 0–1200 eV at pass energy of 60 eV by a standard quantitative XPS analysis. The atomic concentrations of the constituents were calculated from the areas of the characteristic photoelectron lines assuming a Shirley type background. All high-resolution spectra were recorded using analyzer pass energy of 20 eV and analyzed after the subtraction of a Shirley background. Casa XPS (Casa Software Ltd., UK, Version 2.3.26PR1.0) software was used for the deconvolution of photoelectron peaks, considering GL (30–40) line shapes.

The surface morphology was investigated using scanning electron microscopy (SEM, VEGA3 SBU, Tescan, Brno-Kohoutovice, Czech Republic) and the elemental composition was determined through energy-dispersive X-ray spectroscopy (EDX, Quantax EDS, Bruker, Karlsruhe, Germany) at room temperature. Small samples were coated with a 10 nm gold layer using a Leica EM ACE200 (LEICA, Wetzlar, Germany).

2.5. Cell Culture and MTT Assay

The HaCaT immortalized human keratinocyte cells supplied by CLS Cell Lines Service (Eppelheim, Germany) were cultured in 96-well plates at a density of 9000 cells per well. The cells were allowed to adhere and attach for 24 h prior to treatment. Cell viability was assessed using the MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) assay (MTT, Sigma-Aldrich, Saint Louis, MO, SUA) [38,39]. After the 24-h treatment period, the MTT solution (0.5 mg/mL) was added to each well and the plates were incubated at 37 °C for 1 h to allow for the formation of formazan crystals. The media was then removed, and the crystals were dissolved using dimethyl sulfoxide (DMSO, Sigma Aldrich, Saint Louis, MO, USA). Absorbance was measured at 570 nm using a Tecan Infinite 200 Pro reader plate reader. The experiments were conducted on microplates with three identical parallel wells. The results were expressed as percentage of cell viability relative to the untreated control cells, which were assigned a value of 100% viability. The data were presented graphically as mean ± SD.

2.6. Antibacterial Activity

The antibacterial activity of the samples was assessed on the Gram-positive bacterium Staphylococcus aureus (ATCC 1109R) and the Gram-negative bacterium Escherichia coli (ATCC 25922). For each sample, a quantity of 30 mg was mixed with the bacterial suspension in liquid culture (10⁴ cells/mL). Then, 25 μL of the culture was plated on solid medium (Mueller-Hinton agar) and incubated overnight at 37 °C (the cells were plated in triplicate). Negative control (NC) was performed in the same way but without the samples. The Colony Forming Units (CFUs) were counted the following day. All experiment were conducted in triplicate. The data were presented graphically as mean ± SD.

3. Results and Discussion

3.1. Characterization of the as-Prepared Samples

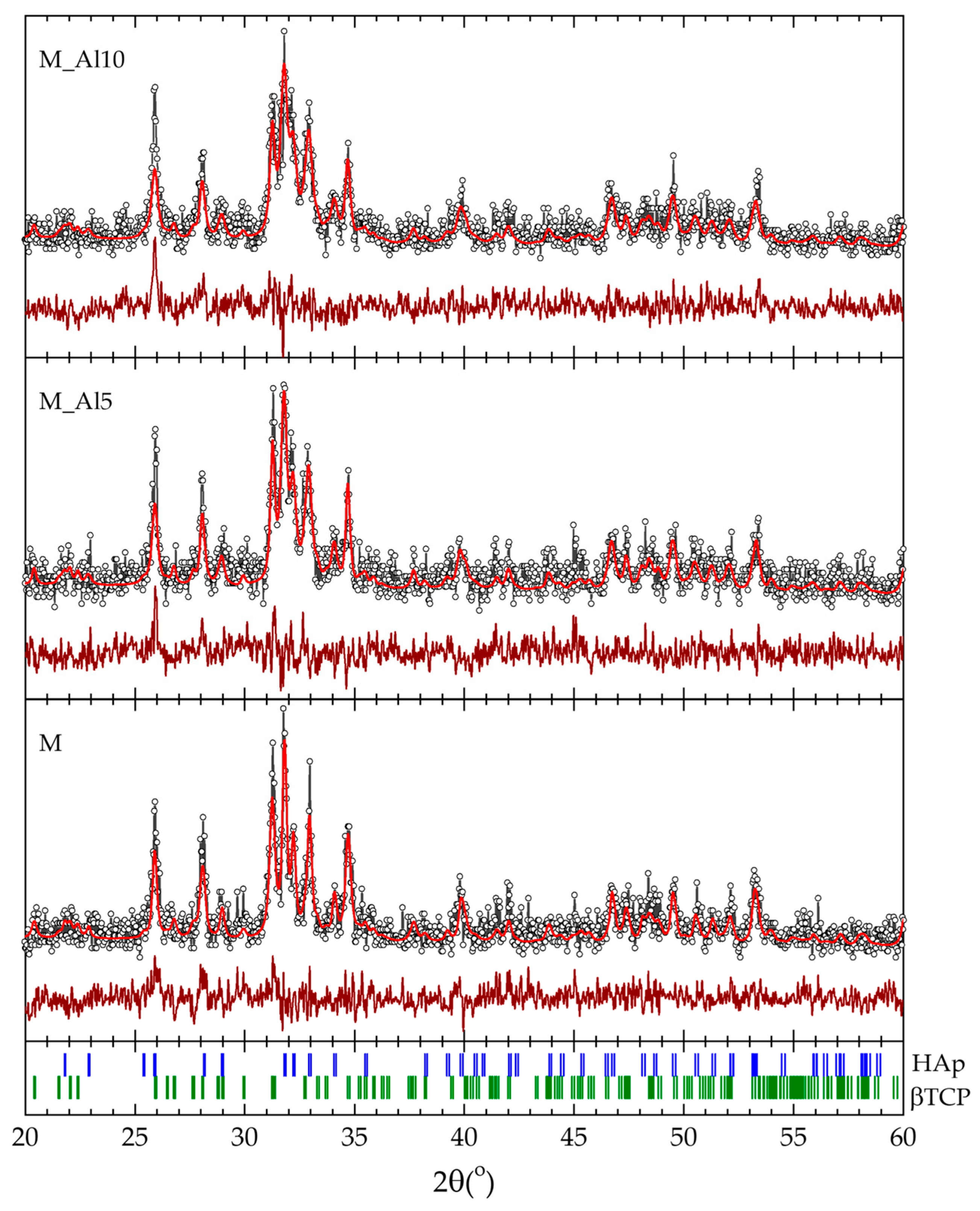

The crystalline structure of the as-prepared samples was investigated by X-ray diffraction. XRD patterns indicate the presence of HAp and β-TCP in the as-prepared samples. To estimate the phase distribution, the data collected within the 2θ range of 20° to 60° was analyzed using the Rietveld refinement method. The calculated profiles are shown in Figure 1 together with the experimental data and the results are presented in

Table 1. Rietveld refinement results of relative amounts and lattice parameters for the two identified crystalline phases in the XRD patterns.

Sample	HAp			β-TCP
	%	a (Å)	c (Å)	%	a (Å)	c (Å)
M	54.8	9.41 (4)	6.88 (2)	45.2	10.33 (6)	37.21 (7)
M_Al5	68.6	9.42 (5)	6.88 (3)	31.4	10.34 (0)	37.18 (5)
M_Al10	68.7	9.42 (2)	6.87 (7)	31.3	10.34 (2)	37.19 (6)

. All diffraction maxima are attributed to the hexagonal HAp P6₃/m and rhombohedral β-TCP R3c structures. The Al-doped samples show a significantly higher content of HAp, while the lattice parameters seem to be unaffected by the Al content and in very good agreement with the values reported in literature for the two phases [7,8,26,40,41,42,43,44].

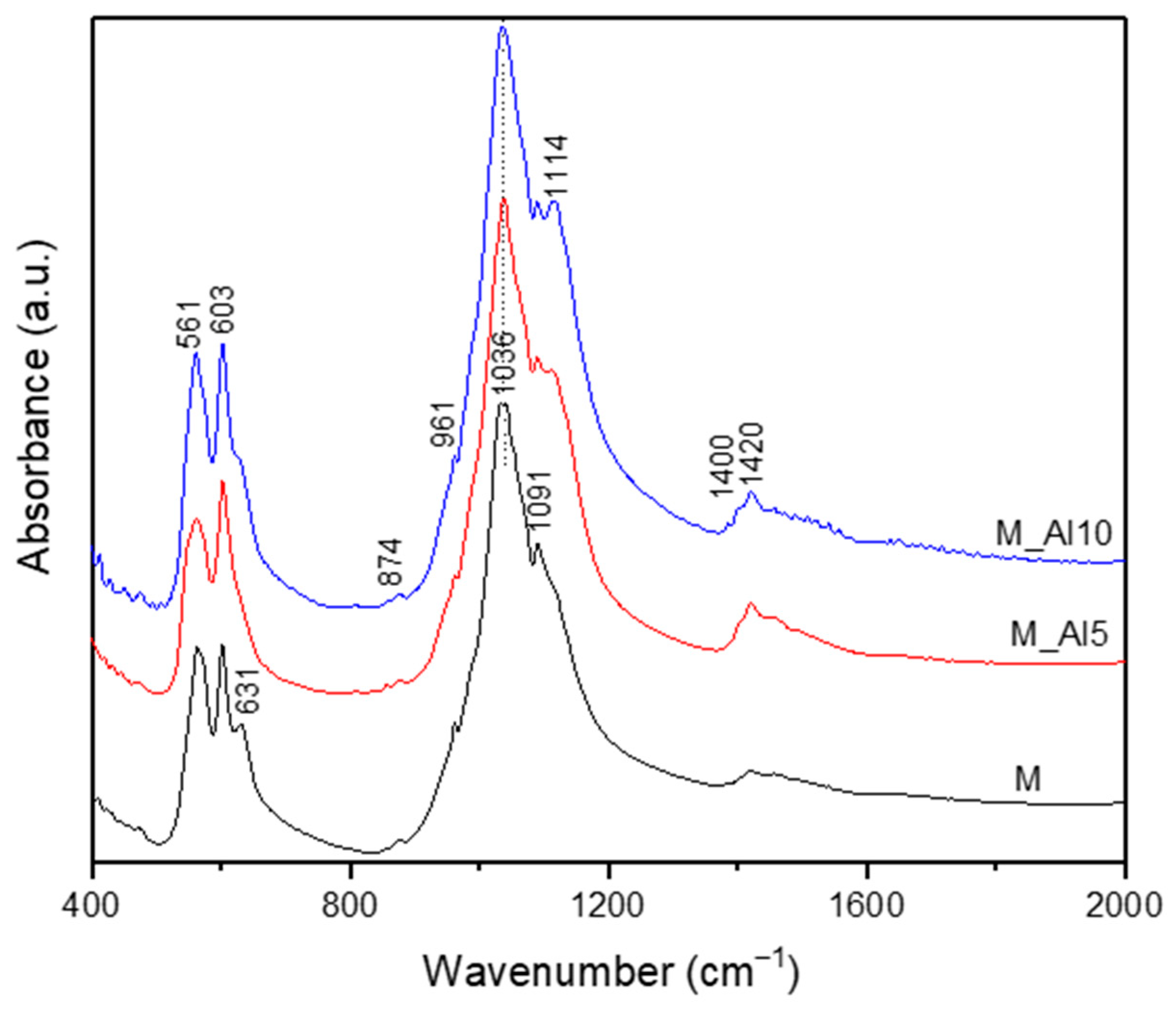

The FTIR spectra (Figure 2) confirmed the presence of functional groups characteristic for both HAp and β-TCP. The doublet at 560–605 cm⁻¹ is assigned to the triple degenerate asymmetric P-O bending mode (ν₄) from PO₄³⁻ orthophosphate units from HAp [8,45,46,47,48,49]. Their separation reflects the crystalline nature of the samples [8]. Small peaks are observed around 631 and 3572 cm⁻¹ corresponding to the bending, respectively stretching vibration of structural hydroxyl (OH⁻) groups. These bands indicate, according to the literature, the formation of the HAp structure with low crystallinity [45,46,47,48]. The peak at 961 cm⁻¹ is characteristic to symmetric stretching (ν₁) vibration of P-O from PO₄³⁻ units in hydroxyapatite [8,47,50]. The strong peak at 1036 cm⁻¹ and higher-wavenumber inflections at 1091 cm⁻¹ are assigned to P-O asymmetric stretching vibration (ν₃) [51,52]. Since literature indicates for pure HAp a strong peak at 1300 cm⁻¹ in the FTIR spectra and for the b-TCP phase a broader peak at 1040 cm⁻¹, we assume a contribution of both structural phases at the peak observed at 1036 cm⁻¹ [47,48,49,50,51]. In the FTIR spectra of Al-doped samples, a peak at 1114 cm⁻¹ is present because of the P-O asymmetric stretching vibration (ν₃) in b-TCP [53,54]. This suggests that the aluminium ions effectively modify the structure and crystallinity of the samples. The FTIR spectra of samples present additional small bands at 874 and 1400–1420 cm⁻¹ assigned to the asymmetric stretching (ν₃) and bending (ν₂) vibration mode of CO₃²⁻ [47,51]. These bands are stronger in Al-containing samples and are characteristic to the b-TCP phase [26,53]. Overall, the spectra corroborate a mixed HAp/β-TCP composition with carbonate substitution and Al-dependent spectral shifts.

In addition to FTIR spectroscopy, the Raman spectroscopy is a powerful tool for elucidating the local structure of glasses, with both techniques providing complementary insights. It is well established that a strong band in the Raman spectrum of a given compound typically corresponds to a weak band in its FTIR spectrum, and vice versa [55,56]. This complementary relationship arises due to the differing selection rules governing vibrational transitions in these spectroscopic methods. While FTIR spectroscopy primarily detects dipole moment changes associated with vibrational modes, the Raman spectroscopy is sensitive to polarizability variations within molecular bonds. Thus, the combined use of the FTIR and Raman spectroscopic techniques enables a more comprehensive characterization of glass structure, facilitating a deeper understanding of network connectivity, bond environments, and structural transformations.

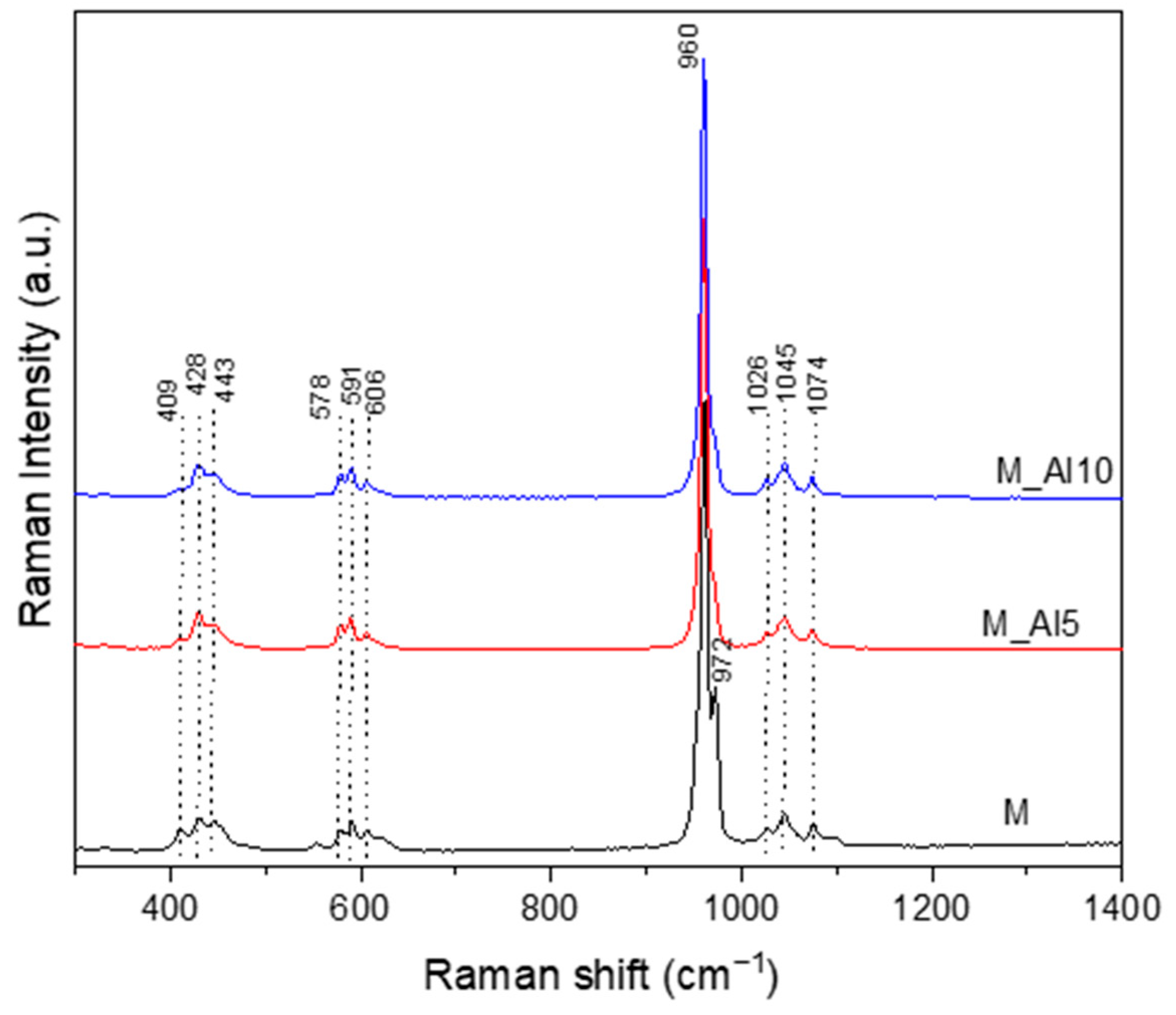

The Raman spectra, illustrated in Figure 3, present an intense maximum at 960 cm⁻¹ corresponding to the ν₁ vibration of PO₄³⁻, the symmetric stretching of P–O bonds. This band is reported in the literature at 964 cm⁻¹ for commercial HAp and 961 cm⁻¹ for bone, with small shifts for β -type carbonated hydroxyapatite [46,57]. In biphasic calcium phosphate compositions, the ~960 cm⁻¹ band reflect the formation of hydroxyapatite phase [58]. The Raman spectra of sample M present a sharp band at 972 cm⁻¹ related to ν₁ symmetric stretching of PO₄³⁻ characteristic of β-tricalcium phosphate [46]. A visible broadening of this band with Al-ion addition indicates a lattice rearrangement that suppresses the β-TCP phase. In the 400–450 cm⁻¹ region, three weak peaks were detected. The Raman band at ~409 cm⁻¹, most clearly resolved in sample M, is assigned to the ν₂ (O–P–O) bending mode of the phosphate group (PO₄³⁻), characteristic of β-tricalcium phosphate (β-TCP) and detectable in dicalcium phosphate phases [46,58]. Bands centred at 428 and 443 cm⁻¹ were attributed to the bending (ν₂) vibrational mode of P-O bonds from PO₄³⁻ units in both HAp and β-TCP phases [58,59,60,61]. The asymmetric bending vibration, ν₄ of P-O bonds generates Raman bands in the 550–650 cm⁻¹ domain [59]. In the region around 100–1100 cm⁻¹, three bands assigned to the asymmetric stretching vibration, ν₃ of P–O bond, is identified [57,58,59,60,61].

Because the β-TCP unit cell contains 42 PO₄³⁻ tetrahedra, whereas stoichiometric hydroxyapatite (HAp) contains only six, the spread of the split PO₄³⁻ band frequencies in the Raman spectrum is markedly broader in β-TCP [58,62]. Moreover, the separation between bands of the doubly degenerate ν₂ and triply degenerate ν₄ modes is substantially smaller in β-TCP (~55 cm⁻¹) than in HAp (~120 cm⁻¹) [58]. These observations indicate an Al-driven lattice rearrangement that destabilizes β-TCP and shifts the phase assemblage toward an HAp-dominant structure.

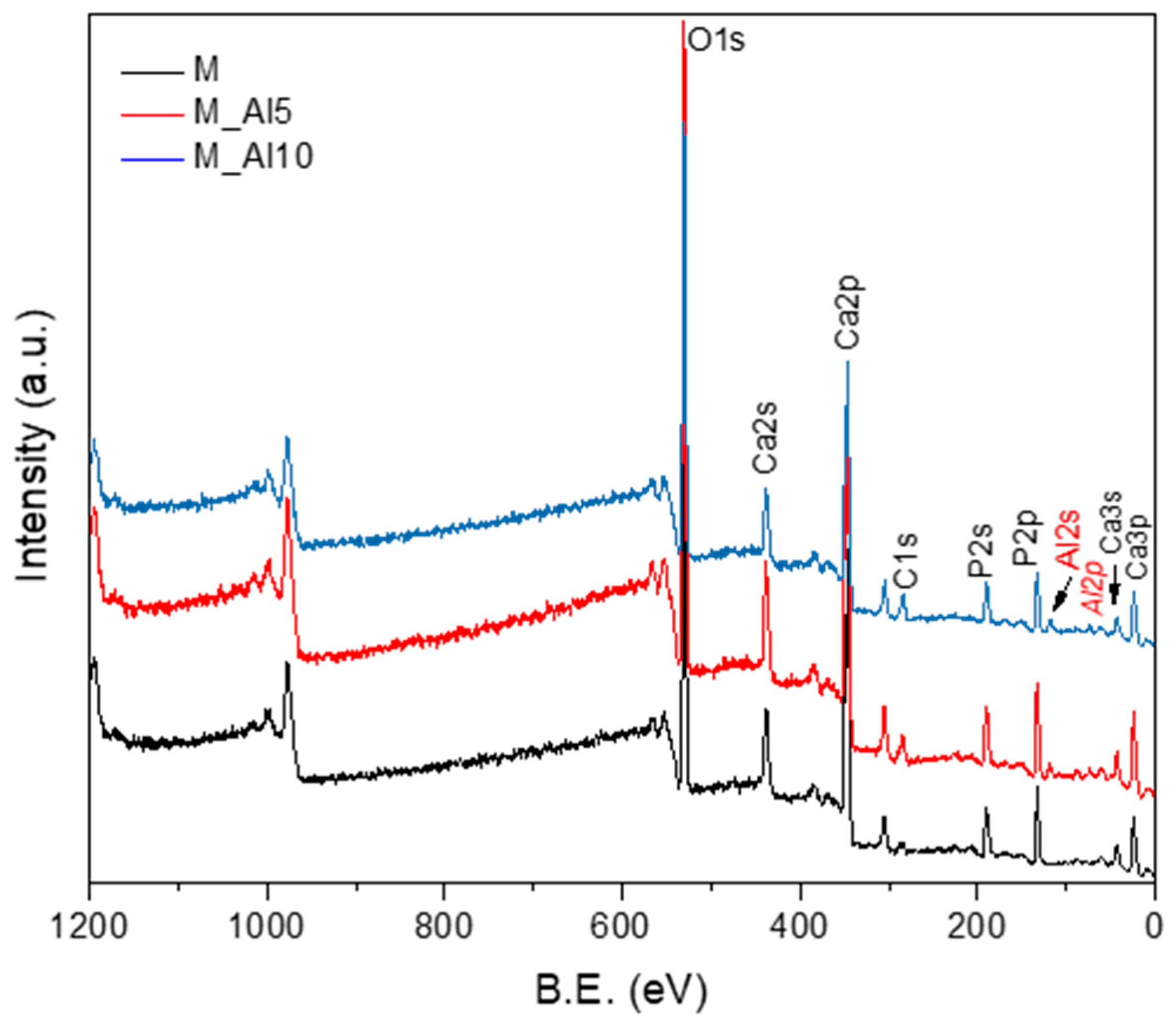

The X-ray photoelectron spectroscopy (XPS) is one of the most widely used techniques of surface analysis used to determine, from binding energy (BE) of ejected electrons, the elemental composition of materials to a depth of up to 2.5 nm from a surface. Even though the surface may not be representative of the bulk material due to an eventual contamination by reaction and/or deposition, it is essential to characterize it, since it is this outer surface that first contacts body fluids on implant [63]. The XPS survey spectra of the synthesized samples, shown in Figure 4, provide insights into their surface composition. The survey spectra were analyzed in terms of peak intensities and positions, to identify all constituent elements (O, P, Ca, Al). The elemental surface compositions of the samples, determined from the XPS analysis, are reported in

Table 2. The elemental composition of as-prepared samples determined from the XPS analysis with an accuracy of ± 0.2 at %.

Sample	Atomic %				Ratio
	Ca	P	O	Al	Ca/P
M	25.24	22.90	51.86	-	1.10
M_Al5	23.87	21.12	51.87	3.14	1.13
M_Al10	22.21	19.59	51.56	6.64	1.13

, reflecting the distribution of surface species. The Ca/P ratio in the analyzed samples are lower than those for pure HAp (1.66) or β-TCP phase (1.5) reflecting the biphasic nature of these samples.

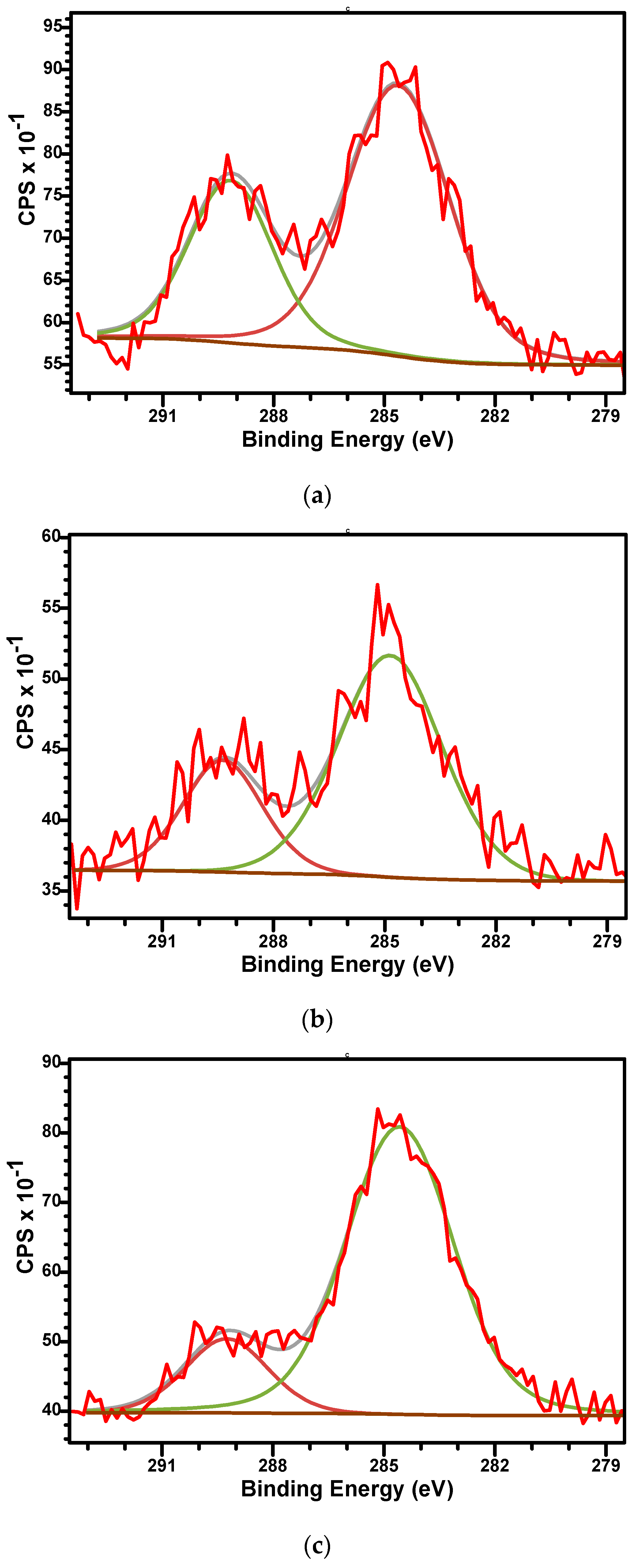

The high-resolution XPS spectra of C1s, O1s, Ca2p, and P2p for all as-prepared samples are presented in Figure 5, Figure 6, Figure 7 and Figure 8. The high-resolution spectra of C1s (Figure 5) shows two distinct signals in narrow ranges of 284.6–284.8 eV and 289.2–289.4 eV. These energies were associated with the C-C bond (284.6–284.8 eV) and with carboxyl groups O-C=O (289.2–289.4 eV). Second component confirms the presence of carbonate group (CO₃²⁻) within the material’s structure and, in consequence, the development of β-TCP phase in all samples. The ratio between the areas that cover the C-C and O-C=O contribution in the high-resolution spectra increases with the aluminium ions content increased from 2.06 to 2.6 and 5.34. This suggests that Al³⁺ disadvantages the β-TCP phase, also observed in the XRD analysis.

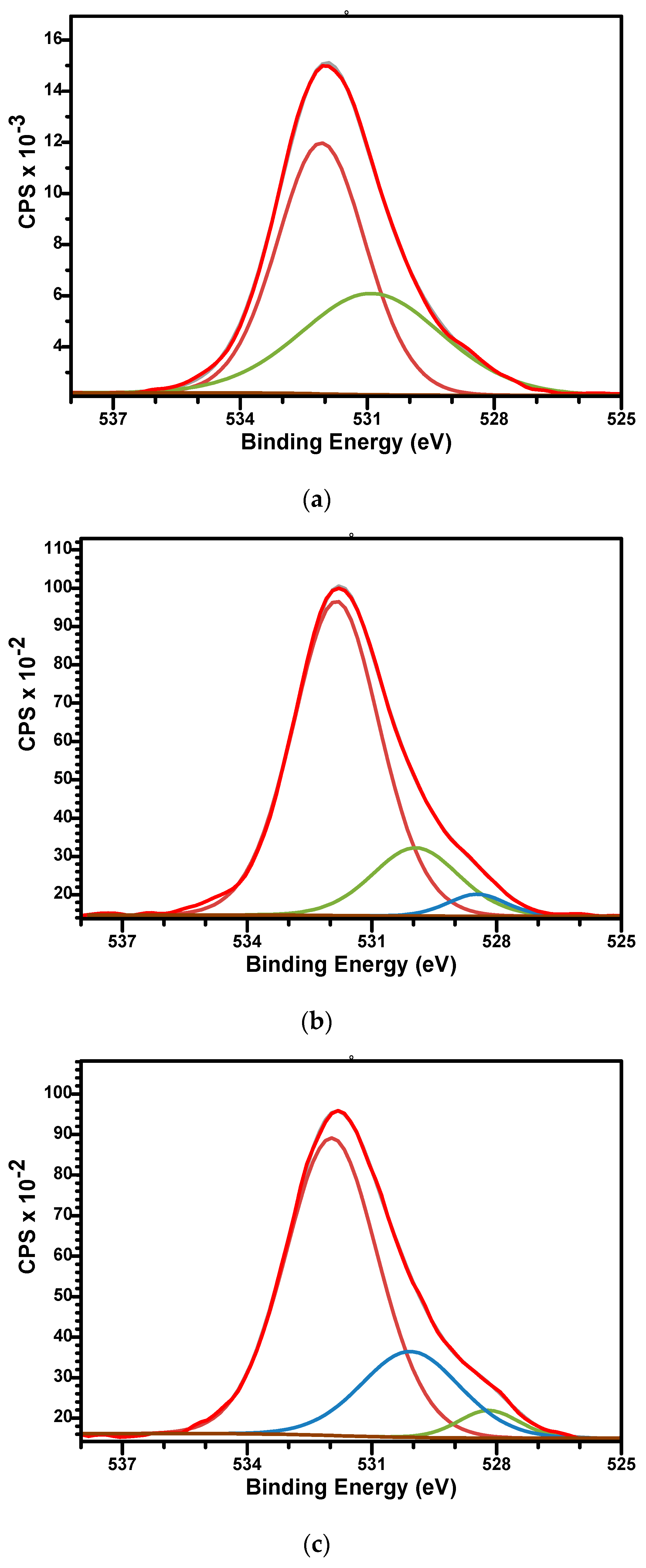

The high-resolution spectra of O1s for sample M (Figure 6a) can be fitted by two components while the spectra of M_Al5 and M_Al10 request three. For sample M, the signal at BE of 532.08 eV is associated with the P-O bonds while the signal at BE of 530.89 eV is associated with P-O, hydroxyl (OH⁻) groups, and C-O bonds [47]. For Al-containing samples (Figure 6b,c), three peaks were used to fit the signal with BE around 531.8, 530, and 528.5 eV. The first two peaks were associated similar with those of sample M while the lowest signal at 528.5 eV could be assigned to the Al-O bonds [64].

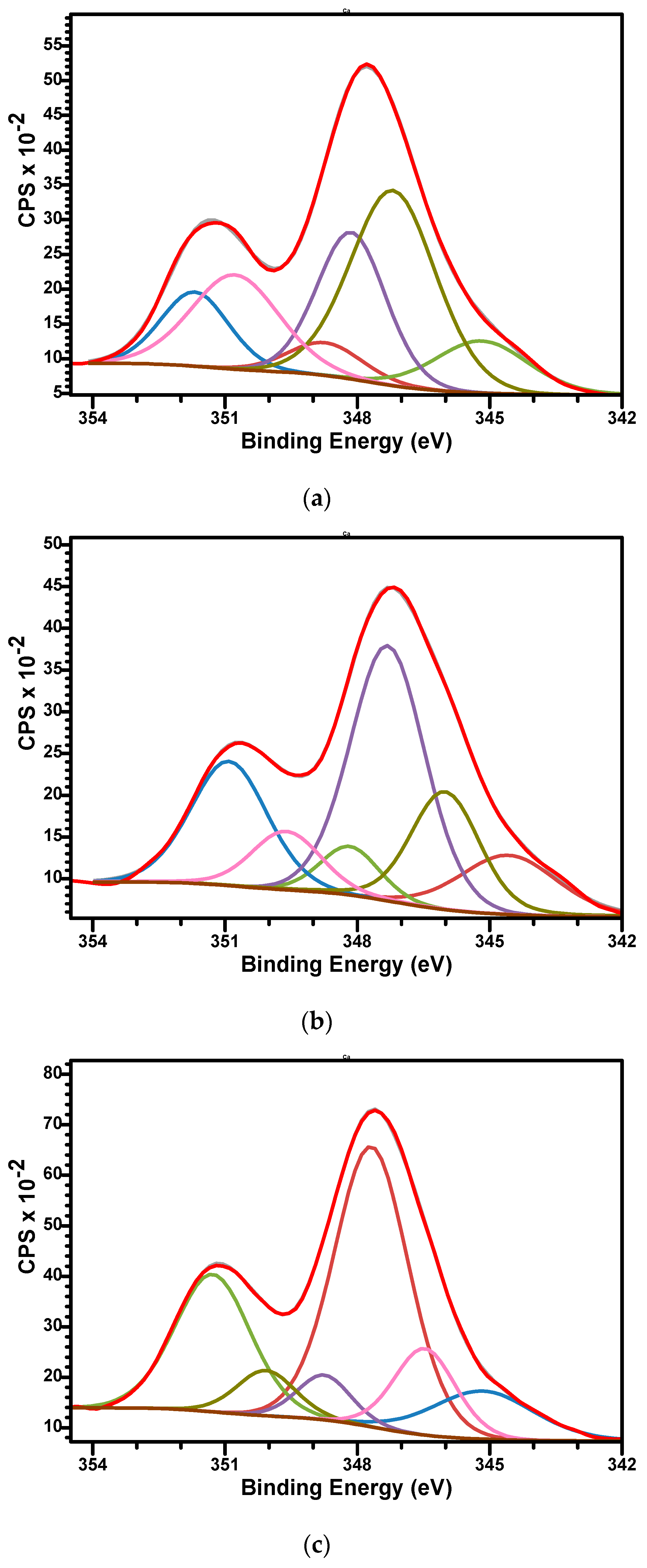

The high-resolution XPS spectra of Ca2p for samples are presented in Figure 7a–c. Three doublets for Ca2p, corresponding each doublet to 2p3/2 and 2p1/2 split, spaced at approximately 3.55 eV and with an area ratio 1:2, were used to fit the signals. The Ca 2p3/2 binding energy values were observed as follows: at 345.18, 347.19, and 348.13 eV (sample M); at 345.15, 346.47, and 347.68 eV (sample M_Al5) and 345.1, 346.02, and 347.32 eV (M_Al10). The binding energies are specific to biphasic calcium phosphate materials, but a specific association of the signal is difficult since the divalent Ca²⁺ occupied two sites in HAp and five sites in β-TCP structures [65]. This peculiarity generates differences in their electronic structures and therefore differences in their atomic binding energies. We attribute the Ca 2p₃/₂ component characteristic of CaCO₃ to the lower BE (~345.1), whereas the higher BEs are consistent with Ca in calcium-phosphate (BCP: HAp/β-TCP) environments.

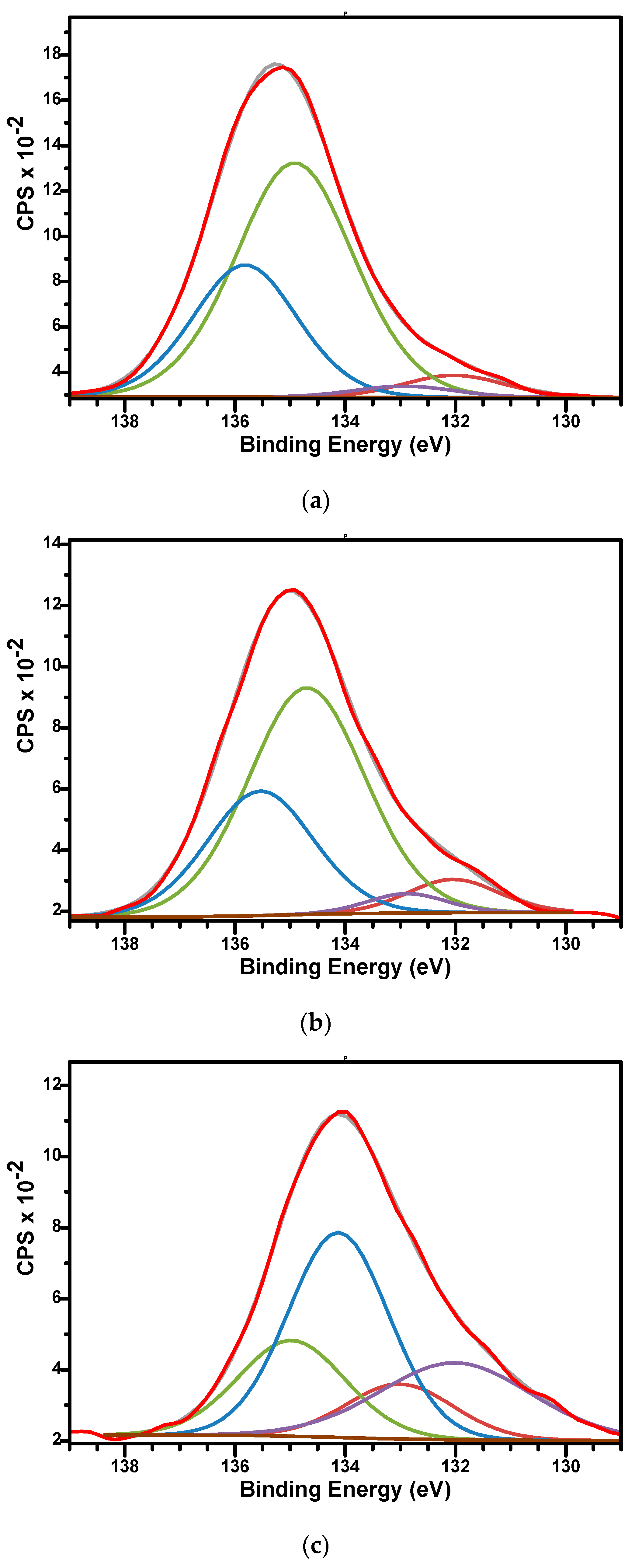

The high-resolution XPS spectra of P2p for samples are presented in Figure 8a–c. The spectra were fitted using two doublets, each covering peaks of P 2p3/2 and P 2p1/2 contribution, spaced by approximately 0.86 eV and with an area ratio of 0.5. The binding energies for P 2p3/2 signals were 132.04 and 134.7 eV for sample M; 132.03 and 134.8 eV for sample M_Al5; and 132.01 and 134.12 eV for sample M_Al10, respectively. The binding energies around 132 eV for P 2p3/2 signals were specific to orthophosphate PO₄³⁻ units characteristics for hydroxyapatite while the binding energies around 134.5 eV were characteristics to the metaphosphate (P-O-P bonds) structure [64,66].

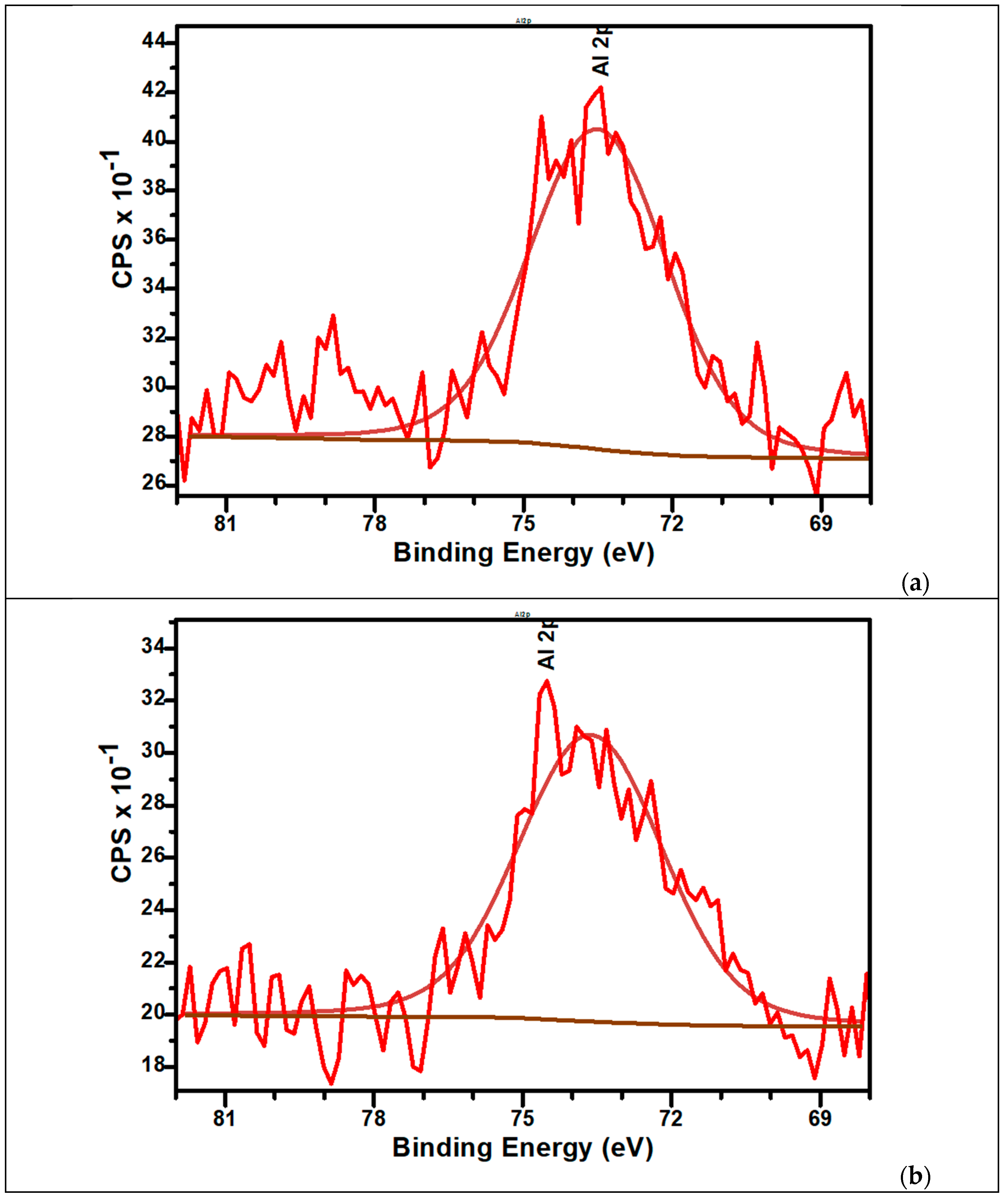

The high-resolution XPS spectra of Al2p for samples are presented in Figure 9a,b. The signals present a small shift to lower binding energy at the aluminium content increases in sample. For M_Al5, the Al2p peak is centred at 75.4 eV while for M_Al10 appears at 75 eV. These values are indicators for the presence of Al³⁺ bonds with Ca²⁺ (via oxygen atoms bridges), PO₄²⁻ and/or PO₄³⁻.

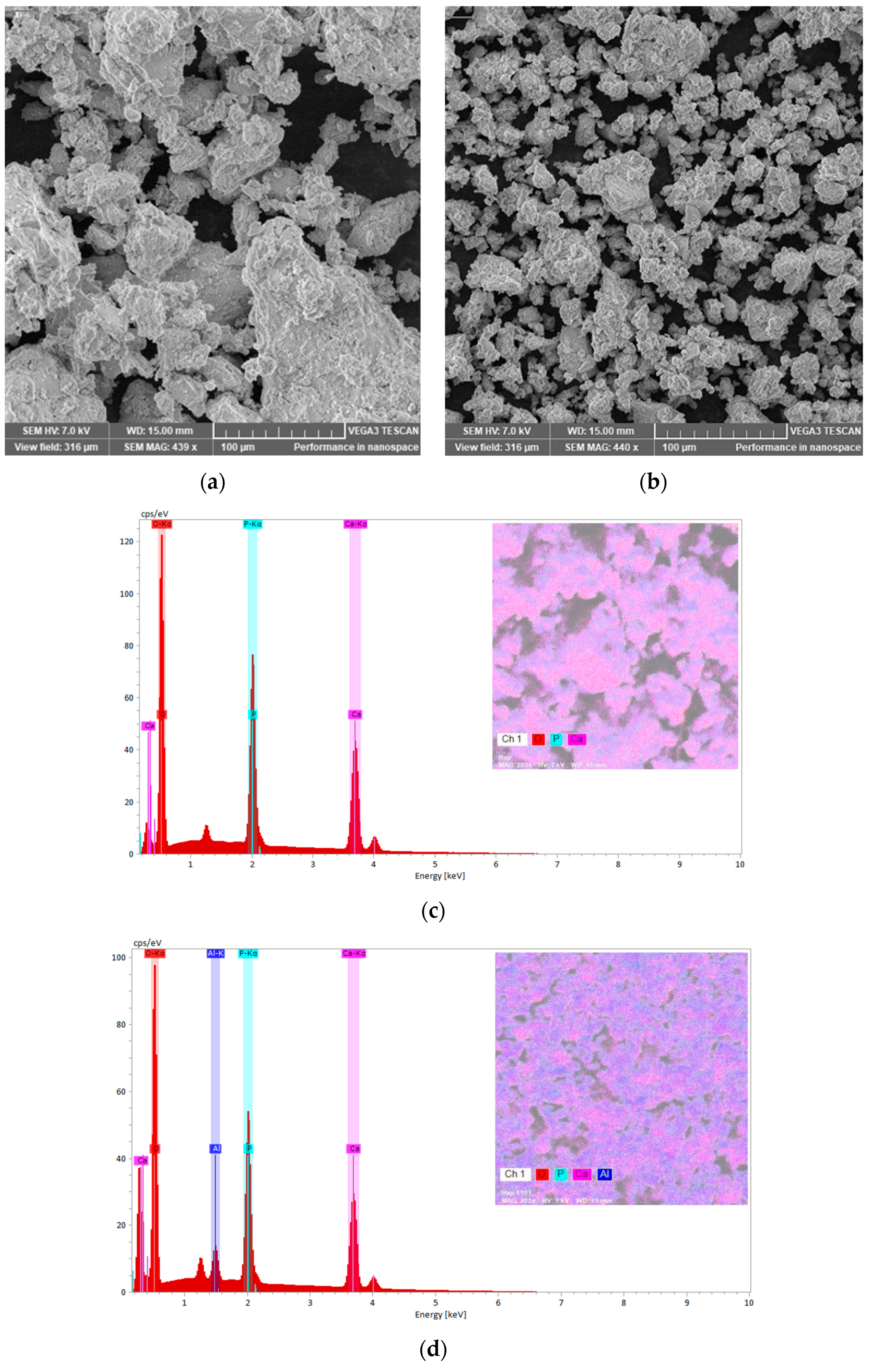

To follow the morphology and the aggregation tendency of the biphasic calcium phosphate sample with the aluminium additions, SEM images were taken (Figure 10a,b). Moreover, EDX spectra were recorded to check the samples composition (Figure 10c,d). The SEM images indicate the distribution of the constitutive atoms in agglomerates, which consist of smaller particles with a wide range size distribution for sample M. Increasing the Al content produces a marked reduction in particle size, consistent with an Al-driven rearrangement toward an HAp-dominated structure. XRD analysis corroborates this trend (Table 1). Raman spectra likewise indicate this evolution. The β-TCP ν₁(PO₄) band at 972 cm⁻¹ is nearly extinguished upon Al addition, while the HAp ν₁(PO₄) band at 960 cm⁻¹ becomes dominant. The energy-dispersive X-ray spectroscopy (EDX) confirms the composition, detecting Ca and P consistent with calcium-phosphate phases together with Al. The EDX maps presented in pseudo-colour representation illustrate the elemental distribution across the sample surfaces. For sample M, the map reveals a relatively homogeneous dispersion of Ca and phosphorus P with localized oxygen enrichments. In contrast, the map for the M_Al10 sample indicates a uniform distribution of Al on the surface, with observable agglomeration of calcium and phosphorus. These observations corroborate the findings obtained through the Rietveld refinement analysis.

3.2. Characterization of the Composite Samples

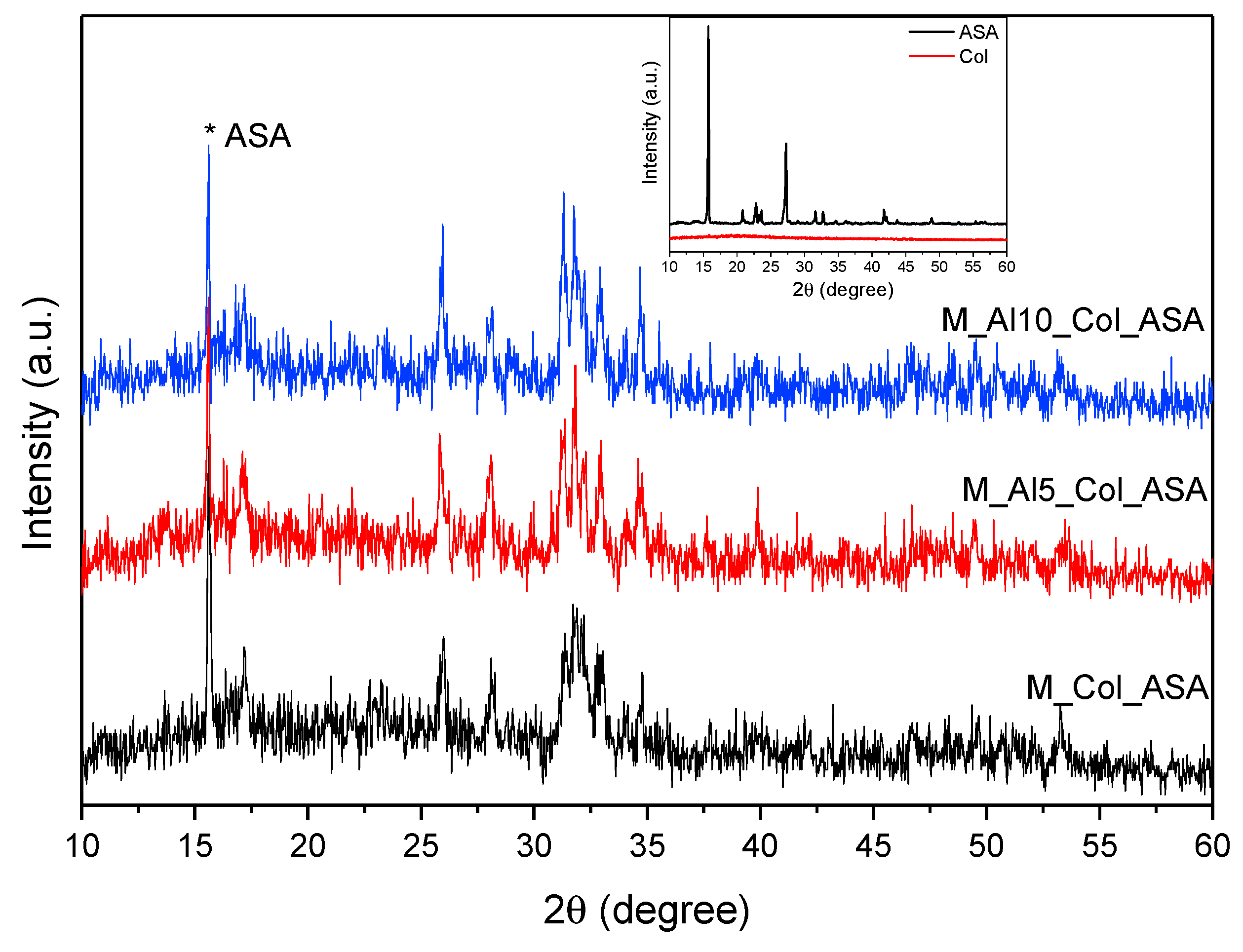

Figure 11 compares the XRD patterns of the composite samples with those of pure aspirin (ASA) and collagen (COL). The prominent ASA reflection at 2θ ≈ 15.72° appears in all three composites, indicating successful drug incorporation. In addition to this feature, the composites retain the characteristic reflections of biphasic calcium phosphate (BCP), consistent with preservation of the underlying HAp/β-TCP framework. Because collagen hydrolysate is largely amorphous, XRD is not diagnostic for its incorporation. The composite patterns exhibit a modest attenuation of BCP peak intensities relative to the pristine ceramic, attributable to dilution and partial scattering/absorption by the organic constituents.

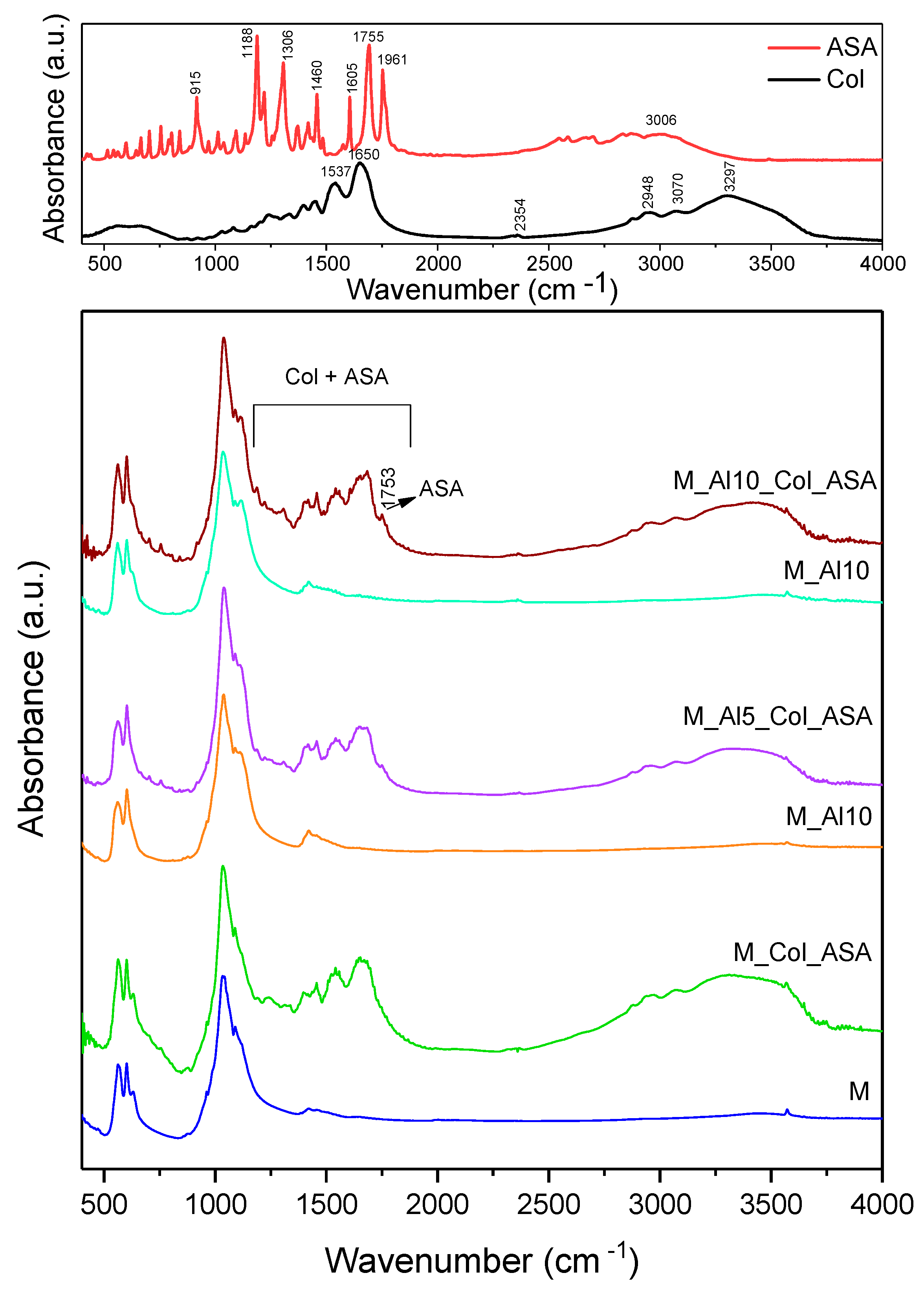

Figure 12 presents the FTIR spectra of acetylsalicylic acid (ASA), collagen (Col), as prepared and composite samples. The FTIR spectrum of ASA presents in the 500–2000 cm⁻¹ domain multiple sharp peaks, very strong at 1755 cm⁻¹ associated with ester C=O stretch, strong at 1961 cm⁻¹ due to carboxylic-acid C=O stretch (H-bonded), medium at ~1605 and 1460 cm⁻¹ assigned to aromatic C=C stretches, strong at 1306 and 1188 cm⁻¹ due to C–O stretches from both, ester (–COOR) and carboxylic acid (–COOH) groups [67,68]. The FTIR band at 915 cm⁻¹ is commonly assigned to an aromatic C–H out-of-plane bending vibration of the substituted benzene ring [67,68]. Broad bands associated to O–H stretching vibration in the 2500–3300 cm⁻¹ spectral range were also observed. The infrared spectrum of collagen shows clear bands at 1650 cm⁻¹ (Amide I, C=O stretching vibrations of the peptide bond), 1537 cm⁻¹ (Amide II, primarily N–H bending with C–N stretching vibrations), and 1236 cm⁻¹ (Amide III, mixed C–N stretching and N–H in-plane bending vibrations) [69,70,71]. A large band was observed at 3297 cm⁻¹ as a contribution of Amide A (N–H bond stretching in the collagen triple helix) [72]. The FTIR spectra of the composites appear as superpositions (envelopes) of bands from the as-prepared ceramic, acetylsalicylic acid (ASA), and collagen. In the 1200–1700 cm⁻¹ region and near 3300 cm⁻¹, all characteristic collagen bands are observed. In addition, a very weak band at 1753 cm⁻¹ is discernible for the Al-containing composites, consistent with ASA incorporation and successful composite formation.

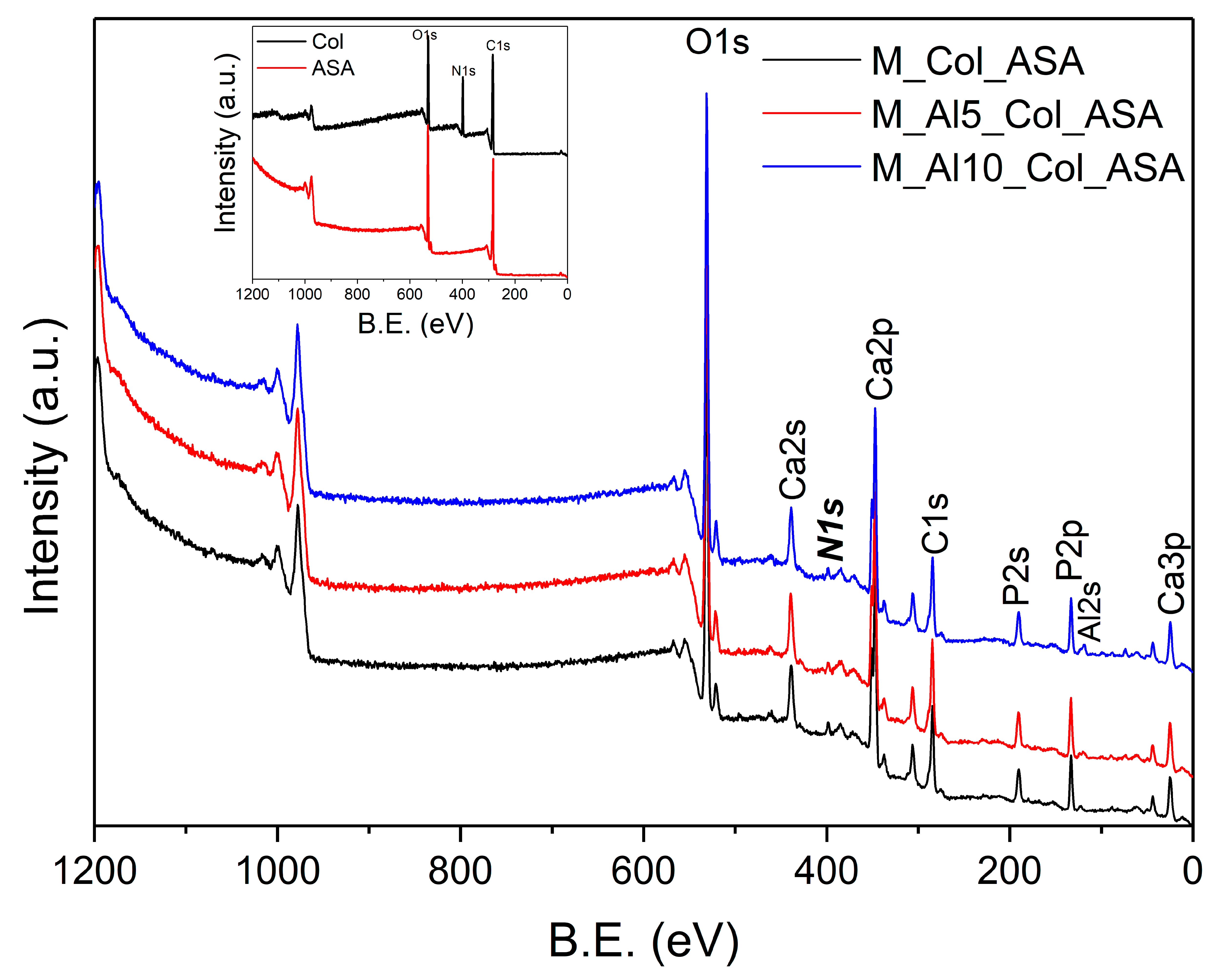

The survey XPS spectra (Figure 13) of the composites reproduce the principal features of the as-prepared powders (Figure 4) and display an additional N 1s peak, evidencing ASA loading. Although collagen cannot be uniquely identified by XPS (it contributes primarily C and O), the composites exhibit higher surface C and O atomic percentages than the as-prepared samples (

Table 3. The elemental composition of composite samples determined from the XPS analysis with an accuracy of ±0.2 at %.

Sample		Atomic %				Ratio
	Ca	P	O	N	Al	Ca/P
M_Col_ASA	22.63	19.60	55.55	2.22	-	1.15
M_Al5_Col_ASA	21.35	18.57	55.89	1.98	2.26	1.15
M_Al10_Col_ASA	19.93	17.14	55.82	2.05	5.05	1.16

), indicating enrichment of both ASA and Col at the outermost surface, advantageous for bone-regeneration applications. The Ca/P atomic ratio remains approximately unchanged. Notably, the surface Al³⁺ content decreases in the composites, likely due to coverage/dilution by the organic overlayer.

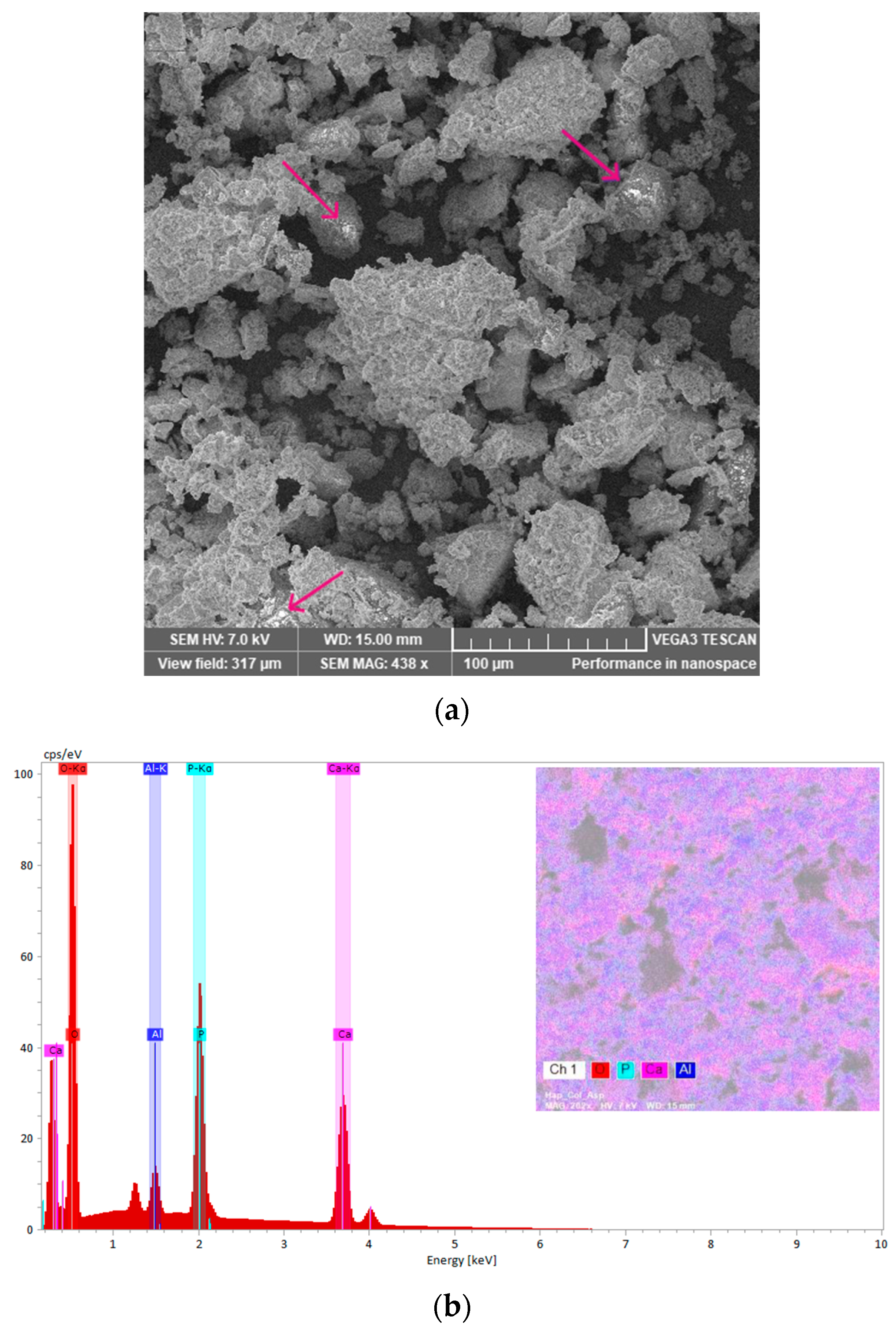

Additional morphological information was obtained by scanning electron microscopy (SEM). Figure 14a shows the SEM image of the M_Al10_Col_ASA sample, revealing a multigranular, heterogeneous surface with a broad crystallite-size distribution. Compared with the as-prepared material (Figure 10b), the composite exhibits increased agglomeration, attributable to the incorporation of collagen and ASA. Bright spots, assigned to ASA-rich domains, are also visible (see inset in Figure 14a). Figure 14b presents the energy-dispersive X-ray (EDX) spectrum of the M_Al10_Col_ASA sample; pseudo-colour elemental map illustrates the distribution across the sample surface.

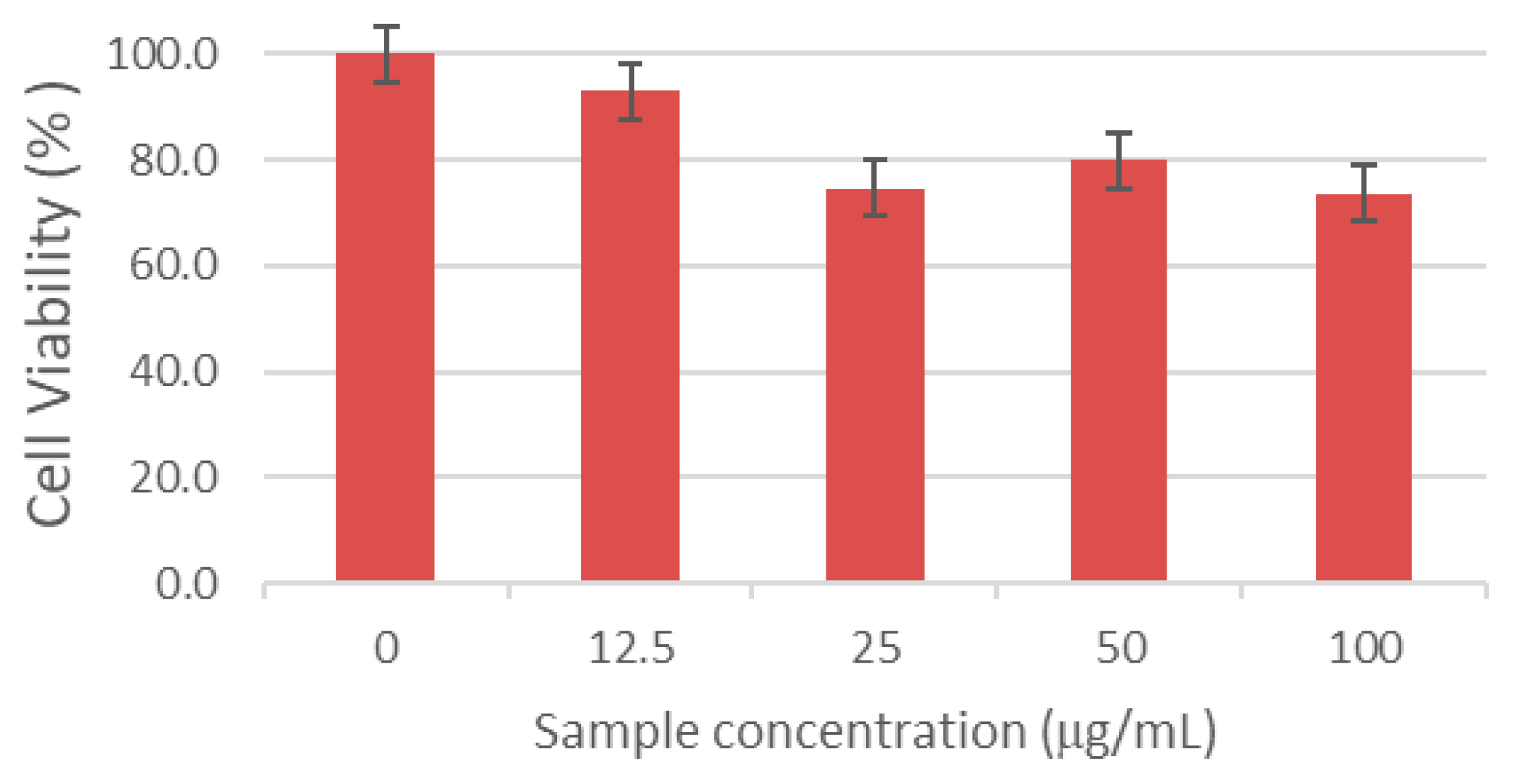

Implant success is largely determined by cell–biomaterial interactions at the surface. Insufficient adhesion can impair tissue repair and compromise osseointegration. To assess cytocompatibility, serial dilutions of the composites were tested with HaCaT keratinocytes. Although the target tissue of composites is bone, ISO 10993 [73] recommends an initial, standardized cytotoxicity screen to detect extract-mediated effects before lineage-specific assays. HaCaT keratinocytes were used here as a conservative first-pass model because (i) implantation in dentoalveolar/craniofacial settings transiently exposes keratinized epithelia to leachable, and (ii) keratinocytes are sensitive to shifts in pH/ionic strength and to small-molecule or ionic releases (e.g., ASA; Ca/P/Al species), thus providing an early safety flag under extract conditions. Cell viability after 24 h was quantified by the MTT assay and expressed as a percentage of the untreated control (mean ± SD; control = 100%; Figure 15). All formulations showed viability of at least 70% across the tested dilutions, meeting the ISO 10993-5 criterion for non-cytotoxicity [73]. Notably, the M_AL10_Col_ASA composite at 12.5% yielded the highest viability (>90%), indicating excellent cytocompatibility and underscoring its promise for biomedical applications.

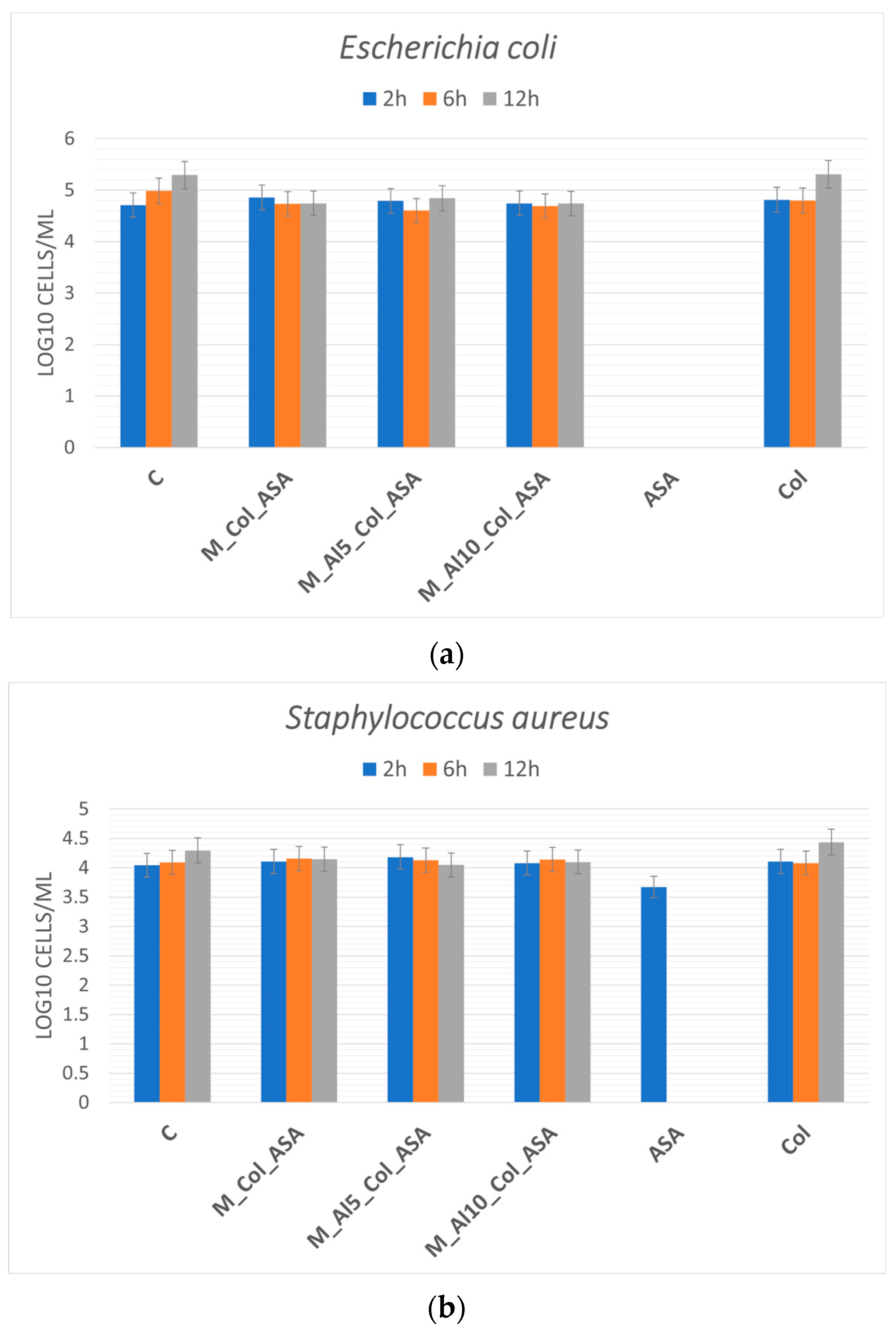

The in vitro antibacterial response of the composites was assessed against Escherichia coli (ATCC 25922) and Staphylococcus aureus (ATCC 1109R). CFUs were quantified at 2, 6, and 12 h, and results are shown as mean ± standard error (n = 3) in Figure 16a,b. In bone-regenerative biomaterials, acetylsalicylic acid (ASA) can act as a bioactive additive that—via cyclo-oxygenase (COX) inhibition and consequent prostaglandin E₂ suppression—attenuates inflammation, modulates osteoblast–osteoclast activity, and may provide adjunct antibacterial/biofilm-modulating effects under controlled release [5,32,33,34,35,74]. Within the present variability, the small decreases observed for E. coli at 6–12 h did not exceed the associated standard errors and are therefore interpreted as non-significant trends. For S. aureus, CFU values were consistently lower than the negative control across time points, indicating a time-dependent bacteriostatic tendency; however, these differences likewise did not reach statistical significance under the current sampling. Notably, even modest bacteriostatic effects are relevant for implantable biomaterials because they curb early bacterial proliferation, allowing the host immune system (and adjunct antibiotics, if used) to clear the residual burden. Accordingly, under the tested conditions the composites exhibit modest, time-dependent bacteriostatic behavior consistent with ASA’s strain- and dose-dependent adjunct activity; larger sample sizes, optimized ASA loading/release, and formal hypothesis testing are warranted to resolve statistical differences.

4. Conclusions

This study reports the successful synthesis of Al-modified biphasic calcium phosphate (Al-BCP) ceramics and Al-BCP–collagen–aspirin (Al-BCP–Col–ASA) composites. All materials are crystalline and display signatures of both hydroxyapatite (HAp) and β-tricalcium phosphate (β-TCP). Aluminium incorporation shifts the phase assemblage toward HAp and, in the composites, promotes stronger interfacial retention/adhesion of Col and ASA. Spectroscopic and surface analyses (FTIR, Raman, XPS) and SEM observations consistently support efficient organic loading and uniform surface coverage

Cytocompatibility assays with HaCaT keratinocytes showed more than 70% viability across tested dilutions, meeting ISO 10993-5 criteria for non-cytotoxicity, with the M_AL10_Col_ASA formulation at 12.5% achieving >90% viability. In vitro, preliminary antibacterial tests demonstrated a time-dependent modest bacteriostatic effect against Staphylococcus aureus. These results indicate that the composites can suppress early bacterial colonization while maintaining cell viability, thereby supporting conditions favorable for stable implant–bone integration.

Overall, the aluminium-modified new BCP–Col–ASA system is a promising candidate for bone-regeneration applications. Future work should quantify ASA release kinetics and anti-inflammatory efficacy; correlate antibacterial activity with dose and exposure time; and evaluate degradation/resorption under physiological conditions, followed by in vivo testing.
