# On Computational Aspects of Krawtchouk Polynomials for High Orders

^{1}

^{2}

^{*}

^{†}

^{‡}

## Abstract

**:**

## 1. Introduction

## 2. Preliminaries

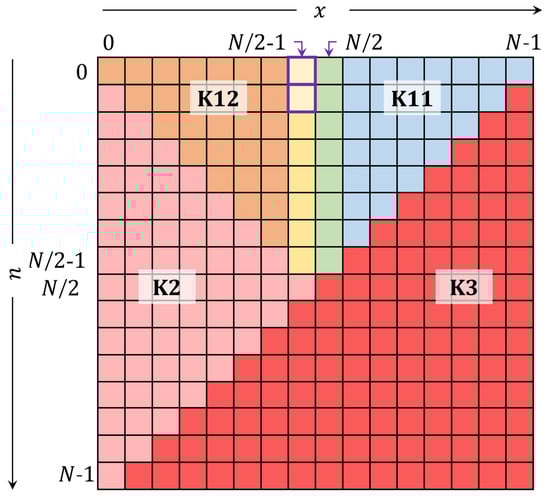

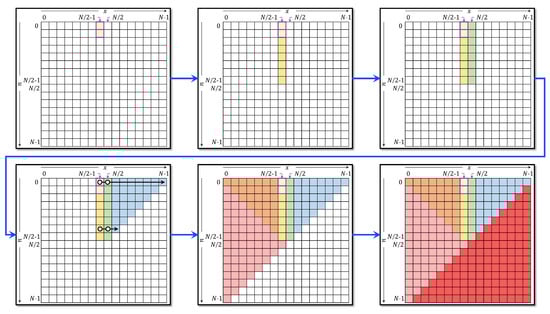

## 3. Proposed Recurrence Algorithm

- The Initial value ${\mathbf{\U0001d4da}}_{0}^{0.5}\left(\right)open="("\; close=")">N/2-1$ is computed using Equation (9).
- The value of ${\mathbf{\U0001d4da}}_{0}^{0.5}\left(\right)open="("\; close=")">N/2$ is computed from ${\mathbf{\U0001d4da}}_{0}^{0.5}\left(\right)open="("\; close=")">N/2-1$ using Equation (10).
- The first set of initial used for TTRA is computed in the range of $n=2,3,\dots ,N/2-1$ and $x=N/2-1$ using Equation (11).
- The first set of initial used for TTRA is computed in the range of $n=2,3,\dots ,N/2-1$ and $x=N/2$ using Equation (12).
- The modified recurrence algorithm, Equation (13), is used to compute the values of the coefficients in the range $n=0,1,\dots ,N/2-1$ and $x=N/2,\dots ,N-n-2$. It should be noted that, for each x, when ${\mathbf{\U0001d4da}}_{n}^{0.5}\left(\right)open="("\; close=")">x+1$ and ${\mathbf{\U0001d4da}}_{n}^{0.5}\left(x\right)<{10}^{-5}$, the recurrence relation is terminated and n is increased by 1.

## 4. Performance Evaluation of the Proposed Method

- A test image, $\mathbf{I}$, is used.
- The test image is resized to a small size ${N}_{s}\times {N}_{s}$,
- DKP, $\mathbf{R}$, is generated with signal size and order of (${N}_{s}\times {N}_{s}$),
- The moment, $\mathbf{M}$, is computed using $\mathbf{M}=\mathbf{R}\times \mathbf{I}\times {\mathbf{R}}^{T}$,
- The test image is then reconstructed back from the moment domain using ${\mathbf{I}}_{\mathbf{r}}={\mathbf{R}}^{T}\times \mathbf{M}\times \mathbf{R}$,

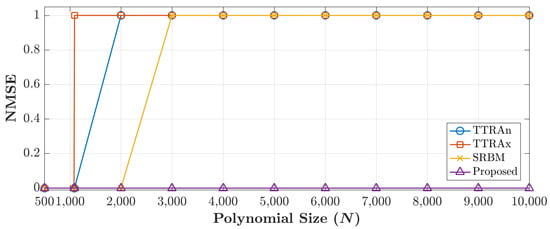

- The normalized mean square error (NMSE) is computed between $\mathbf{I}$ and ${\mathbf{I}}_{\mathbf{r}}$,
- If the $NMSE<2.5\times {10}^{-3}$, the size of the image and DKP is increased by 2, i.e., ${N}_{s}={N}_{s}+2$ and repeat step 1 to 7.
- If the $NMSE>2.5\times {10}^{-3}$, the maximum size can be generated by the polynomial is reached and reported.
- The maximum size considered in the experiment is set to 12,288.

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

DKP | discrete Krawtchouk polynomials |

DKPC | discrete Krawtchouk polynomial Coefficient |

TTRA | three-term recurrence algorithm |

TTRAn | three-term recurrence algorithm in the n-direction |

TTRAx | three-term recurrence algorithm in the x-direction |

SRBM | symmetry relation-based method |

NMSE | normalized mean square error |

## References

- Camacho-Bello, C.; Rivera-Lopez, J.S. Some computational aspects of Tchebichef moments for higher orders. Pattern Recognit. Lett.
**2018**, 112, 332–339. [Google Scholar] [CrossRef] - Akhmedova, F.; Liao, S. Face recognition using discrete orthogonal hahn moments. World Acad. Sci. Eng. Technol. Int. J. Comput. Electr. Autom. Control Inf. Eng.
**2015**, 9, 1550–1556. [Google Scholar] - Abdul-Hadi, A.M.; Abdulhussain, S.H.; Mahmmod, B.M. On the computational aspects of Charlier polynomials. Cogent Eng.
**2020**, 7, 1763553. [Google Scholar] [CrossRef] - Mahmmod, B.M.; bin Ramli, A.R.; Abdulhussain, S.H.; Al-Haddad, S.A.R.; Jassim, W.A. Signal compression and enhancement using a new orthogonal-polynomial-based discrete transform. IET Signal Process.
**2018**, 12, 129–142. [Google Scholar] [CrossRef] - Idan, Z.N.; Abdulhussain, S.H.; Al-Haddad, S.A.R. A New separable moments based on Tchebichef– Krawtchouk polynomials. IEEE Access
**2020**, 8, 41013–41025. [Google Scholar] [CrossRef] - Abdulhussain, S.H.; Ramli, A.R.; Mahmmod, B.M.; Saripan, M.I.; Al-Haddad, S.A.R.; Jassim, W.A. A new hybrid form of Krawtchouk and Tchebichef polynomials: Design and application. J. Math. Imaging Vis.
**2019**, 61, 555–570. [Google Scholar] [CrossRef] - Mahmmod, B.M.; Ramli, A.R.; Baker, T.; Al-Obeidat, F.; Abdulhussain, S.H.; Jassim, W.A. Speech enhancement algorithm based on super-gaussian modeling and orthogonal polynomials. IEEE Access
**2019**, 7, 103485–103504. [Google Scholar] [CrossRef] - Abdulhussain, S.H.; Rahman Ramli, A.; Mahmmod, B.M.; Iqbal Saripan, M.; Al-Haddad, S.; Baker, T.; Flayyih, W.N.; Jassim, W.A. A fast feature extraction algorithm for image and video processing. In Proceedings of the 2019 International Joint Conference on Neural Networks (IJCNN), Budapest, Hungary, 14–19 July 2019; IEEE: Piscataway, NJ, USA, 2019; pp. 1–8. [Google Scholar]
- Abdulhussain, S.H.; Al-Haddad, S.A.R.; Saripan, M.I.; Mahmmod, B.M.; Hussien, A. Fast temporal video segmentation based on Krawtchouk–Tchebichef moments. IEEE Access
**2020**, 8, 72347–72359. [Google Scholar] [CrossRef] - Radeaf, H.S.; Mahmmod, B.M.; Abdulhussain, S.H.; Al-Jumaeily, D. A steganography based on orthogonal moments. In Proceedings of the International Conference on Information and Communication Technology—CICT ’19; ACM Press: New York, NY, USA, 2019; pp. 147–153. [Google Scholar]
- Yap, P.-T.; Paramesran, R.; Ong, S.-H. Image analysis by krawtchouk moments. IEEE Trans. Image Process.
**2003**, 12, 1367–1377. [Google Scholar] [PubMed] [Green Version] - Koekoek, R.; Lesky, P.A.; Swarttouw, R.F. Hypergeometric Orthogonal Polynomials and Their Q-Analogues; Springer Science & Business Media: Berlin/Heidelberg, Germany, 2010. [Google Scholar]
- Abdulhussain, S.H.; Ramli, A.R.; Al-Haddad, S.A.R.; Mahmmod, B.M.; Jassim, W.A. Fast recursive computation of Krawtchouk polynomials. J. Math. Imaging Vis.
**2018**, 60, 285–303. [Google Scholar] [CrossRef] - Zhu, H.; Liu, M.; Shu, H.; Zhang, H.; Luo, L. General form for obtaining discrete orthogonal moments. IET Image Process.
**2010**, 4, 335. [Google Scholar] [CrossRef] - Birch, G.C.; Griffin, J.C. Sinusoidal Siemens star spatial frequency response measurement errors due to misidentified target centers. Opt. Eng.
**2015**, 54, 074104. [Google Scholar] [CrossRef]

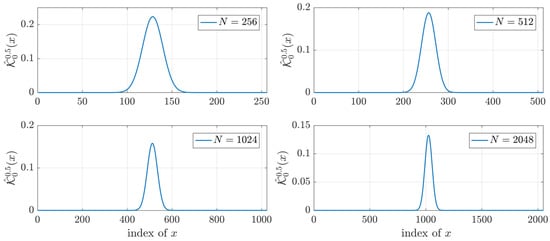

**Figure 2.**Plot of ${\mathbf{\U0001d4da}}_{0}^{0.5}\left(x\right)$ for different values of polynomial size.

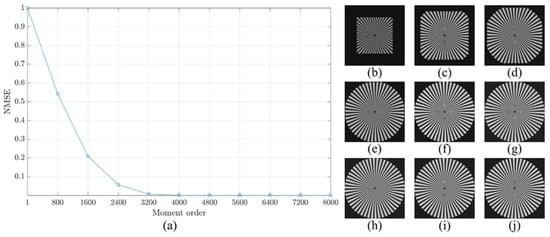

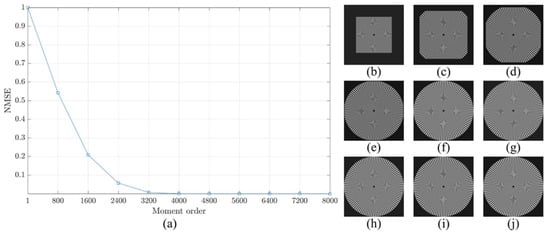

**Figure 9.**Construction analysis for the proposed method using sinusoidal Siemens start with $\omega =50$. (

**a**) NMSE, image reconstructed using number of moment equal to (

**b**) 800, (

**c**) 1600, (

**d**) 2400, (

**e**) 3200, (

**f**) 4000, (

**g**) 4800, (

**h**) 5600, (

**i**) 6400, and (

**j**) 7200.

**Figure 10.**Construction analysis for the proposed method using sinusoidal Siemens start with $\omega =100$. (

**a**) NMSE, image reconstructed using number of moment equal to (

**b**) 800, (

**c**) 1600, (

**d**) 2400, (

**e**) 3200, (

**f**) 4000, (

**g**) 4800, (

**h**) 5600, (

**i**) 6400, and (

**j**) 7200.

**Figure 11.**Construction analysis for the proposed method using sinusoidal Siemens start with $\omega =200$. (

**a**) NMSE, image reconstructed using number of moment equal to (

**b**) 800, (

**c**) 1600, (

**d**) 2400, (

**e**) 3200, (

**f**) 4000, (

**g**) 4800, (

**h**) 5600, (

**i**) 6400, and (

**j**) 7200.

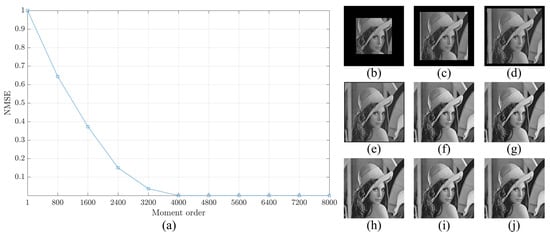

**Figure 12.**Construction analysis for the proposed method using Lena image. (

**a**) NMSE, image reconstructed using number of moment equal to (

**b**) 800, (

**c**) 1600, (

**d**) 2400, (

**e**) 3200, (

**f**) 4000, (

**g**) 4800, (

**h**) 5600, (

**i**) 6400, and (

**j**) 7200.
