Ground Tire Rubber Recycling in Applications as Insulators in Polymeric Compounds, According to Spanish UNE Standards

Abstract

In the present research, we investigated the conceivable outcomes of using ground tire rubber (GTR) particle polymeric blends. Special methods of restoring tires that are no longer in use include GTR retreading, GTR blending destined for recycling to attain raw substances utilized in other industrial application production processes, and the valorization of GTR for power/energy generation. The recycling of end-of-life tires enables the recovery of rubber, steel, and fibers, all of which are valid on the market as raw materials to be used for other processes. There are methods to recycle GTRs in a clean and environmentally friendly way. In the present research, several industrial applications of GTR polymer blends were developed and compared with standard values from the Spanish Association for Standardization (UNE) and the International Electrotechnical Commission (IEC). In order to analyze the viability in many of the industrial applications selected, certain compounds obtained from the GTR polymer blends were analyzed regarding their use in nine low requirement insulator applications. The research and analysis developed in this manuscript used standard values from the UNE and IEC, and these standard values were compared with the test values. The obtained results were used to provide an application list that could be helpful for industrial applications. In this research, the pre-owned polymers were as follows: polypropylene (PP), high-density polyethylene (HDPE), polystyrene (PS), acrylonitrile butadiene-styrene (ABS), ethylene vinyl acetate (EVA), polyvinyl chloride (PVC), and polyamide (PA). The filler used was GTR with particle sizes lower than 200 microns. The amounts of GTR particles in the compound materials were 0% (raw polymer), 5%, 10%, 20%, 40%, 50%, and 70% (the latter being found in polymeric blends). We discovered six plausible modern applications of GTR polymer blends as indicated by the UNE and IEC standards.

1. Introduction

Rubber waste is an extreme problem, mainly because rubber biodegradation requires a long duration and has dangerous environmental effects. Tires contain nearly 50% rubber, and the global production of rubber substances over the last several years was almost 30 Mt [1]. Tire industries are the principle users of rubbers (65% of worldwide manufacturing) and generate huge amounts of rubber waste. Therefore, rubber recycling is frequently defined as tire recycling due to the composition of tires (nearly 50% rubber). Currently, 1.5 billion tires each year are discarded, containing up to 90% vulcanized rubber that cannot be recycled or reprocessed without problems due to the crosslinked structure [2,3]. Currently, controlling where used tires end up has become a large challenge; therefore, rubber recycling is one of the issues being researched. Vulcanized rubbers are used in tire manufacturing processes because thermoset materials can sustain excessive mechanical and thermal conditions while their properties do not change with temperature.

Table 1. Typical compositions of car tires.

Material Type	Car Tire (wt.%)
Rubber	42–48
Carbon black	24–28
Metal	12–16
Textile	4–6
Additives	9–12

shows the characteristic tire compositions for vehicles [4,5,6,7].

Discarded tires have numerous properties and can, therefore, result in useful materials. The accumulation of tires causes fire hazards [8], and their combustion emits poisonous products that pollute the environment, which is unsafe for humans and animals. In addition, carbon dioxide released during a fire influences the greenhouse effect [9]. The most efficient approach to avoid these issues would be changing used ground tire rubber into new materials with interesting properties. Research has been done on reusing end-of-life tires for energy recovery [10,11] and pyrolysis [12]. For instance, waste tires are used as a fuel source in concrete furnaces, which is more natural compared to coal ignition. However, many drawbacks have been reported as a burning tire releases hazardous gases and only recovers 25% of the energy used for rubber production [13].

Vulcanized waste rubbers are difficult to recycle and the crosslink structure of rubber makes any recycling technique very difficult [14]. Therefore, an interesting option is to blend waste tires with polymers to decrease the final cost of the products due to a lower amount of virgin compounds being used. Waste tires must be shredded (ground) into smaller particles (micrometer size) for an easier dispersion in thermoplastic matrices. Shredded tires can be used in raw polymers along with rubbers, thermoplastics, and thermoset blends for civil engineering, automotive components, sports equipment, and many other applications [15,16,17]. The manufacturing of ground tire rubber (GTR) polymer blends consumes a large amount of waste tires [18,19].

Thermoplastic blending with GTR may be a promising field of study due to the use of an excellent balanced compound that replaces the raw polymer with GTR [20]. Different research groups have found that blends of GTR and thermoplastic polymers are materials with very interesting features, such as a low cost, high sustainability, and easy preparation considering that no prior treatment is required [21,22,23]. Regardless of the type of polymeric thermoplastic used, GTR blends lack compatibility, mainly when the amount of GTR is higher than 20%. Therefore, it is often necessary to improve this lack of compatibility by performing surface treatments on GTR [24,25,26]. Considering this, we compared the results for insulators with low requirements in two programs, the Spanish Association for Standardization (UNE) and the International Electrotechnical Commission (IEC). We obtained test results of the dielectric and mechanical characterizations from research labs.

The UNE is a standardization organization in Spain, designated by the Ministry of Economy, Industry and Competitiveness and is dependent on the European Commission. The UNE’s standards are used for validating material applications [27]. The IEC is the world’s leading organization for the preparation and publication of international standards for all electrical and electronic technologies. These two standards (the UNE and IEC) will be used to compare the values of specific industrial electrical applications with the dielectric and mechanical values obtained from experimental procedures for compounds of different thermoplastic GTR blends with particle sizes of less than 200 µm. The IEC and UNE require certain properties for each analyzed application. For instance, in the mechanical field, the elongation at break and tensile strength are properties required for many applications. Similarly, the electrical criterion defines the conductivity, loss tangent, and resistivity of properties that are required.

2. Materials and Instruments

2.1. Materials

The polymers used in this study were: polyvinyl chloride (PVC); high-density polyethylene (HDPE); ethylene vinyl acetate (EVA) copolymer (18% of vinyl acetate and 82% ethylene); polypropylene (PP); acrylonitrile butadiene-styrene (ABS), which is composed of 30% acrylonitrile, 20% butadiene, and 50% styrene; polyamide 6 (PA 6), also known as nylon 6; polystyrene (PS). The properties of these seven polymeric materials are summarized in

Table 2. The physical properties and processing temperatures of the mixing machine. The pressing temperatures were at a constant pressure of 200 bar for each material. Polyvinyl chloride (PVC); high-density polyethylene (HDPE); ethylene vinyl acetate (EVA); polypropylene (PP); acrylonitrile butadiene-styrene (ABS); polyamide 6 (PA 6); polystyrene (PS).

Polymer Type	Commercial Name	Fluidity Index or Melt Flow Index (g/min)	Density (kg/m3)	Processing Temperature (°C)	Pressing Temperature (°C)
PVC	Etinox	1.35	1.225	195–200	210
EVA	Alcudia PA 539 type	0.20	937	105–110	120
HDPE	Alcudia 4810-B	1.35	960	150–155	170
PA 6	Ultramid B3S	1.55	1130	195–200	210
ABS	Terluran® HH-106	1.45	1050	180–185	195
PP	Isplen® 099 K2M type	0.55	902	155–165	165
PS	Polystyrol 486 M	1.45	1050	180–185	195

. We analyzed the ground tire rubber (GTR) with a microparticle size under 200 μm using thermal gravimetric analysis (TGA) itest with the carbon black compound at approximately 35%. The GTR was ground by sieving into one particle size, lower than 200 microns.

2.2. Preparation of the Compounds

The reused tire powder was dried in an oven at 100 °C for one day (24 h). We prepared five specimens of each selected polymer/GTR compound, which had different amounts of GTR: 0%, 5%, 10%, 20%, 40%, 50%, and 70%. The blending procedure was finished with a Brabender mixing machine, at various temperatures, to forestall the debasement of the polymer, and the blending time was restricted to 4 min. The polymer/GTR blends were obtained by utilizing a hot plate press at 100 kN at various temperatures for 10 min to form the polymeric compounds. The cooling stage was finished with a shut water circuit, which was held in a similar press and weight for 5 min. The tests were appropriately set up as indicated by the determinations of the ASTM-D-638-V standard. One specimen of the raw polymer was likewise arranged with similar necessities to acquire practically identical outcomes, to do a comparison study between the polymer without GTR and with GTR loads. Five specimens were used for testing.

2.3. Mechanical Analysis Performed

Tensile tests were conducted using a universal machine Instron 3366 following the specifications of the ASTM-D-412-98. The speed of the test was set at 20 mm/min. The testing temperature was 23 ± 2 °C with the relative humidity at 50% ± 5%. The studied properties include the tensile strength and the percentage of the elongation at break versus the tire rubber contents. The qualitative toughness of the samples was calculated from measurements of the area of the strength–strain curves to compare the results. We conducted a statistical analysis on the mechanical testing data to determine the significance of the values. Five specimens were analyzed, and the average and standard deviation were calculated. This paper reports lab tests directed on a progression of seven polymer grids blended with different amounts of GTR (0%, 5%, 10%, 20%, 40%, 50%, and 70%) to assess the specific mechanical parameters of the compounds and examine its application in the industrial field with the stress–strain test application. The mean and standard deviation (maximum 4%) were determined for each parameter, and samples that did not meet the specifications were removed.

2.4. Dynamic Electric Analysis

Dielectric analysis was performed to measure the parameters by means of dynamic electric analysis (DEA) with a BDS40 wide band dielectric spectrometer, which joined a Novocontrol Novotherm temperature sensor and used pressure molds with a 2 cm width. The information was obtained by utilizing an equal plate sensor. For this test, the samples were pushed between the anode and cathode in contact with the specimen. The conductivity was estimated using DEA. The parameters must be set before beginning the dielectric test. The samples of the GTR polymeric compounds were characterized with the ASTM D-150 standard; the specimens were barrel shaped, 2.5 mm in diameter, and 0.1 mm in thickness. After obtaining the results, the dielectric potential of the mixture of materials was analyzed in depth.

3. Results and Discussion

3.1. Mechanical Test Results

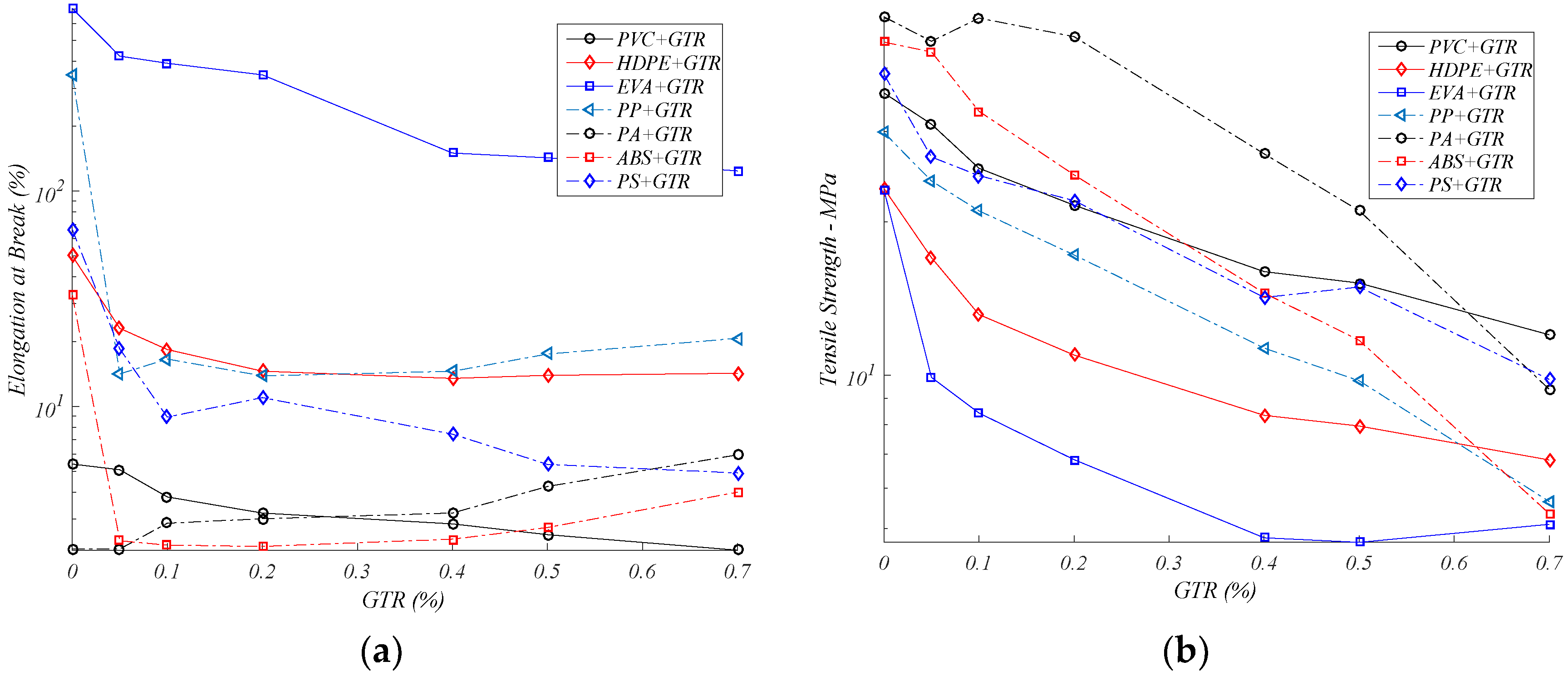

When examining the chart of the elongation at break (Figure 1a), it can be seen that the materials that have uncommon elongation at break attributes are featured. These are, noticeably, the EVA copolymer (>700%) and, as a runner up, the PP polymer (346.7%). With the increased addition of GTR particles, the lengthening properties of PP significantly fell. The polymer with better lengthening properties was the EVA with rates of GTR up to 10–20%. Enough elongation behavior was observed for the EVA compounds: EVA + 10% GTR: 438%; EVA + 20% GTR: 351.53%. For the PP with a similar GTR amount (10–20%), the stretching conduct was poor, arriving at 15% of the neat polymer without GTR (PP + 10% GTR: 41.73%; PP + 20% GTR: 33.89%).

For the remainder of the materials, the PS and the HDPE demonstrated certain extension properties, although they did not arrive at estimations of 100% of elongation at break (PS: 66.27% and HDPE: 50.12%). The addition of GTR negatively affected these properties but suffered a drop in percent elongation with 20% GTR (PA +20% GTR: 23.30%; HDPE +20% GTR: 20.01%), which already represents probabilities much less than 50% of the polymer blends. Analyzing the elongation at break of the GTR compounds [28,29,30], the optimum behavior was for EVA compounds, which for 0%, 5%, 10%, and 20%, had values of 704% to 528%, 437%, and 351%, because of the decreases from nearly 30% to 50% for the amounts of GTR.

From high amounts of GTR, the obtained values were lower than for the neat polymer, indicating that this decrease can be of great impact. The reduction of the deformation capability of the elastomer impacts the lower limit in the elongation at break and is related to the imperfect interfacial adhesion between components. The relaxation of the polymers had very low values for the elongation at fracture properties. The prevalence of poor adhesion between levels is a particularly critical result [31,32]. The mechanical properties of the blend are poor due to the lack of adhesion between the two phases. This is related to the large particle size of the GTR particles, their surface characteristics, and their crosslinked structure, which hinder its molecular entanglement with the polymer. To overcome these problems, several attempts have been made to compatibilize both components in order to obtain thermoplastics compounds with better properties [14].

In the comparative graph of tensile strength (Figure 1b), we deduced that the materials analyzed had comparable characteristics of tensile strength. Of all of them, those with a greater strength to breakage were, in order, PA, ABS, PS, and PVC. In a completely distinct way, the PA polymer reached nearly 50 MPa, and in second position was the ABS polymer (45 MPa) from the addition of GTR particles. In general, small amounts of GTR additive (5–20%) resulted in a worse conduct of the tensile strength. Comparatively, the polymer with the exceptional breaking electricity properties was the PA and, with chances of GTR of up to 20%, a good feature of tensile strength (47.39 MPa) was observed; however, for possibilities of GTR greater than 20% (40%, 50%, and 70%), the tensile strength dropped to values of nearly 50% of the tensile strength of the pure polymer, without the GTR additive.

Other polymeric materials, in general, demonstrated good tensile strength behaviors, although for PS and EVA (38.89 MPa and 23.1 MPa, respectively), the addition of GTR negatively influenced this feature, and they suffered a drop in breaking strength with GTR contents higher than 20% (40%, 50%, and 70%). For example, for the PS + 40%/50%/70% GTR, the subsequent values of tensile strength were: 19.1, 15.9, and 11.8 MPa, respectively, and for EVA compounds + 40%/50%/70% GTR, the values of tensile strength were: 7, 5.7, and 5.5 MPa, respectively, from which they already represent less than 50% of tensile strength (MPa) of the polymeric matrix (the polymer without GTR), if we consider the neat EVA: 23 MPa and 12.7 MPa for EVA + 10% GTR. These analyzed properties are interesting by the UNE and IEC standards. In general, the trend is to decrease the tensile strength with the presence of GTR, with only one exception—PA for low GTR amounts (5–20%).

3.2. Electrical Results

We performed analysis of the electrical properties: the conductivity, loss factor (Tg δ), and electric resistivity analysis for compounds with GTR contents (at 30 °C), and at 50 Hz frequency were analyzed for the GTR compounds. The highlighted results demonstrate that the PA samples had the maximum conductivity of the samples analyzed (see Figure 2a). With the increase in GTR, the conductivity of the samples, in most of the analyzed cases, was elevated up to two orders of the value for natural PA. From 0% to 5%, the conductive behavior was more heterogeneous, with the PS and PP being the least conductive. For pure PS and PP, at 50 Hz, they had conductivities of 10⁻¹³ and 10⁻¹¹ S/cm, respectively. For 70% GTR contents, the PS was revealed as the maximum insulating material (10⁻¹⁴ S/cm); likewise, ABS + 70%, which, at a commercial frequency (50 Hz), observed a conductivity of 10⁻¹⁰ S/cm. For the natural PVC (0% GTR), the bottom conductivity without GTR were HDPE, PS, and PP, followed by EVA, PVC, and ABS, and eventually the PA was observed as the least resistive.

Thus, with the addition of the GTR, the conductive behavior of virtually all polymers tended to converge. The PA (polar polymer), which remained two orders of magnitude above the rest of the polymers analyzed, was, for the 40–50%GTR, 4.9 × 10⁻¹³ and 1.7 × 10⁻¹² S/cm, and 10⁻¹⁵ S/cm for the rest of the polymers, and ABS and PS, for the 40% of GTR, reached conductivities of 1.1 × 10⁻¹⁴ and 1.3 × 10⁻¹⁴ S/cm, respectively. The general trend for the GTR composites was the resistivity drop and conductivity rise of the components. For the EVA + GTR and PA + GTR behaviors, the conductivity drops were less than for the other polymers, as the GTR presence negatively affected the conductivity behavior. In general, these results can be interpreted as a worse electrical behavior (less electrical resistivity) in GTR composites due to the carbon black (CB) presence in the GTR composites [33,34,35].

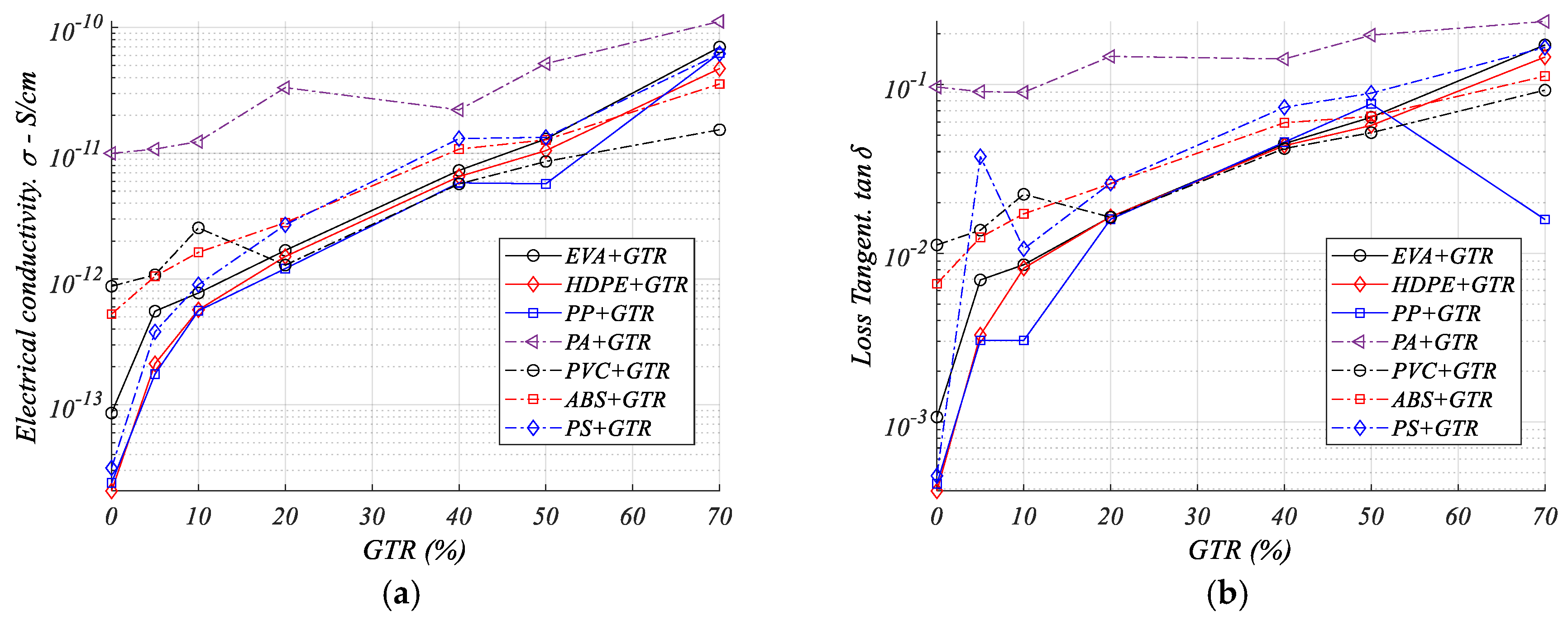

Watching the tangent (Tg) of δ dissected in the instance of the seven polymers + GTR (see Figure 2b), the material with the most noteworthy digression in the tangent of delta was polyamide, which, without GTR addition, presented estimations of 10⁻¹ and so we concluded that GTR influenced the Tg of δ behavior in the GTR polymeric blends analyzed as it expands the Tangent of δ to a significant degree. In this way, the materials with a lower Tg of δ were PP, HDPE, EVA, and PS (0.001); these are trailed by PVC and ABS (0.01). Lastly, with a more noteworthy Tg of delta, was PA (0.1). For increments of the extent of the GTR particles loads, this proportion changed, tending to combine all the polymers in the tangent of delta 10⁻¹, apart from PP. The polyamide encounters expanded the Tg δ with GTR rates of 40–70% and the Tg of delta went from 0.1 to 10.

By and large, for low contents of GTR (5–20%), the Tg of δ was heterogeneous and as the GTR increased, the conduct began to be assimilated. As a rule, the Tg of δ sways somewhere in the range of 10⁻¹ and 10⁻² for practically all polymers except for the PA; therefore, the expansion of GTR amounts, in polymer blends, increased the Tg δ values. PVC had a variable conduct to a significant degree from the expansion of GTR. In general, we showed (Figure 2b) that GTR presence affected this property in all the polymers, but significantly less so for the EVA- and PA-GTR compounds analyzed, in which a more stable Tg δ behavior was seen.

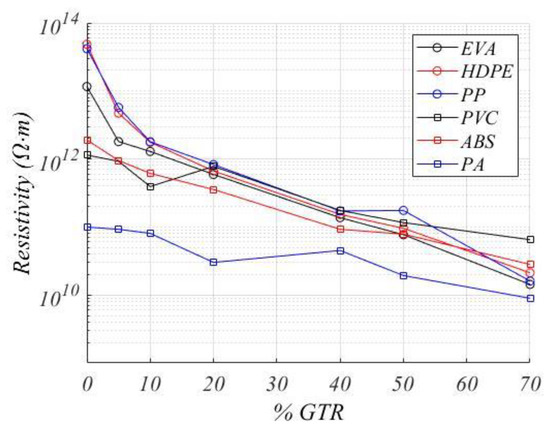

The electrical resistivity (Ω·cm) results, in Figure 3, show that PP and EVA were the most resistivity polymers, followed by HDPE. Regarding the GTR polymeric blend (polymer + GTR) resistivity, we can observe how the resistivity values decreased with the incorporation of GTR for PP + GTR and EVA + GTR. At 5–10% of GTR, the electrical resistivity behaviors, in most of polymeric compounds, were quite similar. Despite the decrease in electrical resistivity, the values are enough for electrical insulation in the different analyzed thermoplastic compounds with GTR.

3.3. Results and Discussion of GTR Influence

From the analysis of the dielectric results, three main conclusions are drawn: The conductivity and the phase angle increased with the percentage of GTR. The presence of GTR (and more specifically, carbon black, as the main component of GTR) created dielectric changes in compounds. Thus, it follows that the structure changes created by the presence of GTR in the polymer can also create changes (increases) in the conductivity behavior due to the presence of carbon atoms (conductive) in the compounds. The study of the dielectric properties of GTR-reinforced polymers demonstrated that, at the same temperature and frequency, the presence of ground tire rubber in thermoplastics increased their conductivity and tangent of delta values and, consequently, decreased their electrical resistivity. In each case, evolution was created by changes in the polarization (particularly by orientation polarization), through changes in the measured properties [35,36,37,38]. The presence of ground tire rubber caused the changes in dielectric behavior by changing the structure and the conductivity of the polymer, in particular due to the carbon black contained in GTR, because carbon black is the electrically conductive element in GTR. The polymers that presented more stability in the electrical properties analyzed were PA and EVA.

The electrical properties of an insulator must be adopted for special uses, in which case 50 Hz is the frequency of interest as this is the frequency insulators use. We found that the dielectric and mechanical characteristics of the thermoplastics decreased significantly from 10% to 20% of GTR in the polymer tested. Insulating materials are generally used to isolate the elements of the electrical grid and insulate them in relation to the other elements [39,40], and, in relation to the earth, materials are desired to have the smallest conductivity possible with acceptable mechanical properties.

In this sense, as seen in

Table 3. Analysis of the highest mechanical property values of each property, and the composites regarded (size particle of GTR < 200 µm).

Polymer Composite	Tensile Strength (MPa)	Elongation at Break (%)
PVC/GTR	35.75 (0% GTR)	6.31 (5% GTR)
EVA/GTR	23.08 (0% GTR)	704.6 (0% GTR)
HDPE/GTR	25.51 (5% GTR)	50 (0% GTR)
PP/GTR	29.9 (0% GTR)	346.71 (0% GTR)
ABS/GTR	44.98 (0% GTR)	32.91(0% GTR)
PA/GTR	50.41 (0% GTR)	8.46 (70% GTR)
PS/GTR	38.89 (0% GTR)	66.27(0% GTR)

, when adding GTR in the polymeric matrix (5–10%) for PVC, and PA composites, the elongation at break (%) of the compound increased, although other tensile strength properties decreased at the same time, and for the other cases, the elongation at break (%) became worse. However, for GTR contents above 20%, all mechanical properties decreased, except for the PA composites. In Table 3 (mechanical properties) and

Table 4. Analysis of the suitable electrical property values of each property, and the composite regarded (size particle of GTR <200 µm).

Polymer Composite	Conductivity σ (S/cm)	Resistivity (Ω·cm)	Loss Tangent
PVC/GTR	8.76 × 10−13 (0% GTR)	1.14 × 1012 (0% GTR)	0.01119775 (0% GTR)
EVA/GTR	8.59 × 10−14 (0% GTR)	1.16 × 1013 (0% GTR)	0.001068 (0% GTR)
HDPE/GTR	2.06 × 10−14 (0% GTR)	4.85 × 1013 (0% GTR)	0.00038912 (0% GTR)
PP/GTR	2.39 × 10−14 (0% GTR)	4.18 × 1013 (0% GTR)	0.00042918 (0% GTR)
ABS/GTR	5.26 × 10−13 (0% GTR)	1.9 × 1012 (0% GTR)	0.00659429 (0% GTR)
PA/GTR	1 × 10−11 (0% GTR)	9.96 × 1010 (0% GTR)	0.09010372 (10% GTR)
PS/GTR	3.14 × 10−14 (0% GTR)	3.18 × 1013 (0% GTR)	0.00047897 (0% GTR)

(electrical properties), the compounds that improved with the addition of GTR are shown in bold. In this case, improve means: an increase in the mechanical values and a decrease in the values of conductivity and loss tangent (Tg of δ), because these are the desired properties of an electrical insulator.

As we can see in Table 3 and Table 4, few compounds improved the values from the net thermoplastic polymer without GTR. As can be seen in Table 3, the most elevated estimations of property are related to the neat polymer (0% GTR), with certain exemptions as featured in the table. For HDPE, PA, and PVC, some mechanical properties were improved by the expansion of microparticles (<200 µm) of GTR in polymeric blends. The mechanical parameters were overall impacted by the GTR presence. Essentially, at the mechanical level, the properties of the GTR polymer blends were maintained, somewhere in the range of 10% and 20% of the GTR particle loads (for particles size ≤ 200 microns). The interaction of the polymers with the GTR particles was somewhat low, and consequently, for values higher than 20% GTR in the polymeric framework, the mechanical properties decreased significantly.

In

Table 5. Mechanical and electrical test results with 10% GTR.

Composite	Tensile Strength (MPa)	Elongation at Break (%)	Conductivity σ (S/cm)	Loss Tangent	Resistivity ρ (Ω·cm)
EVA+10% GTR	12.7	438	1.29 × 1012	0.00854714	1.29 × 1012
PVC+10% GTR	32	5.4	3.93 × 1011	0.022369	3.93 × 1011
HDPE+10% GTR	23.8	27	1.76 × 1012	0.00815887	1.76 × 1012
PP+10% GTR	22.4	41.7	1.79 × 1012	0.0030445	1.79 × 1012
PA+10% GTR	42.0	1.7	8.05 × 1010	0.09010372	8.05 × 1010
ABS+10% GTR	33.4	4.8	6.13 × 1011	0.01712194	6.13 × 1011
PS+10% GTR	28.5	37.5	1.11 × 1012	0.0106162	1.11 × 1012

, the results for the different polymeric compounds with 10% of GTR loads are shown. We can see how the results for low contents of GTR give reasonable enough results for low requirement insulator applications, as is described in the next section (Section 4).

4. Development of Industrial Applications

After obtaining the results of the different samples, and analyzing the dielectric and mechanical properties, in this part, the real values are compared with values of the appropriate standards to determine the feasibility of the compounds. The final application will be defined from the study of the UNE and IEC regulations (See

Table 6. Selected applications to compare values from the UNE/IEC standards versus measured data.

Application Type	Specific Industrial Application	Number of Applications
Medium high voltage application	Fillers for electrical cables Insulators for overhead power lines	2
Electrical applications for low voltage	Splice for cables and spacers for power lines Trays for electrical cables. Cable pipes Electric canalizations Electrical insulating tape Low voltage electrical insulation applications for electric fences and shepherds	5
Labor safety and occupational risk prevention	Protection on hands and arms (dielectric gloves) Footwear for work use (insulating and highly resistive)	2
Total applications		9

) [41,42]. Different applications have been studied for the blends that were tested previously, and, for the most suitable materials, some electrical applications have been developed that may be interesting. This study focused on applications with low electrical requirements. Thus, the following possible applications have been selected: Table 6 shows applications with low requirements insulators.

The possible applications selected have low requirements in common, but minimum mechanical, electrical, and other requirements are needed. Therefore, the suitability of the materials selected for the applications considered from the current regulations and the standards for each case are justified below in

Table 7. Application standards code related: the Spanish Association for Standardization (UNE) and the International Electrotechnical Commission (IEC).

Consultation Standard Code	Rule Specific Content
UNE-EN 60335-2-76, IEC 60335-2-76, UNE-EN 60.831 -1, ITC-BT-39, 22, 23, 24	Components of electrical circuits. Insulation for electric shepherds.
IEC 61854	Auxiliary elements for power lines. Spacer for power lines
IEC 60840 UNE HD 628	Connecting elements for electrical cables. Splice for electrical cables
UNE EN 61537, UNE EN 50085-1: IEC 61537 (EN 61537)	Auxiliary elements for power lines. Pipes for electrical cables
UNE-EN ISO 20345/6/7: 2005 UNE 53510	Regulations on footwear for work use (insulating), anti-electrostatic, insulating and high electrical resistance. Physical criteria on protective equipment
UNE-21115, IEC 502	Criteria on insulation for overhead power lines
IEC 60454-3	Insulating elements for electrical connections
UNE-EN 1149-5: 2008.	Personal protective equipment and anti-electrostatic clothing
UNE-EN 60903: 2005	Individual Protection Equipment. Dielectric gloves
UNE-HD 620-1	Electrical distribution cables with extruded insulation, rated voltage from 3.6/6 (7.2) kV to 20.8/36 (42) kV. Part 1: General Requirements
UNE-HD 632-1	Extruded insulated power cables and their accessories for rated voltages greater than 36 kV (Um = 42 kV) up to 150 kV (Um = 170 kV). Part 1: general testing requirements
UNE 21143	Test of outer sheaths of cables that have a special protection function and that are applied by extrusion
UNE-HD 632, UNE-EN 60811-4-1, UNE-EN 60811-1-1 (EN 60811-1-1, IEC 811-1-1)	Component regulations for electrical cables

.

5. Summary of Analyzed Applications

Table 8. Summary of the analyzed applications that are viable with the analyzed material blends according to the applicable standards.

Components Analyzed	Electrical Criterion	Mechanical Criterion	Application Standard	Polymers + GTR Suitable
Insulation for electric shepherds	Conductivity: <10−12 S/cm Tg δ < 104	Tensile strength: 12.5 MPa Elongation at break: 300%	ITC-BT-39, 22, 23, 24 UNE-EN 60335-2-76 IEC 60335-2-76	EVA + 10%
Spacer for power lines	Resistivity: >5.5 × 105 Ω·cm	Minimum tensile strength: 17.2 MPa Minimum elongation at break: 300%	IEC 61854	EVA + 20%
Universal electrical cable joint	Resistivity: >1012 Ω·cm	Tensile strength: 12.5 MPa Elongation at break: 400%	IEC 60840 UNE HD 628	EVA + 10%
Filler for electrical applications	Resistivity: >1012 Ω·cm	Tensile strength: 12.5 MPa Elongation at break: 350%	UNE 53 602; UNE 53 510; UNE-HD 632; UNE-EN 60811-4-1	EVA + 10%
Trays and pipes for electrical cables	Resistivity: >1012 Ω·cm	Elongation at break: 80 ± 10% Tensile strength: 15 MPa	UNE EN 61537 UNE EN 50085-1: IEC 61537 (EN 61537).	PP + 10% EVA + 10%
Footwear for work use (insulating) Insulating: High electrical resistance:	Resistivity: >106 Ω·cm >109 Ω·cm	Tensile strength > 10–12 MPa Elongation at break > 450%	UNE-EN ISO 20345/6/7:2005 UNE 53510	EVA + 10%

shows a summary of the applications and their degree of viability, based on the characteristics analyzed and the applicable regulations. In blue, the GTR polymeric combinations selected for each application reflect the suitable applications and the compounds with the maximum GTR amount allowed, according to the mechanical and electrical criterions.

In

Table 9. Summary of the analyzed applications that are not viable with the analyzed material blends according to the applicable standards.

Components Analyzed	Electrical Criterion	Mechanical Criterion	Application Standard
1. Insulation for overhead power lines	Resistivity: >1014 Ω·cm	Tensile strength > 25 MPa	UNE-21115 IEC 502
2. Electrical insulating tape	2 × 1015 Ω·cm	Elongation at break: 600% Tensile strength 1.5 MPa	IEC 60454-3
3. Protection in hands and arms. Dielectric gloves	1015 Ω·cm	Tensile strength ≥ 16 MPa Elongation at break ≥ 600%	UNE-EN 60903:2005

, the critical criteria that the analyzed materials do not exceed are in red, as the standards criteria are for different applications, and any GTR polymer blends analyzed cannot cover the minimum values analyzed. Therefore, the red criteria determine applications not suitable for analyzed blends.

The results of the application analysis are set out below along with the polymer compound initially selected for each specific application. The GTR polymeric compound combinations selected for each application are shown in the last column. Of the nine possible applications analyzed, three do not meet the imposed technical requirements (Table 9) and the rest, that is, six applications, become, initially viable (Table 8 and

Table 10. Selected compound for each application.

Selected Applications	Selected Compounds: Polymers + GTR
1. Electrical shepherds’ insulation	EVA + 10%
2. Spacer for electric lines	EVA + 10% EVA + 20%
3. Joint for electrical cables universal	EVA + 10%
4. Filling for electrical applications	EVA + 10%
5. Tray and Pipes for electrical cables	PP + 10% EVA + 10%
6. Work use footwear (insulated). Insulating and high electrical resistance	EVA + 10%

).

As a summary of the performed applications analysis, from the nine applications analyzed, we concluded that three are non-viable applications and six applications are feasible. The research balance is clearly positive, with six applications where GTR polymeric blends can be used for low-requirement insulation industrial applications, and the GTR recycling possibilities with these applications are increasing, due to the performed analysis.

6. Conclusions on the Applications

We found that the analyzed blends behaved, in general, as good electrical insulators; therefore they were accepted as good electrical insulators for low contents of GTR (5–10%). The mechanical properties analysis proved that there was a wide variety of GTR polymeric blends with a low decrease in their mechanical properties (tensile strength and elongation at break). However, elongation at break was revealed as an important criterion in electrical applications and has high requirements due to the service demands that these components must give. All analyzed GTR polymer blends (PA, PS, ABS, PP, PVC, EVA, and HDPE) obtained materials that were sufficiently insulating to constitute electrical insulators for different applications (conductivity < 10¹² S/cm; resistivity > 10¹² Ω·cm; tangent δ < 10⁵). The tangent of δ values in all the samples analyzed with 10% GTR produced results well below 10⁵, as established by the analyzed UNE and IEC standards.

The electrical insulating characteristics of the materials decreased with the addition of GTR and therefore produced insulating blends with poor characteristics. However, for low GTR loads (5–10%), the obtained samples has sufficient values for electrical insulation (conductivity, resistivity, tangent of δ) and structural mechanical properties (tensile strength and elongation at break) for use in different insulator applications according to the UNE and IEC standards.

EVA-GTR is an interesting compound due to its electrical stability, conductivity, resistance, and loss tangent properties, as is shown in Figure 2 and Figure 3, as well as in the elongation at break. We concluded that polymeric blends with GTR could be applied in different industrial components, such as electrical shepherds’ insulation, spacers for electric lines, joints for universal electrical cables, fillings for electrical applications, trays and pipes for electrical cables, and plastic components for insulating footwear. These are different applications that can be applied to integrate and use waste GTR, and these represent an effort for environmental solutions for the huge amounts of waste that tire rubber presents in landfills all over the world, which are increased yearly.
