Air Cathodes and Bifunctional Oxygen Electrocatalysts for Aqueous Metal–Air Batteries

Abstract

One of the most popular solutions for electrochemical energy storage is metal–air batteries, which could be employed in electric vehicles or grid energy storage. Metal–air batteries have a higher theoretical energy density than lithium-ion batteries. The crucial components for the best performance of batteries are the air cathode electrocatalysts and corresponding electrolytes. Herein, we present several of the latest studies on electrocatalysts for air cathodes and bifunctional oxygen electrocatalysts for aqueous zinc–air and aluminium–air batteries.

1. Introduction

In recent years, human society has been facing the consequences of using fossil fuels as the primary energy source and reduced energy supplies due to the exponential increase in energy demand. Consequently, renewable energy sources, such as solar, wind, and water power, have accounted for increasing energy use. These energy resources have a highly fluctuating and sporadic power output. Therefore, the parallel use of electrochemical energy conversion and storage technologies, including capacitors, supercapacitors, batteries, and fuel cells, is necessary. Such technologies enable the easy and efficient use of the aforementioned sustainable energy sources by storing the produced electricity, which can be used later [1]. Energy is stored electrostatically in capacitors, while in supercapacitors, energy is stored both electrostatically and electrochemically. Both batteries and fuel cells transform chemical energy into electricity. The main difference is that fuel cells are an open system, where the electrodes are constantly supplied with fuel, and there is no need for charging. Conversely, batteries are a closed system involving the internal consumption of reactants and require charging [1]. Batteries are divided into two groups: primary batteries (non-rechargeable) and secondary batteries (rechargeable). Secondary batteries, e.g., lithium (Li)-ion, nickel–cadmium, and zinc (Zn)–air batteries, can be charged multiple times. The rechargeable nature of secondary batteries is based on a reversible redox reaction that can proceed in both directions. Secondary batteries have a very high energy efficiency of 75% [1]. Other advantages of batteries include their high energy density, long life, and availability in different sizes. The most commercialised batteries are lithium-ion batteries, which, unfortunately, are approaching their performance upper limit [2,3]. Therefore, researchers are actively working on developments in electrochemical energy storage and conversion and are looking for a solution to the energy supply problem beyond lithium-ion batteries. Metal–air batteries (MABs) are investigated as a possible solution due to their low production cost, high specific energy, power density, and safety [1].

Research related to MABs began prior to lithium-ion batteries, as early as 1878, when Maiche designed the first primary Zn–air battery. This type of battery became commercially available on the market in 1932 [2]. During the 1960s, aqueous iron (Fe)–, aluminum (Al)–, and magnesium (Mg)–air batteries were established, and a few decades later, non-aqueous Li–air, sodium (Na)–air, and potassium (K)–air batteries [1]. Despite their early beginnings, their development has been significantly slowed by problems associated with their components. A rechargeable solid-state Li–O₂ battery was first introduced in 1996 by Abraham et al. when they successfully demonstrated three charge–discharge cycles [4]. At the time of their first appearance, Li–air batteries did not attract significant attention from the research community. In 2006, the Bruce group reconsidered Li–air batteries and presented their good electrochemical performance through the prism of practical applications. In the future, driving distances of slightly over 550 km are forecast for Li–air batteries [4]. As there are very limited Li reserves on Earth, the Na–air battery was introduced in 2011 as a promising alternative to Li–air batteries due to the similar chemical characteristics of Li and Na [4]. The most commonly used electrolyte in Li–air batteries is non-aqueous due to the violent reaction of Li with water. Still, in 2008, a water-stable Li metal anode with a water-stable Li-conducting glass ceramic and a Li-conducting polymer electrolyte was presented for the first time as the anode for Li–air batteries with the aqueous LiCl catholyte [5].

Similarly, in 2013, a mixed aqueous (NaOH)/aprotic electrolyte obtained through a ceramics separator was introduced for Na–air batteries [5]. Iron and zinc as MAB anodes have attracted attention primarily for applications in electric vehicles due to their abundance and low cost. Despite all the setbacks, the development of MABs has followed the evolution of materials science; thus, in 2015, a metal-free bifunctional cathode electrocatalyst for Zn–air batteries was presented [1]. Also, the development of MABs has followed the market demands for flexible batteries; thus, in 2015, a gel polymer electrolyte for flexible Zn–air batteries was presented [1]. Zn–air and Al–air batteries are considered ideal for application in flexible batteries due to their low cost, safety, and high energy density [6]. The Al–air battery was introduced in 1962 by Zaromb et al. Since then, efforts have been focused on making them usable in various systems, such as electric vehicles, military communication, and unmanned aircraft.

Consequently, in 2016, researchers confirmed that an electric vehicle can reach a travel distance of over 3000 km using an Al–air battery weighing 100 kg [1]. Mg–air batteries, which are generally primary, have received less attention from researchers, but they have found applications primarily in systems with limited space for battery implementation. They are used in small, lightweight, portable devices for civil and military applications [1]. The second most abundant element in the Earth’s crust and a semiconductor successfully used in electronics, silicon (Si), was first used as an anode in MABs in 2009 by G. Cohn et al. [7]. Doped Si was used as the anode to improve electronic conductivity. Although the first Si–air battery was fabricated using a non-aqueous electrolyte, today there are aspirations to develop Si–air batteries with an aqueous alkaline electrolyte such as KOH [1]. Recently, special attention has been paid to research related to MABs, and the number of publications on MABs has increased more than 15 times since 2011 [3].

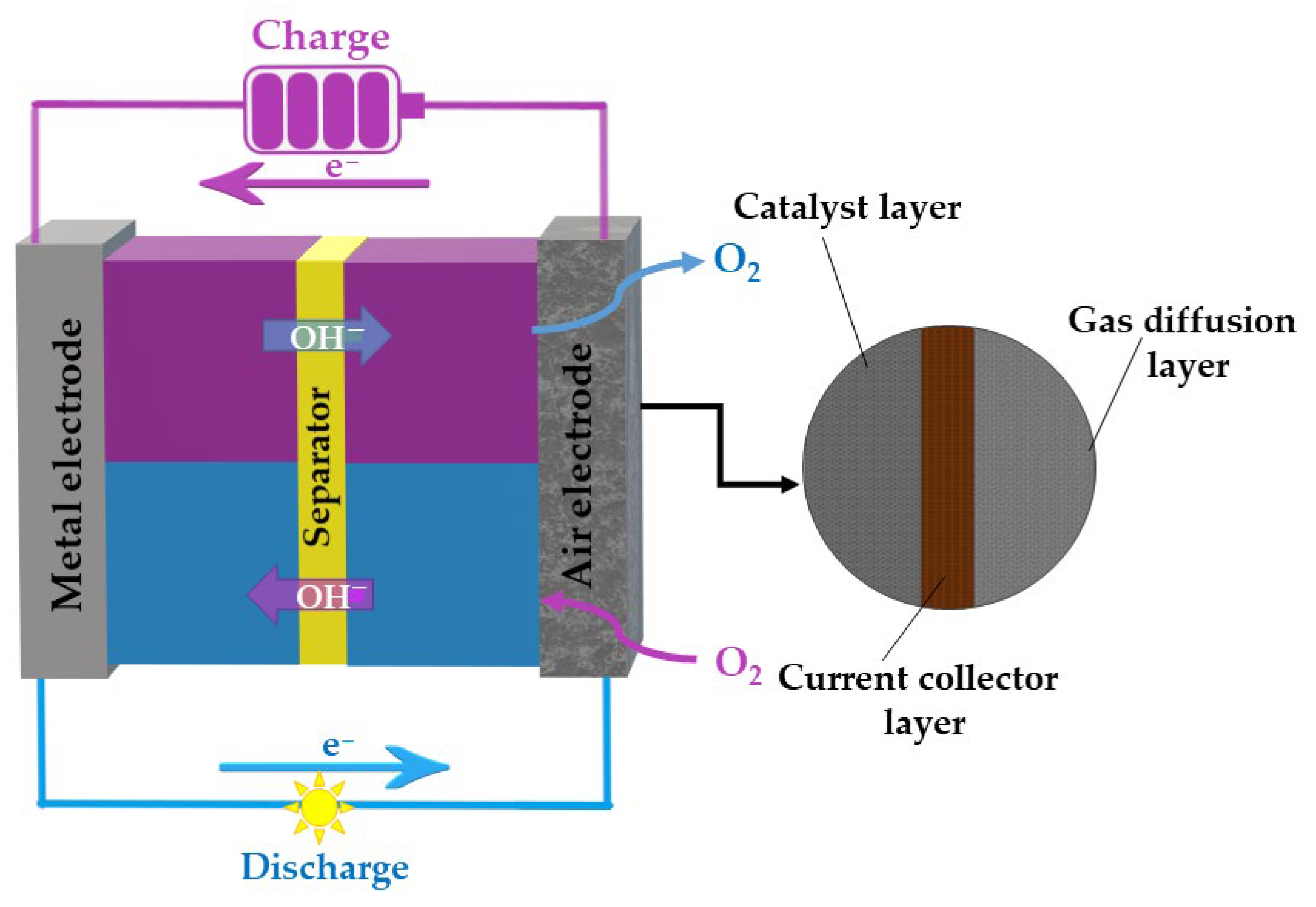

MABs comprise four main components—a porous air cathode, a metal anode, an electrolyte, and a suitable separator that mechanically separates the anode and cathode. MABs are continuously supplied with oxygen from the atmosphere at the cathode and are therefore considered a hybrid of a battery and a fuel cell [2]. MABs have high theoretical specific energy density values ranging from 1.2 to 11.4 kWh kg⁻¹ [2], i.e., ca. 3–30 times higher than the theoretical specific energy density value of lithium-ion batteries, one of the most commercialised batteries today [2]. The theoretical specific capacities of different MABs range from 0.68 to 3.86 Ah g⁻¹ [8], making lithium–air batteries (3.86 Ah g⁻¹) and aluminium–air batteries (2.98 Ah g⁻¹) some of the most promising candidates for solving the energy supply problem among non-aqueous and aqueous MABs, respectively. Alkali (e.g., Li and K); earth-abundant (e.g., Al and Si); alkaline earth (e.g., Mg and Ca); or first-row transition metals (e.g., Zn) are employed as MAB anodes [3].

Electrolytes used in MABs can be divided into four groups: aqueous (protic), non-aqueous (aprotic), hybrid, and solid-state electrolytes. MABs based on alkaline anodes are stable in non-aqueous electrolytes. In contrast, anodes made of other metals, e.g., Mg, Fe, Al, and Zn, are stable in aqueous media but equipped with a hydrophobic layer that has a protective function and prevents electrolyte leakage [1]. In contrast to non-aqueous electrolytes, aqueous electrolytes have advantages such as high safety, a high ionic conductivity of about 1 S cm⁻¹, non-toxicity, and a low cost [3]. Therefore, the flammability of some organic solvents, their possible polluting influence, their low conductivity of about 1–10 mS cm⁻¹, and their high production cost prevent the wider application of non-aqueous MABs [3].

The separator prevents electronic contact between the anode and cathode, as well as the mixing of the anolyte and catholyte, but also allows ion exchange to complete the circuit; therefore, separators are porous polymeric membranes [9,10]. In commercial cells, the separator is usually a polypropylene membrane with a porosity of 10–20 μm [9].

Metals such as Zn, Al, Mg, and Fe are thermodynamically unstable in an aqueous environment; however, coating their surface with corresponding hydroxides or oxides under certain conditions makes them more stable in aqueous electrolytes and, therefore, more suitable for use in aqueous MABs. Scheme 1 illustrates the working principle of aqueous MABs. During discharge, the metal (M) is oxidised at the anode to release n electrons (n is the oxidation number of the metal) and metal ions that combine with hydroxide ions to form metal hydroxide (Equation (1)) [3]. The released electrons are transported through the external circuit to the cathode, where they take part in the oxygen reduction reaction (ORR) together with water and oxygen molecules from the atmosphere to produce hydroxide ions, which are further transported through the separator to the anode to complete the circuit (Equation (2)) [3].

M + nOH⁻ → M(OH)_n + ne⁻

(1)

n/4O₂ + n/2H₂O + ne⁻ → nOH

(2)

The overall reaction is obtained by combining Equations (1) and (2) (Equation (3)) [3]:

M + n/4O₂ + n/2H₂O → M(OH)_n

(3)

During battery charging, the above reactions occur in the opposite direction [3].

Zinc ions in aqueous electrolytes can be directly reduced, while MABs employing other metals must be charged mechanically by charging their metal anode [3].

Alkali metals are very reactive in aqueous solutions, so MABs with anodes based on Li, Na, or K use aprotic electrolytes. It is important to point out that the ORR in aprotic media has a completely different mechanism than in aqueous electrolytes. Non-aqueous MABs are still at the beginning of their development due to the serious challenges they face, including the abovementioned problems with aprotic electrolytes and a completely different mechanism for the ORR [11,12,13,14].

Although alkaline electrolytes (e.g., KOH) cause the corrosion of anode materials, rapid carbonisation, and the formation of dendrites on the metal, they are often used as electrolytes for air cathodes. These electrolytes facilitate kinetics of the oxygen evolution reaction (OER) and ORR in contrast to neutral electrolytes, which are somewhat milder and more environmentally friendly but have sluggish OER/ORR kinetics [15].

The air cathode is one of the key components of MABs, and its properties are crucial for their performance. An efficient air electrode should allow the rapid diffusion of oxygen and the fast migration of OH⁻, prevent water permeation, have good activity for the ORR in primary MABs or both the ORR and OER in secondary MABs, and present physical and electrochemical stability in an alkaline environment and at high potentials [3]. No air electrode fulfils all these requirements at the same time. A conventional air electrode is constructed from three components: an electrocatalyst, a gas diffusion layer, and a current collector placed between these two components to enable the transfer of electrons from or to the catalyst layer (Scheme 1) [3]. All three of these layers are porous to maximise oxygen diffusion [3]. During the ORR, oxygen from the air diffuses from the porous, thin, and (to a certain extent) hydrophobic gas diffusion layer through the current collector layer to the catalyst layer. Simultaneously, electrons from the metal anode pass through the current collector to the catalyst layer and combine with oxygen molecules at the catalyst’s sites. For the OER, the oxygen and electron pathways are inverse [3]. The current collector layer should be sufficiently conductive and tough, given that its role is primarily to collect electrons and provide physical support, i.e., prevent tearing [3]. The catalyst layer is where the OER and ORR occur; therefore, it is the component that most strongly affects the efficiency and durability of MABs. As different reactions occur on the electrodes during the charging and discharging of the battery, some catalysts are intended for only one of these reactions, while some have bifunctional catalytic activity.

Although a lot of work has been carried out in the field of MABs, challenges related to the metal anode (passivation, corrosion, and dendritic formation); electrolyte (CO₂ dissolution from the air, the absorption of moisture, and the evaporation of the electrolyte) [15]; air cathode (sluggish OER/ORR kinetics and poor cycling stability) [2]; and the choice of a suitable separator significantly reduce their effectiveness and therefore prevent the commercialisation of MABs and the utilisation of their full potential. The current possible solutions to most of these problems lead to an increase in the price and size of batteries and a decrease in energy density [2]. Therefore, it is extremely important to continue research in this field.

This review focuses on aqueous MABs, emphasising new advances in materials to be employed as electrocatalysts for the OER and ORR, as well as the mechanism of the aforementioned reactions in alkaline media.

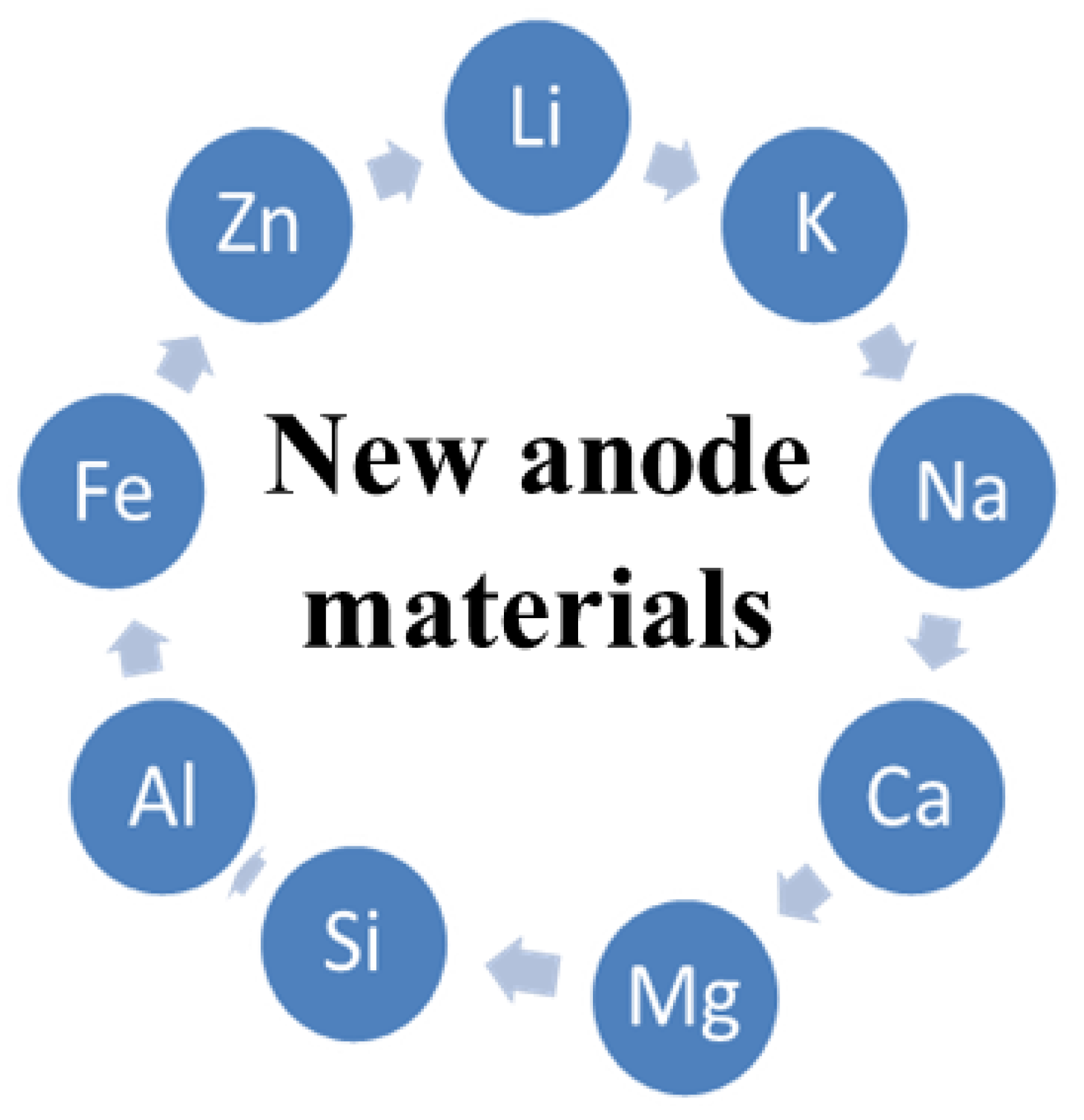

2. Anode Materials for MABs

As mentioned, MABs are electrochemical cells wherein the metal is oxidised and oxygen is reduced. These devices feature a high energy density, ca. 3–30 times higher than commercial lithium-ion batteries [2,16]. Zinc, aluminium, and magnesium alloys are considered especially advantageous for some applications because they are inexpensive and lightweight. Lithium, sodium, and potassium are stable in non-aqueous environments, while magnesium, aluminium, iron, and zinc are stable in aqueous systems (Scheme 2) [2,16]. Concerning the abundance of these metals, lithium is not considered an abundant element despite being distributed in the lithosphere. In contrast, Na is one of the most abundant elements and it is second lightest and smallest metal after Li. [4].

Li–air batteries are the most studied systems due to their specific energy of ca. 3458 Wh kg⁻¹ (Table 1), which is higher than that of common lithium-ion batteries (270 Wh kg⁻¹) and other rechargeable systems such as lithium–sulfur batteries (2600 Wh kg⁻¹) [17]. Nevertheless, obtaining rechargeable Li–air batteries is difficult. Li anodes have some drawbacks, including lithium dendrites and the solid electrolyte formation during cycling [18]. It has been reported that Li metal can be restored only partially in battery cycling with the continuous deposition of lithium hydroxide on the anode surface for the discharge/charge process in a non-aqueous solution [17]. The formation of LiOH can be attributed to the degradation in the discharge/charge process. Using a protective layer can help prevent the corrosion of the lithium anode in aqueous and non-aqueous electrolytes when there is moisture.

Zn metal gained the research community’s attention as an anode material in MABs to overcome the high reactivity of lithium in aqueous media [3]. Zn–air batteries are characterised by an exceptional energy density (1218 Wh Kg⁻¹), which makes them favourable for mobile and other electronic applications (Table 1). Furthermore, they have advantages such as the abundant availability of their components along with their inexpensive and safe manufacturing process, long shelf-life, and flat discharge voltage [3]. Rechargeable Zn–air batteries are classified into two types: mechanically and electrically rechargeable batteries. The former are recharged by introducing fresh Zn electrodes to avoid the poor reversibility of Zn. The excessive cost of the Zn recharging chain and distribution limits this option. In electrically rechargeable Zn–air batteries, flowing media are used to improve the stability of the zinc electrode. However, the corrosion of air electrodes in the charging process affected the further development of Zn–air batteries at the end of the 20th century [19].

Moreover, Zn is considered a good alloy element for the anode in an aluminium–air device to ensure an increase in the nominal voltage and a decrease in the self-corrosion capacity. Still, studies performed on aluminium–zinc anodes have revealed a decrease in their discharge process due to Zn oxidation film formation. Thus, indium (In) was introduced into an Al-Zn anode, showing an improvement in the discharge of Al–air batteries by decreasing the resistance of the Zn oxidation film.

The Al–air battery is recognised for its high specific energy (Table 1), light weight, good recycling capability, environmental friendliness, and low price. Additionally, different electrolytes can be used: alkaline, saline, and non-aqueous [20]. The Al–air battery has a remarkable specific energy (8100 Wh kg⁻¹, higher than that of Zn anodes) and a high theoretical voltage (2.7 V) [3,20]. Al is a readily available metal that can be recycled in substantial amounts [3].

The sodium–air battery has also been reported to have a high specific density (1600 Wh kg⁻¹) and capacity (Table 1). It should be mentioned that Na is among the most abundant elements on Earth (the sixth most abundant element). Moreover, it is less susceptible to decomposition during the charge/discharge of Na–air batteries as it combines with oxygen to form a more stable sodium superoxide (NaO₂) [21].

Magnesium–air batteries bring the benefits of Mg’s high abundance, high reaction activity, light weight, low toxicity, and relatively high safety. One of the main advantages of the magnesium–air battery is its capacity to be re-used by mechanically changing the magnesium anode and media. In the discharge process, the magnesium is oxidised to Mg²⁺, releasing 2 e⁻. Simultaneously, the O₂ flowing in the air cathode is reduced to OH⁻. The theoretical voltage of the Mg–air battery is reported to be 3.1 V, and the specific energy is 6800 Wh kg⁻¹ (Table 1) [1,22].

Iron–air batteries comprise an Fe anode and a carbon–air cathode submerged in aqueous media at ambient temperature. The Fe oxidation and O₂ reduction proceed during discharge and recharge from reverse reactions. The oxidation reaction of Fe(OH)₂ to FeOOH or Fe₃O₄ provides a higher specific energy (913 Wh kg⁻¹). Still, the formation of Fe(III) species is not desirable due to their higher stability and possible incomplete reduction during the recharge process. In the discharge process of an Fe–air battery, the Fe(OH)₂ from the primary reaction of the anode deposits on the Fe electrode surface due to its low solubility in the alkaline electrolyte [1,23].

As mentioned above, silicon is the second most abundant element on Earth, and it has been widely studied in the semiconductor technology area in the last five-to-ten years. However, the exploration of Si as an anode material in batteries only started in 2009. Generally, silicon is oxidised at the anode for Si–air batteries in aqueous and non-aqueous media, and oxygen is reduced at the cathode. However, there are considerable differences depending on the solution [23].

Calcium is a highly abundant metal, >150% more abundant than sodium or magnesium. Its low molecular weight and E⁰ of −2.368 V for Ca/Ca²⁺ redox in aqueous media make it an ideal contender for MAB anodes. Moreover, the deposition of Ca from aprotic solvents using salts such as Ca(ClO₄)₂ or via alloy formation has recently been demonstrated.

Potassium has also attracted significant attention as an anode for MABs due to its low cell potential and considerable specific energy. Still, the reactivity of K induces side reactions with oxygen and water and the degradation of electrolyte solvents. Thus, this drastic reactivity of K metal restricts the choice of electrolyte. In addition, thick, porous solid–electrolyte interface layers are formed as a consequence of changes in the volume of K metal and surface side reactions during cycling. This further decreases the energy efficiency and reversibility of potassium–air batteries [20].

In summary, each metal has benefits and drawbacks as an anode electrode in MABs. The anode chemical activity defines the discharge capacity [6,24]. The reactions occurring are conditioned by the metal purity and the storage environment and can proceed under different conditions, influencing the battery efficiency. Table 1 shows the performance of MABs with different anode materials.

Table 1. Performance of MABs with different anode materials.

Anode Material	EOCV (V) vs. RHE	Durability	Pmax (mW cm−2)	Specific Energy (Wh Kg−1)	Ref.
Li	2.9	Up to 700 cycles	2	3458	[17]
Zn	1.7	500 h at −10 and 25 °C, 150 h at 40 °C under charging at 100 mA cm−2	10 to 435	1218	[25]
Al	2.7	Long	315	8100	[26]
Na	2.4	Holds 90% of its cell capacity after 300 cycles	39	1600	[26]
Mg	2.9	-	112.4	6800	[27]
Fe	1.3	More than 10,000 charge/discharge cycles	-	913	[28]
Si	2.2	Short	0.3	8470	[29]
Ca	3.1	Long	-	250	[21,22]
K	-	Long	-	935	[30]

Table 1. Performance of MABs with different anode materials.

Anode Material	EOCV (V) vs. RHE	Durability	Pmax (mW cm−2)	Specific Energy (Wh Kg−1)	Ref.
Li	2.9	Up to 700 cycles	2	3458	[17]
Zn	1.7	500 h at −10 and 25 °C, 150 h at 40 °C under charging at 100 mA cm−2	10 to 435	1218	[25]
Al	2.7	Long	315	8100	[26]
Na	2.4	Holds 90% of its cell capacity after 300 cycles	39	1600	[26]
Mg	2.9	-	112.4	6800	[27]
Fe	1.3	More than 10,000 charge/discharge cycles	-	913	[28]
Si	2.2	Short	0.3	8470	[29]
Ca	3.1	Long	-	250	[21,22]
K	-	Long	-	935	[30]

3. Mechanism of OER and ORR in Alkaline Media

The OER mechanism in alkaline media presents a four-electron pathway (4OH⁻ → O₂ + 2H₂O + 4e⁻) wherein, during the electron transfer between the active site of the metal electrocatalysts (M*) and OH⁻ ions, several intermediates such as M*OH, M*O, and M*OOH appeared [3,31,32,33,34,35], as described by the following equations (Equations (4)–(8)):

M*⁺ + OH⁻ → M*OH + e⁻

(4)

M*OH + OH⁻ → MO + H₂O + e⁻

(5)

2MO → 2M + O₂

(6)

MO + OH⁻ →MOOH + e⁻

(7)

MOOH + OH⁻ → M + O₂ + H₂O + e⁻

(8)

C. Feng et al. [32] explained that O₂ can be formed in two ways. The first is given by Equations (4)–(6), finishing with the direct dissociation of M*O to M* and O₂, and the second is the reaction between M*O and OH⁻ ions, forming an M*OOH⁻ intermediate that then reacts with OH⁻ ions, forming O₂. That is, metal cations on the surface of the electrocatalyst are active sites for the OER, and their electrocatalytic activity direct depends on the M*-O bond formed in the M*OH, M*O, and M*OOH intermediates [32]. B. Środa and coworkers [36] explained that OH groups have the lowest free energy, making them the most suitable for the OER. Thermodynamically and kinetically, the OER is energy-demanding and sluggish, because its mechanism requires the exchange of four electrons during the breaking and forming of four O-H and O-O bonds, respectively [37]. Aside from this, the most important part of the OER mechanism is the creation of O-O bonds, which has not been completely explained [37].

The ORR in alkaline media could occur by a two-electron (O₂ + 2H₂O + 2e⁻ → HO₂⁻ + 4OH⁻) or four-electron (O₂ + 2H₂O + 4e⁻ → 4OH⁻) pathway, where the stability of the OM* and OOHM* intermediates obtained after the adsorption of O₂ on the surface of the electrocatalysts defines which pathway will be dominant [31,33,35]. The overall reaction (O₂ + 2H₂O + 4e⁻ → 4OH⁻) is presented in detail by the following equations (Equations (9)–(12)):

M* + O₂ + H₂O + e⁻ → OOHM* + OH⁻

(9)

OOHM* + e⁻ → OM* + OH⁻

(10)

OM* + H₂O + e⁻ → OHM* + OH⁻

(11)

OHM* + e⁻ → OH⁻ + M*

(12)

In the first reaction (Equation (9)), an O₂ molecule is adsorbed on the active site of the surface of the electrocatalysts, forming the OOHM* intermediate, which subsequently transforms into OM* (Equation (10)) intermediates by breaking the O-O bond, finally producing an OHM* intermediate (Equation (11)) [38]. This ORR pathway is called associative by W. Xia et al. [38], while the two-electron or peroxo (or second associative) pathway starts by forming OOHM* and HOOHM* intermediates immediately after the adsorption of the O₂ molecule and without breaking the O-O bond [38]. The third or dissociation ORR pathway is the simplest, where the O-O bond is broken, followed by the formation of an OM* intermediate that is reduced to OHM* and H₂OM* [38]. Depending on the conditions and different electrocatalysts, the ORR could occur via three pathways defined by free-energy barriers [38]. Kinetically, the ORR reaction is intensely sluggish because of the transfer of four coupled electrons and protons and the strong O-O bond, which is difficult to break [39].

4. ORR Catalysts

4.1. The ORR Catalysts for Zn–Air Batteries

Zn–air batteries (ZABs) consist of zinc metal and air electrodes as the anode and cathode, respectively. An air electrode comprises a separator, catalyst, and gas diffusion layer. The oxygen inside ZABs is in its gaseous state, because its solubility at atmospheric pressure in the liquid state is low [40]. The anode and cathode electrochemical reactions in an alkaline solution in ZABs are given by the following equations (Equations (13)–(17)) [40]:

Anode:

Zn → Zn²⁺ + 2e⁻

(13)

Zn²⁺ + 4OH⁻ → Zn(OH)₄²⁻ (E⁰_anode = −1 V (25 V vs. NHE)

(14)

Zn(OH)₄²⁻ → ZnO + H₂O + 2OH⁻

(15)

Zn + 2H₂O → Zn(OH)₂ + H₂

(16)

Cathode:

O₂ + 2H₂O + 4e⁻ → 4OH⁻ (E⁰_cathode = 0.4 V vs. NHE)

(17)

Overall reaction:

2Zn + O₂ → 2ZnO (E⁰_equilibrium = 1.65 V)

(18)

The equilibrium potential (E⁰_equilibrium) of ZABs has been calculated as 1.65 V [40]. It is common knowledge that noble platinum (Pt) and/or platinum-based electrocatalysts show the best activity for the ORR [25,41,42]. Still, their scarcity, high price, and poor durability limit their practical application. Nowadays, much research is focused on designing electrocatalysts with a low cost, high ORR activity, and good stability. Different sizes of metallic atoms in metal complex electrocatalysts and their electronegativity could lead to the redistribution of central electrons, thus optimising electrocatalysts’ activity for the ORR [43].

Additionally, the low spin could be changed to the intermediate spin of the metal single-atom site by adding metallic nanoclusters. This could further activate the O-O bond and improve the kinetics of the ORR [43]. The high ORR activity of some metal nanoparticle complexes depends on particle size, i.e., it increases with a decreasing particle size [44]. The appropriate metal–metal bond distance, the increased vacancy of the d electron, and the surface roughness of electrocatalysts can also enhance the ORR activity [44]. The activation of O₂ molecules and the desorption of OH* species on active sites due to the presence of metal nanoparticles and single-atomic sites could improve the ORR rate [44].

M. Zhang et al. [25] presented some of these ORR electrocatalysts [25]. Namely, they synthesised electrocatalysts comprising ruthenium cobalt (RuCo) nanoparticles and Co nitrogen (N_x) species in N-doped carbon (RuCo@Co-N-C) and examined them for the ORR. The investigation of RuCo@Co-N-C for potential application in ZABs as an air cathode showed better battery performance than Pt/C with ruthenium oxide (Pt/C + RuO₂). The ZAB’s open-circuit voltage (E_OCV) was found to be 1.45 and 1.39 V for RuCo@Co-N-C and Pt/C + RuO₂, respectively [25]. A peak power density (P_max) of 154.3 mW cm⁻² and a specific capacity of 767.4 mAh g⁻¹_Zn were obtained with RuCo@Co-N-C, higher than with the Pt/C + RuO₂ electrode (

Table 2. Performance of the newest ORR electrocatalysts and the corresponding ZABs.

ORR Air Cathode	EOCV (V) vs. RHE	E1/2 (V) vs. RHE	Durability	Pmax (mW cm−2)	Specific Capacity (mAh g−1)	Ref.
RuCo@Co-N-C	1.45	0.90	Long-term cyclic stability for 100 h.	154.3 at ~0.69 V and ~225 mA cm−2	767.4	[25]
Pt/C + RuO2	1.39	/	/	119.8 at ~0.57 V and ~210 mA cm−2	717.0	[25]
Fe SAs/NPs@NC + IrO2	1.446	/	Excellent durability of 1000 cycles over 183 h.	107.9 at ~0.83 V and ~130 mA cm−2	734.5 at 10 mA cm−2	[26]
Pt/C + IrO2	1.477	/	Low durability for 90 h.	92.9 at ~0.80 V and ~115 mA cm−2	658.3 at 10 mA cm−2	[26]
Fe-FeNC	1.49	0.82	Long-term cyclic durability for 120 h.	141 at ~0.63 V and 222 mA cm−2	760 at 10 mA cm−2	[27]
0.05 Mn-N-P-C	1.45	0.82	The ZAB mechanically recharged multiple times within 80 h without the degradation of voltage.	133 at ~0.71 V and ~188 mA cm−2	830 at 5 mA cm−2	[28]
Te/Fe-N-C	1.49	0.88	ΔE = 22 mV (50,000 s).	250 at ~0.71 V and ~350 mA cm−2	770 at 20 mA cm−2	[29]
FeNC-Ce-950	1.480	0.921	The ZAB’s charge/discharge voltages with FeNC-Ce-950 were high for about 11 h.	175 at ~0.69 V and 255 mA cm−2	757 at 10 mA cm−2	[43]
Co SAs/NCNA	1.49	0.98	/	206 at ~0.59 V and ~350 mA cm−2	769	[44]
FeNFC800	1.56	0.829	Galvanostatic discharge curve at 10 mA cm−2 for 20,000 s.	196 at ~0.78 V and ~250 mA cm−2	/	[45]
0.4Co@NC-900	1.50	0.91	Excellent stability after long-term charge–discharge cycling tests over 130 h.	203 at ~0.62 V and 325 mA cm−2	792	[46]
N-G/CNTs-900	1.45	0.838	Two N-G/CNTs-900-based ZABs were connected in series with an electronic light display screen for more than 24 h.	133.6 at ~0.61 V and 220.10 mA cm−2	707 at 10 mA cm−2	[47]

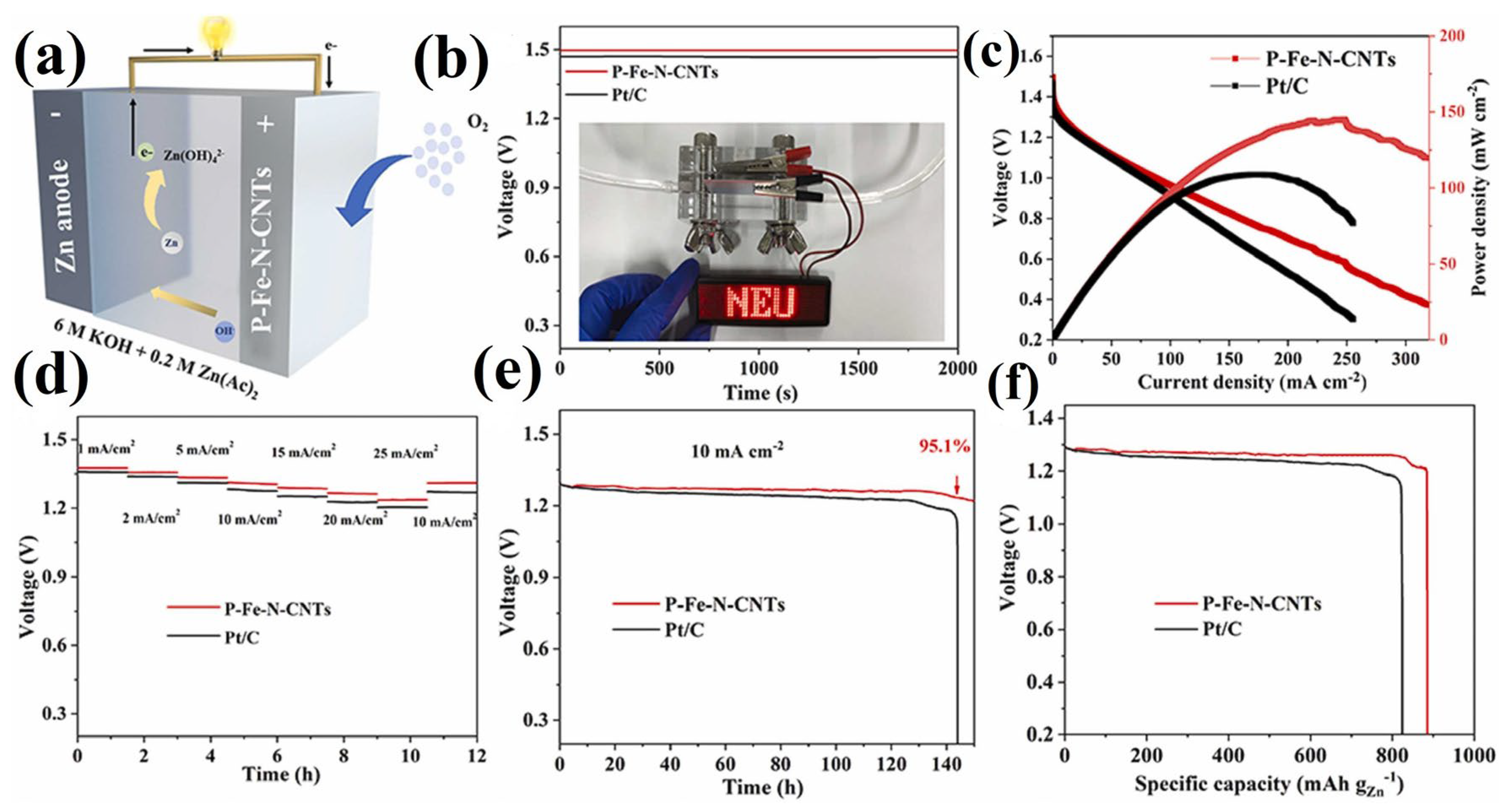

P-Fe-N-CNTs	1.498	0.8843	The durability of the ZAB was satisfactory, and the voltage retention rate was 95.1% after 144 h.	145 at ~0.64 V and ~225 mA cm−2	885 at 10 mA cm−2	[48]
Co@N-HPCFs	/	0.831	The excellent electrochemical stability of the Co@N-HPCF-800-based ZAB was observed in a long-term test with 600 cycles (200 h) at 2 mA cm−2.	136.2 at ~0.53 V and ~255 mA cm−2	723 at 5 mA cm−2	[49]
NPS-HPCNs	1.479	0.86	The 200 h long-term cycling test of the NPS-HPCN-based battery at a current density of 10 mA cm−2 showed reinforced charge and discharge potentials.	206 at ~0.59 V and ~350 mA cm−2	/	[50]

). The 100 h charge/discharge cycling ZAB test of RuCo@Co-N-C and the Pt/C + RuO₂ counterpart showed that the voltage change was not significantly pronounced in the case of RuCo@Co-N-C, as in the case of the Pt/C + RuO₂ counterpart in the ZAB. The outstanding ORR activity of RuCo@Co-N-C was explained by density functional theory (DFT) calculations, indicating that Ru@CoN₄ has a higher charge density than Co@CoN₄. Also, DFT results showed that Ru/Co and CoN_x species could act as active sites for improving ORR kinetics.

Fe nanoparticles (Fe NPs) incorporated into nitrogen-doped carbon to provide single Fe atoms (Fe SAs/NPs@NC) showed excellent ORR performance in a ZAB [26]. The ZAB construction consisted of a Zn plate as an anode, an Fe SAs/NPs@NC + IrO₂ air electrode employed as the cathode, and 6 M KOH + 0.2 M Zn(Ac)₂ as the electrolyte. The battery performance of the Fe SAs/NPs@NC + IrO₂ electrode was compared to that of a Pt/C + IrO₂ electrode. The E_OCV of the ZAB was found to be 1.446 and 1.477 V for the Fe Sas/NPs@NC + IrO₂ and Pt/C + IrO₂ electrodes, respectively. P_max values of 107.9 and 92.9 mW cm⁻² and specific capacity values of 734.5 and 658.3 mAh g⁻¹ at a discharge current density of 10 mA cm⁻² were obtained for the Fe SAs/NPs@NC + IrO₂ and Pt/C + IrO₂ electrodes, respectively. The Fe SAs/NPs@NC + IrO₂ air electrode performed better in the ORR than the Pt/C + IrO₂ electrode. The durability of the ZAB was tested over 1000 cycles for 183 h, and the ZAB with the Fe SAs/NPs@NC + IrO₂ catalyst exhibited excellent durability for all 183 h, while the ZAB with the Pt/C + IrO₂ catalyst could be cycled for only 90 h, exhibiting low durability [26]. It was noticed that atomically dispersed Fe-N_x and Fe NPs had a strong interaction in the Fe-N_x structure, which could have led to this remarkable ORR behavior. This strong interaction could have decreased the binding energies of the ORR intermediates and lead to high ORR performances [26].

The oxidation polymerisation–pyrolysis method was used to prepare the uniformly F-doped porous Fe-N/C catalysts by utilising 4-fluoroaniline as a “self-co-doping” precursor with N and F elements (F-FeNC) [27]. Zn foil, F-FeNC, and 6.0 M KOH + 0.2 M Zn(Ac)₂ solution served as an anode, air cathode, and electrolyte in the liquid-state ZAB, respectively. The ORR performance of the FeNC-based ZAB air cathode was compared with that of a Pt/C + IrO₂ cathode in the same conditions. The E_OCV of 1.49 V for the FeNC-based ZAB was superior to the value of 1.44 V for the Pt/C + IrO₂-based ZAB. The P_max values of 141 and 222 mW cm⁻² at discharge current densities of 222 and 187 mA cm⁻² were found for the FeNC-based ZAB and Pt/C + IrO₂-based ZAB electrodes, respectively. The high ORR performance of the FeNC-based ZAB was confirmed by comparing the discharging voltages at current densities from 2 to 100 mA cm⁻², and the FeNC-based ZAB showed a stable discharge platform. The F-FeNC-based ZAB gave a stable discharge voltage of around 1.28 V at a discharge current density of 10 mA cm⁻² over 80 h. Additionally, the ZAB with the F-FeNC cathode showed a higher specific capacity of 760 mAh g⁻¹_Zn than the Pt/C + IrO₂-based ZAB with a value of 721 mAh g⁻¹_Zn at 10 mA cm⁻² [27]. The F-FeNC-based ZAB air cathode showed long-term cycle stability and good rechargeability for 120 h, while the Pt/C + IrO₂-based ZAB showed cycle stability for about 50 h. It was explained that the electronic structure of Fe-N_x active sites could be optimised by incorporating F, while 4-FA mitigated Fe aggregation. The excellent ORR performance of the F-FeNC catalyst was due to its specific structure with homogeneously dispersed F atoms and abundant Fe-N_x active sites [27].

Mn-N-P-doped carbon spheres were synthesised by the polymerisation of hexachlorotripolyphosphazene (HCCP) and phloroglucinol, followed by calcination at 900 °C [28]. J. Li et al. presented a ZAB with a 0.05 Mn-N-P-C air cathode and a Zn sheet as an anode in 6 M KOH, which delivered an E_OCV of 1.45 V and a P_max of 133 mW cm⁻². The Mn-N-P-C air cathode showed better ORR performance than commercial Pt/C catalysts. This ZAB was mechanically recharged numerous times over 80 h with no voltage degradation. Theoretical calculations showed that introducing Mn into N-P-doped carbon decreased the dissociation barrier from O₂ to O^∗, which led to the high ORR catalytic activity of the Mn-N-P-C catalyst [28].

Pyrolysis-acquired iron and nitrogen-co-doped carbon (Fe-N-C) was prepared. After that, the Fe-N-C was mixed with tellurium (Te) by micelle-induced polymerisation with Te nanowires as an in situ intervening agent (Te/Fe-N-C) [29]. A homemade ZAB with a Te/Fe-N-C air cathode showed an E_ocv and P_max of 1.49 V and 250 mW cm⁻², respectively. These values illustrated the better ORR performance of the Te/Fe-N-C compared to the Pt/C air cathode in the ZAB. Additionally, the discharge stability of Te/Fe-N-C and Pt/C was examined at 5 and 20 mA cm⁻², and discharge voltages of 1.30 and 1.22 V were obtained for Te/Fe-N-C and values of 1.28 and 1.19 V for Pt/C, respectively. Long-term discharge durability tests with Te/Fe-N-C and Pt/C were carried out on the ZAB at 5 and 20 mA cm⁻² for 50,000 s. This test of the ZAB showed a low voltage change (ΔE) of 22 mV for the Te/Fe-N-C electrode. The discharge-specific capacity of Te/Fe-N-C was calculated to be 770 mAh g⁻¹_Zn at 20 mA cm⁻²_. Finally, the discharge voltages (1.325, 1.300, 1.275, 1.240, and 1.327 V) for Te/Fe-N-C at all current densities (2, 5, 10, 20, and 5 mA cm⁻²) were higher than for Pt/C. The content of Fe on the surface of the Te/Fe-N-C catalyst was 0.38%, and the Fe with both +2 and +3 valences was bonded with N. Then, Te would bond with the Fe-N_x out of the plane, resulting in the improvement of the N content on the material surface and increasing the ORR activity of the Te/Fe-N-C catalyst [29].

Cerium oxides (CeO_x) were added into the two-dimensional co-doped carbon (Fe-N-C) catalyst (FeNC-Ce-950) [43]. ZAB tests were carried out with FeNC-Ce-950 as an air cathode catalyst, a zinc plate as an anode, and 6 M KOH as an electrolyte. The E_ocv of the ZAB with FeNC-Ce-950 was observed to be 1.480 V (Figure 1b). Figure 1c shows the 2 V light-emitting diode connected to two Zn–air batteries with FeNC-Ce-950 in series. P_max and specific capacity values of 175 mW cm⁻² and 757 mAh g⁻¹_Zn, respectively, were obtained for the FeNC-Ce-950-assembled battery (Figure 1d,e), and the specific capacity was determined by normalising the consumed Zn (m = 1.9 g) at a discharge current density of 10 mA cm⁻². The ZAB’s charge/discharge voltages with FeNC-Ce-950 were high for about 11 h (Figure 1f) [43]. The FeNC-Ce-950 catalyst consisted of a vital Ce⁴⁺/Ce³⁺ redox system with a high number of oxygen vacancies correlated to highly efficient O₂ adsorption and a higher number of carbon matrix defects than the Ce-free Fe-N-C catalysts [43].

Co-N₄ sites on N-doped carbon nanofibre aerogel (Co SAs/NCNA) were constructed by the direct and green pyrolysis of a metal-chelated cellulose nanofibre (TOCNFs-Cd²⁺/Co²⁺) hydrogel precursor [44]. An E_ocv of 1.49 V was obtained for the ZAB with a Co SAs/NCNA air cathode. Also, the performance of this battery with Co SAs/NCNA in terms of specific capacity and P_max was found to be 769 mAh g⁻¹ and 206 mW cm⁻², respectively. The Co SAs/NCNA consisting of 3D hierarchically porous carbon aerogels showed excellent ORR kinetics in alkaline media [44].

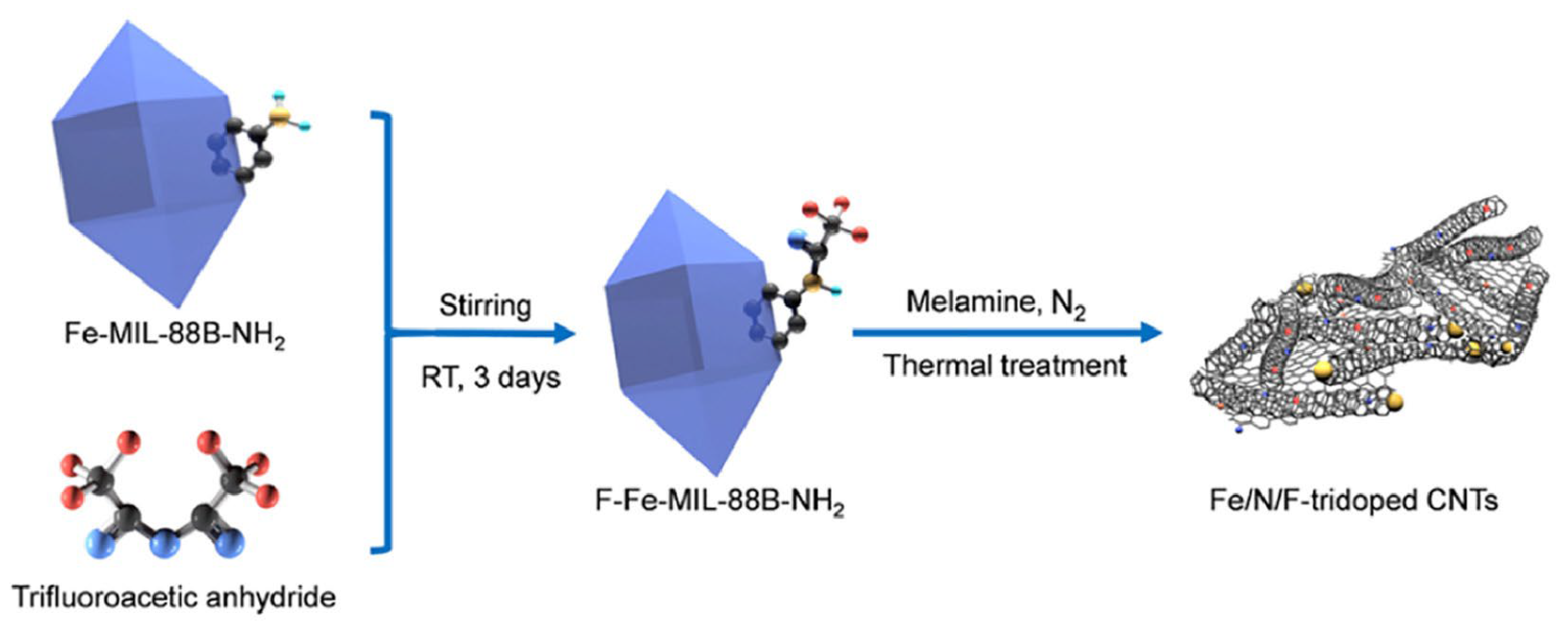

A. Yu et al. [45] synthesised Fe/N/F-tri-doped (FeNFCs) carbon nanotubes (CNTs) by annealing the post-synthesised trifluoroacetic anhydride-modified Fe-MIL-88B-NH₂ nanocrystals with melamine in an N₂ atmosphere at high temperature (Scheme 3). The authors prepared a homemade ZAB with an FeNFC800 catalyst (loading mass = 1 mg cm⁻²), Zn plate, and 6 M KOH solution as the air cathode, the anode, and the electrolyte, respectively. This battery with the FeNFC800 catalyst gave an E_ocv of 1.56 V, showing a higher cell voltage than the value of 1.47 V obtained for the ZAB with a 20% Pt/C air cathode. Potential practical applications of the FeNFC800 air cathode were examined by the galvanostatic discharge curve at 10 mA cm⁻² for 20,000 s. A P_max of 196 mW cm⁻² was obtained for the FeNFC800 air cathode, which was higher than the value of 56 mW cm⁻² for commercial Pt/C. It was confirmed that FeNFC800 has a unique structure with a dominant CNT content, which provides a high pyridinic/graphitic nitrogen content, a large specific surface area, ionic/semi-ionic C-F bonds, etc. These structural facts could have led to the high ORR activity of the FeNFC800 catalyst [45].

A novel nanocapsule with a cobalt core and nitrogen-doped carbon shells (Co@NC) supported on a metal-organic framework (MOF)-derived hierarchical porous carbon framework (0.4Co@NC-900) was examined as an air cathode in a liquid ZAB [46]. Specifically, the primary ZAB was constructed with a Zn plate anode, 0.4Co@NC-900 air electrode, and 6 M KOH + 0.2 M zinc acetate solution. This ZAB gave an E_ocv of 1.50 V and a P_max of 203 mW cm⁻². These excellent battery performance metrics could have resulted from the unique pore structures of the 0.4Co@NC-900 electrocatalyst. The battery performance of the 0.4Co@NC-900-based and Pt/C-based batteries was investigated at different current densities (2, 5, 10, 20, 10, and 5 mA cm⁻²). The 0.4Co@NC-900-based battery showed a higher discharge voltage at all current densities than the Pt/C-based ZAB. Precisely, the discharge voltage of the 0.4Co@NC-900-based battery decreased by only 5.7% with the current density increasing from 2 to 20 mA cm⁻². Specific capacity values of 792 and 611 mAh g⁻¹ were obtained for the 0.4Co@NC-900-based and Pt/C-based ZABs, respectively. Most importantly, the 0.4Co@NC-900-based battery showed excellent stability after long-term charge–discharge cycling tests over 130 h with deviations in the charge-discharge voltage of 0.2 V. The excellent ORR activity and stability of the 0.4Co@NC-900 catalyst were obtained due to its mesoporous structure, with the optimised micro-/mesoporous ratio of carbon structures decreasing the chemical corrosion of the Co nanoparticles [46].

A hybrid heterostructure N-G/CNTs-900 catalyst with a hierarchically porous architecture was prepared by the hydrothermal reduction self-assembly method using graphene oxide (GO), carbon nanotubes (CNTs), and CNTs combined with urea as the precursor, nitrogen source, and foam-introducing agent, respectively [47]. A liquid rechargeable ZAB was constructed of zinc with a thickness of 0.5 mm as an anode, N-G/CNTs-900 as an air cathode, and 6.0 M KOH + 0.2 M zinc acetate as an electrolyte. The ZAB with the N-G/CNTs-900 air electrode gave an E_ocv of 1.45 V and a P_max of 133.6 mW cm⁻². This battery showed a specific capacity of 707 mAh g⁻¹ at 10 mA cm⁻². The authors presented the high activity and stability of N-G/CNTs-900 as an air cathode by connecting two N-G/CNTs-900-based ZABs in series with an electronic light display screen for more than 24 h [47].

An Fe/N/P-tri-doped prolonged carbon nanotube (P-Fe-N-CNT) electrocatalyst with a large specific surface area and abundant porous structure was prepared according to a facile one-step calcination procedure and tested for the ORR in a ZAB [48]. Ni foam containing a P-Fe-N-CNT catalyst with a catalyst load of 1 mg cm⁻² and a polished Zn sheet were set as the cathode and anode in the ZAB (Figure 2a), respectively, while 6 M KOH + 0.2 M Zn (Ac)₂ was used as the electrolyte. The assembled ZAB with the P-Fe-N-CNT air cathode gave an E_ocv of 1.498 V (Figure 2b). A P_max of 145 mW cm⁻² and a discharge specific capacity of 885 mAh g⁻¹ at 10 mA cm⁻² was obtained for this P-Fe-N-CNT-based ZAB (Figure 2c,f). The P-Fe-N-CNT catalyst provided an excellent rate performance for the ZAB (Figure 2d) at different current densities (1, 2, 5, 10, 15, 20, 25, and 10 mA cm⁻²). The assembled ZAB with the P-Fe-N-CNT air cathode provided satisfactory durability and a voltage retention rate of 95.1% after 144 h at 10 mA cm⁻² (Figure 2e). In all cases, the battery performance of the P-Fe-N-CNT air cathode was found to be better than that of a Pt/C air cathode. The authors performed an electrochemical impedance spectroscopy (EIS) investigation of the P-Fe-N-CNT- and Pt/C-based ZABs. The P-Fe-N-CNT-based ZAB gave a lower charge transfer resistance than the Pt/C catalyst, showing improved conductivity. This remarkable ORR activity of the P-Fe-N-CNT catalyst was due to the synergistic effect of Fe-Nx/Px and N- and P-co-doped carbon, which provided a unique structure with a large specific surface area, promoting a high rate of charge and mass transfer [48].

The highly dispersed Co nanoparticles on a hierarchically porous N-doped carbon fibre (Co@N-HPCF) catalyst were also explored for use in MABs [49]. The liquid ZAB was assembled using a zinc plate as the anode, a Co@N-HPCF-800 catalyst as the air cathode (catalyst loading of 1 mg cm⁻²), and 6 M KOH + 0.2 M zinc acetate solution as the electrolyte. The Co@N-HPCF-800-based ZAB showed a higher discharge voltage than the 20 wt% Pt/C-based battery at the same current density and a substantially higher voltage at a high current density. Specifically, the Co@N-HPCF-800-based battery gave a P_max of 136.2 mW cm⁻² and a specific capacity of 723 mAh g⁻¹ at 5 mA cm⁻². Interestingly, the Co@N-HPCF-800-based battery gave a 1.43-times higher P_max than the 20 wt% Pt/C-based battery. The relatively stable charge–discharge platform of the ZAB with the Co@N-HPCF-800 cathode was demonstrated during a long-term test over 600 cycles (200 h) at 2 mA cm⁻². The charge–discharge efficiency decreased from the initial 64.5 to 57.1%, which presented the excellent electrochemical stability of the Co@N-HPCF-800-based ZAB. The outstanding electrocatalytic ORR performance of the Co@N-HPCF electrocatalyst was explained by its unique structure and appropriating synergistic effects. Improved mass transport for ORR species was noticed by the rapid diffusion of a substance through its hollow porous nanostructured structures. The enhanced electron structure was achieved by its 1D structure [49].

Q. Zhao et al. [50] presented a metal-free and novel coating strategy to produce adjacent N, P, and S-co-doped hierarchical porous carbon nanoshells (NPS-HPCNs) that were highly active for the ORR. Additionally, NPS-HPCNs served as the air cathode, a polished zinc plate as the anode, and 6 M KOH containing 0.2 M Zn(OAc)₂ solution as the electrolyte in a primary ZAB. An E_ocv of 1.479 V and a P_max of 206 mW cm⁻² were obtained for the NPS-HPCN-based ZAB. It was noticed that the galvanostatic discharge voltages of the NPS-HPCN-based battery decreased with an increased current density from 1 to 15 mA cm⁻². The galvanostatic discharge voltage plateaus of the NPS-HPCN-based battery appeared at 1.37, 1.34, 1.33, 1.32. 1.31, and 1.29 V, corresponding to the discharge current densities of 1, 3, 5, 7, 10, and 15 mA cm⁻², respectively. A 200 h long-term cycling test of the NPS-HPCN-based battery at a current density of 10 mA cm⁻² showed reinforced charge and discharge potentials. The porous hollow structure of the NPS-HPCN electrocatalyst could improve the mass and electron transfer during the ORR. N, P, and S atoms could reduce the energy barriers for the ORR and enhance the adsorption of O₂ [50].

4.2. ORR Catalysts for Aluminium–air Batteries

Aluminium–air batteries (AABs) have also been explored as future energy generation storage devices. AABs have a high theoretical voltage (2.7 V), high energy density (8.1 kWh kg⁻¹), high theoretical specific capacity of 2.98 Ah g⁻¹, low cost, abundant reserves, and light weight [51,52]. These batteries are assembled with an aluminium anode, an air cathode, and an alkaline or neutral electrolyte such as KOH, NaO, or NaCl [51]. The anode (Equation (19)) and cathode electrochemical reactions (Equation (17)) in an alkaline solution in AABs are given by the following equations (Equations (17) and (19)) [40]:

Anode:

Al → Al³⁺ + 3e⁻

(19)

Overall reaction:

4Al + 3O₂ + 6H₂O → 4Al(OH)₃ (E⁰_equilibrium = 2.7 V)

(20)

Herein, we focus on the newest air cathode materials, essential components in AABs. We report several of the newest catalytic active layers consisting of an electrocatalyst, carbon material, and binder, which correspond to the ORR.

Cobalt nanoparticles encapsulated with N-doped graphene nanoplatelets (Co@N/GNPs) were prepared by plasma engineering [53]. This electrocatalyst was set as an air cathode with a diameter of 0.5 mm and catalyst loading of 2 mg cm⁻², an Al 5052 alloy plate was set as an anode; and a 6 M KOH solution was set as the electrolyte with dissolved 0.01 M Na₂SnO₃, 0.0005 M In(OH)₃, and 0.0075 M ZnO as the corrosion inhibitor in homemade AABs. The E_ocv and P_max of the AABs with a Co@N/GNP cathode were founded to be 1.40 V and 143.4 mW cm⁻² (

Table 3. The performance of the newest ORR electrocatalysts and the corresponding AABs.

ORR Air Cathode	EOCV (V) vs. RHE	E1/2 (V) vs. RHE	Durability	Pmax (mW cm−2)	Specific Capacity (mAh g−1)	Ref.
Co@N/GNP	1.40	0.98	The durability of this AAB was investigated at 25 mA cm−2, and it was noticed that the Co@N/GNP cathode showed voltage degradation at 29,460 s.	143.04 at 0.74 V and 191.83 mA cm−2	/	[53]
Integrated B–N-G	/	0.868	High durability of AAB construction.	152.4 at ~0.81 V and ~188 mA cm−2	/	[52]
Slurry-cast B–N-G	/	/	/	137.1 at ~0.78 V and ~175 mA cm−2	/	[52]
Pt/C	/	0.854	/	136.2 at ~0.64 V and ~212 mA cm−2	/	[52]
FePc@Co-SAs/PCNF		0.87	/	196.36 at ~0.79 V and ~250 mA cm−2	/	[54]
Co-N-C	1.7	0.838	After 20000 s, retained 95% of the performance.	148 at ~0.99 V and ~150 mA cm−2	1148 at 50 mA cm−2	[55]

), respectively. The discharge plots at different current densities (5, 25, 50, 100, and 5 mA cm⁻²) for 10 min showed that the discharge potential of the Co@N/GNPs reached 1.04 V at a current density of 100 mA cm⁻². The durability of this Al–air battery was investigated at 25 mA cm⁻², where it was noticed that the Co@N/GNP cathode presented voltage degradation at 29,460 s. The authors compared the battery performances of AABs with a Co@N/GNP cathode and a graphene nanoplate (GNP) cathode, and the results showed better battery performance for the Co@N/GNP cathode due to the incorporation of the cobalt by the n-doped carbon shell [53].

Boronate-amino (B–N) coordinated active sites deposited on a graphene aerogel (denoted as B–N-G) were investigated for the ORR in alkaline media [52]. Then, an Al–air homemade battery was constructed with B–N-G on a Ni foam current collector as an integrated air cathode with a thickness of ~0.5 mm and an Al 1.0 wt%–Mg 0.1 wt%–Sn (Al–Mg–Sn) alloy as an anode. In the Al–air homemade battery, 4 M NaOH or 3.5% NaCl solution was used as an electrolyte. Explicitly, the performance of the Al–air homemade batteries constructed with an integrated B–N-G air cathode was compared with slurry-cast B–N-G and Pt/C air cathodes. The authors noted that the E_ocv of the integrated B–N-G-based battery was higher than that of the slurry-cast B–N-G- and Pt/C-based batteries. A P_max of 152.4 mW cm⁻² was obtained for the integrated B–N-G-based battery, while P_max values of 137.1 and 136.2 mW cm⁻² were founded for the slurry-cast B–N-G-based (Table 3) and Pt/C-based batteries, respectively. The AAB with the integrated B–N-G air cathode gave larger discharge voltage plateaus at different current densities ranging from 5 to 100 mA cm⁻² than the other two examined batteries. The integrated B–N-G–air cathode-based battery demonstrated that the voltage recovered to 1.71 V when the current density changed to 5 mA cm⁻² again. The long-term discharge curve of the integrated B–N-G–air cathode-based battery was obtained at 20 mA cm⁻² by mechanical charging every 4 h. This battery showed no voltage loss with a constant voltage plateau at ~1.58 V. After that, the Al–air battery with the B–N-G–air cathode was tested in contact with a KOH electrolyte and aluminium species after off-loading storage for 5 days in the KOH electrolyte. It was noticed that the discharge voltage remained at 1.55 V, presenting the good durability of this construction. The intensive ORR activity of the B–N-G catalyst originated from the high activity of the B–N coordinated active sites [52].

Iron phthalocyanine (FePc) anchored on the cobalt-nitrogen sites on N-doped porous carbon nanofibres (FePc@Co-SAs/PCNF) was synthesised and investigated for the ORR [54]. Then, FePc@Co-SAs/PCNF was used as a cathode in a homemade AAB to investigate its practical application in a battery setup. This AAB was assembled with an Al-Mg-Sn alloy plate as the anode and 3.5 wt% NaCl solution as the electrolyte. Stable discharge voltages of 1.58 and 1.28 V were found at 20 and 100 mA cm⁻². This battery was examined with periodically recharging Al alloy anodes, and no voltage loss during continuous discharge was seen. A P_max of 196.36 mW cm⁻² was obtained for the FePc@Co-SAs/PCNF-based AAB, while the commercial Pt/C-based battery showed a lower value of 131.26 mW cm⁻². The intensive ORR catalysis by the FePc@Co-SAs/PCNF could have result from coupling the FePc with Co-N₃ and their strong electronic interaction, leading to the enhanced adsorption of O₂ [54].

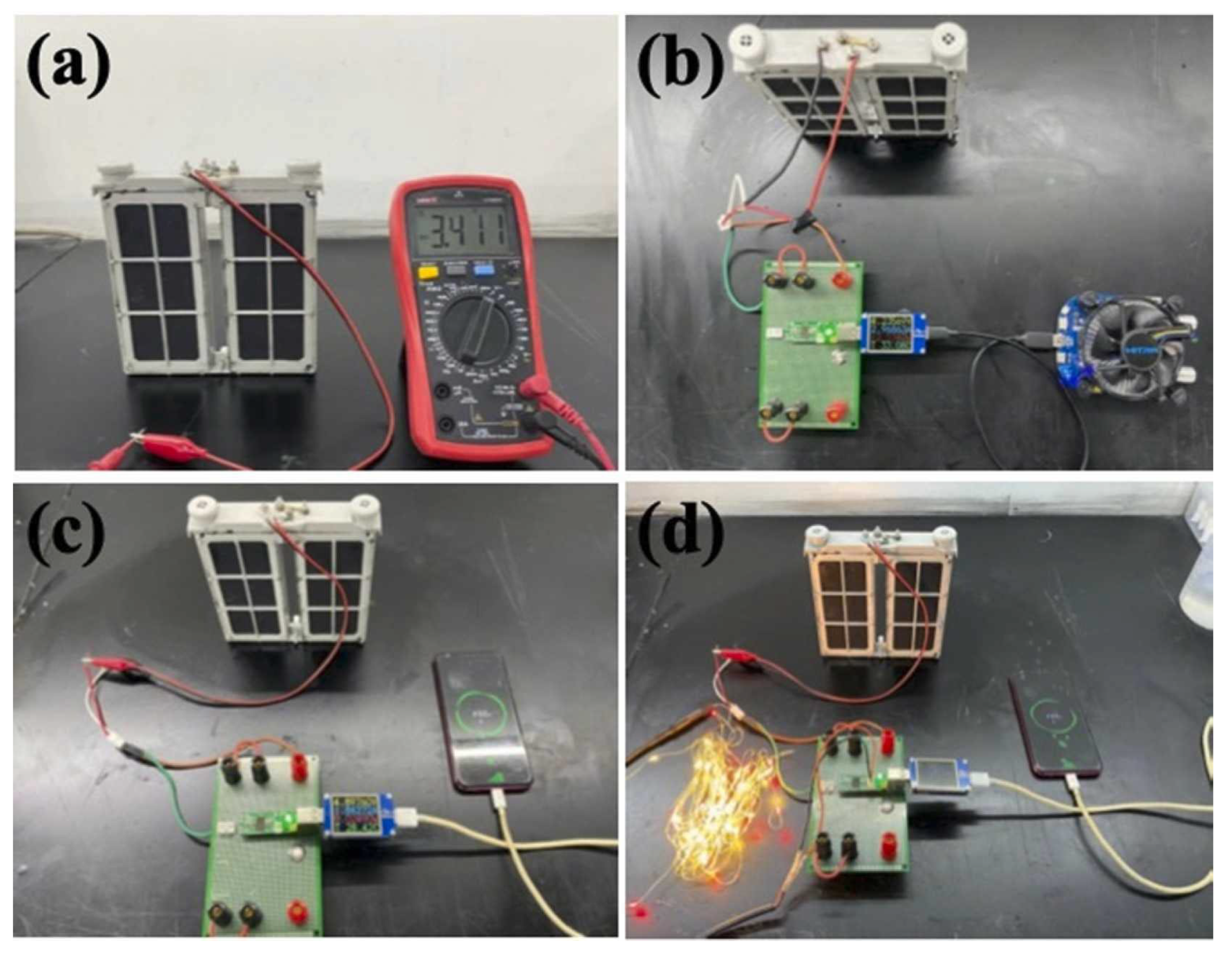

An impregnation method was used for preparing a nitrogen-doped carbon catalyst by heat treatment, and Co anchored on a N-doped carbon catalyst (Co-N-C) with a size of 10–30 nm was prepared [55]. The homemade AAB consisted of an Al–Mg–Sn–In alloy plate as the anode, the Co-N-C catalyst as the air cathode, and 6 M of KOH with 0.5% sodium stannate as the electrolyte. An E_ocv of 1.7 V and a P_max of 148 mW cm⁻² were obtained for the Co-N-C-based AAB. This battery performance was somewhat better than that obtained for a 20wt% Pt/C-based battery. The specific capacity of the AABs was examined at 50 mA cm⁻² and found to be 1148 mAh⋅g⁻¹ for the Co-N-C-based AAB and 681 mAh g⁻¹ for the 20% Pt/C-based AAB. Both air cathodes in the AABs showed good performance at different discharge currents (10, 20, 30, 40, 50, 20, and 10 mA cm⁻²). The durability of the Co-N-C-based AAB was retained at 95% after 20,000 s. The authors [55] presented two Co-N-C-based aluminimum–air battery cells in series with a catalyst cathode load of 1 mg cm⁻² and showed that these batteries could charge a mobile phone and light a series of lights simultaneously (Figure 3).

5. Bifunctional ORR/OER Catalysts

The development of new bifunctional electrocatalysts for MABs is still challenging due to the slow kinetics of both the OER and ORR in the charge/discharge process. Moreover, the high price and low abundance of noble metals have hindered their use in electrocatalysis. Consequently, low-price and effective bifunctional catalysts are vital to accelerate electrochemical reactions and raise the recharge rate and the voltage of rechargeable MABs.

Recently, transition metal (TM) (Mn, Co, Ni, and Fe)-based materials have shown considerable catalytic activity for the OER/ORR. TM oxides present several crystal structures and active defect sites, benefiting from the existence of different valence states in a TM. Thus, transition metals combined with nitrogen-doped carbons (M/N-C) with excellent ORR/OER performance have been reported as good substitutes for precious metal catalysts [56].

Many studies have been performed on carbon materials (carbon nanotubes, graphite, mesoporous carbon, and graphene, among others), and many strategies for the enhancement of their performance, such as heteroatom-doping, have been introduced. Carbon materials have been extensively explored for the ORR/OER because of their interesting properties, such as their low price, good electronic conductivity, large specific surface area, and high stability. Nevertheless, the electrocatalytic efficiency of pure carbon materials is not expected. Conversely, the synergic effects between carbon materials and other elements can lead to bifunctional behaviour. It has recently been reported that doping carbon materials with, for instance, N, P, S, F, or B, can polarise the carbon atoms due to the size and electronegativity differences between the dopants and carbon. Co-doping carbon materials with heteroatoms of different electronegativities will raise the asymmetry of electrons at the doping position, introducing more active sites for ORR/OER catalysts and promoting the adsorption/desorption of oxygen. An example is the hybrid electrocatalysts composed of transition metal compounds and heteroatom-doped carbon materials cited to increase ORR/OER activity [57,58].

Metal-free N-doped graphdiyne (GDY) was developed as an ORR/OER material [53], and pyridinic N was demonstrated to contribute to enhanced catalytic activity for the ORR and OER. Other studies involving B-, N-, and F-tri-doped lignin-derived carbon nanofibre (BNF-LCF) catalysts showed high catalytic performance for the ORR/OER. Specifically, a lower difference between the potential at 10 mA cm⁻² in OER mode and the E_1/2 in ORR mode of 0.728 V was determined for BNF-LCFs compared to the value of 0.760 V in the case of commercial Pt/C + RuO₂. The BNF-LCF-based liquid ZABs presented a high OCV of 1.536 V and a high specific capacity of 791.5 mAh g^{− 1} with considerable charge–discharge cycle efficiency (Figure 4) [59]. One of the most interesting materials is single-atom carbon with M-Nx-C species. Li and coworkers designed an electrocatalyst involving ferric oxide (Fe₃O₄) and cobaltous oxide (CoO) in a carbon nanoflower. The Zn–air battery using this electrocatalyst showed an OCV of 1.457 V, a stable discharge of 98 h, a high specific capacity of 740 mAh g⁻¹, a large power density of 137 mW cm⁻², and excellent charge/discharge cycling performance [60]. Electrocatalysts supported on helically coiled nitrogen-doped carbon nanotubes (HNCNTs), such as Co@H-NCNTs, were studied for the ORR and OER and were demonstrated to be comparable with Pt/C and IrO₂ (Figure 5). DFT calculations showed that the active sites in Co@H-NCNTs had low overpotentials for the ORR/OER, leading to remarkable catalytic activity. A Zn–air battery with Co@H-NCNTs exhibited a high power density (207.0 mW cm⁻²) and good stability after 300 cycles. Thus, Co@H-NCNTs could be a favourable bifunctional ORR/OER catalyst for effective electrocatalysis in Zn–air batteries [61].

Transition metal materials (oxides (spinel oxide and perovskite oxide, double-layered hydroxides); sulfides; phosphides; and nitrides) have demonstrated efficiency as precious-metal-free bifunctional electrocatalysts. However, their performance could be influenced by their intrinsic poor conductivity, decelerating the reaction kinetics [62]. Still, recently, nanostructured transition metal phosphides and their hybrids have demonstrated excellent activity and durability for the OER/ORR [56].

Porous materials doped with transition metals have been studied as ORR/OER catalysts [63]. However, metal particle agglomeration and leaching after long-term usage are still a problem to be tackled. In contrast to metal-loaded catalysts, metal-free carbon materials do not suffer from particle agglomeration or leaching and, consequently, may display better stability through long-term usage.

Quian and coworkers demonstrated that MOFs can be applied as precursors to synthesise noble-metal-free ORR/OER cathodic electrocatalysts with excellent performance in rechargeable Zn–air batteries [58]. MOF-based materials, particularly bimetallic MOFs, are known as promising electrocatalysts because of their tunable porosity, high surface area, and flexible structure/composition. Nevertheless, MOF-based materials typically have poor electrical conductivity and reduced functionality. Using MOF structures as precursors is a well-recognised method to synthesise high-performance electrocatalysts. For example, an MOF-derived Co₉S₈/Co–N_x/CoNi/Ni₃S₂@CNS-4 catalyst was described to have good ORR/OER performance. A peak power density of 206.9 mW cm⁻² suggested good Zn–air battery performance [64]. NiFe-MOF/NiFe₂O₄ hollow spheres exhibited excellent ORR and OER performance, explained by the synergetic effect involving NiFe-MOF and NiFe₂O₄ [62].

Electrocatalysts doped with two or more metals are also recognised to have higher catalytic activity compared to their single-metal counterparts. For instance, one-step high-temperature pyrolysis resulted in a trimetallic electrocatalyst (FeZrRu/C) with notable ORR/OER catalytic activity. A ZAB with FeZrRu/C reached a power density of ca. 221 mW cm⁻² [65].

Zhang and coworkers constructed a Co-N-C and NiFe layered double hydroxide as a composite for OER/ORR catalysis. Mn₃O₄-based and FeCo-based spinel oxide nanocomposites were produced by Qiu et al. for the ORR and OER, respectively. In studies by Chen et al., Fe, Co-based oxide, and their composite with N-doped graphene were prepared to reach higher ORR/OER performances. Nanoporous high-entropy spinel has recently been demonstrated to be a bifunctional ORR/OER electrocatalyst due to its tunable surface electronic structure [57]. Other types of electrocatalysts such as perovskite-type metal oxide mixed with carbon materials have been demonstrated as promising materials for MABs because of their adequate ORR/OER behaviour [66].

Several groups of exceptional ORR/OER electrocatalysts have been identified, including carbon-based electrocatalysts, transition metal nitrides, oxides, MOFs, and covalent organic frameworks.

Table 4. The performance of the bifunctional ORR/OER electrocatalysts and the corresponding aqueous metal–air batteries.

Bifunctional Air Cathode	EOCV (V) vs. RHE	E1/2 (V) vs. RHE	η10 (V) vs. RHE	Charge and Discharge Voltage (V)	Durability	Pmax (mW cm−2)	Specific Capacity (mAh g−1)	Ref.
BNPC-1100 1	/	0.793	1.38	2.19 and 1.16 V after 100 h of the test.	The ZAB did not show significant performance loss at a charge–discharge current density of 2 mA cm−2 for 100 h.	/	/	[58]
BNPC-1000	/	0.749	1.41	The discharging voltage was 1.12 V after 100 h of the test.	The ZAB deteriorated during the 100 h cycling test.	//	/	[58]
BNF-LCF 2	1.536	/	1.542	2.07 and 1.10 V.	The ZAB showed a stable charge–discharge performance after 600 cycles.	99.4 at ~0.57 V and ~175 mA cm−2	791.5 at 10 mA cm−2	[59]
Pt/C + RuO2	1.507	/	/	2.17 and 1.10 V.	The ZAB’s charge–discharge performance rapidly dropped after the 300th cycle.	68.3 at ~0.53 V and ~130 mA cm−2	720 at 10 mA cm−2	[59]
BM_30_350_O2 3	/	/	1.60	2.03 and 1.26 V.	The ZAB’s efficiency reduced to 55% after 30 h.	34.6 at 0.52 V and 67.1 mA cm−2	764 at 5 mA cm−2;738 at 10 mA cm−2	[66]
Pt/C	/	/	/	/	The ZAB’s efficiency reduced to 52% after 30 h of continuous charge–discharge cycling.	69.4 at 0.52 V and 110.1 mA cm−2	741 at 5 mA cm−2;737 at 10 mA cm−2	[66]

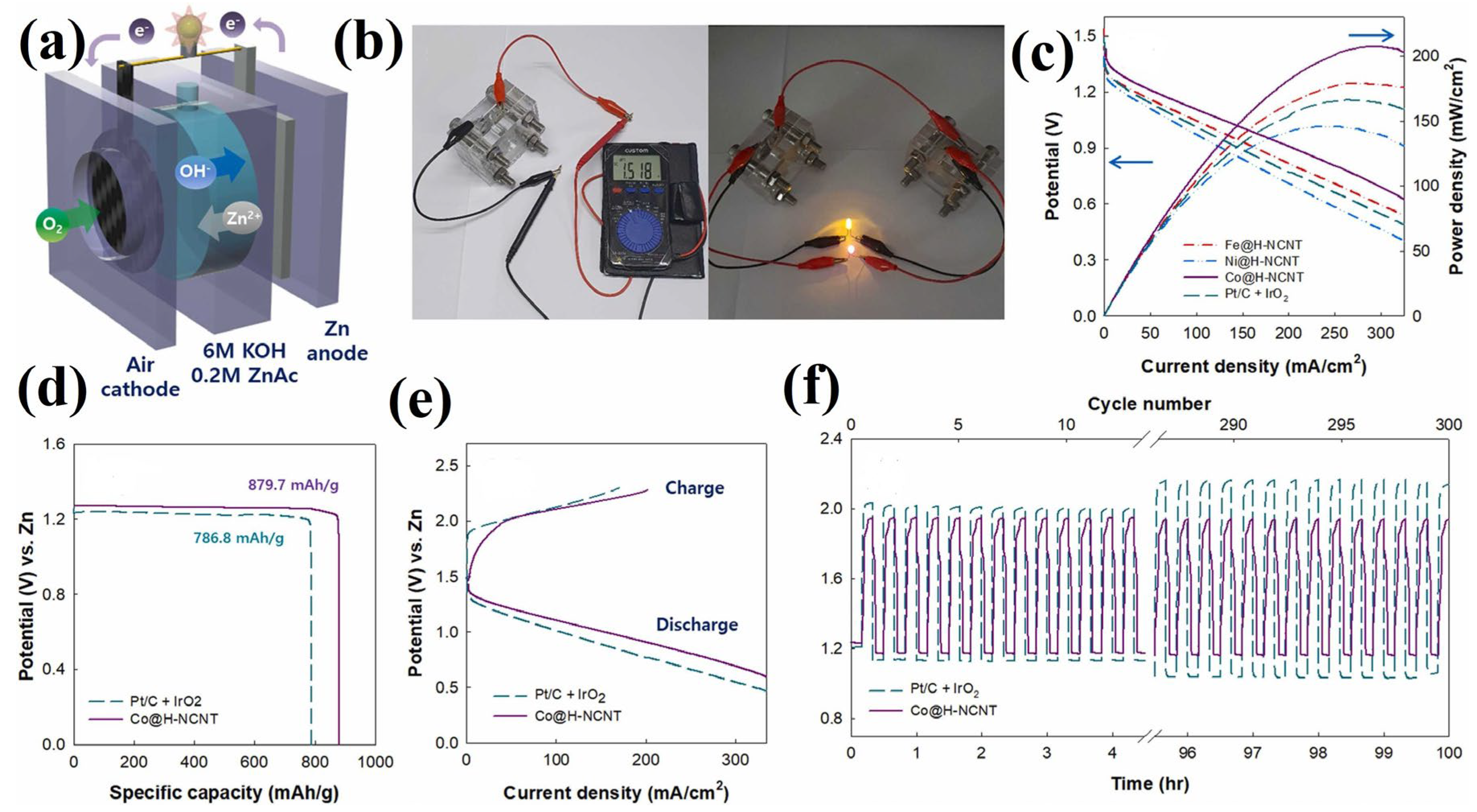

Co@H-NCNT 4	1.520	/	1.544	/	The ZAB showed good cycle stability for 300 cycles (100 h).	207 at ~0.69 V and ~300 mA cm−2	879.7	[61]
Ni@H-NCNT	/	/	/	/	/	145.7 at ~0.61 V and ~240 mA cm−2		[61]
Fe@H-NCNT	/	/	/	/	/	178.8 at ~0.67 V and ~265 mA cm−2		[61]
Pt/C-IrO2	/	/	/	/	/	166.1 at ~0.64 V and ~260 mA cm−2	786.8	[61]
Co3S4@Co3O4/NSC-260–8	1.420	0.822	1.512	2.073 and 1.134 V.	The ZAB showed robust stability and no obvious decrease in the voltage for 200 h of charge–discharge cycles.	122 at 0.45 V and 272 mA cm−2	885 at 20 mA cm−2	[63]
NiFe-MOF/NiFe2O4	1.397	/	1.502	1.96 and 1.13 V.	/	158.4 at 0.64 V and 246.1 mA cm−2	700 at 2 mA cm−2	[62]
Co9S8/Co–Nx/CoNi/Ni3S2@CNS-4	1.59	0.860	1.580	/	/	206.9 at 0.64 V and 325 mA cm−2,	801 at 10 mA cm−2	[64]
FeZrRu/C	1.46	0.912	1.650	/	The ZAB showed stable discharge and charge potential for more than 10 h.	221.34 at ~0.63 V and ~350 mA cm−2	/	[65]
Fe3O4/CoO@CF	1.46	0.83	1.600		The ZAB showed long-term stability in charge/discharge performance.	137 at ~0.68 V and ~200 mA cm−2	740 at 5 mA cm−2	[60]

The overpotential (η₁₀) for the OER was calculated by the following formula: η₁₀ (V) = E_RHE − 1.23 V at 10 mA cm⁻². BNPC ¹—B-N dual-doped highly porous carbon; BNF-LCFs ²—B, N, and F tri-doped lignin-based carbon porous nanofibres; BM_30_350_O₂ ³—co-doped LaMnO₃ perovskite mixed with a carbon black material; H-NCNT ⁴—porous N-doped carbon nanotubes.

summarises the evaluated electrocatalysts and the corresponding batteries’ performance. Still, one should keep in mind that the cost of an electrocatalyst determines its potential use, along with the summarised parameters. The price of noble-metal-based electrocatalysts can be several orders of magnitude higher than that of, for instance, transition-metal-based ones.

6. Conclusions

This work presented the latest research and observed performances pertaining to ORR and bifunctional OER/ORR air cathodes in aqueous metal−air batteries. An overview of the latest research on developing aqueous metal−air batteries is of fundamental importance for potential practical purposes. In the last few decades, more and more research has been related to the development of OER or bifunctional OER/ORR electrocatalysts applicable in rechargeable aqueous metal–air batteries, which could be one of the main solutions for energy storage. Hence, aqueous metal–air batteries with low costs and favourable performance indicators, such as a high peak power density, high specific capacity, and good durability, are future candidates for environmentally friendly energy devices.
