Low-Temperature-Aged Synthesis of CeO2-Coated Li-Rich Oxide as Cathode for Low-Cost High-Energy Density Li-Ion Batteries

by
Yanlin Liu
1,3,4,
Bin Li
2,
Min Chen
2,3 and
Weishan Li
2,3,*
1
School of Automobile and Transportation Engineering, Guangdong Polytechnic Normal University, Guangzhou 510450, China
2
School of Chemistry, South China Normal University, Guangzhou 510006, China
3
National and Local Joint Engineering Research Center of MPTES in High Energy and Safety LIBs, Engineering Research Center of MTEES (Ministry of Education), Key Laboratory of ETESPG (GHEI), South China Normal University, Guangzhou 510006, China
4
School of Material and Energy, Guangdong University of Technology, Guangzhou 510006, China
*
Author to whom correspondence should be addressed.
Batteries 2023, 9(6), 330; https://doi.org/10.3390/batteries9060330
Submission received: 11 April 2023 / Revised: 1 June 2023 / Accepted: 14 June 2023 / Published: 19 June 2023
(This article belongs to the Special Issue Transition Metal Compound Materials for Secondary Batteries)
Browse Figures
Versions Notes

Abstract

:
Co-free Li-rich oxide shows promise as a cathode for low-cost high-energy density Li-ion batteries but presents poor cyclic stability. To address this issue, a novel CeO2-coated Li-rich oxide composite is developed by applying a layer of CeO2 onto Co-free Li-rich oxide through a low-temperature-aged process. With this uniform coating, the resulting composite presents improved cyclic stability as well as rate capability as the cathode of a Li-ion battery. The capacity retention of the resulting composite is increased from 67% to 85% after 100 cycles, and its capacity retention of 5 C/0.05 C is enhanced from 10% to 23% compared with the uncoated sample. Such significant improvements indicate that this low-temperature-aged process is promising for preparing Co-free Li-rich oxides as cathodes of low-cost high-energy density Li-ion batteries.

1. Introduction

Li-ion batteries have become a primary secondary battery due to their characteristics of high energy density and long cycle life, which make them appealing for a variety of electronic applications [1,2,3]. Compared with anodes, the currently available cathodes for Li-ion batteries have a low specific capacity, which cannot meet the high energy density demand of advanced devices [4,5,6]. Layered Li-rich manganese oxides (LLMOs) have been the focus of much attention in the field of battery materials due to their exceptional energy storage capabilities with specific capacity above 200 mAh·g−1 and operating voltage above 4.5 V vs. Li/Li+) [7,8,9,10,11,12,13]. These compounds have the general formula, xLi2MnO3·(1 − x)LiMO2, where M represents transitional metals such as Mn, Co, and Ni [9,12,13]. However, the poor cyclic stability of LLMOs prevents their commercial applications. The dissolution of manganese from LLMOs and the electrolyte oxidation decomposition of LLMOs are mainly responsible for the poor cyclic stability of LLMOs [7,14,15,16,17,18,19,20,21,22,23]. Co-doping is effective for the cyclic stability improvement of LLMOs [23], but Co is expensive and toxic compared with Mn and Ni in LLMOs. Therefore, it remains a challenge to develop Co-free LLMOs that possess good cyclic stability.
It is known that coating LLMOs with inert compounds such as AlF3, AlBO3, P2O5, and B2O3 can improve the cyclic stability of LLMOs [24,25,26,27,28,29,30,31,32,33]. These coatings separate LLMOs from direct contact with electrolytes and mitigate manganese dissolution and electrolyte decomposition, but they usually increase the interface resistance of LLMOs, which will deteriorate the rate capability of Li-ion batteries. Comparatively, coating with CeO2 is beneficial for cyclic stability and rate capability improvements in Li-ion batteries.
Due to its high electronic and ionic conductivity, cerium oxide (CeO2) has been widely used in catalysts, oxygen sensors, solid electrolytes in fuel cells, and refractory materials in thermal barrier coating [34,35]. CeO2 exhibits face-centered cubic (fcc) unit cells with cations (Ce4+) and anions (O2−) occupying the octahedral interstitial sites [36]. Its ionic and electronic conductivities originate from the oxygen vacancy migration based on Ce4+/Ce3+ redox [37,38] and are related to its particle size [39,40], morphology, and crystallinity [41,42]. With these features, CeO2 has been used to coat the cathode of Li-ion batteries [43,44,45,46]. Several coating processes for CeO2 in Li-ion batteries have been developed to date. One involves a simple dispersion of the cathode materials in a cerium-containing solution at room temperature, followed by drying and heating [44]. In this process, isolated CeO2 particles will be formed, and the resultant coating layer is uneven. To improve the uniformity of the CeO2 coating layer, a sol-gel process was adopted, in which chelators are required [47]. Since many factors in the sol-gel process, such as the pH value of the solution, the concentration of chelators, and temperature, affect the formation of the CeO2 coating layer, it is difficult to control the physical properties of the coating layer. Researchers have utilized atomic layer deposition (ALD) to achieve a uniform coating. However, the complex equipment required by this method makes it unsuitable for large-scale applications [48].
The processes of CeO2 coating involve nucleation and crystal growth of CeO2. The former determines the uniformity of the coating layer, and the latter affects the particle size of CeO2, both of which therefore determine the physical properties of the CeO2 coating layer. With this knowledge, herein we propose a new strategy for coating CeO2 uniformly on Co-free LLMOs, which involves a simple co-precipitation of Ce ions from aqueous solutions, followed by a low-temperature-aged process. The aqueous Ce-containing solution benefits the nucleation of CeO2, while the low-temperature-aged process favors the formation of uniform particles due to the suppression of CeO2 crystal growth [39,40,49]. Thanks to the low-temperature-aged process, a uniform CeO2 coating layer of 6 nm in thickness is successfully coated on LLMOs. To our knowledge, this is the first instance of applying a low-temperature-aged process for coating LLMOs, which ensures a thin and uniform coating. The resulting CeO2-coated LLMOs exhibit exceptional cyclic stability and rate capability, showing an improved cycle capacity retention of 85% after 100 cycles (compared to 67% for the uncoated sample) and an increased rate capacity retention of 23% at 5 C/0.05 C (compared to 10% for the uncoated sample). These outcomes demonstrate the notable benefits of the coating treatment on the performance of the LLMOs.

2. Materials and Methods

2.1. Sample Preparation

Co-free Li-rich oxide, Li1.2Ni0.2Mn0.6O2, was synthesized by the co-precipitation method. Typically, a solution was prepared by dissolving 1.32 g manganese sulfate (MnSO4·H2O) and 0.76 g nickel nitrate (Ni(NO3)2·6H2O) in deionized water with a molar ratio of Mn:Ni = 3:1, followed by dropwise addition of excessive NaOH solution under constant stirring at 50 °C. The ammonium aqueous solution was utilized to maintain a pH value of 11.5 during the co-precipitation process. The precipitated precursor Ni0.2Mn0.6(OH)x was filtered, washed with deionized water, and vacuum dried at 105 °C for 8 h. The obtained powders were mixed with 0.69 g LiOH·H2O, which represents an excess of 5 wt.% Li compared to the stoichiometric Li1.2Ni0.2Mn0.6O2, followed by calcining at 450 °C for 4 h and 900 °C for 15 h with a 3 °C min−1 heating rate in air, to obtain Li-rich oxide, denoted as LMN-P.
The preparation of CeO2-coated Co-free Li-rich oxide, denoted as LMN-C, is illustrated in Figure 1. First, 1.00 g of the obtained LMN-P powder and 0.06 g of Ce(NO3)3·6H2O were dispersed into deionized water ultrasonically for 30 min. Second, the aforementioned solution was supplemented with an appropriate amount of ammonium aqueous solution under 100 °C, followed by quickly cooling to 0 °C and subsequently aging at 0 °C for 24 h. To obtain LMN-C, the precipitated product was filtered, washed with deionized water, vacuum-dried for 8 h at 105 °C, then calcined at 650 °C for 5 h in air.

2.2. Physical Characterization

The SHI-MADZU X-ray diffractometer XRD-6100 was used to characterize the crystalline structure of the resulting samples, with a data collection range of 10–80° in 2θ, an interval of 0.02°, and a scanning rate of 2° min−1. The collected XRD data was refined using MDI Jade 6 software to obtain the corresponding XRD patterns [50]. To characterize the effect of the coating, the morphology of the LMN-P and LMN-C samples before and after cycling was observed by ZEISS Ultra 55 scanning electron microscopy (SEM) and JEM-2100HR transmission electron microscopes (TEM). The surface composition was analyzed by Bruker Tensor 27 FTIR, made in Germany. The contents of elements on the lithium anode were analyzed by an Energy Dispersive Spectrometer (EDS) (JEM-2100HR) and inductively coupled plasma (ICP) (Huake, 8100). The elemental composition and chemical states of the resulting sample surface were characterized by X-ray photoelectron spectroscopy (XPS, Thermo ScientificTM (Waltham, MA, USA) K-AlphaTM+). The tests were carried out under vacuum (p < 10−8 mbar) with a monochromatic Al Kα X-ray source (1486.6 eV), operating power of 100 W, and pass energy of 150 eV (survey scans) or 25 eV (high-resolution scans). The peak fitting process was performed using the XPSPEAK41 software, with the C 1s peak binding energy of 284.3 eV as the standard reference [35,50]. To characterize the cycled electrodes, they were obtained from the disassembled cycled button cells, then rinsed three times using anhydrous DMC solvent. Subsequently, the sample was vacuum dried at room temperature overnight. All these processes were carried out in a glovebox with an inert argon atmosphere.

2.3. Electrochemical Measurements

The electrodes were prepared by mixing LMN-P/LMN-C, conductive carbon, and polyvinylidene fluoride with a ratio of 8:1:1, then coating the mixing slurry on the Al foil, followed by ambient pressure drying at 85 °C and vacuum drying at 120 °C. The electrolyte with 1.0 M/L LiPF6 in EC/EMC/DEC (1:1:1 wt.%) was purchased from Dongguan Kaixin Battery Material Co., Ltd., Dongguan, China. The separator was purchased from Celgard and vacuum-dried before use. For electrochemical measurements, the 2032 button cells were assembled in a highly pure Ar-filled glove box by employing the prepared electrodes as the working electrode, Li metal as the counter electrode, purchased electrolyte as the supporting electrolyte, and the dried Celgard’s membrane as the separator. The cyclic voltammetry was performed with a scan rate of 0.2 mV s−1 in the voltage range of 2.0–5.0 V (vs. Li/Li+), and the electrochemical impedance was tested from 0.01 Hz to 106 Hz with a 5 mV amplitude. Both were carried out on the CHI test system. The land test system was utilized to carry out the charge-discharge tests. To guarantee the precision of the obtained results, three tests were performed for each sample, and the mean of one of the three tests was used for discussion in this work.

3. Results and Discussions

3.1. Structure and Morphology

The XRD patterns of LMN-P and LMN-C are presented in Figure 2. For LMN-P, all peaks can be indexed to the trigonal α-NaFeO2 structure with R-3m symmetry (PDF#89-3601) and monoclinic Li2MnO3 with C2/m symmetry (PDF#84-1634). Specifically, the broad diffraction peaks of (020) and (110) between 20° and 25° are the key characteristics of weak superstructure diffractions for the arrangements of metal cations (Li+ and Mn4+) present in the transition metal layer [10,51]. Compared with LMN-P, a very weak peak corresponding to the fluorite structure phase of CeO2 (PDF#34-0394) appears in LMN-C, indicating that CeO2 has been successfully coated on Li-rich oxide. Usually, the components with low contents in the sample are difficult to detect by XRD. In LMN-C, CeO2 is detected by XRD at a very low intensity, which should be ascribed to the good crystallization of CeO2. The peaks of (111), (200), (220), and (311) in LMN-C demonstrate that the resulting CeO2 exhibits a center-facing cubic structure with high crystallinity. Notably, both LMN-P and LMN-C exhibit low Li+ and Ni2+ cation disordering, as evidenced by their I(003)/I(104) ratios of 1.59 and 1.62, respectively [52]. In addition, the sharp split peaks in (006)/(012) and (018)/(110) in both samples further confirm the layer structure with good crystallinity [19,41,44]. The XRD patterns of the layered LMN-P and LMN-C suggest that pure samples with good crystal structure and low Li+ and Ni2+ disordering were obtained, and the introduction of the CeO2 coating layer does not change the crystal structure of Li-rich oxide.
Figure 3 shows the SEM and TEM images of the LMN-P and LMN-C. Based on Figure 3A,B, it appears that there are no observable distinctions in morphology or particle size between LMN-P and LMN-C. A smooth and clean surface can be observed for LMN-P particles. The surface of LMN-C is slightly rougher than that of LMN-P. Furthermore, LMN-C presents an extra uniform and compact coating layer of about 6 nm thick compared with LMN-P, as shown in Figure 3C,D. The presence of a CeO2 coating can be further confirmed by TEM, as shown in Figure S1. Apparently, the simple low-temperature-aged process can effectively realize a uniform and compact CeO2 coating for Li-rich oxide. The implementation of this uniform and compact CeO2 coating layer effectively prevents the dissolution of metal ions from the LLMOs and the degradation of electrolytes through decomposition [45,53].

3.2. Electrochemical Performances

Cyclic voltammograms of LMN-P and LMN-C are shown in Figure 4. During forward scanning in the 1st cycle, the LMN-P electrode exhibits two coalescent oxidation peaks below 4.40 V (vs. Li/Li+), as presented in Figure 4A. These peaks are attributed to the oxidations of nickel ions in different chemical environments, namely in LiMO2-like (M = Ni, Mn) and Li2MnO3-like (LiM6) components [54]. During the charging process, a major peak of oxidation current is observed, starting at 4.40 V (vs. Li/Li+) and reaching its maximum at 4.81 V (vs. Li/Li+), which can be explained by the concurrent lithium and oxygen extraction from Li2MnO3 and the structural reorganization where transition metal cations occupy the available oxygen vacancies in LiMnO3 [13,55]. These processes are irreversible and cannot be identified in the discharge process.
In the first cycle, the irreversible oxygen loss and the rearrangement of LiMnO3 structure result in the disappearance of the oxidation peak at above 4.70 V (vs. Li/Li+) in subsequent cycles, as shown in Figure 4B. In the backward scanning, the reduction peak located around 3.60 V (vs. Li/Li+), corresponding to the reduction of Ni4+ to Ni2+ [8,10,11,12,13,54], can be identified, as shown in Figure 4A. Additionally, a small reduction current appears at ~3.30 V (vs. Li/Li+) in the 1st cycle, and this reduction peak becomes more significant for the subsequent cycles, as shown in Figure 4B. These observed changes imply that the electronic environment of manganese ions is notably affected by the structural rearrangement resulting from irreversible oxygen loss, highlighting the significant role of the Mn4+/Mn3+ reaction during the electrochemical cycling process [55].
After the LLMOs are coated with CeO2, the peak potentials for the oxidation of nickel ions and the irreversible reaction of Li2MnO3 in the first cycle shift negatively to 4.14 V (vs. Li/Li+) and 4.73 V (vs. Li/Li+), respectively (Figure 4A). Correspondingly, the oxidation peak shifts towards negative and the reduction peak shifts towards positive values for Ni2+/Ni4+ reactions in the following cycles (Figure 4B). This can be attributed to the better Li+ diffusion path generated by the rearrangement of the Li2MnO3 component during the first cycle. Additionally, all the reaction currents increase due to the CeO2 coating. These results suggest that the CeO2 coating increases the reversibility of the electrochemical redox of Li-rich oxide, which can be ascribed to the electronically and ionically conductive properties of CeO2.
To further demonstrate the electrochemical performances of LMN-P and LMN-C, charge/discharge tests and electrochemical impedance spectroscopy were performed using button cells. Figure 5 illustrates the results of the investigation. Figure 5A presents the cyclic stability at 0.1 C (1 C = 200 mA g−1) after an activation process with 0.05 C for 4 cycles between 2.0 and 4.8 V (vs. Li/Li+). Figure 5A reveals that LMN-P has poor cyclic stability, as evidenced by the deceased discharge capacity, which went from 191 mAh g−1 to 127 mAh g−1 over 100 cycles, with capacity retention of only 67%. This is the primary issue that limits the applicability of Li-rich oxide, which is attributed to the unprotected interface between LMN-P and the electrolyte, where transition metal ion dissolution and electrolyte decomposition may occur. LMN-C, in comparison, has a significantly higher cyclic stability performance with a discharge capacity decrease from 200 mAh g−1 to 170 mAh g−1 and a capacity retention of 85% after 100 cycles. Apparently, the low-temperature-aged process ensures a uniform CeO2 coating layer that efficiently protects Li-rich oxide from dissolution and prevents electrolyte decomposition, resulting in significantly improved cyclic stability of Li-rich oxide.
The charge/discharge performance of both samples is similar, as illustrated by the initial charge/discharge curves (0.05 C, Figure 5B). There are two potential plateaus at around 4.10 and 4.50 V (vs. Li/Li+), respectively, which correspond to the oxidation of Ni2+/Ni4+ and the irreversible oxygen loss from the layered lattice. This similarity suggests that the CeO2 coating does not change the intrinsic electrochemical property of Li-rich oxide, which is in agreement with the same crystal structure of LMN-C as LMN-P. Differently, LMN-C displays a slightly lower charge potential plateau and a slightly higher discharge potential plateau, suggesting that LMN-C has less polarization for lithiation/delithiation kinetics than LMN-P. This decreased polarization of LMN-C can be ascribed to the electronically and ionically conductive properties of the CeO2 coating [48]. The lower polarization of LMN-C allows for a higher initial discharge capacity (226 mAh g−1) compared to LMN-P (208 mAh g−1). As cycling proceeds, the difference in polarization between two samples becomes more significant, as shown in Figure 5C, suggesting that the interface between Li-rich oxide and electrolyte is deteriorated by the transition metal ions dissolution and the electrolyte’s decomposition for LMN-P, which can be mitigated by CeO2 coating.
With its lower polarization, LMN-C exhibits better rate capability than LMN-P, as shown in Figure 5D. At 0.05, 0.1, 0.2, 0.5, 1, 2, and 5 C, LMN-P delivers 213 mAh g−1, 199 mAh g−1, 181 mAh g−1, 154 mAh g−1, 124 mAh g−1, 94 mAh g−1, and 21 mAh g−1, with the rate of capacity retention (n/0.05 C, n = 0.1, 0.2, 0.5, 1, 2, and 5 C) being 93%, 85%, 72%, 58%, 44%, and 10%, respectively. Comparatively, LMN-C delivers 229 mAh g−1, 213 mAh g−1, 198 mAh g−1, 170 mAh g−1, 149 mAh g−1, 121 mAh g−1, and 59 mAh g−1, with the rate of capacity retention being 93%, 86%, 74%, 65%, 53%, and 23%, respectively. Below 0.5 C, there is little difference in the rate of capacity retention between the two samples. However, an obvious difference appears as the discharge rates increase. This phenomenon can be explained by the contribution of the electronic and ionic conductivity of CeO2, which plays a more important role in lithiation/delithiation kinetics at higher rates [47]. Noticeably, the LMN-C exhibits higher discharge capacity for all rates, which can be ascribed to the CeO2′s oxygen storage capability that reduces the irreversible consumption of Li and oxygen loss in the Li2MnO3 component. In addition, the LMN-C exhibits more decent capacity recovery than the LMN-P after high-rate discharge, suggesting that the CeO2-coated layer is beneficial for keeping the structure stability of Li-rich oxide.
Electrochemical impedance spectra obtained from fresh button cells are shown in Figure 5E. In the spectra, two compressed semicircles were observed at high frequencies, while a straight slope line was observed at low frequencies. The first compressed semicircle corresponds to film resistance (Rf) of the electrode/electrolyte, the second one is corresponding to the charge transfer resistance (Rct) of reaction, and the slope line is ascribed to the Li+ ion diffusion in the Li-rich electrode (Wol). Table 1 lists the values obtained by fitting the equivalent circuit shown in Figure 5E, indicating a reduction of Rf and Rct from 106 Ω to 93 Ω and 181 Ω to 172 Ω, respectively, after the introduction of the CeO2 coating layer. These decreased interfacial resistances explain the improved rate capability of LMN-C.
In order to confirm the impact of CeO2 on the performance of LLMOs, the cycled LMN-P and LMN-C electrodes were characterized by SEM, TEM, FTIR, and XRD. The obtained results are presented in Figure 6. After cycling, LMN-P is apparently covered with a thick deposit (Figure 6A) and the well-crystallized particles observed from Figure 3C cracks are highlighted in Fi. 6C with the use of red arrows, confirming that severe electrolyte decomposition and particle separation happen on the unprotected Li-rich oxide. Differently, less deposit is observed (Figure 6B) and well-crystallized particles covered with a CeO2 coating layer are maintained (Figure 6D) for the cycled LMN-C electrode. Obviously, the CeO2 coating layer provides an effective separation between the electrolyte and Li-rich oxide, suppressing electrolyte decomposition and maintaining the integrity of Li-rich oxide. The FTIR spectrum of the cycled electrode is shown in Figure 6E. The peaks approximately at 840, 1066, 1175, 1230, and 1398 cm−1, which are ascribed to the PVDF [56,57,58,59], are stronger for LMN-C, demonstrating that there are less electrolyte decomposition products on LMN-C than LMN-P, which is in agreement with the results of SEM and TEM analysis. The peaks at 1626 and 1734 cm−1 in LMN-P represent the C=O and C-O of polycarbonates, such as poly RO-CH2CH2OCO2-, resulting from the electrolyte decomposition [58,60,61]. However, these two peaks vanish in LMN-C, confirming that CeO2 can effectively suppress the decomposition of electrolytes. It is worth noting that CeO2 is not detected for LMN-C by FTIR, which can be explained by the insensitivity of inorganic compounds with low contents in the sample to FTIR.
From the XRD patterns of the cycled electrodes (Figure 6F), the main diffraction peaks of Li-rich oxide (in Figure 2) remain, and new peaks appear at 65° and 78° for both cycled electrodes, which belong to the current collector (aluminum). However, LMN-P changes the strongest diffraction peak from crystal face (003) (in Figure 2) to (104) (in Figure 6F), while LMN-C maintains the same peak position and intensity. Because of the strong diffraction from the aluminum current collector, the most intensive (003) reflection peak for the pristine materials, as recorded in Figure 2, becomes weaker for the cycled electrodes. This peak remains most intense for the cycled LMN-C but becomes weaker than the peak at (104) for the cycled LMN-P, indicating that the LMN-C maintains its crystal structure better than the LMN-P, which experiences more significant degradation. Table 2 presents the lattice parameters of the primary phase for both samples, both before and after cycling. After cycling, C2/m, represented by Li2MnO3, disappears because of its activation [62,63], while R-3m of LMN-P shows a larger change in size than that of LMN-C, corresponding to the more serious deterioration of LMN-P.
The transport and deposition of the transition metal ions from the cathode to the anode can be detected by ZAF-corrected EDS and ICP. Figure 7 and Tables S1 and S2 present the surface morphology and element contents of the lithium anodes from the cycled cells with LMN-P and LMN-C as cathodes. The lithium anode of the cell with LMN-P (Figure 7A) is coarser than that with LMN-C (Figure 7E), suggesting that more severe electrolyte decomposition happens on the anode in the cell with Li/LMN-P [64]. The EDS and ICP results (Figure 7B–H, Tables S1 and S2) show that both anodes contain C, O, F, P, and Mn, but the contents of these elements are different. C and O come from the solvent decomposition on the lithium anode. The smaller contents of C and O on the lithium anode for LMN-C than those for LMN-P can be explained by the thinner deposit layer on the anode for LMN-C. P comes from LiPF6 decomposition. The far larger content of P on the lithium anode for LMN-P than that for LMN-C can be ascribed to the more severe electrolyte decomposition on the anode for LMN-P. Mn and Ni are from the dissolution of the cathode, as reported by other researchers [65,66]. The contents of Mn and Ni on the anode for LMN-P are far larger than those for LMNC, which are responsible for the more severe electrolyte decomposition on the anode for LMN-P and confirm that LMN-C is structurally more stable than LMN-P. Apparently, the CeO2 coating layer suppresses Mn and Ni dissolution from Li-rich oxide, which is important for battery performance improvement [67].
XPS analysis can be used to provide further confirmation of the protective effect of the CeO2 coating layer on the surface of the Li-rich oxide. The XPS patterns of the LMN-P and LMN-C electrodes after 100 cycles at the voltage range of 2.0–4.8 V are presented in Figure S2. The C 1s spectrum reveals several peaks: the peak located at 284.3 eV is attributed to the conductive carbon [68,69], while the peaks at 285.6 eV and 290.8 eV are assigned to the C-H bond and C-F bond in the PVDF binder. Additionally, the peak at 265.5 eV is associated with the C-O bond, the peak at 288.6 eV with the C=O bond, the peak at 289.9 eV with the OCO2 bond, and the peak at 284.9 eV with polycarbonates, respectively [66,67,68,69,70]. Comparatively, the observation of a weaker intensity of PVDF bond, along with the stronger C-O and OCO2 peaks in the LMN-P sample, can be attributed to more severe electrolyte decomposition, which causes thicker deposits to form on the electrode [61,71,72]. This difference can also be observed from the M-O bond and C-O bond in the O 1s spectrum, as well as the peak at 136.8 eV corresponding to LixPFy in the P 2p spectrum [73,74]. These observations further confirm that the CeO2 coating layer can effectively protect the Li-rich oxide and suppress the electrolyte decomposition of the Li-rich oxide.

4. Conclusions

This study introduces a novel method for synthesizing CeO2-coated Li-rich oxides in which a uniform CeO2 coating layer is achieved with a low-temperature-aged process. Due to the ionic conductivity of CeO2 and its inertness to electrolyte decomposition, the CeO2 coating layer not only provides protection for Li-rich oxides from structural collapse but also reduces the interfacial resistance between the Li-rich oxide material and the electrolyte. With these contributions, the as-synthesized CeO2-coated Li-rich oxide exhibits enhanced performance as a cathode material for Li-ion batteries, with notable improvements in both rate capability and cyclic stability. Thus, this low-temperature-aged process provides a promising strategy to address the challenges remaining in the practical utilization of Li-rich oxide materials, not limited to Co-free Li-rich oxide.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/batteries9060330/s1, Figure S1: TEM image (A) and corresponding EDS elemental mapping of Ce (B), TEM image (C) and selected area electron diffraction (SAED) of CeO2 (D) for CeO2 coated Li1.2Ni0.2Mn0.6O2 without the low-temperature-aged coating process; Figure S2: XPS of the cycled LMN-P and LMN-C electrodes; Table S1: EDS of lithium electrodes from the cycled cells with LMN-P and LMN-C; Table S2: ICP analysis for Mn and Ni of the lithium electrodes from the cycled cells with LMN-P and LMN-C.

Author Contributions

Conceptualization, Y.L. and W.L.; methodology, Y.L., B.L. and W.L.; software, Y.L. and B.L.; validation, M.C. and W.L.; formal analysis, Y.L. and W.L.; investigation, Y.L.; resources, W.L.; data curation, Y.L. and W.L.; writing—original draft preparation, Y.L.; writing—review and editing, Y.L., B.L. and W.L.; visualization, Y.L.; supervision, W.L.; project administration, W.L.; funding acquisition, Y.L. and W.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (Grant numbers 22005063, and 22202078) and the Department of Education of Guangdong Province (Grant number 2020KQNCX082).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, Z.; We, X.; Yang, Z. Pulsed laser 3D-micro/nanostructuring of materials for electrochemical energy storage and conversion. Prog. Mater. Sci. 2023, 133, 101052. [Google Scholar] [CrossRef]
  2. Grey, C.P.; Hall, D.S. Prospects for lithium-ion batteries and beyond—A 2030 vision. Nat. Commun. 2020, 11, 6279. [Google Scholar] [CrossRef]
  3. Wu, K.; Cui, J.; Yi, J.; Liu, X.; Ning, F.; Liu, Y.; Zhang, J. Biodegradable Gel Electrolyte Suppressing Water-Induced Issues for Long-Life Zinc Metal Anodes. ACS Appl. Mater. Interfaces 2022, 14, 34612–34619. [Google Scholar] [CrossRef] [PubMed]
  4. Molaiyan, P.; Reis, G.S.D.; Karuppiah, D.; Subramaniyam, C.M.; Flaviano, G.A.; Lassi, U. Recent Progress in Biomass-Derived Carbon Materials for Li-Ion and Na-Ion Batteries—A Review. Batteries 2023, 9, 116. [Google Scholar] [CrossRef]
  5. Andre, D.; Kim, S.J.; Lamp, P.; Lux, S.F.; Maglia, F.; Paschos, O.; Stiaszny, B. Future generations of cathode materials: An automotive industry perspective. J. Mater. Chem. A 2015, 3, 6709–6732. [Google Scholar] [CrossRef]
  6. Li, B.; Wang, Y.; Tu, W.; Wang, Z.; Xu, M.; Xing, L.; Li, W. Improving cyclic stability of lithium nickel manganese oxide cathode for high voltage lithium ion battery by modifying electrode/electrolyte interface with electrolyte additive. Electrochim. Acta 2014, 147, 636–642. [Google Scholar] [CrossRef]
  7. Rozier, P.; Tarascon, J.M. Review-Li-Rich Layered Oxide Cathodes for Next-Generation Li-Ion Batteries: Chances and Challenges. J. Electrochem. Soc. 2015, 162, A2490. [Google Scholar] [CrossRef]
  8. Fang, L.; Chen, M.; Nam, K.W.; Kang, Y.M. Redox Evolution of Li-Rich Layered Cathode Materials. Batteries 2022, 8, 132. [Google Scholar] [CrossRef]
  9. Thackeray, M.M.; Kang, S.; Johnson, C.S.; Vaughey, J.T.; Benedek, R.; Hackney, S.A. Li2MnO3-stabilized LiMO2 (M = Mn, Ni, Co) electrodes for lithium-ion batteries. J. Mater. Chem. 2007, 17, 3112–3125. [Google Scholar] [CrossRef]
  10. Thackeray, M.M.; Johnson, C.S.; Vaughey, J.T.; Li, N.; Hackney, S.A. Advances in manganese-oxide ‘composite’ electrodes for lithium-ion batteries. J. Mater. Chem. 2005, 15, 2257–2267. [Google Scholar] [CrossRef]
  11. Chen, D.; Yu, Q.; Xiang, X.; Chen, M.; Chen, Z.; Song, S.; Xiong, L.; Liao, Y.; Xing, L.; Li, W. Porous layered lithium-rich oxide nanorods: Synthesis and performances as cathode of lithium ion battery. Electrochim. Acta 2015, 154, 83–93. [Google Scholar] [CrossRef]
  12. Armstrong, A.R.; Holzapfel, M.; Novák, P.; Johnson, C.S.; Kang, S.; Thackeray, M.M.; Bruce, P.G. Demonstrating Oxygen Loss and Associated Structural Reorganization in the Lithium Battery Cathode Li[Ni0.2Li0.2Mn0.6]O2. J. Am. Chem. Soc. 2006, 128, 8694–8698. [Google Scholar] [CrossRef]
  13. Xiang, X.; Li, X.; Li, W. Preparation and characterization of size-uniform Li[Li0.131Ni0.304Mn0.565]O2 particles as cathode materials for high energy lithium ion battery. J. Power Sources 2013, 230, 89–95. [Google Scholar] [CrossRef]
  14. Ji, X.; Xia, Q.; Xu, Y.; Feng, H.; Wang, P.; Tan, Q. A review on progress of lithium-rich manganese-based cathodes for lithium ion batteries. J. Power Sources 2021, 487, 229362. [Google Scholar] [CrossRef]
  15. Zuo, W.; Luo, M.; Liu, X.; Wu, J.; Liu, H.; Li, J.; Winter, M.; Fu, R.; Yang, W.; Yang, Y. Li-rich cathodes for rechargeable Li-based batteries: Reaction mechanisms and advanced characterization techniques. Energy Environ. Sci. 2020, 13, 4450–4497. [Google Scholar] [CrossRef]
  16. Xiang, X.; Li, W. Significant influence of insufficient lithium on electrochemical performance of lithium-rich layered oxide cathodes for lithium ion batteries. Electrochim. Acta 2014, 133, 422–427. [Google Scholar] [CrossRef]
  17. Lee, S.H.; Moon, J.S.; Lee, M.S.; Yu, T.H.; Kim, H.; Park, B.M. Enhancing phase stability and kinetics of lithium-rich layered oxide for an ultra-high performing cathode in Li-ion batteries. J. Power Sources 2015, 281, 77–84. [Google Scholar] [CrossRef]
  18. Ramakrishnan, S.; Park, B.; Wu, J.; Yang, W.; McCloskey, B.D. Extended Interfacial Stability through Simple Acid Rinsing in a Li-Rich Oxide Cathode Material. J. Am. Chem. Soc. 2020, 142, 8522–8531. [Google Scholar] [CrossRef] [Green Version]
  19. Fan, J.; Li, G.; Luo, D.; Fu, C.; Li, Q.; Zheng, J.; Li, L. Hydrothermal-Assisted Synthesis of Li-Rich Layered Oxide Microspheres with High Capacity and Superior Rate-capability as a Cathode for Lithium-ion Batteries. Electrochim. Acta 2015, 173, 7–16. [Google Scholar] [CrossRef]
  20. Ji, X.; Xu, Y.; Xia, Q.; Zhou, Y.; Song, J.; Feng, H.; Wang, P.; Yang, J.; Tan, Q. Li-Deficient Materials-Decoration Restrains Oxygen Evolution Achieving Excellent Cycling Stability of Li-Rich Mn-Based Cathode. ACS Appl. Mater. Interfaces 2022, 14, 30133–30143. [Google Scholar] [CrossRef]
  21. Cao, X.; Sun, J.; Chang, Z.; Wang, P.; Yue, X.; Okagaki, J.; He, P.; Yoo, E.; Zhou, H. Enabling Long-Term Cycling Stability within Layered Li-Rich Cathode Materials by O2/O3-Type Biphasic Design Strategy. Adv. Funct. Mater. 2022, 32, 2205199. [Google Scholar] [CrossRef]
  22. Ates, M.N.; Jia, Q.; Shah, A.; Busnaina, A.; Mukerjee, S.; Abraham, K.M. Mitigation of Layered to Spinel Conversion of a Li-Rich LayeredMetal Oxide Cathode Material for Li-Ion Batteries. J. Electrochem. Soc. 2014, 161, A290–A301. [Google Scholar] [CrossRef] [Green Version]
  23. Chen, G.; An, J.; Meng, Y.; Yuan, C.; Matthews, B.; Dou, F.; Shi, L.; Zhou, Y.; Song, P.; Wu, G.; et al. Cation and anion Co-doping synergy to improve structural stability of Li- and Mn-rich layered cathode materials for lithium-ion batteries. Nano Energy 2019, 57, 157–165. [Google Scholar] [CrossRef]
  24. Li, L.; Song, B.H.; Chang, Y.L.; Xia, H.; Yang, J.R.; Lee, K.S.; Lu, L. Retarded phase transition by fluorine doping in Li-rich layered Li1.2Mn0.54Ni0.13Co0.13O2 cathode material. J. Power Sources 2015, 283, 162–170. [Google Scholar] [CrossRef]
  25. Qiu, Y.; Peng, X.; Zhou, L.; Song, Y.; Bi, L.; Long, X.; He, L.; Xie, Q.; Wang, S.; Liao, J. Building Ultrathin Li4Mn5O12 Shell for Enhancing the Stability of Cobalt-Free Lithium-Rich Manganese Cathode Materials. Batteries 2023, 9, 123. [Google Scholar] [CrossRef]
  26. Zhang, J.; Zhang, D.; Wang, Z.; Zheng, F.; Zhong, R.; Hong, R. AlF3 coating improves cycle and voltage decay of Li-rich manganese oxides. J. Mater. Sci. 2023, 58, 4525–4540. [Google Scholar] [CrossRef]
  27. Dong, S.; Zhou, Y.; Hai, C.; Zeng, J.; Sun, Y.; Ma, Y.; Shen, Y.; Li, X.; Ren, X.; Sun, C.; et al. Enhanced Cathode Performance: Mixed Al2O3 and LiAlO2 Coating of Li1.2Ni0.13Co0.13Mn0.54O2. ACS Appl. Mater. Interfaces 2020, 12, 38153–38162. [Google Scholar] [CrossRef]
  28. Zhao, Y.; Sun, Y.; Yue, Y.; Hu, X.; Xia, M. Carbon Modified Li-rich Cathode Materials Li1.26Fe0.22Mn0.52O2 Synthesized via Molten Salt Method with Excellent Rate Ability for Li-ion Batteries. Electrochim. Acta 2014, 130, 66–75. [Google Scholar] [CrossRef]
  29. Hou, M.; Liu, J.; Guo, S.; Yang, J.; Wang, C.; Xia, Y. Enhanced electrochemical performance of Li-rich layered cathode materials by surface modification with P2O5. Electrochem. Commun. 2014, 49, 83–87. [Google Scholar] [CrossRef]
  30. Shobana, M.K. Metal oxide coated cathode materials for Li ion batteries—A review. J. Alloys Compd. 2019, 802, 477–487. [Google Scholar] [CrossRef]
  31. Seu, C.S.; Davis, V.K.; Pasalic, J.; Bugga, R.V. Aluminum Borate Coating on High-Voltage Cathodes for Li-Ion Batteries. J. Electrochem. Soc. 2015, 162, A2259–A2265. [Google Scholar] [CrossRef] [Green Version]
  32. Zheng, J.; Gu, M.; Xiao, J.; Polzin, B.J.; Yan, P.; Chen, X.; Wang, C.; Zhang, J. Functioning Mechanism of AlF3 Coating on the Li- and Mn-Rich Cathode Materials. Chem. Mater. 2014, 26, 6320–6327. [Google Scholar] [CrossRef]
  33. Moghadam, Y.S.; Kharbachi, A.E.; Cambaz, M.A.; Dinda, S.; Diemant, T.; Hu, Y.; Melinte, G.; Fichtner, M. Borate-Based Surface Coating of Li-Rich Mn-Based Disordered Rocksalt Cathode Materials. Adv. Mater. Interfaces 2022, 9, 2201200. [Google Scholar] [CrossRef]
  34. Kehoe, A.B.; Scanlon, D.O.; Watson, G.W. Role of lattice distortions in the oxygen storage capacity of divalently doped CeO2. Chem. Mater. 2011, 23, 4464–4468. [Google Scholar] [CrossRef]
  35. Jaksic, J.M.; Nan, F.; Papakonstantinou, G.D.; Botton, G.A.; Jaksic, M.M. Theory Substantiation and Properties of Novel Reversible Electrocatalysts for Oxygen Electrode Reactions. J. Phys. Chem. C 2015, 119, 11267–11285. [Google Scholar] [CrossRef]
  36. Suzuki, T.; Kosacki, I.; Anderson, H.U. Electrical Conductivity and Lattice Defects in Nanocrystalline Cerium Oxide Thin Films. J. Am. Ceram. Soc. 2001, 84, 2007–2014. [Google Scholar] [CrossRef]
  37. Tuller, H.L. Ionic conduction in nanocrystalline materials. Solid State Ion. 2000, 131, 143–157. [Google Scholar] [CrossRef] [Green Version]
  38. Uberuaga, B.P.; Sickafus, K.E. Interpreting oxygen vacancy migration mechanisms in oxides using the layered structure motif. Comput. Mater. Sci. 2015, 103, 216–223. [Google Scholar] [CrossRef] [Green Version]
  39. Deshpande, S.; Patil, S.; Kuchibhatla, S.V.; Seal, S. Size dependency variation in lattice parameter and valency states in nanocrystalline cerium oxide. Appl. Phys. Lett. 2005, 87, 133113. [Google Scholar] [CrossRef]
  40. Lavik, E.B.; Kosacki, I.; Tuller, H.L.; Chiang, Y.M.; Ying, J.Y. Nonstoichiomerty and electrical conductivity of nanocrystalline CeO2−x. J. Electroceram. 1997, 1, 7–14. [Google Scholar] [CrossRef]
  41. Ko, H.; Yang, G.; Wang, M.; Zhao, X. Isothermal crystallization kinetics and effect of crystallinity on the optical properties of nanosized CeO2 powder. Ceram. Int. 2014, 40, 6663–6671. [Google Scholar] [CrossRef]
  42. Sreekanth, T.V.M.; Dillip, G.R.; Lee, Y.R. Picrasma quassioides mediated cerium oxide nanostructures and their post-annealing treatment on the microstructural, morphological and enhanced catalytic performance. Ceram. Int. 2016, 42, 6610–6618. [Google Scholar] [CrossRef]
  43. Ha, H.; Yun, N.J.; Kim, M.H.; Woo, M.H.; Kim, K. Enhanced electrochemical and thermal stability of surface-modified LiCoO2 cathode by CeO2 coating. Electrochim. Acta 2006, 51, 3297–3302. [Google Scholar] [CrossRef]
  44. Yao, J.; Wu, F.; Qiu, X.; Li, N.; Su, Y. Effect of CeO2-coating on the electrochemical performances of LiFePO4/C cathode material. Electrochim. Acta 2011, 56, 5587–5592. [Google Scholar] [CrossRef]
  45. Ha, H.; Yun, N.J.; Kim, K. Improvement of electrochemical stability of LiMn2O4 by CeO2 coating for lithium-ion batteries. Electrochim. Acta 2007, 52, 3236–3241. [Google Scholar] [CrossRef]
  46. Ha, H.; Jeong, K.H.; Yun, N.J.; Hong, M.Z.; Kim, K. Effects of surface modification on the cycling stability of LiNi0.8Co0.2O2 electrodes by CeO2 coating. Electrochim. Acta 2005, 50, 3764–3769. [Google Scholar] [CrossRef]
  47. Yuan, W.; Zhang, H.Z.; Liu, Q.; Li, G.R.; Gao, X.P. Surface modification of Li(Li0.17Ni0.2Co0.05Mn0.58)O2 with CeO2 as cathode material for Li-ion batteries. Electrochim. Acta 2014, 135, 199–207. [Google Scholar] [CrossRef]
  48. Zhou, M.; Zhao, J.; Qiu, S.; Tian, F.; Potapenko, O.; Zhong, S.; Potapenko, H.; Liang, Z. Structural and Electrochemical Properties of Li1.2Ni0.16Mn0.54Co0.08O2-Al2O3 Composite Prepared by Atomic Layer Deposition as the Cathode Material for LIBs. Int. J. Electrochem. Sci. 2020, 15, 10759–10771. [Google Scholar] [CrossRef]
  49. Han, W.Q.; Wu, L.; Zhu, Y. Formation and Oxidation State of CeO2-x Nanotubes. J. Am. Chem. Soc. 2005, 127, 12814–12815. [Google Scholar] [CrossRef]
  50. Zhang, Y.; Wang, Z.B.; Yu, F.D.; Que, L.F.; Wang, M.J.; Xia, Y.F.; Xue, Y.; Wu, J. Studies on stability and capacity for long-life cycle performance of Li(Ni0.5Co0.2Mn0.3)O2 by Mo modification for lithium-ion battery. J. Power Sources 2017, 358, 1–12. [Google Scholar] [CrossRef]
  51. Johnson, C.S.; Li, N.; Lefief, C.; Thackeray, M.M. Anomalous capacity and cycling stability of xLi2MnO3 · (1 − x)LiMO2 electrodes (M = Mn, Ni, Co) in lithium batteries at 50 °C. Electrochem. Commun. 2007, 9, 787–795. [Google Scholar] [CrossRef]
  52. Chen, Y.; Chen, Z.; Xie, K. Effect of annealing on the first-cycle perfomance and reversible capabilities of lithium-rich layered oxide cathodes. J. Phys. Chem. C 2014, 118, 11505–11511. [Google Scholar] [CrossRef]
  53. Liu, J.; Wu, Z.; Yu, M.; Hu, H.; Zhang, Y.; Zhang, K.; Du, Z.; Cheng, F.; Chen, J. Building Homogenous Li2TiO3 Coating Layer on Primary Particles to Stabilize Li-Rich Mn-Based Cathode Materials. Small 2022, 18, 2106337. [Google Scholar] [CrossRef]
  54. Kang, S.H.; Kempgens, P.; Greenbaum, S.; Kropf, A.J.; Aminea, K.; Thackeraya, M.M. Interpreting the structural and electrochemical complexity of 0.5Li2MnO3·0.5LiMO2 electrodes for lithium batteries (M = Mn0.5−xNi0.5−xCo2x, 0 ≤ x ≤ 0.5). J. Mater. Chem. 2007, 17, 2069–2077. [Google Scholar] [CrossRef]
  55. Zheng, J.; Gu, M.; Genc, A.; Xiao, J.; Xu, P.; Chen, X.; Zhu, Z.; Zhao, W.; Pullan, L.; Wang, C.; et al. Mitigating voltage fade in cathode materials by improving the atomic level uniformity of elemental distribution. Nano Lett. 2014, 14, 2628–2635. [Google Scholar] [CrossRef] [PubMed]
  56. Kalyani, P.; Chitra, S.; Mohan, T.; Gopukumar, S. Lithium metal rechargeable cells using Li2MnO3 as the positive electrode. J. Power Sources 1999, 80, 103–106. [Google Scholar] [CrossRef]
  57. Wang, X.; Zheng, X.; Liao, Y.; Huang, Q.; Xing, L.; Xu, M.; Li, W. Maintaining structural integrity of 4.5 V lithium cobalt oxide cathode with fumaronitrile as a novel electrolyte additive. J. Power Sources 2017, 338, 108–116. [Google Scholar] [CrossRef]
  58. Li, J.; Xing, L.; Wang, Z.; Tu, W.; Yang, X.; Lin, Y.; Liao, Y.; Xu, M.; Li, W. Insight into the capacity fading of layered lithium-rich oxides and its suppression via a film-forming electrolyte additive. RSC Adv. 2018, 8, 25794–25801. [Google Scholar] [CrossRef] [Green Version]
  59. Chen, J.; Gao, Y.; Li, C.; Zhang, H.; Liu, J.; Zhang, Q. Interface modification in high voltage spinel lithium-ion battery by using N-methylpyrrole as an electrolyte additive. Electrochim. Acta 2015, 178, 127–133. [Google Scholar] [CrossRef]
  60. Li, J.; Zhang, L.; Yu, L.; Fan, W.; Wang, Z.; Yang, X.; Lin, Y.; Xing, L.; Xu, M.; Li, W. Understanding Interfacial Properties between Li-Rich Layered Oxide and Electrolyte Containing Triethyl Borate. J. Phys. Chem. C 2016, 120, 26899–26907. [Google Scholar] [CrossRef]
  61. Xu, K. Nonaqueous Liquid Electrolytes for Lithium-Based Rechargeable Batteries. Chem. Rev. 2004, 104, 4303–4417. [Google Scholar] [CrossRef] [PubMed]
  62. Song, B.; Day, S.J.; Sui, T.; Lu, L.; Tang, C.C.; Korsunsky, A.M. Mitigated phase transition during first cycle of a Li-rich layered cathode studied by in operando synchrotron X-ray powder diffraction. Phys. Chem. Chem. Phys. 2016, 18, 4745–4752. [Google Scholar] [CrossRef] [PubMed]
  63. Zhang, X.D.; Shi, J.L.; Liang, J.Y.; Yin, Y.Y.; Zhang, J.Z.; Yu, X.Q.; Guo, Y.G. Suppressing Surface Lattice Oxygen Release of Li-Rich Cathode Materials via Heterostructured Spinel Li4Mn5O12 Coating. Adv. Mater. 2018, 30, 1801751. [Google Scholar] [CrossRef]
  64. Choi, S.M.; Kang, I.S.; Sun, Y.K.; Song, J.H.; Chung, S.M.; Kim, D.W. Cycling characteristics of lithium metal batteries assembled with a surface modified lithium electrode. J. Power Sources 2013, 244, 363–368. [Google Scholar] [CrossRef]
  65. Ruff, Z.; Xu, C.; Grey, C.P. Transition Metal Dissolution and Degradation in NMC811-Graphite Electrochemical Cells. J. Electrochem. Soc. 2021, 168, 060518. [Google Scholar] [CrossRef]
  66. Li, W. An Unpredictable Hazard in Lithium-ion Batteries from Transition Metal Ions: Dissolution from Cathodes, Deposition on Anode and Elimination Strategies. J. Electrochem. Soc. 2020, 167, 090514. [Google Scholar] [CrossRef]
  67. Li, B.; Wang, Y.; Rong, H.; Wang, Y.; Liu, J.; Xing, L.; Xu, M.; Li, W. A novel electrolyte with the ability to form a solid electrolyte interface on the anode and cathode of a LiMn2O4/graphite battery. J. Mater. Chem. A 2013, 1, 12954–12961. [Google Scholar] [CrossRef]
  68. Verma, P.; Maire, P.; Novak, P. A review of the features and analyses of the solid electrolyte interphase in Li-ion batteries. Electrochim. Acta 2010, 55, 6332–6341. [Google Scholar] [CrossRef]
  69. Dekoven, B.M.; Hagans, P.L. XPS studies of metal/polymer interfaces—Thin films of Al on polyacrylic acid and polyethylene. Appl. Surf. Sci. 1986, 27, 199–213. [Google Scholar] [CrossRef]
  70. Lazarraga, M.G.; Pascual, L.; Gadjov, H.; Kovacheva, D.; Petrov, K.; Amarilla, J.M.; Rojas, R.M.; Luengo-Martin, M.A.; Rojo, J.M. Nanosize LiNiyMn2−yO4 (0 < y ≤ 0.5) spinels synthesized by a sucrose-aided combustion method: Characterization and electrochemical performance. J. Mater. Chem. 2004, 14, 1640–1647. [Google Scholar]
  71. Guo, K.; Qi, S.; Wang, H.; Huang, J.; Wu, M.; Yang, Y.; Li, X.; Ren, Y.; Ma, J. High-Voltage Electrolyte Chemistry for Lithium Batteries. Small Sci. 2022, 2, 2100107. [Google Scholar] [CrossRef]
  72. Gao, H.; Maglia, F.; Lamp, P.; Amine, K.; Chen, Z. Mechanistic Study of Electrolyte Additives to Stabilize High-Voltage Cathode–Electrolyte Interface in Lithium-Ion Batteries. ACS Appl. Mater. Interfaces 2017, 9, 44542–44549. [Google Scholar] [CrossRef]
  73. Li, B.; Wang, Y.; Lin, H.; Liu, J.; Xing, L.; Xu, M.; Li, W. Improving high voltage stability of lithium cobalt oxide/graphite battery via forming protective films simultaneously on anode and cathode by using electrolyte additive. Electrochim. Acta 2014, 141, 263–270. [Google Scholar] [CrossRef]
  74. Liu, Y.; Wang, K.; Lin, Y.; Zhu, Y.; Tu, W.; Xu, M.; Liu, X.; Li, B.; Li, W. Tetrafluoroterephthalonitrile: A Novel Electrolyte Additive for High-Voltage Lithium Cobalt Oxide/Graphite Battery. Electrochim. Acta 2017, 256, 307–315. [Google Scholar] [CrossRef]
Batteries 09 00330 g001 550

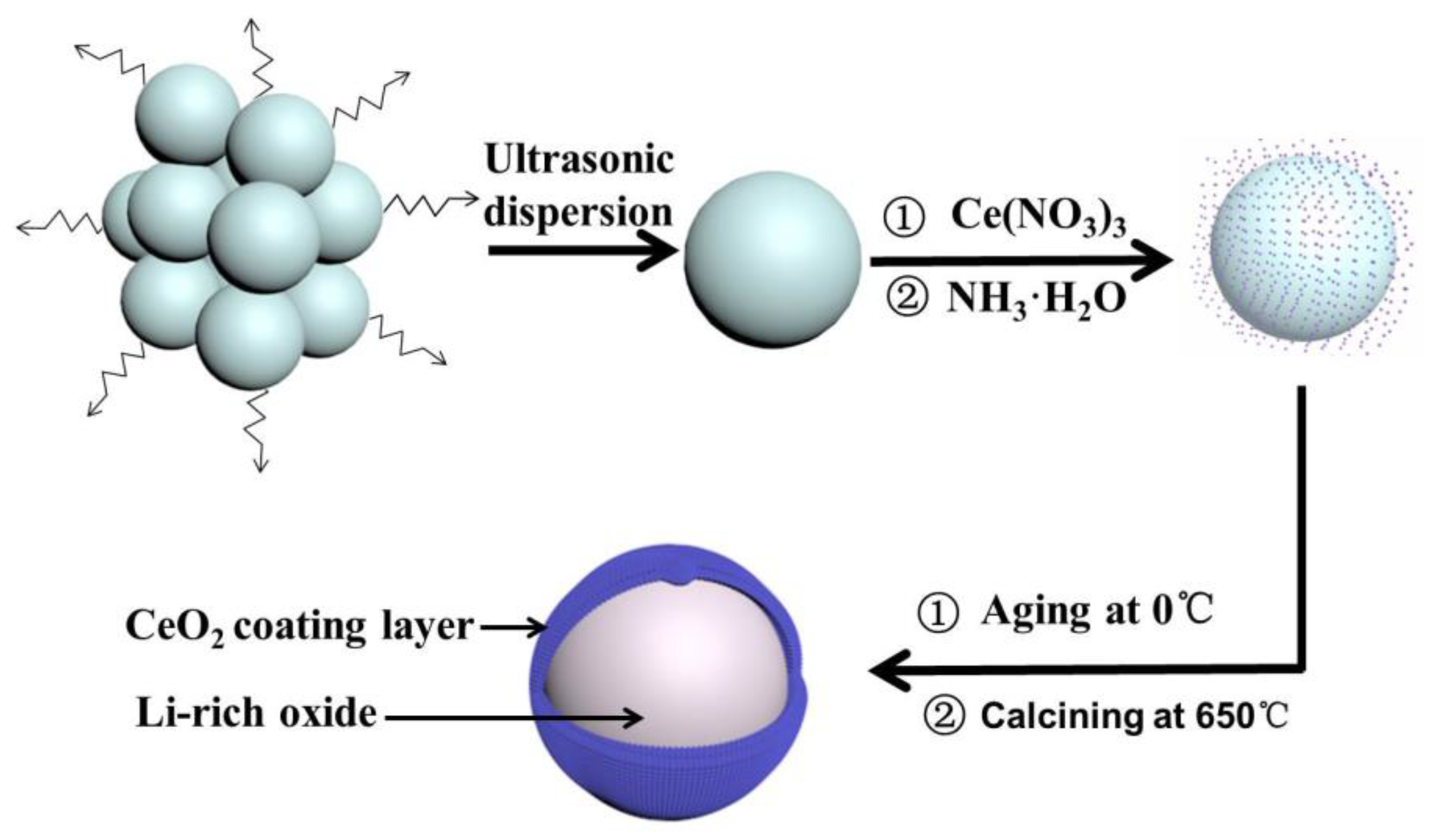

Figure 1. Illustration of low-temperature-aged synthesis of CeO2-coated Li-rich oxide.
Figure 1. Illustration of low-temperature-aged synthesis of CeO2-coated Li-rich oxide.
Batteries 09 00330 g001
Batteries 09 00330 g002 550

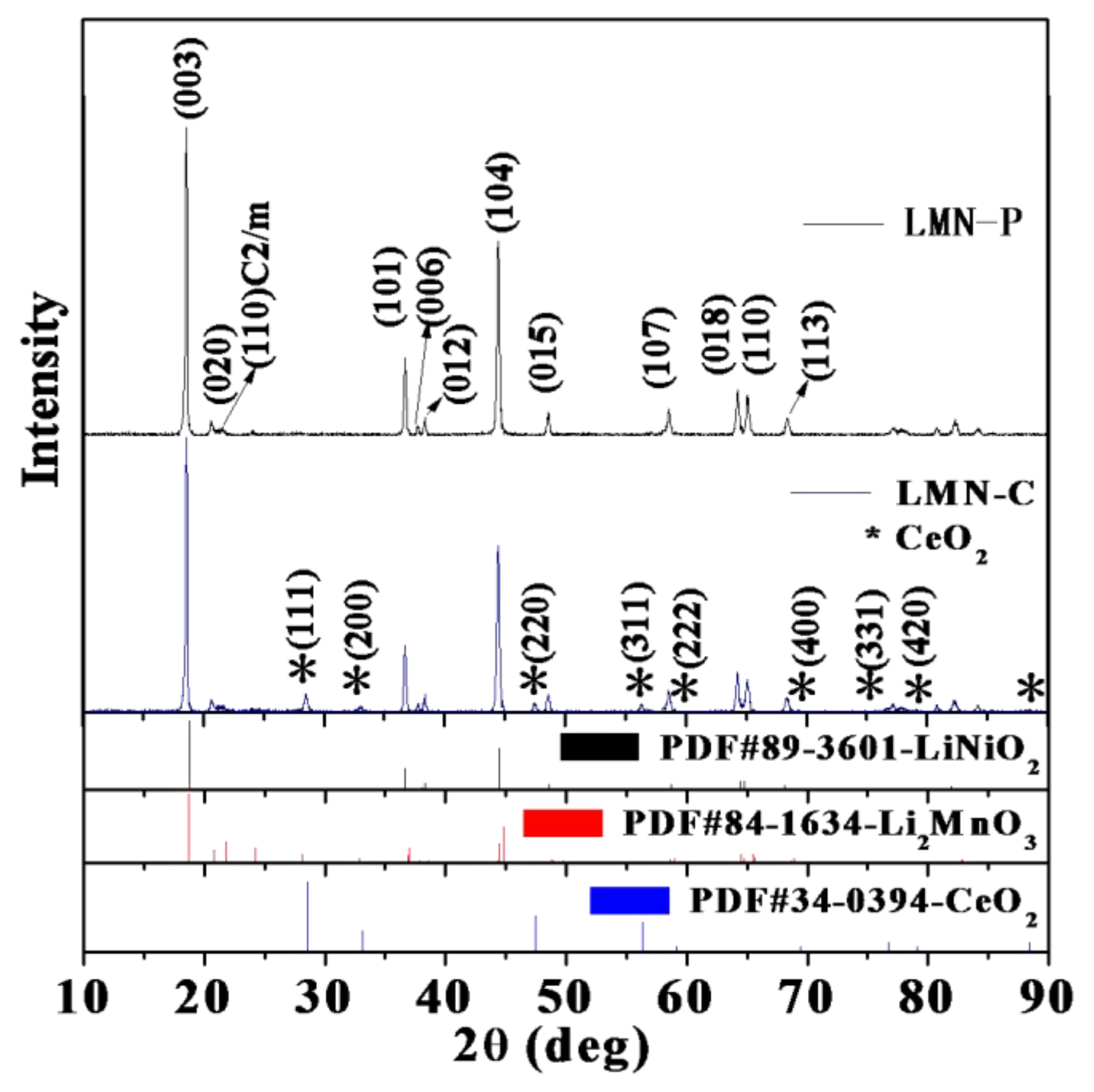

Figure 2. XRD patterns of pristine Li1.2Ni0.2Mn0.6O2 (LMN-P) and CeO2-coated Li1.2Ni0.2Mn0.6O2 (LMN-C).
Figure 2. XRD patterns of pristine Li1.2Ni0.2Mn0.6O2 (LMN-P) and CeO2-coated Li1.2Ni0.2Mn0.6O2 (LMN-C).
Batteries 09 00330 g002
Batteries 09 00330 g003 550

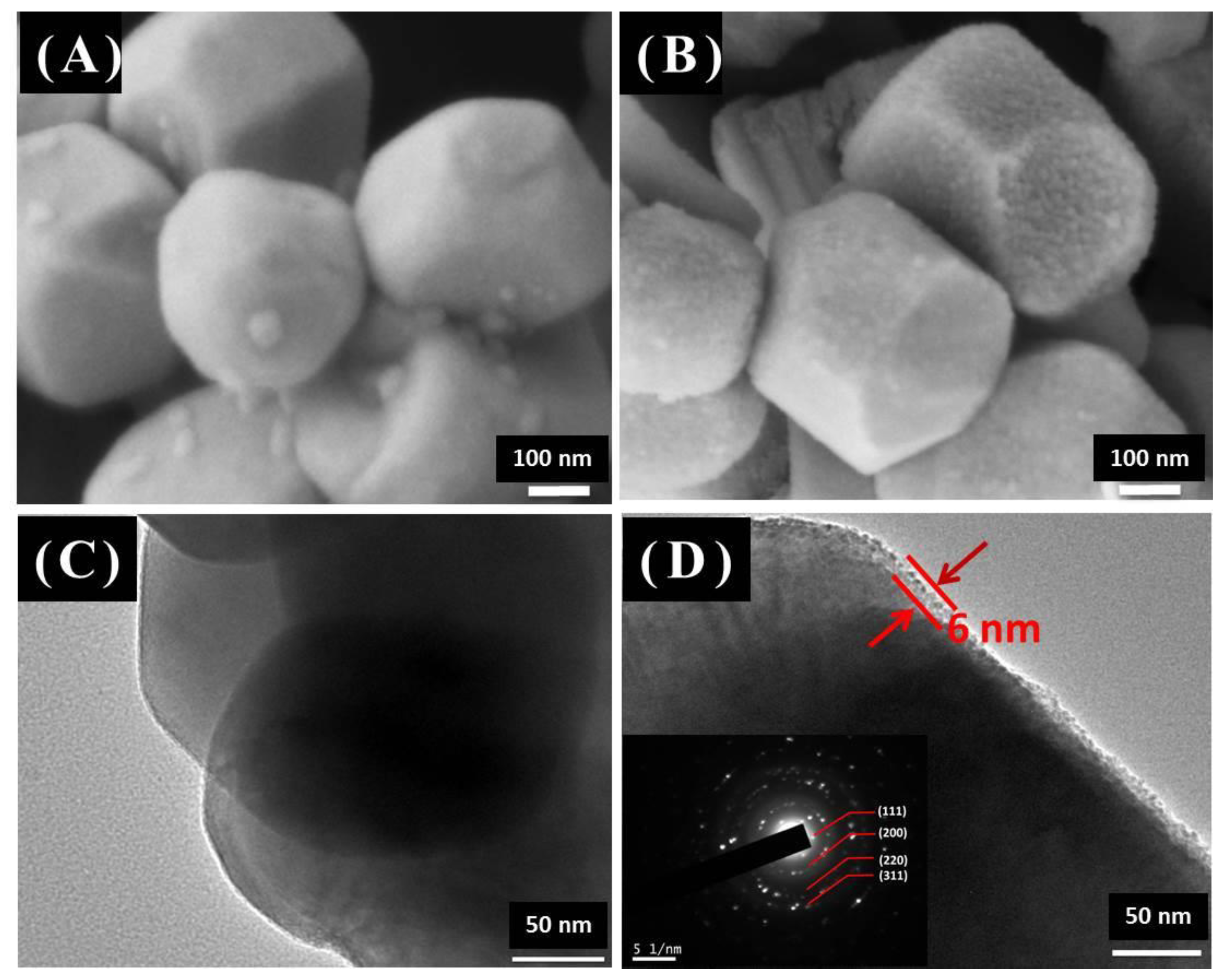

Figure 3. SEM images of LMN-P (A) and LMN-C (B); TEM images of LMN-P (C) and LMN-C with an insertion of selected area electron diffraction (SAED) (D).
Figure 3. SEM images of LMN-P (A) and LMN-C (B); TEM images of LMN-P (C) and LMN-C with an insertion of selected area electron diffraction (SAED) (D).
Batteries 09 00330 g003
Batteries 09 00330 g004 550

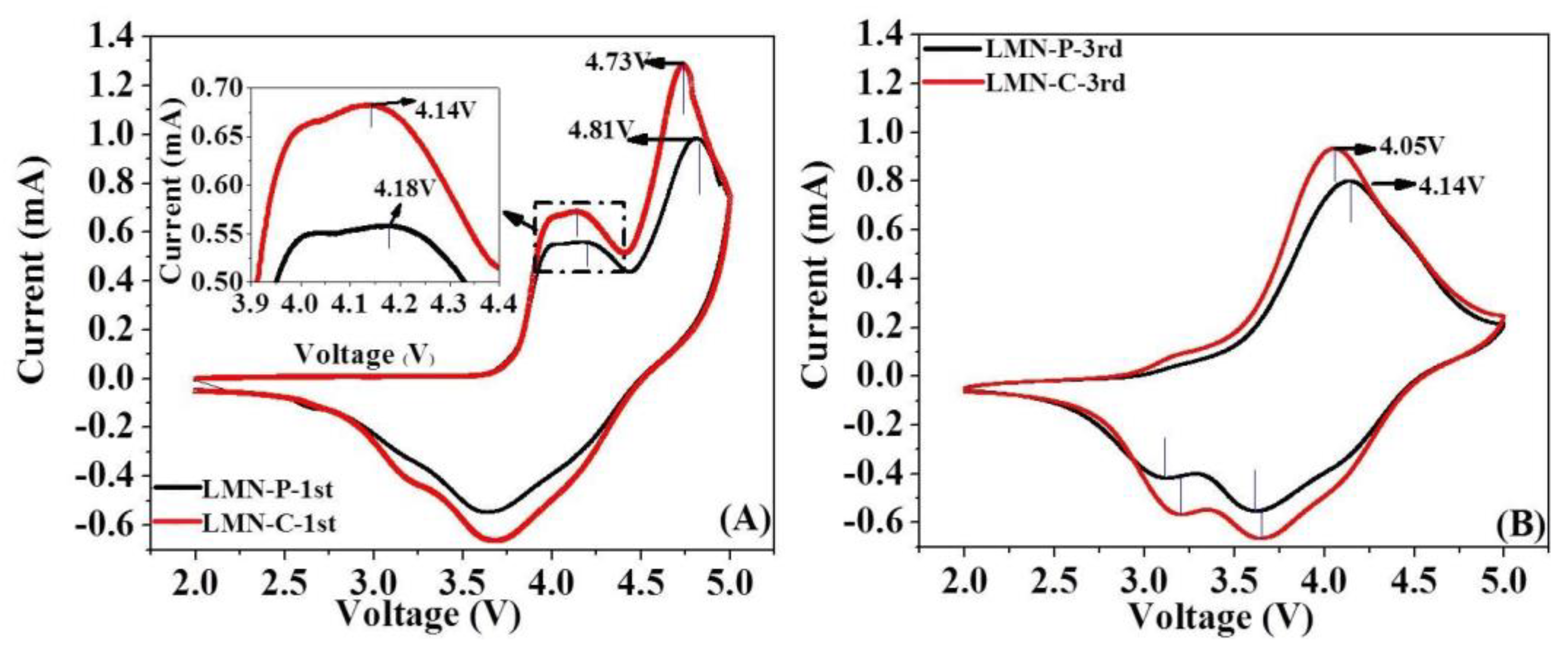

Figure 4. Cyclic voltammograms of LMN-P and LMN-C for the first (A) and third (B) cycles at a scan rate of 0.2 mV s−1.
Figure 4. Cyclic voltammograms of LMN-P and LMN-C for the first (A) and third (B) cycles at a scan rate of 0.2 mV s−1.
Batteries 09 00330 g004
Batteries 09 00330 g005 550

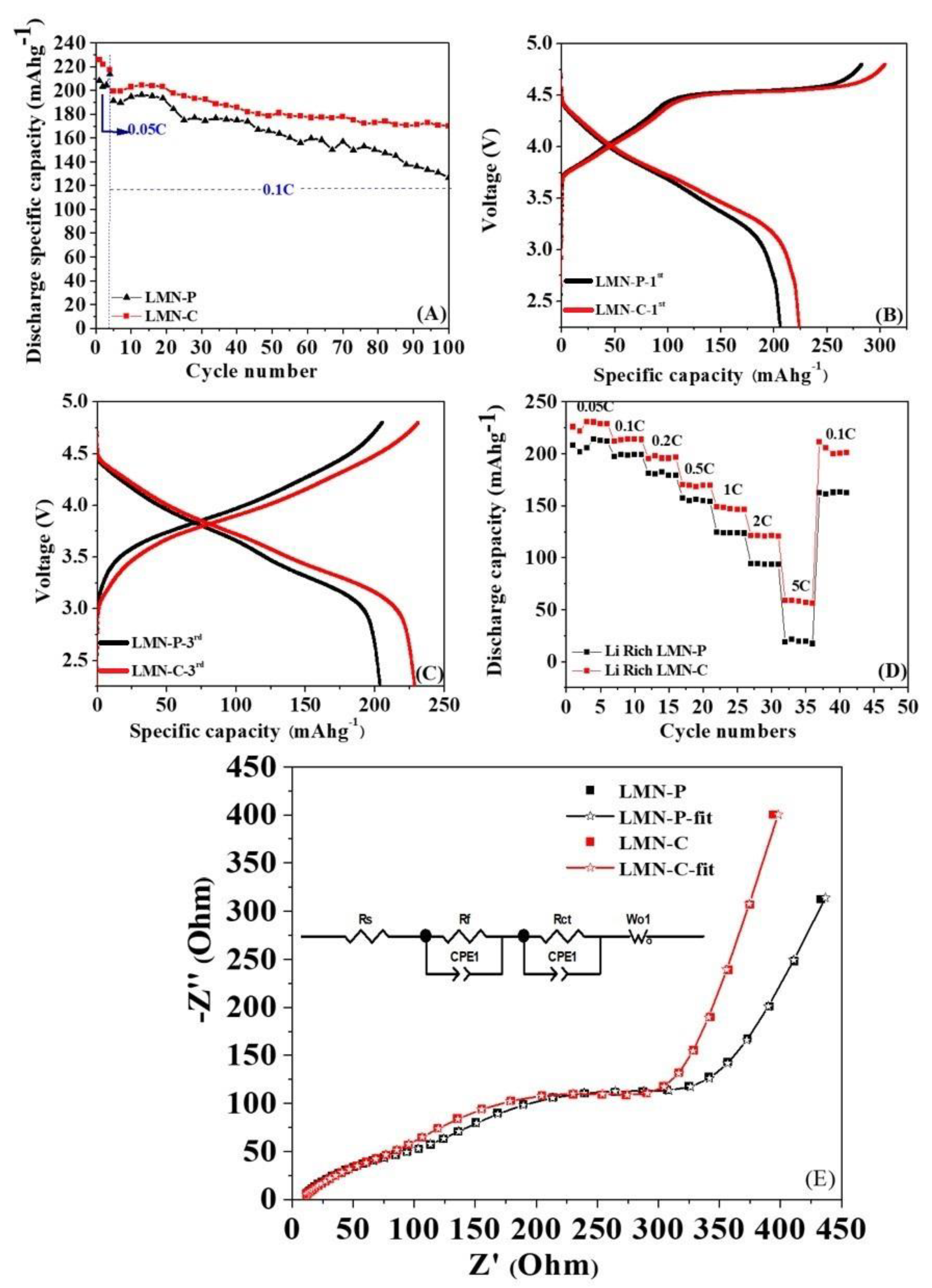

Figure 5. Cycling stability (A), charge/discharge curves for the 1st (B) and the 3rd (C) cycles with a current density of 10 mA g−1, rate capability (D), and (E) electrochemical impedance spectra with the equivalent circuit for fitting of the assembled cell for LMN-P and LMN-C.
Figure 5. Cycling stability (A), charge/discharge curves for the 1st (B) and the 3rd (C) cycles with a current density of 10 mA g−1, rate capability (D), and (E) electrochemical impedance spectra with the equivalent circuit for fitting of the assembled cell for LMN-P and LMN-C.
Batteries 09 00330 g005
Batteries 09 00330 g006 550

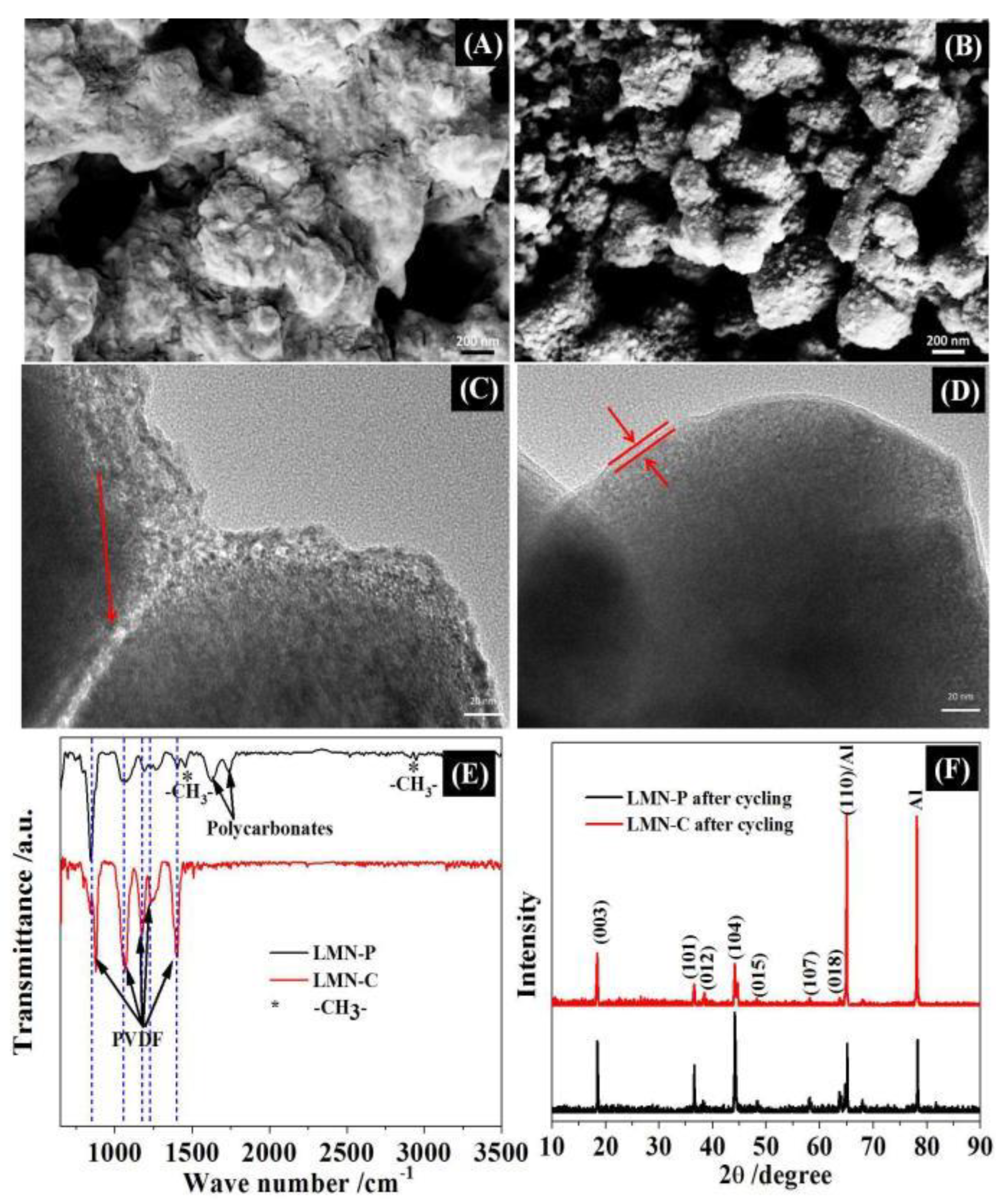

Figure 6. SEM and TEM images of LMN-P (A,C) and LMN-C (B,D); FTIR spectra (E) and XRD patterns (F) of LMN-P and LMN-C electrodes after cycling tests.
Figure 6. SEM and TEM images of LMN-P (A,C) and LMN-C (B,D); FTIR spectra (E) and XRD patterns (F) of LMN-P and LMN-C electrodes after cycling tests.
Batteries 09 00330 g006
Batteries 09 00330 g007 550

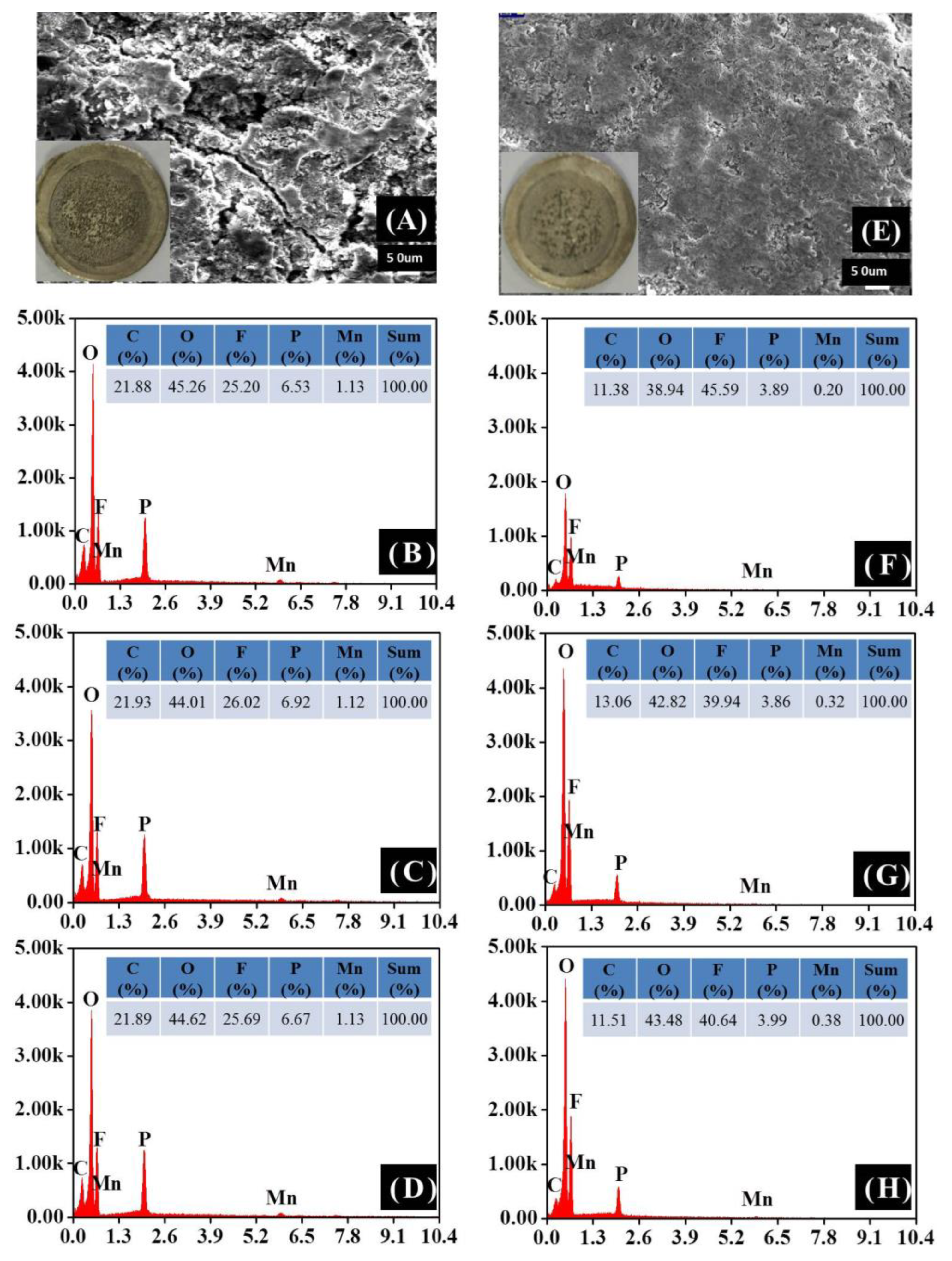

Figure 7. SEM images and EDS of lithium electrodes from the cycled cells with LMN-P (A–D) and LMN-C (E–H).
Figure 7. SEM images and EDS of lithium electrodes from the cycled cells with LMN-P (A–D) and LMN-C (E–H).
Batteries 09 00330 g007
Table
Table 1. Charge transfer and film resistances of LMN-P and LMN-C.
Table 1. Charge transfer and film resistances of LMN-P and LMN-C.
Resistance/ΩCharge Transfer (Rct)Film (Rf)
LMN-P181106
LMN-C17293
Table
Table 2. Lattice parameters of LMN-P and LMN-C before and after cycling.
Table 2. Lattice parameters of LMN-P and LMN-C before and after cycling.
Sample R-3mC2/m
a (Å)b (Å)a (Å)b (Å)c (Å)
Before cyclingLMN-P2.861114.257854.95868.570465.03293
lMN-C2.863514.257524.95598.547795.03707
After cyclingLMN-P2.8746714.43984
lMN-C2.8760114.26065
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Liu, Y.; Li, B.; Chen, M.; Li, W. Low-Temperature-Aged Synthesis of CeO2-Coated Li-Rich Oxide as Cathode for Low-Cost High-Energy Density Li-Ion Batteries. Batteries 2023, 9, 330. https://doi.org/10.3390/batteries9060330

AMA Style

Liu Y, Li B, Chen M, Li W. Low-Temperature-Aged Synthesis of CeO2-Coated Li-Rich Oxide as Cathode for Low-Cost High-Energy Density Li-Ion Batteries. Batteries. 2023; 9(6):330. https://doi.org/10.3390/batteries9060330

Chicago/Turabian Style

Liu, Yanlin, Bin Li, Min Chen, and Weishan Li. 2023. "Low-Temperature-Aged Synthesis of CeO2-Coated Li-Rich Oxide as Cathode for Low-Cost High-Energy Density Li-Ion Batteries" Batteries 9, no. 6: 330. https://doi.org/10.3390/batteries9060330

APA Style

Liu, Y., Li, B., Chen, M., & Li, W. (2023). Low-Temperature-Aged Synthesis of CeO2-Coated Li-Rich Oxide as Cathode for Low-Cost High-Energy Density Li-Ion Batteries. Batteries, 9(6), 330. https://doi.org/10.3390/batteries9060330

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
