Physiological Responses of Lettuce (Lactuca sativa L.) to Soil Contamination with Pb

by
Elena Ikkonen
* and
Natalia Kaznina
Institute of Biology of the Karelian Research Centre, Russian Academy of Sciences, 185910 Petrozavodsk, Russia
*
Author to whom correspondence should be addressed.
Horticulturae 2022, 8(10), 951; https://doi.org/10.3390/horticulturae8100951
Submission received: 19 September 2022 / Revised: 10 October 2022 / Accepted: 11 October 2022 / Published: 14 October 2022
(This article belongs to the Special Issue Research Advances in Plant Stress Biology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Contamination of agricultural soils with heavy metal leads to a decrease in the crop quality and yield, as well as increases in public health risks. In this study, we aimed to evaluate the impact of soil contamination with lead (Pb) on the growth, photosynthesis, respiration, and coupling between these physiological processes, as well as temporal dynamics of Pb uptake and accumulation by lettuce (Lactuca sativa L.) plants. For this 46-day pot experiment, Pb(NO3)2 was mixed with loamy Retisol soil with the rate of 0, 50, and 250 mg kg−1. No significant differences in plant biomass accumulation were found between plants grown on Pb-free and Pb-rich soil, but root-weight ratio, root-to-shoot weight ratio, and leaf area were lower, and the number of leaves and leaf weight per unit area were significantly higher in plants grown on soil contaminated with Pb than in their counterparts grown on Pb-free soil. The concentration of Pb in plant root and shoot followed the increase in soil Pb, with Pb content in the roots being higher than in the shoots. Soil Pb decreased chlorophyll content, net CO2 assimilation rate and photosynthetic light use efficiency, but caused an increase in the leaf respiration rate regardless of whether respiration was performed in the light or in darkness. Increased ratio of respiration to photosynthesis reflects the shift in the carbon balance of lettuce plants toward carbon losses under stress conditions of soil contamination with Pb.

1. Introduction

A serious problem for agricultural ecosystems is their pollution with technogenic components, including heavy metals. Lead (Pb), originating from various sources, is one of the most common soil contaminants. It is known that Pb does not decompose and is not naturally removed from the soil [1], so it accumulates, especially in soils with a high ability to absorb and deposit this heavy metal [2]. The accumulation of lead in soils is also facilitated by the low mobility of its compounds under high soil pH [3]. Markus and McBratney [4] reviewed data collected on lead concentrations in soils and showed high variability, with the maximum amount of lead reaching tens of grams per kilogram of soil. For the agricultural soils of the Moscow region, as an example, the Pb concentration in 2005 was close to 100 mg kg−1 [2].
Even at low concentrations, heavy metals, including Pb, may be associated with potential risks to the environment or human health [5,6]. Lead is not a plant nutrient, and a high Pb content negatively affects the morphological, physiological, and biochemical traits of plants, with the decreased crop production and yield [7,8,9]. The number of studies [9,10] reviewed the adverse effects of lead on plant physiological processes, such as decreased germination and growth, changed activity of a wide range of enzymes of different metabolic pathways, disturbed mineral nutrition, water balance and gene expression, enhanced production of reactive oxygen species. The Pb-mediated decline in photosynthetic rate was found to be a result of chlorophyll degradation, CO2 limitation, reduced electron transport, and low activity of Calvin cycle enzymes [10,11,12,13,14,15]. However, some studies have shown the possibility of an increased rate of photosynthesis in plants growing on soils contaminated with lead [16,17]. Yang et al. [16] showed the enchanted photosynthetic rate in Davidia involucrate grown on a soil with 200 mg kg−1 of Pb. For Brassica chinensis, Fu and Wang [17] found that the net CO2 assimilation rate and chlorophyll fluorescence parameters increased with increasing soil Pb concentration up to 600 mg kg−1.
Whereas the effects of soil Pb on the photosynthetic process is well studied [7,9,10,13,14,15], much less is known about an impact of lead contamination on the respiration metabolism [18,19], as well as about the electron partitioning between the cytochrome and alternative respiratory pathways. Along with the negative effect of lead on plant cell respiration [20], the respiration-stimulating effect of Pb was found in Pb-treated leaves of some species [19] and isolated mitochondria [18]. It is assumed that Pb-mediated increase in respiratory activity is associated with the activation of malate dehydrogenase and the mitochondrial ATP production [19], but the role of alternative respiratory pathways in an increased respiration is not yet clear. The balance between respiration and photosynthesis controls plant growth and productivity [21]; however, less information is available about the modification of coupling between these physiological processes under soil Pb stress. Moreover, it is uncertain whether Pb affects the degree of inhibition of respiration by light and hence the difference in the ratio of respiration and photosynthesis in the light and in darkness.
The uptake and accumulation of lead by plants varied between plants, with lower Pb uptake by tolerant than sensitive plants [22]. Very rare plant species can accumulate significant amounts of lead without significant damage of physiological processes [23]. Lettuce Lactuca sativa L., as a crop species important to the human diet, is currently cultivated over the world. A decrease in the growth of roots and shoots, as well as an imbalance in nutrition and a change in the chlorophyll content, were revealed for lettuce plants irrigated with lead-contaminated water for 15 days [7], but no significant effect of lead on root and shoot dry weight accumulation in lettuce plants was found by Đurđević et al. [24] and Silva et al. [25]. The reason for these differences may be that the accumulation of Pb in lettuce is genotype-dependent, as was established by Zhang et al. [26]. Silva et al. [27] showed significant DNA damage when lettuce crops were irrigated with water containing Pb, although seed germination parameters and seedling growth were not affected. In lettuce plants, an increased content of soil Pb reduced the contents of leaf macro- and micronutrients, as well as the content of photosynthetic pigments [28]. Pb-mediated depression of photosynthetic activity was found for lettuce plants [25], but the response of respiration and the coupling between photosynthesis and respiration to soil Pb contamination are not well documented. This study aimed to evaluate the physiological responses of lettuce plants to soil contamination with Pb in order to better understand strategies used by plants to tolerate this stress.

2. Materials and Methods

2.1. Plant Materials and Pb Treatments

For this plot experiment, we used sandy loam soil collected from the ploughed topsoil layer from a field site in the northwest region of Russia (61.826573, 33.179712). The soil was not fertilized nor subjected to pesticide treatments for some years before soil collection. The collected soil had quite low water holding capacity, low humus content (0.5–2.5%), 5.46 pH, 0.39% of total N, 1200 and 145 mg kg−1 of available P and K, respectively. The available Pb content of soil under the study was 0.13 ± 0.01 mg kg−1. The soil was air-dried and sieved with a 2 mm sieve. The entire volume of the dry soil was divided into parts and carefully mixed with Pb(NO3)2 with the rate of 0, 50, and 250 mg kg−1 (0 Pb, 50 Pb and 250 Pb treatments, respectively). Before seed sowing, the soil substrates of each treatment were incubated under 21–23 °C of air temperature and 70–80% of the maximum soil water holding capacity for 14 days, and then parked into plastic 0.80 L pots with a soil bulk density of approximately 1.4 g cm−3. Each of the 0 Pb, 50 Pb and 250 Pb treatments included eight pots.
The seeds of lettuce (Lactuca sativa L., var. Medvezhje ushko) were sown with six seeds per each pot. This variety is popular in the northwest region of Russia because of this high productivity and good nutritional qualities. The plant cultivation was conducted under controlled conditions of 16-h photoperiod, 23/20 °C day/night temperature, 250 μmol m−2 s−1 of photosynthetic photon flux density (PPFD). All pots were watered with distilled water every two days. One week after sowing, the seedlings were thinned to three per pot.

2.2. Chlorophyll Fluorescence and Chlorophyll Content

Maximum photochemical quantum efficiency of PSII (Fv/Fm) was measured using MINI-PAM (Walz, Effeltrich, Germany). Before measuring minimum and maximum fluorescence (Fo and Fm, respectively) of leaves, they were dark-adapted for 30 min using leaf clips. The Fo and Fm values were taken by illumination with saturated light and used to calculate Fv:Fm = (Fm − Fo)/Fm. The chlorophyll content was measured on the same leaves as the chlorophyll fluorescence parameters using a SPAD-502 chlorophyll meter (Minolta, Tokyo, Japan). Among all treatments, the chlorophyll fluorescence and chlorophyll content parameters were measured on the 17th, 21st, 34th, and 46th days after plant sowing.

2.3. CO2 Gas Exchange

Light response curves of CO2 gas exchange were measured on the fully expanded leaves of 45-day seedlings using a portable photosynthesis system (HCM-1000, Walz, Effeltrich, Germany) at the leaf chamber temperature of 20 °C, relative air humidity of 60–70%, and 400 ± 20 ppm of CO2. The leaf area-based net CO2 exchange, stomata conductance (gs), transpiration (Tr) rate, the ratio of intercellular (Ci) to ambient (Ca) CO2 concentration were determined starting at 300 μmol PPFD m−2 s−1 and then 2000, 1200, 1000, 800, 300, 60, 40, 20, and zero PPFD. Readings were taken after steady state rates of CO2 exchange were reached. The rates of leaf respiration in the darkness (Rd[area]) were taken after 30 min of zero irradiance. The apparent quantum yield of photosynthesis (α) was calculated as the slope of the net CO2 assimilation rate (An[area]) versus irradiance of 20, 40 and 60 μmol m−2 s−1 according to Garmash and Golovko [29]. To estimate the rates of leaf respiration in the light (Rl[area]), the Kok [30] method was used. The degree of light inhibition of respiration was calculated as 1 − Rl/Rd. The light compensation point (LCP) was found as PPFD, where An is equal to zero. The rate of photosynthetic electron transport (J), carboxylase (vc) and oxygenase (vo) activity of Rubisco under saturating light (1200 μmol PPFD m−2 s−1) were calculated according to Farquhar and Von Caemmerer [31]. Photosynthetic water use efficiency (PWUE) was defined as the ratio of the An rate at 1200 μmol PPFD m−2 s−1 to the Tr rate. The gross photosynthesis rate (Ag) was determined as An plus Rl. The ratios of R to Ag were calculated for the Ag rates at 1200 μmol PPFD m−2 s−1 and designated as Rl:An and Rd:An. Leaf mass per area (LMA) was calculated as the dry mass of leaf segment per segment area (2.7 cm2) with the drying of the segment at 70 °C to a constant weight. The LMA values were used to calculate An at 1200 μmol PPFD m−2 s−1, Rl and Rd per unit leaf mass unit (An[mass], Rl[mass] and Rd [mass], respectively).

2.4. Leaf Relative Water Content

For measuring relative water content (RWC), leaf discs were collected from randomly selected leaves of each treatment. First, the fresh weight (FW) of the leaf disks was determined, and then the disks were placed in distilled water for rehydration. After disc incubation at 4 °C for 24 h, leaf turgid weight (TW) was determined. Then, leaf disks were dried at 70 °C and the dry weight (DW) was determined. The RWC value was calculated as (FW−DW)/(TW−DW) × 100% according to González and González-Vilar [32].

2.5. Mitochondrial Respiratory Pathway

The Clark electrode (Oxygraph System Plus, Hansatech, UK) was used for an analysis of mitochondrial leaf respiration rates. Then, 30 mM of salicylhydroxamic acid (SHAM) were added to the 2 mL of 100 mM HEPES buffer solution (pH 7.5) as an inhibitor of alternative respiratory partway. Total respiration (Vt) in the absence of SHAM and SHAM-resistant (VSHAM-res) respiration rate in the presence of SHAM was measured as described earlier [33]. The MLW liquid thermostat (VEB MLW PRUFGERATE-WERK, GDR) was used to keep a buffer solution temperature at a 23 °C level.

2.6. Plant Growth Parameters

For each treatment, five 17-, 21-, 34-, and 46-day-old lettuce seedlings were harvested, separated into shoots and roots. The total leaf number per plant was counted, and the total leaf area per plant was determined by leaf scanning and using the program “AreaS”. Harvested seedlings shoots and roots were dried at 70 °C to constant weight and weighed. The shoot weight ratio (SWR) and root weight ratio (RWR) were calculated as the ratio between organ weight and total biomass. The root–shoot ratio (RSR) was calculated as the ratio between root weight and shoot biomass.

2.7. Leaf and Root Pb Content

Homogenized shoot and root samples of 0.2–0.3 g were digested with HNO3 and HCl (Vekton, Saint-Petersburg, Russia). The concentration of Pb was determined by spectrophotometric atomic absorption (Shimadzu AA-7000, Kyoto, Japan) in the Core Facility “Analytical laboratory” of the Forest institute of KRC of RAS. The accumulation of Pb in shoot and root per seedling was calculated using data of organ Pb content and dry organ biomass.

2.8. Statistical Analysis

One-way ANOVA was used to evaluate the significant differences between the means with LSD test at the p < 0.05 level (Statistica software, v. 8.0.550.0, StatSoft, Inc., Tulsa, OK, USA).

3. Results

3.1. Plant Growth

Among the studied Pb content, soil contamination with lead did not have a significant effect on dry biomass accumulation in lettuce, but for 46-day-old plants, the leaf number was significantly lower, and the leaf area was higher in 0 Pb, than 50 Pb or 250 Pb plants (Figure 1a–e). No significant differences in the mean values of SWR, RWR, and RSR were found between 50 Pb and 250 Pb plants, regardless of the number of days after sowing (Figure 1f–h). However, for 34- and 46-day-old plants, the RWR were significantly lower in 50 Pb and 250 Pb than in 0 Pb plants, and RSW values were highest in 0 Pb plants 46 days after sowing. Soil contamination with Pb caused a significant increase in leaf mass per unit area (LMA), regardless of lead content in the soil (Table 1). The decrease in leaf area of 50 Pb and 250 Pb plants was accompanied by the increase in shoot weight, but no significant differences in shoot biomass were found between 0 Pb plants with the larger leaves and 50 Pb or 250 Pb plants with the smaller ones. The increase in the weight of a unit area of the leaves grown on the soil with Pb is reflected in increased LMA values.

3.2. Effect of Pb on Leaf Gas Exchange of Lettuce

Soil contamination with Pb in the concentrations under the study decreased the net CO2 assimilation (An) rate of lettuce leaves regardless of the soil Pb content and light intensity at which gas exchange was determined (Figure 2). The area- and mass-based rates of net CO2 assimilation under light saturation (An1200[area] and An1200[mass], accordingly) were, respectively, 31 and 37% lower in 250 Pb plants than in plants grown on Pb-free soil (Table 1). Also, the Fv:Fm values, which may be used as a direct indicator of photosynthetic activity and plant resistance to stress [34], were significantly lower in the 250 Pb plants, than in their Pb-free grown counterparts (Figure 3a).
The leaf respiration rate was significantly higher in the 250 Pb than 0 Pb plants, regardless of whether respiration occurred in the light or darkness, and regardless of whether the rate was calculated for the area or mass of the leaves (Rl[area], Rl[mass], Rd[area], Rd[mass], Table 1); however, this Pb effect was not confirmed by a polarographic study of O2 uptake by leaves (Vt, Table 1). Furthermore, no effect of soil Pb on the partitioning between SHAM-resistant and SHAM-sensitive respiratory rates (VSHAM-res, VSHAM-sen:Vt, Table 1) was found in this study.
For the studied lettuce of all treatments, the degree of light inhibition of leaf respiration (1−Rl:Rd) varied, on average, between 13 and 19%. In accordance with the increase in Pb content in the soil, the ratio of leaf respiration to photosynthesis significantly increased, regardless of whether respiration was carried out in the light or darkness (Rl:Ag, Rd:Ag, Table 1).

3.3. Pb Content and Accumulation in Shoot and Root of Lettuce

At the end of the experiment, the concentration of available Pb in the soil was 0.10 ± 0.02, 4.03 ± 0.50, and 41.6 ± 3.6 mg kg−1, respectively, for 0 Pb, 50 Pb, and 250 Pb treatment.
The Pb content was significantly higher in roots, than shoots of lettuce plants, regardless of the Pb concentration in the soil (Figure 4). For both shoot and root, the Pb content increased following the increase in soil Pb content. In contrast to the roots, for which no significant difference in lead content between 21-, 34-, and 46-day-old plants was found (Figure 4b), the lead content in the shoots of 50 Pb and 250 Pb plants increased with plant growth (Figure 4a).
While lead accumulation in the shoot and root was negligible for plants grown on Pb-free soil, it was significant in 50 Pb and especially in 250 Pb plants (Figure 5). In these plants, the Pb accumulation followed the accumulation of dry biomass with more significant accumulation in the roots than shoots; even though the accumulation of biomass in the roots was significantly lower than in the shoots (Figure 1d,e).

4. Discussion

For a wide range of cultivated plants, soil contamination with Pb in high doses has been found to inhibit plant growth and biomass accumulation [7,35,36]. Low and moderate Pb stress studied in our work did not strongly affect total biomass accumulation by lettuce; however, it affected the allocation of biomass to organs. Đurdecic et al. [24] also did not reveal any significant effect of Pb on leaf and root dry mass accumulation for lettuce plants. One of the strategies for plant adaptation to changing environmental conditions can be a change in the accumulation of biomass in roots and shoots. Under stress conditions, including soil contamination with Pb, the biomass allocation strategy can optimize resource utilization to support optimal plant growth [37]. Our results revealed that Pb decreased root-to-total-plant-weight ratios (RWR), as well as root-to-shoot ratios (RSR) which can be caused by inhibition of root growth and elongation stronger than shoot growth and can be one of the plant mechanisms to maintain functional balance under soil Pb stress.
This study confirmed that Pb negatively affects photosynthesis, one of the main physiological processes of plants. Our finding that photosynthetic activity depressed under soil Pb contamination is according to the studies that have found that Pb can affect photosynthetic apparatus, including Calvin cycle, CO2 ability, photosynthetic pigment biosynthesis [7,16,38,39]. However, Fu and Wang [17] showed opposite results for Brassica chinensis with the increase in the net photosynthetic rate and chlorophyll fluorescence parameters when soil Pb content was increased to 600 mg kg−1. In our study, Pb soil contamination inhibited lettuce photosynthetic activity without any stimulatory effect of low Pb concentration on stomatal conductance, chlorophyll content, or net assimilation rate, as found in early studies [15,16,17].
The net An rate, as an integral indicator of photosynthetic apparatus, is determined by the relative activity of a complex of reactions and processes. Because no significant effect of soil Pb was found for gs and Ci:Ca ratio (Table 1), lead-mediated decrease in the An rate was not connected with stomatal closure and CO2 limitation of photosynthesis. These results confirm the findings of Silva et al. [25], such that Pb-mediated limitations of photosynthesis occurred from reasons other than reduced CO2 availability. It might be expected that the decrease in An would be associated with the inhibition of Rubisco activity and a decrease of electron transport rate, but this is, however, not the case, because this study did not reveal the effect of lead on such photosynthesis parameters as J, νo and νc (Table 1). The depression of the An rates in lettuce grown on Pb-rich soil related to the decrease of apparent quantum yield of photosynthesis (α, Table 1), which is defined as the moles of CO2 fixed per mole of quanta absorbed and reflected the efficiency with, which light, is converted into fixed carbon. This parameter is not a constant and varies depending on the conditions under which photosynthesis occurs [29,40,41]. One of the factors responsible for the change in the α value can be some adjustments in the pigment complex [29], which can be considered as an acclimation process to changes in plant growth conditions [42,43]. This study revealed a decrease in the chlorophyll content in the leaves of 46-day-old plants grown on the soil with Pb(NO3)2 content of 250 mg kg−1 compared to 0 Pb plants (Figure 3b), which could lead to a decrease in the α and An values. Ahmed et al. [44] showed that the total chlorophyll content of lettuce plants is sensitive to metals content in soil solution. The results of our study are consistent with the findings demonstrating decreased chlorophyll content in plants grown on soils contaminated with lead [15,20]. The Pb-mediated changes in the pigment complex can be caused by the destruction of the chloroplast ultrastructure [45], decreased photocatalytic activity chlorophyll [20], decreased chla/chlb ratio [7], although the carotenoid content was found to be independent of lead [46].
In contrast to light use efficiency for photosynthesis, this study found no statistical evidence that soil Pb affects photosynthetic water use efficiency (PWUE, Table 1). At the same time, the relative water content in the leaves of 250 Pb plants was statistically higher than in the leaves of 0 Pb and 50 Pb ones (RWC, Table 1). Such nutrients, like K, P, Mg, Mn, Zn and Si, can affect plant processes related to water use efficiency and improve plant PWUE status [38,47,48,49]; therefore, it can be indirectly assumed that lead did not affect the uptake of these elements by lettuce under the study.
Our results showed that leaf respiration is enhanced in lettuce grown in lead-contaminated soil, consistent with the studies showing a similar response of leaf and mitochondrial respiration to lead [18,19]. The Pb-mediated increase in the leaf R rates revealed in this study can relate to an increased demand of intermediates and energy that can occur under stress [50,51,52]. Some acclimation adjustments in structural and functional changes in cell organization can be responsible for elevated demand, which is achieved through the increased respiration, although this increased R rate was not associated with activation of the alternative respiratory partway in lettuce plants under the study. For all treatments under this study, leaf respiration in the light (Rl) was lower than in the darkness (Rd), which is consistent with numerous studies [53,54,55,56,57,58] and reflects the inhibition of the respiratory process by light. Previous studies have shown variability in 1− Rl:Rd depending on plant species, temperature, soil water content, nutrient availability, photoperiod, season [54,58,59,60,61], but this study did not reveal a significant effect of soil contamination with lead on the Rl:Rd ratios (Table 1), reflecting no strong effect of Pb on light inhibition of foliar respiration in lettuce.
The R:A ratio is an important indicator of the carbon balance of plants and ecosystems and can be useful in assessing the ability of plants to adapt to new growing conditions [62,63]. As a rule, the R:A ratio tended to be constant under optimal growth conditions, but under conditions of stress, plants demonstrated an increased R:A ratio [64]. This study did not reveal any differences between the Rl:Ag and Rd:Ag values in response to soil Pb contamination, although Atkin et al. [65] and Ayub et al. [66] showed higher stability of Rl:Ag than Rd:Ag to changing conditions. Elevated R:Ag values in lettuce grown on the Pb-rich soil are associated with both the increase in leaf respiratory rate and the decrease in the net CO2 assimilation rate and indicate a shift of the carbon balance towards greater carbon losses.
The results of this study showing that Pb accumulates in the roots to a greater extent than in the shoots confirms the findings that only a small part of absorbed Pb is transported to aerial parts of plants [5,7,15,16,67,68]. The root endoderm barrier can be responsible for the limited transport of Pb from roots to stems and leaves [10]. The localization of Pb in the insoluble fraction of root cell walls, as well as Pb sequestration in the vacuole, has been shown to act as a detoxification mechanism [69]. Although, a high level of soil Pb limits the functional capacity of this barrier and Pb can be transported to the aerial parts of plants [7,67]. Farh et al. [8] reviewed the functional role of callose synthesized and deposited between the plasma membrane and the cell wall as a mechanical barrier against Pb stress. Moreover, Fe and Mn plaques can sequestrate Pb on surface roots to prevent its translocation within the root [70].
For lettuce plants tested in this study, soil contamination with lead mainly affected biomass allocation rather than total biomass accumulation, with higher biomass disposition in shoots than in roots. This study confirmed the results of earlier studies, which showed a greater accumulation of lead in the roots than in the aerial parts of plants, which is associated with the strategies that plants use to detoxify and survive under Pb stress [5,7,15,16,67,69,70]. Interestingly, while the concentration of lead in the shoots gradually increased during plant growth, the lead content in the roots reached a maximum in the early stages of growth and did not change thereafter. Moreover, the maximum concentration of lead in the roots varied between treatments and positively related to the content of soil Pb. The low effect of lead on plant biomass, found in this study, indicates that the plants were not strongly stressed at the low soil lead concentrations. Lettuce plants are likely to be able to tolerate low levels of lead in the soil by fixing lead ions in the roots without toxic effects on the plant and without accumulation of Pb to toxic levels dangerous to human health.
In summary, even though plants have used various strategies to tolerate contamination stress, including the accumulation of Pb in the roots and limitation of its transport to the shoots, depressed photosynthesis and stimulated respiration reflects an increase in carbon losses by plants, which negatively affect the carbon balance of plants under stress conditions of Pb contamination.

Author Contributions

Conceptualization, N.K.; methodology, E.I. and N.K.; investigation, E.I.; data curation, E.I.; writing—original draft preparation, E.I.; writing—review and editing, N.K.; visualization, E.I.; project administration, N.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Science Foundation, grant number 22-16-00145.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Experimental facilities for this study were offered by the Core Facility of the Karelian Research Centre of the Russian Academy of Sciences.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Xu, Y.; Deng, G.; Guo, H.; Yang, M.; Yang, Q. Accumulation and sub cellular distribution of lead (Pb) in industrial hemp grown in Pb contaminated soil. Ind. Crops Prod. 2021, 161, 113220. [Google Scholar] [CrossRef]
  2. Nikiforova, E.M.; Kosheleva, N.E. Dynamics of Contamination of Urban Soils with Lead in the Eastern District of Moscow. Eurasian Soil Sci. 2007, 40, 880–892. [Google Scholar] [CrossRef]
  3. Glazovskaya, M.A. Criteria of Soil Classification According to Lead Contamination Hazard. Pochvovedenie 1994, 4, 110–120. [Google Scholar]
  4. Markus, J.; McBratney, A.B. A review of the contamination of soil with lead II. Spatial distribution and risk assessment of soil lead. Environ. Int. 2001, 27, 399–411. [Google Scholar] [CrossRef]
  5. Kumar, B.; Smita, K.; Flores, L.C. Plant mediated detoxification of mercury and lead. Arab. J. Chem. 2017, 10, 2335–2342. [Google Scholar] [CrossRef] [Green Version]
  6. Zulfiqar, U.; Farooq, M.; Hussain, S.; Maqsood, M.; Hussain, M.; Ishfaq, M.; Ahmad, M.; Anjum, M.Z. Lead toxicity in plants: Impacts and remediation. J. Environ. Manag. 2019, 250, 109557. [Google Scholar] [CrossRef] [PubMed]
  7. Capelo, A.; Santos, C.; Loureiro, S.; Pedro, M.A. Phytotoxicity of lead on Lactuca sativa: Effects On growth, mineral nutrition, photosynthetic activity and oxidant metabolism. Fresenius Environ. Bull. 2012, 21, 450–459. [Google Scholar]
  8. Fahr, M.; Laplaze, L.; Bendaou, N.; Hocher, V.; El Mzibri, M.; Bogusz, D.; Smouni, A. Effect of lead on root growth. Front. Plant Sci. 2013, 4, 175. [Google Scholar] [CrossRef] [Green Version]
  9. Collin, S.; Baskar, A.; Geevarghese, D.M.; Ali, M.N.V.S.; Bahubali, P.; Choudhary, R.; Lvov, V.; Tovar, G.I.; Senatov, F.; Koppala, S.; et al. Bioaccumulation of lead (Pb) and its effects in plants: A review. J. Hazard. Mater. 2022, 3, 100064. [Google Scholar] [CrossRef]
  10. Sharma, P.; Dubey, R. Lead toxicity in plants. Braz. J. Plant Physiol. 2005, 17, 35–52. [Google Scholar] [CrossRef] [Green Version]
  11. Stevens, R.G.; Creissen, G.P.; Mullineaux, P.M. Cloning and characterisation of a cytosolic glutathione reductase cDNA from pea (Pisum sativum L.) and its expression in response to stress. Plant Mol. Biol. 1997, 35, 641–654. [Google Scholar] [CrossRef] [PubMed]
  12. Chugh, L.K.; Sawhney, S.K. Photosynthetic activities of pisum sativum seedlings grown in presence of cadmium. Plant Physiol. Biochem. 1999, 37, 297–303. [Google Scholar] [CrossRef]
  13. Sabrine, H.; Boutheina, D.; Lassad, C.; Kheder, M.B.; Bousetta, H. Photosynthesis and growth responses of pea Pisum sativum L. Under heavy metals stress. J. Environ. Sci. 2009, 21, 1552–1556. [Google Scholar]
  14. Zhou, M.; Gong, X.; Ying, W.; Chao, L.; Hong, M.; Wang, L.; Fashui, H. Cerium relieves the inhibition of chlorophyll biosynthesis of maize caused by magnesium deficiency. Biol. Trace Elem. Res. 2011, 143, 468–477. [Google Scholar] [CrossRef]
  15. Shu, X.; Yin, L.Y.; Zhang, Q.F.; Wang, W.B. Effect of Pb toxicity on leaf growth, antioxidant enzyme activities, and photosynthesis in cuttings and seedlings of Jatropha curcas L. Environ. Sci. Pollut. Res. 2012, 19, 893–902. [Google Scholar] [CrossRef]
  16. Yang, Y.; Zhang, L.; Huang, X.; Zhou, Y.; Quan, Q.; Li, Y.; Zhu, X. Response of photosynthesis to different concentrations of heavy metals in Davidia involucrata. PLoS ONE 2020, 15, e0228563. [Google Scholar]
  17. Fu, W.G.; Wang, F.K. Effects of high soil lead concentration on photosynthetic gas exchange and chlorophyll fluorescence in Brassica chinensis L. Plant Soil Environ. 2015, 61, 316–321. [Google Scholar]
  18. Koeppe, D.E.; Miller, R.J. Lead effects on corn mitochondria respiration. Science 1970, 167, 1376–1377. [Google Scholar] [CrossRef]
  19. Romanowska, E.; Igamberdiev, A.U.; Parys, E.; Gardeström, P. Stimulation of respiration by Pb2π in detached leaves and mitochondria of C3 and C4 plants. Physiol. Plant. 2002, 116, 148–154. [Google Scholar] [CrossRef]
  20. Seregin, I.V.; Kozhevnikova, A.D. Distribution of cadmium, lead, nickel, and strontium in imbibing maize caryopses. Russ. J. Plant Physiol. 2005, 52, 565–569. [Google Scholar] [CrossRef]
  21. Lambers, H.; Chapin, F.S., III; Pons, T.L. Plant Physiological Ecology; Springer: New York, NY, USA, 1998. [Google Scholar]
  22. Tangahu, B.V.; Abdullah, S.R.S.; Basri, H.; Idris, M.; Anuar, N.; Mukhlisin, M. A Review on HeavyMetals (As, Pb, and Hg) Uptake by Plants through Phytoremediation. Int. J. Chem. Eng. 2011, 20, 939161. [Google Scholar]
  23. Gupta, D.K.; Huang, H.G.; Corpas, F.J. Lead tolerance in plants: Strategies for phytoremediation. Environ. Sci. Pollut. Res. Int. 2013, 20, 2150–2161. [Google Scholar] [CrossRef]
  24. Đurdecic, B.; Lisjak, M.; Stosic, M.; Engler, M.; Popovic, B. Influence of Pb and Cu Toxicity on Lettuce Photosynthetic Pigments and Dry Matter Accumulation, 7th ed.; Alps-Adria Scientific Workshop: Stara Lesna, Slovakia, 2008; pp. 1951–1954. [Google Scholar]
  25. Silva, S.; Pinto, G.; Santos, C. Low doses of Pb affected Lactuca sativa photosynthetic performance. Photosynthetica 2017, 55, 50–57. [Google Scholar]
  26. Zhang, K.; Yuan, J.; Kong, W.; Yang, Z. Genotype variations in cadmium and lead accumulations of leafy lettuce (Lactuca sativa L.) and screening for pollution-safe cultivars for food safety. Environ. Sci. Process. Impacts 2013, 15, 1245–1255. [Google Scholar] [CrossRef] [PubMed]
  27. Silva, S.; Silva, P.; Oliveira, H.; Gaivão, I.; Matos, M.; Pinto-Carnide, O.; Santos, C. Pb low doses induced genotoxicity in Lactuca sativa plants. Plant Physiol. Biochem. 2017, 112, 109–116. [Google Scholar] [CrossRef]
  28. Brengi, S.H.M.; Abouelsaad, I.A.A. The Combined Use of Beneficial Soil Microorganisms Enhanced the Growth and Efficiently Reduced Lead Content in Leaves of Lettuce (Lactuca sativa L.) Plant under Lead Stress. Alex. J. Agric. Sci. 2019, 64, 41–51. [Google Scholar]
  29. Garmash, E.V.; Golovko, T.K. CO2 gas exchange and growth in Rhaponticum carthamoides under the condition of middle taiga subzone of Northeastern Europe: Dependence of photosynthesis and respiration on environmental factors. Russ. J. Plant Physiol. 1997, 44, 737–745. [Google Scholar]
  30. Kok, B. A critical consideration of the quantum yield of Chlorella-photosynthesis. Enzymologia 1948, 13, 1–5. [Google Scholar]
  31. Farquhar, G.D.; von Caemmerer, S. Modelling of photosynthetic response to environmental conditions. In Physiological Plant Ecology II; Lange, O.L., Nobel, P.S., Osmond, C.B., Ziegler, H., Eds.; Encyclopedia of Plant Physiology, Volume 12B/B; Water Relations and Carbon Assimilation; Springer: Berlin/Heidelberg, Germany, 1982; Volume 12, pp. 549–587. [Google Scholar]
  32. González, L.; González-Vilar, M. Determination of relative water content. In Handbook of Plant Ecophysiology Techniques; Reigosa Roger, M.J., Ed.; Kluwer Academic Publishers: Amsterdam, The Netherlands, 2001; pp. 207–212. [Google Scholar]
  33. Ikkonen, E.N.; Grabelnykh, O.I.; Sherudilo, E.G.; Shibaeva, T.G. Salicylhydroxamic Acid-Resistant and Sensitive Components of Respiration in Chilling-Sensitive Plants Subjected to a Daily Short-Term Temperature Drop. Russ. J. Plant Physiol. 2020, 67, 60–67. [Google Scholar] [CrossRef]
  34. Campbell, C.; Atkinson, L.; Zaragoza-Castells, J.; Lundmark, M.; Atkin, O.; Hurry, V. Acclimation of photosynthesis and respiration is asynchronous in response to changes in temperature regardless of plant functional group. New Phytol. 2007, 176, 375–389. [Google Scholar] [CrossRef] [PubMed]
  35. Çimrin, K.M.; Turan, M.; Kapur, B. Effect of elemental sulphur on heavy metals solubility and remediation by plants in calcareous soils. Fresenius Environ. Bull. 2007, 16, 1113–1120. [Google Scholar]
  36. Hung, N.M.; Hiep, N.V.; Dung, B.N.; Hai, N.X. Lead Accumulation in different parts of okra plant (Abelmoschus esculentus). ARPN J. Agric. Biol. Sci. 2014, 9, 190–194. [Google Scholar]
  37. Cai, X.; Jiang, M.; Liao, J.; Yang, Y.; Li, N.; Cheng, Q.; Li, X.; Song, H.; Luo, Z.; Liu, S. Biomass allocation strategies and Pb-enrichment characteristics of six dwarf bamboos under soil Pb stress. Ecotoxicol. Environ. Saf. 2021, 207, 111500. [Google Scholar] [CrossRef] [PubMed]
  38. Khan, H.R.; McDonald, G.K.; Rengel, Z. Zn fertilization improves water use efficiency, grain yield and seed Zn content in chickpea. Plant Soil 2003, 249, 389–400. [Google Scholar] [CrossRef]
  39. Mahaffey, K.R. Environmental lead toxicity: Nutrition as a component of intervention. Environ. Health Perspect. 1990, 89, 75–78. [Google Scholar] [CrossRef] [PubMed]
  40. Ehleringer, J.; Björkman, O. Quantum yields for CO2 uptake in C3 and C4 plants. Dependence on temperature, CO2 and O2 concentration. Plant Physiol. 1977, 59, 86–90. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Gardiner, E.S.; Krauss, K.W. Photosynthetic light response of flooded cherrybark oak (Quercus pagoda) seedlings grown in two light regimes. Tree Physiol. 2001, 21, 1103–1111. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Savitch, L.V.; Leonardos, E.D.; Krol, M.; Jansson, S.; Grodzinski, B.N.; Huner, P.A.; Öquist, G. Two different strategies for light utilization in photosynthesis in relation to growth and cold acclimation. Plant Cell Environ. 2002, 25, 761–771. [Google Scholar] [CrossRef]
  43. Sofronova, V.E.; Dymova, O.V.; Golovko, T.K.; Chepalov, V.A.; Petrov, K.A. Adaptive changes in pigment complex of Pinus sylvestris needles upon cold acclimation. Russ. J. Plant Physiol. 2016, 63, 433–442. [Google Scholar] [CrossRef]
  44. Ahmed, Z.F.R.; Alnuaimi, A.K.H.; Askri, A.; Tzortzakis, N. Evaluation of Lettuce (Lactuca sativa L.) Production under Hydroponic System: Nutrient Solution Derived from Fish Waste vs. Inorganic Nutrient Solution. Horticulturae 2021, 7, 292. [Google Scholar] [CrossRef]
  45. Opeolu, B.O.; Adenuga, P.A.; Ndakidemi Olujimi, O.O. Assessment of phyto–toxicity potential of lead on tomato (Lycopersicon esculentum L) planted on contaminated soils. Int. J. Nat. Sci. 2010, 5, 68–73. [Google Scholar]
  46. Ahmed, A.; Tajmir–Riahi, H.A. Interaction of toxic metal ions Cd2+, Hg2+ and Pb with light–harvesting proteins of chloroplast thylakoid membranes. An FTIR spectroscopic study. J. Inorg. Biochem. 1993, 50, 235–243. [Google Scholar] [CrossRef]
  47. Nwugo, C.C.; Huerta, A.J. Efects of silicon nutrition on cadmium uptake, growth and photosynthesis of rice plants exposed to lowlevel cadmium. Plant Soil 2008, 311, 73–86. [Google Scholar] [CrossRef]
  48. Tränkner, M.; Jákli, B.; Tavakol, E.; Geilfus, C.-M.; Cakmak, I.; Dittert, K.; Senbayram, M. Magnesium deficiency decreases biomass water-use efficiency and increases leaf water-use efficiency and oxidative stress in barley plants. Plant Soil 2016, 406, 409–423. [Google Scholar] [CrossRef] [Green Version]
  49. Nadeem, M.; Li, J.; Yahya, M.; Sher, A.; Ma, C.; Wang, X.; Qiu, L. Research progress and perspective on drought stress in legumes: A review. Int. J. Mol. Sci. 2019, 20, 2541. [Google Scholar] [CrossRef] [Green Version]
  50. Atkin, O.K.; Bruhn, D.; Hurry, V.M.; Tjoelker, M.G. The hot and the cold: Unraveling the variable response of plant respiration to temperature. Funct. Plant Biol. 2005, 32, 87–105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Semikhatova, O.A. Evaluation of plant adaptation potential by assessing dark respiration. Russ. J. Plant Physiol. 1998, 45, 122–128. [Google Scholar]
  52. Ikkonen, E.N.; Shibaeva, T.K.; Titov, A.F. Influence of Daily Short-Term Temperature Drops on Respiration to Photosynthesis Ratio in Chilling-Sensitive Plants. Russ. J. Plant Physiol. 2018, 65, 94–99. [Google Scholar] [CrossRef]
  53. Ayub, G.; Zaragoza-Castells, J.; Griffin, K.L.; Atkin, O.K. Leaf respiration in darkness and in the light under pre-industrial, current and elevated atmospheric CO2 concentrations. Plant Sci. 2014, 226, 120–130. [Google Scholar] [CrossRef] [PubMed]
  54. Crous, K.Y.; Wallin, G.; Atkin, O.K.; Uddling, J.; Ekenstam, A. Acclimation of light and dark respiration to experimental and seasonal warming are mediated by changes in leaf nitrogen in Eucalyptus globules. Tree Physiol. 2017, 37, 1069–1083. [Google Scholar] [CrossRef] [Green Version]
  55. Turnbull, M.H.; Ogaya, R.; Barbeta, A.; Penuelas, J.; Zaragoza-Castells, J.; Atkin, O.K.; Valladares, F.; Gimeno, T.E.; Pias, B.; Griffin, K.L. Light inhibition of foliar respiration in response to soil water availability and seasonal changes in temperature in Mediterranean holm oak (Quercus ilex) forest. Funct. Plant Biol. 2017, 44, 1178–1193. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Heskel, M.A.; Tang, J. Environmental controls onlight inhibition of respiration and leaf and canopy daytimecarbon exchange in a temperate deciduous forest. Tree Physiol. 2018, 38, 1886–1902. [Google Scholar] [CrossRef] [Green Version]
  57. Ikkonen, E.N.; Shibaeva, T.G.; Sherudilo, E.G.; Titov, A.F. Response of winter wheat seedlings respiration to long-term cold exposure and short-term daily temperature drops. Russ. J. Plant Physiol. 2020, 67, 538–544. [Google Scholar] [CrossRef]
  58. Ikkonen, E.N.; Shibaeva, T.G.; Sherudilo, E.G.; Titov, A.F. Effect of Continuous Lighting on Mitochondrial Respiration in Solanacea Plants. Russ. J. Plant Physiol. 2022, in press.
  59. Heskel, M.A.; Atkin, O.K.; Turnbull, M.H.; Griffin, K.L. Bringing the Kok effect to light: A review on the integration of daytime respiration and net ecosystem exchange. Ecosphere 2013, 4, 1–14. [Google Scholar] [CrossRef]
  60. Griffin, K.L.; Turnbull, M.H. Light saturated RuBP oxygenation by Rubisco is a robust predictor of light inhibition of respiration in Triticum aestivum L. Plant Biol. 2013, 15, 755–775. [Google Scholar] [CrossRef] [PubMed]
  61. Tcherkez, G.; Gauthier, P.; Buckley, T.N.; Busch, F.A.; Barbour, M.M.; Bruhn, D.; Heskel, M.A.; Gong, X.Y.; Crous, K.Y.; Griffin, K.; et al. Leaf day respiration: Low CO2 flux but high significance for metabolism and carbon balance. New Phytol. 2017, 216, 986–1001. [Google Scholar] [CrossRef]
  62. Atkin, O.K.; Scheurwater, I.; Pons, T.L. Respiration as a percentage of daily photosynthesis in whole plants is homeostatic at moderate, but not high growth temperatures. New Phytol. 2007, 174, 367–380. [Google Scholar] [CrossRef]
  63. Yamori, W.; Noguchi, K.; Hikosaka, K.; Terashima, I. Cold tolerant crop species have greater temperature homeostasis of leaf respiration and photosynthesis than cold-sensitive species. Plant Cell Physiol. 2009, 50, 203–215. [Google Scholar] [CrossRef] [Green Version]
  64. Rakhmankulova, Z.F. Physiological aspects of photosynthesis–respiration interrelation. Russ. J. Plant Physiol. 2019, 66, 365–374. [Google Scholar] [CrossRef]
  65. Atkin, O.K.; Scheurwater, I.; Pons, T.L. High thermal acclimation potential of both photosynthesis and respiration in two lowland Plantago species in contrast to an alpine congeneric. Glob. Chang. Biol. 2006, 12, 500–515. [Google Scholar] [CrossRef]
  66. Ayub, G.; Smith, R.A.; Tissue, D.T.; Atkin, O.K. Impacts of drought on leaf respiration in darkness and light in Eucalyptus saligna exposed to industrial-age atmospheric CO2 and growth temperature. New Phytol. 2011, 190, 1003–1018. [Google Scholar] [CrossRef] [PubMed]
  67. Seregin, I.; Ivanov, V. Physiological aspects of cadmium and lead toxic effects on higher plants. Russ. J. Plant Physiol. 2001, 48, 606–630. [Google Scholar] [CrossRef]
  68. Kumar, G.; Singh, R.P.; Sushila, R. Nitrate assimilation and biomass production in Sesamum indicum L. cv-HT-1 seedlings in a Pb enriched environment. Water Air Soil Pollut. 1993, 66, 163–171. [Google Scholar] [CrossRef]
  69. Piechalak, A.; Tomaszewska, B.; Baralkiewicz, D.; Malecka, A. Accumulation and detoxification of lead ions in legumes. Phytochemistry 2002, 60, 153–162. [Google Scholar] [CrossRef]
  70. Feng, H.; Qian, Y.; Gallagher, F.; Wu, M.; Zhang, W.; Yu, L.; Zhu, Q.; Zhang, K.; Liu, C.-J.; Tappero, R. Lead accumulation and association with Fe on Typha latifolia root from an urban brownfield site. Environ. Sci. Pollut. Res. Int. 2013, 20, 3743–3750. [Google Scholar] [CrossRef]
Horticulturae 08 00951 g001 550

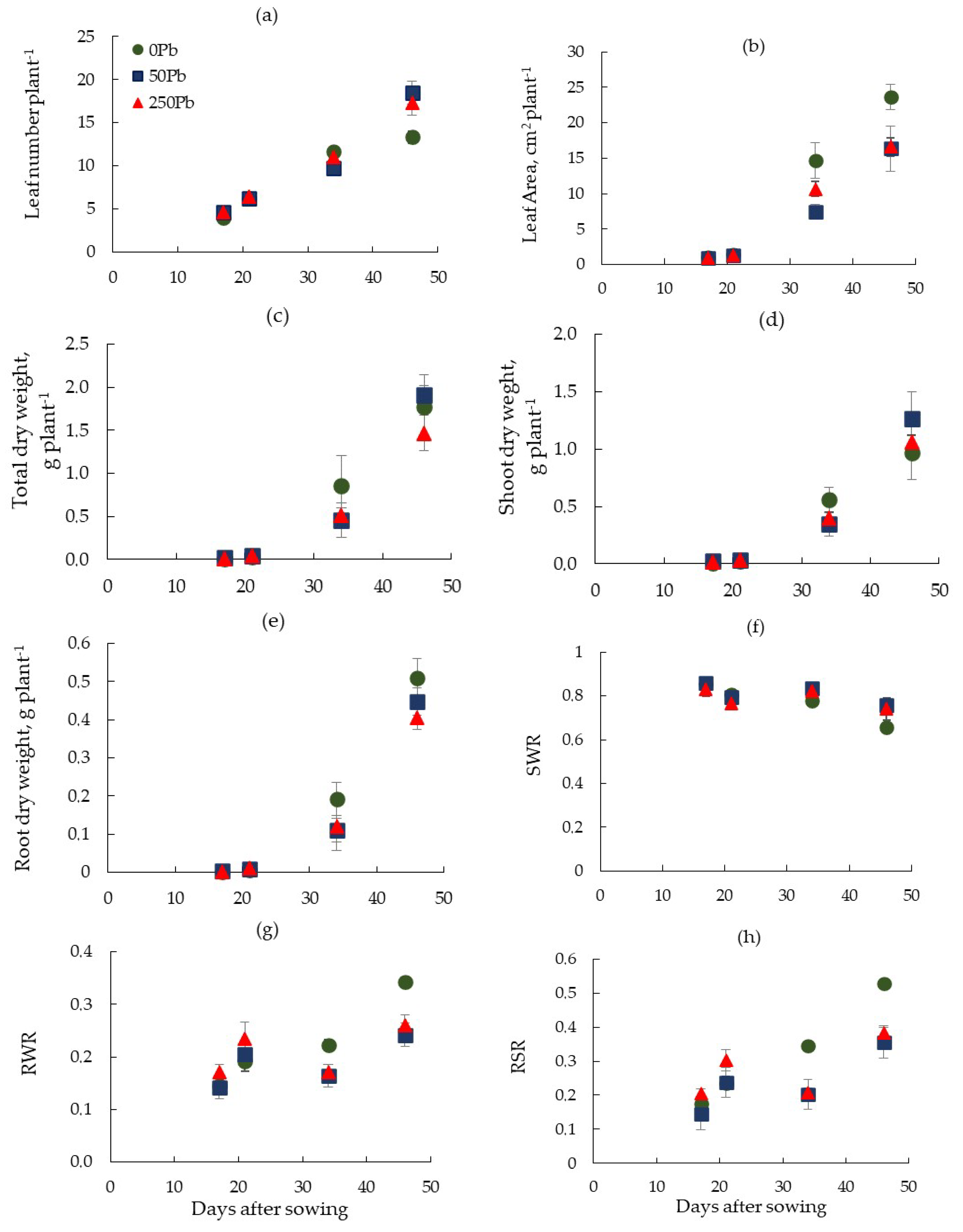

Figure 1. Leaf number (a), leaf area (b), total plant (c), shoot (d), root (e) dry weight, shoot-to-total-weight ratio (SWR, (f)), root-to-total-weight ratio (RWR, (g)), and root-to-shoot-weight ratio (RSR, (h)) of L. sativa grown on the soil with Pb content of 0 (0 Pb), 50 (50 Pb), and 250 (250 Pb) mg[Pb(NO3)2] kg−1.
Figure 1. Leaf number (a), leaf area (b), total plant (c), shoot (d), root (e) dry weight, shoot-to-total-weight ratio (SWR, (f)), root-to-total-weight ratio (RWR, (g)), and root-to-shoot-weight ratio (RSR, (h)) of L. sativa grown on the soil with Pb content of 0 (0 Pb), 50 (50 Pb), and 250 (250 Pb) mg[Pb(NO3)2] kg−1.
Horticulturae 08 00951 g001
Horticulturae 08 00951 g002 550

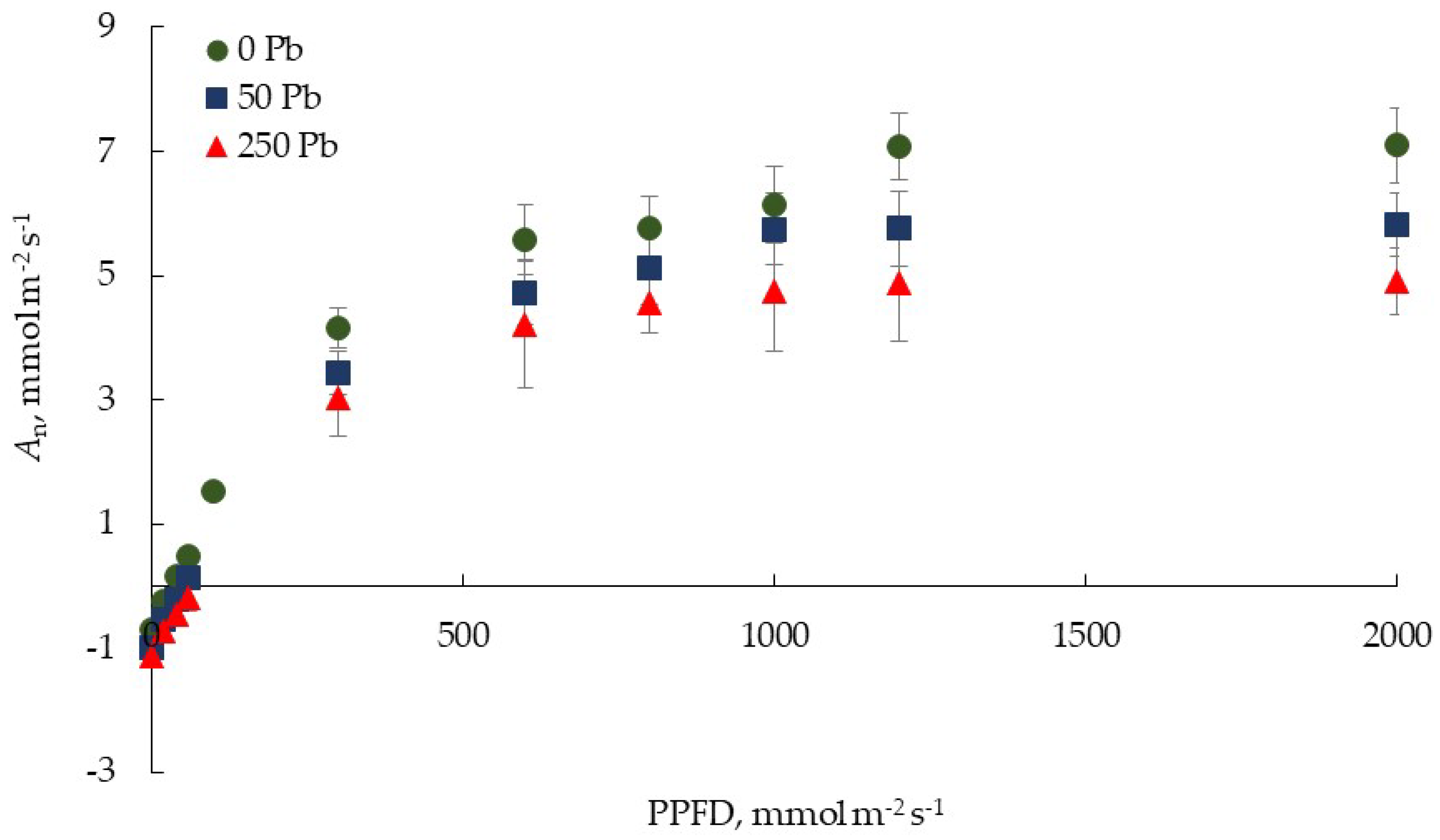

Figure 2. Light response of net assimilation rate (An) of L. sativa grown on the soil with Pb content of 0 (0 Pb), 50 (50 Pb), and 250 (250 Pb) mg[Pb(NO3)2] kg−1.
Figure 2. Light response of net assimilation rate (An) of L. sativa grown on the soil with Pb content of 0 (0 Pb), 50 (50 Pb), and 250 (250 Pb) mg[Pb(NO3)2] kg−1.
Horticulturae 08 00951 g002
Horticulturae 08 00951 g003 550

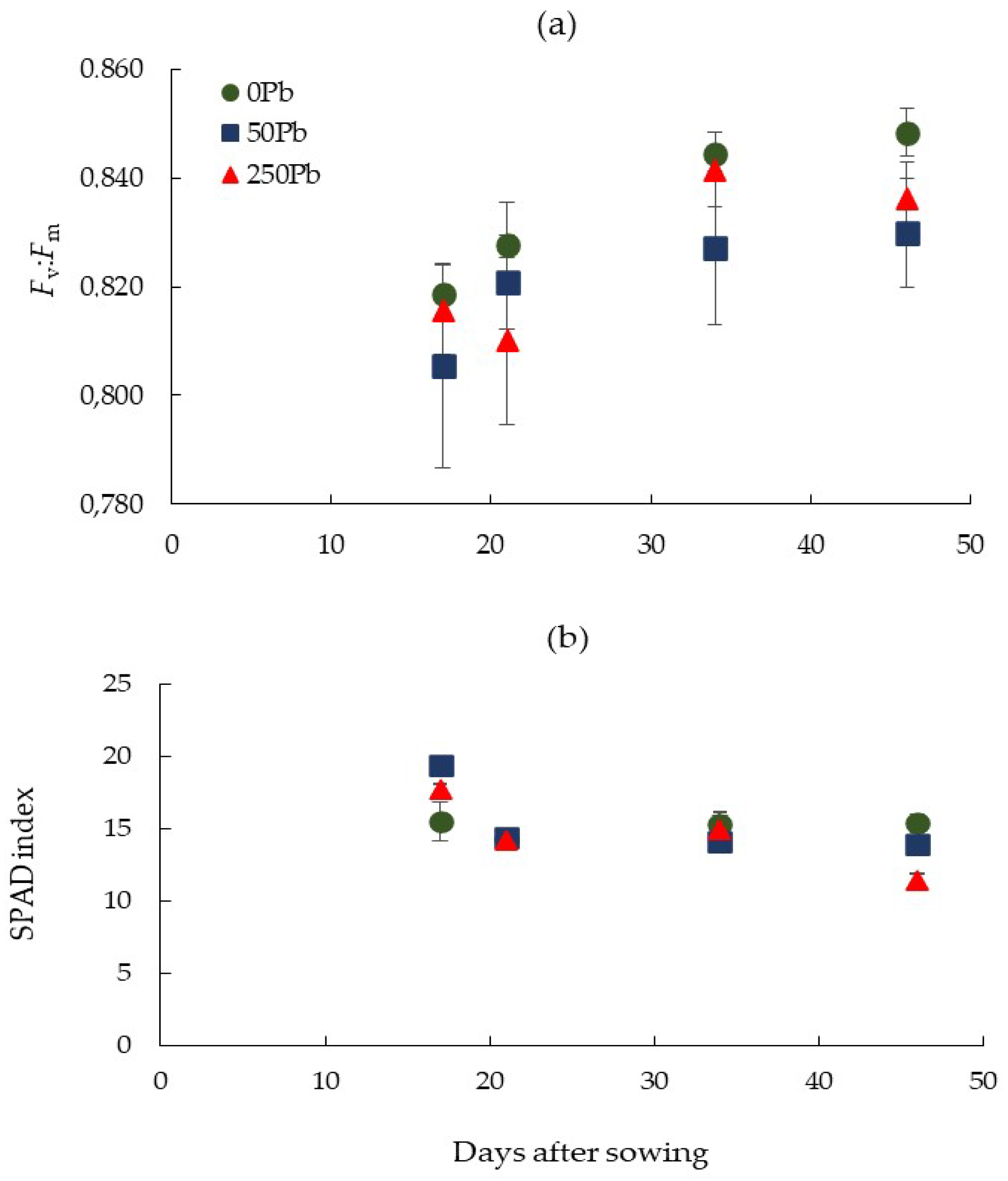

Figure 3. Temporal dynamics of the maximal quantum yield of PSII photochemistry ((a), Fv:Fm) and SPAD index (b) of L. sativa grown on the soil with Pb content of 0 (0 Pb), 50 (50 Pb), and 250 (250 Pb) mg[Pb(NO3)2] kg−1.
Figure 3. Temporal dynamics of the maximal quantum yield of PSII photochemistry ((a), Fv:Fm) and SPAD index (b) of L. sativa grown on the soil with Pb content of 0 (0 Pb), 50 (50 Pb), and 250 (250 Pb) mg[Pb(NO3)2] kg−1.
Horticulturae 08 00951 g003
Horticulturae 08 00951 g004 550

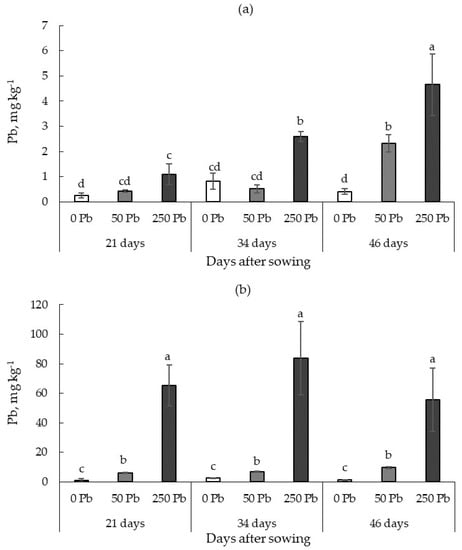

Figure 4. The content of Pb in the shoot (a) and root (b) of L. sativa grown on the soil with Pb content of 0 (0 Pb), 50 (50 Pb), and 250 (250 Pb) mg[Pb(NO3)2] kg−1 at the 21st, 34th and 46th days after sowing. Different letters indicate significant differences between means at the p < 0.05.
Figure 4. The content of Pb in the shoot (a) and root (b) of L. sativa grown on the soil with Pb content of 0 (0 Pb), 50 (50 Pb), and 250 (250 Pb) mg[Pb(NO3)2] kg−1 at the 21st, 34th and 46th days after sowing. Different letters indicate significant differences between means at the p < 0.05.
Horticulturae 08 00951 g004
Horticulturae 08 00951 g005 550

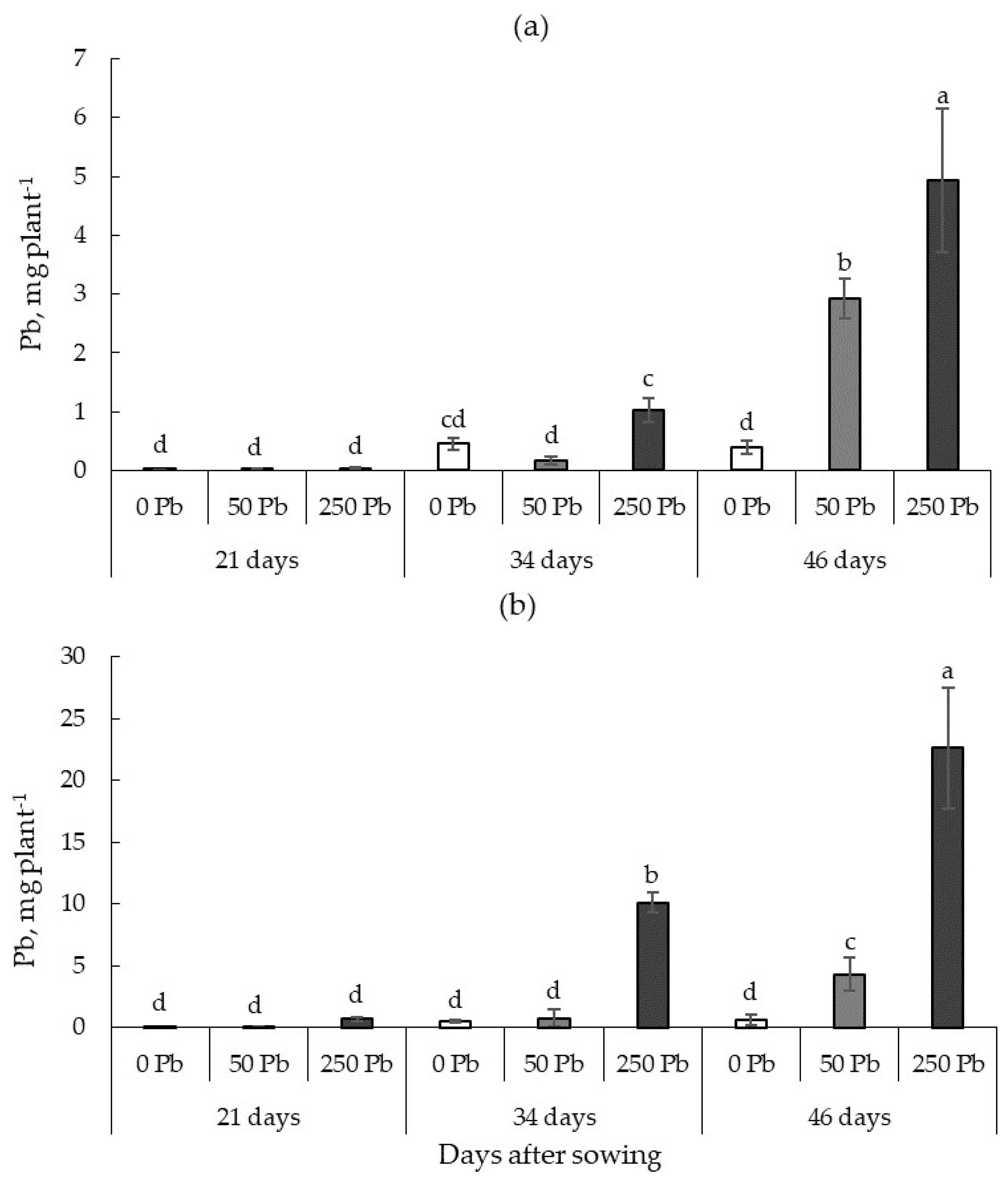

Figure 5. The accumulation of Pb in the shoot (a) and root (b) of L. sativa grown on the soil with Pb content of 0 (0 Pb), 50 (50 Pb), and 250 (250 Pb) mg[Pb(NO3)2] kg−1 at the 21st, 34th and 46th days after sowing. Different letters indicate significant differences between means when p < 0.05.
Figure 5. The accumulation of Pb in the shoot (a) and root (b) of L. sativa grown on the soil with Pb content of 0 (0 Pb), 50 (50 Pb), and 250 (250 Pb) mg[Pb(NO3)2] kg−1 at the 21st, 34th and 46th days after sowing. Different letters indicate significant differences between means when p < 0.05.
Horticulturae 08 00951 g005
Table
Table 1. Physiological parameters of L. sativa grown on the soil with Pb content of 0 (0 Pb), 50 (50 Pb), and 250 (250 Pb) mg[Pb(NO3)2] kg−1.
Table 1. Physiological parameters of L. sativa grown on the soil with Pb content of 0 (0 Pb), 50 (50 Pb), and 250 (250 Pb) mg[Pb(NO3)2] kg−1.
Parameter0 Pb50 Pb250 Pbp
LMA, g m−219.3 ± 0.8 b23.5 ± 0.6 a22.9 ± 0.7 a<0.05 *
Tr, mmol m−2 s−11.06 ± 0.09 a0.93 ± 0.10 a0.94 ± 0.13 a0.631 ns
qs, mmol m−2 s−181 ± 9 a69 ± 7 a89 ± 10 a0.532 ns
An1200[area], μmol m−2 s−17.1 ± 0.6 a5.8 ± 0.6 ab4.9 ± 0.9 b<0.05 *
An1200[mass], nmol g−1DW s−1367 ± 28 a245 ± 26 b231 ± 41 b<0.05 *
J, μmol m−2 s−147 ± 4 a46 ± 4 a43 ± 6 a0.738 ns
νo, μmol m−2 s−11.9 ± 0.3 a2.1 ± 0.1 a1.9 ± 0.3 a0.797 ns
νc, μmol m−2 s−18.9 ± 0.6 a8.7 ± 0.7 a8.1 ± 1.0 a0.744 ns
Ci:Ca0.59 ± 0.04 a0.61 ± 0.02 a0.62 ± 0.07 a0.807 ns
PWUE, μmolCO2 mmol−1H2O6.8 ± 0.7 a6.4 ± 0.6 a6.4 ± 0.9 a0.762 ns
α, μmolCO2 μmol−1 quant0.018 ± 0.001 a0.016 ± 0.001 ab0.014 ± 0.002 b<0.05 *
RWC, %71 ± 2 ab69 ± 2 b76 ± 1 a<0.05 *
LCP, μmol m−2 s−133 ± 5 c54 ± 6 b78 ± 15 a<0.01 **
Rl[area], μmol m−2 s−10.58 ± 0.08 b0.86 ± 0.08 ab1.00 ± 0.17 a<0.01 **
Rl[mass], nmol g−1DW s−130 ± 4 b37 ± 3 ab43 ± 6 a<0.01 **
Rd[area], μmol m−2 s−10.71 ± 0.07 b0.99 ± 0.08 ab1.14 ± 0.18 a<0.01 **
Rd[mass], nmol g−1DW s−137 ± 4 b42 ± 3 ab50 ± 4 a<0.01 **
Rl:Rd0.81 ± 0.04 a0.87 ± 0.014 a0.87 ± 0.015 a0.959 ns
Ag[area], μmol m−2 s−17.6 ± 0.5 a6.6 ± 0.5 ab5.9 ± 0.8 b<0.05 *
Rl:Ag0.07 ± 0.01 c0.14 ± 0.02 b0.20 ± 0.05 a<0.001 ***
Rd:Ag0.09 ± 0.01 c0.16 ± 0.02 b0.22 ± 0.06 a<0.001 ***
Vt, μmolO2 g−1DW h−1100 ± 15 a106 ± 9 a96 ± 7 a0.987 ns
VSHAM-res, μmolO2 g−1DW h−145 ± 9 a45 ± 7 a47 ± 4 a0.998 ns
VSHAM-sen:Vt51 ± 7 a55 ± 9 a51 ± 3 a0.968 ns
LMA, leaf mass per area; Tr, transpiration rate; gs, stomatal conductance; An1200[area] (An1200[mass]), area-based (mass-based) net CO2 assimilation rate; J, electron transport rate; νo, oxygenase activity of Rubisco; νc, carboxylase activity of Rubisco; Ci:Ca, the ratio of intercellular to ambient CO2 concentration; PWUE, photosynthetic water use efficiency; α, apparent quantum yield of photosynthesis; RWC, relative water content; LCP, light compensation point; Rl[area] (Rl[mass]), area-based (mass-based) respiration in the light; Rd[area] (Rd[mass]), area (mass) area-based (mass-based) respiration in the darkness; Rl:Rd, the ratio of Rl to Rd; Ag, gross CO2 assimilation rate (Ag = An + Rl); Rl:Ag, the ratio of Rl to Ag; Rd:Ag, the ratio of Rd to Ag; Vt, total respiration; VSHAM-res, SHAM-resistant respiration; VSHAM-sen:Vt, the ratio of SHAM-sensitive (VSHAM-sen) respiration to Vt. Different letters indicate significant differences between the means at p < 0.05. Asterisks denote significance levels: * p < 0.05, ** p < 0.01, *** p < 0.001; ns, not significant.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ikkonen, E.; Kaznina, N. Physiological Responses of Lettuce (Lactuca sativa L.) to Soil Contamination with Pb. Horticulturae 2022, 8, 951. https://doi.org/10.3390/horticulturae8100951

AMA Style

Ikkonen E, Kaznina N. Physiological Responses of Lettuce (Lactuca sativa L.) to Soil Contamination with Pb. Horticulturae. 2022; 8(10):951. https://doi.org/10.3390/horticulturae8100951

Chicago/Turabian Style

Ikkonen, Elena, and Natalia Kaznina. 2022. "Physiological Responses of Lettuce (Lactuca sativa L.) to Soil Contamination with Pb" Horticulturae 8, no. 10: 951. https://doi.org/10.3390/horticulturae8100951

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
