Production of Highly Porous Biochar Materials from Spent Mushroom Composts

by
Wen-Shing Chen
1,
Wen-Tien Tsai
2,*,
Yu-Quan Lin
2,
Chi-Hung Tsai
3 and
Yao-Tsung Chang
4
1
Department of Chemical and Materials Engineering, National Yunlin University of Science and Technology, Yunlin 640, Taiwan
2
Graduate Institute of Bioresources, National Pingtung University of Science and Technology, Pingtung 912, Taiwan
3
Department of Resources Engineering, National Cheng Kung University, Tainan 701, Taiwan
4
Kaohsiung District Agricultural Research and Extension Station, Council of Agriculture, Pingtung 908, Taiwan
*
Author to whom correspondence should be addressed.
Horticulturae 2022, 8(1), 46; https://doi.org/10.3390/horticulturae8010046
Submission received: 7 December 2021 / Revised: 28 December 2021 / Accepted: 29 December 2021 / Published: 4 January 2022
(This article belongs to the Collection Sustainable Mushroom Cultivation)
Browse Figures
Versions Notes

Abstract

:
The edible mushroom industry has grown significantly in recent years due to the dietary change and the demand for heathy food. However, the spent mushroom compost (SMC) will be produced in large quantities after the harvest, thus forming an agricultural waste requiring proper management other than dumping or burning. In this work, two types of SMCs with the cultivation of shiitake fungus (SF) and black fungus (BF) were converted into porous biochar products (a series of SMC-SF-BC and SMC-BF-BC) at higher pyrolysis temperatures (i.e., 400, 600 and 800 °C) based on their thermochemical characteristics, using thermogravimetric analysis (TGA). The pore and chemical properties of the resulting products, including surface area, pore volume, average pore size, scanning electron microscopy (SEM), energy dispersive X-ray spectroscopy (EDS) and Fourier Transform infrared spectroscopy (FTIR), were studied to correlate them with the most important process parameter. The results showed that the pore properties of the biochar products indicated a significant increase with the increase in the pyrolysis temperature from 400 to 600 °C. The data on the maximal Brunauer-Emmett-Teller (BET) surface area for the biochar products produced at 800 °C (i.e., SMC-SF-BC-800 and SMC-BF-BC-800) were found to be 312.5 and 280.9 m2/g, respectively. Based on the EDS and FTIR, plenty of oxygen-containing functional groups were found on the surface of the resulting biochar products.

1. Introduction

The global production of edible mushrooms has grown more and more significant in recent years as a result of the product being recognized as a healthy and organic food [1]. Most of the mushroom cultivation used compost as a substrate, which is comprised of lignocellulosic components like rice straw, corncob, saw dust and wood chips [2]. However, most of these substrates will become spent mushroom compost (SMC) after harvesting. According to the report [3], approximately 5 kg of SMC will be generated during the production of 1 kg edible mushroom. In Taiwan, annual SMC generation amounted 105–225 thousand metric tons since 2010, as shown in Figure 1 [4]. Although these agricultural residues can be mostly transformed into compost materials [4], some were dumped or stacked to the fields in Taiwan, thus causing environmental sanitation (odor) and plastic bag disposal problems [5]. In order to reach zero waste management, the approaches of SMC valorization were recently reviewed to utilize it as a valuable bioresource for producing value-added products/by-products and applications, for example, as a biochar adsorbent or soil amendment [2,6,7].
Biochar is a carbon-rich material which is often produced from lignocellulosic biomass (e.g., crop or wood residues) at the proper pyrolysis conditions in an oxygen-limited atmosphere [8]. Due to its porous and chemical properties, biochar can be used to improve the environmental quality and agricultural soils in several aspects [9]. Furthermore, biochar may be carbon-negative, thus sequestrating the release of carbon dioxide into the atmosphere and also removing it from the atmosphere. In order to reuse SMC as an available precursor for producing biochar [10] and other derived products [11], this lignocellulosic residue has been recently studied to produce porous carbon materials for adsorbing a variety of pollutants in aqueous solutions, including inorganic compounds (e.g., heavy metals) [3,12,13,14,15,16,17], organic compounds [18,19] and other pollutants [20,21,22]. Biochar can also conserve nutrients in soils [23], mitigate the emissions of greenhouse gases [24,25], and can be produced to biomass fuels [26]. It was reported that the pore properties of biomass-based biochar products were highly dependent on the pyrolysis temperature because the turbostratic structure can be formed at higher temperatures [27].
In view of the published literature describe above, there are few studies on the production of SMC-based biochar at higher temperature (e.g., 800 °C). Therefore, this work focused on investigating the two SMCs (i.e., shiitake fungus (SF) and black fungus (BF)) for converting them into porous biochar products (a series of SMC-SF-BC and SMC-BF-BC) at different pyrolysis temperatures (i.e., 400, 600 and 800 °C) for specified residence time (i.e., 20 min). The pore and chemical properties of the resulting SMC-BC products, including surface area, pore volume, average pore size, scanning electron microscopy (SEM), energy dispersive X-ray spectroscopy (EDS) and Fourier Transform infrared spectroscopy (FTIR), were obtained to correlate them with the most important process parameter (i.e., pyrolysis temperature).

2. Materials and Methods

2.1. Material

The SMC feedstocks, including SF and BF, were provided by an agricultural research station (Pingtung County, Taiwan). The as-received SMC mainly contains wood chips, plastic bags and residual cultivation soil. It was first disassembled to remove external plastic coating and internal non-lignocellulosic component (i.e., cultivation soil). Wood chips are often made from broadleaf tree like Taiwan Acacia and Formosan sweet gum. The lignocellulosic component was shredded and then sieved to a target sample in the range of mesh sieve no. 20 (0.841 mm) to mesh sieve no. 40 (0.420 mm). Prior to the analyses and pyrolysis experiments, the sieved SMC sample was placed into a circulation oven at about 105 °C.

2.2. Thermochemical Analysis of Spent Mushroom Compost

In order to give the operation conditions in the pyrolysis experiments, the analyzer (TGA-51; Shimadzu Co., Tokyo, Japan) was performed to collect the variations on the thermogravimetric analysis (TGA) of the dried SMC samples. Around 0.2 g of the SMC sample was externally heated up to 1000 °C at various heating rates (i.e., 5, 10, 15 and 20 °C/min) under the nitrogen (N2) atmosphere by flowing 50 cm3/min. During the TGA measurements, the curves of TGA and its derivative thermogravimetry (DTG) were plotted by using the normalize weight of SMC sample. On the other hand, the proximate properties (i.e., mass fractions of volatile matter, ash and fixed carbon) of the dried SMC samples were determined by using the Standard Test Method of the American Society for Testing and Materials (ASTM) (i.e., D-3172). Furthermore, ultimate analysis (i.e., the mass percentages of C, H, N, S and S) and elements in ash (i.e., Al, As, Ba, Ca, Cd, Co, Cr, Cu, Fe, K, Mg, Mn, Na, Ni, P, Pb, Si, Sr, Ti and Zn) of the SMC samples were measured by the elemental analyzer (EA) and inductively coupled plasma-optical emission spectrometer (ICP-OES), respectively [28]. The contents of ultimate analysis are highly correlated with their calorific values, which were determined by an isoperibol oxygen bomb calorimeter (CALORIMETER ASSY 6200; Parr Instrument Co., Moline, IL, USA).

2.3. Prolysis Experiments

In this work, the pyrolysis experiments were operated at above 400 °C due to the features of lignocellulosic feedstocks. The pyrolysis experiments were performed at higher pyrolysis temperatures (i.e., 400, 600 and 800 °C) under a specified residence time (i.e., 20 min). During the pyrolysis experiment, about 3 g of the SMC sample was fed into a vertical pyrolysis furnace, and then heated at a ramp rate of around 10 °C/min under the purge gas (500 cm3/min by nitrogen) [28,29]. The yield of the resulting biochar by weight percentage (wt%) was calculated from the ratio of biochar mass to SMC mass by using the following equation:
Yield (wt%) = (biochar mass/SMC mass) × 100%
To facilitate the data comparison, the SMC-based biochar products were coded by a series of SMC-SF-BC-temperature and SMC-BF-BC-temperature.

2.4. Physicochemical Properties of Resulting Biochar

In order to study the relationship between the physical properties of resulting biochar products and the pyrolysis temperature, the surface area and porosity analyzer (ASAP 2020; Micromeritics Co., Norcross, GA, USA) was performed to obtain their pore properties, including surface area, pore volume and pore size distribution [30]. In this work, the calculations of specific surface area were based on different principles or models, including single-point, Brunauer-Emmett-Teller (BET), Langmuir and t-plot methods. Among the surface area data, the BET surface area may be the most important one, which was obtained from the relative pressure range (0.05–0.30). Regarding the pore volume, the total pore volume could be often adopted to act as the adsorption capacity potential. In this work, it was obtained by calculating the nitrogen liquid adsorption volume saturated at a relative pressure of ca. 0.995 [30]. Based on the t-plot method, the values of micropore area and micropore volume can be calculated from the Halsey equation [30]. Based on the classification by the International Union of Pure and Applied Chemistry (IUPAC) [30], micropores and mesopore were defined as pore diameter (or pore width) of less than 2 nm and 2–50 nm, respectively. In addition, the pore size distributions of the biochar products were further plotted by using the Barrett–Joyner–Halenda (BJH) method [30], which was adopted to calculate them in the main range of mesopores.
In order to observe their textural morphologies, the typical SMC-BC products must be first coated by a conductive gold layer in an ion sputter (E1010; Hitachi Co., Tokyo, Japan) prior to the SEM (S-3000N; Hitachi Co., Tokyo, Japan) observations. By applying an accelerating potential of 15.0 kV (electron beam) in a vacuum chamber, it was performed to the specimen surface during the SEM analysis. In addition, the EDS system (7021-H; HORIBA Co., Kyoto, Japan) was also used to quantify the elemental compositions during the SEM analysis. Furthermore, the surfaces of the SMC-BC products were scanned by the FTIR instrument (FT/IR-4600; JASCO Co., Tokyo, Japan) to determine the functional groups. During the FTIR analysis, the ground SMC-BC sample was premixed with powered potassium bromide (KBr, IR grade) in an agate mortar, forming around 1 wt% biochar. To make a disc-shaped sample for the FTIR analysis, the finely uniform mixture was pressed by using a hydraulic machine. The transmission spectra were y scanned with a resolution of 4 cm−1 in the range of 4000–400 cm−1.

3. Results

3.1. Thermochemical Characterization of Spemt Mushroom Compost (SMC)

The thermochemical characteristics of biomass greatly influence the performance of a pyrolysis system for producing biochar with different pore structures [8]. Table 1 listed the data on the proximate properties, organic elements and calorific values for the dried SMC samples (i.e., SF and BF). It showed that the measured data were close to those of other biomass residues [31]. Based on the data in Table 1, these SMC samples had relatively high calorific values (˃20 MJ/kg, dry basis) and combustible values (76–77 wt%), and also indicated no significant difference between them, reflecting their carbon contents (45.3 wt%) and low ash contents (3.5 wt%). On the other hand, the contents of nitrogen (N) and sulfur (S) for the SMC samples indicated relatively high values as compared to those for biomass fuels [31]. This difference could be attributed to residual sulfate/nitrate fertilizers in the SMC. Therefore, sulfur oxides and nitrogen oxides may be emitted from the combustion of SMC without control system installed. Based on the analytical results by the ICP-OES, it further indicated that the contents of dominant elements in the SMC’s ash were calcium (Ca), potassium (K), silica (Si), magnesium (Mg), iron (Fe), aluminum (Al) and sodium (Na), which could be present in the forms of oxides and/or carbonates [31].
In general, the weight loss of lignocellulosic biomass, identified from the TGA/DTG curves, includes the following three regions [32]: loss of moisture (from room temperature to around 200 °C), loss of organic carbon (200–500 °C) and loss of small amounts of cellulose/lignin and carbonates/other inorganics (e.g., chlorides) in a range of 500–1000 °C. Figure 2 shows the TGA/DTG curves for the SMC samples (i.e., SF and BF) at various heating rates. It can be seen that the significant mass loss occurred in a range of 250–450 °C, indicating the thermal degradation of lignocellulosic constituents. Furthermore, the shoulder in the left side of the most significant peak at a temperature of about 300–330 °C should refer to as the degradation of hemicellulose and less parts of cellulose/lignin because the former may be the most labile components among the organic constituents (i.e., hemicellulose, cellulose and lignin) [8,32]. It should be noted that the complex reactions (e.g., dehydration, cracking, decarboxylation, condensation) involve depolymerization and scission during the most rigorous stage of pyrolysis. The formed products often include non-condensable gases (e.g., CO, CO2, CH4, H2), condensable gases or tar (e.g., H2O, formic acid, acetic acid, phenols and other organics) and char. In the final pyrolysis stage at above 400 °C, it should be attributable to the thermal decomposition of inorganic components (or minerals) with low melting/calcination points, and fewer parts of cellulose/lignin with rigid structures. Based on the results from the TGA/DTG curves (Figure 2), the pyrolysis conditions were designed in the range of 400–800 °C for producing porous biochar products from the SMC, where more cellulose/lignin components will be carbonized to form the carbon-rich products.

3.2. Pore Properties of Resulting Biochar

Before discussing the pore properties of the resulting biochar products from SMC-SF and SMC-BF, the biochar yields expectedly indicated a decreasing trend as the pyrolysis temperature increased from 400 to 800 °C. In the cases of SMC-SF/SMC-BF, their biochar yields were 34.3/34.3 wt%, 27.0/27.6 wt%, and 21.8/22.0 wt% at 400, 600 and 800 °C, respectively. These results were consistent with their similar thermochemical characteristics, as listed in Table 1.
In the present study, the pore properties of the biochar products (i.e., SMC-SF-BC and SMC-BF-BC) were based on the standard method by nitrogen adsorption-desorption isotherms at −196 °C. Table 2 and Table 3 listed the main pore properties of the resulting biochar products prepared at 400, 600 and 800 °C from SMC-SF and SMC-BF, respectively. Obviously, it showed that the consistent variations on the pore properties of the resulting biochar products as a function of pyrolysis temperature (400–800 °C). When the pyrolysis temperature increased from 400 to 800 °C, more pyrogenic amorphous biochar was produced [27], thus forming higher pore properties due to the enhanced charring intensity. More significantly, the pore properties of the biochar products produced in this work were higher than those by other studies [3,12,13,14,15,16,17,18,19,20,21,22].
The pore properties of the resulting biochar products (i.e., SMC-SF-BC and SMC-BF-BC) were derived from their N2 adsorption-desorption isotherms, as shown in Figure 3. Due to the adsorption filling by nitrogen adsorbate into micropores, the high uptakes were observed at relatively relative pressures, which reflects the Type-I isotherms according to the IUPAC classification [30]. However, the SMC-BC products produced at higher pyrolysis temperatures displayed the hysteresis loop, which was indicative of mesoporosity by the Type-VI isotherms. Accordingly, the resulting biochar products contain pore sizes over a wide range of micropores and mesopores. Using the BJH method [30], the data on the N2 adsorption-desorption isotherms can be further converted into their pore size distributions, as depicted in Figure 4. From the Figure 3 and Figure 4, they were highly related to those in Table 2 and Table 3. The differences between the pore properties of SMC-SF-BC and SMC-BF-BC products were also slight.
In order to observe the porous morphology on the surface of resulting biochar products, Figure 5 and Figure 6 showed the SEM images (×1000) of the SMC-SF/SMC-SF -BC-800 and SMC-BF/SMC-BF-BC-800, respectively. Obviously, there are many fine pores on the rigid surface of the representative biochar products, thus exhibiting their high pore properties such as the BET surface area and total pore volume, as seen in Table 2 and Table 3. Due to their highly porous structures, the SMC-based biochar products may be used as excellent adsorbents for various applications in the wastewater treatment and water retention in the soil and water environments.

3.3. Chemical Characterization of Resulting Biochar

The chemical characterization of resulting biochar was highly dependent on its feedstock and preparation conditions. In this work, the EDS system was adopted to semi-quantify elemental compositions on the surface of the resulting biochar products [33]. Figure 7 showed the EDS spectra of the representative products (i.e., SMC-SF-BC-800 and SMC-BF-BC-800), indicating the contents of carbon (C), oxygen (O), magnesium (Mg), potassium (K) and calcium (Ca). The difference between their elemental compositions of the resulting biochar products also showed to be small in the resulting biochar products, which could be attributed to their similar thermochemical properties (Table 1). The high content of C present in the SMC-based biochar should be original from its starting feedstock and pyrolysis at high temperature (800 °C). The carbon element was primarily stored in condensed aromatic rings [34]. In addition, it showed the high content of oxygen on the biochar surface, causing its tendency toward hydrophilicity and acidity due to more oxygen-containing complexes [35]. This polar nature was further elucidated by the FTIR spectra. Figure 8 showed the FTIR spectra of SMC-SF-BC-800 and SMC-BF-BC-800. These peaks at about 3450, 2360, 1640, 1380 and 1110 cm−1 could be assigned with oxygen-containing functional groups (i.e., O-H, C=O, C-O) [36,37].

4. Conclusions

In the present study, a series of biochar products were prepared from the spent mushroom composts (SMC, including shiitake fungus -SF and black fungus -BF) at various pyrolysis temperatures (i.e., 400, 600 and 800 °C). Obviously, these SMC samples had relatively high calorific values (˃20 MJ/kg), carbon contents (45.3 wt%), combustible values (76–77 wt%) and low ash contents (3.5 wt%), indicating that they could be excellent precursor for producing biochar materials. The pore properties (i.e., surface area and pore volume) of the resulting biochar products were positively related to the pyrolysis temperature range (i.e., 400–800 °C). The values of the maximal BET surface area for the resulting biochar products produced at 800 °C (i.e., SMC-SF-BC-800 and SMC-BF-BC-800) were obtained at 312.5 and 280.9 m2/g, respectively. Based on the spectroscopic peaks of the EDS and FTIR, the highly porous biochar products had plentiful oxygen-containing functional groups on the surface, which could be excellent carbon materials in the water/wastewater treatment and soil amendment due to their polar nature (i.e., hydrophilicity and acidity).

Author Contributions

Conceptualization, W.-T.T. and W.-S.C.; methodology, Y.-Q.L. and C.-H.T.; validation, Y.-Q.L.; data curation, Y.-Q.L.; formal analysis, Y.-Q.L.; resources, Y.-T.C.; writing—original draft preparation, W.-T.T.; writing—review and editing, W.-T.T. and W.-S.C.; supervision, W.-T.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science and Technology (Taiwan), grant number MOST 107-2218-E-224-004.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The authors express sincere appreciation to the Instrument Center of National Pingtung University of Science and Technology for the assistance in the scanning electron microscope (SEM)/energy dispersive X-ray spectroscopy (EDS) analysis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Grimm, D.; Kuenz, A.; Rahmann, G. Integration of mushroom production into circular food chains. Org. Agric. 2021, 11, 309–317. [Google Scholar] [CrossRef]
  2. Leong, Y.K.; Ma, T.W.; Chang, J.S.; Yang, F.C. Recent advances and future directions on the valorization of spent mushroom substrate (SMS): A review. Bioresour. Technol. 2021, 344, 126157. [Google Scholar] [CrossRef]
  3. Zhang, G.S.; Liu, N.; Luo, Y.; Zhang, H.B.; Su, L.; Oh, K.; Cheng, H.Y. Efficient removal of Cu(II), Zn(II), and Cd(II) from aqueous solutions by a mineral-rich biochar derived from a spent mushroom (Agaricus bisporus) substrate. Materials 2021, 14, 35. [Google Scholar] [CrossRef]
  4. Agricultural Statistics (Council of Agriculture, Taiwan). Available online: https://agrstat.coa.gov.tw/sdweb/public/common/Download.aspx (accessed on 1 December 2021).
  5. Wu, C.Y.; Liang, C.H.; Liang, Z.C. Evaluation of using spent mushroom sawdust wastes for cultivation of Auricularia polytricha. Agronomy 2020, 10, 1892. [Google Scholar] [CrossRef]
  6. Antunes, F.; Marcal, S.; Taofiq, O.; Morais, A.M.M.B.; Freitas, A.C.; Ferreira, I.C.F.R.; Pintado, M. Valorization of mushroom by-products as a source of value-added compounds and potential applications. Molecules 2021, 25, 2672. [Google Scholar] [CrossRef]
  7. Umor, N.A.; Ismail, S.; Abdullah, S.; Huzaifah, M.H.R.; Huzir, N.M.; Mahmood, N.A.N.; Zahrim, A.Y. Zero waste management of spent mushroom compost. J. Mater. Cycles Waste Manag. 2021, 23, 1726–1736. [Google Scholar] [CrossRef]
  8. Basu, P. Biomass Gasification, Pyrolysis and Torrefaction, 2nd ed.; Academic Press: London, UK, 2013. [Google Scholar]
  9. Lehmann, J.; Joseph, S. Biochar for environmental management: An introduction. In Biochar for Environmental Management, 2nd ed.; Lehmann, J., Joseph, S., Eds.; Routledge: New York, NY, USA, 2015; pp. 1–13. [Google Scholar]
  10. Ma, Y.; Wang, Q.; Sun, X.; Wang, X.; Su, W.; Song, N. A study on recycling of spent mushroom substrate to prepare chars and activated carbon. BioResources 2014, 9, 3939–3954. [Google Scholar] [CrossRef] [Green Version]
  11. Atallah, E.; Zeaiter, J.; Ahmad, M.N.; Leahy, J.J.; Kwapinski, W. Hydrothermal carbonization of spent mushroom compost waste compared against torrefaction and pyrolysis. Fuel Process. Technol. 2021, 216, 10679. [Google Scholar] [CrossRef]
  12. Chen, G.J.; Peng, C.Y.; Fang, J.Y.; Dong, Y.Y.; Zhu, X.H.; Cai, H.M. Biosorption of fluoride from drinking water using spent mushroom compost biochar coated with aluminum hydroxide. Desalin. Water Treat. 2016, 57, 12385–12395. [Google Scholar] [CrossRef]
  13. Abdallah, M.M.; Ahmad, M.N.; Walker, G.; Leahy, J.J.; Kwapinski, W. Batch and continuous systems for Zn, Cu, and Pb metal ions adsorption on spent mushroom compost biochar. Ind. Eng. Chem. Res. 2019, 58, 7296–7307. [Google Scholar] [CrossRef]
  14. Wu, Q.; Xian, Y.; He, Z.; Zhang, Q.; Wu, J.; Yang, G.; Zhang, X.; Qi, H.; Ma, J.; Xiao, Y.; et al. Adsorption characteristics of Pb(II) using biochar derived from spent mushroom substrate. Sci. Rep. 2019, 9, 15999. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Zhao, Z.; Ibrahim, M.M.; Wang, X.; Xing, S.; Heiling, M.; Hood-Nowotny, R.; Tong, C.; Mao, Y. Properties of biochar derived from spent mushroom substrates. BioResources 2019, 14, 5254–5277. [Google Scholar]
  16. Chang, J.; Zhang, H.; Cheng, Y.; Yan, Y.; Chang, M.; Cao, Y.; Huang, F.; Zhang, G.; Yan, M. Spent Ganoderma lucidum substrate derived biochar as a new bio-adsorbent for Pb2+/Cd2+ removal in water. Chemosphere 2020, 241, 125121. [Google Scholar] [CrossRef]
  17. Jin, Y.; Zhang, M.; Jin, Z.; Wang, G.; Li, R.; Zhang, X.; Liu, X.; Qu, J.; Wang, H. Characterization of biochars derived from various spent mushroom substrates and evaluation of their adsorption performance of Cu(II) ions from aqueous solution. Environ. Res. 2021, 196, 110323. [Google Scholar] [CrossRef]
  18. Sewu, D.D.; Jung, H.; Kim, S.S.; Lee, D.S.; Woo, S.H. Decolorization of cationic and anionic dye-laden wastewater by steam-activated biochar produced at an industrial-scale from spent mushroom substrate. Bioresour. Technol. 2019, 277, 77–86. [Google Scholar] [CrossRef]
  19. Su, L.; Zhang, H.; Oh, K.; Liu, N.; Luo, Y.; Cheng, H.; Zhang, G.; He, X. Activated biochar derived from spent Auricularia auricula substrate for the efficient adsorption of cationic azo dyes from single and binary adsorptive systems. Water Sci. Technol. 2021, 84, 101–121. [Google Scholar] [CrossRef] [PubMed]
  20. Chang, K.L.; Chen, X.M.; Sun, J.; Liu, J.Y.; Sun, S.Y.; Yang, Z.Y.; Wang, Y. Spent mushroom substrate biochar as a potential amendment in pig manure and rice straw composting processes. Environ. Technol. 2017, 38, 1765–1769. [Google Scholar] [CrossRef]
  21. Halim, S.F.; Yong, S.K.; Tay, C.C. Ammonia nitrogen adsorption using spent mushroom substrate biochar (SMSB). Pertanika J. Sci. Technol. 2017, 25, 9–20. [Google Scholar]
  22. Lin, J.C.; Cheng, A.C.; Shiu, Y.L.; Wong, Y.C.; Yeh, S.P.; Simangunsong, T.; Liu, C.H. Using the biochar produced from spend mushroom substrate to improve the environmental condition of aquaculture pond. Aquac. Res. 2021, 52, 3532–3539. [Google Scholar] [CrossRef]
  23. Lou, Z.M.; Sun, Y.; Bian, S.P.; Baig, S.A.; Hu, B.L.; Xu, X.H. Nutrient conservation during spent mushroom compost application using spent mushroom substrate derived biochar. Chemosphere 2017, 169, 23–31. [Google Scholar] [CrossRef]
  24. Deng, B.; Shi, Y.; Zhang, L.; Fang, H.; Gao, Y.; Luo, L.; Feng, W.; Hu, X.; Wan, S.; Huang, W.; et al. Effects of spent mushroom substrate-derived biochar on soil CO2 and N2O emissions depend on pyrolysis temperature. Chemosphere 2020, 246, 125608. [Google Scholar] [CrossRef] [PubMed]
  25. Xu, X.T.; Yuan, X.; Zhang, Q.; Wei, Q.X.; Liu, X.J.; Deng, W.P.; Wang, J.W.; Yang, W.T.; Deng, B.L.; Zhang, L. Biochar derived from spent mushroom substrate reduced N2O emissions with lower water content but increased CH4 emissions under flooded condition from fertilized soils in Camellia oleifera plantations. Chemosphere 2022, 287, 132110. [Google Scholar] [CrossRef] [PubMed]
  26. Alves, L.S.; Moreira, B.R.A.; Viana, R.S.; Pardo-Gimenez, A.; Dias, E.S.; Noble, R.; Zied, D.C. Recycling spent mushroom substrate into fuel pellets for low-emission bioenergy producing systems. J. Clean. Prod. 2021, 313, 127875. [Google Scholar] [CrossRef]
  27. Keiluweit, M.; Nico, P.S.; Johnson, M.G.; Kleber, M. Dynamic molecular structure of plant biomass-derived black carbon (biochar). Environ. Sci Technol. 2010, 44, 1247–1253. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Tsai, C.H.; Tsai, W.T.; Liu, S.C.; Lin, Y.Q. Thermochemical characterization of biochar from cocoa pod husk prepared at low pyrolysis temperature. Biomass Convers. Biorefin. 2018, 8, 237–243. [Google Scholar] [CrossRef]
  29. Tsai, W.T.; Jiang, T.J.; Lin, Y.Q.; Chang, H.L.; Tsai, C.H. Preparation of porous biochar from soapberry pericarp at severe carbonization conditions. Fermentation 2021, 7, 228. [Google Scholar] [CrossRef]
  30. Lowell, S.; Shields, J.E.; Thomas, M.A.; Thommes, M. Characterization of Porous Solids and Powders: Surface Area, Pore Size and Density; Springer: Dordrecht, The Netherlands, 2006. [Google Scholar]
  31. Jenkins, B.M.; Baxter, L.L.; Miles, T.R., Jr.; Miles, T.R. Combustion properties of biomass. Fuel Process. Technol. 1998, 54, 17–46. [Google Scholar] [CrossRef]
  32. Masek, O.; Johnston, C.T. Thermal analysis for biochar characterisation. In Biochar: A Guide to Analytical Methods; Singh, B., Camps-Arbestain, M., Lehmann, J., Eds.; CRC Press: Boca Raton, FL, USA, 2017; pp. 283–293. [Google Scholar]
  33. Steiner, C. Considerations in biochar characterization. In Agricultural and Environmental Applications of Biochar: Advances and Barriers; Guo, M., He, Z., Uchimiya, S.M., Eds.; Soil Science Society of America: Madison, WI, USA, 2016; pp. 87–100. [Google Scholar]
  34. Mukome, F.N.D.; Parikh, S.J. Chemical, physical, and surface characterization of biochar. In Biochar: Production, Characterization, and Applications; Ok, Y.S., Uchimiya, S.M., Chang, S.X., Bolan, N., Eds.; CRC Press: Boca Raton, FL, USA, 2016; pp. 67–96. [Google Scholar]
  35. Suzuki, M. Adsorption Engineering; Elsevier: Amsterdam, The Netherlands, 1990. [Google Scholar]
  36. Kleber, M.; Hockaday, W.; Nico, P.S. Characteristics of biochar: Macro-molecular properties. In Biochar for Environmental Management, 2nd ed.; Lehmann, J., Joseph, S., Eds.; Routledge: New York, NY, USA, 2015; pp. 111–137. [Google Scholar]
  37. Johnston, C.T. Biochar analysis by Fourier-transform infra-red spectroscopy. In Biochar: A Guide to Analytical Methods; Singh, B., Camps-Arbestain, M., Lehmann, J., Eds.; CRC Press: Boca Raton, FL, USA, 2017; pp. 199–213. [Google Scholar]
Horticulturae 08 00046 g001 550

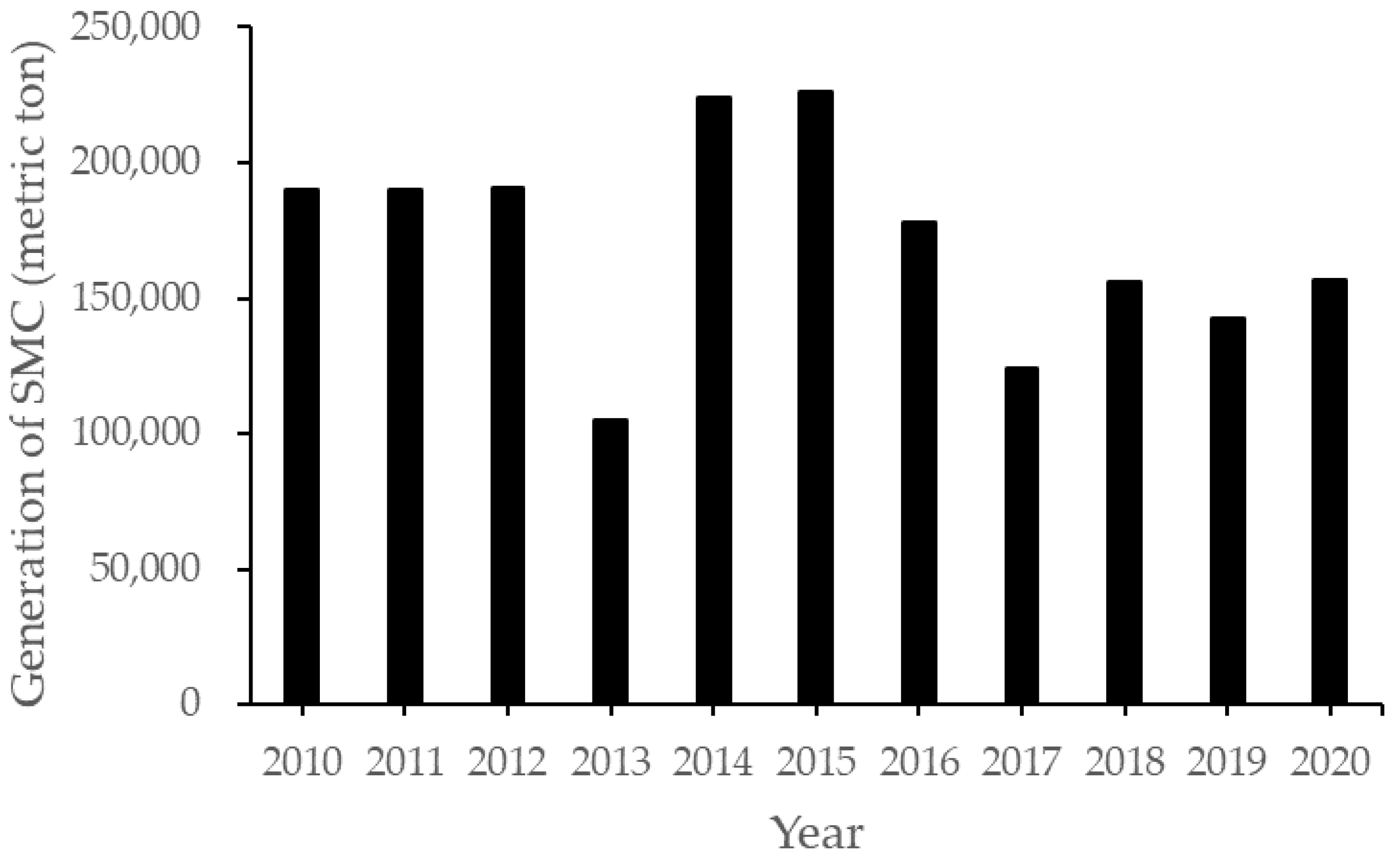

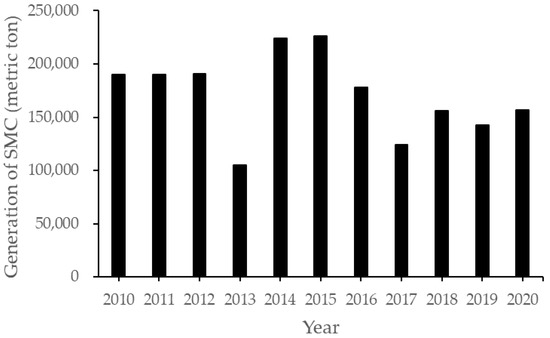

Figure 1. Reported amounts of spemt mushroom compost (SMC) generation in Taiwan since 2010 [4].
Figure 1. Reported amounts of spemt mushroom compost (SMC) generation in Taiwan since 2010 [4].
Horticulturae 08 00046 g001
Horticulturae 08 00046 g002 550

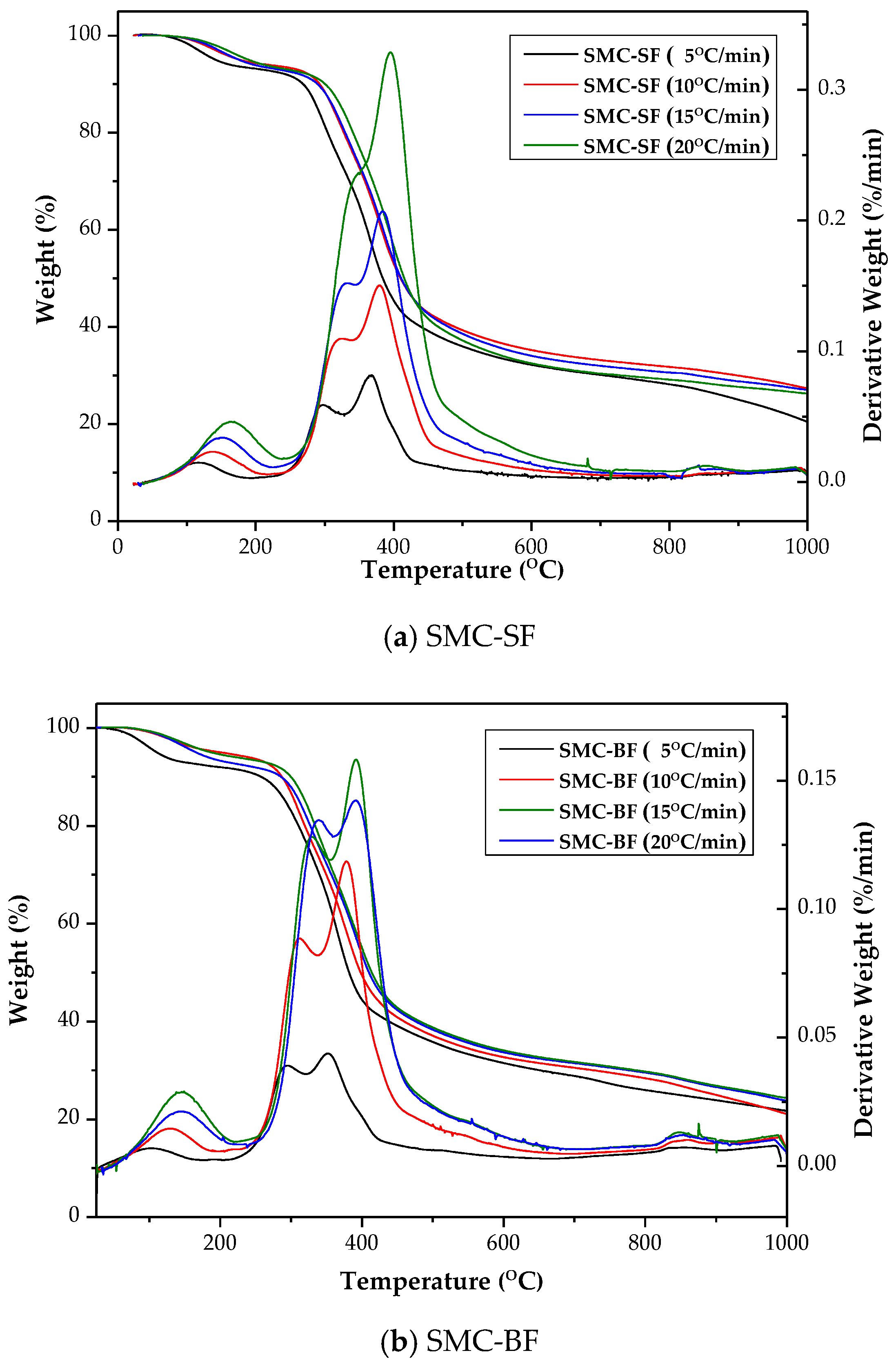

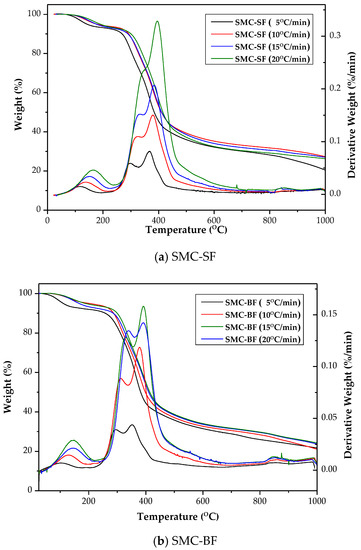

Figure 2. TGA/ DTG curves of (a) SMC- shiitake fungus (SMC-SF) and (b) SMC-black fungus (SMC-BF) at various heating rates (5, 10, 15 and 20 °C/min).
Figure 2. TGA/ DTG curves of (a) SMC- shiitake fungus (SMC-SF) and (b) SMC-black fungus (SMC-BF) at various heating rates (5, 10, 15 and 20 °C/min).
Horticulturae 08 00046 g002
Horticulturae 08 00046 g003 550

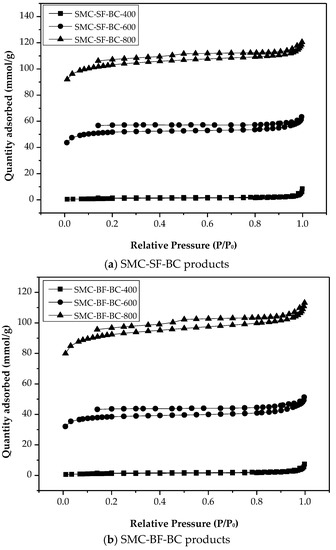

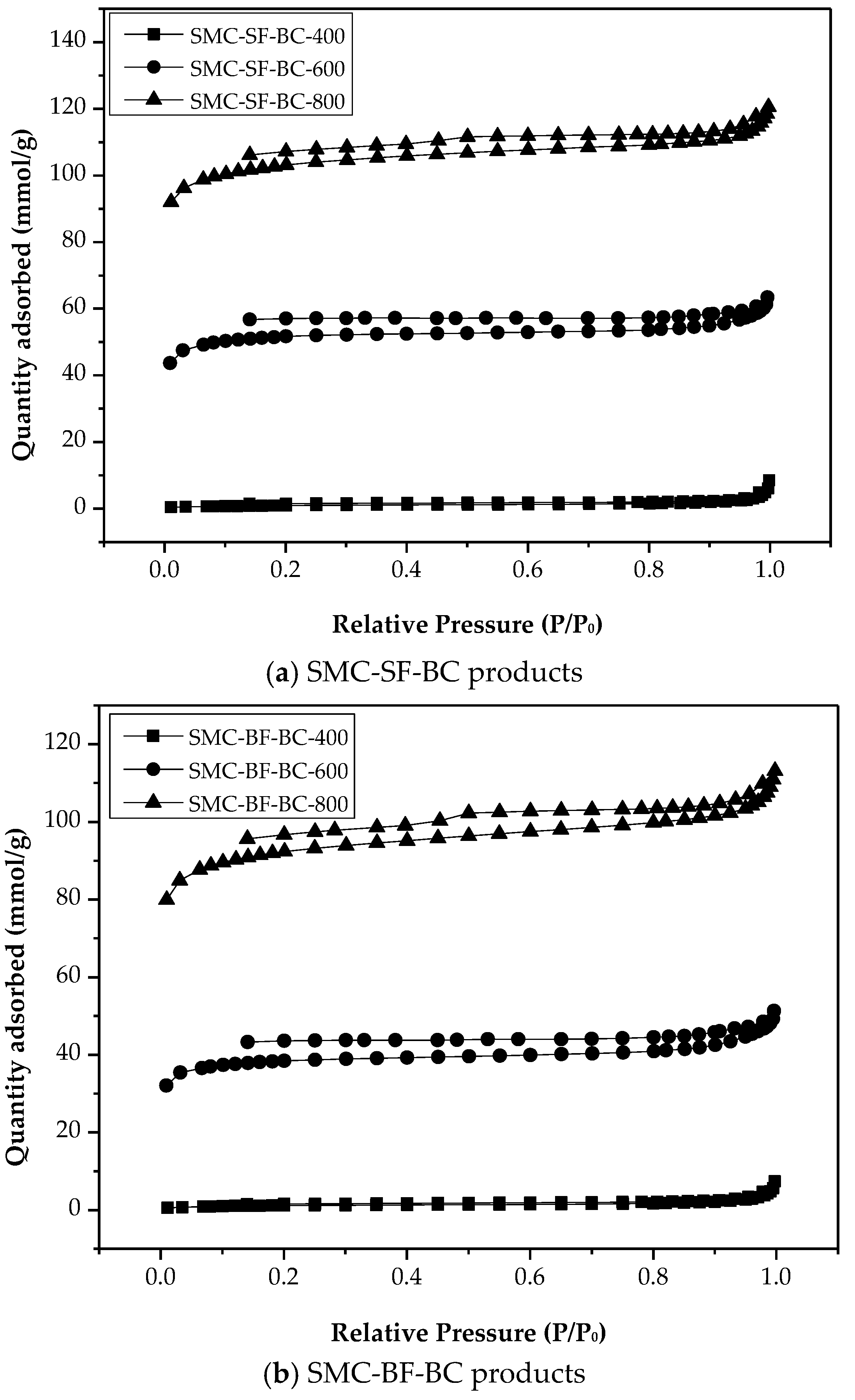

Figure 3. N2 adsorption-desorption isotherms of (a) SMC-SF-BC products and (b) SMC-BF-BC products.
Figure 3. N2 adsorption-desorption isotherms of (a) SMC-SF-BC products and (b) SMC-BF-BC products.
Horticulturae 08 00046 g003
Horticulturae 08 00046 g004 550

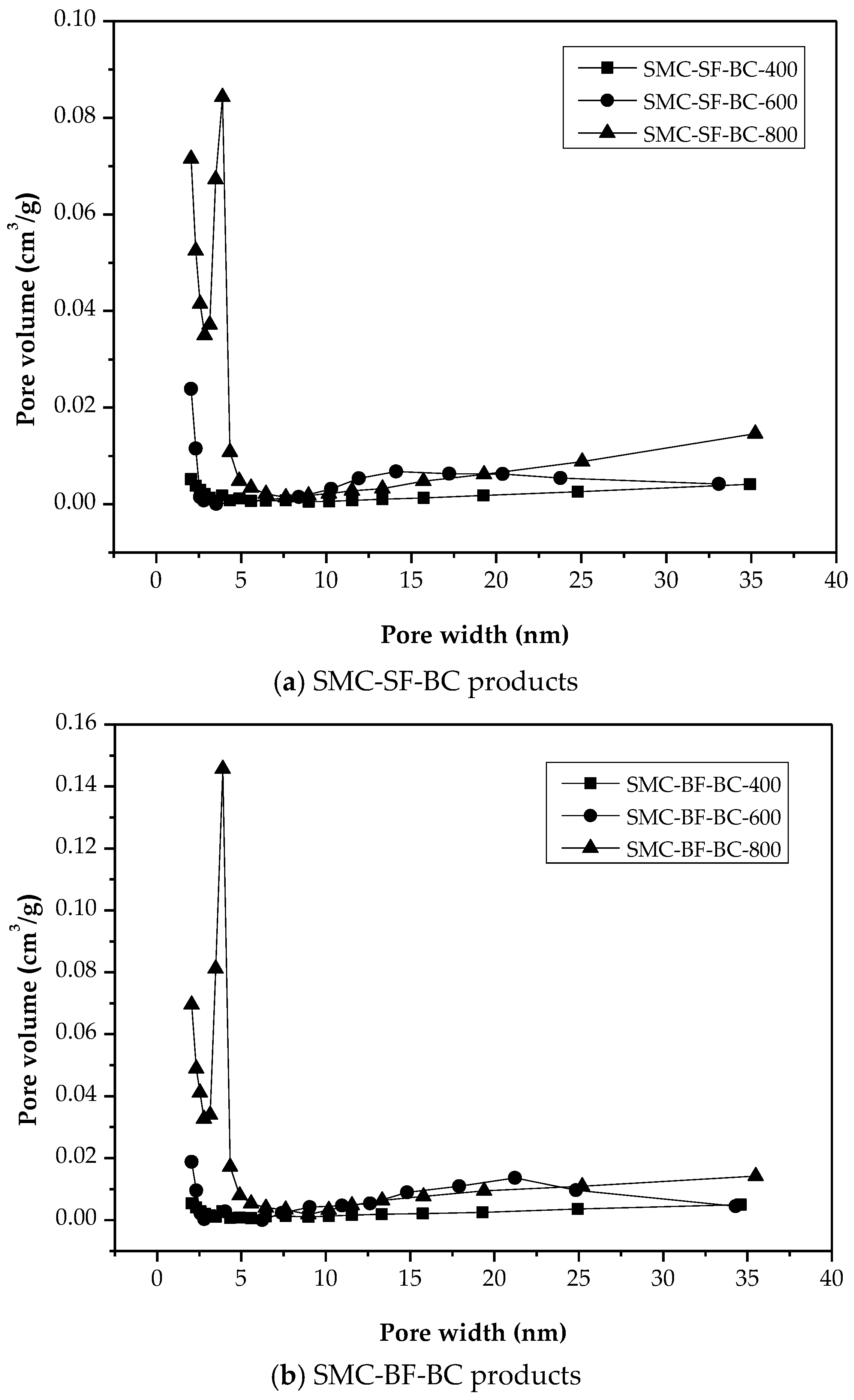

Figure 4. Pore size distribution curves of (a) SMC-SF-BC products and (b) SMC-BF-BC products.
Figure 4. Pore size distribution curves of (a) SMC-SF-BC products and (b) SMC-BF-BC products.
Horticulturae 08 00046 g004
Horticulturae 08 00046 g005 550
Figure 5. SEM images (×1000, right) of the biochar products for (a) SMC-SF and (b) SMC-SF-BC-800.
Figure 5. SEM images (×1000, right) of the biochar products for (a) SMC-SF and (b) SMC-SF-BC-800.
Horticulturae 08 00046 g005
Horticulturae 08 00046 g006 550
Figure 6. SEM images (×1000, right) of the biochar products for (a) SMC-BF and (b) SMC-BF-BC-800.
Figure 6. SEM images (×1000, right) of the biochar products for (a) SMC-BF and (b) SMC-BF-BC-800.
Horticulturae 08 00046 g006
Horticulturae 08 00046 g007 550

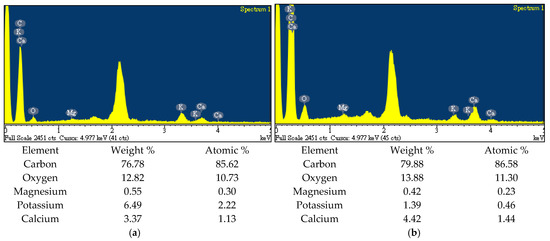

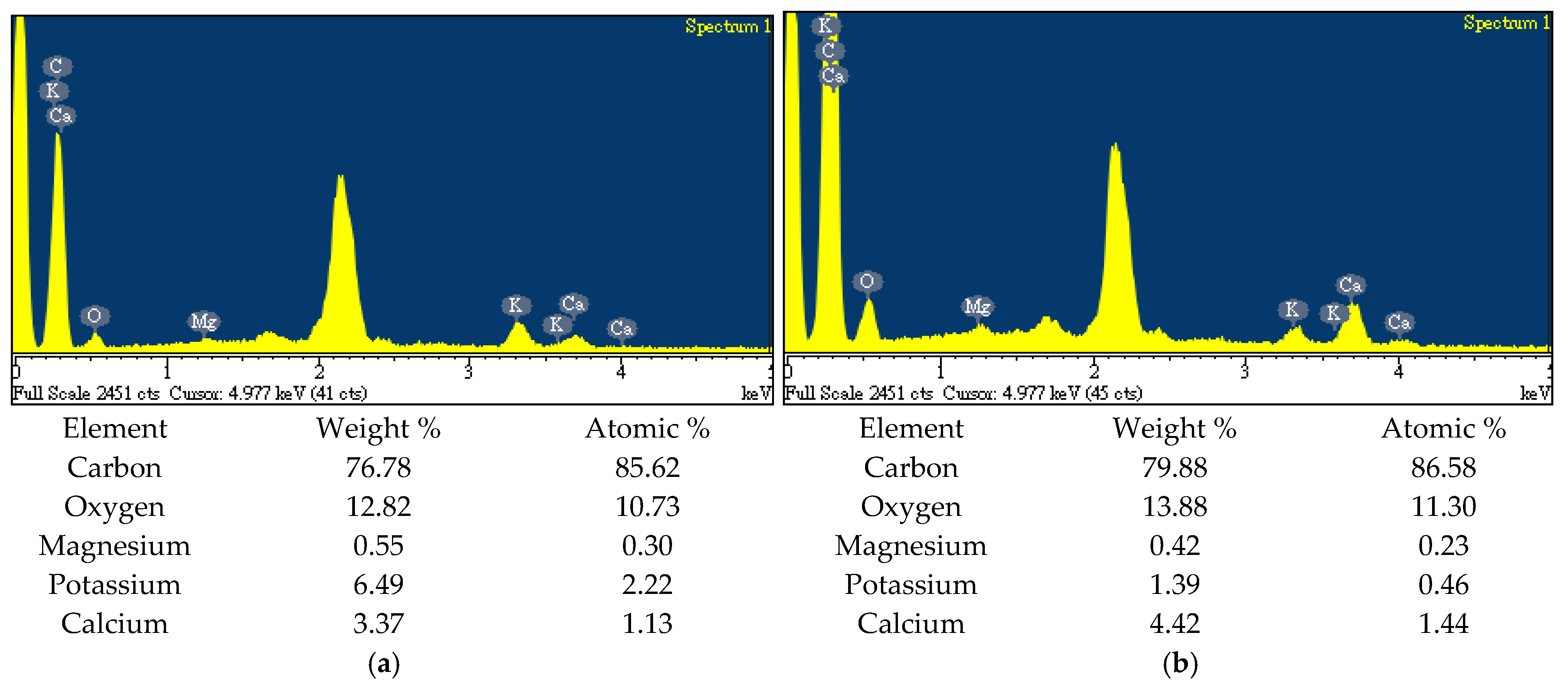

Figure 7. EDS spectra of the biochar products for (a) SMC-SF-BC-800 and (b) SMC-BF-BC-800.
Figure 7. EDS spectra of the biochar products for (a) SMC-SF-BC-800 and (b) SMC-BF-BC-800.
Horticulturae 08 00046 g007
Horticulturae 08 00046 g008 550

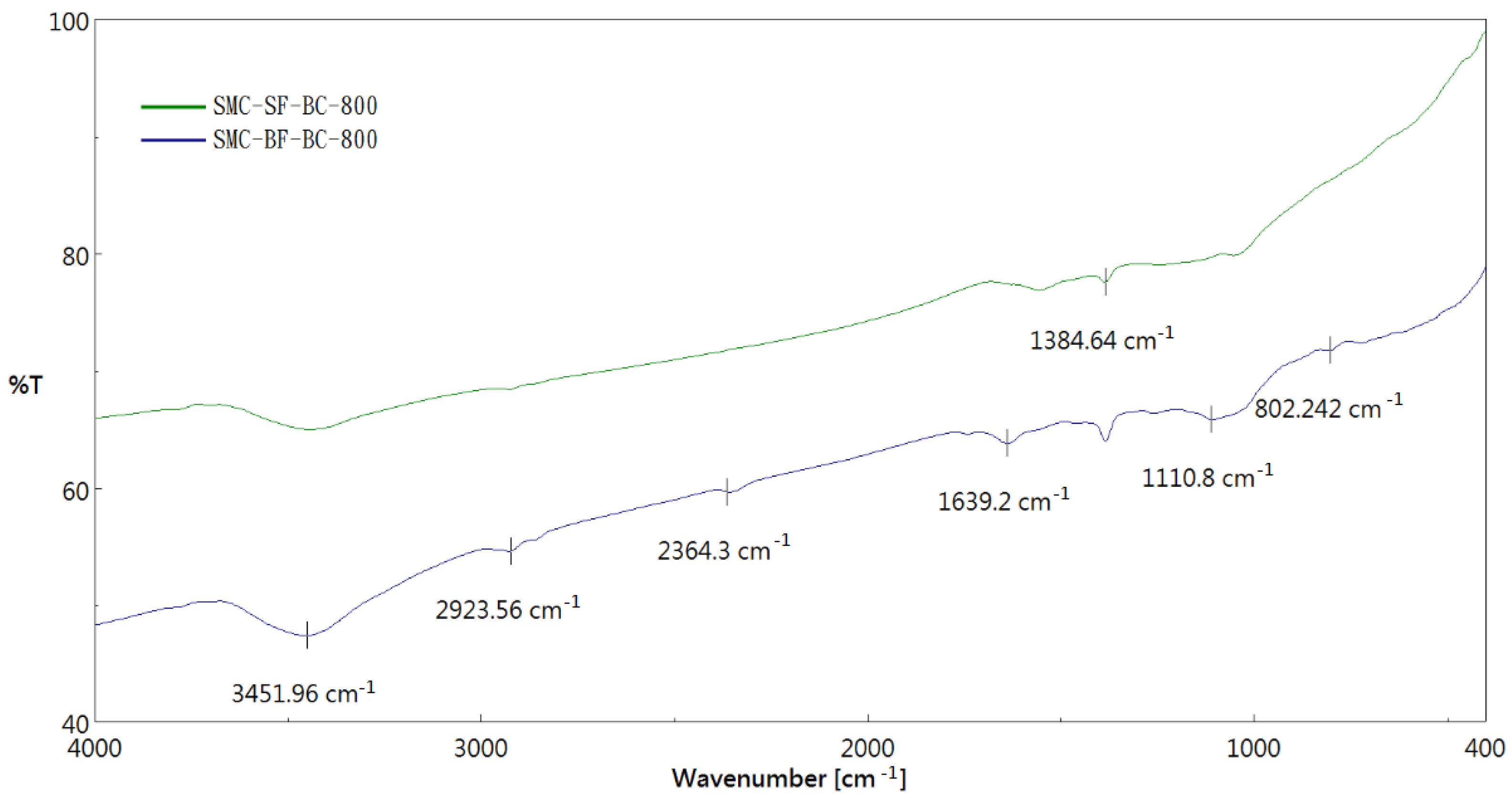

Figure 8. FTIR spectra of the biochar products (BC-SMC-SF-800 and BC-SMC-BF-800).
Figure 8. FTIR spectra of the biochar products (BC-SMC-SF-800 and BC-SMC-BF-800).
Horticulturae 08 00046 g008
Table
Table 1. Thermochemical properties of spent mushroom composts (SMC).
Table 1. Thermochemical properties of spent mushroom composts (SMC).
Properties aValue
SMC-SFSMC-BF
Proximate analysis b
 Ash (wt%)3.53 ± 0.783.51 ± 0.60
 Combustibles (wt%)77.01 ± 0.6076.36 ± 16.64
 Fixed carbon c (wt%)19.46 ± 0.6520.13 ± 16.82
Ultimate analysis d
 Carbon (wt%)45.43 ± 0.1145.29 ± 0.01
 Hydrogen (wt%)6.25 ± 0.076.43 ± 0.06
 Oxygen (wt%)46.58 ± 0.3547.02 ± 0.01
 Nitrogen (wt%)0.64 ± 0.040.57 ± 0.16
 Sulfur (wt%)0.51 ± 0.010.57 ± 0.03
Calorific value (MJ kg−1) b22.10 ± 1.6020.53 ± 0.09
a On a dry basis. b In triplicate. c By difference. d In duplicate.
Table
Table 2. Pore properties of biochar (BC) products prepared from SMC-SF at 400–800 °C.
Table 2. Pore properties of biochar (BC) products prepared from SMC-SF at 400–800 °C.
PropertySMC-SF-BC-400 SMC-SF- BC-600SMC-SF- BC-800
Single point surface area (m2 g−1) a3.2158.8318.1
BET surface area (m2 g−1) b3.4156.1312.4
Langmuir surface area (m2 g−1) 5.6231.2463.3
Micropore surface area (m2 g−1) c-- g127.2255.0
External surface area (m2 g−1) d4.128.957.4
Total pore volume (cm3 g−1) e0.00930.09480.1833
Micropore volume (cm3 g−1) c--0.06720.1343
Pore diameter (nm) f10.912.432.35
a Obtained at relative pressure (P/P0) of ca. 0.30. b Calculated in the relative pressure range from 0.05 to 0.30. c Obtained by t-plot method. d Obtained by subtracting micropore surface area from BET surface area. e Obtained at relative pressure (P/P0) of ca. 0.99. f Obtained from the values of BET surface area and total pore volume. g Not available.
Table
Table 3. Pore properties of biochar (BC) products prepared from SMC-BF at 400–800 °C.
Table 3. Pore properties of biochar (BC) products prepared from SMC-BF at 400–800 °C.
PropertySMC-BF- BC-400 SMC-BF- BC-600SMC-BF- BC-800
Single point surface area (m2 g−1) a3.8118.4285.5
BET surface area (m2 g−1) b3.9116.2280.9
Langmuir surface area (m2 g−1)6.217.6416.9
Micropore surface area (m2 g−1) c0.193.2220.8
External surface area (m2 g−1) d3.823.060.1
Total pore volume (cm3 g−1) e0.00880.07610.1715
Micropore volume (cm3 g−1) c0.00010.04930.1164
Pore diameter (nm) f8.992.622.43
a Obtained at relative pressure (P/P0) of ca. 0.30. b Calculated in the relative pressure range from 0.05 to 0.30. c Obtained by t-plot method. d Obtained by subtracting micropore surface area from BET surface area. e Obtained at relative pressure (P/P0) of ca. 0.99. f Obtained from the values of BET surface area and total pore volume.
