Approach to Yield Response of Young Almond Trees to Deficit Irrigation and Biostimulant Applications
Previous Article in Journal
Relative Salt Tolerance of Four Herbaceous Perennial Ornamentals

Horticulturae 2019, 5(2), 37; https://doi.org/10.3390/horticulturae5020037

Article
Evaluation of Compatibility, Growth Characteristics, and Yield of Tomato Grafted on Potato (‘Pomato’)
1
Department of Genetics and Plant Breeding, Sher-e-Bangla Agricultural University, Dhaka 1207, Bangladesh
2
Department of Horticulture, Sher-e-Bangla Agricultural University, Dhaka 1207, Bangladesh
3
Department of Biosystems and Technology, Swedish University of Agricultural Sciences, Box 103, 23053 Alnarp, Sweden
4
Department of Bio-Health Technology, College of Biomedical Science, Kangwon National University, Chuncheon 24341, Korea
5
Head of Research and Technology, Rentia Plant Factory, Chuncheon 24341, Korea
6
Department of Plant Science, University of Manitoba, Winnipeg, Manitoba, R3T 2N2, Canada
*
Author to whom correspondence should be addressed.
Received: 9 March 2019 / Accepted: 24 April 2019 / Published: 15 May 2019

Abstract

:
The aim of this study was to evaluate the grafting compatibility of different varieties of tomato (Solanum lycopersicum L.) scions on potato (Solanum tuberosum L.) rootstocks to develop a ‘pomato’ plant. In this study three potato varieties; Diamant (P1), Cardinal (P2) and Asterix (P3), and two tomato varieties; Bangladesh Agricultural Research Institute (BARI) tomato-2 (T1) and BARI tomato-11 (T2) were used to make the grafted combinations T1P1, T1P2, T1P3, T2P1, T2P2 and T2P3, designated G1, G2, G3, G4, G5, and G6, respectively. Tomato seedlings aged 25 (S1) and 35 days (S2) were selected as scions. Graft compatibility was analyzed based on the growth and yield of the pomato plants. The results revealed that varieties and scion age had a significant effect on the pomato fruit and tuber yield. The initiation of flowering was not affected by the various graft combinations; however, plant height, leaf number, branch number, number of clusters per plant, number of fruit per cluster, number of fruit per plant, fruit length, fruit diameter, single fruit weight and total fruit yield per plant were higher in G5S1 among the combinations. On the other hand, the number of tubers per plant, single tuber weight, and tuber yield per plant were highest for a few combinations. Overall, it was concluded that Cardinal (P2) and Asterix (P3) potato were the most compatible for grafting with BARI tomato-11 (T2) at the scion age of 25 days (S1), based on vegetative growth and fruit and tuber yield of pomato plants.
Keywords:
tomato; potato; grafting; pomato; growth; fruit; tuber

1. Introduction

The ‘pomato’ is a chimeric plant produced by grafting a tomato (Solanum lycopersicum L.) scion on a potato (Solanum tuberosum L.) rootstock, with tomatoes growing on the vine while potato tubers grow under in the soil of the same plant. Both species belong to the Solanaceae family, share a common primary chromosome number, and have natural graft compatibility [1]. Grafting is an established technique to improve plant adaptation to various abiotic and biotic factors in order to increase plant yield and quality. Grafting performance depends on compatibility between the scion and rootstock. Vascular tissue of the scion and rootstock should contact each other in order to make a successful graft. Incompatibility of rootstock and scions causes a decline in productivity and quality. Previously, a hetero-grafting technique was successfully conducted with grafting tomato scions on tobacco (Nicotiana tabacum L.) (Tomacco) [2,3], cucumber (Cucumis sativum L.) on pumpkin (Cucurbita pepo L.) [4], sunflower (Helianthus annuus L.) on Jerusalem artichoke (Helianthus tuberosum L.) [5], eggplant (Solanum melongena L.) on tomato [6], and tobacco on potato [7]. In addition, an effective transition and transport of florigen and tuber inducing signal via a RNA translocation system across the intergeneric grafting junction of pomato was demonstrated [8]. The idea of the pomato plant was conceptualized by Oscar Soderholm in 1930 and later this plant was initially developed by the Max Planck Institute, Germany, in 1977 [9]. Grafted pomato plants were then commercially launched in the United Kingdom in 2013. Recently, the pomato has been produced by the Bangladesh Agricultural Research Institute (BARI) and Bangladesh Agricultural Development Corporation (BADC) [10].
According to Jude [11], tomato seedlings were used for scions and then grafted on the emerging shoot from a potato tuber to produce the dual purpose plant. The hetero-grafting technology of potato and tomato is a new method to increase food crop productivity for available limited land. Therefore, this crop could have significant impacts on food production systems where farmers can save space and time without affecting food crop quality. The pomato plant cannot be crossbred; therefore, grafting is the only way to produce a pomato plant. In addition, grafting can improve resistance to bacteria, viruses and fungi, attract a more diverse group of pollinators and provide a strong trunk [12]. However, the grafting of a pomato is a complex process and affected by different factors, including hormonal regulation of fruit and tuber formation and development.
Through the grafting process, the tissues of the two plants are combined, so they can grow together and produce the unique plant. However, fruiting and tuberization need a great deal from the plant’s source-sink relationships and hormonal exchange. Plant hormones play essential roles in fruit and tuber development [13,14]. Gibberellins (GA) and cytokinins (CK) are key regulators of various aspects of plant growth and development, fruit set induction in tomato [15] and tuber formation in potato [16]. Ribak et al. [17] stated that a CK activating enzyme induces de novo homeotic tubers in tomato. Meanwhile, Fleishon et al. [18] discovered a negative reciprocal interaction between GA and CK effects on various developmental and molecular processes during tomato plant growth. GA inhibited CK responses, including the induction of the CK primary response genes. CK also inhibited a subset of GA responses.
In addition, the phytochromes mediated leaf driving signaling on tubarization of a pomato plant is an important factor. Phytochromes are involved in the photoperiodic responses of flowering as well as shade avoidance syndrome, of the photosynthetic apparatus and other biochemical processes [19]. It is well documented that phytochromes (PHY), especially photoreceptors PHYA and PHYB1 biosynthesis in tomato leaf and transfer signaling to the fruit setting [20].
So, a pomato plant would likely have challenges to yield in many tomato and potato combinations as they have two different hormonally-regulated development signals [21]. It is hypothesized that pomato plants might minimize the hormonal antagonistic interaction (GA, CK) through diversion of the hormonal signal to either fruit setting or tuber formation. Therefore, selection of an appropriate biocompatible grafting union is vital to minimizing possible inhibitory hormonal effects and leaf-derived signaling to fruit and tuber formation of pomato plants. Meanwhile, hetero-grafting biocompatibility and transmissible signals for plant growth and development have already been defined and established [2,3,4,5,6,7]. A novel promising cultivation technique for the improvement of tomato fruit and potato tuber by grafting tomato on a potato rootstock would be a new strategy to increase food crop productivity in a land-limited country like Bangladesh. The purpose of this study was to investigate the possible effects of different graft combinations on fruit and tuber yield and growth attributes of pomato plants, and to determine the best compatible union among different varieties of potato rootstocks and tomato scions.

2. Materials and Methods

2.1. Soil Characteristics

The experiment was conducted at Sher-E-Bangla agricultural university, Dhaka, Bangladesh. The experimental area was under a sub-tropical climate that is characterized by less rainfall associated with plenty of sunshine and moderate temperatures. The farm has sandy loam soil composed of sand 40%, silt 40%, clay 20%, and the soil pH ranged from 6.0–6.6. The chemical composition of the experimental soil is shown in Table 1. The sample was collected at 0–15 cm depth of the soil horizon. The sample was tested by the soil resource development institute (SRDI), Dhaka, Bangladesh.

2.2. Plant Materials

Three varieties of potato, Diamant, Cardinal, and Asterix, and two varieties of tomato, BARI Tomato 2 and BARI Tomato 11, were used to make grafted combinations of pomato. The potato varieties were collected with the courtesy of the Bangladesh Agricultural Development Corporation (BADC), Dhaka, and the tomato varieties were obtained from Plant Genetic Resource Centre (PGRC) at Bangladesh Agricultural Research Institute (BARI). The graft combinations of pomato are shown in Table 2.

2.3. Production of Potato and Tomato Seedlings

Tubers of the three potato varieties were hand cut and an incision was made at two thirds of the longest axis of the seed tubers having at least two eyes. Seed tubers were then stored for a period of 7 days at 18 °C in darkness and very high humidity (80%) to allow wound healing and sprouting. After 7 days, the seed tubers had produced sprouts and were transferred to a polybag filled with a commercial soil mixture (BM2, Berger Group Ltd, St-Modeste, QC, Canada). Fifteen days after transplanting to a polybag, the potato seedlings were used for grafting as a rootstock.
Seeds of tomato varieties (BARI tomato 2 and BARI tomato 11) were treated with Bavistin and sown in 128-cell plug trays containing commercial soil mixture (BM2, Berger Group Ltd, St-Modeste, QC, Canada) in a plastic-covered house. After 7 days, seedlings were transferred to a polybag filled with the same commercial soil mixture. Tomato seedlings of 15 (S1) and 25 (S2) days of age were selected as scions for grafting in order to evaluate the effect of age on graft compatibility.

2.4. Grafting of Potato and Tomato Seedlings

Tomato seedlings S1 and S2 were cleft grafted to the potato rootstock in the polybags. Five to seven leaves of the potato seedlings were removed to a 10–12 cm height from the seedling base. The remaining shoot was removed by a cut with an angle of 35° using a sharp razor. The potato stem (2.5 mm in diameter) was bisected in the middle longitudinally approximately 4 mm deep using a sharp blade. The same diameter of tomato scion stem was removed from a seedling and the largest leaves were trimmed to minimize water loss. The lower edge of the scion stem was carefully sliced by two diagonal cuts to form a blunt wedge approximately 5 mm long. The wedge end of the scion was inserted into the bisected potato root stock. After placing the scion on the potato rootstock, grafting tapes were used to fix the grafted position tightly together. Rootstocks and scion with similar stem diameters were chosen to increase the grafting success. After grafting, the pomato plants were placed in healing chambers for 3–4 days. Healing chambers were equipped with an auto control air conditioning system (temperature at 22 °C and relative humidity at 80–90%) for recovery of the grafted plants. The grafted seedlings were watered regularly to ensure a firm connection between the scion—rootstock and the soil.

2.5. Pomato Plant Transplanting

The experimental plots were ploughed, well-prepared, brought into a good tilth and a raised bed was created. Plant-to-plant spacing was 40 cm and each plot size was 0.85 m × 1.6 m. The experiment was laid out and evaluated under field conditions in a randomized complete block design (RCBD) with 10 replicate plants of each graft combination. Fertilizer was applied as urea at 300 kg/ha, triple superphosphate (TSP) at 200 kg/ha, muriate of potash (MoP) at 220 kg/ha, gypsum at 100 kg/ha and cowdung at 10,000 kg/ha in a three installment sequence. Weeds and other stubbles were removed carefully from the experimental plot and leveled. Pomato seedlings were planted in the experimental plot 4 days after grafting at the end of December. Mechanical support was provided to the growing plants by bamboo sticks to keep them erect. During the early stages of growth, pruning was done by removing some of the lateral branches to allow the plants to get more sunlight and to reduce self-shading. Staking, irrigation and after-care were also done as per requirements.

2.6. Pomato Harvesting

All of the tomato varieties used in this experiment were indeterminate types. So, harvesting continued for about one and a half months because fruits of different lines matured progressively at different dates and over a long time period. The potatoes were harvested after several successful harvestings of tomato. Harvest started on 7th March and ended on 15th April.

2.7. Data Collection

Ten plants were selected from each block of the RCBD for the data collection of pomato plant growth characteristics including: days to first flowering, days to 50% flowering, plant height, leaf number, number of branches, and number of clusters per plant; and tomato fruit growth attributes including: number of fruits per cluster, number of fruit per plant, fruit length, fruit diameter, and single fruit weight; and tuber growth attributes including: number of tubers per plant, single tuber weight, and tuber yield per plant.

2.8. Statistical Analysis

The collected data were statistically analyzed by the MSTAT-C computer program (Michigan State University, East Lansing, 6.0). Duncan’s Multiple Range Test (DMRT) was performed for all the characteristics to test the differences between the means of the grafted combinations. Mean, range and coefficient of variation (CV %) were also estimated using MSTAT-C.

3. Results

3.1. Growth and Flowering Characteristics

It was clearly observed from the study that a pomato plant can be successfully developed through grafting a tomato scion to a potato rootstock (Figure 1). Grafting compatibility was evaluated by the analysis of fruit setting and tuber production of the pomato plant.
Different grafting combinations showed an influence on growth characteristics of the pomato plant (Table 3). A significantly greater plant height and a number of leaves per plant were observed for G5S1 in comparison to the other combinations. Similarly, a significantly greater branch number per plant was also observed for G5S1 though not from G5S2 and G6S1. However, there were no significant differences days to first and 50% flowering among the different graft combinations (Figure 2).

3.2. Tomato Fruit Yield of Pomato Plants

There was an impact of different grafting combinations on tomato fruit yield of pomato plants (Table 4). Among the combinations, a significantly increased number of clusters per plant, number of fruit per cluster, number of fruit per plant, and total fruit yield per plant (2.25 kg) were observed for G5S1. Similarly, significantly higher fruit length, fruit diameter, and single fruit weight were observed for G5S1 compared to other combinations.

3.3. Potato Tuber Yield of Pomato Plants

There was a significant effect of different graft combinations on potato tuber yield of pomato plants (Table 5.). The number of tubers/plant, single tuber weight, and tuber yield/plant varied among the combinations with significant differences between some the highest and lowest mean values.

4. Discussion

Grafting compatibility and wound healing of the tomato-potato graft union is a complicated process since it requires the establishment of vascular connections between potato rootstock and a tomato scion. Graft incompatibility can lead to decreased water and nutrient flow through the graft union of the pomato plant. However, from the current study, it was observed that tomato can be successfully grafted on different varieties of potato rootstock. The graft combination affects tomato fruit setting and potato tuberization of the pomato plant (Table 4 and Table 5). In this study, increased tomato yield was observed for the G5S1 combination whereas, increased potato yield was obtained with the G2S2, G4S2, G5S2, and G6S1 combinations. Regarding the graft combinations, tomato seedling age had a significant effect in promoting fruiting and tuberization. A 25 day old tomato seedling scion was the best compatible attributes regarding the fruit and tuber yield of pomato. The previous study has proved that a younger scion has a higher regenerating ability likely due to higher meristematic cell activity resulting in faster callus formation and quick healing of the graft union [22]. The highest success of a graft union is associated with intimate contact of the cambial regions both rootstock and scion [23]. A rapid formation of callus tissues allowed the translocation of vital metabolites within the plant [24]. The higher yield of pomato plants with younger tomato scions (S1) might be due to improved signal transfer from leaf to root zone.
Possible mechanisms for increased yield were likely the result of increased transmission of photosynthates produced by leaves. In this case BARI tomato 11 (G4, G5 and G6) scions more successfully diverted photoassimilates for tuber development. This effect could best be observed by the correlation between higher tuber yield and higher growth rate indicating positive plant source-sink relationship [21]. A previous study proved that the growth characteristics of the aboveground part have a direct effect on tuber formation of potato [25], more specifically, Van den et al. [26] reported that the rate of potato tuber formation was correlated with the strength of the inductive signal.
In addition, it has also been noted that GA and CK have a primary role in tuber and fruit development [27] while having an antagonistic relationship. The tomato plant is rich in CKs, and the relationship between GA, CK metabolism and tomato fruit development has been established [16]. Potato plants having increased endogenous levels of CKs have a higher capacity for tuber development [28]. It is hypothesized that the antagonistic activity of these two hormones is minimized in pomato plants by the contribution of the hormones to tuber and fruit development. A high concentration of CK is a prerequisite for healthy tuber formation [29] as well as cell division during tomato fruit development [16]. Therefore, the pomato plant might have a big challenge in regulating CK for inducing fruiting and tuberization simultaneously.
The stem and leaves of tomato are more erect and thicker, therefore have the capability of harvesting more light compared to potato leaves. The phytochrome signal occurs in the leaf and then is transmitted to the underground parts across the graft union of pomato plants through the phloem both acropetally and basipetally [30]. Phytochrome A and B are actively involved in the photoperiodic control of flowering, and it is very likely that they are involved in inducing tubers [30]. Previously, Chailakhyan et al. [7] reported that, in tomacco (tobacco scion on potato rootstock), the signal produced in tobacco leaves that induced flowering was the same signal that induced tuberization in potato plants. Similar results have been obtained with induced sunflower leaves which induced tuberization in Jerusalem artichoke rootstocks. Therefore, it is assumed that these phenomena can be applied to pomato plants, where tomato signals would be transferred to the potato tuber. In our study, the highest fruit and tuber production may be due to better hormonal balance and signal transduction.

5. Conclusions

In summary, we have shown that different varieties of tomato scions can be successfully grafted on potato rootstocks, and the specific combinations affect tuberization and fruit set in pomato plants. Development of the pomato plant with interspecific grafts between potato and tomato is an innovative idea to improve food crop production in the same plant. There is a balance of hormonal signaling between tuber formation, fruit development and growth attributes of a pomato plant. In this study, all possible graft combinations showed excellent grafting ability; however, the potato varieties Cardinal and Asterix, and the tomato variety BARI tomato 11 showed the best performance for growth and yield attributes. Finally, tomato—potato grafting appears to be a promising method for pomato production. Therefore, in countries like Bangladesh, where potato and tomato cultivation is carried out by traditional methods, the grafting method described in this study could potentially increase pomato yield and provide higher profit to the farmers. Further studies are needed to improve pomato plant growth attributes, including primary and secondary metabolite content, and to assess fruit and tuber yield in multiple sites and across years.

Author Contributions

S.M.A.A conducted the experiment, analyzed the data, and drafted manuscript; M.O.K.A., M.T.N., M.T and C.H.P revised and improved the manuscript; N.Z. and A.H.S. supervised the research.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hansord, P. TomTato Solanum lycopersicum, Solanum tuberosum. 2015. Available online: https://www.thompson-morgan.com/p/tomato-orkado-f1-hybrid/gww0050TM (accessed on 15 May 2019).
  2. Yasinok, A.E.; Sahin, F.I.; Eyidogan, F.; Mustafa Kuru, M.; Haberal, M. Grafting tomato plant on tobacco plant and its effect on tomato plant yield and nicotine content. J. Sci. Food Agric. 2009, 89, 1122–1128. [Google Scholar] [CrossRef]
  3. Haberal, M.; Korpe, D.A.; Iseri, O.D.; Sahin, F.I. Grafting tomato onto tobacco rootstocks is a practical and feasible application for higher growth and leafing in different tobacco–tomato unions. Biol. Agric. Hortic. 2016, 32, 248–257. [Google Scholar] [CrossRef]
  4. Haywood, V.; Kragler, F.; Lucas, W.J. Plasmodesmata: Pathways for protein and ribonucleoprotein signaling. Plant Cell 2002, 14, S303–S325. [Google Scholar] [CrossRef] [PubMed]
  5. Nitsch, J.P. Existence d’un stimulus photope´riodique nonspe ´cifique capable de provoquer la tube´risation chez Helianthus tuberosus. L. Bull. Soc. Bot. Fr. 1965, 112, 333–340. [Google Scholar] [CrossRef]
  6. Gisbert, C.; Prohens, J.; Raigon, M.D.; Stommel, J.R.; Nuez, F. Eggplant relatives as sources of variation for developing new rootstocks: effects of grafting on eggplant yield and fruit apparent quality and composition. Sci. Hortic. 2011, 128, 14–22. [Google Scholar] [CrossRef]
  7. Chailakhyan, M.K.; Yanina, L.I.; Devedzhyan, A.G.; Lotova, G.N. Photoperiodism and tuber formation in grafting of tobacco onto potato. Dokl. Akad. Nauk SSSR 1981, 257, 1276–1280. [Google Scholar]
  8. Kudo, H.; Harada, T. Graft-transmissible RNA from Tomato Rootstock Changes Leaf Morphology of Potato Scion. HortScience 2007, 42, 225–226. [Google Scholar] [CrossRef]
  9. Reinhard, R. Biotechnology for Beginners; Elsevier: Amsterdam, The Netherlands, 2008; p. 210. [Google Scholar]
  10. Nusrat, M.F. Cell Compatibility Analysis of Pomato (Solanum tuberosum L. and Solanum lycopersicum L.) Using Local Varieties of Potato. Master’s Thesis, SAU, Dhaka, Bangladesh, 2014. [Google Scholar]
  11. Jude, G. Potato tom opens fresh doors. 2013. [Google Scholar]
  12. Jabr, F. The Science of Pomato Plants and Fruit Salad Trees. Scientific American, 2013. Available online: http://blogs.scientificamerican.com/brainwaves/the-science-ofpomato-plants-and-fruit-salad-trees (accessed on 15 May 2019).
  13. Gillaspy, G.; Ben-David, H.; Gruissem, W. Fruits—A developmental perspective. Plant Cell 1993, 5, 1439–1451. [Google Scholar] [CrossRef] [PubMed]
  14. Aksenova, N.P.; Konstantinova, T.N.; Golyanovskaya, S.A.; Sergeeva, L.I.; Romanov, G.A. Hormonal regulation of tuber formation in potato plants. Russi. J. Plant Physiol. 2012, 59, 451–466. [Google Scholar] [CrossRef]
  15. Wang, H.; Schauer, N.; Usadal, B.; Frasse, P.; Zouine, M.; Hernould, M.; Latche, A.; Pech, J.C.; Fernie, A.R.; Bouzayen, M. Regulatory features underlying pollination-dependent and independent tomato fruit set revealed by transcript and primary metabolite profiling. Plant Cell 2009, 21, 1428–1452. [Google Scholar] [CrossRef] [PubMed]
  16. Matsu, S.; Kikuchi, K.; Fukuda, M.; Honda, I.; Imanishi, S. Roles and regulation of cytokinins in tomato fruit development. J. Exp. Bot. 2012, 63, 5569–5579. [Google Scholar] [CrossRef] [PubMed]
  17. Ribak, E.T.; Kaneh, S.A.; Maor, C.H.; Amsellem, Z.; Eshed, Y.; Lifschitz, E. A cytokinin-activating enzyme promotes tuber formation. Curr. Biol. 2013, 23, 1057–1064. [Google Scholar] [CrossRef] [PubMed]
  18. Fleishon, S.; Eilon, S.; Naomi, O.; David, W. Negative reciprocal interactions between gibberellin and cytokinin in tomato. New Phytol. 2011, 190, 609–617. [Google Scholar] [CrossRef]
  19. Smith, H.; Whitelam, G.C. Phytochrome, a family of photoreceptors with multiple physiological roles. Plant Cell Environ. 1990, 13, 695–707. [Google Scholar] [CrossRef]
  20. Kerckhoffs, L.H.J.; Kelmenson, P.M.; Schreuder, M.E.L.; Kendrick, C.I.; Kendrick, R.E.; Hanhart, C.J.; Koornneef, M.; Pratt, L.H.; Cordonnier- Pratt, M.M. Characterization of the gene encoding the apoprotein of phytochrome B2 in tomato, and identification of molecular lesions in two mutant alleles. Mol. Gen. Genet. 1999, 261, 901–907. [Google Scholar] [CrossRef] [PubMed]
  21. Peres, L.E.P.; Carvalho, R.F.; Zsogon, A.; Bermudez, O.D.; Zambrano, B.; Robles, W.G.R.; Tavares, S. Grafting of tomato mutants onto potato rootstocks: An approach to study leaf derived signaling on tuberization. Plant Sci. 2005, 169, 680–688. [Google Scholar] [CrossRef]
  22. Nguyen, V.H.; Yen, C.R. Rootstock age and grafting season affect graft success and plant growth of papaya (Carica papaya L.) in greenhouse. Chil. J. Agric. Res. 2018, 78, 59–67. [Google Scholar] [CrossRef]
  23. Hartmann, H.T.; Kester, D.E.; Davies, F.T.; Geneve, R.L. Hartmann and Kester’s Plant Propagation: Principles and Practices, 8th ed.; Prentice Hall: Upper Saddle River, NJ, USA, 2002. [Google Scholar]
  24. Kilany, O.A.; Abd El-Zaher, M.H.; Hamed, H.H. The relationship between the histological features in the grafting areas and the compatibility degrees of some mango cultivars onto nuclear seedlings. J. Hortic. Sci. Ornament. Plants 2012, 4, 58–65. [Google Scholar]
  25. Ewing, E.E.; Wareing, P.F. Shoot, stolon, and tuber formation on potato (Solanum tuberosum) cuttings in response to photoperiod. Plant Physiol. 1978, 61, 348–353. [Google Scholar] [CrossRef]
  26. Van den Berg, J.H.; Simko, I.; Davies, P.J.; Ewing, E.E. Halinska, A. Morphology and (14C) gibberellin A12 aldehyde metabolism in wildtype and dwarf Solanum tuberosum ssp. andigena grown under long and short photoperiods. J. Plant Physiol. 1995, 146, 467–473. [Google Scholar] [CrossRef]
  27. Palmer, C.E.; Smith, O.E. Cytokinins and tuber initiation in the potato Solanum tuberosum L. Nature 1999, 221, 279–280. [Google Scholar] [CrossRef]
  28. Galis, I.; Macas, J.; Viasak, J.; Ondrej, M.; Onckelen, H.A.V. The effect of an elevated cytokinin level using the ipt gene and N-6 benzyladenine on a single node and intact potato plant tuberization in vitro. J. Plant Growth Regul. 1995, 14, 143–150. [Google Scholar] [CrossRef]
  29. Fernie, A.R.; Willmitzer, L. Molecualr and biochemical triggeres of potato tuber development. Plant Physiol. 2001, 127, 1459–1465. [Google Scholar] [CrossRef] [PubMed]
  30. Jackson, S.D.; James, P.; Prat, S.; Thomas, B. Phytochrome B affects the levels of a graft-transmissible signal involved in tuberization. Plant Physiol. 1998, 117, 29–32. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Pomato plant.
Figure 1. Pomato plant.
Horticulturae 05 00037 g001

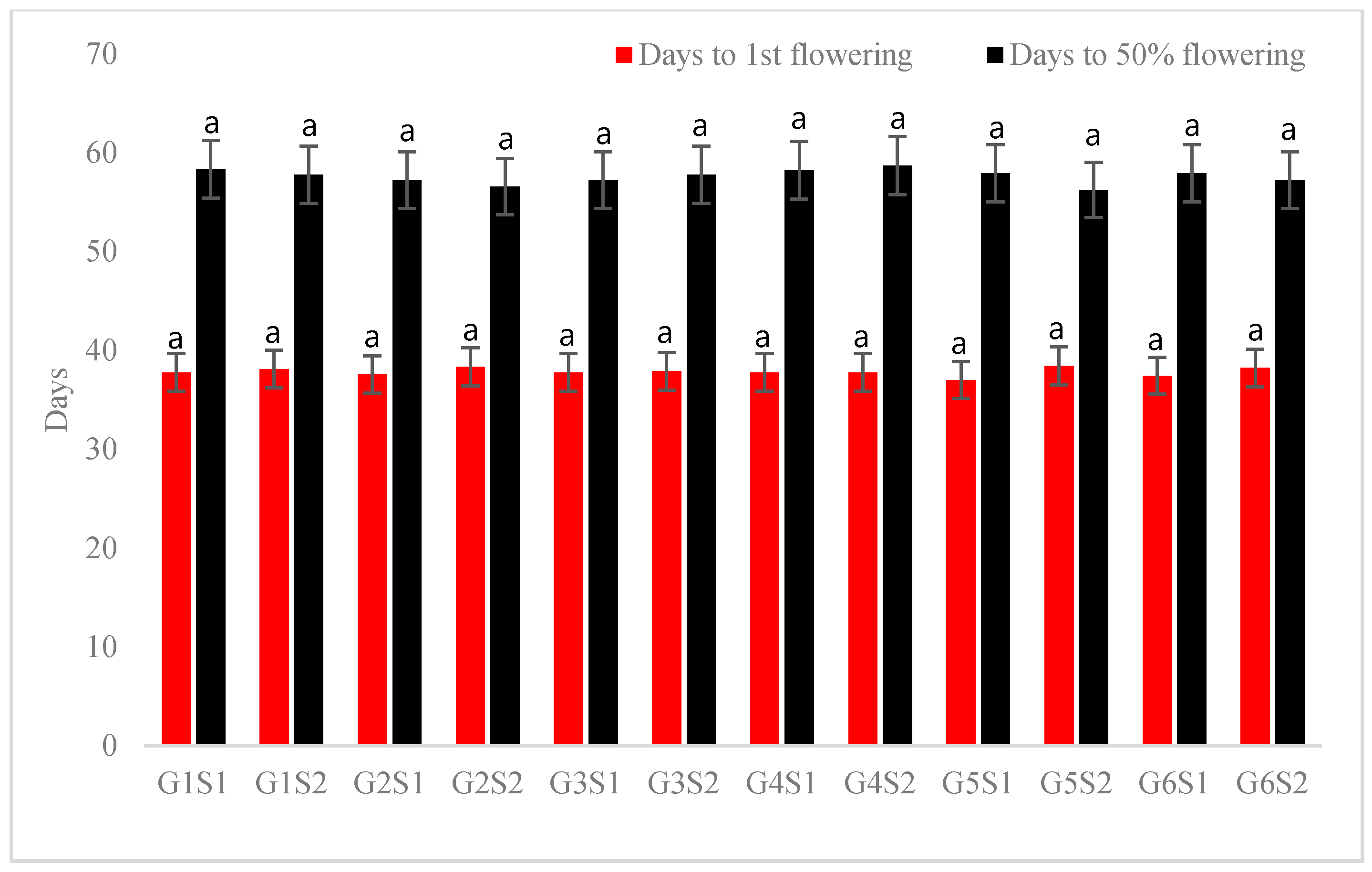

Figure 2. Effect of different graft combinations on initiation of tomato flowering of pomato plants. Mean values with different letters in a category are significantly different by Duncan’s Multiple Range Test (DMRT) at P < 5% (n = 10).
Figure 2. Effect of different graft combinations on initiation of tomato flowering of pomato plants. Mean values with different letters in a category are significantly different by Duncan’s Multiple Range Test (DMRT) at P < 5% (n = 10).
Horticulturae 05 00037 g002
Table 1. The chemical composition of the soil of the experimental site as observed prior to experimentation (0–15 cm depth).
Table 1. The chemical composition of the soil of the experimental site as observed prior to experimentation (0–15 cm depth).
Soil CharactersValue
Organic matter1.44%
Potassium0.15 meq/100 g soil
Calcium3.60 meq/100 g soil
Magnesium1.00 meq/100 g soil
Total nitrogen0.072
Phosphorus22.08 µg/g soil
Sulphur25.98 µg/g soil
Boron0.48 µg/g soil
Copper3.54 µg/g soil
Iron262.6 µg/g soil
Manganese164 µg/g soil
Zinc3.32 µg/g soil
Source: Soil Resources Development Institute (SRDI), Khamarbari, Dhaka.
Table 2. Graft combinations of pomato plants. The potato varieties were Diamant (P1), Cardinal (P2) and Asterix (P3), and the tomato varieties were BARI tomato-2 (T1) and BARI tomato-11 (T2). The graft combinations were T1P1 (G1), T1P2 (G2), T1P3 (G3), T2P1 (G4), T2P2 (G5) and T2P3 (G6). Tomato seedlings aged 25 (S1) and 35 days (S2) were selected as scions.
Table 2. Graft combinations of pomato plants. The potato varieties were Diamant (P1), Cardinal (P2) and Asterix (P3), and the tomato varieties were BARI tomato-2 (T1) and BARI tomato-11 (T2). The graft combinations were T1P1 (G1), T1P2 (G2), T1P3 (G3), T2P1 (G4), T2P2 (G5) and T2P3 (G6). Tomato seedlings aged 25 (S1) and 35 days (S2) were selected as scions.
Pomato CombinationsCombination DesignationScion AgeFinal Combinations
T1P1G1S1/S2G1S1/G1S2
T1P2G2S1/S2G2S1/G2S2
T1P3G3S1/S2G3S1/G3S2
T2P1G4S1/S2G4S1/G4S2
T2P2G5S1/S2G5S1/G5S2
T2P3G6S1/S2G6S1/G6S2
Table 3. Effect of different graft combinations on growth characteristics of pomato plants.
Table 3. Effect of different graft combinations on growth characteristics of pomato plants.
Treatment (Grafting Combination) Plant Height
(cm)
Leaf Number/PlantBranch Number/Plant
G1S194.53 c26.89 b4.22 b
G1S293.35 c23.89 c4.33 b
G2S194.41 c22.56 c3.44 c
G2S295.67 c25.89 c4.59 b
G3S193.31 c23.35 c3.55 c
G3S296.21 c26.56 b4.36 b
G4S1110.3 b27.33 b4.37 b
G4S2112.7 b24.47 c4.22 b
G5S1115.13 a33.67 a6.66 a
G5S2111.23 b26.33 b5.11 ab
G6S1112.3 b27.86 b5.22 ab
G6S2111.3 b28.44 b4.22 b
Mean values with different letters in a column are significantly different by Duncan’s Multiple Range Test at P < 5% (n = 10).
Table 4. Effect of different graft combinations on tomato fruit yield of pomato plants.
Table 4. Effect of different graft combinations on tomato fruit yield of pomato plants.
Graft CombinationNumber of Clusters per PlantNumber of Fruit per ClusterNumber of Fruit per PlantFruit Length (cm)Fruit Diameter (cm)Single Fruit Weight (g)Tomato Yield per Plant (kg)
G1S115.22 c14.00 b215.78 c3.54 c2.52 b5.11 c1.34 b
G1S214.88 c13.00 c215.56 c3.53 c2.62 b5.33 c1.36 b
G2S115.11 c14.33 b216.78 c3.06 c2.92 b6.78 b1.53 b
G2S215.22 c13.66 c216.78 c2.01 d2.07 b5.00 c1.55 b
G3S114.88 c14.66 b219.33 c2.18 d2.00 b5.78 c1.76 b
G3S215.11 c14.33 b216.89 c2.86 cd2.51 b5.11 c1.53 b
G4S116.56 b15.11 b249.90 b4.35 b3.18 b5.11 c1.27 b
G4S215.89 b13.56 c215.70 c4.31 b3.00 b5.77 c1.24 b
G5S118.00 a17.00 a272.00 a5.18a3.94 a7.66 a2.25 a
G5S215.00 b14.44 c217.30 c4.60 b3.14 a6.11 b1.90 b
G6S115.33 b14.67 b225.10 c3.14 c2.99 b6.33 b1.58 b
G6S216.22 b14.22 b230.90 c4.37 b2.12 b6.44 b1.24 b
Mean values with different letters in a column are significantly different by Duncan’s Multiple Range Test at P < 5% (n = 10).
Table 5. Effect of different grafting combinations on potato tuber yield of pomato plants.
Table 5. Effect of different grafting combinations on potato tuber yield of pomato plants.
Graft
Combination
Number of Tubers
/Plant
Single Tuber Weight
(g)
Tuber Yield/Plant
(kg)
G1S13.11 c64.00 b0.23 c
G1S24.22 ab62.67 c0.30 b
G2S14.00 ab60.89 c0.28 b
G2S24.44 b60.89 c0.31 a
G3S14.11 ab64.17 b0.27 b
G3S24.11 ab63.78 b0.26 bc
G4S13.66 c72.89 a0.27 b
G4S24.44 ab72.67 a0.32 a
G5S14.22 ab68.44 a0.28 b
G5S24.87 a70.00 a0.33 a
G6S15.00 a78.50 a0.36 a
G6S24.22 ab62.83 c0.27 bc
Mean values with different letters in a column are significantly different by Duncan’s Multiple Range Test at P < 5% (n = 10).
