Article

Fan-miR159 Family Targets Two Types of Genes to Potentially Regulate the Development of Strawberry

by
Xiaotong Jing
1,2,3,
Xinjia Huai
3,
Chuanli Ning
4,
Quan Zou
1,
Qi An
3,
Ejiao Wu
2,3,
Huazhao Yuan
2,3,
Jiahui Liang
2,3,* and
Yushan Qiao
2,3,*
1
Institute of Fundamental and Frontier Sciences, University of Electronic Science and Technology of China, Chengdu 610054, China
2
Jiangsu Key Laboratory for Horticultural Crop Genetic Improvement, Institute of Pomology, Jiangsu Academy of Agricultural Sciences, Nanjing 210014, China
3
Zhongshan Biological Breeding Laboratory, Nanjing 210014, China
4
Yantai Agricultural Technology Extension Center, Yantai 264001, China
*
Authors to whom correspondence should be addressed.
Horticulturae 2025, 11(12), 1443; https://doi.org/10.3390/horticulturae11121443
Submission received: 23 October 2025 / Revised: 21 November 2025 / Accepted: 26 November 2025 / Published: 28 November 2025
(This article belongs to the Section Developmental Physiology, Biochemistry, and Molecular Biology)
Browse Figures
Versions Notes

Abstract

MicroRNAs (miRNAs) represent the most abundant class of small RNAs in plants, in which the miR159 family demonstrates a high degree of conservation across various plant species and plays a crucial role in regulating anther, silique, and seed development by targeting GAMYB-like. The members of the Fan-miR159 family in cultivated strawberry target not only GAMYB-like genes but also Auxin Response Factor (ARF) family members, which are annotated as “ARF23-like” in the genome. In this study, we firstly analyzed the structural features, evolutionary conservation, and expression patterns of the miR159 family in Fragaria × ananassa. Then, we reannotated the “ARF23-like” genes in cultivated strawberry and found that they actually belong to the “ARF2b” subfamily. Finally, we utilized RT-qPCR and co-transformation experiments to analyze and validate our observation. The results showed the suppression of FaARF2b-2 expression by fan-miR159n and fan-miR159r in both tobacco and strawberry. Moreover, two transcripts of the FaARF2b-2 gene were detected in cultivated strawberry, FaARF2b-2R and FaARF2b-2M. The expression levels of both FaARF2b-2M and FaARF2b-2R increased following the abscisic acid (ABA) treatment, indicating that they may be positively regulated by ABA. In addition, FaARF2b-2M exhibits significantly higher expression levels in the anther compared to FaARF2b-2R, which potentially plays an important role in the male reproductive development. Our findings enhance the understanding of the miR159 family in cultivated strawberry and expand the knowledge regarding its novel targets.

1. Introduction

MicroRNAs (miRNAs) serve as master regulators in plant development. A wide array of miRNAs has been identified across various plant species through direct cloning and high-throughput sequencing techniques. These miRNAs are intricately involved in multiple developmental processes, such as meristem maintenance, establishment of leaf polarity and shape, flowering phase transition, and determination of flower patterning [1]. For instance, the miR165, miR166, and miR394 families are integral to the regulation of the shoot apical meristem (SAM). Specifically, the activities of miR165 and miR166 are quenched by Argonaute10 (AGO10), which promotes the maintenance of SAM [2]. Meanwhile, miR394 is a mobile signal that impacts stem cell competence to the distal meristem by suppressing the F-box protein, LEAF CURLING RESPONSIVENESS, during the formation of shoot meristem [3]. Since leaves originate from the SAM in flowering plants, miR165 and miR166 are also involved in leaf development, by a miR165/166-HD-ZIP III-AGO1/10 pathway to regulate the adaxial–abaxial polarity of leaves [4,5]. Additionally, miR156 serves as a quantitative modulator to regulate SQUAMOSA PROMOTER BINDING PROTEIN-LIKE expression in the SAM, thereby controlling leaf plastochron length in Arabidopsis [6]. The miR164-CUC2 and miR396-GROWTH-REGULATING FACTOR pathways are involved in the regulation of leaf shape, specifically influencing leaf margin serration [7] and leaf size [8], respectively. Moreover, miR169 and miR172 play crucial roles in regulating floral patterning by, respectively, restricted C class homeotic gene AGAMOUS and A class homeotic gene APETALA2 [9,10]. miRNAs also serve as important regulators involved in reproductive development. For example, the MIR167a-overexpressing lines showed female sterility in tomato due to defects in the stigma and stylar trichome, which prevent pollen germination on the stigma surface and hinder pollen tube growth [11]. Reciprocally, miR156 and miR399 affect male fertility in Arabidopsis [12] and Citrus [13], respectively. Among them, the down-regulation of miR399a.1 caused collapsed pollen and decreased pollen fertility in pummelo [13]. Recent studies have illuminated the valid roles of miRNAs in the maternal or paternal control of embryogenesis and seed development. For instance, MIR167A functions as a maternally expressed gene controlling embryogenesis, where mir167a (♀) × wild type (♂) crosses resulted in abnormal embryos and endosperm development [14]. Conversely, miR159 acts as a paternal factor in the clearance of maternal barriers. In this context, sperm-transmitted miR159 inhibits the targets of central cell-transmitted miR159, thereby promoting nuclear division in the endosperm [15].
Plant miRNAs are generally classified into three categories: conserved miRNAs, less-conserved miRNAs, and species-specific miRNAs [16]. Among these categories, the miR159 family is notably highly conserved and demonstrates the highest abundance in land plants [17]. The characteristics and functions of the miR159 family have been intensively investigated in Arabidopsis thaliana. miR159 targets mRNAs that encode gibberellin (GA)-induced MYB (GAMYB) or GAMYB-like transcription factors [18,19,20]. These transcription factors play a crucial role in regulating anther development and seed germination within the GA-signaling pathway. For example, MYB33 and MYB65, along with MYB101, participate in GA-induced pathways that promote programmed cell death in the aleurone of seeds [19] as well as in the tapetum of anthers [18]. Besides targeting GAMYB, miR159 has also been reported to target other transcripts. In Arabidopsis, these include OPT1 and CSD3 [21,22]; in tomato, SGN-U567133 [23]; and in rose, Cytokinin Oxidase/Dehydrogenase6 (CKX6) [24]. Notably, OPT1, SGN-U567133, and CKX6 are all associated with flower development. OPT1 functions as a peptide transporter that is potentially involved in the transport of peptides from the maternal tissues to nourish the growth of pollen tubes [25]; SGN-U567133 raises the post-transcriptional regulation by miR159 in the tomato leaf and flower development [23]; and the miR159-CKX6 module governs the duration of the cell division by controlling cytokinin catabolism in petals [24]. Additionally, CSD3 is a copper/zinc superoxide dismutase in a peroxisome isoform [26].
In our previous work, we identified a class of “Auxin Response Factor23 (ARF23)-like” genes as potential targets of miR159 in cultivated strawberry (Fragaria × ananassa), which is not related to the MYB or GAMYB family members [27]. ARF23 is a pseudogene based on its inability to dimerize and its localization near the entromere, as part of a recently duplicated cluster in A. thaliana [28]. Here, we elucidated the true identity of these “ARF23-like” genes on the basis of genome-wide identification and characterization of the ARF gene family. We also cloned one of the target genes, named FaARF2-2b, and found that it has two transcripts in cultivated strawberry, which may play different roles in the development of strawberry. Through co-transformation experiments conducted in both tobacco and strawberry, we discovered that mature miR159s—fan-miR159n and fan-miR159r—targeted transcripts from FaARF2-2b in leaves of tobacco and receptacles of strawberry, respectively. Collectively, this study verifies a novel target gene of miR159 in strawberry, FaARF2-2b, which enhances the understanding of miR159 in seed development within this species.

2. Materials and Methods

2.1. Plant Materials and Growth Condition

Two cultivated strawberry (F. × ananassa) cultivars, specifically ‘Benihoppe’ and ‘Sweet Charlie’, were selected as experimental materials for sRNA identification. These cultivars were grown at the Baima Teaching and Scientific Research Base of Nanjing Agricultural University, located in Nanjing, China. Additionally, F.  × ananassa ‘Ningyu’ and Nicotiana benthamiana were employed for co-transformation experiments; the former was cultivated in the greenhouse of Jiangsu Academy of Agricultural Sciences, while the latter was maintained under controlled conditions in an illuminating incubator at Nanjing Agricultural University.

2.2. RNA and DNA Isolation

The genomic DNA was extracted from various tissue samples utilizing the Plant Genomic DNA Kit (Tiangen, Beijing, China). Simultaneously, total RNA was isolated from the same tissue samples with the RNA Extraction Kit (Tiangen, Beijing, China). Following this, the extracted RNA samples underwent reverse transcription to generate complementary DNA (cDNA) through the application of the PrimeScript RT reagent kit (TaKaRa, Dalian, China).

2.3. The Expression Level of Fan-miR159 Family Precursor Was Analyzed by RT-qPCR

The internal reference gene for strawberry was 26S rRNA in RT-qPCR using gene-specific primers (Table S1) [29]. The expression level of fan-miR159a–-r precursor in strawberry leaves was detected, and RT-qPCR was performed with an SYBR premix EX TaqTM reagent kit (TaKaRa, Kyoto, Japan). The reaction procedure was 95 °C for 10 min; 95 °C 15 s, 58 °C 15 s, 72 °C 10 s, 40 cycles. The relative expression of fan-miR159a–r precursor in strawberry leaves was calculated by the 2−∆∆Ct method [30], with all experiments being repeated three times. A complete list of all primers employed in this study is provided in Table S1.

2.4. The Cloning of Pre-Fan-miR159b/n/r and Their Targets

Strawberry leaves were used as the experimental material for DNA extraction. The full-length DNA sequences encoding the precursor regions of miR159b/n/r were amplified using gene-specific primers via PCR. According to the target gene sequences in the genome of F. × ananassa, specific primers were designed within the coding regions (CDS) using Primer Premier 5 software [31] (Table S1). Using cDNA derived from strawberry leaf tissue as a template, PCR amplification was carried out to clone these genes. The PCR amplification protocol consisted of an initial denaturation at 98 °C for 3 min, followed by 35 cycles of 98 °C for 10 s, 54 °C for 20 s, and 72 °C for 1 min, a final extension at 72 °C for 5 min, and storage at 4 °C. PCR products were analyzed by agarose gel electrophoresis, and the correctly sized bands were purified and recovered according to the manufacturer’s instructions for the Gel Extraction Kit (TaKaRa, Kyoto, Japan).

2.5. Plasmid Construction

Nine recombinant plasmids were constructed in this study. For the construction of 35SCaMV::fan-MIR159b, 35SCaMV::fan-MIR159n, and 35SCaMV::fan-MIR159r, the full-length sequence of fan-MIR159b, fan-MIR159n, and fan-MIR159r was introduced into the Hind III/EcoR I sites of the pBI121 vector, respectively. And for 35SCaMV::FaMYB101-GUS, 35SCaMV::FaARF2b-2R-GUS, and 35SCaMV::FaARF2b-2M-GUS, the full-length sequence of FaMYB101, FaARF2b-2R, and 35SCaMV::FaARF2b-2M was introduced into the Xba I/Bam HI sites of the pBI121 vector, respectively.
For 35SCaMV::mFaARF2b-2R-GUS and 35SCaMV::mFaARF2b-2M-GUS, we used 35SCaMV::FaARF2b-2R-GUS and 35SCaMV::FaARF2b-2R-GUS as a template, and we mutated it with 5 bases in the complementary pairing sequence of the mature miR159 sequence without changing the amino acid type corresponding to the mutated codon. For 35SCaMV::mFaMYB101-GUS, we used 35SCaMV::FaMYB101-GUS as a template, and mutated it with 8 bases in the complementary pairing sequence of the mature miR159b sequence without changing the amino acid type corresponding to the mutated codon.

2.6. Plasmids Transformed Instantaneously into Tobacco and Strawberry

These plasmids were introduced into Agrobacterium tumefaciens (GV3101) by the freeze–thaw method, and they were transformed into N. benthamiana and F.  × ananassa ‘Ningyu’, according to the methods previously described by Sparkes et al. [32] and Jia et al. [33].

2.7. GUS Staining and Activity Assays

GUS staining was performed on plant tissues according to the established protocol [34]. After 48 h, the staining solution was removed through a series of washes with 70% ethanol. The 4-methylumbelliferyl-β-D-glucuronide (MUG) assay was used for the quantitative measurement of GUS activity. One unit of GUS activity is defined as the amount of enzyme that catalyzes the production of 1 nmol of 4-MUG from 1 mg of soluble protein per minute. Agrobacterium suspensions containing each recombinant vector were infiltrated into five tobacco leaves or three strawberry receptacles, and the samples were subsequently analyzed for GUS activity. The experiment was independently repeated three times.
The reaction was carried out in a 1 mL reaction mixture containing 1 mM 4-MUG and protein extract, with a total volume of 1 mL. The reaction solution was incubated at 37 °C, and 100 µL aliquots were removed at 10, 20, and 30 min, respectively. Each aliquot was immediately mixed with 900 µL of 0.2 M Na2CO3 to terminate the enzymatic reaction. The fluorescence of the samples was measured at an excitation wavelength of 365 nm using a UV-visible spectrophotometer, and a standard curve was generated. The fluorescence value of the test sample was determined based on the standard curve, and GUS activity was subsequently calculated.

2.8. Identification and Characterization of ARFs in Fragaria

The genome information files of diploid strawberry F. vesca (v4.0.a2) [35] and octoploid strawberry F. × ananassa (v1.0.a1) [36] were obtained from the Genome Database for Rosaceae [37]. The protein sequences of the AtARF gene family were downloaded from TAIR (https://www.arabidopsis.org/) (https://www.arabidopsis.org/) (accessed on 18 September 2022) and used to perform a BLAST (https://blast.ncbi.nlm.nih.gov/Blast.cgi, accessed on 25 November 2025) (E-value 1 × 10-10) search against strawberry genome sequences to obtain Fragaria orthologous genes. Then, through the Pfam database (http://smart.embl-heidelberg.de/) (accessed on 19 September 2022) [38] and Conserved Domain Database [39] in NCBI (http://www.ncbi.nlm.nih.gov/cdd) (accessed on 19 September 2022), we performed an analysis of candidate genes of conservative structure domain Auxin-resp and B3. We removed sequences with a conserved domain integrity < 70%. The physical and chemical parameters of the proteins were calculated using the ProtParam tool (https://web.expasy.org/protparam/) (accessed on 24 February 2023). And motif analysis was performed using MEME Suite [40].

2.9. Phylogenetic Analysis

The miR159 precursor sequences from various plants were obtained from miRbase [41]. These precursor sequences were aligned using MEGA 11 [42], and a phylogenetic tree was constructed based on the Maximum Likelihood method. The ARF protein sequences were also aligned using MEGA 11 [42], and a phylogenetic tree was constructed using the neighbor-joining (NJ) method with 1000 bootstrap replication.

2.10. Analysis of Tissue Expression Patterns of FaARF2b-2

Total RNA was extracted from various strawberry tissues, including the root, stem, leaf, calyx, petal, anther, receptacle, ovary, style, 12 days after pollination (DAP) embryo, endosperm, and seed coat, and it was subsequently reverse transcribed into cDNA. RT-qPCR primers were designed according to the CDS of FaARF2b-2R and FaARF2b-2M, as well as the region encompassing nucleotide sequence differences (Table S1). The EF1-α gene was used as the internal reference gene for strawberry. The expression level of FaARF2b-2 in various strawberry tissues was analyzed using RT-qPCR with the SYBR premix EX TaqTM reagent kit (TaKaRa, Japan). The reaction system and procedure were identical to those described previously [27]. The relative expression of FaARF2b-2 in different tissues was calculated using the 2−∆∆Ct method [30], and all experiments were performed in triplicate.

2.11. Expression Patterns of FaARF2b-2R and FaARF2b-2M Under Abiotic Stress

The ‘Benihoppe’ with uniform growth conditions were subjected to a low temperature (4 °C), 2 mM ABA, drought (300 mM mannitol), and salt (100 mM NaCl), and leaves were collected at specific time points (0 h, 12 h, 24 h, 48 h, 72 h, and 96 h) after treatment initiation. Immediately after collection, samples were flash-frozen in liquid nitrogen and stored at −80 °C for subsequent experimental analysis. The expression patterns of FaARF2b-2R and FaARF2b-2M under various stress treatments were analyzed by RT-qPCR using cDNA from strawberry leaves.

2.12. Statistical Analyses

Each experiment was repeated independently three times. The Statistics Analysis System (SAS) (https://welcome.oda.sas.com/) (accessed on 15 March 2023) was used for the statistical analysis of the data. The mean and standard deviation (SD) of samples were calculated. Significance difference analysis of different groups was performed by two-tailed Student’s t tests. The lowercase letters indicate significant differences at p < 0.05.

3. Results

3.1. Two Classes of miR159 Members in the Embryos and Endosperm of Strawberry

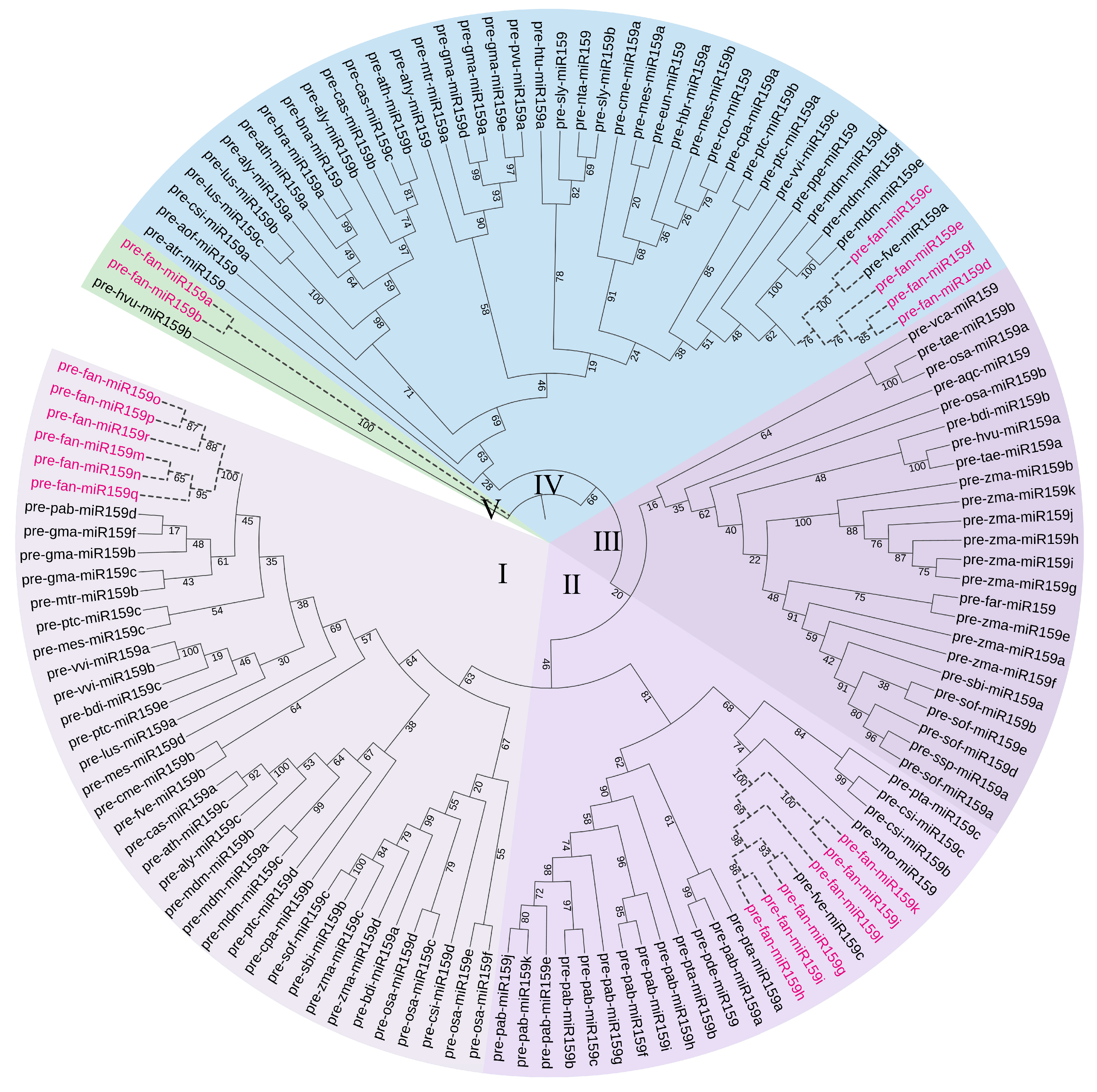

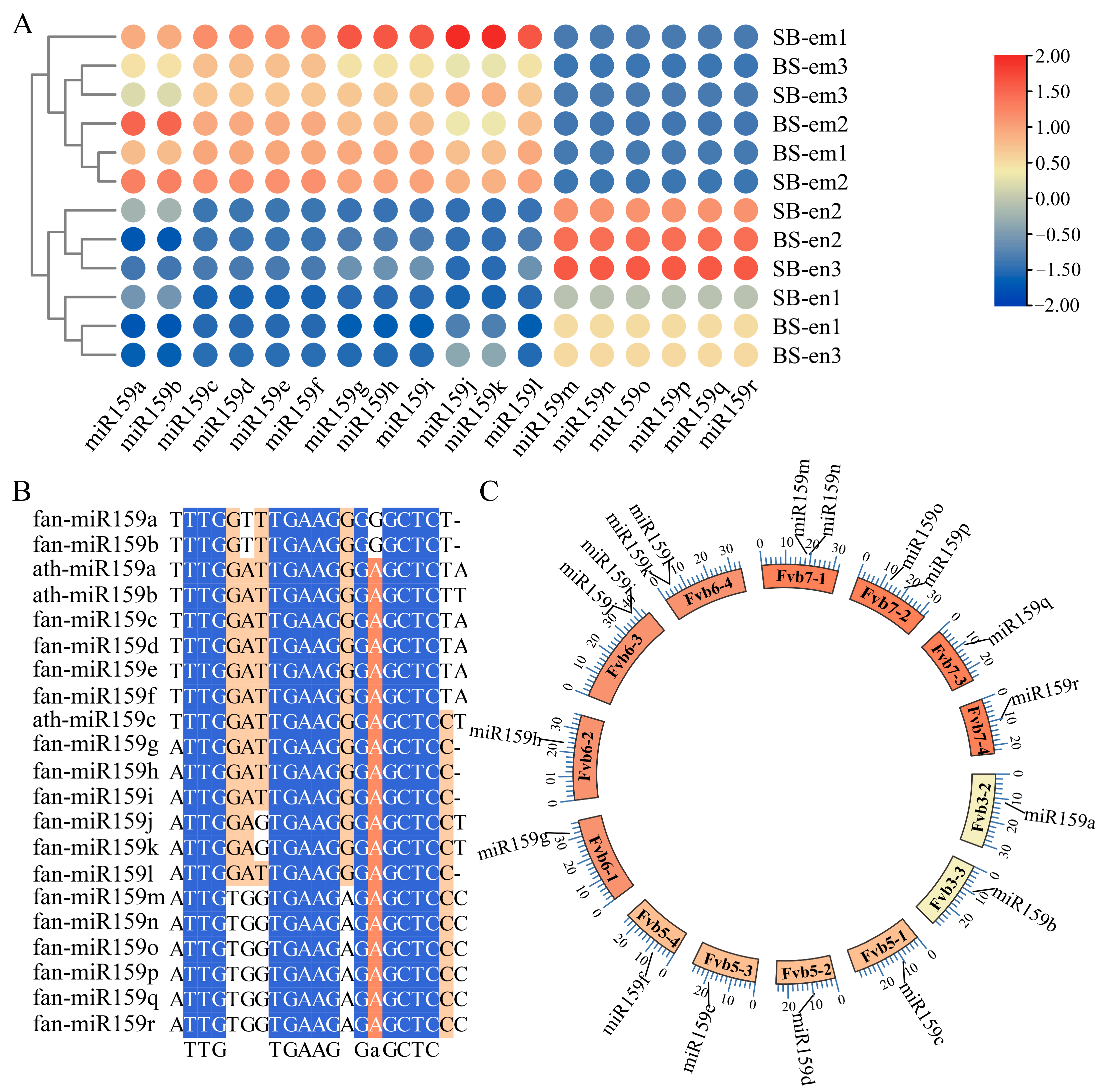

Our previous study identified a total of 18 fan-miR159 members in the embryos and endosperm of strawberry [27]. Among these, 12 members (fan-miR159a/b/c/d/e/f/g/h/i/j/k/l) exhibited high expression levels in embryo tissue and were predicted to target GAMYB family members, whereas the remaining 6 members (fan-miR159m/n/o/p/q/r) displayed endosperm-specific expression and were predicted to target a class of genes annotated as “ARF23-like” in the genome (Figure 1A; Table S2). The mature sequences of fan-miR159c/d/e/f were identical to that of ath-miR159a. However, the six mature miRNAs—fan-miR159m/n/o/p/q/r—which share a common sequence among themselves, differ from other miR159 family members. These differences are particularly evident at nucleotide positions 5–7, 13, and 21 (Figure 1B). The pre-fan-miR159 precursors corresponding to the mature miR159 m/n/o/p/q/r are located on chromosomes 7-1, 7-2, 7-3, and 7-4, respectively, while the other pre-fan-miR159s are located on chromosomes 3-2 and 3-3 (miR159a/b), 5-1, 5-2, 5-3, and 5-4 (miR159c/d/e/f), 6-1, 6-2, 6-3, and 6-4 (miR159g/h/i/j/k/l) (Figure 1C). The secondary stem-loop structures of these pre-fan-miR159 sequences were further predicted using RNAfold (Figure S1). To investigate the evolutionary conservation of the miR159 family, a phylogenetic tree was constructed based on the stem-loop regions using pre-miR159 sequences from various dicotyledonous and monocotyledonous plant species. The resulting tree classified these pre-miR159s into five distinct clades (I–V), with pre-fan-miR159s distributed across clades I, II, IV, and V (Figure 2). In plants, ARF transcription factors are typically targeted by the miR160 (ARF10/16/17/18) and miR167 (ARF6/8/12) families [43,44,45]. Our analysis revealed that, unlike fan-miR159m/n/o/p/q/r, most fan-miR160 and fan-miR167 members exhibited higher expression in the embryo than in the endosperm, with the exception of fan-miR167j/k/l [27]. In summary, these findings are considered intriguing, prompting further investigation.

3.2. The “FaARF23-like” Genes Are Members of FaARF2 Subfamily

ARF23 is a pseudogene in A. thaliana, and its biological function is still unknown [28]. In order to determine the true identity of “ARF23-like” genes in the strawberry, we conducted a comprehensive genome-wide identification of the ARF gene family in both F. × ananassa and the diploid model species F. vesca. The results showed that a total of 17 FvARFs (FvARF1~FvARF18) and 62 FaARFs (FaARF2a-1~FaARF19) were identified in F. vesca and F. × ananassa, respectively (Table S3). These genes were named based on their sequence homology with Arabidopsis ARF genes. Notably, the “ARF23-like” genes from F. × ananassa exhibited high sequence conservation with AtARF2 in Arabidopsis and FvARF2b in F. vesca. Consequently, they were designated as FaARF2b-1, FaARF2b-2, FaARF2b-3, and FaARF2b-4. Like most ARF genes, FaARF2b-1/2/3/4 contain three representative domains: a B3-like DNA-binding domain, an Auxin response domain, and an Aux/IAA dimerization domain (Figure S2). To investigate potential structural differences between FaARF2b members and other ARF2 subfamily members, we conducted a motif analysis and found that, compared with the ARF2a members in F. vesca and F. × ananassa, ARF2b genes lack motif 12 but possess an additional motif 19, with the exception of FvARF2b and FaARF2b-4 (Figure S3). Furthermore, physicochemical property analysis showed that the theoretical pI and grand average of hydropathicity of FaARF2b proteins are higher than those of FaARF2a proteins (Table S4).

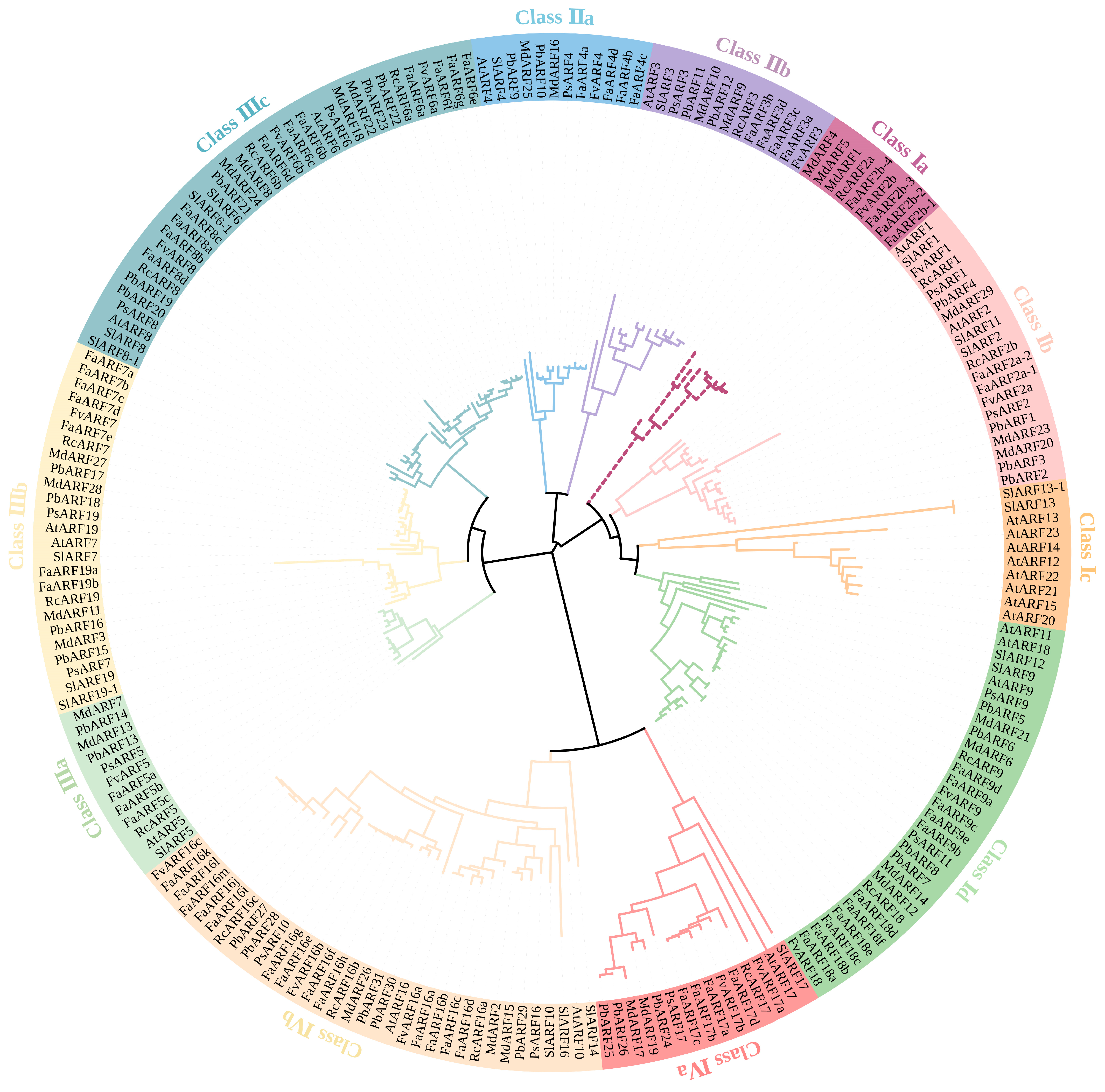

To further determine the identity of these “ARF23” genes, a neighbor-joining phylogenetic tree was constructed using MEGA11 [42] based on the protein sequences of the ARF gene family from multiple species, including A. thaliana [46], tomato [47], castor bean [48], and rosaceous plants—such as apple [49], pear [50], Siberian apricot [51], and strawberry. The phylogenetic analysis revealed that approximately 200 ARF genes were divided into four major classes: Class I, Class II, Class III, and Class IV. Each class included genes from all species analyzed, with Class I containing the highest number of genes (68) and Class II the lowest (25) (Figure 3). Class I was further divided into four subclasses: class Ia, class Ib, class Ic, and class Id. Class II and Class IV were each split into two subgroups, and Class III was divided into three subgroups. The tree indicated that the four “FaARF23-like” genes (FaARF2b-1/2/3/4) belonged to class Ia, which may have similar evolutionary relationships to MdARF1, MdARF4, MdARF5, and RcARF2a.

3.3. Expression Levels of Pre-Fan-miR159a–r in Strawberry

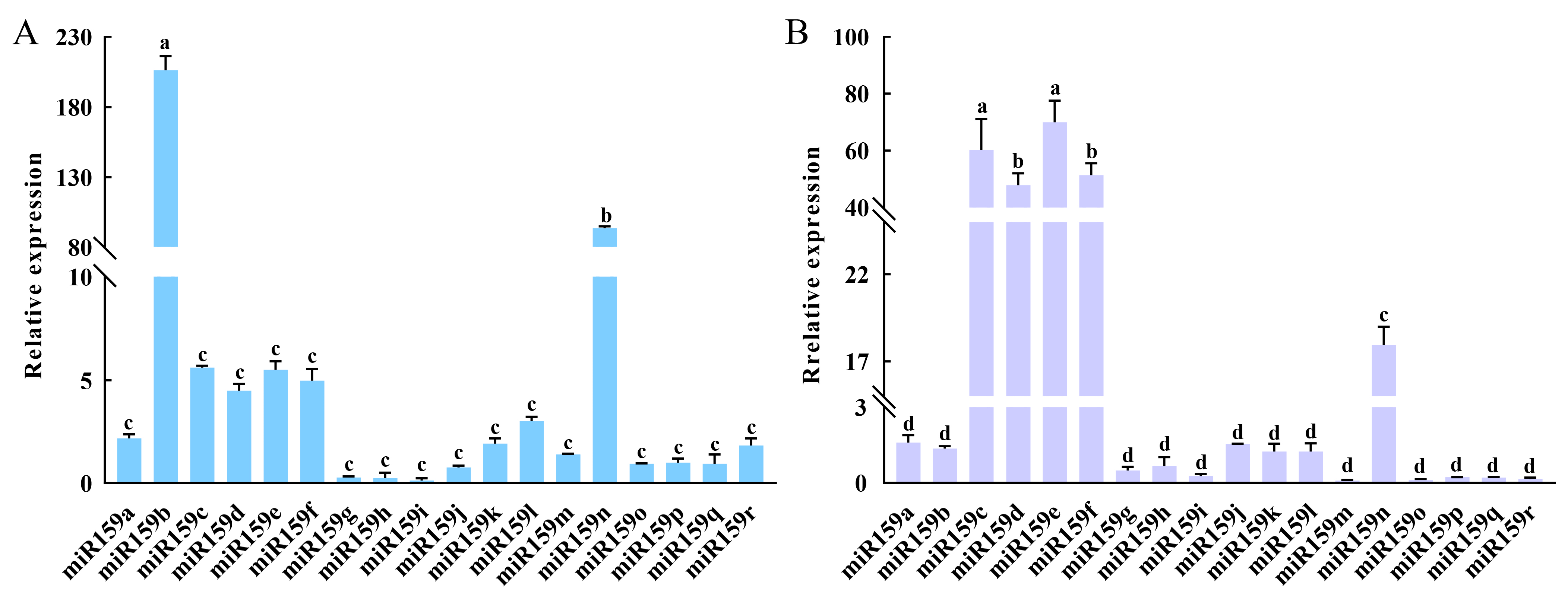

In order to compare the regulation of precursors of all fan-miR159 members based on the expression level of mature fan-miR159 at the transcription level, we employed RT-qPCR to detect the expression levels of miR159a–r precursors in the leaves of two strawberry cultivars, ‘Benihoppe’ and ‘Sweet Charlie’. The results demonstrated that the relative expression levels of fan-miR159b and fan-miR159n were higher in leaves of both ‘Benihoppe’ (Figure 4A) and ‘Sweet Charlie’ strawberries (Figure 4B). This suggests that the precursors of fan-miR159b and fan-miR159n exert stronger regulatory effects on the expression level of mature fan-miR159 in the leaves of these two cultivars compared to other precursors. Therefore, fan-miR159b and fan-miR159n were selected for further research. Additionally, fan-miR159r, which shared the same target genes as fan-miR159n, was also chosen for subsequent studies.

3.4. Cloning of Pre-Fan-miR159 Members and Their Target Genes

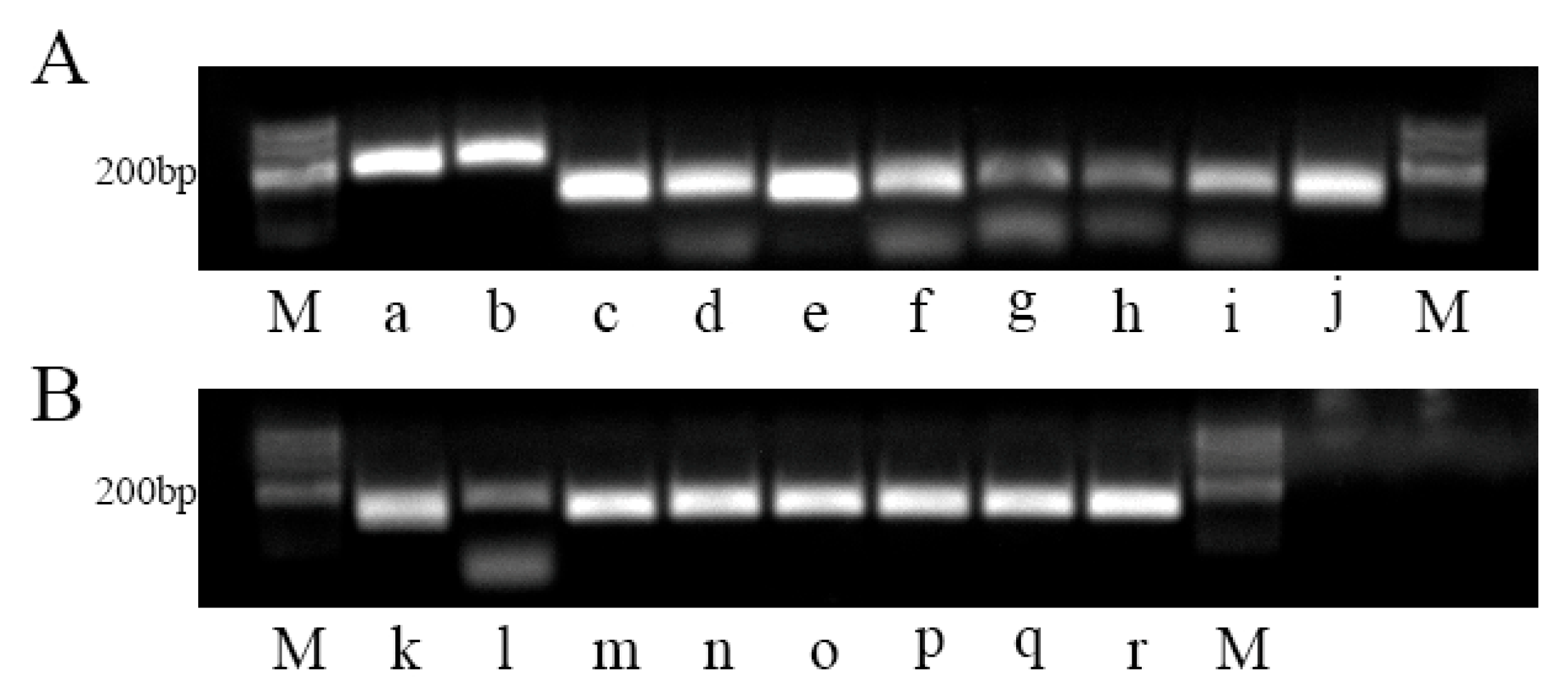

Following PCR amplification and 1.5% gel electrophoresis detection, the precursor fragments of fan-miR159a–r were successfully amplified (Figure 5), including a 302 bp of pre-fan-miR159b and 198 bp fragments for pre-fan-miR159n and pre-fan-miR159r. The PCR products were then ligated into a cloning vector, and Sanger sequencing confirmed that these sequences were consistent with the results of sRNA-seq analysis.
We further compared the expression levels of genes targeted by fan-miR159 members, including fan-miR159b, fan-miR159n, and fan-miR159r. Based on the RNA-seq data from strawberry embryo and endosperm tissues, the result showed that maker-Fvb6-3-augustus-gene-58.39 (FaMYB101) exhibited the highest expression level among the target genes of fan-miR159b (Figure S4A). Meanwhile, maker-Fvb2-4-augustus-gene-182.52 (FaARF2b-2) displayed the highest expression level among the target genes of fan-miR159n and fan-miR159r (Figure S4B). Therefore, FaMYB101 and FaARF2b-2 were cloned for subsequent verification experiments (Figure S4C,D). PCR amplification and Sanger sequencing results confirmed that the CDS sequence of FaMYB101 was consistent with the reference genome. However, during the cloning and sequencing of FaARF2b-2, in addition to obtaining a gene with a 2028 bp sequence identical to the reference genome, we also identified an alternative variant containing three additional bases (TAG). The gene with a sequence length matching the reference genome was designated as FaARF2b-2R, while the variant with the three-base insertion was named FaARF2b-2M.

3.5. Co-Expression of FaMYB101 and Fan-miR159b in Tobacco Leaves

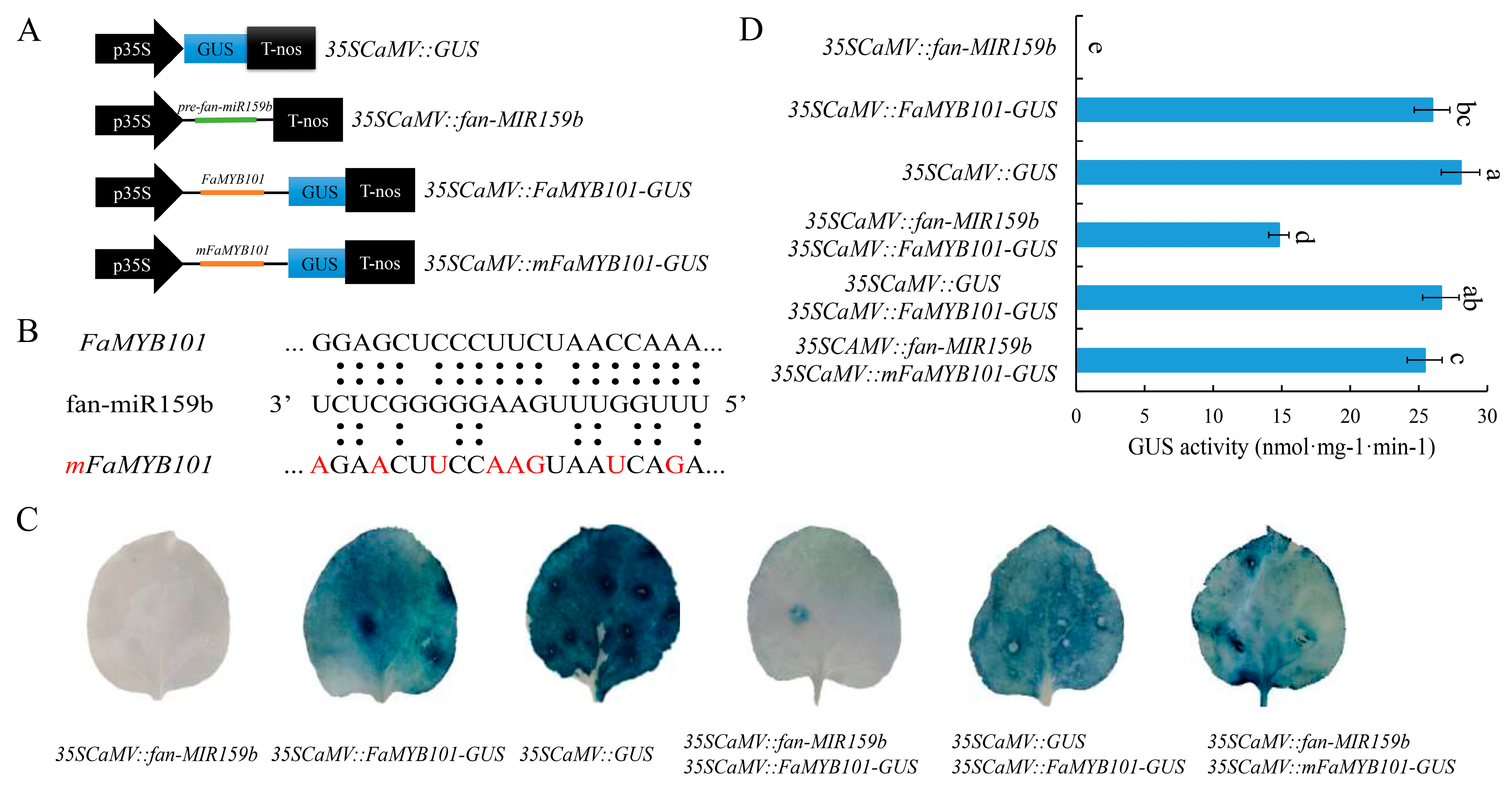

Four recombinant vectors for tobacco co-transformation were constructed: 35SCaMV::GUS, 35SCaMV::fan-MIR159b, 35SCaMV::FaMYB101-GUS, and 35SCaMV::mFaMYB101-GUS (Figure 6A). Among these, synonymous mutations were introduced into the target site of FaMYB101 in the 35SCaMV::mFaMYB101-GUS vector to damage its sensitivity for fan-miR159b (Figure 6B). The constructed recombinant vectors were transformed into Agrobacterium for activation, infiltrated into tobacco leaves, and the GUS gene activity was quantitatively detected by histochemical staining and GUS activity. The results showed that the expression level of the GUS gene was relatively high in the leaves transformed with 35SCaMV::GUS, 35SCaMV::FaMYB101-GUS, and 35SCaMV::mFaMYB101-GUS, but no expression was observed in the leaves transformed with 35SCaMV::fan-MIR159b. The expression of GUS was significantly reduced in the leaves co-transformed with 35SCaMV::fan-MIR159b and 35SCaMV::FaMYB101-GUS, while it was not affected in the leaves co-expressed with 35SCaMV::fan-MIR159b and 35SCaMV::mFaMYB101-GUS or in those co-expressed with 35SCaMV::GUS and 35SCaMV::FaMYB101-GUS (Figure 6C,D). The negative regulatory effect of fan-miR159b on the target gene FaMYB101 was verified through histochemical staining and quantitative GUS activity assays, which was consistent with previous research results [52].

3.6. Co-Expression of Two Transcripts of FaARF2b-2 and Fan-miR159n/r in Tobacco Leaves

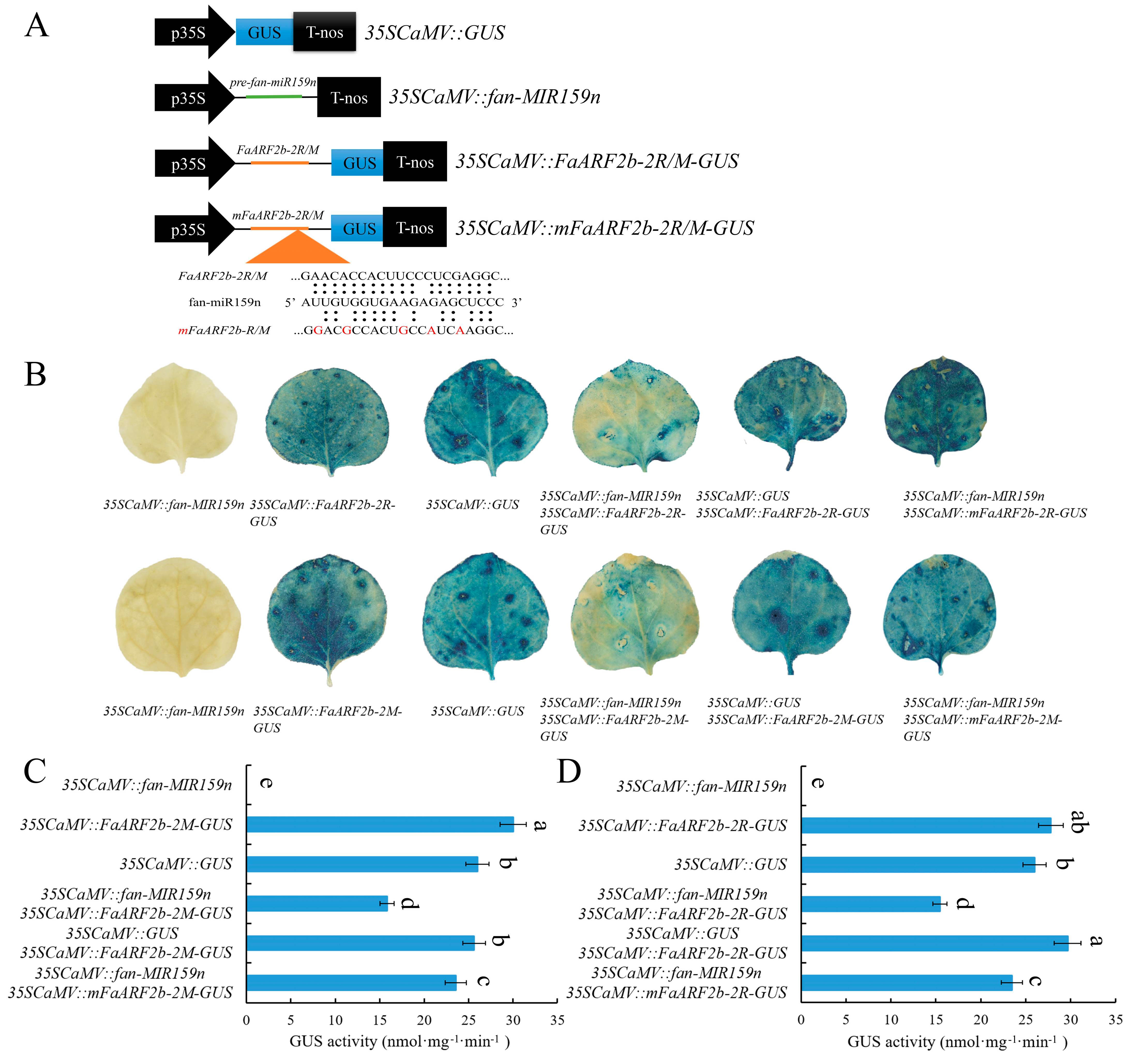

Seven recombinant vectors were constructed to validate the target relationship of two transcript variants of FaARF2b-2 (FaARF2b-2R and FaARF2b-2M) and two miR159 family members (fan-miR159n and fan-miR159r), including 35SCaMV::GUS, 35SCaMV::fan-MIR159n, 35SCaMV::fan-MIR159r, 35SCaMV::FaARF2b-2R-GUS, 35SCaMV::FaARF2b-2M-GUS, 35SCaMV::mFaARF2b-2R-GUS, and 35SCaMV::mFaARF2b-2M-GUS (Figure 7A). Synonymous mutations were introduced into the target sites of FaARF2b-2R and FaARF2b-2M in 35SCaMV::mFaARF2b-2R-GUS and 35SCaMV::mFaARF2b-2M-GUS (Figure 7A). Subsequently, the recombinant vectors were transiently transformed into tobacco leaves, and GUS gene activity was quantitatively assessed by histochemical staining and GUS activity. The results showed that the GUS gene was highly expressed in the leaves transformed with 35SCaMV::GUS, 35SCaMV::FaARF2b-2R-GUS, 35SCaMV::FaARF2b-2M-GUS, 35SCaMV::mFaARF2b-2R-GUS, and 35SCaMV::mFaARF2b-2M-GUS, but was not expressed in leaves transformed with 35SCaMV::fan-MIR159. GUS expression was significantly reduced in leaves co-transformed with 35SCaMV::fan-MIR159n and either 35SCaMV::FaARF2b-2R-GUS or 35SCaMV::FaARF2b-2M-GUS. However, GUS expression remained unaffected when 35SCaMV::fan-MIR159n was co-expressed with 35SCaMV::mFaARF2b-2R-GUS or 35SCaMV::mFaARF2b-2M-GUS, or when 35SCaMV::GUS was co-expressed with 35SCaMV::FaARF2b-2R-GUS or 35SCaMV::FaARF2b-2M-GUS (Figure 7B). GUS activity assays revealed that GUS activity was significantly reduced in the leaves of tobacco that was co-transformed with 35SCaMV::fan-MIR159n and 35SCaMV::FaARF2b-2M-GUS (Figure 7C). Consistent with this, the leaves co-transformed with 35SCaMV::fan-MIR159n and 35SCaMV::FaARF2b-2R-GUS also showed lower GUS activity (Figure 7D). These findings were confirmed by histochemical staining and quantitative GUS activity assays, and similar results were observed for fan-MIR159r (Figure S5). The results clearly demonstrate the negative regulatory effect of fan-miR159n and fan-miR159r on the target genes FaARF2b-2R and FaARF2b-2M.

3.7. Co-Expression of Two Transcripts of FaARF2b-2 and Fan-miR159n/r in the Fruits of Strawberry

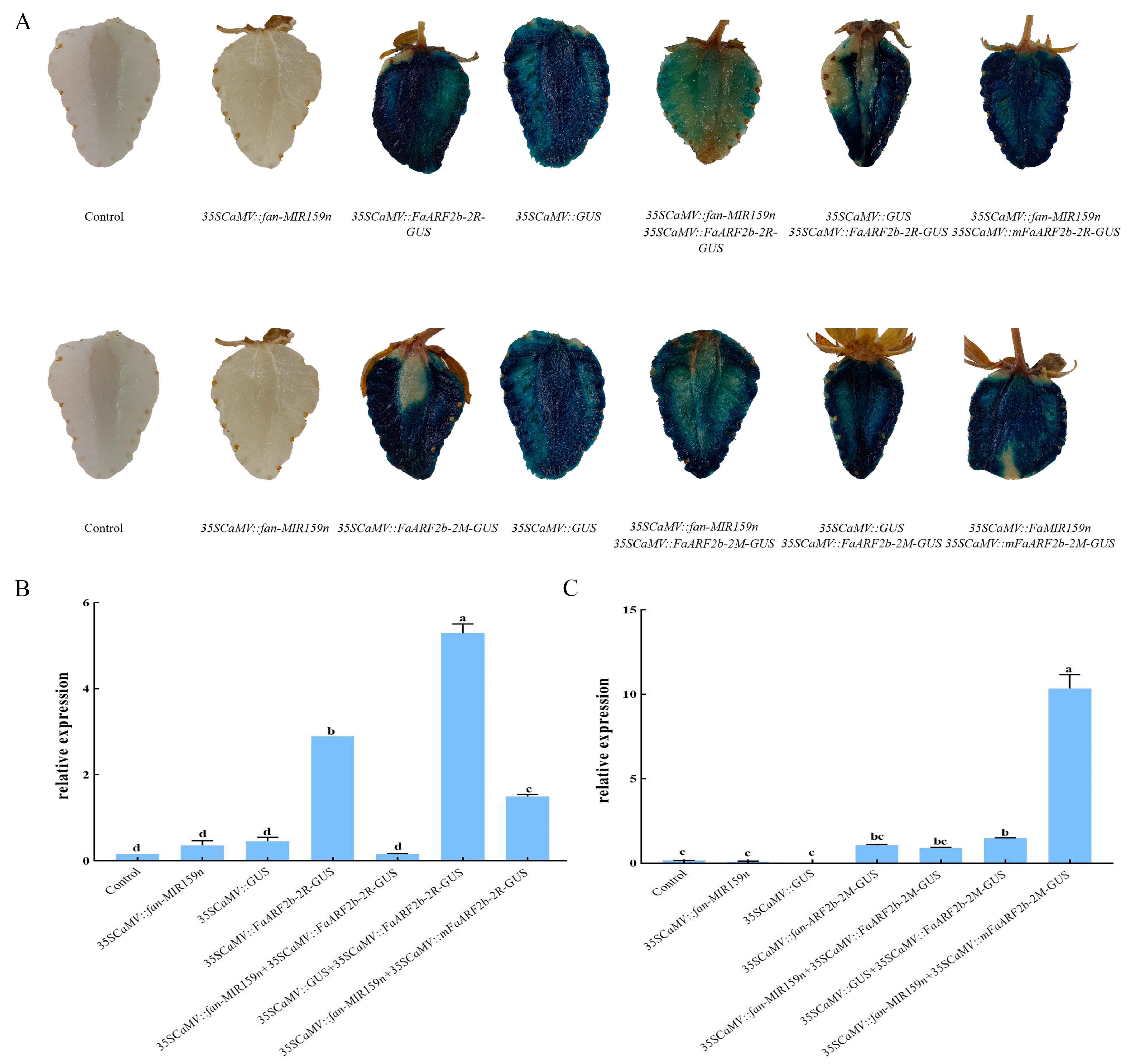

To further validate the regulatory relationships between fan-miR159n/r and their target genes FaARF2b-2R and FaARF2b-2M in strawberry, this study continued to perform co-transformation experiments in the cultivated strawberry ‘Ningyu’. The constructed recombinant vectors were transiently infiltrated into a receptacle, and the GUS gene activity was subsequently detected by histochemical staining and quantitative GUS activity assays. The results (Figure 8A) showed that GUS expression was high in receptacles transformed with 35SCaMV::GUS, 35SCaMV::FaARF2b-2R/M-GUS, and 35SCaMV::mFaARF2b-2R/M-GUS, but was not detected in receptacles transformed with 35SCaMV::fan-MIR159n. And GUS expression was significantly reduced in receptacles co-transformed with 35SCaMV::fan-MIR159n and either 35SCaMV::FaARF2b-2R-GUS or 35SCaMV::FaARF2b-2M-GUS. However, GUS expression remained unaffected in receptacles co-transformed with 35SCaMV::fan-MIR159n and either 35SCaMV::mFaARF2b-2R-GUS or 35SCaMV::mFaARF2b-2M-GUS, or with 35SCaMV::GUS and either 35SCaMV::FaARF2b-2R-GUS or 35SCaMV::FaARF2b-2M-GUS, which was consistent with the results of tobacco co-expression experiments. The results of receptacle co-expression were further confirmed by detecting the expression levels of FaARF2b-2 in receptacles. Total RNA was extracted from infiltrated receptacles of strawberry, and the expression levels of target genes FaARF2b-2R and FaARF2b-2M were detected by using RT-qPCR. The results (Figure 8B,C) showed that FaARF2b-2R and FaARF2b-2M had the weak expression levels in receptacles co-transformed with 35SCaMV::fan-MIR159n and 35SCaMV::FaARF2b-2R-GUS or 35SCaMV::FaARF2b-2M-GUS, as indicated by GUS staining. In contrast, their expression was significantly enhanced in receptacles co-transformed with 35SCaMV::mFaARF2b-2R-GUS or 35SCaMV::mFaARF2b-2M-GUS and 35SCaMV::fan-MIR159n. This was similar to the results observed in receptacles co-transformed with 35SCaMV::fan-MIR159r and either 35SCaMV::FaARF2b-2R-GUS or 35SCaMV::FaARF2b-2M-GUS in strawberry (Figure S6). These finding further confirm the negative regulatory effects of fan-miR159n and fan-miR159r on two target genes, FaARF2b-2R and FaARF2b-2M.

3.8. The Tissue-Specific Expression Patterns of FaARF2b-2R and FaARF2b-2M

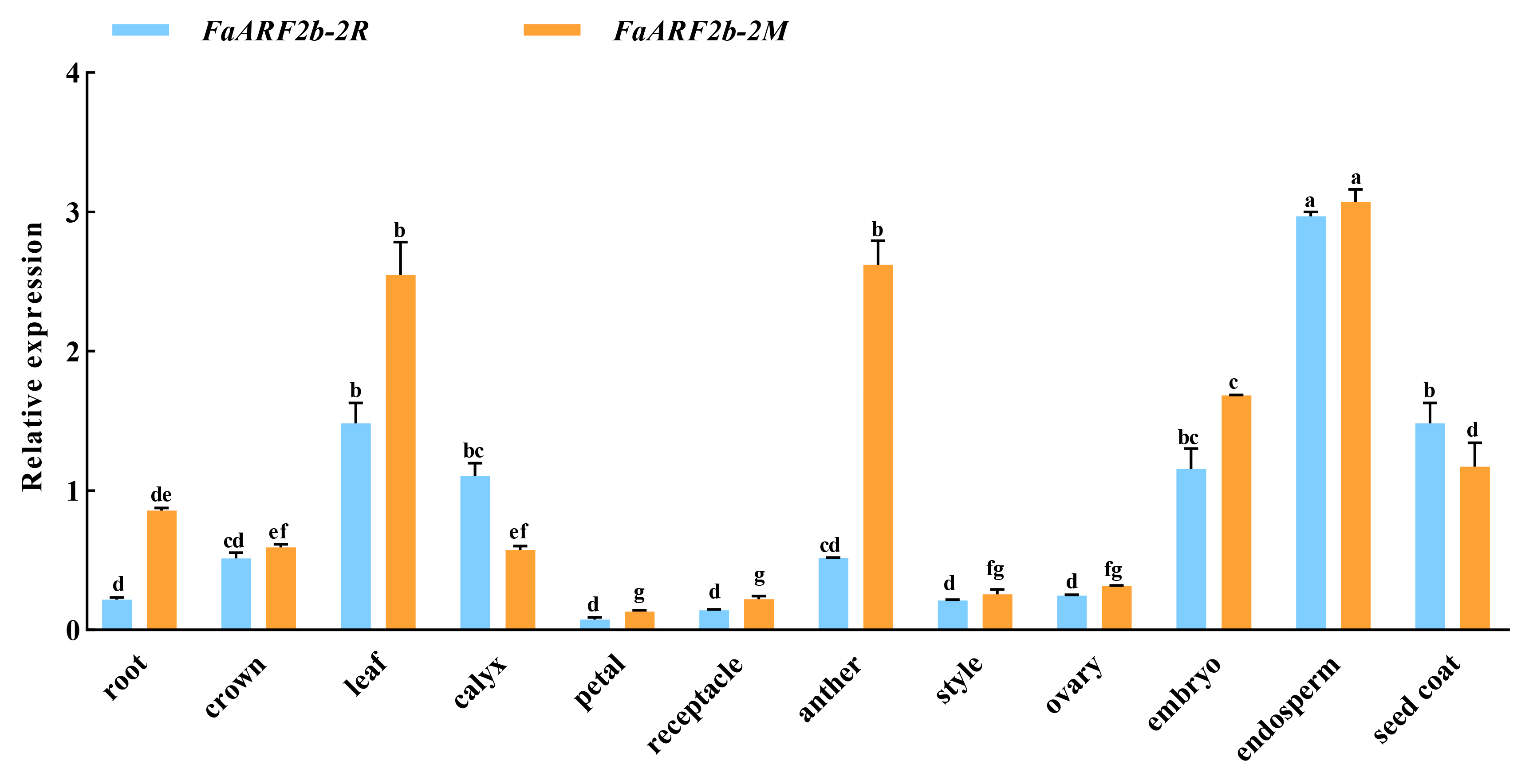

In order to clarify the expression characteristics of FaARF2b-2R and FaARF2b-2M in cultivated strawberry, the relative expression levels of these two transcripts were analyzed by RT-qPCR in various tissues, including the root, short stem, leaves, calyx, petal, anther, receptor, ovary, style, embryo, endosperm, and seed coat from 12 DAP of cultivated strawberry (Figure 9). The results showed that both FaARF2b-2R and FaARF2b-2M were most highly expressed in the endosperm, with FaARF2b-2M exhibiting a higher expression level than FaARF2b-2R. FaARF2b-2R was moderately expressed in the seed coat, leaf, embryo, and calyx, and lowest in petal. FaARF2b-2M showed relatively high expression in the anther, leaf, embryo, and seed coat and the lowest expression in petal. This case showed that two transcripts exhibit distinct tissue-specific expression patterns, and FaARF2b-2M displays higher expression than FaARF2b-2R in several tissues. This differential expression may be attributed to the three-base insertion.

3.9. The Expression Patterns of FaARF2b-2R and FaARF2b-2M After Stress Treatments

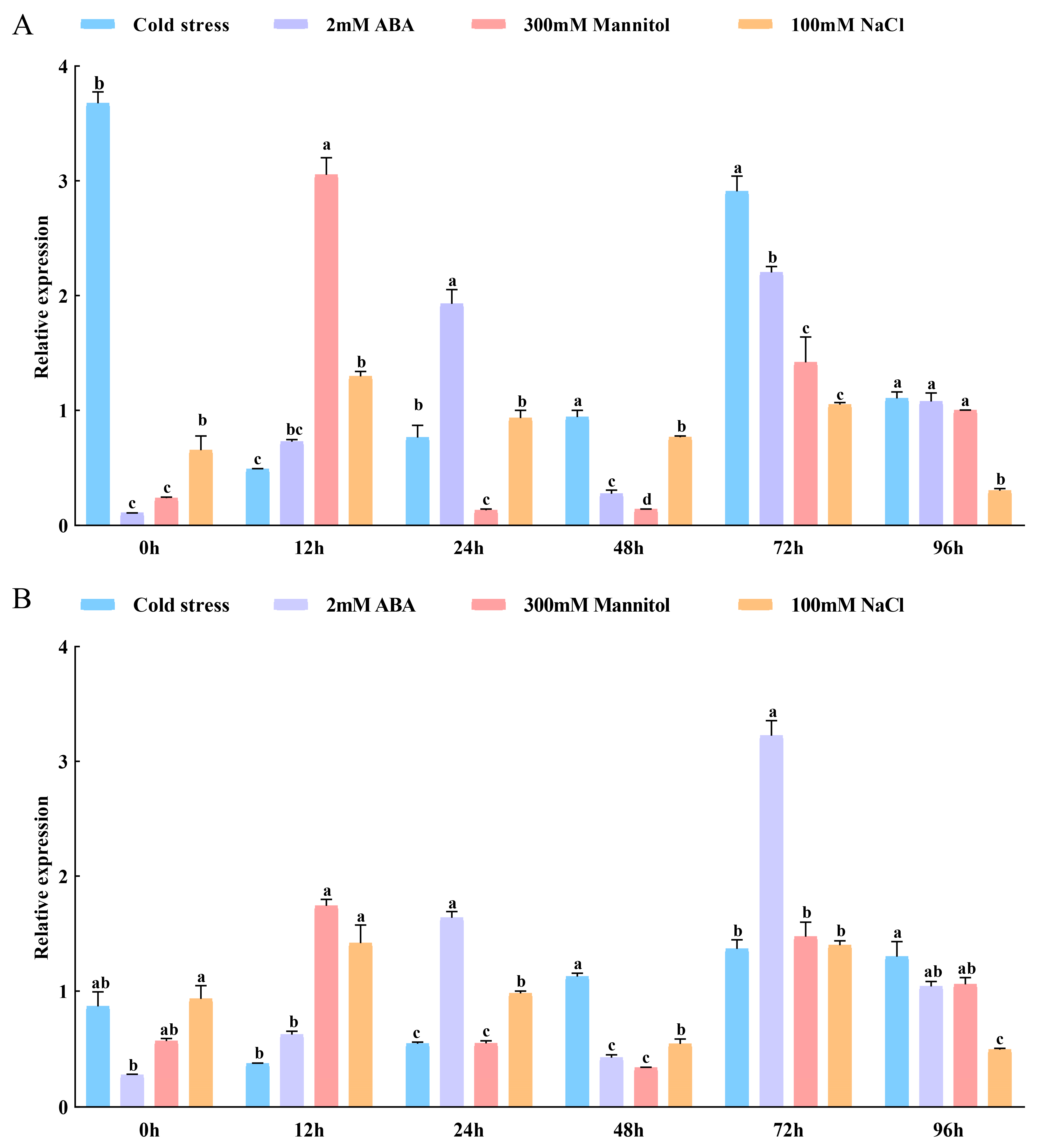

To further investigate the functional characteristics of FaARF2b-2R and FaARF2b-2M, and to explore how the insertion of three bases alters the function of FaARF2b-2R relative to the reference genome, we analyzed the relative expression levels of FaARF2b-2R and FaARF2b-2M in strawberry leaves following stress treatments (Figure 10). The results showed that under low-temperature treatment, both FaARF2b-2R and FaARF2b-2M exhibited a trend of initial downregulation followed by upregulation, and the expression of FaARF2b-2R was significantly affected by low temperature. Oppositely, the expression of FaARF2b-2R showed an initial upregulation followed by downregulation after the ABA treatment. Its expression level reached its peak at 72 h and then declined, but it remained higher than that of the control. This indicates that ABA treatment significantly upregulated the expression level of FaARF2b-2R (Figure 10A). This pattern is also similar to that of FaARF2b-2R after the ABA treatment (Figure 10B). FaARF2b-2R and FaARF2b-2M exhibited the same expression trend after the drought treatment. At 12 h of treatment with 300 mM mannitol, their expression increased and reached the peak. Compared with FaARF2b-2M, FaARF2b-2R was more susceptible to the effects of drought. We also analyzed the effects of salt stress on these two transcripts. RT-qPCR analysis revealed that the effect of salt stress on the expression levels of FaARF2b-2R and FaARF2b-2M was not as significant as that of low-temperature stress, drought stress, and ABA treatment. Based on the above analysis, we speculated that FaARF2b-2 may be involved in regulating processes such as low temperature and drought stress, as well as ABA response.

4. Discussion

4.1. miR159 Family in Plants

MiRNAs are a class of small non-coding RNAs, typically 20–24 nucleotides in length, that are classified into families based on the nucleotide sequences of their mature forms [53,54]. Among these, the miR159 family exhibits a significant size preference for 21-nucleotide sequences and is widely conserved across tracheophyte species [55]. The Arabidopsis miR159 family comprises three members: miR159a, miR159b, and miR159c [56]. These miRNAs are 21 nucleotides long and differ only at their 3′ termini, with a single-nucleotide difference between miR159a and miR159b and two-nucleotide differences between miR159a and miR159c [57]. Previous studies have shown that the size of the miR159 family is influenced by the evolutionary dynamics. For instance, four members of the miR159 family have been identified in Populus ‘Nanlin895′ [58], six in rice [59], and ten and eleven members in Dendrobium officinale [60] and maize [61], respectively. Among these, some members exhibit greater sequence variation, with 3–5-nucleotide differences, a pattern also observed in this study. Of the 18 mature fan-miR159s, fan-miR159a/b, fan-miR159c/d/e/f, fan-miR159g/h/i, fan-miR159j/k, and fan-miR159m/n/o/p/q/r share identical sequences within each group (Figure 1B). We found that fan-miR159c/d/e/f are completely consistent with Arabidopsis miR159a, differing from fan-miR159m/n/o/p/q/r by seven nucleotide variations located at the 5′ and 3′ termini, as well as at the fifth, seventh, and thirteenth positions of the sequence. These sequence variations result in differences in their target gene specificity. To explore the evolutionary relationships of fan-miR159m/n/o/p/q/r, a phylogenetic tree was constructed based on the stem-loop regions of pre-miR159 from a broad range of land plants (Figure 2). The tree showed that the strawberry miR159m/n/o/p/q/r precursors are highly similar, suggesting functional redundancy among them. In addition, these precursors show up closer to pre-pab-miR159d, pre-gma-miR159b/c/f, and pre-mtr-miR159b in the ML tree. We have conducted a comprehensive review of the relevant literature pertaining to these miRNAs, including pab-miR159d [62], gma-miR159b/c/f [63], and mtr-miR159b [64]. However, no predicted target genes were identified within Norway spruce, soybean, and Medicago truncatula. Furthermore, pre-fan-miR159c and pre-fan-miR159g have a closer distance with pre-fve-miR159a and pre-fve-miR159c in the tree, respectively. We found that these miRNAs share identical target genes in F. × ananassa and F. vesca [65], specifically GAMYB-related genes, indicating a high degree of evolutionary conservation among these miRNAs.

4.2. miR159s and Their Targets in Plants

In Arabidopsis, computational predictions suggest that miR159 mainly targets eight MYB genes: MYB33, MYB65, MYB81, MYB97, MYB101, MYB104, MYB120, and MYB125 (DUO1) [66]. These genes contain highly conserved miR159 binding sites and encode conserved GAMYB-like genes of transcription factors, with the exception of DUO1 [67]. Silencing efficacy assays have shown that MYB81, MYB97, MYB101, MYB104, and DUO1 are poorly silenced, whereas MYB33 and MYB65 are potently silenced [68]. The miR159:GAMYB regulatory module has been experimentally validated in various plant species, including Arabidopsis [52,69,70], soybean [71], cotton [72], tobacco [73], polar [58], as well as horticultural plants such as orchids [74], gloxinia [75], peach [76], and tomato [77]. The functional role of this module has been extensively studied and is known to be involved in the male reproductive ability, seed development, vegetative growth, and flowering-time control [20]. In Arabidopsis, functional redundancy exists between MYB33 and MYB65, based not only on their high sequence similarity and identical expression patterns in flowers but also on the absence of phenotypic alterations in either single mutant [18]. A similar pattern is observed for miR159a and miR159b, where MIR159a and MIR159b have similar expression patterns consistent with MYB33 repression, and only the mir159ab double mutant exhibits pleiotropic development defects, including stunted growth, curled leaves, and reduced apical dominance [70]. The miR159:MYB33 module can also promote drought tolerance and is correlated with the accumulation of the osmoprotective compounds proline and putrescine in tomato [78]. Moreover, recent studies have shown that this module, in conjunction with ABA signaling pathway, regulates adventitious rooting in poplar [58] and bud dormancy in apple [79].
In addition to the canonical GAMYB targets, miR159 also recognizes additional non-canonical targets. For instance, SGN-U567133, which is unrelated to MYB genes and contains a NOZZLE-like domain, has been shown to be post-transcriptionally regulated by miR159 in the tomato leaf and flower development [23]. A non-canonical target of miR159, CKX6, was uncovered in rose, where the miR159-RhCKX6 module regulates the duration of the cell division phase by modulating cytokinin catabolism in petals [24]. In this study, we also identified additional targets of miR159 that belongs to the AFR gene family. To confirm these candidate targets, we further investigated the case that the suppression of FaARF2b-2 expression by fan-miR159n and fan-miR159r in both tobacco and strawberry (Figure 7 and Figure 8). However, the transient overexpression experiments do not provide direct evidence supporting the targeted relationship between fan-miR159 and FaARF2b-2. The 5′ RNA ligase-mediated rapid amplification of cDNA ends (5′ RLM-RACE) assay is a key method for identifying miRNA-directed target cleavage sites and has been widely regarded as the standard approach for validating authentic miRNA–mRNA interactions [80]. We made multiple attempts to perform this assay; however, it was unsuccessful, likely due to the unique characteristics of endosperm tissue. Therefore, additional experiments are required to further confirm this targeting relationship, such as degradome sequencing and silencing FaARF2b-2 via a virus-induced gene silencing (VIGS) approach. Furthermore, what regulatory role does the miR159n/r-FaARF2b-2 module play in strawberry development, and which downstream genes are affected during this regulatory process? These are intriguing scientific questions that warrant further investigation. In subsequent research, it is imperative to establish VIGS and overexpression lines of miR159 and FaARF2b-2 in strawberries to elucidate these mechanisms.

4.3. Two Transcripts of FaARF2b-2 May Play Different Roles in the Development of Strawberry

In this study, two mRNA isoforms of the FaARF2b-2 gene were detected in cultivated strawberry. Polyploidy and alternative splicing greatly contribute to producing multiple transcript isoforms in eukaryotes [81]. F. × ananassa is an allo-octoploid derived from spontaneous hybrids [82]. Previous studies have shown that 7204 genes have five or more splice isoforms in F. × ananassa, with the gene06434-FvARF2 protein-coding locus giving rise to 34 transcripts [83]. Due to gene expression redundancy associated with polyploidy, we examined the expression patterns of FaARF2b-2R and FaARF2b-2M across various strawberry tissues (Figure 9). The results showed that FaARF2b-2R and FaARF2b-2M exhibit a similar expression pattern, with higher expression levels observed in leaf and seed-related tissues, such as the embryo, endosperm, and seed coat. In Arabidopsis, three arf2 insertion mutants exhibit similar pleiotropic developmental phenotypes, including an enlarged leaf size, elongated and thickened inflorescence stems, abnormal flower morphology, sterility, delayed senescence, delayed abscission, etc. [84]. Therefore, we speculate that the strawberry ARF2 may also possess similar functions. In addition, FaARF2b-2M exhibits significantly higher expression levels in the anther compared to FaARF2b-2R, suggesting a potentially important role of FaARF2b-2M in male reproductive development. Moreover, the expression levels of both FaARF2b-2M and FaARF2b-2R increased following ABA treatment, indicating that ABA may promote the expression of FaARF2b-2 (Figure 10). However, previous studies have shown that ARF2 acts as a negative regulator in the ABA response pathway, controlling seed germination and primary root growth [85]. Consequently, the function of FaARF2b-2 will be a focus of our further research.
In general, this study validates previous findings that the miR159 family likely targets two classes of genes, GAMYBs and ARFs, in strawberry. We have initially demonstrated the targeting relationship between fan-miR159 and FaARF2b-2 and have preliminarily characterized the functional role of FaARF2b-2.

5. Conclusions

This study reveals that certain members of the miR159 family in cultivated strawberry target genes belonging to the ARF2b subfamily, rather than ARF23-like genes as previously annotated. The target gene FaARF2b-2 generates two distinct transcripts, which potentially have functions in the development of the anther and endosperm, as well as mediating positive responses to stress treatments in strawberry. These findings not only enhance our molecular understanding of the miR159-ARF2b-2 module in strawberry but also expand the known functional scope of this conserved miRNA family. Moreover, they provide initial insights into the biological roles of FaARF2b-2.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/horticulturae11121443/s1, Figure S1: The stem-loop structures of pre-fan-miR159 were predicted by the RNA fold; Figure S2: Conserved domain of ARF gene family in strawberries, F. vesca (A) and F. × ananassa (B); Figure S3: Motif analysis of ARF proteins in strawberries; Figure S4: Cloning and expression patterns of fan-miR159 target genes in strawberry. (A) The expression pattern of target genes of fan-miR159b. (B) The expression level of target genes of fan-miR159n and fan-miR159r. (C) The CDS sequence of FaMYB101 was cloned by PCR amplification. M, GeneRuler 5000 bp DNA ladder. (D) FaARF2b-2 was cloned by PCR amplification, M, GeneRuler 5000 bp DNA ladder; Figure S5: Fan-miR159r targets two transcripts of FaARF2b-2. (A) Recombinant vectors were constructed for the co-transformation in leaves of tobacco. (B) GUS staining of tobacco leaves. (C) GUS activity in the leaves of tobacco was used to the target relationship of fan-miR159r and FaARF2b-2M. (D) GUS activity in the leaves of tobacco was used to the target relationship of fan-miR159r and FaARF2b-2R; Figure S6: The co-expression of two transcripts of FaARF2b-2 and fan-miR159r in strawberry fruits. (A) Co-transformation the FaARF2b-2R and fan-miR159r in the receptacles of strawberry. (B) Co-transformation the FaARF2b-2M and fan-miR159r in the receptacles. (C) Expression pattern of FaARF2-2R and FaARF2-2M in strawberry receptacles; Table S1: The primers in this study; Table S2: The fan-miR159 members and their candidate target genes; Table S3: Basic information on ARF family genes in Fragaria vesca and Fragaria × ananassa; Table S4: Physical and chemical parameters of ARF proteins in Fragaria.

Author Contributions

Conceptualization, X.J., X.H. and Y.Q.; methodology, X.J. and X.H.; software, X.J. and X.H.; validation, X.J., X.H. and Q.A.; formal analysis, X.J. and X.H.; investigation, C.N., E.W. and Y.Q.; resources, X.J., Q.Z. and Y.Q.; data curation, X.J. and X.H.; writing—original draft preparation, X.J.; writing—review and editing, X.J., Q.Z. and J.L.; visualization, X.J. and X.H.; supervision, Y.Q.; project administration, H.Y. and Y.Q.; funding acquisition, Y.Q. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China, grant numbers 62402088 and 32472696, and the project of the Biological Breeding Laboratory for Seed Industry Research, grant numbers ZSBBL-KY2023-08 and ZSBBL-KY2024-03.

Data Availability Statement

The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding authors.

Acknowledgments

We thank Pinyu Zhu (College of Horticulture, Nanjing Agricultural University, China) for his help and support.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
5′ RLM-RACE5′ RNA ligase-mediated rapid amplification of cDNA ends
AGOArgonaute
ARFAuxin Response Factor
cDNAcomplementary DNA
CDScoding regions
CKX6Cytokinin Oxidase/Dehydrogenase6
DAPdays after pollination
GAMYBencode gibberellin-induced MYB
miRNAmicroRNA
MUGmethylumbelliferyl-β-D-glucuronide
SAMshoot apical meristem
