Robotic Cell Printing for Constructing Living Yeast Cell Microarrays in Microfluidic Chips

Abstract

Living cell microarrays in microfluidic chips allow the non-invasive multiplexed molecular analysis of single cells. Here, we developed a simple and affordable perfusion microfluidic chip containing a living yeast cell array composed of a population of cell variants (green fluorescent protein (GFP)-tagged Saccharomyces cerevisiae clones). We combined mechanical patterning in 102 microwells and robotic piezoelectric cell dispensing in the microwells to construct the cell arrays. Robotic yeast cell dispensing of a yeast collection from a multiwell plate to the microfluidic chip microwells was optimized. The developed microfluidic chip and procedure were validated by observing the growth of GFP-tagged yeast clones that are linked to the cell cycle by time-lapse fluorescence microscopy over a few generations. The developed microfluidic technology has the potential to be easily upscaled to a high-density cell array allowing us to perform dynamic proteomics and localizomics experiments.

1. Introduction

Cell assays have been miniaturized by growing cells in multiwell plates with increasing well number from 96 to 384 and 1536 wells and decreasing well volume from 280 µL down to 3 µL. These experiments are typically integrated in a robotic analysis platform. Major drawbacks of robotic platforms are the expense of the instrumentation, the cost of experimental consumables, closed systems (batch growth), and still relative medium throughput compared to recently developed microfluidic chips. As cell collections grow, further miniaturization of cell assays is needed to increase parallelism of the analyses. Cell microarrays provide an attractive solution, as they could increase the throughput significantly [1,2,3]. A cellular microarray consists of a solid support wherein small volumes of different biomolecules and cells can be displayed in defined locations, allowing the multiplexed interrogation of living cells and the analysis of cellular responses [4,5]. Living cell microarrays have been combined with microfluidic bioreactors, which provide multiple advantages for multiplex dynamic analyses and high-throughput screening [4,6]. Cellular arrays are emerging as important tools for functional genomics, drug discovery, toxicology, and stem cell research [4,7,8]. A major advantage of cell microarrays over microtiter plates is the opportunity to measure parameters on hundreds of individual single cells and average them, instead of measuring the parameters of a whole cell population. An interesting application where living yeast cell arrays are used is “dynamic proteomics” in which living cell microarrays using a fluorescent protein (e.g. GFP)-tagged yeast clone collection and automated time-lapse microscopy is used for the rapid acquisition of in vivo quantitative data about the dynamic proteome and protein subcellular localization (“localizomics”). This enables the identification of members of protein complexes and coregulated proteins, and the unravelling of signaling pathways such as exposure to stress compounds, antimicrobials, or mating conditions [9,10,11,12,13].

Mechanical cell patterning, where mechanical barriers capture the cells at specified spots, has been frequently used to create cellular microarrays [14] in microfluidic chips. Yeast cells have been mechanically patterned in (single-cell) microwells [15,16], microchambers [17,18], and mechanical trap barriers [19,20,21]. As for the creation of classical DNA microarrays, a fluid-dispensing device can be used to spot or “print” living cells in an array format [4]. Dispensing techniques are categorized as contact and non-contact dispensing [22,23]. Robotic contact printing (e.g. printing DNA microarrays) was initially used to print cells on a semi-solid agar growth medium [24]. Today, mostly non-contact-based devices are used to produce living cellular arrays [25,26,27,28]. Here, the fluid is ejected as a flying droplet or jet toward the surface from a short distance. One concept of non-contact printing is based on syringe–solenoid-driven printers, where a reservoir and a high-speed microsolenoid valve are connected to a high-resolution syringe [29,30]. Typically, droplet volumes of 10 to 20 nanoliter are the lower dispensing limit. Another concept is piezoelectrical dispensing, where a technology similar to the one used in an ink-jet printer is used [31,32]. A piezo actuator is fixed around a glass capillary close to the end of the tip. The squeezing of the capillary forced by the piezo actuation induces droplet ejection out of the capillary. The fast response time of the piezoelectric crystal permits fast dispensing rates (kHz range), and the small deflection of the crystal generates droplets from tens of picoliters to a few nanoliters. Robotic cell printing can be used to easily create a living cell microarray composed of a clone collection and at a positional xy accuracy of a few micrometer.

Here, we developed a perfusion microfluidic chip containing a living GFP-clone collection that can be used to perform dynamic proteomics and localizomics experiments and demonstrate its performance. We combined mechanical patterning and robotic cell printing to produce living cell arrays. Soft lithography was used to create a 102-microwell array in the epoxy resin SU-8 (Structured by UV-8) on top of a glass coverslip substrate. A commercial microchannel top plate was used to close the microfluidic chip. Piezo dispensing was optimized for the development of living yeast cell arrays in microfluidic chips. We demonstrated that a clone collection can successfully be printed into the microwell array and yeast cells can be grown in the microwells in continuous mode. Finally, time-lapse fluorescence imaging was performed using 6 selected GFP-tagged clones demonstrating that the approach is suitable to perform dynamic analyses of protein expression and protein localization in living cells.

2. Materials and Methods

2.1. Yeast Strain and Media

Clones from the S. cerevisiae Yeast GFP Clone Collection (ThermoFisher Scientific, Waltham, MA, USA) were used [33]. We selected 34 clones linked to the cell cycle (Table S1) and revived them from the cryo-stock on YPD-agar plates (yeast extract 10 g/L, peptone 20 g/L, dextrose 20 g/L, agar 15 g/L). Single colonies were then transferred to liquid cultures in Synthetic Complete (SC) medium supplemented with 2% (m/v) glucose. The yeast cells were grown overnight in a shaking incubator at 170 rpm and 30 °C. Prior to cell printing, the cultures were diluted in Phosphate Buffered Saline (PBS) to an optical density at 600 nm (OD₆₀₀) of 0.5.

2.2. Fabrication of the Microwell Substrate and the Microfluidic Chip

The microfluidic chip consists of two parts: a bottom glass slide with SU-8 microwells and a top plate containing a microfluidic channel with in- and outlet ports (Figure 1). The microwell substrate was produced in-house whereas the top plate was obtained commercially (sticky-Slide I 0.4 Luer, Ibidi, Gräfelfing, Germany). Microwells were fabricated by SU-8 photolithography on glass coverslips. Glass coverslips (75 × 25 mm, thickness of 170 µm; Ibidi, Gräfelfing, Germany) were cleaned in acetone (Carl Roth, Karlsruhe, Germany) and 2-propanol (Carl Roth, Karlsruhe, Germany) for 15 minutes each, then rinsed with ultrapure water and finally blow-dried. The glass slides were then exposed to air plasma at 100 W, 50 kHz, for 5 minutes (Plasma System Cute, Femto Science, Dongtangiheung-Ro, Korea). The negative photoresist SU-8 2050 (Kayaku Advanced Materials, Westborough, MA, USA) was spin-coated onto the glass slides at 3500 rpm for 30 seconds in order to reach an approximative thickness of 50 µm. Next, the SU-8 was soft-baked for six minutes at 95 °C on a hot plate. The SU-8 slides were then aligned with the photomask (film photomask, Selba, Versoix, Switzerland) in the mask aligner UV-KUB3 (Kloé, Saint-Mathieu-de-Tréviers, France) and illuminated with 365 nm ultraviolet (UV) light (intensity of 35 mW/cm²) for 10 seconds. Following UV exposure, the SU-8 slides were post-baked for six minutes at 95 °C on a hot plate. Finally, the slides were treated with SU-8 developer for seven minutes and next washed with 2-propanol and blow-dried. The dimensions of the wells were then evaluated by optical microscopy (Nikon Eclipse Ti2, Nikon, Tokyo, Japan) with a 10x objective (for the diameter and pitch distance) and with a 3D profilometer (Profilm 3D, Filmetrics, San Diego, CA, USA) for the well’s depth. The microfluidic chip was assembled by pressing the sticky top plate (sticky-Slide I 0.4 Luer, Ibidi, Gräfelfing, Germany) to the microwell substrate.

2.3. Cell Printing

Cell printing was performed using a non-contact iTWO-400 dispenser (M2 Automation, Berlin, Germany) (Figure S2a). The printer is established in an environmental enclosure for live cell printing that contains a HEPA filter and recirculating air is sterilized with a UV lamp. The environmental temperature can be controlled as well as the relative humidity. Moreover, the instrument deck contains a cooling system for source plates and target plates with dew point control, which prevents evaporation during spotting. Samples to be printed are manually dispensed in 384-multiwell plates (ShallowWell 384-multiwell plate, Thermo Fischer Scientific, Waltham, MA, USA), which are then mounted onto the “source plate” locations of the robot (Figure S2a). Likewise, the substrate to be printed is mounted onto the “target plate” locations of the robot (Figure S2a). The actual printing is performed with a piezo dispenser made of a borosilicate glass capillary surrounded by a piezo ceramic actuator (PDMD, M2 automation, Berlin, Germany), which is able to shoot pico- to nanoliter droplets at high frequency with high volume and position accuracies. Finally, the instrument deck is also equipped with a wash station, which enables to clean the tip of the piezo dispenser after sample aspiration and sample printing, in order to avoid cross-contamination. A typical printing run consists in aspirating the sample to be printed from the “source plate”, washing the outside of the tip to get rid of contaminants that could impair the shooting, shooting the sample at its desired position on the “target plate” and finally dispensing the remaining sample at the washing station and washing the outside of the tip so that it is cleaned for the next sample. Each step of this procedure can be specified in the software controlling the robot. Additionally, the robot is equipped with a camera annexed to the piezo dispenser, which enables us to verify the successful printing of the samples.

Ultrapure water was printed with a pulse duration of 15 µs and an amplitude voltage of 75 V. The environmental temperature was around 28 °C, the relative humidity was controlled at 50% and the temperature of the target plate was at 15 °C. These parameters were maintained throughout each of the cell printing experiments. For optimization purposes, ultrapure water was printed on standard glass coverslips (24 × 24 × 0.17 mm) and in microwells of commercial nanotiter plates (Microfluidic ChipShop, Jena, Germany) made of the cyclo-olefin copolymer material Topas.

Prior to cell printing, the SU-8 microwells were coated with a solution of concanavalin A (Con A) (Con A from Canavalia ensiformis, Sigma Aldrich, Overijse, Belgium) at 2 mg/mL in H₂O, with 5 mM CaCl₂ and 5 mM MnSO₄. Sixty drops of Con A were printed per well with the parameters mentioned above and were left to incubate for 15 minutes before being allowed to dry.

Yeast suspensions were prepared at an OD₆₀₀ of 0.5 in PBS and 40 droplets were printed into each well with the parameters mentioned above. Multiple yeast suspensions were successively printed in different wells of the microfluidic chip. Therefore, the piezo dispenser was thoroughly washed between each sample to avoid cross-contamination. The washing procedure consisted in first discarding the old sample by ejecting 30 µL of liquid at a flow rate of 30 µL/s using the syringe pump and next, flushing the outside of the piezo dispenser with ultrapure water for five seconds at the wash station. The yeast cells were left to sediment for 10 minutes. The microfluidic chip was closed and connected to a syringe filled with SC medium via silicone tubing. SC medium was gently perfused into the channel of the microfluidic chip with a syringe pump (KD Scientific, Holliston, MA, USA) at a flow rate of 25 µL/min. Finally, the complete set-up (microfluidic chip and syringe pump) was installed on a microscope for direct imaging or kept at 4 °C overnight to image the next day.

2.4. Microscopy

The microfluidic chip and syringe pump set-up were installed on a Nikon Eclipse Ti2 epifluorescence microscope (Nikon, Tokyo, Japan) for time-lapse imaging. The microfluidic chip was inserted into a temperature-controlled chamber (Ibidi, Gräfelfing, Germany), which was mounted onto an automated scanning stage (ProScan III, Prior Scientific Instruments, Cambridge, United Kingdom). The syringe pump was placed next to the microscope and the syringe was covered with a syringe heater (New Era Pump Systems, Farmingdale, NY, USA). Both the temperature controller and the syringe heater were set at 30 °C for the duration of the time-lapse experiments.

For the growth experiment with 34 clones, bright field images of yeasts were acquired every 20 minutes, for 18 hours with a 20x objective. At the final time point (18 h), the yeasts were also imaged with a 60x objective in bright field and fluorescence. The GFP fluorescence was observed by exciting the sample with a LED light source (pE-300^white, CoolLED, Andover, United Kingdom) and detecting it through a FITC filter. For the growth experiment with six clones, the yeasts were imaged in bright field and fluorescence and images were recorded every 30 minutes for three hours using a 60x objective.

2.5. Image Processing

Images acquired by the camera of the iTWO-400 dispenser were post-processed using Fiji [34]. More precisely, they were stitched together to form the pictures shown in Figure 2, Figure 3, and Figure 4 using the “Grid/Collection Stitching” plugin [35]. The bright field and GFP-fluorescent pictures were also processed with Fiji for background correction and manual stack alignment.

3. Results

3.1. Construction of the Microfluidic Chip

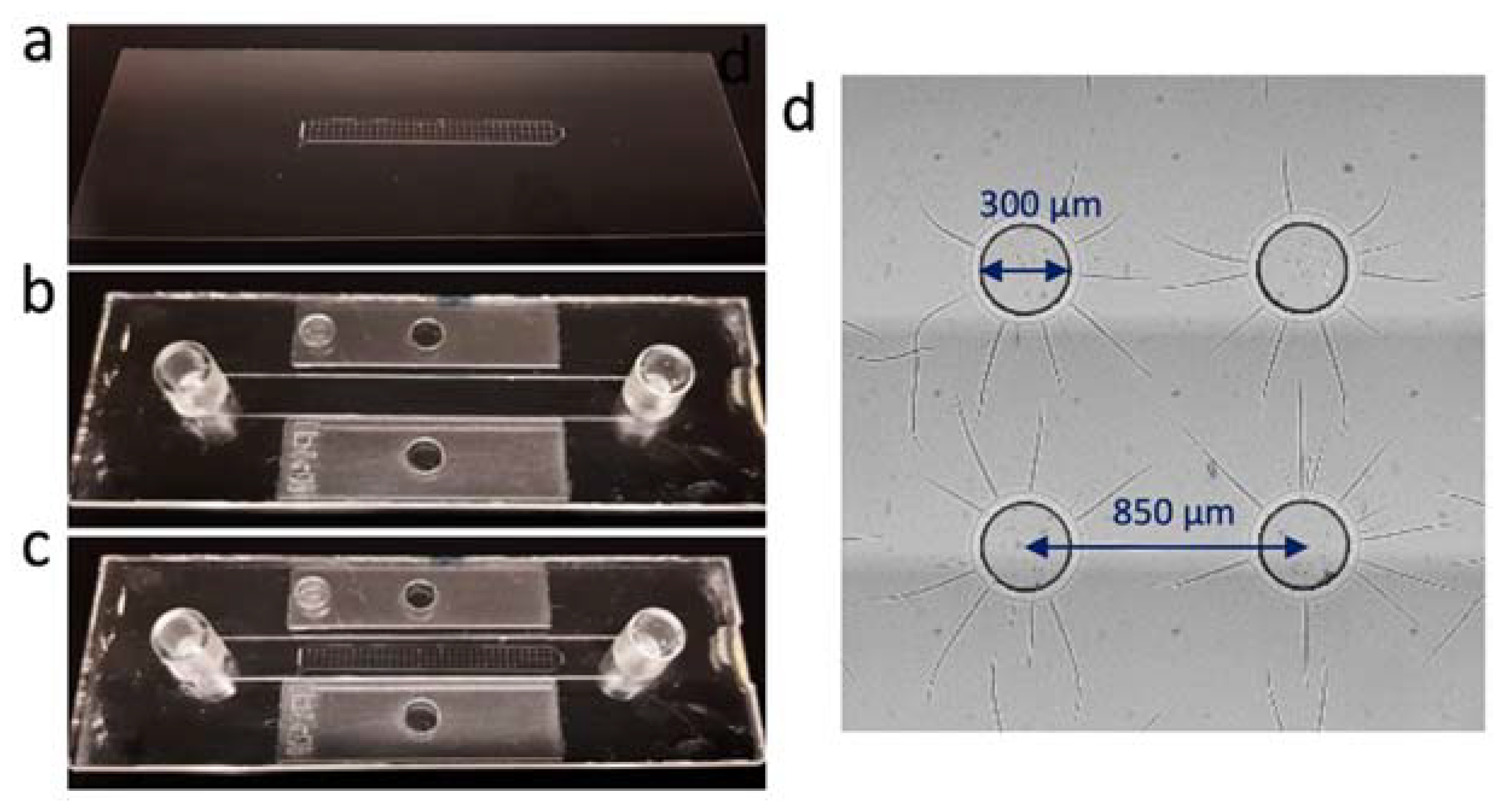

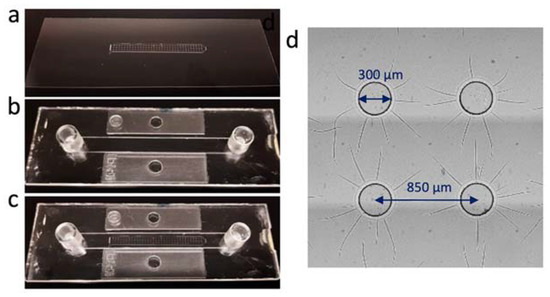

The microfluidic chip (Figure 1c) was made of two parts: the microwell array on a glass slide (Figure 1a) and the top plate with a microfluidic channel (Figure 1b). The microwell array was produced in the epoxy-based photoresist SU-8 through a standard photolithography protocol. The mask design of the microwell array consisted of three rows of 34 wells with a well diameter of 300 µm and a pitch distance of 850 µm (Figure S1). Visual inspection of the microwells after photolithography showed that the SU-8 wells matched the mask’s dimensions (Figure 1d). Furthermore, the measured well’s depth was approximatively 50 µm (Figure S1b), which fits the expected thickness of the SU-8 layer, according to the protocol mentioned earlier. Altogether, these results prove the photolithography process to be successful and a quick method to produce the microwells in the microfluidic chip.

The overall length and thickness of the microwell array were 28.4 mm and 2.0 mm, respectively. These dimensions fit within the microfluidic channel of the top plate that was used to seal the microfluidic chip and connect the inlet and outlet tubes. The top plate was commercially available and consisted of a channel of 50 × 5 × 0.4 mm (l × w × h) surrounded by a double-sided tape, which enabled us to quickly and easily stick it onto the bottom substrate. Once the microfluidic chip was sealed (after filling with the cells), it was connected to silicone tubing and a syringe filled with SC growth medium. The medium was then perfused at a very low flow rate (25 µL/min) with a syringe pump in order to ensure nutrient renewal for cell growth.

3.2. Living-Cell Microarray Development

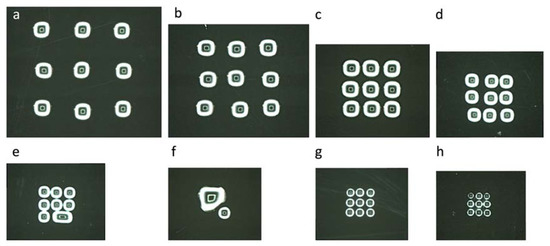

First, piezo dispensing parameters were optimized by printing a water droplet array on a glass substrate. Piezo dispensing is accomplished by applying rectangular voltage pulses to the piezo ceramic actuator (Figure S2c). For the duration of each pulse, the actuator tube contracts a few micrometers, thereby initiating a pressure wave that causes the ejection of a droplet. The amplitude and the duration of the pulse influence the volume and the velocity of the droplet. The higher the amplitude (applied voltage) and the longer the pulse, the bigger the droplet and the higher its velocity. The frequency of the pulses is directly correlated to the duration of the pulse and also influences the droplet’s volume. Finally, the viscosity of the sample to dispense also has an influence on the printing parameters. Therefore, piezo dispensing needs to be optimized for each solution that has to be printed. In this work, yeast suspensions were prepared in PBS prior to printing.

Considering that PBS solution and ultrapure water have similar viscosities; we first optimized the piezo dispensing parameters with ultrapure water for simplicity reason. Typically, we started by determining the amplitude and duration of the voltage pulses that were giving a reliable ejection of water droplets. We obtained a stable shooting of ultrapure water with an amplitude of 75 V and a pulse duration of 15 µs. These parameters resulted in a droplet volume ranging between 70 to 80 pL (Figure S2b). Next, we created 3 × 3 arrays of water droplets with decreasing pitch distance on a glass substrate (Figure 2). We started by shooting 100 drops/spot at 50 Hz with a pitch distance of 1000 µm, 750 µm and 500 µm. We could not print arrays with pitch distances lower than 500 µm without merging of neighboring spots. Hence, we reduced the droplet number and printed 50 drops/spot at 25 Hz with a decreasing pitch distance from 400 to 300 and 250 µm. Surprisingly, printing half the droplet number did not allow halving the pitch distance as expected. Additional testing established that five drops/spot at 4 Hz with a pitch distance of 200 µm were the limit parameters at which a 3 × 3 array of water droplets could be stably printed on a glass slide. This optimization process aimed at determining the minimal spot sizes and pitch distances that can be stably printed in order to increase the throughput of the platform.

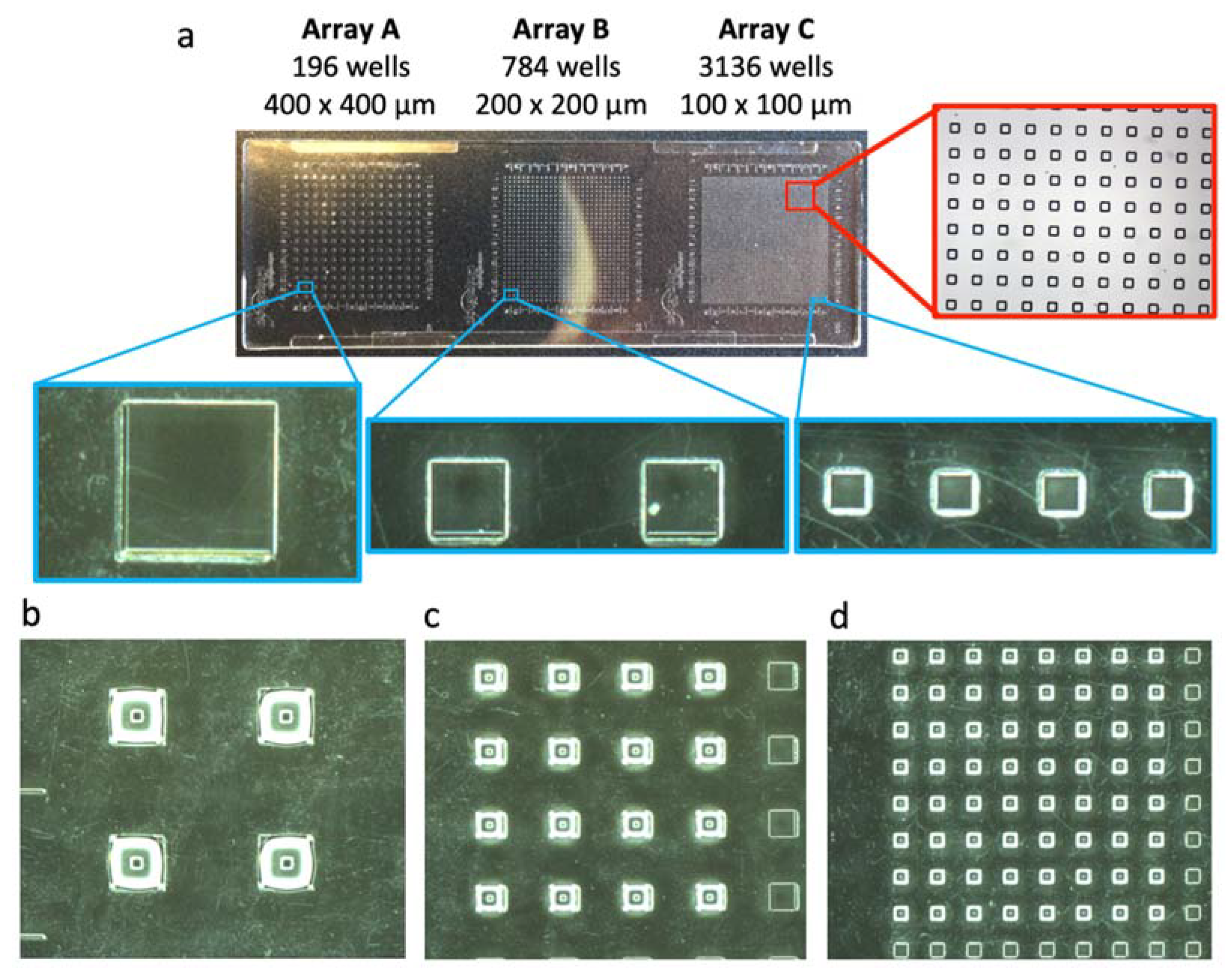

Secondly, we evaluated the filling of microwells with water droplets using piezo dispensing. Therefore, we initially used a commercially available microtiter plate (size of a microscope slide) that contains squared microwells with dimensions of 400 × 400 µm (array A), 200 × 200 µm (array B), 100 × 100 µm (array C), and height of 20 µm (Figure 3). The pulse duration (15 µs) and amplitude voltage (75 V) were as for printing on the glass substrate. With a frequency of 50 Hz, the number of droplets decreased from 200 drops per well for array A to 25 drops per well for array B and five drops per well for array C.

Once the piezo-dispensing parameters were established with ultrapure water, the printing protocol was optimized for living cells. First, the microwells were filled with 60 droplets of Con A at a pulse duration of 15 µs, amplitude voltage of 75 V and frequency of 50 Hz (Figure 4a). Con A is a lectin, which binds to the mannose glycans at the yeast cell wall [36]. Hence, Con A was used as a coating, which anchored the yeast cells to the bottom of the microwells so that they were not flushed away when SC medium was perfused during continuous cultivation. Next, the density of printed yeast cells per well was optimized. The final objective of this study consisted in developing a method that allowed monitoring the growth of single yeast cells as well as their expression of GFP-tagged proteins by time-lapse fluorescence microscopy. Therefore, the printing process had to deliver only a few cells per well. To do so, two parameters were adapted: the cell density of the yeast suspensions to print and the number of droplets/well. The latter was evaluated first and 40 drops/well provided optimal filling of the microwell without overflowing (Figure 4b). Since this parameter was kept constant for all the living cell experiments, the cell density of the yeast suspensions was then optimized. Yeasts suspensions at OD₆₀₀ of 0.8, 0.5, and 0.2 were tested (Figure S2d). The suspension at an OD₆₀₀ of 0.8 proved difficult to print since this high cell concentration increased the viscosity of the sample, thereby preventing the droplet ejection. On the other hand, cell suspensions at an OD₆₀₀ of 0.2 were possible to shoot but did not deliver yeast cells in every well. The suspension at an OD₆₀₀ of 0.5 was then selected, as it could be reproducibly printed and guaranteed the presence of a significant number of single cells per well. All the yeast printing experiments were performed with the following optimized parameters: pulse duration of 15 µs, amplitude voltage of 75 V, and a frequency of 50 Hz.

Finally, since the objective was to print multiple clones from the GFP-tagged yeast collection in different wells of the microfluidic chip, a last printing procedure had to be optimized, namely the washing step between samples in order to avoid cross-contamination. The washing step includes the disposal of the printed sample followed by the cleaning of the outside of the piezo dispenser capillary. Discarding the sample can be done either by applying pressure to the liquid path of the robot or by ejecting it with a syringe pump. Indeed, the iTWO-400 robot is equipped with both a pressure unit and a syringe pump, which enable to flow liquid through the piezo dispenser on a passive or active basis, respectively. With the pressure unit, the liquid continuously flows at a fixed fluid flow rate for as long as the pressure is applied. With the syringe pump, a specified volume of liquid flows at a specified flow rate. Cleaning the outside of the piezo dispenser is performed at the washing station of the robot (Figure S2a), and only the washing time can be adapted. To evaluate the efficiency of the washing step on avoiding cross-contamination, wells from a 384-multiwell plate (MTP) were filled with both a yeast suspension in PBS (at OD₆₀₀ of 0.5) and a colored ink according to a designed pattern (Figure 5a). The samples were then printed on solid agar medium in a petri dish and left to grow at 30 °C for 24 hours before evaluation. In the first experiment, the printed samples were discarded by means of pressure (at 450 mbar) for 10 seconds, and the outside of the piezo dispenser was cleaned for five seconds. Although most of the design was correctly printed, one cross-contaminated spot was visible (Figure 5b). The experiment was then repeated; however, the samples were discarded in the wash station by means of the syringe pump. The cleaning of the piezo dispenser was kept at five seconds. Using this procedure, no cross-contamination was observed (Figure 5c).

3.3. Growth of Yeast Cells in the Microfluidic Chip

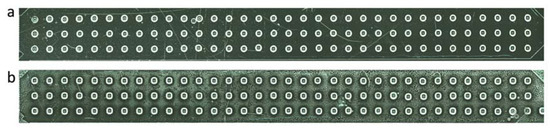

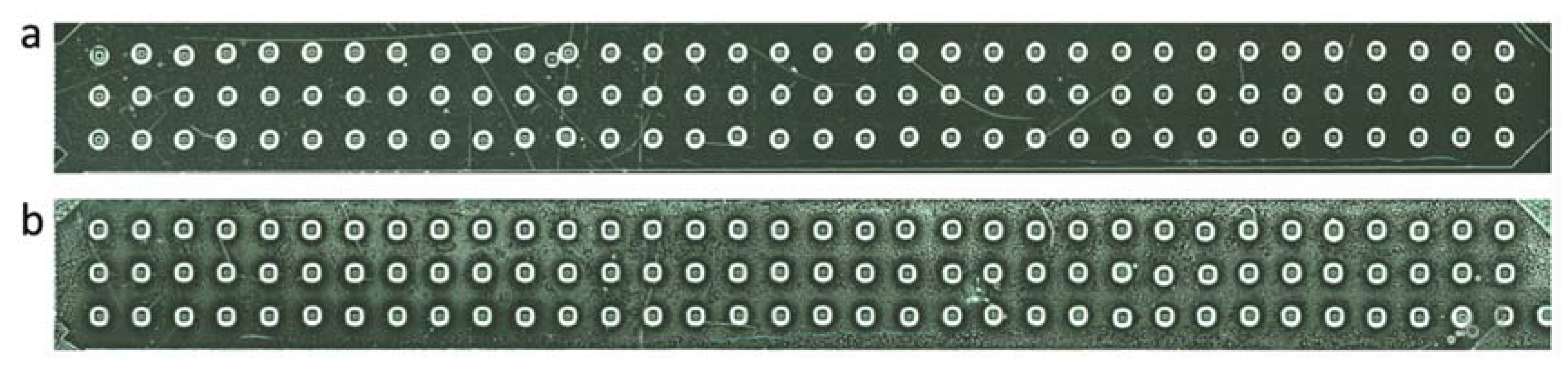

A selection of 34 GFP-tagged S. cerevisiae clones that are related to the cell cycle were printed as triplicates into the well array (Figure 4, S2e), and the chip was closed by sticking the microfluidic channel to the microwell substrate (Figure 1). Time-lapse microscopy was used to follow the growth during 18 h. An overview of all wells is presented in Figure S3 and some selected wells in Figure 6. At the end of the growth experiment, the GFP-tagged proteins were visualized.

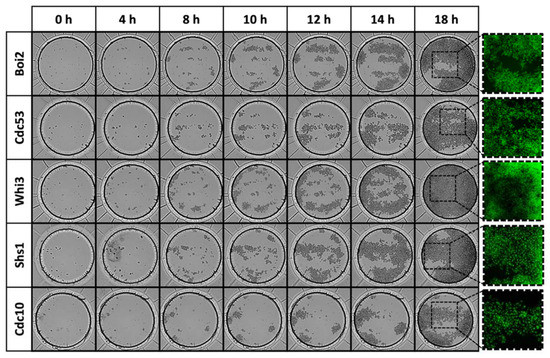

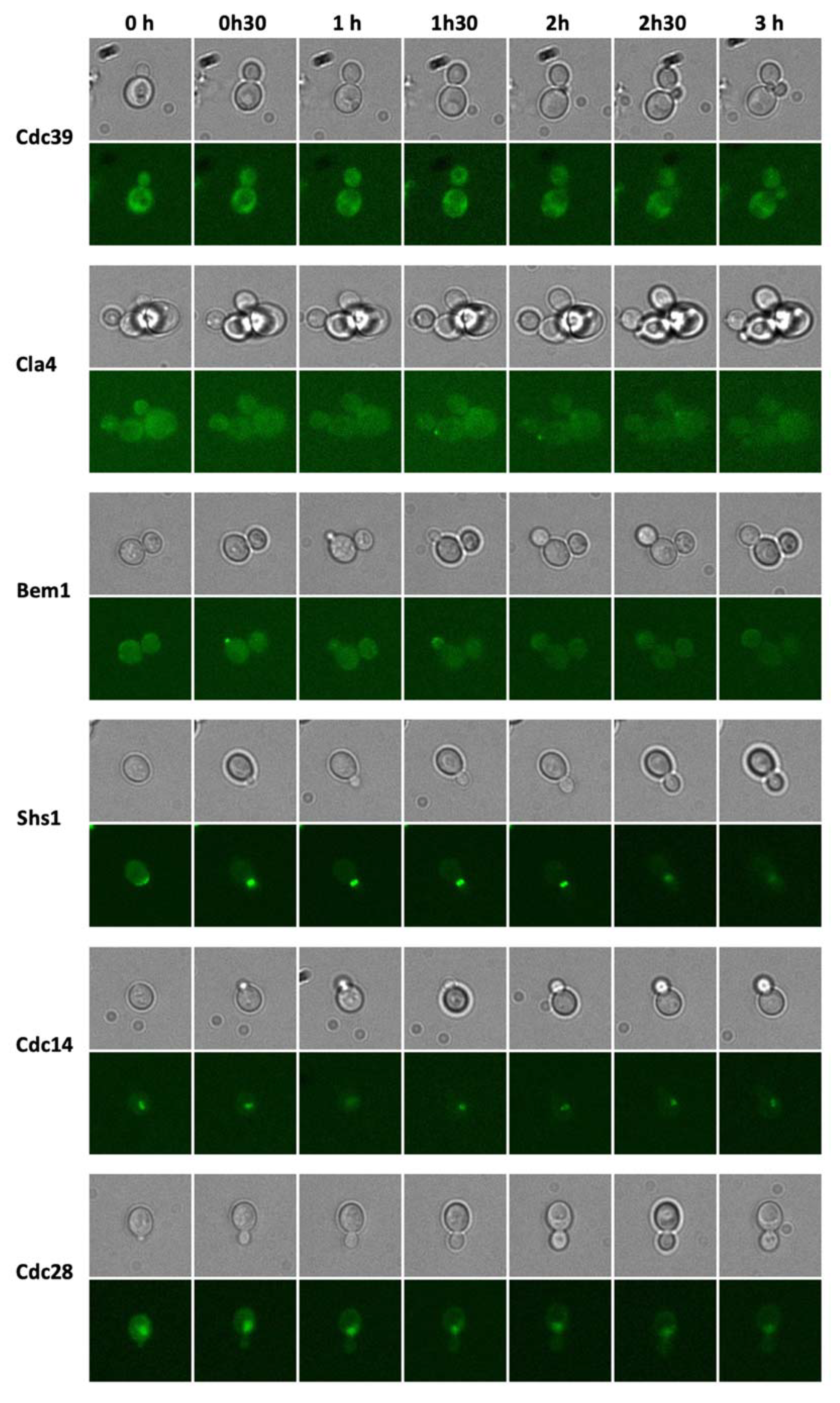

To evaluate the suitability of the developed yeast chips to perform dynamic analyses of protein expression and protein localization in single yeast cells, a small set of 6 clones were selected, i.e. Cdc39, Cla4, Bem1, Shs1, Cdc14 and Cdc28. A time-lapse experiment was performed where these clones were observed at higher resolution (600× magnification) during 3 h (Figure 7).

4. Discussion

To create a living GFP-tagged yeast array, we combined mechanical patterning by constructing an array of microwells with cell printing (robotic cell patterning), which allows the controlled placement of the GFP-tagged clones in the selected wells. The cells were trapped in the wells by sticking them to the glass bottom of the microwells using the lectin Con A. Microfluidic chips where a GFP-tagged yeast clone collection was patterned as an array into microchambers have been previously developed [10,37]. Also, a microfluidic perfusion system where a robotic printed yeast array on agar and sandwiched with a track-etched membrane has been described [38]. These designs and fabrication methods are much more complex and difficult to construct. Due to the open design, robotic patterning of living cells in microwells is much more flexible in creating different filling designs. Additionally, it could be used to create high-density arrays without increasing much the complexity of the microfluidic chip design and construction.

A hybrid SU-8 on glass microfluidic chip containing a living cell array was developed. The direct fabrication of SU-8 microwells on the glass coverslip substrate is a simple, low cost and a high precision method that is suitable to construct disposable biochips [39]. SU-8 is biocompatible and has also the advantage that high density well arrays at high aspect ratios could be created [40]. A microwell array of 3 × 34 microwells containing microwells with a diameter of 300 µm and depth of 50 µm were created. The SU-8 microwell layer stuck well to the glass substrate. The bonding of the SU-8 microwell array to the glass could also withstand temperature shifts to low temperature (refrigerator). This allowed to store the chip filled with yeast cells for a few days before the growth experiment was performed.

Piezo printing was selected as the method to dispense a Con A protein solution and the GFP-tagged yeast collection into the microwells. We performed these dispensing steps with a piezoelectric dispenser (also called drop-on-demand ink-jet printing) [41,42]. Piezo printing of proteins and cells has been used previously for various applications including enzyme printing for glucose biosensors [43], protein arrays [44], netrin-1 adhesive micropattern construction [45], bacterial Escherichia coli arrays [46,47], bacterial and yeast cells on cantilever array sensors [48], S. cerevisiae cells on an agar layer [38], and mammalian cells [49].

We demonstrated that printing a small array on a flat glass substrate is possible and this method could be used to create cell arrays on glass substrate in a cheap and easy way. However, the droplet size was not proportional to the droplet volume which is a limitation to increase the throughput. We expected that half the number of droplets would result in half the spot volume, half the spot size and that twice the number of spots could be printed in the array. However, this was not the case. Also, significant variations in the droplet locations occurred, which resulted in arrays that were not perfectly arranged, which can result in merging of the spots in case of a small pitch distance (Figure 2e,f).

Printing of cells into microwells compared to on a flat surface has many advantages. Spatial confinement in the microwell results in higher resolution printing: smaller well sizes than droplet spot sizes and smaller pitch distances can be obtained. Droplet position in the wells is more accurate than droplets on a flat surface (Figure 2). Additionally, the liquid–air interface is reduced for microwells compared to droplets on a surface, resulting in a reduced evaporation rate. All these benefits result in higher throughput and stable printing.

The printer setup allowed to aspirate a yeast solution from an MTP (multiwell plate) well and deposit picoliter droplets containing living cells at the target microwell, and to perform this consecutively for all filled MTP wells. A tip dispenser washing protocol based on syringe pump cell solution ejection was successful to avoid cross contamination between different wells since syringe pump ejection occurred at a much higher flow rate than pressure-based ejection and could remove all yeast cells from the piezo tip. A GFP-tagged clone collection in a 3 × 34 cell array was cultivated during 18 h (Figure 6 and S3). This experiment demonstrated that a clone collection of 34 clones in triplicate could be successfully printed at a cell concentration that allows single cell observation during several generations.

As a proof-of-concept experiment to observe changes in GFP-tagged protein expression and cellular location, we selected GFP-tagged proteins that play a role during the yeast growth cycle. The Cdc39 protein is a subunit of the CCR4-NOT1 core complex that has multiple roles in the regulation of mRNA levels [50,51]. A high fluorescence intensity covering the cytoplasm in the mother and daughter cell can be observed (Figure 7) since it is present at a large number of protein molecules per cell (4300) [52]. Cla4p is a Cdc42p-activated signal transducing kinase that is involved in septin ring assembly, vacuole inheritance, cytokinesis, and sterol uptake regulation [53]. It is distributed in the cytoplasm and the bud. Higher intensity spots can be observed at the site where the bud appears (Figure 7). Bem1p is involved in establishing cell polarity and morphogenesis and functions as a scaffold protein for complexes that include Cdc24p, Ste5p, Ste20p, and Rsr1p [54]. A high intensity spot can be observed at the bud site and the growing bud (Figure 7). Shs1p is a component of the septin ring that is required for cytokinesis [55]. Initially, it is present at the cell periphery and moves to the bud site to create the septin ring (Figure 7). Cdc14p is a phosphatase required for the mitotic exit [56]. It is present in the nucleus and the nucleolus (Figure 7). Cdc28p is a cyclin-dependent kinase (CDK) catalytic subunit and master regulator of mitotic and meiotic cell cycles [57,58]. It alternately associates with G1, S, and G2/M phase cyclins. It is observed initially in the cytoplasm and next in the nucleus (Figure 7). These results demonstrate that the microfluidic chip can be used to perform dynamic experiments with subcellular resolution of fluorescently-tagged proteins.

In the future, the number of microwells in the array could be upscaled allowing to perform dynamic proteomics and localizomics experiments. This cell microarray-based systems-biology platform could be used to detect directly chemical disturbances in a small-molecule compound screen of the proteome in contrast to genetic approaches that are based on chemical-genetic interactions and necessitates a multistep indirect approach [59]. The genome-wide tagging of proteins of S. cerevisiae, including with GFP, has already provided a vast resource of such information [9,11,33,60]. Analysis of this high-resolution, high coverage localisation data set in the context of transcriptional, genetic, and protein-protein interaction (PPI) data revealed the combinatorial logic of transcriptional co-regulation and spatial-temporal regulation of proteins, and provided for example a comprehensive view of trafficking and signalling regulatory interactions within and between organelles in eukaryotic cells. As demonstrated here, dynamic movements from one location to another can also be followed as the cell proceeds through the cell cycle. Dynamic movements of proteins have also been described in yeast cells that respond to environmental stresses such as dithiothreitol (DTT) stress [9], hydrogen peroxide stress [9], osmotic stress by potassium chloride [37], and nitrogen starvation [9] or chemical perturbations by rapamycin [11], hydroxyurea [11], or methyl methane sulfonate [10].

5. Conclusions

We developed a perfusion microfluidic chip containing living yeast cell arrays that allows long term cultivation of the yeast cells and high-resolution time-lapse fluorescence microscopy. The creation of the cell array was based on mechanical patterning in SU-8 microwells and piezoelectric filling of the microwells. The microfluidic chip was closed by sticking a top plate that contained the microfluidic channel and inlet and outlet to the microwell substrate. The developed technology and method were validated by a growth experiment of a clone collection of 34 clones (in triplicate) that are linked to the cell cycle. Additionally, a set of six selected GFP-tagged clones were observed by time-lapse fluorescence microscopy at high resolution to observe single cell protein expression and subcellular location of the GFP-tagged proteins.

Future technological challenges lie in the further upscaling of the technology and procedures to construct genome/proteome-wide cell microarrays and analyzing cells dynamically on a whole proteome level. Dynamic proteomics profiling information based on chemical compound (such as e.g. drug compound) perturbation should allow to determine the target(s) and mechanism of action (MoA) [61]. For example, this technology could lead to the discovery of novel antifungal molecules, which are highly desired due to the limited number of available antifungal drugs and the fast emergence of multiresistant pathogens [62,63].
