Review

Advances in Droplet-Based Microfluidic High-Throughput Screening of Engineered Strains and Enzymes Based on Ultraviolet, Visible, and Fluorescent Spectroscopy

by
Shunyang Hu
1,2,
Bangxu Wang
1,
Qing Luo
2,
Rumei Zeng
1,
Jiamin Zhang
1 and
Jie Cheng
1,*
1
Meat Processing Key Laboratory of Sichuan Province, College of Food and Bioengineering, Chengdu University, Chengdu 610106, China
2
Faculty of Applied Sciences, Macao Polytechnic University, Macao 999078, China
*
Author to whom correspondence should be addressed.
Fermentation 2024, 10(1), 33; https://doi.org/10.3390/fermentation10010033
Submission received: 14 November 2023 / Revised: 24 December 2023 / Accepted: 28 December 2023 / Published: 30 December 2023
(This article belongs to the Special Issue Fermentation: Screening, Enzyme Induction and Production)
Browse Figures
Review Reports Versions Notes

Abstract

:
Genetic engineering and directed evolution are effective methods for addressing the low yield and poor industrialization level of microbial target products. The current research focus is on how to efficiently and rapidly screen beneficial mutants from constructed large-scale mutation libraries. Traditional screening methods such as plate screening and well-plate screening are severely limited in their development and application due to their low efficiency and high costs. In the past decade, microfluidic technology has become an important high-throughput screening technology due to its fast speed, low cost, high automation, and high screening throughput, and it has developed rapidly. Droplet-based microfluidic high-throughput screening has been widely used in various fields, such as strain/enzyme activity screening, pathogen detection, single-cell analysis, drug discovery, and chemical synthesis, and has been widely applied in industries such as those involving materials, food, chemicals, textiles, and biomedicine. In particular, in the field of enzyme research, droplet-based microfluidic high-throughput screening has shown excellent performance in discovering enzymes with new functions as well as improved catalytic efficiency or stability, acid-base tolerance, etc. Currently, droplet-based microfluidic high-throughput screening technology has achieved the high-throughput screening of enzymes such as glycosidase, lipase, peroxidase, protease, amylase, oxidase, and transaminase as well as the high-throughput detection of products such as riboflavin, coumarin, 3-dehydroquinate, lactic acid, and ethanol. This article reviews the application of droplet-based microfluidics in high-throughput screening, with a focus on high-throughput screening strategies based on UV, visible, and fluorescence spectroscopy, including labeled optical signal detection screening, as well as label-free electrochemical detection, mass spectrometry, Raman spectroscopy, nuclear magnetic resonance, etc. Furthermore, the research progress and development trends of droplet-based microfluidic technology in enzyme modification and strain screening are also introduced.

1. Introduction

Natural microbial strains and enzymes often require evolution or modification. However, the probability of beneficial mutations is very low (<10−5), and conventional screening efficiency is limited by low screening throughput, resulting in high costs and long times for screening a large number of mutants [1]. It is crucial to develop methods for rapid screening of microbial strains and enzyme mutants [1]. With the development of automation equipment and rapid detection methods, various high-throughput screening (HTS) strategies have been established. Therefore, HTS strategies have been widely used in the isolation and screening of high-yielding microbial cell factories [2,3]. In the screening of industrial microbes, effective target recognition is a key factor, and high-throughput screening based on ultraviolet, visible, and fluorescence spectra in droplet-based microfluidics can greatly enhance target recognition [4,5,6].
Microfluidic technology has emerged as a response to multidisciplinary convergence. It utilizes chemistry, fluid physics, microelectronic materials, nanotechnology, and biotechnology [7]. By manipulating small amounts of fluids in channels at the micrometer or nanometer scale, it brings the screening process onto a chip, achieving automation and intelligence [8,9]. Moreover, microfluidics combined with fluorescence-activated cell sorting (FACS) systems equipped with flow cytometers (FC) overcome the limitations of traditional FACS. This integration is known as microfluidic FACS [10]. Droplet microfluidics (DM) technology utilizes droplets as microreactor units, performing formation, manipulation, reactions, analysis, and screening operations using microchannels or microstructures. This technology has been widely applied in fields such as drug screening, protein crystallization, evolution, single-cell analysis, enzyme activity detection, and strain screening [11,12]. Its advantage lies in the ability to encapsulate single cells in droplets, where each droplet serves as an independent reaction system capable of culturing cells and producing metabolites or enzymes. This overcomes the limitations of traditional flow cytometry and fluorescence-activated cell sorting, which are restricted to detecting fluorescent signals directly associated with cells [13,14]. Fluorescence-activated droplet sorting (FADS) and absorbance-activated droplet sorting (AADS) are typical droplet microfluidic technologies. Microfluidic high-throughput screening technology involves detection, screening, small molecule reactions, and dynamic process analyses. Similar to the FACS principle, the FADS system has the advantage of being able to sort signals within cells, on cells, secreted outside of cells, and in cell-free systems. Additionally, due to its configuration of high-speed cameras, FADS enables the visualization of these sorting processes [13].
Absorption spectroscopy is widely used in colorimetry, protein quantification, enzyme kinetics, and other areas [15]. Compared to FADS, the challenge of AADS detection is that absorbance is directly proportional to the path length, which means that the small volume of droplets and the resulting short optical path length will affect the sensitivity of detection [16]. However, absorption-activated droplet sorting (AADS) is currently approximately 10 times slower than the typical fluorescence-activated droplet sorting (FADS), which means that, compared to FADS, due to throughput limitations, a larger proportion of the sequence space is not accessible. Elliot et al. [17] has improved AADS in order to achieve a sorting speed of kHz. This is primarily achieved using refractive index matching oil and eliminating side scattering to enhance signal quality. Additionally, a sorting algorithm has been implemented to enable sorting at higher frequencies. It has been widely applied in industries such as those involving materials, food, chemical, textile, and biopharmaceuticals (as shown in Figure 1).
Droplet-based microfluidics plays an important role in directed evolution, enzyme activity detection, and strain screening. The throughput of the screening determines the size of the mutant library, thus determining the possibility of screening high-performance enzymes and strains from large mutant libraries. Through oil encapsulation, the adsorption in the flow channel can be reduced. Droplet encapsulation of individual bacteria allows for the synchronized directional evolution of enzymes during the screening process, making it widely applicable in enzyme-directed evolution. In 2009, Baret et al. [18] first reported the application of droplet-based microfluidics in the high-throughput screening of enzymes, with a screening rate of up to 2000 droplets/s, completing the screening of a library with 108 mutants in only 10 h. In 2014, Wang et al. [19] developed a screening method for yeast strains with xylose consumption ability and E. coli strains for lactate secretion using droplet-based microfluidics. Currently, FADS technology also has some drawbacks, such as the need to develop suitable fluorescent probes based on different enzyme molecules and catalytic reactions. For some enzyme molecules, rare cells, and target analytes that are small molecule drugs, there is a lack of applicable biomarkers and fluorescent probes, which limits its widespread application. To overcome these limitations, other types of droplet-sorting technology, such as droplet-sorting technology activated using different methods such as absorption, mass, and Raman, have been developed, one after another. In 2016, Gielen et al. [20] proposed a droplet screening technology based on absorbance, with a screening rate of 300 droplets/s. The high-throughput screening of different types of microorganisms such as E. coli, Bacillus subtilis, Gluconobacter cerinus, yeast, and Lactobacillus for endogenous enzymes or metabolic products has been achieved [21,22,23,24,25,26,27]. This review aims to summarize the screening strategies constructed using ultraviolet, visible, and fluorescence spectroscopy, as well as the applications of these strategies in high-throughput screening using droplet-based microfluidics, particularly in enzyme engineering and strain screening. Table 1 lists the recent applications of droplet-based microfluidics in strain and enzyme screening.
There are a total of four layers from the inside to the outside in Figure 1. The first layer represents microfluidic high-throughput screening. The second layer represents the main functions of microfluidic high-throughput screening, including dynamic analysis, detection, screening, and small molecule reactions. The third layer represents the specific application fields of microfluidic high-throughput screening, mainly including the food, biologic medicine, textile, and chemical industries. The fourth layer represents the specific applications of microfluidic high-throughput screening, mainly including chemical synthesis, nanomaterials, single-cell analysis, antibody screening, drug delivery, strain/enzyme screening, enzyme activity detection, and pathogenic bacbacteria.

2. Detection and Screening Based on Ultraviolet Spectroscopy

Generally, the detection of inorganic and organic compounds is based on the Lambert–Beer law, which quantifies the target substance based on the absorption of ultraviolet/visible light due to the structural and color differences of the substance itself. For reactions with specific absorbance, the change in the OD value is caused by the substance itself, enzyme-catalyzed reactions, or absorbent reagents in coupled assays. By measuring the absorbance, products with complex molecular structures such as avilamycin [45], cephalosporin C [46], lycopene [47], and ferulic acid [48] can be screened. In the high-throughput screening of strains and enzymes, the direct quantitative identification of metabolic products can be used to screen for beneficial mutants. Mendoza et al. [49] directly measured metabolites at a wavelength of 272 nm to identify enzyme activity in the high-throughput screening of lipases with high sn-2 specificity and validated the activity with human pancreatic lipase, LIP2 lipase from Candida antarctica, and lipase from Saccharomyces cerevisiae. For substances which do not have obvious absorbance characteristics, detection can be performed by adding pH indicators, metal ion chelators, enzyme reactions, or chemical reaction coupling methods. For example, some metabolites can hydrolyze under acid/alkaline conditions to produce derivatives with a specific absorption, form complex compounds with metal ions to generate distinct absorbance features, or generate substances with significant absorbance after substrate enzyme reactions. Ye et al. [50] determined the absorbance of the metabolite cefaclor hydrolyzed to generate derivatives under alkaline conditions at 340 nm and screened out α-amino acid ester hydrolase with increased activity by 40%. Tian et al. [51] developed a colorimetric method based on the reaction between diacetyl and o-phenylenediamine, with the target compound showing specific absorption at 335 nm, leading to the selection of lactobacillus strains with high diacetyl production. The detection and screening strategy based on ultraviolet spectroscopy is simple and effective, and, when combined with a microfluidic droplet system, it becomes an important tool for high-throughput screening. Building on the ability of PMMA materials to block stray light interference, Cao et al. [52] proposed the concept of a microfluidic ultraviolet detection system and established an ultraviolet detection and microfluidic chip capillary electrophoresis analysis system. Ottevaere et al. [53] proposed a micro-optical system for ultraviolet/visible light absorption detection in microfluidic channels constructed using optical couplers and characterized samples of coumarin dyes.

3. Detection and Screening Based on the Visible Light Spectrum

The combination of high-throughput screening strategies based on the visible light spectrum and droplet microfluidic systems is closely related and is mainly used for enzyme activity assays, the screening of enzyme variants, and strain selection [29,30,31]. Similar to the UV spectrum screening strategy, the absorbance of the target substance in the visible light range is used as the screening criterion, and it can be divided into the following steps: direct measurement, addition of pH indicators, addition of metal ion chelating agents, and enzyme-catalyzed reactions. Gielen et al. [54] established a coupled droplet microfluidic system for enzyme-directed evolution by embedding optical fibers in the droplet channel. They conducted miniaturized coupled analysis of NAD+-dependent amino acid dehydrogenase and successfully enriched the phenylalanine dehydrogenase activity variant by 2800-fold and identified a mutant with 4.5-times-increased activity in the lysate. Maceiczyk et al. [30] developed a droplet microfluidic system using differential detection opto-thermal interferometry. The substance resulting from the reaction of β-galactosidase with a specific substrate has a high absorbance, enabling the high-throughput detection of enzyme activity. Ahmadi et al. [29] were the first to integrate a droplet digital microfluidic system that can utilize both fluorescence signals and absorbance for screening. Yeast can be characterized by directly detecting absorbance at 595 nm to determine its growth status. Using this system, they studied the growth of mutant variants and wild types in an ionic liquid and successfully screened out mutants with excellent growth properties.

4. Detection and Screening Based on Fluorescence Spectroscopy

4.1. Detection and Screening Based on Conventional Strategies of Fluorescence Spectroscopy

Fluorescence analysis has the advantages of high selectivity, sensitivity, and easy integration with chips, making it the most widely used detection method in droplet microfluidic analysis, promoting the development of research fields such as genomics, molecular biology, and synthetic biology. Currently, various industrial microorganisms and enzymes have been screened using fluorescence spectroscopy-based screening strategies. By relying on the specific fluorescence signals of substrates or metabolites, direct screening can be conducted. Wagner et al. [55] screened for yeast strains with increased riboflavin production by correlating the secretion level of riboflavin with its yield. The target can emit fluorescence signals by adding fluorescent dyes or metal ion chelators. Kim et al. [56] screened for highly productive microalgae strains by directly measuring chlorophyll content and further increased lipid production by staining lipids using a dye, resulting in a 2.75-fold increase. Choi et al. [34] integrated ethidium bromide into a droplet-based microfluidic system, allowing high fluorescence signal emission from intact RNA substrates and a low fluorescence signal when the RNA is degraded. This method enables the nanoscale detection of ribonuclease hydrolytic activity.
The majority of screening based on fluorescence spectroscopy relies on enzyme reactions. For direct screening using endogenous enzymes, fluorescence substrates serve as sensitive means to detect enzyme activity, as they do not possess significant fluorescence signals themselves, but the enzymatic reaction products exhibit strong fluorescence signals. Based on the change in fluorescence intensity before and after the reaction, enzyme activity can be quantitatively analyzed (Figure 2A). Currently, there are various commercially available fluorescence substrates for enzyme activity detection, including glycosidases [57], lipases [58], proteases [59], peroxidases [60], and so on. β-Glucosidase can cleave the cellulose disaccharide formed by the endoglucanase hydrolysis of cellulose. It can be used in industry for the hydrolysis of cellulose and lactose [61,62]. Hardiman et al. [57] encapsulated the entire cell with enzyme substrates using random drift mutagenesis technique to create and screen a library of β-glucosidase mutants. Protease is an important enzyme in industry. Although many microorganisms are used for producing protease, only a few proteases are commercially applied and usually require extensive protein engineering, especially directed evolution. Tu et al. [59] were the first to use flow cytometry to screen protease and analyze its resistance improvement. In addition, it was found that the targeted evolution of protease can enhance its thermal stability and resistance to antioxidants. Ma et al. [58] developed a microfluidic chip to prepare homogeneous in vitro compartmentalized enzyme microreactors. They used high-throughput screening with fluorescent substrates to identify E. coli strains with esterase activity and performed directed evolution on the thermostable esterase AFEST, resulting in mutants with a more than 2-fold improvement in catalytic efficiency. Agresti et al. [60] utilized a high-throughput screening platform based on droplet microfluidics and obtained peroxidase mutants with catalytic efficiency improved by more than 10-fold. Huebner et al. [63] encapsulated individual E. coli cells with the substrate 3-O-methylfluorescein phosphate in droplets to screen for highly active target enzymes.
Förster resonance energy transfer (FRET) is a special part of the enzymatic reaction strategy. After the substrate is catalyzed, the fluorescence is activated, and this substrate is usually used as a fluorescent probe. Varadarajan et al. [64] designed fluorescence probes and obtained peptide-cleaving enzymes with high selectivity and high catalytic efficiency (Kcat/Km > 104 M−1 s−1). Mizukami et al. [65] achieved specific fluorescence protein labeling screening by the covalent modification of hydrolytic enzymes using designed fluorescence probes. Yang et al. [66] designed various FRET substrates and developed a high-throughput fluorescence screening method for lipases and esterases under alkaline conditions (pH 11.0). This method improved the sensitivity of fluorescence signals and allowed for a dynamic analysis of enzyme activity.
For methods that involve detecting and screening through the non-enzymatic metabolism of small molecules, it has been observed that many important small molecule metabolites cannot be directly detected through fluorescence, which becomes a bottleneck issue when using droplet microfluidic systems for metabolic pathway and microbial strain screening. The utilization of enzyme-coupled reaction strategies can indirectly convert these small molecules into fluorescent signals, providing an effective approach to address this issue (Figure 2B). A typical strategy involves the use of specific oxidoreductases for the target metabolite, which catalyze the oxidation reactions of the target metabolite to generate either H2O2 or NADH. These generated species are then converted into fluorescence signals by corresponding coupled enzymes and fluorescence probes, enabling the fluorescence coupling of the target metabolite. Currently, enzyme-coupled strategies have been employed for the quantitative detection of various metabolites such as lactate [67], ethanol [68], xylose [19], glucose [69], among others. Hammar et al. [67] utilized lactate dehydrogenase to oxidize lactate into pyruvate and simultaneously convert NAD+ to NADH. The NADH was then converted into a fluorescence signal by an NADH fluorescence coloring kit, enabling the high-throughput single-cell screening of lactate-producing bacteria. Abalde-Cela et al. [68] established a microfluidic platform for the quantitative detection of ethanol, using ethanol oxidase to produce H2O2 and coupling it with a fluorescence signal. This platform was used for screening high-yield ethanol-producing cyanobacterial strains. Ostafe et al. [69] developed a detection technique for cellulase activity through multi-enzyme fluorescence coupling using microfluidic sorting. This technique concentrated active cells 300-fold, with a purity exceeding 90%. With the discovery and utilization of more specific oxidoreductases, this strategy has the potential to expand to the quantitative analysis of various metabolites such as sugars, amino acids, lipids, and hormones, providing an effective screening approach for various important metabolic pathways and strain-directed evolution.

4.2. Detection and Screening Based on Fluorescence Spectroscopy Using Biosensors

Due to the limitations of direct or indirect staining or fluorescence reactions for the detection and screening of target products or key intermediates, the high-throughput screening (HTS) of microorganisms is often challenging. As a complementary and alternative approach, screening strategies using microbial genetic regulatory mechanisms to sense metabolic products have been proposed [70]. There are generally two types of biosensors: protein-based biosensors and nucleic acid-based biosensors. Most protein-based biosensors are based on transcription factors (TFs) and engineered fluorescent proteins (FPs). Sun et al. [71] divide transcription factor sensors into two categories: endogenous transcription factor biosensors and whole-cell transcription factor biosensors. Various types of TF-based biosensors have been developed, capable of responding to different types of effectors. These biosensors have been widely used in the HTS of metabolic products, including amino acids, organic acids, flavonoids, sugars, and lipids [72,73] (Figure 2C). Tu et al. [41] utilized TF-based biosensors to respond to 3-dehydroquinate and established a biosensor-based FADS screening strategy, resulting in the identification of mutant strains with a 24% increase in 3-dehydroquinate production. Siedler et al. [73] developed biosensors for two types of flavonoids and their metabolic intermediates, using the transcriptional activator FdeR from H. seropedicae and the repressor protein QdoR from B. subtilis, which, respectively responded to naringenin and catechol. This enhanced the fluorescence signal of the fluorescent protein system by 7-fold.
Nucleic acid-based biosensors mainly include RNA riboswitches, RNA spinach [74,75], and structure-switching DNA biosensors [74,76]. RNA riboswitches targeting mRNA regulatory regions can detect various metabolites through the RNA aptamer region, thereby regulating the transcription and translation of encoded proteins. Cheng et al. [77] used the competitive nature of arginine between arginase and arginine inhibitor to inhibit the expression of eGFP, a molecular sensor, and screened for arginine deamination enzyme mutants with increased activity and substrate affinity. With the rise and development of cell-free synthesis, researchers have found that the traditional genetic characteristics modified and optimized in active cells are no longer applicable to cell-free systems [78,79]. For example, when transcription factors are used in cell-free systems, they can cause self-transcription effects, response time delays, and an increased translation burden. Ribosome switches have significant advantages, and their construction and screening are particularly important, with a close connection to high-throughput screening using droplet microfluidics [80,81]. Tabuchi et al. [82] were the first to use a droplet microfluidic system to screen for cell-free riboswitches and successfully obtained two types of ribosome switches for histamine, where histamine can either open or close the ribosome switch. RNA Spinach is a newly discovered special structure that produces a stable signal when combined with fluorescent groups. Based on RNA Spinach, biosensors called RNA “drop-in oligonucleotide adaptors” have been developed for the detection of metabolites (Figure 2D). Structure-switching DNA biosensors are commonly used for the high-throughput screening of DNA-modifying enzymes. Vallejo et al. [83] established a droplet microfluidic high-throughput screening system for enzyme-directed evolution by adding fluorescent molecules and quenchers to the DNA strand. In the above-mentioned study, the screening frequency for the enzymes involved in the synthesis and modification of artificial genetic polymers reached 108/h.
In the screening system of droplet microfluidics, microdroplets of picoliter (pL) volume as reactors are used to encapsulate enzyme genes, artificially constructed metabolic pathways, gene expression products, etc., which are colored using specific fluorescent probes (Figure 2 top row). In the bottom row of Figure 2, a microfluidic detection/sorting chip for the efficient analysis and sorting of these microdroplets can be seen. Figure 2A shows that screening based on fluorescence spectroscopy is dependent on enzyme reactions. The enzymatic reaction products have a strong fluorescent signal, which is used to quantify the enzyme activity based on the change in fluorescence intensity before and after the reaction [57]. Figure 2B shows how small molecules can be indirectly converted to fluorescent signals using an enzyme coupling reaction strategy [68]. Figure 2C outlines an assay screening process based on transcription factors (TFs) [73]. TFs-based biosensors, which can respond to different types of effectors, are widely used for the HTS of metabolites, including amino acids, organic acids, flavonoids, sugars, and lipids. Figure 2D displays biosensors based on RNA Spinach [53]. RNA Spinach is a newly discovered special structure that generates stable signals when combined with fluorescent groups.

5. Detection Screening Based on Other Technologies

As the potential of droplet microfluidic high-throughput screening technology is being explored, researchers have applied it to the screening of more targets. However, they have discovered that some target screenings require the establishment of complex coupling reactions, which may not achieve simplicity and efficiency. Additionally, some target molecules are unable to generate detectable signals. In order to address these issues, label-free detection strategies associated with other detection methods have been established. These methods involve using intrinsic physical or chemical biomarkers for sorting [84]. This includes electrochemical detection [85], mass spectrometry [86], Raman spectroscopy, nuclear magnetic resonance [84], Fourier-transform infrared spectroscopy (FTIR), and Fourier-transform near-infrared spectroscopy (FTNIR) [87].
Mass spectrometry is not only used for qualitative and quantitative analyses based on the charge-to-mass ratio of the detected substances but can also detect various fragmented substances. This has attracted researchers to combine it with droplet microfluidic technology. However, there are significant barriers between microfluidics and electrospray ionization mass spectrometry. Similar to capillary electrophoresis, the main barrier lies in the interference of surfactants in the electrospray process, which can significantly inhibit ionization efficiency and contaminate the mass spectrometer [88]. Surfactants are essential in droplet-based microfluidic systems. They facilitate droplet formation, stabilize droplets, and provide a more important role in creating a biocompatible environment for reactions within the droplets. Therefore, it is necessary to design and synthesize compatible novel surfactants [89]. Heinemann et al. [90] combined the nanoscale initiator mass spectrometry technique with droplet microfluidics to achieve the real-time monitoring of extracellular glycosidase activity. Holland-Moritz et al. [91] used mass-activated droplet sorting (MADS) with an accuracy of 98% to screen nanoscale transaminase enzyme-catalyzed reactions. However, the throughput was only 2500 droplets/h, which was 1000 times slower than FADS. Nevertheless, this is still significantly more efficient than traditional screening and HPLC-MS methods.
Raman spectroscopy is a detection method that relies on the Raman effect, offering advantages such as rapid and real-time analysis. The discovery of surface-enhanced Raman scattering (SERS) has significantly enhanced the sensitivity of Raman detection. Research has shown that droplet microfluidic technology can effectively overcome the limitations of SERS. Willner et al. [44] demonstrated the potential of SERS combined with microfluidics in high-throughput screening through single-cell analysis. Wang et al. [92] utilized Raman-activated droplet sorting (pDEP-RADS) based on positive dielectrophoresis to perform the high-throughput screening of a yeast library of diacylglycerol acyltransferase, leading to the discovery of two unknown enzymes. In addition to Raman spectroscopy, Fourier-transform infrared spectroscopy (FTIR) and Fourier-transform near-infrared spectroscopy (FTNIR) are also representative label-free spectral detection methods. Currently, only a few researchers have combined them with droplet microfluidic technology, and there have been no notable achievements in the screening of strains or enzymes. However, due to the non-destructive nature, rapid automation, and other advantages of FTIR and FTNIR, their combination with high automation capabilities of droplet microfluidic chips demonstrates significant potential [10].
Nuclear magnetic resonance (NMR) is a technique for directly analyzing the structure of compounds, and its greatest advantage is its completely non-invasive nature. However, combining NMR with droplet microfluidics is more challenging due to several technical barriers. Unlike fluorescence, NMR detection is based on the principle of magnetic field detection, which requires a high level of uniformity and stability in the droplet samples. The sensitivity of conventional NMR is still insufficient for the microliter- to picoliter-sized samples generated by droplet microfluidic chips [81]. Swyer et al. [82] developed a method for analyzing chemical reactions using digital microfluidic chips in a high magnetic field environment, which addressed the issue of sample uniformity. This method allowed for the detection of the xylose–borate complexation and the catalytic process of glucose oxidase. Hale et al. [83] discovered that, by utilizing structural homogenization and europium-based compounds, they could reduce the magnetic differences between the chip, oil phase, and liquid phase, resulting in improved sample uniformity.

6. Conclusions

In recent years, droplet microfluidics has gradually moved from the field of chemistry to biology. With the advancement of droplet microfluidic technology and the creation of various detection strategies, an important step has been taken towards the discovery of strains/enzymes with new or improved functions. Especially in the development of synthetic biology, the detection of natural bioactive compounds, the directed evolution of strains/enzymes, and the screening and identification of enzyme semi-rational or rational designs are intricately intertwined with droplet microfluidics. With its advantages of low cost, speed, high automation, and detection sensitivity, it has replaced traditional well-plate screening and regular flow cytometry, becoming the preferred high-throughput screening technology in the field of synthetic biology.
Among the high-throughput screening strategies based on UV, visible, and fluorescence spectra, the fluorescence detection strategy has the widest application and is the most mature, serving as a crucial means for the industrialization and commercialization of strain/enzyme screening. UV–visible light detection is known for its simplicity but has limitations and limited applications. Biosensors are an important branch of fluorescence detection. Their essence lies in enhancing fluorescence intensity or overcoming the difficulties of generating fluorescence signals, thus compensating for the shortcomings of conventional strategies. Other label-free detection strategies provide effective supplements to optical detection, such as electrochemistry, mass spectrometry, nuclear magnetic resonance, etc.
Enzymes are the most important biocatalysts in nature and have been applied in various fields after thousands of years of natural evolution. However, natural enzymes often cannot meet the requirements of industry, making artificial selection and screening increasingly important. Directed evolution has been a key strategy for generating enzymes with desired characteristics such as high selectivity, but experimental barriers and the cost of analyzing large mutant libraries have limited these efforts. However, the biggest problem faced by directed evolution is that traditional microplate screening methods cannot meet the demands of high-capacity library screening. Meanwhile, the industrial and pharmaceutical sectors continue to have a fast-growing demand for novel and improved microbial catalysts. Therefore, the directed evolution of enzymes and the discovery of new enzymes have directly benefited from the development of droplet microfluidics, which provide individual reaction environments and larger screening capacities for enzyme reactions. Enzymes that may require directed evolution in the future include esterases, cellulases, glucose dehydrogenases, and plastic-degrading enzymes. Carboxylesterases, for example, are detoxifying enzymes that can hydrolyze cocaine, chlorpyrifos, and other compounds. Cellulases find applications in the food and beverage industry where they can hydrolyze cell walls and lignocellulosic substrates. Glucose dehydrogenase converts glucose into gluconic acid. Plastic waste management has been one of the major ecological challenges in our society, and plastic-degrading enzymes can offer a solution to this problem. With the development of more new technologies, such as artificial intelligence and bioprinting, they will also provide more applications for microfluidic sorting devices.

Author Contributions

Writing—original draft preparation, S.H., B.W. and Q.L.; writing—review and editing, R.Z., J.Z. and J.C.; visualization, J.C.; supervision, J.C.; project administration, J.C. and J.Z.; funding acquisition, J.C. and J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (22108017) and the earmarked fund for CAR-43 and the National Modern Agricultural Industrial Technology System, Sichuan Innovation Team Construction Project (SCSZTD-2022-08-07) and the Natural Science Foundation of Sichuan Province (2022NSFSC1614) and was partially supported by the Solid-state Brewing Technology Innovation Center of Sichuan.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Acknowledgments

We thank Suyi Zhang from Luzhou Laojiao Co., Ltd. for his assistance in providing revision suggestions for this manuscript.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Moragues, T.; Arguijo, D.; Beneyton, T.; Modavi, C.; Simutis, K.; Abate, A.R.; Baret, J.C.; DeMello, A.J.; Densmore, D.; Griffiths, A.D. Droplet-based microfluidics. Nat. Rev. Methods Primers 2023, 3, 32. [Google Scholar] [CrossRef]
  2. Chiu, F.; Stavrakis, S. High-throughput droplet-based microfluidics for directed evolution of enzymes. Electrophoresis 2019, 40, 2860–2872. [Google Scholar] [CrossRef] [PubMed]
  3. Jiang, J.; Yang, G.; Ma, F. Fluorescence coupling strategies in fluorescence-activated droplet sorting (FADS) for ultrahigh-throughput screening of enzymes, metabolites, and antibodies. Biotechnol. Adv. 2023, 66, 108173. [Google Scholar] [CrossRef] [PubMed]
  4. Muretta, J.M.; Rajasekaran, D.; Blat, Y.; Little, S.; Myers, M.; Nair, C.; Burdekin, B.; Yuen, S.L.; Jimenez, N.; Guhathakurta, P.; et al. HTS driven by fluorescence lifetime detection of FRET identifies activators and inhibitors of cardiac myosin. SLAS Discov. Adv. Life Sci. R D 2023, 28, 223–232. [Google Scholar] [CrossRef] [PubMed]
  5. Sesen, M.; Alan, T.; Neild, A. Droplet control technologies for microfluidic high throughput screening (μHTS). Lab Chip 2017, 17, 2372–2394. [Google Scholar] [CrossRef] [PubMed]
  6. Rao, C.; Huisman, D.H.; Vieira, H.M.; Frodyma, D.E.; Neilsen, B.K.; Chakraborty, B.; Hight, S.K.; White, M.A.; Fisher, K.W.; Lewis, R.E. A Gene Expression High-Throughput Screen (GE-HTS) for Coordinated Detection of Functionally Similar Effectors in Cancer. Cancers 2020, 12, 3143. [Google Scholar] [CrossRef] [PubMed]
  7. Yang, D.; Yu, Z.; Zheng, M.; Yang, W.; Liu, Z.; Zhou, J.; Huang, L. Artificial intelligence-accelerated high-throughput screening of antibiotic combinations on a microfluidic combinatorial droplet system. Lab Chip 2023, 23, 3961–3977. [Google Scholar] [CrossRef]
  8. Sackmann, E.K.; Fulton, A.L.; Beebe, D.J. The present and future role of microfluidics in biomedical research. Nature 2014, 507, 181–189. [Google Scholar] [CrossRef]
  9. Miansari, M.; Friend, J.R. Acoustic Nanofluidics via Room—Temperature Lithium Niobate Bonding: A Platform for Actuation and Manipulation of Nanoconfined Fluids and Particles. Adv. Funct. Mater. 2016, 26, 7861–7872. [Google Scholar] [CrossRef]
  10. Zhang, B.; Wu, W.; Zhao, Q.; Yan, S. Geometric optimization of double layered microchannel with grooves array for enabling nanoparticle manipulation. Phys. Fluids 2023, 35, 062009. [Google Scholar]
  11. Zeng, W.; Guo, L.; Xu, S.; Chen, J.; Zhou, J. High-Throughput Screening Technology in Industrial Biotechnology. Trends Biotechnol. 2020, 38, 888–906. [Google Scholar] [CrossRef] [PubMed]
  12. Chou, W.-L.; Lee, P.-Y.; Yang, C.-L.; Huang, W.-Y.; Lin, Y.-S. Recent Advances in Applications of Droplet Microfluidics. Micromachines 2015, 6, 1249–1271. [Google Scholar] [CrossRef]
  13. Amirifar, L.; Besanjideh, M.; Nasiri, R.; Shamloo, A.; Nasrollahi, F.; de Barros, N.R.; Davoodi, E.; Erdem, A.; Mahmoodi, M.; Hosseini, V.; et al. Droplet-based microfluidics in biomedical applications. Biofabrication 2022, 14, 022001. [Google Scholar] [CrossRef] [PubMed]
  14. Weitong, Q.; Guangyu, Y. Research and application progress of microdroplets high throughput screening methods. Synth. Biol. 2023, 4, 966–979. [Google Scholar]
  15. Sun, G.; Qu, L.; Azi, F.; Liu, Y.; Li, J.; Lv, X.; Du, G.; Chen, J.; Chen, C.H.; Liu, L. Recent progress in high-throughput droplet screening and sorting for bioanalysis. Biosens. Bioelectron. 2023, 225, 115107. [Google Scholar] [CrossRef] [PubMed]
  16. Hansen, S.K.; Jamali, B.; Hubbuch, J. Selective high throughput protein quantification based on UV absorption spectra. Biotechnol. Bioeng. 2013, 110, 448–460. [Google Scholar] [CrossRef]
  17. Duncombe, T.A.; Ponti, A.; Seebeck, F.P.; Dittrich, P.S. UV-Vis Spectra-Activated Droplet Sorting for Label-Free Chemical Identification and Collection of Droplets. Anal. Chem. 2021, 93, 13008–13013. [Google Scholar] [CrossRef]
  18. Medcalf, E.J.; Gantz, M.; Kaminski, T.S.; Hollfelder, F. Ultra-High-Throughput Absorbance-Activated Droplet Sorting for Enzyme Screening at Kilohertz Frequencies. Anal. Chem. 2023, 95, 4597–4604. [Google Scholar] [CrossRef]
  19. Baret, J.C.; Miller, O.J.; Taly, V.; Ryckelynck, M.; El-Harrak, A.; Frenz, L.; Rick, C.; Samuels, M.L.; Hutchison, J.B.; Agresti, J.J.; et al. Fluorescence-activated droplet sorting (FADS): Efficient microfluidic cell sorting based on enzymatic activity. Lab Chip 2009, 9, 1850–1858. [Google Scholar] [CrossRef]
  20. Wang, B.L.; Ghaderi, A.; Zhou, H.; Agresti, J.; Weitz, D.A.; Fink, G.R.; Stephanopoulos, G. Microfluidic high-throughput culturing of single cells for selection based on extracellular metabolite production or consumption. Nat. Biotechnol. 2014, 32, 473–478. [Google Scholar] [CrossRef]
  21. Gielen, F.; Hours, R.; Emond, S.; Fischlechner, M.; Schell, U.; Hollfelder, F. Ultrahigh-throughput–directed enzyme evolution by absorbance-activated droplet sorting (AADS). Proc. Natl. Acad. Sci. USA 2016, 113, E7383–E7389. [Google Scholar] [CrossRef] [PubMed]
  22. Chen, J.; Vestergaard, M.; Jensen, T.G.; Shen, J.; Dufva, M.; Solem, C.; Jensen, P.R. Finding the Needle in the Haystack—The Use of Microfluidic Droplet Technology to Identify Vitamin-Secreting Lactic Acid Bacteria. mBio 2017, 8, e00526-17. [Google Scholar] [CrossRef] [PubMed]
  23. Beneyton, T.; Thomas, S.; Griffiths, A.D.; Nicaud, J.M.; Drevelle, A.; Rossignol, T. Droplet-based microfluidic high-throughput screening of heterologous enzymes secreted by the yeast Yarrowia lipolytica. Microb. Cell Factories 2017, 16, 18. [Google Scholar] [CrossRef] [PubMed]
  24. Abatemarco, J.; Sarhan, M.F.; Wagner, J.M.; Lin, J.L.; Liu, L.; Hassouneh, W.; Yuan, S.F.; Alper, H.S.; Abate, A.R. RNA-aptamers-in-droplets (RAPID) high-throughput screening for secretory phenotypes. Nat. Commun. 2017, 8, 332. [Google Scholar] [CrossRef] [PubMed]
  25. Jankowski, P.; Samborski, A.; Ostaszewski, R.; Garstecki, P. Evaluation of droplet-based microfluidic platforms as a convenient tool for lipases and esterases assays. Prep. Biochem. Biotechnol. 2019, 49, 727–734. [Google Scholar] [CrossRef]
  26. Terekhov, S.S.; Smirnov, I.V.; Malakhova, M.V.; Samoilov, A.E.; Manolov, A.I.; Nazarov, A.S.; Danilov, D.V.; Dubiley, S.A.; Osterman, I.A.; Rubtsova, M.P.; et al. Ultrahigh-throughput functional profiling of microbiota communities. Proc. Natl. Acad. Sci. USA 2018, 115, 9551–9556. [Google Scholar] [CrossRef]
  27. Lyu, F.; Pan, M.; Patil, S.; Wang, J.-H.; Matin, A.C.; Andrews, J.R.; Tang, S.K. Phenotyping antibiotic resistance with single-cell resolution for the detection of heteroresistance. Sens. Actuators B Chem. 2018, 270, 396–404. [Google Scholar] [CrossRef]
  28. Cao, X.; Luo, Z.; Zeng, W.; Xu, S.; Zhao, L.; Zhou, J. Enhanced avermectin production by Streptomyces avermitilis ATCC 31267 using high-throughput screening aided by fluorescence-activated cell sorting. Appl. Microbiol. Biotechnol. 2018, 102, 703–712. [Google Scholar] [CrossRef]
  29. Zhang, W.; Fu, J.; Wang, Y.; Zhang, X.; Li, J. Enhanced visible-light photocatalytic activity of ZnS/BiOBr/graphene oxide ternary composite. J. Phys. Chem. Solids 2019, 127, 19–27. [Google Scholar] [CrossRef]
  30. Wang, Q.; Feng, L.R.; Wei, L.; Li, H.G.; Wang, L.; Zhou, Y.; Yu, X.B. Mutation Breeding of Lycopene-Producing Strain Blakeslea Trispora by a Novel Atmospheric and Room Temperature Plasma (ARTP). Appl. Biochem. Biotechnol. 2014, 174, 452–460. [Google Scholar]
  31. Zhou, S.; Liu, P.; Chen, J.; Du, G.; Li, H.; Zhou, J. Characterization of mutants of a tyrosine ammonia-lyase from Rhodotorula glutinis. Appl. Microbiol. Biotechnol. 2016, 100, 10443–10452. [Google Scholar] [CrossRef]
  32. Mendoza, L.D.; Rodriguez, J.A.; Leclaire, J.; Buono, G.; Fotiadu, F.; Carrière, F.; Abousalham, A. An ultraviolet spectrophotometric assay for the screening of sn-2-specific lipases using 1,3-O-dioleoyl-2-O-α-eleostearoyl-sn-glycerol as substrate. J. Lipid Res. 2012, 53, 185–194. [Google Scholar] [CrossRef] [PubMed]
  33. Lijuan, Y.; Jiamin, W.; Lu, W.; Yi, C. Cell-based high throughput screening of a-amino acid ester hydrolase variants. Microbiology 2011, 39, 0264–0271. [Google Scholar]
  34. Tian, H.; Yu, B.; Ai, L.; Yu, H.; Chen, C. A high-throughput system for screening high diacetyl-producing lactic acid bacteria in fermented milk in 96-well microplates. J. Food Meas. Charact. 2020, 14, 548–556. [Google Scholar] [CrossRef]
  35. Xiaodan, C.; Qun, F.; Zhaolun, F. Ultraviolet detection capillary electrophoresis system based on composite microfluidic chip. Chem J Chinese U 2004, 25, 1231–1234. [Google Scholar]
  36. Ottevaere, H.; Van Overmeire, S.; Albero, J.; Nieradko, L.; Desmet, G.; Gorecki, C.; Thienpont, H. Plastic light coupler for absorbance detection in silicon microfluidic channels. Microfluid. Nanofluidics 2015, 18, 559–568. [Google Scholar] [CrossRef]
  37. Hassan, S.U.; Nightingale, A.M.; Niu, X. Micromachined optical flow cell for sensitive measurement of droplets in tubing. Biomed. Microdevices 2018, 20, 92. [Google Scholar] [CrossRef]
  38. Ahmadi, F.; Samlali, K.; Vo, P.Q.N.; Shih, S.C.C. An integrated droplet-digital microfluidic system for on-demand droplet creation, mixing, incubation, and sorting. Lab Chip 2019, 19, 524–535. [Google Scholar] [CrossRef]
  39. Maceiczyk, R.M.; Hess, D.; Chiu, F.W.Y.; Stavrakis, S.; deMello, A.J. Differential detection photothermal spectroscopy: Towards ultra-fast and sensitive label-free detection in picoliter & femtoliter droplets. Lab Chip 2017, 17, 3654–3663. [Google Scholar]
  40. Wagner, J.; Liu, L.; Yuan, S.-F.; Venkataraman, M.; Abate, A.; Alper, H. A comparative analysis of single cell and droplet-based FACS for improving production phenotypes: Riboflavin overproduction in Yarrowia lipolytica. Metab. Eng. 2018, 47, 346–356. [Google Scholar] [CrossRef]
  41. Kim, H.S.; Hsu, S.-C.; Han, S.I.; Thapa, H.R.; Guzman, A.; Browne, D.R.; Tatli, M.; Devarenne, T.P.; Stern, D.B.; Han, A. High-throughput droplet microfluidics screening platform for selecting fast-growing and high lipid-producing microalgae from a mutant library. Plant Direct 2017, 1, e00011. [Google Scholar] [CrossRef]
  42. Choi, J.W.; Vasamsetti, B.M.K.; Kim, K.W.; Seo, S.H.; Lee, D.H.; Chang, S.I.; Choo, J.; Kim, H.Y. Analysis of ribonuclease activity in sub-nanoliter droplets by label-free fluorescence measurements. Analyst 2017, 142, 2610–2616. [Google Scholar] [CrossRef]
  43. Hardiman, E.; Gibbs, M.; Reeves, R.; Bergquist, P. Directed Evolution of a Thermophilic β-glucosidase for Cellulosic Bioethanol Production. Appl. Biochem. Biotechnol. 2010, 161, 301–312. [Google Scholar] [CrossRef]
  44. Ma, F.; Xie, Y.; Huang, C.; Feng, Y.; Yang, G. An Improved Single Cell Ultrahigh Throughput Screening Method Based on In Vitro Compartmentalization. PLoS ONE 2014, 9, e89785. [Google Scholar] [CrossRef]
  45. Tu, R.; Martinez, R.; Prodanovic, R.; Klein, M.; Schwaneberg, U. A Flow Cytometry–Based Screening System for Directed Evolution of Proteases. SLAS Discov. 2011, 16, 285–294. [Google Scholar] [CrossRef]
  46. Agresti, J.J.; Antipov, E.; Abate, A.R.; Ahn, K.; Rowat, A.C.; Baret, J.C.; Marquez, M.; Klibanov, A.M.; Griffiths, A.D.; Weitz, D. A Ultrahigh-throughput screening in drop-based microfluidics for directed evolution. Proc. Natl. Acad. Sci. USA 2010, 107, 4004–4009. [Google Scholar] [CrossRef]
  47. Turner, P.; Mamo, G.; Karlsson, E.N. Potential and utilization of thermophiles and thermostable enzymes in biorefining. Microb. Cell Factories 2007, 6, 9. [Google Scholar] [CrossRef]
  48. Nakkharat, P.; Haltrich, D. Purification and characterisation of an intracellular enzyme with beta-glucosidase and beta-galactosidase activity from the thermophilic fungus Talaromyces thermophilus CBS 236.58. J. Biotechnol. 2006, 123, 304–313. [Google Scholar] [CrossRef]
  49. Huebner, A.; Olguin, L.F.; Bratton, D.; Whyte, G.; Huck, W.T.; de Mello, A.J.; Edel, J.B.; Abell, C.; Hollfelder, F. Development of quantitative cell-based enzyme assays in microdroplets. Anal. Chem. 2008, 80, 3890–3896. [Google Scholar] [CrossRef]
  50. Varadarajan, N.; Rodriguez, S.; Hwang, B.Y.; Georgiou, G.; Iverson, B.L. Highly active and selective endopeptidases with programmed substrate specificities. Nat. Chem. Biol. 2008, 4, 290–294. [Google Scholar] [CrossRef]
  51. Mizukami, S.; Watanabe, S.; Hori, Y.; Kikuchi, K. Covalent protein labeling based on noncatalytic beta-lactamase and a designed FRET substrate. J. Am. Chem. Soc. 2009, 131, 5016–5017. [Google Scholar] [CrossRef]
  52. Yang, Y.; Babiak, P.; Reymond, J.-L. Low background FRET-substrates for lipases and esterases suitable for high-throughput screening under basic (pH 11) conditions. Org. Biomol. Chem. 2006, 4, 1746–1754. [Google Scholar] [CrossRef]
  53. Hammar, P.; Angermayr, S.A.; Sjostrom, S.L.; van der Meer, J.; Hellingwerf, K.J.; Hudson, E.P.; Joensson, H.N. Single-cell screening of photosynthetic growth and lactate production by cyanobacteria. Biotechnol. Biofuels 2015, 8, 193. [Google Scholar] [CrossRef]
  54. Abalde-Cela, S.; Gould, A.; Liu, X.; Kazamia, E.; Smith, A.G.; Abell, C. High-throughput detection of ethanol-producing cyanobacteria in a microdroplet platform. J. R. Soc. Interface 2015, 12, 20150216. [Google Scholar] [CrossRef]
  55. Ostafe, R.; Prodanović, R.; Lloyd Ung, W.; Weitz, D.A.; Fischer, R.J.B. A high-throughput cellulase screening system based on droplet microfluidics. Biomicrofluidics 2014, 8, 041102. [Google Scholar] [CrossRef]
  56. Williams, T.C.; Pretorius, I.S.; Paulsen, I.T. Synthetic Evolution of Metabolic Productivity Using Biosensors. Trends Biotechnol. 2016, 34, 371–381. [Google Scholar] [CrossRef]
  57. Sun, Q.M.; Lu, Y.L.; Shen, X.L.; Sun, X.X.; Wang, J.; Yuan, Q.P. Fluorescence detection-based high-throughput screening systems and devices facilitate cell factories construction. Synth. Biol. 2023, 4, 947–965. [Google Scholar]
  58. Cheng, F.; Tang, X.L.; Kardashliev, T. Transcription Factor-Based Biosensors in High-Throughput Screening: Advances and Applications. Biotechnol. J. 2018, 13, e1700648. [Google Scholar] [CrossRef]
  59. Siedler, S.; Stahlhut, S.G.; Malla, S.; Maury, J.; Neves, A.R. Novel biosensors based on flavonoid-responsive transcriptional regulators introduced into Escherichia coli. Metab. Eng. 2014, 21, 2–8. [Google Scholar] [CrossRef]
  60. Tu, R.; Li, L.; Yuan, H.; He, R.; Wang, Q. Biosensor-enabled droplet microfluidic system for the rapid screening of 3-dehydroshikimic acid produced in Escherichia coli. J. Ind. Microbiol. Biotechnol. 2020, 47, 1155–1160. [Google Scholar] [CrossRef]
  61. Paige, J.S.; Wu, K.Y.; Jaffrey, S.R. RNA mimics of green fluorescent protein. Science 2011, 333, 642–646. [Google Scholar] [CrossRef]
  62. Zhang, K.; Yang, Q.; Huang, W.; Wang, K.; Zhu, X.; Xie, M. Detection of HIV-1 ribonuclease H activity in single-cell by using RNA mimics green fluorescent protein based biosensor. Sens. Actuators B Chem. 2019, 281, 439–444. [Google Scholar] [CrossRef]
  63. Lim, H.G.; Jang, S.; Jang, S.; Seo, S.W.; Jung, G.Y. Design and optimization of genetically encoded biosensors for high-throughput screening of chemicals. Curr. Opin. Biotechnol. 2018, 54, 18–25. [Google Scholar] [CrossRef]
  64. Cheng, F.; Kardashliev, T.; Pitzler, C.; Shehzad, A.; Lue, H.; Bernhagen, J.; Zhu, L.; Schwaneberg, U. A Competitive Flow Cytometry Screening System for Directed Evolution of Therapeutic Enzyme. ACS Synth. Biol. 2015, 4, 768–775. [Google Scholar] [CrossRef]
  65. Laohakunakorn, N.; Grasemann, L.; Lavickova, B.; Michielin, G.; Shahein, A.; Swank, Z.; Maerkl, S.J. Bottom-Up Construction of Complex Biomolecular Systems with Cell-Free Synthetic Biology. Front. Bioeng. Biotechnol. 2020, 8, 213. [Google Scholar] [CrossRef]
  66. Lu, Y. Cell-free synthetic biology: Engineering in an open world. Synth. Syst. Biotechnol. 2017, 2, 23–27. [Google Scholar] [CrossRef]
  67. Rodionov, D.A.; Vitreschak, A.G.; Mironov, A.A.; Gelfand, M.S. Comparative genomics of the methionine metabolism in Gram-positive bacteria: A variety of regulatory systems. Nucleic Acids Res. 2004, 32, 3340–3353. [Google Scholar] [CrossRef]
  68. Shin, J.; Noireaux, V. An E. coli cell-free expression toolbox: Application to synthetic gene circuits and artificial cells. ACS Synth. Biol. 2012, 1, 29–41. [Google Scholar] [CrossRef]
  69. Tabuchi, T.; Yokobayashi, Y. High-throughput screening of cell-free riboswitches by fluorescence-activated droplet sorting. Nucleic Acids Res. 2022, 50, 3535–3550. [Google Scholar] [CrossRef]
  70. Vallejo, D.; Nikoomanzar, A.; Paegel, B.M.; Chaput, J.C. Fluorescence-Activated Droplet Sorting for Single-Cell Directed Evolution. ACS Synth. Biol. 2019, 8, 1430–1440. [Google Scholar] [CrossRef]
  71. Fu, X.; Zhang, Y.; Xu, Q.; Sun, X.; Meng, F. Recent Advances on Sorting Methods of High-Throughput Droplet-Based Microfluidics in Enzyme Directed Evolution. Front. Chem. 2021, 6, 666867. [Google Scholar] [CrossRef]
  72. Gu, S.; Lu, Y.; Ding, Y.; Li, L.; Zhang, F.; Wu, Q. Droplet-based microfluidics for dose–response assay of enzyme inhibitors by electrochemical method. Anal. Chim. Acta 2013, 796, 68–74. [Google Scholar] [CrossRef]
  73. Gasilova, N.; Yu, Q.; Qiao, L.; Girault, H.H. On-chip spyhole mass spectrometry for droplet-based microfluidics. Angew. Chem. (Int. Ed. Engl.) 2014, 53, 4408–4412. [Google Scholar] [CrossRef]
  74. Pullagura, B.K.; Amarapalli, S.; Gundabala, V. Coupling electrohydrodynamics with photopolymerization for microfluidics-based generation of polyethylene glycol diacrylate (PEGDA) microparticles and hydrogels. Colloids Surf. A Physicochem. Eng. Asp. 2021, 608, 125586. [Google Scholar] [CrossRef]
  75. Goto, H.; Kanai, Y.; Yotsui, A.; Shimokihara, S.; Shitara, S.; Oyobiki, R.; Fujiwara, K.; Watanabe, T.; Einaga, Y.; Matsumoto, Y.; et al. Microfluidic screening system based on boron-doped diamond electrodes and dielectrophoretic sorting for directed evolution of NAD(P)-dependent oxidoreductases. Lab Chip 2020, 20, 852–861. [Google Scholar] [CrossRef]
  76. Norris, J.L.; Porter, N.A.; Caprioli, R.M. Mass spectrometry of intracellular and membrane proteins using cleavable detergents. Anal. Chem. 2003, 75, 6642–6647. [Google Scholar] [CrossRef]
  77. Heinemann, J.; Deng, K.; Shih, S.C.C.; Gao, J.; Adams, P.D.; Singh, A.K.; Northen, T.R. On-chip integration of droplet microfluidics and nanostructure-initiator mass spectrometry for enzyme screening. Lab Chip 2017, 17, 323–331. [Google Scholar] [CrossRef]
  78. Holland-Moritz, D.A.; Wismer, M.K.; Mann, B.F.; Farasat, I.; Devine, P.; Guetschow, E.D.; Mangion, I.; Welch, C.J.; Moore, J.C.; Sun, S.; et al. Mass Activated Droplet Sorting (MADS) Enables High-Throughput Screening of Enzymatic Reactions at Nanoliter Scale. Angew. Chem. (Int. Ed. Engl.) 2020, 59, 4470–4477. [Google Scholar] [CrossRef]
  79. Willner, M.R.; McMillan, K.S.; Graham, D.; Vikesland, P.J.; Zagnoni, M. Surface-Enhanced Raman Scattering Based Microfluidics for Single-Cell Analysis. Anal. Chem. 2018, 90, 12004–12010. [Google Scholar] [CrossRef]
  80. Wang, X.; Xin, Y.; Ren, L.; Sun, Z.; Zhu, P.; Ji, Y.; Li, C.; Xu, J.; Ma, B. Positive dielectrophoresis-based Raman-activated droplet sorting for culture-free and label-free screening of enzyme function in vivo. Sci. Adv. 2020, 6, eabb3521. [Google Scholar] [CrossRef]
  81. Liu, W.W.; Zhu, Y. “Development and application of analytical detection techniques for droplet-based microfluidics”—A review. Anal. Chim. Acta 2020, 1113, 66–84. [Google Scholar] [CrossRef] [PubMed]
  82. Swyer, I.; Soong, R.; Dryden, M.D.M.; Fey, M.; Maas, W.E.; Simpson, A.; Wheeler, A.R. Interfacing digital microfluidics with high-field nuclear magnetic resonance spectroscopy. Lab Chip 2016, 16, 4424–4435. [Google Scholar] [CrossRef] [PubMed]
  83. Hale, W.; Rossetto, G.; Greenhalgh, R.; Finch, G.; Utz, M. High-resolution nuclear magnetic resonance spectroscopy in microfluidic droplets. Lab Chip 2018, 18, 3018–3024. [Google Scholar] [CrossRef]
  84. Choi, K.; Mudrik, J.M.; Wheeler, A.R. A guiding light: Spectroscopy on digital microfluidic devices using in-plane optical fibre waveguides. Anal. Bioanal. Chem. 2015, 407, 7467–7475. [Google Scholar] [CrossRef] [PubMed]
  85. Qiao, Y.; Zhao, X.; Zhu, J.; Tu, R.; Dong, L.; Wang, L.; Dong, Z.; Wang, Q.; Du, W. Fluorescence-activated droplet sorting of lipolytic microorganisms using a compact optical system. Lab Chip 2017, 18, 190–196. [Google Scholar] [CrossRef] [PubMed]
  86. Xu, J.G.; Huang, M.S.; Wang, H.F.; Fang, Q. Forming a Large-Scale Droplet Array in a Microcage Array Chip for High-Throughput Screening. Anal. Chem. 2019, 91, 10757–10763. [Google Scholar] [CrossRef]
  87. Qiao, Y.; Hu, R.; Chen, D.; Wang, L.; Wang, Z.; Yu, H.; Fu, Y.; Li, C.; Dong, Z.; Weng, Y.; et al. Fluorescence-activated droplet sorting of PET degrading microorganisms. J. Hazard Mater. 2022, 424 Pt B, 127417. [Google Scholar] [CrossRef]
  88. Zhang, G.; Chen, Y.; Li, Q.; Zhou, J.; Li, J.; Du, G. Growth-coupled evolution and high-throughput screening assisted rapid enhancement for amylase-producing Bacillus licheniformis. Bioresour. Technol. 2021, 337, 125467. [Google Scholar] [CrossRef]
  89. Prodanovic, R.; Ung, W.L.; Durdic, K.I.; Fischer, R.; Weitz, D.A.; Ostafe, R. A High-Throughput Screening System Based on Droplet Microfluidics for Glucose Oxidase Gene Libraries. Molecules 2020, 25, 2418. [Google Scholar] [CrossRef]
  90. Guo, L.; Zeng, W.; Xu, S.; Zhou, J. Fluorescence-activated droplet sorting for enhanced pyruvic acid accumulation by Candida glabrata. Bioresour. Technol. 2020, 318, 124258. [Google Scholar] [CrossRef]
  91. Steyer, D.J.; Kennedy, R.T. High-Throughput Nanoelectrospray Ionization-Mass Spectrometry Analysis of Microfluidic Droplet Samples. Anal. Chem. 2019, 91, 6645–6651. [Google Scholar] [CrossRef] [PubMed]
  92. Diefenbach, X.W.; Farasat, I.; Guetschow, E.D.; Welch, C.J.; Kennedy, R.T.; Sun, S.; Moore, J.C. Enabling Biocatalysis by High-Throughput Protein Engineering Using Droplet Microfluidics Coupled to Mass Spectrometry. ACS Omega 2018, 3, 1498–1508. [Google Scholar] [CrossRef] [PubMed]
Fermentation 10 00033 g001

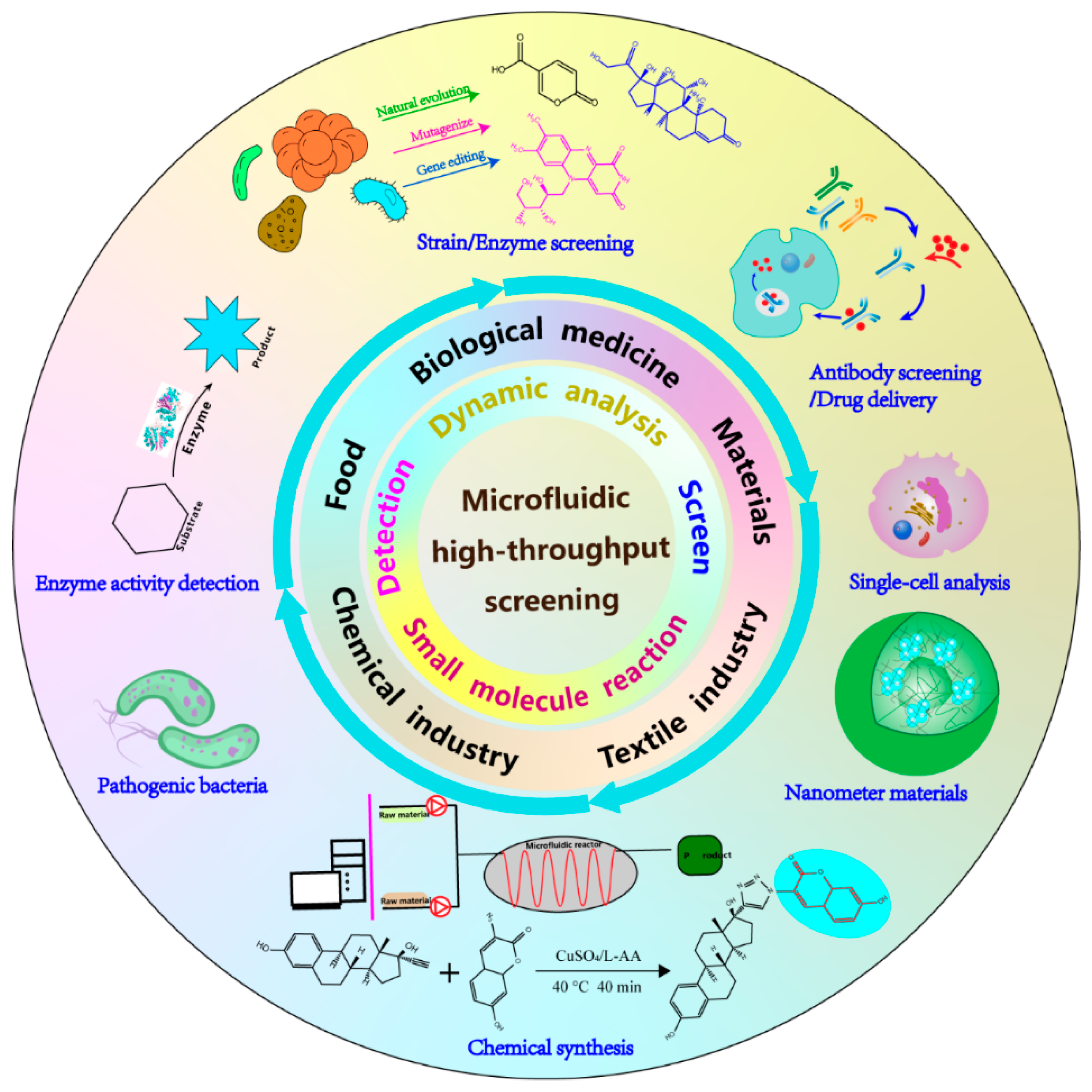

Figure 1. Application of microfluidic high-throughput screening.
Figure 1. Application of microfluidic high-throughput screening.
Fermentation 10 00033 g001
Fermentation 10 00033 g002

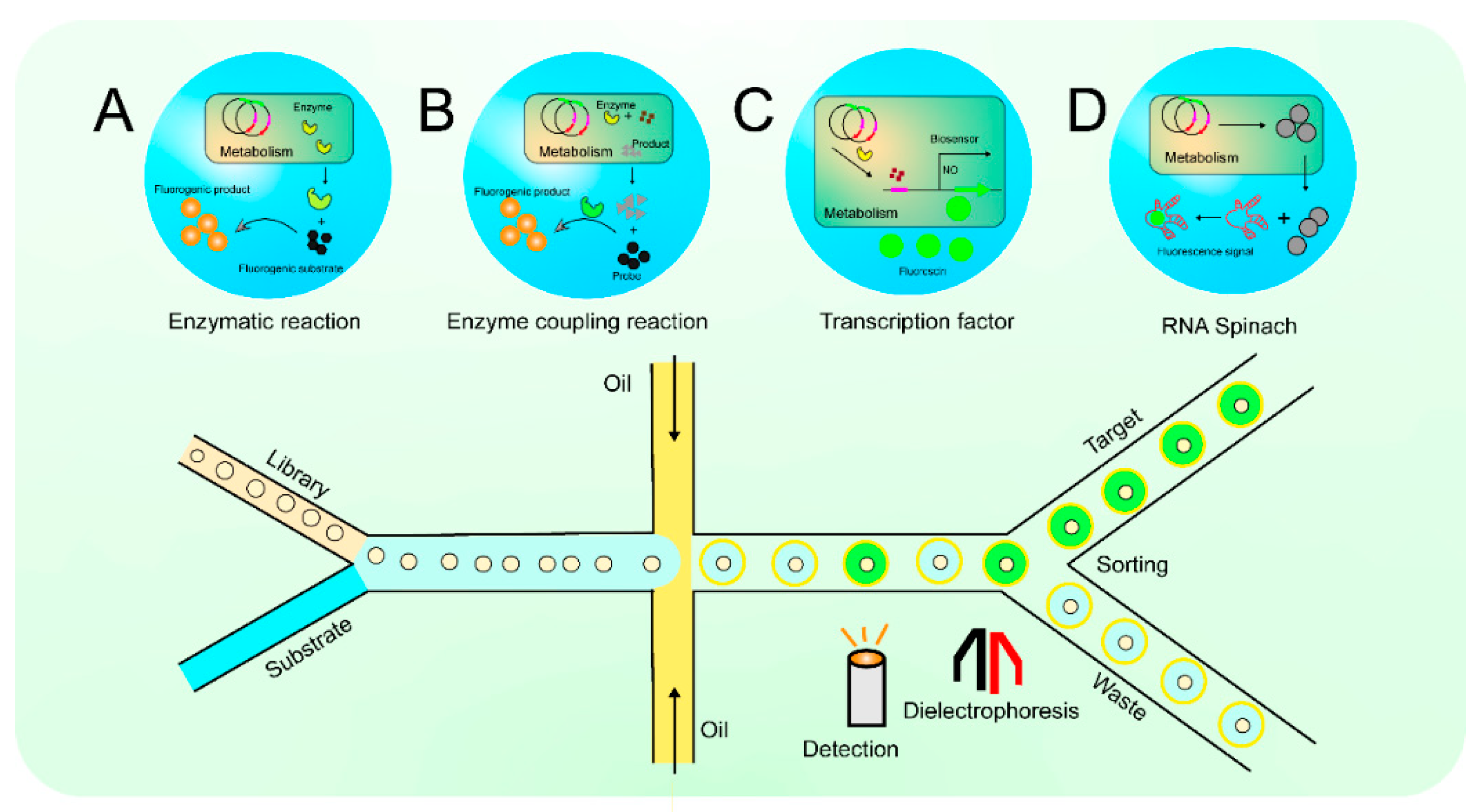

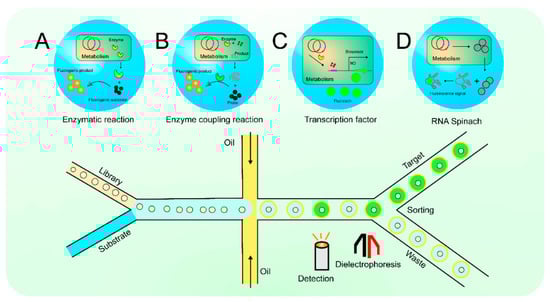

Figure 2. The diagram of droplet microfluidic. Enzymatic reaction (A); Enzyme coupling reaction (B); Transcription factor (C); RNA Spinach (D).
Figure 2. The diagram of droplet microfluidic. Enzymatic reaction (A); Enzyme coupling reaction (B); Transcription factor (C); RNA Spinach (D).
Fermentation 10 00033 g002
Table 1. High throughput screening application of droplet microfluidic system.
Table 1. High throughput screening application of droplet microfluidic system.
SpectrumScreening Analysis StrategiesScreening TargetSpecific ApplicationsReferences
Ultraviolet lightAddition of metabolite dyes-A planar microfluidic spectroscopy detection system was proposed, which could continuously analyze and determine thymol blue of the staining at 180–890 nm and realize the high-throughput detection of the corresponding stained species.[28]
Ultraviolet lightEnzymatic reactionE. coliUV–Vis full-wavelength detection system to monitor E. coli growth at 280 nm and thiouric acid assay at 311 nm to identify strain expression ergothionease activity.[16]
Visible lightDirect measurement of absorbanceYeastIntegrated droplet digital microfluidic system to measure the growth of mutant and wild-type yeasts in ionic liquids.[29]
Visible lightEnzymatic reactionHL-60 Cell populationDifferential detection photothermal interferometry combined with droplet microfluidics, relying on electronic media and mitochondrial succinate-tetrazolium reductase reaction to generate absorbance and the high-throughput analysis of the HL-60 cell population’s metabolic activity.[30]
Visible lightEnzyme-coupled reactionGlucose oxidaseUsing the principle of enzyme colorimetry, glucose hydrolysis intermediate H2O2, 4-aminoantipyrine, and phenol generate red quinone imine, thereby continuously determining glucose oxidase activity with a high throughput.[31]
FluorescenceDirect measurement of target metaboliteLactic acid bacteriaRiboflavin has a natural fluorescent signal, and high-yield mutant strains are screened for use in milk fermentation, and riboflavin reaches 2.81 mg/L.[32]
FluorescenceAddition of metabolite dyesMicroalgae strainThe fluorescent stain BODIPY was added to stain the lipids, and microalgae strains with a 2.75-fold increase in lipid yield were screened.[33]
FluorescenceEmbedding metal chelating agents-Add EtBr to bind to RNA to determine ribonuclease activity: the higher the activity, the lower the fluorescence signal.[34]
FluorescenceEnzymatic reactionEnvironmental microorganismsFluorescein dibutyrate was introduced as a fluorescent substrate, and 11 lipase-producing strains were screened from environmental microorganisms using FADS.[35]
FluorescenceEnzymatic reactionE. coliA method was developed to rapidly form a large-scale droplet array using microcage array chips, which improved the operability of droplets and introduced fluorescent substrates to screen strains expressing esterase AFEST from mixed bacteria.[36]
FluorescenceEnzymatic reactionViable bacteria in wastewaterThe fluorescent substrate diphenyl dibenzoate can be degraded by PETase to produce a fluorescent signal, which can screen for strains which express PETase efficiently.[37]
FluorescenceEnzyme-coupled reactionBacillus licheniformusAccording to the modified 3,5-dinitrosalicylic acid (DNS) method, starch substrates are decomposed into glucose; DNS and glucose undergo redox reactions to produce fluorescent substances, and strains with α-amylase expression increased by 67% were screened.[38]
FluorescenceEnzyme-coupled reactionYeastThe glucose in the microdroplets was decomposed via oxidase to produce H2O2; H2O2 reacted with vanadium bromoperoxidase to produce BrO−, and BrO- reacted with aminophenoxyfluorescein to produce a strong fluorescence, and an enzyme coupling strategy was established to screen out glucose oxidase mutants 2.1 times higher than those of wild-type Kcat.[39]
FluorescenceProtein-based biosensorsCandida glabrumA biosensor-expressing pH-sensitive fluorescent protein was constructed, and the ankyrin gene was introduced for expression so that the fluorescent protein was anchored on the surface of Candida glabricis to show the accumulation of pyruvate, and the strain with a 73.6% increase in pyruvate yield, reaching 48.6 g/L, was screened.[40]
FluorescenceTranscription factor-based
biosensors		E. coliA biosensor in response to 3-dehydroshikimic acid (3-DHS) was constructed, and 3-DHS was positively regulated, expressing a fluorescent protein, and screening mutant strains with high yields of 3-DHS, with a yield of 2.46 g/L at 24 h.[41]
FluorescenceNucleic acid-based biosensors
(RNA Spinach)		Saccharomyces cerevisiaeInnovated on the basis of RNA Spinach, a universal sensing technology which provides small molecule metabolites by altering RNA sequences, and screened mutant strains with 28-fold and 3-fold higher yields of tyrosine and recombinant protein streptomycin, respectively.[24]
Non-spectralCoupled mass spectrometry
analysis		TransaminaseCombined with droplet microfluidics, a high-throughput and stable droplet analysis system was constructed to detect the reaction products of intradroplet transaminases, quantify enzyme activity, and evaluate enzyme mutants.[42]
Non-spectralCoupled mass spectrometry
analysis		E. coliTransaminases can convert methyl 4-methyl-3-oxovalerate into the corresponding amine, and the amine is then spontaneously hydrolyzed to β-leucine, which is detected using the microfluidic-mass spectrometry analysis system and screened out a variety of mutants of transaminases.[43]
Raman spectroscopyCoupled surface-enhanced Raman scatteringProstate cancer cell populationSurface-enhanced Raman scattering combined with microfluidic system improved the sensitivity of the detection system, and the glycan expression and cell variability of prostate cancer cells were analyzed at high throughput using wheat germ lectin-modified nanometal particles.[44]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Hu, S.; Wang, B.; Luo, Q.; Zeng, R.; Zhang, J.; Cheng, J. Advances in Droplet-Based Microfluidic High-Throughput Screening of Engineered Strains and Enzymes Based on Ultraviolet, Visible, and Fluorescent Spectroscopy. Fermentation 2024, 10, 33. https://doi.org/10.3390/fermentation10010033

AMA Style

Hu S, Wang B, Luo Q, Zeng R, Zhang J, Cheng J. Advances in Droplet-Based Microfluidic High-Throughput Screening of Engineered Strains and Enzymes Based on Ultraviolet, Visible, and Fluorescent Spectroscopy. Fermentation. 2024; 10(1):33. https://doi.org/10.3390/fermentation10010033

Chicago/Turabian Style

Hu, Shunyang, Bangxu Wang, Qing Luo, Rumei Zeng, Jiamin Zhang, and Jie Cheng. 2024. "Advances in Droplet-Based Microfluidic High-Throughput Screening of Engineered Strains and Enzymes Based on Ultraviolet, Visible, and Fluorescent Spectroscopy" Fermentation 10, no. 1: 33. https://doi.org/10.3390/fermentation10010033

APA Style

Hu, S., Wang, B., Luo, Q., Zeng, R., Zhang, J., & Cheng, J. (2024). Advances in Droplet-Based Microfluidic High-Throughput Screening of Engineered Strains and Enzymes Based on Ultraviolet, Visible, and Fluorescent Spectroscopy. Fermentation, 10(1), 33. https://doi.org/10.3390/fermentation10010033

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
