Review

A Review of the Use of Immobilized Ionic Liquids in the Electrochemical Conversion of CO2

by
Jerry J. Kaczur
*,
Hongzhou Yang
,
Zengcai Liu
,
Syed D. Sajjad
and
Richard I. Masel
Dioxide Materials Inc., 3998 FAU Blvd, Suite 300, Boca Raton, FL 33431, USA
*
Author to whom correspondence should be addressed.
C 2020, 6(2), 33; https://doi.org/10.3390/c6020033
Submission received: 7 April 2020 / Revised: 20 May 2020 / Accepted: 21 May 2020 / Published: 24 May 2020
(This article belongs to the Special Issue Ionic liquids for CO2 Capture and Reduction)
Browse Figures
Versions Notes

Abstract

:
This paper is a review on the application of imidazolium-based ionic liquids tethered to polymer backbones in the electrochemical conversion of CO2 to carbon monoxide and formic acid. These tethered ionic liquids have been incorporated into novel anion ion exchange membranes for CO2 electrolysis, as well as for ionomers that have been incorporated into the cathode catalyst layer, providing a co-catalyst for the reduction reaction. In using these tethered ionic liquids in the cathode catalyst composition, the cell operating current increased by a factor of two or more. The Faradaic efficiencies also increased by 20–30%. This paper provides a review of the literature, in addition to providing some new experimental results from Dioxide Materials, in the electrochemical conversion of CO2 to CO and formic acid.

Graphical Abstract

1. Introduction

This paper is a review of the application of imidazolium-based ionic liquids tethered to polymer backbones in the electrochemical conversion of CO2 to carbon monoxide and formic acid. The work started in 2011, when Rosen et al. [1] found that the addition of 1-Ethyl-3-methylimidazolium tetrafluoroborate (EMIM⁺BF4−) or 1-Ethyl-3-methylimidazolium chloride (EMIM+Cl−) reduced the overpotential for CO2 electrolysis by almost a volt. The ionic liquids also helped increase the selectivity of CO2 to CO to above 95% [1,2,3,4,5]. Further investigation into whether the imidazolium cation was a promoter or co-catalyst in the heterogeneous/homogeneous electrocatalysis of CO2 reduction was conducted by Zhao et al. [6]. They found that imidazolium, as well as pyrrolidium, did enhance the reduction reaction with Ag as a co-electrocatalyst, especially in the presence of water.
Many investigators have been building on these findings, with the results being difficult to translate into practical devices. The presence of the ionic liquid in the solution inhibited CO2 mass transfer into the cathode catalyst layer. Furthermore, the electrochemical cells lost most of their activity in less than about 500 h, due to the degradation of these ionic liquids. To help resolve these stability issues, researchers began investigating and synthesizing various substituted ionic liquids and determining their stability, especially in alkaline solutions. They have also been experimentally incorporating these ionic liquids, using various polymerization methods, in the search for producing alkaline stable anion exchange membranes. Some of this work is summarized below.
Hugar et al. synthesized a series of imidazolium organic cations, evaluating the impact of substitution on the imidazolium ring and its chemical stability in 1, 2, and 5 M KOH at 80 °C in 30-day tests. They found that C4- and C5- substitutions in the imidazole ring with methyl groups were important to achieving alkaline stability. The methyl group(s) improved the ionic liquid ring stability and were better than similar substitutions using phenol groups [7].
Ye et al. investigated several synthesized polymerized imidazoliums, such as poly(1-[(2-methacryloyloxy)ethyl]-3-butylimidazolium hydroxide), under high-temperature alkaline conditions, finding significant degradation in their prepared imidazoliums in 1 M and 6 M KOH in 24- to 168-h tests [8].
Si et al. researched the alkaline stability of imidazolium cations having butyl groups at various substitution positions (N1-, C2-, and N3-), finding that the C2- substituted cations had a better alkaline stability in 1 M KOH in 240-h tests [9]. In addition, they also prepared cast anion exchange membranes by photo-crosslinking a mix of acrylonitrile/styrene, divinylbenzene, and photo-initiator using selected imidazolium cations. The C2- substituted [C2-BBMIM]+ imidazolium cation incorporated into the anion ion exchange membranes that they prepared showed stable conductivities after 240 h in 1 M KOH at 80 °C [9].
Qiu et al. investigated the cross-linking synthesis of styrene and acrylonitrile with various alkaline imidazolium-type ionic liquids in the search for making alkaline stable anion ion exchange membranes. A variety of photo-crosslinked membranes were made, using 1-methyl-3-(4-vinylbenzyl) imidazolium chloride as the ionic liquid. The membrane conductivity stability versus time in 1 and 10 M KOH solutions were evaluated, showing stable conductivity for up to 1000 h in 1 M KOH at 60 °C [10]. The same group also did a further study, converting 1-butyl-2-methylimidazole and 1-allyl-2-methylimidazolebromide to bis-imidazoliums using bromine-based compounds and photo-crosslinking them. They produced several anion membranes with stable conductivity in 1 M KOH at 60 °C for 30 days [11].
Guo et al. prepared a novel set of anion exchange membranes based on the copolymers of 1-allyl-3-methylimidazolium chloride (AmimCl) ionic liquid with either methyl methacrylate (MMA) or butyl methacrylate (BMA), which were prepared via free radical polymerization. The anion membranes were found to be stable in 6 M NaOH for 120 h at 60 °C [12].
Marinkas et al. worked on synthesizing a series of anion conducting polymers (PPO-BIM) based on a poly-(2,6-dimethyl-1,4-phenylene oxide) (PPO) backbone and methylated 2-mesitylbenzimidazol (BIM) functional groups. The membranes were operated in a water electrolysis cell, where the membranes were found to be stable in 0.5 M KOH at 50 °C, but not in 1 M KOH at 80 °C [13].
Tham et al. looked at the effect of substituents at the C2- and N3- positions of the imidazolium functional group of the poly(arylene ether) ketone-based anion electrolyte membranes that they prepared. The synthesized anion membranes were operated in alkaline water electrolysis zero gap cells in order to evaluate membrane and cell performance. They were able to operate the water electrolysis cell at 1.9 V at 500 mA/cm2. The simultaneous use of C2- methyl and N3- butyl substituents in the PAEK-APMBI membrane resulted in good chemical stability in 10 wt% NaOH at 60 °C, which retained 97% of its ion exchange capacity after 28 days [14].
Recognizing these difficulties in ionic liquid alkaline stability as well as to the need for alkaline stable anion membranes, Masel et al. [15,16,17,18,19,20] developed a new membrane system where the cation imidazoliums are tethered to a polymer backbone, as shown in Figure 1. These novel ionomers and membranes that were developed are now marketed under the Sustainion® tradename. Other investigators, as previously discussed, have been working on different approaches in the preparation of anion membranes, using different polymer mixture components, polymer backbones, and various ionic liquids [9,10,11,12,13,14]. Unfortunately, there is no comparison data available for those and other membranes in a direct comparison with the Sustainion® membranes in CO2 reduction to CO.
The experimental results with the Sustainion®-based system were a set of ionomers and membranes that were stable for at least 12,000 h at 60 °C in 1 M KOH, as shown in Figure 2. Presently, these membranes are being evaluated by multiple investigators [21,22,23,24,25,26,27,28,29]. This paper briefly reviews the results in the CO2 conversion to CO as well as in the conversion to formic acid. Also included is a comparison set of data for the same electrochemical processes with membranes other than Sustainion®, with a particular focus on studies where the cells had been run for at least 100 h, as summarized by Nwabara et al. [30].

2. Immobilizing Ionic Liquids to Create Functionalized Anion Conducting Membranes

Figure 1 shows the structure of the Sustainion® polymers and ionomers that Dioxide Materials has made. It consists of an imidazolium cation tethered to a styrene backbone. In one of the original membrane formulations, called polystyrene vinylbenzyl methyl imidazolium chloride (PSMIM), methyl imidazolium was used as the functional group. Later, 1,2,4,5-Tetramethylimidazole was employed as the functional group. This formulation, named PSTMIM, was further improved, producing the commercial anion membrane form designated as Sustanion® X-37.
The Sustainion® anion exchange membranes were found to be surprisingly stable under alkaline conditions. A Thermo Nicolet FTIR Spectrometer with a resolution of 4 cm−1 and scan range of 500–4000 cm−1 using an ATR mode was used to check the Sustainion® membranes for any degradation. Figure 2 shows the FTIR spectrum of the membrane after 12,180 h of operation in an alkaline exchange membrane (AEM) water electrolyzer running in 1 M KOH at 60 °C. It also shows the spectra of the two components that are used to synthesize the membrane: (i) a copolymer of styrene and vinyl benzyl chloride, and (ii) tetramethylimidazole (TMIM). The membrane structure is shown as an inset. Notice that the TMIM C-N ring modes at 1605, 1435, and 825 cm−1 and the TMIM CH3 stretches at 1211, 1165, and 975 cm−1 are still present in the membrane. The feature at 1403 cm−1 in the TMIM spectrum is missing from the spectrum of the membrane. This mode is associated with out of plane bending around the α-nitrogen in TMIM and had disappeared, since the α-nitrogen is now bound to the benzyl ligand. Other measurements showed that the membrane conductivity was unchanged during this run. Clearly, the membrane is stable under alkaline conditions.

3. Electrochemical Conversion of CO2 to CO

Sustainion® membranes have been used by various investigators in the electrochemical conversion of CO2 to CO. Figure 3 shows a schematic of an electrolyzer for CO2 electrolysis to CO. The cell uses a titanium flow field on the anode and a 316 L stainless steel serpentine flow field on the cathode. The anode is made by depositing a mixture of IrO2 nanoparticles and a Nafion solution binder onto a Toray carbon paper, as described elsewhere [4,17,31]. The cathode was made by depositing a mixture of Ag nanoparticles and Sustainion® XA-9 ionomer binder onto a Sigracet 39 BC GDL carbon paper, as described elsewhere, to make the gas diffusion electrode (GDE) [4,17,31]. The membrane evaluated is typically Sustainion® X-37.
Figure 4 shows some of the typical data. In this case, 1 L/min of humidified CO2 was fed into a single cell electrolyzer with an active area of 250 cm2. The cell voltage was first fixed at 3.3 V, and the current reached 50 A (200 mA/cm2) in less than 1 h. Then, the current was fixed at 50 A, and the cell voltage and CO selectivity monitored with time. Figure 4 shows the cell voltage and CO selectivity of the 250 cm2 CO2 electrolyzer operating at 200 mA/cm2 and 35 °C. The results show that the cell voltage stabilized at 3.05 V for over 120 h, maintaining CO selectivity at 97–98%.
Table 1 summarizes the data on the electrochemical conversion of CO2 to CO and O2 using Sustainion® membranes. Also included is a selection of examples from the literature where different membranes were used. Notice that the current is higher when the Sustainion® anion membranes are used, only needing a lower voltage to maintain the same equivalent current density.

4. Electrochemical Conversion of CO2 to Formic Acid

The highly conductive properties of the Sustainion® anion ion exchange membrane allowed the development of a unique three-compartment cell, as shown in Figure 5, that can generate pure formic acid at high concentrations. The system requires only deionized water and CO2 gas. The cell design uses a GDE cathode consisting of a nanoparticle tin oxide catalyst and carbon, using Sustainion® XA-9 ionomer as a binder. The CO2 is reduced to the formate ion (HCOO-) on the cathode, which then passes through the anion membrane into the center compartment [32,34,35].
The GDE anode consists of a nanoparticle IrO2 catalyst or an IrO2 thermal coating on sintered titanium fiber paper, in converting water into H+ ions and oxygen (O2). The H+ ions pass through the adjoining cation ion exchange membrane into the center flow compartment. The H+ and formate ions combine in the center compartment, directly forming a formic acid product, which is removed from the compartment using a deionized water input stream. Formic acid product concentrations of up to about 20 wt% have been produced.
Figure 6 shows an example of the performance of a 5 cm2 cell operating for 500 h, evaluating a new potential candidate cathode electrocatalyst at a current density of 200 mA/cm2, and producing a 10 wt% formic acid product. The operating cell voltage was constant at 3.5 V.
Table 2 summarizes a number of examples of electrochemical CO2 to formic acid cell data found in the literature. A number of the electrochemical cell configurations in these papers generate formate salts, and are not included in the table. Notice that the current is higher when Sustainion® membranes are used, requiring only a lower voltage to maintain the same current.

5. Summary

Laboratory test results showing that specific ionic liquids can reduce the overpotential in the electrochemical reduction of CO2 led to the development of the Sustainion® anion ion exchange membranes by researchers at Dioxide Materials. Specific ionic liquids, once immobilized as cations in a polymer structure, allowed for the development of anion ion exchange membranes with the properties required in developing new and efficient electrochemical processes in the conversion of CO2 to chemicals and fuels. Two new electrochemical processes were developed using these Sustainion® anion membranes. The first process was the electrochemical reduction of CO2 to CO. The second process was the direct reduction of CO2 that could directly produce a concentrated pure formic acid product. Researchers have been reporting some excellent electrolyzer performance results using these new Sustainion® anion membranes, with some of this data tabulated in this paper.

Author Contributions

J.J.K., Z.L., H.Y., S.D.S. and R.I.M. all fully contributed to the information and analysis provided in this review paper as well as in the writing and editing of this manuscript. H.Y. provided the new formic acid cell data and Z.L. the new CO2 cell data. All authors have read and agreed to the published version of the manuscript.

Funding

Parts of this work were funded by the U.S. Department of Energy (DOE), under contracts DE-FE0031706 and DE-SC0018540. The opinions here are those of the authors and may not reflect the opinions of the DOE.

Conflicts of Interest

The authors have submitted patents on the membranes and cell designs used for the work here, including U.S. 9,370,773, U.S. 9,481,939, U.S. 9,580,824, U.S. 9,815,021, U.S. 9,982,353, and U.S. 9,943,841. The authors and Dioxide Materials have a financial interest in these patents. Dioxide Materials is offering all of the research materials used here (membranes, cells, catalysts, etc.) for sale to other research groups so that they can reproduce results and build on the findings. The authors declare a financial interest in these sales.

References

  1. Rosen, B.A.; Salehi-Khojin, A.; Thorson, M.R.; Zhu, W.; Whipple, D.T.; Kenis, P.J.A.; Masel, R.I. Ionic Liquid Mediated Selective Conversion of CO2 to CO At Low Overpotentials. Science 2011, 334, 643–644. [Google Scholar] [CrossRef] [PubMed]
  2. Rosen, B.A.; Haan, J.L.; Mukherjee, P.; Braunschweig, B.; Zhu, W.; Salehi-Khojin, A.; Dlott, D.D.; Masel, R.I. In Situ Spectroscopic Examination of a Low Overpotential Pathway for Carbon Dioxide Conversion to Carbon Monoxide. J. Phys. Chem. C 2012, 116, 15307–15312. [Google Scholar] [CrossRef]
  3. Rosen, B.A.; Zhu, W.; Kaul, G.; Salehi-Khojin, A.; Masel, R.I. Water enhancement of CO2 conversion on silver in 1-ethyl-3-methylimidazolium tetrafluoroborate. J. Electrochem. Soc. 2013, 160, H138–H141. [Google Scholar] [CrossRef]
  4. Masel, R.I.; Rosen, B.A.; Zhu, W. Devices and Processes for Carbon Dioxide Conversion into Useful Fuels and Chemicals. U.S. Patent 9,181,625, 3 April 2014. [Google Scholar]
  5. Masel, R.I.; Salahi-Khogin, A.; Rosen, B. Catalysts for Electrochemical Conversion of Carbon Dioxide. U.S. Patent 9,012,345, 21 April 2015. [Google Scholar]
  6. Zhao, S.-F.; Horne, M.; Bond, A.M.; Zhang, J. Is the Imidazolium Cation a Unique Promoter for Electrocatalytic Reduction of Carbon Dioxide? J. Phys. Chem. C 2016, 120, 23989–24001,. [Google Scholar] [CrossRef]
  7. Hugar, K.M.; Kostalik, H.A.; Coates, G.W. Imidazolium Cations with Exceptional Alkaline Stability: A Systematic Study of Structure–Stability Relationships. J. Am. Chem. Soc. 2015, 137, 8730–8737. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Ye, Y.; Elabd, Y.A. Relative Chemical Stability of Imidazolium-Based Alkaline Anion Exchange Polymerized Ionic Liquids. Macromolecules 2011, 44, 8494–8503. [Google Scholar] [CrossRef]
  9. Si, Z.; Qiu, L.; Dong, H.; Gu, F.; Li, Y.; Yan, F. Effects of substituents and substitution positions on alkaline stability of imidazolium cations and their corresponding anion-exchange membranes. ACS Appl. Mater. Interfaces 2014, 6, 4346–4355. [Google Scholar] [CrossRef]
  10. Qiu, B.; Lin, B.; Qiu, L.; Yan, F. Alkaline imidazolium- and quaternary ammonium-functionalized anion exchange membranes for alkaline fuel cell applications. J. Mater. Chem. 2012, 22, 1040–1045. [Google Scholar] [CrossRef]
  11. Qiu, B.; Lin, B.; Si, Z.; Qiu, L.; Chu, F.; Zhao, J.; Yan, F. Bis-imidazolium-based anion-exchange membranes for alkaline fuel cells. J. Power Sources 2012, 217, 329–335. [Google Scholar] [CrossRef]
  12. Guo, M.; Fang, J.; Xu, H.; Li, W.; Lu, X.; Lan, C.; Li, K. Synthesis and characterization of novel anion exchange membranes based on imidazolium-type ionic liquid for alkaline fuel cells. J. Membr. Sci. 2010, 362, 97–104. [Google Scholar] [CrossRef]
  13. Marinkas, A.; Struzynska-Piron, I.; Lee, Y.; Lim, A.; Park, H.S.; Jang, J.H.; Kim, H.J.; Kim, J.H.; Maljusch, A.; Conradi, O.; et al. Anion-conductive membranes based on 2-mesityl-benzimidazolium functionalised poly(2,6-dimethyl-1,4-phenylene oxide) and their use in alkaline water electrolysis. Polymer 2018, 145, 242–251. [Google Scholar] [CrossRef]
  14. Tham, D.D. C2 and N3 substituted imidazolium functionalized poly(arylene ether ketone) anion exchange membrane for water electrolysis with improved chemical stability. J. Membr. Sci. 2019, 581, 139–149. [Google Scholar] [CrossRef]
  15. Masel, R.I.; Rosen, B. Catalyst Mixtures. U.S. Patent 8,956,990, 17 February 2015. [Google Scholar]
  16. Masel, R.I.; Chen, Q.; Liu, Z.; Kutz, R. Ion-Conducting Membranes. U.S. Patent 9,370,773, 21 June 2016. [Google Scholar]
  17. Masel, R.I.; Chen, Q.; Liu, Z.; Kutz, R. Electrochemical Device for Converting Carbon Dioxide to a Reaction Product. U.S. Patent 9,481,939, 1 November 2016. [Google Scholar]
  18. Masel, R.I.; Chen, Q.; Liu, Z.; Kutz, R. Ion-Conducting Membranes. U.S. Patent 9,580,824, 28 February 2017. [Google Scholar]
  19. Masel, R.I.; Chen, Q.; Liu, Z. Ion-Conducting Membranes. U.S. Patent 9,849,450, 26 December 2017. [Google Scholar]
  20. Kutz, R.B.; Chen, Q.; Yang, H.; Sajjad, S.D.; Liu, Z.; Masel, I.R. Sustainion Imidazolium-Functionalized Polymers for Carbon Dioxide Electrolysis. Energy Technol. 2017, 5, 929–936. [Google Scholar] [CrossRef] [Green Version]
  21. Endrődi, B.; Kecsenovity, E.; Samu, A.; Darvas, F.; Jones, R.V.; Török, V.; Danyi, A.; Janáky, C. Multilayer Electrolyzer Stack Converts Carbon Dioxide to Gas Products at High Pressure with High Efficiency. ACS Energy Lett. 2019, 4, 1770–1777. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Jeong, H.-Y.; Balamurugan, M.; Choutipalli, V.S.K.; Jeong, E.-S.; Subramanian, V.; Sim, U.; Nam, K.T. Achieving highly efficient CO2 to CO electroreduction exceeding 300 mA cm−2 with single-atom nickel electrocatalysts. J. Mater. Chem. A 2019, 7, 10651–10661. [Google Scholar] [CrossRef]
  23. Lee, J.; Lim, J.; Roh, C.-W.; Whang, H.S.; Lee, H. Electrochemical CO2 reduction using alkaline membrane electrode assembly on various metal electrodes. J. CO2 Util. 2019, 31, 244–250. [Google Scholar] [CrossRef]
  24. Ren, S.; Joulie, D.; Berlinguette, C.P.; Joulie, D.; Torbensen, K.; Wang, M.; Robert, M.; Salvatore, D. Molecular electrocatalysts can mediate fast, selective CO2 reduction in a flow cell. Science 2019, 365, 367–369. [Google Scholar] [CrossRef]
  25. Wang, M.; Torbensen, K.; Joulie, D.; Mendoza, D.; Robert, M.; Salvatore, D.; Berlinguette, C.P.; Ren, S.; Joulie, D.; Berlinguette, C.P.; et al. CO2 electrochemical catalytic reduction with a highly active cobalt phthalocyanine. Nat. Commun. 2019, 10, 3602. [Google Scholar] [CrossRef]
  26. Gabardo, C.M.; O’Brien, C.P.; Edwards, J.P.; McCallum, C.; Xu, Y.; Dinh, C.-T.; Li, J.; Sargent, E.H.; Sinton, D. Continuous Carbon Dioxide Electroreduction to Concentrated Multi-carbon Products Using a Membrane Electrode Assembly. Joule 2019, 3, 2777–2791. [Google Scholar] [CrossRef]
  27. Koshikawa, H.; Murase, H.; Hayashi, T.; Nakajima, K.; Mashiko, H.; Shiraishi, S.; Tsuji, Y. Single Nanometer-Sized NiFe-Layered Double Hydroxides as Anode Catalyst in Anion Exchange Membrane Water Electrolysis Cell with Energy Conversion Efficiency of 74.7% at 1.0 A cm−2. ACS Catal. 2020, 10, 1886–1893. [Google Scholar] [CrossRef]
  28. Liu, Z.; Sajjad, S.D.; Gao, Y.; Yang, H.; Kaczur, J.J.; Masel, R.I. The effect of membrane on an alkaline water electrolyzer. Int. J. Hydrog. Energy 2017, 42, 29661–29665. [Google Scholar] [CrossRef]
  29. Pushkareva, I.V.; Pushkarev, A.S.; Grigoriev, S.A.; Modisha, P.; Bessarabov, D.G. Comparative study of anion exchange membranes for low-cost water electrolysis. Int. J. Hydrog. Energy 2019. [Google Scholar] [CrossRef]
  30. Nwabara, U.O.; Cofell, E.R.; Verma, S.; Negro, E.; Kenis, P.J.A. Durable Cathodes and Electrolyzers for the Efficient Aqueous Electrochemical Reduction of CO2. ChemSusChem 2020, 13, 855–875. [Google Scholar] [CrossRef] [PubMed]
  31. Masel, R.I.; Liu, Z.; Kutz, R.; Sajjad, S.D. Catalyst Layers and Electrolyzers. U.S. Patent 9,945,040, 17 April 2018. [Google Scholar]
  32. Kaczur, J.J.; Yang, H.; Liu, Z.; Sajjad, S.D.; Masel, R.I. Carbon dioxide and water electrolysis using new alkaline stable anion membranes. Front. Chem. 2018, 6, 263. [Google Scholar] [CrossRef] [Green Version]
  33. Haas, T.; Krause, R.; Weber, R.; Demler, M.; Schmid, G. Technical photosynthesis involving CO2 electrolysis and fermentation. Nat. Catal. 2018, 1, 32–39. [Google Scholar] [CrossRef]
  34. Yang, H.; Kaczur, J.J.; Sajjad, S.D.; Masel, R.I. Electrochemical conversion of CO2 to formic acid utilizing Sustainion™ membranes. J. CO2 Util. 2017, 20, 208–217. [Google Scholar] [CrossRef]
  35. Yang, H.; Kaczur, J.J.; Sajjad, S.D.; Masel, R.I. CO2 conversion to formic acid in a three compartment cell with sustainion membranes. ECS Trans. 2017, 77, 1425–1431. [Google Scholar] [CrossRef]
  36. Xia, C.; Zhu, P.; Jiang, Q.; Pan, Y.; Liang, W.; Stavitski, E.; Alshareef, H.N.; Wang, H. Continuous production of pure liquid fuel solutions via electrocatalytic CO2 reduction using solid-electrolyte devices. Nat. Energy 2019, 4, 776–785. [Google Scholar] [CrossRef]
  37. Lee, S.; Ju, H.; Machunda, R.; Uhm, S.; Lee, J.K.; Lee, H.J.; Lee, J. Sustainable production of formic acid by electrolytic reduction of gaseous carbon dioxide. J. Mater. Chem. A 2015, 3, 3029–3034. [Google Scholar] [CrossRef]
  38. Lei, T.; Zhang, X.; Jung, J.; Cai, Y.; Hou, X.; Zhang, Q.; Qiao, J. Continuous electroreduction of carbon dioxide to formate on Tin nanoelectrode using alkaline membrane cell configuration in aqueous medium. Catal. Today 2018, 318, 32–38. [Google Scholar] [CrossRef]
  39. Ramdin, M.; Morrison, A.R.T.; de Groen, M.; van Haperen, R.; de Kler, R.; Irtem, E.; Laitinen, A.T.; van den Broeke, L.J.P.; Breugelmans, T.; Trusler, J.P.M.; et al. High-Pressure Electrochemical Reduction of CO2 to Formic Acid/Formate: Effect of pH on the Downstream Separation Process and Economics. Ind. Eng. Chem. Res. 2019, 58, 22718–22740. [Google Scholar] [CrossRef] [Green Version]
Carbon 06 00033 g001 550

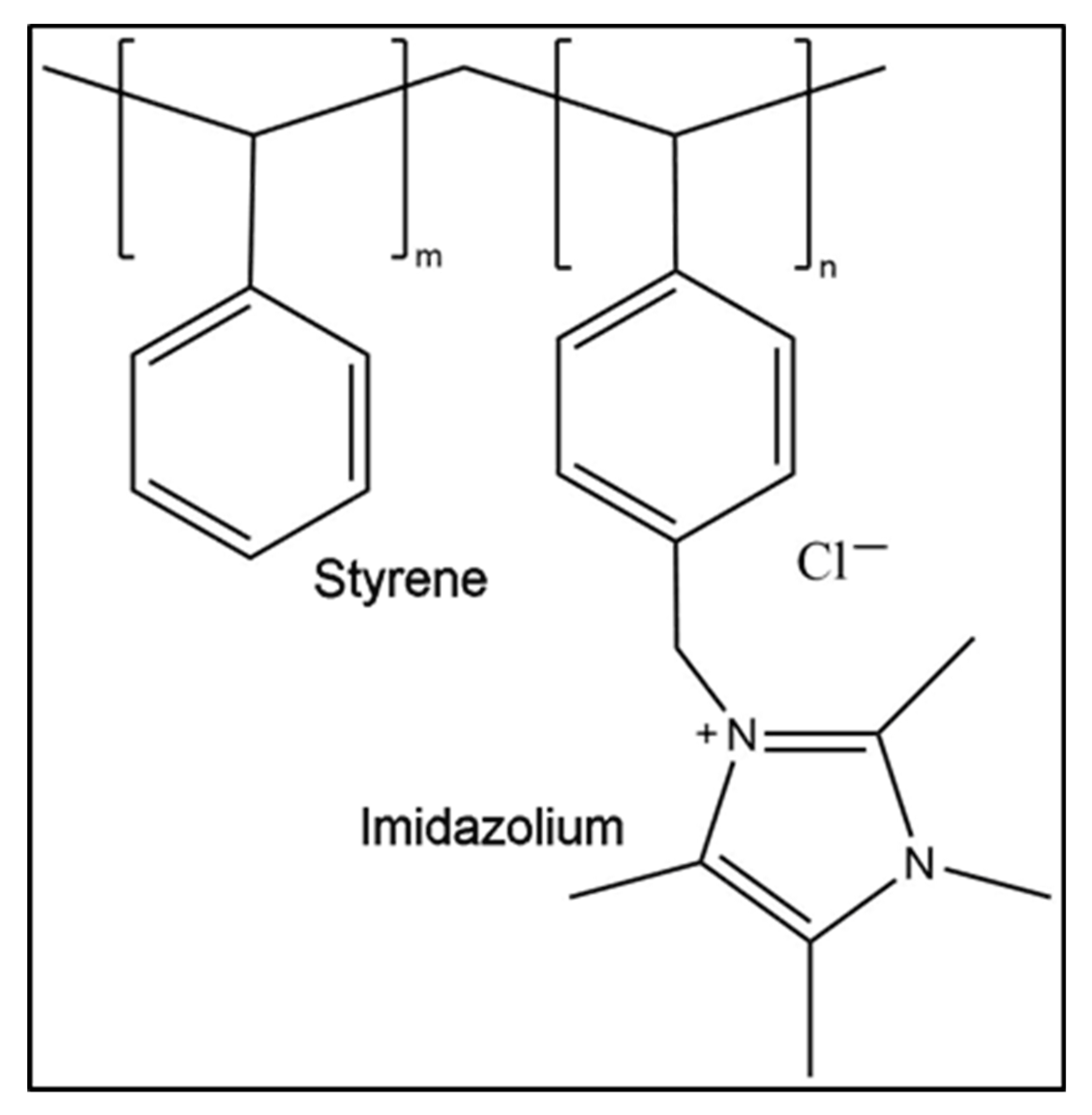

Figure 1. The structure of Sustainion® membranes where an imidazolium-based cation is attached to a styrene backbone to create an immobilized ionic liquid material.
Figure 1. The structure of Sustainion® membranes where an imidazolium-based cation is attached to a styrene backbone to create an immobilized ionic liquid material.
Carbon 06 00033 g001
Carbon 06 00033 g002 550

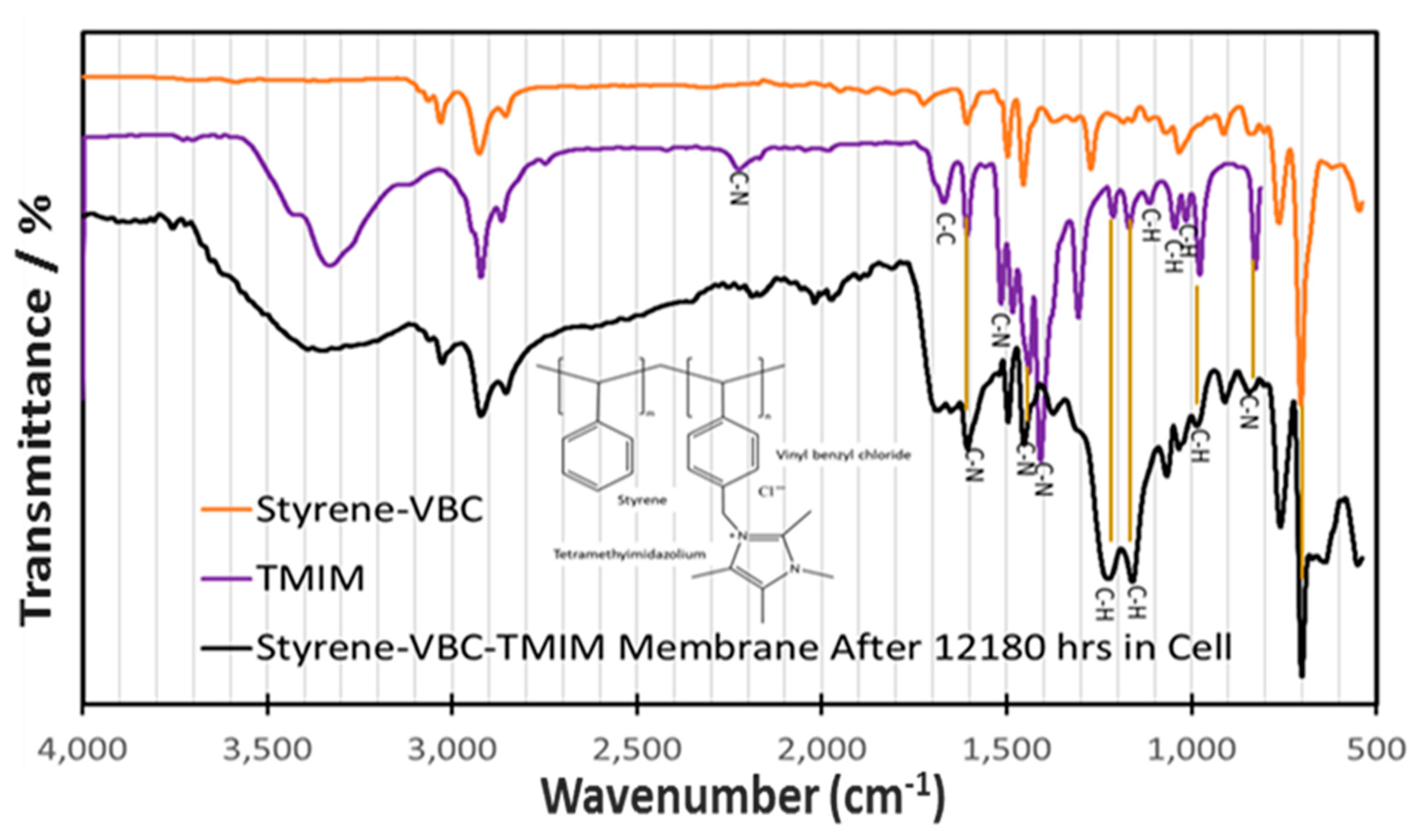

Figure 2. Infrared spectrum of (top) the styrene-vinyl benzyl chloride (VBC) copolymer that is used for membrane synthesis; (middle) tetramethyl imidazole (TMIM), the other component used in the membrane synthesis; (bottom) the active area of the ePTFE supported Sustainion® X37-T membrane. The spectrum was taken after removing the membrane from the alkaline exchange membrane (AEM) water electrolyzer after operating at 60 °C in 1 M KOH for 12,180 h, and carefully cleaning the membrane for the FTIR tests.
Figure 2. Infrared spectrum of (top) the styrene-vinyl benzyl chloride (VBC) copolymer that is used for membrane synthesis; (middle) tetramethyl imidazole (TMIM), the other component used in the membrane synthesis; (bottom) the active area of the ePTFE supported Sustainion® X37-T membrane. The spectrum was taken after removing the membrane from the alkaline exchange membrane (AEM) water electrolyzer after operating at 60 °C in 1 M KOH for 12,180 h, and carefully cleaning the membrane for the FTIR tests.
Carbon 06 00033 g002
Carbon 06 00033 g003 550

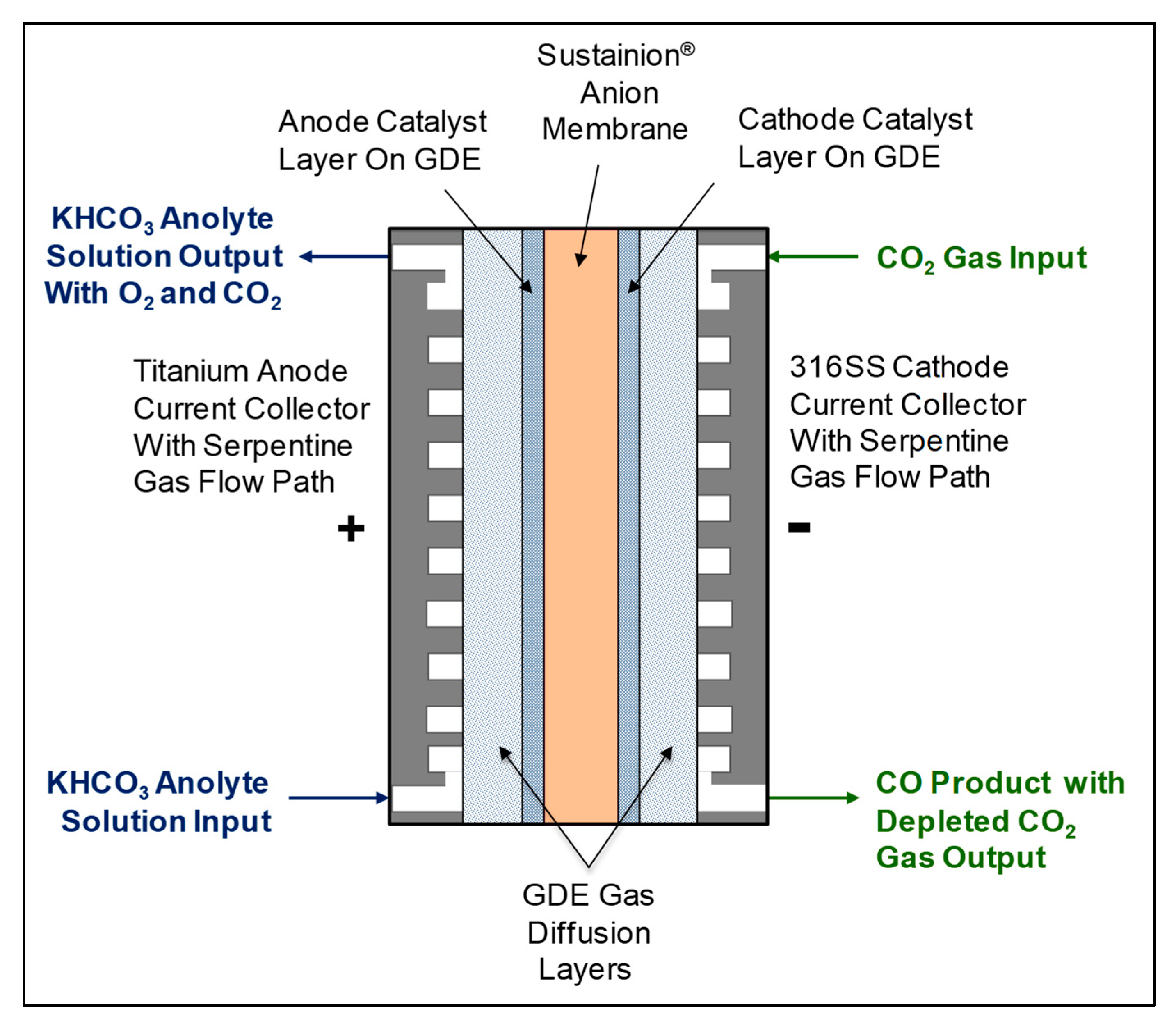

Figure 3. The configuration of a Dioxide Materials single-cell electrolyzer for CO2 conversion to CO with an active area of 250 cm2.
Figure 3. The configuration of a Dioxide Materials single-cell electrolyzer for CO2 conversion to CO with an active area of 250 cm2.
Carbon 06 00033 g003
Carbon 06 00033 g004 550

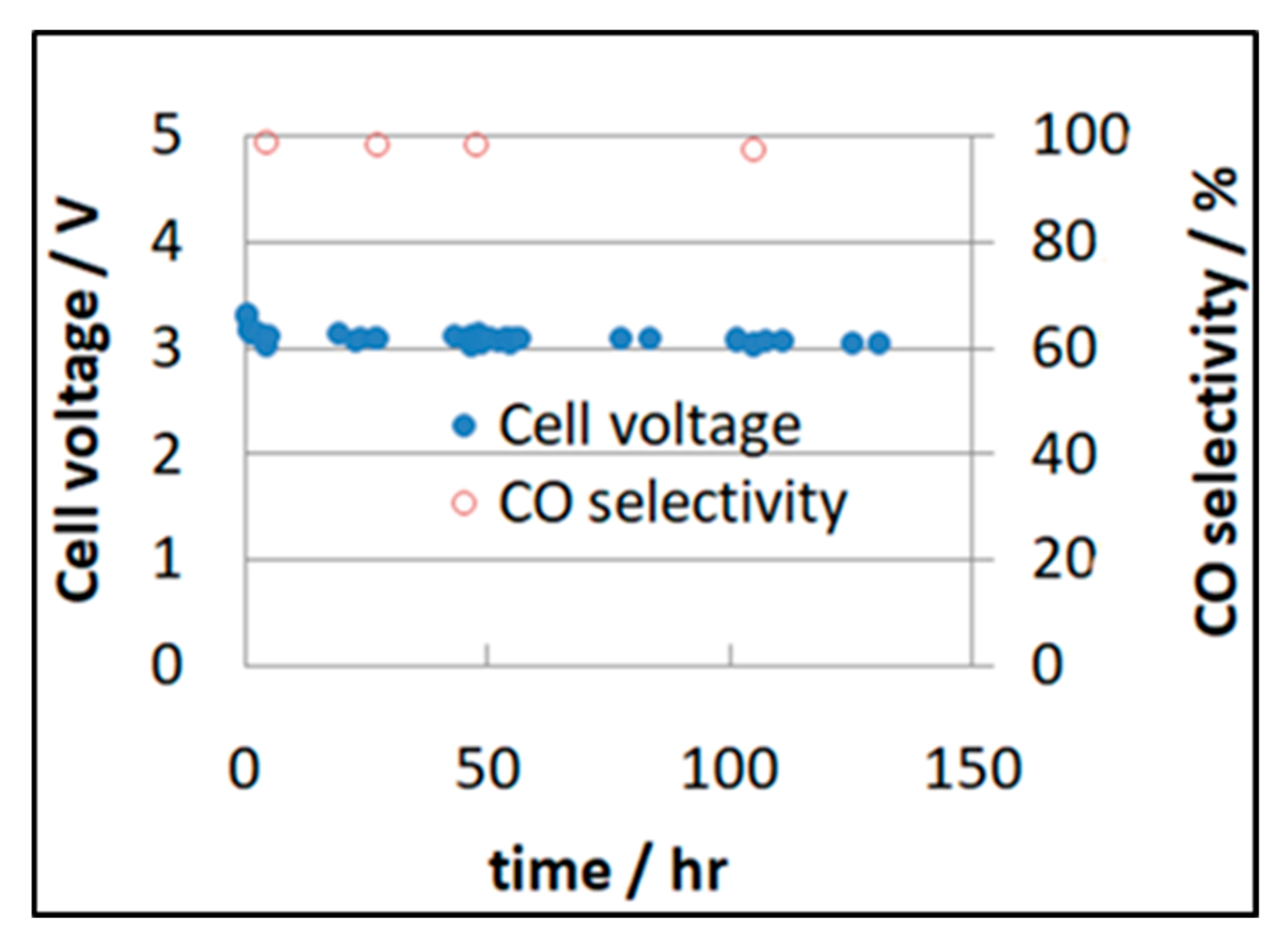

Figure 4. Cell voltage and CO selectivity of the 250 cm2 CO2 electrolyzer as a function of time, 200 mA/cm2 and 35 °C. Humidified CO2 was metered to the cathode at 1 L/min. The anolyte was a 20 mM KHCO3 circulated through anode at a flowrate of 0.6 L/min.
Figure 4. Cell voltage and CO selectivity of the 250 cm2 CO2 electrolyzer as a function of time, 200 mA/cm2 and 35 °C. Humidified CO2 was metered to the cathode at 1 L/min. The anolyte was a 20 mM KHCO3 circulated through anode at a flowrate of 0.6 L/min.
Carbon 06 00033 g004
Carbon 06 00033 g005 550

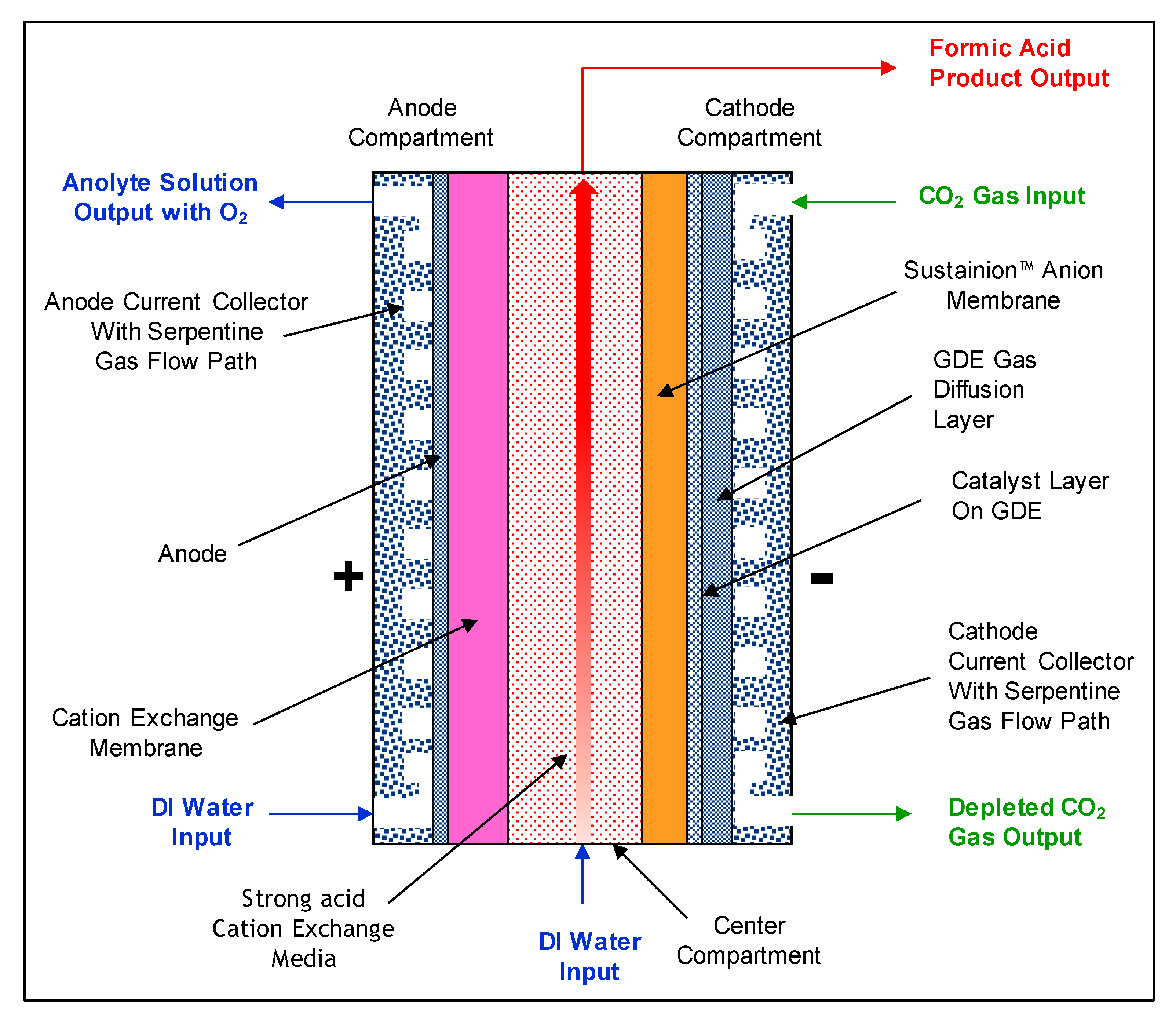

Figure 5. The design of a three-compartment electrolyzer cell that converts CO2 and water into formic acid.
Figure 5. The design of a three-compartment electrolyzer cell that converts CO2 and water into formic acid.
Carbon 06 00033 g005
Carbon 06 00033 g006 550

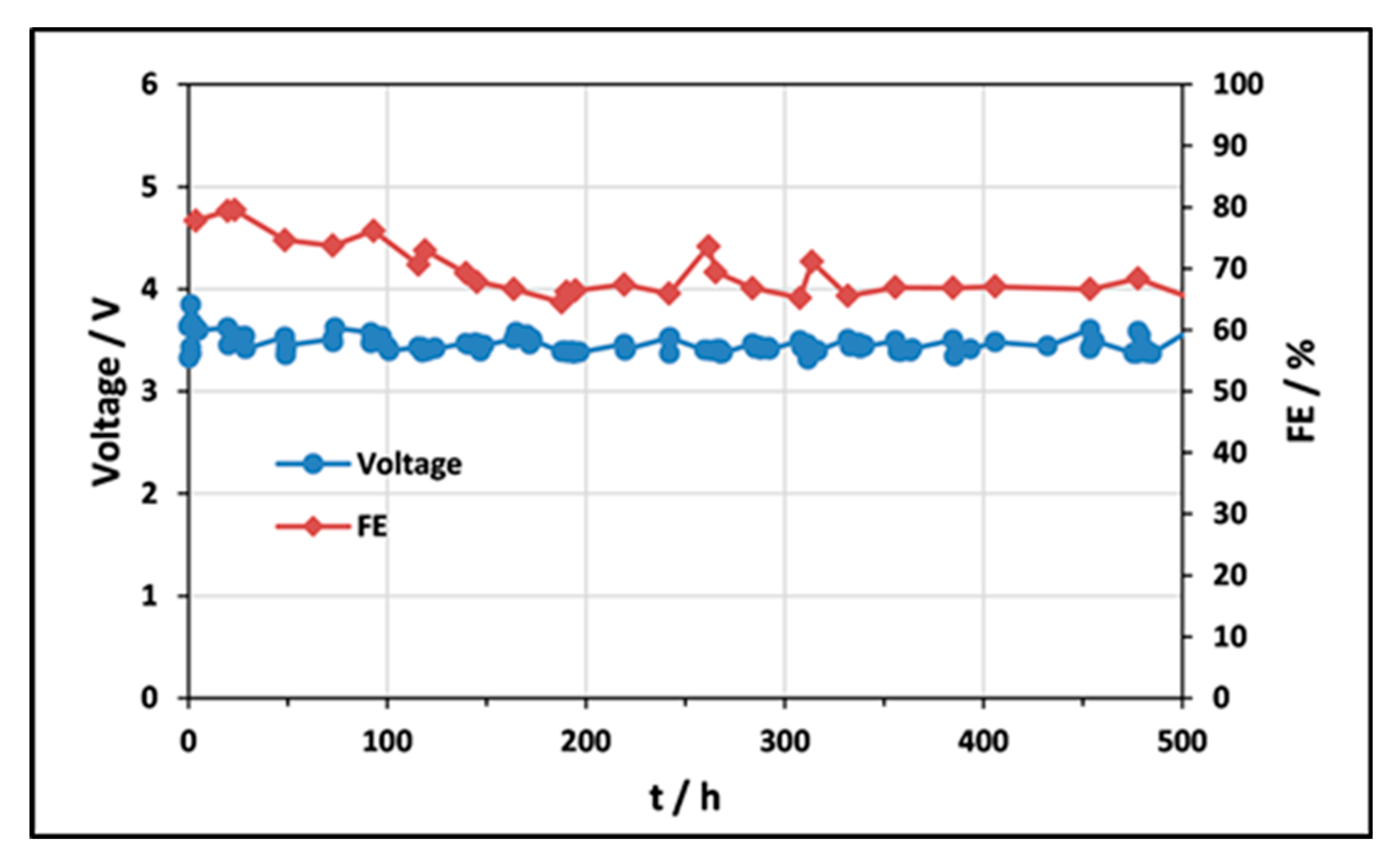

Figure 6. The performance of a 5 cm2 formic acid test cell, producing 10 wt% formic acid operating at 200 mA/cm2, with a candidate cathode electrocatalyst.
Figure 6. The performance of a 5 cm2 formic acid test cell, producing 10 wt% formic acid operating at 200 mA/cm2, with a candidate cathode electrocatalyst.
Carbon 06 00033 g006
Table
Table 1. A selection of data comparing the electrolysis of CO2 to CO using Sustainion® anion membranes and other alternatives.
Table 1. A selection of data comparing the electrolysis of CO2 to CO using Sustainion® anion membranes and other alternatives.
ReferencesCell ConfigurationCell AreaCell VoltageCurrent DensityCO SelectivityRun Length
Anode/CatalystCathode/CatalystsMembranecm²VmA/cm2%h
Kutz et al. [20]Nano IrO2 on GDENano Ag on GDE/PSMIM ionomerSustainion®
PSMIM		52.8–3.05085–95%4500
Nano IrO2 on GDENano Ag on GDE/XA-9 ionomerSustainion®
PSTMIM		52.8–3.020085–95%1000
Liu et al. [28]Nano IrO2 on GDENano Ag on GDE/XA-9 ionomerSustainion® X37-5052.8–3.020090–95%3800
Nano IrO2 on GDENano Ag on GDE/XA-9 ionomerSustainion® X37-5052.8–3.060093–96%4
Kaczur et al. [32]Nano IrO2 on GDENano Ag on GDE/XA-9 ionomerSustainion® X37-502502.8–3.012098%760
Endrődi et al. [21]IrO2 catalyst on Ti FritNano Ag on GDE/XA-9 ionomerSustainion® X37T61 cm2 each cell,
3 cell stack		2.75–3.0200–30070–85%8–100
Jeong et al. [22]Nano IrO2 on GDENi-SA-NCs on GDESustainion® X37-5052.60
3.00		140
380		99%
99%		9
9
Lee et al. [23] Catalyst on Ti FeltNano Pd, Ag, Zn on GDE/XA-9 ionomerSustainion® X37-5053.020096.7%10
Wang et al. [25]Pt/Ti alloyCobalt phthalocyanine catalysts CoPc1 and CoPc2Sustainion® X37-5010-22–16592–94%2
Ren et al. [24] Nickel FoamCobalt
phthalocyanine		Sustainion® X37-5042.515095%3–5
Masel et al. [31] Nano RuO2 or IrO2 on GDENano Ag on GDE /PSMIM ionomerSustainion® PSMIM53.060095%8
Haas et al. [33]IrO2 on titaniumAg-Based GDE w/o CarbonZrO2-based Diaphragm104.9015082–88%-
IrO2 on titaniumAg-Based GDE w/o CarbonZrO2-based Diaphragm107.0–7.530060%1250
IrO2 on titaniumAg-Based GDE w/o CarbonNafion103.20 (30 °C)5045–60%1000
IrO2 on titaniumAg-Based GDE w/o CarbonNafion104.80 (30 °C)15060%250
Table
Table 2. A selection of data comparing the electrolysis of CO2 and H2O to formic acid/formate using Sustainion® anion membranes and other membrane alternatives.
Table 2. A selection of data comparing the electrolysis of CO2 and H2O to formic acid/formate using Sustainion® anion membranes and other membrane alternatives.
ReferencesCell ConfigurationCell AreaCell Voltage
V		Current Density
mA/cm2		Formic Acid
Wt%		FE
%		Run Length
h
Anode/CatalystCathode/CatalystsMembrane
Anode SideCathode Side
Yang et al. [34]Graphite/Nano IrO2 on GDENano Sn on GDE with PSMIM ionomerNafion 212Sustainion® X37-5053.3–3.414015%–18% 30%550
Yang et al. [34,35]
Kaczur et al. [32] 		Titanium/Ti Fiber Paper with IrO2Nano Sn on GDE with PSMIM ionomerNafion 324Sustainion® X37-5053.514010%80% -> 94%142
This PaperTitanium/Ti Fiber Paper coated with IrO2 Nano XX catalyst on GDE with PSMIM ionomerNafion 324Sustainion® X37-5053.520010%80% -> 65%500
Xia et al. [36]Graphite/IrO2 on Carbon2D-BismuthNafion (1110)Sustainion® X37-5043.0300.5%80%100
Lee et al. [37]Nano Pt on CarbonNano Sn on GDE with Nafion ionomerNafion 115-9Cathode Potential Constant: −0.7 V5–20 Formic Acid Vapor12.5% -> 7.0%3–10
Lei et al. [38]Not specifiedNano Sn on GDE with Nafion ionomerToray A901 (anion)-253 --> 55 --> 100Formate80% --> 15%2
Not specifiedNano Sn on GDE with Nafion ionomerYichen (anion)-253 --> 55 --> 100Formate80% --> 12%2
Not specifiedNano Sn on GDE with Nafion ionomerFAD (anion)-253 --> 55 --> 100Formate85% --> 12%2
Not specifiedNano Sn on GDE with Nafion ionomerNafion 117 Cation-253 --> 55 --> 100Formate85% --> 16%2
Ramdin et al. [39]Not specifiedSn electrodeFumatech Bipolar FBM-PK-804.060 @50 bar CO2Formate 12500 ppm80%0.33
Not specifiedSn electrodeFumatech FKB-PK (cation)-803.540 @50 bar CO2Formate 9000 ppm80%0.33
Not specifiedSn electrodeFumatech Bipolar FBM-PKFumatech Bipolar FBM-PK803.530 @50 bar CO21.0%90%0.33
