Fluids 2019, 4(1), 58; https://doi.org/10.3390/fluids4010058

Article
Stability of Periodic, Traveling-Wave Solutions to the Capillary Whitham Equation
Mathematics Department, Seattle University, Seattle, WA 98122, USA
*
Correspondence: [email protected]; Tel.: +1-206-296-5956
These authors contributed equally to this work.
Received: 31 January 2019 / Accepted: 20 March 2019 / Published: 25 March 2019

Abstract

:
Recently, the Whitham and capillary Whitham equations were shown to accurately model the evolution of surface waves on shallow water. In order to gain a deeper understanding of these equations, we compute periodic, traveling-wave solutions for both and study their stability. We present plots of a representative sampling of solutions for a range of wavelengths, wave speeds, wave heights, and surface tension values. Finally, we discuss the role these parameters play in the stability of these solutions.
Keywords:
Whitham equation; fully-dispersive; surface tension; traveling-wave solutions; stability

1. Introduction

The dimensionless Korteweg–deVries equation (KdV) including surface tension,
u t + u x + ( 1 6 T 2 ) u x x x + 2 u u x = 0 ,
is an asymptotic approximation to the surface water–wave problem including surface tension in the small-amplitude, long-wavelength limit. The variable u = u ( x , t ) represents dimensionless surface displacement, t represents the dimensionless temporal variable, x represents the dimensionless spatial variable, and T 0 represents the dimensionless coefficient of surface tension (the inverse of the Bond number). This equation only accurately reproduces the unidirectional, linear phase velocity of the full water wave problem for a small range of wavenumbers near zero. In order to address this issue, Whitham [1,2] proposed a generalization of KdV that is now known as the Whitham equation for water waves. In dimensionless form, this equation is given by
u t + K u x + 2 u u x = 0 ,
where K is the Fourier multiplier defined by the symbol
K f ^ ( k ) = ( 1 + T k 2 ) tanh ( k ) k f ^ ( k ) .
We refer to Equation (2) with T = 0 as the Whitham equation and Equation (2) with T > 0 as the capillary Whitham, or cW, equation. Equation (2) reproduces the unidirectional phase velocity of the water wave problem with T 0 for all k.
In summarizing the recent work on these equations, we focus on the results that are most directly related to what we present below. Ehrnström and Kalisch [3] proved the existence of and computed periodic, traveling-wave solutions to the Whitham equation. Ehrnström et al. [4] proved the existence of solitary-wave solutions to the Whitham equation and showed that they are conditionally energetically stable. Arnesen [5] proved the existence of solitary-wave solutions to the capillary Whitham equation and showed that they are conditionally energetically stable. Johnson and Hur [6] proved that all small-amplitude, periodic, traveling-wave solutions of the Whitham equation are stable if their wavelength is above a critical value and are unstable below the critical value. Sanford et al. [7] numerically corroborated the Johnson and Hur [6] result and numerically established that all large-amplitude, periodic, traveling-wave solutions of the Whitham equation are unstable regardless of wavelength. Kalisch et al. [8] present numerical results which suggest that large-amplitude solutions of the Whitham equation are unstable. Moldabayev et al. [9] presented a scaling regime in which the Whitham equation can be derived from the water wave problem and compared its dynamics with those from other models including the Euler equations. Klein et al. [10] proved that the Whitham equation is a rigorous model of water waves in the KdV regime. The validity of the Whitham equation outside the KdV regime remains an open question. Deconinck and Trichtchenko [11] proved that the unidirectional nature of the Whitham equation causes it to miss some of the instabilities of the Euler equations. Dinvay et al. [12] extended the work of Moldabayev et al. [9] to include surface tension and show that the capillary Whitham equation gives a more accurate reproduction of the free-surface problem than the KdV and Kawahara (fifth-order KdV) equations. Trillo et al. [13] compared Whitham predictions with measurements from laboratory experiments and showed that the Whitham equation provides an accurate model for the evolution of initial waves of depression, especially when nonlinearity plays a significant role. Additionally, Carter [14] compared predictions with another set of laboratory measurements and showed that both the Whitham and capillary Whitham equations more accurately model the evolution of long waves of depression than do the KdV and Serre (Green–Naghdi) equations.
Much work has been done on equations related to the capillary Whitham equation. Vanden-Broeck [15] provides a detailed review of gravity-capillary free surface flows. In the absence of gravity, Crapper [16] found a family of exact solutions to the water wave problem with surface tension. Trulsen et al. [17] presented an equation for weakly nonlinear waves on deep water with exact linear dispersion including gravity, but not surface tension. This equation is to the nonlinear Schrödinger (NLS) equation (see, for example, Sulem and Sulem [18]), as the Whitham equation is to the KdV equation. Akers et al. [19] prove the existence of gravity-capillary waves that are nearby to Crapper waves when the gravity effect is small. They showed numerically that these solutions are waves of depression and that there exists a wave of highest amplitude. Akers and Milewski [20,21] derive and study solitary-wave solutions of multiple full-dispersion models of gravity-capillary waves. The papers [17,20,21] all approach capillary-gravity problem from the deep-water viewpoint as opposed to the capillary Whitham equation that comes from the shallow-water viewpoint.
Finally, the recent work by Ehrnström et al. [22] includes many theoretical results on solutions to the capillary Whitham equation. It gives a complete description of all small-amplitude, periodic, traveling-wave solutions to the capillary Whitham equation and then extends these small-amplitude results to global curves. Furthermore, they analytically describe some secondary bifurcations that connect different branches. These results tie in nicely with the numerical results we present below.
The remainder of the paper is outlined as follows. Section 2 describes the solutions we examine, their properties, and the linear stability calculations. Section 3 contains plots of solutions to the Whitham and capillary Whitham equations, plots of the corresponding stability spectra, and a discussion of these results. Section 3 contains the main results of the paper. Section 4 concludes the paper by summarizing the results.

2. Traveling Waves and Their Stability

We consider periodic, traveling-wave solutions of the form
u ( x , t ) = f ( x c t ) ,
where f is a smooth, periodic function with period L and c is the speed of the solution. Ehrnström and Kalisch [3] proved that the Whitham equation admits solutions of this form and Remonato and Kalisch [23] computed a variety of cW solutions of this form. Substituting Equation (4) into Equation (2) and integrating once gives
c f + K f + f 2 = B ,
where B is the constant of integration. This equation is invariant under the transformation
f f + γ , c c + 2 γ , B B + γ ( 1 c γ ) .
Therefore, we consider the entire family of solutions of the form given in Equation (4) by considering only solutions with zero mean, which is solutions such that
0 L f ( z ) d z = 0 .
In order to study the stability of these solutions, change variables to a moving coordinate frame by introducing the coordinates, z = x c t and τ = t . In the moving coordinate frame, the cW equation is given by
u τ c u z + K u z + 2 u u z = 0 .
We consider perturbed solutions of the form
u pert ( z , τ ) = f ( z ) + ϵ w ( z , τ ) + O ( ϵ 2 ) ,
where f ( z ) is a zero-mean, periodic, traveling-wave solution of the cW equation (i.e., a stationary solution of (8)), w ( z , τ ) is a real-valued function, and ϵ is a small, positive constant. Substituting (9) into (8) and linearizing gives
w τ c w z + K w z + 2 f w z + 2 f z w = 0 .
Without loss of generality, assume
w ( z , τ ) = W ( z ) e λ τ + c . c . ,
where W ( z ) is a complex-valued function, λ is a complex constant, and c . c . denotes complex conjugate. Substituting (11) into (10) and simplifying gives
( c 2 f ) W 2 f W K W = λ W ,
where prime means derivative with respect to z. In operator form, Equation (12) can be written as
L W = λ W , where L = ( c 2 f ) z 2 f K z .
We are interested in finding the set of λ that lead to bounded solutions of (13). In other words, we are interested in finding the spectrum, σ , of the operator L . The spectrum determines the spectral stability of the solutions. If σ ( L ) has no elements with a positive real part, then the solution is said to be spectrally stable. If σ ( L ) has one or more elements with positive real part, then the solution is said to be unstable. Since the capillary Whitham equation is Hamiltonian, see Hur and Pandey [24], σ ( L ) is symmetric under reflections across both the real and imaginary axes. We use this fact as one check on the numerical stability results in the next section.

3. Numerical Results

In this section, we present plots of periodic, traveling-wave solutions of the Whitham and capillary Whitham equations along with their stability spectra. The solutions were computed using a generalization of the Newton-based method presented by Ehrnström and Kalisch [3]. Following the work of Sanford et al. [7], the stability of these solutions was computed using the Fourier–Floquet–Hill method of Deconinck and Kutz [25].

3.1. The Whitham Equation

In order to best understand the role surface tension plays in the stability of periodic, traveling-wave solutions to the capillary Whitham equation, we begin by reviewing results from the Whitham equation (i.e., the zero surface tension case). Hur and Johnson [6] proved that all small-amplitude Whitham solutions with k < 1.145 (where k is the wavenumber of the solution) are stable, while all small-amplitude solutions with k > 1.145 are unstable. Sanford et al. [7] numerically corroborated this result, presented numerical results that suggest that all large-amplitude Whitham solutions are unstable, and established that 2 π -periodic, traveling-wave solutions with “small” wave heights are spectrally stable while those with “large” wave heights are unstable.
Figure 1 contains plots of four 2 π -periodic solutions to the Whitham equation with moderate wave heights. As the wave height, H, of the solution increases, so does the solution’s wave speed, c. Figure 2 contains plots of the stability spectra corresponding to these solutions. The spectrum of the solution in Figure 1a, see Figure 2a, lies entirely on the imaginary axis and therefore this solution is spectrally stable. Further simulations (not included) show that all solutions with smaller wave heights (and period 2 π ) are also spectrally stable. The spectra corresponding to the other three solutions all include eigenvalues with positive real parts and therefore these solutions are unstable. As the wave height of the solution increases, the maximum instability growth rate (i.e., the real part of the eigenvalue with maximal real part) also increases. All of these spectra include the “figure 8” associated with the modulational (Benjamin–Feir) instability.
Whitham [2] conjectured that the Whitham equation admits a highest traveling-wave solution and that it is nonsmooth. Ehrnström and Wahlén [26] proved this hypothesis. Figure 3 includes plots of six solutions that are somewhat near this highest wave. The inset plots are zooms of the solutions near their crests and show that all of the solutions we consider are smooth. To our knowledge, this is the first time that the spectral stability of solutions of the Whitham equation with wave heights this large has been studied.
Figure 4 includes the stability spectra corresponding to the solutions in Figure 3. All six of these solutions are unstable. As wave height (or wave speed) increases, the maximal instability growth rate also increases. The stability spectra undergo two bifurcations as the wave height increases. The first bifurcation is shown in Figure 4a and the second is shown in Figure 4b. The first occurs when the top part of the figure 8 bends down and touches the bottom part on the R ( λ ) axis at around λ = ± 0.05 . (See the transition from the spectrum in Figure 2d to the blue spectrum in Figure 4a.) This causes the vertical figure 8 to transition into a horizontal figure 8 inside of a vertical “peanut”. (See the orange spectrum in Figure 4a.) The second bifurcation occurs when the horizontal figure 8 collapses toward the origin and the peanut pinches off into two ovals centered on the R ( λ ) axis. (See Figure 4b.) Note that the two yellow “dots” near λ = ± 0.32 are actually small ovals. As wave height increases even further, these ovals decrease in diameter and move further away from the I ( λ ) axis. The solution with maximal wave height is cusped and therefore a very large number of Fourier modes would be required to resolve it accurately. This makes computing solutions near the solution with maximal wave height prohibitively expensive. The stability calculation is even more computationally expensive. Because of this, exactly what happens to the stability spectra as the wave height approaches the maximal wave height remains an open question.

3.2. The Capillary Whitham Equation

In this subsection, we study periodic, traveling-wave, zero-mean solutions of the cW equation and their stability. Due to the massive number of solutions this equation admits, this study is not meant to be exhaustive. We present plots of solutions and their stability spectra and end with a discussion that summarizes our observations. Ehrnström et al. [22] prove that small-amplitude solutions to the capillary Whitham equation exist for all values of T > 0 . Note that the solutions presented herein cannot be directly compared with those of Remonato and Kalisch [23] because we required the solutions to have zero mean while they did not. However, the two sets of solutions are related via the transformation given in Equation (6).
We begin by justifying the values we selected for the capillarity/surface tension parameter, T. The Fourier multiplier K undergoes a bifurcation at T = 1 3 . When T=0, K decreases monotonically to zero as the wavenumber of the solution, k > 0 , increases. When T ( 0 , 1 3 ) , K achieves a unique local minimum at some wavenumber k * ( 0 , ) . When T > 1 3 , K increases monotonically for all k > 0 and therefore K has is no local minimum. Because of this behavior, we selected T = 0.2 , 1 3 , and 0.4 . Additionally, we study solutions for T 0.1582 (see Section 3.2.4 for details). Figure 5 contains plots of K versus k for each of these T values and demonstrates the bifurcation.

3.2.1. Surface Tension Parameter T = 0.2

When T = 0.2 , we were able to compute solutions with wavenumbers greater than k 1.9 but were not able to compute solutions with wavenumber less than k 1.9 . (Note that we computed solutions with both integer and non-integer wavenumbers.) This may be related to Proposition 5.2 of Ehrnström et al. [22] which states that there are regions of ( k , T ) -space where no periodic solutions of the capillary Whitham equation exist. This may also be related to the fact that k * 1.9 . (Recall that k * is the location of the local minimum of K when T < 1 3 .) Figure 6 includes a portion of the wave height versus wave speed bifurcation diagram for this case. It includes the bifurcation branches corresponding to the k = 2 , , 6 solutions as well as an additional branch that splits off from the k = 4 branch when H > 0 . The colored dots correspond to solutions that are examined in more detail below. Unlike the Whitham ( T = 0 ) case, the diagram shows that, as the speed of the solution decreases, the wave height increases. Ehrnström Wahlén [26] proved that, in the small-amplitude limit, the relationship between wave height and speed is determined by the ratio of the wave number and period of the solution.
Figure 7a includes plots of four different k = 2 (i.e., period π ), traveling-wave solutions to the cW equation with T = 0.2 . Unlike solutions of the Whitham equation which are waves of elevation, these solutions are waves of depression. As the wave height increases, the solution speed decreases. Although the bifurcation diagram suggests that a maximal wave height does not exist, we were not able to prove it, numerically or otherwise. As wave speed decreases, the solutions become steeper waves of depression with increasing wave height. This is consistent with the Ehrnström et al. [22] result that the solutions limit to a constant solution in the L 2 , but not L , sense. However, note that Ehrnström et al. [22] proved that all periodic, traveling-wave solutions to the cW equation are smooth. Figure 7b contains plots of the corresponding linear stability spectra. All four of these solutions are unstable. Just as with solutions to the Whitham equation, the maximal instability growth rate of these solutions increases as their wave heights increase. Additional numerical simulations (not shown) establish that all small-amplitude, traveling-wave solutions with k = 2 and T = 0.2 are unstable.
Figure 8a includes plots of four k = 5 , traveling-wave solutions to the cW equation with T = 0.2 . Figure 7b shows the corresponding stability spectra. These four solutions have approximately the same wave heights as the four k = 2 solutions shown in Figure 7a. Other than their period and speeds, the k = 5 solutions are qualitatively similar to the k = 2 solutions. The solution with the smallest wave height (blue) is spectrally stable. This is qualitatively different than what happens in the T = 0 case where all small-amplitude solutions with k > 1.145 are unstable. The three solutions with larger wave height are unstable and the maximal instability growth rate increases with wave height. Additional numerical simulations (not shown) establish that solutions with k ( 2 , 5 ) have similar properties to the solutions presented in Figure 7 and Figure 8. There exists a k ( 2 , 5 ) where the small-amplitude solutions switch from being unstable to spectrally stable.
Figure 9 contains plots of four representative solutions from the bifurcation branch that splits off from the k = 4 branch. These solutions are qualitatively different than the solutions examined above, but have approximately the same wave heights as the solutions shown in Figure 7a and Figure 8a. These solutions are similar to the mixed-mode solutions examined by Remonato and Kalisch [23]. For solutions with crests of multiple heights, we define wave height to be the maximum value of the solution minus the minimum value of the solution. Figure 9b shows that the stability spectra are also qualitatively different than those examined above. The spectra for each solution includes a horizontal figure 8 centered at the origin. (In the figure, these figure 8s appear as horizontal lines along I ( λ ) = 0 due to scaling.) Thus, each solution is unstable with respect to the modulational instability. Each spectrum has six additional “bubbles” centered on the I ( λ ) axis. (Only four of the blue bubbles are easily visible due to scaling.) The solution with smallest wave height (the blue solution) has the largest maximum instability growth rate. However, there does not appear to be a simple relationship between wave height and the maximum instability growth rate in this case.

3.2.2. Surface Tension Parameter T = 1 3

Figure 10 includes a portion of the bifurcation diagram for T = 1 3 . The colored dots correspond to solutions that are examined in more detail below. These solutions have approximately the same wave heights as the colored solutions examined in other sections. The bifurcation diagram shows that, as wave speed decreases, wave height increases for all branches (that we examined). This is consistent with the Ehrnström et al. [22] result that the solutions limit to a constant solution in the L 2 , but not L , sense.
Figure 11 and Figure 12 include plots of k = 1 and k = 2 solutions and their stability spectra for T = 1 3 . All eight of these solutions are unstable and their spectra are shaped like horizontal figure 8s. As wave height increases, the maximal instability growth rate also increases. The k = 2 solutions have larger instability growth rates than the k = 1 solutions with the same wave height.
Figure 13 includes plots of the k = 5 solutions and their stability spectra for T = 1 3 . Other than their periods, these solutions appear to be qualitatively similar to the k = 1 and k = 2 solutions. However, their stability spectra lie completely on the I ( λ ) axis. This means that all four of these solutions, regardless of their wave height, are spectrally stable. This numerically establishes that, when T = 1 3 , there are some intervals of k space in which the small-amplitude, periodic, traveling-wave solutions are spectrally stable and other regions of k space in which these solutions are unstable.

3.2.3. Surface Tension Parameter T = 0.4

Figure 14 includes a portion of the bifurcation diagram for T = 0.4 . The colored dots correspond to solutions that are examined in more detail below. These solutions have approximately the same wave heights as the colored solutions examined in other sections. The bifurcation diagram shows that, as wave speed decreases, wave height increases for all branches (that we examined).
Figure 15 includes plots of four representative k = 1 solutions to the cW equation with T = 0.4 and their stability spectra. All four of these solutions are unstable and the growth rate of the instabilities increases as the wave height of the solution increases. Figure 16 shows that all four k = 2 solutions are spectrally stable while Figure 17 shows that all four k = 5 solutions are unstable. This numerically establishes that when T = 0.4 there are some intervals of k space in which the small-amplitude, periodic, traveling-wave solutions are spectrally stable and other regions of k space in which these solutions are unstable.

3.2.4. Surface Tension Parameter T 0.1582

Remonato and Kalisch [23] presented the following formula which allows T values to be chosen so that solutions corresponding to any two k values will have the same wave speed in the small-amplitude limit
T = T ( k 1 , k 2 ) = k 1 tanh ( k 2 ) k 2 tanh ( k 1 ) k 1 k 2 ( k 1 tanh ( k 1 ) k 2 tanh ( k 2 ) ) .
Using this formula with k 1 = 1 and k 2 = 4 gives T 0.1582 , which is the final T value we examine. A portion of the corresponding bifurcation diagram is included in Figure 18. The fact that the k = 1 and k = 4 solutions have the same speed in the small-amplitude limit is exemplified by the fact that there are two branches leaving the same point on the c-axis near c = 0.94 . These branches correspond to the k = 4 solution and a k = ( 1 , 4 ) branch. Here, the notation k = ( a , b ) means that the solution is composed of a linear combination of the k = a and k = b wavenumbers in the small-amplitude limit. We were unable to isolate the k = 1 solution. We note that Remonato and Kalisch [23] made a similar observation for their ( 1 , 7 ) solution.
Figure 19 shows that solutions on the k = 4 branch with small wave height are spectrally stable, while those with large wave height are unstable. These solutions do not have the striking increasingly steep wave of depression form that the cW solutions presented above have. As wave height increases, the growth rates of the instabilities also increase.
Figure 20 includes plots of four representative k = ( 1 , 4 ) solutions and their stability spectra. These solutions do not have the increasingly steep wave of depression form of the majority of the other cW solutions. The spectra of these k = ( 1 , 4 ) solutions are similar to those in Figure 9b. This is likely due to the fact that both of these sets of solutions have more than one dominant Fourier mode. Each spectrum has a horizontal figure 8 centered at the origin and six bubbles centered on the I ( λ ) axis. The solution with the largest wave height is not the most unstable solution.
Figure 18 shows that there is a secondary branch that splits off from the k = 5 branch at H 0.39 . As expected, the solutions along this branch do not have a single dominant wavenumber. The solutions on this branch are k = ( 1 , 5 ) solutions until the branch curves around and heads upward. The solutions after this turning point are k = ( 1 , 5 , 6 ) solutions. Figure 21a includes plots of four k = ( 1 , 5 ) solutions and their stability spectra. All four of these solutions are unstable and have complicated spectra. Figure 22 includes plots of four representative k = ( 1 , 5 , 6 ) solutions and shows that they are unstable. All four solutions have horizontal figure 8s centered at the origin and four bubbles centered along the I ( λ ) axis. The solution with smallest wave height is the most unstable.

4. Conclusions

Bottman and Deconinck [27] proved that all traveling-wave solutions of the KdV equation are stable. This is quite different than the Whitham equation where all large-amplitude solutions are unstable [7] and only small-amplitude solutions with a wavenumber k > 1.145 are stable [6,7].
We began by examining large-amplitude, 2 π -periodic, traveling-wave solutions to the Whitham equation (with zero surface tension). We found that all such solutions are unstable and that their stability spectra undergo two bifurcations as wave height increases. We also found that the instability growth rate increases with wave height.
Next, we examined periodic, traveling-wave solutions to the capillary Whitham equation with four different nonzero values of the surface tension parameter, T. We found that the cW solutions and their stability were more diverse than in the Whitham ( T = 0 ) case. Most of the solutions we examined were waves of depression. In contrast, all periodic, traveling-wave solutions to the Whitham equation are waves of elevation. We found that as wave height increases, wave speed decreases (and can become negative). We were not able to determine if the cW equation admits a solution with maximal wave height. In contrast, the Whitham equation has a solution with maximal wave height. We computed periodic, traveling-wave solutions with for a wide range of wavenumbers, but were not able to compute solutions of all wavenumbers for all values of T. In addition to computing a variety of solutions with a single dominant wavenumber, we computed four families of solutions that had multiple dominant wavenumbers.
We examined the stability of all of the cW solutions we computed. Table 1 contains a summary of our results. We found that some solutions were spectrally stable and others were unstable. There are regions of ( k , T ) -space where small-amplitude, periodic, traveling-wave solutions are spectrally stable and large-amplitude solutions are unstable. There appear to be other regions of ( k , T )-space where all solutions, regardless of amplitude, are spectrally stable. The exact topology of these regions remains an open question. If the solutions had a single dominant wavenumber, then the maximal instability growth rate increased with wave height. If the solutions had multiple dominant wavenumbers, there was not a simple relationship between instability growth rates and wave heights. Finally, we found some solutions for which the modulational instability was the dominant instability and other solutions that had other dominant instabilities. However, all unstable solutions we examined were unstable with respect to the modulational instability.

Author Contributions

Investigation, J.D.C. and M.R.; Software, M.R.; Supervision, J.D.C.; Writing—original draft, J.D.C. and M.R.; Writing—review and editing, J.D.C.

Funding

This research was supported by the National Science Foundation (grant number DMS-1716120).

Acknowledgments

We thank Mats Ehrnström, Vera Hur, Mat Johnson, Logan Knapp, and Olga Trichtchenko for helpful discussions. We also thank the referees for helpful comments and suggestions that improved the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Whitham, G. Variational methods and applications to water waves. Proc. R. Soc. Lond. 1967, 299, 6–25. [Google Scholar]
  2. Whitham, G. Linear and Nonlinear Waves; John Wiley and Sons, Inc.: New York, NY, USA, 1974. [Google Scholar]
  3. Ehrnström, M.; Kalisch, H. Traveling waves for the Whitham equation. Differ. Integr. Equ. 2009, 22, 1193–1210. [Google Scholar]
  4. Ehrnström, M.; Groves, M.; Wahlén, E. On the existence and stability of solitary-wave solutions to a class of evolution equations of Whitham type. Nonlinearity 2012, 25, 2903–2936. [Google Scholar] [CrossRef]
  5. Arnesen, M. Existence of solitary-wave solutions to nonlocal equations. Discret. Contin. Dyn. Syst. Ser. 2016, 36, 3483–3510. [Google Scholar] [CrossRef]
  6. Johnson, M.; Hur, V. Modulational instability in the Whitham equation for water waves. Stud. Appl. Math. 2015, 134, 120–143. [Google Scholar]
  7. Sanford, N.; Kodama, K.; Carter, J.; Kalisch, H. Stability of traveling wave solutions to the Whitham equation. Phys. Lett. 2014, 378, 2100–2107. [Google Scholar] [CrossRef]
  8. Kalisch, H.; Moldabayev, D.; Verdier, O. A numerical study of nonlinear dispersive wave models with SpecTraVVave. Electron. J. Differ. Equ. 2017, 62, 1–23. [Google Scholar]
  9. Moldabayev, D.; Kalisch, H.; Dutykh, D. The Whitham equation as a model for surface water waves. Physics D 2015, 309, 99–107. [Google Scholar] [CrossRef]
  10. Klein, C.; Linares, F.; Pilod, D.; Saut, J.C. On Whitham and related equations. Stud. Appl. Math. 2017, 140, 133–177. [Google Scholar] [CrossRef]
  11. Deconinck, B.; Trichtchenko, O. High-frequency instabilities of small-amplitude Hamiltonian PDEs. Discret. Contin. Dyn. Syst. 2015, 37, 1323–1358. [Google Scholar]
  12. Dinvay, E.; Moldabayev, D.; Dutykh, D.; Kalisch, H. The Whitham equation with surface tension. Nonlinear Dyn. 2017, 88, 1125–1138. [Google Scholar] [CrossRef]
  13. Trillo, S.; Klein, M.; Clauss, G.; Onorato, M. Observation of dispersive shock waves developing from initial depressions in shallow water. Phys. D 2016, 333, 276–284. [Google Scholar] [CrossRef]
  14. Carter, J. Bidirectional Whitham equations as models of waves on shallow water. Wave Motion 2018, 82, 51–61. [Google Scholar] [CrossRef]
  15. Vanden-Broeck, J.M. Gravity-Capillary Free-Surface Flows; Cambridge University Press: Cambridge, UK, 2010. [Google Scholar]
  16. Crapper, G. An exact solution for progressive capillary waves of arbitrary amplitude. J. Fluid Mech. 1957, 2, 532–540. [Google Scholar] [CrossRef]
  17. Trulsen, K.; Kliakhandler, I.; Dysthe, K.; Verlarde, M. On weakly nonlinear modulation of waves on deep water. Phys. Fluids 2000, 12, 2432. [Google Scholar] [CrossRef]
  18. Sulem, C.; Sulem, P.L. The Nonlinear Schrödinger Equation: Self-Focusing and Wave Collapse; Springer: New York, NY, USA, 1999. [Google Scholar]
  19. Akers, B.; Ambrose, D.; Wright, J. Gravity perturbed Crapper waves. Proc. R. Soc. 2014, 470, 20130526. [Google Scholar] [CrossRef]
  20. Akers, B.; Milewski, P. Model equations for gravity-capillary waves in deep water. Stud. Appl. Math. 2008, 121, 49–69. [Google Scholar] [CrossRef]
  21. Akers, B.; Milewski, P. A model equation for wavepacket solitary waves arizing from graity-capillary flows. Stud. Appl. Math. 2009, 122, 249–274. [Google Scholar] [CrossRef]
  22. Ehrnström, M.; Johnson, M.; Maehlen, O.; Remonato, F. On the bifurcation diagram of the capillary-gravity Whitham equation. arXiv, 2019; arXiv:1901.03534. [Google Scholar]
  23. Remonato, F.; Kalisch, H. Numerical bifurcation for the capillary Whitham equation. Phys. D 2017, 343, 51–62. [Google Scholar] [CrossRef]
  24. Hur, V.; Pandey, A. Modulational instability in a full-dispersion shallow water model. Stud. Appl. Math. 2019, 142, 3–47. [Google Scholar] [CrossRef]
  25. Deconinck, B.; Kutz, J. Computing spectra of linear operators using Hill’s method. J. Comput. Phys. 2006, 219, 296–321. [Google Scholar] [CrossRef]
  26. Ehrnström, M.; Wahlén, E. On Whitham’s conjecture of a highest cusped wave for a nonlocal shallow water wave equation. Annales de l’Institut Henri Poincaré C Analyse non linéaire 2019, in press. [Google Scholar]
  27. Bottman, N.; Deconinck, B. KdV cnoidal waves are linearly stable. Discret. Contin. Dyn. Syst. 2009, 25, 1163–1180. [Google Scholar] [CrossRef]
Figure 1. Plots of four moderate wave height, 2 π -periodic, zero-mean solutions of the Whitham equation. The wave speeds and wave heights of these solutions are (a) c = 0.89236 , H = 0.17148 ; (b) c = 0.92685 , H = 0.29901 ; (c) c = 0.96612 , H = 0.43667 ; and (d) c = 0.97249 , H = 0.47203 . Note that the vertical scale is different in each of the plots.
Figure 1. Plots of four moderate wave height, 2 π -periodic, zero-mean solutions of the Whitham equation. The wave speeds and wave heights of these solutions are (a) c = 0.89236 , H = 0.17148 ; (b) c = 0.92685 , H = 0.29901 ; (c) c = 0.96612 , H = 0.43667 ; and (d) c = 0.97249 , H = 0.47203 . Note that the vertical scale is different in each of the plots.
Fluids 04 00058 g001

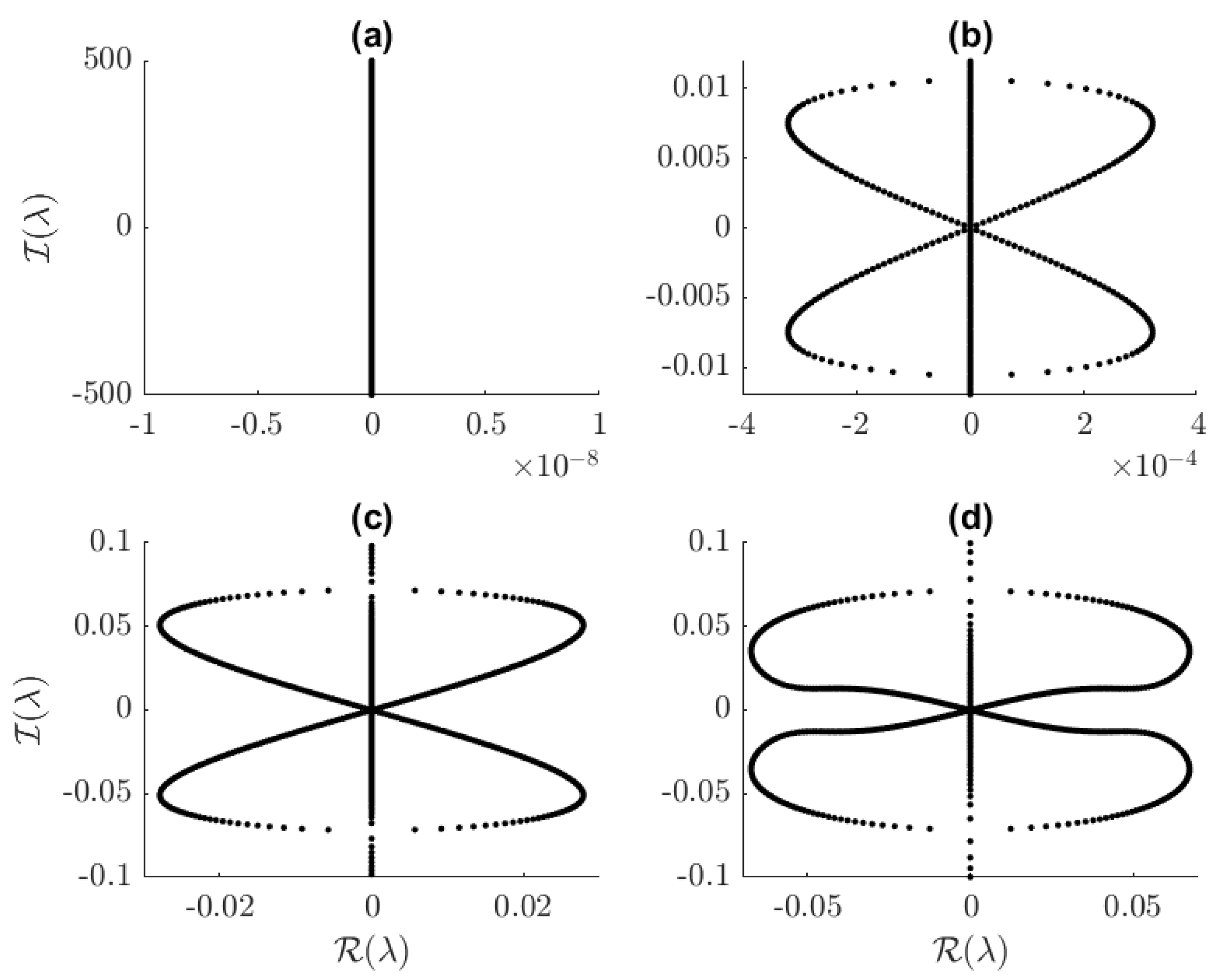

Figure 2. Spectra of the solutions shown in Figure 1. Note that both the horizontal and vertical scales vary from plot to plot.
Figure 2. Spectra of the solutions shown in Figure 1. Note that both the horizontal and vertical scales vary from plot to plot.
Fluids 04 00058 g002
Figure 3. (a) and (b) each contain three plots of large wave height, 2 π -periodic, zero-mean solutions of the Whitham equation. The solutions are very similar and nearly lie on top of one another. The inset plots are zooms of the intervals surrounding the crests of the solutions. The wave speeds and heights of these solutions, in order of increasing speed, are (a) c = 0.97266 and H = 0.47330 (blue); c = 0.97276 and H = 0.47405 (orange); and c = 0.97351 and H = 0.48007 (yellow); and (b) c = 0.97451 and H = 0.50058 (blue); c = 0.97501 and H = 0.499599 (orange); and c = 0.97596 and H = 0.52013 (yellow).
Figure 3. (a) and (b) each contain three plots of large wave height, 2 π -periodic, zero-mean solutions of the Whitham equation. The solutions are very similar and nearly lie on top of one another. The inset plots are zooms of the intervals surrounding the crests of the solutions. The wave speeds and heights of these solutions, in order of increasing speed, are (a) c = 0.97266 and H = 0.47330 (blue); c = 0.97276 and H = 0.47405 (orange); and c = 0.97351 and H = 0.48007 (yellow); and (b) c = 0.97451 and H = 0.50058 (blue); c = 0.97501 and H = 0.499599 (orange); and c = 0.97596 and H = 0.52013 (yellow).
Fluids 04 00058 g003

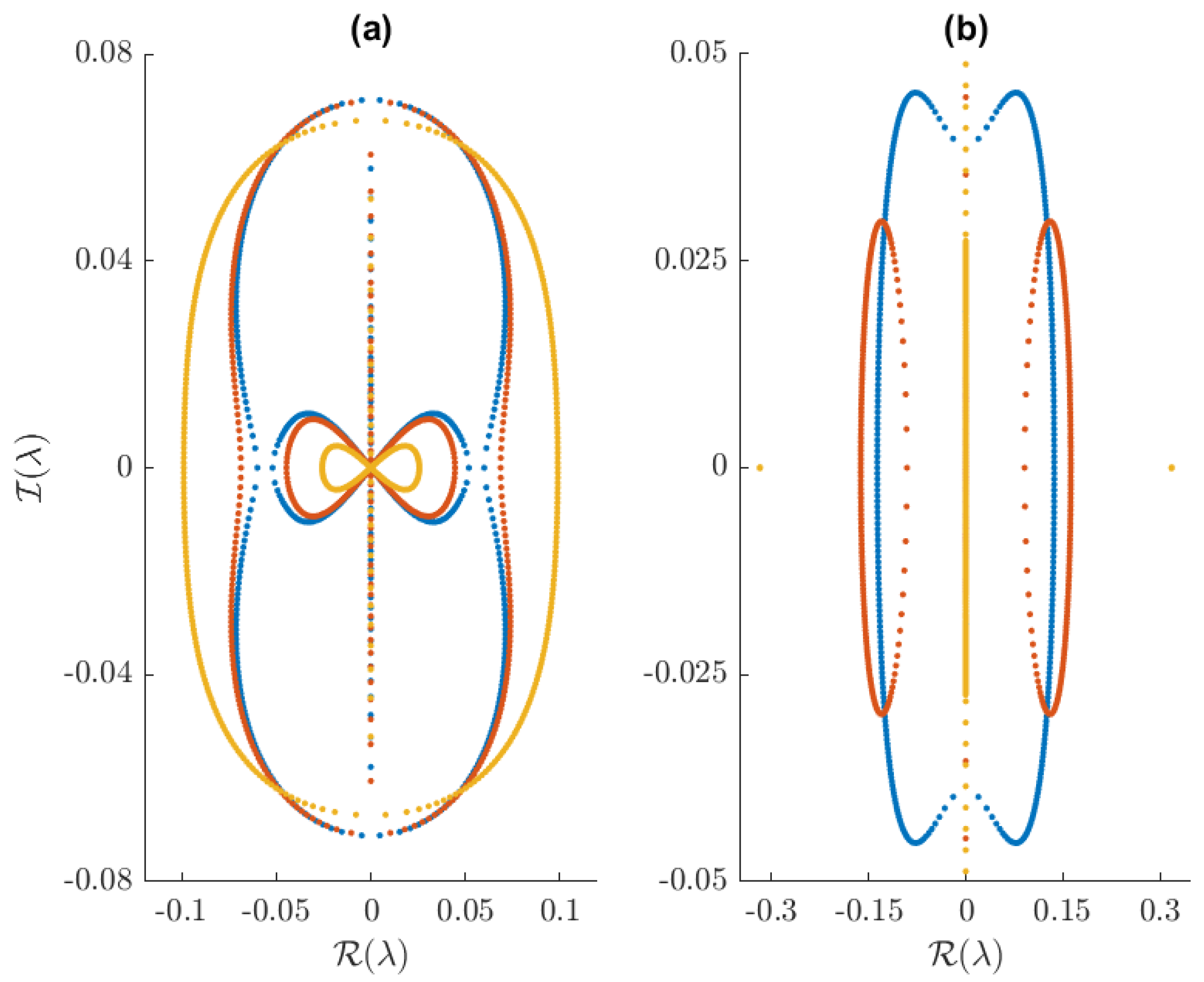

Figure 4. Spectra of the solutions shown in Figure 3.
Figure 4. Spectra of the solutions shown in Figure 3.
Fluids 04 00058 g004
Figure 5. Plots of K versus k for each of the five values of T examined herein.
Figure 5. Plots of K versus k for each of the five values of T examined herein.
Fluids 04 00058 g005

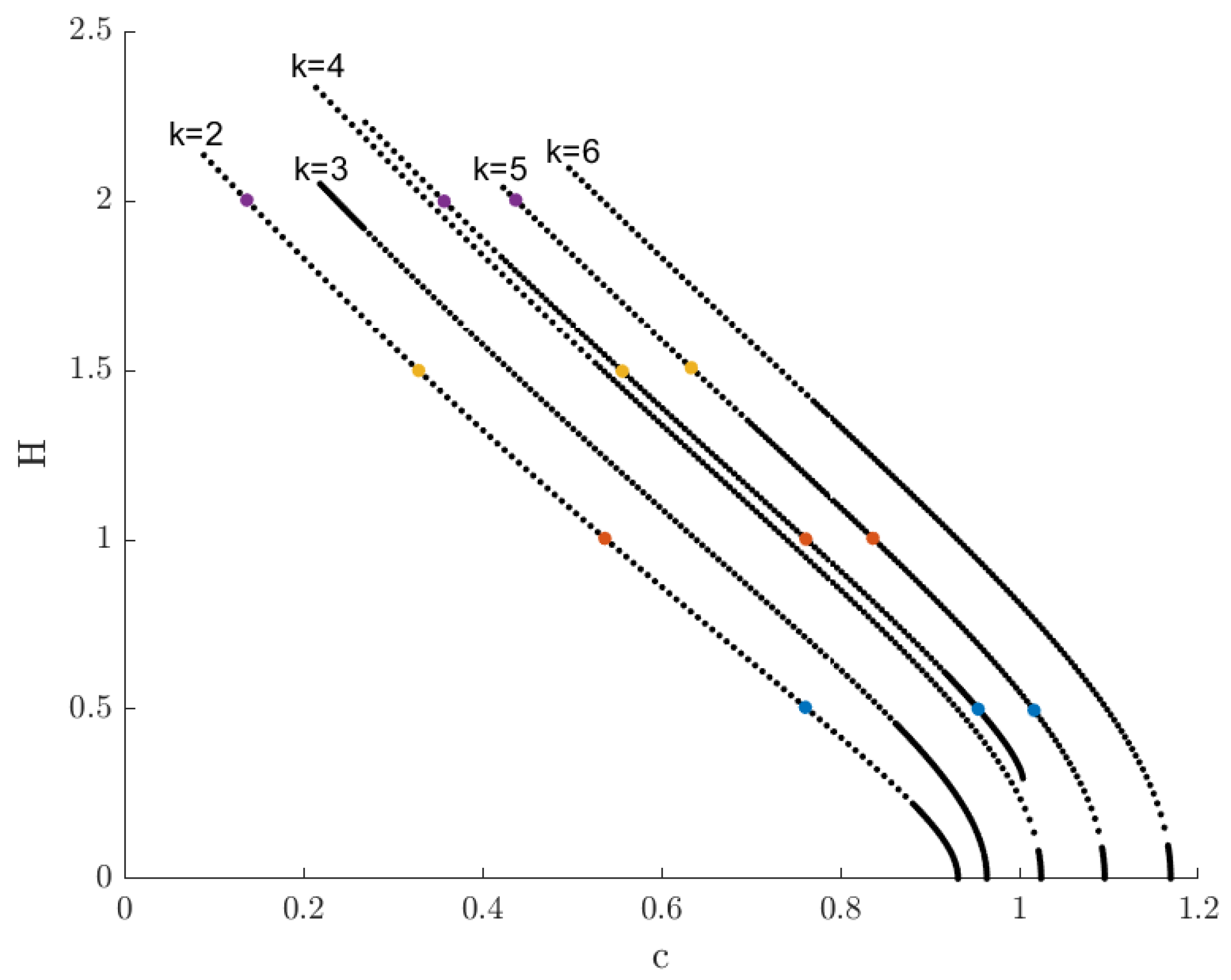

Figure 6. A portion of the wave height versus wave speed bifurcation diagram for the capillary Whitham (cW) equation with T = 0.2 . The colored dots correspond to solutions that are examined in more detail in Figure 7, Figure 8 and Figure 9.
Figure 6. A portion of the wave height versus wave speed bifurcation diagram for the capillary Whitham (cW) equation with T = 0.2 . The colored dots correspond to solutions that are examined in more detail in Figure 7, Figure 8 and Figure 9.
Fluids 04 00058 g006

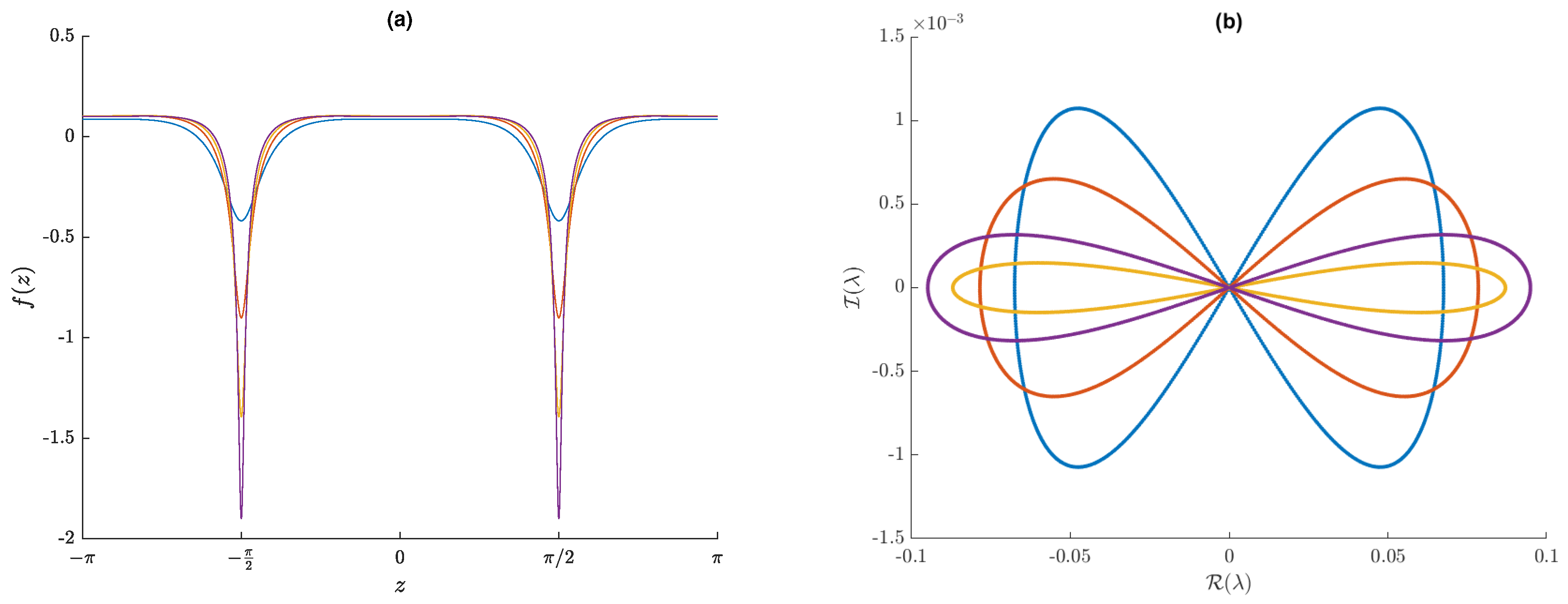

Figure 7. Plots of (a) four representative solutions of the cW equation with T = 0.2 and k = 2 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 0.7609 and H = 0.5060 (blue), c = 0.5369 and H = 1.004 (orange), c = 0.3289 and H = 1.499 (yellow), and c = 0.1369 and H = 2.002 (purple).
Figure 7. Plots of (a) four representative solutions of the cW equation with T = 0.2 and k = 2 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 0.7609 and H = 0.5060 (blue), c = 0.5369 and H = 1.004 (orange), c = 0.3289 and H = 1.499 (yellow), and c = 0.1369 and H = 2.002 (purple).
Fluids 04 00058 g007

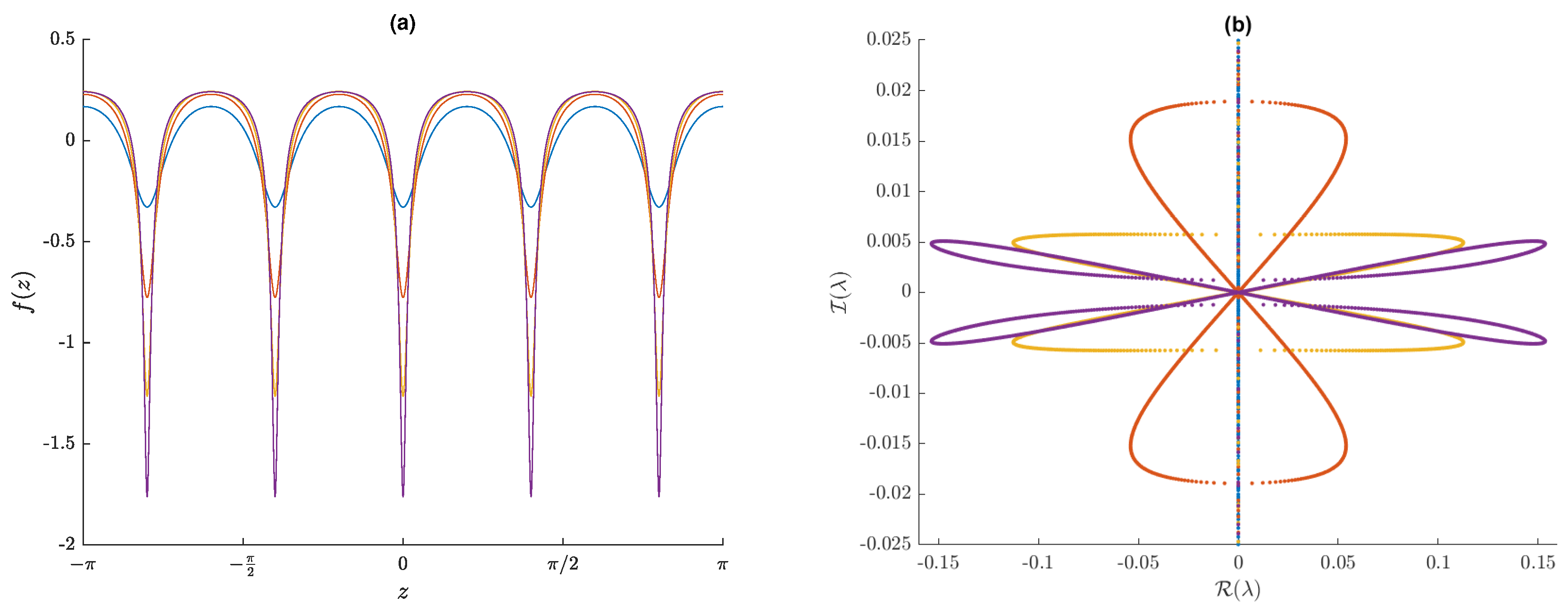

Figure 8. Plots of (a) four representative solutions of the cW equation with T = 0.2 and k = 5 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 1.016 and H = 0.4972 (blue), c = 0.8364 and H = 1.005 (orange), c = 0.6334 and H = 1.508 (yellow), and c = 0.4374 and H = 2.002 (purple).
Figure 8. Plots of (a) four representative solutions of the cW equation with T = 0.2 and k = 5 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 1.016 and H = 0.4972 (blue), c = 0.8364 and H = 1.005 (orange), c = 0.6334 and H = 1.508 (yellow), and c = 0.4374 and H = 2.002 (purple).
Fluids 04 00058 g008

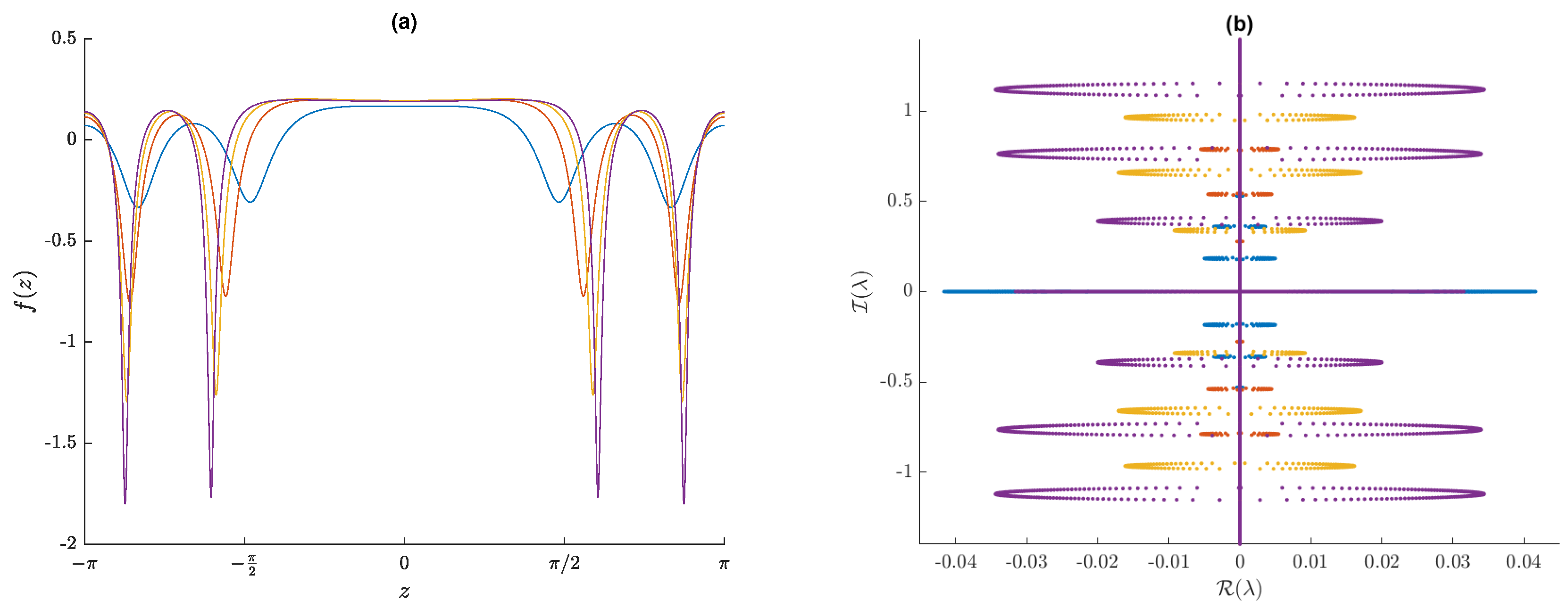

Figure 9. Plots of (a) four representative solutions of the cW equation with T = 0.2 from the solution branch that does not touch the horizontal axis in Figure 6 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 0.9540 and H = 0.5008 (blue), c = 0.7614 and H = 1.002 (orange), c = 0.5563 and H = 1.498 (yellow), and c = 0.3574 and H = 1.999 (purple).
Figure 9. Plots of (a) four representative solutions of the cW equation with T = 0.2 from the solution branch that does not touch the horizontal axis in Figure 6 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 0.9540 and H = 0.5008 (blue), c = 0.7614 and H = 1.002 (orange), c = 0.5563 and H = 1.498 (yellow), and c = 0.3574 and H = 1.999 (purple).
Fluids 04 00058 g009

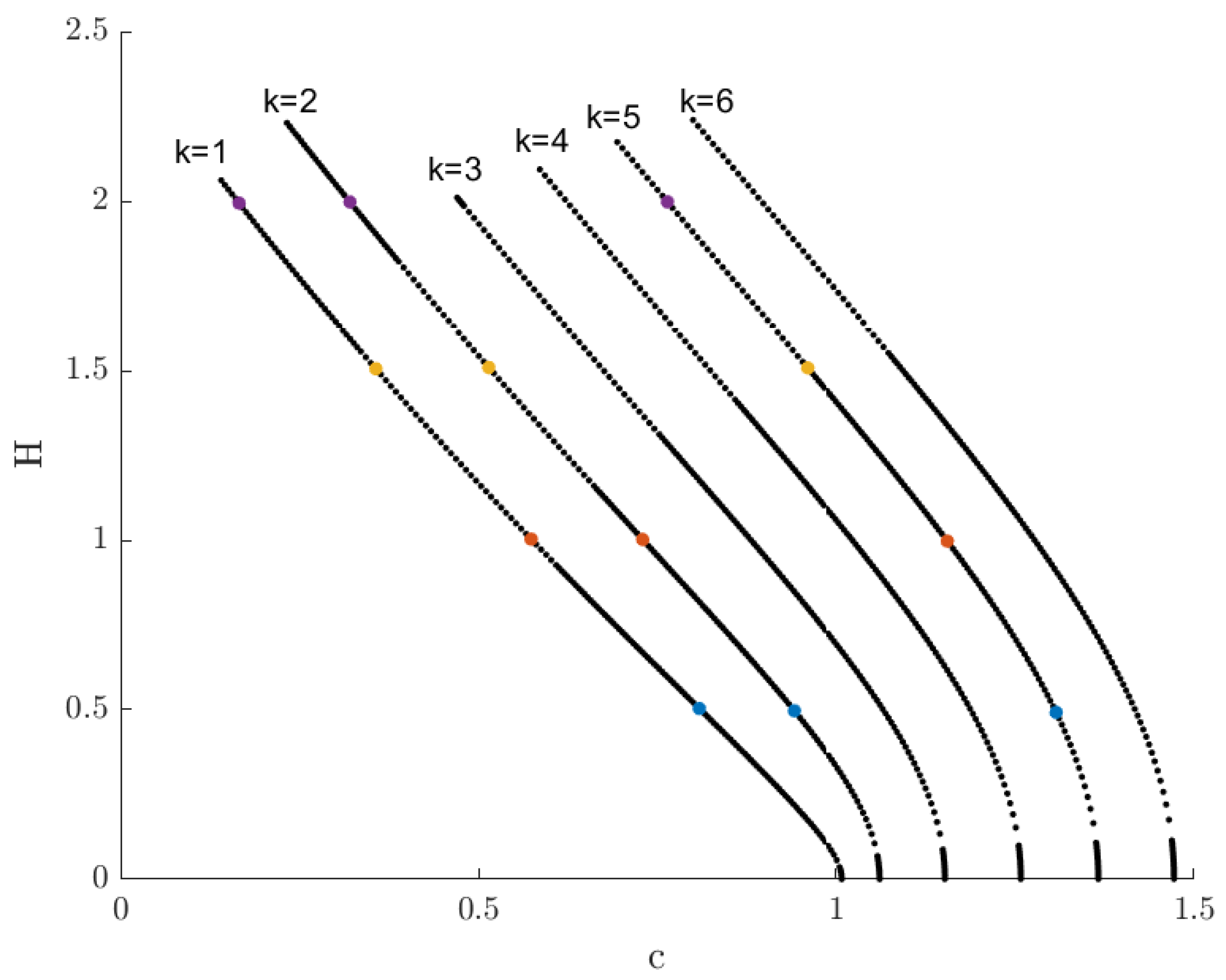

Figure 10. A portion of the bifurcation diagram for the capillary Whitham equation with T = 1 3 . The colored dots correspond to solutions that are examined in more detail in Figure 11, Figure 12 and Figure 13.
Figure 10. A portion of the bifurcation diagram for the capillary Whitham equation with T = 1 3 . The colored dots correspond to solutions that are examined in more detail in Figure 11, Figure 12 and Figure 13.
Fluids 04 00058 g010

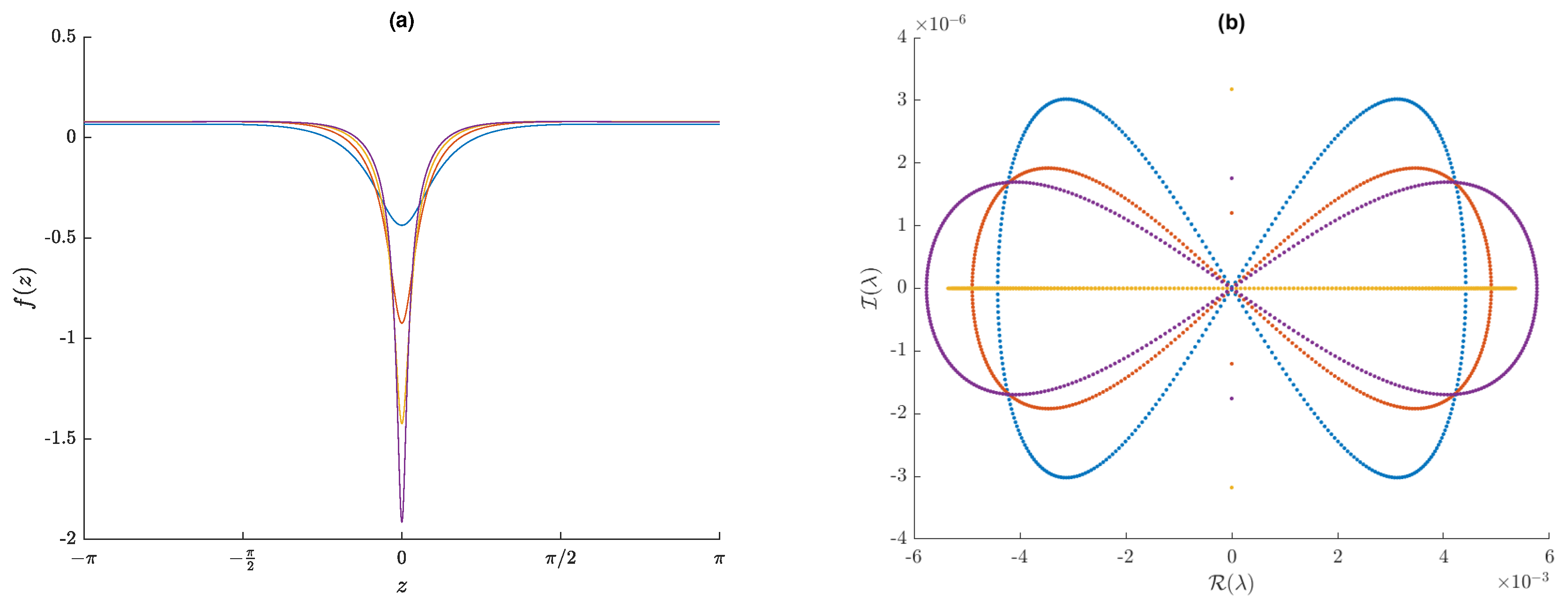

Figure 11. Plots of (a) four representative solutions of the cW equation with T = 1 3 and k = 1 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 0.8087 and H = 0.5036 (blue), c = 0.5737 and H = 1.003 (orange), c = 0.3567 and H = 1.506 (yellow), and c = 0.1657 and H = 1.994 (purple).
Figure 11. Plots of (a) four representative solutions of the cW equation with T = 1 3 and k = 1 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 0.8087 and H = 0.5036 (blue), c = 0.5737 and H = 1.003 (orange), c = 0.3567 and H = 1.506 (yellow), and c = 0.1657 and H = 1.994 (purple).
Fluids 04 00058 g011
Figure 12. Plots of (a) four representative solutions of the cW equation with T = 1 3 and k = 2 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 0.9415 and H = 0.4970 (blue), c = 0.7295 and H = 1.002 (orange), c = 0.5145 and H = 1.509 (yellow), and c = 0.3205 and H = 1.997 (purple).
Figure 12. Plots of (a) four representative solutions of the cW equation with T = 1 3 and k = 2 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 0.9415 and H = 0.4970 (blue), c = 0.7295 and H = 1.002 (orange), c = 0.5145 and H = 1.509 (yellow), and c = 0.3205 and H = 1.997 (purple).
Fluids 04 00058 g012
Figure 13. Plots of (a) four representative solutions of the cW equation with T = 1 3 and k = 5 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 1.307 and H = 0.4924 (blue), c = 1.155 and H = 0.9975 (orange), c = 0.9602 and H = 1.508 (yellow), and c = 0.7642 and H = 1.998 (purple).
Figure 13. Plots of (a) four representative solutions of the cW equation with T = 1 3 and k = 5 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 1.307 and H = 0.4924 (blue), c = 1.155 and H = 0.9975 (orange), c = 0.9602 and H = 1.508 (yellow), and c = 0.7642 and H = 1.998 (purple).
Fluids 04 00058 g013
Figure 14. A portion of the bifurcation diagram for the cW equation with T = 0.4 . The colored dots correspond to solutions that are examined in more detail in Figure 15, Figure 16 and Figure 17.
Figure 14. A portion of the bifurcation diagram for the cW equation with T = 0.4 . The colored dots correspond to solutions that are examined in more detail in Figure 15, Figure 16 and Figure 17.
Fluids 04 00058 g014

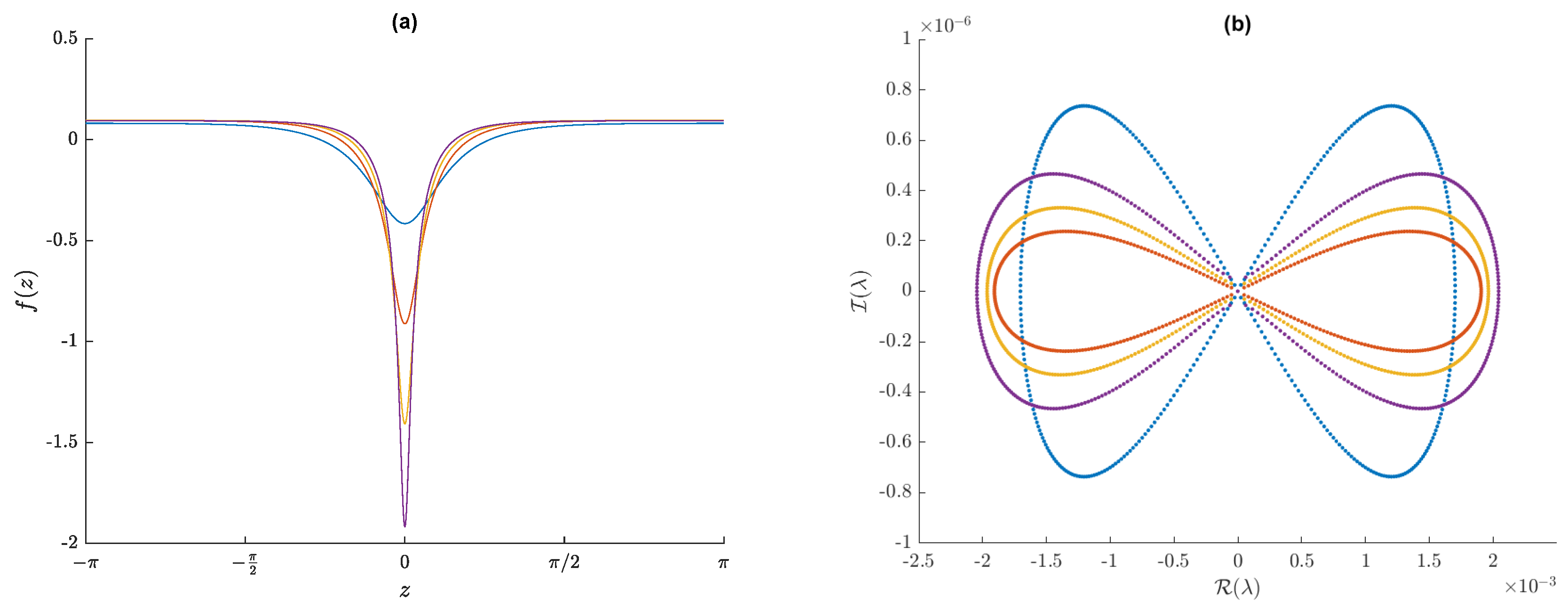

Figure 15. Plots of (a) four representative solutions of the cW equation with T = 0.4 and k = 1 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 0.8596 and H = 0.4969 (blue), c = 0.6246 and H = 1.006 (orange), c = 0.4096 and H = 1.504 (yellow), and c = 0.2096 and H = 2.011 (purple).
Figure 15. Plots of (a) four representative solutions of the cW equation with T = 0.4 and k = 1 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 0.8596 and H = 0.4969 (blue), c = 0.6246 and H = 1.006 (orange), c = 0.4096 and H = 1.504 (yellow), and c = 0.2096 and H = 2.011 (purple).
Fluids 04 00058 g015
Figure 16. Plots of (a) four representative solutions of the cW equation with T = 0.4 and k = 2 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 1.012 and H = 0.5051 (blue), c = 0.8115 and H = 1.000 (orange), c = 0.5975 and H = 1.507 (yellow), and c = 0.3975 and H = 2.005 (purple).
Figure 16. Plots of (a) four representative solutions of the cW equation with T = 0.4 and k = 2 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 1.012 and H = 0.5051 (blue), c = 0.8115 and H = 1.000 (orange), c = 0.5975 and H = 1.507 (yellow), and c = 0.3975 and H = 2.005 (purple).
Fluids 04 00058 g016

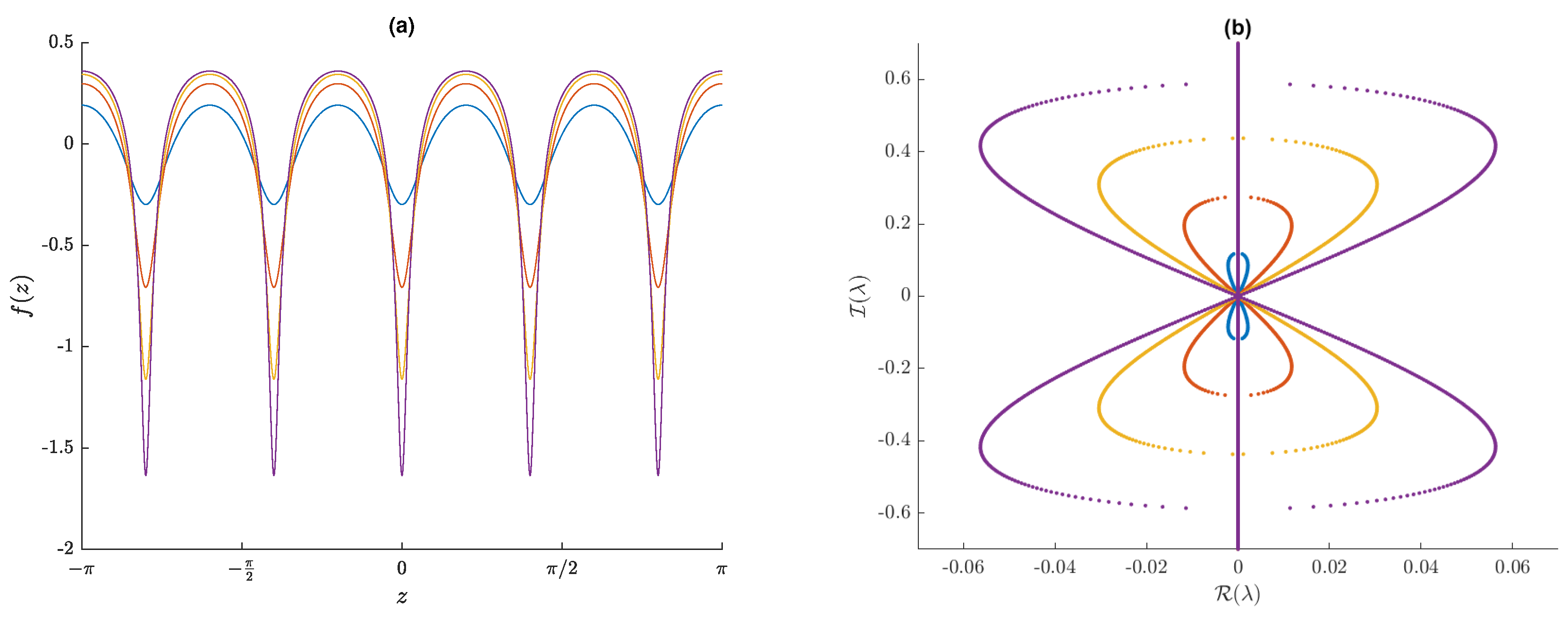

Figure 17. Plots of (a) four representative solutions of the cW equation with T = 0.4 and k = 5 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 1.430 and H = 0.4897 (blue), c = 1.285 and H = 1.004 (orange), c = 1.100 and H = 1.504 (yellow), and c = 0.9052 and H = 1.995 (purple).
Figure 17. Plots of (a) four representative solutions of the cW equation with T = 0.4 and k = 5 and (b) their stability spectra. The wave speeds and heights of these solutions are c = 1.430 and H = 0.4897 (blue), c = 1.285 and H = 1.004 (orange), c = 1.100 and H = 1.504 (yellow), and c = 0.9052 and H = 1.995 (purple).
Fluids 04 00058 g017

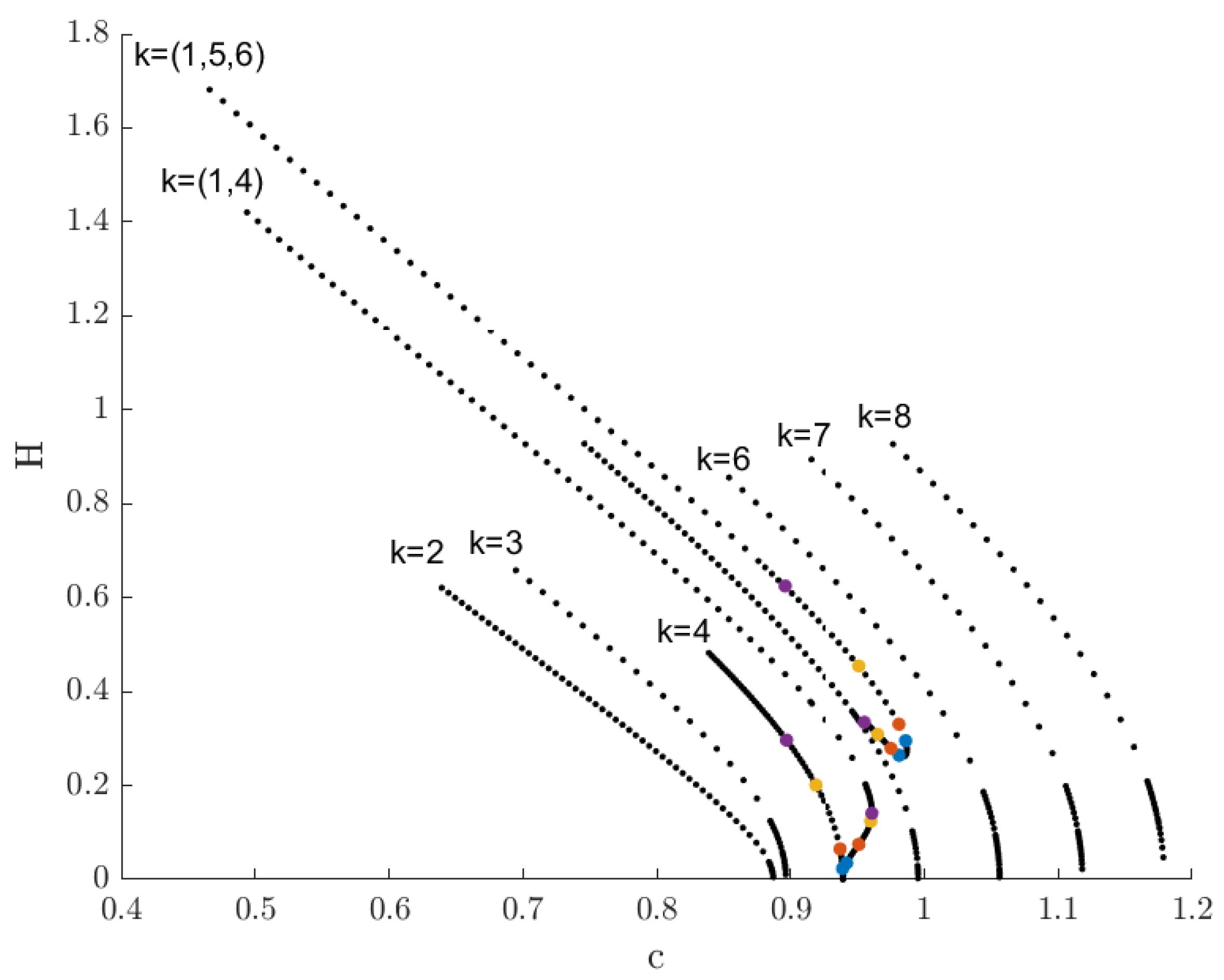

Figure 18. A portion of the bifurcation diagram for the cW equation with T 0.1582 . The colored dots correspond to solutions that are examined in more detail in Figure 19, Figure 20, Figure 21 and Figure 22.
Figure 18. A portion of the bifurcation diagram for the cW equation with T 0.1582 . The colored dots correspond to solutions that are examined in more detail in Figure 19, Figure 20, Figure 21 and Figure 22.
Fluids 04 00058 g018

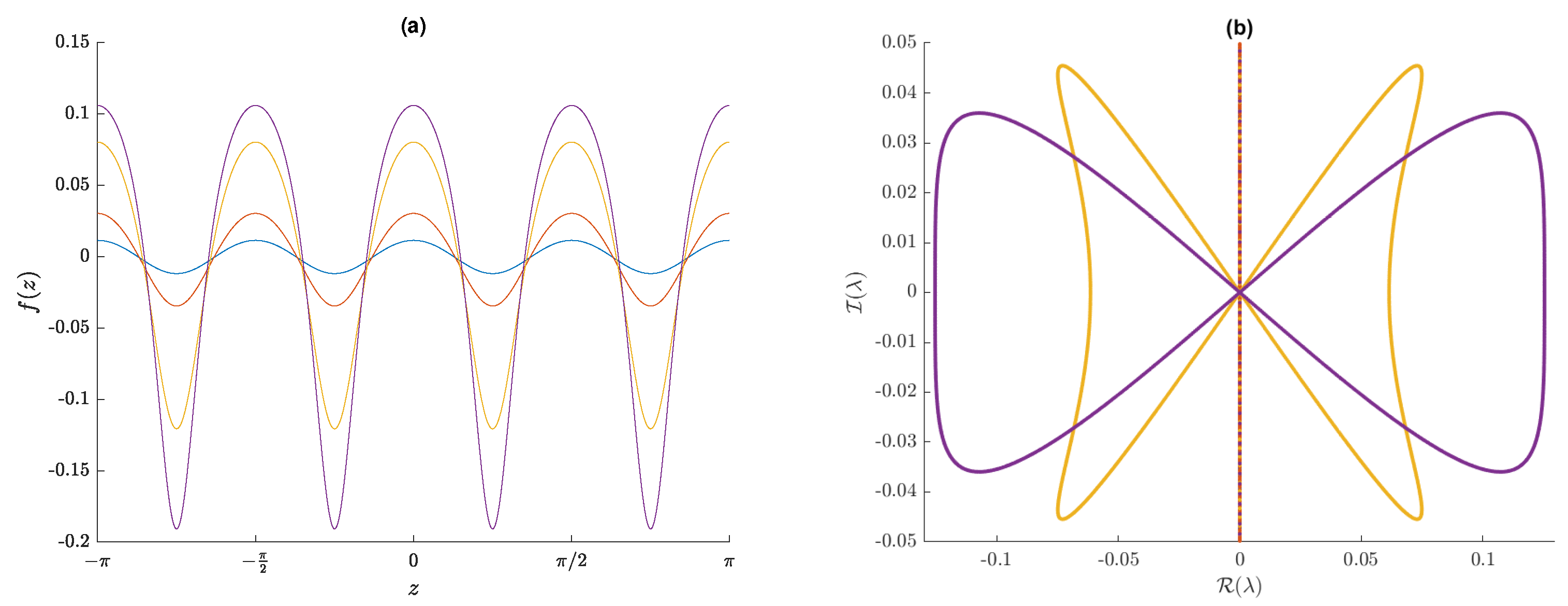

Figure 19. Plots of (a) four representative solutions of the cW equation with T 0.1582 and k = 4 and (b) their stability spectra.
Figure 19. Plots of (a) four representative solutions of the cW equation with T 0.1582 and k = 4 and (b) their stability spectra.
Fluids 04 00058 g019

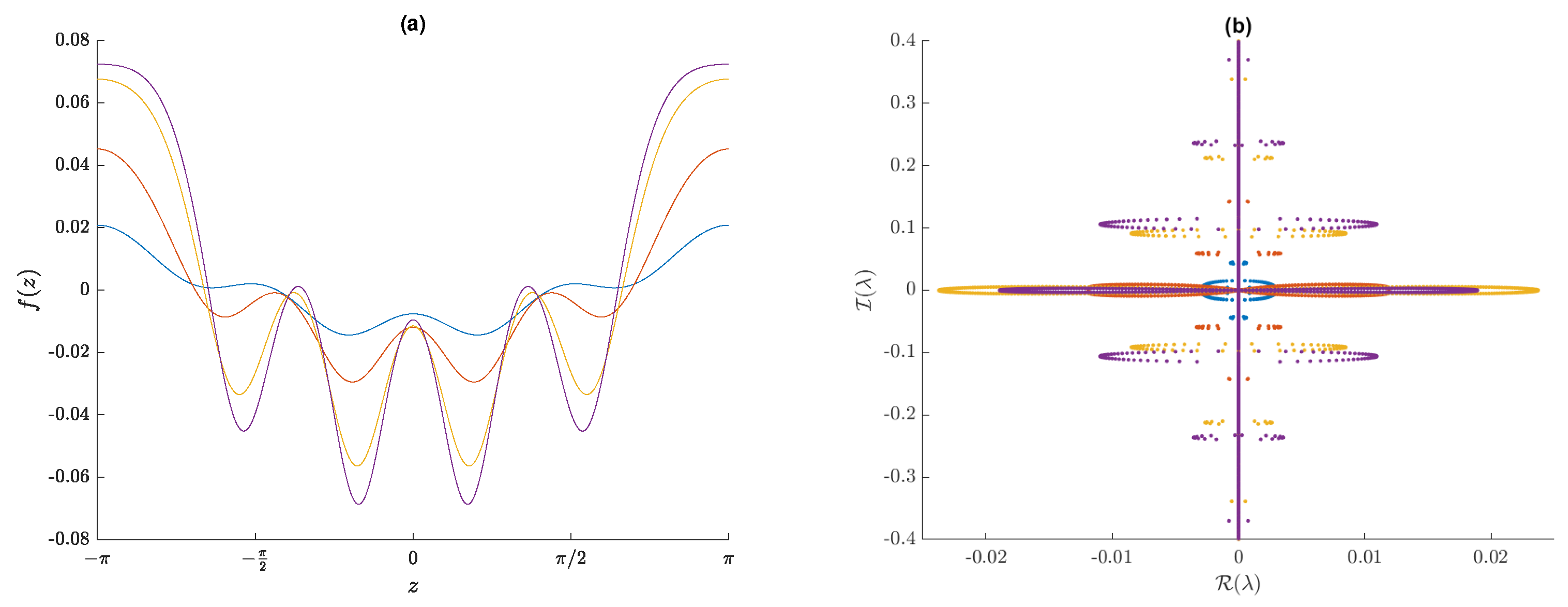

Figure 20. Plots of (a) four representative solutions of the cW equation with T 0.1582 and k = ( 1 , 4 ) and (b) their stability spectra.
Figure 20. Plots of (a) four representative solutions of the cW equation with T 0.1582 and k = ( 1 , 4 ) and (b) their stability spectra.
Fluids 04 00058 g020

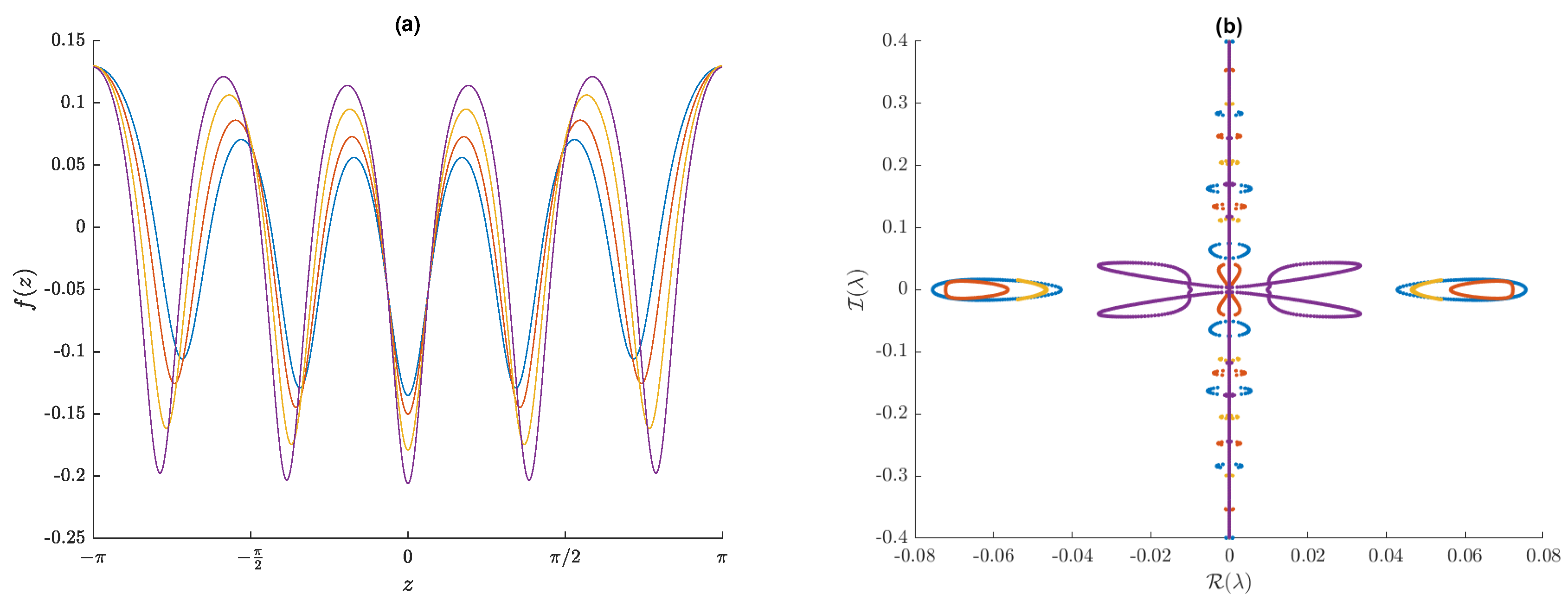

Figure 21. Plots of (a) four representative solutions of the cW equation with T 0.1582 and k = ( 1 , 5 ) and (b) their stability spectra.
Figure 21. Plots of (a) four representative solutions of the cW equation with T 0.1582 and k = ( 1 , 5 ) and (b) their stability spectra.
Fluids 04 00058 g021

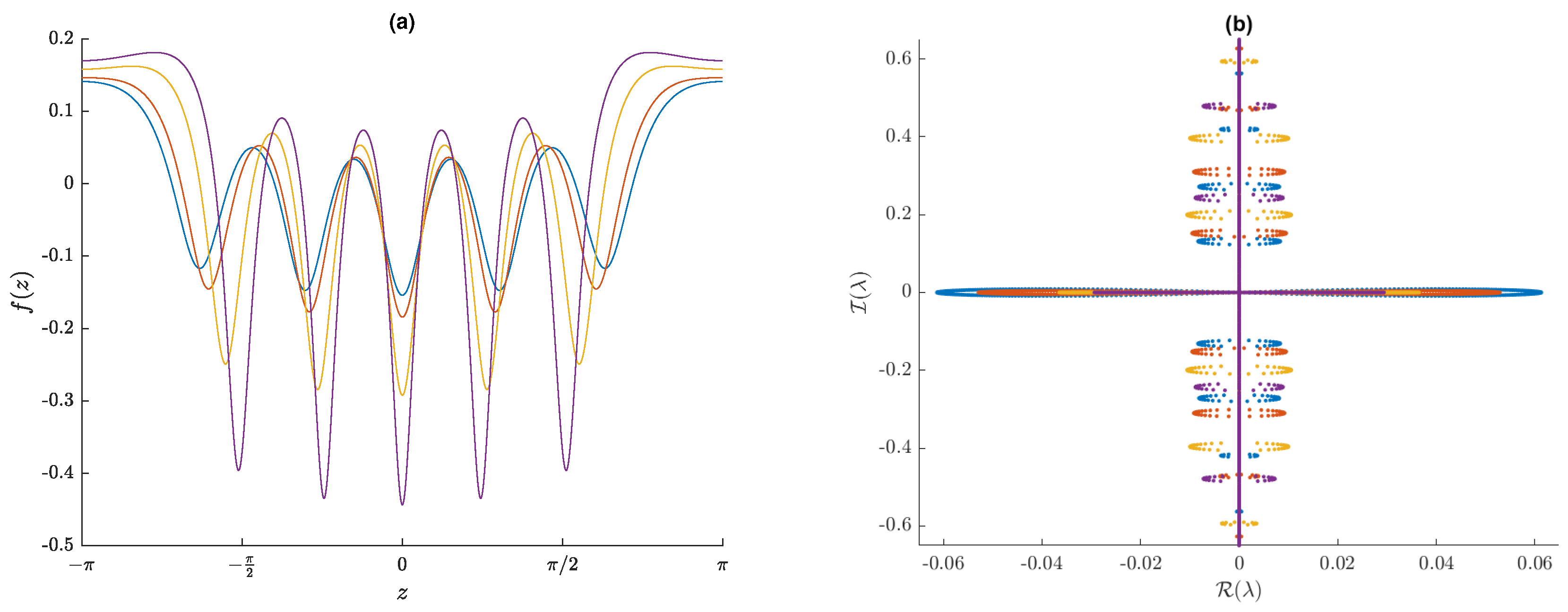

Figure 22. Plots of (a) four representative solutions of the cW equation with T 0.1582 and k = ( 1 , 5 , 6 ) and (b) their stability spectra.
Figure 22. Plots of (a) four representative solutions of the cW equation with T 0.1582 and k = ( 1 , 5 , 6 ) and (b) their stability spectra.
Fluids 04 00058 g022
Table 1. A summary of stability results for single-mode, periodic, traveling-wave solutions with period 2 π , wavenumber k, and surface tension parameter T. The first letter in each cell signifies if small-amplitude solutions are spectrally stable (s) or unstable (u). The second letter in each cell signifies if moderate- and large-amplitude solutions are spectrally stable or unstable. We were unable to compute the solutions corresponding to the cells that are left blank.
Table 1. A summary of stability results for single-mode, periodic, traveling-wave solutions with period 2 π , wavenumber k, and surface tension parameter T. The first letter in each cell signifies if small-amplitude solutions are spectrally stable (s) or unstable (u). The second letter in each cell signifies if moderate- and large-amplitude solutions are spectrally stable or unstable. We were unable to compute the solutions corresponding to the cells that are left blank.
k = 1 k = 2 k = 3 k = 4 k = 5
T = 0 suuuuuuuuu
T = 0.1582 uuuususu
T = 0.2 uuuuuusu
T = 1 / 3 uuuussssss
T = 0.4 uussssssuu
