Hybrid Symbolic Regression and Machine Learning Approaches for Modeling Gas Lift Well Performance

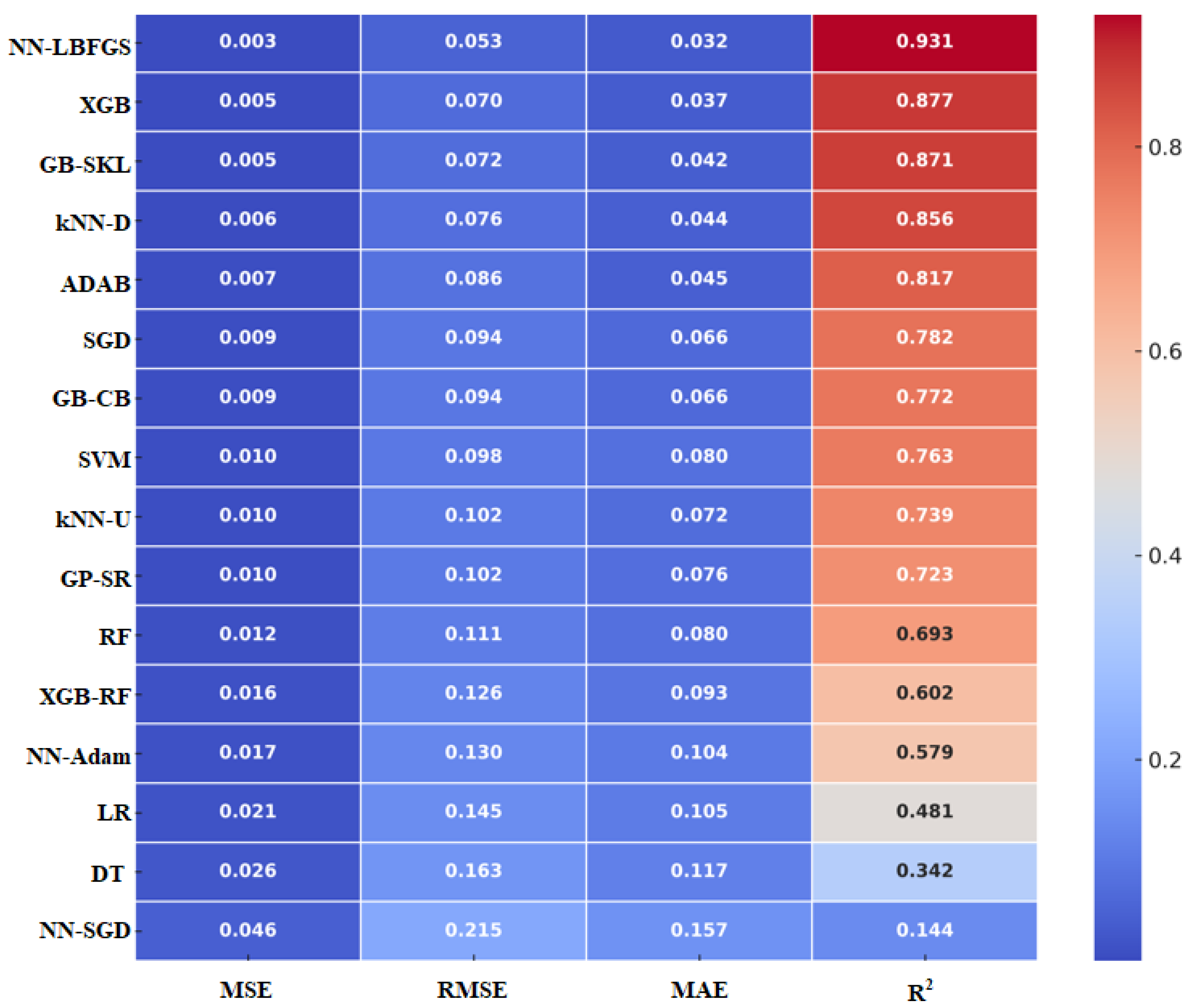

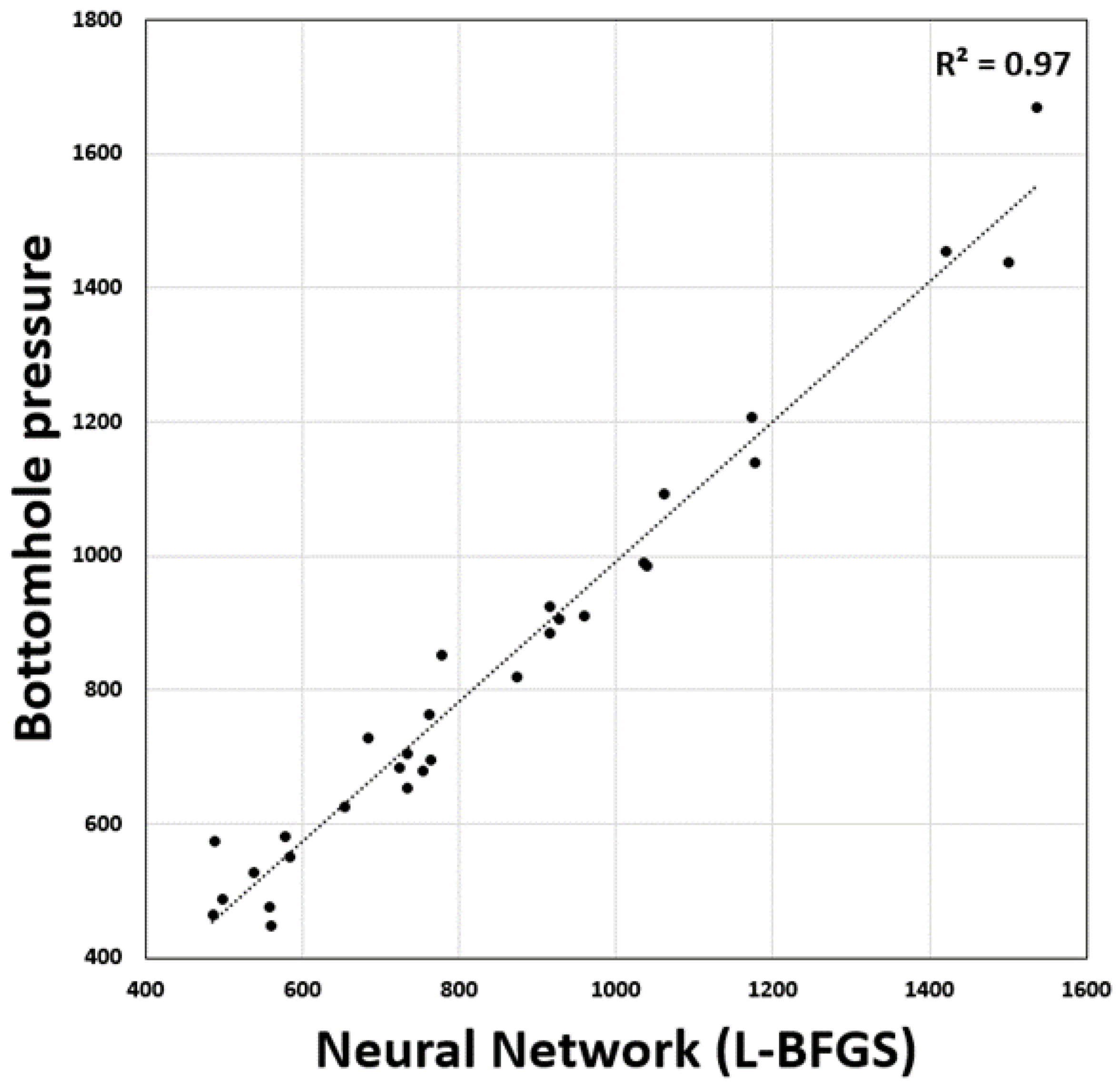

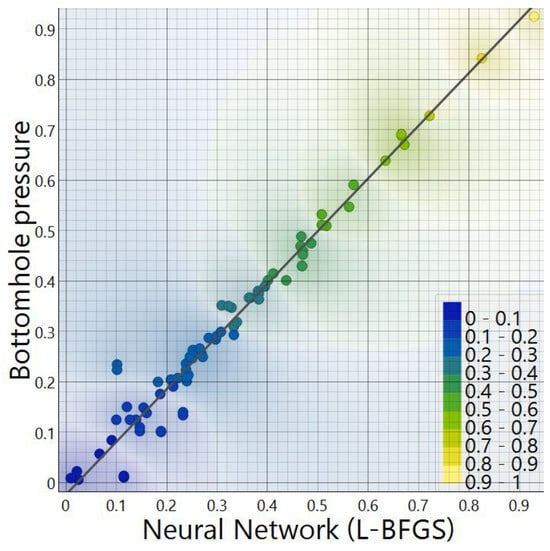

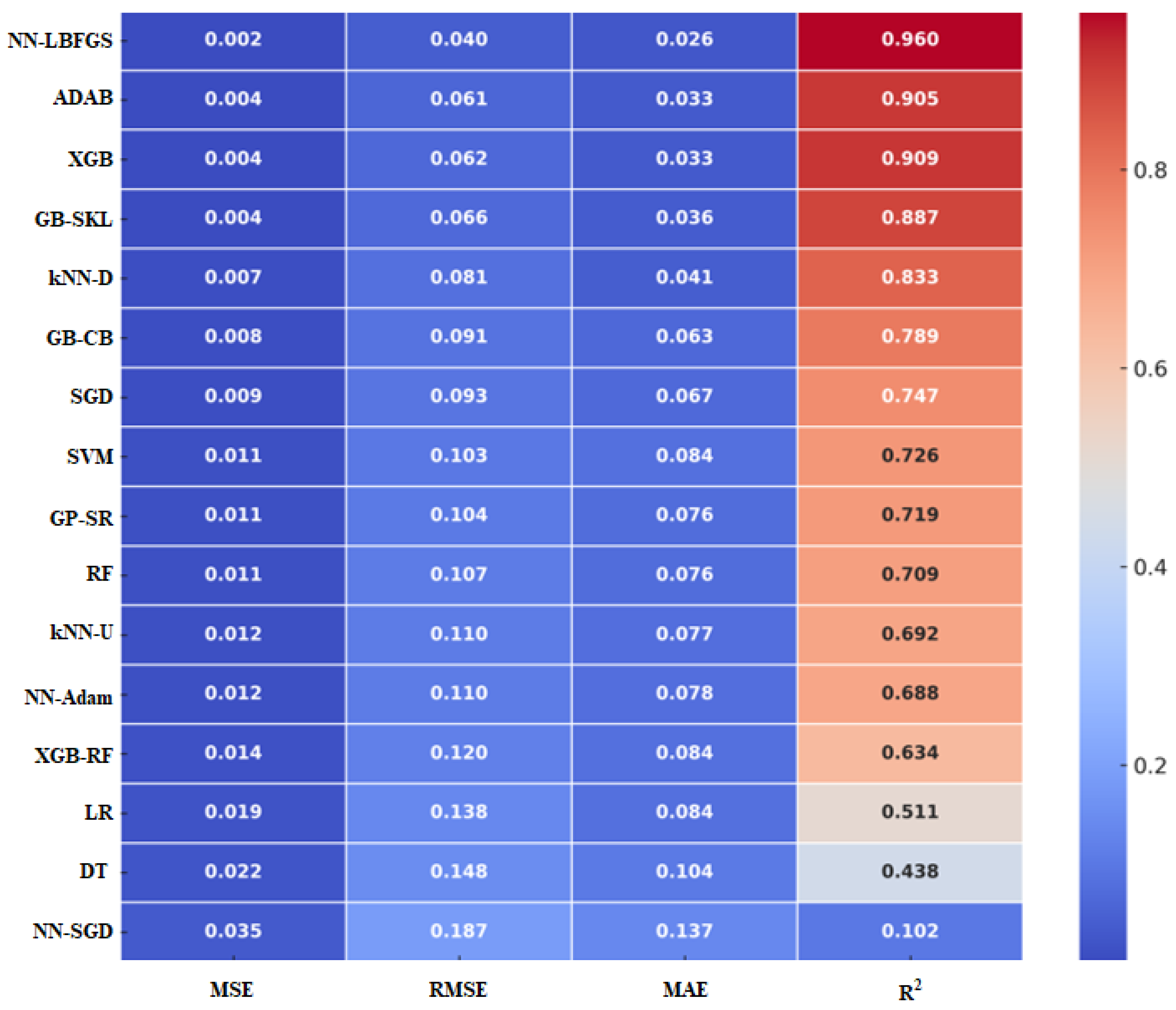

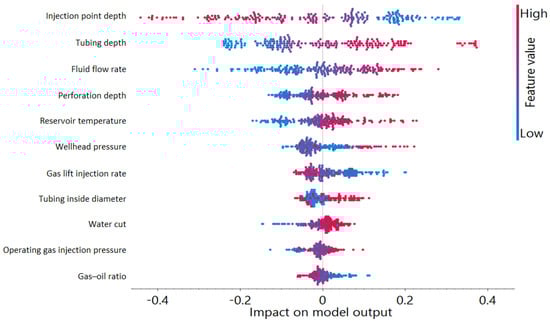

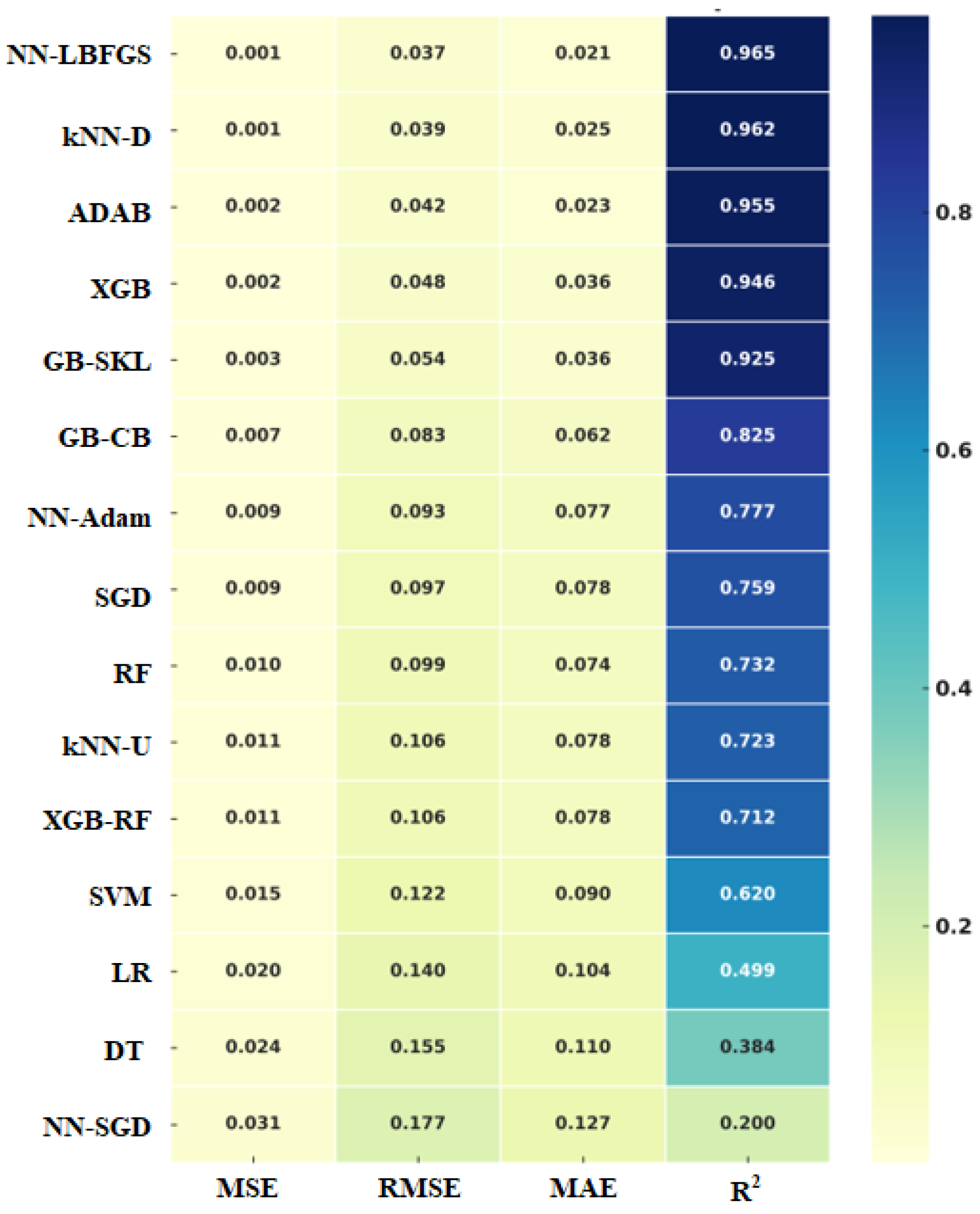

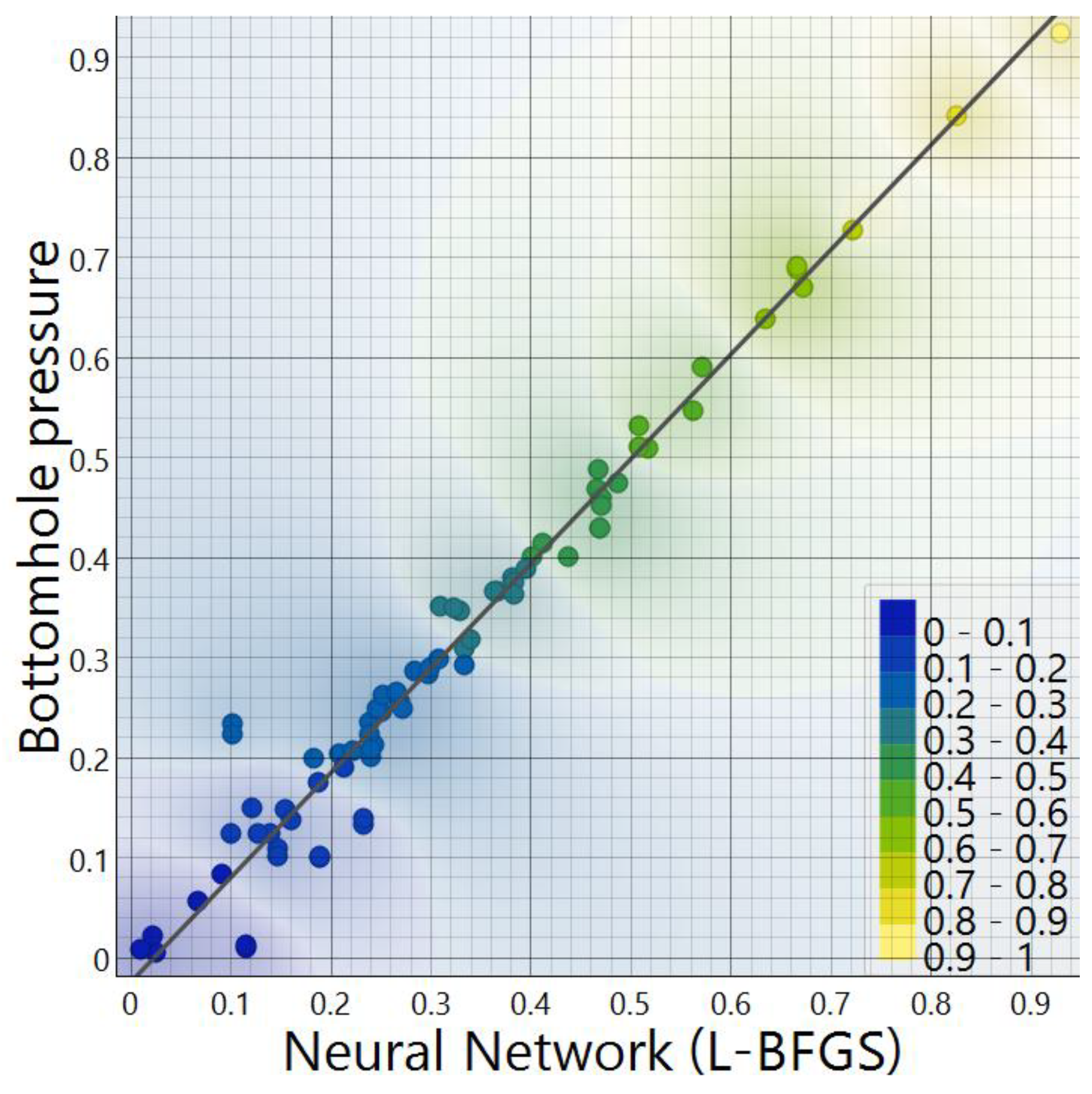

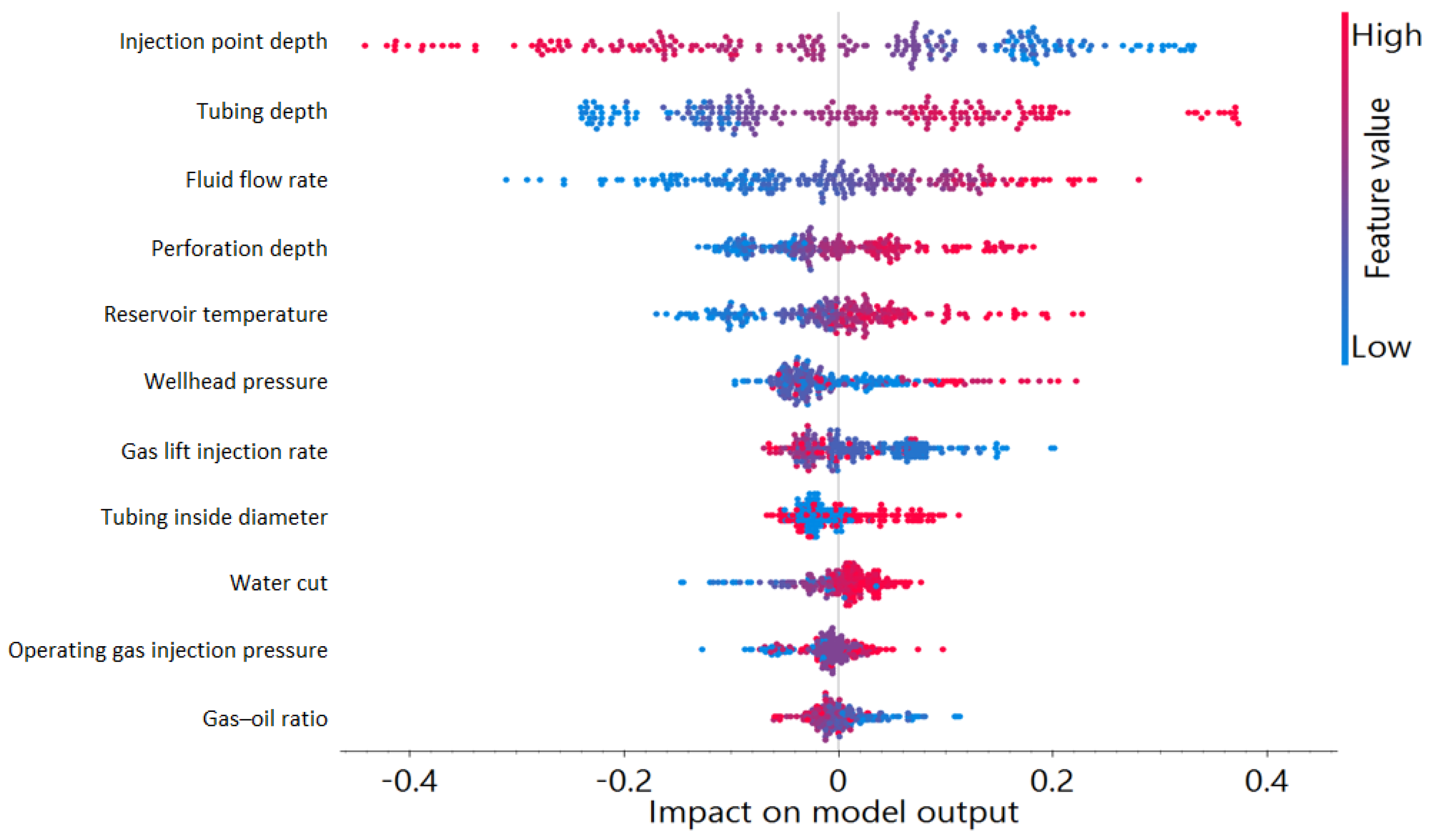

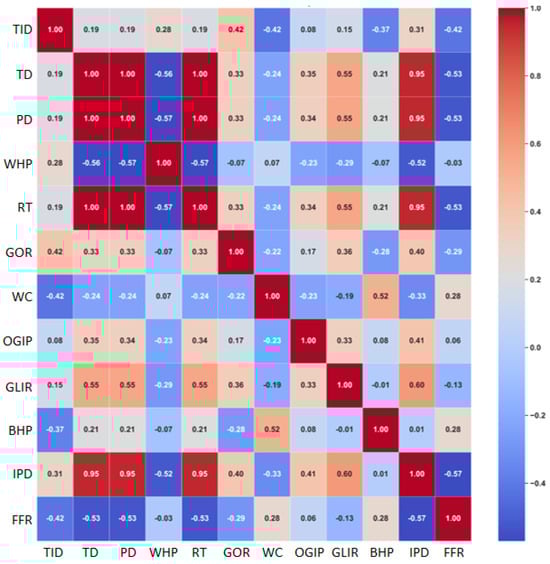

Proper determination of the bottomhole pressure in a gas lift well is essential to enhance production, tackle operating concerns, and use the least amount of gas. Mechanistic models, empirical correlation, and hybrid models are usually limited by the requirements for calibration, large amounts of inputs, or limited scope of work. Through this study, sixteen well-tested machine learning (ML) models, such as genetic programming-based symbolic regression and neural networks, are developed and studied to accurately predict flowing BHP at the perforation depth, using a dataset from 304 gas lift wells. The dataset covers a variety of parameters related to reservoirs, completions, and operations. After careful preprocessing and analysis of features, the models were prepared and tested with cross-validation, random sampling, and blind testing. Among all approaches, using the L-BFGS optimizer on the neural network gave the best predictions, with an R² of 0.97, low errors, and better accuracy than other ML methods. Upon using SHAP analysis, it was found that the injection point depth, tubing depth, and fluid flow rate are the main determining factors. Further using the model on 30 unseen additional wells confirmed its reliability and real-world utility. This study reveals that ML prediction for BHP is an effective alternative for traditional models and pressure gauges, as it is simpler, quicker, more accurate, and more economical.
