Review of CFD Guidelines for Dispersion Modeling

Abstract

This is the review of CFD (Computational Fluid Dynamics) guidelines for dispersion modeling in the USA, Japan and Germany. Most parts of this review are based on the short report of the special meeting on CFD Guidelines held at the International Symposium on Computational Wind Engineering (CWE2014), University of Hamburg, June 2014. The objective of this meeting was to introduce and discuss the action program to make worldwide guidelines of CFD gas-dispersion modeling. The following six gas-dispersion guidelines including Verification and Validation (V&V) schemes are introduced by each author; (1) US CFD guidelines; (2) COST/ES1006; (3) German VDI (Verein Deutscher Ingenieure) guidelines; (4) Atomic Energy Society of Japan; (5) Japan Society of Atmospheric Environment; (6) Architectural Institute of Japan. All guidelines were summarized in the same format table shown in the main chapters in order to compare them with each other. In addition to the summary of guidelines, the overview of V&V schemes and many guidelines of CFD modeling in the USA are explained.

1. Introduction

Computational Fluid Dynamics (CFD) is widely acknowledged today as a useful tool to assess problems in engineering, process sciences, power production, pharmaceutical and biomedical science, and the geophysical sciences. The breadth of application is revealed by the wide range of applications and specialty fields and the annual conferences found on the internet links of CFD Online [1]. It is also now extensively accepted for regulatory purposes applied to dispersion aspects of nuclear safety, environmental impact assessment, architectural design and ventilation. However, the protocols and regulations concerning CFD application in dispersion modeling are not uniform. The present paper is a review of the existing CFD guidelines applied to its use focusing on atmospheric dispersion modeling.

Air pollution and noxious gas releases are a common problem of commercial, industrial, health facilities, and even residences throughout the world. As a result, engineers and scientists have sought means to predict and mediate the dispersion and transport of such gases. In the past, field scale measurements and fluid modeling with wind- and water-tunnels have been used to study and understand the mixing processes. However, recently, CFD has also become an important tool worldwide in the evaluation and mediation of air pollution and ventilation problems associated with the dispersion of toxic, dangerous and odorous effluents. As a result, there now exist different protocols specified by various nations to assure accuracy and reliability in such predictions. Given the inter-dependence and international nature of many pollution problems, it may eventually be necessary to encourage worldwide guidelines for CFD dispersion calculations. With this in mind, a summary of the existing methodologies seems appropriate.

There already exists a significant body of literature on the state of both physical and numerical modeling of dispersion transport created by an international body of researchers. Recently, several authors have provided in-depth reviews of the state of both dispersion physics and computational wind engineering [2,3,4]. The reader is referred to these articles for background information. This paper will focus, however, on the value of numerical modeling in the dispersion arena, the need for careful software verification and validation (V&V), and the cautious interpretation one should have concerning any predictive models.

One of the advantages of numerical modeling is that despite constraints associated with grid resolution, choice of time increments, turbulence model selection, or specification of boundary conditions, the basic physics of the phenomena are not limited by scale constraints. Thus, simulation of all aspects of atmospheric motions, plume transport or wind loading should be reproduced correctly. In addition, it is possible to examine the interactions of different nonlinear processes to determine their interdependence [5,6]. Recognition of these favorable properties has led to an explosion of new research by wind engineers published in professional and trade journals. Of course, realistically, choices made during numerical simulation do otherwise constrain predictions, and the unfortunate tendency of many CFD advocates to believe implicitly in the realism of their results is implied when critics suggests that CFD really is an acronym for “Colorful Fluid Dynamics”. It is amusing that even a CFD advocate such as Professor Spalding, Imperial College of Science and Technology, has suggested that another acronym for CFD might be “Cheats, Frauds and Deceivers” [7].

Thus, verification and validation (V & V) is required at almost every level of CFD prediction [8,9]. Various criteria for measuring agreement between predictions and full or model-scale measurements are available. These include scatter diagrams, classical ANOVA (Analysis of Variance), pattern comparison tests and weighted average fractional bias plots [10,11]. Several professional organizations have established committees and groups to focus on the quality of and trust in CFD applied to practical situations [9,12,13,14]. Scientists routinely validate their CFD calculations of bluff-body or urban street-canyon configurations by comparing their predictions with measurements taken during field or physical model simulations [15,16,17,18,19,20,21,22,23,24,25]. Such comparisons reveal which configurations can be modeled with confidence, and which situations are less realistic.

Prudence in a fluid or CFD modeler is indicated by the presence of a suspicious nature, cynicism and a “show me” attitude. These are not good traits for a life mate or a best friend, but they are essential if the integrity of the modeling process is to be maintained. When considering numerical modeling, it is wise to remember that all such models are “virtual” reality; thus, they are only as accurate as the imagination and skill brought to the process. Thus, during physical modeling at reduced length scale rations, decisions are often made when selecting instrumentation, facility size, or measurement resolution, that themselves may enhance one characteristic of the flow while degrading others. When we replace a physical situation with a numerical or analytic model, we must select domain size, grid resolution, boundary conditions and turbulence models which are only as good as our understanding. It is unlikely that we will ever be able to resolve the question “Just how reliable are the results?”, “Simulation must be limited by uncertainties in our understanding of the physical phenomena, uncertainties about the initial or boundary conditions, uncertainties about our measuring equipment, uncertainties about our prototype observations, and uncertainty about what we really want to know” [26].

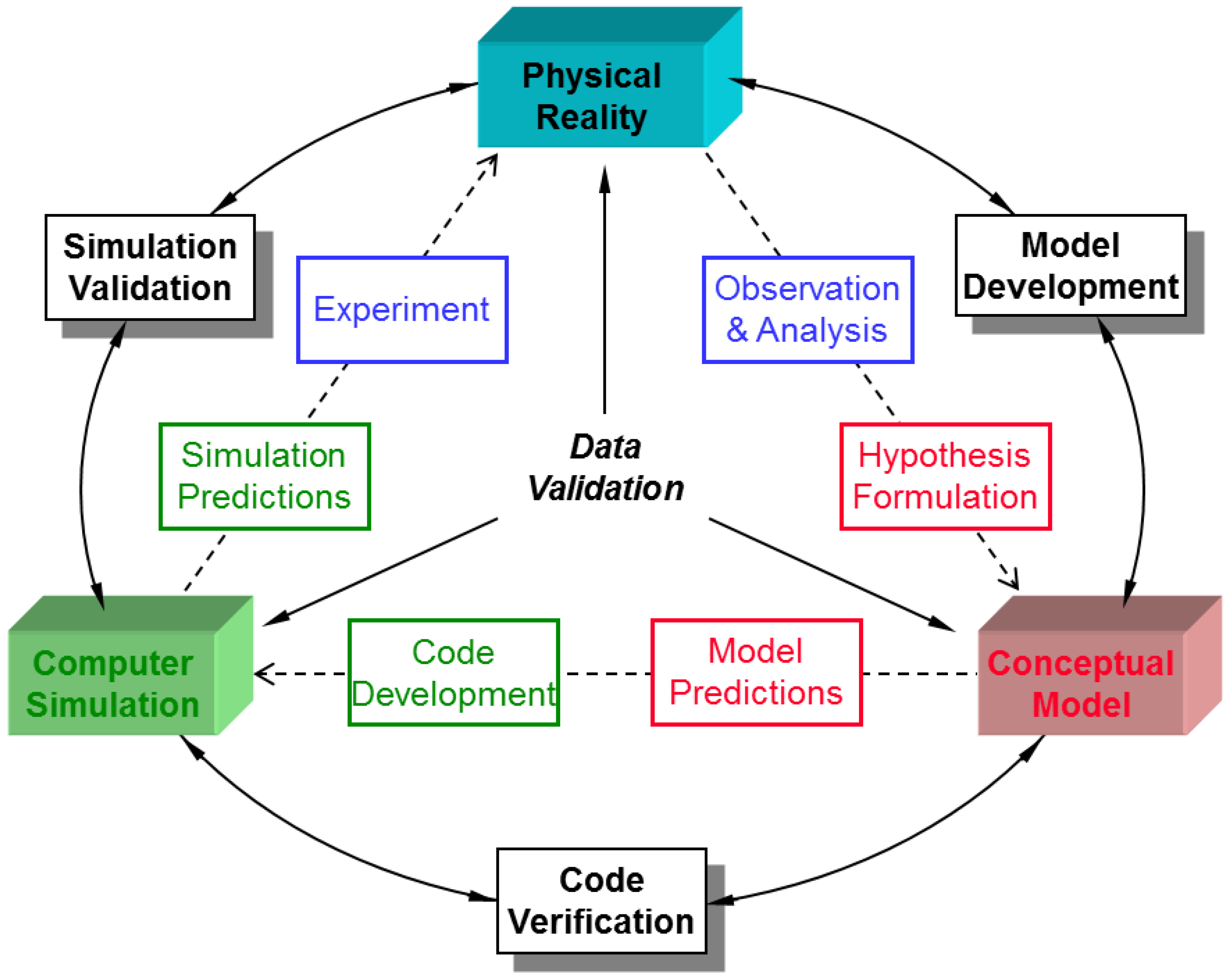

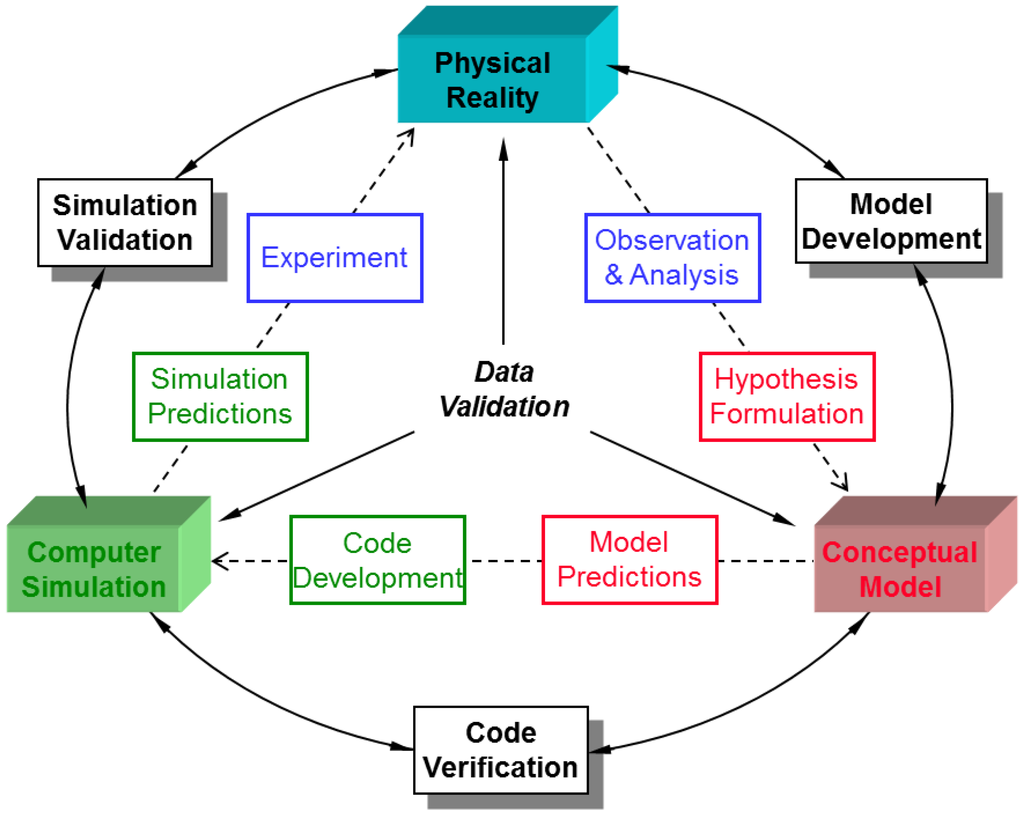

There is a logical and notional approach known as Sargent’s Framework that illuminates the inter-relationships of the steps of scientific model development, computational model verification, and simulation validation. This can replace the earlier approach found in the historic scientific methodology that does not have a place for computing and simulation. A relationship diagram between the steps of such a methodology is shown in Figure 1 [27]. The outer circle together with data validity are the technical processes that must be addressed to show that a model is credible. Assessment activities are spawned from each of these technical processes [28].

It is not really possible to say conclusively that our CFD solutions have a known accuracy and reliability. We can only point to our verification and validation bench marks. Even when one has carefully considered equation verification and application validation, there are still issues concerning Error Propagation. Precision with computers does not equate to accuracy. Small errors in initial and boundary conditions can propagate into solutions [29].

One must also realize that validation is a learning process, and the process is never complete. Inherent uncertainties can exist in model physics, initial conditions, boundary conditions, and even turbulent randomness which can exist as a barrier to repeatability of both physical experiments and numerical comparisons.

2. Results and Discussion

2.1. CFD Guidelines Used in the United States

To a large extent, V&V practice in the United States builds upon the experience and recommendations of previous CFD modelers from different disciplines and different fluid mechanics communities. One can also classify advice into several subcategories:

• General Guidelines for Aerodynamic and Fluid Mechanic Codes,
• Guidelines for Physical Modeling that is also relevant for CFD,
• Guidelines for Structural Loading,
• Guidelines for Atmospheric Transport, Dispersion and Diffusion, and
• Guidelines for HVAC (Heating, Ventilation and Air Conditioning), Fire and Natural Ventilation.

The attached Appendix titled: Guidelines for V&V of CFD Commonly Used in the United States provides a list of appropriate papers and reports to be used in satisfying oneself that a proposed model represents reality.

2.2. CFD Guidelines for Nuclear Safety Evaluation Defined by the Atomic Energy Society of Japan (AESJ)

AESJ guidelines [30] were made to utilize CFD models for dispersion calculations for nuclear safety evaluation of radiation dose. In Japan, wind tunnel experiments have been used for nuclear safety evaluation for more than 40 years by Japanese electric power companies. Today, it is customary to utilize CFD models instead of wind tunnel experiments for a preliminary evaluation to confirm the effect of additional structures on gas dispersion.

An outline of the guidelines is summarized in

Table 1. Outline of the guidelines defined by Japan Atomic Energy Society.

Code for Numerical Model to Calculate the Effective Source Height for Nuclear Power Facilities Safety Analysis: 2011 [31]
Organization	Atomic Energy Society of Japan
Recommended model	Not specified
	Example: k-e turbulence model and particle dispersion model
Output	Effective source height, which is determined from ground-level concentration
Applied Purpose	Safety Analysis of nuclear power facilities (Public radiation dose)
Verification criteria	(1) Wind velocity profile: 1/7 power law
	(2) Boundary layer thickness: Over 400 m
	(3) Turbulent intensity of downwind direction at Z = 30 m: 8%–16%
	(4) Vertical dispersion width: Atmospheric stability C-D
Validation criteria	Step-1: Concentration distribution around rectangular box
	(1) Ground level concentration along the plume axis: FAC2 > 0.89
	(2) Total spatial concentration : FAC2 > 0.54
	Step-2: Effective source height of actual nuclear station
	(1) Slope of the regression line: 0.9–1.1
	(2) Correlation coefficient: Over 0.9
	(3) Variation coefficient: Under 20
Uncertain analysis	the calculated effective source height is adjusted by the variation coefficient
Remarks	Every model must be validated with the disclosed wind tunnel data at the actual nuclear power station, which will be applied.
Public comments	No public comments
	Although there is a rule reviewed by the JAES’s working group
Revision period	Every 5 years
Referenced document	(1) ASME V&V guidelines [33]
	(2) COST 732 report [31]
	(3) AESJ wind tunnel guidelines [32]
	(4) Database of Hamburg University [34]
Working group members	Chairman: Dr. Kouji Kitabayashi
	Members: Experts, users(Electric Power companies), government

in the same format as the other guidelines introduced in this paper. It took two years to complete the guidelines by the JAES (Japan Atomic Energy Society) working group, and one year was consumed to establish a V&V scheme based on comparisons with experimental wind tunnel data. Criteria were integrated from the COST (European Cooperation on Science and Technology) 732 guidelines [31] and the AESJ wind tunnel guidelines [32]. A safety factor is defined to be modified with the final calculated results based on the uncertainty factor of calculated results suggested in the ASME (American Society of Mechanical Engineering) V&V guidelines [33].

The AESJ guidelines will be revised periodically every five years based on the established general rules of the AESJ guidelines.

2.3. Best Practice Guidelines Defined by COST Action ES1006 in EU

The COST Action ES1006 was established to pursue a substantial improvement in the implementation of local-scale emergency response tools. The main objective is to evaluate and improve the reliability of local-scale emergency response tools on the basis of a comprehensive, concerted and harmonized cross-national approach. The main focus is the evaluation of the atmospheric dispersion models when used in urban or industrial environments with complex building structures, and their integration in emergency response systems.

The COST ES1006 Action is structured in three Working Groups, whose main activity is hereafter briefly summarized.

Working Group 1—Threats, Models and Data Requirements: characterizes and categorizes existing models as well as typical release scenarios.

Working Group 2—Test, Evaluation and Further Development: defines open and blind test scenarios, tests and assesses different modelling approaches, and outlines scientific strategies for improving the implementation of corresponding tools.

Working Group 3—Applicability, Implementation and Practical Guidance: deals with the practical constraints in the use of local-scale emergency response models.

The Best Practice Guidelines (BPG) [35] are formulated as a concise and focused document that can be straightforwardly consulted by potential users. The most important aspects that guide the final recommendations are summarized above, while, for in-depth analysis, one is referred to the specific and detailed publications documents prepared in the frame of the COST ES1006 Action work. The outline of BPG [35] is summarized in

Table 2. Outline of the best practice guidelines defined by COST Action ES1006.

Best Practice Guideline of COST ES1006-Evaluation, Improvement and Guidance for the Use of Local-Scale Emergency Prediction and Response Tools for Airborne Hazards in Built Environments [35]
Organization	COST (European Cooperation on Science and Technology)
Recommended model	no specific model implementation but model types and approaches depending on scenario of use (acute phase or pre-/post-accidental phase)
Output	dispersion patterns, exposure maps, concentration data, dispersion statistics (depending on model type and implementation)
Applied Purpose	model evaluation and best practice guidance for hazmat dispersion modeling at local scale in complex urban/industrial environments
Verification criteria	(1) basic verification not part of activity (COST732 [31]); (2) application-oriented testing and validation of airborne hazmat dispersion models–comparison with new dedicated test cases developed within the scope of the Action “Michelstadt”, AGREE, CUTE
Validation criteria	summarized in COST ES1006 Model Evaluation Protocol [35] (FB < 0.67, NMSE < 6 and FAC2 > 0.30)
Uncertain analysis	general model uncertainty and model sensitivity analysis, additional analysis with respect to “uncertain model input data”
Remarks	blind testing under “near real conditions” is preferred
Public comments	no public comments
Revision period	not decided
Referenced document	various existing model validation and best practice guidelines [35]
Working group members	Chairs: Bernd Leitl, Silvia Trini Castelli, Kathrin Baumann-Stanzer Members: 62 MC/WG members from 21 countries

.

2.4. CFD Guidelines for Environmental Assessment Defined by the Japan Society for Atmospheric Environment (JSAE)

JSAE guidelines [36] were made to utilize CFD models for environmental impact assessment for relatively short distance dispersion in urban complex. The CFD model used for this purpose is named “Diffusion Model with Computational Fluid Dynamics” abbreviated as DiMCFD to distinguish it from other popular CFD models which are mainly used for the analysis of fluid dynamics. In Japan, Gaussian plume and puff models have been used for the environmental impact assessment in the atmosphere for long time; however, it is apparent that Gaussian models produce large errors for dispersion in urban complex in which there are many buildings and complicated emission sources. Wind tunnel experiments were previously employed for impact assessment in urban areas; however, now relatively few wind-tunnel studies are performed for this purpose because of the higher costs. It is planned to utilize DiMCFD models instead of wind tunnel experiments and to confirm whether the DiMCFD actually give better performance than Gaussian models in urban areas.

Outline of the guidelines is summarized in

Table 3. Outline of the guidelines defined by Japan Society for Atmospheric Environment.

Guideline for Atmospheric Environmental Impact Assessment Using Diffusion Model with Computational Fluid Dynamics [36]
Organization	Kanto branch, Japan Society for Atmospheric Environment
Recommended model	Not specified
	Example: Standard κ–ε turbulence model with both of Lagrangian and Eulerian dispersion model
Output	Near surface concentration (usually 1.5 m height)
Applied Purpose	one-hour average concentration in urban complex for atmospheric environmental impact assessment
Verification criteria	Because commercial CFD model is usually used, it is assumed that verification as a CFD model has been already finished.
Validation criteria	Comparison with disclosed wind tunnel data (e.g., AIST (2011) [38] or COST 732 (2007) [31])
	Step-1: Wind flow behind a building ([31]COST 732)
	(1) Hit rate > 0.66 with D = 0.25
	Step-2: Concentration
	(1) Qualitative analysis: Draw the following three plots and confirm that the scatters are less than those of examples in the guideline.
	(a) Scatter plot with correlation and regression coefficients
	(b) Quantile–Quantile plots
	(c) Residual analysis through residual plots
	(2) Quantitative analysis (COST 732 [31])
	FAC2 > 0.5, |FB| < 0.2, 0.7 < MG < 1.3, NMSE < 4, VG < 1.6
Uncertain analysis	Included in validation process
Remarks	Treat only neutral stability and stationary state
Public comments	No public comments. The contents were opened in general assembly of JSAE and reviewed by a third party.
Revision period	Not specified
Referenced document	(1) EPA guideline on the development, evaluation, and application of environmental models [39]
	(2) COST 732 report [31]
	(3) AIJ, Guidebook for practical applications of CFD to pedestrian wind environment around buildings [37]
Working group members	Chairman: Dr. Tateki Mizuno
	Members: Experts, users (consultants for environmental impact assessment), government

in the same format as the other guidelines introduced in this paper. It took four years to complete the guidelines by the working group of the JSAE. Criteria were also integrated from the COST 732 guidelines [31] and AIJ’s (Architectural Institute of Japan) Guidebook for Practical Applications of CFD to Pedestrian Wind Environment around Buildings [37].

2.5. Guidelines for Microscale Modeling Defined by VDI in Germany

In Germany, the Commission on Clean Air within VDI (Verein Deutcher Inginieure) and DIN (Deutsches Institut für Normung) ensures fitness-for-purpose of tools and methods in environmental meteorology through the preparation of technical guidelines. The guideline Prognostic micro-scale wind field models—Evaluation for flow around buildings and obstacles was published in 2005, and the draft review has been published in 2015 for public consultation [40]. The guidelines consider micro scale meteorology models that typically calculate wind, turbulence, temperature, humidity in the vicinity of buildings considering orography and Coriolis force effects. A typical use of this type of model is environmental impact assessment. For this, the results of models evaluated according to this guideline can be used to calculate tracer dispersion. However, a specific guideline for the evaluation of tracer dispersion does not currently exist.

These guidelines ensure fitness-for-purpose of obstacle resolving prognostic models through an evaluation procedure involving three distinct steps: general evaluation, scientific evaluation and validation. The general evaluation checks that the model is comprehensible in the sense that it is well documented and the evaluation is traceable. The scientific evaluation checks the set of equations solved and the physical and numerical properties of the model by requiring e.g., that all three wind components are calculated from prognostic equations and that orographic and obstacle structure is explicitly resolved. It assesses whether Coriolis force, temperature and possibly phase changes are considered depending on the application range. Finally, the model results are validated based on comparisons with results of the same model, with analytic solutions and with wind tunnel data. Here, the guidelines do not distinguish between verification and validation. The comparison metric in all cases is the hit rate q which is calculated as q = (Σn_i)/N, where n_i = 1 if |P_i − O_i|/|O_i| ≤ D or |P_i − O_i| ≤ W, n_i = 0, otherwise. P_i and O_i are co-located normalized model results and comparison data, respectively, and N is the number of measurement points. W (absolute allowed deviation) and D (relative allowed deviation) are defined for each test case and the model is required to reach a minimal hit rate for each comparison in order to fulfill the guidelines (see

Table 4. Outline of the guidelines defined by the Commission on Clean Air (KRdL (Kommission Reinhaltung der Luft)) and German Engineering Society (VDI).

VDI 3783 Part 9. Environmental Meteorology. Prognostic Micro-Scale Wind Field Models. Evaluation for Flow around Buildings and Obstacles (2015) [40]
Organization	Commission on Clean Air within VDI (The Association of German Engineers) and DIN
Recommended model	None specified (any obstacle resolving prognostic model that fulfills the criteria of the guideline
Output	3d wind and turbulence fields
Applied purpose	Model evaluation in the context of air quality assessment near buildings
Validation and Verification criteria (guideline classifies all as validation)	Comparison metric: Hit rate q = (Σni)/N is the fraction of measurement points for which the model result differs by less than the allowed absolute (W) or relative (D) difference from the comparison data. The hit rate is required to be above a threshold for each case in order for a model to fulfill the test criterion. Model internal comparison for (a) stationary solution; (b) scalability; (c) symmetry; (d) homogeneity; (e) grid independence; (f) grid orientation. (a–e) W = 0.01–0.05, D = 0.05, q ≥ 0.95; (f) W = 0.06, D = 0.25, q ≥ 0.66
	Comparison with analytic solution (a) wind profile; (b) ageostrophic angle. (a,b) W = 0.01, D = 0.05, q ≥ 0.95
	Comparison with wind tunnel data for (a) quasi-2d beam; (b) individual cube and cuboid obstacles; (c) multiple obstacles in a realistic urban configuration. D = 0.06–0.08, W = 0.25, q ≥ 0.66
Uncertainty analysis	not quantified
Remarks	Guidelines aim to identify fitness for purpose in a binary check. No ranking of models.
Public comments	Public consultation period with every review of the guideline.
Revision period	Considered for review by Commission on Clean Air every five years or if necessary.
Referenced document	(1)Environmental Meteorology. Prognostic Micro-Scale Wind Field Models. Evaluation for Flow around Buildings and Obstacles; VDI 3783 Part 9 [40].
	(2) COST 732 (2010): Final report [31].
	(3) Environmental Wind Tunnel Laboratory (EWTL) Compilation of Experimental Data for Validation of Microscale Dispersion Models (CEDVAL, CEDVAL-LES). Meteorological Institute, University of Hamburg [37].
Working group members	Chairman: David Grawe
	Members: Model developers, model users, government

below for values). This metric reflects the aim of the guideline to identify fitness-for-purpose rather than ranking models according to their performance. To test fundamental properties such as homogeneity of results over homogeneous terrain, symmetry of the results for symmetric obstacles and stationarity for stationary boundary conditions model results are compared with results of the same model. To ensure that the results are physically realistic, wind profiles for an empty domain are compared with an analytic solution. Finally, several test cases involve the comparison with reference data from wind tunnel measurements. The obstacle configurations include individual obstacles of different shapes (beam, cube, cuboid) as well as one case with a highly complex building configuration corresponding to that of a generic European urban center. The comparison data used in the guideline is based on the CEDVAL (Compilation of Experimental Data for Validation of Microscale Dispersion Models) database (EWTL (Environmental Wind Tunnel Laboratory), 2016) [37].

Since their first publication in 2005, the guidelines have been applied to several microscale models [41,42,43,44]. The guidelines are revised when deemed necessary (e.g., when new relevant datasets become available), normally every five years. An update of the guidelines is currently in public consultation.

2.6. Guideline for CFD Modeling Defined by Architectural Institute of Japan

Computer facilities and computational fluid dynamics (CFD) software have significantly improved in recent years; therefore, using CFD to predict and assess the pedestrian wind environment around buildings has become practical at the building design stages. Consequently, guidelines that summarize the important aspects relevant to using the CFD technique for appropriately predicting the pedestrian wind environment are a necessity. In 2008, the Architectural Institute of Japan (AIJ) proposed practical guidelines for applying CFD to the pedestrian wind environment around buildings [45]. These guidelines were based on the results of benchmark tests, in which cross comparisons were conducted between the results of the CFD predictions, wind tunnel tests, and the field measurements of seven test cases. The aim of these seven test cases was to investigate the influence of numerous types of computational conditions for various flow fields [46,47,48]. Researchers worldwide have been referring to these guidelines, as is evident from the 335 citations in ScienceDirect up to 2015.

The abovementioned guidelines and the relevant investigations mainly targeted the problems pertaining to the strong wind around high-rise buildings. However, major environmental problems (urban heat island, thermal environment, air pollution, and particle dispersion, etc.) are often caused in weak wind regions, such as at the back of buildings and within street canyons. Generally, CFD predictions relevant to a weak wind flow region are more challenging than those for an area of strong wind flow. Therefore, although the previous guidelines are quite effective in the pollutant dispersion, the guidelines needed to be re-examined and extended in terms of their applicability to comprehensive environmental problems. Furthermore, while the abovementioned guidelines mainly focus on steady RANS (Reynolds-averaged Navier–Stokes equations) models, it is highly expected to establish appropriate practical guidelines for application of Large Eddy Simulation (LES). For this purpose, the benchmark tests are being re-conducted, using the new reliable experimental database provided by the AIJ group, as well as the previous guidelines. In the benchmark tests, a systematic approach is being taken, i.e., from a simple to a complicated case, and the influence of various computational conditions on the prediction results is being investigated methodically. Parts of the results of the benchmark tests have already been published in scientific literature [49,50,51,52,53,54]. In addition, the endeavor to extend the guidelines to include urban pollutant/thermal dispersion problems is continuing as noted in

Table 5. Outline of the extended AIJ (Architectural Institute of Japan) guidelines (ongoing).

Extended AIJ Guidelines for Practical Applications of CFD to Wind Environment around Buildings (Tentative) [51]
Organization	Architectural Institute of Japan, Wind Environment Committee
Recommended model	CFD (RANS and LES)
Output	3D distribution of variables for evaluating the quality of the built-up environment (velocity, pollutant concentration, temperature, and humidity, etc.)
Applied purpose	Environmental assessment in built-up area (pedestrian wind environment, atmospheric air pollution, and thermal environment, etc.)
Verification criteria	Under discussion
Validation criteria	Intended codes and methods have to be validated by the results of the benchmark tests provided by our group:
	(1) A single building
	(2) Building arrays
	(3) Actual buildings
	Under discussion, pertaining to the criteria for validation metrics.
Uncertainty analysis	Uncertainty in the measurements of the benchmark tests are considered in evaluating the accuracy of CFD.
Remarks	Many wind tunnel experiments and computations, using different CFD codes, are being conducted to investigate the influence of several types of computational parameters for various flow fields. The guidelines will derive from the findings, based on these comparisons. The contents of the original AIJ guidelines will be included as part of the extended guidelines.
Public comments	The guidelines will be reviewed by specialists who are not members of the committee.
Referenced documents	(1) COST 732 report [31]
	(2) JSAE (Japan Society for Atmospheric Environment) guidelines of DiMCFD (in Japanese) [35]
	Other guidelines
Working group members	Researchers and consultants from universities and construction companies who have expertise in CFD: A. Mochida (Committee chair), Y. Tominaga (Secretary), R. Yoshie (WG chair)

.

3. Conclusions

The intent of this paper was the review of CFD guidelines used by different national professional bodies as currently proposed to guide the realistic prediction of dispersion and transport in the atmosphere, within and around buildings, terrain features and urban complexes. This paper is not a comprehensive review of CFD modeling techniques, nor is it intended to provide a final specification of best practices to be used by the modeling community. There are many similarities in the protocols currently employed as well as differences between individual guidelines. At some point in the future, it may be possible to arrive at a consensus for an international guideline for dispersion modeling, but, in the meantime, this paper summarizes existing methodologies. The paper provides a basis for discussion and improved guidance.

We discussed CFD guidelines introduced in this paper at the special meeting at Computational Wind Engineering 2014 in the University of Hamburg and obtained the following consensus.

(1)

CFD models are very useful tools, but they have many uncertainties.

(2)

V&V schemes are valuable tools to minimize these uncertainties.

(3)

A generally accepted CFD guideline is necessary for the operational use of CFD models.
