Review

Structures and Applications of Thermoresponsive Hydrogels and Nanocomposite-Hydrogels Based on Copolymers with Poly (Ethylene Glycol) and Poly (Lactide-Co-Glycolide) Blocks

by
Tomoki Maeda
1,2
1
Frontier Research Center for Applied Atomic Sciences, Ibaraki University, 162-1 Shirakata, Tokai, Ibaraki 319-1106, Japan
2
Department of Mechanical Engineering, Keio University, 3-14-1, Hiyoshi, Kohoku-ku, Yokohama 223-8522, Japan
Bioengineering 2019, 6(4), 107; https://doi.org/10.3390/bioengineering6040107
Submission received: 15 October 2019 / Revised: 18 November 2019 / Accepted: 18 November 2019 / Published: 21 November 2019
(This article belongs to the Special Issue Bioengineering Nano and Micro-Gels for Biomedical Applications)
Browse Figures
Versions Notes

Abstract

:
Thermoresponsive hydrogels showing biocompatibility and degradability have been under intense investigation for biomedical applications, especially hydrogels composed of hydrophilic poly(ethylene glycol) (PEG) and hydrophobic poly(lactic acid-co-glycolic acid) (PLGA) as first-line materials. Even though various aspects such as gelation behavior, degradation behavior, drug-release behavior, and composition effect have been studied for 20 years since the first report of these hydrogels, there are still many outputs on parameters affecting their gelation, structure, and application. In this review, the current trends of research on linear block copolymers composed of PEG and PLGA during the last 5 years (2014–2019) are summarized. In detail, this review stresses newly found parameters affecting thermoresponsive gelation, findings from structural analysis by simulation, small-angle neutron scattering (SANS), etc., progress in biomedical applications including drug delivery systems and regeneration medicine, and nanocomposites composed of block copolymers with PEG and PLGA and nanomaterials (laponite).

1. Introduction

Copolymers composed of hydrophilic poly(ethylene glycol) (PEG) and hydrophobic poly(lactic acid-co-glycolic acid) (PLGA) are widely studied for biomedical applications due to their thermoresponsive gelation, biocompatibility, and degradability. PLGA–PEG–PLGA triblock copolymer solution shows thermoresponsive gelation around physiological temperature (25–37 °C). Biocompatibility has also been proved, because both PEG and PLGA are approved by the US Food and Drug Administration (FDA). Furthermore, degradability is a characteristic of PLGA, a biodegradable polyester, and the degradation rate can be easily controlled by the LA/GA ratio (i.e., the molar ratio of lactide (LA) to glycolide (GA)). Controlled degradation leads to controlled drug release. Degradation cannot be achieved in other types of thermoresponsive hydrogels such as poly(N-isopropylacrylamide) (PNIPAAM) and PEG-poly(propylene glycol) (PPG), and the parameter to control the degradation of thermoresponsive hydrogels based on copolymers with PEG and PLGA blocks (i.e., the ratio to PEG to PLGA (PEG/PLGA ratio) and the LA/GA ratio) is more than that of PEG-polycaprolactone (PCL) block copolymers (i.e., the ratio to PEG to PCL (PEG/PCL ratio)).
Since the first reports of biodegradable thermoresponsive hydrogels composed of PEG and poly(L-lactic acid) (PLLA) and PEG–PLGA–PEG by Jeong et al. in 1997 and 1999, respectively [1,2], characteristics of aqueous copolymer solutions such as gelation temperature, degradation rate, and release rate were studied by changing the solute and chemical composition. Originally, the characteristics of aqueous solutions of PEG–PLGA–PEG triblock copolymers were reported by Jeong et al. [2,3,4]. In the reports, thermoresponsive gelation behavior, micellization behavior (e.g., critical micelle concentration (CMC) and micelle diameter), and degradation behavior were investigated by changing the solution concentration, the molecular weight of PEG and PLGA blocks, and the composition of PLGA. In detail, the CMC was confirmed to be ~0.01 wt%. As for the degradation process, the process was proposed as follows. More hydrophilic PEG-rich blocks derived by the degradation of PEG–PLGA–PEG are preferentially diffused out of the gel during degradation. In addition, the time scale of degradation was confirmed to be over 30 days.
After the series of studies on PEG–PLGA–PEG, PLGA–PEG–PLGA triblock copolymers have been widely studied by Lee et al. [5,6] and Zentner et al. [7]. Basically, the same as PEG–PLGA–PEG, the characteristics of thermoresponsive hydrogels (i.e., gelation behavior, micellization, degradation behavior) were studied. In addition to the basic properties, the gelation process was proposed and discussed using PLGA–PEG–PLGA [5,6]. A brief explanation of the gelation process is as follows. In the aqueous solution of block copolymers, micelles are formed due to the hydrophobic effect of PLGA blocks. When the solution temperature is increased, the hydrophobic interactions between micelles become stronger, and networks or aggregates of micelles are formed. At the same time, utilization as a delivery system for proteins and water-insoluble drugs was also proposed and discussed [8,9,10]. Moreover, the compositional effects (i.e., the end-group effect [11,12] and the effect derived from minor sequential differences in PLGA blocks [13]) and the blend system of PLGA–PEG–PLGA with different block ratios [14,15]) were further investigated.
According to the previous studies during 1997–2012 mentioned above, we can learn details from comprehensive reviews reported by Alexander et al., Zhang et al., and Wang et al. [16,17,18]. Therefore, in this review, current trends of research on block copolymers composed of PEG and PLGA during the last 5 years (2014–2019) including structural analysis and applicational study are summarized. First, new parameters affecting thermoresponsive gelation are discussed. Then, the findings from new analytical methods and simulation are discussed. Moreover, research on biomedical applications including drug delivery systems and regeneration medicine are discussed. Finally, nanocomposites composed of block copolymers composed of PEG and PLGA and nanomaterials (laponite) are discussed.

2. Parameters Affecting Thermoresponsive Gelation

Parameters affecting thermoresponsive gelation have been widely studied [5], however, there are still some newly found parameters. According to comprehensive studies, the solution concentration, the molecular weights of PEG and PLGA blocks, and the composition of PLGA are known to be basic parameters affecting thermoresponsive gelation. In this section, these new parameters found in 2014–2019 are summarized.
Table 1 shows a summary of studies from 2014–2019 on the parameters affecting thermoresponsive gelation. As for the additives, salt often plays an important role in aqueous solutions. Li et al. first reported the gel-to-sol-to-(re-entrant gel) transitions of PEG–PLGA aqueous solution in the presence of salts. The transition temperatures varied with the salt concentration and depended on the type of ion, with the trend obeying the Hofmeister series. They also anticipated that virgin gel was formed by the jamming of close-packed micelles, while re-entrant gel was formed by the percolated micelle network [19].
As for the composition of block copolymers, although the molecular weights of PEG and PLGA blocks were known to be a key factor, the effect of the molecular weight distribution (MWD) on gelation behavior was unclear before 2014. Chen et al. first reported the effects of MWD on thermoresponsive gelation and related behaviors of PLGA–PEG–PLGA aqueous solutions. They prepared a series of PLGA–PEG–PLGAs with different MWDs under similar weight-average molecular weight (Mw) or number-average molecular weight (Mn) via step precipitation and mixing of the synthesized copolymers with a given PEG length and varied PLGA lengths. They revealed that increased MWD enhanced the solubility of PLGA–PEG–PLGA in water and increased the critical micelle concentration (CMC), and the critical gelation concentration (CGC) and sol-gel transition temperature (Tgel) increased with MWD under both a given Mw and a given Mn [20]. Then, Chen et al. also reported the effects of MWD of hydrophilic PEG blocks on the corresponding gelation behavior of PLGA–PEG–PLGA aqueous solutions. They prepared a series of PLGA–PEG–PLGAs with similar PLGA blocks but varied length and MWD of the PEG block. They revealed that the gel-to-sol or sol-to-gel transition occurred only with appropriate Mw and MWD, and that the wider MWD of the PEG block sometimes led to the coexistence of the sol-to-gel transition upon cooling and upon heating [21]. As mentioned above, the molecular weights of PEG and PLGA blocks were known to be a key factor, however, the effect of PEG and PLGA molecular weights was not comprehensively investigated. Recently, Steinman et al. first reported the effect of the PLGA/PEG ratio and PEG molecular weight on Tgel of PLGA–PEG–PLGA aqueous solution (20 wtr%). They revealed a linear relation between Tgel and the PLGA/PEG ratio and variation in Tgel dependence on the PLGA/PEG ratio based on PEG molecular weight [22].
Especially for PEG–PLGA–PEG triblock copolymer, with hydrophobic PLGA middle block and two hydrophilic PEG end blocks, the structure of the coupling agents in the middle of PEG–PLGA–PEG chains introduced through the copolymer’s synthesis from PEG–PLGA diblock copolymers was found to be important. Luan et al. reported the positional isomeric effects of coupling agents in the middle of PEG–PLGA–PEG on the macroscopic conformation and properties of thermoresponsive block copolymers. They prepared PEG–PLGA–PEG with positional isomers in the middle of polymer chains by linking PEG–PLGA with different difunctional positional isomers as the coupling agents (o-PC, m-PC, and p-PC; PC, phthaloyl dichloride). They revealed that PEG–PLGA–PEG with o-PC, m-PC, and p-PC exhibited lower Tgel and larger moduli in gel state due to the phenyl rigidity of PC as compared to PEG–PLGA–PEG with hexamethylene diisocyanate (HMDI), a conventional coupling agent. They also revealed that PLGA–PEG–PLGA coupled with o-PC had a smaller coil size and exhibited lower Tgel and higher modulus as compared to PLGA–PEG–PLGA coupled with m-PC and p-PC [23]. Thus, comprehensive studies on the parameters affecting thermoresponsive gelation are still going on for further fine regulation of hydrogel properties.

3. Structural Analysis of Hydrogels Composed of Block Copolymers with PEG and PLGA Blocks

For structural analysis of thermoresponsive hydrogels composed of block copolymers with PEG and PLGA blocks, the dispersion state of micelles (i.e., the diameter of micelles and size of aggregated micelles) was mainly analyzed by dynamic light scattering (DLS) and transmission electron microscopy (TEM). In previous studies, DLS measurements were carried out at relatively lower concentration below the critical gelation concentration (CGC), or at relatively lower temperature below the gelation temperature (Tgel). This is because, in general, samples for DLS analysis should be liquid and transparent. In other words, DLS is unavailable for concentrated or turbid systems such as opaque hydrogels. As for TEM analysis, samples at relatively lower concentrations below CGC were used and observations were made in the dry state. Due to the limited approach and limited state of samples for structural analysis, we could not share a clear image of the structural change induced through thermoresponsive gelation.
Owing to the development of analytical and simulation methods, there are still some new findings on the structure and dynamics of thermoresponsive hydrogels. As far as analytical methods, small-angle neutron scattering (SANS), 3D DLS, and fluorescence resonance energy transfer (FRET) techniques were introduced. As far as simulation methods, dissipative particle dynamics (DPD) simulation and Monte Carlo simulation were introduced. In this section, research on the structural analysis of hydrogels composed of block copolymers with PEG and PLGA blocks during 2014–2019 is summarized.
Table 2 shows a summary of the research on structural analysis of thermoresponsive hydrogels composed of block copolymers with PEG and PLGA blocks during 2014–2019. SANS is a powerful method for structural analysis of concentrated hydrogels due to the high transmittance of neutrons through the samples and high contrast between the copolymer and water by using D2O instead of H2O. As for the results revealed by SANS, Khorshid et al. reported the structural change of micelles and the gel network in response to increased temperature using concentrated solution (Figure 1). They revealed by SANS that the correlation peak suggesting ordered structure with a characteristic intermicellar distance disappeared and a less organized structure appeared in the gel region, and that a cylindrical structure was established at higher temperature and disorderly packing of cylinders occurred at still higher temperature [24]. For diluted samples, they also revealed differences in the micellar morphology: PLGA–PEG–PLGA with short PEG block (Mn ~1000 g/mol) formed asymmetric (ellipsoid) micelles, whereas PLGA–PEG–PLGA with long PEG block (Mn ~1500 g/mol) formed spherical micelles.
Along with SANS, 3D-DLS is also a powerful method to analyze concentrated solutions or turbid systems with multiple scattering as compared to conventional DLS, which can be applied to samples with single scattering. In reports by Cui et al. [25], the thermoresponsive gelation behavior of PEG–PLGA solution was characterized by 3D DLS. They confirmed the existence of larger and highly irregular clusters for the concentrated system (25 wt%) as compared to the low-concentration solution (1 wt%) In their report, a connected micellar structure in thermoresponsive hydrogels was also detected by fluorescence resonance energy transfer (FRET). FRET is a method to detect nanoscale distance using a FRET pair (a donor and an acceptor). By mixing the solution containing micelles with a donor and an acceptor, the donor and acceptor were isolated by micelles. When the connected micellar structures were created, the distance of the donor and acceptor decreased due to diffusion through the connected structure. Thus, the dynamics during thermoresponsive gelation and the local structure of the micellar network were accurately investigated by the introduction of new analytical methods.
Development of simulations supported by development of high-performance computers enabled us to explore the morphology of polymers at a molecular level. As for the results revealed by simulation, an exploration of the morphological transition of PLGA–PEG–PLGA by DPD simulation was carried out by Cao et al. [26]. DPD simulation is a mesoscopic simulation method for complex fluid and has been used since 1992. It was revealed that small spherical micelles were observed at concentrations of 5 wt% and 10 wt%, and these micelles united into a larger one, with the concentration increasing up to 20%, and a columnar structure was formed at concentrations of 25 wt% and 30 wt% (Figure 2). Monte Carlo simulation was also carried out by Cui et al. [25] in order to reveal the mechanism behind reversed thermoresponsive gelation with sol-gel transition upon heating. In their system, with a new type of micelle, the semi-bald micelle, as precursor for thermoresponsive gelation, they demonstrated that the structure of thermoresponsive hydrogels was a percolated micelle network with hydrophobic channels that evolved from semi-bald micelles (Figure 3). Thus, they first demonstrated the mesoscopic structure of amphiphilic copolymer chains in water during thermoresponsive gelation. To summarize, computer simulation helps us understand the results from experiments and obtain clear images of the hierarchical structure.

4. Applications of Thermoresponsive Hydrogels Using Block Copolymers with PEG and PLGA Blocks

Since the invention of thermoresponsive hydrogels, research on various biomedical applications has been consistently carried out. It seems that research on the applications shifted to a more practical phase. In this section, research on more practical biomedical devices using block copolymers with PEG and PLGA blocks during 2014–2019 is summarized.
Table 3 shows a summary of the research on more practical biomedical devices using block copolymers with PEG and PLGA blocks during 2014–2019. Conventionally, the main applications of thermoresponsive hydrogels have been drug delivery systems. From the background, the major research on the application of thermoresponsive hydrogels is still on drug delivery systems. In order to obtain controlled release of water-soluble drugs, various strategies using polymer–drug conjugates, nanoparticles, microparticles, and vesicles/emulsomes have been suggested. In addition, regarding the drugs used in drug delivery systems, not only chemical compounds but also peptide/protein drugs have been widely studied. As another application of hydrogels, utilization as cell scaffold is major. Thus, utilization of thermoresponsive hydrogels for tissue regeneration has also been reported. Furthermore, based on thermoresponsive gelation properties, some unique applications such as submucosal cushion for endoscopic submucosal dissection (ESD), a device to prevent postoperative adhesions, and a dressing for cutaneous wound healing have been studied.
The basic drug delivery system prepared just by mixing drugs into thermoresponsive hydrogels was widely studied for the treatment of cancer/tumors, ophthalmic disease, viral diseases, helminthic diseases, detoxification of opioids and alcohol, and postoperative pain relief. For the treatment of cancer/tumors, doxorubicin (DOX) is a well-studied drug released from thermoresponsive hydrogels among anticancer drugs. The maximum tolerated dose (MTD) of DOX with PLGA–PEG–PLGA hydrogels was investigated by Yang et al. [27]. As for anticancer drugs other than DOX, the delivery system of irinotecan (IRN), a clinically used antitumor drug with moderate solubility, was investigated by Ci et al. [28]. It was revealed that excellent in vivo antitumor efficacy was observed in the group that received IRN-loaded thermoresponsive hydrogel, while side effects such as blood toxicity and decreased body weight were very mild. For the treatment of ophthalmic disease, drug delivery systems composed of thermoresponsive hydrogels are also widely studied. This is due to the restricted permeability and fast clearance of drugs induced by the complex anatomy and physiology of the eye [29]. For example, a delivery system for dexamethasone (DEX), a hydrophobic glucocorticoid, was investigated for the treatment of posterior segment diseases by Zhang et al. [30]; a delivery system for cyclosporine A (CsA), an effective immunosuppressive agent, was investigated for the inhibition of postoperative scarring after filtration surgery for glaucoma by Sun et al. [31]; and a co-delivery system for metformin (MET), a potential agent for inhibiting neovascularization, and levofloxacin (LFH), a hydrophobic antibiotic for treating ocular infections and inflammatory responses, was investigated for the treatment of corneal neovascularization (CNV) by Liu et al. [32]. In addition, the excellent biocompatibility of PLGA–PEG–PLGA hydrogels and their capability as an ophthalmic drug delivery system were confirmed by Chan et al. [29]. Besides the treatment of cancer/tumors and ophthalmic disease, a delivery system for antivirals (cidofovir (CDV) and ganciclovir (GCV)) via the intratympanic route was investigated by Sidell et al. [33]; a delivery system for an effective agent against helminths (albendazole sulfoxide (ABZSO)) was investigated by Feng et al. [34]; a delivery system for an opioid antagonist (naltrexone hydrochloride) used in the maintenance phase of detoxification of opioids and alcohol in addicted patients was investigated by Mohajeri et al. [35]; and a delivery system for a local anesthetic (ropivacaine hydrochloride (RP)) for postoperative pain relief was investigated by Fu et al. [36].
In order to obtain a drug delivery system with controlled release, the synthesis of PLGA–PEG–PLGA and drug conjugate and the fabrication of thermoresponsive hydrogels with nanoparticles, microparticles, or vesicles/emulsomes were examined. For example, since DOX is a small hydrophilic molecule, it would be released quickly due to the diffusion release mechanism. One method to control the diffusion of water-soluble DOX, DOX-conjugated PLGA–PEG–PLGA, was proposed by Zhang et al. (Figure 4) [37]. They also revealed obviously high antitumor efficacy and reliable security of thermoresponsive hydrogels composed of DOX-conjugated PLGA–PEG–PLGA (cis-aconitic anhydride-functionalized DOX (CAD)–PLGA–PEG–PLGA–CAD) showing acid sensitivity, and docetaxel (DTX), a microtubule-interfering agent. A different method to control the diffusion of water-soluble DOX is to incorporate water-soluble DOX into vesicles/emulsomes. For example, controlled release of DOX was achieved with hydrogels containing liposomal DOX by Cao et al. (Figure 5) [38]. They prepared liposomal DOX (DOX-lip) with a particle size of 74.6 nm and entrapment efficiency of 86% via the traditional film dispersion method and loaded the DOX-lip into PLGA–PEG–PLGA hydrogels. Sustained release of DOX up to 11 days was confirmed, without significant burst release and better antitumor efficacy and fewer side effects as compared to DOX-loaded hydrogels. The same method was applied to controlled release of another anticancer drug [39], a drug for the treatment of Parkinson syndrome and cocaine dependence [40], and an antiepileptic drug [41]. In detail, for a delivery system for cytarabine, an anticancer drug, investigated by Liu et al. [39], vesicles of ion-pair amphiphilic molecules were fabricated using cytarabine hydrochloride and sodium bis(2-ethylhexyl) sulfosuccinate (AOT), an anionic surfactant. Then, the prepared vesicles were incorporated into PLGA–PEG–PLGA hydrogels. For a delivery system for amantadine (AT), a drug for the treatment of Parkinson syndrome and cocaine dependence, investigated by Yang et al. [40], vesicles of ion-pair amphiphilic molecules using AT and oleic acid (OA) were fabricated, and the prepared AT–OA vesicles were incorporated into PLGA–PEG–PLGA hydrogels. For a delivery system for oxcarbazepine (OX), an antiepileptic drug, reported by Zaafarany et al. [41], OX-loaded emulsomes using phospholipids (PC), triolein (TO), and Tween 80 were prepared, then added to PLGA–PEG–PLGA hydrogels. The concept was also applied to the release of drugs with low bioavailability and multiple drugs. For example, for drugs with low bioavailability, the incorporation of brimonidine (Bri), a drug with ocular hypotensive effect and low bioavailability, onto layered double hydroxide (LDH) nanoparticles was investigated by Sun et al. [42]. They first prepared Bri–LDH nanoparticles using a modified hydrothermal process, then dispersed the nanoparticles into PLGA–PEG–PLGA hydrogel. As for multiple drugs, multi-delivery of ophthalmic aquatic agents at programmed rates and times was achieved by incorporating the drugs into microparticles and thermoresponsive hydrogels separately [43]. In the study, two drugs were loaded into microparticles, and the drug-loaded microparticles were encapsulated into thermoresponsive hydrogels containing another drug.
As for the drugs for drug delivery systems, peptide/protein drugs and genes should be considered because their use as therapeutic agents has increased considerably in recent years. As examples of using peptide/protein drugs, a delivery system for liraglutide (Lira), a fatty acid-modified antidiabetic polypeptide, for the treatment of diabetes was investigated by Chen et al. [44], and controlled release of growth hormone–releasing peptide 6 (GHRP-6) for the growth of rex rabbits was investigated by Guan et al. [45]. In order to prolong the bioactivity of peptide/protein drugs, an incorporation into microparticles and a complex formation were performed. As for the method of incorporating drugs into microparticles, Wang et al. proposed PLGA microsphere-loaded thermoresponsive hydrogels [46]. They prepared exenatide (EXT)-loaded hydrogels, encapsulated these hydrogels into PLGA microspheres, and further encapsulated the microspheres with EX-loaded hydrogels into blank hydrogel. As for the method of complex formation, a delivery system for human calcitonin (hCT), a peptide drug, was investigated by Shang et al. [47]. They prepared hCT–cucurbit 7 (CB7) complex (cucurbit 7 is an amphiphilic small molecule) to inhibit the fibrillation of highly amyloidogenic hCT by CB7, then incorporated the hCT-CB7 complex into PLGA–PEG–PLGA hydrogel. As another example, a delivery system for salmon calcitonin (sCT), a bioactive peptide to regulate serum calcium concentration by a therapeutic effect to improve bone mass and relieve osteoporotic bone pain, for long-term anti-osteopenia treatment was investigated by Liu et al. [48]. They prepared a complex of sCT and oxidized calcium alginate (OCA), a negatively charged polyelectrolyte, to stabilize sCT and control its affinity, then incorporated the sCT-OCA complex into PLGA–PEG–PLGA hydrogels. As an example using genes, an attempt to deliver a complex of PLK1shRNA and polylysine-modified polyethylenimine (PEI-Lys) (PLK1shRNA/PEI-Lys) was reported by Ma et al. [49]. They revealed that hydrogel containing PLK1shRNA/PEI-Lys and DOX exhibited significant synergistic effects in promoting apoptosis of osteosarcoma cells in vitro and superior antitumor efficacy in vivo. Thus, promising therapeutic effects achieved by the delivery of peptide/protein drugs or genes from thermoresponsive hydrogels composed of PEG and PLGA were revealed.
Along with drug delivery systems, tissue regeneration is also a target application of thermoresponsive hydrogels. In fact, there are many papers on bone tissue regeneration using thermoresponsive hydrogels. For example, bone regeneration was examined using a delivery system for simvastatin (SIM) from PLGA–PEG–PLGA hydrogels by Yan et al. [50]. They confirmed increased mineralization and osteogenic gene expression due to released SIM through an in vitro cell proliferation test. They also revealed that bone defects injected with SIM-loaded hydrogels showed enhancement of new bone formation. As an example using inorganic compounds, a delivery system for calcium cations by incorporating bioactive hydroxyapatite (HAp) in the form of micro- and nanoparticles (μ-HAp and n-HAp) for bone regeneration was reported by Chamradova et al. [51]. They confirmed controlled release of calcium cations from a system containing n-HAp without any initial burst release. As an example using protein, the treatment of critical-sized femoral defects was examined using a delivery system for bone morphogenetic protein (BMP)-2 from PEG–PLGA–2, 2′-bis(2-oxazolin) (Box)–PLGA–PEG hydrogels by Peng et al. [52]. They revealed that BMP-2-loaded hydrogel effectively promoted fracture healing, and that bone defect healing using the hydrogels with 20 μg/mL of BMP-2 was nearly equivalent to healing using autologous bone graft. A trial using stem cells was also carried out by Zhang et al. [53]. They reported the use of PLGA–PEG–PLGA hydrogel as a scaffold for bone marrow mesenchymal stem cells (BMMSCs) for repair of full-thickness articular cartilage defects. They confirmed first that the mechanical properties of PLGA–PEG–PLGA hydrogels were high enough to support the repair of cartilage, and biodegradability and biocompatibility were excellent. Then, they revealed that after implanting BMMSC-encapsulated PLGA–PEG–PLGA hydrogel into a full-thickness articular cartilage defect (diameter of 5.0 mm and depth of 4.0 mm), the regenerated cartilage integrated well with surrounding normal cartilage and subchondral bone at 12 weeks post-surgery. They also revealed upregulated expression of glycosaminoglycan and type II collagen, typical secretory products of chondrocytes in hyaline cartilage, in the repaired cartilage and comparable biomechanical properties with normal cartilage.
Some unique applications such as a submucosal cushion for endoscopic submucosal dissection (ESD), a device preventing postoperative adhesions, and a dressing for cutaneous wound healing have been suggested. Yu et al. introduced an injectable thermoresponsive hydrogel composed of PLGA–PEG–PLGA as a novel submucosal substance in ESD (Figure 6) [54]. They performed submucosal injection of thermoresponsive hydrogel for the formation of a submucosal fluid cushion (SFC) in resected porcine stomachs and living minipigs. Accurate en bloc resection was achieved as a result of high mucosal elevation, with a clear margin maintained for a long duration. Cao et al. also evaluated the efficacy of PLGA–PEG–PLGA hydrogels as a colonic submucosal agent [55]. They injected concentrated PLGA–PEG–PLGA aqueous solution into the colonic submucosa of living minipigs and confirmed adequate mucosal elevation lasting for a longer time than that created by using glycerol fructose, a highly viscous agent previously considered as a fluid for mucosal elevation. As for a biomedical device for postoperative care, Yu et al. reported on comparative studies of thermoresponsive hydrogels in preventing postoperative adhesions using three polyester–PEG–polyester triblock copolymers: PLGA–PEG–PLGA, PCGA–PEG–PCGA, and PCL–PEG–PCL [56]. They revealed that the PLGA–PEG–PLGA hydrogel (25 wt%) was most effective in reducing the formation of intraperitoneal adhesion as compared to PCGA–PEG–PCGA (25 wt%) and PCL–PEG–PCL (25 wt%) hydrogels. They also revealed that the viscoelasticity corresponding to appropriate in vivo persistence in the peritoneal cavity played a critical role in preventing post-surgical adhesions. As for a dressing for cutaneous wound healing, Xu et al. reported a PLGA-PEG-PLGA-based thermogel dressing containing teicoplanin (TPN), a glycopeptide antibiotic, for cutaneous wound repair. they revealed that the treatment using the thermogel dressing reduced inflammation response and enhanced wound healing process (e.g., disposition of collagen, angiogenesis, and wound closure) [57].

5. Thermoresponsive Nanocomposite Hydrogels Composed of Laponite and Block Copolymer with PEG and PLGA Blocks

In order to support the micellar network of block copolymer with PEG and PLGA blocks and achieve thermoresponsive gelation at lower solute concentrations, the addition of laponite to the copolymer solution, or the fabrication of laponite/copolymer nanocomposites, could be an effective method. Laponite, a synthetic disk-like silicate, is a biocompatible nanoparticle with a diameter of 25 nm and thickness of 1–4 nm. Laponite has a negative face charge and a positive rim charge and forms a “house of cards” structure in water. Thus, laponite suspension becomes gel around 2 wt% [58,59,60,61]. In previous studies on laponite/copolymer nanocomposites, block copolymers with PEG and poly(propylene glycol) (PPG) blocks (PEG–PPG–PEG) and with PEG and PLGA (PLGA–PEG–PLGA and PEG–PLGA) were used. In terms of Tgel, laponite/PEG–PPG–PEG nanocomposites exhibited higher Tgel around 65 °C, while laponite/PLGA–PEG–PLGA and laponite/PEG–PLGA nanocomposites exhibited Tgel around physiological temperature [62]. Therefore, considering the use of laponite/copolymer nanocomposites for biomedical applications, laponite/PLGA–PEG–PLGA and laponite/PEG–PLGA nanocomposites could be more appropriate. In addition, it should be noted that laponite may be the only nano-additive that can be used for the fabrication of nanocomposite hydrogels with thermoresponsive gelation. As additives other than laponite, HAp, a bioactive ceramic, has also been studied especially for bone tissue engineering. For example, the microparticles of HAp was examined as an additive in 2012 and the nanoparticles of HAp was studied for a calcium delivery system as mentioned in Section 4 [51,63]. The addition of HAp enhanced the mechanical properties of thermoresponsive hydrogels, however, the copolymer concentration used for the fabrication of hydrogels was almost the same as the concentration of the conventional hydrogels (10-30 wt%) [63]. Therefore, Materials with high water content such as laponite/PLGA–PEG–PLGA and laponite/PEG–PLGA nanocomposites with low solute concentration could be advantageous compared to the conventional hydrogels due to the high compatibility of water to cells/biomolecules. In this section, a quick review of thermoresponsive nanocomposite hydrogels composed of laponite and block copolymers with PEG and PLGA blocks is presented.
Table 4 shows a summary of the development history of thermoresponsive nanocomposite hydrogels. Oyama, Maeda, and Nagahama et al. first reported on a nanocomposite approach to developing biodegradable thermoresponsive hydrogels with excellent cell compatibility (Figure 7a) [64]. We revealed that thermoresponsive nanocomposite hydrogels with low CGC could be obtained by blending PLGA–PEG–PLGA triblock copolymers and laponite, and that the laponite was able to promote the thermoresponsive formation of networks for PLGA–PEG–PLGA copolymers/micelles. We also revealed excellent cell compatibility from hemolysis assay and cell culture test on and in the hydrogels. Then, in 2015, Nagahama et al. reported on a delivery system for DOX from thermoresponsive nanocomposite hydrogels (Figure 7b) [65], revealing that DOX worked as a crosslinking agent. They also revealed that long-term sustained release of DOX from thermoresponsive nanocomposite hydrogels without initial burst release could be achieved. They also revealed that a single injection of DOX-loaded thermoresponsive nanocomposite hydrogel exhibited long-term sustained antitumor activity in vivo. In 2017, Miyazaki and Maeda et al. reported on controlling the Tgel and viscoelasticity of thermoresponsive nanocomposite hydrogels by PLGA–PEG–PLGA molecular weight and solute concentration (Figure 7c) [66]. We synthesized PLGA–PEG–PLGA with a high PEG–PLGA ratio of 0.80 and prepared the nanocomposite solution by mixing laponite aqueous suspension and PLGA–PEG–PLGA aqueous solution. We revealed that discriminating the concentration combinations of laponite (from 0.75 wt% to 1.5 wt%) and PLGA–PEG–PLGA (from 2.0 wt% to 5.0 wt%) could effectively regulate the Tgel to fall between 25 °C and 37 °C (physiological temperature), and the discriminating concentration combinations simultaneously controlled the storage and loss moduli of the hydrogels. Kitagawa and Maeda et al. also reported on controlled degradation of thermoresponsive nanocomposite hydrogel composed of laponite and PLGA–PEG–PLGA (Figure 7d) [67]. We synthesized PLGA–PEG–PLGA with a high PEG/PLGA ratio of ~0.8 and with different LA/GA ratios and prepared the nanocomposite solution by mixing laponite aqueous suspension and PLGA–PEG–PLGA aqueous solution. We revealed that the Tgel at physiological temperature (25–37 °C) was achieved regardless of the LA/GA ratio, and the decomposition rates of thermoresponsive nanocomposite hydrogel at 37 °C could be regulated by adjusting the LA/GA ratio. In 2018, Nagahama et al. reported on ECM adsorption properties and in vitro cell compatibility of thermoresponsive nanocomposite hydrogel, and in vivo tissue reconstruction and functional recovery using the hydrogel (Figure 7e) [68]. They revealed that thermoresponsive nanocomposite hydrogel strongly adsorbed and retained ECM molecules such as collagen and heparin within gels. They also revealed that human dermal fibroblasts (HDFs) cultured on thermoresponsive nanocomposite hydrogels exhibited high cell viability and proliferation, and various kinds of human cells, such as HDFs, umbilical vein endothelial cells (HUVECs), and adipose-derived mesenchymal stem cells (ADSCs), encapsulated into thermoresponsive nanocomposite hydrogel exhibited significantly higher cell viability, proliferation, and three-dimensional organization compared to PLGA–PEG–PLGA and laponite hydrogels. They further revealed that transplantation of mouse myoblast C2C12 cells using thermoresponsive nanocomposite hydrogels dramatically enhanced tissue regeneration and functional recovery in model mice with skeletal muscle injury, whereas no recovery was observed for transplantation using PLGA–PEG–PLGA hydrogels. In 2019, Maeda et al. reported on thermoresponsive nanocomposite hydrogel composed of laponite and PEG–PLGA diblock copolymers (Figure 7f) [69]. We synthesized PEG–PLGA with a high PEG-PLGA ratio of 1.27 and prepared the nanocomposite solution by mixing laponite aqueous suspension and PEG–PLGA aqueous solution. We revealed that thermoresponsive gelation could be achieved by using PEG–PLGA, and the Tgel fell between 25 °C and 37 °C (physiological temperature) by controlling the PEG-PLGA and laponite concentration. We also revealed that PEG-PLGA copolymers were on the surface of the laponite and could trigger the thermoresponsive connection of the preformed laponite network.

6. Conclusions

In this review, the current trends of research on block copolymers composed of PEG and PLGA during the last 5 years (2014–2019) including new parameters affecting thermoresponsive gelation, structural findings from new analytical methods, research on biomedical applications including drug delivery systems and regeneration medicine, and nanocomposites composed of copolymers with PEG and PLGA blocks and nanomaterials (laponite) were comprehensively summarized and discussed. In order to utilize thermoresponsive hydrogels composed of block copolymers with PEG and PLGA blocks as biomedical devices with high efficacy, further accurate analysis and verification experiments such as computer simulations and structural analysis using new analytical methods could be consecutively conducted. In addition, new approaches including dynamic crosslinking and the nanocomposite approach are also useful in order to fabricate highly functionalized thermoresponsive hydrogels and add new functions.

Funding

This work was performed as a part of research activities supported in part by the Leading Initiative for Excellent Young Researchers (LEADER) (T.M.), by a Grant-in-Aid for Scientific Research for Early-Careers Scientists (No. 18K13661 to T.M.), and by a Grant-in-Aid for Scientific Research (A) (No. 19H00831 to A.H.) from the Japan Society for the Promotion of Science (JSPS; KAKENHI).

Acknowledgments

The author is grateful to Atsushi Hotta from Keio University and Koji Nagahama from Konan University for offering stimulating suggestions and encouragement.

Conflicts of Interest

The author declares no conflict of interest.

References

  1. Jeong, B.; Bae, Y.H.; Lee, D.S.; Kim, S.W. Biodegradable block copolymers as injectable drug-delivery systems. Nature 1997, 388, 860–862. [Google Scholar] [CrossRef] [PubMed]
  2. Jeong, B.; Bae, Y.H.; Kim, S.W. Thermoreversible gelation of PEG-PLGA-PEG triblock copolymer aqueous solutions. Macromolecules 1999, 32, 7064–7069. [Google Scholar] [CrossRef]
  3. Jeong, B.; Bae, Y.H.; Kim, S.W. Biodegradable thermosensitive micelles of PEG-PLGA-PEG triblock copolymers. Colloid Surf. B Biointerfaces 1999, 16, 185–193. [Google Scholar] [CrossRef]
  4. Jeong, B.; Bae, Y.H.; Kim, S.W. In situ gelation of PEG-PLGA-PEG triblock copolymer aqueous solutions and degradation thereof. J. Biomed. Mater. Res. 2000, 50, 171–177. [Google Scholar] [CrossRef]
  5. Lee, D.S.; Shim, M.S.; Kim, S.W.; Lee, H.; Park, I.; Chang, T.Y. Novel thermoreversible gelation of biodegradable PLGA-block-PEO-block-PLGA triblock copolymers in aqueous solution. Macromol. Rapid Commun. 2001, 22, 587–592. [Google Scholar] [CrossRef]
  6. Shim, M.S.; Lee, H.T.; Shim, W.S.; Park, I.; Lee, H.; Chang, T.; Kim, S.W.; Lee, D.S. Poly(d,l-lactic acid-co-glycolic acid)-b-poly(ethylene glycol)-b-poly (d,l-lactic acid-co-glycolic acid) triblock copolymer and thermoreversible phase transition in water. J. Biomed. Mater. Res. 2002, 61, 188–196. [Google Scholar] [CrossRef]
  7. Zentner, G.M.; Rathi, R.; Shih, C.; McRea, J.C.; Seo, M.H.; Oh, H.; Rhee, B.G.; Mestecky, J.; Moldoveanu, Z.; Morgan, M.; et al. Biodegradable block copolymers for delivery of proteins and water-insoluble drugs. J. Control. Release 2001, 72, 203–215. [Google Scholar] [CrossRef]
  8. Qiao, M.X.; Chen, D.W.; Ma, X.C.; Liu, Y.J. Injectable biodegradable temperature-responsive PLGA-PEG-PLGA copolymers: Synthesis and effect of copolymer composition on the drug release from the copolymer-based hydrogels. Int. J. Pharm. 2005, 294, 103–112. [Google Scholar] [CrossRef]
  9. Qiao, M.X.; Chen, D.W.; Ma, X.C.; Hu, H.Y. Sustained release of bee venom peptide from biodegradable thermosensitive PLGA-PEG-PLGA triblock copolymer-based hydrogels in vitro. Pharmazie 2006, 61, 199–202. [Google Scholar]
  10. Yu, L.; Chang, G.T.; Zhang, H.; Ding, J.D. Injectable block copolymer hydrogels for sustained release of a PEGylated drug. Int. J. Pharm. 2008, 348, 95–106. [Google Scholar] [CrossRef]
  11. Yu, L.; Zhang, H.; Ding, J.D. A subtle end-group effect on macroscopic physical gelation of triblock copolymer aqueous solutions. Angew. Chem. Int. Ed. 2006, 45, 2232–2235. [Google Scholar] [CrossRef] [PubMed]
  12. Yu, L.; Chang, G.T.; Zhang, H.; Ding, J.D. Temperature-induced spontaneous sol-gel transitions of poly(d,l-lactic acid-co-glycolic acid)-b-poly(ethylene glycol)-b-poly(d,l-lactic acid-co-glycolic acid) triblock copolymers and their end-capped derivatives in water. J. Polym. Sci. Pol. Chem. 2007, 45, 1122–1133. [Google Scholar] [CrossRef]
  13. Yu, L.; Zhang, Z.; Ding, J.D. In vitro degradation and protein release of transparent and opaque physical hydrogels of block copolymers at body temperature. Macromol. Res. 2012, 20, 234–243. [Google Scholar] [CrossRef]
  14. Yu, L.; Zhang, Z.; Zhang, H.; Ding, J.D. Mixing a Sol and a Precipitate of Block Copolymers with Different Block Ratios Leads to an Injectable Hydrogel. Biomacromolecules 2009, 10, 1547–1553. [Google Scholar] [CrossRef] [PubMed]
  15. Yu, L.; Zhang, Z.; Zhang, H.A.; Ding, J.D. Biodegradability and Biocompatibility of Thermoreversible Hydrogels Formed from Mixing a Sol and a Precipitate of Block Copolymers in Water. Biomacromolecules 2010, 11, 2169–2178. [Google Scholar] [CrossRef]
  16. Alexander, A.; Khan, J.; Saraf, S.; Saraf, S. Poly(ethylene glycol)-poly(lactic-co-glycolic acid) based thermosensitive injectable hydrogels for biomedical applications. J. Control. Release 2013, 172, 715–729. [Google Scholar] [CrossRef]
  17. Zhang, K.R.; Tang, X.; Zhang, J.; Lu, W.; Lin, X.; Zhang, Y.; Tian, B.; Yang, H.; He, H.B. PEG-PLGA copolymers: Their structure and structure-influenced drug delivery applications. J. Control. Release 2014, 183, 77–86. [Google Scholar] [CrossRef]
  18. Wang, P.X.; Chu, W.; Zhuo, X.Z.; Zhang, Y.; Gou, J.X.; Ren, T.Y.; He, H.B.; Yin, T.; Tang, X. Modified PLGA-PEG-PLGA thermosensitive hydrogels with suitable thermosensitivity and properties for use in a drug delivery system. J. Mater. Chem. B 2017, 5, 1551–1565. [Google Scholar] [CrossRef]
  19. Li, T.; Ci, T.Y.; Chen, L.; Yu, L.; Ding, J.D. Salt-induced reentrant hydrogel of poly(ethylene glycol)-poly(lactide-co-glycolide) block copolymers. Polym. Chem. 2014, 5, 979–991. [Google Scholar] [CrossRef]
  20. Chen, L.; Ci, T.Y.; Li, T.; Yu, L.; Ding, J.D. Effects of Molecular Weight Distribution of Amphiphilic Block Copolymers on Their Solubility, Micellization, and Temperature-Induced Sol Gel Transition in Water. Macromolecules 2014, 47, 5895–5903. [Google Scholar] [CrossRef]
  21. Chen, L.; Ci, T.Y.; Yu, L.; Ding, J.D. Effects of Molecular Weight and Its Distribution of PEG Block on Micellization and Thermogellability of PLGA-PEG-PLGA Copolymer Aqueous Solutions. Macromolecules 2015, 48, 3662–3671. [Google Scholar] [CrossRef]
  22. Steinman, N.Y.; Haim-Zada, M.; Goldstein, I.A.; Goldberg, A.H.; Haber, T.; Berlin, J.M.; Domb, A.J. Effect of PLGA block molecular weight on gelling temperature of PLGA-PEG-PLGA thermoresponsive copolymers. J. Polym. Sci. Pol. Chem. 2019, 57, 35–39. [Google Scholar] [CrossRef]
  23. Luan, J.B.; Cui, S.Q.; Wang, J.T.; Shen, W.J.; Yu, L.; Ding, J.D. Positional isomeric effects of coupling agents on the temperature-induced gelation of triblock copolymer aqueous solutions. Polym. Chem. 2017, 8, 2586–2597. [Google Scholar] [CrossRef]
  24. Khorshid, N.K.; Zhu, K.Z.; Knudsen, K.D.; Bekhradnia, S.; Sande, S.A.; Nystrom, B. Novel Structural Changes during Temperature-Induced Self-Assembling and Gelation of PLGA-PEG-PLGA Triblock Copolymer in Aqueous Solutions. Macromol. Biosci. 2016, 16, 1838–1852. [Google Scholar] [CrossRef] [PubMed]
  25. Cui, S.Q.; Yu, L.; Ding, J.D. Semi-bald Micelles and Corresponding Percolated Micelle Networks of Thermogels. Macromolecules 2018, 51, 6405–6420. [Google Scholar] [CrossRef]
  26. Cao, Y.; Wang, B.C.; Yang, L.C.; Wang, Y.Z.; Singh, G.K. In Vitro Evaluation and Dissipative Particle Dynamics Simulation of PLGA-PEG-PLGA. J. Appl. Polym. Sci. 2015, 132, 8. [Google Scholar] [CrossRef]
  27. Yang, Z.M.; Yu, S.J.; Li, D.S.; Gong, Y.B.; Zang, J.T.; Liu, J.G.; Chen, X.S. The effect of PLGA-based hydrogel scaffold for improving the drug maximum-tolerated dose for in situ osteosarcoma treatment. Colloid Surf. B Biointerfaces 2018, 172, 387–394. [Google Scholar] [CrossRef]
  28. Ci, T.Y.; Chen, L.; Yu, L.; Ding, J.D. Tumor regression achieved by encapsulating a moderately soluble drug into a polymeric thermogel. Sci. Rep. 2014, 4, 13. [Google Scholar] [CrossRef]
  29. Chan, P.S.; Xian, J.W.; Li, Q.Q.; Chan, C.W.; Leung, S.S.Y.; To, K.K.W. Biodegradable Thermosensitive PLGA-PEG-PLGA Polymer for Non-irritating and Sustained Ophthalmic Drug Delivery. AAPS J. 2019, 21, 13. [Google Scholar] [CrossRef]
  30. Zhang, L.; Shen, W.J.; Luan, J.B.; Yang, D.X.; Wei, G.; Yu, L.; Lu, W.Y.; Ding, J.D. Sustained intravitreal delivery of dexamethasone using an injectable and biodegradable thermogel. Acta Biomater. 2015, 23, 271–281. [Google Scholar] [CrossRef]
  31. Sun, J.G.; Liu, X.; Lei, Y.; Tang, M.Y.; Dai, Z.X.; Yang, X.W.; Yu, X.B.; Yu, L.; Sun, X.H.; Ding, J.D. Sustained subconjunctival delivery of cyclosporine A using thermogelling polymers for glaucoma filtration surgery. J. Mater. Chem. B 2017, 5, 6400–6411. [Google Scholar] [CrossRef]
  32. Liu, D.; Wu, Q.N.; Zhu, Y.Q.; Liu, Y.J.; Xie, X.L.; Li, S.H.; Lin, H.T.; Chen, W.R.; Zhu, F.M. Co-delivery of metformin and levofloxacin hydrochloride using biodegradable thermosensitive hydrogel for the treatment of corneal neovascularization. Drug Deliv. 2019, 26, 522–531. [Google Scholar] [CrossRef] [PubMed]
  33. Sidell, D.; Ward, J.A.; Pordal, A.; Quimby, C.; Nassar, M.; Choo, D.I. Combination therapies using an intratympanic polymer gel delivery system in the guinea pig animal model: A safety study. Int. J. Pediatr. Otorhinolaryngol. 2016, 84, 132–136. [Google Scholar] [CrossRef] [PubMed]
  34. Feng, Y.; Wang, F.; Zhang, X.W.; Bhutani, H.; Ye, B. Characterizations and bioactivities of abendazole sulfoxide-loaded thermo-sensitive hydrogel. Parasitol. Res. 2017, 116, 921–928. [Google Scholar] [CrossRef] [PubMed]
  35. Mohajeri, S.A.; Yaghoubi, S.; Abdollahi, E.; Tekie, F.S.M.; Kamali, H.; Khodaverdi, E.; Hadizadeh, F. In-vivo study of naltrexone hydrochloride release from an in-situ forming PLGA-PEG-PLGA system in the rabbit. J. Drug Deliv. Sci. Technol. 2016, 36, 156–160. [Google Scholar] [CrossRef]
  36. Fu, X.D.; Zeng, H.L.; Guo, R.P.; Liu, H.; Shi, Z.; Chen, H.H.; Li, D.Z.; Xie, X.Y.; Kuang, C.C. A PLGA-PEG-PLGA Thermosensitive Gel Enabling Sustained Delivery of Ropivacaine Hydrochloride for Postoperative Pain Relief. Chem. Pharm. Bull. 2017, 65, 229–235. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Zhang, Y.B.; Zhang, J.; Xu, W.G.; Xiao, G.; Ding, J.X.; Chen, X.S. Tumor microenvironment-labile polymer-doxorubicin conjugate thermogel combined with docetaxel for in situ synergistic chemotherapy of hepatoma. Acta Biomater. 2018, 77, 63–73. [Google Scholar] [CrossRef]
  38. Cao, D.L.G.; Zhang, X.X.; Akabar, M.; Luo, Y.; Wu, H.; Ke, X.; Ci, T.Y. Liposomal doxorubicin loaded PLGA-PEG-PLGA based thermogel for sustained local drug delivery for the treatment of breast cancer. Artif. Cell. Nanomed. Biotechnol. 2019, 47, 181–191. [Google Scholar] [CrossRef] [Green Version]
  39. Liu, J.; Jiang, Y.; Cui, Y.T.; Xu, C.S.; Ji, X.Q.; Luan, Y.X. Cytarabine-AOT catanionic vesicle-loaded biodegradable thermosensitive hydrogel as an efficient cytarabine delivery system. Int. J. Pharm. 2014, 473, 560–571. [Google Scholar] [CrossRef]
  40. Yang, X.X.; Ji, X.Q.; Shi, C.H.; Liu, J.; Wang, H.Y.; Luan, Y.X. Investigation on the ion pair amphiphiles and their in vitro release of amantadine drug based on PLGA-PEG-PLGA gel. J. Nanopart. Res. 2014, 16, 14. [Google Scholar] [CrossRef]
  41. El-Zaafarany, G.M.; Soliman, M.E.; Mansour, S.; Cespi, M.; Palmieri, G.F.; Illum, L.; Casettari, L.; Awad, G.A.S. A Tailored Thermosensitive PLGA-PEG-PLGA/Emulsomes Composite for Enhanced Oxcarbazepine Brain Delivery via the Nasal Route. Pharmaceutics 2018, 10, 20. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Sun, J.G.; Lei, Y.; Dai, Z.X.; Liu, X.; Huang, T.M.; Wu, J.H.; Xu, Z.P.; Sun, X.H. Sustained Release of Brimonidine from a New Composite Drug Delivery System for Treatment of Glaucoma. ACS Appl. Mater. Interfaces 2017, 9, 7990–7999. [Google Scholar] [CrossRef] [PubMed]
  43. Mohammadi, M.; Patel, K.; Alaie, S.P.; Shmueli, R.B.; Besirli, C.G.; Larson, R.G.; Green, J.J. Injectable drug depot engineered to release multiple ophthalmic therapeutic agents with precise time profiles for postoperative treatment following ocular surgery. Acta Biomater. 2018, 73, 90–102. [Google Scholar] [CrossRef] [PubMed]
  44. Chen, Y.P.; Li, Y.Z.; Shen, W.J.; Li, K.; Yu, L.; Chen, Q.H.; Ding, J.D. Controlled release of liraglutide using thermogelling polymers in treatment of diabetes. Sci. Rep. 2016, 6, 13. [Google Scholar] [CrossRef] [Green Version]
  45. Guan, Y.; Li, X.W.; Zhang, X.; Cheng, Y.Y.; Su, D.; Lu, C.; Fang, X.B.; Ma, Q.; Zhang, D.W.; Yu, H.; et al. Controlled Delivery of Growth-Hormone-Releasing Peptide 6 from the acid) Copolymer and the Effect of a Growth- Hormone- Releasing Peptide 6-Copolymer Hydrogel on the Growth of Rex Rabbits. J. Appl. Polym. Sci. 2014, 131, 8. [Google Scholar] [CrossRef]
  46. Wang, P.X.; Zhuo, X.Z.; Chu, W.; Tang, X. Exenatide-loaded microsphere/ thermosensitive hydrogel long-acting delivery system with high drug bioactivity. Int. J. Pharm. 2017, 528, 62–75. [Google Scholar] [CrossRef]
  47. Shang, H.; Chen, X.B.; Liu, Y.P.; Yu, L.; Li, J.S.; Ding, J.D. Cucurbit 7 -assisted sustained release of human calcitonin from thermosensitive block copolymer hydrogel. Int. J. Pharm. 2017, 527, 52–60. [Google Scholar] [CrossRef]
  48. Liu, Y.P.; Chen, X.B.; Li, S.Y.; Guo, Q.; Xie, J.; Yu, L.; Xu, X.Y.; Ding, C.M.; Li, J.S.; Ding, J.D. Calcitonin-Loaded Thermosensitive Hydrogel for Long-Term Antiosteopenia Therapy. ACS Appl. Mater. Interfaces 2017, 9, 23428–23440. [Google Scholar] [CrossRef]
  49. Ma, H.C.; He, C.L.; Cheng, Y.L.; Li, D.S.; Gong, Y.B.; Liu, J.G.; Tian, H.Y.; Chen, X.S. PLK1shRNA and doxorubicin co-loaded thermosensitive PLGA-PEG-PLGA hydrogels for osteosarcoma treatment. Biomaterials 2014, 35, 8723–8734. [Google Scholar] [CrossRef]
  50. Yan, Q.; Xiao, L.Q.; Tan, L.; Sun, W.; Wu, T.; Chen, L.W.; Mei, Y.; Shi, B. Controlled release of simvastatin-loaded thermo-sensitive PLGA-PEG-PLGA hydrogel for bone tissue regeneration: In vitro and in vivo characteristics. J. Biomed. Mater. Res. Part A 2015, 103, 3580–3589. [Google Scholar] [CrossRef]
  51. Chamradova, I.; Vojtova, L.; Castkova, K.; Divis, P.; Peterek, M.; Jancar, J. The effect of hydroxyapatite particle size on viscoelastic properties and calcium release from a thermosensitive triblock copolymer. Colloid Polym. Sci. 2017, 295, 107–115. [Google Scholar] [CrossRef]
  52. Peng, K.T.; Hsieh, M.Y.; Lin, C.T.; Chen, C.F.; Lee, M.S.; Huang, Y.Y.; Chang, P.J. Treatment of critically sized femoral defects with recombinant BMP-2 delivered by a modified mPEG-PLGA biodegradable thermosensitive hydrogel. BMC Musculoskelet. Disord. 2016, 17, 14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Zhang, Y.; Zhang, J.; Chang, F.; Xu, W.G.; Ding, J.X. Repair of full-thickness articular cartilage defect using stem cell encapsulated thermogel, Mater. Sci. Eng. C Mater. Biol. Appl. 2018, 88, 79–87. [Google Scholar] [CrossRef] [PubMed]
  54. Yu, L.; Xu, W.; Shen, W.J.; Cao, L.P.; Liu, Y.; Li, Z.S.; Ding, J.D. Poly(lactic acid-co-glycolic acid)-poly(ethylene glycol)-poly(lactic acid-co-glycolic acid) thermogel as a novel submucosal cushion for endoscopic submucosal dissection. Acta Biomater. 2014, 10, 1251–1258. [Google Scholar] [CrossRef] [PubMed]
  55. Cao, L.P.; Li, Q.L.; Zhang, C.; Wu, H.C.; Yao, L.Q.; Xu, M.D.; Yu, L.; Ding, J.D. Safe and Efficient Colonic Endoscopic Submucosal Dissection Using an Injectable Hydrogel. ACS Biomater. Sci. Eng. 2016, 2, 393–402. [Google Scholar] [CrossRef]
  56. Yu, L.; Hu, H.T.; Chen, L.; Bao, X.G.; Li, Y.Z.; Chen, L.; Xu, G.H.; Ye, X.J.; Ding, J.D. Comparative studies of thermogels in preventing post-operative adhesions and corresponding mechanisms. Biomater. Sci. 2014, 2, 1100–1109. [Google Scholar] [CrossRef]
  57. Xu, W.K.; Tang, J.Y.; Yuan, Z.; Cai, C.Y.; Chen, X.B.; Cui, S.Q.; Liu, P.; Yu, L.; Cai, K.Y.; Ding, J.D. Accelerated Cutaneous Wound Healing Using an Injectable Teicoplanin-loaded PLGA-PEG-PLGA Thermogel Dressing. Chin. J. Polym. Sci. 2019, 37, 548–559. [Google Scholar] [CrossRef]
  58. Thompson, D.W.; Butterworth, J.T. The nature of laponite and its aqueous dispersions. J. Colloid Interface Sci. 1992, 151, 236–243. [Google Scholar] [CrossRef]
  59. Nicolai, T.; Cocard, S. Structure of gels and aggregates of disk-like colloids. Eur. Phys. J. E 2001, 5, 221–227. [Google Scholar] [CrossRef]
  60. Mongondry, P.; Tassin, J.F.; Nicolai, T. Revised state diagram of Laponite dispersions. J. Colloid Interface Sci. 2005, 283, 397–405. [Google Scholar] [CrossRef]
  61. Dawson, J.I.; Kanczler, J.M.; Yang, X.B.B.; Attard, G.S.; Oreffo, R.O.C. Clay Gels For the Delivery of Regenerative Microenvironments. Adv. Mater. 2011, 23, 3304. [Google Scholar] [CrossRef] [PubMed]
  62. Sun, K.S.; Raghavan, S.R. Thermogelling Aqueous Fluids Containing Low Concentrations of Pluronic F127 and Laponite Nanoparticle. Langmuir 2010, 26, 8015–8020. [Google Scholar] [CrossRef] [PubMed]
  63. Lin, G.Y.; Cosimbescu, L.; Karin, N.J.; Tarasevich, B.J. Injectable and thermosensitive PLGA-g-PEG hydrogels containing hydroxyapatite: Preparation, characterization and in vitro release behavior. Biomed. Mater. 2012, 7, 10. [Google Scholar] [CrossRef] [PubMed]
  64. Oyama, N.; Minami, H.; Kawano, D.; Miyazaki, M.; Maeda, T.; Toma, K.; Hotta, A.; Nagahama, K. A nanocomposite approach to develop biodegradable thermogels exhibiting excellent cell-compatibility for injectable cell delivery. Biomater. Sci. 2014, 2, 1057–1062. [Google Scholar] [CrossRef]
  65. Nagahama, K.; Kawano, D.; Oyama, N.; Takemoto, A.; Kumano, T.; Kawakami, J. Self-Assembling Polymer Micelle/Clay Nanodisk/Doxorubicin Hybrid Injectable Gels for Safe and Efficient Focal Treatment of Cancer. Biomacromolecules 2015, 16, 880–889. [Google Scholar] [CrossRef]
  66. Miyazaki, M.; Maeda, T.; Hirashima, K.; Kurokawa, N.; Nagahama, K.; Hotta, A. PEG-based nanocomposite hydrogel: Thermoresponsive sol-gel transition controlled by PLGA-PEG-PLGA molecular weight and solute concentration. Polymer 2017, 115, 246–254. [Google Scholar] [CrossRef]
  67. Kitagawa, M.; Maeda, T.; Hotta, A. PEG-based nanocomposite hydrogel: Thermo-responsive sol-gel transition and degradation behavior controlled by the LA/GA ratio of PLGA-PEG-PLGA. Polym. Degrad. Stabil. 2018, 147, 222–228. [Google Scholar] [CrossRef]
  68. Nagahama, K.; Oyama, N.; Ono, K.; Hotta, A.; Kawauchi, K.; Nishikata, T. Nanocomposite injectable gels capable of self-replenishing regenerative extracellular microenvironments for in vivo tissue engineering. Biomater. Sci. 2018, 6, 550–561. [Google Scholar] [CrossRef]
  69. Maeda, T.; Kitagawa, M.; Hotta, A.; Koizumi, S. Thermo-Responsive Nanocomposite Hydrogels Based on PEG-b-PLGA Diblock Copolymer and Laponite. Polymers 2019, 11, 13. [Google Scholar] [CrossRef] [Green Version]
Bioengineering 06 00107 g001 550

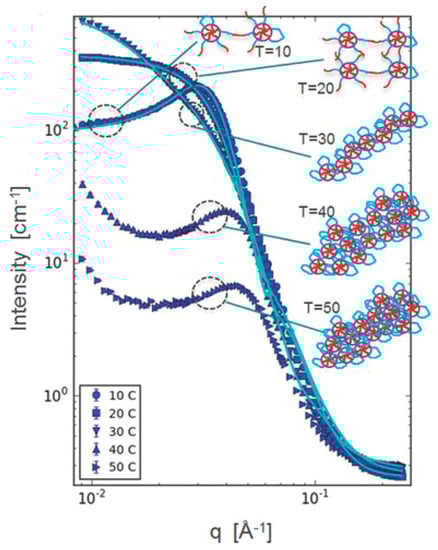

Figure 1. Structural analysis of PLGA–PEG–PLGA solution (20 wt%) by SANS. Reprinted from [24] Micromolecular Bioscience, 16, Neda Khameh Khorshid et al., Novel structural changes during temperature induced self-assembling and gelation of PLGA-PEG-PLGA triblock copolymer in aqueous solutions, 1838–1852, Copyright (2016), with permission from Wiley.
Figure 1. Structural analysis of PLGA–PEG–PLGA solution (20 wt%) by SANS. Reprinted from [24] Micromolecular Bioscience, 16, Neda Khameh Khorshid et al., Novel structural changes during temperature induced self-assembling and gelation of PLGA-PEG-PLGA triblock copolymer in aqueous solutions, 1838–1852, Copyright (2016), with permission from Wiley.
Bioengineering 06 00107 g001
Bioengineering 06 00107 g002 550

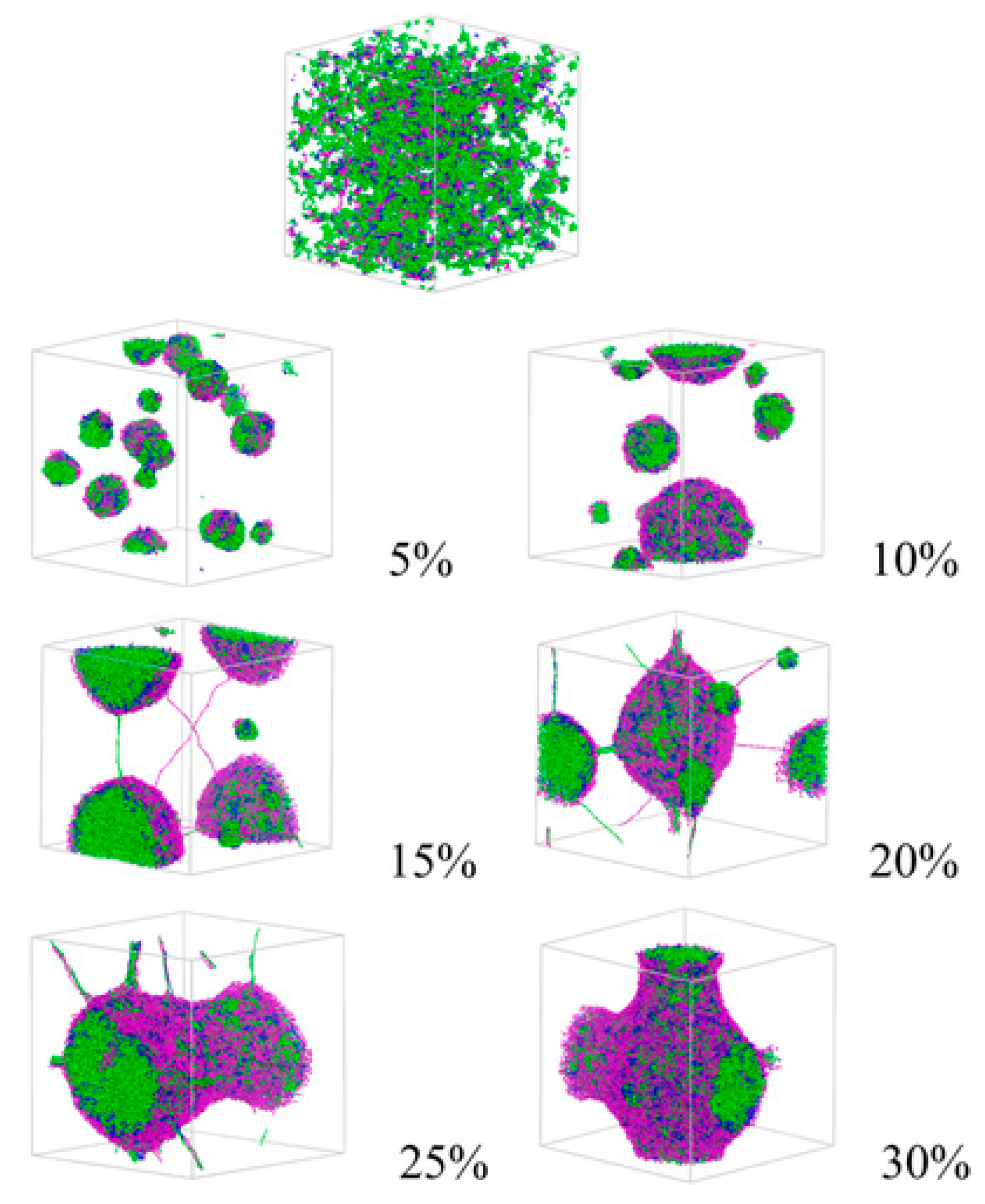

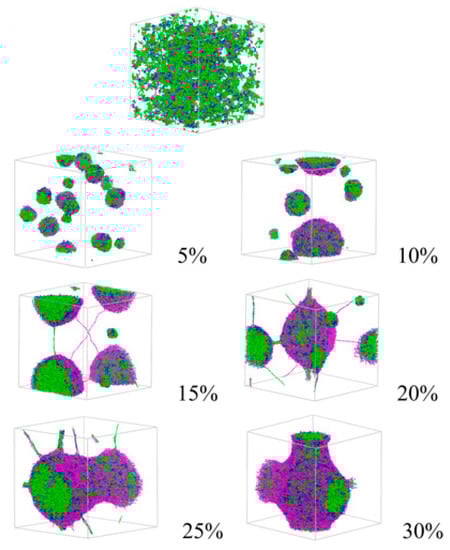

Figure 2. Morphology of PLGA–PEG–PLGA in water at different concentrations revealed by DPD simulation. Reprinted from Journal of Applied Polymer Science, 132, Yang Cao et al., In Vitro evaluation and dissipative particle dynamics simulation of PLGA–PEG–PLGA, 41280, Copyright (2014), with permission from Wiley.
Figure 2. Morphology of PLGA–PEG–PLGA in water at different concentrations revealed by DPD simulation. Reprinted from Journal of Applied Polymer Science, 132, Yang Cao et al., In Vitro evaluation and dissipative particle dynamics simulation of PLGA–PEG–PLGA, 41280, Copyright (2014), with permission from Wiley.
Bioengineering 06 00107 g002
Bioengineering 06 00107 g003 550

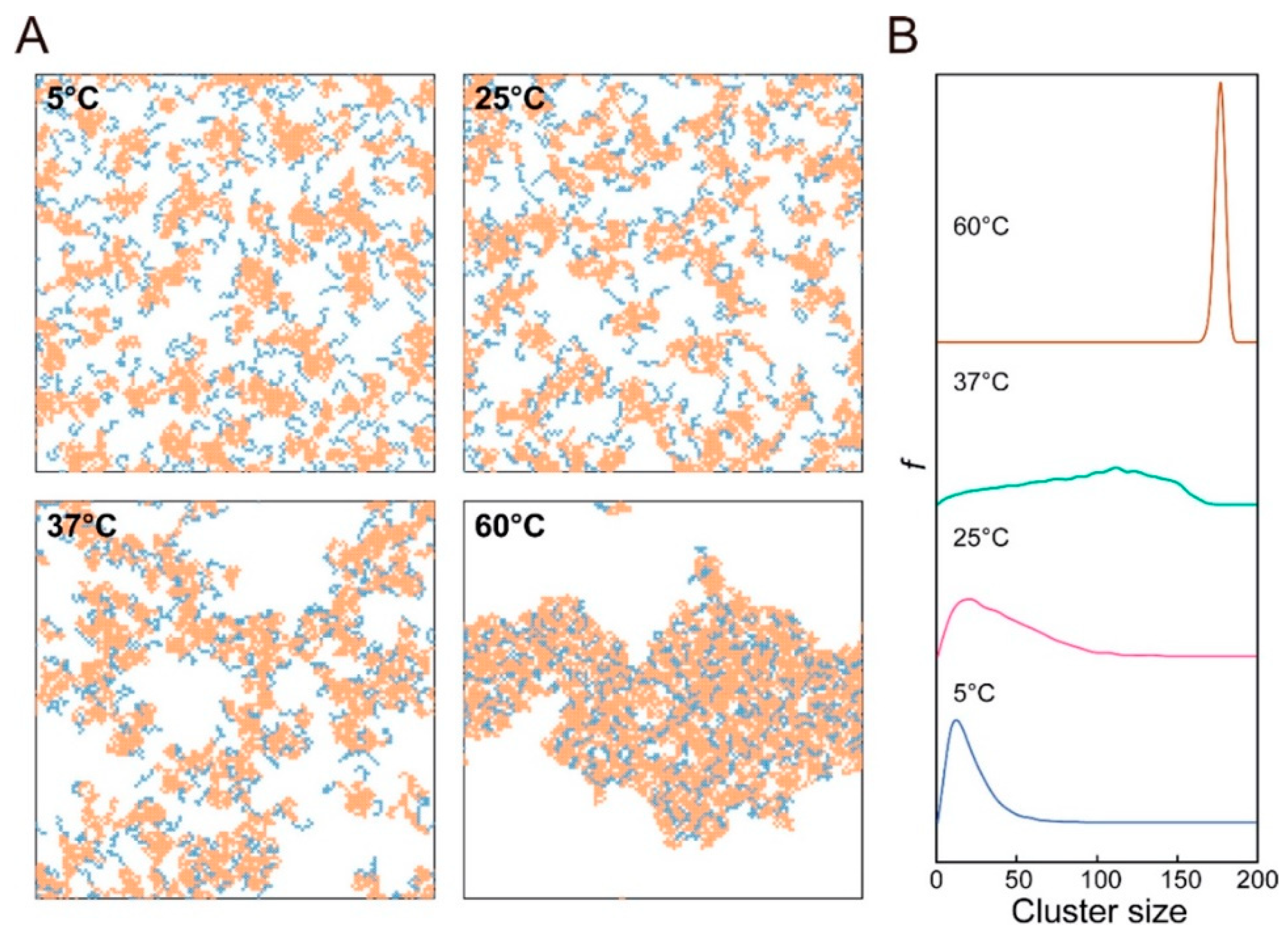

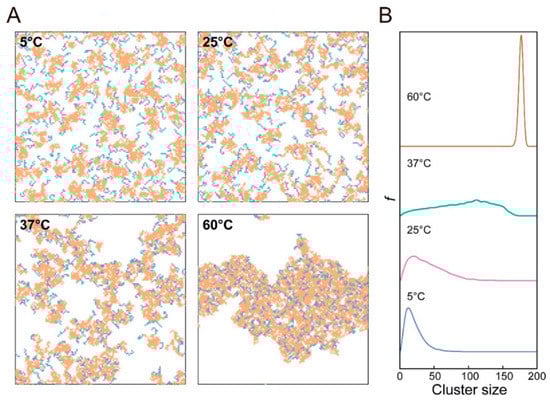

Figure 3. Mesoscopic structure of PEG–PLGA in water at different temperatures revealed by Monte Carlo simulation: (A) typical snapshots of the systems and (B) corresponding cluster size distribution. Reprinted from [25] Macromolecules, 51, Shuquan Cui et al., Semi-bald micelles and corresponding percolated micelle networks of thermogels, 6405–6420, Copyright (2018) American Chemical Society.
Figure 3. Mesoscopic structure of PEG–PLGA in water at different temperatures revealed by Monte Carlo simulation: (A) typical snapshots of the systems and (B) corresponding cluster size distribution. Reprinted from [25] Macromolecules, 51, Shuquan Cui et al., Semi-bald micelles and corresponding percolated micelle networks of thermogels, 6405–6420, Copyright (2018) American Chemical Society.
Bioengineering 06 00107 g003
Bioengineering 06 00107 g004 550
Figure 4. Schematic image of thermoresponsive hydrogels with PLGA–PEG–PLGA–drug conjugate. Reprinted from [37] Acta Biomaterialia, 77, Yanbo Zhang et al., Tumor microenvironment-labile polymer–doxorubicin conjugate thermogel combined with docetaxel for in situ synergistic chemotherapy of hepatoma, 63–73, Copyright (2018), with permission from Elsevier.
Figure 4. Schematic image of thermoresponsive hydrogels with PLGA–PEG–PLGA–drug conjugate. Reprinted from [37] Acta Biomaterialia, 77, Yanbo Zhang et al., Tumor microenvironment-labile polymer–doxorubicin conjugate thermogel combined with docetaxel for in situ synergistic chemotherapy of hepatoma, 63–73, Copyright (2018), with permission from Elsevier.
Bioengineering 06 00107 g004
Bioengineering 06 00107 g005 550
Figure 5. Schematic image of thermoresponsive hydrogels with vesicles/emulsomes: (A) a solution preparation method and (B) sustained release and tumor growth inhibition achieved by thermoresponsive hydrogels with vesicles/emulsomes. Reprinted from [38] ARTIFICIAL CELLS, NANOMEDICINE, AND BIOTECHNOLOGY, 47, Dinglingge Cao et al., Liposomal doxorubicin-loaded PLGA-PEG-PLGA based thermogel for sustained local drug delivery for the treatment of breast cancer, 181–191, Copyright (2019).
Figure 5. Schematic image of thermoresponsive hydrogels with vesicles/emulsomes: (A) a solution preparation method and (B) sustained release and tumor growth inhibition achieved by thermoresponsive hydrogels with vesicles/emulsomes. Reprinted from [38] ARTIFICIAL CELLS, NANOMEDICINE, AND BIOTECHNOLOGY, 47, Dinglingge Cao et al., Liposomal doxorubicin-loaded PLGA-PEG-PLGA based thermogel for sustained local drug delivery for the treatment of breast cancer, 181–191, Copyright (2019).
Bioengineering 06 00107 g005
Bioengineering 06 00107 g006 550

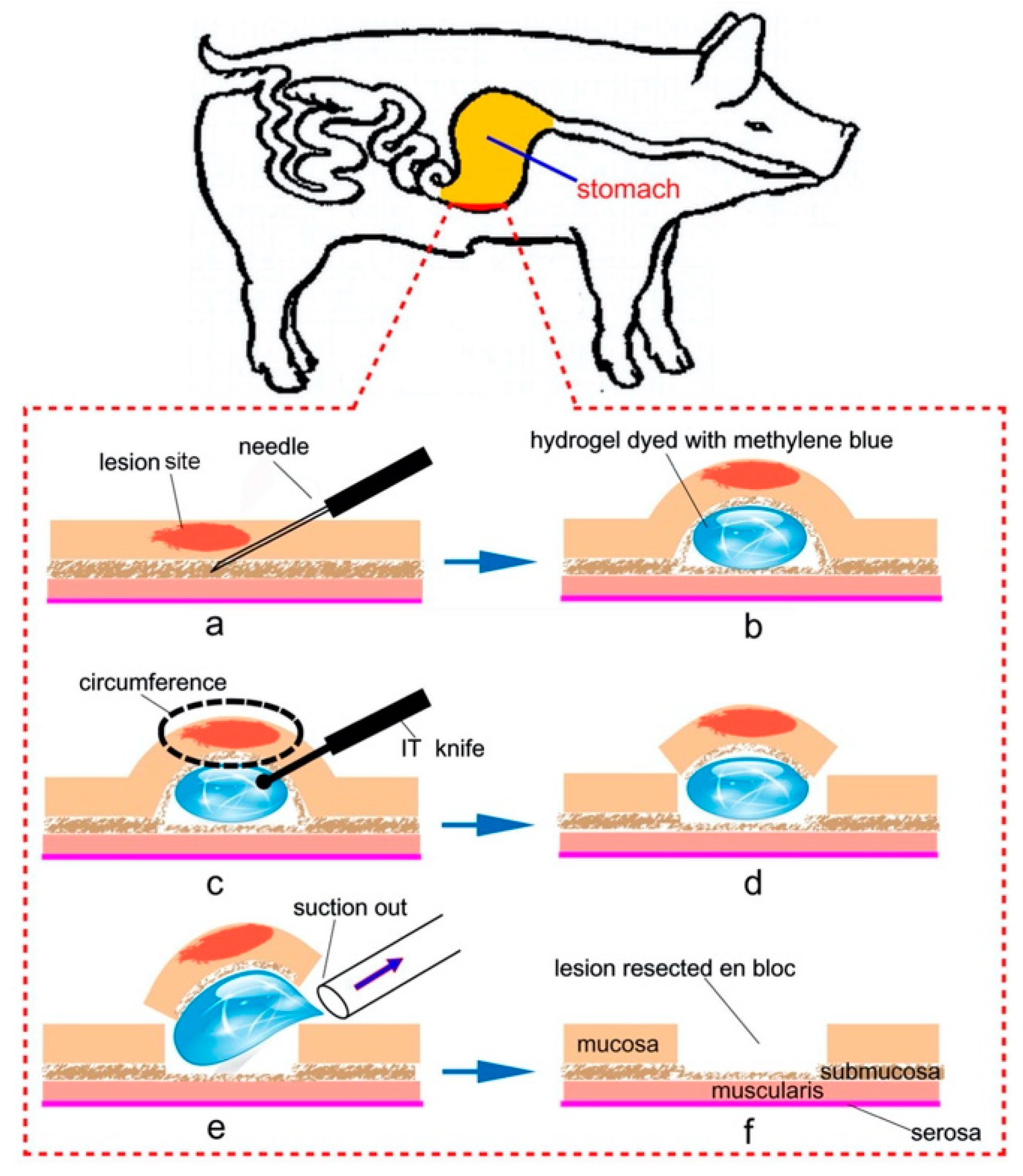

Figure 6. Schematic image of the application of thermoresponsive hydrogels as a submucosal cushion for endoscopic submucosal dissection (ESD): (a,b) injection of thermoresponsive hydrogels into the submucosal layer for mucosal elevation, (c,d) circumferential resection by cutting open via an insulation-tripped (IT) knife, and (e,f) suction of the gel under the mucosa and resection of lesion en bloc. Reprinted from [54] Acta Biomaterialia, 10, Lin Yu et al., Poly(lactic acid-co-glycolic acid)–poly(ethylene glycol)–poly(lactic acid-co-glycolic acid) thermogel as a novel submucosal cushion for endoscopic submucosal dissection, 1251–1258, Copyright (2013), with permission from Elsevier.
Figure 6. Schematic image of the application of thermoresponsive hydrogels as a submucosal cushion for endoscopic submucosal dissection (ESD): (a,b) injection of thermoresponsive hydrogels into the submucosal layer for mucosal elevation, (c,d) circumferential resection by cutting open via an insulation-tripped (IT) knife, and (e,f) suction of the gel under the mucosa and resection of lesion en bloc. Reprinted from [54] Acta Biomaterialia, 10, Lin Yu et al., Poly(lactic acid-co-glycolic acid)–poly(ethylene glycol)–poly(lactic acid-co-glycolic acid) thermogel as a novel submucosal cushion for endoscopic submucosal dissection, 1251–1258, Copyright (2013), with permission from Elsevier.
Bioengineering 06 00107 g006
Bioengineering 06 00107 g007 550

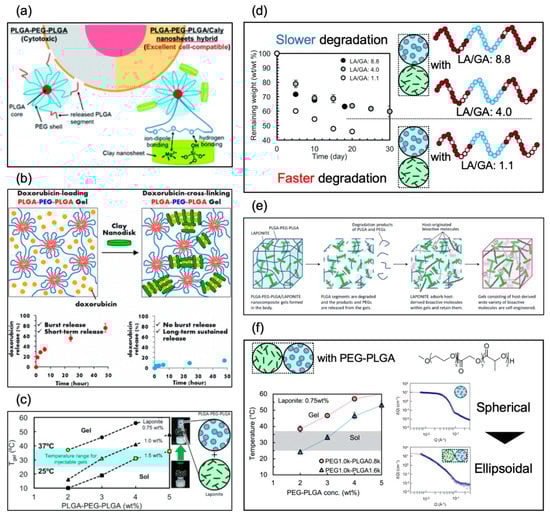

Figure 7. Graphical abstracts of nanocomposite systems reported in (a) June 2014 (reproduced from [64] with permission from the Royal Society of Chemistry), (b) February 2015 (reprinted with permission from [65] Biomacromolecules, 16, Koji Nagahama et al., Self-assembling polymer micelle/clay nanodisk/doxorubicin hybrid injectable gels for safe and efficient focal treatment of cancer, 880–889, Copyright (2015) American Chemical Society), (c) March 2017 (reprinted from [66] Polymer, 115, Makoto Miyazaki et al., PEG-based nanocomposite hydrogel: Thermoresponsive sol-gel transition controlled by PLGA–PEG–PLGA molecular weight and solute concentration, 246–254, Copyright (2017),with permission from Elsevier), (d) November 2017 (reprinted from [67] Polymer Degradation and Stability, 147, Kitagawa Midori et al., PEG-based nanocomposite hydrogel: Thermo-responsive sol-gel transition and degradation behavior controlled by the LA/GA ratio of PLGA–PEG–PLGA, 222–228, Copyright (2017), with permission from Elsevier), (e) January 2018 (reproduced from [68] with permission from the Royal Society of Chemistry), and (f) February 2019 (reprinted from [69]).
Figure 7. Graphical abstracts of nanocomposite systems reported in (a) June 2014 (reproduced from [64] with permission from the Royal Society of Chemistry), (b) February 2015 (reprinted with permission from [65] Biomacromolecules, 16, Koji Nagahama et al., Self-assembling polymer micelle/clay nanodisk/doxorubicin hybrid injectable gels for safe and efficient focal treatment of cancer, 880–889, Copyright (2015) American Chemical Society), (c) March 2017 (reprinted from [66] Polymer, 115, Makoto Miyazaki et al., PEG-based nanocomposite hydrogel: Thermoresponsive sol-gel transition controlled by PLGA–PEG–PLGA molecular weight and solute concentration, 246–254, Copyright (2017),with permission from Elsevier), (d) November 2017 (reprinted from [67] Polymer Degradation and Stability, 147, Kitagawa Midori et al., PEG-based nanocomposite hydrogel: Thermo-responsive sol-gel transition and degradation behavior controlled by the LA/GA ratio of PLGA–PEG–PLGA, 222–228, Copyright (2017), with permission from Elsevier), (e) January 2018 (reproduced from [68] with permission from the Royal Society of Chemistry), and (f) February 2019 (reprinted from [69]).
Bioengineering 06 00107 g007
Table
Table 1. Parameters affecting thermoresponsive gelation.
Table 1. Parameters affecting thermoresponsive gelation.
ParameterFindingsRef.
Salt concentrationRe-entrant Tgel decreased as salt concentration increased[19]
Type of ionRe-entrant Tgel decreased as salting-out ability increased according to Hofmeister series[19]
MWD under similar Mw or MnSolubility increased as Mw/Mn increased[20]
CMC increased as Mw/Mn increased
CGC increased with increased Mw/Mn under both given Mw and given Mn
Tgel increased with increased Mw/Mn under both given Mw and given Mn
MWD of PEG blockGel-to-sol or sol-to-gel transition only with appropriate Mw and MWD[21]
Wider Mw/Mn of PEG block sometimes led to the coexistence of sol-to-gel transition upon cooling and upon heating
PLGA/PEG ratioLinear relation between Tgel and PLGA/PEG ratio[22]
PEG molecular weightTgel dependency on PLGA/PEG ratio became less obvious as PEG molecular weight increased[22]
Positional isomer of coupling agento-PC had smaller coil size compared to m-PC and p-PC[23]
o-PC exhibited lower Tgel and higher modulus compared to m-PC and p-PC
MWD, molecular weight distribution; Mw, weight-average molecular weight; Mn, number-average molecular weight; CMC, critical micelle concentration; CGC, critical gel concentration; PEG, polyethylene glycol; PLGA, poly(lactic acid-co-glycolic acid); PC, phthaloyl dichloride.
Table
Table 2. Methods of structural analysis of thermoresponsive hydrogels.
Table 2. Methods of structural analysis of thermoresponsive hydrogels.
MethodAnalytical TargetRef.
SANSMicellar structure and network structures composed of micelles[24]
3D DLSRh in concentrated solution/turbid system[25]
FRETNanoscale distance[25]
DPD simulationMorphology of copolymers in water[26]
Monte Carlo simulationPhases and condensed-state structures[23,25]
SANS, small-angle neutron scattering; DPD, dissipative particle dynamics; DLS, dynamic light scattering; FRET, fluorescence resonance energy transfer.
Table
Table 3. Biomedical applications of thermoresponsive hydrogels using block copolymers with PEG and PLGA blocks.
Table 3. Biomedical applications of thermoresponsive hydrogels using block copolymers with PEG and PLGA blocks.
Used forDrug/CellDosage fromRef.
Cancer treatment (osteosarcoma)DOXHydrogel[27]
Cancer treatmentIrinotecanHydrogel[28]
Ophthalmic treatmentModel drugHydrogel[29]
Treatment of posterior segment eye diseaseDexamethasoneHydrogel[30]
Treatment of glaucomaCyclosporineHydrogel[31]
Corneal neovascularizationMetformin Levofloxacin HClHydrogel[32]
Treatment of congenital sensorineural hearing lossCidofovir/ganciclovir DexamethasoneHydrogel[33]
Helminth emesisAlbendazole sulfoxideHydrogel[34]
Treatment of opioid and alcohol addictionNaltrexone HClHydrogel[35]
Postoperative pain reliefRopivacaine HClHydrogel[36]
Cancer treatment (Hepatoma)DOX (polymer conjugate) DTXHydrogel[37]
Cancer treatment (Breast)DOXLiposome in hydrogel[38]
Cancer treatmentCytarabine HCl (complex with AOT)Hydrogel[39]
Treatment of Parkinson syndrome/cocaine dependenceAmantadine (complex with OA)Hydrogel[40]
Treatment of epilepsyOxcarbazepineEmulsome
in hydrogel		[41]
Treatment of glaucomaBrimonidine (complex with LDH)Hydrogel[42]
Postoperative treatment after ocular surgeryMoxifloxacin Dexamethasone LevobunololMPs in hydrogel[43]
Treatment of diabetesLiraglutideHydrogel[44]
GrowthGrowth hormone–releasing peptide (GHRP-6)Hydrogel[45]
Treatment of diabetesExenatideMPs in hydrogel[46]
Inhibition of bone resorptionhCT (complex with CB7)Hydrogel[47]
Anti-osteopenia therapySalmon calcitonin (complex with OCA)Hydrogel[48]
Cancer treatment (osteosarcoma)PLK1shRNA/PEI-Lys DOXHydrogel[49]
Bone tissue regenerationSimvastatinHydrogel[50]
Bone tissue engineeringCalcium cationHAp in hydrogel[51]
Treatment of femoral defectsBMP-2Hydrogel[52]
Repair of articular cartilage defectsStem cells (BMMSCs)–[53]
ESD––[54,55]
Postoperative adhesion prevention––[56]
Cutaneous wound healingTeicoplaninHydrogel[57]
ESD, endoscopic submucosal dissection; PEI-Lys, polylysine-modified polyethylenimine; DOX, doxorubicin; AOT, sodium bis(2-ethylhexyl) sulfosuccinate; DTX, docetaxel; LDH, layered double hydroxide; MP, microparticle; BMP, bone morphogenetic protein; HAp, hydroxyapatite; hCT, human calcitonin; CB7, cubit 7; OCA, oxidized calcium alginate; BMMSCs, bone marrow mesenchymal stem cells; OA, oleic acid.
Table
Table 4. Development history of thermoresponsive nanocomposite hydrogels.
Table 4. Development history of thermoresponsive nanocomposite hydrogels.
DateContentsRef.
June 2014Proposal of nanocomposite approach to develop thermoresponsive nanocomposite hydrogels
Confirmation of excellent cell compatibility		[64]
February 2015Confirmation of sustained release of DOX from thermoresponsive nanocomposite hydrogels
Confirmation of antitumor efficacy of DOX-loaded thermoresponsive nanocomposite hydrogels		[65]
March 2017Controlling Tgel by PLGA–PEG–PLGA molecular weight and solute concentration
Structural analysis of thermoresponsive nanocomposite hydrogels by Cryo-TEM and small-angle X-ray scattering (SAXS)		[66]
November 2017Controlling degradation behavior by LA/GA ratio of PLGA–PEG–PLGA[67]
January 2018Confirmation of ECM adsorption within thermoresponsive nanocomposite hydrogels
Confirmation of cell viability and proliferation using human cells
Confirmation of enhance tissue regeneration and functional recovery though cell transplantation in model mice		[68]
February 2019Utilizing water-soluble PEG–PLGA diblock copolymers to obtain thermoresponsive nanocomposite hydrogels
Structural analysis of thermoresponsive nanocomposite hydrogels by SANS		[69]

Share and Cite

MDPI and ACS Style

Maeda, T. Structures and Applications of Thermoresponsive Hydrogels and Nanocomposite-Hydrogels Based on Copolymers with Poly (Ethylene Glycol) and Poly (Lactide-Co-Glycolide) Blocks. Bioengineering 2019, 6, 107. https://doi.org/10.3390/bioengineering6040107

AMA Style

Maeda T. Structures and Applications of Thermoresponsive Hydrogels and Nanocomposite-Hydrogels Based on Copolymers with Poly (Ethylene Glycol) and Poly (Lactide-Co-Glycolide) Blocks. Bioengineering. 2019; 6(4):107. https://doi.org/10.3390/bioengineering6040107

Chicago/Turabian Style

Maeda, Tomoki. 2019. "Structures and Applications of Thermoresponsive Hydrogels and Nanocomposite-Hydrogels Based on Copolymers with Poly (Ethylene Glycol) and Poly (Lactide-Co-Glycolide) Blocks" Bioengineering 6, no. 4: 107. https://doi.org/10.3390/bioengineering6040107

APA Style

Maeda, T. (2019). Structures and Applications of Thermoresponsive Hydrogels and Nanocomposite-Hydrogels Based on Copolymers with Poly (Ethylene Glycol) and Poly (Lactide-Co-Glycolide) Blocks. Bioengineering, 6(4), 107. https://doi.org/10.3390/bioengineering6040107

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
