Water Budget Analysis Considering Surface Water–Groundwater Interactions in the Exploitation of Seasonally Varying Agricultural Groundwater

Department of Land, Water and Environmental Research, Korea Institute of Civil Engineering and Building Technology, Goyang 10223, Korea
Author to whom correspondence should be addressed.
Hydrology 2021, 8(2), 60;
Submission received: 21 February 2021 / Revised: 19 March 2021 / Accepted: 24 March 2021 / Published: 2 April 2021
(This article belongs to the Special Issue Integrated Surface Water and Groundwater Analysis)


In South Korea, groundwater intended for use in greenhouse cultivation is collected from shallow riverside aquifers as part of agricultural activities during the winter season. This study quantified the effects of intensive groundwater intake on aquifers during the winter and examined the roles of nearby rivers in this process. Observation data were collected for approximately two years from six wells and two river-level observation points on the study site. Furthermore, the river water levels before and after the weir structures were examined in detail, because they are determined by artificial structures in the river. The structures have significant impacts on the inflow and outflow from the river to the groundwater reservoirs. As a result, a decline in groundwater levels owing to groundwater depletion was observed during the water curtain cultivation (WCC) period in the winter season. In addition, we found that the groundwater level increased owing to groundwater recharge due to rainfall and induced recharge by rivers during the spring–summer period after the end of the WCC period. MODFLOW, a three-dimensional difference model, was used to simulate the groundwater level decreases and increases around the WCC area in Cheongwon-gun. Time-variable recharge data provided by the soil and water assessment tool model, SWAT for watershed hydrology, was used to determine the amount of groundwater recharge that was input to the groundwater model. The groundwater level time series observations collected from observation wells during the two-year simulation period (2012 to 2014) were compared with the simulation values. In addition, to determine the groundwater depletion of the entire demonstration area and the sustainability of the WCC, the quantitative water budget was analyzed using integrated hydrologic analysis. The result indicated that a 2.5 cm groundwater decline occurred on average every year at the study site. Furthermore, an analysis method that reflects the stratification and boundary conditions of underground aquifers, hydrogeologic properties, hydrological factors, and artificial recharge scenarios was established and simulated with injection amounts of 20%, 40%, and 60%. This study suggested a proper artificial recharge method of injecting water by wells using riverside groundwater in the study area.

1. Introduction

Water is one of the most important resources on Earth and water used for irrigation accounts for a significant portion of the global water demand [1]. For stable food production, water supply methods are being diversified, and water usage is gradually increasing. Recently, the rate at which groundwater is consumed for irrigation has been increasing rapidly. Moreover, the continuous consumption of water resources has worsened the drought condition worldwide [2]. In many countries, excessive use of groundwater from shallow aquifers is perceived as the main cause of reduced available surface water supply [3]. Consequently, groundwater changes attributed to aquifer depletion have been investigated, and various predictions have been made in sites with large extraction wells [4,5,6]. Groundwater withdrawal from deep aquifers leads to permanent depletion except in cases where the groundwater is recharged by high-intensity rainfall, which occurs occasionally [7]. In contrast, groundwater in shallow aquifers has different characteristics, because it can be renewed by nearby rivers or rainfall. Moreover, continuous large-scale depletion varies near the river environment owing to groundwater–surface-water interaction. Thus, shallow aquifers undergo spatiotemporal changes owing to various factors; seasonality is an indispensable element in understanding the underground water resources of shallow aquifers. In monsoon or semi-arid climates, rainfall is concentrated during one period in a year. During these periods, aquifers are recharged. Furthermore, anthropogenic activities, which are the main causes of water depletion, also exhibit seasonality. In many areas, the abstraction of groundwater may increase during the dry season [8,9,10]. Two opposite activities (groundwater recharge and abstraction from shallow aquifers) occur in accordance with the seasonal cycle. This is observed in large agricultural areas in monsoon climates. For example, the groundwater level of the Ganges–Brahmaputra–Meghna (GBM) delta in Bangladesh is decreasing at an annual rate of 0.1–0.5 m/year owing to intensive irrigation. In the Dhaka area, where the degree of groundwater usage is high, the groundwater is decreasing at a maximum speed of 1 m/year [9]. The recharge of shallow aquifers is indispensable for the sustainable groundwater use. However, Perrin [10] found that the locally heterogeneous pattern of groundwater depletion intensifies owing to seasonal characteristics, and that the imbalance worsens during low-rainfall years. Even in monsoon areas where precipitation is relatively abundant, the annual pattern of groundwater use varies considerably depending on the degree of yearly precipitation. For example, Pavelic et al. [8] investigated the upper Bhima River basin in India and reported that less than 10% of pumping wells became dry during the off-monsoon season dry if there was large precipitation the previous year, whereas 40% of pumping wells became dry if the prior year had low rainfall. The seasonal precipitation pattern causes short-term reliability issues rather than long-term groundwater depletion, as they influence food production. It has been found that extreme water shortage caused by extreme droughts in conjunction with climate changes also causes problems in shallow aquifers [11]. Thus, even rechargeable groundwater areas are influenced by factors that cause or interfere with recharging (i.e., adjacent geographic characteristics, climate, relationship with rivers, and use of public water). Therefore, a highly precise analysis that considers multiple hydrological and geologic parameters, as well as site-specific conditions, is required to determine whether the groundwater in the study area is a sustainably available resource.
Groundwater resources located along rivers are influenced considerably by hydrometeorological effects, such as changes in precipitation and natural recharge amounts, use of surrounding lands, various river environments, maintenance status of riverside facilities, and agricultural water intake methods. To identify the water circulation state of riverside groundwater under the complex effects of natural and artificial environments and to prepare for water resource depletion and pollution of the water environment, the behavior of each hydrological component should be identified. In addition, an unbiased quantitative evaluation of each hydrological component of the corresponding groundwater system must be obtained using raw data collected from the site of interest.
Ruud et al. [12] named the semi-arid basin where intensive groundwater development is performed as an “active basin” and pointed out analytical errors caused by unmeasurable or inaccurate data when analyzing the water budget of an active basin. In particular, it may be difficult to acquire data, because usage data for agricultural groundwater or private pumping wells do not exist or cannot be obtained due to privacy issues [2]. Given that the measurement of groundwater usage in a large basin-scale area increases the economic burden of research, groundwater usage is an unknown factor in many studies [12].
The seasonality of groundwater use and the problem of groundwater usage measurements are similar in South Korea to other monsoon and semi-arid climates. In 2015, the agricultural water usage of South Korea was 2.08 billion m3. This accounted for 51% of the total groundwater usage [13]. Since 2009, domestic and industrial water usage has not changed significantly; thus, the use of agricultural water has become a major reason for the increase in total groundwater usage [14]. Greenhouse cultivation methods for farming using groundwater are becoming increasingly popular in South Korea. The demand for fresh vegetables and fruits that are difficult to store for long periods is increasing, as the demand is high throughout the year and the income level of people is rising. Although the demand and supply of off-season agricultural products throughout the year is increasing, these products are only being produced by greenhouse cultivations in most areas, because growth conditions, such as the climate, soil, and moisture, are not suitable during the winter months (November to February) in South Korea. Moreover, the greenhouse cultivation method has attracted considerable attention as a profitable method for farmers, because stable cultivation can be achieved by avoiding weather disasters and pests. Farmers can grow fresh vegetables and fruit in a short period and sell them at much higher prices. However, greenhouse cultivation requires much higher artificial energy consumption than field cultivation, because special heating or insulation are required to artificially create a suitable environment for the growth of agricultural products.
Recently, tremendous growth has been documented in the area of plastic film-covered greenhouse cultivations in most agricultural lands near rivers in South Korea. In particular, the winter facility cultivation method, which uses groundwater to maintain the warmth of the greenhouse in winter, has been adopted by many agricultural lands in South Korea. This greenhouse warming method is called water curtain cultivation (WCC). Since the first introduction of WCCs in South Korea in 1984, WCCs have been used extensively. Indicatively, in 2006, WCC facilities spanned 10,746 ha [15]. WCC is a cultivation method whereby groundwater, which maintains a constant temperature of 15 °C even in winter, is extracted and sprayed on the roof of the greenhouse to form a water curtain. The heat emitted from the water maintains the warmth of the greenhouse. WCC technology is advantageous in that it dramatically reduces the fuel cost, because no fuel is required to heat the facility. The nationwide area under WCC cultivation is growing constantly, owing to its advantages. It is not affected by oil prices, and a stable indoor temperature can be maintained. For WCC, considerable volumes of groundwater are pumped during the winter and discharged into rivers through agricultural waterways after use [16]. Most of the WCC facilities in South Korea are installed in alluvial areas near a river in anticipation of a sufficient supply of groundwater from the river. However, because WCC facilities are concentrated in a large-scale complex near rivers, excessive use of water curtain water within a limited area causes groundwater depletion, thus making it difficult to continually supply water for water curtains. Using a large amount of groundwater for 4–5 months during the winter and discharging it to nearby rivers has resulted in riverside groundwater depletion. In large WCC complexes that use large amounts of groundwater, disruptions in the water curtain water supply often occur in January every year.
This study aimed to examine the surface–groundwater interaction near a small stream called Musimcheon within the Mihocheon basin, and to quantitatively diagnose the groundwater shortage phenomenon in aquifers. Several studies have been conducted on this watershed. Chung et al. [17] analyzed the spatiotemporal distribution of groundwater recharge in a watershed based on the application of the combined surface-water–groundwater model SWAT–MODFLOW [18] for an area that spanned approximately 1868 km2. Chung et al. [19] proposed a sustainable intake amount along the stream within the Mihocheon basin based on an analysis of the effect of groundwater pumping. The SWAT–MODFLOW model used in these studies was an integrated hydrological analysis model and was capable of calculating the heterogeneous recharge characteristics, simulating the hydrogeological characteristics and groundwater pumping, and evaluating the interaction between the river and groundwater. Chung et al. [17] and Chung et al. [19] used a relatively large grid size of 300 × 300 m to study the entire watershed area. The present study conducted precise groundwater level and water budget analyses on a small demonstration area of ~4 km2 in the southeastern part of the Mihocheon basin in fine grids using MODFLOW. The hydrologically analyzed spatiotemporal groundwater recharge amount was used as the input component of the MODFLOW. In South Korea, the status of groundwater development and use of nearby rivers are still not adequately understood; groundwater development is not officially measured and reported in many WCC facilities that are operated by small farmers. Hence, the groundwater pumping pattern in the WCC area was identified using the correlation between the daily minimum temperature and groundwater usage of the WCC area. Precise groundwater modeling was performed in the demonstration area using the three-dimensional (3D) groundwater flow model MODFLOW [20] and the watershed hydrology model soil and water assessment tool (SWAT) [21]. To our knowledge, this is the first attempt to study the response of the surface water, as well as the shallow aquifer, to the impact of seasonal WCC activity. For this purpose, integrated hydrological analyses using the MODFLOW and SWAT models were performed to determine the long-term water budget depletion at the demonstration site based on an expansion of the range of the water budget analysis.

2. Site Description

Figure 1 shows the boundaries of the study area, the cross-section, locations of rivers, artificial structures in the rivers, and pumping wells and observation wells installed for groundwater development. Sangdae-ri, Gadeok-myeon, Cheongwon-gun, and Chungcheongbuk-do, which are demonstration study areas, belong to the Mihocheon basin in the Geum River area. Most of this watershed comprises farmlands used for agricultural activities; greenhouse areas mixed with rice fields and other crop cultivations. The target areas for this study are located in the middle to the upstream part of the Musimcheon, which is a farming area in which paddy fields and greenhouse cultivation areas (represented by recent vinyl houses) are mixed. Pumping wells for WCC and other agricultural activities are scattered throughout the cultivation area; strawberries are mainly cultivated in the vinyl houses. During the summer, the water irrigated from the river flows through the agricultural waterway in the demonstration area; almost all the water that flows through the agricultural waterway during the winter is discharged to the waterway after being used for WCC. The greenhouse cultivation sites in this area suffer temporary reductions in groundwater intake volume owing to continuous groundwater level decreases during the winter.
The geology of Cheongwon-gun is composed of igneous rocks, metasedimentary rocks, and alluvial layers. When the geological age, rock formation, pore shape, and hydraulic characteristics of groundwater are considered, the hydrogeological unit of this study site corresponds to intrusive igneous rock [14]. Although geological heterogeneity exists, on average, the strata are generally composed of (from the top down) a sedimentary layer, weathered soil layer, weathered rock, and soft rock layer. The soft rock layer is usually 35 m below the surface [15]. From a geological perspective, there is an alluvial layer deposited by the flooding of the river above the Cheongju granite, which is connected to the east.
The WCC demonstration area located in the most upstream part of the Musimcheon watershed is located on riverside land to the east of the stream flow created by the meandering stream of the Musimcheon from the northeast. The land near Musimcheon is relatively flat; the northern area of the study area is a low-mountainous terrain with an altitude of 100 m. There is a small reservoir at the most upstream part of the river. Sudden water discharge was not observed from the reservoir. Most rivers in South Korea are not pristine rivers, and artificial structures are installed in most of them. Small weirs are also installed at intervals spanning several kilometers along the Musimcheon. Thus, the river water level is relatively constant during most of the year, with the exception of rainy seasons. Reductions in the water flow of the Musimcheon were not observed during the study period, even during intensive groundwater pumping in the winter.

3. Study Method

3.1. Acquisition of Field Measurement Data

3.1.1. Groundwater Observation Data

According to field survey results, there were 56 motor-activated groundwater pumping wells that were active during the WCC period. The observation wells for groundwater level measurements were mainly located in the west and north, wherein many WCC houses existed among the simulated areas. The black dots in Figure 1 indicate the 56 groundwater pumping wells, and the red dots indicate the observation wells. Observation wells are located along the Musimcheon embankment in the south–north direction and seven observation wells in the WCC area that correspond to the riverside land. In this study, the calibration and validation of the numerical analysis were performed based on daily data from these observation wells equipped with sensors and data loggers. To measure the groundwater amount used by WCC, Moon et al. [23] calculated the total amount of groundwater taken up for WCC before it was discharged to the Musimcheon from the agricultural waterway in the studied site.

3.1.2. Collection of Surface Water Observation Data

The Musimcheon River in the simulation area has a relatively slow flow rate because of the effects of weirs, and its water-level changes are insignificant except during the summer rainy season. To examine the water level changes at the center of the river, the structures of the upstream and downstream weirs were identified.
The preliminary modeling results indicated that the water level and conductance of the river at the river boundary condition had a significant effect on the inflow and outflow from the river to groundwater. When setting the River Boundary as the boundary condition, the Conductance variable was used to estimate stream leakage near the aquifer. The stream leakage was calculated from the conductance multiplied by the difference in the water levels between the river and the groundwater in the aquifer. Conductance is expressed as a combination of the vertical hydraulic conductivity of the riverbed material, the length of the river, the thickness of the floor, and the width of the river. The conductance also can be interpreted as the flow resistance between the river and the aquifer. Hence, it was necessary to examine the weir structures and prepare river water levels and other data related to the river. Furthermore, because it was found that the model had a large sensitivity to most of the parts of the upstream river, Musimcheon was investigated to input the river water level data at the boundary area in addition to the river water level data at two other locations.
Figure 2 shows the locations of the major weirs. According to the time series data of the river water level measurements, upstream and downstream of weir A had an upstream elevation of 67 m and a downstream elevation of 65 m, which were verified by observations. Moreover, weir A exhibits elevation differences downstream, in addition to the one shown in this figure. The structure of weir B was also measured. Figure 2 shows a full view and conceptual crosscut of the weir.
According to the measurements, the upstream weir maintains an elevation of 67 m and the weir downstream maintains an elevation of 65 m throughout the WCC period. The identification of the structure of weir B upstream of weir A was useful in numerical modeling. The structure of weir B is vertically higher and larger than that of weir A. As a result, the river becomes wider upstream of weir B.

3.1.3. Estimation of the Usage Pattern of Groundwater for WCC

Figure 3 show the precipitation, temperature, and the estimated total pumping rate during the study period from July 2012 to July 2014.
The estimation of the groundwater usage in the WCC region in the demonstration area was conducted for approximately three months (mid-November to mid-February). During this period, which corresponds to the winter period in South Korea, the groundwater recharge rate due to precipitation was low.
The average excavation depth of the groundwater wells in the survey area was 50 m. The motors for the pumping wells in the survey area were mostly ground pumps for agricultural water used to collect groundwater in shallow aquifers. According to the Groundwater Act of South Korea, if the daily pumping capacity for agricultural and fishing purposes is less than 100 m3/day, the usage amount may not be reported, and groundwater impact investigation is not conducted. Most motors used in the WCC site of this study corresponded to unreported pumping wells, because their pumping capacities were less than 100 m3/day. Therefore, as conducted by Ruud et al. [12], the locations of pumping wells in the test area were investigated individually because the location and development amount of groundwater pumping for the modeling study were unknown. Furthermore, the method of Moon et al. [23] was used to estimate the groundwater usage. Moon et al. [23] estimated that the number of days of pumping for WCC was approximately 100, and also estimated the groundwater usage for WCC during the winters of 2011 and 2012 as 53,138 m3 per 1 ha. This estimation was based on an analysis of the motor specifications of representative pumping wells and the record of the daily lowest temperatures below 0 °C for 94 days in the WCC area in Cheongwon. By using this method, we assumed a daily average discharge volume of 68 m3/day, with the assumption that the operation time of the motor and on/off periods were influenced by the daily minimum temperature. In addition, the operation time was determined to be equal to 0.68 d immediately after sunset until the sunrise of the subsequent day. This time was used as an input for the model. Furthermore, 68 pumping wells were classified into two groups. In one of the groups, the motor was operated when the temperature fell below 0 °C, and the other group was operated when the temperature fell below −5 °C. Only the motors of the first group were operated between 0 and −5 °C. When the WCC operations began in late November, only some motors were operated, because the minimum temperature was not low. At other times, all the motors installed in the demonstration site were operated, because the daily minimum temperatures were consistently lower than −5 °C. In addition, in early March, when WCC was terminated, the minimum temperature slowly increased. All of the pumping wells were no longer used when the WCC stopped.

3.2. Model Description

3.2.1. Calculation of Time-Varying Groundwater Recharge Amount using Watershed Hydrology Model

This study calculated the groundwater recharge amount of the Cheongwon area during the model application period using the SWAT model [21] developed by the Agricultural Research Service (ARS) of the United States Department of Agriculture. Recently, SWAT-related models for this area have been successfully calibrated. The SWAT–MODFLOW [18], an integrated surface-water–groundwater model was applied to the Mihocheon basin (area of 1868 km2), which included the area evaluated in this study. The results were calibrated using six stream gauging stations and ten national groundwater observation wells. In a follow-up study, Chung et al. [19] calibrated the Mihocheon basin (area of 1602 km2) with SWAT–MODFLOW to examine and ensure the development of a sustainable groundwater level based on simulations of the groundwater development scenario.
The target basin was the Musimcheon watershed in the southeast of the Mihocheon basin, which had a basin area of 198 km2. Preprocessing was performed using the ESRI’s ArcView 3.3 software. The digital elevation map was processed to 100 m grids and divided into 34 sub-basins in total, reflecting the terrain elevations. Furthermore, a land use map was created with the land cover map of the Ministry of Environment, and a soil distribution map was created based on the soil data. One hydrologic response unit was determined based on the combination of the features of these two maps, and hydrological components considering land use and land composition were determined accordingly.
The input precipitation, temperature, wind speed, solar radiation, and relative humidity were calculated for three years (from 2012) based on meteorological data from the Cheongju weather station (Korea Meteorological Administration database). The Cheongju watermark data were used for the river runoff as hydrological data. All hydrological data were collected for 23 years from 1990 to 2015.
In general, the watershed hydrological model was calibrated based on the observed runoff amount. In this study, the water flow data (five years from 2010 to 2014) of the Cheongju gauging station were downloaded from the Water Resources Management Information System (WAMIS, (accessed on 9 March 2021)).
Based on the aforementioned hydrologic component analysis, the evapotranspiration amount of the demonstration site sub-basin, groundwater recharge amount, and groundwater runoff were estimated. Given that the demonstration site of this study was relatively small, the spatial distribution of the amount of groundwater recharge in the groundwater flow model was not considered.
The calculated groundwater recharge amount was expressed in the form of daily data that could be used to simulate the unsteady groundwater flow. Additionally, the model values were verified based on comparisons with the time series data of the groundwater for the same period.

3.2.2. Analysis of Spatiotemporal Distribution of Groundwater Level with a Groundwater Flow Model

To examine the presence of groundwater in aquifers in the study area and to analyze the local water circulation mechanism, a distributed 3D groundwater flow model was constructed. The modeling area of the analysis basis was set, the values and ranges of hydrogeological parameters were determined from various data and measurements, and the boundary conditions were established by inferring the inflow/outflow methods of various water bodies and aquifers. In particular, the physical shape of the aquifer, including the area of the aquifer, thicknesses of the aquifer and pressurized layer, locations of surface water and rivers, boundary conditions of the aquifer, and hydrologic information, such as the hydraulic conductivity of the aquifer, the retention coefficient of the aquifer, locations of permeability and specific storage coefficient of pressurized bed, and the hydrologic connectivity between aquifer and surface water are required.
Figure 4 shows the boundary conditions of MODFLOW model. The model area for numerical analysis was divided into 360 rows and 240 columns made of 5 × 5 m grids through a convergence test for an area of 1200 × 1800 m (see Figure 4a). The model stratum (with an approximate depth of 80 m) was divided into three layers based on the geological characteristics. The input values of the hydrogeological parameters of each layer are listed in Table 1.
The 2–3 m thick topsoil was included in the unconfined aquifer, which is the first layer of the model. The first layer of the model represents weathered soil, and its spatial distribution was estimated based on a statistical interpolation method in conjunction with the hydraulic conductivity obtained by the pumping test.
In the Figure 4b, the boundary condition for the small stream developed near the aquifer was set using the MODFLOW river package. The characteristics of the river were distinguished based on the weir at the center of the river. The river boundary was set by referring the time series data for the river water level downstream of the weir (CWR-01) and the measurement data in the upstream region (CWR-02). There were no large variations in the river water level upstream of the weir, and the upstream water level variations in the summer are smaller than those downstream. The downstream time series data from 18 April to 16 November 2013, could not be acquired, because the equipment was lost due to the flooding.
The restoration of the lost data was performed by adding 1.5 m to the river level measured at the Geum River Flood Control Center. The river water level measurement data at the center (located ~4 km downstream) was compared to the CWR-01 time series data from the study site. We found that the two water levels varied in similar patterns when comparing the three peak water levels. In addition, there was no significant lag in the time of peak occurrence. The agricultural waterway was set as the drain boundary condition in the model (see Figure 4c). The input values for the drain package were calibrated based on the evaluated depth of the bottom of the agricultural waterway located in the south–north direction, parallel to the agricultural waterway and river shapes at the demonstration site. Pumping wells were distributed as shown in Figure 4d.
To identify the terrain elevation of the area where a research facility exists and the boundary of the watershed, the elevation contour lines were extracted from the digital map (scale: 1:25,000) received from the National Geographic Information Institute (30707071_008, 30707071_009 from (accessed on 9 March 2021)), and were converted to grid data. A digital elevation map was then created and used as input data for MODFLOW. The minimum elevation was 63 m near the river downstream in the north, and the maximum elevation was 170 m in the mountainous terrain in the east. In general, the slope of the terrain was along the southeast–northwest direction from the mountainous terrain to the river. The outer parts of the simulation area, such as the impermeable bedrock and watershed in the demonstration site, were set as no-flow boundaries, and the time series values calculated using SWAT were used for the boundary of water recharge in the soil layer which flowed to the aquifer according to the percolation process.
We conducted simulations by extending the simulation period to 30 July 2014, based on the simulation results of Chang and Chung obtained from 10 July 2012 to 2 March 2014, for the Cheongwon WCC site [22]. The hydraulic conductivity distribution values of the first layer used by Chang and Chung [22] were adjusted with an additional calibration process. As a result, hydraulic conductivity values of 3.2 × 10−5–9.1 × 10−5, 2.0 × 10−6, and 1.0 × 10−5 m/s were used for the first, second, and third layers, respectively.

4. Results and Discussion

4.1. Analysis of Groundwater Level

The groundwater flow decreased from the south toward the north. Groundwater flows from the south to the north, and rapid changes in the groundwater level were observed around the weir in the Musimcheon. The flow analysis results exhibited characteristics of a loss river upstream of the Musimcheon until early November during the full-scale WCC period, whereas the downstream of the Musimcheon in the north exhibited characteristics of a gain river. However, unlike the discharge of groundwater downstream of the Musimcheon before WCC, the entire section of the Musimcheon acted as a loss river owing to the large-scale water intake during the winter period. Because of the difference in elevation (of up to 2 m) in the upstream and downstream parts of the weir, the distribution of groundwater levels was dense. This suggests that the groundwater level variations near a weir were caused by the surrounding groundwater and river water levels. The pattern of the groundwater level decline during the WCC period set as the operation time of the water intake well does not affect the Musimcheon watershed during the first ten days, and variations in the groundwater level only occur near the water intake site, but the radius of the influence region gradually widened. However, the demonstration basin in this study was a narrow basin blocked by rivers and mountains, and a relatively fast overall groundwater level decline could be observed.
For model calibration, the validity of the characteristic hydraulic values was examined based on the field measurement results for water budget simulation, such as the water level contour map, groundwater level time series, and recharge and discharge amounts. In addition, input variables, such as the hydraulic conductivity of the model and retention coefficient were adjusted so that the groundwater level time series values measured in the field would be matched within a reasonable range. Chang and Chung [24] previously showed a graph that compared the data collected from the observation wells on August 3 before the onset of the WCC and the simulation results of MODFLOW. A good correlation with a coefficient of determination (R2) of 0.97 was obtained.
Figure 5 shows six different groundwater level decline–recovery curves, which compare the simulation results obtained from the six observation wells. The gray line in this figure indicates the groundwater level based on actual well measurements, and the black line indicates the precise modeling results using MODFLOW. The blue box represents the WCC pumping periods. The six graphs were based on the values of the six observation wells of CWW-04, CWW-05, CWW-07, CWW-08, CWW-11, and OB-11 in the bank, used in the model calibration. When the WCC began, the pattern of the groundwater level decline exhibited an abrupt change (increased slope) at the early stage. As the slope decreased, the rate of change of the downward trend gradually decreased. When WCC ended, the water level recovered for 3–4 months. Examining the graphs in detail, the periods could be divided into the following parts: (a) changes in aquifer groundwater levels owing to rainfall in the summer, (b) groundwater decline owing to WCC for four months between 2012 and 2013, (c) aquifer water level recovery, groundwater level fluctuations owing to precipitation during the summer in 2013, (d) the re-decline of groundwater level owing to WCC, which started in November 2013, and (e) the re-recovery of groundwater level owing to precipitation during the summer in 2014. The examination of each observation well showed that the groundwater level, which ranged from 63 to 68 m in steady state, declined after the operation of the water pumping well. As the well was farther in the northeast region, which is inland of the river’s downstream, the clustering of the pumping wells was denser. Additionally, as the distance from the river increased, the degree of groundwater declines increased. By contrast, the simulation results showed that in the upstream of the river, a high-water level was maintained because of the river, and an induced recharge in the river resulted in a small water level decline. For example, CWW 8, which is located at a distance farthest from the river, exhibited a large groundwater level decline; however, CWW 11, which was located at a short distance from the river, exhibited a relatively small groundwater decline.
Herein, the simulation results are also discussed, including the variations of the aquifer groundwater level owing to precipitation during the summer period, in addition to the groundwater decline during the WCC period in the simulation period (total of 700 days). In the graph, the groundwater levels during the two cycles of groundwater depletion–recovery were observed. In this period, one year in which the following events occurred was recognized as the WCC cycle: (1) aquifer recharge owing to rainfall in the summer, (2) groundwater depletion owing to WCC, and (3) induced recharge by the river after the termination of the WCC. The analysis onset time and the graph of this study also followed this cycle. As shown in the Figure 5, the modeling results indicated that most of the demonstrations were influenced by sporadically scattered groundwater pumping. When the two cycles of groundwater level decline and the respective recoveries were compared with the observations, the simulated results were reproduced and were found to be close the observed values. Notably, even though the winter temperatures were not significantly different between the first and second water curtain periods, the groundwater declined more in the second water curtain period.

4.2. Water Budget Analysis

Figure 6 shows a graph of the groundwater disturbance caused by the WCC. The inflow and outflow rates (m3/day) of aquifer, drain, and river boundary were analyzed throughout the simulation period. Examining the graphs in detail, in the summer, outflows from the aquifer to the river owing to increased precipitation were observed intermittently. During the WCC period, the groundwater depletion in the aquifer increased, whereas the aquifer recharge owing to the induced recharge of the river also increased significantly. The phenomenon of groundwater loss of the aquifer during the WCC period can be expressed as the storage out rate in the graph. The yellow line in this graph shows the recharge induced by the river that increased continually during WCC and that decreased during the replenishment of groundwater in the aquifer during the spring period. Hence, the abrupt change pattern of the aquifer and river can be referred to as an aquifer disturbance by the WCC or surface–groundwater (SW–GW) interaction, showing the direct river-response to the pumping pattern during the WCC in winter.
In addition, the water budget at the center of the aquifer was analyzed. The quantitative values for water budget analysis are expressed as the cumulative volume of groundwater inflow/outflow in the aquifer during a specific period. The changes in the water budget inflow/outflow that an aquifer undergoes are influenced by the pumping pattern during the WCC period. The water budget analysis for this study shows that the aquifer groundwater depleted by pumping was recharged naturally by the recharge induced by rivers and rainfall. When analyzing the groundwater storage of the aquifer, which corresponds to the difference between the cumulative outflow and inflow of the aquifer, the recharge of the aquifer attributed to the rainfall or induced recharge by the river was expressed as a positive value, whereas the depletion of aquifer was expressed as a negative value. These values were used in an effort to show the depletion and recovery patterns of the aquifer.
Figure 7 shows a graph that expresses the aquifer net storage, which is determined by dividing the volume [L3] with a water budget analysis value based on the aquifer owing to the area of the demonstration site in the vertical direction [L3/L2]. The volume-based water budget analysis value for a large cultivation area is larger than that for a small area, even if the actual degrees of depletion may be different. Correspondingly, direct comparisons often become difficult. In this case, one-dimensional water budget analysis can be used to compare target sites with different areas. The water budget analysis method expressed in one dimension in this way has the advantage in that it reduces the number of factors to be considered by removing the basin area from the result analysis. It is thus easy to intuitively understand groundwater depletion compared with volume analyses.
Note that the shape of net storage in Figure 7 is similar to the groundwater level decline–recovery curve. The lowest point of storage owing to the first cycle of WCC in 2012–2013 was −13.7 cm-m2/m2. The amount of groundwater recharged by rainfall and by the induced recharge from the river until 1 July 2013 (when the one-year analysis cycle was completed), did not recover to the level of the previous year (−2.5 cm-m2/m2). Consequently, the groundwater depletion owing to the WCC in the previous year was not recovered by the aquifer recharge over a year, and the storage value at the end of the WCC period for 2013 and 2014 decreased to −18.1 cm-m2/m2, which was lower than the lowest point during the previous year. A comparison of the two lowest points verified quantitatively that it is difficult to completely recover the aquifer depletion owing to recharge from a river or precipitation, and the degree of depletion can therefore worsen every year. We estimate that if this pattern continues, the depletion of the demonstration site could continue for a long time in an irreversible direction.
When the results of July 2012, July 2013, and July 2014 were compared, the groundwater shortage across the aquifer worsened by 2.5 cm per year. This value can be used as an indicator that conceptually represents groundwater depletion, rather than a factor that indicates the actual depth of groundwater decline. This is because the actual groundwater depletion occurs within several tens of centimeters around the pumping well, and almost no groundwater decline occurs in a place where the pumping well is far and where the river is nearby.

4.3. Application of Artificial Recharge Scenario

To predict the groundwater level recovery and water budget change caused by artificial recharge, an artificial recharge scenario was established. This scenario was applied to the model. In this scenario, artificial recharge was performed for the period of 2013–2014, which corresponds to the second WCC period in the study period. The artificial recharge started in December 2013 when groundwater pumping was most active and the temperature was low. Each pumping well performed pumping every day for 16 h and 30 min (which corresponds to 0.68 days on average). Groundwater re-injection was simulated for 7 h and 30 min (which corresponds to 0.32 days), which is the remaining time in each day if the pumping time is excluded. In addition, artificial recharge was performed for 24 h when pumping was not performed owing to high temperatures.
Figure 8 shows the results in the form of a groundwater level distribution map for February 2014, 100 days after the onset of the WCC in November 2013. Figure 5a shows the groundwater level distribution map representing the spatial distribution of groundwater when WCC was performed using the existing model, while Figure 5b shows the result of artificial recharge. These results are represented on the plane of the model based on the same data. A distinct recovery of groundwater level can be observed in the north of the cultivation area that corresponds to the downstream section of the river. Specifically, in the cultivation area to the northeast, the water level decreased farther from the river and closer to the mountainous area. Given that a large water level recovery occurred in this area compared with the existing (precise) model outcome, the application of a scenario for WCC water reinjection of 10% can be expected to achieve a maximum water level recovery of 0.8 m. The water level not only recovered at the groundwater injection point, but the largest degree of water level recovery was achieved in the background when the groundwater level decreased considerably owing to the WCC.
The effect of groundwater recharge by the recovery of water level yields different values depending on the observation location. Hence, in order to determine the overall effect of the aquifer changing over time, we performed a water budget analysis. Figure 9 shows a graph plotted using the results of the model that introduced the 20% of artificial recharge scenario for the water budget analysis of groundwater aquifers. A 20% artificial recharge scenario means that freshwater was injected into the aquifer by all wells with an amount equivalent to 20% of the total groundwater withdrawn during WCC. The graph that shows the slope change between the scenarios when the artificial recharge started in December 2013 previously described that groundwater pumping was most active and the temperature was low. The black solid line indicates the cumulative groundwater inflow and the dots indicate the cumulative groundwater outflow from the aquifer as a result of the WCC in the existing model (Figure 7). The solid red line and dots indicate the cumulative water budget inflow and outflow amounts that changed when 20% of the freshwater was injected for artificial recharge. When the artificial recharge technique was applied, the amount of cumulative inflow became larger than the existing WCC result, as shown in the red solid line compared to the black solid line in the figure. The change in the slope of the solid line indicates the rapid recovery of groundwater storage in the aquifer, while the dotted line indicates relatively little change in outflow from the aquifer. This means that the groundwater lost from the aquifer during this period was reduced owing to artificial recharge.
In previous study, Chang and Chung [24] explained the aquifer changed according to various AR scenarios using the volumetric water balance [L3], and this study modified the values into the reduced dimensions using cm-cm2/m2 shown in the Figure 10.
Scenarios that accounted for increasing artificial recharges owing to groundwater reinjection (20%, 40%, and 60%) were applied to the model. The goal of the AR scenarios was to maintain the sustainable development of WCC. The 2012–2013 were simulated without AR scenario to be compared the AR application for 2014. As the result, it was found that a 20% artificial recharge of the aquifer is a condition that allows the same level of the lowest decline of previous year, 2013. Meantime, the 40% injection AR scenario showed the similar level of water budget at the end of simulation time that July 2014 shows. Therefore, sustainability solutions can be different depending on whether the groundwater level indicator or the water balance indicator is selected.

5. Summary and Conclusions

According to the United Nations Food and Agriculture Organization, water, energy, and food security are closely correlated. WCC can be a slightly different concept from the water–energy–food nexus, given that water is used directly as an energy source. However, WCC is closely related to water, energy, and food security in South Korea. It uses groundwater as a seemingly infinite energy resource depending on the induced river recharge. However, we found that it causes groundwater depletion of aquifers in a very subtle way. Thus, WCC has a negative aspect (groundwater depletion), and guidelines for appropriate groundwater usage are needed, instead of allowing unrestricted groundwater development. This is because there are many cultivation areas that face difficulties owing to the lack of groundwater.
This study introduced a quantitative analytical method and attempted to present water management directions by establishing a precise water budget analysis method for the WCC demonstration area in Cheongwon-gun, wherein long-term groundwater depletion was expected owing to seasonal groundwater use.
The aquifer disturbance and recovery attributed to the WCC facilities were analyzed precisely for different periods based on the introduction of a method for daily inflow/outflow and cumulative water budget analysis. In addition, a precise investigation was conducted to examine the role of rivers in the aquifer and the model boundary conditions. Furthermore, this study suggested a quantitative method to determine the possibility of sustainable development of an aquifer at the demonstration site from a long-term perspective, and verified the precise water budget analysis method using actual measurements and simulation research for the WCC period of two years. In addition, the appropriate injection range that can prevent long-term aquifer depletion by artificial recharge was explored based on a scenario that re-injected 10% of WCC water with the use of the precise water budget analysis method. The results proved that the degree of aquifer disturbance decreased as the injection amount owing to the artificial recharge increased. However, a 20% injection could maintain the aquifer environment of the previous year’s level in the current situation of the demonstration site. Bredehoeft [25] considered that when the system enters a new steady state, sustainable development is maintained. At this study site, a groundwater level declines of 2.5 cm in the total area occurred every year. In fact, intense local groundwater depletion occurred at the center of the study site. If the regulation of some areas was enforced with an appropriate optimization method, instead of 20% artificial recharge of the total usage, sustainable development of the total area could be possible if the development amount was reduced to values less than 20% of the usage. Based on these arguments, a follow-up study is required. Furthermore, given that groundwater recharge by river water is a major recharge method for groundwater, a follow-up study that simulates the effect of the river water temperature on aquifers during the winter season should be conducted.

Author Contributions

Conceptualization: S.W.C. and I.-M.C.; methodology: S.W.C.; validation: S.W.C. and I.-M.C.; formal analysis: S.W.C.; investigation: S.W.C.; resources: I.-M.C.; data curation: S.W.C.; writing—original draft preparation: S.W.C.; writing—review and editing: I.-M.C.; project administration: I.-M.C.; funding acquisition: I.-M.C. All authors have read and agreed to the published version of the manuscript.


This research was supported by the Development program of Minimizing of Climate Change Impact Technology through the National Research Foundation of Korea (NRF), funded by the Korean government. (Ministry of Science and ICT (MSIT)). (No. NRF-2020M3H5A1080735).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Siebert, S.; Burke, J.; Faures, J.M.; Frenken, K.; Hoogeveen, J.; Döll, P.; Portmann, F.T. Groundwater use for irrigation—A global inventory. Hydrol. Earth Syst. Sci. 2010, 14, 1863–1880. [Google Scholar] [CrossRef] [Green Version]
  2. Wada, Y.; Van Beek, L.P.H.; Van Kempen, C.M.; Reckman, J.W.T.M.; Vasak, S.; Bierkens, M.F.P. Global depletion of groundwater resources. Geophys. Res. Lett. 2010, 37, 37. [Google Scholar] [CrossRef] [Green Version]
  3. Winter, T.C.; Harvey, J.W.; Franke, O.L.; Alley, W.M. Ground Water and Surface Water: A single Resource; United States Geological Survey: Reston, VA, USA, 1998.
  4. Barlow, P.M.; Leake, S.A. Streamflow Depletion by Wells—Understanding and Managing the Effects of Groundwater Pumping on Streamflow; U.S. Geological Survey: Reston, VA, USA, 2012; p. 84.
  5. Kollet, S.J.; Zlotnik, V.A. Stream depletion predictions using pumping test data from a heterogeneous stream–aquifer system (a case study from the Great Plains, USA). J. Hydrol. 2003, 281, 96–114. [Google Scholar] [CrossRef]
  6. Nyholm, T.; Christensen, S.; Rasmussen, K.R. Flow Depletion in a Small Stream Caused by Ground Water Abstraction from Wells. Ground Water 2002, 40, 425–437. [Google Scholar] [CrossRef] [PubMed]
  7. Thomas, B.F.; Behrangi, A.; Famiglietti, J.S. Precipitation Intensity Effects on Groundwater Recharge in the Southwestern United States. Water 2016, 8, 90. [Google Scholar] [CrossRef] [Green Version]
  8. Pavelic, P.; Patankar, U.; Acharya, S.; Jella, K.; Gumma, M.K. Role of groundwater in buffering irrigation production against climate variability at the basin scale in South-West India. Agric. Water Manag. 2012, 103, 78–87. [Google Scholar] [CrossRef]
  9. Shamsudduha, M.; Chandler, R.E.; Taylor, R.G.; Ahmed, K.M. Recent trends in groundwater levels in a highly seasonal hydrological system: The Ganges-Brahmaputra-Meghna Delta. Hydrol. Earth Syst. Sci. 2009, 13, 2373–2385. [Google Scholar] [CrossRef] [Green Version]
  10. Perrin, J.; Ferrant, S.; Massuel, S.; Dewandel, B.; Maréchal, J.; Aulong, S.; Ahmed, S. Assessing water availability in a semi-arid watershed of southern India using a semi-distributed model. J. Hydrol. 2012, 460–461, 143–155. [Google Scholar] [CrossRef]
  11. Ferrant, S.; Caballero, Y.; Perrin, J.; Gascoin, S.; Dewandel, B.; Aulong, S.; Dazin, F.; Ahmed, S.; Maréchal, J.-C. Projected impacts of climate change on farmers’ extraction of groundwater from crystalline aquifers in South India. Sci. Rep. 2014, 4, 3697. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Ruud, N.; Harter, T.; Naugle, A. Estimation of groundwater pumping as closure to the water balance of a semi-arid, irrigated agricultural basin. J. Hydrol. 2004, 297, 51–73. [Google Scholar] [CrossRef]
  13. MOLIT. 2015 Groundwater Annual Report; 11-1611000-000155-10; MOLIT: Daejeon, Korea, 2015. [Google Scholar]
  14. Lee, J.-Y.; Kwon, K.D. Current Status of Groundwater Monitoring Networks in Korea. Water 2016, 8, 168. [Google Scholar] [CrossRef] [Green Version]
  15. KIGAM. Groundwater Restoration Technology for Riverside Area; Report on the Advanced Technology for Groundwater Development and Application in Riversides (Geowater+) in Water Resources Management Program; 11-1613000-001827-01; KIGAM: Daejeon, Korea, 2017; p. 549. [Google Scholar]
  16. Chang, S.; Chung, I.-M. Analysis of Groundwater Variations using the Relationship between Groundwater use and Daily Minimum Temperature in a Water Curtain Cultivation Site. J. Eng. Geol. 2014, 24, 217–225. [Google Scholar] [CrossRef] [Green Version]
  17. Chung, I.-M.; Kim, N.-W.; Lee, J.; Sophocleous, M. Assessing distributed groundwater recharge rate using integrated surface water-groundwater modelling: Application to Mihocheon watershed, South Korea. Hydrogeol. J. 2010, 18, 1253–1264. [Google Scholar] [CrossRef]
  18. Kim, N.W.; Chung, I.M.; Won, Y.S.; Arnold, J.G. Development and application of the integrated SWAT–MODFLOW model. J. Hydrol. 2008, 356, 1–16. [Google Scholar] [CrossRef]
  19. Chung, I.-M.; Lee, J.; Kim, N.W.; Na, H.; Chang, S.W.; Kim, Y.; Kim, G.-B. Estimating exploitable amount of groundwater abstraction using an integrated surface water-groundwater model: Mihocheon watershed, South Korea. Hydrol. Sci. J. 2014, 60, 863–872. [Google Scholar] [CrossRef]
  20. Harbaugh, A.; Banta, E.; Hill, M.; McDonald, M. MODFLOW-2000, the U.S. Geological Survey Modular Ground-Water Model User Guide to Modularization Concepts and the Ground-Water Flow Process; United States Geological Survey: Reston, VA, USA, 2000; Volume Open-File Rep 00-92.
  21. Arnold, J.G.; Williams, J.R.; Srinivasan, R.; King, K.W. The Soil and Water Assessment Tool (SWAT) User’s Manual; Texas Water Resources Institue: College Station, TX, USA; Temple, TX, USA, 1996. [Google Scholar]
  22. Chang, S.W.; Chung, I.-M. Analysis of Groudwater Budget in a Water Curtain Cultivation Site. J. Korean Soc. Civ. Eng. 2015, 35, 1259–1267. [Google Scholar] [CrossRef]
  23. Moon, S.-H.; Ha, K.; Kim, Y.; Yoon, P. Analysis of Groundwater Use and Discharge in Water Curtain Cultivation Areas: Case Study of the Cheongweon and Chungju Areas. J. Eng. Geol. 2012, 22, 387–398. [Google Scholar] [CrossRef]
  24. Chang, S.; Chung, I.-M. Long-term groundwater budget analysis based on integrated hydrological model for water curtain cultivation site: Case study of Cheongweon, Korea. J. Geol. Soc. Korea 2016, 52, 201–210. [Google Scholar] [CrossRef]
  25. Bredehoeft, J.D. The Water Budget Myth Revisited: Why Hydrogeologists Model. Ground Water 2002, 40, 340–345. [Google Scholar] [CrossRef] [PubMed]

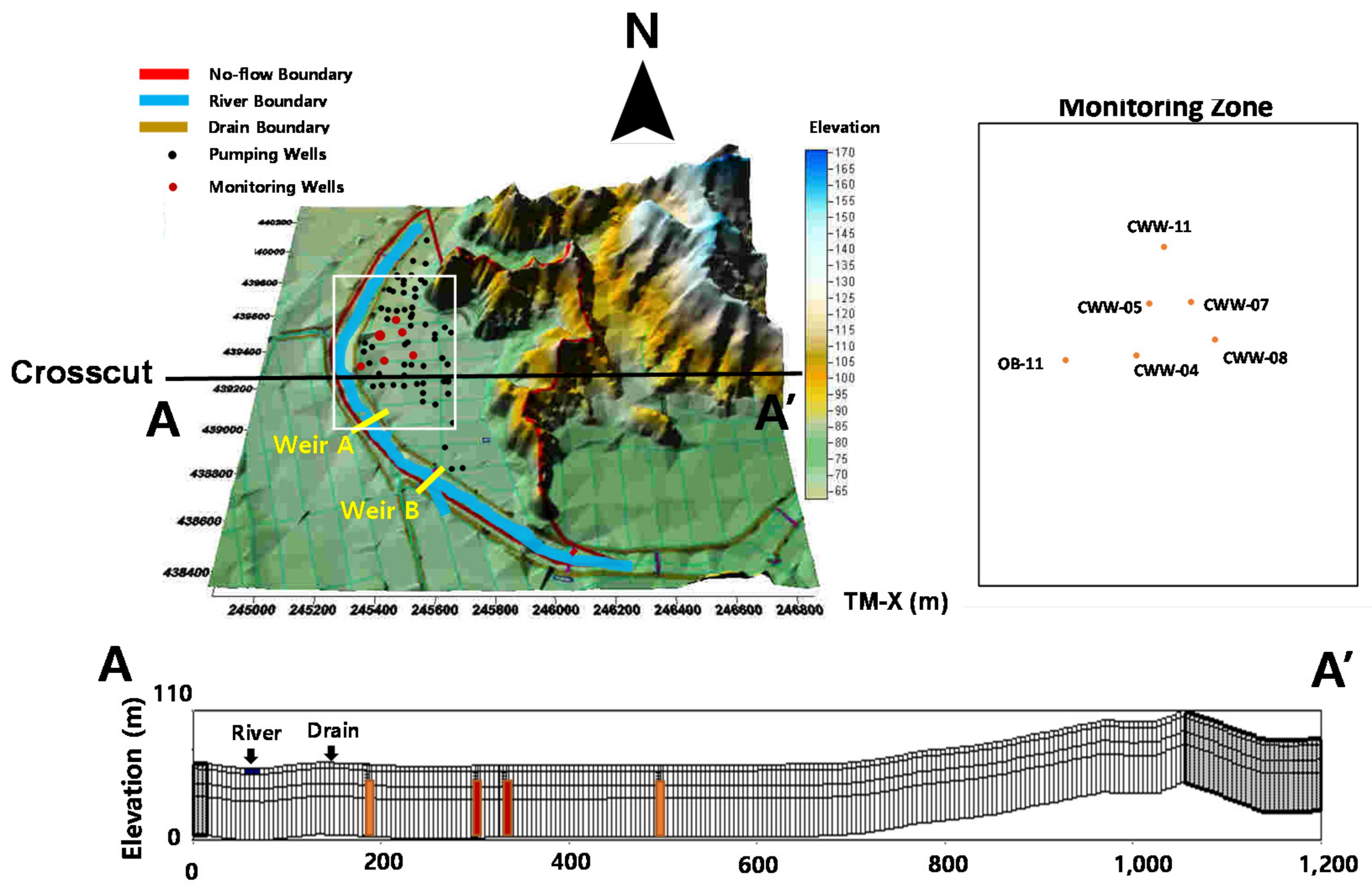

Figure 1. Model boundary, weirs, and wells within the studied area (modified from Chang and Chung [22]).
Figure 1. Model boundary, weirs, and wells within the studied area (modified from Chang and Chung [22]).
Hydrology 08 00060 g001

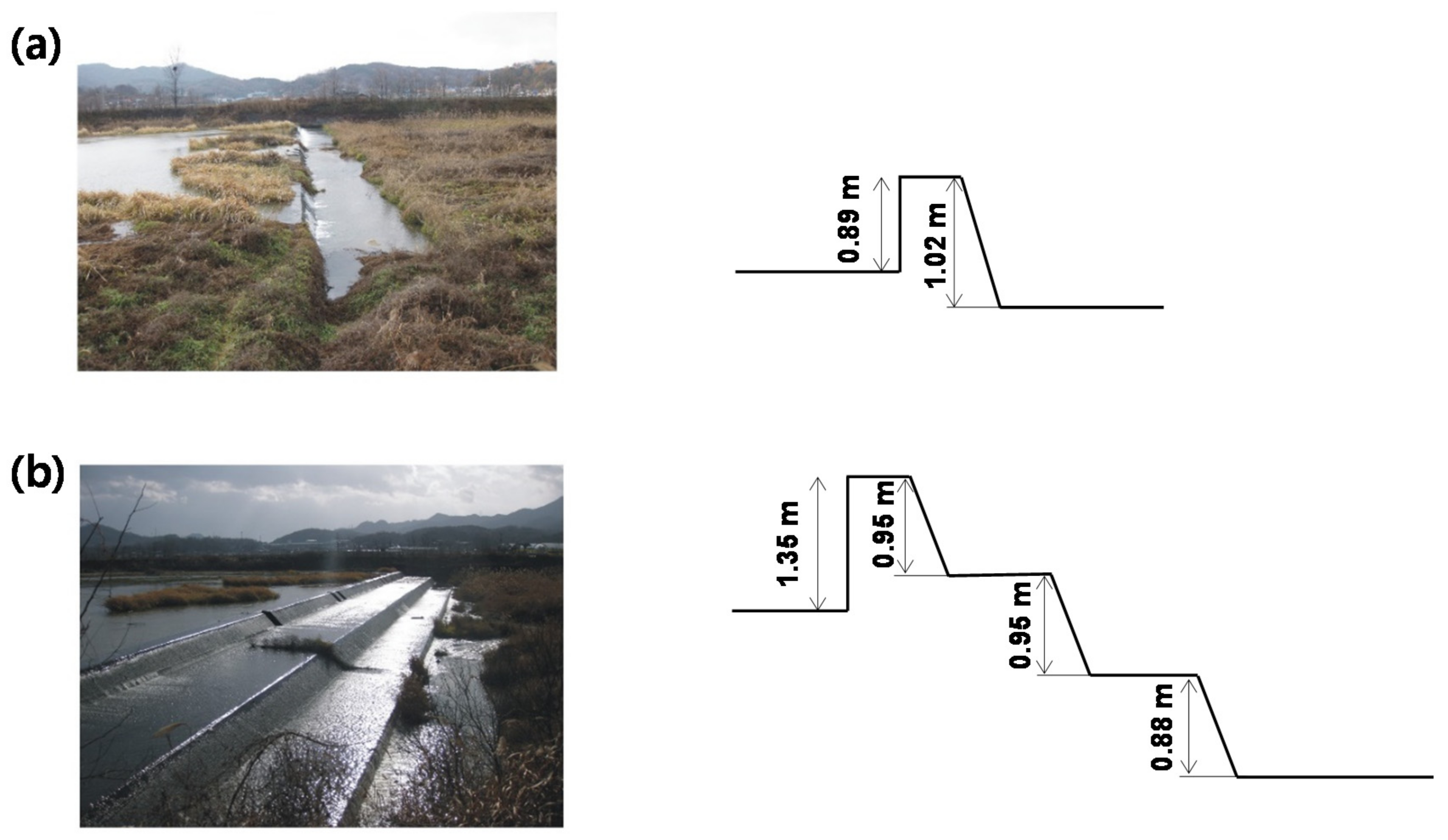

Figure 2. Photographs of weirs (a) and (b) and their conceptual crosscut schematics.
Figure 2. Photographs of weirs (a) and (b) and their conceptual crosscut schematics.
Hydrology 08 00060 g002

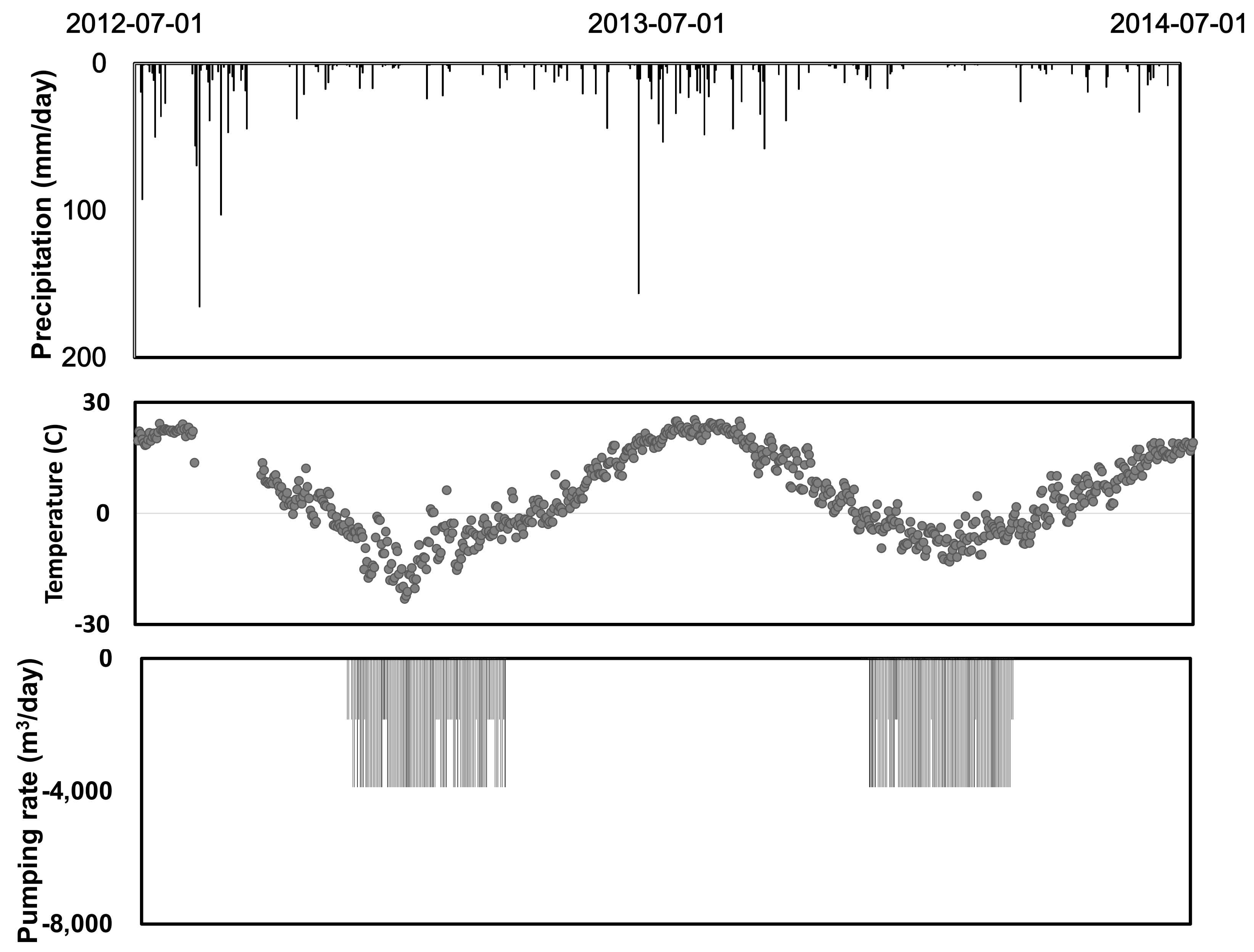

Figure 3. Precipitation, temperature, and the estimated total pumping rate from July 2012 to July 2014.
Figure 3. Precipitation, temperature, and the estimated total pumping rate from July 2012 to July 2014.
Hydrology 08 00060 g003

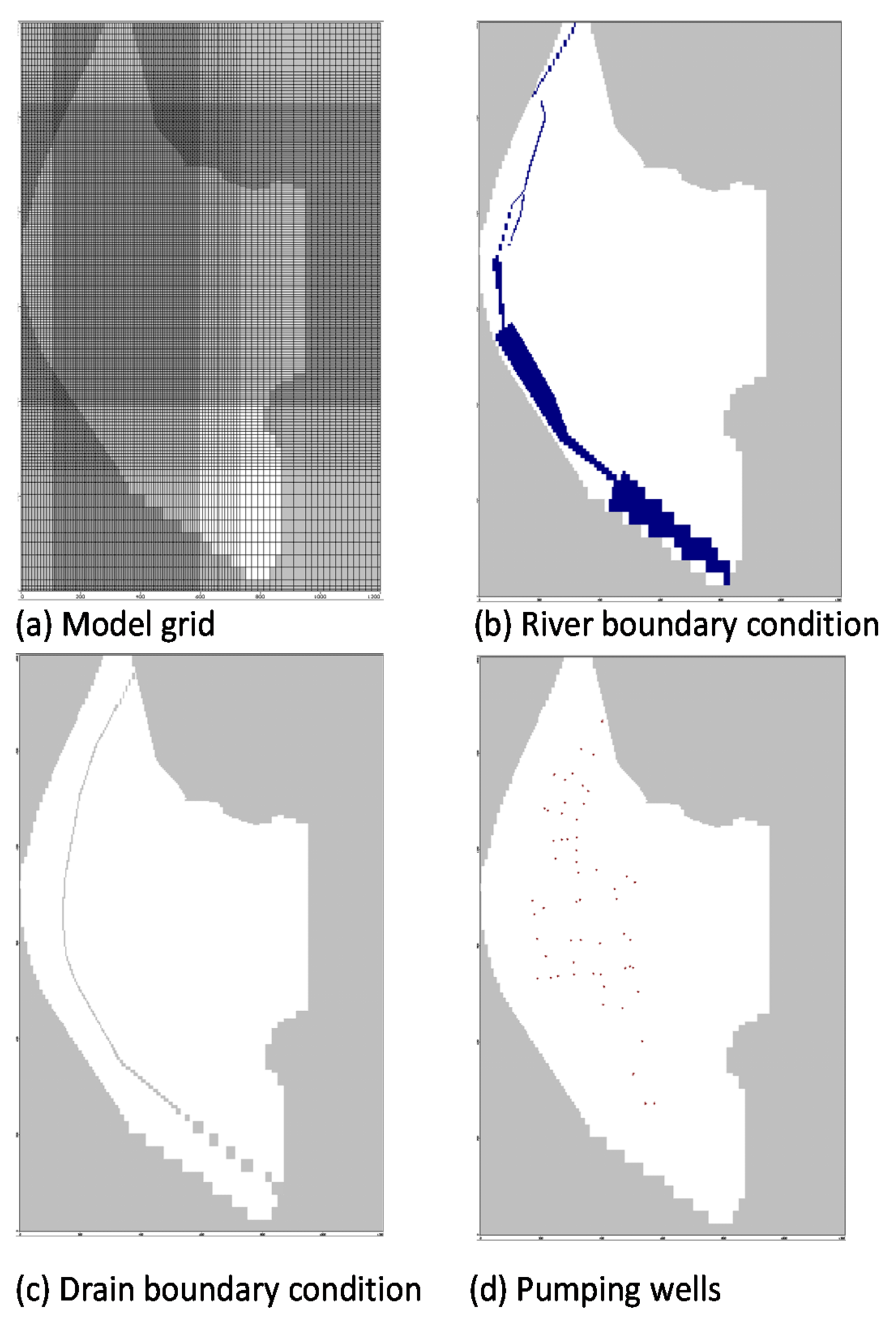

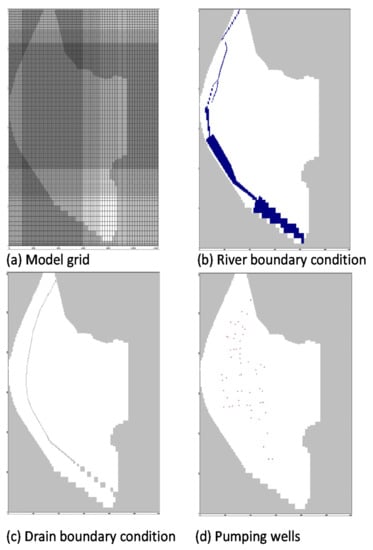

Figure 4. Model grids and the boundary conditions of the study site.
Figure 4. Model grids and the boundary conditions of the study site.
Hydrology 08 00060 g004

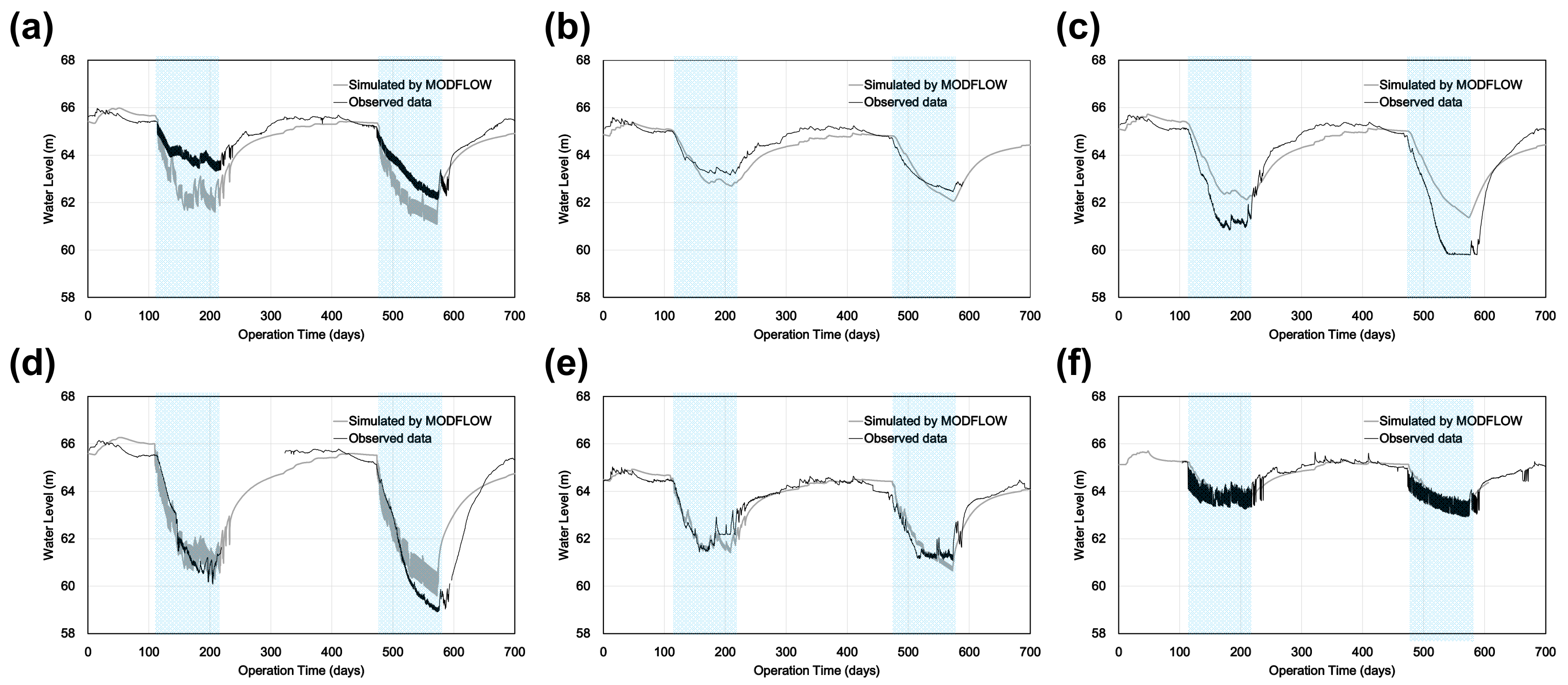

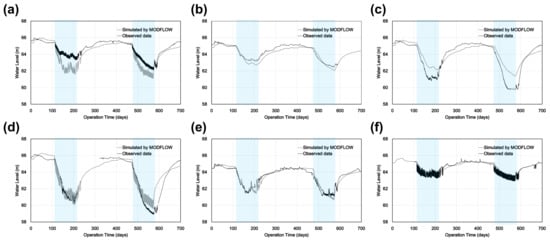

Figure 5. Comparisons between observation and simulated results by MODFLOW for a two-year seasonal groundwater exploitation owing to water curtain cultivation (WCC) for monitoring wells of (a) CWW-04, (b) CWW-05, (c) CWW-07, (d) CWW-08, (e) CWW-11, and (f) OB-11 (blue boxes represent WCC period).
Figure 5. Comparisons between observation and simulated results by MODFLOW for a two-year seasonal groundwater exploitation owing to water curtain cultivation (WCC) for monitoring wells of (a) CWW-04, (b) CWW-05, (c) CWW-07, (d) CWW-08, (e) CWW-11, and (f) OB-11 (blue boxes represent WCC period).
Hydrology 08 00060 g005

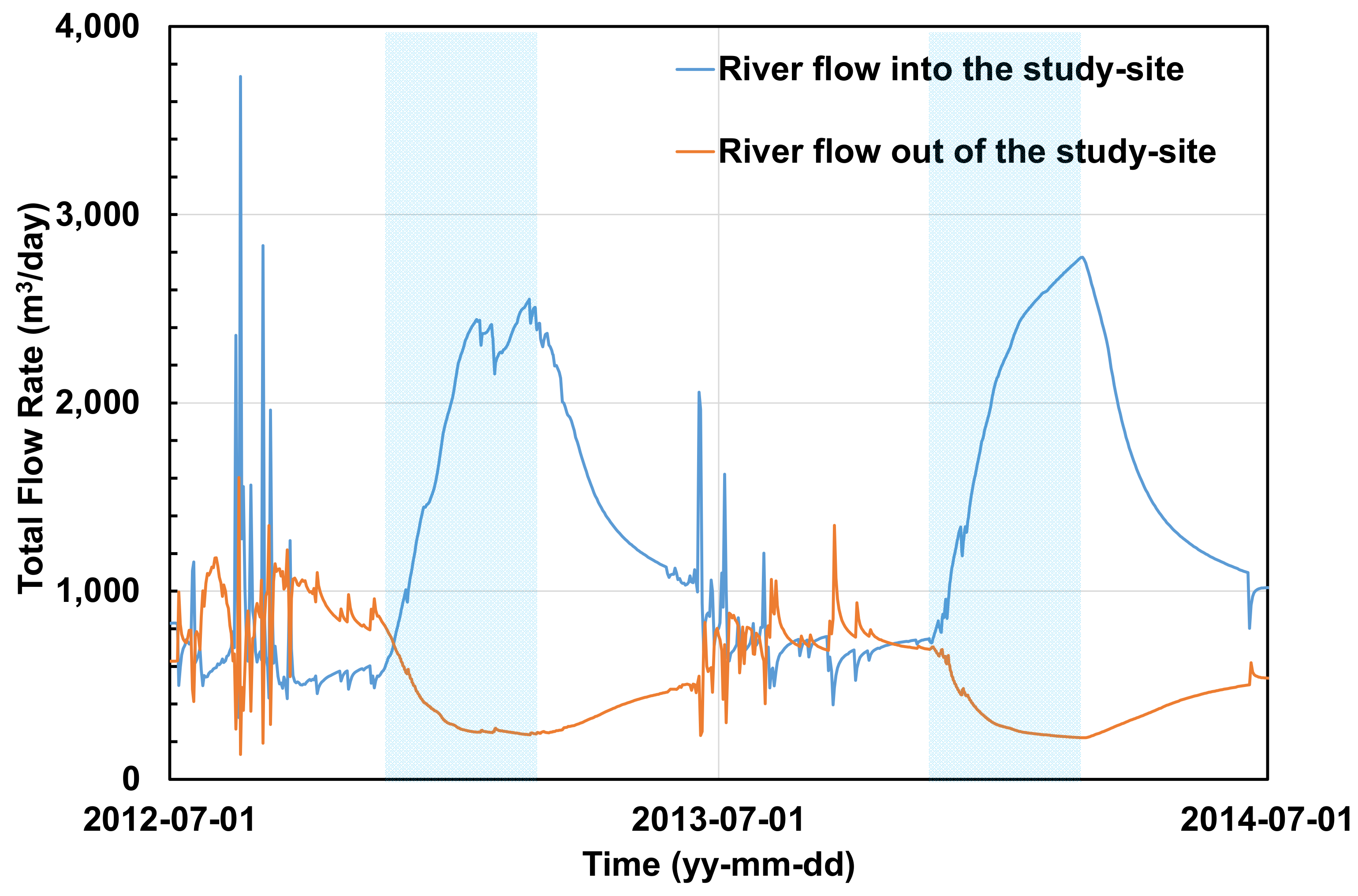

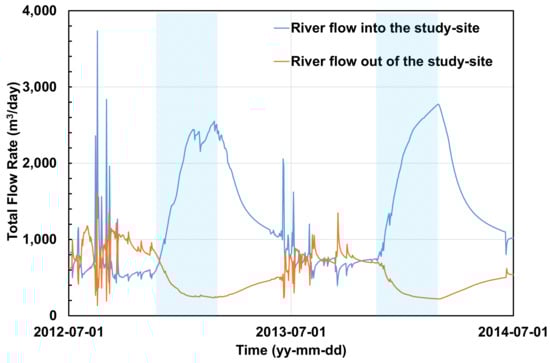

Figure 6. Temporal changes of water budget of the Mushimcheon river owing to the seasonal water use in the study-site (blue shaded boxes represent WCC period).
Figure 6. Temporal changes of water budget of the Mushimcheon river owing to the seasonal water use in the study-site (blue shaded boxes represent WCC period).
Hydrology 08 00060 g006

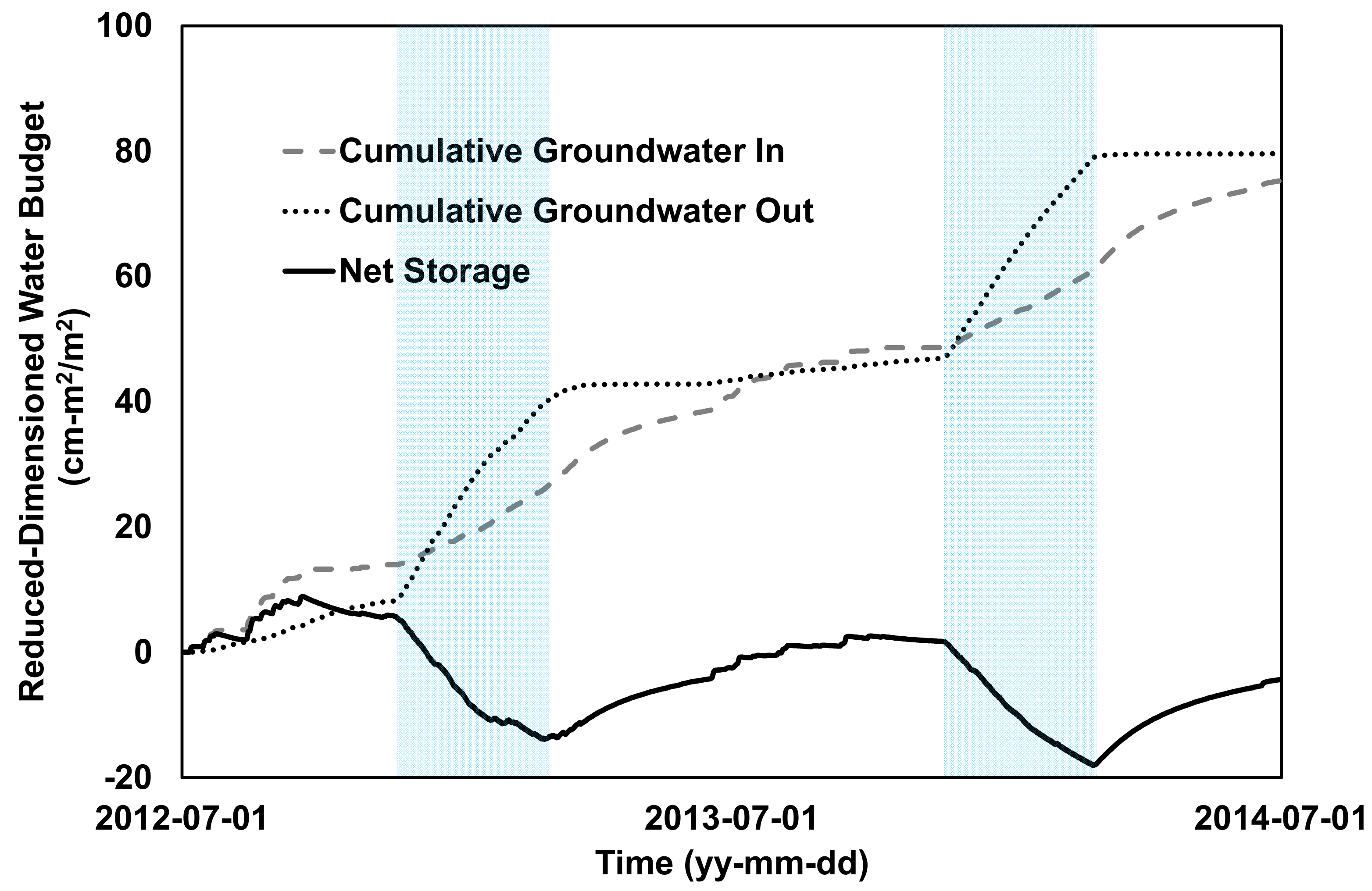

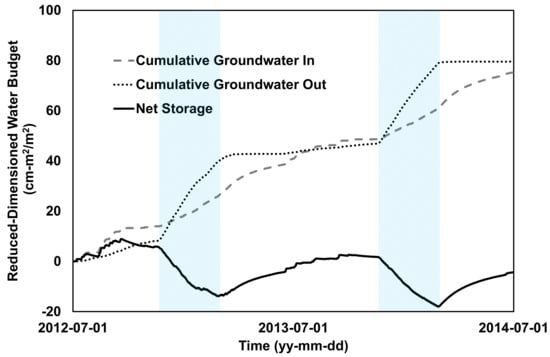

Figure 7. Cumulative water budget plot for aquifer from September 2012 to June 2014 (blue boxes represent WCC period).
Figure 7. Cumulative water budget plot for aquifer from September 2012 to June 2014 (blue boxes represent WCC period).
Hydrology 08 00060 g007

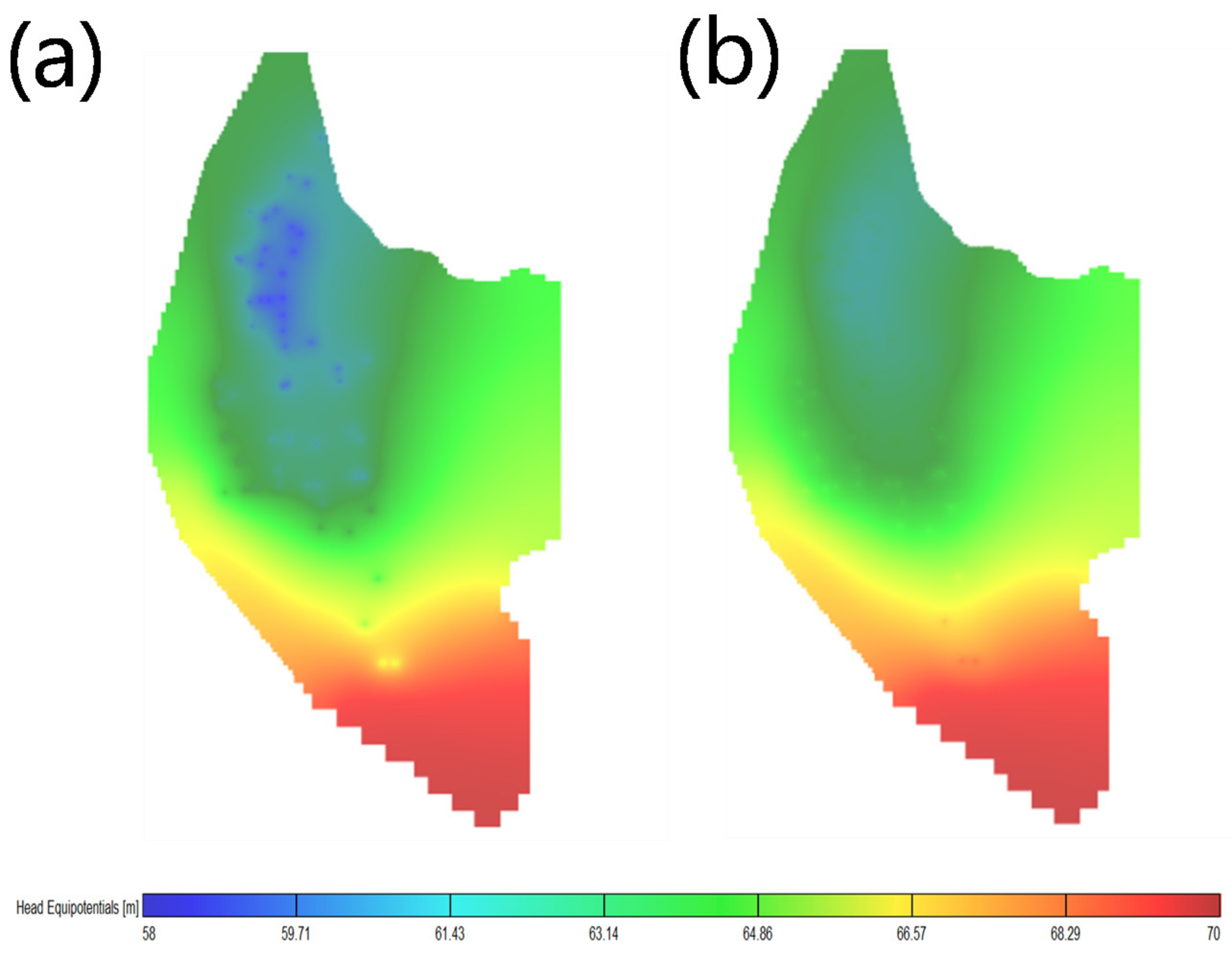

Figure 8. Spatial head distribution owing to (a) WCC and (b) at 100 days after artificial recharge.
Figure 8. Spatial head distribution owing to (a) WCC and (b) at 100 days after artificial recharge.
Hydrology 08 00060 g008

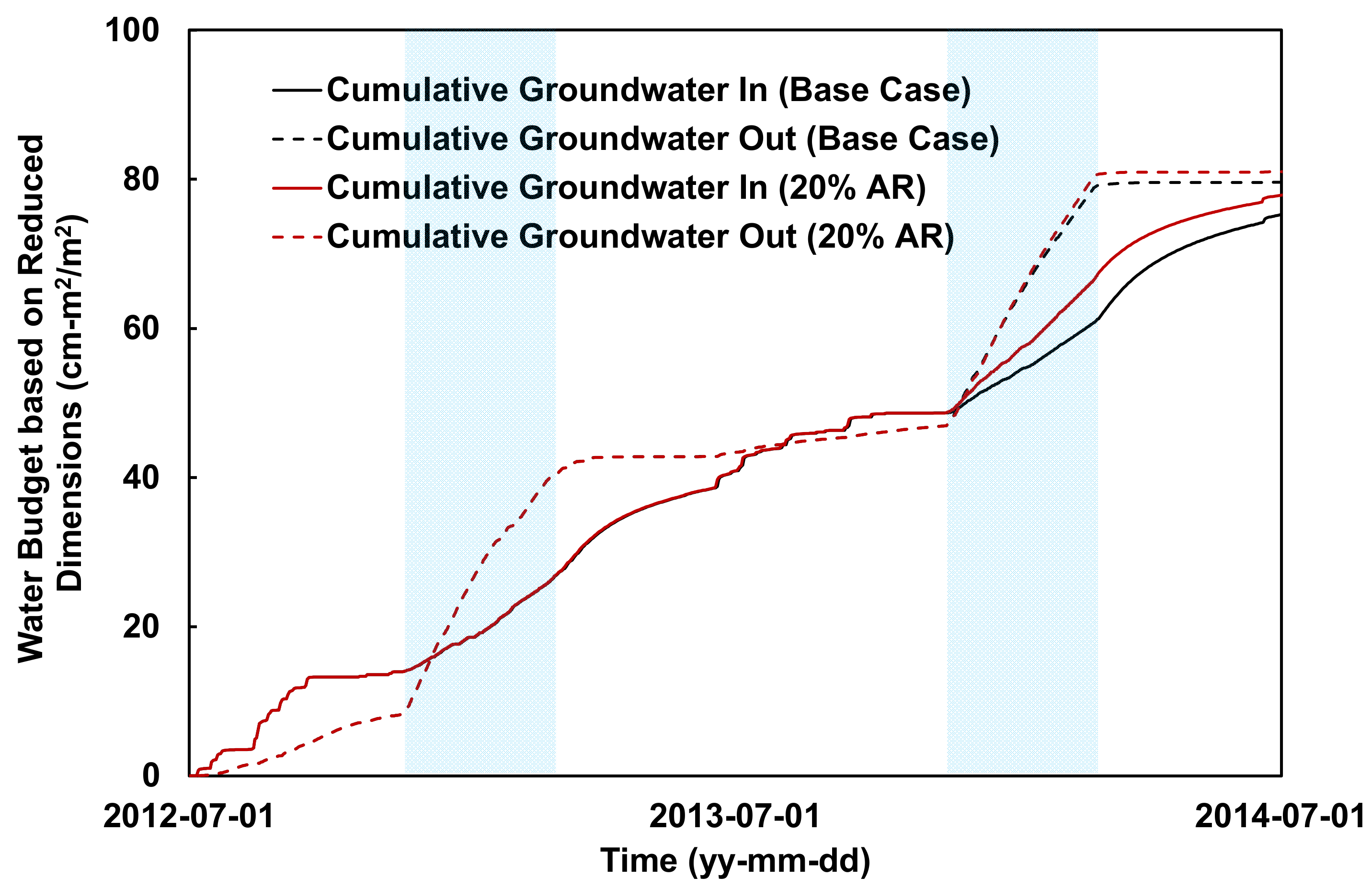

Figure 9. Cumulated water budget of the aquifer storage model from September 2012 to June 2014 (blue boxes represent WCC period).
Figure 9. Cumulated water budget of the aquifer storage model from September 2012 to June 2014 (blue boxes represent WCC period).
Hydrology 08 00060 g009

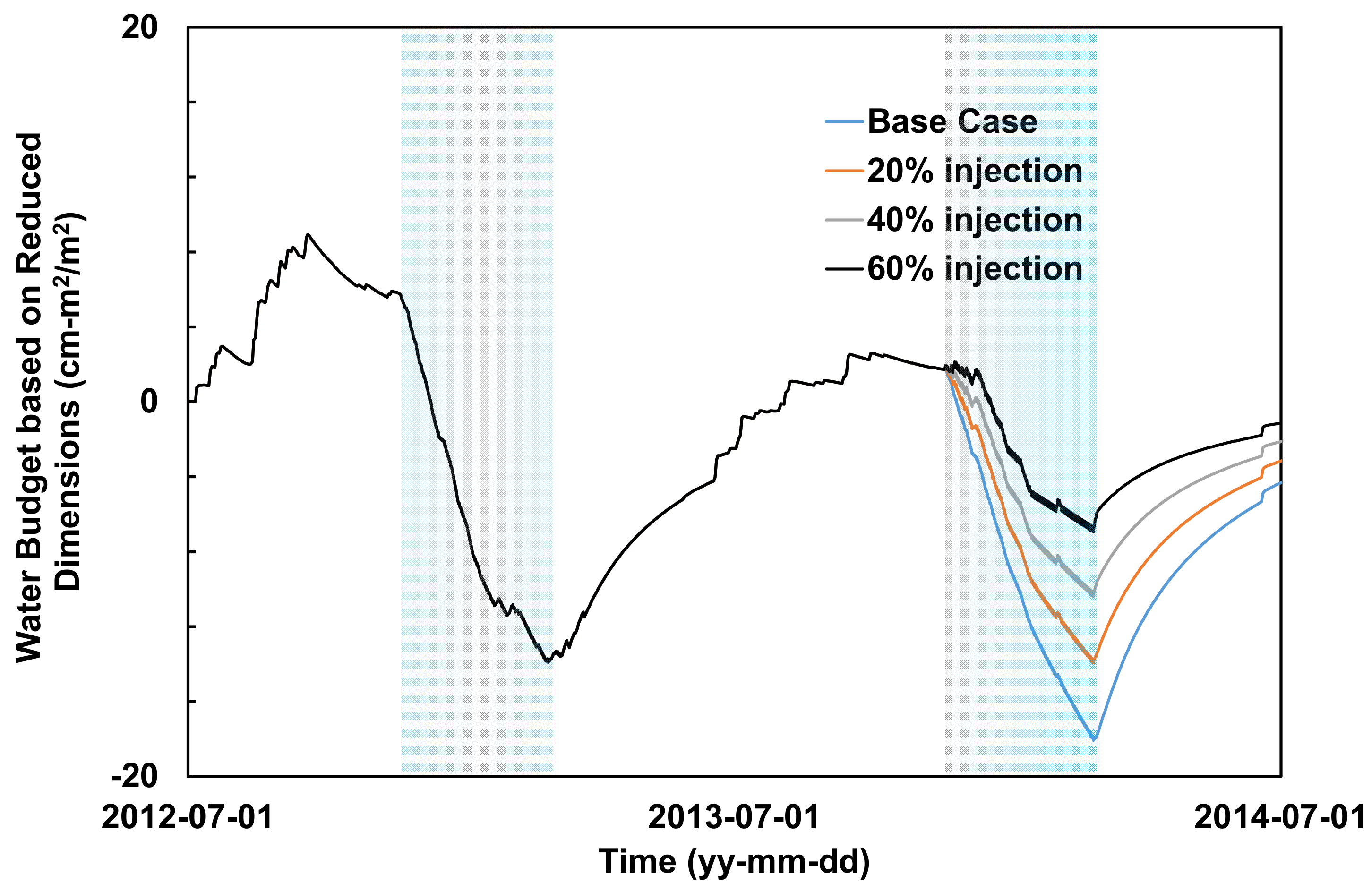

Figure 10. Comparison between the artificial recharge scenarios based on the aquifer storage model (Modified from Chang and Chung [24]) from September 2012 to June 2014 (blue boxes represent WCC period).
Figure 10. Comparison between the artificial recharge scenarios based on the aquifer storage model (Modified from Chang and Chung [24]) from September 2012 to June 2014 (blue boxes represent WCC period).
Hydrology 08 00060 g010
Table 1. MODFLOW input data for layer properties (modified from Chang and Chung [22]).
Table 1. MODFLOW input data for layer properties (modified from Chang and Chung [22]).
ThicknessAquifer TypeHydraulic Conductivity (m/sec)Specific YieldStorage Coefficient
(m)KHKZ(Sy)(Ss, m−1)
Layer 112Unconfined2.7 × 10−5~7.6 × 10−52.7 × 10−5~7.6 × 10−50.09
(Weathered rock)
Layer 220Confined2 × 10−61 × 10−6 1 × 10−5
(Weathered rock)
Layer 350Confined1 × 10−51 × 10−5 1 × 10−4
(Soft rock)
